Infiniti QX56 (Z62). Manual - part 443





DLK-238

< REMOVAL AND INSTALLATION >

HOOD LOCK

HOOD LOCK

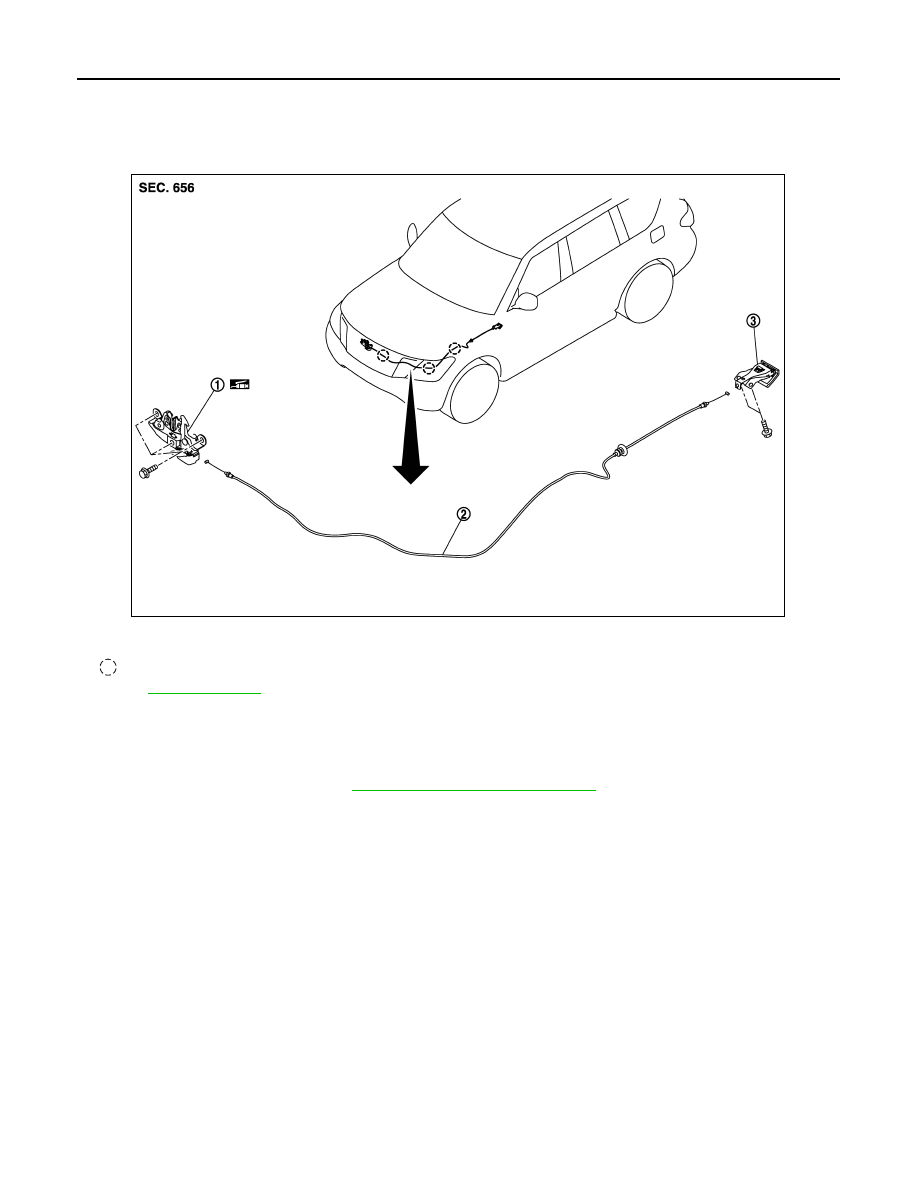

Exploded View

INFOID:0000000006226094

Removal and Installation

INFOID:0000000006226095

REMOVAL

1.

Remove bumper molding. Refer to

EXT-13, "Removal and Installation"

.

2.

Remove mounting bolts, and then remove hood lock assembly.

3.

Disconnect hood lock cable from hood lock assembly.

4.

Remove hood lock cable clip.

5.

Remove mounting bolts, and then remove hood lock opener lever.

6.

Disconnect hood lock cable from hood lock opener lever.

7.

Remove grommet on the lower dash, and pull the hood lock control cable toward the passenger compart-
ment.

CAUTION:

While pulling, never to damage (peeling) the outside of hood lock control cable.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• Never to bend cable too much, keeping the radius 100 mm (3.937 in) or more.

1.

Hood lock assembly

2.

Hood lock control cable

3.

Hood lock opener lever

: Clip

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA5265ZZ

HOOD LOCK

DLK-239

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

• Check that cable is not offset from the positioning grommet,

and apply the sealant to the grommet (at * mark) properly.

• Check that hood lock control cable is properly engaged with hood lock.
• After installation, perform hood fitting adjustment. Refer to

DLK-216, "HOOD ASSEMBLY : Adjust-

ment"

.

• After installation, perform hood lock control inspection. Refer to

DLK-239, "Inspection"

.

Inspection

INFOID:0000000006226096

NOTE:
If the hood lock cable is bent or deformed, replace it.

1.

Check that secondary latch is properly engaged with secondary striker [6.8 mm (0.268 in)] by hood
weight.

2.

While operating hood opener, carefully check that the front end of hood is raised by approximately 20.0
mm (0.787 in). Also check that hood opener returns to the original position.

3.

Check that hood opener operating is condition 49 N (5.0 kg, 11.0 lb) or below.

4.

Install so that static closing face of hood is 680 N·m (69.0 kg–m, 502 ft–lb) or less.
NOTE:
• Exert vertical force on right side and left side of hood lock.
• Never press simultaneously both sides.

5.

Check the hood lock lubrication condition. If necessary, apply body grease to hood lock.

PIIB5801E

DLK-240

< REMOVAL AND INSTALLATION >

FRONT DOOR LOCK

FRONT DOOR LOCK

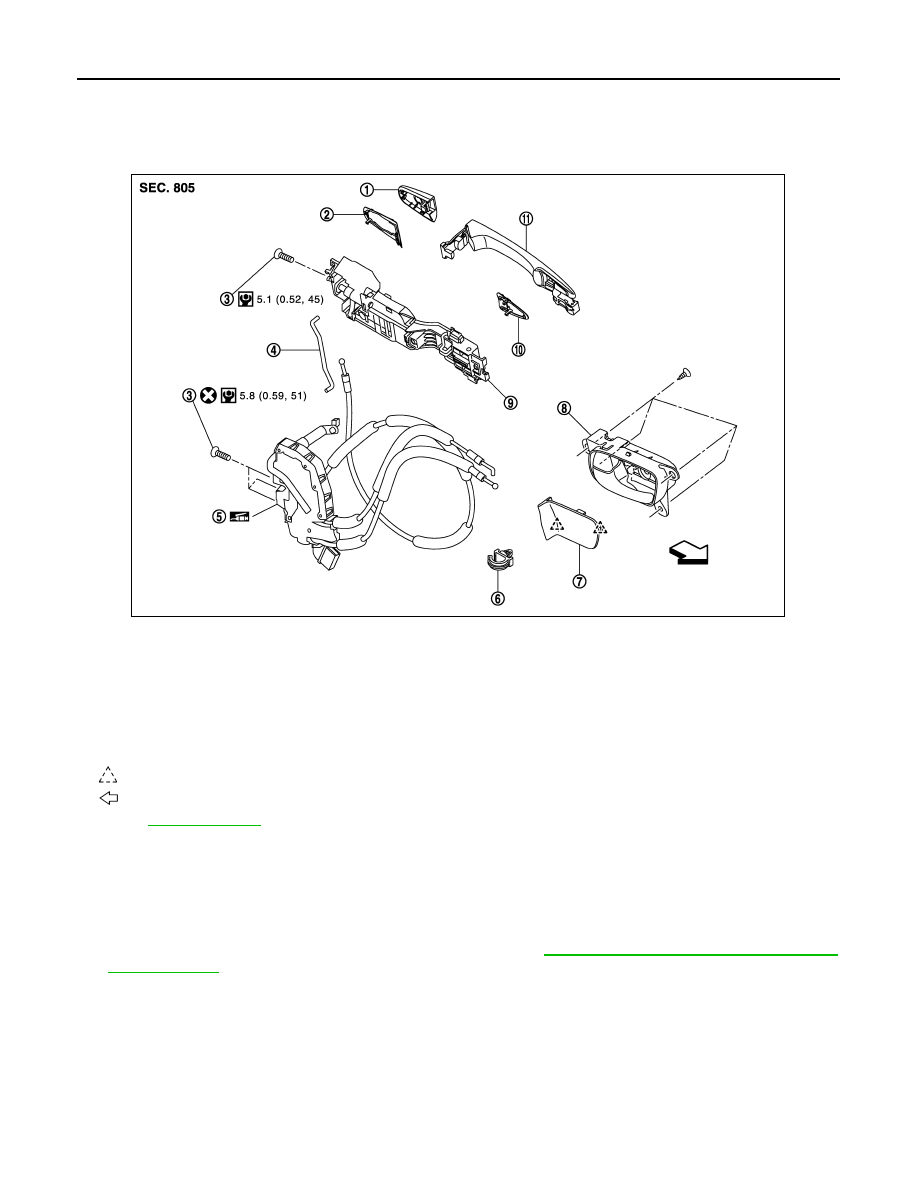

Exploded View

INFOID:0000000006226097

DOOR LOCK

DOOR LOCK : Removal and Installation

INFOID:0000000006226098

REMOVAL

1.

Remove outside handle and outside handle bracket. Refer to

DLK-241, "OUTSIDE HANDLE : Removal

and Installation"

.

2.

Remove door lock assembly TORX bolts.

3.

Disconnect door lock actuator connector, and then remove door lock assembly.

4.

Remove key rod from door lock assembly.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• Check door lock cables are properly engaged with inside handle and outside handle.
• When installing key rod, rotate key rod holder until a click is felt.

1.

Door key cylinder assembly (driver
side)
Outside handle escutcheon (passen-
ger side)

2.

Rear gasket

3.

TORX bolt

4.

Key rod (driver side)

5.

Door lock assembly

6.

Cable clip

7.

Door finisher cap

8.

Inside handle

9.

Outside handle bracket

10. Front gasket

11.

Outside handle

: Pawl

: Vehicle front

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA5266GB

FRONT DOOR LOCK

DLK-241

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

• After installation, check door open/close, lock/unlock operation.

INSIDE HANDLE

INSIDE HANDLE : Removal and Installation

INFOID:0000000006226099

REMOVAL

1.

Remove front door finisher. Refer to

INT-14, "Removal and Installation"

.

2.

Remove inside handle escutcheon. Refer to

INT-13, "Exploded View"

.

3.

Remove inside handle mounting screws, and then remove the inside handle.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• Check door lock cables are properly engaged with inside handle.
• After installation, check door open/close, lock/unlock operation.

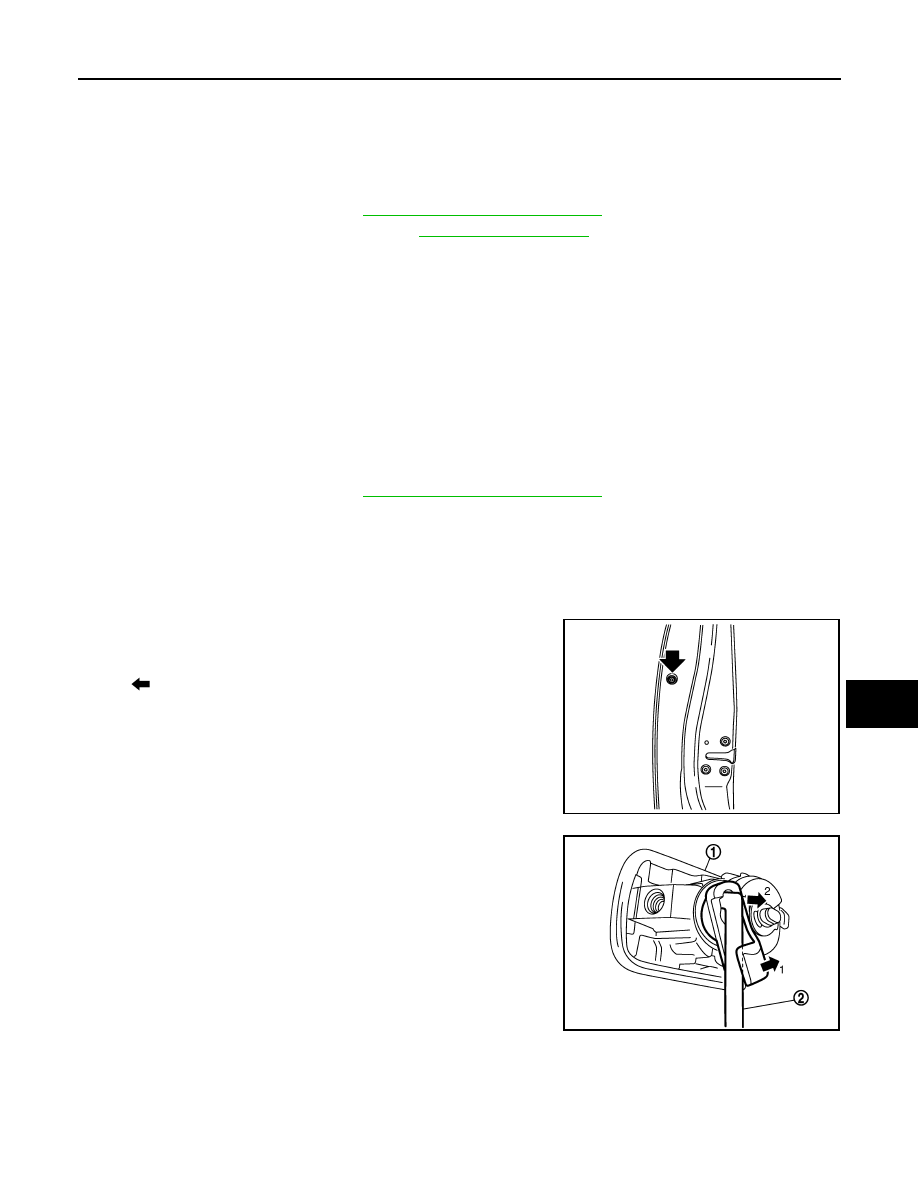

OUTSIDE HANDLE

OUTSIDE HANDLE : Removal and Installation

INFOID:0000000006226100

REMOVAL

1.

Fully close front door glass.

2.

Remove front door finisher. Refer to

INT-14, "Removal and Installation"

.

3.

Remove sealing screen.
NOTE:
Cat the buty-tape so that some parts of the buty-tape do not remain on the sealing screen, if the sealing
screen is reused.

4.

Disconnect door antenna and door request switch connector, and then remove harness clamp (models
with Intelligent Key system) on outside handle bracket.

5.

Remove door side grommet, and loosen TORX bolt from grom-
met hole.

6.

Reach in to separate key rod (2) connection [on the door key
cylinder assembly (1)] (driver side).

: TORX bolt

JMKIA2094ZZ

JMKIA0553ZZ
