Infiniti G37 Coupe. Manual - part 151

AV

PRESET SWITCH

AV-357

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

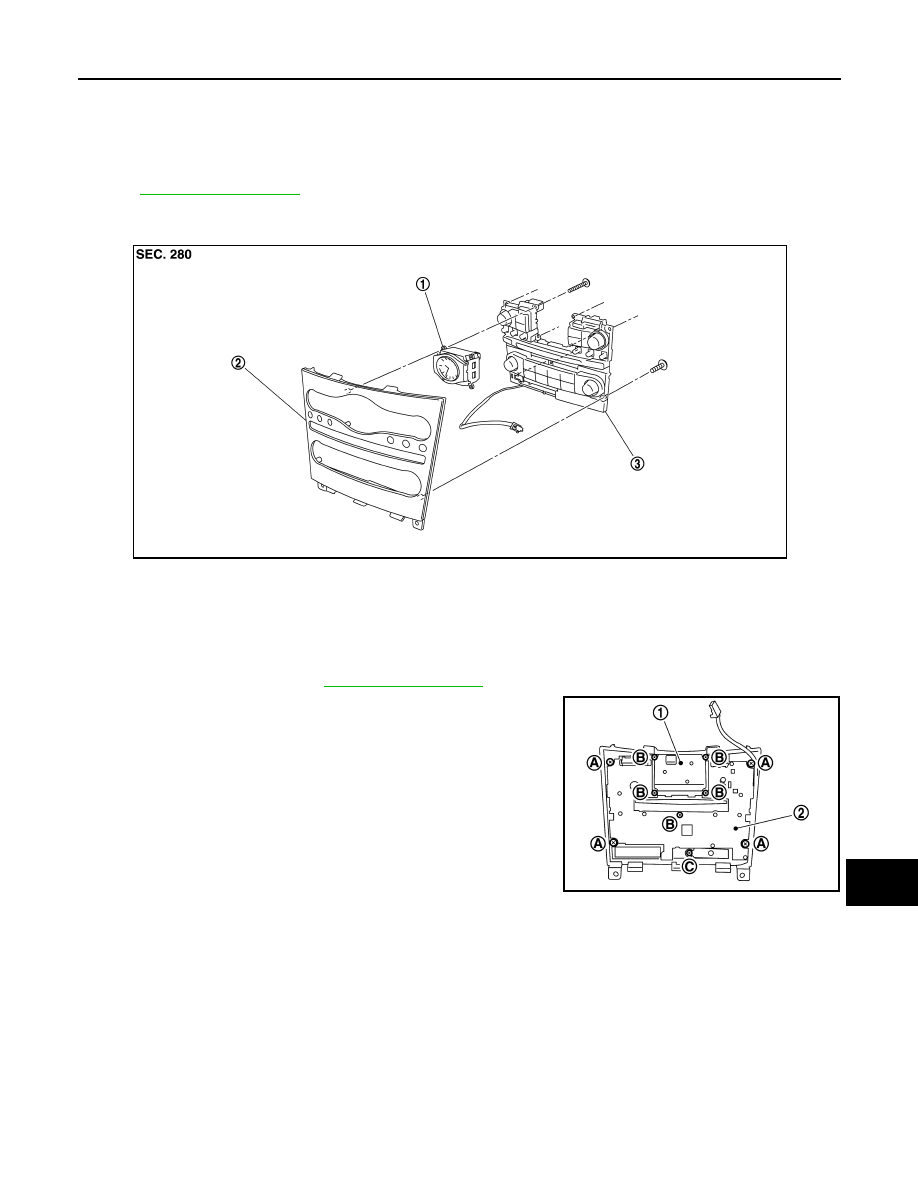

PRESET SWITCH

Exploded View

INFOID:0000000001559361

REMOVAL

Refer to

IP-11, "Exploded View"

.

DISASSEMBLY

Removal and Installation

INFOID:0000000001559362

REMOVAL

1.

Remove cluster lid C. Refer to

IP-11, "Exploded View"

.

2.

Remove preset switch (2) from cluster lid C.

INSTALLATION

Install in the reverse order of removal.
NOTE:
When installing preset switch, do not allow the print wire that connects preset switch and multifunction switch
to get caught in between AV control unit and preset switch.

1.

Clock

2.

Cluster lid C

3.

Preset switch

JPNIA0477ZZ

1.

Clock

A.

Screw

B.

Screw

C.

Screw

JPNIA0478ZZ

AV-358

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITHOUT NAVIGATION]

STEERING SWITCH

STEERING SWITCH

Exploded View

INFOID:0000000001559363

Refer to

ST-15, "Exploded View"

.

Removal and Installation

INFOID:0000000001559364

REMOVAL

Refer to

ST-15, "Removal and Installation"

.

INSTALLATION

Install in the reverse order of removal.

AV

IPOD ADAPTER

AV-359

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

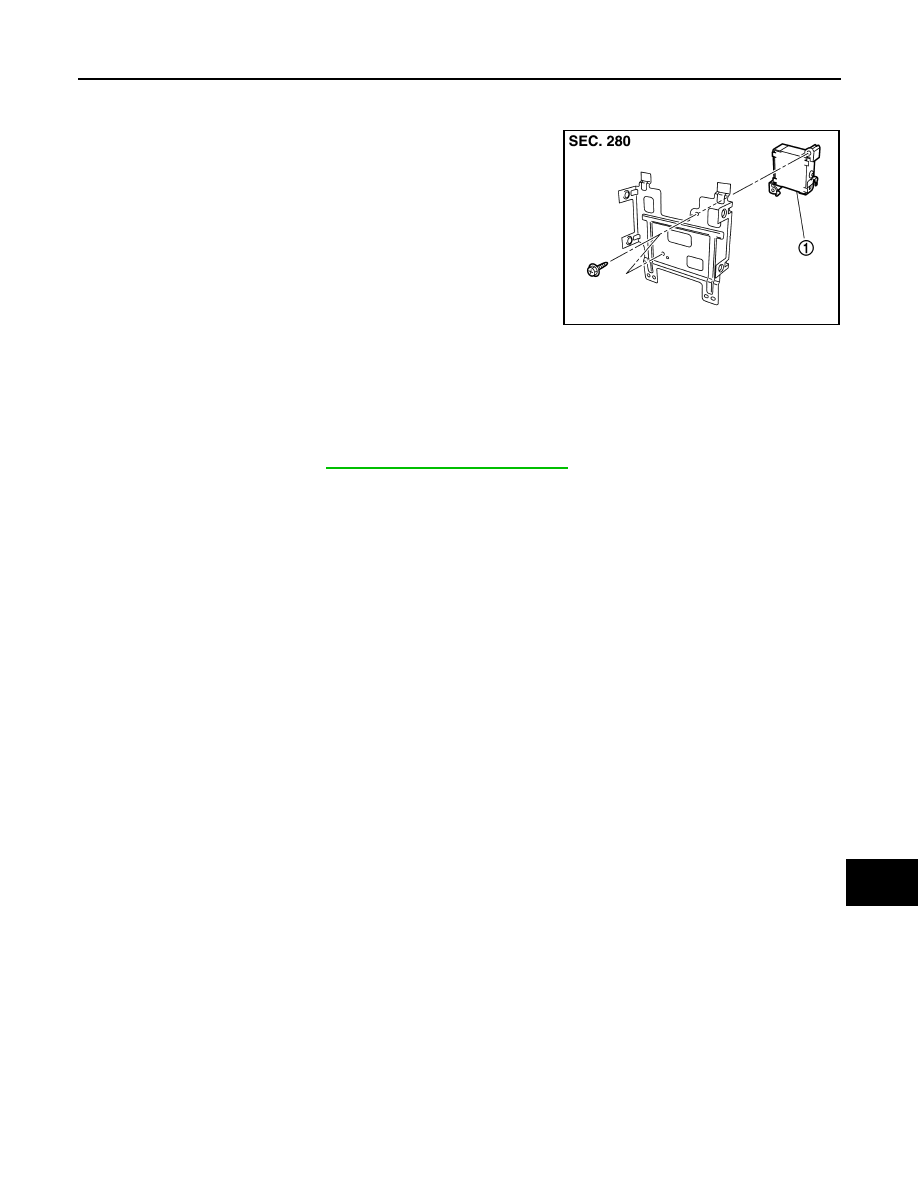

IPOD ADAPTER

Exploded View

INFOID:0000000001678970

Removal and Installation

INFOID:0000000001678971

REMOVAL

1.

Remove display assy. Refer to

AV-344, "Removal and Installation"

.

2.

Remove display from display bracket.

3.

Remove iPod adapter from display bracket.

INSTALLATION

Install in the reverse order of removal.

JPNIA0493ZZ

1.

iPod adapter

AV-360

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITHOUT NAVIGATION]

IPOD CONNECTOR

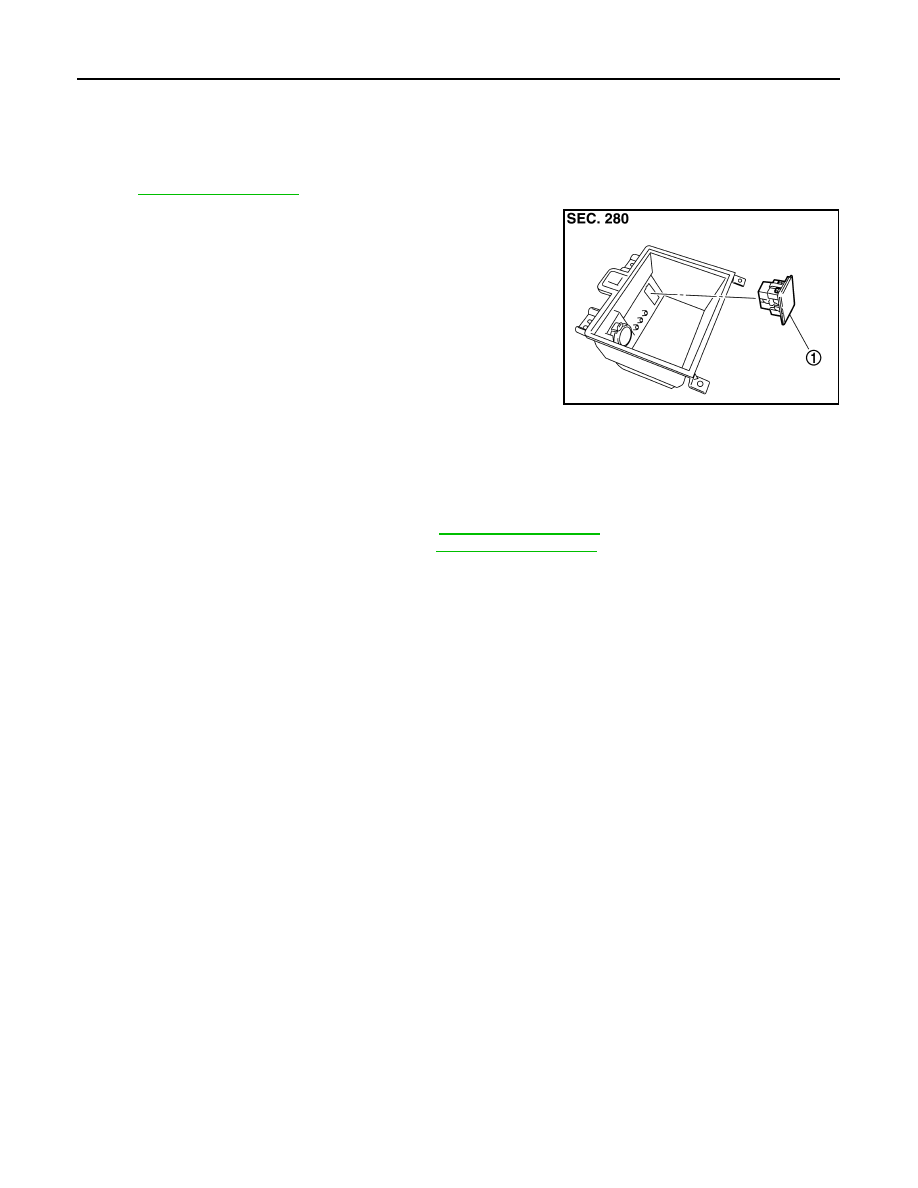

IPOD CONNECTOR

Exploded View

INFOID:0000000001770480

REMOVAL

Refer to

IP-23, "Exploded View"

.

DISASSEMBLY

Removal and Installation

INFOID:0000000001770481

REMOVAL

1.

Remove center console. (M/T models) Refer to

IP-23, "Exploded View"

.

Remove center console. (A/T models) Refer to

IP-23, "Exploded View"

.

2.

Push the pawl from the back of center console to remove iPod connector.

INSTALLATION

Install in the reverse order of removal.

JPNIA0491ZZ

1.

iPod connector
