CENTER SPEAKER

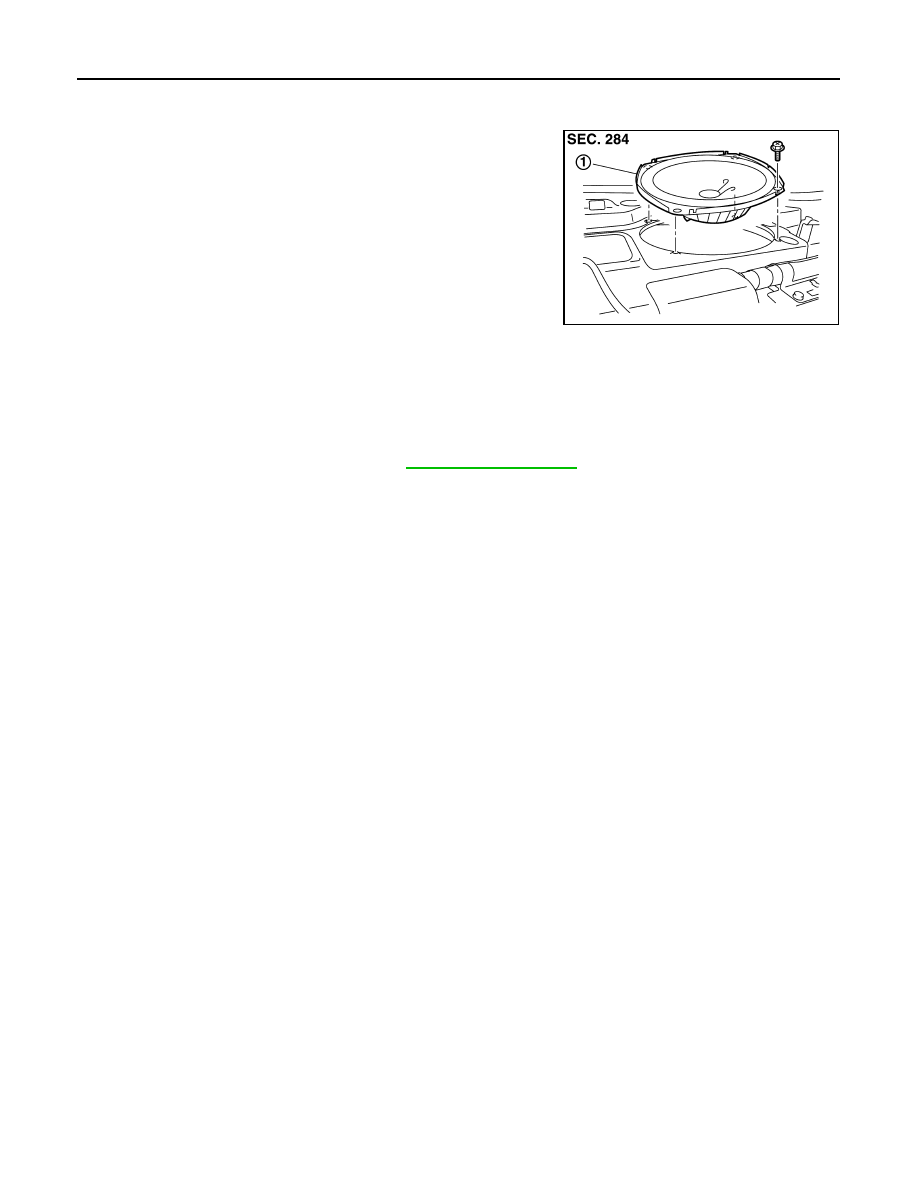

Exploded View

INFOID:0000000001559327

Removal and Installation

INFOID:0000000001559328

REMOVAL

1.

Remove upper grille, and then remove center speaker. Refer to

IP-11, "Exploded View"

.

INSTALLATION

Install in the reverse order of removal.

JSNIA0120ZZ

1.

Center speaker

AV-350

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITHOUT NAVIGATION]

REAR WOOFER

REAR WOOFER

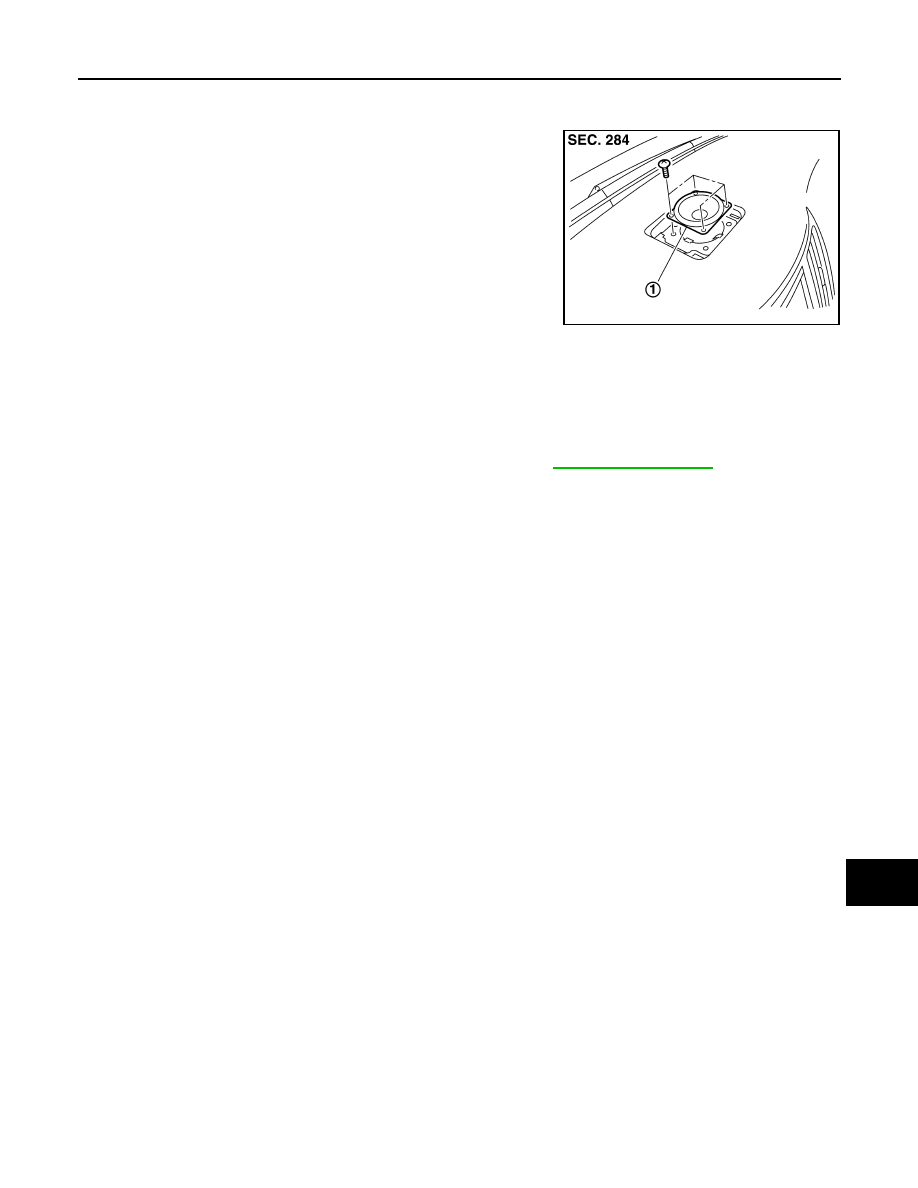

Exploded View

INFOID:0000000001559329

Removal and Installation

INFOID:0000000001559330

REMOVAL

1.

Remove rear parcel shelf finisher. Refer to

INT-17, "Exploded View"

.

2.

Remove rear woofer from rear parcel shelf.

INSTALLATION

Install in the reverse order of removal.

JPNIA0484ZZ

1.

 Rear woofer

AV

BOSE AMP.

AV-351

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

BOSE AMP.

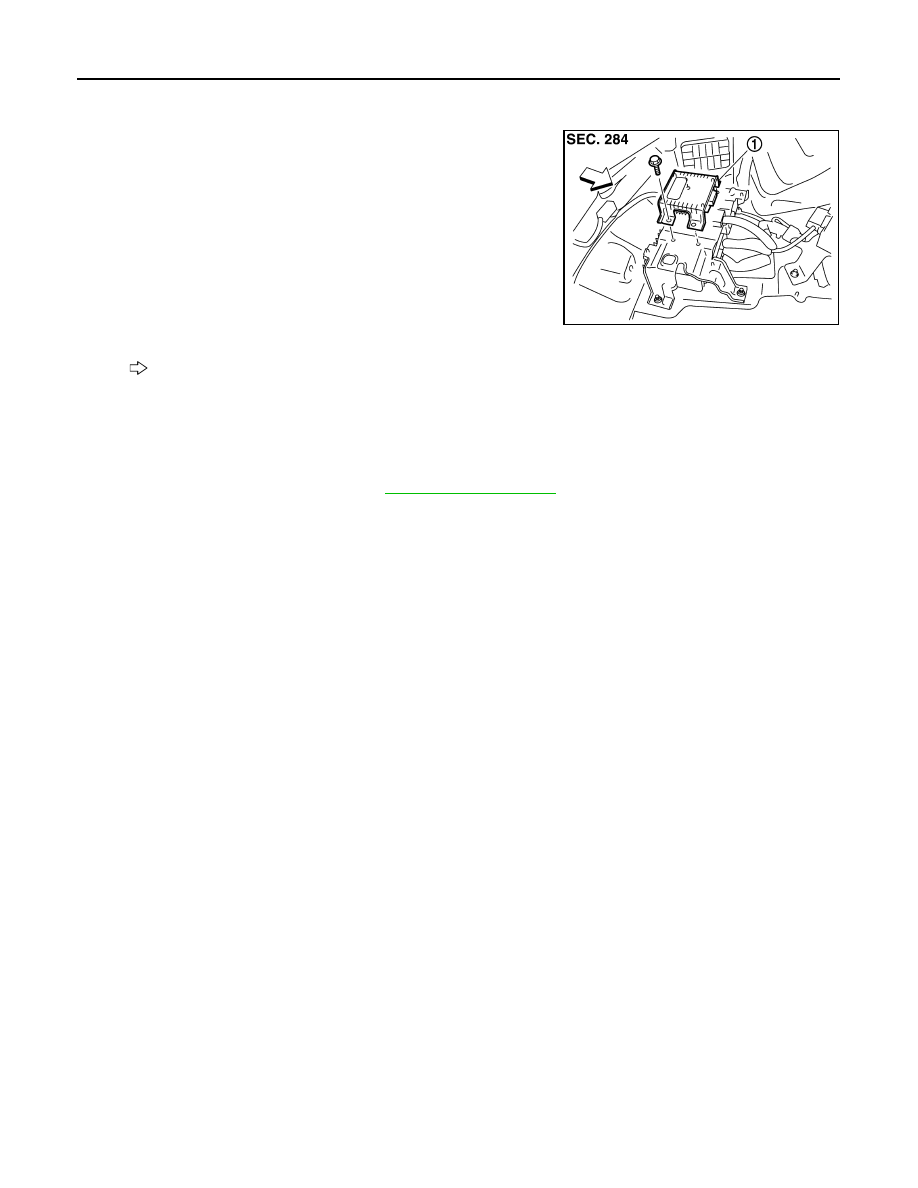

Exploded View

INFOID:0000000001559343

Removal and Installation

INFOID:0000000001559344

REMOVAL

1.

Remove trunk floor spacer LH. Refer to

INT-27, "Exploded View"

.

2.

Remove BOSE amp. from trunk room LH.

INSTALLATION

Install in the reverse order of removal.

JPNIA0485ZZ

:

Vehicle front

1.

BOSE amp.

AV-352

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITHOUT NAVIGATION]

WOOFER AMP.

WOOFER AMP.

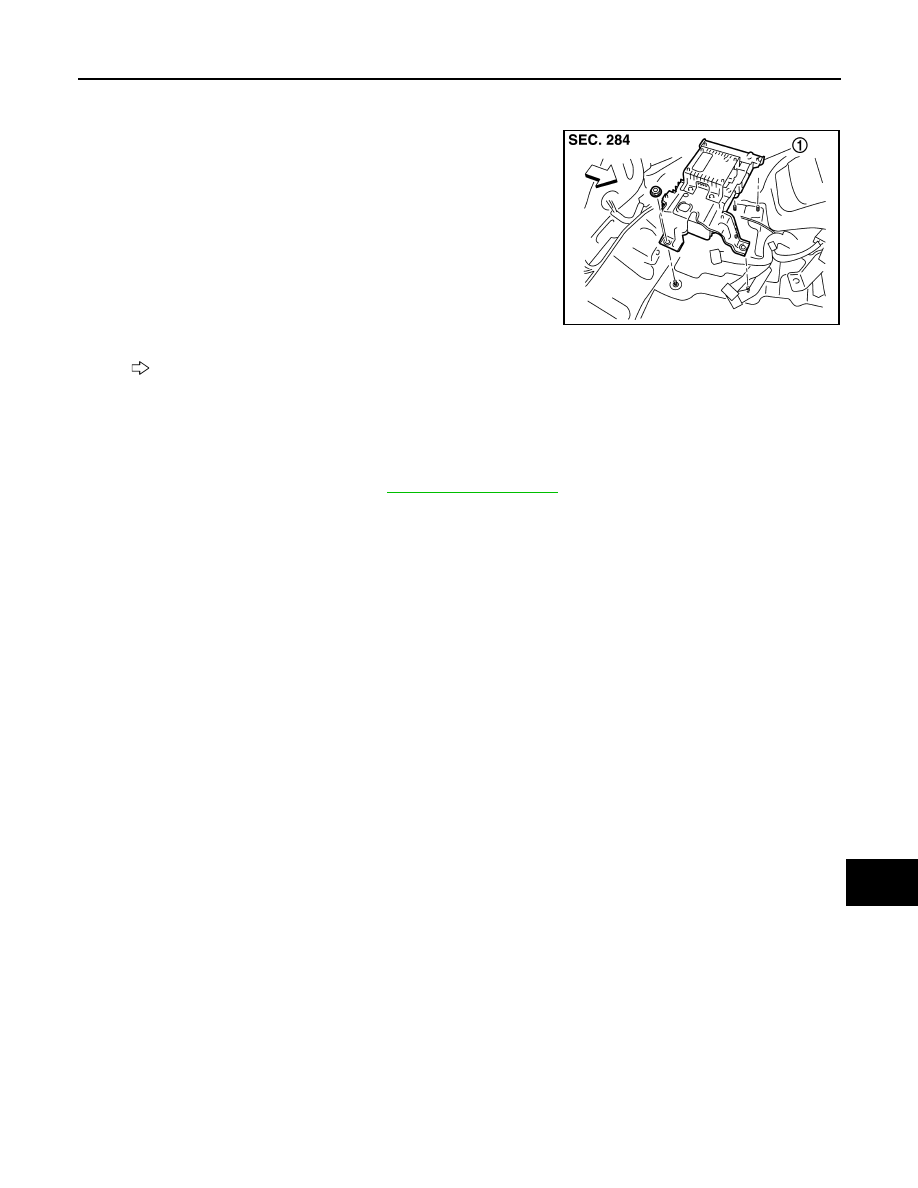

Exploded View

INFOID:0000000001678972

Removal and Installation

INFOID:0000000001678973

REMOVAL

1.

Remove trunk floor spacer LH. Refer to

INT-27, "Exploded View"

.

2.

Remove Woofer amp. from BOSE amp.

INSTALLATION

Install in the reverse order of removal.

JPNIA0469ZZ

:

Vehicle front

1.

Woofer amp.
