DOOR SQUAWKER

AV-345

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

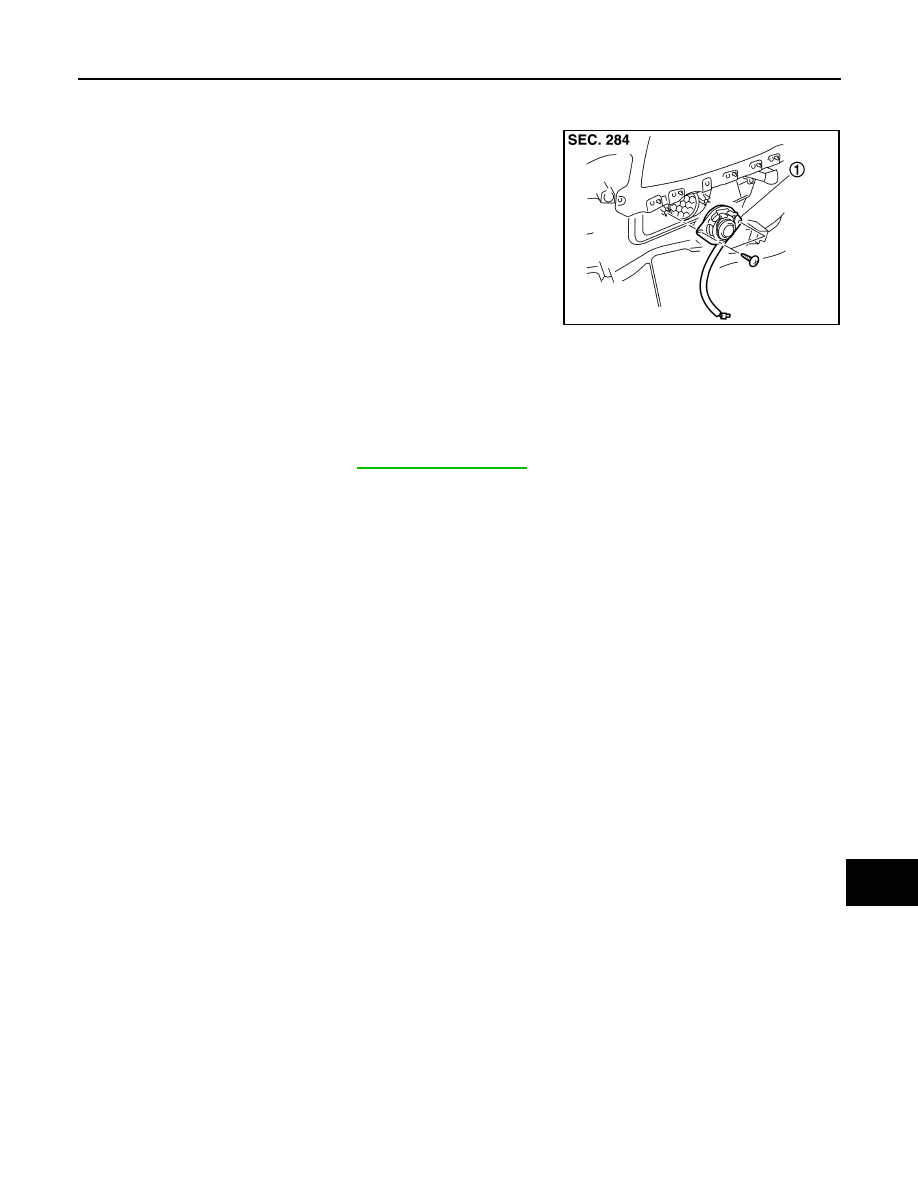

DOOR SQUAWKER

Exploded View

INFOID:0000000001559315

Removal and Installation

INFOID:0000000001559316

REMOVAL

1.

Remove door finisher. Refer to

INT-11, "Exploded View"

.

2.

Remove door squawker from door finisher.

INSTALLATION

Install in the reverse order of removal.

JPNIA0480ZZ

1.

Door finisher

2.

Door squawker

AV-346

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITHOUT NAVIGATION]

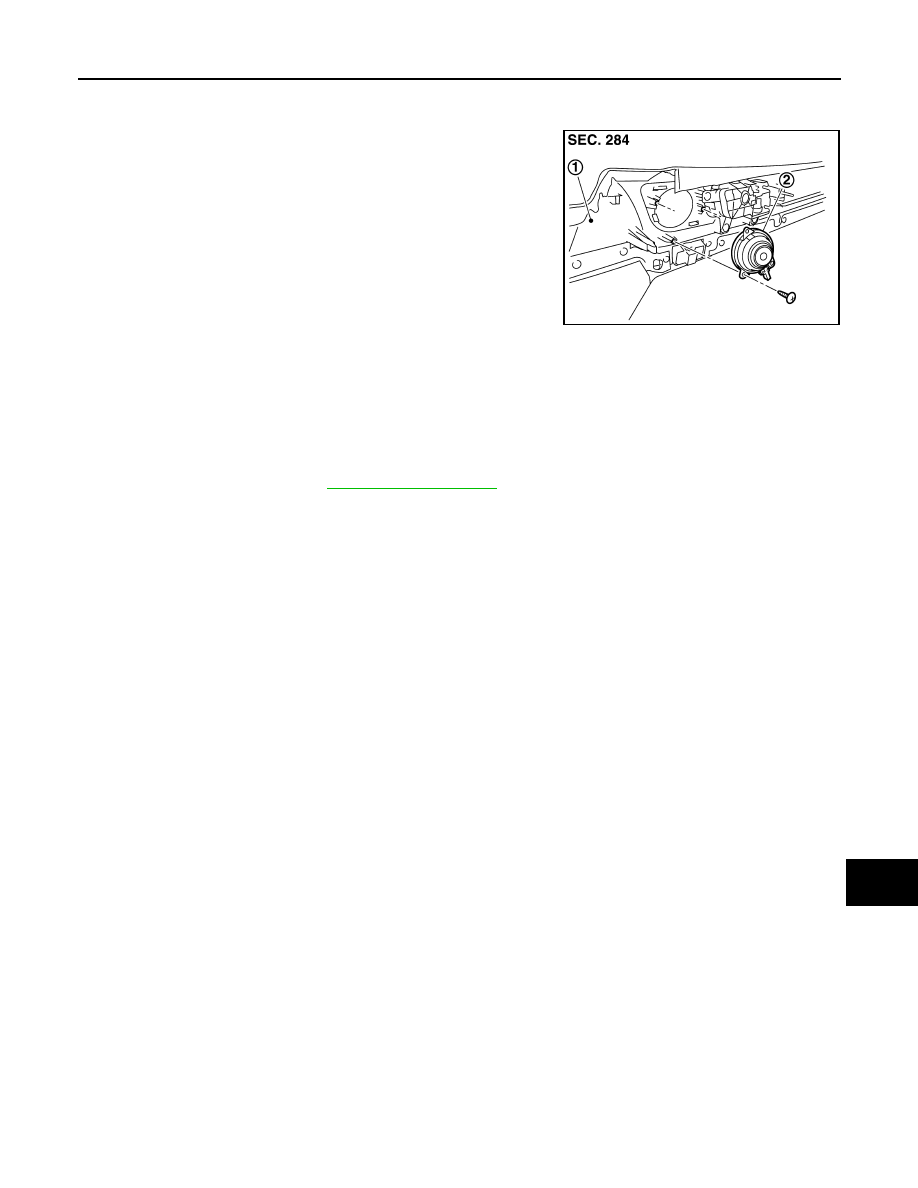

DOOR WOOFER

DOOR WOOFER

Exploded View

INFOID:0000000001559317

Removal and Installation

INFOID:0000000001559318

REMOVAL

1.

Remove door finisher. Refer to

INT-11, "Exploded View"

.

2.

Remove door woofer from woofer bracket.

INSTALLATION

Install in the reverse order of removal.

JPNIA0481ZZ

1.

Door woofer

2.

Woofer bracket

AV

REAR SPEAKER

AV-347

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

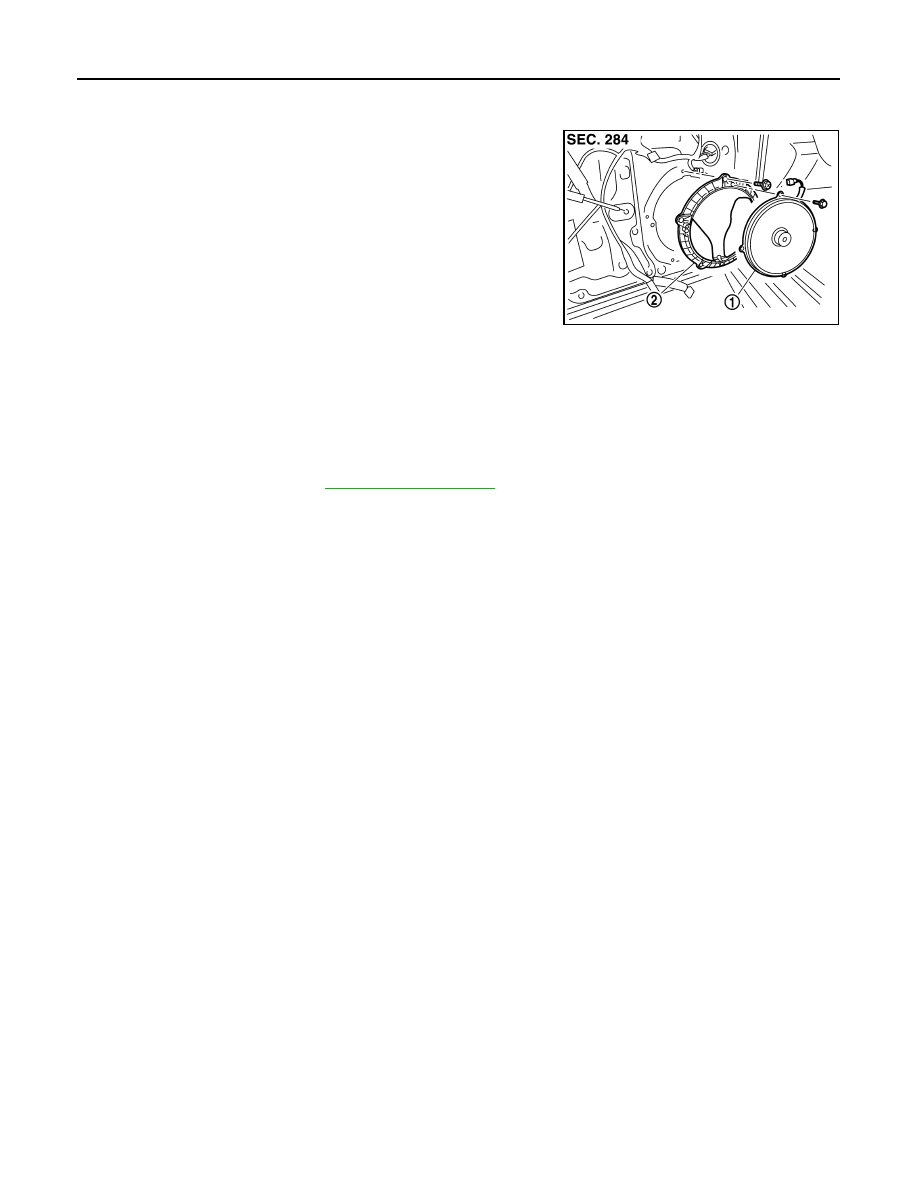

REAR SPEAKER

Exploded View

INFOID:0000000001682907

Removal and Installation

INFOID:0000000001682908

REMOVAL

1.

Remove rear side finisher. Refer to

INT-14, "Exploded View"

.

2.

Remove rear speaker from rear side finisher.

INSTALLATION

Install in the reverse order of removal.

JPNIA0482ZZ

1.

Rear speaker

AV-348

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITHOUT NAVIGATION]

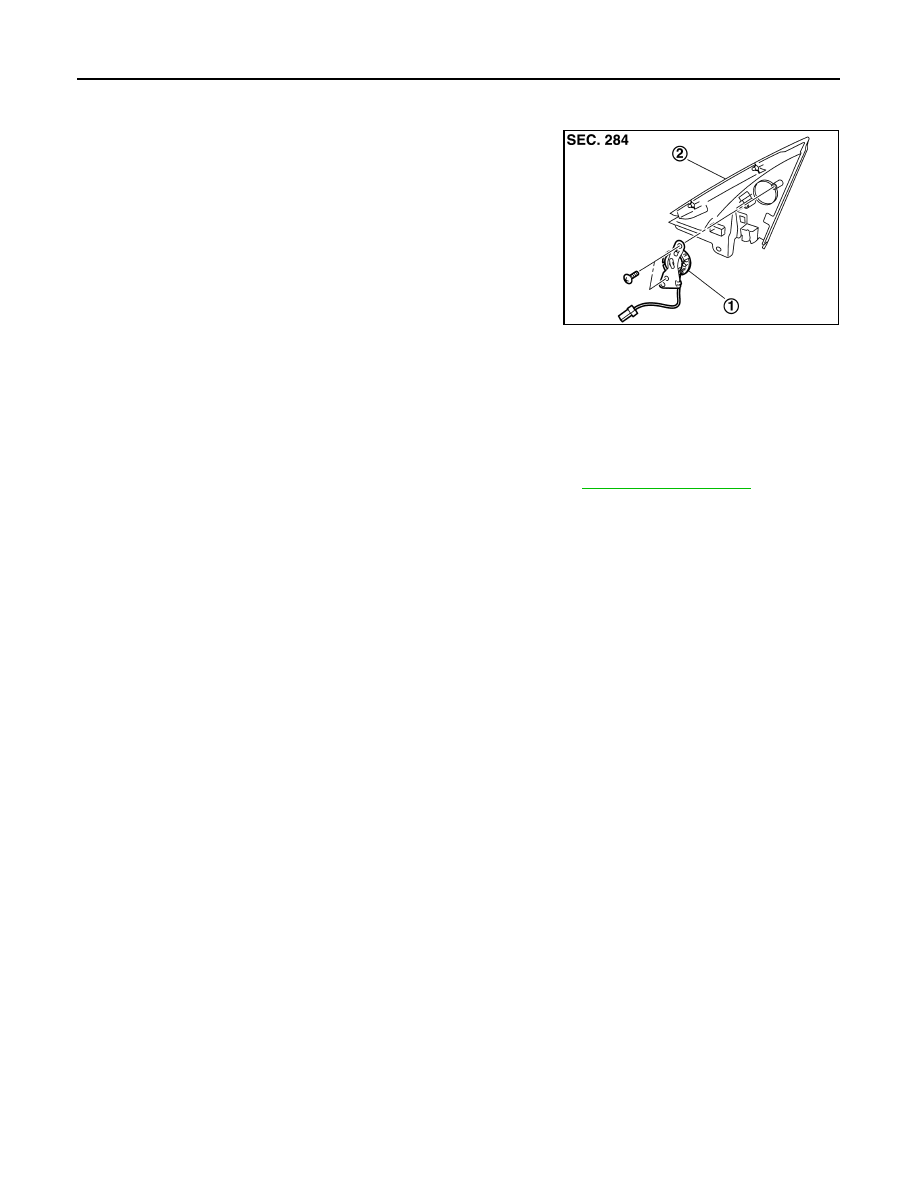

TWEETER

TWEETER

Exploded View

INFOID:0000000001559325

Removal and Installation

INFOID:0000000001559326

REMOVAL

1.

Remove door finisher, and then remove corner cover inner. Refer to

INT-11, "Exploded View"

.

2.

Remove tweeter from corner cover inner.

INSTALLATION

Install in the reverse order of removal.

JPNIA0483ZZ

1.

Tweeter

2.

Corner cover inner
