Infiniti G37 Coupe. Manual - part 150

AV

ANTENNA AMP.

AV-353

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

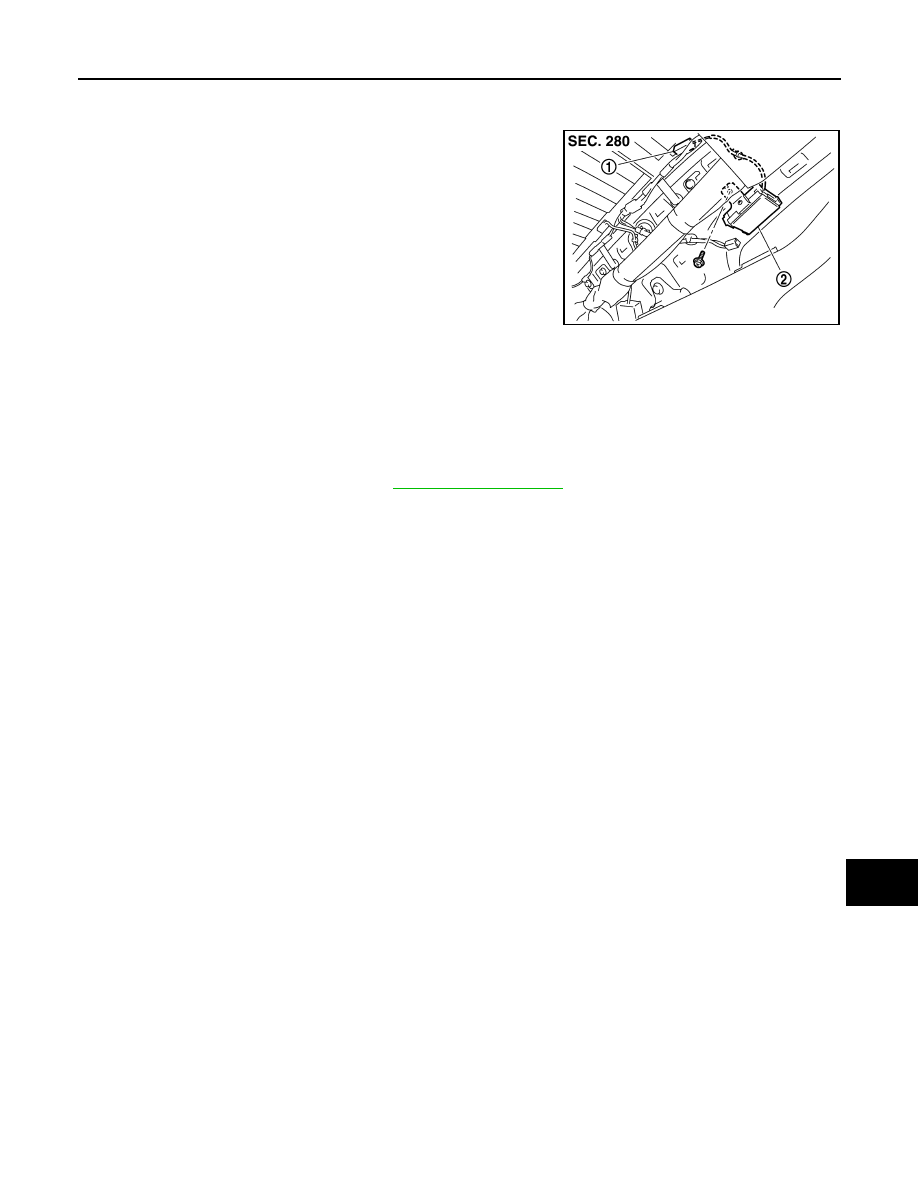

ANTENNA AMP.

Exploded View

INFOID:0000000001559353

Removal and Installation

INFOID:0000000001559354

REMOVAL

1.

Remove back pillar garnish LH. Refer to

INT-14, "Exploded View"

.

2.

Remove antenna amp. from rear pillar LH.

INSTALLATION

Install in the reverse order of removal.

JPNIA0474ZZ

1.

AM-FM main connector

2.

Antenna amp.

AV-354

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITHOUT NAVIGATION]

SATELLITE RADIO TUNER

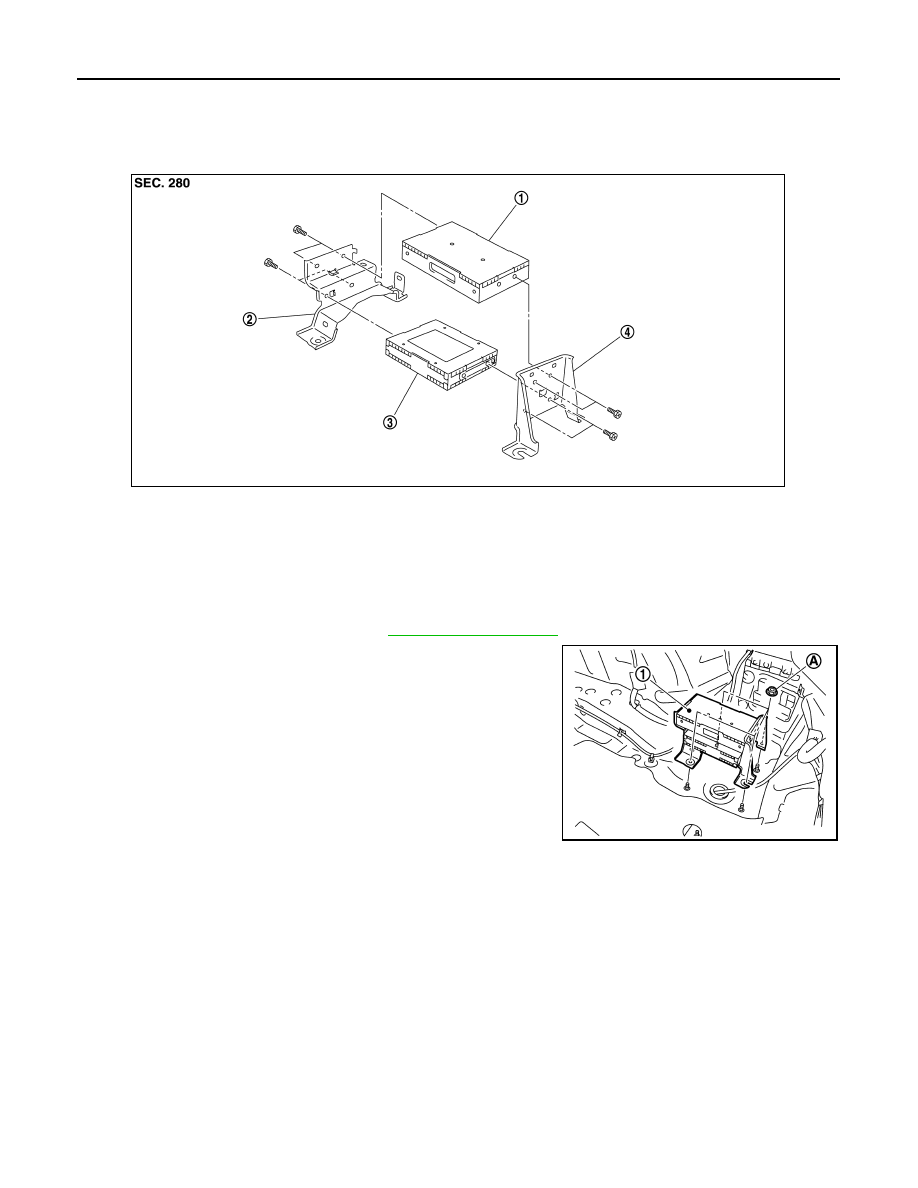

SATELLITE RADIO TUNER

Exploded View

INFOID:0000000001559207

Removal and Installation

INFOID:0000000001559208

REMOVAL

1.

Remove trunk floor spacer RH. Refer to

INT-27, "Exploded View"

.

2.

Remove nuts (A) from the trunk room RH, and remove TEL
adapter unit and satellite radio tuner (1) from trunk room side.

INSTALLATION

Install in the reverse order of removal.

1.

TEL adapter unit

2.

Bracket (front)

3.

Satellite radio tuner

4.

Bracket (rear)

JPNIA0495ZZ

JPNIA0503ZZ

AV

SATELLITE RADIO ANTENNA

AV-355

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

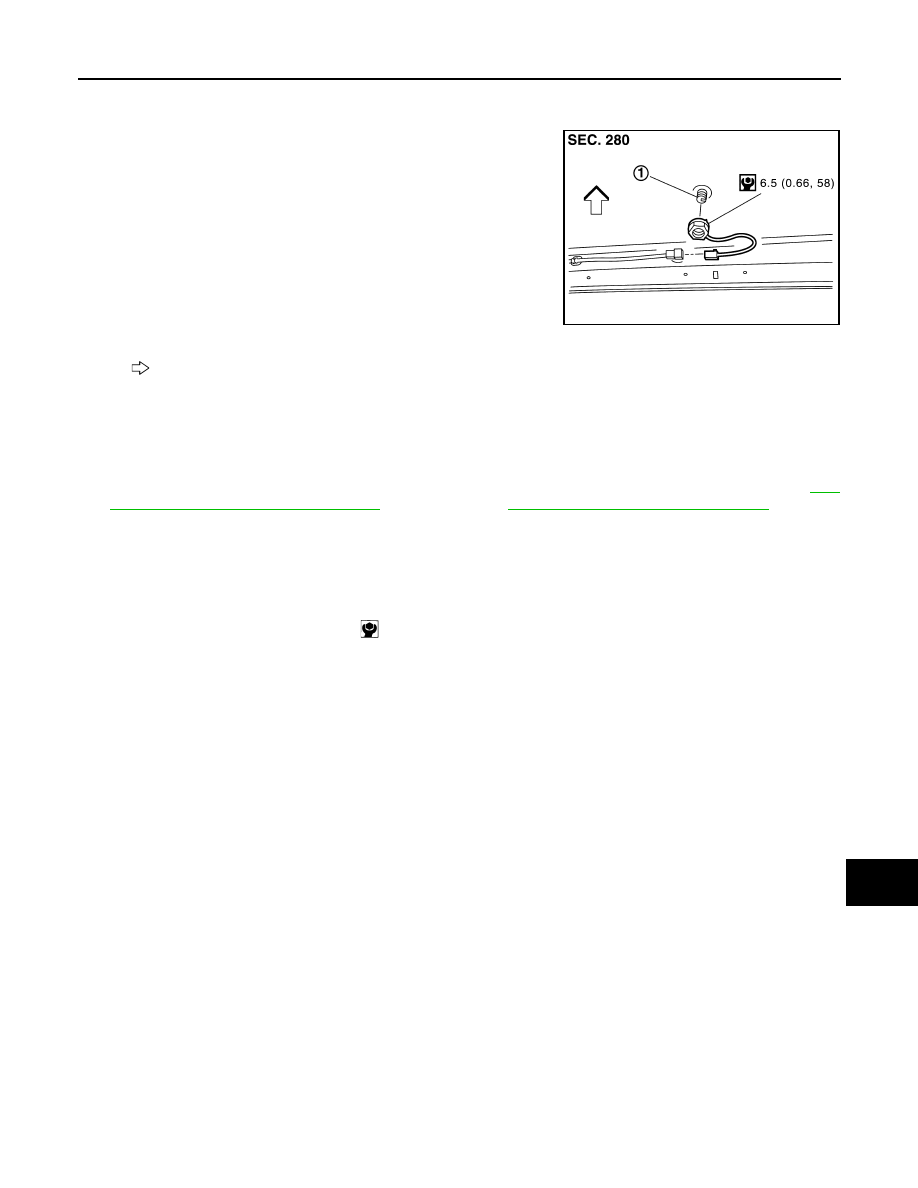

SATELLITE RADIO ANTENNA

Exploded View

INFOID:0000000001605600

Removal and Installation

INFOID:0000000001605601

REMOVAL

1.

Remove headlining assembly (rear) to secure work space between vehicle and headlining. Refer to

INT-

21, "NORMAL ROOF : Exploded View"

 [with normal roof]

INT-24, "SUNROOF : Exploded View"

 [with sun-

roof].

2.

Remove nuts, and then remove satellite radio antenna from roof panel.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

Be careful about tightening torque. Antenna sensitivity becomes poor, and when it is excessive, roof
panel may be deformed, when roof antenna mounting nut tightening torque is loose.

JPNIA0476ZZ

:

Vehicle front

1.

Satellite radio antenna

Roof antenna mounting nut

 : 6.5 N·m (0.66 kg-m, 58 in-lb)

AV-356

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITHOUT NAVIGATION]

MULTIFUNCTION SWITCH

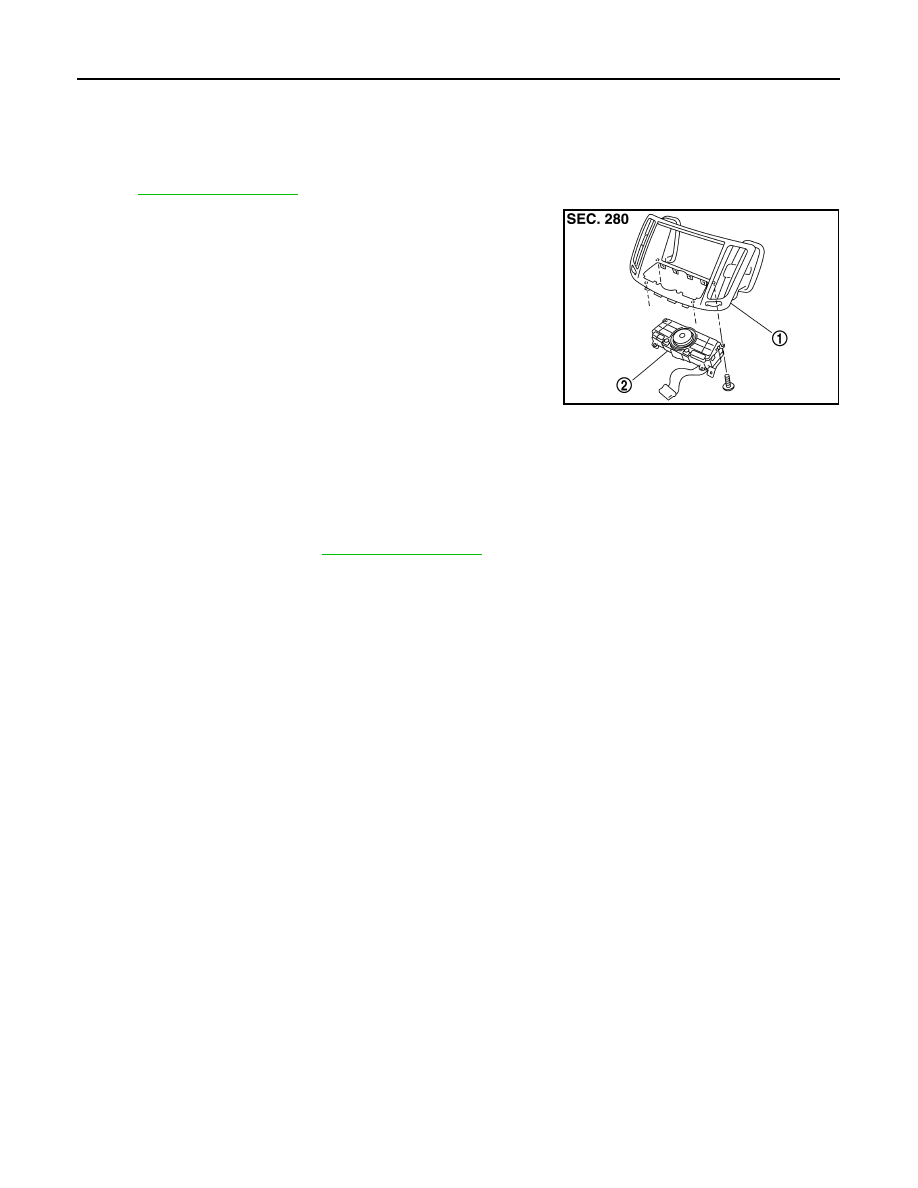

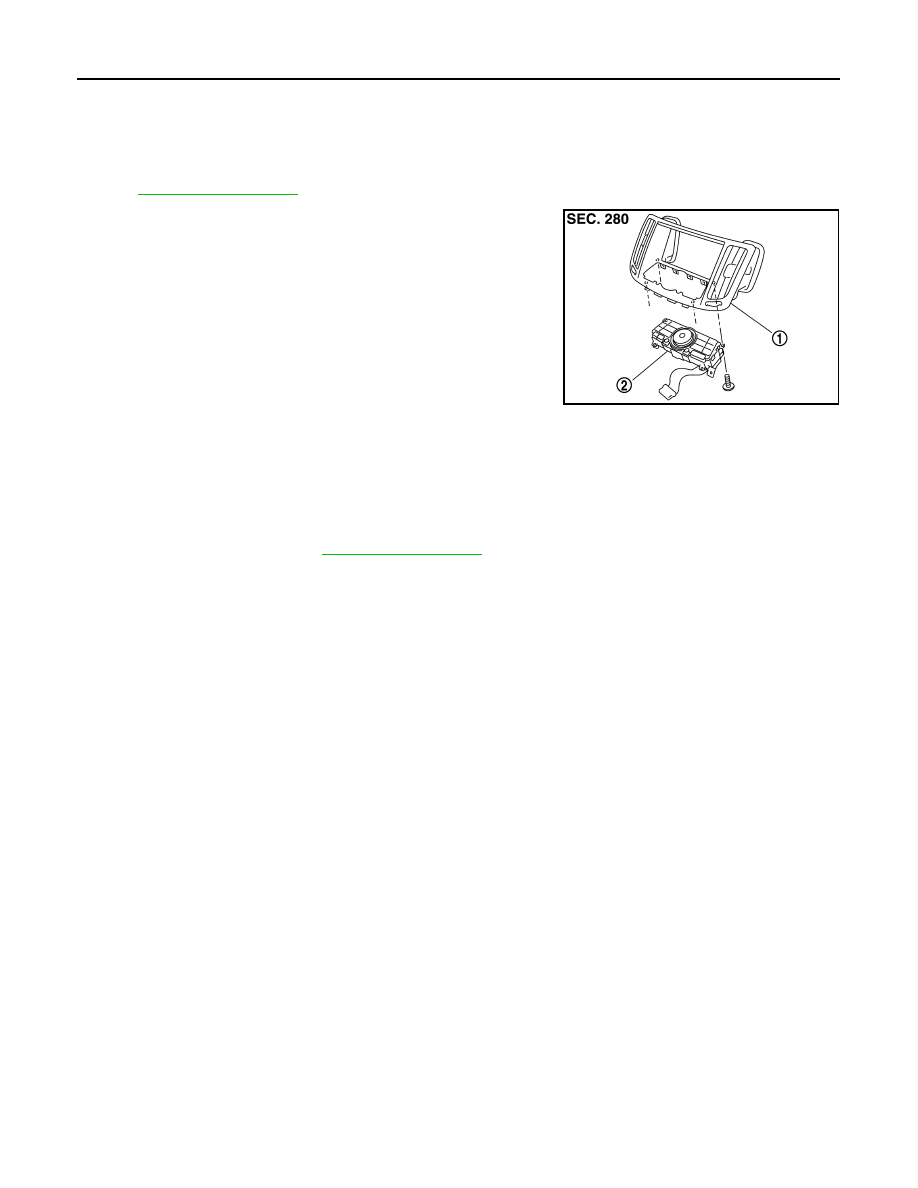

MULTIFUNCTION SWITCH

Exploded View

INFOID:0000000001559359

REMOVAL

Refer to

IP-11, "Exploded View"

.

DISASSEMBLY

Removal and Installation

INFOID:0000000001559360

REMOVAL

1.

Remove cluster lid D. Refer to

IP-11, "Exploded View"

.

2.

Remove multifunction switch with center ventilator grille as a single unit.

3.

Remove multifunction switch from center ventilator.

INSTALLATION

Install in the reverse order of removal.

JSNIA0126ZZ

1.

Center ventilator grille

2.

Multifunction switch
