Infiniti G37 Coupe. Manual - part 152

AV

AUXILIARY INPUT JACKS

AV-361

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

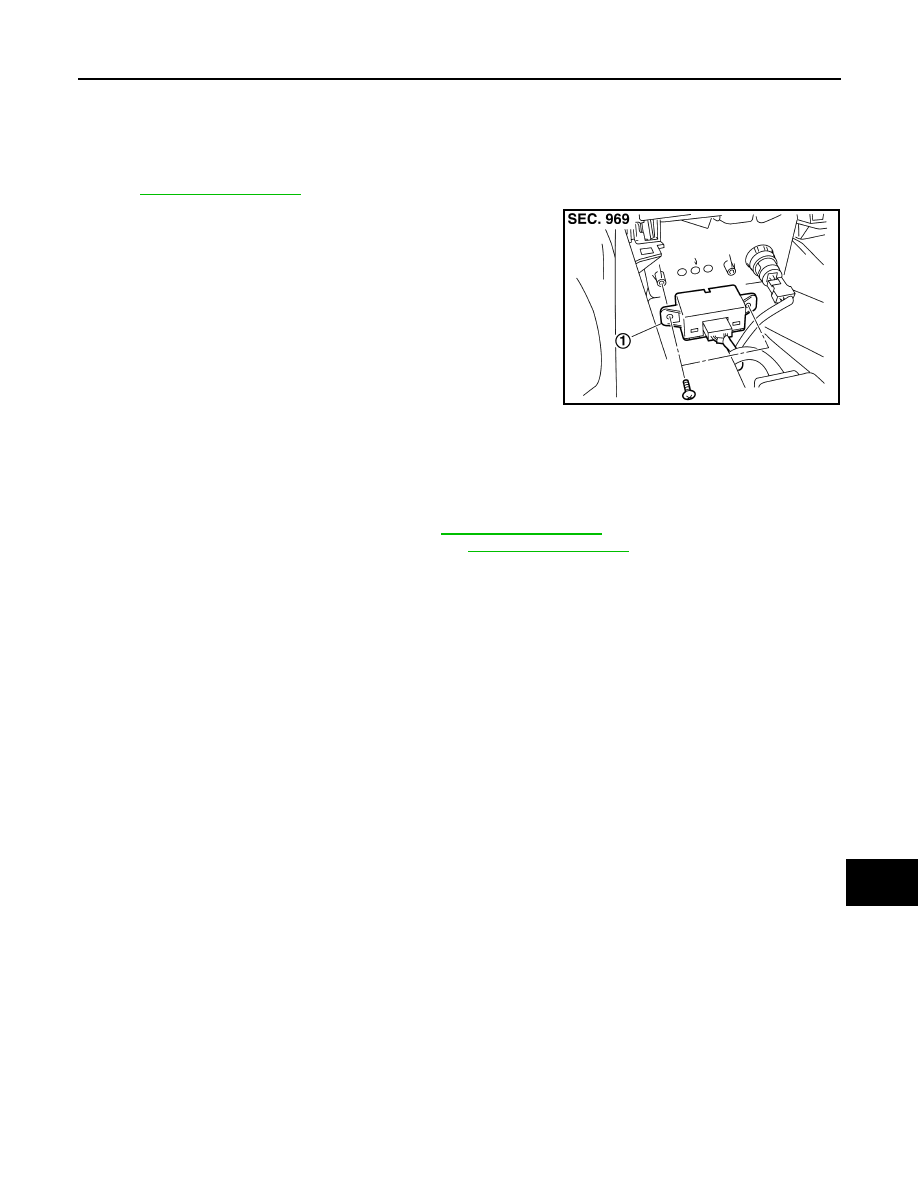

AUXILIARY INPUT JACKS

Exploded View

INFOID:0000000001559368

REMOVAL

Refer to

IP-23, "Exploded View"

.

DISASSEMBLY

Removal and Installation

INFOID:0000000001559369

REMOVAL

1.

Remove center console. (M/T models) Refer to

IP-23, "Exploded View"

.

Remove center console cup. (A/T models) Refer to

IP-23, "Exploded View"

.

2.

Remove auxiliary input jacks from center console. (M/T models)
Remove auxiliary input jacks from center console cup. (A/T models)

INSTALLATION

Install in the reverse order of removal.

JSNIA0131ZZ

1.

Auxiliary input jacks

AV-362

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITHOUT NAVIGATION]

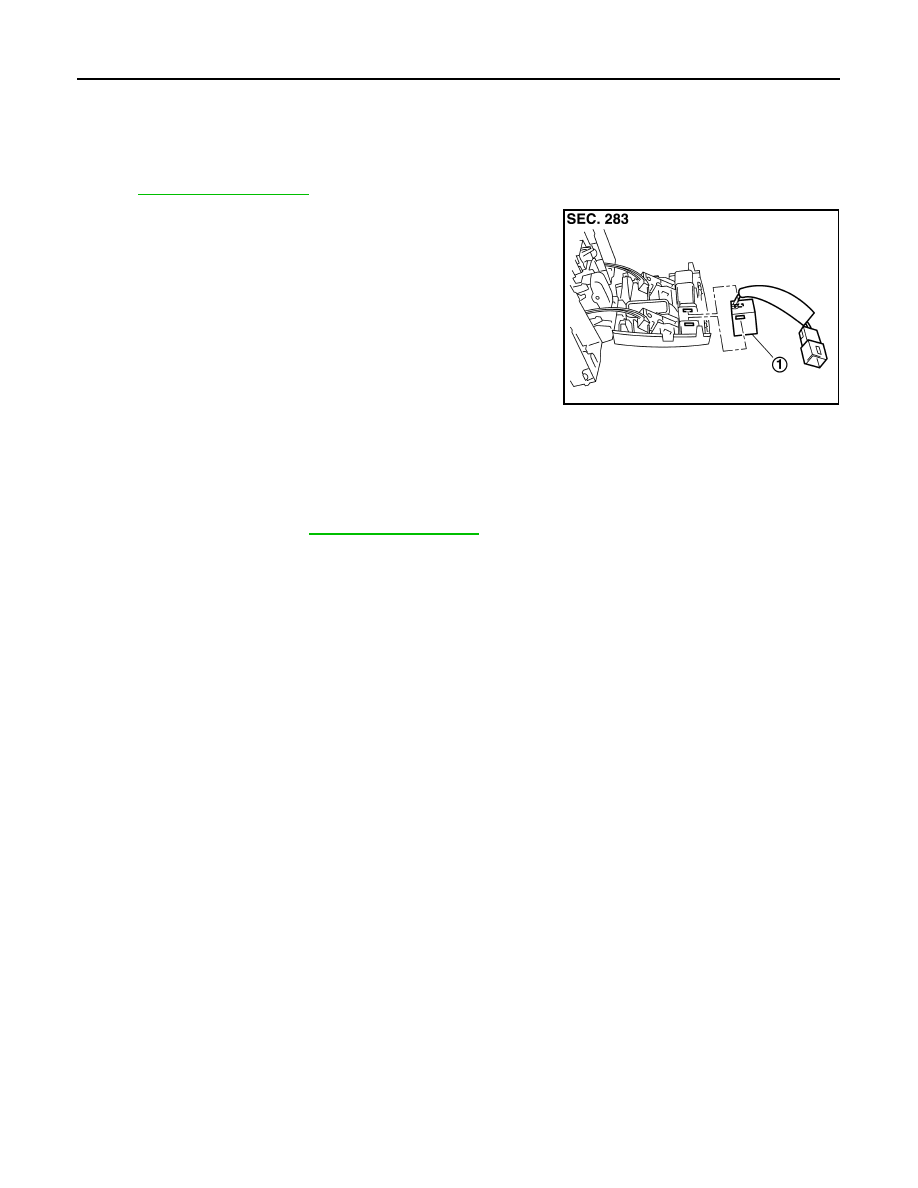

MICROPHONE

MICROPHONE

Exploded View

INFOID:0000000001559370

REMOVAL

Refer to

INL-97, "Exploded View"

.

DISASSEMBLY

Removal and Installation

INFOID:0000000001559371

REMOVAL

1.

Remove map lamp. Refer to

INL-97, "Exploded View"

.

2.

Remove microphone from map lamp.

INSTALLATION

Install in the reverse order of removal.

JSNIA0132ZZ

1.

Microphone

AV

TEL ADAPTER UNIT

AV-363

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

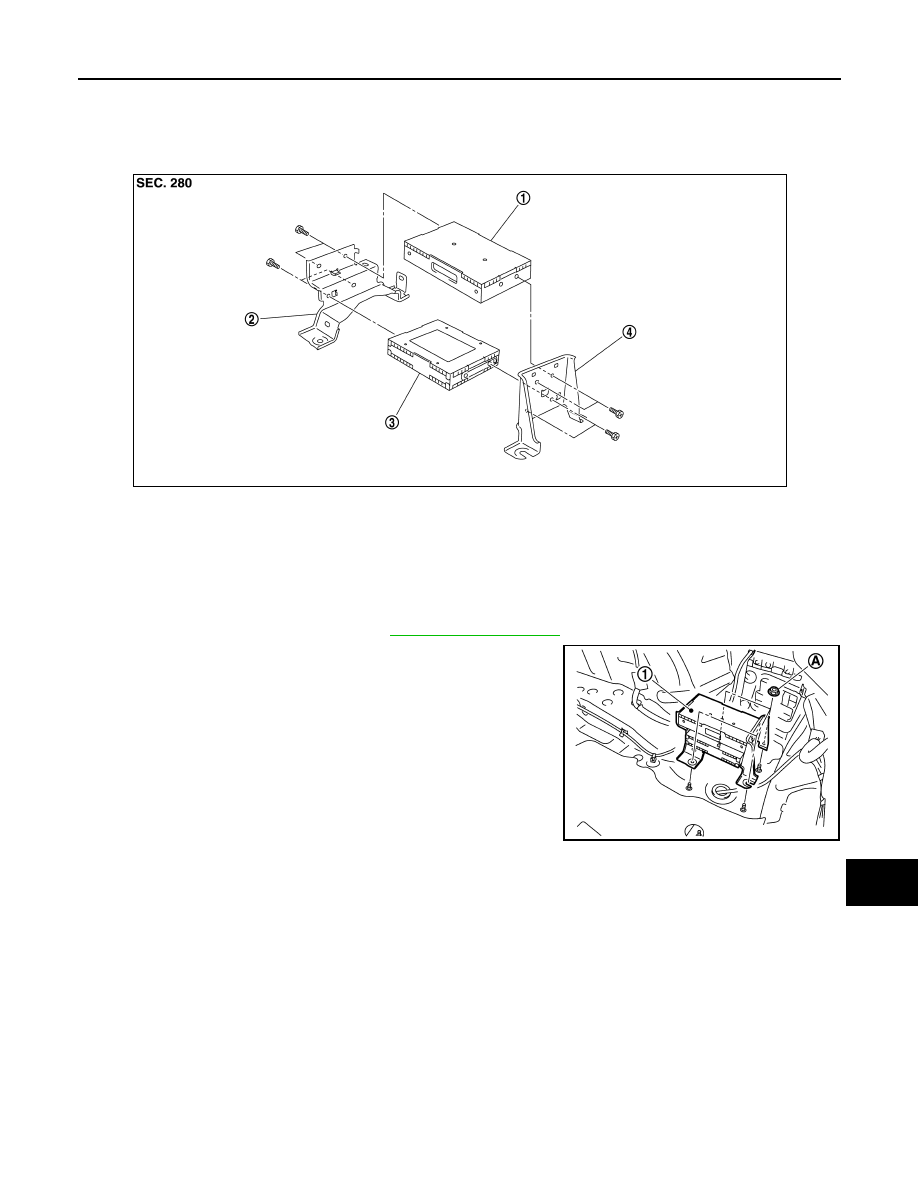

TEL ADAPTER UNIT

Exploded View

INFOID:0000000001559112

Removal and Installation

INFOID:0000000001559113

REMOVAL

1.

Remove trunk floor spacer RH. Refer to

INT-27, "Exploded View"

.

2.

Remove nuts (A) from the trunk room RH, and remove TEL
adapter unit and satellite radio tuner (1) from trunk room side.

INSTALLATION

Install in the reverse order of removal.

1.

TEL adapter unit

2.

Bracket (front)

3.

Satellite radio tuner

4.

Bracket (rear)

JPNIA0495ZZ

JPNIA0503ZZ

AV-364

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITHOUT NAVIGATION]

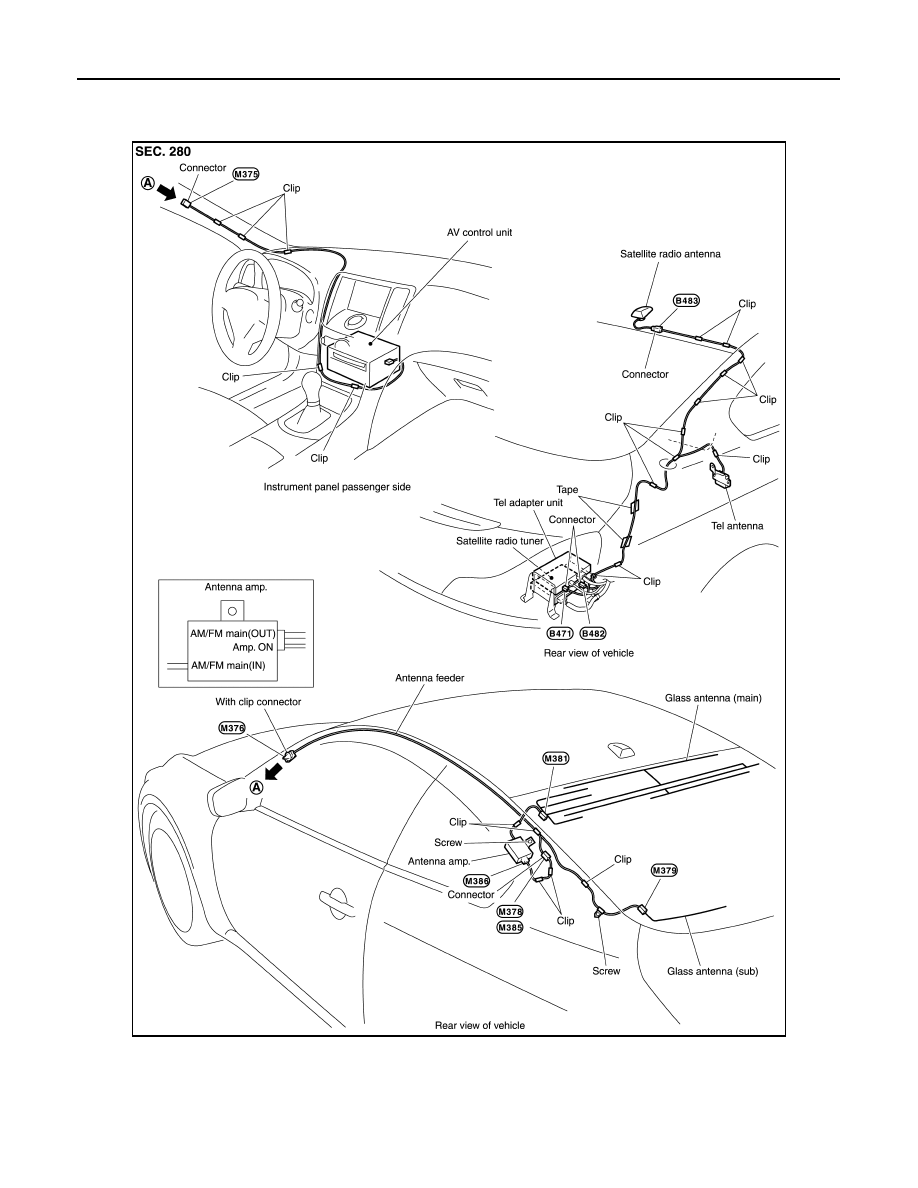

ANTENNA FEEDER (RADIO)

ANTENNA FEEDER (RADIO)

Harness Layout

INFOID:0000000001559219

JPNIA0496GB
