Hyundai Santa Cruz (2024 year). Manual in english - page 3





05
Sunroof Open Warning
ONX4OB041004
If the driver turns off the engine when
the sunroof is not fully closed, the
warning chime will sound for several
seconds and the sunroof open warning
will appear on the cluster display.
Close the sunroof securely when leaving
your vehicle.
CAUTION
Make sure the sunroof is closed fully
when leaving your vehicle.
If the sunroof is left open, rain or snow
may wet the interior of the vehicle.
Also, leaving the sunroof open when the
vehicle is unattended may invite theft.
5-65
Convenient Features
(;7(5,25 )($785(6

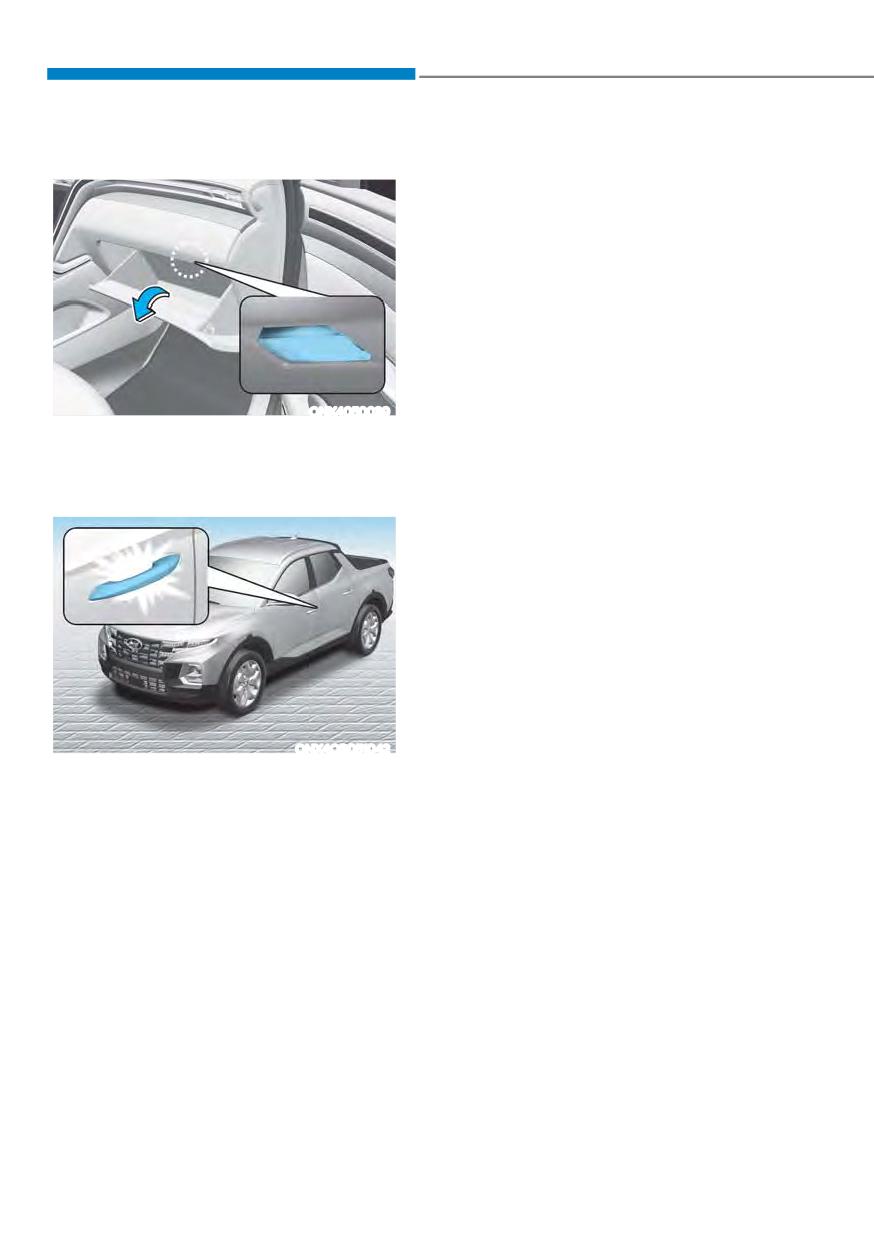

Hood

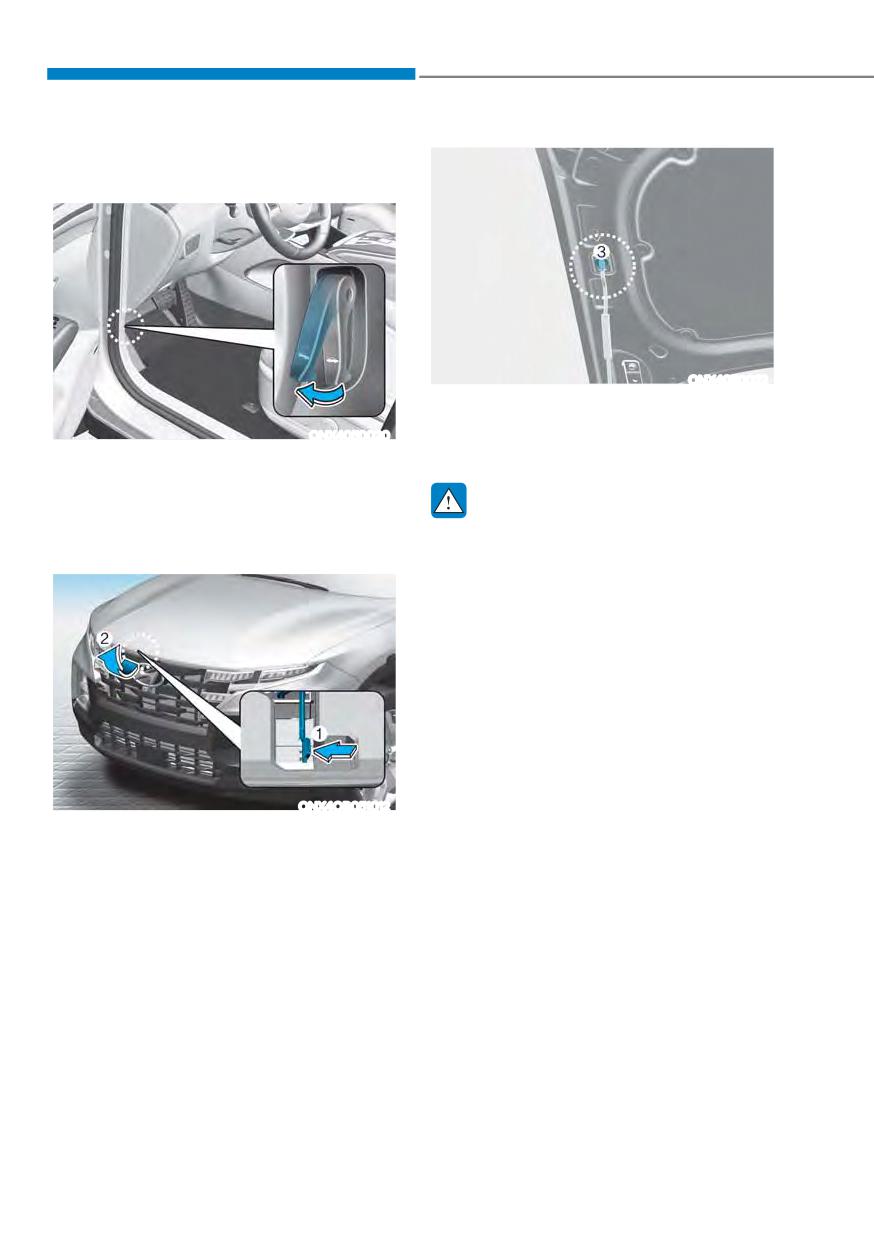

Opening the hood
ONX4050022
4. Pull up on the hood support rod.
ONX4050020
5. Install the end of the hood support rod
into the slot located on the hood (3).
1. Park the vehicle and set the parking
brake.
2. Pull the release lever to unlatch the
WARNING
hood. The hood should pop open
ś Grasp the hood support rod in the
slightly.
area wrapped in rubber when the
engine is hot. The rubber portion will
insulate the heat and protect you
from burn or injury.
ś The end of the hood support rod
must be inserted fully into the hood
slot whenever you inspect the engine
compartment. This will prevent
the hood from falling and possibly
injuring you.
ONX4OB051012
3. Go to the front of the vehicle, raise the
hood slightly, push up the secondary
hood release lever (1) inside of the
hood center and lift the hood.
5-66
05
Closing the hood

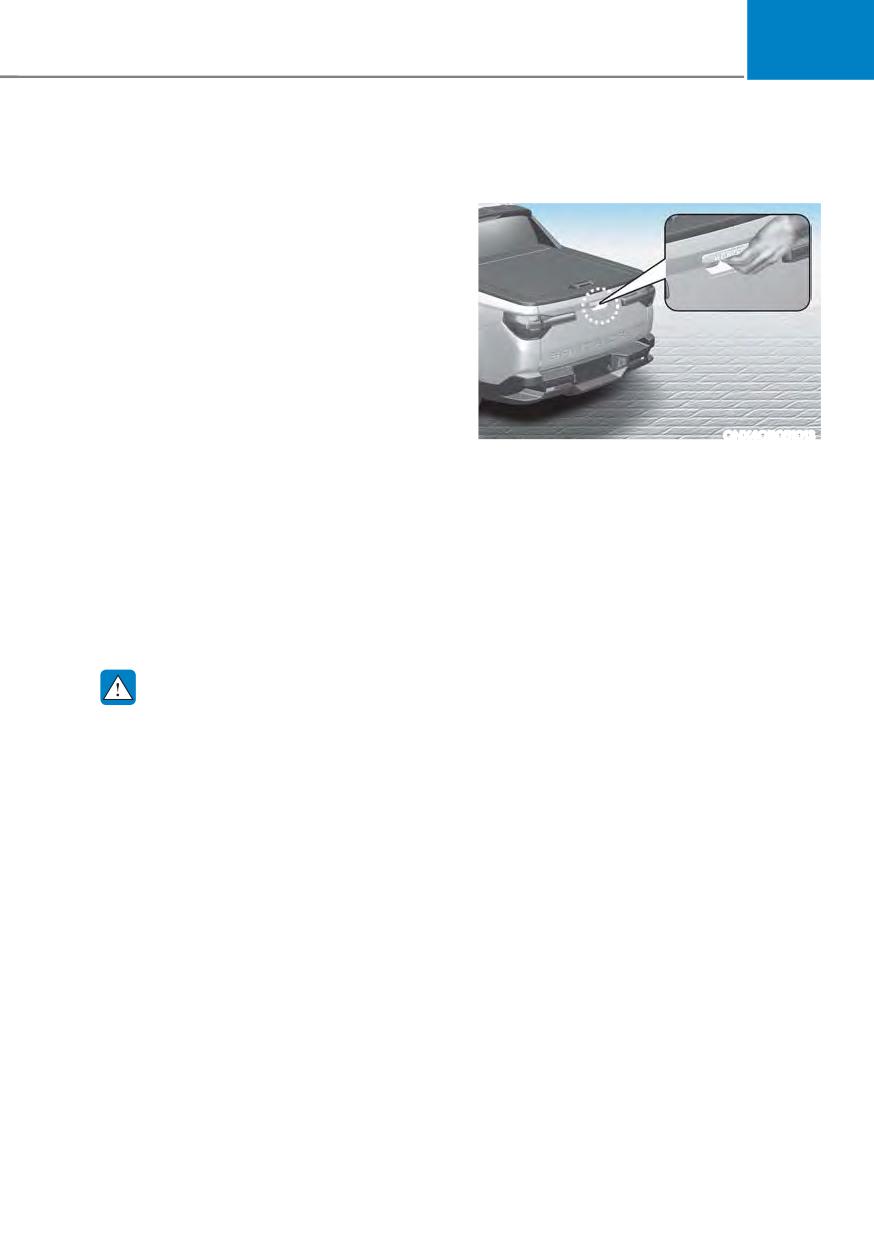

Liftgate
1. Before closing the hood, check in and
Opening the liftgate
around the engine compartment to
ensure the following:
- Any tools or other loose objects
are removed from the engine room
area or hood opening area
- All glove, rags, or other
combustible material is removed
from the engine compartment
- All filler caps are tightly and
correctly installed
2. Return the hood support rod to its clip
ONX4OB051013
to prevent it from rattling.
Make sure the vehicle is in P (Park) and
3. Lower the hood until it is about 30 cm
set the parking brake.
(12in.) above the closed position and
Then do one of the following:
let it drop. Make sure that it locks into
place.
Open the liftgate by pressing the button
on the liftgate handle or by pressing the
4. Check that the hood has engaged
button on the remote key or smart key.
properly. If the hood can be raised
slightly, it is not properly engaged.
The liftgate is damped and the support
Open it again and close it with a little
cables will hold the liftgate in the open
more force.
position.
WARNING
ś Before closing the hood, ensure
all obstructions are removed from
around the hood opening.
ś Always double check to be sure that
the hood is firmly latched before
driving away. Check there is no
hood open warning light or message
displayed on the instrument cluster.
Driving with the hood opened may
cause a total loss of visibility, which
might result in an accident.
ś Do not move the vehicle with the
hood in the raised position, as vision
is obstructed, which might result in
an accident, and the hood could fall
or be damaged.
5-67
Convenient Features

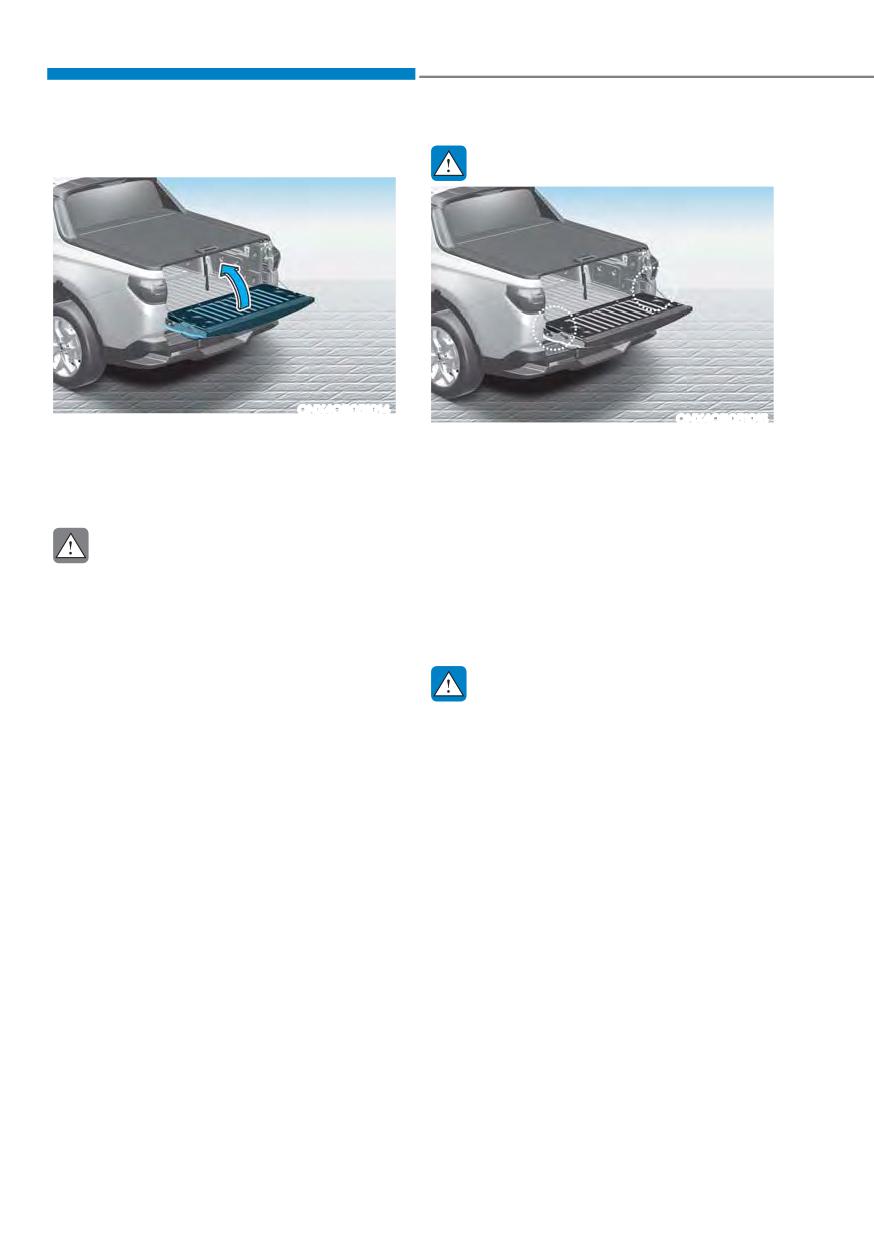

Closing the liftgate
WARNING
ONX4OB051014
ONX4OB051015
Close the liftgate by lifting upward and
ś Ensure that both cables are properly
ensure that both latches are properly
connected and secured before using
engaged. This can be checked by pulling
the liftgate or applying any load on it.
back on the gate.
ś Do not drive with the liftgate down
even at low speeds. This may result
CAUTION
in death or personal injury.
Be careful not to put your hands
ś When removing the liftgate ensure
between the liftgate and the pickup bed
that the liftgate is placed face up so
area when closing the liftgate.
that no damage can occur to the rear
camera.
WARNING
Your vehicle should be kept locked and
keys should be kept out of the reach
of children. Parents should teach their
children about the dangers of playing in
luggage compartments.
5-68
05

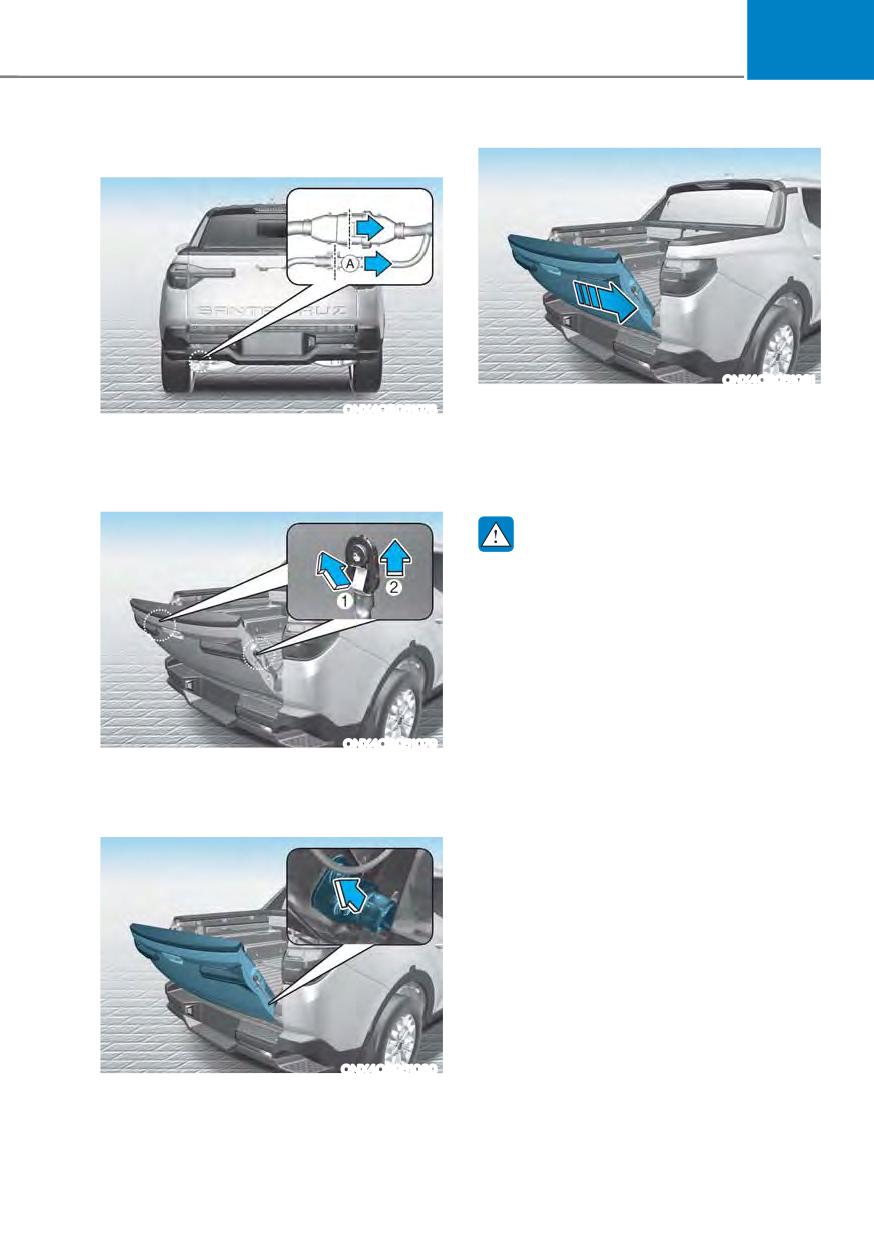

Removing the liftgate
ONX4OB051081
ONX4OB051078
4. Slide the liftgate to the right
disconnecting the left hand side
[A] : rear camera connector (If equipped)
hinge. While sliding the liftgate to the
1. Disconnect connectors located on the
right be mindful to avoid potential
bottom side of the rear bumper.
contact with the rear bumper.
WARNING
ś When the connector is disconnected
to remove the liftgate, cover the
connector with the connector cover
enclosed with the owner’s manual to
prevent moisture inflow.
ś Before opening either by with the
handle or remote key or smart key
check that no one is in its path of
travel.
ONX4OB051079
2. Disconnect both support cable. And
tilt the liftgate to roughly 45 degrees
from the full open position.
ONX4OB051080
3. Pull up the tail gate and out
disconnecting the right hand side
hinge.
5-69
Convenient Features

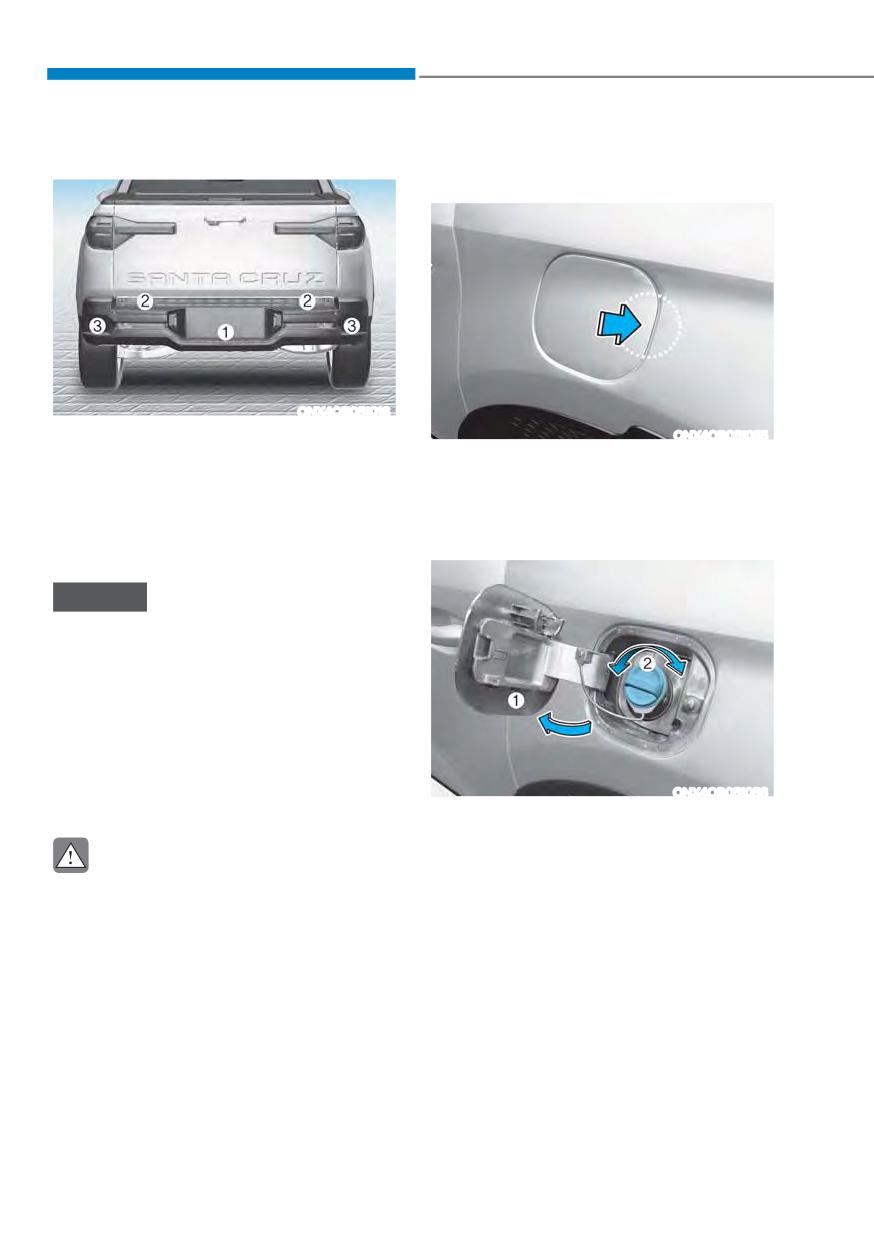

Rear Bumper Steps
Fuel Filler Door
Opening the fuel filler door
ONX4OB051016
1. Center Step
ONX4OB051055
2. Top Step
1. Turn the engine off.
3. Corner Step
2. Ensure Driver’s door is unlocked.
3. Press the rear center edge of the fuel
Use the rear bumper steps shown for
filler door.
easier access to the pickup bed.
NOTICE
To prevent damage to the rear bumper
steps:
ś Do not apply more than 330.7lbs. (150
kgf) of weight onto each step.
ś Do not jump or bounce on the steps
of the bumper.
ś Do not allow more than one person
to stand on the rear bumper at a
ONX4OB051056
time.
4. Pull the fuel filler door (1) outward to
access the fuel tank cap.
CAUTION
5. To remove the fuel tank cap (2), turn
Do not allow others to step or ride on
it counterclockwise. You may hear a
the rear bumper while vehicle is in
hissing noise as the pressure inside
motion.
the tank equalizes.
6. Place the cap on the fuel filler door.
5-70
05
Closing the fuel filler door
Information
1. To install the fuel tank cap, turn it
The fuel filler door will unlock when
clockwise until it “clicks” one time.
Driver’s door is unlocked.
2. Close the fuel filler door until it is
To unlock fuel filler door:
latched securely.
ś Press the unlock button on your remote
key or smart key
Information
ś Press the Central Door unlock button
on armrest trim of driver’s door
To lock the fuel filler door, make sure the
ś Pull the driver’s inside door handle
fuel filler door is completely closed. Press
outward.
the LOCK button on the remote key or
smart key to lock your vehicle. The fuel
filler door will also lock.
The fuel filler door will lock when Driver’s
door is locked.
Note that if the fuel filler door is not
completely closed when the vehicle is
To lock fuel filler door:
locked, the fuel filler door will not be
ś Press the lock button on your remote
locked.
key or smart key
ś Press the Central Door lock button on
armrest trim of driver’s door
CAUTION
à All doors will automatically lock after
Make sure the fuel filler door is
the vehicle speed exceeds 9 mph (15
completely closed before driving
km/h). Fuel filler door is also locked
through a car wash or operating a high
when vehicle speed exceeds 9 mph (15
pressure spray washer.
km/h).
WARNING
Information
Automotive fuel is highly flammable
If the fuel filler door does not open
and explosive. Failure to follow these
because ice has formed around it, tap
guidelines may result in SERIOUS
lightly or push on the door to break the
INJURY or DEATH:
ice and release the door. Do not pry on the
ś Read and follow all warnings posted
door. If necessary, spray around the door
at the gas station.
with an approved deicer fluid (do not use
ś Before refueling, note the location of
radiator antifreeze) or move the vehicle to
the Emergency Gasoline Shut-Off, if
a warm place and allow the ice to melt.
available, at the gas station.
ś Before touching the fuel nozzle, you
should eliminate the potential build-
up of static electricity by touching
a metal part of the vehicle, a safe
distance away from the fuel filler
neck, nozzle, or other gas source,
with your bare hand.
ś Do not use mobile phones while
refueling. Electric current and/or
electronic interference from cellular
phones can potentially ignite fuel
vapors and cause a fire.
5-71
Convenient Features
ś
Do not get back into a vehicle
ś Do not over-fill or top-off your
once you have begun refueling.
vehicle tank, which can cause
You can generate a buildup of
gasoline spillage.
static electricity by touching,
ś If a fire breaks out during refueling,
rubbing or sliding against any item
leave the vicinity of the vehicle, and
or fabric capable of producing
immediately contact the manager
static electricity. Static electricity
of the gas station and then contact
discharge can ignite fuel vapors
the local fire department. Follow any
causing a fire. If you must re-enter
safety instructions they provide.
the vehicle, you should once again
ś If pressurized fuel sprays out, it can
eliminate potentially dangerous
cover your clothes or skin and thus
static electricity discharge by
subject you to the risk of fire and
touching a metal part of the vehicle,
burns. Always remove the fuel cap
away from the fuel filler neck, nozzle
carefully and slowly. If the cap is
or other fuel source, with your bare
venting fuel or if you hear a hissing
hand.
sound, wait until the condition stops
ś
When using an approved portable
before completely removing the cap.
fuel container, be sure to place the
ś Always check that the fuel cap is
container on the ground prior to
installed securely to prevent fuel
refueling. Static electricity discharge
spillage in the event of an accident.
from the container can ignite fuel
vapors causing a fire.
Once refueling has begun, contact
Information
between your bare hand and the
Make sure to refuel your vehicle according
vehicle should be maintained until
to the “Fuel Requirements” section in
the filling is complete.
suggested in chapter 1.
ś
Use only approved portable plastic
fuel containers designed to carry and
NOTICE
store fuel.
ś Do not spill fuel on the exterior
ś
When refueling, always shift the
gear to the P (Park) position, set the
surfaces of the vehicle. Any type of
fuel spilled on painted surfaces may
parking brake, and place the ignition
switch to the LOCK or Engine Start/
damage the paint.
Stop button to OFF position. Sparks
ś If the fuel filler cap requires
produced by electrical components
replacement, use only a genuine
related to the engine can ignite fuel
HYUNDAI cap or the equivalent
vapors causing a fire.
specified for your vehicle. An
incorrect fuel filler cap can result
ś
Do not use matches or a lighter and
in a serious malfunction of the fuel
do not smoke or leave a lit cigarette
system or emission control system.
in your vehicle while at a gas station,
especially during refueling.
5-72
05
LIGHTING
Exterior Lights

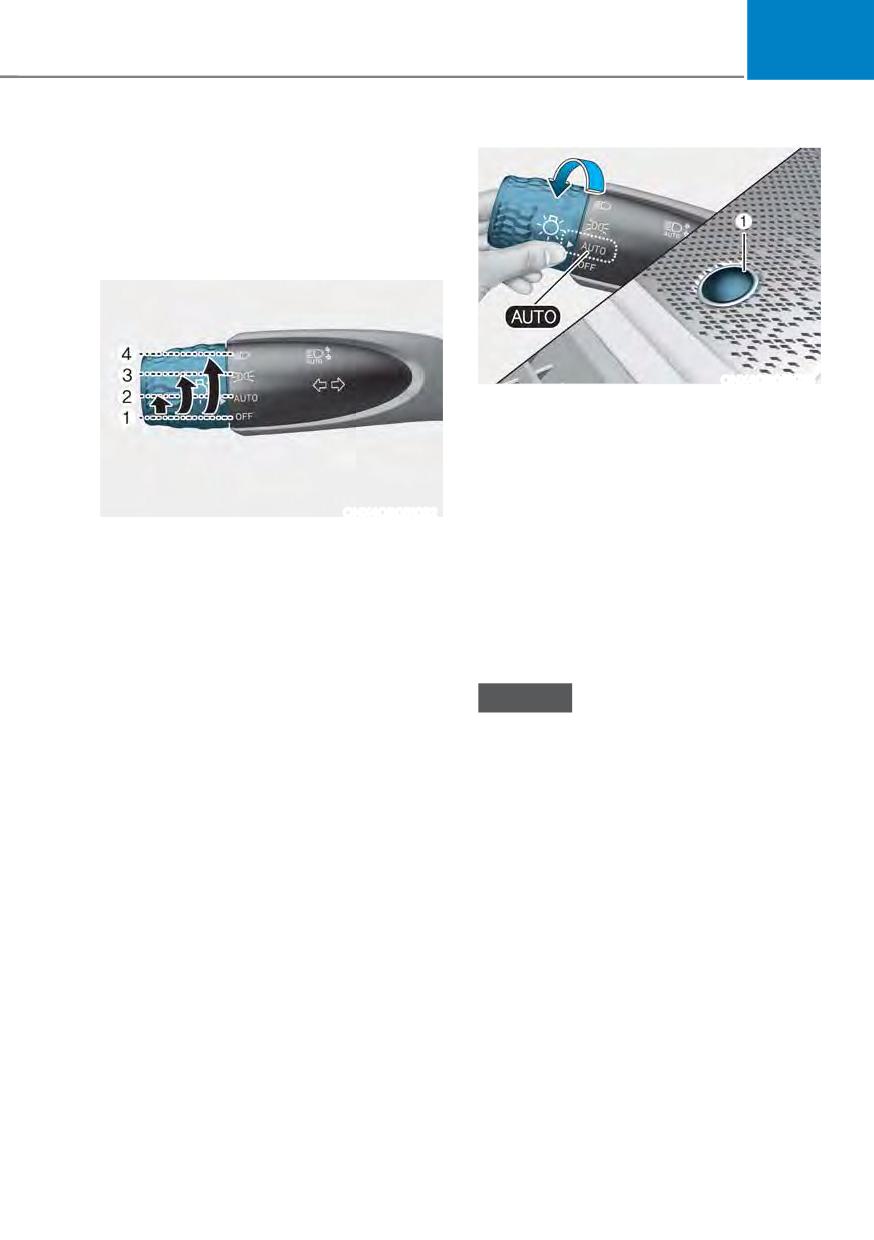

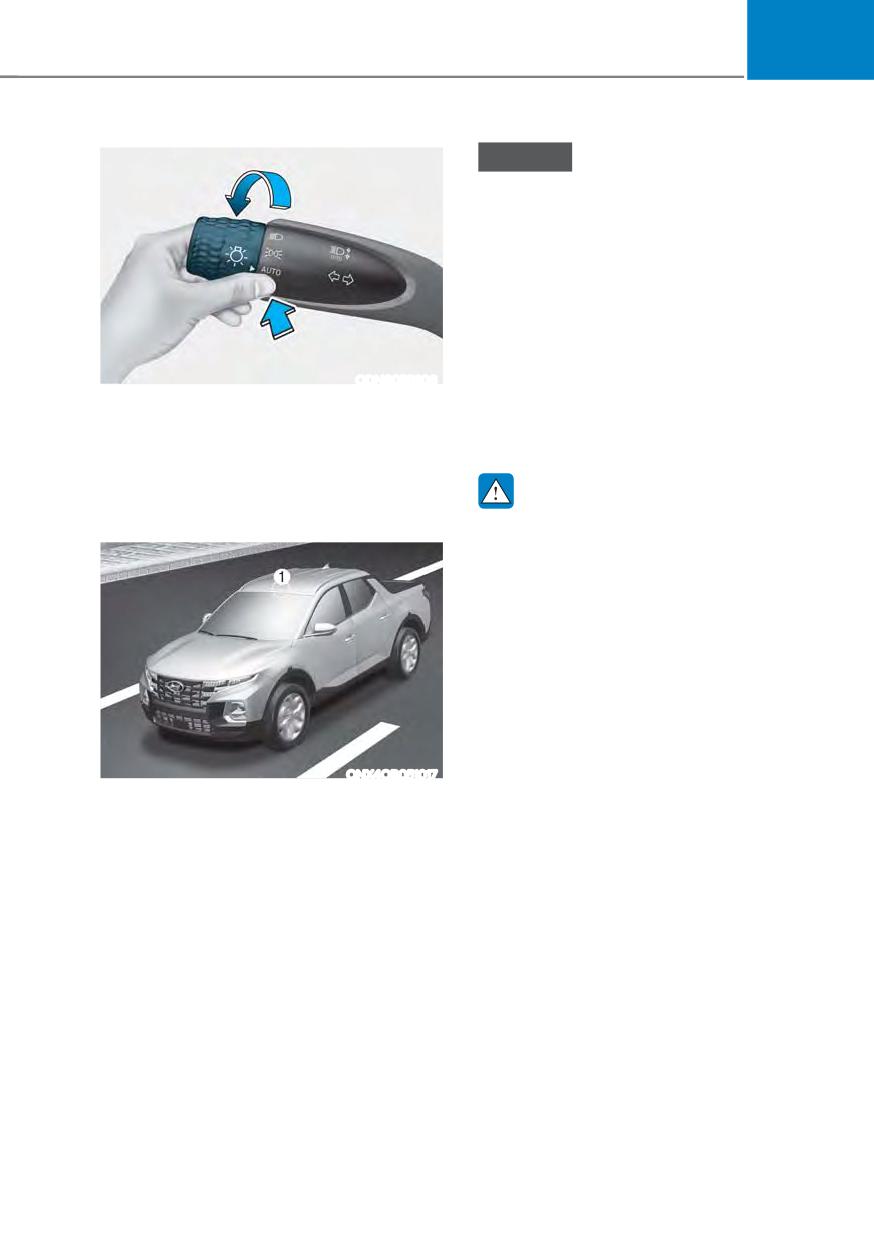

Lighting control
To operate the lights, turn the knob at
the end of the control lever to one of the
following positions:
ONX4OB051033
AUTO headlight

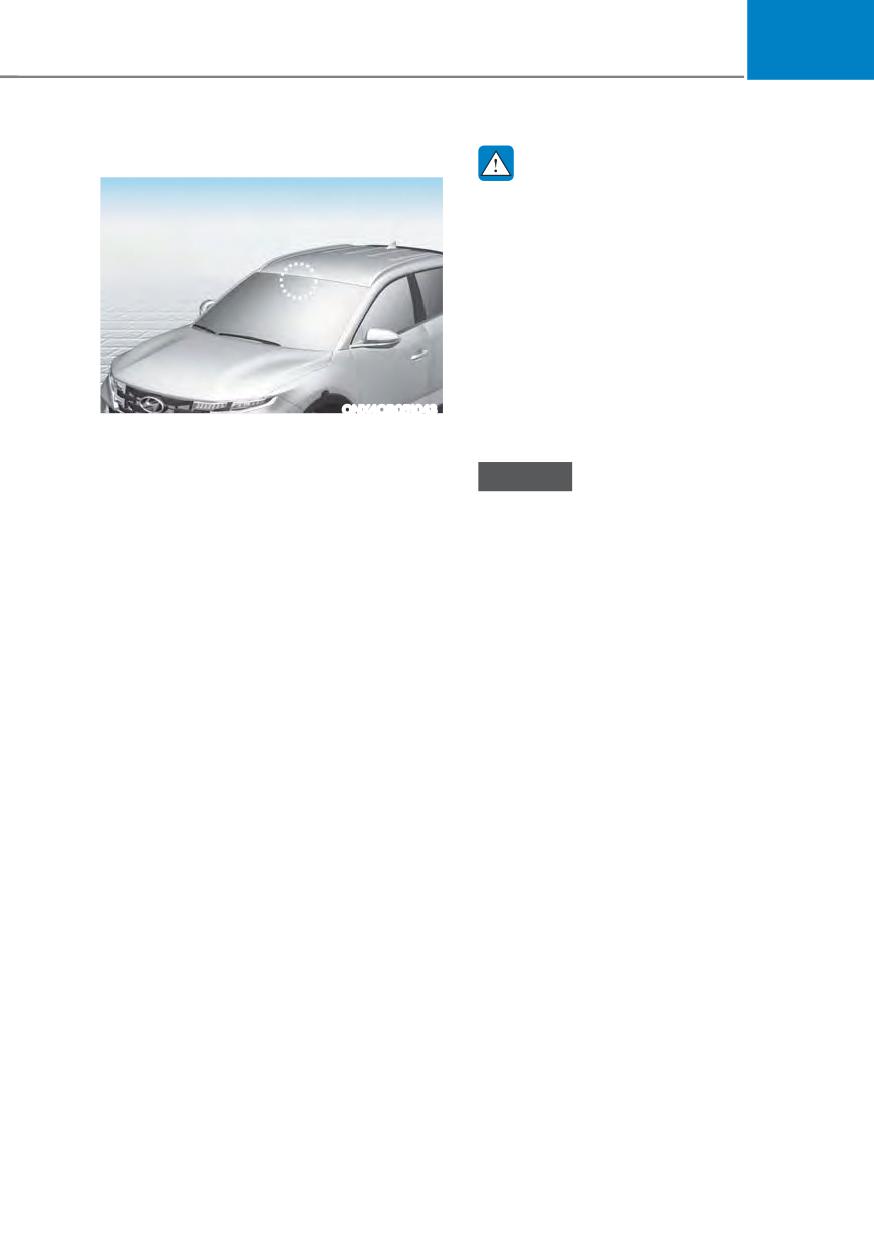

The position lamp and headlight will
be turned ON or OFF automatically
depending on the amount of daylight as
measured by the ambient light sensor (1)
ONX4OB051032
at the upper end of the dash board.
1. OFF
Even with the AUTO headlight feature
2. AUTO headlight
in operation, it is recommended to
3. Position lamp
manually turn ON the headlights when
4. Headlight
driving at night or in a fog, driving in the
rain, or when you enter dark areas, such
as tunnels and parking facilities.
Daytime Running Light (DRL)
The Daytime Running Lights (DRL) can
make it easier for others to see the front
NOTICE
of your vehicle during the day, especially
ś Do not cover or spill anything on the
after dawn and before sunset. The
sensor (1) located at the upper end of
Daytime Running Lights (DRL) should
the dash board.
be illuminated whenever you are driving
ś Do not clean the sensor using
during daylight hours. The DRL system
a window cleaner, the cleanser
will be ON when the headlight stalk is
may leave a light film which could
in the OFF or the AUTO Position (when
interfere with sensor operation.
daylight is detected) and the Electronic
Parking Brake (EPB) is released.
ś If your vehicle has window tint or
other types of metallic coating on the
front windshield, the AUTO headlight
The DRL system will turn off when:
system may not work properly.
ś The headlights are ON.
ś The parking brake is applied.
ś The vehicle is turned off.
5-73
Convenient Features

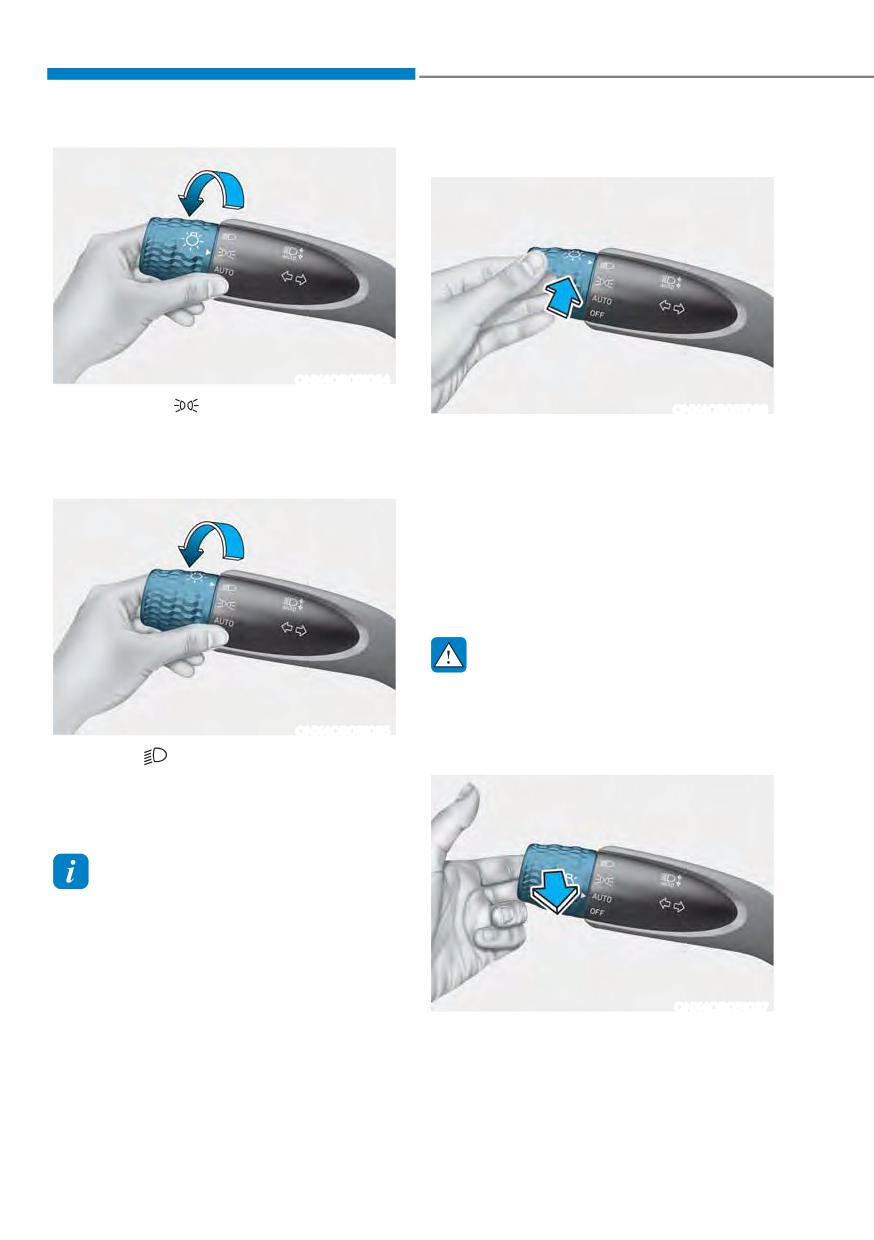

High beam operation
ONX4OB051034
Position lamp (
)
ONX4OB051036
The position lamp, license plate lamp
To turn on the high beam headlight, push
and instrument panel lamp are turned
the lever away from you. The lever will
ON.
return to its original position.
The high beam indicator will light when
the headlight high beams are switched
on.

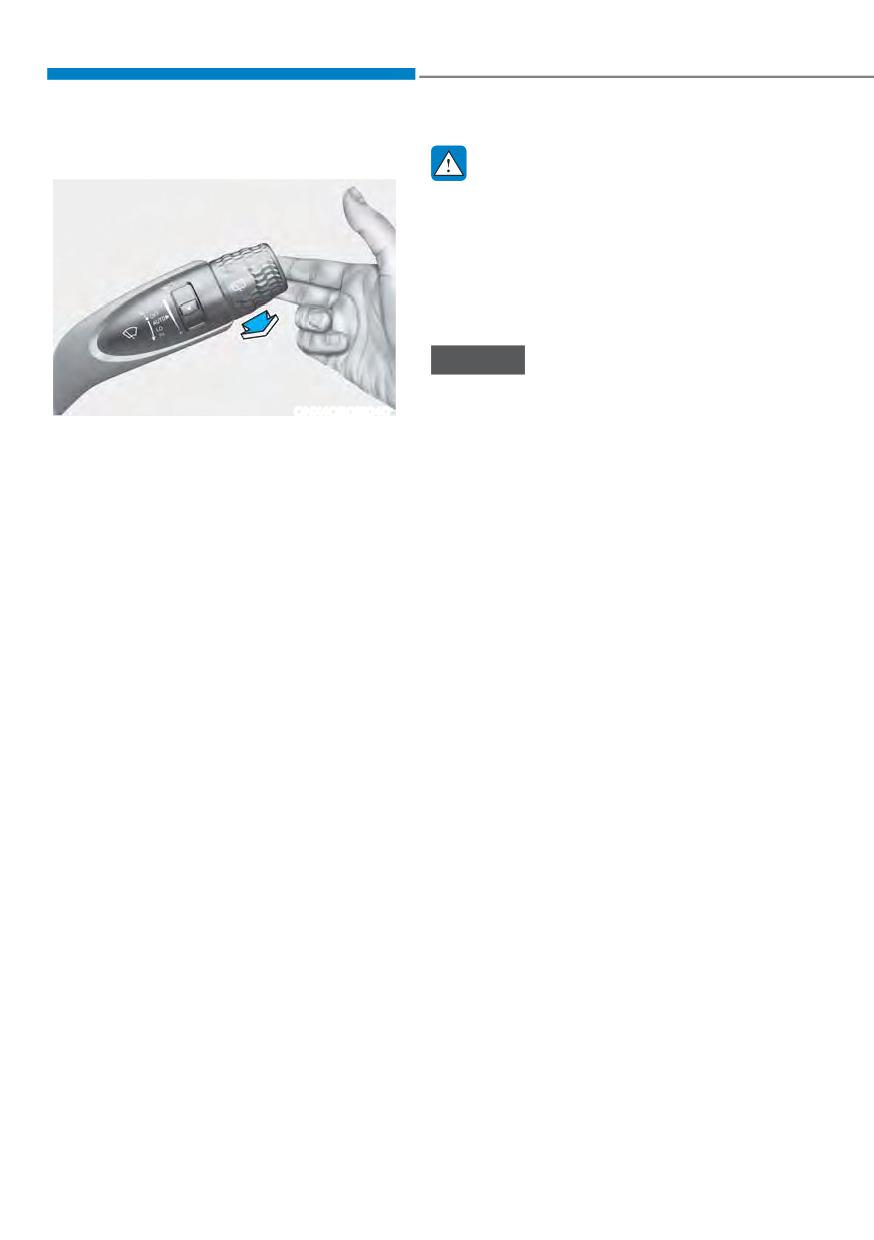

To turn off the high beam headlight, pull
the lever towards you. The low beams
will turn on.
WARNING
Do not use high beam when there are
other vehicles approaching you. Using
ONX4OB051035
high beam could obstruct the other
driver’s vision.
Headlight (
)
The headlight, position lamp, license
plate lamp and instrument panel lamp
are turned ON.
Information
The ignition switch must be in the ON
position to turn on the headlight.
ONX4OB051037
To flash the high beam headlight, pull the
lever towards you, then release the lever.
The high beams will remain ON as long
as you hold the lever towards you.
5-74
05
Turn signals and lane change signals
Battery saver function
The purpose of this feature is to prevent
the battery from being discharged.
The system automatically turns off the
position lamp when the driver turns the
vehicle off and opens the driver-side
door.
With this feature, the position lamps will
turn off automatically if the driver parks
on the side of road at night.
However, the position lamps stay ON
even when the driver-side door is opened
ONX4OB051038
if the headlight switch is turned to the

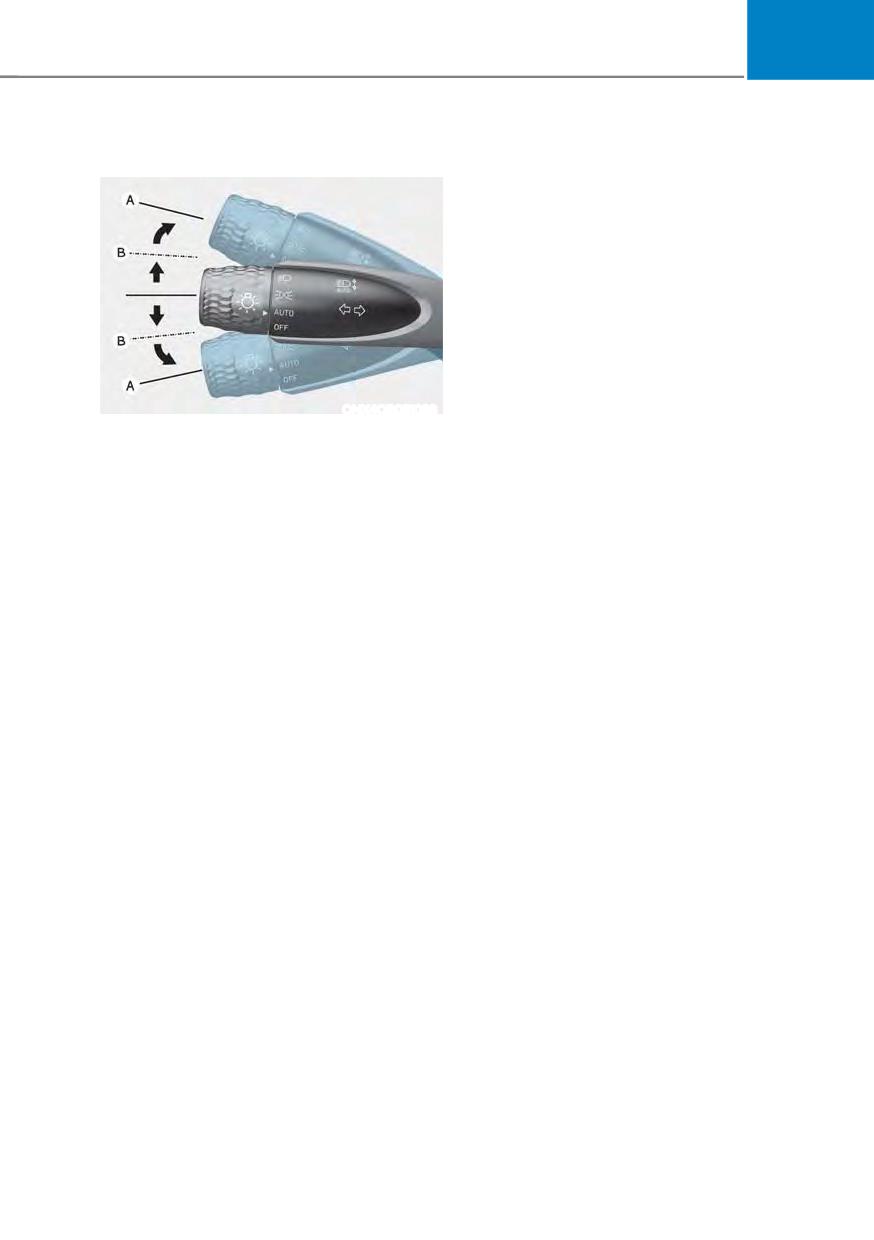

To signal a turn, push down on the lever
position lamp or AUTO (if equipped)
for a left turn or up for a right turn in
position after the engine is turned off.
position (A).
If necessary, to keep the lamps on
If an indicator stays on and does not flash
turn the position lamps OFF and ON
or if it flashes abnormally, one of the turn
again using the headlight switch on
signal bulbs may be burned out and will
the steering column after the engine is
require replacement.
turned off.
One touch turn signal
To use One Touch Turn Signal push the
turn signal lever up or down to position
(B) and then release it.
The lane change signals will blink 3, 5 or
7 times.
You can enable the One Touch Turn
Signal function or choose the number
RI EOLQNLQJ E\ VHOHFWLQJ œ6HWXS Ɵ 8VHU
6HWWLQJV Ɵ /LJKWV Ɵ 2QH 7RXFK 7XUQ 6LJQDO
Ɵ 2II IODVKHV IODVKHV IODVKHVŔ LQ WKH
instrument panel cluster.
5-75
Convenient Features
Headlight delay function
If you place the ignition switch to the
ACC position or the OFF position with
the headlights ON, the headlights (and/
or position lamps) remain on for about
5 minutes. However, if the driver’s door
is opened and closed, the headlights
are turned off after 15 seconds. Also,
with the vehicle off if the driver’s door is
opened and closed, the headlights (and/
or position lamps) are turned off after 15
seconds.
The headlights (and/or position lamps)
can be turned off by pressing the lock
button on the remote key or smart key
twice or turning the headlight switch to
the OFF or AUTO position.
You can enable the headlight delay
IXQFWLRQ E\ VHOHFWLQJ œ6HWXS Ɵ 8VHU
6HWWLQJV Ɵ /LJKWV Ɵ +HDGOLJKW 'HOD\
NOTICE
If the driver exits the vehicle through
another door besides the driver
door, the battery saver function
does not operate and the headlight
delay function does not turn OFF
automatically.
This may cause the battery to
discharge. To avoid battery discharge,
turn OFF the headlights manually from
the headlight switch before exiting the
vehicle.
5-76
05
+,*+ %($0 $66,67 ǣ+%$Ǥ
NOTICE
ś Always keep the front view camera in
good condition to maintain optimal
performance of High Beam Assist.
ś For more details on the precautions
of the front view camera, refer to
“Forward Collision-Avoidance Assist
(FCA)” section in chapter 7.
High Beam Assist Settings
ODN8059206
:LWK WKH HQJLQH RQ VHOHFW œ/LJKWV Ɵ +LJK
High Beam Assist automatically controls
Beam Assist’ from the Settings menu to
the headlights between high beam and
turn on High Beam Assist and deselect to
low beam depending on the detected
turn off the function.
ambient light, such as an oncoming
vehicle or leading vehicle.
WARNING
Detecting sensor
For your safety, change the Settings
after parking the vehicle at a safe
location.

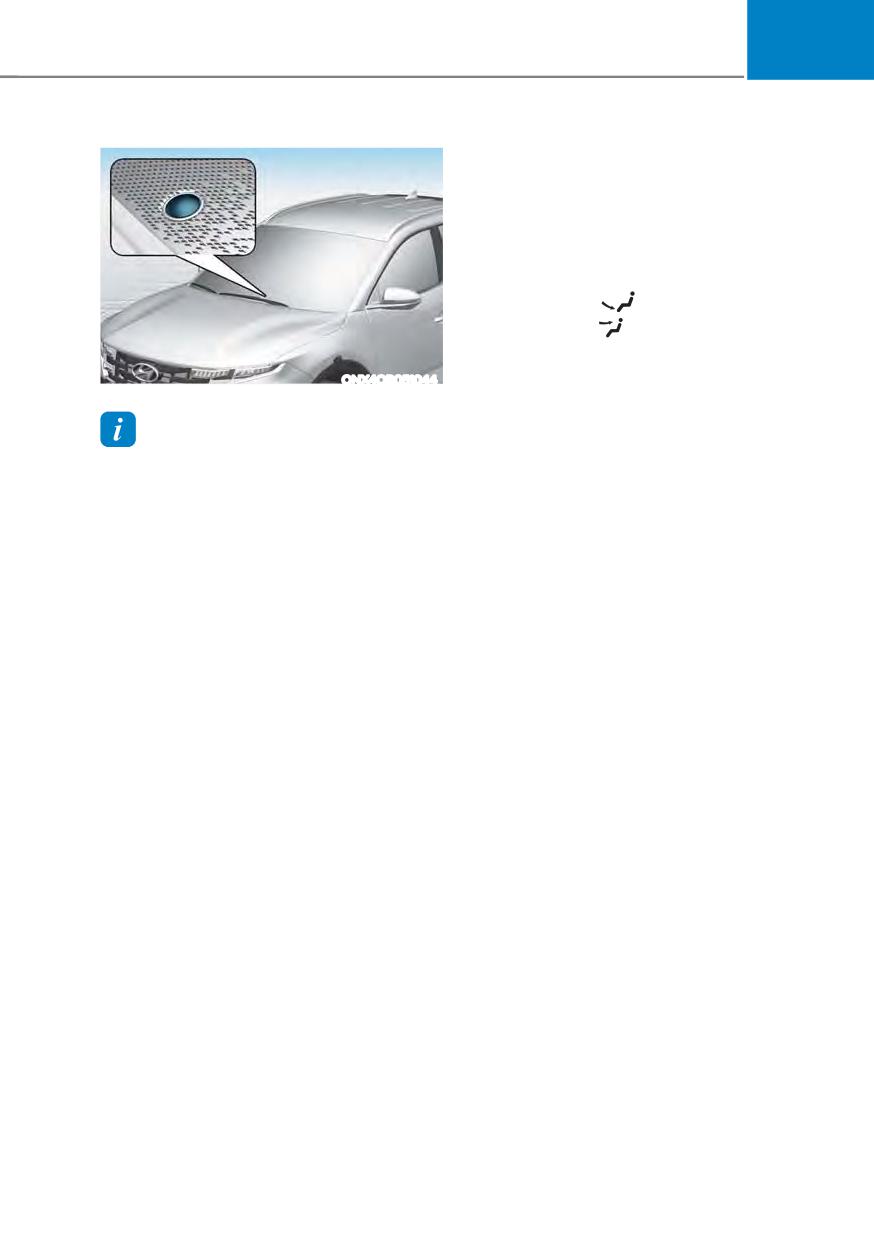

ONX4OB051017
[1] : Front view camera
The front view camera is used as a
detecting sensor to detect ambient light
and brightness while driving.
Refer to the picture above for the
detailed location of the detecting sensor.
5-77
Convenient Features
High Beam Assist Operation
ś
When High Beam Assist is operating,
high beam switches to low beam if
Display and control
any of the following conditions occur:
ś
After selecting ‘High Beam Assist’
- When the headlight of an oncoming
in the Settings menu, High Beam
vehicle is detected.
Assist will operate by following the
procedure below.
- When the tail lamp of a vehicle in
front is detected.
- Place the headlight switch in
the AUTO position and push
- When the headlight or tail lamp of a
the headlight lever towards the
motorcycle or a bicycle is detected.
instrument cluster. The High Beam
- When the surrounding ambient light
Assist (
) indicator light will
is bright enough that high beams
illuminate on the cluster and the
are not required.
function will be enabled.
- When streetlights or other lights are
- When the function is enabled, high
detected.
beam will turn on when vehicle
speed is above 25mph (40km/h).
When vehicle speed is below 15
Information
mph (25 km/h), high beam will turn
ś
The images and colors in the cluster
off.
may differ depending on the cluster
- The High Beam (
) indicator light
type or theme selected from the cluster.
will illuminate on the cluster when
high beam is on.
ś
When High Beam Assist is operating,
if the headlight lever or switch is used,
the function operates as follow:
- If the headlight lever is pulled
towards you when the high beam
is off, the high beam will turn on
without High Beam Assist canceled.
When you let go of the headlight
lever, the lever will move to the
middle and the high beam will turn
off.
- If the headlight lever is pulled
towards you when the high beam is
on by High Beam Assist, low beam
will turn on and the function will
turn off.
- If the headlight switch is placed
from AUTO to another position
(headlight/position/off), High
Beam Assist will turn off and the
corresponding lamp will turn on.
5-78
05
High Beam Assist Malfunction
ś Vehicle in front is partially visible on a
crossroad or curved road.
and Limitations
High Beam Assist malfunction
ś There is a traffic light, reflecting sign,
flashing sign or mirror ahead.
ś There is a temporary reflector or flash
ahead (construction area).
ś The road conditions are bad such as
being wet, iced or covered with snow.
ś A vehicle suddenly appears from a
curve.
ś The vehicle is tilted from a flat tire or
is being towed.
ś Light from an oncoming or front
vehicle is not detected due to
ONX4OB041012
obstacles in the air such as exhaust

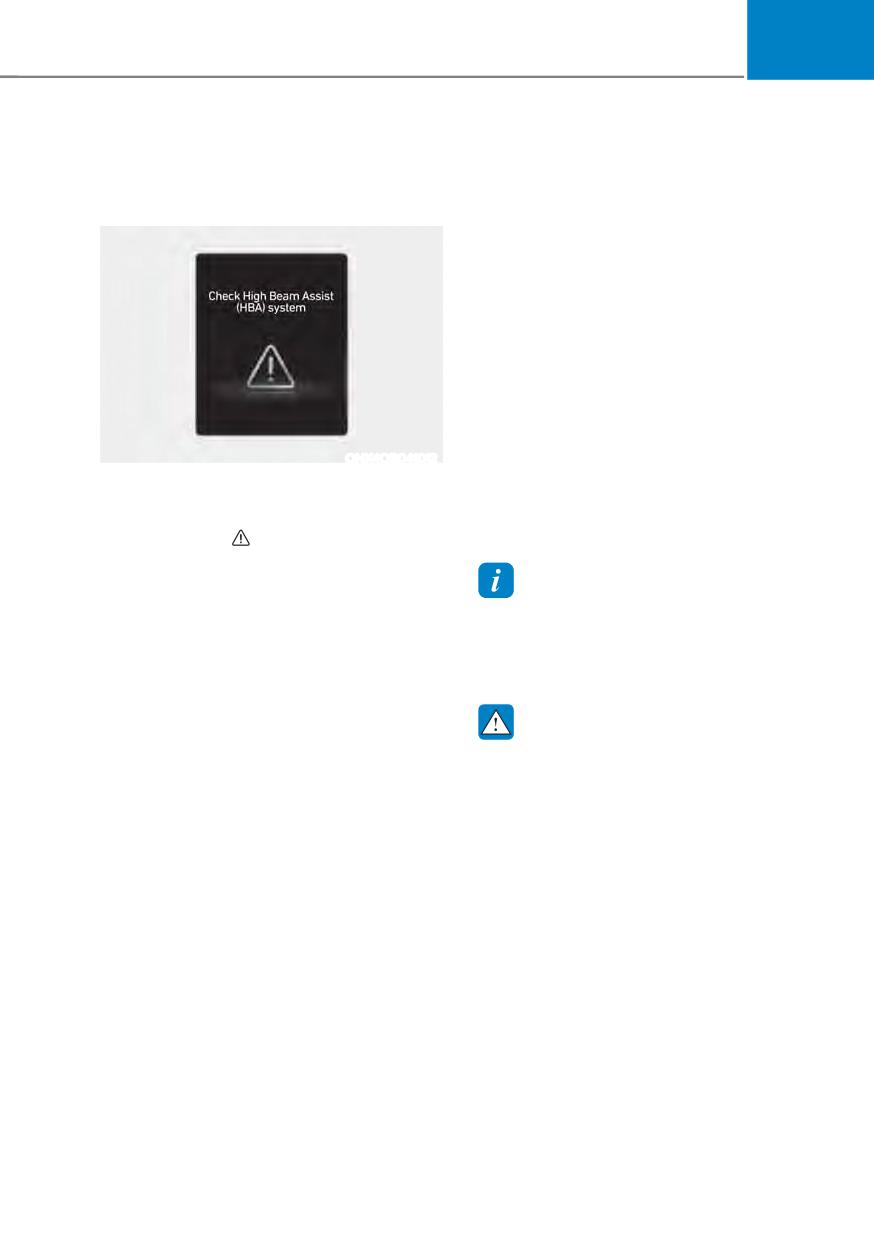

When High Beam Assist is not working
fume, smoke, fog, snow, or water spay
properly, the ‘Check High Beam Assist
or blizzard on the road, or fogging in
(HBA) system’ warning message
the lamp, etc.
will appear and warning light will
illuminate on the cluster. Have the
vehicle inspected by an authorized
Information
HYUNDAI dealer.
For more details on the limitations of the
front view camera, refer to “Forward
Limitations of High Beam Assist
Collision-Avoidance Assist (FCA)” section
High Beam Assist may not work properly
in chapter 7.
in the following situations:
ś Light from an oncoming or front
vehicle is not detected because of
WARNING
lamp damage, or because it is hidden
ś At times, High Beam Assist may not
from sight, etc.
work properly. It is the responsibility
ś Headlight of an oncoming or front
of the driver for safe driving
vehicle is covered with dust, snow or
practices and always check the road
water.
conditions for your safety.
ś An oncoming or front vehicle’s
ś When High Beam Assist does not
headlights are off but the fog lamps
operate normally, change the
are on, etc.
headlight position manually between
high beam and low beam.
ś There is a lamp that has a similar
shape as a vehicle’s lamp.
ś High Beam Assist may not operate
for 15 seconds after the vehicle is
ś Headlights have been damaged or not
started, or the front view camera is
repaired properly.
initialized.
ś Headlights are not aimed properly.
ś Driving on a narrow curved road,
curved road, rough road, uphill or
downhill.
5-79
Convenient Features
INTERIOR LIGHTS
WARNING

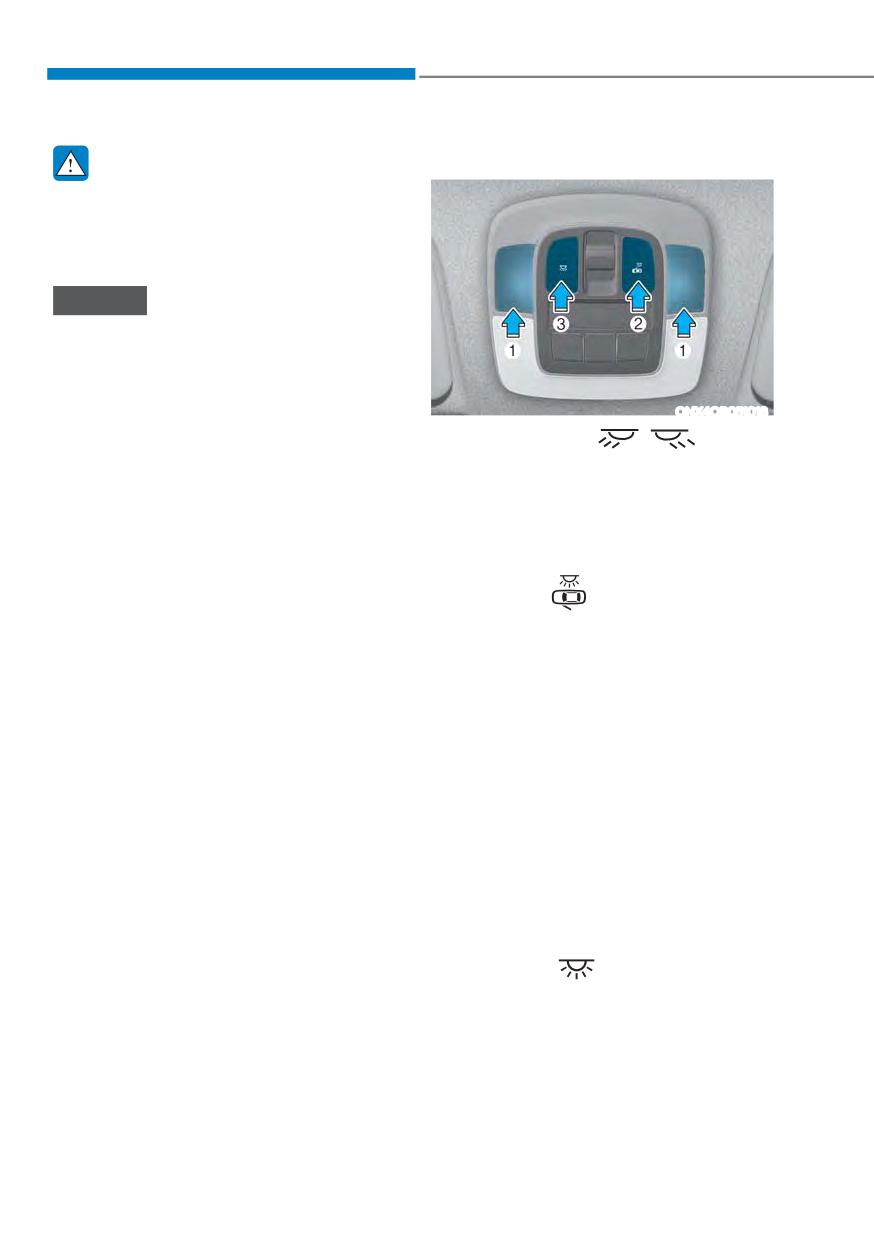

Front Lamps
Do not use the interior lights when
driving in the dark. The interior lights
may obscure your view and cause an
accident.
NOTICE
Do not use the interior lights for
extended periods when the vehicle is
turned off or the battery will discharge.
Interior Lamp AUTO OFF
ONX4OB051018
The interior lamps will automatically go
1. Front map lamp (
):
off approximately 10 minutes after the
Touch either lenses to turn the map
vehicle is turned off and the doors are
lamp on or off. This light produces a spot
closed. If a door is opened, the lamp
beam for convenient use as a map lamp
will go off 40 minutes after the vehicle
at night or as a personal lamp for the
is turned off. If the doors are locked by
driver and the front passenger.
the smart key and the vehicle enters the
armed stage of the theft alarm system,
the lamps will go off five seconds later.
2. Door lamp (
):
The front or rear room lamps come on
when the front or rear doors are opened.
When doors are unlocked by the smart
key, the front and rear lamps come on
for approximately 30 seconds as long as
any door is not opened. The front and
rear room lamps go out gradually after
approximately 30 seconds when the
door is closed. However, if the ignition
switch or the Engine Start/Stop button is
in the ON position or all doors are locked,
the front and rear lamps will turn off. If a
door is opened with the ignition switch
in the ACC position or the OFF position,
the front and rear lamps will stay on for
about 20 minutes.
3. Room lamp (
)
Press the button to turn ON the room
lamp for the front/rear seats.
5-80
05

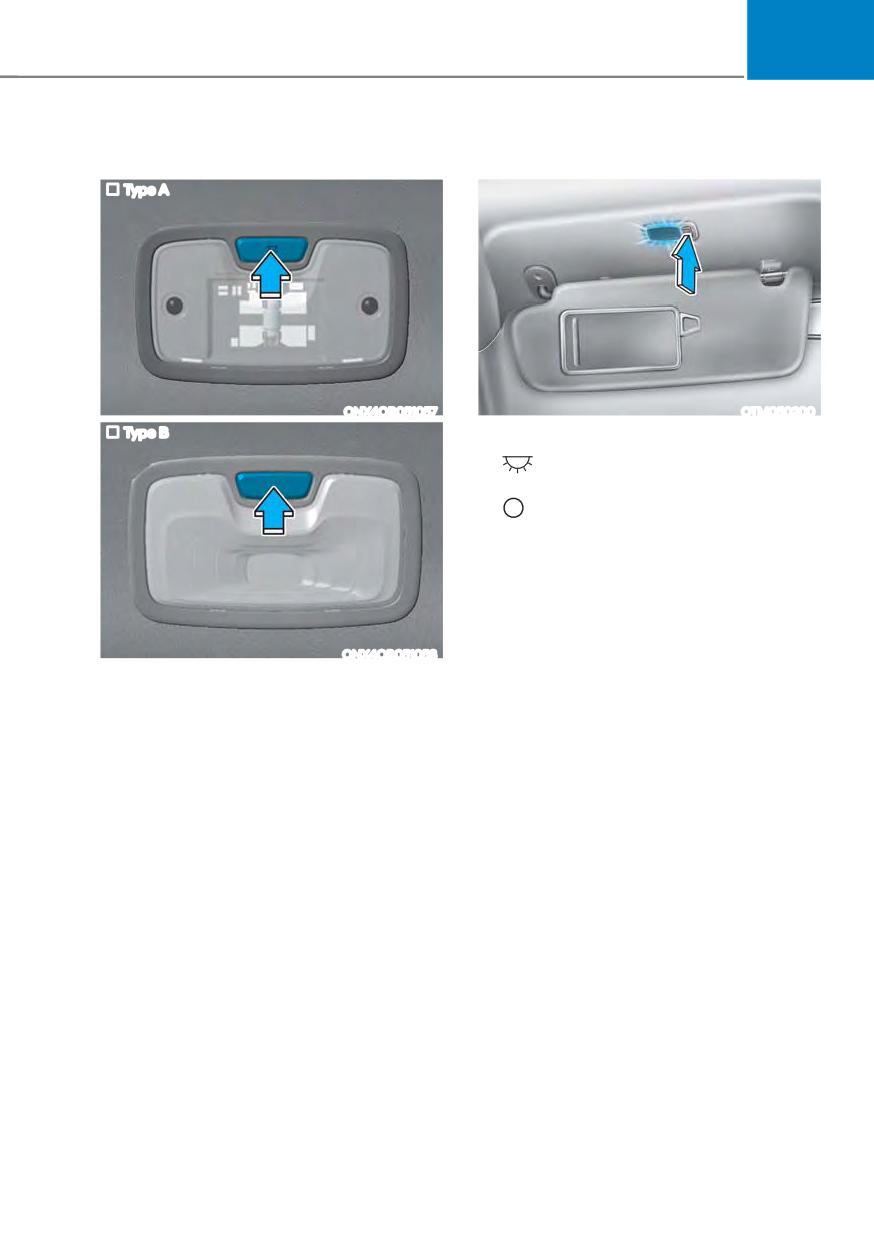

Rear Lamps
Vanity Mirror Lamp
„ Type A
ONX4OB051057
OTM050200
„ Type B
Push the switch to turn the light on or off.
ś
: The lamp will turn on if this
button is pressed.
ś
: The lamp will turn off if this
button is pressed.
ONX4OB051058
Rear room lamp switch :
Press this button to turn the room lamp
on and off.
5-81
Convenient Features
Glove Box Lamp (if equipped)
Door Handle Lamp (if equipped)
When all the doors are closed and
locked, the door handle lamp will turn on
for approximately 15 seconds if any of the
below is performed.
ś ,I œ&RQYHQLHQFH Ɵ :HOFRPH PLUURU
OLJKW Ɵ 2Q GRRU XQORFNŔ LV VHOHFWHG LQ
the User Settings mode on the cluster
display,
- the lamps will turn on when the
door lock button is pressed on the
smart key.
ONX4050039
- the lamps will turn on when the
The glove box lamp turns on when the
button of the outside door handle
glove box is opened.
is pressed with the smart key in
possession. (available with button
Welcome System (if equipped)
type)
- the lamps will turn on when the
touch sensor on the outside door
handle is touched with the smart
key in possession. (available with
touch sensor type)
ś ,I ERWK œ&RQYHQLHQFH Ɵ :HOFRPH
PLUURU OLJKW Ɵ 2Q GRRU XQORFNŔ DQG
œ&RQYHQLHQFH Ɵ :HOFRPH PLUURU OLJKW
Ɵ 2Q GULYHU DSSURDFKŔ LV VHOHFWHG LQ
the User Settings mode on the cluster
display, the lamps will turn on when
ONX4OB051042
the vehicle is approached with the
Welcome system helps keep the driver
smart key in possession.
visible by turning on vehicle lights when
the driver approaches the vehicle.
You can activate or deactivate Welcome
Light function from the User Settings
mode on the cluster display.
5-82
05

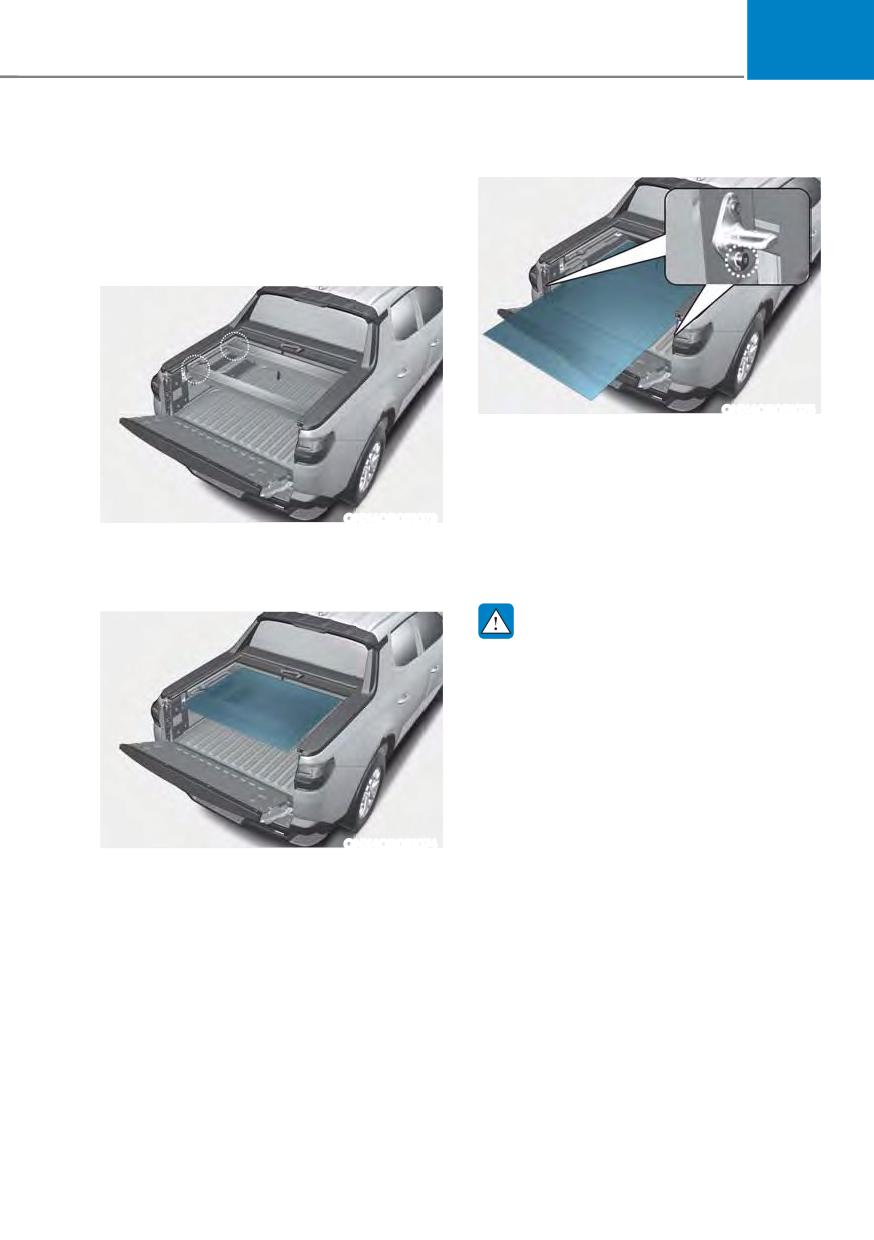

Headlight and position lamp

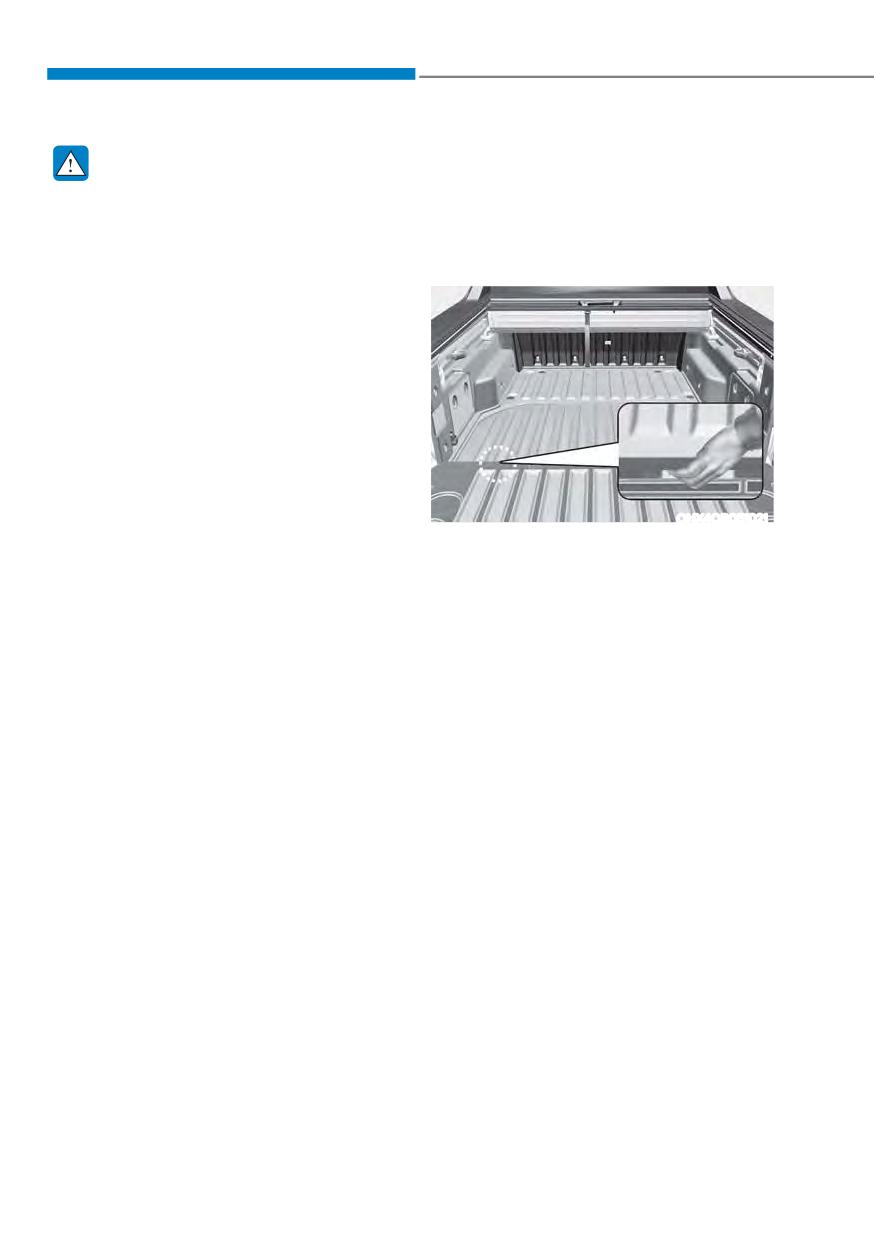

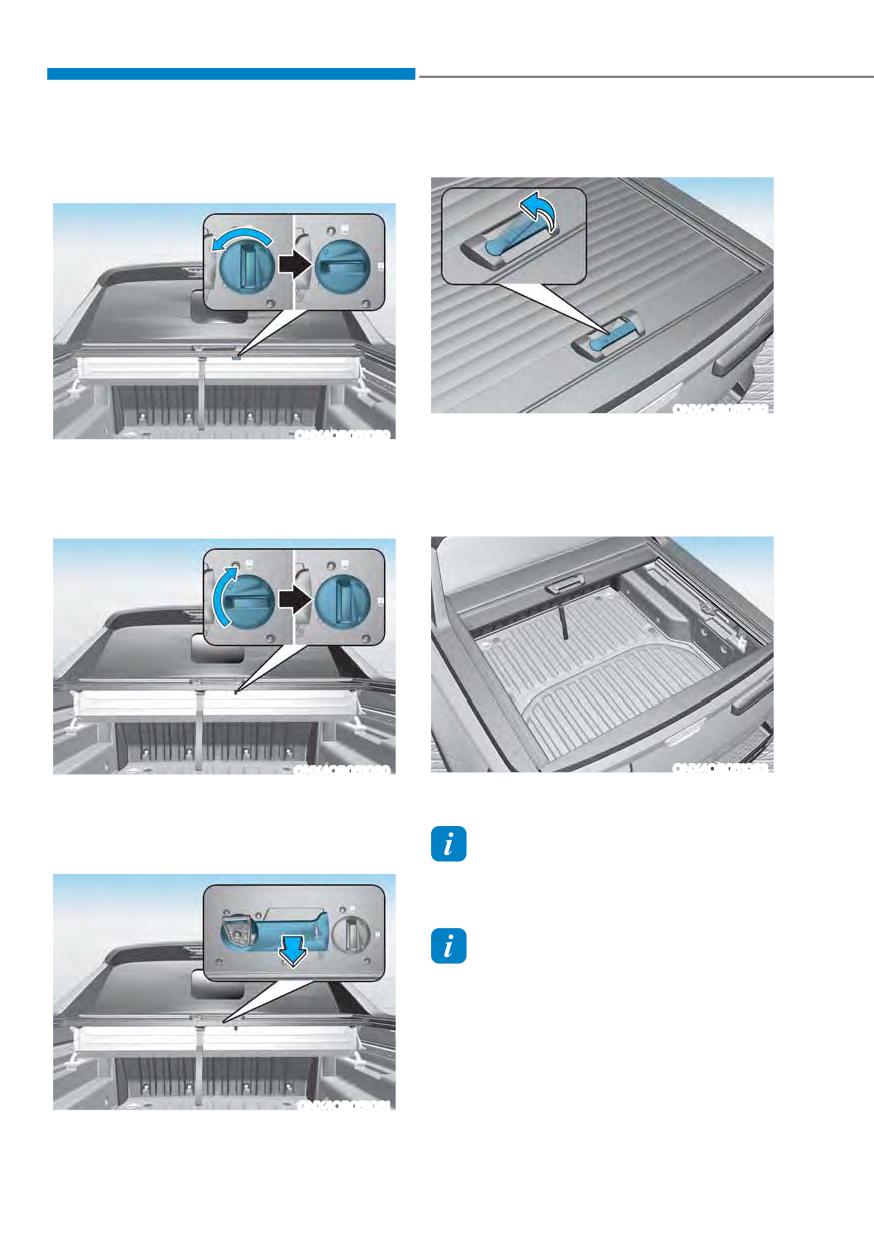

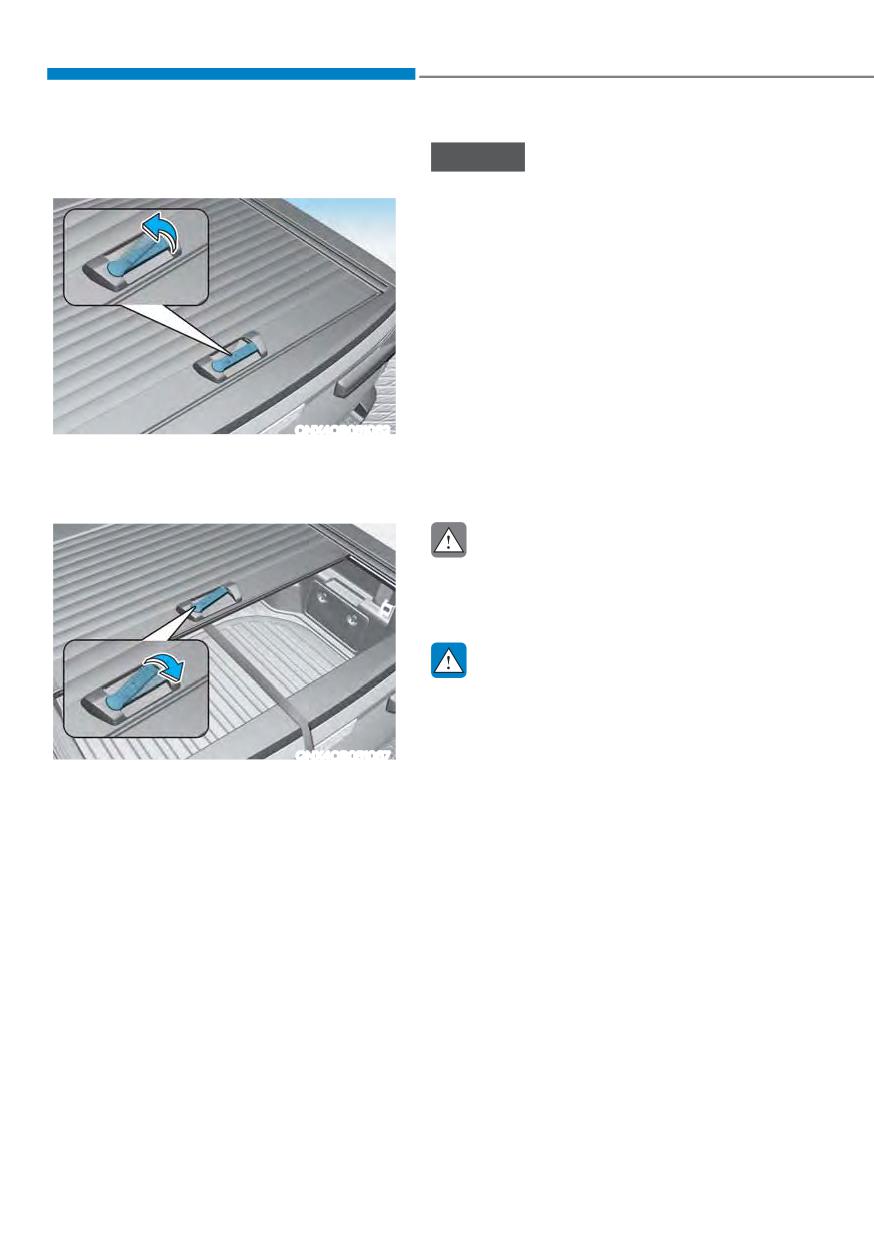

Top mounted bed lamp and Side
When the headlight (lamp switch in the
mounted bed lamp (if equipped)
headlight or AUTO position) is on and
Lamps will be activated when the button
all doors (and liftgate) are locked and
in the cabin is pressed once or when
closed, the position lamp and headlight
the underbed storage lid is opened.
will come on for 15 seconds when the
(Indicator on button will illuminate when
door unlock button is pressed on the
lamps are on.)
remote key or smart key.
At this time, if you press the door lock
Lamps will turn Off if any of the following
or unlock button, the position lamp and
occur:
headlight will turn off immediately.
ś After 10 minutes of being activated.
ś When remote key or smart key lock
Interior lamp
button is pressed twice.
When the interior lamp switch is in the
ś When underfloor storage lid is closed
position and all doors (and liftgate)
securely.
are closed and locked, the room lamp
will come on for 30 seconds if any of the
below is performed.
NOTICE
ś When the door unlock button is
Bed lamps can only be activated when
pressed on the remote key or smart
the vehicle is in Park (P) or Neutral (N)
key.
with the vehicle speed below 3.1 mph (5
km/h).
ś When you put your hand in the
outside door handle while carrying the
smart key.
At this time, if you press the door lock
or unlock button on the smart key the
lamps will turn off immediately.
5-83
Convenient Features
:,3(56 $1' :$6+(56

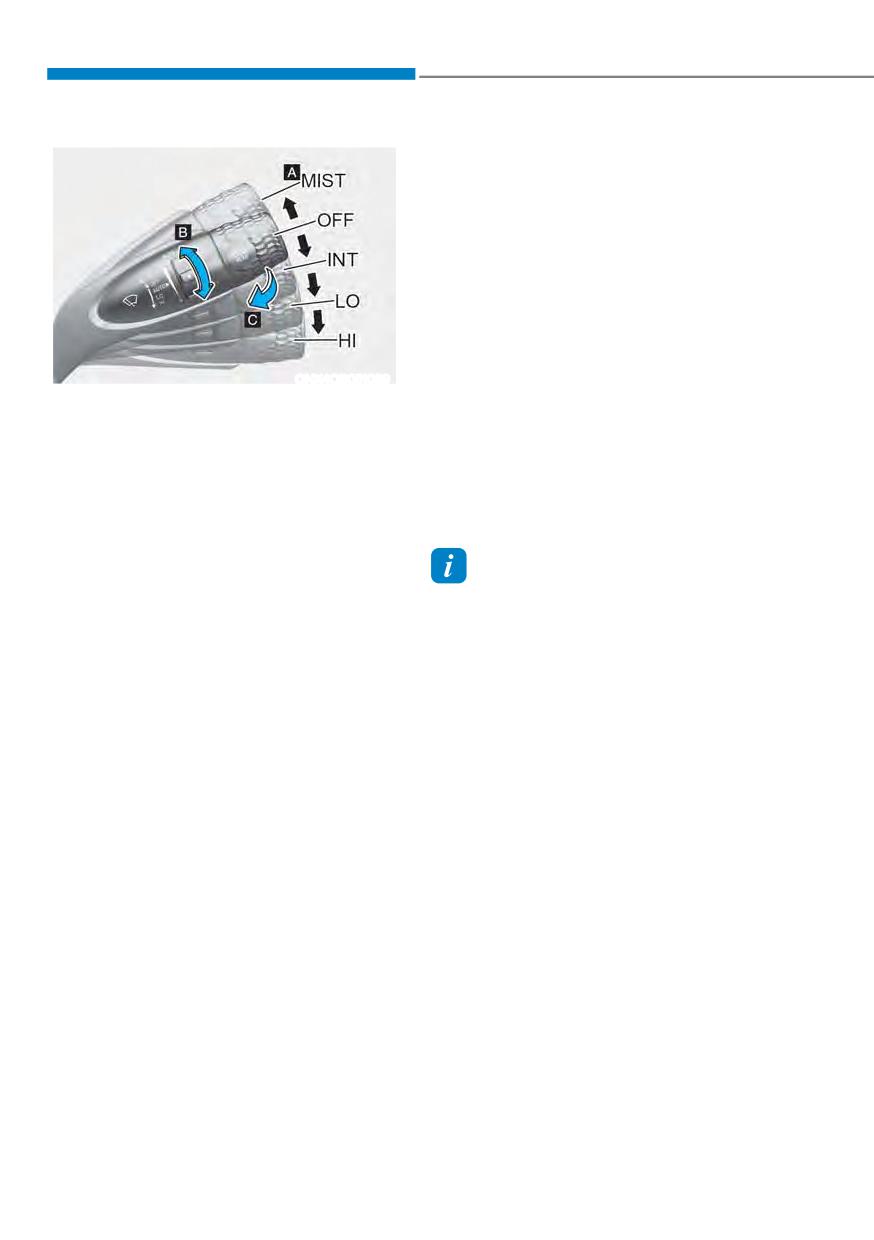

Windshield Wipers
Operates as follows when the ignition
switch is turned ON.
MIST :
For a single wiping cycle,
move the lever up and release
it. The wipers will operate
continuously if the lever is
held in this position.
OFF :
Wipers are not in operation.
INT :
Wipers operate intermittently
ONX4OB051039
at the same wiping intervals.
A. Wiper speed control
Use this mode in light rain
ś MIST - Single wipe
or mist. To vary the speed
setting, turn the speed
ś OFF - Off
control knob.
ś INT - Intermittent wipe
LO :
The wiper runs at a lower speed.
AUTO - Auto control wipe
HI :
The wiper runs at a higher speed.
(if equipped)
ś LO- Low wiper speed
Information
ś HI - High wiper speed
ś If there is heavy accumulation of snow
B. Intermittent control wipe time
or ice on the windshield, defrost the
adjustment
windshield for about 10 minutes, or
C. Wash with brief wipes
until the snow and/or ice is removed
before using the windshield wipers to
ensure proper operation.
If you do not remove the snow and/or
ice before using the wiper and washer,
it may damage the wiper and washer
system.
ś If it snows while driving, the wiper
may temporarily stop operation to
prevent damage caused by accumulated
snow at the upper and lower parts of
the window. When the wiper stops
operation, clear the accumulated snow
from the parts.
The wiper operation is stopped upon
snow accumulation while driving.
This is normal wiper operation. It is to
prevent safety issues from happening
when the wiper operation continues
without removing snow.
5-84
05

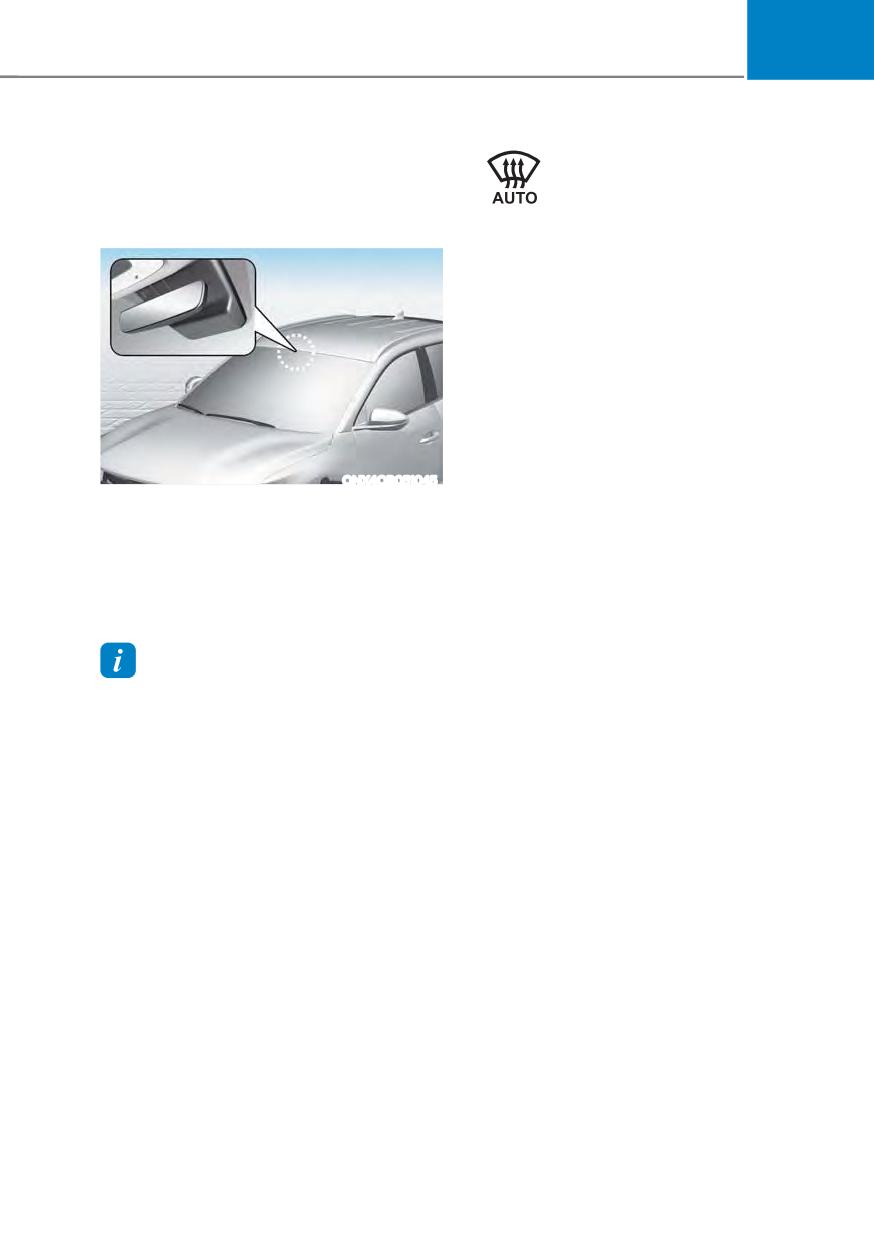

AUTO Wiper Control (if equipped)
WARNING
To avoid personal injury from the
windshield wipers, when the engine
is running and the windshield wiper
switch is placed in the AUTO mode:
ś Do not touch the upper end of the
windshield glass facing the rain
sensor.
ś Do not wipe the upper end of the
windshield glass with a damp or wet
cloth.
ONX4OB051043
ś Do not put pressure on the
The rain sensor located on the upper
windshield glass.
end of the windshield glass senses
the amount of rainfall and controls the
NOTICE
wiping cycle for the proper interval.
ś When washing the vehicle, set the
The wiper operation time will be
wiper switch in the OFF position to
automatically controlled depends on
stop the auto wiper operation. The
rainfall.
wiper may operate and be damaged
When the rain stops, the wiper stops.
if the switch is set in the AUTO mode
To vary the sensitivity setting, turn the
while washing the vehicle.
sensitivity control knob.
ś Do not remove the sensor cover
If the wiper switch is set in AUTO mode
located on the upper end of the
when the ignition switch is in the ON
passenger side windshield glass.
position, the wiper will operate once to
Damage to system components
perform a self-check of the system. Set
could occur and may not be covered
the wiper to the OFF position when the
by your vehicle warranty.
wiper is not in use.
ś Because of using a photo sensor,
temporary malfunction could occur
according to sudden ambient light
change made by stone and dust
while driving.
5-85
Convenient Features
Windshield Washers
WARNING
When the outside temperature is below
freezing, ALWAYS warm the windshield
using the defroster to help prevent
the washer fluid from freezing on the
windshield and obscuring your vision
which could result in an accident and
serious injury or death.
NOTICE
ś To prevent possible damage to the
ONX4OB051040
washer pump, do not operate the
washer when the fluid reservoir is
In the OFF position, pull the lever gently
empty.
toward you to spray washer fluid on the
windshield and to run the wipers 1-3
ś To prevent possible damage to the
cycles. The spray and wiper operation
wipers or windshield, do not operate
will continue until you release the lever. If
the wipers when the windshield is
the washer does not work, you may need
dry.
to add washer fluid to the washer fluid
ś To prevent damage to the wiper
reservoir.
arms and other components, do
not attempt to move the wipers
manually.
ś To prevent possible damage to the
wipers and washer system, use anti-
freezing washer fluids in the winter
season or cold weather.
5-86
05

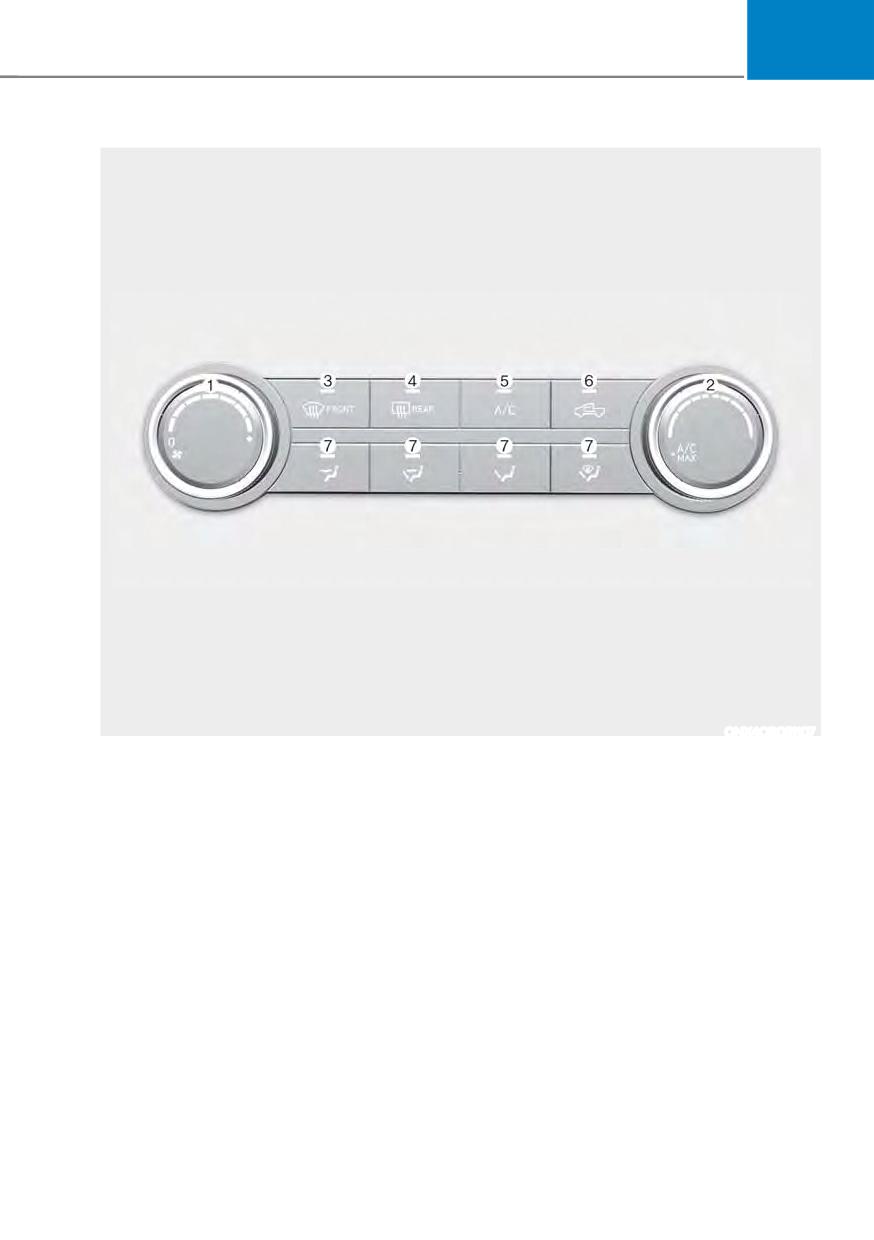

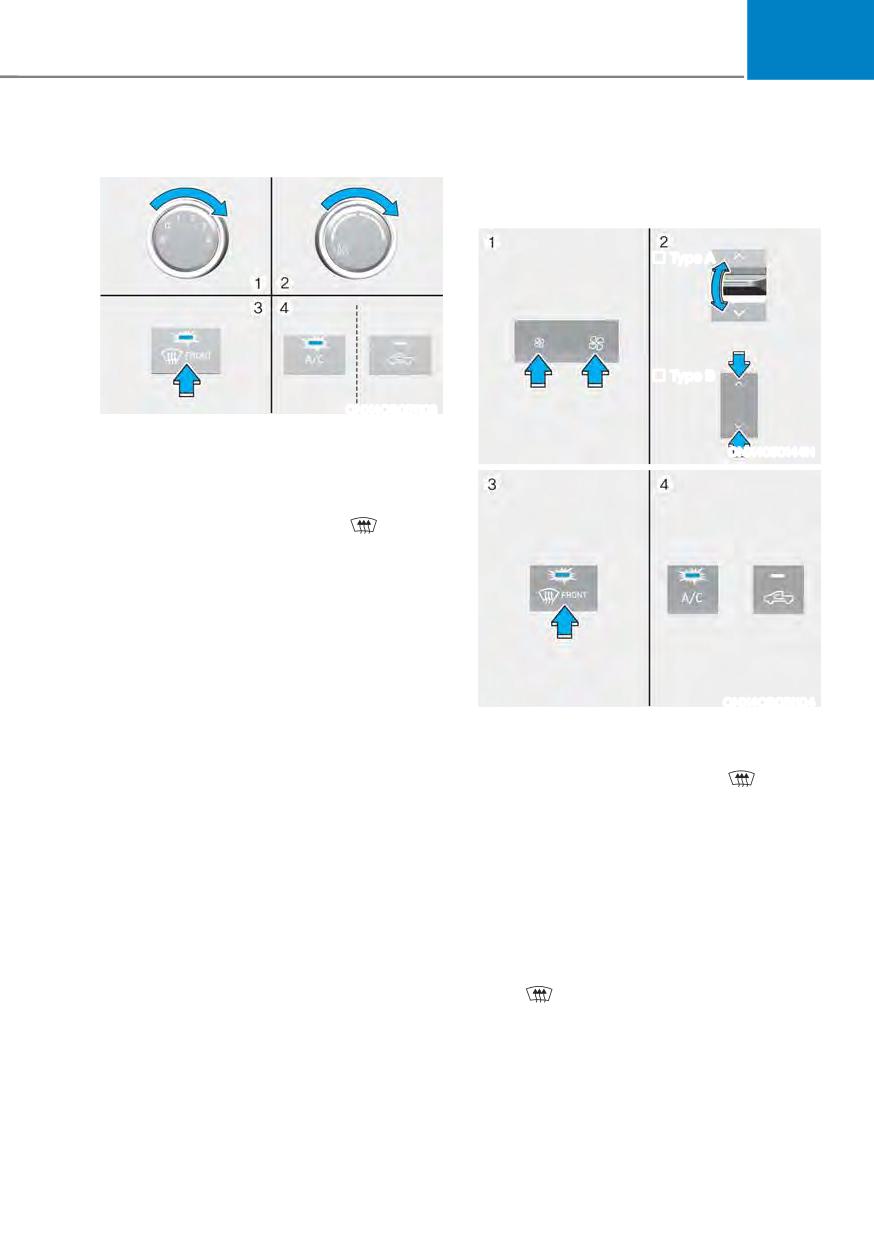

0$18$/ &/,0$7( &21752/ 6<67(0 ǣ,) (48,33('Ǥ
ONX4OB051107
1. Fan speed control knob
5. A/C (air conditioning) button
2. Temperature control knob
6. Air intake control button
3. Front windshield defroster button
7. Mode selection button
4. Rear window defroster button
5-87
Convenient Features
Heating and Air Conditioning
3. Set the temperature control to the
desired position.
1. Start the engine.
4. Set the air intake control to the
2. Set the mode to the desired position.
outside (fresh) air position.
To improve the effectiveness of
5. Set the fan speed control to the
heating and cooling, select:
desired speed.
- Heating:
6. If air conditioning is desired, turn the
- Cooling:
air conditioning system on.

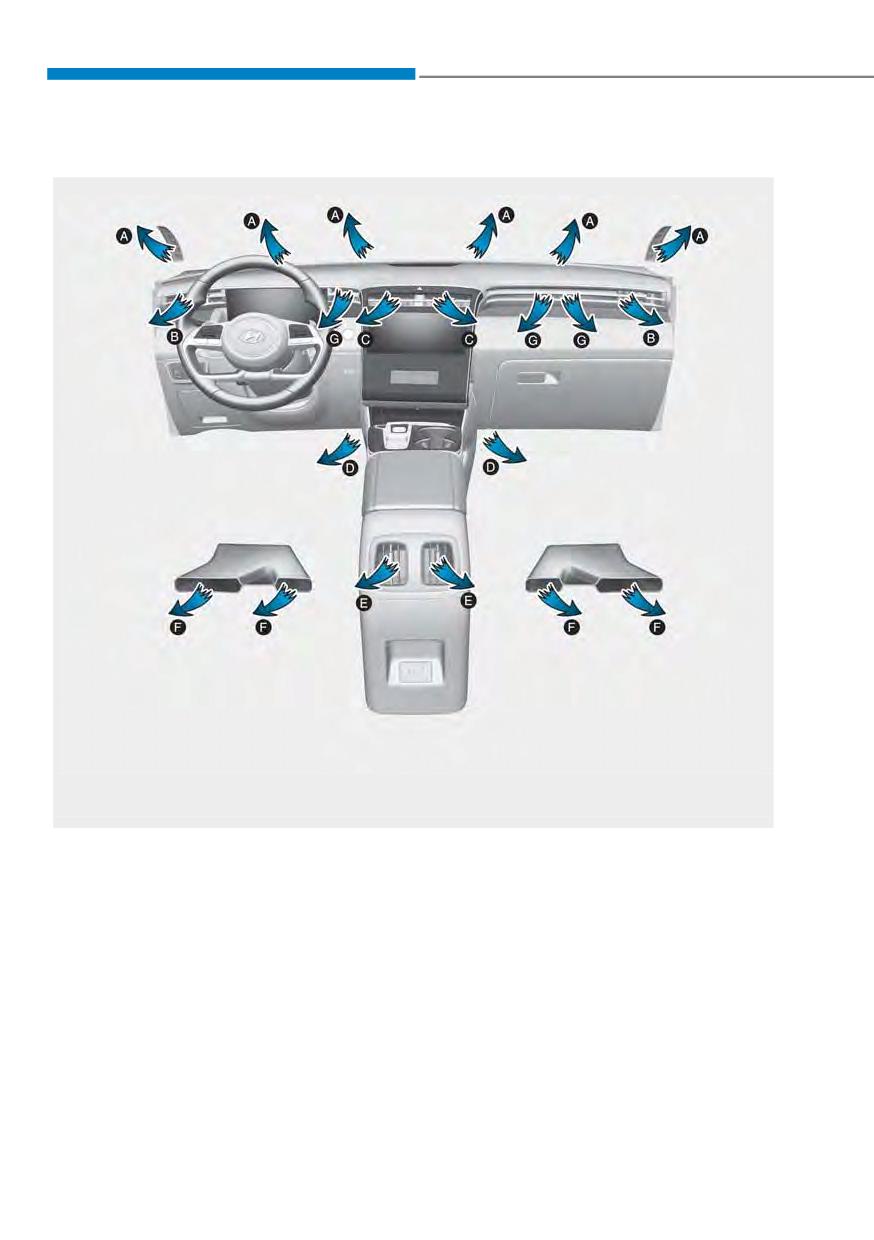

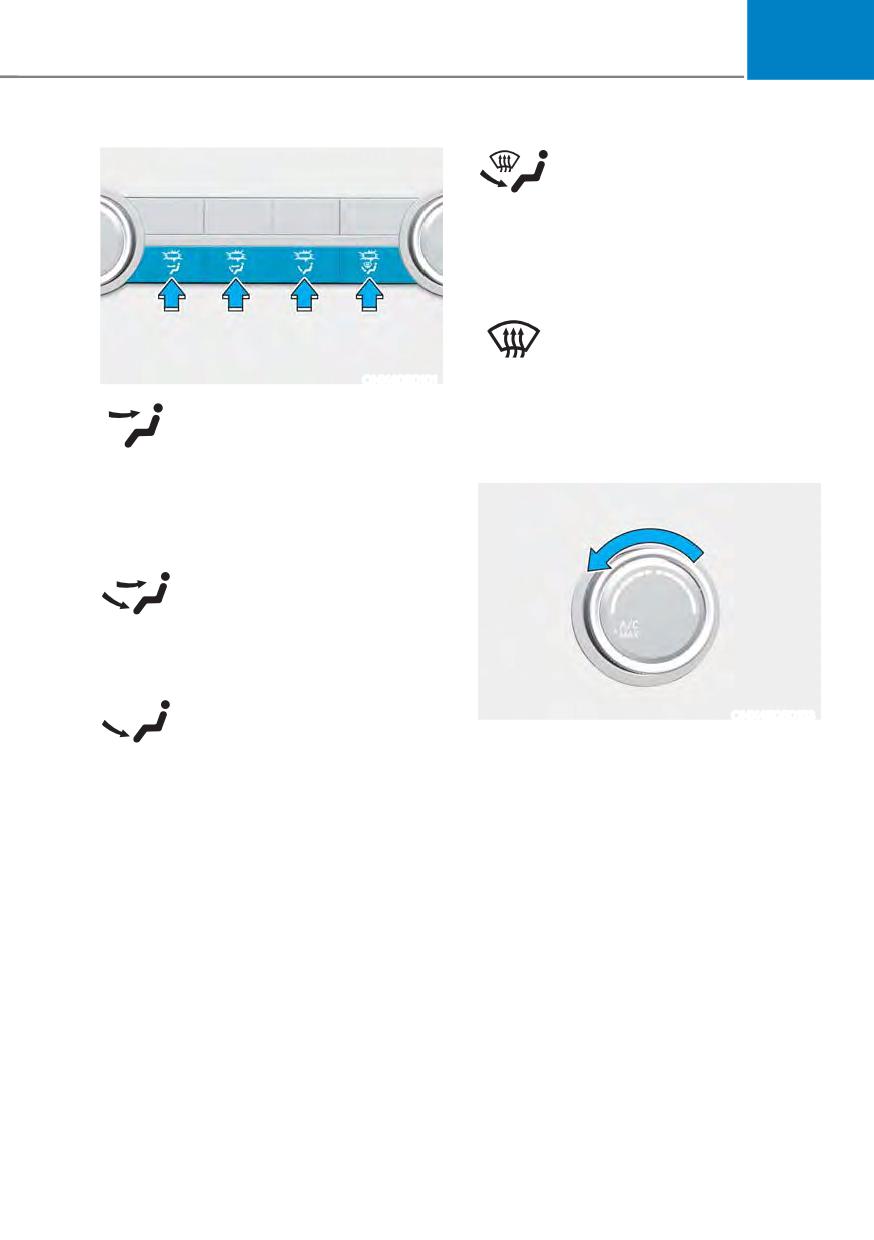

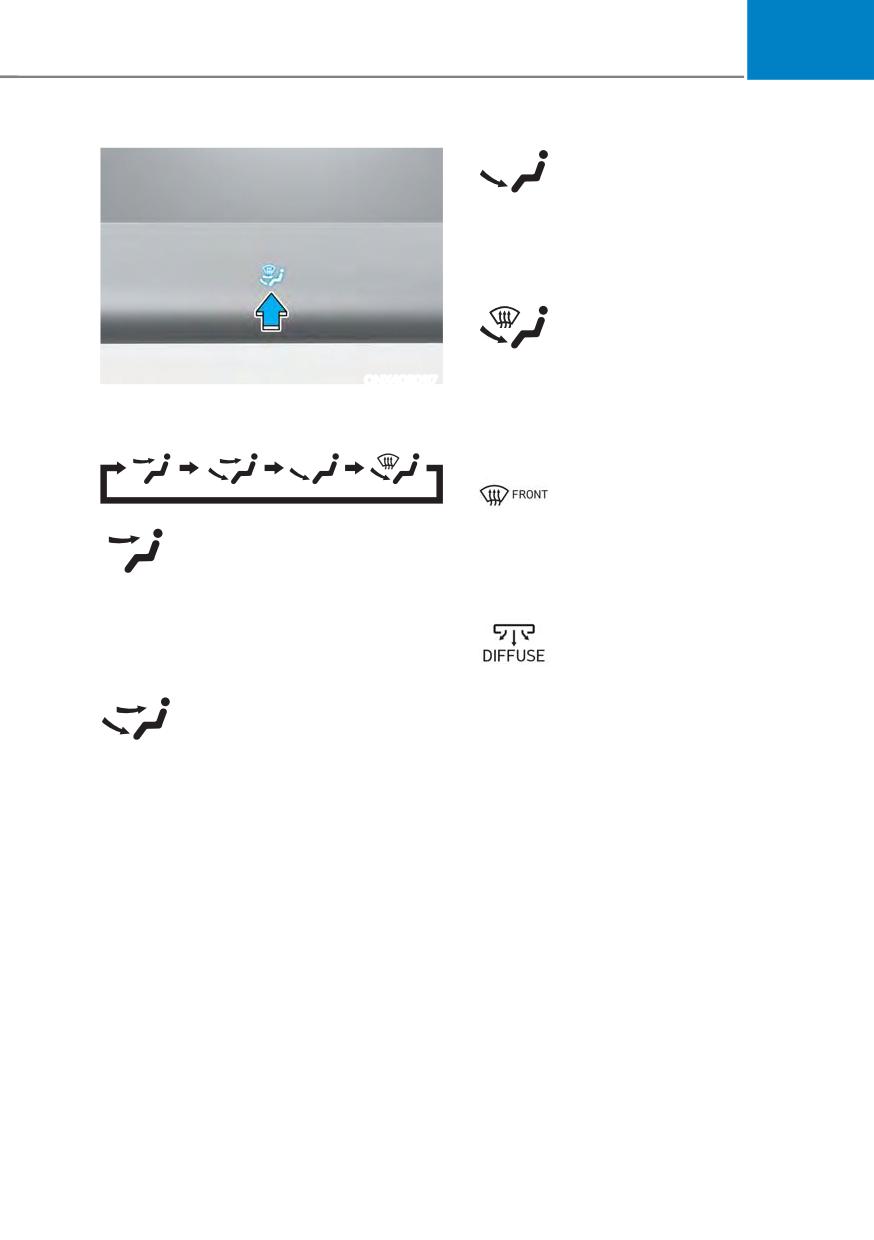

Mode selection
The actual shape of air conditioner may differ from the illustration.
ONX4050102

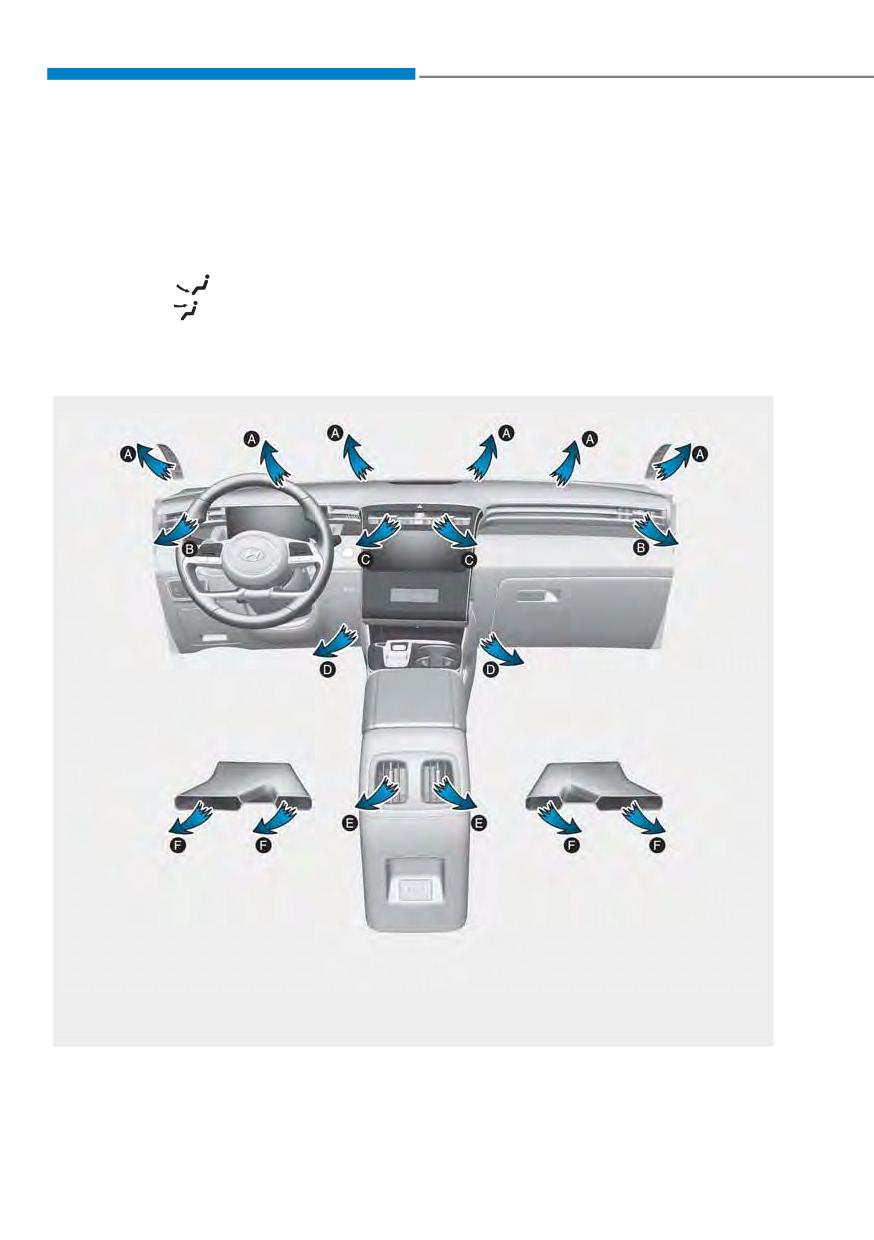

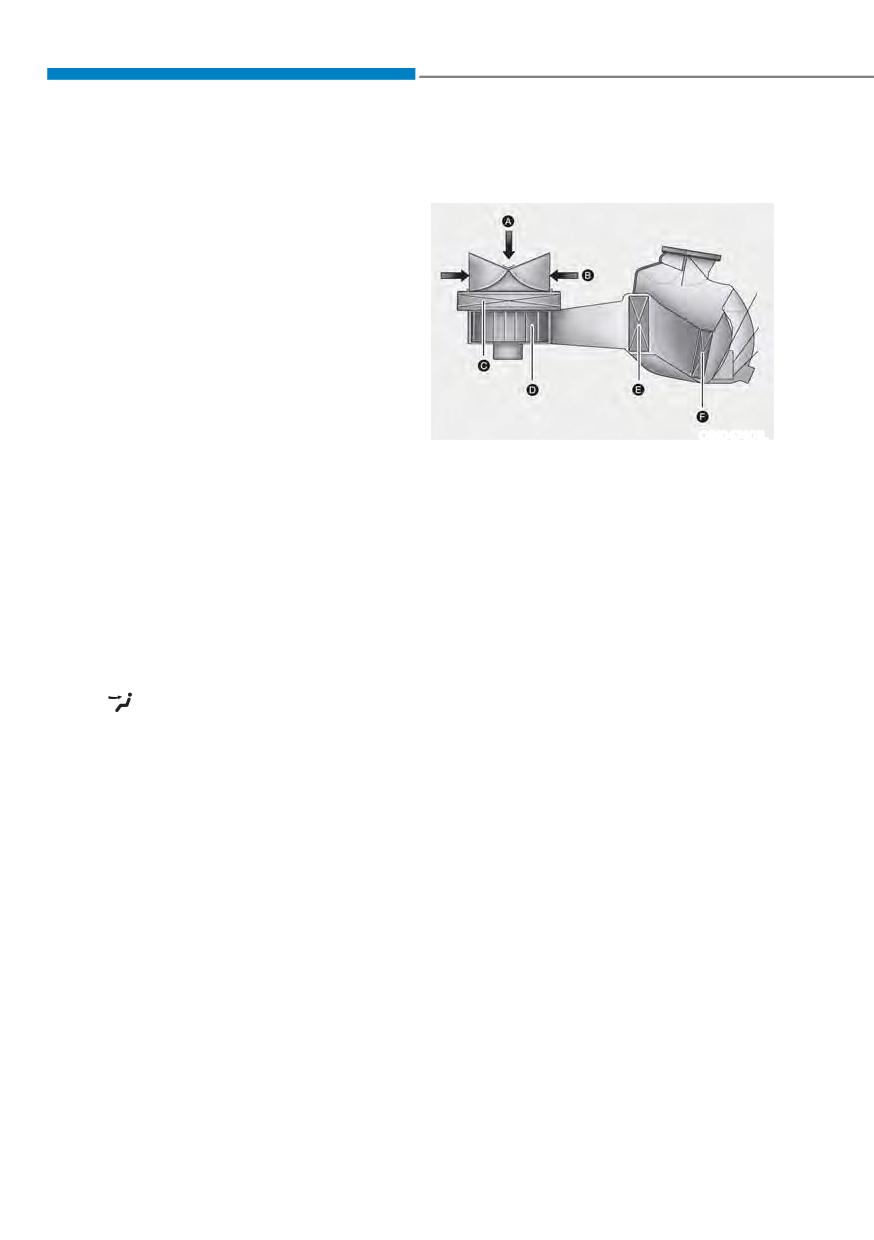

The mode selection button controls the direction of the air flow through the ventilation
system.
5-88
05

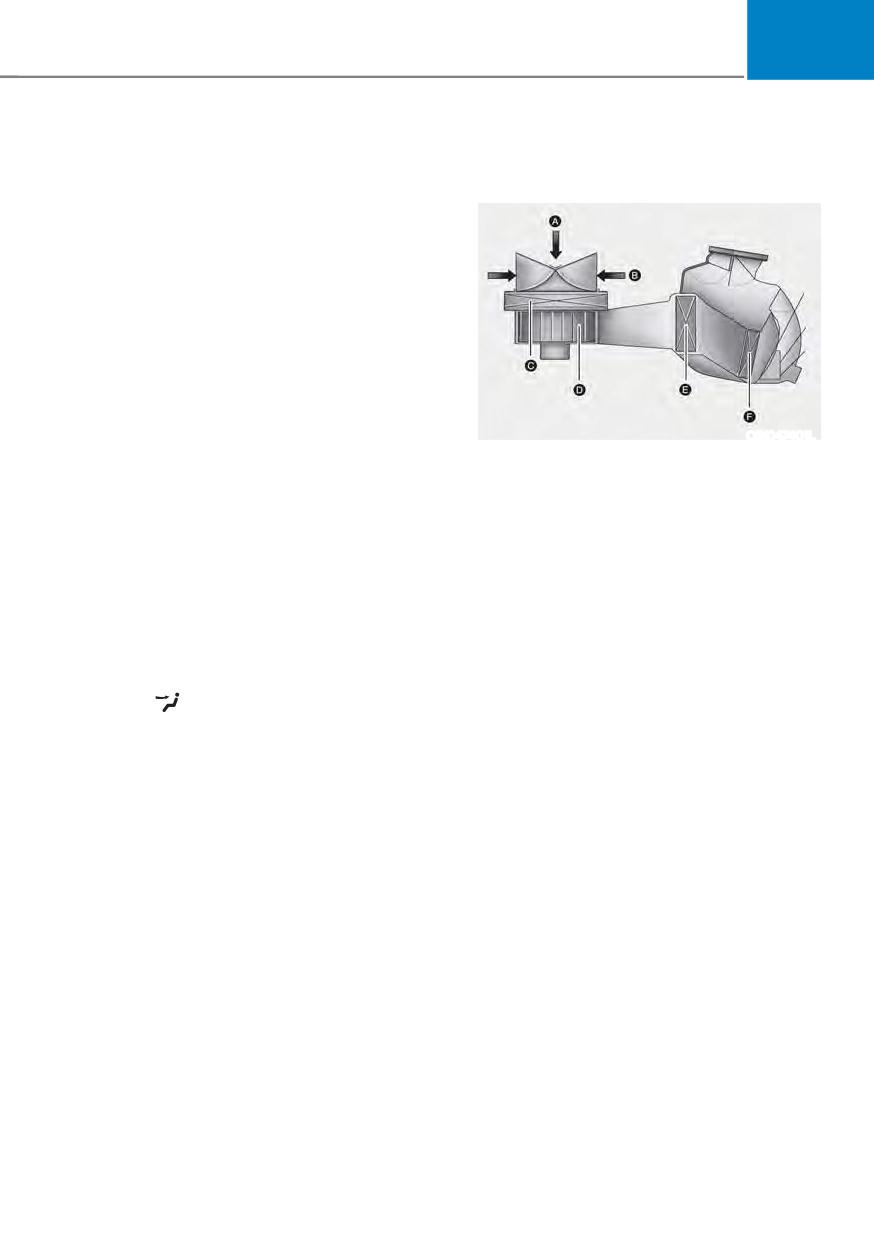

Floor/Defrost-Level
(A, B, D, E, F)
Most of the air flow is directed to the
floor and the windshield with a small
amount directed to the side window
defrosters.
Front defroster (A, B)
ONX4050101
Most of the air flow is directed to the
windshield with a small amount of air
Face-Level (B, C, E)
directed to the side window defrosters.
Air flow is directed toward the upper
MAX A/C-Level (B, C, E)
body and face. Additionally, each outlet
can be controlled to direct the air
discharged from the outlet.
Bi-Level (B, C, D, E, F)
Air flow is directed towards the face and
the floor.
ONX4E050153

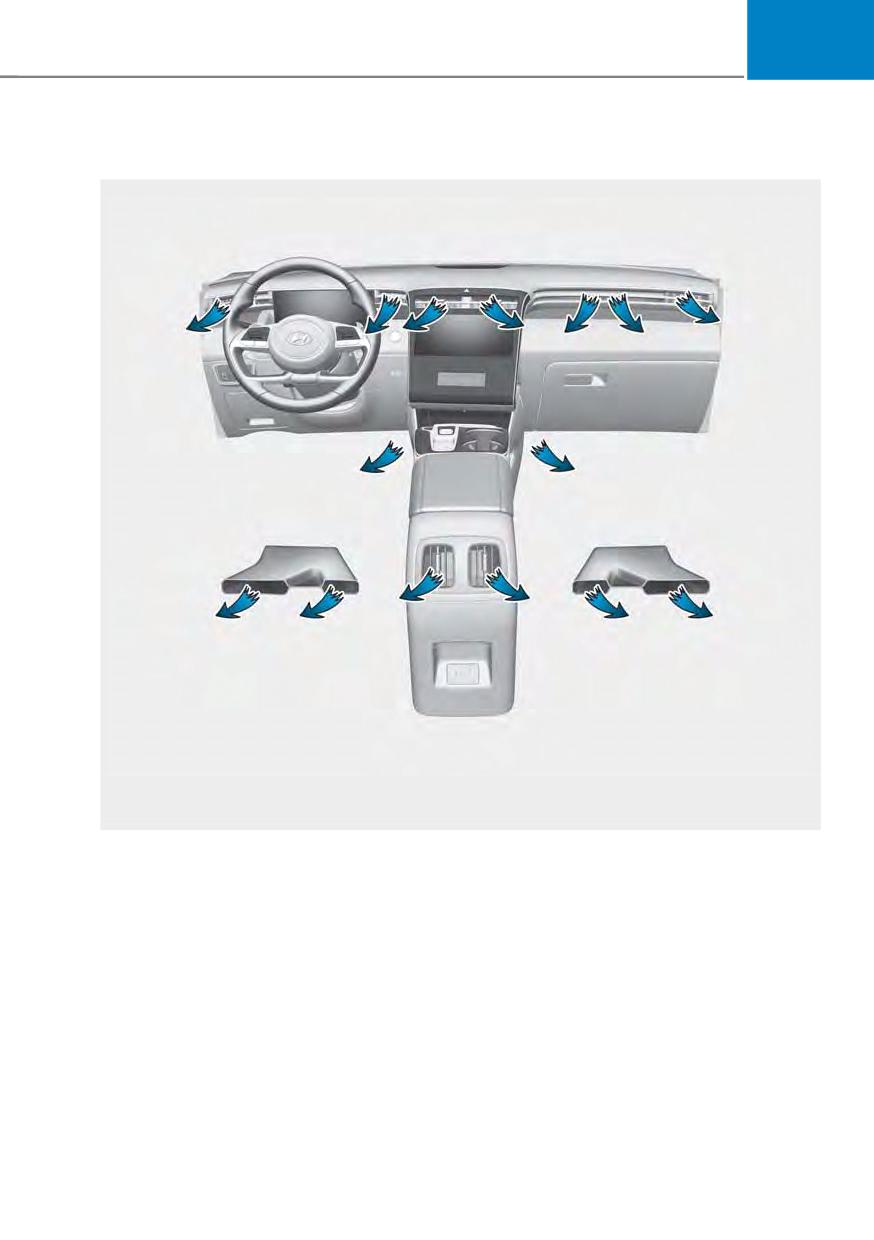

Floor-Level (A, B, D, E, F)
The MAX A/C mode is used to cool the
inside of the vehicle faster. Air flow is
Most of the air flow is directed to the
directed toward the upper body and
floor, with a small amount of the air
face.
being directed to the windshield and side
In this mode, the air conditioning and the
window defrosters.
recirculated air position is selected. Turn
the fan speed mode to adjust.
5-89
Convenient Features

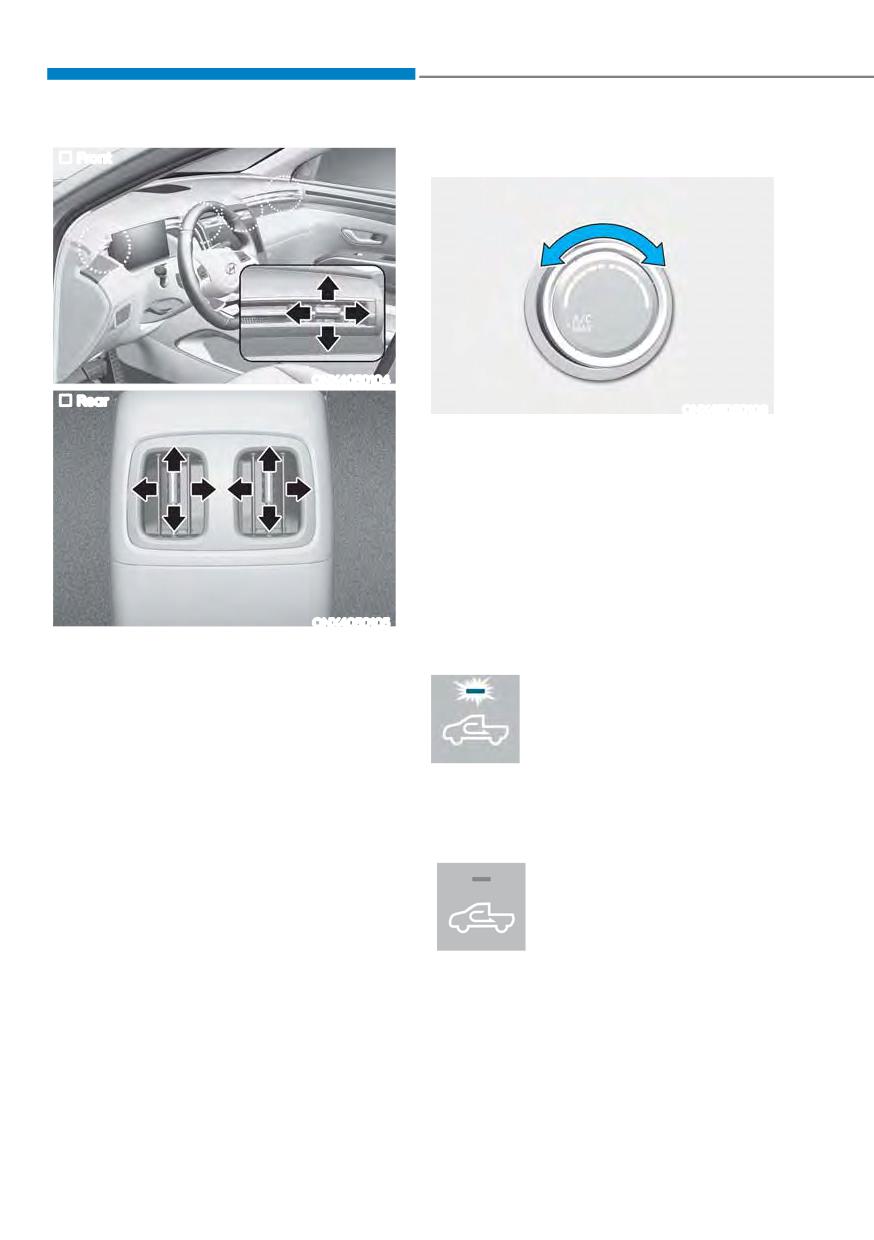

„ Front

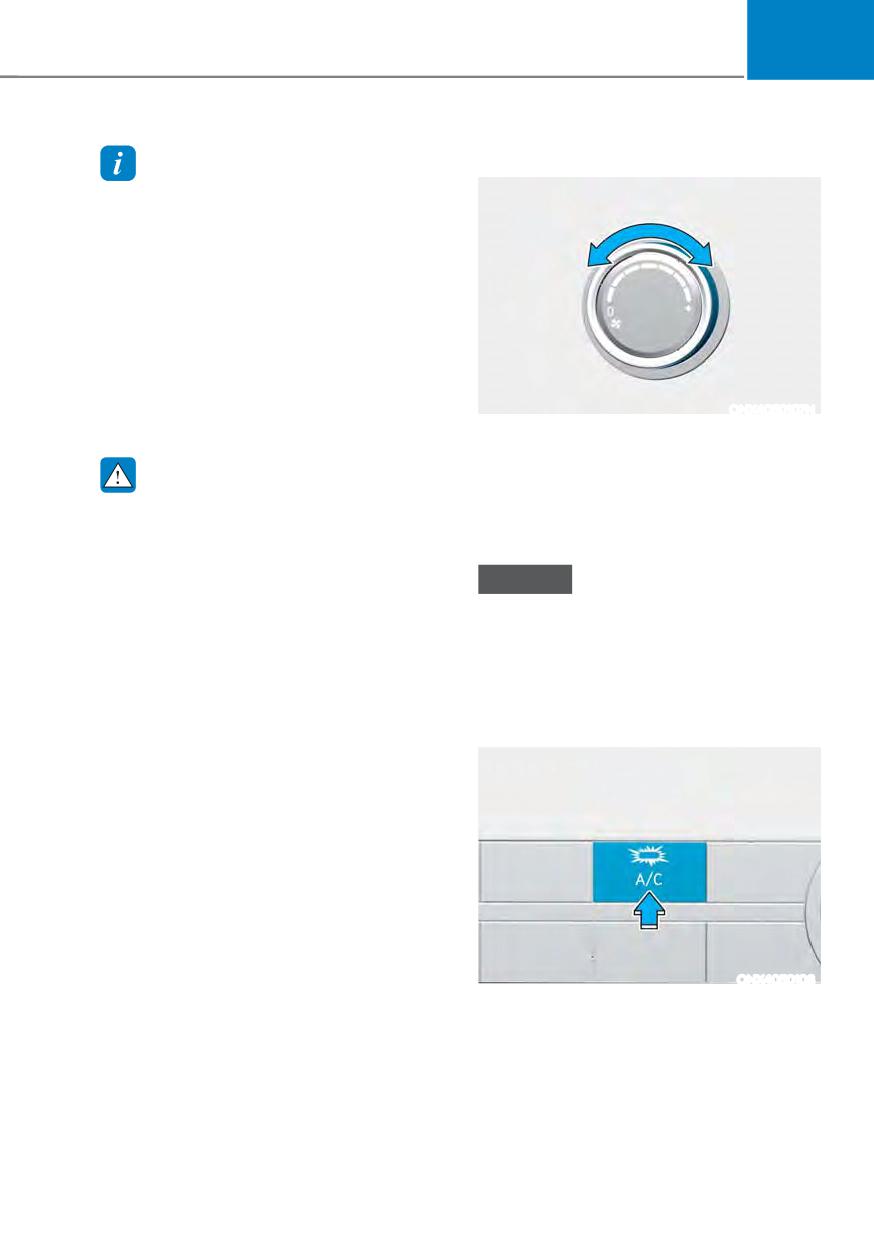

Temperature control
ONX4050104
„ Rear
ONX4E050106
The temperature will increase by turning
the knob to the right. The temperature
will decrease by turning the knob to the
left.
Air intake control
This is used to select outside (fresh) air
position or recirculated air position. To
change the air intake control position,
press the control button.
ONX4050105

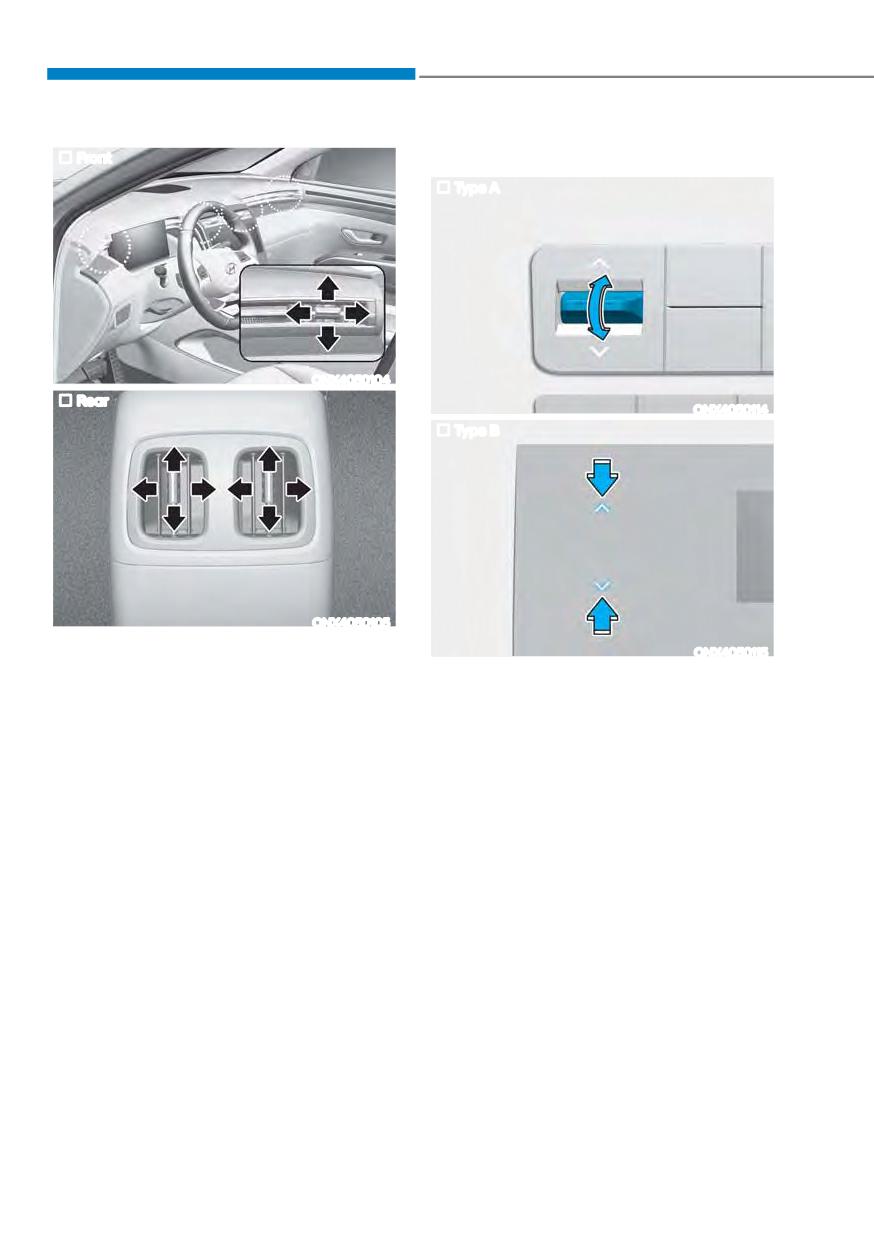

Instrument panel vents
Recirculated air position
The instrument panel vent air flow can
With the recirculated air
be directed up/down or left/right using
position selected, air from the
the vent adjustment lever. The air flow
passenger compartment will
can also be CLOSED using the vent
be drawn through the heating
adjustment lever.
system and heated or cooled
according to the function
selected.
Outside (fresh) air position
With the outside (fresh) air
position selected, air enters
the vehicle from outside
and is heated or cooled
according to the function
selected.
5-90
05
Fan speed control
Information
Using the system in the fresh air position is
recommended.
Prolonged operation of the heater in the
recirculated air position (without air
conditioning selected) can cause fogging of
the windshield and side windows and the
air within the passenger compartment will
become stale.
In addition, prolonged use of the air
conditioning with the recirculated air
position selected will result in excessively
ONX4050107N
dry air in the passenger compartment.
Turn the knob to the right to increase
the fan speed and airflow. Turn the knob
to the left to decrease fan speed and
WARNING
airflow.
ś Continued climate control system
Setting the fan speed control knob to the
operation in the recirculated air
“0” position turns off the fan.
position may allow humidity to
increase inside the vehicle which
may fog the glass and obscure
NOTICE
visibility.
Operating the fan speed when the
ś Do not sleep in a vehicle with the air
ignition switch is in the ON position
conditioning or heating system on. It
could cause the battery to discharge.
may cause serious harm or death due
Operate the fan speed when the engine
to a drop in the oxygen level and/or
is running.
body temperature.
Air conditioning (A/C) (if equipped)
ś Continued climate control system
operation in the recirculated air
position can cause drowsiness
or sleepiness, and loss of vehicle
control. Set the air intake control
to the outside (fresh) air position as
much as possible while driving.
ONX4050108
Press the A/C button to turn the air
conditioning system on (indicator light
will illuminate). Press the button again to
turn the air conditioning system off.
5-91
Convenient Features
System Operation
Air conditioning
Ventilation
HYUNDAI Air Conditioning Systems are
filled with R-1234yf refrigerant.
1. Set the mode to the
position.
1. Start the vehicle.
2. Set the air intake control to the
outside (fresh) air position.
2. Press the air conditioning button.
3. Set the temperature control to the
3. Set the mode to the Face Level
desired position.
mode.
4. Set the fan speed control to the
4. Set the air intake control to
desired speed.
Recirculation mode temporarily to
allow the cabin to cool quickly. When
Heating
the desired temperature in the cabin
is reached, change the air intake
1. Set the mode to the
position.
control back to Fresh mode.
2. Set the air intake control to the
5. Adjust the fan speed control and
outside (fresh) air position.
temperature control to maintain
3. Set the temperature control to the
maximum comfort.
desired position.
When maximum cooling is desired, set
4. Set the fan speed control to the
the temperature control to the lowest
desired speed.
position, then set the fan speed control
5. If desired, turn the air conditioning ON
to the highest setting.
with the temperature control knob set
to heat in order to dehumidify the air
NOTICE
before it enters into the cabin.
ś When using the air conditioning
If the windshield fogs up, set the mode
system, monitor the engine
to the
or
position.
temperature gauge closely while
driving up hills or in heavy traffic
Operation Tips
when outside temperatures are high.
ś To help keep dust or unpleasant fumes
Air conditioning system operation
from entering the vehicle through the
when climbing a steep grade or in
ventilation system, temporarily set the
high outside ambient temperatures
air intake control to the recirculated
can cause engine overheating.
air position. Be sure to return the
Continue to use the fan, but turn
control to the fresh air position when
the air conditioning system off if the
the irritation has passed to keep fresh
engine temperature gauge indicates
air in the vehicle. This will help keep
engine overheating.
the driver alert and comfortable.
ś The air conditioning evaporator
ś To prevent interior fog on the
(cooling coil) shall never be repaired
windshield, set the air intake control
or replaced with one removed from
to the fresh air position and fan speed
a used or salvaged vehicle and new
to the desired position, turn on the air
replacement MAC evaporators shall
conditioning system, and adjust the
be certified (and labeled) as meeting
temperature control to the desired
SAE Standard J2842.
temperature.
5-92
05
Air conditioning system operation tips
System Maintenance
ś
If the vehicle has been parked in
Cabin air filter
direct sunlight during hot weather,
open the windows for a short time
to let the hot air inside the vehicle
escape.
ś
After sufficient cooling has been
achieved, switch back from the
recirculated air to the fresh outside air
position.
ś
To help reduce moisture inside of
the windows on rainy or humid
days, decrease the humidity inside
the vehicle by operating the air
OIK047401L
conditioning system with the windows
[A] : Outside air, [B] : Recirculated air
and sunroof closed.
[C] : Cabin air filter, [D] : Blower
ś
Use the air conditioning system every
[E] : Evaporator core, [F] : Heater core
month for a few minutes to ensure
The cabin air filter is installed behind
maximum system performance.
the glove box. It filters the dust or other
ś
If you operate the air conditioner
pollutants that enter the vehicle through
excessively, the difference between
the heating and air conditioning system.
the temperature of the outside air and
Have the cabin air filter replaced by an
that of the windshield could cause
authorized HYUNDAI dealer according to
the outer surface of the windshield to
the maintenance schedule.
fog up, causing loss of visibility. In this
If the vehicle is being driven in severe
case, set the mode selection knob to
conditions such as dusty or rough roads,
the
position and set the fan speed
more frequent climate control filter
control knob to the lowest speed
inspections and changes are required.
setting.
If the air flow rate suddenly decreases,
the system should be checked at an
authorized HYUNDAI dealer.
5-93
Convenient Features
Air Conditioning Performance and
Maintenance at Your HYUNDAI
Dealer
When the amount of refrigerant is low,
the performance of the air conditioning
is reduced. Overfilling also reduces the
performance of the air conditioning system.
Therefore, if abnormal operation is found,
have the system inspected by an authorized
HYUNDAI dealer.
ONX4OB011021
NOTICE

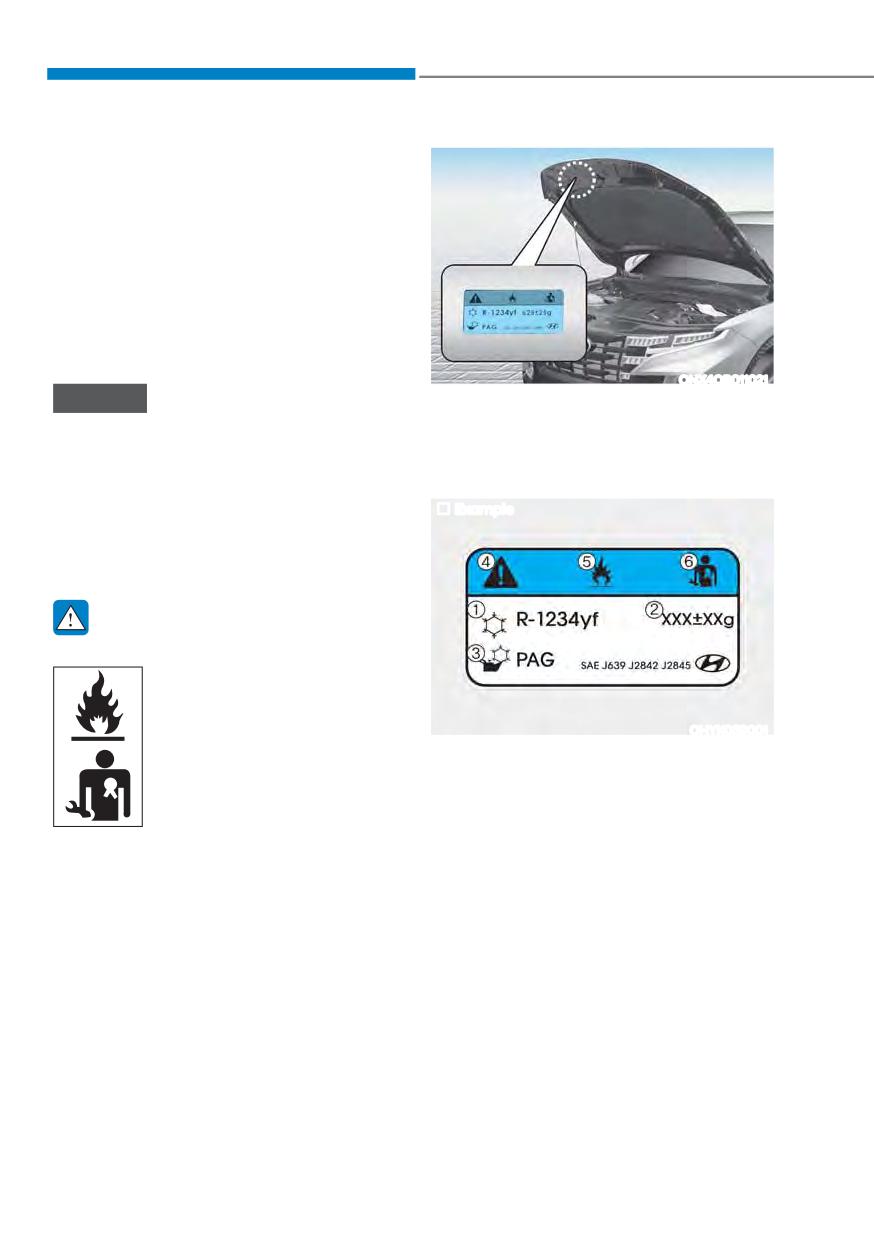

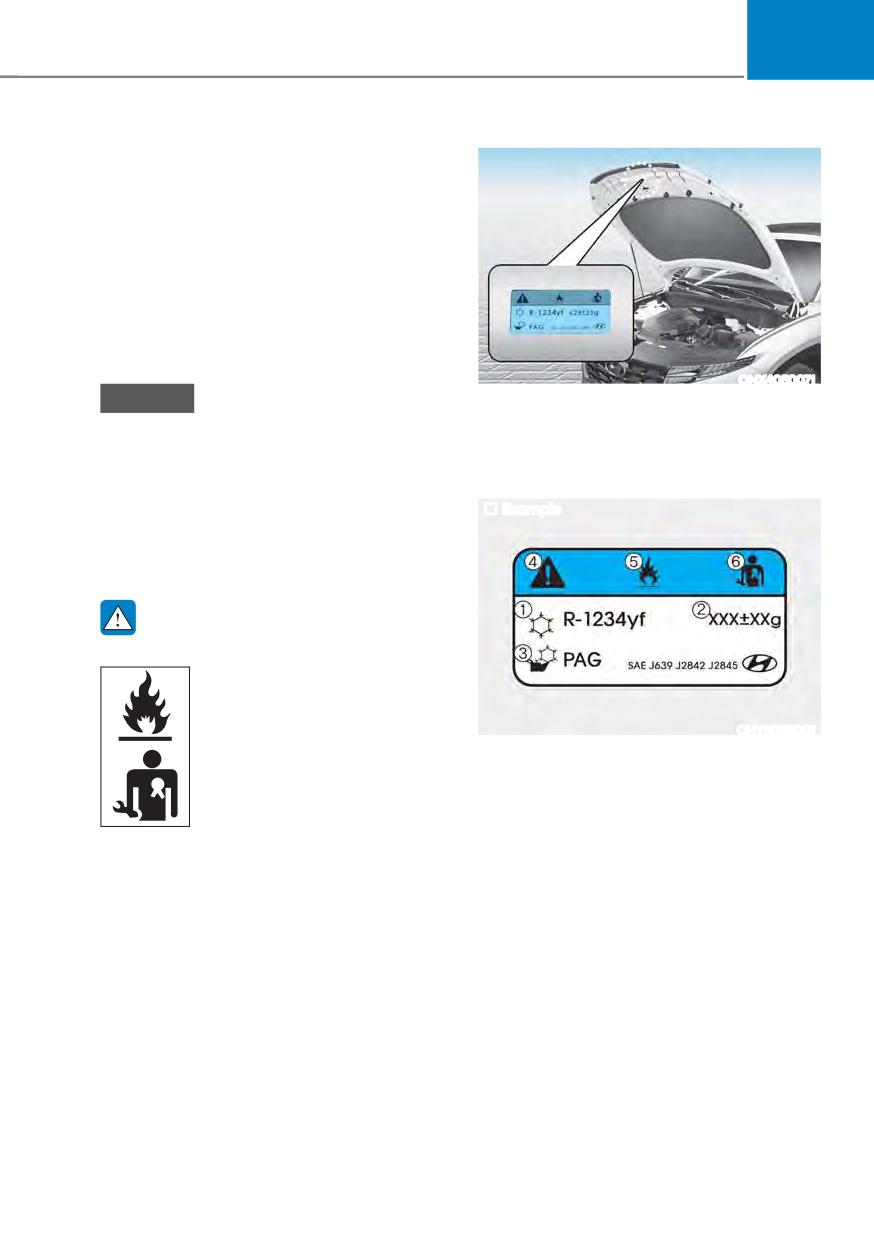

Air Conditioning refrigerant label
It is important that the correct type and
You can find out which air conditioning
amount of oil and refrigerant is used.
refrigerant is applied to your vehicle on
Otherwise, damage to the compressor
the label located inside of the hood.
and abnormal system operation may
occur. To prevent damage, the air
„ Example
conditioning system in your vehicle
should only be serviced by trained and
certified technicians.
WARNING
Vehicles equipped with R-1234yf
Since the refrigerant is
mildly flammable and
operated at high pressure,
OHYK059001
the air conditioning system
should only be serviced
Each symbol and specification on the
by trained and certified
air conditioning refrigerant label is
technicians. It is important
represented as below:
that the correct type and
1. Classification of refrigerant
amount of oil and refrigerant
2. Amount of refrigerant
are used.
3. Classification of compressor lubricant
All refrigerants should be reclaimed
with proper equipment.
4. Caution
Venting refrigerants directly to the
5. Flammable refrigerant
atmosphere is harmful to individuals
6. To require registered technician to
and environment. Failure to heed these
service air conditioning system
warnings can lead to serious injuries.
5-94
05
$8720$7,& &/,0$7( &21752/ 6<67(0 ǣ,) (48,33('Ǥ

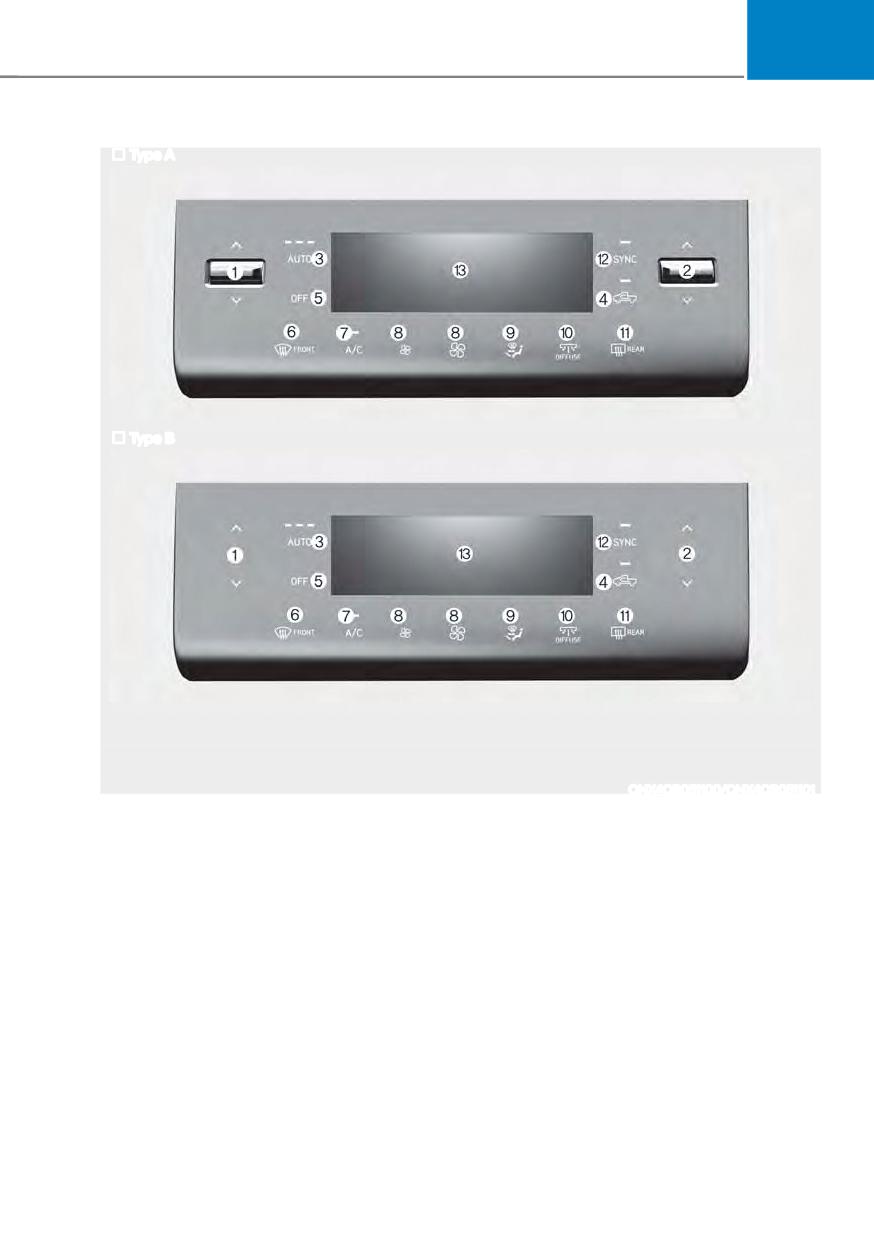

„ Type A
„ Type B
The actual shape of air conditioner may differ from the illustration.
ONX4OB051100/ONX4OB051101
1. Driver’s temperature control button/
7. A/C (air conditioning) button
knob
8. Fan speed control button
2. Passenger’s temperature control
9. Mode selection button
button/knob
10.Multi Air Mode button
3. AUTO (automatic control) button
11. Rear window defroster button
4. Air intake control button
12. SYNC button
5. OFF button
13. Climate control information screen
6. Front windshield defroster button
5-95
Convenient Features
Automatic Heating and Air
2. Turn the temperature control button/
knob to set the desired temperature.
Conditioning
If the temperature is set to the lowest
The Automatic Climate Control System
setting (Lo), the air conditioning
is controlled by setting the desired
system will operate continuously.
temperature.
After the interior has cooled
1. Press the AUTO button.
sufficiently, adjust the button/knob
to a higher temperature set point
The modes, fan speeds, air intake and
air-conditioning will be controlled
whenever possible.
automatically by the temperature
setting you select.
To turn the automatic operation off,
select any button of the following:
- Mode selection button
- Front windshield defroster button
(Press the button one more time
to deselect the front windshield
defroster function. The ‘AUTO’ sign
will illuminate on the information
display once again.)
- Fan speed control button
The selected function will be
controlled manually while other
ONX4OB051106
functions operate automatically.

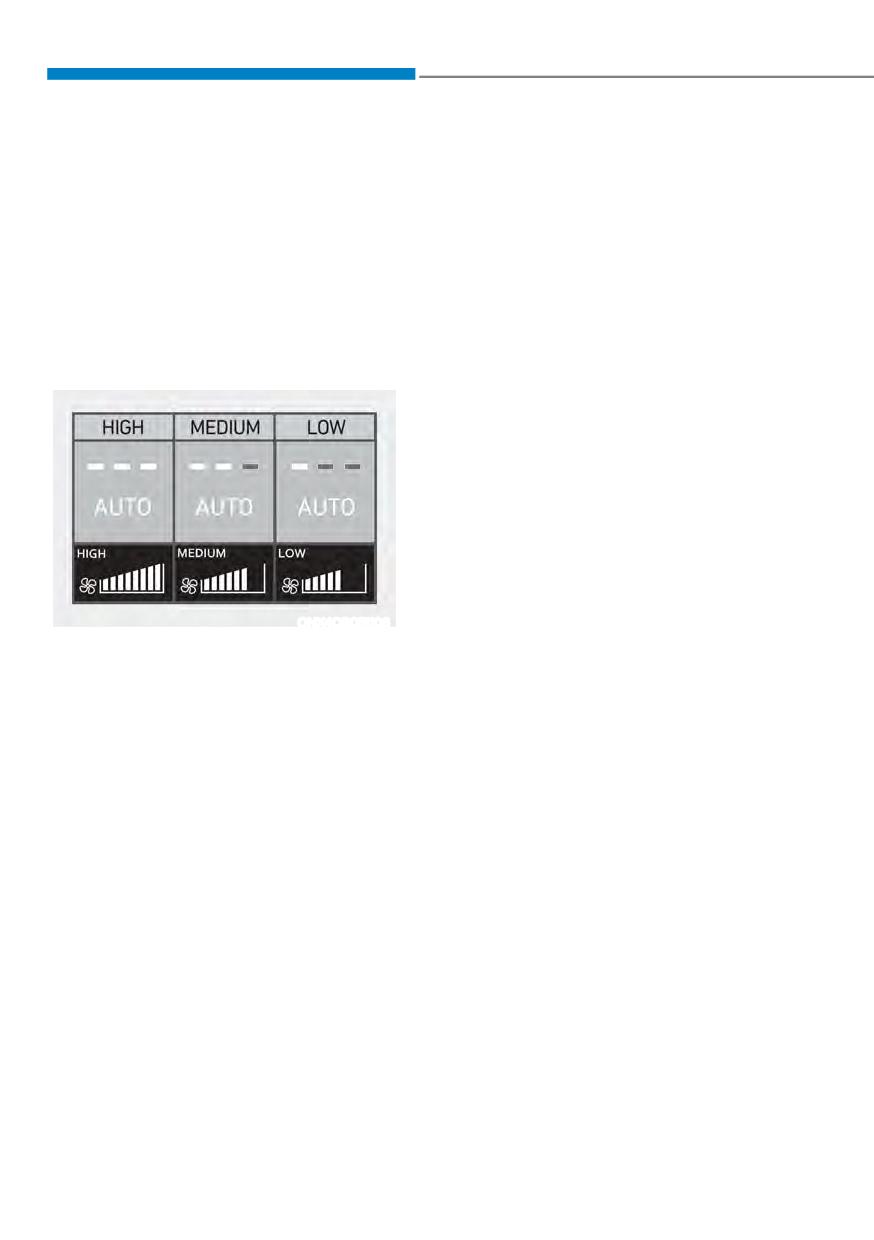

You can control the fan speed in three
For your convenience and to improve
stages by pushing the AUTO button
the effectiveness of the climate control,
during automatic operation.
use the AUTO button and set the
temperature to 72°F (22°C).
- HIGH : Provide rapid air conditioning
and heating with maximum fan speed
setting
- MEDIUM : Provide air conditioning
and heating with mid-level fan speed
setting
- LOW : Fan speed is set to the lowest
setting range
5-96
05
Manual Heating and Air
Conditioning
1. Start the engine.
2. Set the mode to the desired position.
For improving the effectiveness of
heating and cooling, select:
- Heating:
- Cooling:
3. Set the temperature control to the
desired position.
ONX4OB051044
4. Set the air intake control to the
outside (fresh) air position.
Information
5. Set the fan speed control to the
Never place anything near the sensor to
desired speed.
ensure better control of the heating and
6. If air conditioning is desired, turn the
cooling system.
air conditioning system on.
7. Press the AUTO button to convert to
full automatic control of the system.
5-97
Convenient Features
Mode selection (12)
The actual shape of air conditioner may differ from the illustration.
ONX4050118
The mode selection button controls the direction of the air flow through the ventilation
system.
5-98
05
Floor-Level (A, B, D, E, F)
Most of the air flow is directed to the
floor, with a small amount of the air
being directed to the windshield and side
window defrosters.
Floor/Defrost-Level
(A, B, D, E, F)
Most of the air flow is directed to the
ONX4050117
floor and the windshield with a small
The air flow outlet direction is cycled as
amount directed to the side window
follows:
defrosters.
Defrost-Level (A, B)
Most of the air flow is directed to the
Face-Level (B, C, E)
windshield with a small amount of air
directed to the side window defrosters.
Air flow is directed toward the upper
body and face. Additionally, each outlet
can be controlled to direct the air
Multi air mode (B, C, D, E, F, G)
discharged from the outlet.
Gentle breezes come out the outlet
vents.
Bi-Level (B, C, D, E, F)
Air flow is directed towards the face and
the floor.
5-99
Convenient Features
„ Front
Temperature control
„ Type A
ONX4050104
„ Rear
ONX4050114
„ Type B
ONX4050105
Instrument panel vents
ONX4050115
The instrument panel vent air flow can
The temperature setting will increase
be directed up/down or left/right using
when you toggle up or touch the UP
the vent adjustment lever. The air flow
arrow on the touchscreen (if equipped).
can also be CLOSED using the vent
The temperature setting will decrease
adjustment lever.
when you toggle down or touch the
DOWN arrow on the touchscreen (if
equipped).
5-100
05
Air intake control
The air intake control button is used to
select either Fresh mode (outside air) or
Recirculation mode (cabin air).
Recirculated air position
With the recirculated air
position selected, air from the
passenger compartment will
be drawn through the heating
ONX4050122
system and heated or cooled
according to the function
Adjusting the temperature equally
selected.

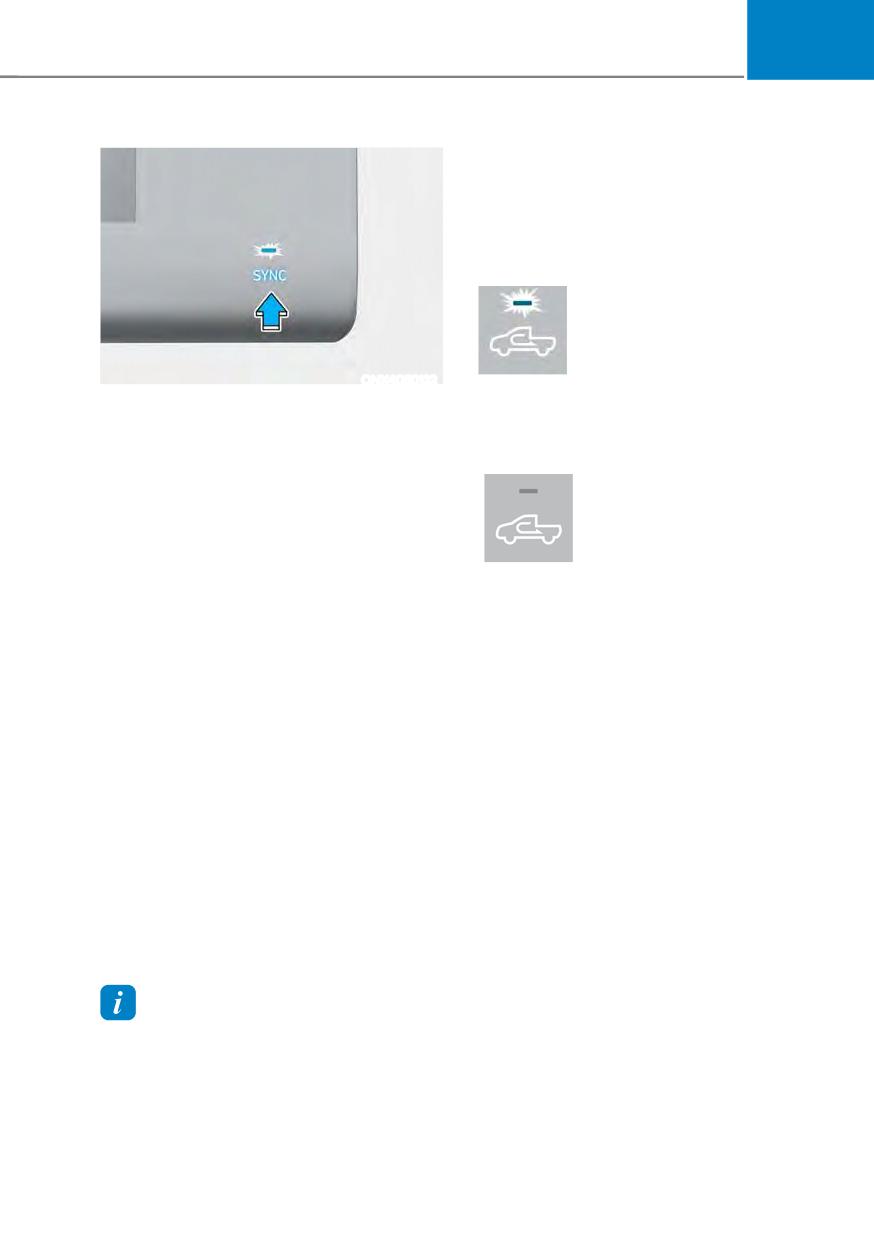

Press the SYNC button (indicator light
ON) to adjust the driver and passenger
Outside (fresh) air position
side and the rear seat’s temperature
equally.
With the outside (fresh) air
position selected, air enters
Adjusting the temperature and
the vehicle from outside
individually
and is heated or cooled
according to the function
Press the SYNC button (indicator light
selected.
OFF) again to adjust the driver and
passenger side and the rear seat’s
temperature individually.
Temperature conversion
If the battery has been discharged or
disconnected, the temperature mode
display will reset to Fahrenheit.
To change the temperature unit from °C
to °F or °F to °C :
- Instrument cluster or infotainment
system screen
*R WR 6HWXSƟ 8QLW Ɵ 7HPSHUDWXUH XQLW
The temperature unit on both the cluster
display and the climate control screen
will change.
Information
The infotainment system may change after
software updates. For more information,
refer to the user’s manual provided in
the infotainment system and the quick
reference guide.
5-101
Convenient Features
Fan speed control
Information
Using the system in the fresh air position is
recommended.
Prolonged operation of the heater in the
recirculated air position (without air
conditioning selected) can cause fogging of
the windshield and side windows and the
air within the passenger compartment will
become stale.
In addition, prolonged use of the air
conditioning with the recirculated air
position selected will result in excessively

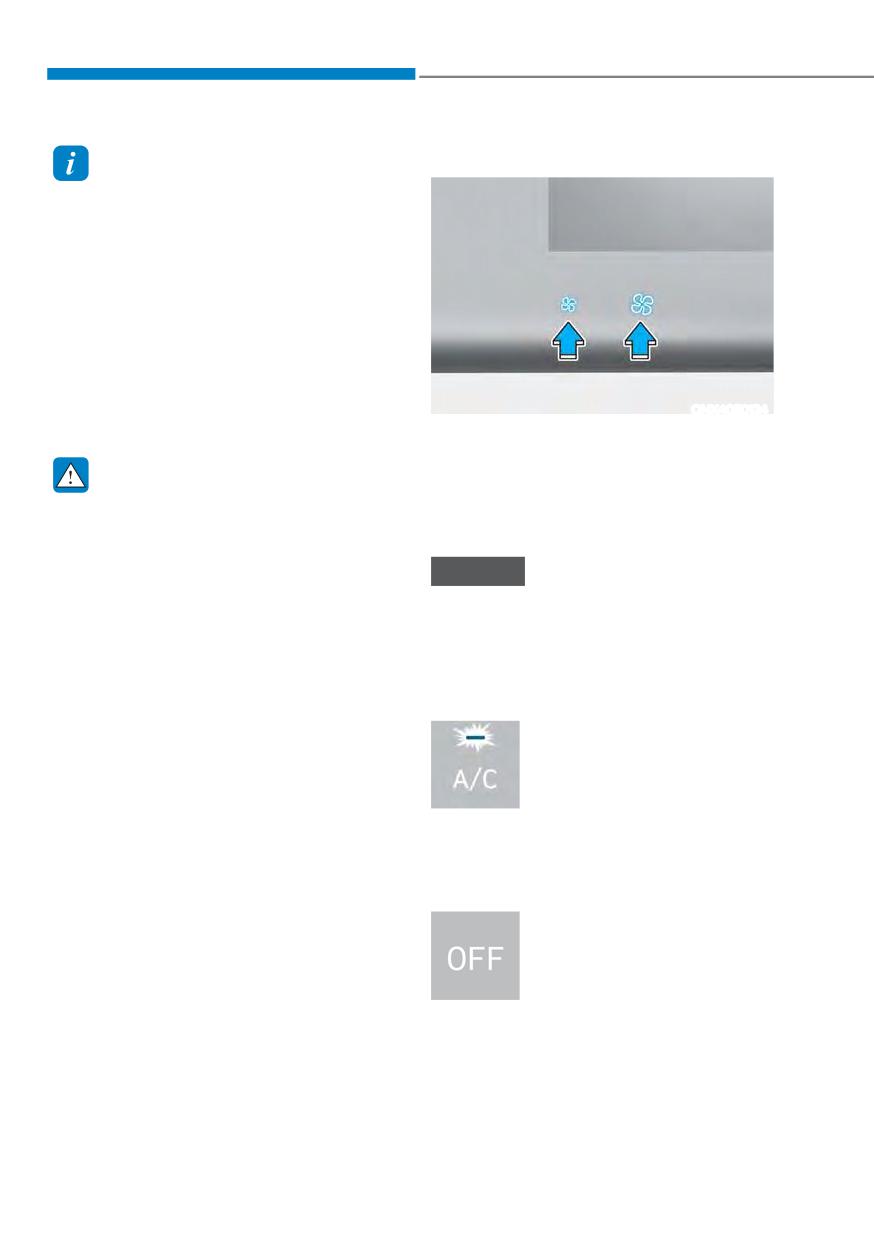

ONX4050124
dry air in the passenger compartment.
The fan speed can be set as desired by
pushing the fan speed control button.
WARNING
Increased air flow is delivered with
higher fan speeds.
ś
Continued climate control system
operation in the recirculated air
Pressing the OFF button turns off the fan.
position may allow humidity to
increase inside the vehicle which
NOTICE
may fog the glass and obscure
visibility.
Operating the fan when the ignition
switch is in the ON position could cause
ś
Do not sleep in a vehicle with the air
the battery to discharge. Operate the
conditioning or heating system on. It
fan when the engine is running.
may cause serious harm or death due
to a drop in the oxygen level and/or
Air conditioning
body temperature.
Push the A/C button to turn
ś
Continued climate control system
the air conditioning system
operation in the recirculated air
on (indicator light will
position can cause drowsiness
illuminate).
or sleepiness, and loss of vehicle
control. Set the air intake control
Push the button again to turn
to the outside (fresh) air position as
the air conditioning system
much as possible while driving.
off.
OFF mode
Push the OFF button to turn
the climate control system
off. However, you can still
operate the mode and air
intake buttons as long as the
ignition switch is in the ON
position.
5-102
05
Multi Air Mode (if equipped)
The actual shape of air conditioner may differ from the illustration.
ONX4050129
5-103
Convenient Features
System Operation
Ventilation
1. Set the mode to the
position.
2. Set the air intake control to the
outside (fresh) air position.
3. Set the temperature control to the
desired position.
4. Set the fan speed control to the
desired speed.

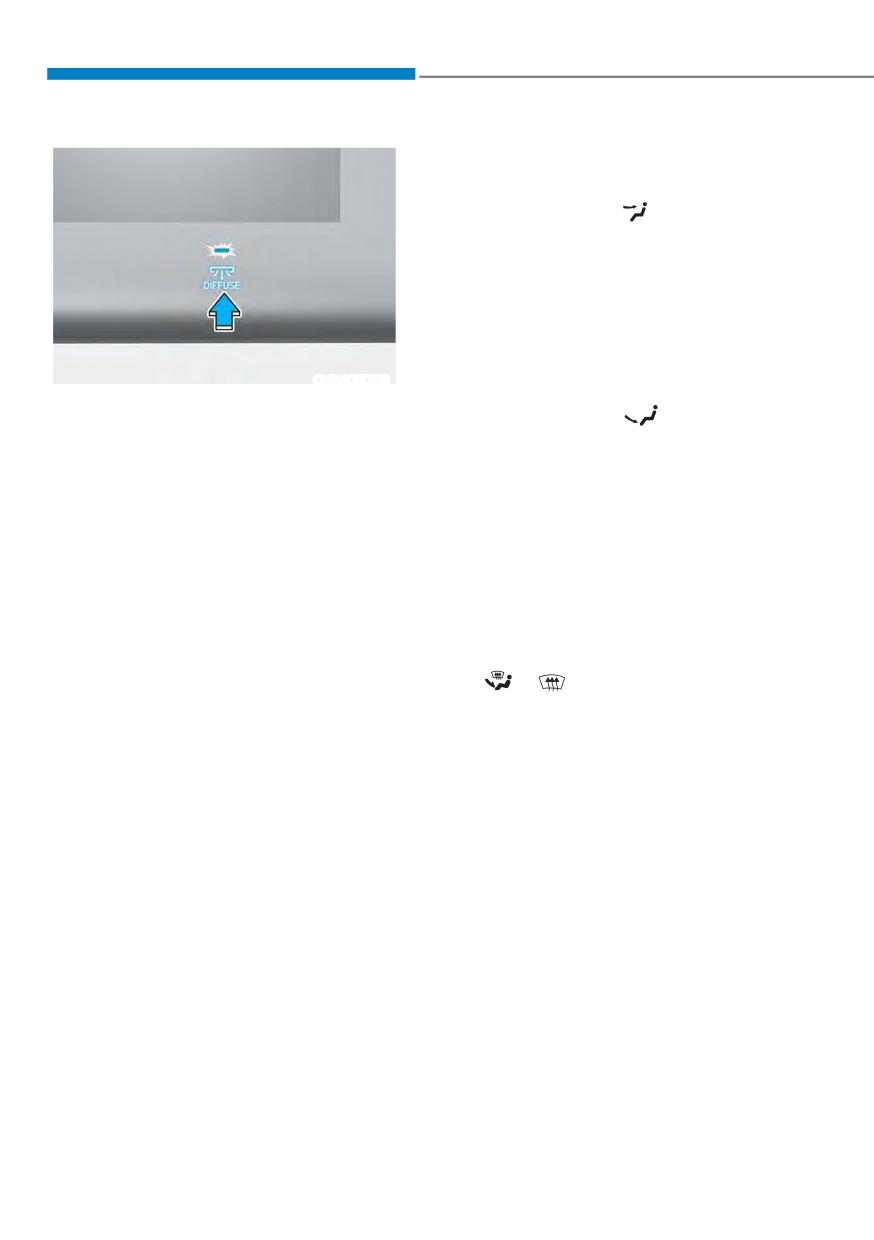

ONX4050128
Heating
ON
1. Set the mode to the
position.
When the Multi-Air mode button is
2. Set the air intake control to the
outside (fresh) air position.
pressed, air flow is directed to the
face level and floor level and through
3. Set the temperature control to the
perforated sections along the instrument
desired position.
panel for the driver and passenger. The
4. Set the fan speed control to the
multi-air mode LED indicator will be
desired speed.
illuminated. If the multi air mode button
5. If desired, turn the air conditioning ON
is pressed when the air volume is beyond
with the temperature control knob set
level 4, it decreases to Level 3.
to heat in order to dehumidify the air
before it enters into the cabin.
OFF
If the windshield fogs up, set the mode
If you press the multi-air button again,
to the
or
position.
the indicator will turn OFF and the
directed air flow will be according to the
previous setting before multi-air mode
was enabled.
If you press the MODE selection button,
the airflow will change based on the
MODE selected.
5-104
05
Operation Tips
1. Start the vehicle.
ś To help keep dust or unpleasant fumes
2. Press the air conditioning button.
from entering the vehicle through the
3. Set the mode to the Face Level
ventilation system, temporarily set the
mode.
air intake control to the recirculated
4. Set the air intake control to
air position. Be sure to return the
Recirculation mode temporarily to
control to the fresh air position when
allow the cabin to cool quickly. When
the irritation has passed to keep fresh
the desired temperature in the cabin
air in the vehicle. This will help keep
is reached, change the air intake
the driver alert and comfortable.
control back to Fresh mode.
ś To prevent interior fog on the
5. Adjust the fan speed control and
windshield, set the air intake control
temperature control to maintain
to the fresh air position and fan speed
maximum comfort.
to the desired position, turn on the air
conditioning system, and adjust the
When maximum cooling is desired, set
temperature control to the desired
the temperature control to the lowest
temperature.
position, then set the fan speed control
to the highest setting.
NOTICE
ś When using the air conditioning
system, monitor the engine
temperature gauge closely while
driving up hills or in heavy traffic
when outside temperatures are high.
Air conditioning system operation
when climbing a steep grade or in
high outside ambient temperatures
can cause engine overheating.
Continue to use the fan, but turn
the air conditioning system off if the
engine temperature gauge indicates
engine overheating.
ś The air conditioning evaporator
(cooling coil) shall never be repaired
or replaced with one removed from
a used or salvaged vehicle and new
replacement MAC evaporators shall
be certified (and labeled) as meeting
SAE Standard J2842.
5-105
Convenient Features
Air conditioning system operation tips
System Maintenance
ś
If the vehicle has been parked in
Cabin air filter
direct sunlight during hot weather,
open the windows for a short time
to let the hot air inside the vehicle
escape.
ś
After sufficient cooling has been
achieved, switch back from the
recirculated air to the fresh outside air
position.
ś
To help reduce moisture inside of
the windows on rainy or humid
days, decrease the humidity inside
the vehicle by operating the air
OIK047401L
conditioning system with the windows
[A] : Outside air, [B] : Recirculated air
and sunroof closed.
[C] : Cabin air filter, [D] : Blower
ś
Use the air conditioning system every
[E] : Evaporator core, [F] : Heater core
month for a few minutes to ensure
The cabin air filter is installed behind
maximum system performance.
the glove box. It filters the dust or other
ś
If you operate the air conditioner
pollutants that enter the vehicle through
excessively, the difference between
the heating and air conditioning system.
the temperature of the outside air and
Have the cabin air filter replaced by an
that of the windshield could cause
authorized HYUNDAI dealer according to
the outer surface of the windshield to
the maintenance schedule. If the vehicle
fog up, causing loss of visibility. In this
is being driven in severe conditions such
case, set the mode selection button to
as dusty or rough roads, more frequent
the
position and set the fan speed
climate control filter inspections and
control knob to the lowest speed
changes are required.
setting.
If the air flow rate suddenly decreases,
the system should be checked at an
authorized HYUNDAI dealer.
5-106
05
Air Conditioning Performance and
Maintenance at Your HYUNDAI
Dealer
When the amount of refrigerant is low,
the performance of the air conditioning
is reduced. Overfilling also reduces the
performance of the air conditioning system.
Therefore, if abnormal operation is found,
have the system inspected by an authorized
HYUNDAI dealer.
ONX4050071
NOTICE
Air Conditioning refrigerant label
It is important that the correct type and
You can find out which air conditioning
amount of oil and refrigerant is used.
refrigerant is applied to your vehicle on
Otherwise, damage to the compressor
the label located inside of the hood.
and abnormal system operation may
occur. To prevent damage, the air
„ Example
conditioning system in your vehicle
should only be serviced by trained and
certified technicians.
WARNING
Vehicles equipped with R-1234yf
Since the refrigerant is
mildly flammable and
operated at high pressure,
OHYK059001
the air conditioning system
should only be serviced
Each symbol and specification on the
by trained and certified
air conditioning refrigerant label is
technicians. It is important
represented as below:
that the correct type and
1. Classification of refrigerant
amount of oil and refrigerant
2. Amount of refrigerant
are used.
3. Classification of compressor lubricant
All refrigerants should be reclaimed
with proper equipment.
4. Caution
Venting refrigerants directly to the
5. Flammable refrigerant
atmosphere is harmful to individuals
6. To require registered technician to
and environment. Failure to heed these
service air conditioning system
warnings can lead to serious injuries.
5-107
Convenient Features
:,1'6+,(/' '()5267,1* $1' '()2**,1*
WARNING
Manual Climate Control System
To defog inside windshield
Windshield heating
Do not use the position during
cooling operation in extremely humid
weather. The difference between the
temperature of the outside air and that
of the windshield could cause the outer
surface of the windshield to fog up,
causing loss of visibility could cause
an accident resulting in serious injury
or death. In this case, set the mode
selection button to the position
and fan speed control knob to a lower
speed.

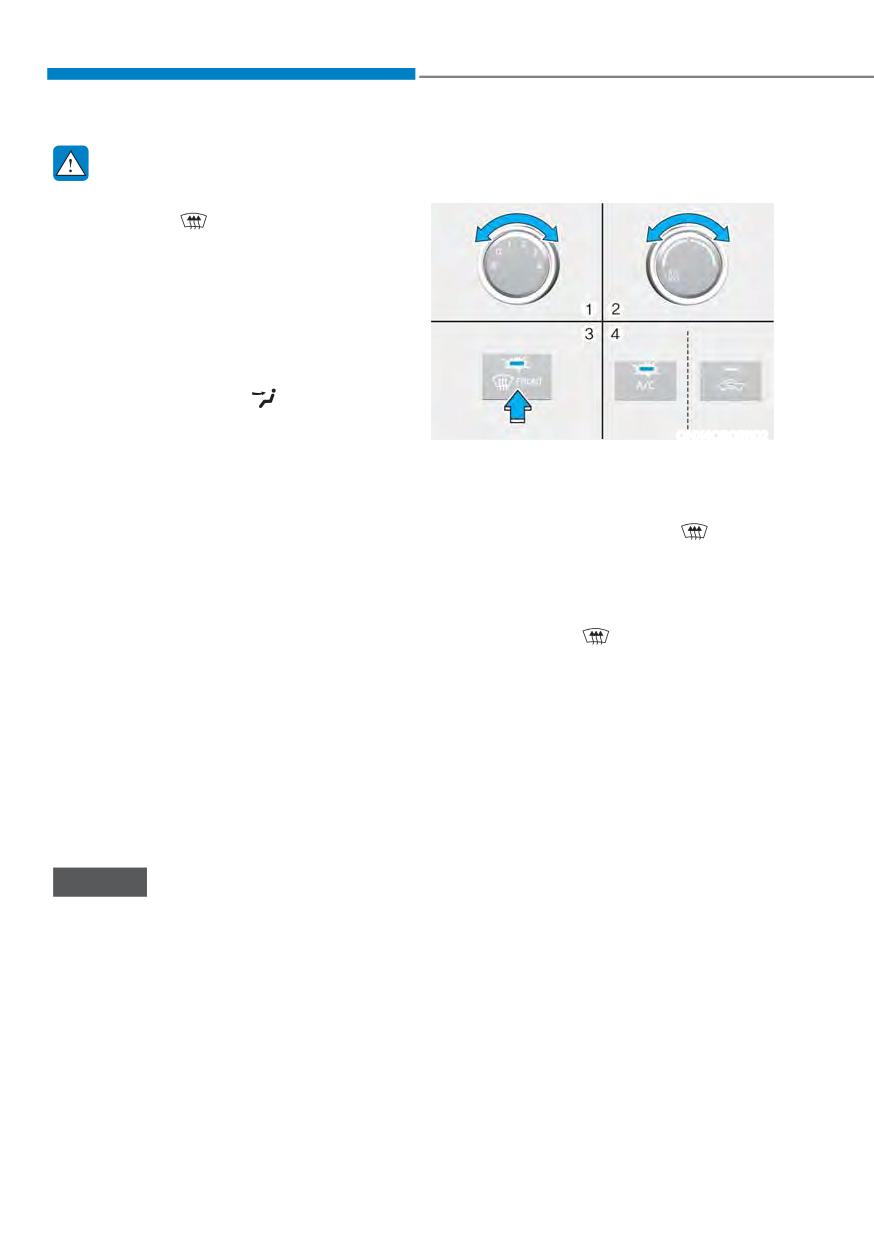

ONX4OB051102
1. Select any fan speed except “0”
ś For maximum defrost performance,
position.
set the temperature control to the
2. Select the desired temperature.
highest temperature setting and
3. Press the defroster button (
).
the fan speed control to the highest
setting.
4. The outside (fresh) air will be selected
automatically. Additionally, the
ś If warm air to the floor is desired while
air conditioning (if equipped) will
defrosting or defogging, set the mode
automatically operate if the mode is
to the floor-defrost position.
selected to the
position.
ś Before driving, clear all snow and ice
If the air conditioning and outside
from the windshield, rear window,
(fresh) air position are not selected
side view mirrors, and all side
automatically, press the corresponding
windows.
button manually.
ś Clear all snow and ice from the
hood and air inlet in the cowl grill
to improve heater and defroster
efficiency and to reduce the
probability of fogging up the inside of
the windshield.
NOTICE
If the engine temperature is still cold
after starting, then a brief engine warm
up period may be required for the
vented air flow to become warm or hot.
5-108
05
To defrost outside windshield
Automatic Climate Control
System
To defog inside windshield
„ Type A
„ Type B
ONX4OB051103
1. Set the fan speed to the highest
(extreme right) position.
ONX4050144N
2. Set the temperature to the extreme
hot position.
3. Press the defroster button (
).
4. The outside (fresh) air and air
conditioning (if equipped) will be
selected automatically.
ONX4OB051104
1. Select the desired fan speed.
2. Select the desired temperature.
3. Press the defroster button (
).
4. The air-conditioning will turn on
according to the detected ambient
temperature, outside (fresh) air
position and higher fan speed will be
selected automatically.
If the air-conditioning, outside (fresh)
air position and higher fan speed are
not selected automatically, adjust the
corresponding button or knob manually.
If the
position is selected, lower fan
speed is controlled to higher fan speed.
5-109
Convenient Features

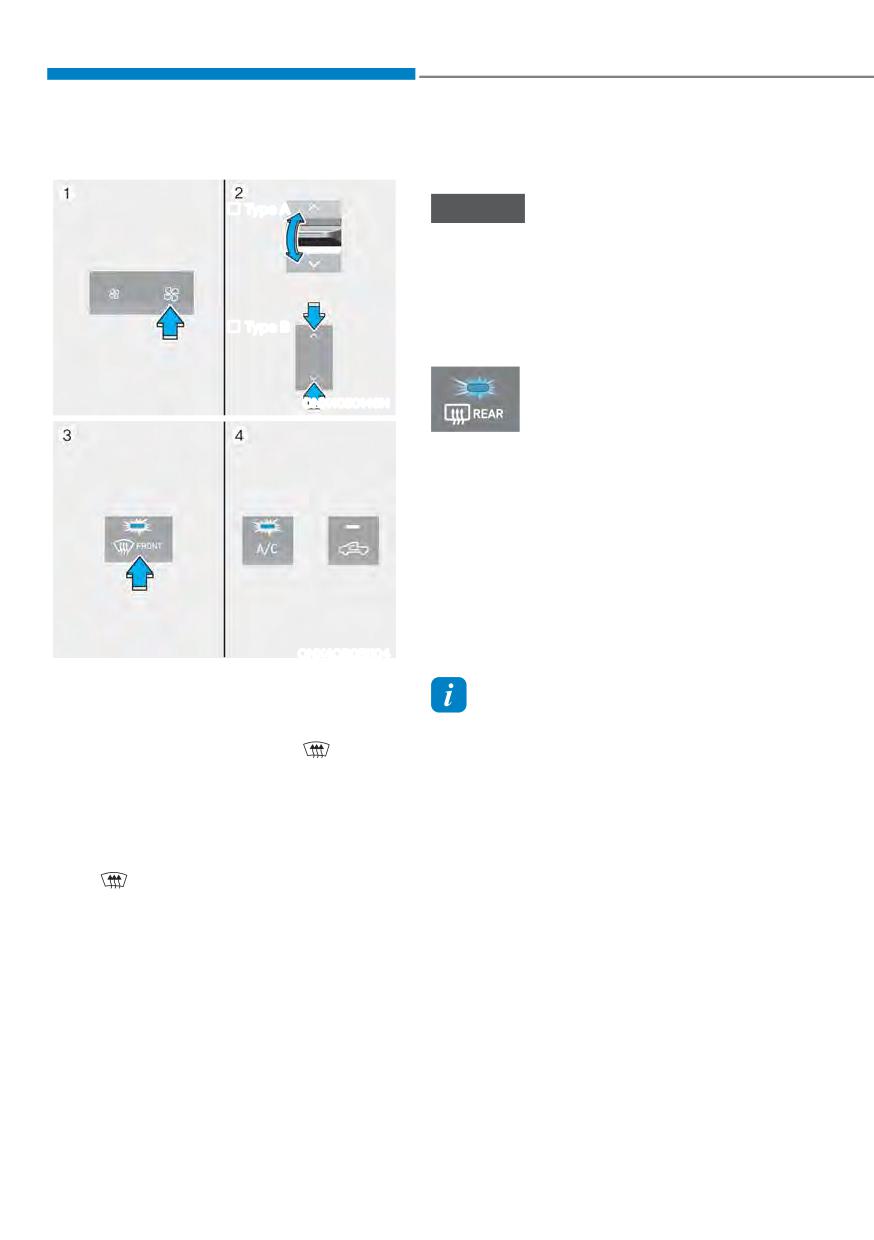

To defrost outside windshield
Rear window defroster
„ Type A
NOTICE
To prevent damage to the rear window
defroster conducting elements bonded
to the inside surface of the rear window,
never use sharp instruments or window
cleaners containing abrasives to clean
„ Type B
the window.
The defroster heats the
window to remove frost, fog
ONX4050146N
and thin ice from the interior
and exterior of the rear
window, while the engine is
running.
ś To activate the rear window defroster,
press the rear window defroster
button located in the center control
panel. The indicator on the rear
window defroster button illuminates
when the defroster is ON.
ś To turn off the defroster, press the rear
window defroster button again.
ONX4OB051104
1. Set fan speed to the highest position.
2. Set temperature to the extreme hot
Information
(HI) position.
ś If there is heavy accumulation of snow
3. Press the defroster button (
).
on the rear window, brush it off before
operating the rear defroster.
4. The air-conditioning will turn
on according to the detected
ś The rear window defroster
ambient temperature and outside
automatically turns off after
(fresh) air position will be selected
approximately 20 minutes or when the
automatically.
ignition switch is in the OFF position.
If the
position is selected, lower fan
speed is controlled to higher fan speed.
5-110
05
&/,0$7( &21752/ $'',7,21$/ )($785(6
When the Auto Defogging
Auto Defogging System
System operates, the indicator
on Models with Automatic
will illuminate.
Temperature Control (if
equipped)
If a high amount of humidity is detected
in the vehicle, the Auto Defogging
System will be enabled. The following
steps will be performed automatically:
Step 1) Air conditioning will turn ON.
Step 2) Air intake control will change to
Fresh mode.
Step 3) Mode will change to defrost to
direct airflow to the windshield.
Step 4) Fan speed will be set to MAX.
If the air conditioning is off or
ONX4OB051045
recirculation mode is manually selected
while Auto Defogging System is ON, the
Auto defogging helps reduce the
Auto Defogging System indicator will
possibility of fogging up the inside of the
blink 3 times to signal that the manual
windshield by automatically sensing the
operation has been canceled.
moisture on inside the windshield.
The auto defogging system operates
when the heater or air conditioning is on.
Information
The auto defogging system may not
operate normally, when the outside
temperature is below 14°F (10°C).
5-111
Convenient Features
Turning the Auto Defogging System
NOTICE
ON or OFF
Do not remove the sensor cover located
Climate control system
on the upper end of the windshield
glass.
Press the front windshield defroster
button for 3 seconds when the ignition
Damage to system parts could occur
switch or the Engine Start/Stop button
and may not be covered by your vehicle
is in the ON position. When the Auto
warranty.
Defogging System is turned off, the ADS
OFF symbol will blink 3 times and ADS
Auto Dehumidify (if equipped)
OFF will be displayed on the climate
To increase cabin air quality and reduce
control information screen.
windshield misting, recirculation mode
When the Auto Defogging System is
switches off automatically after about 5
turned on, the ADS OFF symbol will blink
to 30 minutes, depending on the outside
6 times without a signal.
temperature, and the air intake will
change to fresh mode.
Infotainment system
Auto Defogging System can be turned
Turning Auto Dehumidify ON or OFF
RQ DQG RII E\ VHOHFWLQJ œ6HWXS Ɵ
Climate control system
9HKLFOH 6HWWLQJV Ɵ &OLPDWH Ɵ 'HIRJ
To turn the Auto Dehumidify feature on
'HIURVW 2SWLRQV Ɵ $XWR 'HIRJŔ IURP WKH
or off, select Face level (
) mode and
infotainment system screen.
while holding down the A/C icon, press
the air intake control (
) button at
least five times within three seconds.
Information
When Auto Dehumidify is turned on,
ś When the air conditioning is turned
the air intake control button indicator
on by Auto Defogging System, if you
will blink 6 times. When turned off, the
try to turn off the air conditioning, the
indicator will blink 3 times.
indicator will blink 3 times and the air
conditioning will not be turned off.
Infotainment system
ś To maintain the effectiveness and
Auto Dehumidify can be turned on and
efficiency of the Auto Defogging
RII E\ VHOHFWLQJ œ6HWXS Ɵ 9HKLFOH 6HWWLQJV
System, do not select Recirculation
Ɵ &OLPDWH Ɵ $XWRPDWLF 9HQWLODWLRQ Ɵ
mode while the system is operating.
Auto Dehumidify’ from the infotainment
ś When Auto Defogging System is
system screen.
operating, fan speed adjustment,
temperature adjustment, and air intake
control selection are all disabled.
Information
ś The infotainment system may change
The infotainment system may change after
after software updates. For more
software updates. For more information,
information, refer to the user’s manual
refer to the user’s manual provided in
provided in the infotainment system
the infotainment system and the quick
and the quick reference guide.
reference guide.
5-112
05
Recirculating Air when washer
Sunroof Inside Air Recirculation
fluid is used (if equipped)
(if equipped)
Recirculation mode automatically
When the sunroof is opened, fresh
activates to reduce any objectionable
mode will be automatically selected.
scent of the washer fluid from entering
At this time, if you press the air intake
the cabin when the windshield washer is
control button, recirculation mode will
used.
be selected but will change back to fresh
mode after 3 minutes. When the sunroof
When it is shifted to the recirculation
is closed, the air intake position will
mode, the unpleasant scent may flow
return to the original position that was
into the vehicle.
selected.
However, in cold weather to prevent
the windshield from fogging up, the
Automatic Controls for the
recirculation mode may not be selected.
Driver Based on Climate Control
Turning Activate upon Washer Fluid
System Settings
Use ON or OFF
The temperature of the driver’s seat
Climate control system
warmer, air ventilated seat and heated
steering wheel is automatically
To turn the Activate upon Washer Fluid
controlled depending on the inside and
Use feature on or off, select Floor level
outside temperature of the vehicle when
(
) mode, and then press the air
the engine is running.
intake control (
) button four times
To use these features, it must be
within two seconds while pressing the
A/C icon.
enabled from the Settings menu in the
infotainment system screen. Select:
When Activate upon Washer Fluid Use
ON is turned on, the air intake control
- 6HWXS Ɵ 9HKLFOH 6HWWLQJV Ɵ 6HDW Ɵ
button indicator will blink 6 times. When
+HDWHG 9HQWLODWHG )HDWXUHV Ɵ +HDWHG
turned off, the indicator will blink 3
9HQWLODWHG )HDWXUHV Ɵ $XWR &RQWUROV
times.
That Use Climate Control Settings
For more details on Auto Comfort
Infotainment system
Control, refer to “Seat Warmers” and
“Air ventilation seats” section in chapter
Activate upon Washer Fluid Use can be
3 and “Heated Steering Wheel” section
WXUQHG RQ DQG RII E\ VHOHFWLQJ œ6HWXS Ɵ
in chapter 5.
9HKLFOH 6HWWLQJV Ɵ &OLPDWH Ɵ 5HFLUFXODWH
$LU Ɵ $FWLYDWH XSRQ :DVKHU )OXLG 8VH
(or Interlocking washer fluid)’ from the
Information
infotainment system screen.
The infotainment system may change after
software updates. For more information,
Information
refer to the user’s manual provided in
the infotainment system and the quick
The infotainment system may change after
reference guide.
software updates. For more information,
refer to the user’s manual provided in
the infotainment system and the quick
reference guide.
5-113
Convenient Features
6725$*( &203$570(17
WARNING

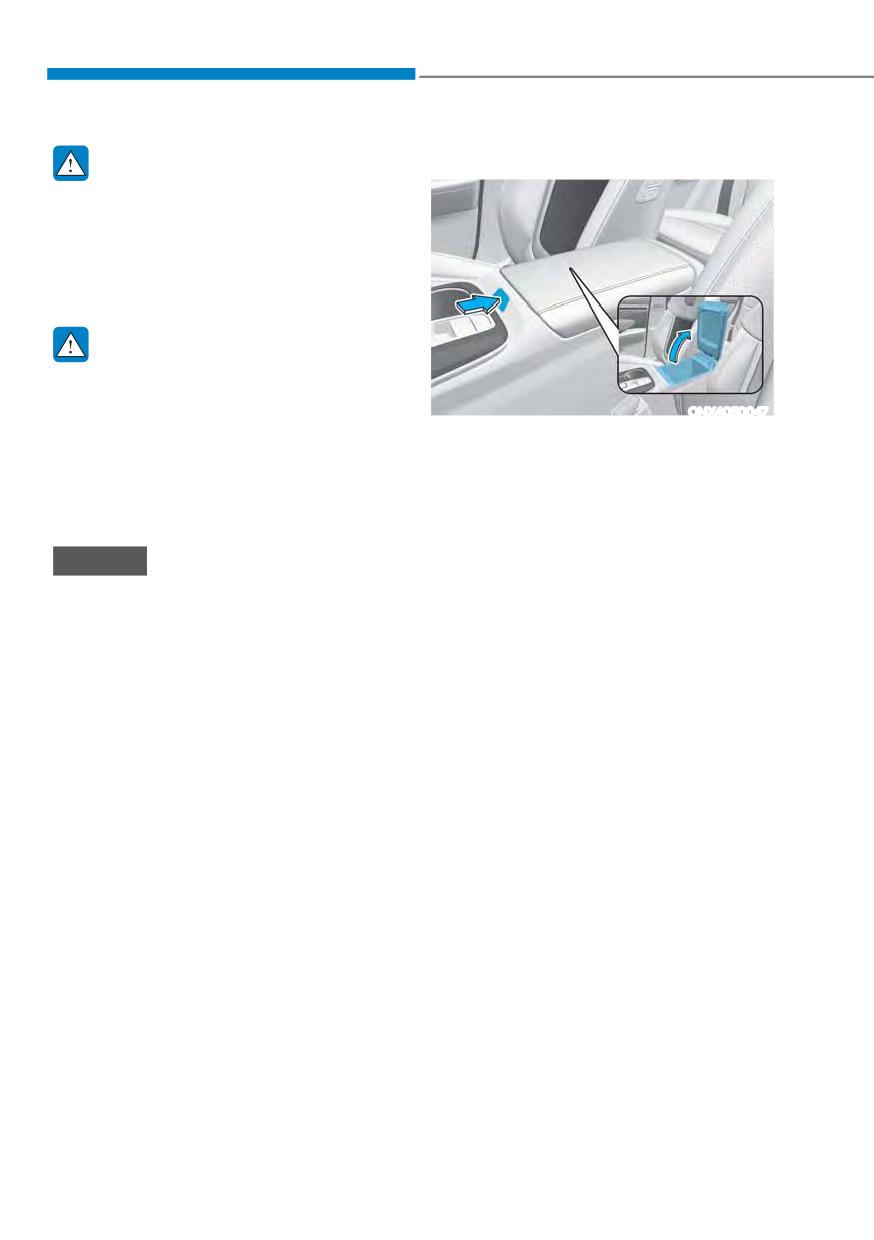

Center Console Storage
Never store cigarette lighters, propane
cylinders, or other flammable/explosive
materials in the vehicle. These items
may catch fire and/or explode if the
vehicle is exposed to hot temperatures
for extended periods.
WARNING
ALWAYS keep the storage compartment
covers closed securely while driving.

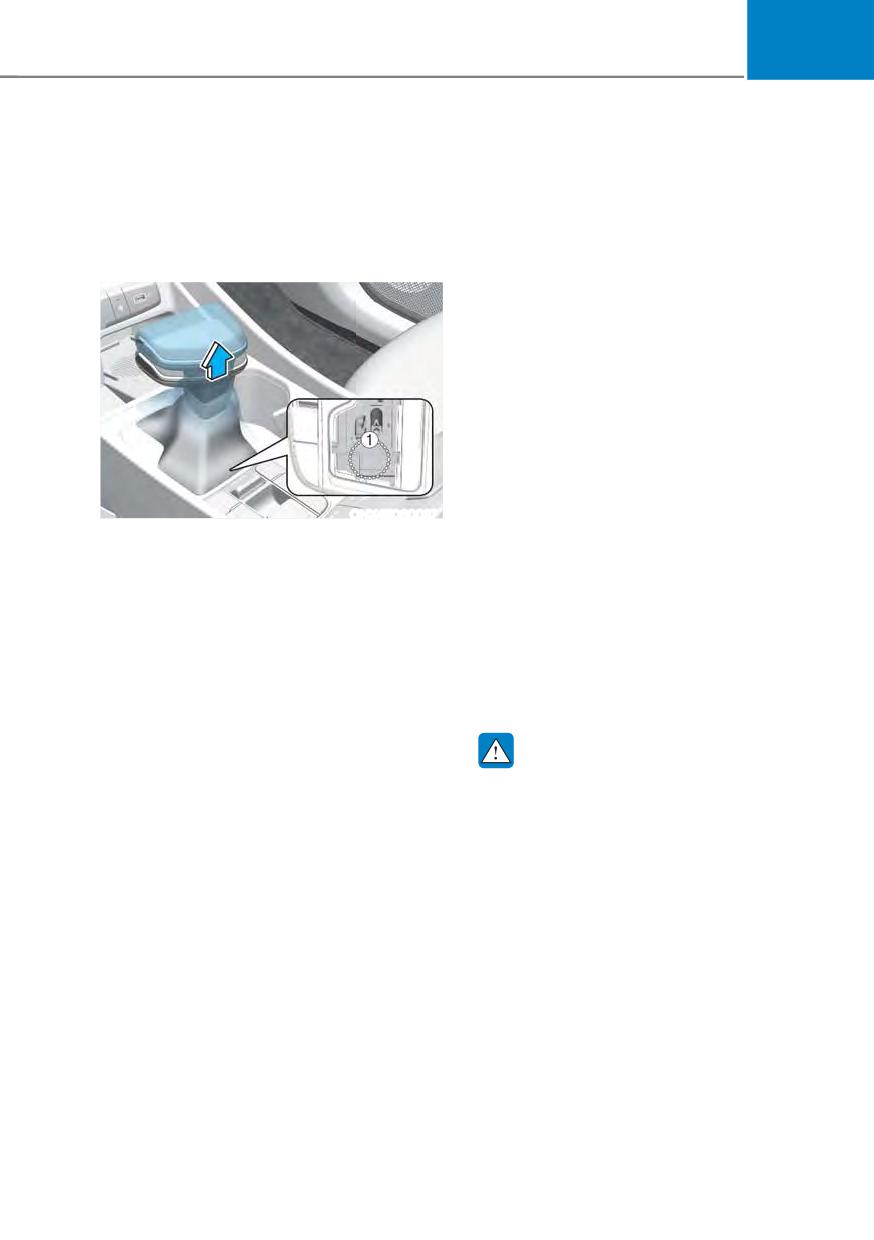

ONX4050047
Items inside your vehicle are moving as
fast as the vehicle. If you have to stop
To open:
or turn quickly, or if there is a crash, the
Press the button.
items may fly out of the compartment
and may cause an injury if they strike
the driver or a passenger.
NOTICE
To avoid possible theft, do not leave
valuables in the storage compartments.
5-114
05

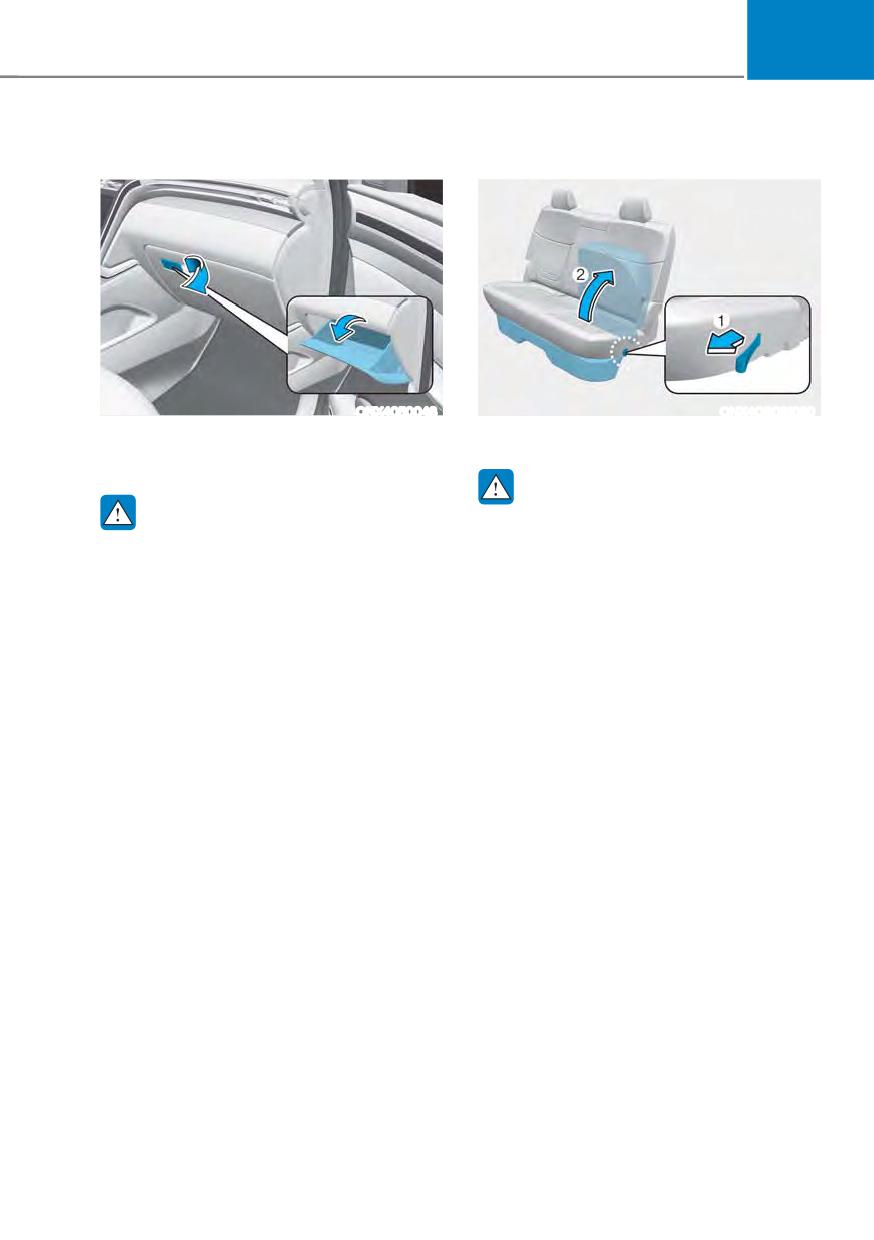

Glove Box
Storage Box Under the Rear Seat
ONX4050048
ONX4OB031030
To open:
Lift and fold up the rear seat.
Pull the lever.
WARNING
WARNING
Do not sit on the storage box. It may
ALWAYS close the glove box door after
damage the storage box or cause
serious injury in the event of sudden
use.
braking collision.
An open glove box door can cause
serious injury to the passenger in an
accident, even if the passenger is
wearing a seat belt.
5-115
Convenient Features
/8**$*( &203$570(17 )($785(6
Tonneau Cover (if equipped)
Fully opening tonneau cover
Locking the tonneau cover
ONX4OB051062
ONX4OB051059
1. Make sure that tonneau cover is
unlocked.
Turn lock knob 90 degrees counter-
clockwise to lock the tonneau cover.
2. Push tonneau handle forward
until unlatched. Handle will stay in
Unlocking the tonneau cover
“unlatched” position.
ONX4OB051060
ONX4OB051063
Turn lock knob 90 degrees clockwise to
3. Tonneau cover will fully retract.
unlock the tonneau cover.
Information
Emergency release
Locking and unlocking the tonneau cover
is only possible with liftgate open.
Information
The purpose of tonneau cover is to cover
the bed from rain and dirt:
ś Designed to withstand rain water, some
water ingress may occur. In the liftgate
area there will be water ingress due to
lack of sealing.
ONX4OB051061
ś Dust can enter the compartment
Push emergency release lever to open
through various gaps around the
from the inside in case of emergency.
liftgate area, other sealings etc.
5-116
05

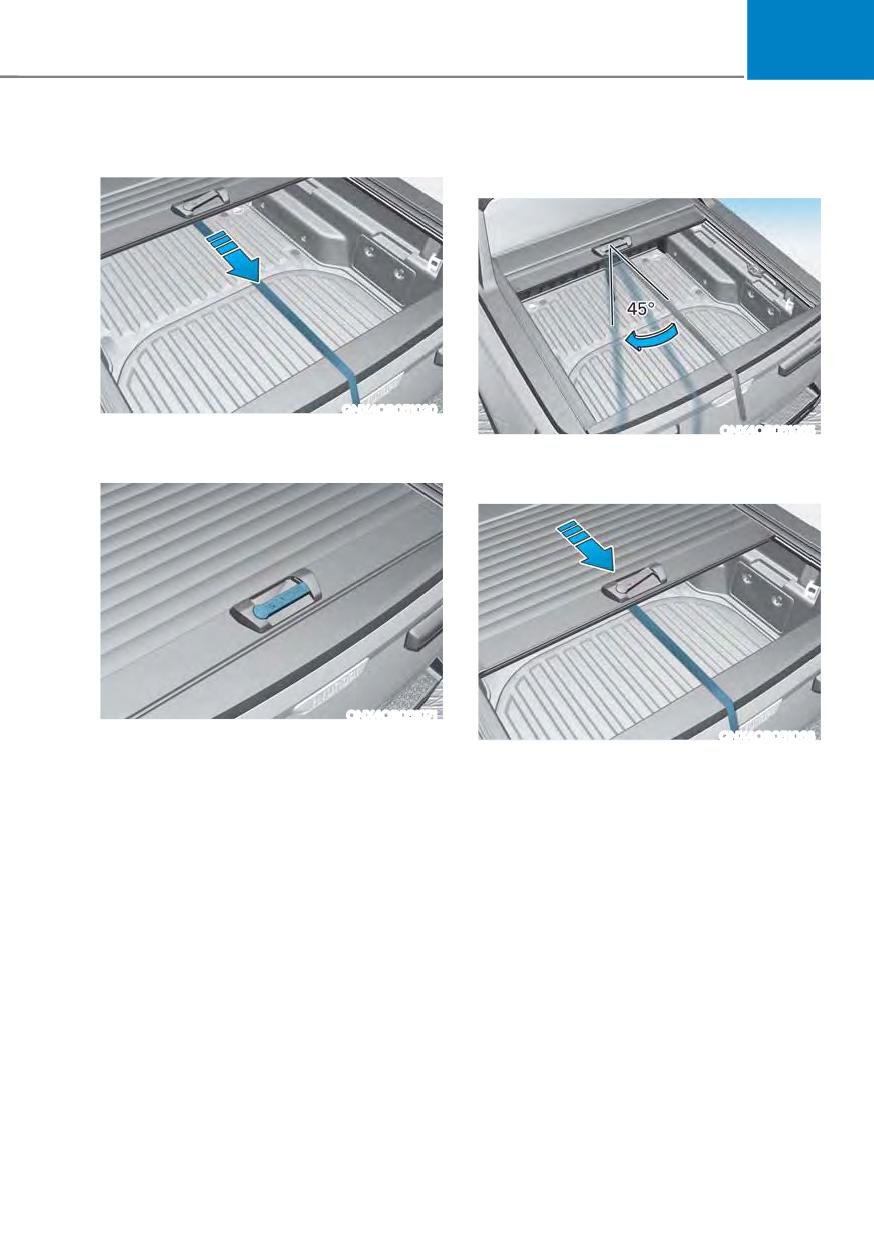

Fully closing tonneau cover
Half opening tonneau cover (from
open)
ONX4OB051020
ONX4OB051065
1. Use strap to pull tonneau cover until
handle can be reached.
1. Pull strap 45 degrees to the left to
return handle to “latched” position.
ONX4OB051071
2. Return handle to “latched” position.
ONX4OB051068
2. Use strap to close tonneau past half
3. Pull tonneau cover rearward until it
latches against the liftgate.
open position, then release. latch pins
will make audible click.
5-117
Convenient Features
Half opening tonneau cover (from
NOTICE
closed)
ś Condensation may build up on the
inside of the cover.
ś Pull strap and carabineer should only
be used for opening or closing the
cover. They may be damaged with
excessive loads.
ś Secure all cargo in the pickup bed
to prevent damage to the tonneau
(especially the canister).
ś Clean the surface of the tonneau
before opening to prevent dirt, snow,
debris from entering the pickup bed.
ONX4OB051062
ś It is recommended to use the strap
1. Push tonneau handle forward until
to slow the opening of the cover to
unlatched. (Handle will stay in
prevent slamming.
“unlatched” position)
CAUTION
Do not stand on, or transport cargo on
top of the cover, damage or injury could
occur.
WARNING
ś Do not drive with persons under the
tonneau cover.
ś Do not allow persons or animals
ONX4OB051067
to stay in the pickup bed when the
2. Return handle to “latched” position.
cover is closed.
3. Tonneau cover will open and stop at
ś Temperatures can be very high under
halfway position.
the cover when closed.
ś The pull strap should not be used to
tie down cargo.
ś Ensure hands and fingers are clear
before opening or closing the cover.
ś Wash the Roll cover regularly using
normal car shampoo and a soft, lint
free cloth or brush.
5-118
05
Sidewall Molded in Features
Plywood carrying shelf
Commonly sold lumber items to be
added to the pickup bed, allowing users
to customize.
2x6 cross pickup bed support shelf
ONX4OB051075
Steps to put liftgate in plywood position:
1. Detach both left and right support
cables.
2. Lift liftgate upward to 20 degrees from
ONX4OB051073
full open position.
Cut two 2”x6” pieces of standard lumber
3. Connect both cables just below the
to ~52” lengths and inset into forming’s
striker onto the lower bolt.
provided on the sidewalls.
WARNING
ś It is recommended to close the
tonneau cover securely before
driving.
ś Ensure tonneau cover doesn’t
interfere with cargo during
operation.
ś Do not stand or sit on the tonneau
cover.
ONX4OB051074
A 4’x4’ sheet of plywood can be placed
on top of the 2x6 supports to form a shelf
within the pickup bed.
5-119
Convenient Features
WARNING
Underbed Storage
The underbed storage area is water
ś
Allowing passengers to ride in the
resistant and can be locked and unlocked
pickup bed or on the liftgate can
using the remote key or smart key.
result in death or serious injury in
a crash. Make sure all passengers
Opening underbed storage
ride in a seat and wear a seat belt
properly.
ś
Never let passengers ride in the
pickup bed, in the liftgate space, or
on the bed rails. This could cause
very serious injuries or death. No one
should ride in any position on your
vehicle that is not equipped with
seats and seat belts.
ś
Exceeding load limits or improperly
loading cargo on the vehicle can
cause a crash in which you can be
ONX4OB051021
seriously injured or killed.
The underbed storage can be unlocked
ś
Always secure cargo to prevent it
and opened by the following methods:
from shifting or falling from the
vehicle. Failure to do so may cause
serious injury or death.
Vehicles equipped with remote key:
ś Unlocking all doors using the main
unlock button in the vehicle or by
pressing the unlock button on the
remote key.
Vehicles equipped with Smart key:
ś Unlocking all the doors using the
main unlock button in the vehicle or
by pressing the unlock button on the
smart key.
ś Having the smart key in your
possession, opening the liftgate, and
then simply pressing the underfloor
storage release button.
5-120
05
Closing underbed storage
ONX4OB051108
ONX4OB051022
ś
Underbed storage should be dried
before closing the lid to prevent
To close the underbed storage lid, pull
mold growth. Removable drain plug
the lid downward.
is provided in storage area to allow
for convenient drying.
Note that if the underbed storage lid is
- Front drain plug is permanent
not fully closed, the LED bed lamps will
1-way drain plug that should not be
remain on and a warning message may
removed.
appear in the cluster display.
- Rear drain plug is removable plug.
Plug can be removed by twisting
Information
plug and then pulling up.
It is common for the underfloor storage
bin to have a scent when the vehicle is
WARNING
new. This scent is normal, safe, and will be
reduced over time, similar to any new car
smell.
CAUTION
ś Take care to keep water channel and
sealing surface clear of debris.
ś Do not store the valuable items
underbed storage area.
ś Do not apply water directly to the
underbed storage bin latch. It may
ONX4OB051023
cause latch damage.
ś
Do not go into the underbed storage.
ś
If someone is locked inside the bin,
push the emergency release lever (1).
5-121
Convenient Features

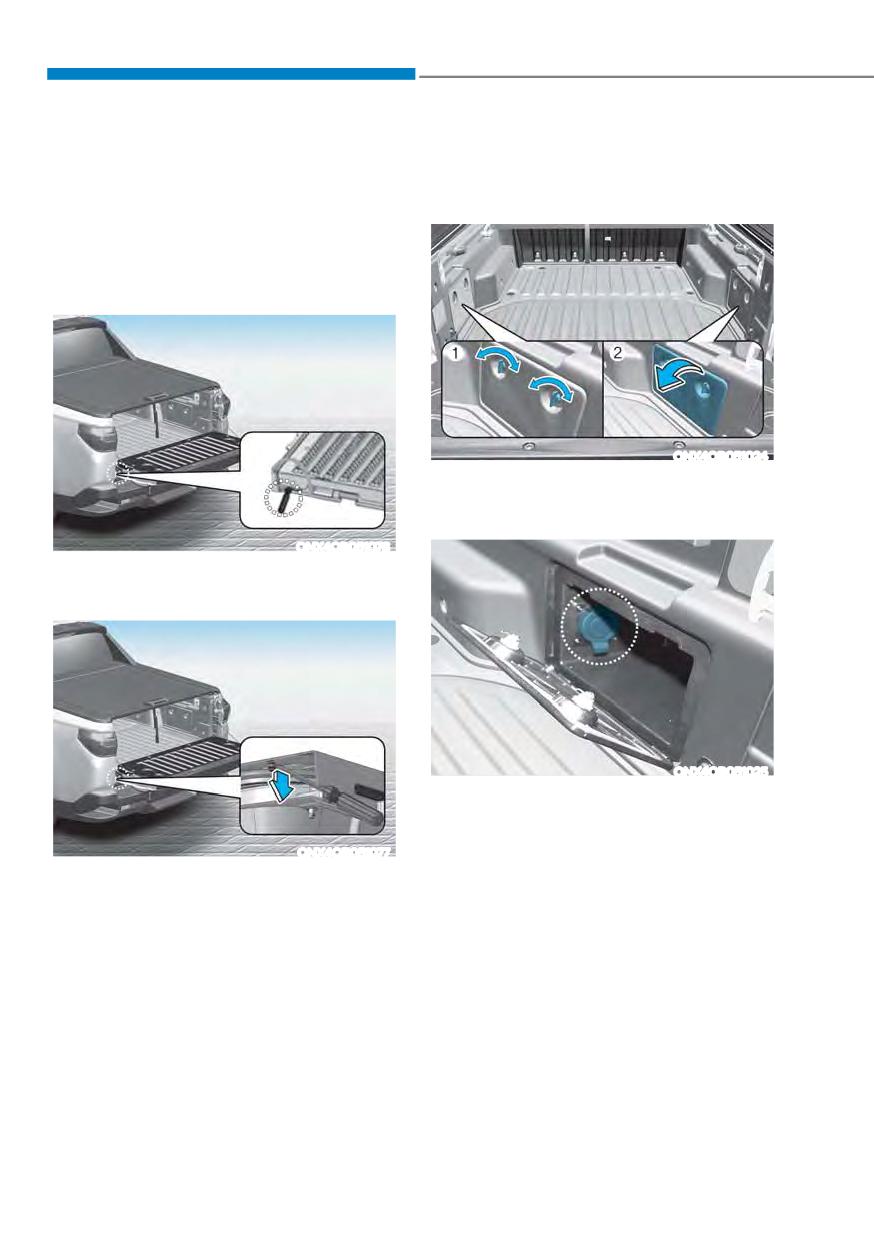

How to open underbed storage lid
Sidewall Side Storage
manually
Opening/Closing sidewall side
If there is an electrical failure that
storage
prevents the bed underbed storage
lid from opening, the latch can be
mechanically released using the
following steps:
ONX4OB051024
Turn the two knobs to open/close the lid
Power Outlet (if quipped)
ONX4OB051076
1. Remove the liftgate assembly from its
hinges.
ONX4OB051025
Power outlet is located in the passenger
side sidewall side storage bin.
ONX4OB051077
2. Insert a ridged hook or tool between
the lid and floor, locating the release
cable with the tool.
3. Provide an even downward force to
release the latch.
5-122
05
To use the power outlet
Tie Down
1. Turn the two knobs to the left to open
Tie Down Locations
the lid.
2. Open the cover and plug in the
appliance slightly.
CAUTION
ś
Do not use the power outlet for
electrical appliances that require
high initial peak wattage, such as
cathode-ray tube type televisions,
refrigerators, electric pumps,
etc. It is not suitable for devices

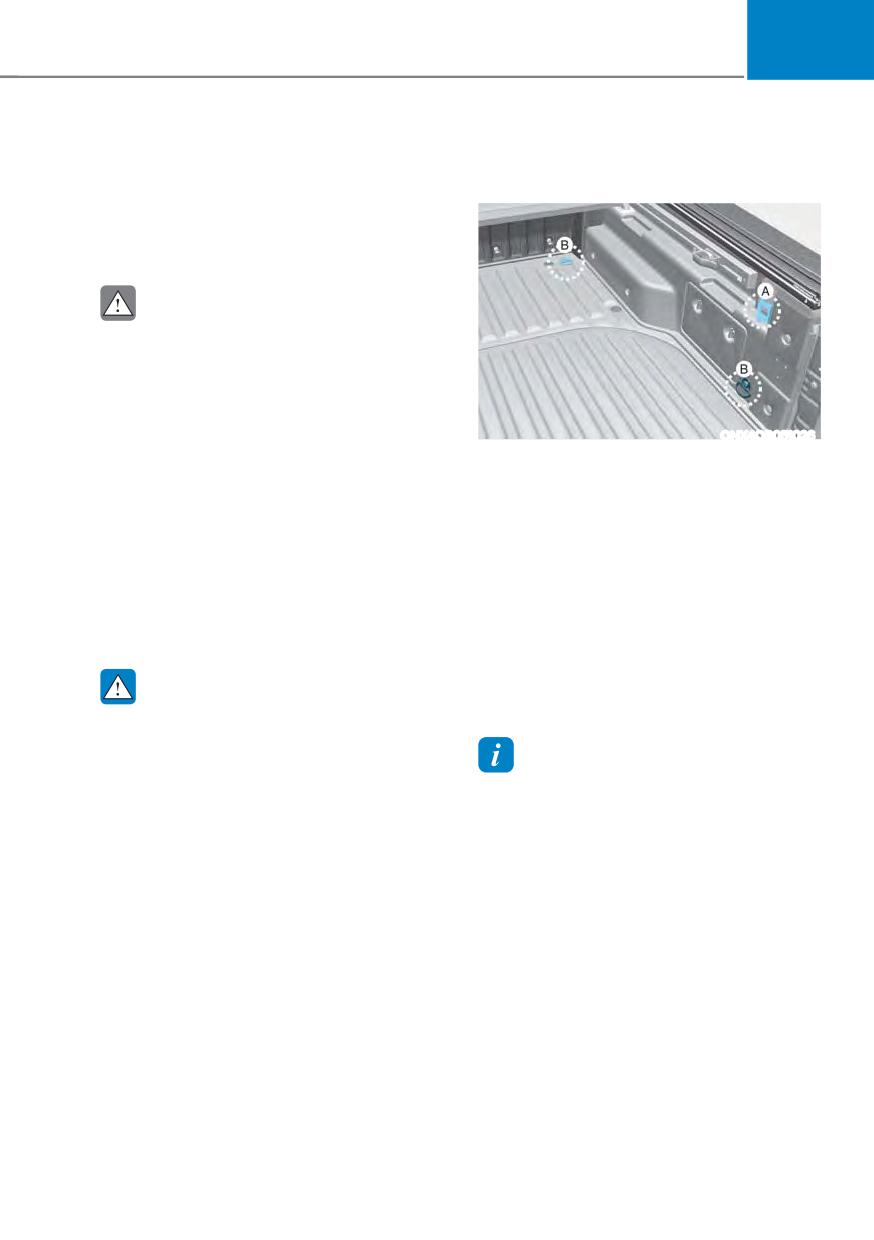

ONX4OB051026
that process precise data, such as
[A] Fixed Tie Down
medical equipment, and that require
[B] D-Ring
an extremely stable power supply,
such as microcomputer-controlled
You can secure cargo to the vehicle using
electric blankets, touch sensor
hooks, ropes and straps with heavy duty
lamps, etc.
tie downs from various location on the
pickup bed.
ś
When the power outlet is not in use,
close the cover to prevent any small
ś Fixed Tie Down also acts as a Cleat for
foreign objects from getting into the
looping rope.
power outlet.
ś D-Ring can be rotated about the bolt
and the bracket.
ś D-Ring and Fixed Tie Down can be
WARNING
hooked through their openings.
ś
Continued use of any electrical
appliance/device exceeding these
ratings may result in damage to the
Information
appliance/device.
ś Put cargo evenly on the pickup bed.
ś
Make sure that no moisture is
Place the heaviest items on the bottom
trapped in a bin when closed to
and as far forward as possible of the
prevent mold growth.
rear axle. Tie down and secure all items
that could be thrown out of the vehicle
during a crash or sudden stop.
ś If you stack items higher than the bed
sides, liftgate, or back window, secure
them with a net or cover. This will
reduce the risk of items being thrown
out of the pickup bed during a crash or
sudden stop.
5-123
Convenient Features
CAUTION
Rail and cleat system
(If equipped)
ś
Load the cargo securely before
Rail and cleat Locations
starting to drive.
WARNING
ś
Do not exceed 440 lbs. (200 kgf) load
on a tie down.
WARNING
ś
Allowing passengers to ride in the
pickup bed or on the liftgate can
result in death or serious injury in
a crash. Make sure all passengers

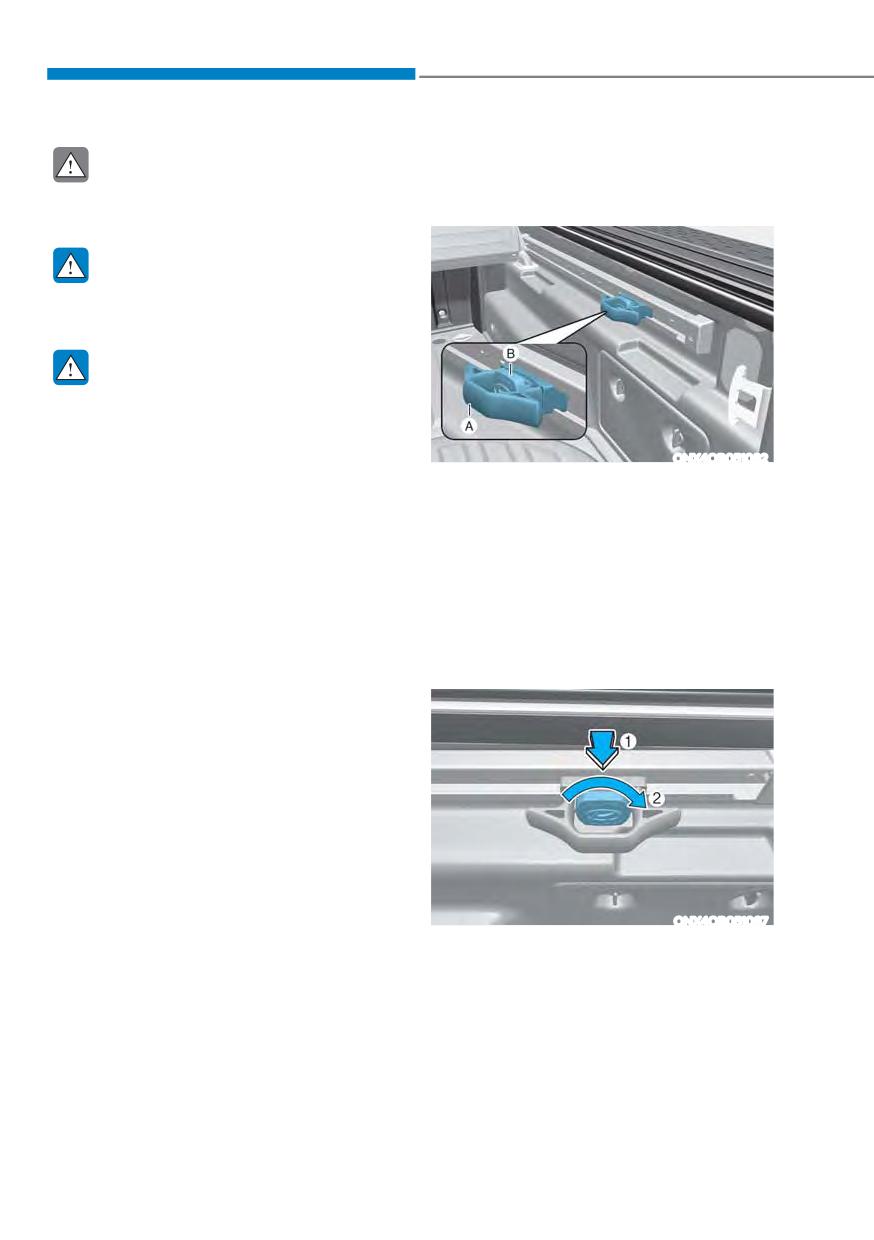

ONX4OB051082
ride in a seat and wear a seat belt
[A] : Cleat, [B] : Knob
properly
You can secure cargo with adjustable
ś
Never let passengers ride in the
heavy duty cleat tie downs,
pickup bed, in the liftgate space, or
repositioning the tie downs to suit the
on the bed rails. This could cause
exact needs. Cleat can be used with
very serious injuries or death. No one
ropes, hooks, and straps. It can be
should ride in any position on your
hooked through the center or wrapped
vehicle that is not equipped with
around the cleats.
seats and seat belts.
ś
Exceeding load limits or improperly
To use the cleat
loading cargo on the vehicle can
cause a crash in which could result in
serious injury or death.
ś
Load the cargo carefully before
starting to drive.
ONX4OB051087
1. Pull and Twist on Cleat Knob until
Knob is fully disengaged and locked.
5-124
05
WARNING

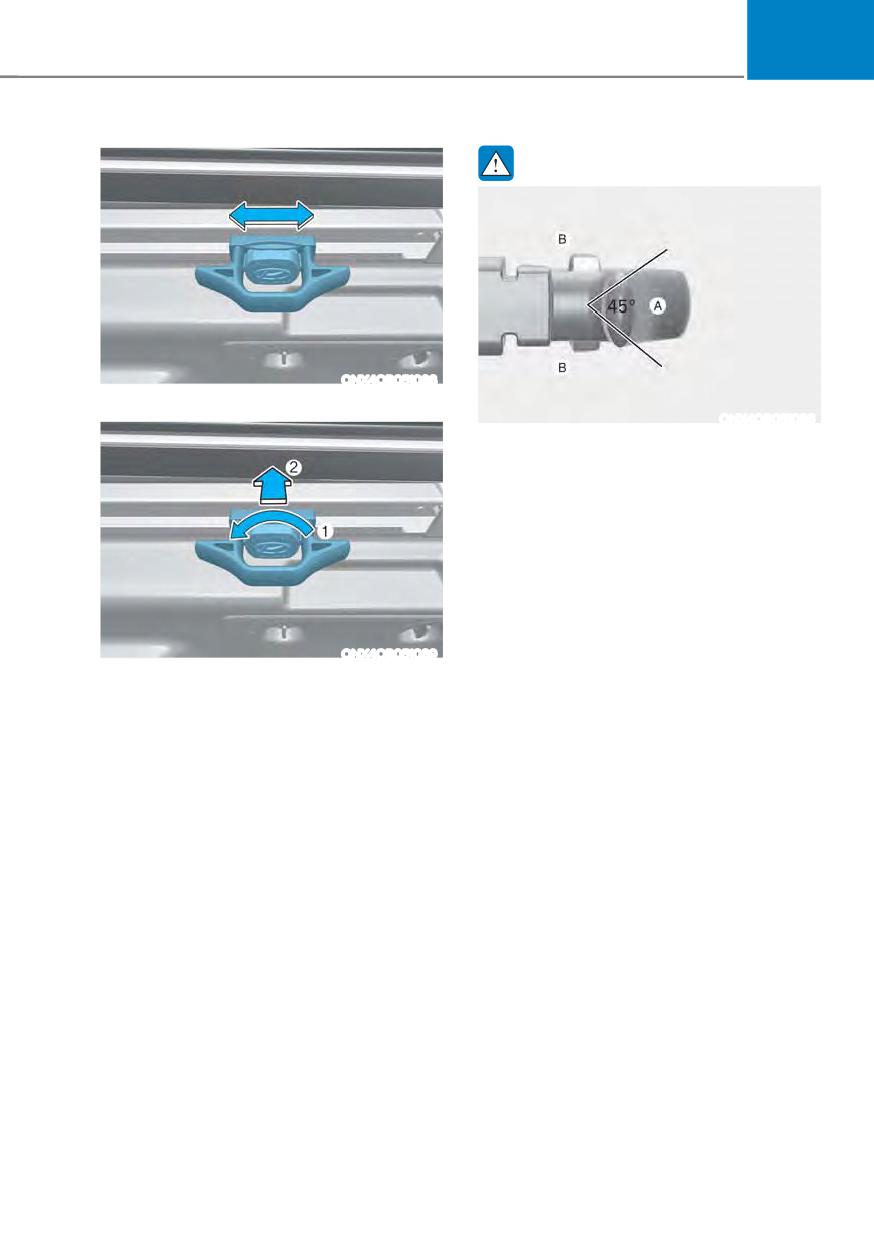

ONX4OB051088
2. Slide the Cleat to desired position.
ONX4OB051086
ś Load the cleat under 45 degrees (A),
and do not load the cleat above or
below 45 degrees (B). If not, damage
to the cleat or rail may occur.
ś Do not exceed 250 Ibs. (113 kgf) load
on a tie down.
ś Do not apply a load to an unlocked
cleat.
ONX4OB051089
3. Twist the Knob in the opposite
direction until the knob falls back into
the locked position.
4. Check the Cleat to confirm that it is
locked into a detent and secure in the
Rail.
5-125
Convenient Features
,17(5,25 )($785(6

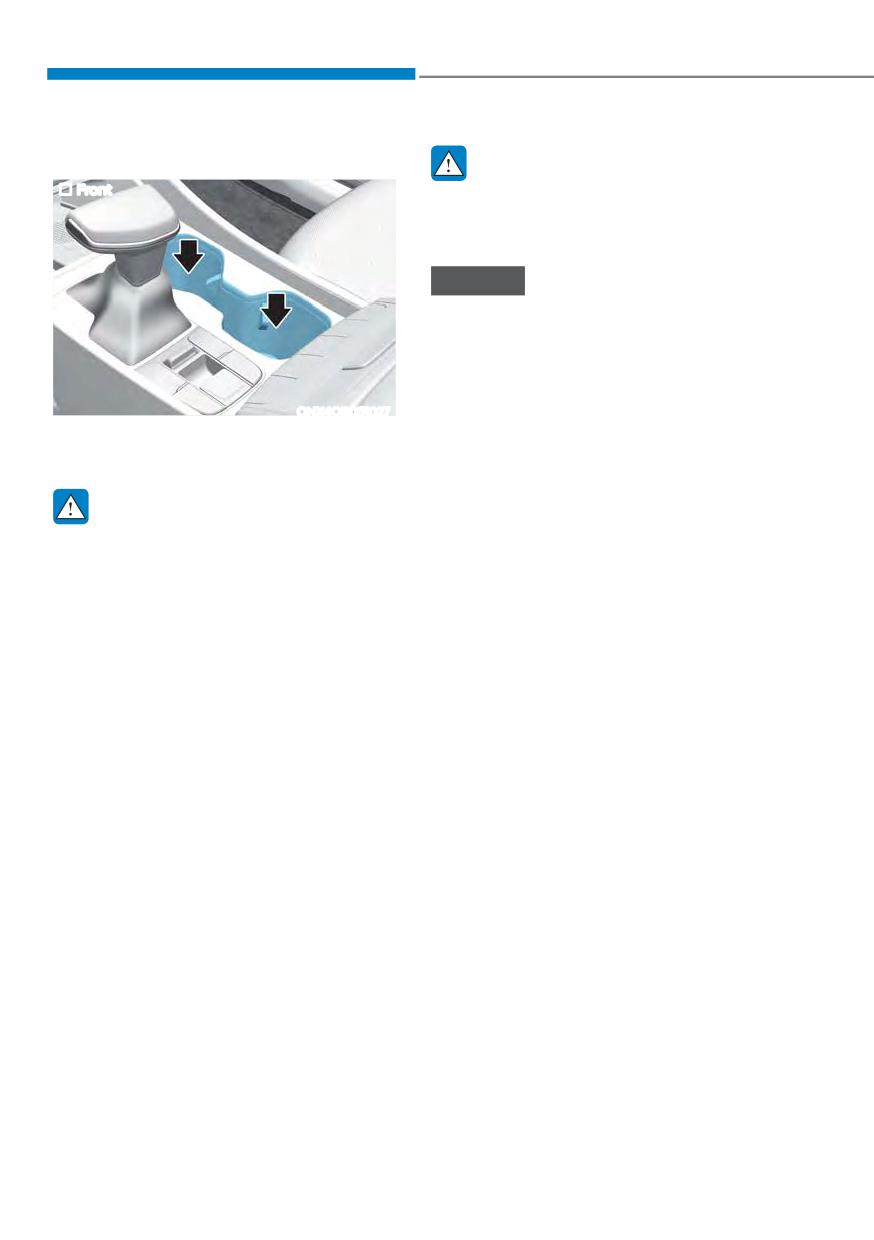

Cup Holder
WARNING
„ Front
Keep cans or bottles out of direct sun
light and do not put them in a hot
vehicle. It may explode.
NOTICE
ś Keep your drinks sealed while
driving to prevent spilling your drink.
If liquid spills, it may get into the
vehicle’s electrical/electronic system
and damage electrical/electronic
ONX4OB051027
parts.
Cups or small beverages cups may be
ś When cleaning spilled liquids, do not
placed in the cup holders.
use hot air to blow out or dry the cup
holder. This may damage the interior.
WARNING
ś Avoid abrupt starting and braking
when the cup holder is in use to
prevent spilling your drink. If hot
liquid spills, you could be burned.
Such a burn to the driver could cause
loss of vehicle control resulting in an
accident.
ś Do not place uncovered or unsecured
cups, bottles, cans, etc., in the cup
holder containing hot liquid while
the vehicle is in motion. Injuries may
result in the event of a sudden stop
or collision.
ś Only use soft cups in the cup holders.
Hard objects can injure you in an
accident.
5-126
05

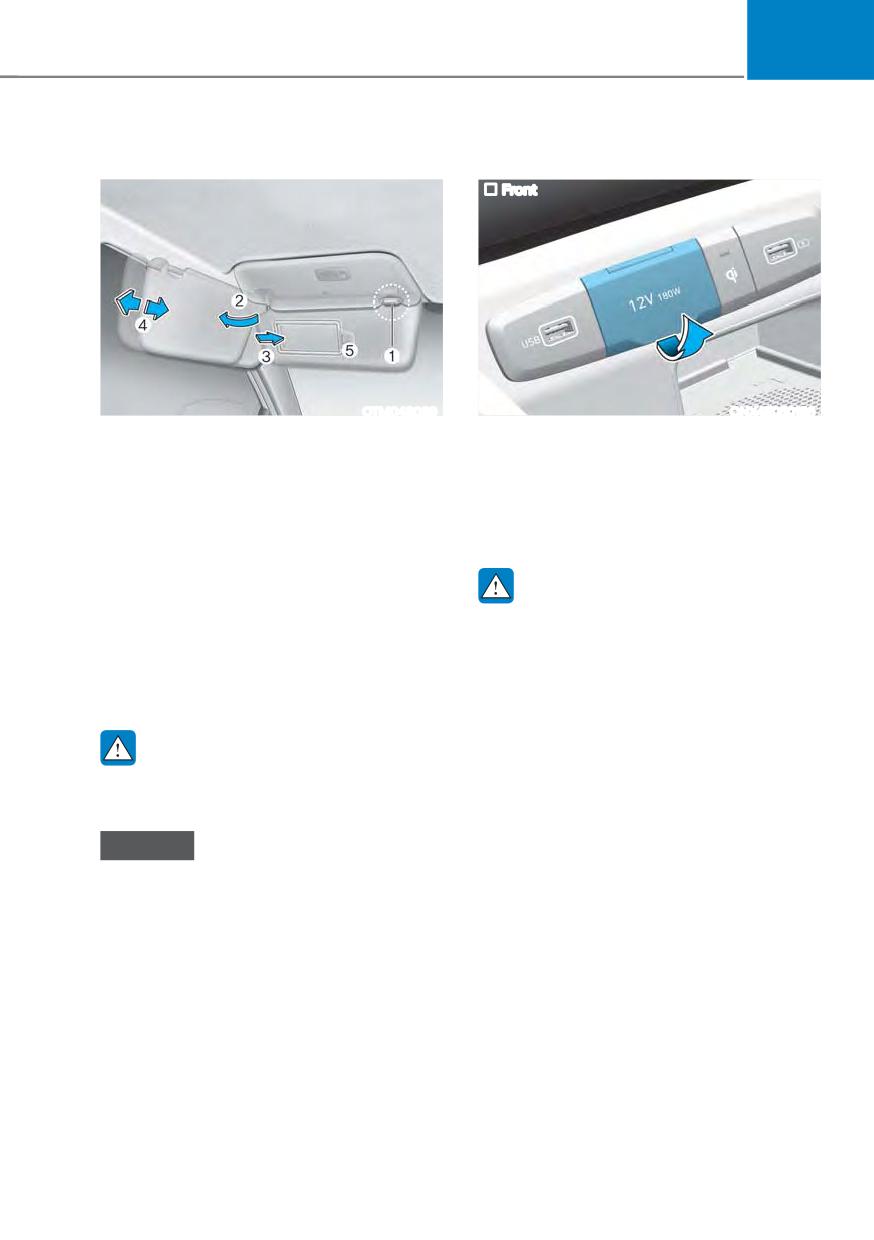

Sunvisor
Power Outlet
„ Front
OTM048089
ONX4E050166
To use the sunvisor, pull it downward.
The power outlet is designed to provide
power for mobile telephones or other
To use the sunvisor to block the sun
from the side window, pull it downward,
devices designed to operate with vehicle
electrical systems. The devices should
release it from the bracket (1) and swing
it to the side (2) towards the window.
draw less than 180 watts with the engine
running.
To use the vanity mirror, pull down the
sunvisor and slide the mirror cover (3).
Adjust the sunvisor forward or backward
WARNING
(4) as needed (if equipped). Use the
Avoid electrical shocks. Do not place
ticket holder (5) to hold tickets.
your fingers or foreign objects (pin, etc.)
Close the vanity mirror cover securely
into a power outlet or touch the power
and return the sunvisor to its original
outlet with a wet hand.
position after use.
WARNING
For your safety, do not block your view
when using the sunvisor.
NOTICE
The tab (5) adjacent to the vanity mirror
on the sunvisor can be used for toll
road tickets or self parking tickets. Use
caution when inserting tickets into the
ticket holder to avoid damage. Refrain
from putting several tickets in the ticket
holder as this could also damage the
retaining tab.
5-127
Convenient Features
CAUTION

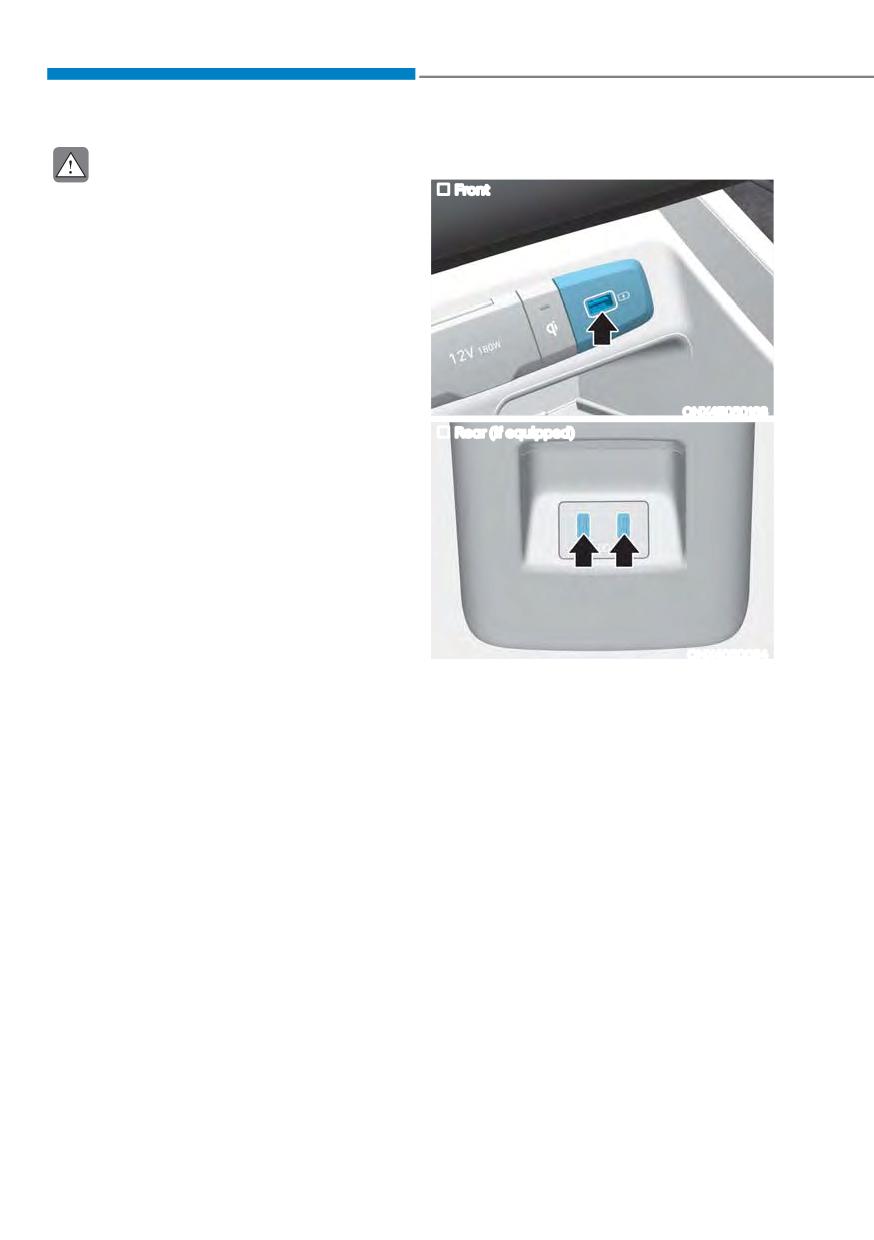

USB Charger
„ Front
To prevent damage to the power
outlets:
ś
Use the power outlet only when the
engine is running and remove the
accessory plug after use. Using the
accessory plug for prolonged periods
of time with the engine off could
cause the battery to discharge.
ś
Only use 12 volts electric accessories
which are less than 180 watts in
electric capacity.
ONX4E050168
ś
Adjust the air-conditioner or heater
„ Rear (if equipped)
to the lowest operating level when
using the power outlet.
ś
Close the cover when not in use.
ś
Some electronic devices can
cause electronic interference
when plugged into a vehicle’s
power outlet. These devices may
cause excessive audio static and
malfunctions in other electronic
systems or devices used in your
ONX4050054
vehicle.
The USB charger is designed to recharge
ś
Push the plug in as far as it will go. If
batteries of small size electrical devices
good contact is not made, the plug
using a USB cable.
may overheat and the fuse may open.
The electrical devices can be recharged
ś
Plug in battery equipped electrical/
when the ignition switch is in the ACC or
electronic devices with reverse
ON (or START) position.
current protection. The current
from the battery may flow into the
The battery charging state may be
vehicle’s electrical/electronic system
monitored on the electrical device.
and cause system malfunction.
Disconnect the USB cable from the USB
port after use.
ś A smart phone or a tablet PC may
get warmer during the re-charging
process. It does not indicate any
malfunction with the charging system.
ś A smart phone or a tablet PC, which
adopts a different re-charging
method, may not be properly re-
charged. In this case, use an exclusive
charger of your device.
ś The charging terminal is only to
recharge a device. Do not use the
charging terminal either to turn ON
an audio or to play media In the
infotainment system.
5-128
05
Wireless Smart Phone Charging
To charge a cellular phone
System (if equipped)
The wireless smart phone charging
system charges only the Qi-enabled
smart phones (
). Read the label on
the smart phone accessory cover or
visit your smart phone manufacturer’s
website to check whether your smart
phone supports the Qi technology.
The wireless charging process starts
when you put a Qi-enabled smart phone
on the wireless charging unit.
1. Remove other items, including the
smart key, from the wireless charging

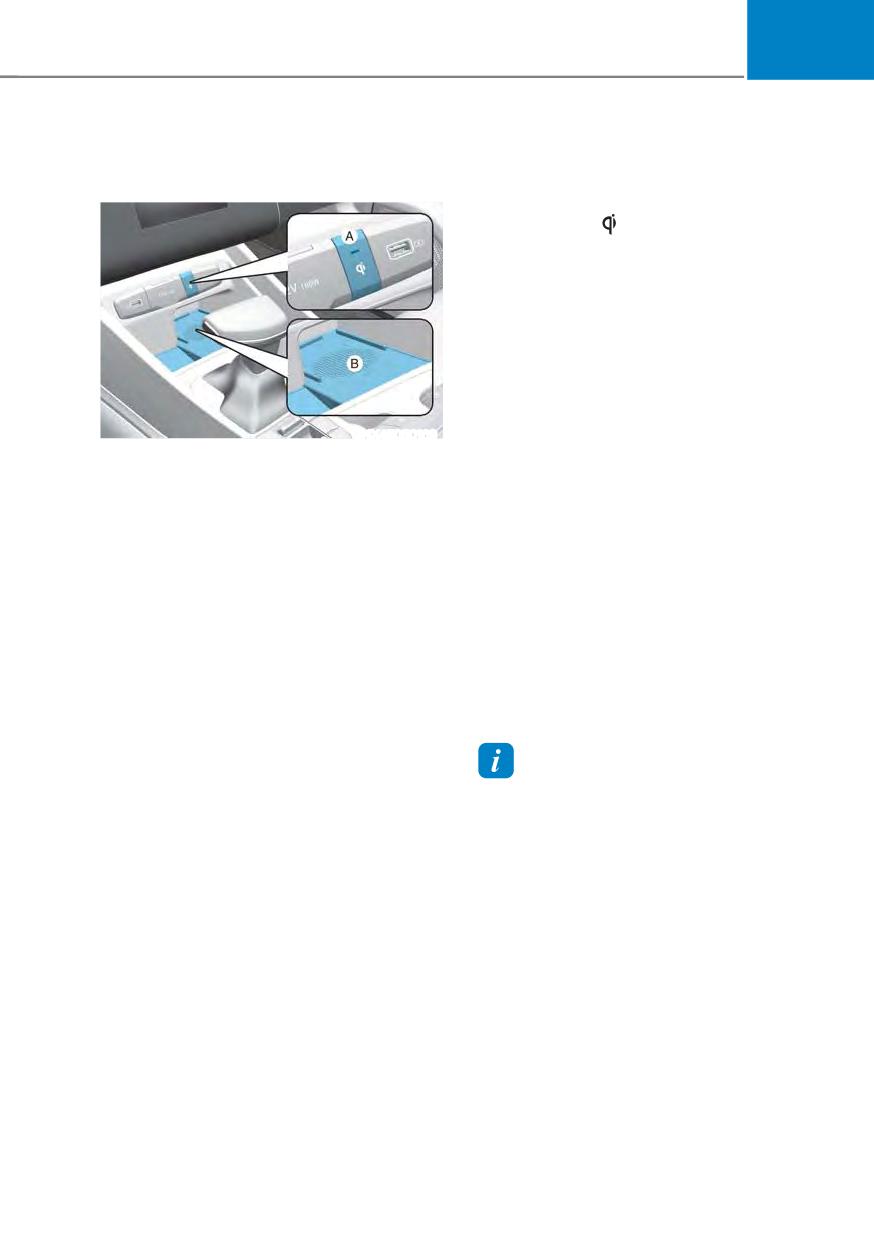

ONX4E050169
unit. If not, the wireless charging
process may be interrupted. Place
[A] : Indicator light, [B] : Charging pad
the smart phone on the center of the
On certain models, the vehicle comes
charging pad.
equipped with a wireless smart phone
2. The indicator light is orange when the
charger.
smart phone is charging. The indicator
The system is available when all doors
light will turn blue when phone
are closed, and when the ignition switch
charging is complete.
or the Engine Start/Stop button is in the
3. You can turn ON or OFF the wireless
ON (or START) position.
charging function from the Settings
menu on the instrument cluster.
Select:
- 6HWXS Ɵ 8VHU VHWWLQJV Ɵ
&RQYHQLHQFH Ɵ :LUHOHVV &KDUJLQJ
Information
ś Remove other items, including the
smart key from the wireless charging
pad.
ś For flip type smartphones, when
using wireless charging, place the
smartphone folded with the device’s
back placed on the center of the
wireless charging unit.
If your smart phone is not charging:
- Slightly change the position of the
smart phone on the charging pad.
- Make sure the indicator light is
orange.
5-129
Convenient Features
The indicator light will blink orange for 10
NOTICE
seconds if there is a malfunction in the
ś
The wireless smart phone charging
wireless charging system.
system may not support certain
In this case, temporarily stop the
smart phones, which are not verified
charging process, and re-attempt to
for the Qi specification (
).
charge your smart phone again.
ś
When placing your smart phone on
The system warns you with a message
the charging pad, position the phone
on the cluster display if the smart phone
in the middle of the mat for optimal
is still on the wireless charging unit after
charging performance. If your smart
the vehicle is turned OFF and the front
phone is off to the side, the charging
door is opened.
rate may be less and in some cases
the smart phone may experience
For some manufacturer’s smart phones,
higher heat conduction.
the system may not warn you even
ś
In some cases, the wireless charging
though the smart phone is left on the
may stop temporarily when the
wireless charging unit. This is due to the
smart key is used, either when
particular characteristic of the smart
starting the vehicle or locking/
phone and not a malfunction of the
unlocking the doors, etc.
wireless charging.
ś
When charging certain smart
phones, the charging indicator may
Information
not change to blue when the smart
phone is fully charged.
For some manufacturers’ cellular phones,
the system may not warn you even though
ś
The wireless charging process may
temporarily stop, when temperature
the cellular phone is left on the wireless
charging unit. This is due to the particular
abnormally increases inside the
wireless smart phone charging
characteristic of the cellular phone and
not a malfunction of the wireless charging.
system. The wireless charging
process restarts when temperature
falls to a certain level.
ś
The wireless charging process may
temporarily stop when there is
any metallic item, such as a coin,
between the wireless smart phone
charging system and smart phone.
5-130
05
ś
When charging some smart phones
Information
with a self-protection feature,
the wireless charging speed may
If the Ignition switch is in the OFF
decrease and the wireless charging
position, the charging also stops.
may stop.
ś
If the smart phone has a thick cover,
Information
the wireless charging may not be
possible.
This device complies with Part 15 of the
FCC rules. Operation is subject to the
ś
If the smart phone is not completely
following three conditions:
contacting the charging pad,
1. This device may not cause harmful
wireless charging may not operate
properly.
interference, and
ś
Some magnetic items like credit
2. This device must accept any
interference received, including
cards, phone cards or rail tickets may
be damaged if left with the smart
interference that may cause undesired
operation.
phone during the charging process.
ś
When any smart phone without
3. Changes or modifications not expressly
approved by the party responsible
a wireless charging function or a
metallic object is placed on the
for compliance could void the user’s
authority to operate the device.
charging pad, a small noise may
sound. This small sound is due to the
vehicle discerning compatibility of
Clock
the object placed on the charging
The clock can be set from the
pad. It does not affect your vehicle or
infotainment system.
the smart phone in any way.
Information
The infotainment system may change after
software updates. For more information,
refer to the user’s manual provided in
the infotainment system and the quick
reference guide.
WARNING
Do not attempt to adjust the clock
while driving. Doing so may result in
distracted driving which may lead to
an accident involving personal injury or
death.
5-131
Convenient Features

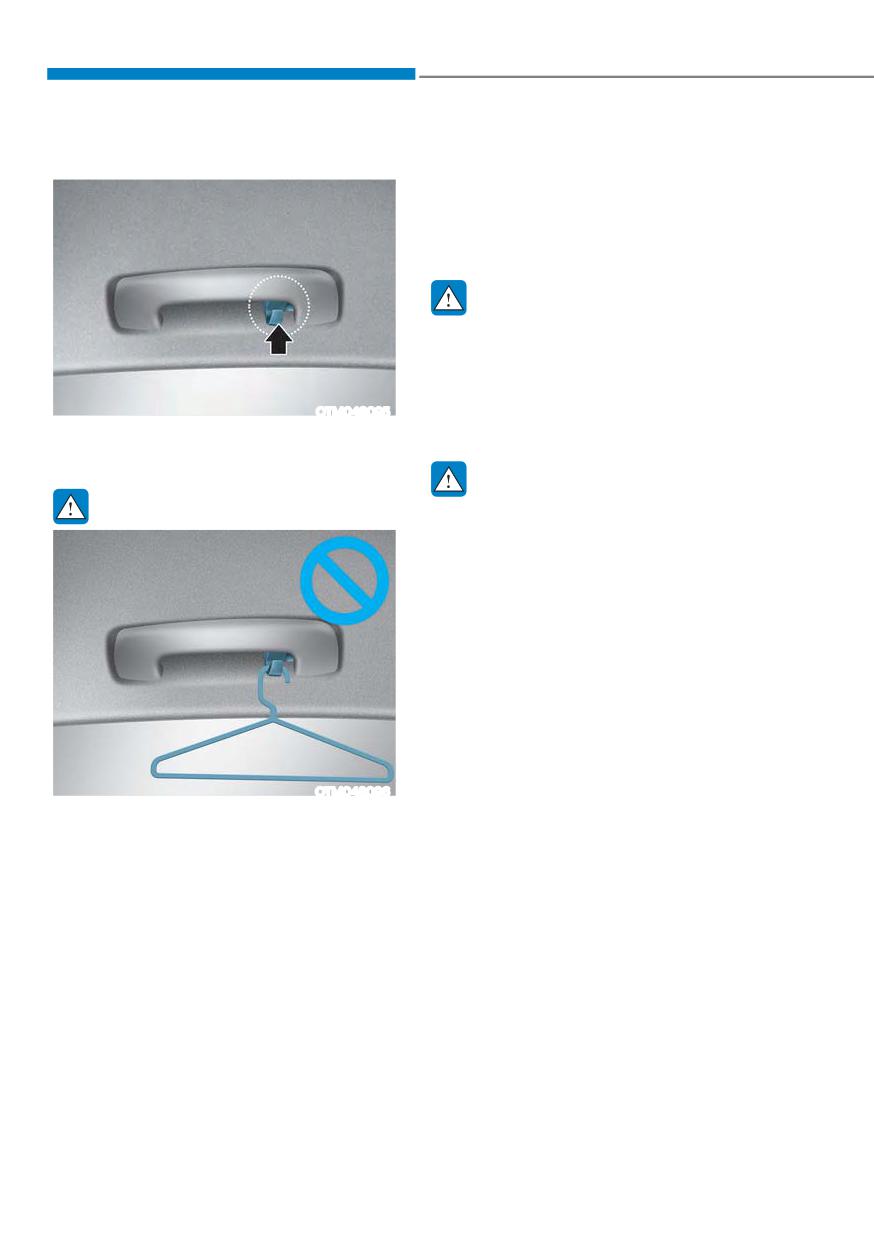

Coat Hook
Floor Mat Anchor(s)
ALWAYS use the Floor Mat Anchors to
attach the front floor mats to the vehicle.
The anchors on the front floor carpet
keep the floor mats from sliding forward.
WARNING
Do not overlay additional mats or liners
over the floor mats. If using All Weather
mats, remove the carpeted floor mats
before installing them. Only use floor
OTM048095
mats designed to connect to the
anchors.
These hooks are not designed to hold
large or heavy items.
WARNING
WARNING
The following must be observed when
installing ANY floor mat to the vehicle.
ś Ensure to remove a protective
film attached on the carpet
before attaching a floor mat on
the front floor carpet. Otherwise,
the floor mat may move freely on
the protective film and it could
result in unintentional braking or
accelerating.
ś Ensure that the floor mats are
securely attached to the vehicle’s
floor mat anchor(s) before driving
the vehicle.
OTM048096
ś Do not use ANY floor mat that cannot
Do not hang other objects such
be firmly attached to the vehicle’s
as hangers or hard objects except
floor mat anchors.
clothes. Also, do not put heavy, sharp
or breakable objects in the clothes
ś Do not stack floor mats on top of one
pockets. In an accident or when the
another (for example, all-weather
curtain air bag is inflated, it may cause
rubber mat on top of a carpeted floor
vehicle damage or personal injury.
mat). Only a single floor mat should
be installed in each position.
IMPORTANT - Your vehicle was
manufactured with driver’s side floor
mat anchors that are designed to
securely hold the floor mat in place.
To avoid any interference with pedal
operation, HYUNDAI recommends that
the HYUNDAI floor mat designed for use
in your vehicle be installed.
5-132
05
(;7(5,25 )($785(6

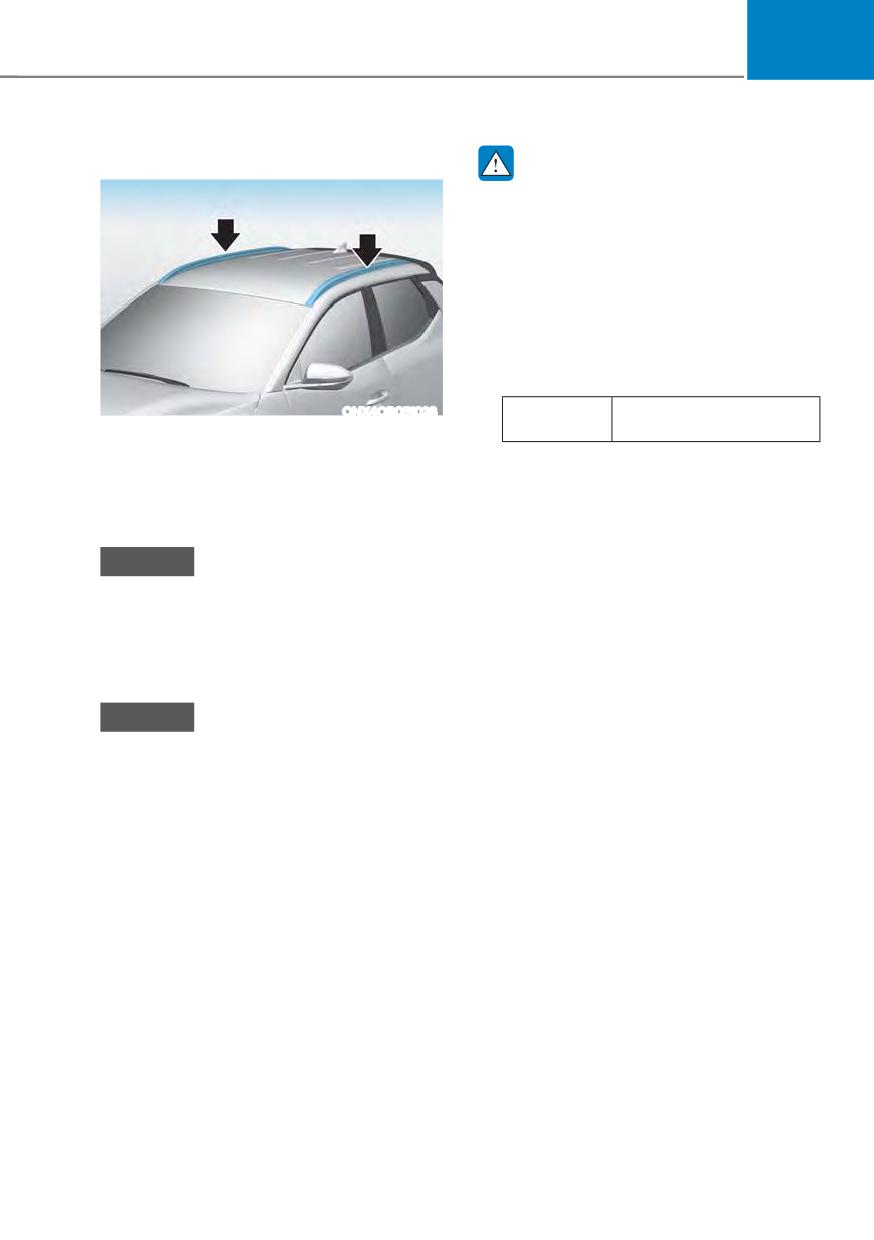

Roof Rack (if equipped)
WARNING
ś
The following specification is the
maximum weight that can be loaded
onto the roof side rails. Distribute the
load as evenly as possible onto the
roof side rails and secure the load
firmly.
Loading cargo or luggage in excess
of the specified weight limit on the
roof side rails may damage your
vehicle.
ONX4OB051028
ROOF SIDE
220 lbs. (100 kg)
RAILS
EVENLY DISTRIBUTED
Your vehicle may come equipped with
roof rack rails. If your vehicle is equipped
ś
The vehicle center of gravity will be
with roof rack rails, you may be able to
higher when items are loaded onto
add roof rack crossbars as an accessory
the roof side rails. Avoid sudden
(not shown).
starts, braking, sharp turns, abrupt
maneuvers or high speeds that may
NOTICE
result in loss of vehicle control or
rollover resulting in an accident.
If the vehicle is equipped with a
ś
Always drive slowly and turn corners
sunroof, be sure not to position cargo
onto the roof side rails in such a way
carefully when carrying items on the
roof side rails. Severe wind updrafts,
that it could interfere with sunroof
operation.
caused by passing vehicles or natural
causes, can cause sudden upward
pressure on items loaded on the
NOTICE
roof side rails. This is especially true
ś When carrying cargo on the roof side
when carrying large, flat items such
rails, take the necessary precautions
as wood panels or mattresses. This
to make sure the cargo does not
could cause the items to fall off the
damage the roof of the vehicle.
roof side rails and cause damage to
your vehicle or others around you.
ś When carrying large objects on the
roof side rails, make sure they do
ś
To prevent damage or loss of cargo
not exceed the overall roof length or
while driving, check frequently
width.
before or while driving to make sure
the items on the roof side rails are
securely fastened.
5-133
Convenient Features
,1)27$,10(17 6<67(0
NOTICE

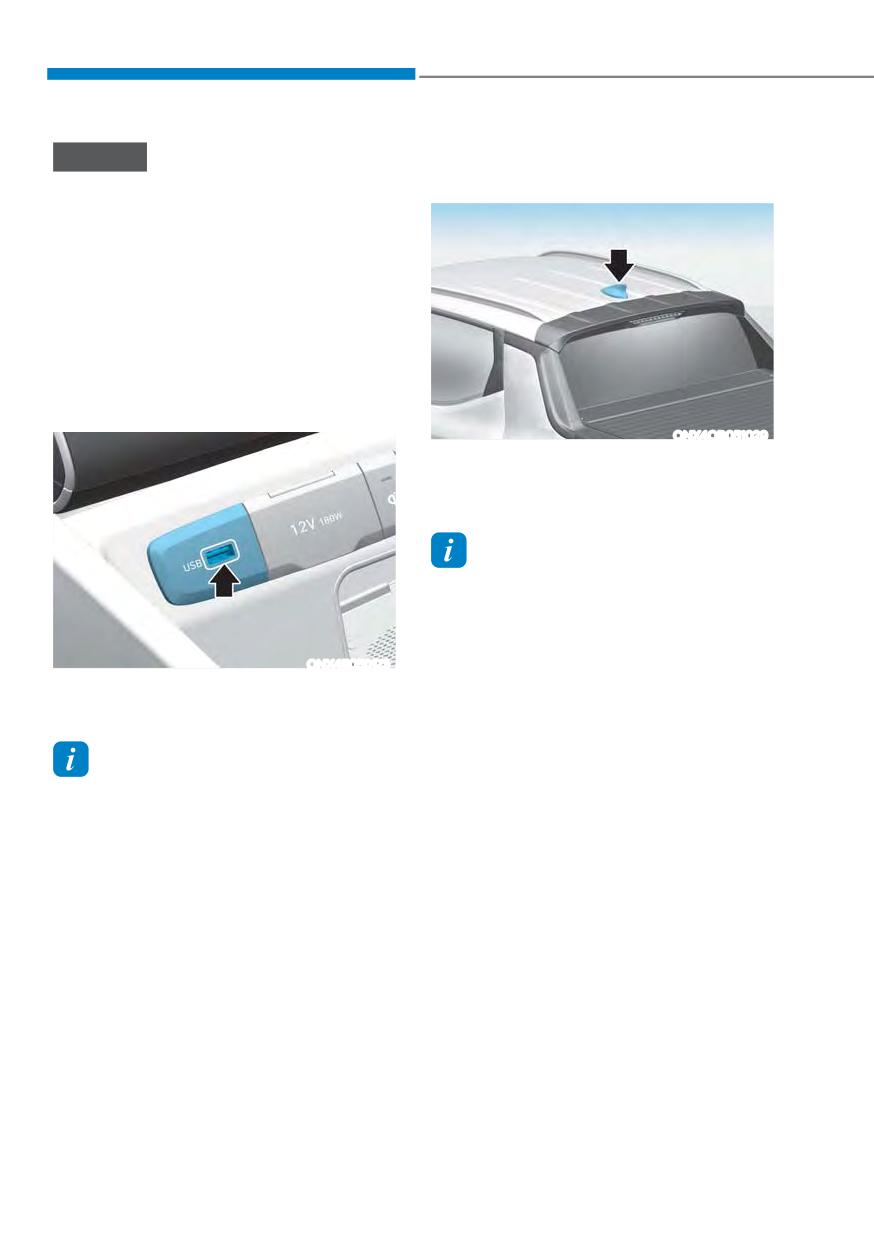

Antenna
ś If you install an aftermarket HID
Shark fin antenna
head lamp, your vehicle’s audio and
electronic devices may not function
properly.
ś Prevent chemicals such as perfume,
cosmetic oil, sun cream, hand
cleaner, and air freshener from
contacting the interior parts
because they may cause damage or
discoloration.
USB Port
ONX4OB051029
The roof antenna transmits and receives
wireless signals such as AM/FM, SXM,
GNSS, LTE, etc.
Information
The signals which the antenna can
transmit and receive vary by vehicle
option.
ONX4E050173
You can use an USB cable to connect
audio devices to the vehicle USB port.
Information
When using a portable audio device
connected to the power outlet, noise may
occur during playback. If this happens,
use the portable audio device’s power
source.
5-134
05

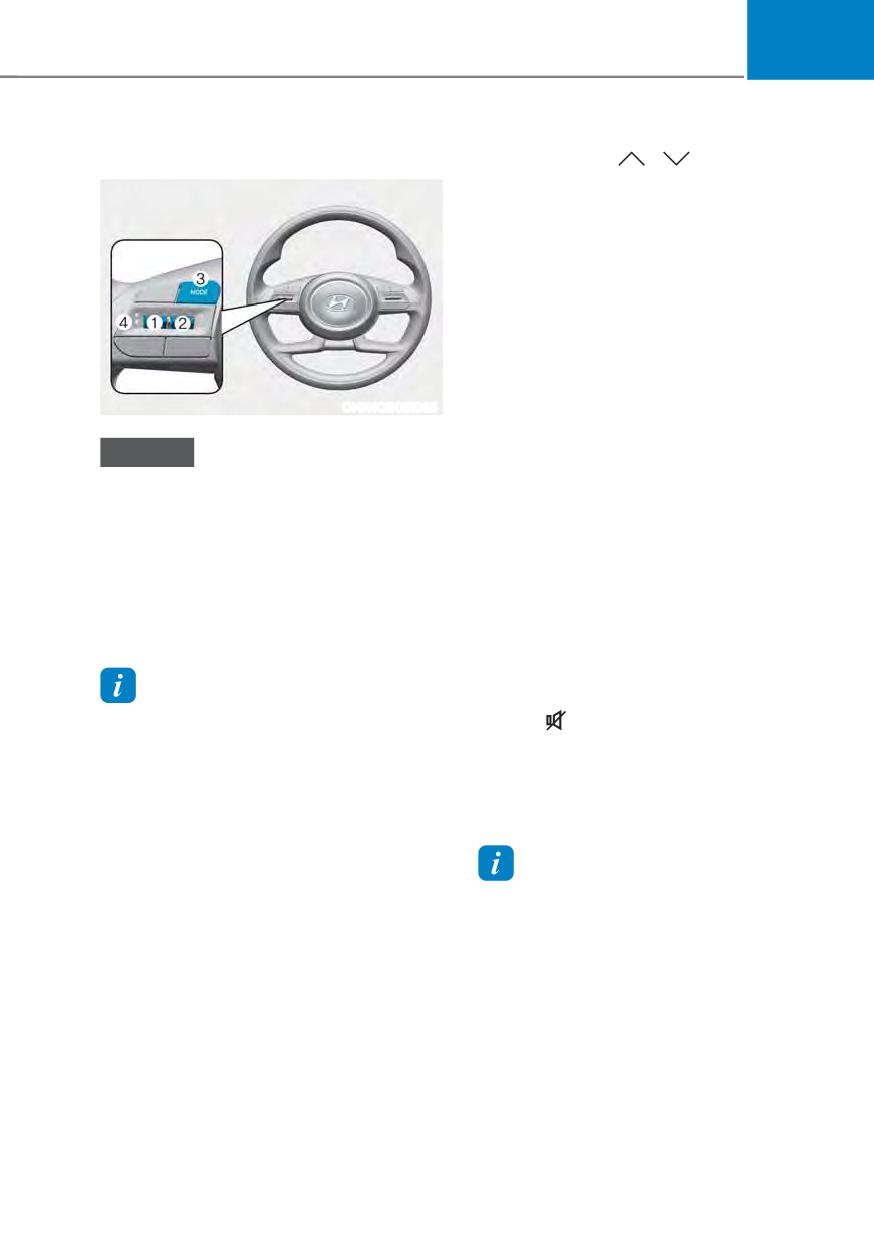

Steering Wheel Remote Controls
SEEK/PRESET (
/
) (2)
If the SEEK/PRESET switch is pressed up
or down and held for 0.8 second or more,
it will function in the following modes:
ś RADIO mode
It will function as the AUTO SEEK
select button. It will SEEK until you
release the button.
ś MEDIA mode
It will function as the FF/RW button.
ONX4OB051085
If the SEEK/PRESET switch is pressed up
or down, it will function in the following
NOTICE
modes:
ś RADIO mode
Do not operate multiple audio remote
control buttons simultaneously.
It will function as the PRESET STATION
UP/DOWN button.
VOLUME (VOL + / VOL -) (1)
ś MEDIA mode
ś Rotate the VOLUME scroll up to
It will function as the TRACK UP/
increase volume.
DOWN button.
ś Rotate the VOLUME scroll down to
decrease volume.
MODE (3)
Press the MODE button to toggle
through Radio or Media modes.
Information
You can set the volume level of each
MUTE (
) (4)
source (FM, AM, SXM, USB, BT, etc.)
ś Press the MUTE button to mute the
individually by adjusting the VOLUME
sound.
scroll.
ś Press the MUTE button again to
Then the infotainment system saves the
activate the sound.
last volume level of each source in the
system sound settings.
If you change the source, the volume will
Information
revert to the previously set volume for that
The infotainment system may change after
source.
software updates. For more information,
refer to the user’s manual provided in
the infotainment system and the quick
reference guide.
5-135
Convenient Features

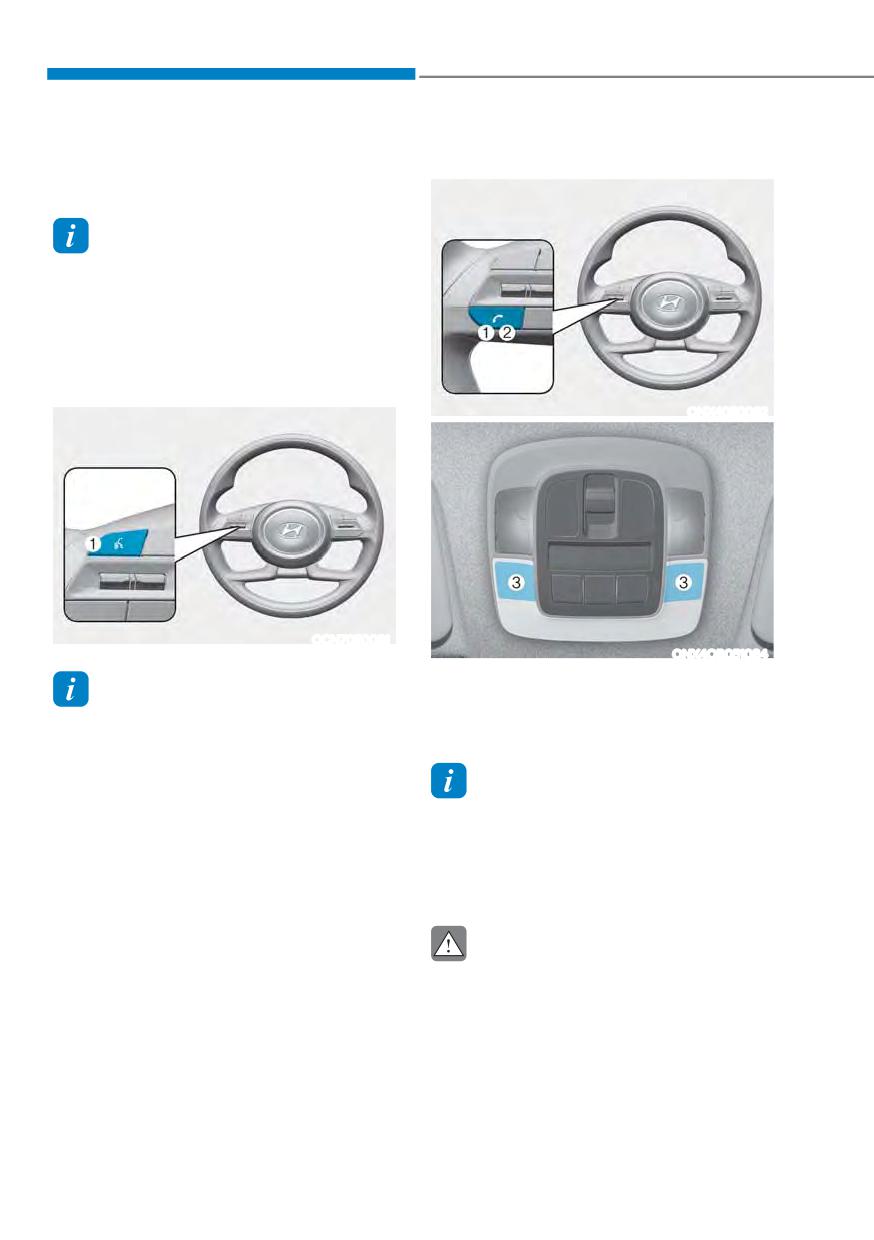

Infotainment System
Bluetooth® Wireless Technology
(if equipped)
Information
The infotainment system may change after
software updates. For more information,
refer to the user’s manual provided in
the infotainment system and the quick
reference guide.
Voice Recognition
ONX4050062
OCN7050081
ONX4OB051084
(1) Call / Answer button
Information
(2) Call end button
The infotainment system may change after
(3) Microphone
software updates. For more information,
refer to the user’s manual provided in
the infotainment system and the quick
Information
reference guide.
The infotainment system may change after
software updates. For more information,
refer to the user’s manual provided in
the infotainment system and the quick
reference guide.
CAUTION
To avoid driver distractions, do not
excessively operate the device while
driving the vehicle which may lead to
an accident.
5-136
05

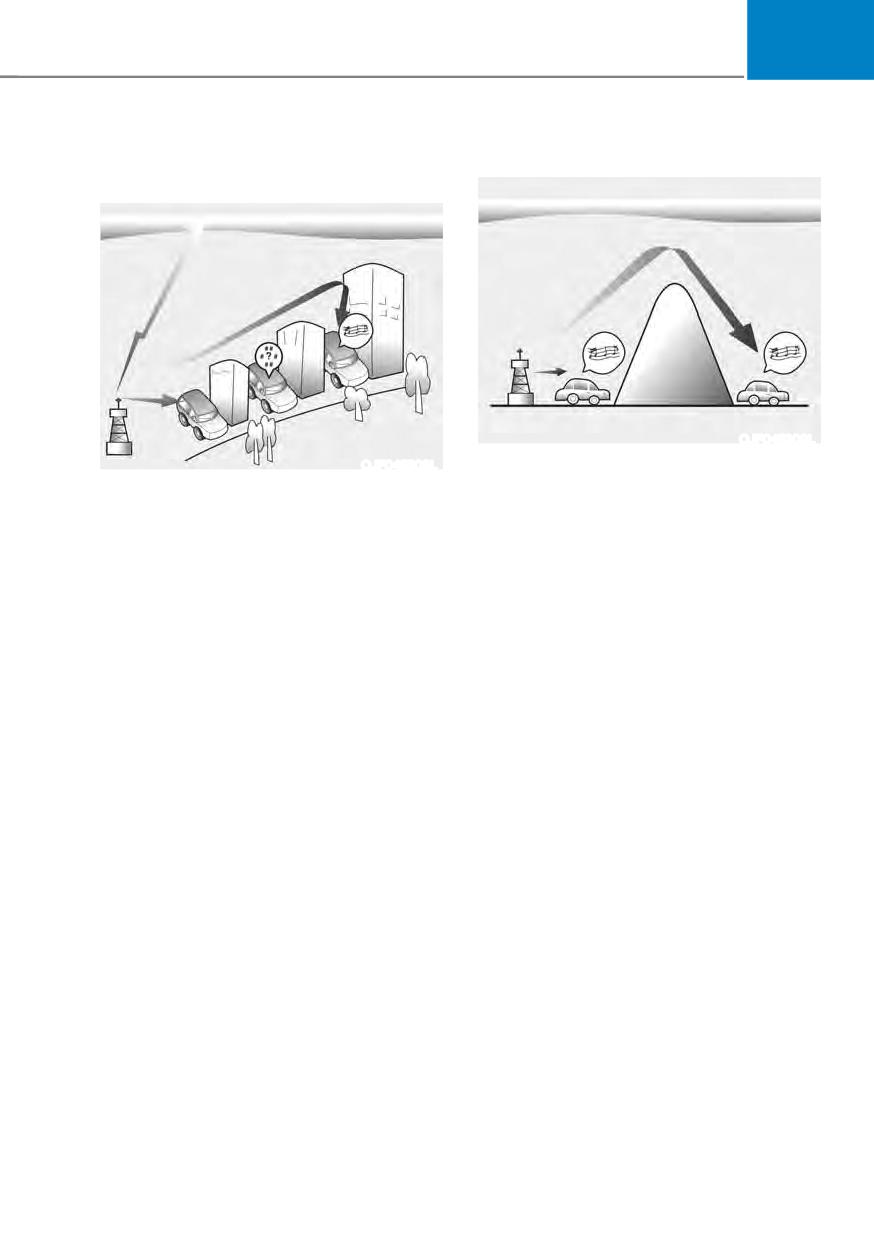

How Vehicle Radio Works
AM (MW, LW) reception
FM reception
OJF045309L
OJF045308L
AM broadcasts can be received at
greater distances than FM broadcasts.
AM and FM radio signals are broadcast
This is because AM radio waves are
from transmitter towers located around
transmitted at low frequencies. These
your city. They are intercepted by the
long, low frequency radio waves can
radio antenna on your vehicle. This signal
follow the curvature of the earth rather
is then received by the radio and sent to
than travelling straight out into the
your vehicle speakers.
atmosphere.
When a strong radio signal has reached
your vehicle, the precise engineering
In addition, they curve around
obstructions so that they can provide
of your audio system ensures the best
possible quality reproduction. However,
better signal coverage.
in some cases the signal coming to your
vehicle may not be strong and clear.
This can be due to factors, such as
the distance from the radio station,
closeness of other strong radio stations
or the presence of buildings, bridges or
other large obstructions in the area.
5-137
Convenient Features
FM radio station
The following conditions are normal and
do not indicate radio trouble :

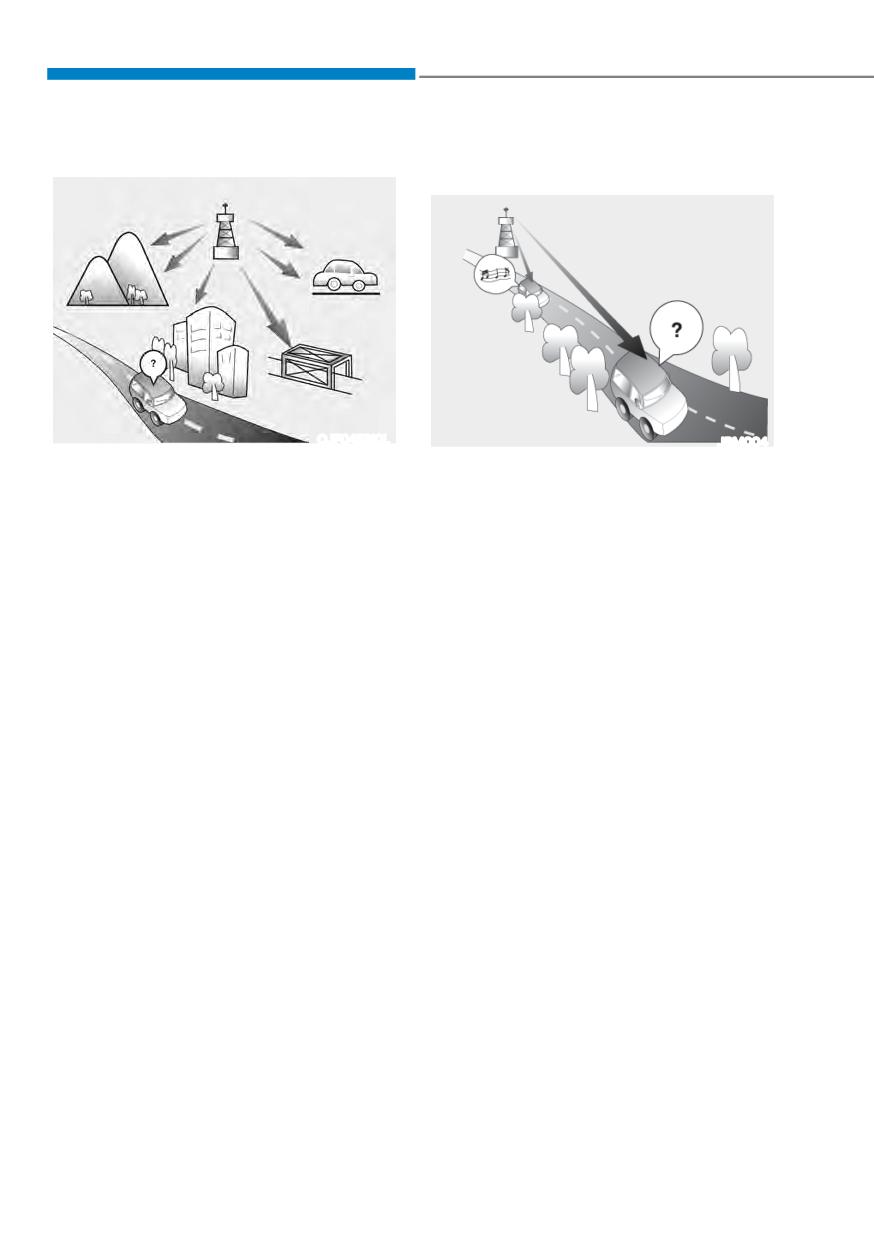

OJF045310L
JBM004
FM broadcasts are transmitted at high
ś Fading - As your vehicle moves away
frequencies and do not bend to follow
from the radio station, the signal will
the earth’s surface. Because of this, FM
weaken and sound will begin to fade.
broadcasts generally begin to fade at
When this occurs, we suggest that you
short distances from the station. Also, FM
select another stronger station.
signals are easily affected by buildings,
ś Flutter/Static - Weak FM signals
mountains, or other obstructions. These
or large obstructions between the
can result in certain listening conditions
transmitter and your radio can disturb
which might lead you to believe a
the signal causing static or fluttering
problem exists with your radio.
noises to occur. Reducing the treble
level may lessen this effect until the
disturbance clears.
5-138
05
Using a cellular phone or a twoway
radio
When a cellular phone is used inside
the vehicle, noise may be produced
from the audio system. This does not
mean that something is wrong with the
audio equipment. In such a case, use
the cellular phone at a place as far as
possible from the audio equipment.
NOTICE
When using a communication system

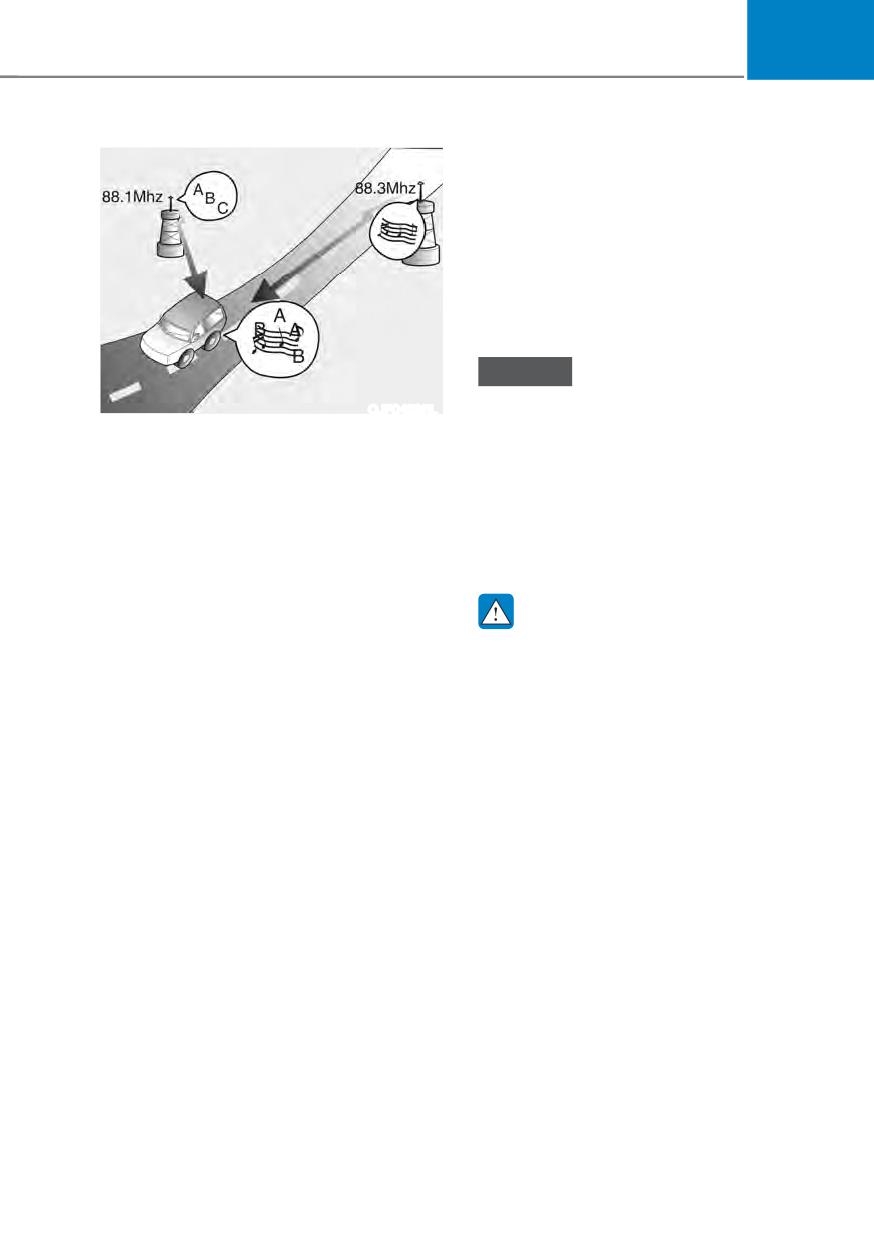

OJF045311L
such as a cellular phone or a radio set
ś Station Swapping - As a FM signal
inside the vehicle, a separate external
weakens, another more powerful
antenna must be fitted. When a cellular
signal near the same frequency may
phone or a radio set is used with an
begin to play. This is because your
internal antenna alone, it may interfere
radio is designed to lock onto the
with the vehicle’s electrical system and
clearest signal. If this occurs, select
adversely affect safe operation of the
another station with a stronger signal.
vehicle.
ś Multi-Path Cancellation - Radio
signals being received from several
directions can cause distortion or
WARNING
fluttering. This can be caused by a
Do not use a cellular phone while
direct and reflected signal from the
driving. Stop at a safe location to use a
same station, or by signals from two
cellular phone.
stations with close frequencies. If this
occurs, select another station until the
condition has passed.
5-139
6.Driving Your Vehicle
Before Driving
6-4
Before Entering the Vehicle
6-4
Before Starting
6-4
Ignition Switch
6-5
Key Ignition Switch
6-5
Engine Start/Stop Button
6-8
Remote Start
6-12
Vehicle Auto-Shut Off
6-12
Automatic Transmission
6-14
Automatic Transmission Operation
6-14
Using the Paddle Shifters
6-20
Good Driving Practices
6-21
Dual Clutch Transmission
6-22
Dual Clutch Transmission Operation
6-22
Parking
6-28
Good Driving Practices
6-29
Braking System
6-30
Power-assist Brakes
6-30
Disc Brakes Wear Indicator
6-30
Electronic Parking Brake (EPB)
6-31
Auto Hold
6-35
Anti-lock Brake System (ABS)
6-39
Electronic Stability Control (ESC)
6-40
6
Vehicle Stability Management (VSM)
6-43
Trailer Stability Assist (TSA)
6-44
Hill-Start Assist Control (HAC)
6-45
Downhill Brake Control (DBC)
6-45
Good Braking Practices
6-48
Drive Mode Integrated Control System
6-49
All Wheel Drive (AWD)
6-52
AWD Operation
6-53
Emergency Precautions
6-56
Special Driving Conditions
6-58
Hazardous Driving Conditions
6-58
Rocking the Vehicle
6-58
Smooth Cornering
6-59
Driving at Night
6-59
Driving in the Rain
6-59
Driving in Flooded Areas
6-60
Highway Driving
6-60
Reducing the Risk of a Rollover
6-60
Winter Driving
6-61
Snow or Icy Conditions
6-61
Winter Precautions
6-63
Vehicle Load Limit
6-65
The Loading Information Label
6-66
Trailer Towing
6-70
Trailer Towing - Important Information
6-71
Trailer Towing Equipment
6-74
Driving with a Trailer
6-75
Maintenance when Towing a Trailer
6-78
6
06
WARNING
Carbon monoxide (CO) gas is toxic. Breathing CO can cause unconsciousness and
death.
Engine exhaust contains carbon monoxide which cannot be seen or smelled.
Do not inhale engine exhaust.
If at any time you smell engine exhaust inside the vehicle, open the windows
immediately. Exposure to CO can cause unconsciousness and death by asphyxiation.
Be sure the exhaust system does not leak.
The exhaust system should be checked whenever the vehicle is raised to change the
oil or for any other purpose. If you hear a change in the sound of the exhaust or if you
drive over something that strikes the underneath side of the vehicle, have the exhaust
system checked as soon as possible by an authorized HYUNDAI dealer.
Do not run the engine in an enclosed area.
Letting the engine idle in your garage, even with the garage door open, is a hazardous
practice. Run the engine only long enough to start the engine and to move the vehicle
out of the garage.
Avoid idling the engine for prolonged periods with people inside the vehicle.
If it is necessary to idle the engine for a prolonged period with people inside the
vehicle, be sure to do so only in an open area with the air intake set at “Fresh” and fan
control set to high so fresh air is drawn into the interior.
Keep the air intakes clear.
To assure proper operation of the ventilation system, keep the ventilation air intakes
located in front of the windshield clear of snow, ice, leaves, or other obstructions.
WARNING
CALIFORNIA PROPOSITION 65 WARNING
Engine exhaust and a wide variety of automobile components including
components found in the interior furnishings in a vehicle, contain or emit harmful
chemicals known to the State of California to cause cancer and birth defects and
reproductive harm. In addition, certain fluids contained in vehicles and certain
products of components contain or emit chemicals known to the State of California
to cause cancer and birth defects or other reproductive harm.
6-3
Driving Your Vehicle
BEFORE DRIVING
Before Entering the Vehicle
WARNING
ś Be sure all windows, outside mirror(s),
To reduce the risk of SERIOUS INJURY or
and outside lights are clean and
DEATH, take the following precautions:
unobstructed.
ś ALWAYS wear your seat belt. All
ś Remove frost, snow, or ice.
passengers must be properly belted
ś Visually check the tires for uneven
whenever the vehicle is moving.
wear and damage.
For more information, refer to “Seat
ś Check under the vehicle for any sign
Belts” section in chapter 3.
of leaks.
ś Always drive defensively. Assume
other drivers or pedestrians may be
ś Be sure there are no obstacles behind
you if you intend to back up.
careless and make mistakes.
ś Stay focused on the task of driving.
Before Starting
Driver distraction can cause
accidents.
ś
Make sure the hood and all doors are
securely closed and locked. Unless
ś Leave plenty of space between you
absolutely necessary for hauling
and the vehicle in front of you.
cargo, etc. close the liftgate before
driving your vehicle.
WARNING
ś
If you are driving with the liftgate
down use extra caution when backing
NEVER drink or take drugs and drive.
up.
Drinking or taking drugs and driving
is dangerous and may result in an
ś
Adjust the position of the seat and
accident and SERIOUS INJURY or
steering wheel.
DEATH.
ś
Adjust the inside and side view
mirrors.
Drunk driving is the number one
contributor to the highway death
ś
Verify all the lights work.
toll each year. Even a small amount
ś
Fasten your seat belt. Check that all
of alcohol will affect your reflexes,
passengers have fastened their seat
perceptions and judgment. Just
belts.
one drink can reduce your ability to
ś
Check the gauges and indicators
respond to changing conditions and
in the instrument panel and the
emergencies and your reaction time
messages on the instrument display
gets worse with each additional drink.
when the ignition switch is in the ON
Driving while under the influence
position.
of drugs is as dangerous as or more
ś
Check that any items you are carrying
dangerous than driving under the
are stored properly or fastened down
influence of alcohol.
securely.
You are much more likely to have a
serious accident if you drink or take
drugs and drive. If you are drinking or
taking drugs, don’t drive. Do not ride
with a driver who has been drinking
or taking drugs. Choose a designated
driver or call a taxi.
6-4
06
IGNITION SWITCH
WARNING
WARNING
To reduce the risk of SERIOUS INJURY or
ś NEVER turn the ignition switch to
DEATH, take the following precautions:
the LOCK or ACC position while the
vehicle is in motion except in an
ś NEVER allow children or any person
emergency.
who is unfamiliar with the vehicle to
touch the ignition switch or related
This will result in the engine turning
parts. Unexpected and sudden
off and loss of power assist for the
vehicle movement can occur.
steering and brake systems. This may
lead to loss of directional control and
ś NEVER reach through the steering
wheel for the ignition switch, or any
braking function, which could cause
an accident.
other control, while the vehicle is in
motion. The presence of your hand
ś Before leaving the driver's seat,
or arm in this area may cause a loss
always make sure the shift lever is in
of vehicle control resulting in an
P (Park, for automatic transmission
accident.
vehicle) position, apply the parking
brake, and turn the ignition switch to
Key Ignition Switch (if equipped)
the LOCK position.
Unexpected vehicle movement may
occur if these precautions are not
followed.
NOTICE
Never use aftermarket keyhole covers.
This may generate start-up failure due
to communication failure.

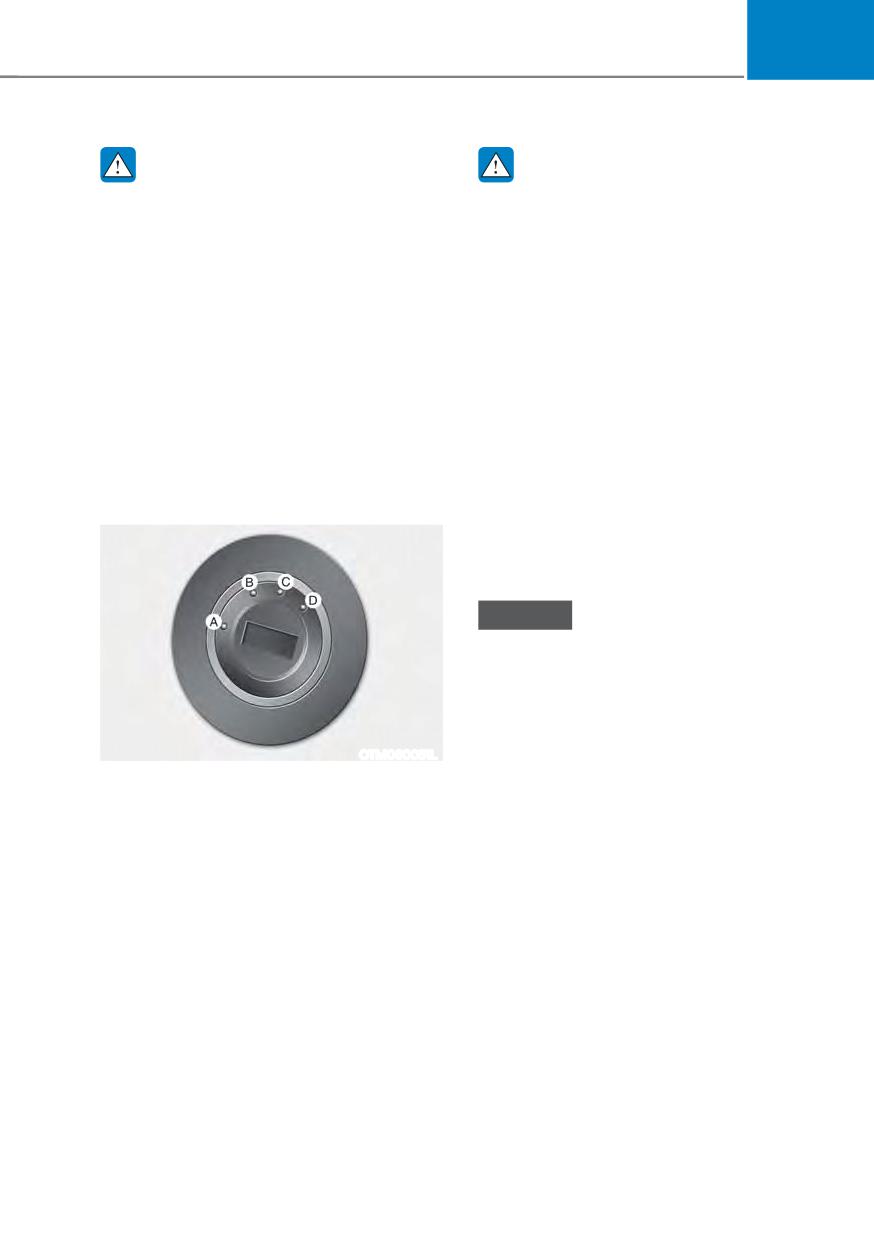

OTM060051L
[A] : LOCK, [B] : ACC
[C] : ON, [D] : START
Whenever the front door is opened, the
ignition switch will illuminate, provided
the ignition switch is not in the ON
position. The light will go off immediately
when the ignition switch is turned on or
go off after about 30 seconds when the
door is closed. (if equipped)
6-5
Driving Your Vehicle
Key ignition switch positions
Switch
Action
Notes
Position
To turn the ignition switch to the LOCK
position, push the key in at the ACC
position and turn the key towards the
LOCK position.
LOCK
The ignition key can be removed in
the LOCK position.
The steering wheel locks to protect
the vehicle from theft. (if equipped)
Some electrical accessories are
If difficulty is experienced turning the
usable. The steering wheel unlocks.
ignition switch to the ACC position,
ACC
turn the key while turning the steering
wheel right and left to release.
This is the normal key position when
Do not leave the ignition switch in the
the engine has started. All features
ON position when the engine is not
and accessories are usable.
running to prevent the battery from
ON
The warning lights can be checked
discharging.
when you turn the ignition switch
from ACC to ON.
To start the engine, turn the ignition
The engine will crank until you release
switch to the START position. The
the key.
START
switch returns to the ON position
when you let go of the key.
6-6
06
Starting the engine
Information
ś Do not wait for the engine to warm up
WARNING
while the vehicle remains stationary.
ś Always wear appropriate shoes when
Start driving at moderate engine
operating your vehicle. Unsuitable
speeds. (Avoid hard acceleration when
shoes, such as high heels, ski boots,
the engine is still cold.)
sandals, flip-flops, etc., may interfere
ś Always start the vehicle with your foot
with your ability to the accelerator
on the brake pedal. Do not depress the
and/or brake pedal.
accelerator while starting the vehicle.
ś Do not start the vehicle with the
Do not race the engine while warming
accelerator pedal depressed.
it up.
ś Keep your foot on the brake when
shifting out of P (Park). Make sure
NOTICE
the engine RPM is at idle before
To prevent damage to the vehicle:
shifting. The vehicle may move
suddenly when the brake pedal is
ś Do not hold the ignition key in the
START position for more than 10
released if the engine RPM is high.
seconds. Wait 5 to 10 seconds before
trying again.
ś Do not turn the ignition switch to
1. Make sure the Electronic Parking
the START position with the engine
Brake (EPB) is applied.
running. It may damage the starter.
2. Make sure the shift lever is in P (Park).
ś If traffic and road conditions permit,
3. Depress the brake pedal.
you may put the shift lever in the N
4. Turn the ignition switch to the START
(Neutral) position while the vehicle
position. Hold the key (maximum of
is still moving and turn the ignition
10 seconds) until the engine starts and
switch to the START position in an
release it.
attempt to restart the engine.
ś Do not push or tow your vehicle to
start the engine.
6-7
Driving Your Vehicle
Engine Start/Stop Button (if
WARNING
equipped)
ś
NEVER press the Engine Start/Stop
button while the vehicle is in motion
except in an emergency. This will
result in the vehicle turning off and
loss of power assist for the steering
and brake systems. This may lead
to loss of directional control and
braking function, which could cause
an accident.
ś
Before leaving the driver’s seat,
always make sure the gear is in the
P (Park) position, set the parking

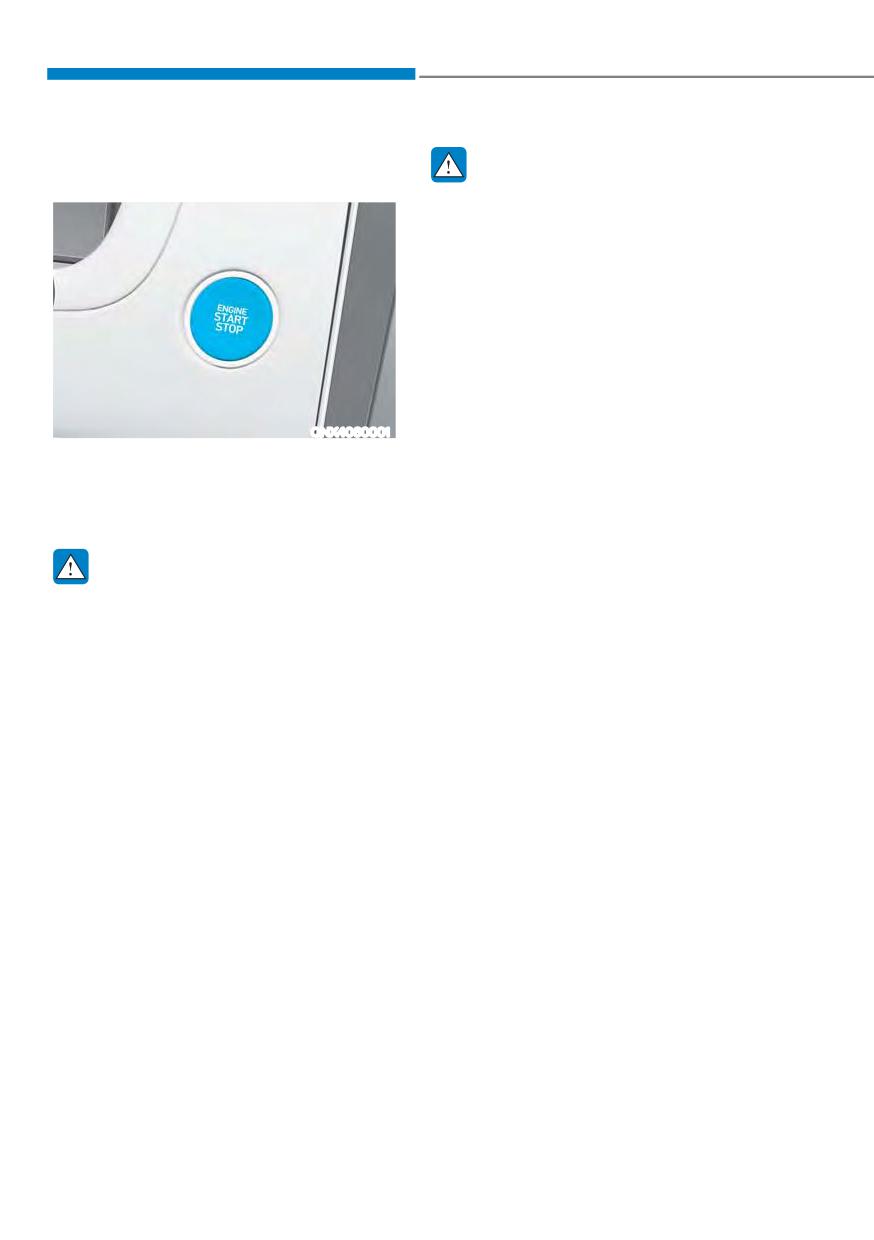

ONX4060001
brake, press the Engine Start/Stop
Whenever the front door is opened, the
button to the OFF position, and take
Engine Start/Stop button will illuminate
the Smart Key with you. Unexpected
and will go off 30 seconds after the door
vehicle movement may occur if these
is closed.
precautions are not followed.
ś
NEVER reach through the steering
wheel for the Engine Start/Stop
WARNING
button or any other control while the
To turn the vehicle off in an emergency:
vehicle is in motion. The presence
Press and hold the Engine Start/Stop
of your hand or arm in this area
button for more than two seconds OR
may cause a loss of vehicle control
Rapidly press and release the Engine
resulting in an accident.
Start/Stop button three times (within
three seconds).
If the vehicle is still moving, you can
restart the vehicle without depressing
the brake pedal by pressing the Engine
Start/Stop button with the gear in the N
(Neutral) position.
6-8
06
Engine stop/start button positions
Button
Action
Notes
Position
To turn off the engine, press the
If the steering wheel is not locked
Engine Start/Stop button with the
properly when you open the driver’s
vehicle shifted to P (Park).
door, the warning chime will sound.
Note if the Engine Start/Stop button
is pressed with the vehicle shifted to
D (Drive) or R (Reverse), the gear will
automatically shift to P (Park).
OFF
If the Engine Start/Stop button
is pressed with the gear shifted
to N (Neutral), the Engine Start/
Stop button will change to the ACC
position.
The steering wheel locks to protect
the vehicle from theft.
Press the Engine Start/Stop button
ś If you leave the Engine Start/Stop
when the button is in the OFF position
button in the ACC position for more
without depressing the brake pedal.
than one hour, the battery power will
Some of the electrical accessories are
turn off automatically to prevent the
usable.
battery from discharging.
ACC
The steering wheel unlocks.
ś If the steering wheel doesn’t
unlock properly, the Engine Start/
Stop button will not work. Press
the Engine Start/Stop button while
turning the steering wheel right and
left to release.
Press the Engine Start/Stop button
Do not leave the Engine Start/Stop
while it is in the ACC position without
button in the ON position when the
ON
depressing the brake pedal.
engine is not running to prevent the
The warning lights can be checked
battery from discharging.
before the engine is started.
To start the engine, depress the brake
If you press the Engine Start/Stop
pedal and press the Engine Start/ Stop
button without depressing the brake
button with the gear shifted to the P
pedal, the engine does not start and
START
(Park) or the N (Neutral) position.
the Engine Start/Stop button changes
For your safety, start the engine
as follows:
with the gear shifted to the P (Park)
2)) Ɵ $&& Ɵ 21 Ɵ 2)) RU $&&
position.
6-9
Driving Your Vehicle
Starting the engine
1. Always carry the smart key with you.
2. Make sure the parking brake is
applied.
WARNING
3. Make sure the shift lever is in P(Park).
ś
Always wear appropriate shoes when
4. Depress the brake pedal.
operating your vehicle. Unsuitable
shoes, such as high heels, ski boots,
5. Press the Engine Start/Stop button.
sandals, flipflops, etc., may interfere
with your ability to use the brake and
Information
accelerator pedals.
ś
Do not start the vehicle with the
ś Do not wait for the engine to warm up
accelerator pedal depressed.
while the vehicle remains stationary.
ś
Keep your foot on the brake when
Start driving at moderate engine
shifting out of P (Park). Make sure the
speeds. (Avoid hard acceleration when
engine RPM is at idle before shifting.
the engine is still cold.)
The vehicle may move suddenly
ś Always start the vehicle with your foot
when the brake pedal is released if
on the brake pedal. Do not depress the
the engine RPM is high.
accelerator while starting the vehicle.
Do not race the engine while warming
it up.
Information
ś
The vehicle will start by pressing the
Engine Start/Stop button, only when
the smart key is in the vehicle.
ś
Even if the smart key is in the vehicle,
and when it is far away from the driver,
the engine may not start.
ś
When the Engine Start/Stop button
is in the ACC or ON position, if any
door is open, the system checks for the
smart key. When the smart key is not
in the vehicle, the “
” indicator
will blink and the warning 'Key not in
vehicle' will come on. When all doors
are closed, the chime will also sound for
about 5 seconds. Keep the smart key in
the vehicle.
6-10
06
NOTICE
Emergency starting
To prevent damage to the vehicle:
ś If the engine stalls while you are in
motion, do not attempt to shift the
gear to the P (Park) position.
If traffic and road conditions permit,
you may put the gear in N (Neutral)
while the vehicle is still moving and
press the Engine Start/Stop button in
an attempt to restart the engine.
ś Do not push or tow your vehicle to
start the vehicle.

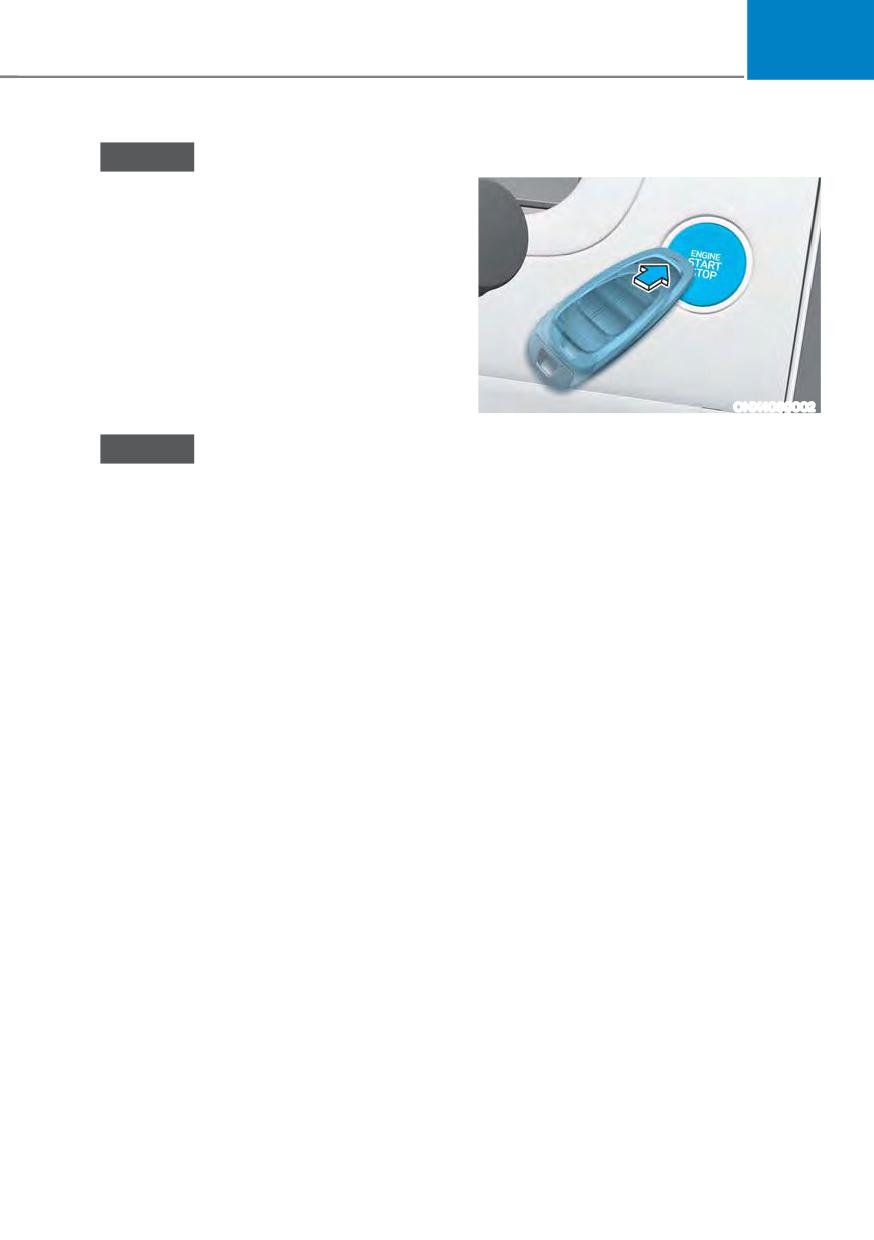

ONX4060002
If the smart key battery is weak or the
NOTICE
smart key does not work correctly, you
can start the vehicle by pressing the
To prevent damage to the vehicle:
Engine Start/Stop button with the smart
Do not press the Engine Start/Stop
key in the direction of the picture above.
button for more than 10 seconds except
when the stop lamp fuse is blown.
Turning off the engine
When the stop lamp fuse is blown,
1. Stop the vehicle and depress the
you cannot normally start the engine.
brake pedal fully.
Replace the fuse with a new one. If you
2. Make sure the shift lever/button is in
are not able to replace the fuse, you
P(Park).
can start the engine by pressing and
holding the Engine Start/Stop button
3. Press the Engine Start/Stop button
for 10 seconds with the Engine Start/
to the OFF position and apply the
Stop button in the ACC position.
parking brake.
For your safety always depress the
brake pedal before starting the vehicle.
6-11
Driving Your Vehicle
Remote Start (if equipped)
Vehicle Auto-Shut Off (if
equipped)
If your vehicle is parked and the engine
is left on for a long period of time, the
engine will turn off automatically to help
reduce fuel consumption and prevent
accidents caused by carbon dioxide
poisoning.
Operating conditions vehicle auto-
shut off timer operates
When all the following conditions are

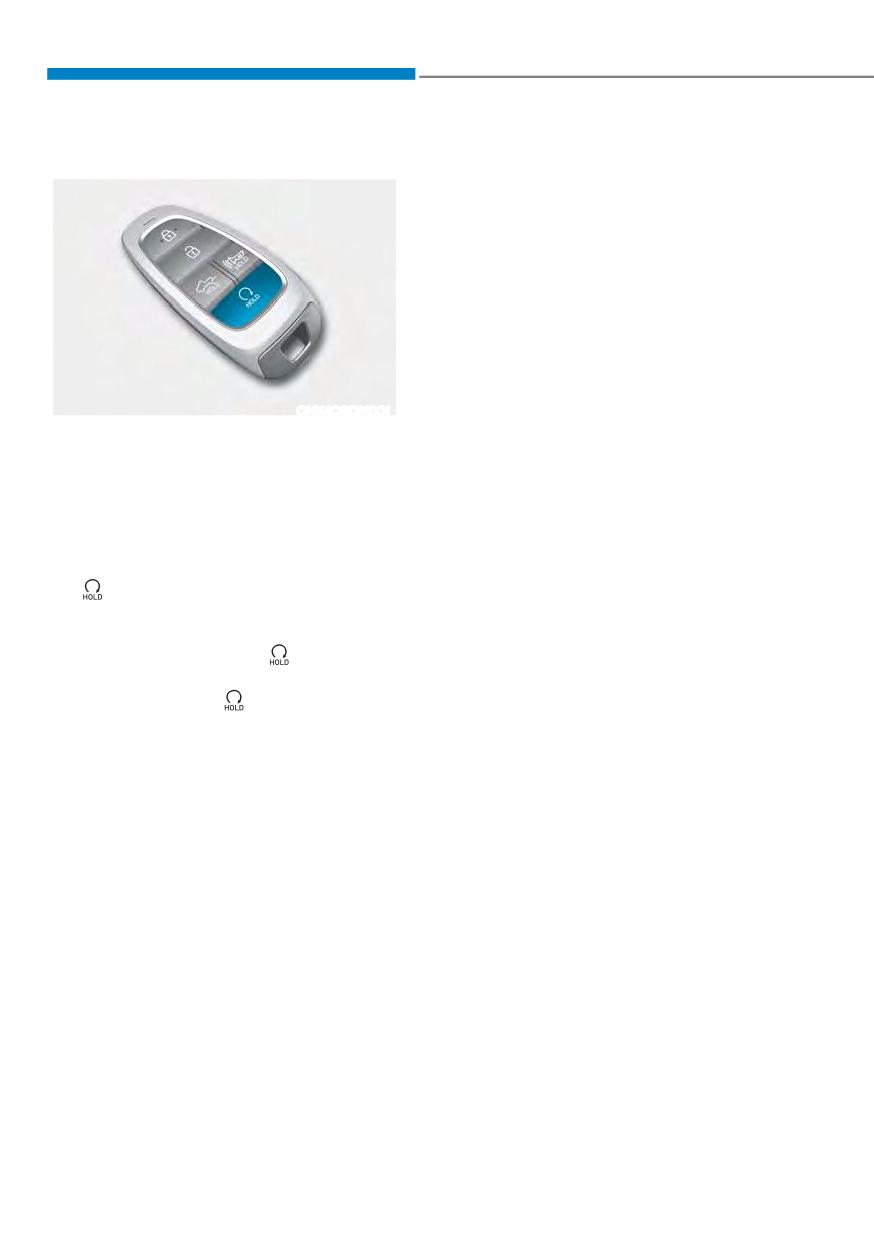

ONX4OB061001
satisfied:
You can start the vehicle using the
ś Vehicle speed is below 1.8 mph (3
Remote Start button of the smart key.
km/h), and the gear is shifted to P
(Park)
To start the vehicle remotely:
ś The brake pedal and accelerator pedal
1. Press the door lock button within 32
are not depressed
feet (10 m) from the vehicle.
ś The driver’s seat belt is unfastened
2. Press and hold the remote start button
The passenger seat is empty
(
) within 4 seconds after pressing
ś The infotainment system is not being
the Door Lock button on the remote.
updated
3. To turn off the remote start function,
press the remote start (
) button
Deactivating conditions
once.
Vehicle Auto-Shut Off timer turns off
ś The remote start (
) button may not
when one of the situation occur:
operate if the smart key is not within
ś Vehicle speed is above 1.8 mph
32 feet (10 m).
(3km/h)
ś The vehicle will not remotely start if
ś The gear is shifted to R (Reverse),
the engine hood is opened.
D(Drive) or N (Neutral)
ś The vehicle must be in P (Park) for the
ś The brake pedal or accelerator pedal
remote start function to start.
is depressed
ś The engine turns off if you get in the
ś The driver’s seat belt is fastened
vehicle without a registered smart key.
ś A passenger is in the passenger’s seat
ś The engine turns off if you do not get
in the vehicle within 10 minutes after
remotely starting the vehicle.
ś Do not idle the engine for a long
period.
6-12
06
System operation

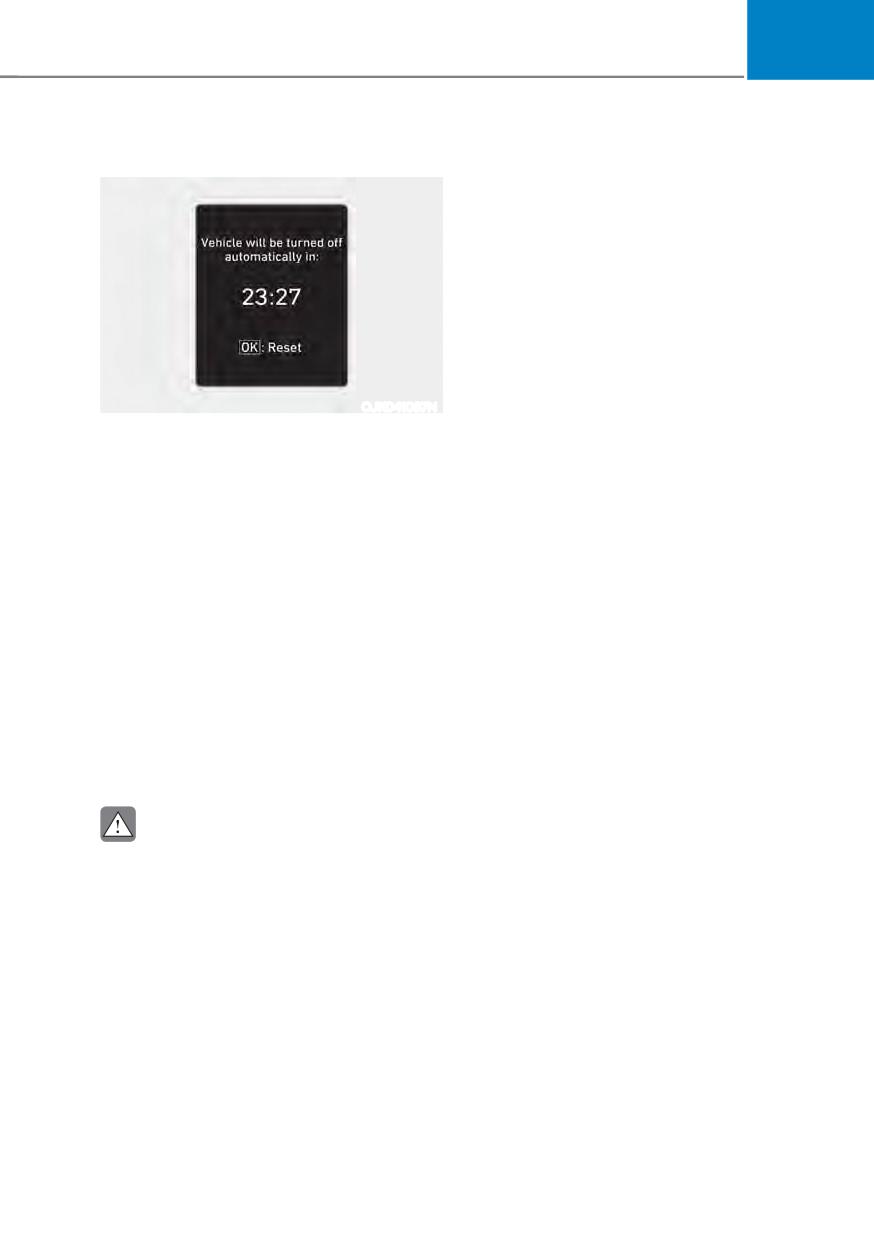

OJK041087N
When all the conditions are satisfied, the
Vehicle Auto-Shut Off operates and turns
the engine off automatically after 60
minutes.
A timer appears on the instrument
cluster 30 minutes before vehicle shut
off.
Resetting cluster timer
To reset the cluster timer, do one of
following:
ś Release the accelerator pedal or brake
pedal after Vehicle Auto-Shut Off is
complete.
ś Press the OK button on the steering
wheel while the timer appears on the
instrument cluster
CAUTION
Do not leave a passenger or a pet in
the vehicle in hot weather since the air
conditioning system turns off when the
engine is off.
6-13
Driving Your Vehicle
AUTOMATIC TRANSMISSION

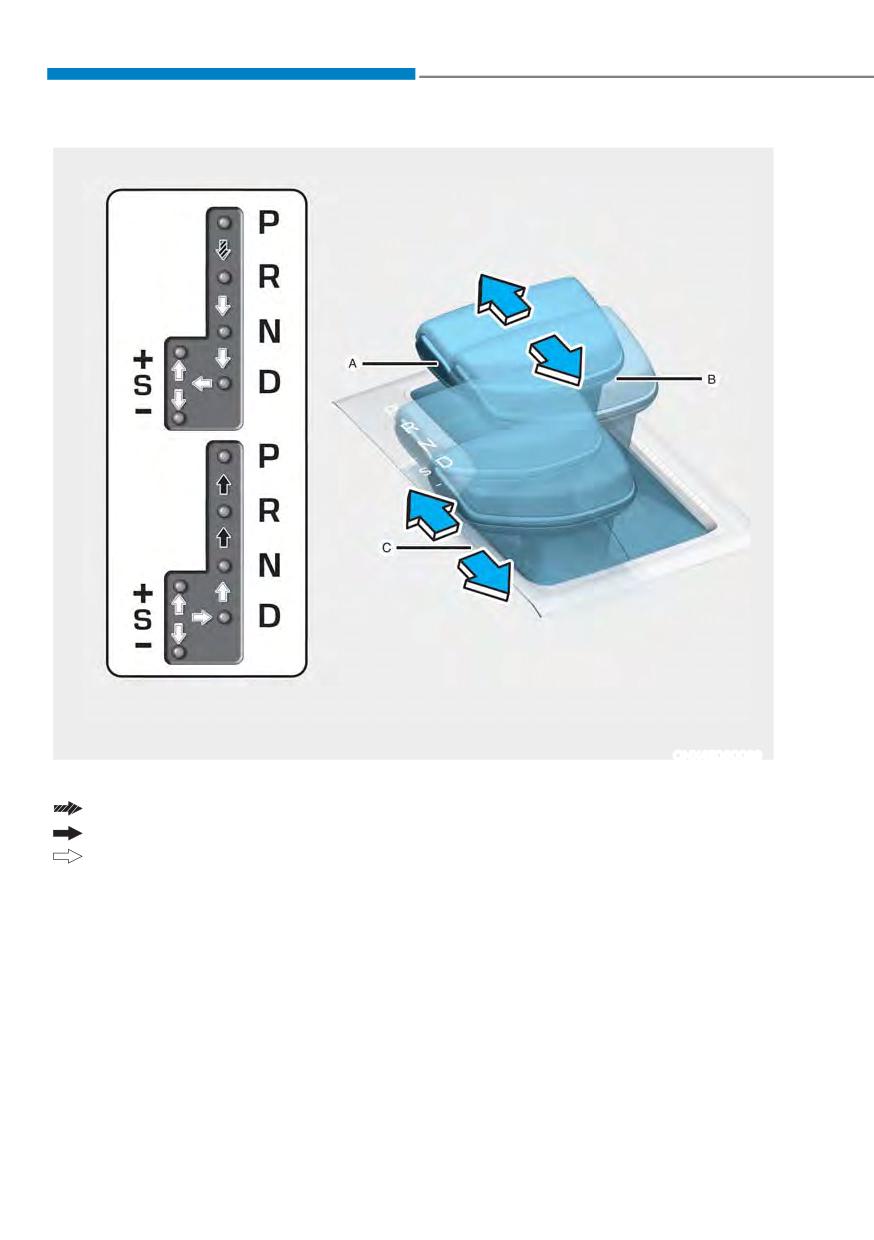

ONX4E060039
[A] : Shift lever, [B] : Shift release button, [C] : Manual shift mode
Depress the brake pedal and press the Shift release button while moving the shift lever.
Press the Shift release button while moving the shift lever.
The shift lever can freely operate.
Automatic Transmission Operation
The automatic transmission has eight forward speeds and one reverse speed.
The individual speeds are selected automatically in the D (Drive) position.
6-14
06
Automatic transmission warning
messages

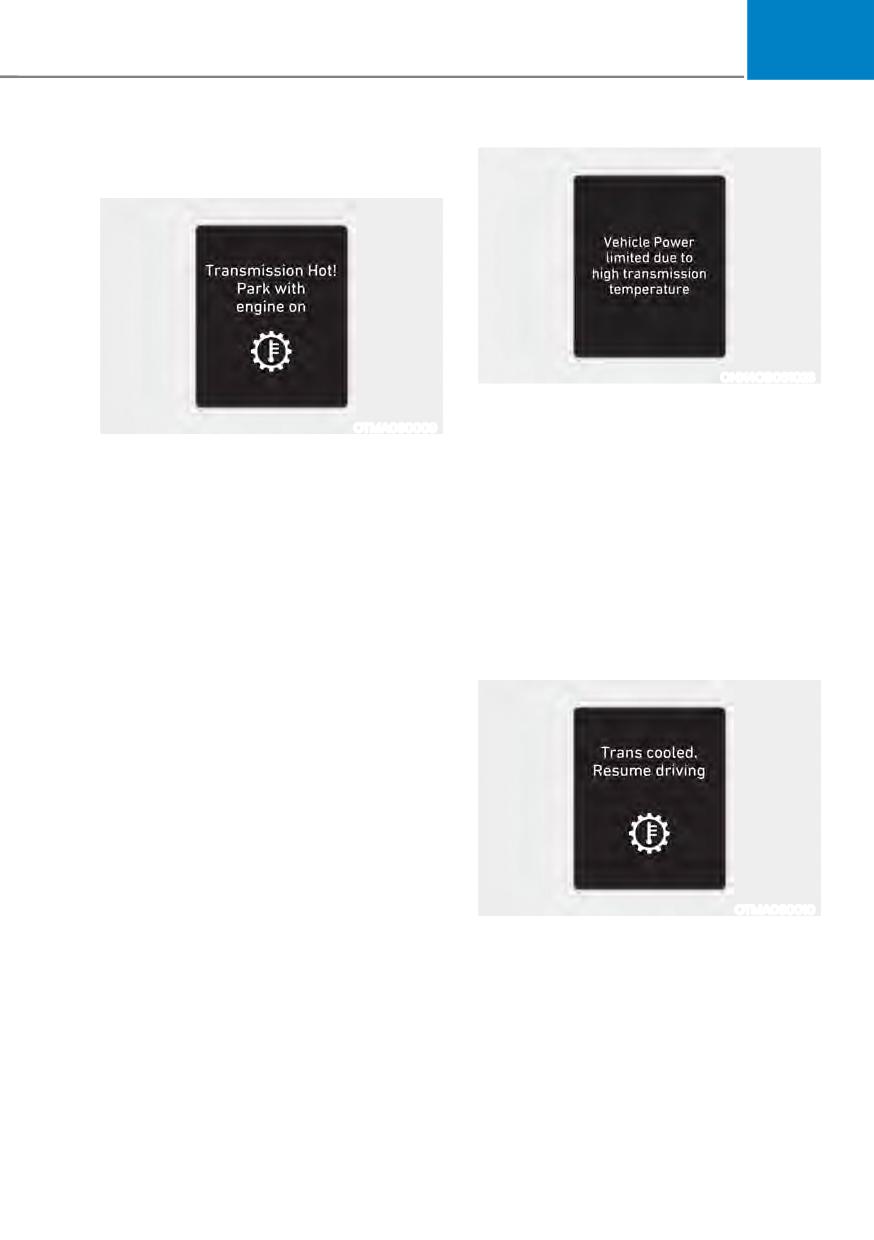

ONX4OB061023
Transmission temperature high
OTMA060009
ś If the transmission oil temperatures
Transmission overheated
reach the maximum temperature
limit, the “Vehicle Power limited due
ś
If the transmission oil temperature is
to high transmission temperature”
high, the “Transmission Hot! Park with
warning will be displayed. And power
engine on” warning will be displayed.
will be limited by self-protection
ś
Driving on the accelerator pedal
mode.
in severe conditions, such as
ś If this occurs, pull over to a safe
repeated sudden departures and
location, stop the vehicle with the
rapid acceleration, may cause the
engine running, apply the brakes and
transmission to overheat, and a
shift the vehicle to P (Park) for a few
warning message will be displayed
minutes.
simultaneously with a warning sound
by self-protection mode.
ś
If this occurs, pull over to a safe
location, stop the vehicle with the
engine running, apply the brakes and
shift the vehicle to P (Park) for a few
minutes, and allow the transmission
to cool.
ś
If you perform repetitive kickdown
shifting operations, a warning
message may be displayed or the
vehicle shifting properties may
be changed due to transmission
OTMA060010
overheating.
Transmission cooled
ś
To return to normal driving, refrain
When the message “Trans cooled.
from kickdown shifts and park the
Resume driving” appears, you can
vehicle in a safe place when a warning
continue to drive your vehicle.
message appears.
If any of the warning messages in the
cluster display continue to blink, for your
safety, contact an authorized HYUNDAI
dealer and have the system checked.
6-15
Driving Your Vehicle
Transmission ranges
WARNING
The indicator in the instrument cluster
ś Shifting into P (Park) while the
displays the shift lever position when the
vehicle is in motion may cause you to
ignition switch is in the ON position.
lose control of the vehicle.
ś After the vehicle has stopped, always
WARNING
make sure the shift lever is in P
(Park), apply the parking brake, and
To reduce the risk of serious injury or
turn the engine off.
death:
ś When parking on an incline, shift
ś ALWAYS check the surrounding
the gear to P (Park) and apply the
areas near your vehicle for people,
parking brake to prevent the vehicle
especially children, before shifting a
from rolling downhill.
vehicle into D (Drive) or R (Reverse).
ś Do not use the P (Park) position in
ś Before leaving the driver’s seat,
place of the parking brake.
always make sure the shift lever
is in the P (Park) position, then set
the parking brake, and place the
R (Reverse)
ignition switch in the LOCK/OFF
Use this position to drive the vehicle
position. Unexpected and sudden
backward.
vehicle movement can occur if these
precautions are not followed.
NOTICE
ś When using the paddle shifter
Always come to a complete stop before
(manual shift mode), do not use
shifting into or out of R (Reverse); you
engine braking (shifting from a
may damage the transmission if you
high gear to lower gear) rapidly on
shift into R (Reverse) while the vehicle is
slippery roads. The vehicle may slip
in motion.
causing an accident.
Also note that when the vehicle is in D
(Drive) or R (Reverse) and you open the
P (Park)
driver's door, a warning will chime and
Always come to a complete stop before
a warning message "Shift to Park" will
shifting into P (Park).
appear in the cluster display.
To shift the vehicle from P (Park), make
sure to depress firmly on the brake
pedal and also make sure your foot is
completely off the accelerator pedal.
If you have done all of the above and
still cannot shift the lever out of P
(Park), see "Shift-Lock Release" in this
chapter.
The shift lever must be in P (Park) before
turning the engine off.
6-16
06
N (Neutral)
D (Drive)
The wheels and transmission are not
This is the normal driving position. The
engaged.
transmission will automatically shift
through an 8-gear sequence, providing
Use N (Neutral) if you need to restart a
the best combination of fuel economy
stalled engine, or if it is necessary to stop
and power.
with the engine ON. Shift into P (Park)
if you need to leave your vehicle for any
For extra power when passing another
reason.
vehicle or driving uphill, continue to
Always depress the brake pedal when
depress the accelerator pedal. You may
notice the transmission downshift to
you are shifting from N (Neutral) to
another gear.
the next lower gear or multiple gears
as needed for the vehicle to accelerate
sufficiently.
WARNING
The DRIVE MODE switch, located on the
Make sure your foot is firmly depressing
on the brake pedal when shifting into
shift lever console, allows the driver to
switch between NORMAL mode, SPORT
gear. Also, keep your foot off of the
accelerator pedal when shifting into
mode, or SMART mode.
gear. Shifting when the engine RPM
is high can cause the vehicle to move
For more Details, refer to "Drive Mode
suddenly. You could lose control of the
Integrated Control System" later in this
vehicle and serious injury could occur.
chapter.
6-17
Driving Your Vehicle
Manual shift mode
Information
ś
Only the eight forward gears can be
selected. To reverse or park the vehicle,
move the shift lever to the R (Reverse)
or P (Park) position as required.
ś
Downshifts are made automatically
when the vehicle slows down. When the
vehicle stops, 1st gear is automatically
selected.
ś
When the engine RPM approaches the
red zone the transmission will upshift

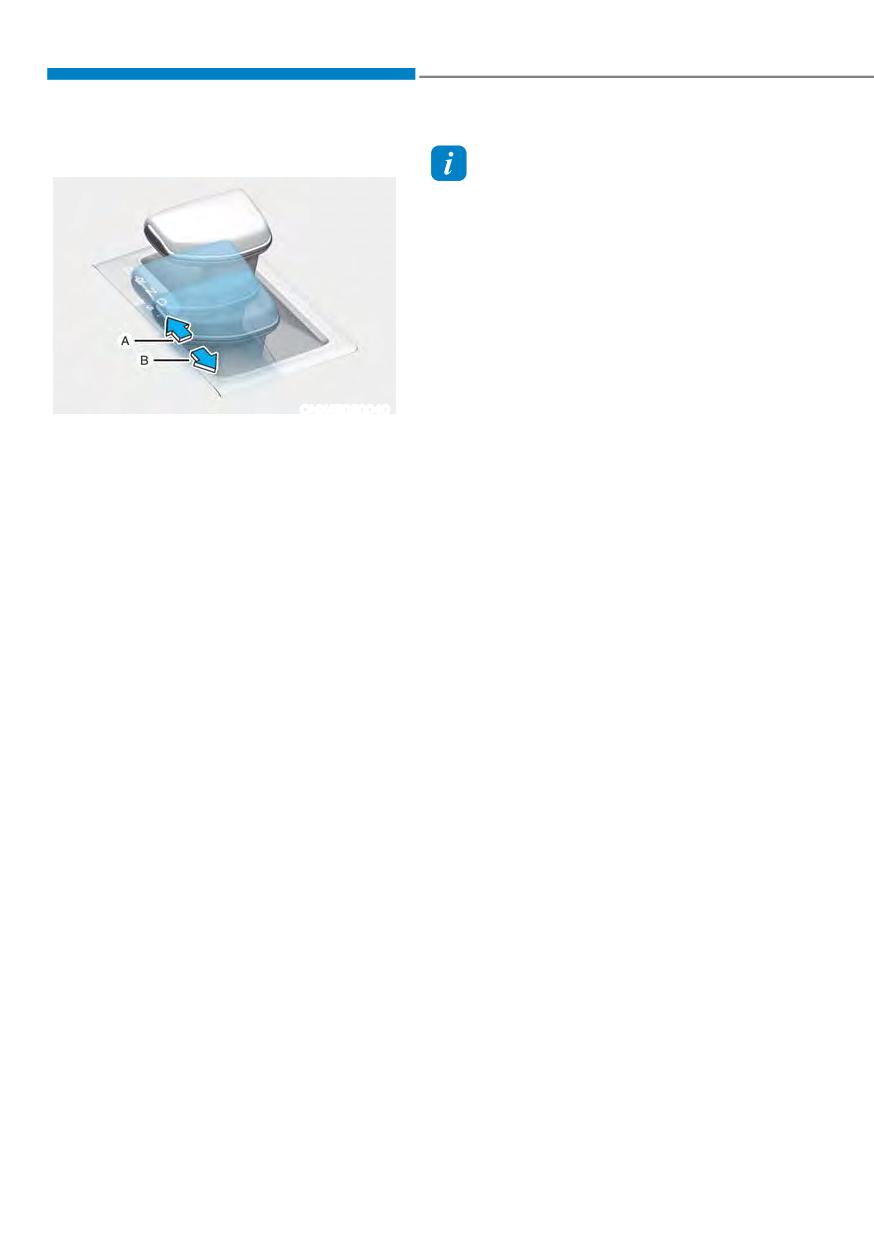

ONX4E060040
automatically.
[A] : + (Up), [B] : - (Down)
ś
If the driver presses the lever to + (Up)
or - (Down) position, the transmission
Manual shift mode may be selected by
may not make the requested gear
simply toggling the shift lever to the
change if the next gear is outside of
left (toward the driver) into the manual
the allowable engine RPM range.
shift gate. If your vehicle is currently in D
The driver must execute upshifts in
(Drive), then the gear shift display in the
accordance with road conditions,
instrument cluster will change from 'D' to
taking care to keep the engine RPMs
the number of the current gear.
below the red zone.
ś
When driving on a slippery road, push
In manual shift mode, moving the shift
the shift lever forward into the + (Up)
lever backwards and forwards will allow
position. This causes the transmission
you to select the desired range of gears
to shift into the 2nd gear which is better
for the current driving conditions.
for smooth driving on a slippery road.
+ (Up) : Push the lever forward once to
Push the shift lever to the - (Down) side
shift up one gear.
to shift back to the 1st gear.
- (Down) : Pull the lever backwards
once to shift down one gear.
6-18
06
Shift-lock release
Shift-lock system
If the shift lever cannot be moved from
For your safety, the automatic
the P (Park) position into R (Reverse)
transmission has a shift-lock system
position with the brake pedal depressed,
which prevents shifting the transmission
continue depressing the brake, and then
from P (Park) into R (Reverse) unless the
do the following:
brake pedal is depressed.
To shift the transmission from P (Park)
into R (Reverse):
1. Depress and hold the brake pedal.
2. Start the engine or place the ignition
switch in the ON position.
3. Move the shift lever
Ignition key interlock system
The ignition key cannot be removed
unless the shift lever is in the P (Park)
ONX4E060037
position.
1. Place the ignition switch in the LOCK/
OFF position.
Parking
2. Apply the parking brake.
Always come to a complete stop and
continue to depress the brake pedal.
3. Carefully remove the shift lever boots.
Move the shift lever into the P (Park)
4. Move the Shift lever while holding
position, apply the parking brake, and
the release button (1) with a tool (for
place the ignition switch in the LOCK/
example, flathead screw-driver).
OFF position. Take the Key with you
If you need to use the shift-lock release,
when exiting the vehicle.
have your vehicle inspected by an
authorized HYUNDAI dealer immediately.
WARNING
When you stay in the vehicle with
the engine running, be careful not to
depress the accelerator pedal for a long
period of time. The engine or exhaust
system may overheat and start a fire.
The exhaust gas and the exhaust system
are very hot. Keep away from the
exhaust system components.
Do not stop or park over flammable
materials, such as dry grass, paper or
leaves. They may ignite and cause a fire.
6-19
Driving Your Vehicle

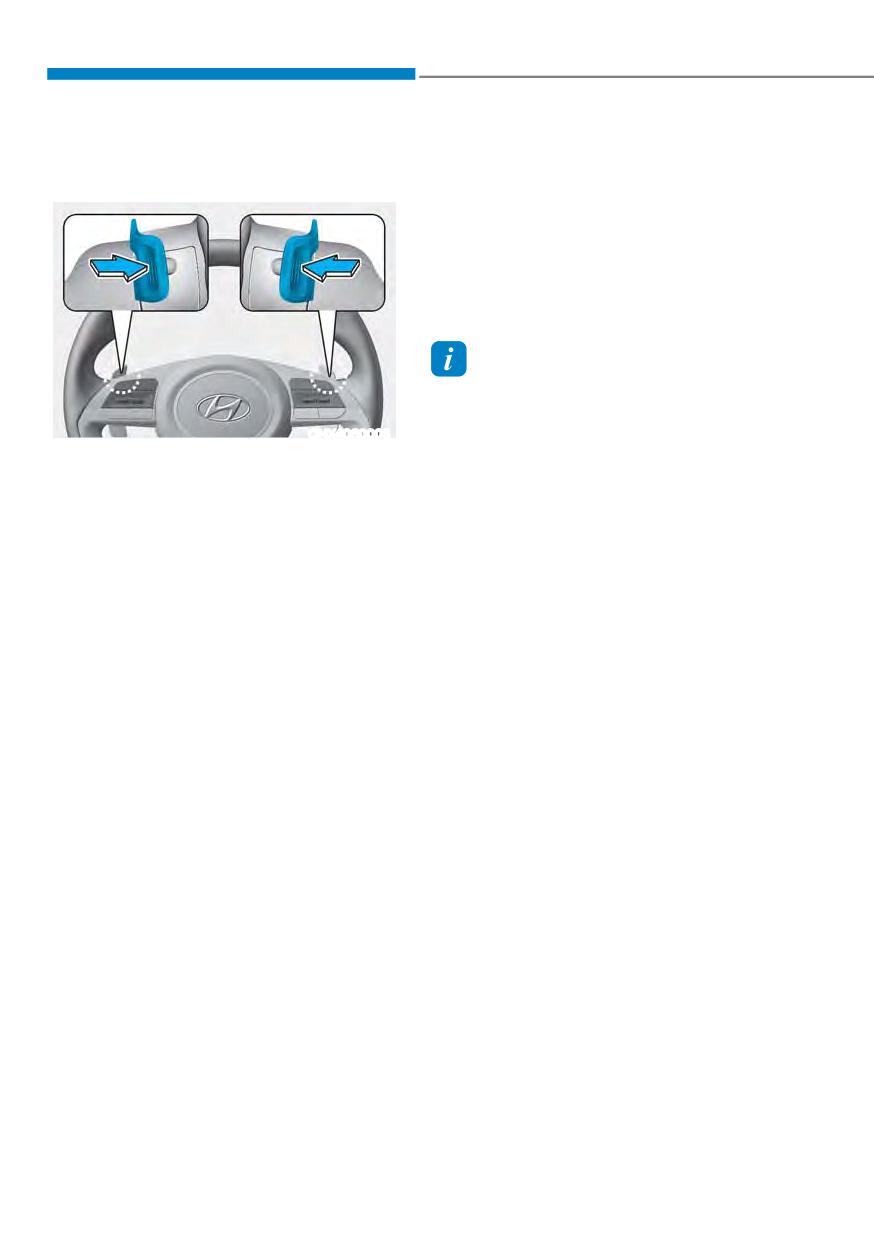

Using the Paddle Shifters (if
The vehicle will automatically revert
from paddle shifting manual shift mode
equipped)
to 'D' Drive mode if one of the following
situations occur:
- When the accelerator pedal is gently
depressed for more than 6 seconds
while driving
- When the vehicle stops
Information
If the [+] and [-] paddle shifters are pulled
at the same time, gear shift may not occur.
ONX4060005
The paddle shifter is available when the
shift lever is in the D (Drive) position or
the manual shift mode.
With the shift lever in the D position
The paddle shifter will operate when the
vehicle speed is more than 6mph.
Pull back on the [+] paddle (right side)
to upshift or the [-] paddle (left side) to
downshift. You will see the gear change
in the cluster display.
When using the paddle shifters and you
wish to return from manual shift mode to
'D' Drive mode, do one of the following:
- Pull back on the [+] paddle (right side)
for more than one second.
- Toggle the gear shift lever from 'D'
(Drive) to the manual gate on the
left side (towards the driver) and
then toggle it back to the normal 'D'
position.
6-20
06
Good Driving Practices
ś Exercise extreme caution when
driving on a slippery surface. Be
ś
Never move the shift lever from P
especially careful when braking,
(Park) or N (Neutral) to any other
accelerating or shifting gears. On a
position with the accelerator pedal
slippery surface, an abrupt change
depressed.
in vehicle speed can cause the drive
ś
Never move the shift lever into P
wheels to lose traction and may cause
(Park) when the vehicle is in motion.
loss of vehicle control resulting in an
Be sure the vehicle is completely
accident.
stopped before you attempt to shift
ś Optimum vehicle performance and
into R (Reverse) or D (Drive).
economy is obtained by smoothly
ś
Do not move the shift lever to N
depressing and releasing the
(Neutral) when driving. Doing so
accelerator.
may result in an accident because
of a loss of engine braking and the
WARNING
transmission could be damaged.
To reduce the risk of SERIOUS INJURY
ś
When driving uphill or downhill,
always shift to D (Drive) for driving
or DEATH:
forward or shift to R (Reverse) for
ś ALWAYS wear your seatbelt. In a
driving rearwards. After selecting
collision, an unbelted occupant
D (Drive) or R (Reverse), check the
is significantly more likely to be
gear position indicated on the cluster
seriously injured or killed than a
before driving. If the vehicle moves in
properly belted occupant.
the opposite direction of the selected
ś Avoid high speeds when cornering or
gear, the engine may turn off and a
turning.
serious accident might occur due to
ś Do not make quick steering wheel
degraded brake performance.
movements, such as sharp lane
ś
Do not drive with your foot resting
changes or fast, sharp turns.
on the brake pedal. Even light, but
ś The risk of rollover is greatly
consistent pedal pressure can result
increased if you lose control of your
in the brakes overheating, brake wear
vehicle at highway speeds.
and possibly even brake failure.
ś Loss of control often occurs if two or
ś
When driving with shifter paddles,
more wheels drop off the roadway
slow down before shifting to a lower
and the driver over steers to reenter
gear. Otherwise, the lower gear may
the roadway.
not be engaged if the engine RPMs
are outside of the allowable range.
ś In the event your vehicle leaves
the roadway, do not steer sharply.
ś
Always apply the parking brake when
Instead, slow down before pulling
leaving the vehicle. Do not depend on
back into the travel lanes.
placing the transmission in P (Park) to
keep the vehicle from moving.
ś HYUNDAI recommends you follow all
posted speed limits.
6-21
Driving Your Vehicle
'8$/ &/87&+ 75$160,66,21 ǣ,) (48,33('Ǥ

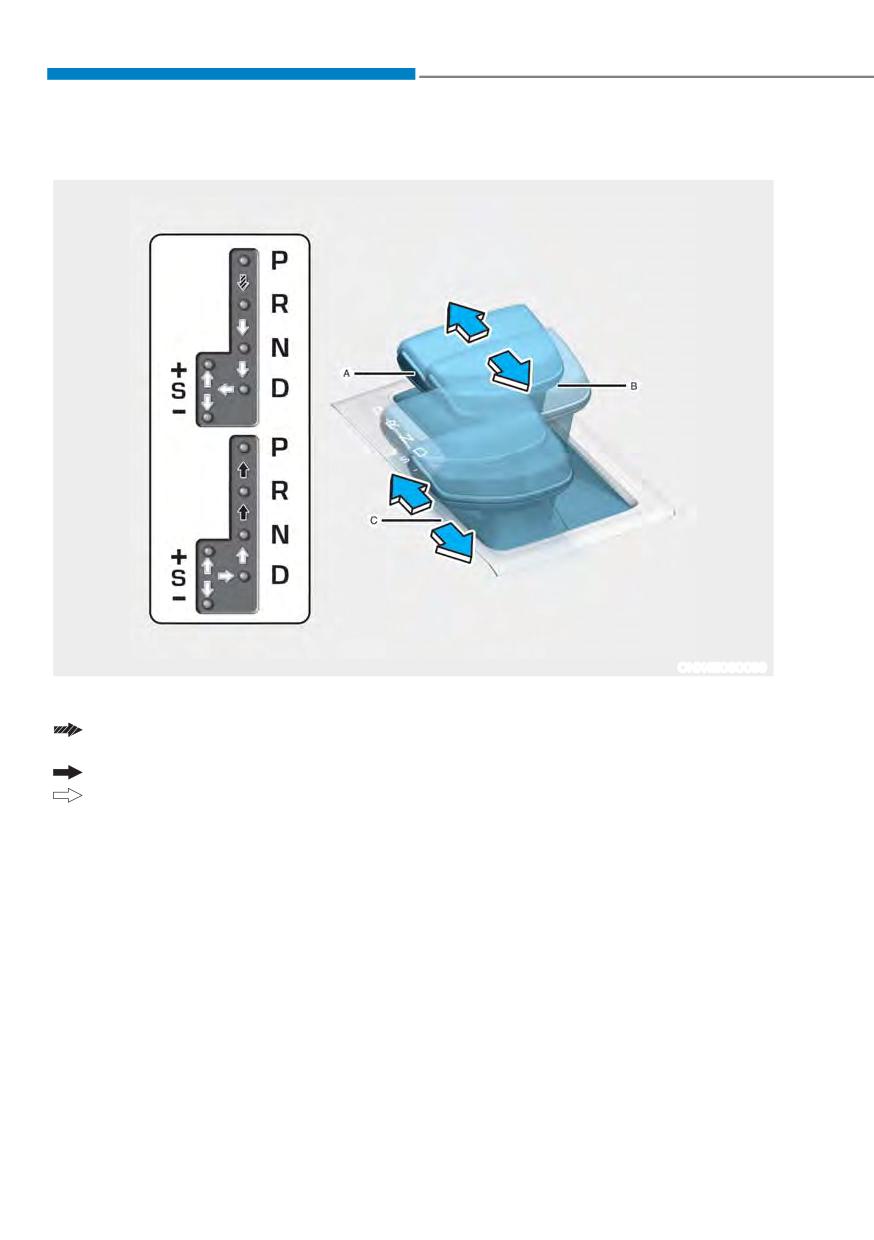

ONX4E060039
Depress the brake pedal and press the shift button ahead of the shift lever while moving the
shift lever.
Press the shift button while moving the shift lever.
The shift lever can freely operate.
Dual Clutch Transmission Operation
The dual clutch transmission has eight forward speeds and one reverse speed.
The individual speeds are selected automatically when the shift lever is in the D (Drive)
position.
6-22
06
ś
The advanced wet-clutch dual clutch
ś
When rapidly accelerating from a
transmission in your vehicle can be
lower vehicle speed, the engine
thought of as an automatically shifting
RPM may increase dramatically as a
manual transmission. It gives the
result of clutch slip as the dual clutch
driving feel of a manual transmission,
transmission selects the correct gear.
yet provides the ease of a fully
This is a normal condition.
automatic transmission.
ś
When accelerating from a stop on
ś
When D (Drive) is selected, the
an incline, press the accelerator
transmission will automatically
smoothly and gradually to avoid any
shift through the gears similar to a
shudder feeling or jerkiness.
conventional automatic transmission.
ś
When traveling at a lower vehicle
With a wet-type dual clutch
speed, if you release the accelerator
transmission, however, the engine
pedal quickly, you may feel engine
torque that is transmitted directly
braking before the transmission
from the engine to the transmission
changes gears. This engine braking
is transferred by a clutch pack that
feeling is similar to operating a
is lubricated in oil. The oil's primary
manual transmission at low speed.
purpose is to cool the clutch, and
ś
When driving downhill, you may
because of lubricating properties of
wish to move the gear shift lever to
the oil and this cooling effect, gear
Manual Shift mode and downshift to
shifts are smooth as well as direct.
a lower gear in order to control your
ś
The wet-type dual clutch transmission
speed without using the brake pedal
allows for better acceleration
excessively.
performance and increased fuel
ś
When you turn the engine on and off,
efficiency while driving. But it differs
you may hear clicking sounds as the
from a conventional automatic
system goes through a self-test. This
transmission because it does not
is a normal sound for the dual clutch
incorporate a torque converter.
transmission.
Instead, the transition from one gear
to the next is managed by clutch slip,
ś
During the first 1000 miles (1,500km),
especially at lower speeds.
you may feel that the vehicle may not
be smooth when accelerating at low
As a result, shifts are sometimes more
speed. During this break-in period, the
noticeable, and a light vibration can
shift quality and performance of your
be felt as the transmission shaft speed
new vehicle is continuously optimized.
is matched with the engine shaft
speed. This is a normal condition of
the dual clutch transmission.
ś
The wet-type clutch transfers torque
more directly and provides a direct
drive feeling which may feel different
from a conventional automatic
transmission. This may be more
noticeable when launching the vehicle
from a stop or when traveling at low,
stop-and-go vehicle speeds.
6-23
Driving Your Vehicle
DCT warning messages
WARNING
This warning message is displayed when
To reduce the risk of serious injury or
vehicle is driven slowly on a grade and
death:
the vehicle detects that the brake pedal
ś ALWAYS check the surrounding
is not applied.
areas near your vehicle for people,
especially children, before shifting a
vehicle into D (Drive) or R (Reverse).
ś Before leaving the driver’s seat,
always make sure the shift lever
is in the P (Park) position, then set
the parking brake, and place the
ignition switch in the LOCK/OFF
position. Unexpected and sudden
vehicle movement can occur if these
precautions are not followed.
ś Do not use aggressive engine braking
(shifting from a higher gear to a

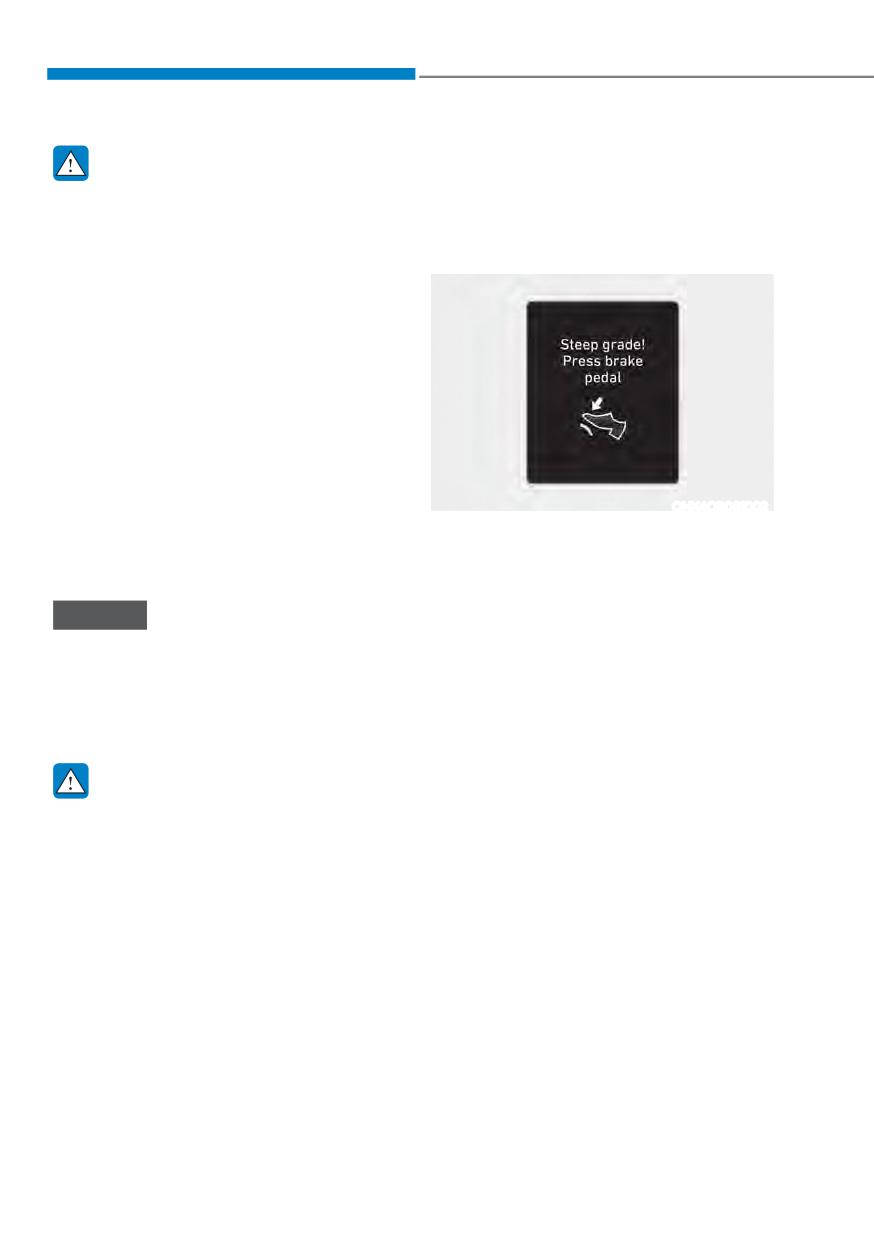

ONX4OB061002
lower gear) on slippery roads. This
Steep grade! Press brake pedal
could cause the tires to slip and may
Driving up hills or on steep grades:
result in an accident.
ś To hold the vehicle on an incline use
the foot brake or the parking brake.
NOTICE
ś When in stop-and-go traffic on an
ś Always come to a complete stop
incline, allow a gap to form ahead
before shifting into D (Drive) or R
of you before moving the vehicle
(Reverse).
forward. Then hold the vehicle on the
ś Do not put the shift lever in N
incline with the foot brake.
(Neutral) while driving.
ś If the vehicle is held or creeping
forward on an incline by applying
the accelerator pedal, the clutch and
WARNING
transmission may overheat which
Due to transmission failure, you may
can result in damage. At this time, a
not continue to drive and the position
warning message will appear on the
indicator and the position indicator (D,
cluster display.
P) on the instrument cluster will blink.
ś If the cluster warning is active, the
Contact authorized HYUNDAI dealer
foot brake must be applied.
and have the system checked.
ś Ignoring the warnings can lead to
damage to the transmission.
6-24
06

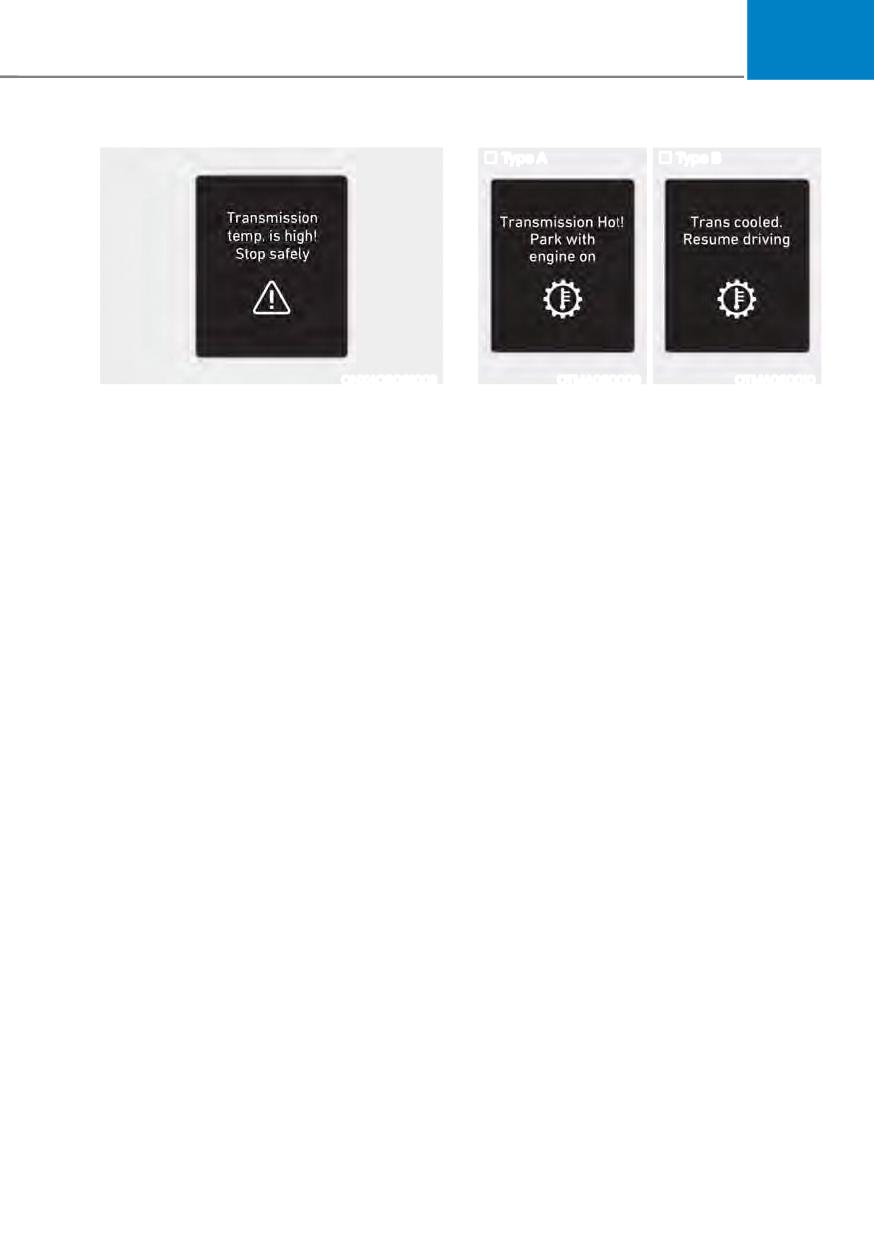

„ Type A
„ Type B
ONX4OB061003
OTMA060009
OTMA060010
Transmission high temperature
Transmission overheated
ś
Under certain conditions, such as
ś If the vehicle continues to be driven
repeated stop-and-go launches
and the clutch temperatures reach
on steep grades, sudden take off
the maximum temperature limit, the
or acceleration, or other harsh
“Transmission Hot! Park with engine
driving conditions, the transmission
on” warning will be displayed. When
clutch temperatures will increase
this occurs the clutch is disabled
excessively.
until the clutch cools to normal
temperatures.
ś
When the clutch temperatures are too
high, the “Transmission temp. is high!
ś The warning will display a time to wait
Stop safely” warning message will
for the transmission to cool.
appear on the cluster display, a chime
ś If this occurs, pull over to a safe
will sound, and the transmission
location, stop the vehicle with the
shifting may not be smooth.
engine running, apply the brakes and
ś
If this occurs, pull over to a safe
shift the vehicle to P (Park), and allow
location, stop the vehicle with the
the transmission to cool.
engine running, apply the brakes and
ś When the message “Trans cooled.
shift the vehicle to P (Park), and allow
Resume driving” appears you can
the transmission to cool.
continue to drive your vehicle.
ś
If you ignore this warning, the driving
ś When possible, drive the vehicle
condition may become worse.
smoothly.
You may experience abrupt shifts,
frequent shifts, or jerkiness. To return
If any of the warning messages in the
to the normal driving condition, stop
cluster display continue to blink, for your
the vehicle and shift into P (Park).
safety, contact an authorized HYUNDAI
Then allow the transmission to cool
dealer and have the system checked.
for a few minutes with engine on
before driving off.
ś
When possible, drive the vehicle
smoothly.
6-25

















Content      ..     1      2      3      4      ..
