Hyundai Santa Cruz (2024 year). Manual in english - page 1





OWNER’S MANUAL
Operation
Maintenance
Specifications
All information in this Owner’s Manual is current at the time
of publication. However, HYUNDAI reserves the right to make
changes at any time so that our policy of continual product
improvement may be carried out.
This manual applies to all models of this vehicle and includes
descriptions and explanations of optional as well as standard
equipment.
As a result, you may find material in this manual that does not
apply to your specific vehicle.
Introduction
CAUTION: MODIFICATIONS TO YOUR
HYUNDAI
Your HYUNDAI should not be modified in any way. Such modifications may
adversely affect the performance, safety or durability of your HYUNDAI
and may, in addition, violate conditions of the limited warranties covering
the vehicle. Certain modifications may also be in violation of regulations
established by the U.S. Department of Transportation and other federal or state
agencies.
7:2ǘ:$< 5$',2 ,167$//$7,21
Your vehicle is equipped with a Tire Pressure Monitoring System, Passenger
Occupant Classification System and other CAN bus systems. It is possible for
an improperly installed/adjusted high powered two-way radio to adversely
affect electronic systems. For this reason, we recommend that you carefully
follow the radio manufacturer’s instructions if you choose to install one of these
devices.
F2
SAFETY AND VEHICLE DAMAGE WARNING
This manual includes information titled as DANGER, WARNING, CAUTION and
NOTICE.
These titles indicate the following:
DANGER
DANGER indicates a hazardous situation which, if not avoided, will result in
death or serious injury.
WARNING
WARNING indicates a hazardous situation which, if not avoided, could result
in death or serious injury.
CAUTION
CAUTION indicates a hazardous situation which, if not avoided, could result
in minor or moderate injury.
NOTICE
NOTICE indicates a situation which, if not avoided, could result in vehicle
damage.
F3
HYUNDAI VEHICLE OWNER PRIVACY POLICY
Your Hyundai vehicle may be equipped with technologies and services that use
information collected, generated, recorded or stored by the vehicle. Hyundai
has created a Vehicle Owner Privacy Policy to explain how these technologies
and services collect use and share this information.
You may read our Vehicle Owner Privacy Policy on the Hyundaiusa.com website
If you would like to receive a hard copy of our Vehicle Owner Privacy Policy,
please contact the Hyundai Customer Care Center at:
Hyundai Customer Care
P.O. Box 20850
Fountain Valley, CA 92728 800-633-5151
consumeraffairs@hmausa.com
Hyundai’s Customer Care Center representatives are available Monday through
Friday,
between the hours of 6:00 AM and 5:00 PM PST and Saturday between 6:30
AM and 3:00 PM PST.
For Customer Care assistance in Spanish or Korean, representatives are
available Monday through Friday between 6:30 AM and 3:00 PM PST.
Table of contents
Foreword
1
Vehicle Information, Consumer Information and
2
Reporting Safety Defects
Seats & Safety System
3
Instrument Cluster
4
Convenient Features
5
Driving your Vehicle
6
Driver Assistance System
7
Emergency Situations
8
Maintenance
9
Index
I
1. Foreword
Foreword
1-2
HYUNDAI Motor America
1-2
Guide to Hyundai Genuine Parts
1-3
How to Use This Manual
1-4
1
Safety Messages
1-4
Fuel Requirements
1-5
Gasoline Engine
1-5
Vehicle Modifications
1-7
Vehicle Break-in Process
1-7
Vehicle Data Collection and Event Data Recorders
1-8
Foreword
FOREWORD
Congratulations, and thank you for choosing HYUNDAI. We are pleased to welcome
you to the growing number of discerning people who drive a HYUNDAI vehicle. We are
very proud of the advanced engineering and quality of each HYUNDAI we build.
Your Owner’s Manual will introduce you to the features and operation of your new
HYUNDAI. To become familiar with your new HYUNDAI, so that you can fully enjoy it,
read this Owner’s Manual carefully before driving your new vehicle.
This manual contains important safety information and instructions intended to
familiarize you with your vehicle’s controls and safety features so you can safely
operate your vehicle.
This manual also contains information on maintenance designed to enhance safe
operation of the vehicle. It is recommended that all service and maintenance on your
car be performed by an authorized HYUNDAI dealer. An authorized HYUNDAI dealer is
prepared to provide high-quality service, maintenance and any other assistance that
may be required.
This Owner’s Manual should be considered a permanent part of your vehicle, and
should be kept in the vehicle so you can refer to it at any time. The manual should stay
with the vehicle if you sell it to provide the next owner with important operating, safety
and maintenance information.
HYUNDAI MOTOR AMERICA
CAUTION
Severe engine and transmission damage may result from the use of poor quality
fuels and lubricants that do not meet HYUNDAI specifications. You must always use
high quality fuels and lubricants that meet the specifications listed on Page 2-14 in
the Vehicle Specifications section of the Owner’s Manual.
publication may be reproduced, stored in any retrieval system or transmitted in
any form or by any means without the prior written permission of HYUNDAI Motor
America.
1-2
01
GUIDE TO HYUNDAI GENUINE PARTS
1. What are HYUNDAI Genuine Parts?
2. Why Hyundai Genuine Parts?
HYUNDAI Genuine Parts are the
HYUNDAI Genuine Parts are
same parts used by HYUNDAI Motor
engineered and built to meet rigid
Company to manufacture vehicles.
manufacturing requirements.
They are designed and tested for the
Damage caused by using imitation,
optimum safety, performance, and
counterfeit or used salvage parts is
reliability for our customers.
not covered under the HYUNDAI New
Vehicle Limited Warranty or any other
HYUNDAI warranty.
In addition, any damage to or failure
of HYUNDAI Genuine Parts caused
by the installation or failure of an
imitation, counterfeit or used salvage
part is not covered by any HYUNDAI
Warranty.
3. How can you tell if you are
purchasing HYUNDAI Genuine Parts?
Look for the HYUNDAI Genuine Parts
Logo on the package (see below).
HYUNDAI Genuine Parts exported
to the U.S. are packaged with labels
written only in English.
HYUNDAI Genuine Parts are only
sold through authorized HYUNDAI
Dealerships.
1-3
Foreword
HOW TO USE THIS MANUAL
We want to help you get the greatest possible driving pleasure from your vehicle. Your
Owner’s Manual can assist you in many ways. To gain an overview of the contents of
your Owner’s Manual, use the Table of Contents at the beginning of the manual. The
first page of each Chapter includes a detailed Table of Contents of the topics in that
Chapter.
To quickly locate information about your vehicle, use the Index in the back of the
manual. It is an alphabetical list of what is in this manual and the page number where it
can be found.
For your convenience, we have incorporated tabs on the right-hand page edges.
These tabs are coded with the Chapter titles to assist you with navigating through the
manual.
SAFETY MESSAGES
Your safety, and the safety of others, is very important. This Owner’s Manual provides
you with many safety precautions and operating procedures. This information alerts
you to potential hazards that may hurt you or others, as well as damage your vehicle.
Safety messages found on vehicle labels and in this manual describe these hazards
and what to do to avoid or reduce the risks.
Warnings and instructions contained in this manual are for your safety. Failure to follow
safety warnings and instructions can lead to serious injury or death.
Throughout this manual DANGER, WARNING, CAUTION, NOTICE and the SAFETY
ALERT SYMBOL will be used.
This is the safety alert symbol. It is used to alert you to potential physical injury
hazards. Obey all safety messages that follow this symbol to avoid possible
injury or death. The safety alert symbol precedes the signal words DANGER,
WARNING and CAUTION.
DANGER
CAUTION
DANGER indicates a hazardous
CAUTION indicates a hazardous
situation which, if not avoided, will
situation which, if not avoided, could
result in death or serious injury.
result in minor or moderate injury.
NOTICE
WARNING
NOTICE indicates a situation which,
WARNING indicates a hazardous
if not avoided, could result in vehicle
situation which, if not avoided, could
damage.
result in death or serious injury.
1-4
01
FUEL REQUIREMENTS
Gasoline engine
Unleaded Fuel Only
Your new vehicle is designed to perform optimally using unleaded fuel having an
octane number ((R+M)/2) of 87 (Research Octane Number 91) or higher. (Do not use
methanol blended fuels)
Your new vehicle is designed to obtain maximum performance with UNLEADED FUEL,
as well as minimize exhaust emissions and spark plug fouling.
NOTICE
To prevent damage to the engine and engine components, never add any fuel
system cleaning agents to the fuel tank other than what has been specified.
Consult an authorized HYUNDAI dealer for additional information.
WARNING
ś Do not “top off” after the nozzle automatically shuts off when refueling.
ś Always check that the fuel cap is installed securely to prevent fuel spillage in the
event of an accident.
Gasoline containing alcohol and methanol
Gasohol, a mixture of gasoline and ethanol (also known as grain alcohol) are being
marketed along with or instead of leaded or unleaded gasoline. For example, “E15” is a
gasohol comprised of 15% ethanol and 85% gasoline.
Do not use gasohol containing more than 15% ethanol, and do not use gasoline or
gasohol containing any methanol. Either of these fuels may cause drivability problems
and damage to the fuel system, engine control system and emission control system.
Discontinue using gasohol of any kind if drivability problems occur.
“E85” fuel is an alternative fuel comprised of 85 percent ethanol and 15 percent
gasoline, and is manufactured exclusively for use in Flexible Fuel Vehicles. “E85” is
not compatible with your vehicle. Use of “E85” may result in poor engine performance
and damage to your vehicle’s engine and fuel system. HYUNDAI recommends that
customers do not use fuel with an ethanol content exceeding 15 percent.
NOTICE
To prevent damage to your vehicle’s engine and fuel system:
ś Never use gasohol which contains methanol.
ś Never use gasohol containing more than 15% ethanol.
ś Never use leaded fuel or leaded gasohol.
ś Never use “E85” fuel.
Your New Vehicle Limited Warranty does not cover damage to the fuel system or any
performance problems caused by the use of “E85” fuel.
1-5
Foreword
Using Fuel Additives (except Detergent Fuel Additives)
Using fuel additives such as:
- Silicone fuel additive
- Ferrocene (iron-based) fuel additive
- Other metallic-based fuel additives
May result in cylinder misfire, poor acceleration, engine stalling, damage to the
catalyst, or abnormal corrosion, and may cause damage to the engine resulting in a
reduction in the overall life of the powertrain.
- The Malfunction Indicator Lamp (MIL) may illuminate.
NOTICE
Damage to the fuel system or performance problem caused by the use of these fuels
may not be covered by your New Vehicle Limited Warranty.
Gasoline containing MMT
Some gasoline contains harmful manganese-based fuel additives such as MMT
(Methylcyclopentadienyl Manganese Tricarbonyl).
HYUNDAI does not recommend the use of gasoline containing MMT.
This type of fuel can reduce vehicle performance and affect your emission control
system.
The malfunction indicator lamp on the cluster may come on.
Detergent Fuel Additives
HYUNDAI recommends that you use good quality gasolines treated with detergent
additives such as TOP TIER Detergent Gasoline, which help prevent deposit formation
in the engine. These gasolines will help the engine run cleaner and enhance
performance of the Emission Control System. For more information on TOP TIER
Detergent Gasoline, please go to the website (www. toptiergas.com).
For customers who do not use TOP Tier Detergent Gasoline regularly, and have
problems starting or the engine does not run smoothly, detergent-based fuel additives
that you can purchase separately may be added to the gasoline. If TOP TIER Detergent
Gasoline is not available, one bottle of additive added to the fuel tank according to the
maintenance schedule is recommended (refer to the Maintenance Schedule in chapter
9).
Additives are available from your authorized HYUNDAI dealer along with information
on how to use them. Do not mix other additives.
Operation in foreign countries
If you are going to drive your vehicle in another country, be sure to:
ś Observe all regulations regarding registration and insurance.
ś Determine that acceptable fuel is available.
1-6
01
VEHICLE MODIFICATIONS
ś This vehicle should not be modified. Modification of your vehicle could affect its
performance, safety or durability and may even violate governmental safety and
emissions regulations.
In addition, damage or performance problems resulting from any modification may
not be covered under warranty.
ś If you use unauthorized electronic devices, it may cause the vehicle to operate
abnormally, wire damage, battery discharge and fire. For your safety, do not use
unauthorized electronic devices.
NOTICE
Some warning sounds (including welcome/good-bye sound, etc.) are generated
from the interior speakers or amplifiers. If necessary, we recommend you to
purchase HYUNDAI Part to replace an interior speaker or amplifier. Any unauthorized
product may cause a malfunction of the interior speakers or amplifiers.
9(+,&/( %5($.ǘ,1 352&(66
By following a few simple precautions for the first 600 miles (1,000 km) you may add to
the performance, economy and life of your vehicle.
ś Do not race the engine.
ś While driving, avoid sudden acceleration.
ś Do not maintain a single speed for long periods of time, either fast or slow. Varying
engine speed is needed to properly break-in the engine.
ś Avoid hard stops, except in emergencies, to allow the brakes to seat properly.
ś Fuel economy and engine performance may vary depending on vehicle break-in
process and be stabilized after 4,000 miles (6,000 km). New engines may consume
more oil during the vehicle break-in period.
ś Do not tow a trailer during the first 1,200 miles (2,000 km) of operation.
WARNING
CALIFORNIA PROPOSITION 65 WARNING
Items contained in motor vehicles or emitted from them are known to the State of
California to cause cancer and birth defects or reproductive harm. These include:
ś Gasoline and its vapors
ś Engine exhaust
ś Used engine oil
ś Interior passenger compartment components and materials
ś Component parts which are subject to heat and wear
In addition, battery posts, terminals and related accessories contain lead, lead
compounds and other chemicals known to the State of California to cause cancer
and reproductive harm.
1-7
Foreword
VEHICLE DATA COLLECTION AND EVENT DATA RECORDERS
This vehicle is equipped with an event data recorder (EDR). The main purpose of
an EDR is to record, in certain crash or near crash-like situations, such as an air bag
deployment or hitting a road obstacle, data that will assist in understanding how a
vehicle’s systems performed. The EDR is designed to record data related to vehicle
dynamics and safety systems for a short period of time, typically 30 seconds or less.
The EDR in this vehicle is designed to record such data as:
ś How various systems in your vehicle were operating;
ś Whether or not the driver and passenger safety belts were buckled/fastened;
ś How far (if at all) the driver was depressing the accelerator and/or brake pedal; and,
ś How fast the vehicle was traveling.
These data can help provide a better understanding of the circumstances in which
crashes and injuries occur. NOTE: EDR data are recorded by your vehicle only if a
non-trivial crash situation occurs; no data are recorded by the EDR under normal
driving conditions and no personal data (e.g., name, gender, age, and crash location)
are recorded. However, other parties, such as law enforcement, could combine the
EDR data with the type of personally identifying data routinely acquired during a crash
investigation.
To read data recorded by an EDR, special equipment is required, and access to the
vehicle or the EDR is needed. In addition to the vehicle manufacturer, other parties,
such as law enforcement, that have the special equipment, can read the information if
they have access to the vehicle or the EDR.
1-8
2. Vehicle Information,
Consumer Information and
Reporting Safety Defects
Exterior Overview (I)
2-2
Exterior Overview (II)
2-3
Interior Overview
2-4
Instrument Panel Overview (I)
2-5
Instrument Panel Overview (II)
2-6
Engine Compartment
2-7
Dimensions
2-8
2
Engine
2-8
Bulb Wattage
2-9
Tires and Wheels
2-10
Air Conditioning System
2-11
Gross Vehicle Weight
2-11
Recommended Lubricants and Capacities
2-12
Recommended SAE Viscosity Number
2-13
Vehicle Identification Number (VIN)
2-14
Vehicle Certification Label
2-14
Tire Specification and Pressure Label
2-14
Engine Number
2-15
Refrigerant Label
2-15
Consumer Information
2-16
Reporting Safety Defects
2-17
Vehicle Information, Consumer Information and Reporting Safety Defects

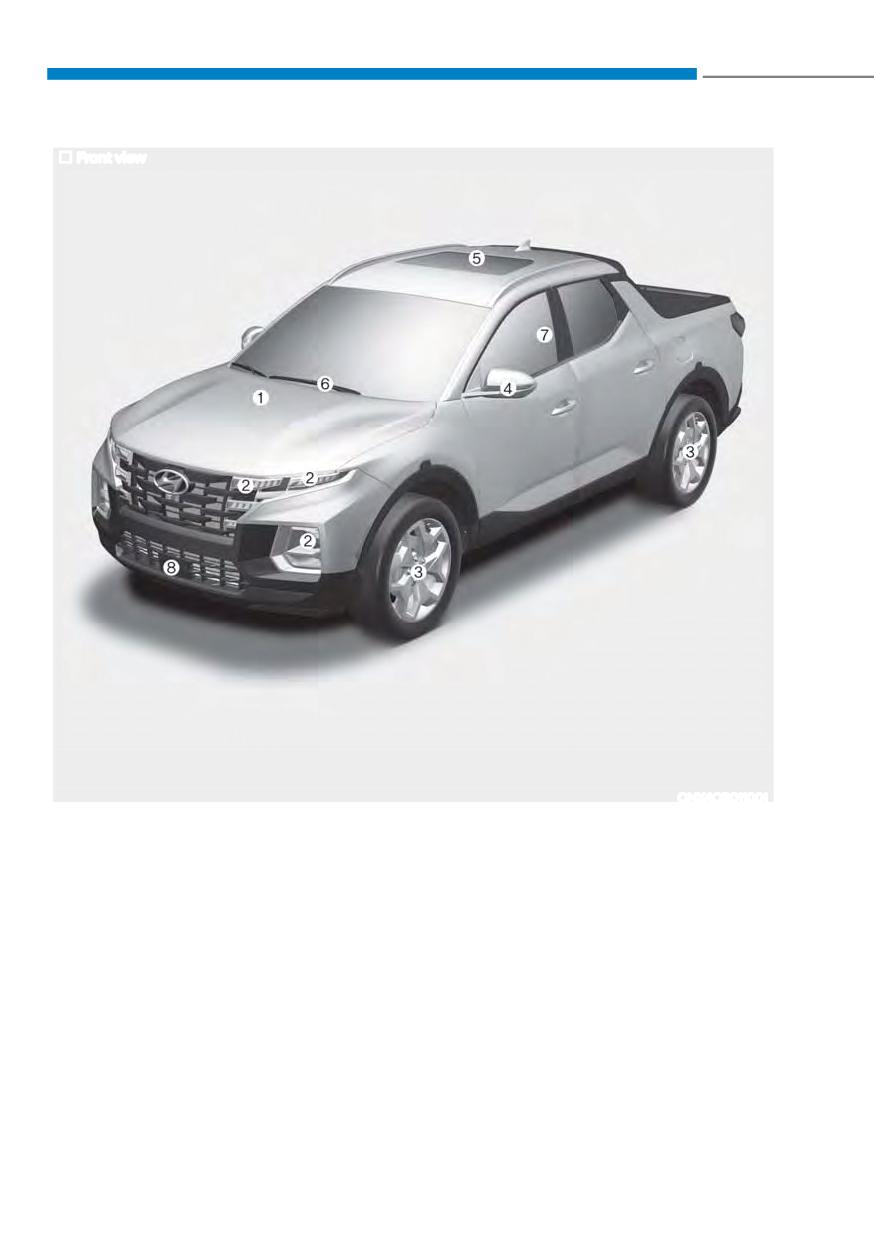

(;7(5,25 29(59,(: ǣ,Ǥ
„ Front view
The actual shape may differ from the illustration.
ONX4OB011001
1. Hood
5-66
5. Sunroof
5-61
2. Front lamps
9-59
6. Front windshield wiper blades
9-29
3. Tires and wheels
9-36
7. Windows
5-55
4. Side view mirror
5-53
8. Front radar
7-2
2-2
02

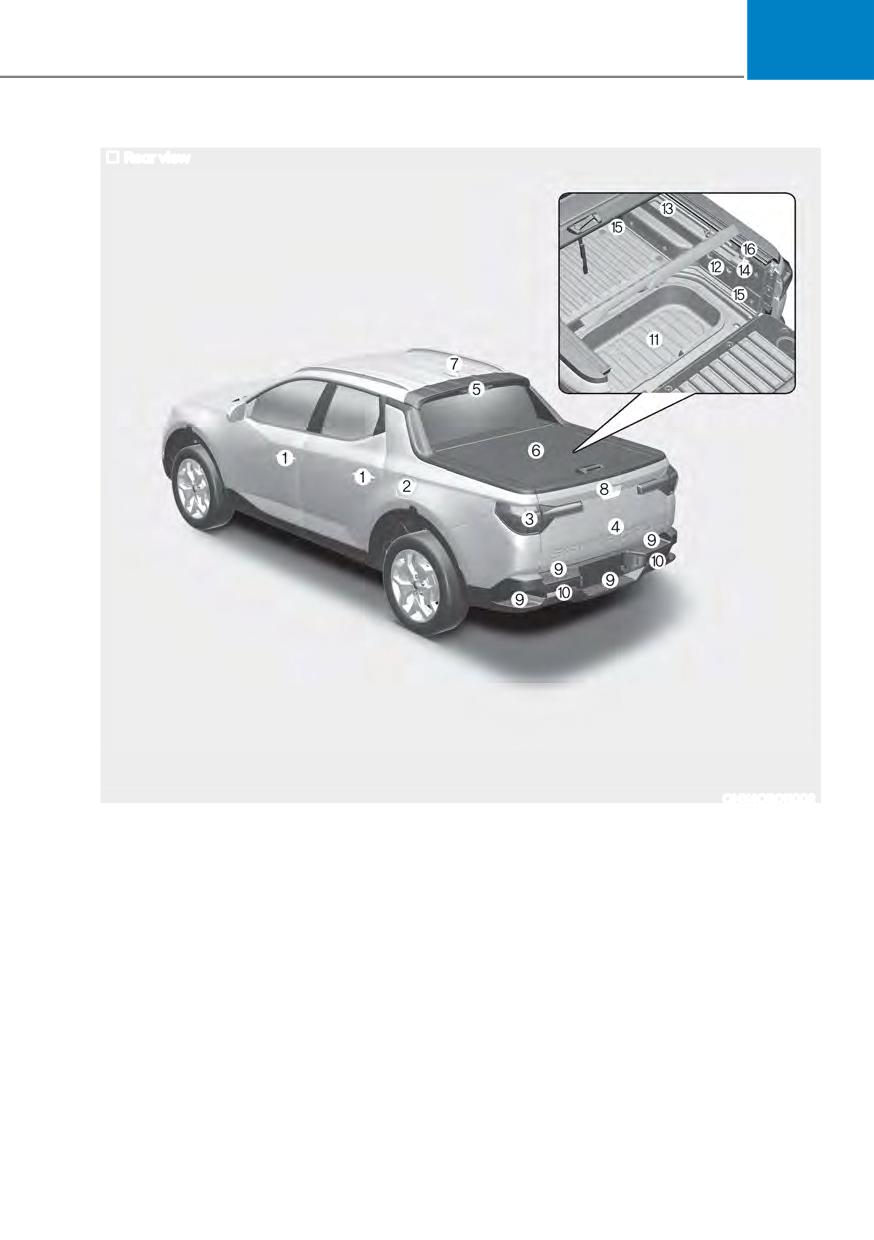

(;7(5,25 29(59,(: ǣ,,Ǥ
„ Rear view
The actual shape may differ from the illustration.
ONX4OB011002
1. Door handle
5-33
9. Rear bumper steps
5-70
2. Fuel filler door
5-70
10. Reverse lamp
9-62
3. Rear combination lamp
9-60
11. Underbed storage
5-120
4. Liftgate
5-67
12. Sidewall Side Storage
5-122
5. High mounted stop lamp /
13. Rail and cleat system
5-124
Top mounted bed lamp
9-62
14. Fixed tie downs
5-123
6. Tonneau cover
5-116
15. D-ring tie downs
5-123
7. Antenna
5-134
16. Side mounted bed lamp
9-62
8. Wide-rear view camera
7-122
2-3
Vehicle Information, Consumer Information and Reporting Safety Defects

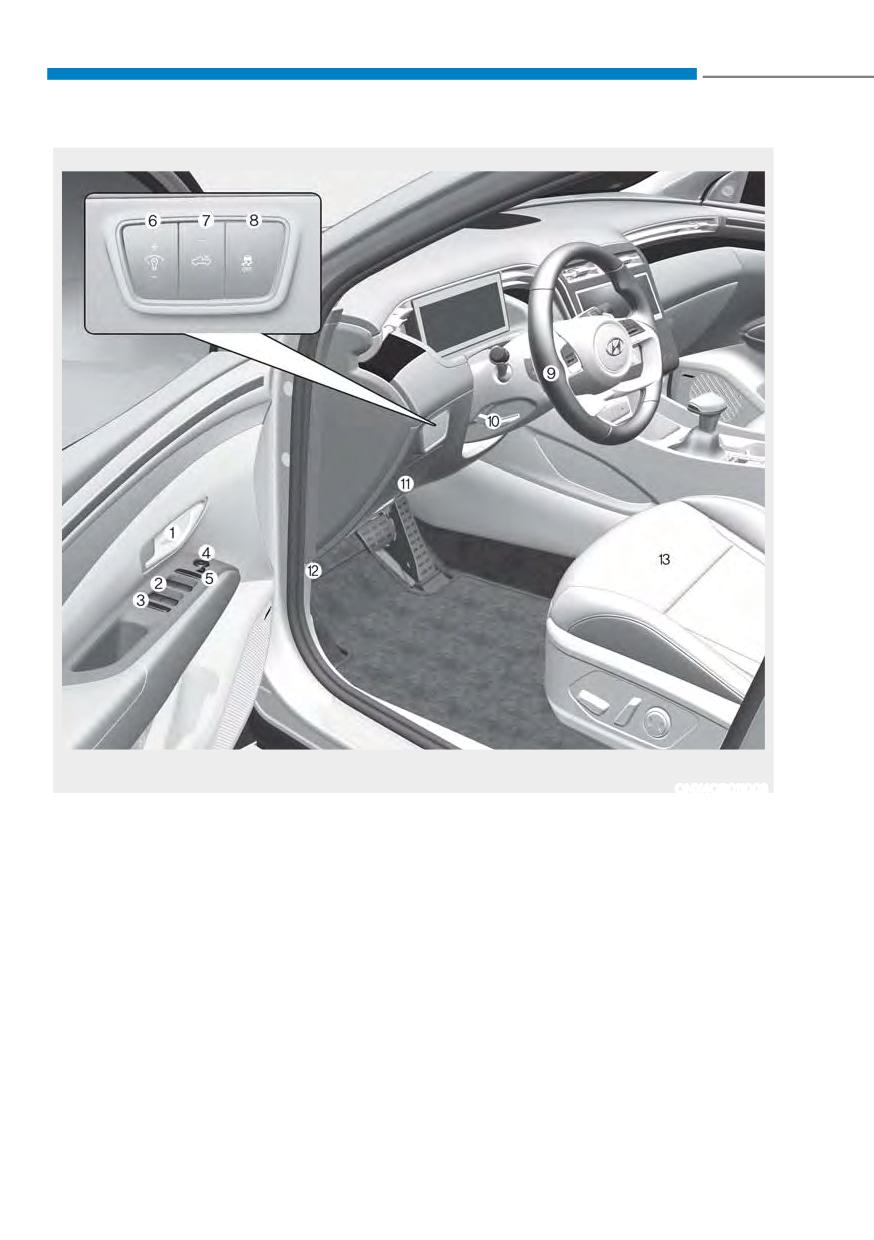

INTERIOR OVERVIEW
The actual shape may differ from the illustration.
ONX4OB011003
1. Inside door handle
5-35
7. Bed lamp ON/OFF Switch
5-83
2. Power window switches
5-56
8. ESC OFF Switch
6-40
3. Power window lock button
5-59
9. Steering wheel
5-40
4. Side view mirror control
10. Steering wheel tilt/telescopic lever
5-41
switch
5-55
11. Fuse box
9-49
5. Driver door lock switch
5-36
12. Hood release lever
5-66
6. Instrument panel illumination control
13. Seat
3-3
switch
4-5
2-4
02

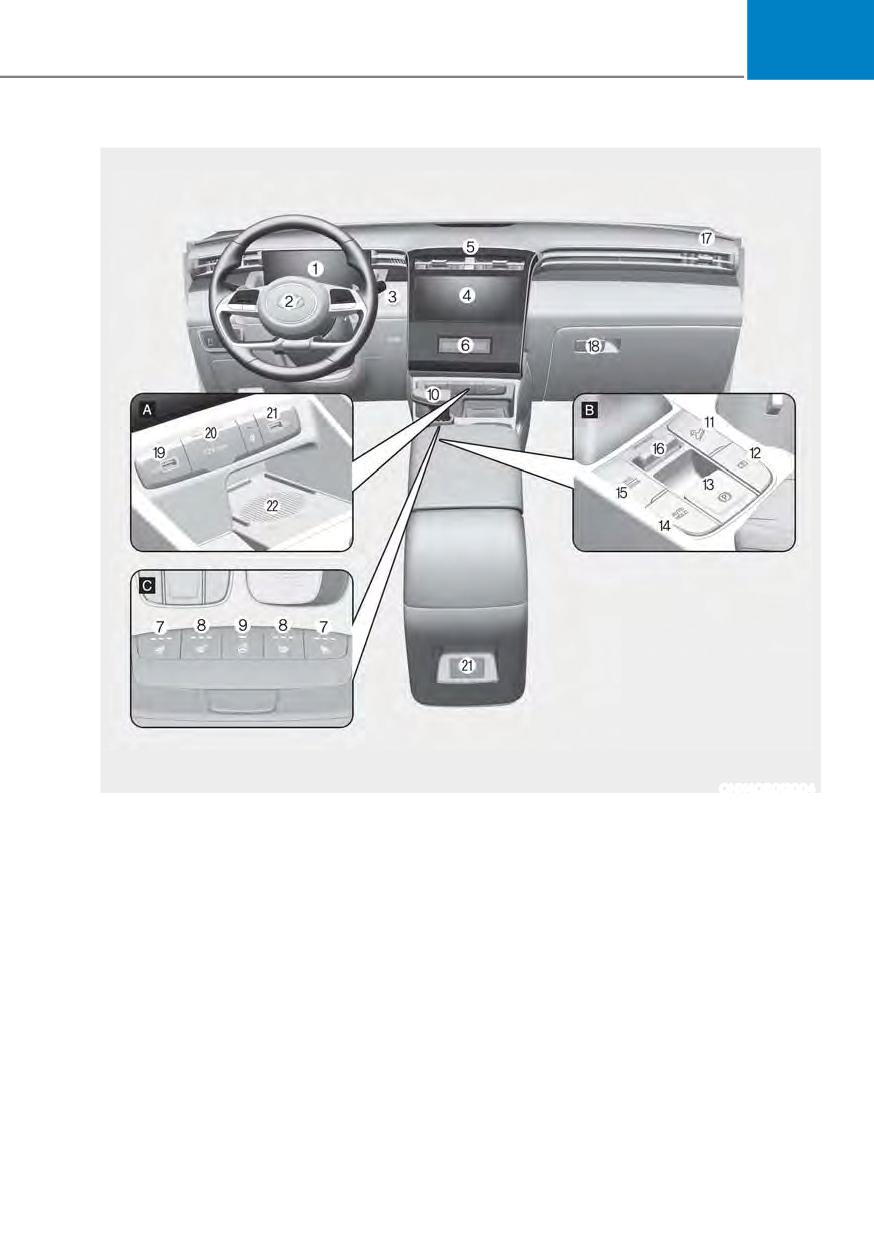

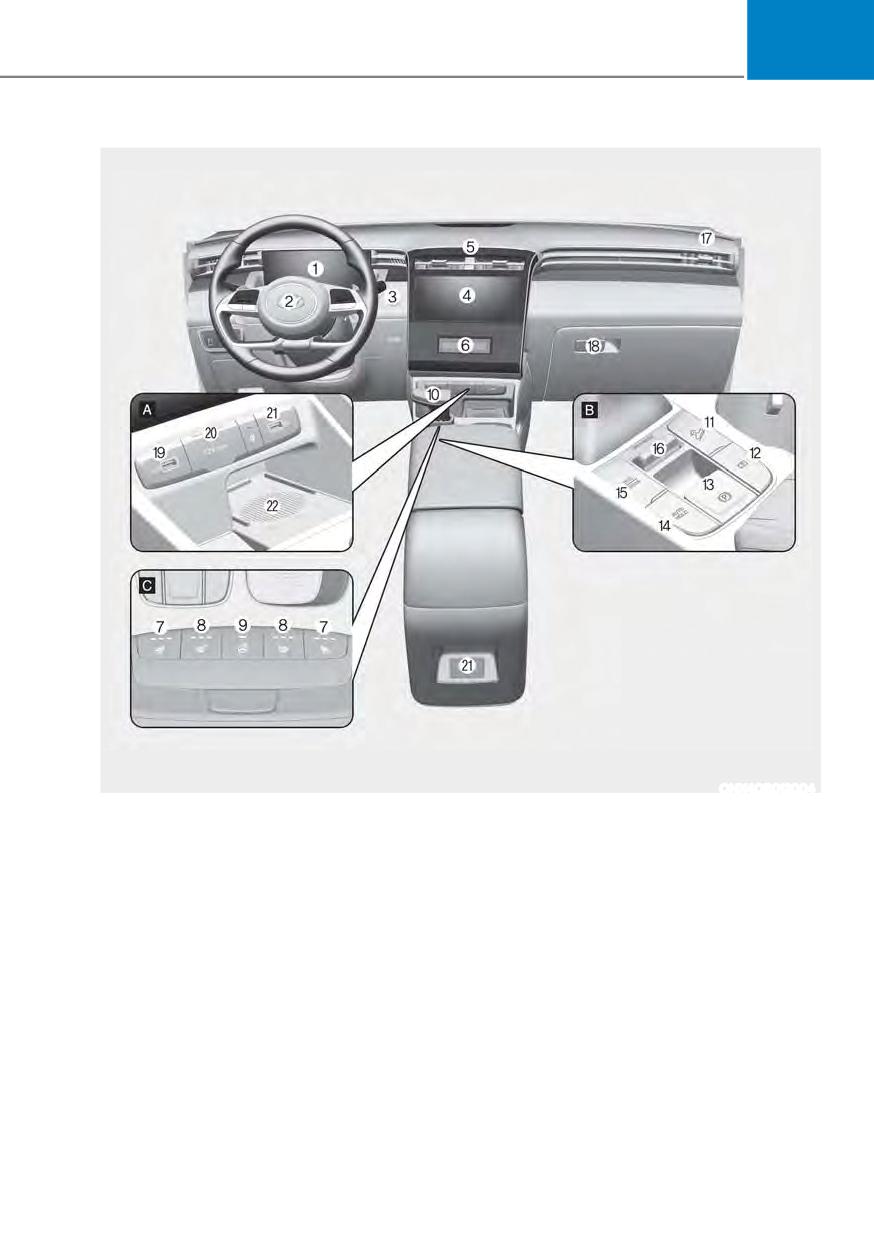

,167580(17 3$1(/ 29(59,(: ǣ,Ǥ
The actual shape may differ from the illustration.
ONX4OB012004
1. Instrument cluster
4-4
12. Parking/View button
7-123
2. Driver’s front air bag
3-42
13. EPB (Electronic Parking Brake)
3. Key ignition switch/
6-5
switch
6-31
Engine Start/Stop button
6-8
14. Auto Hold switch
6-35
4. Infotainment system
5-134
15. AWD lock button
6-52
5. Hazard warning lamp switch
8-2
16. Drive mode switch
6-49
6. Climate control system
5-87/5-95
17. Passenger’s front air bag
3-44
7. Air ventilation seat
3-18
18. Glove box
5-115
8. Seat warmer
3-16
19. USB port
5-134
9. Heated steering wheel
5-41
20.Power outlet
5-127
10. Transmission shift lever
6-14/6-22
21. USB charger
5-128
11. DBC button
6-45
22. Wireless charging system pad
5-129
2-5
Vehicle Information, Consumer Information and Reporting Safety Defects

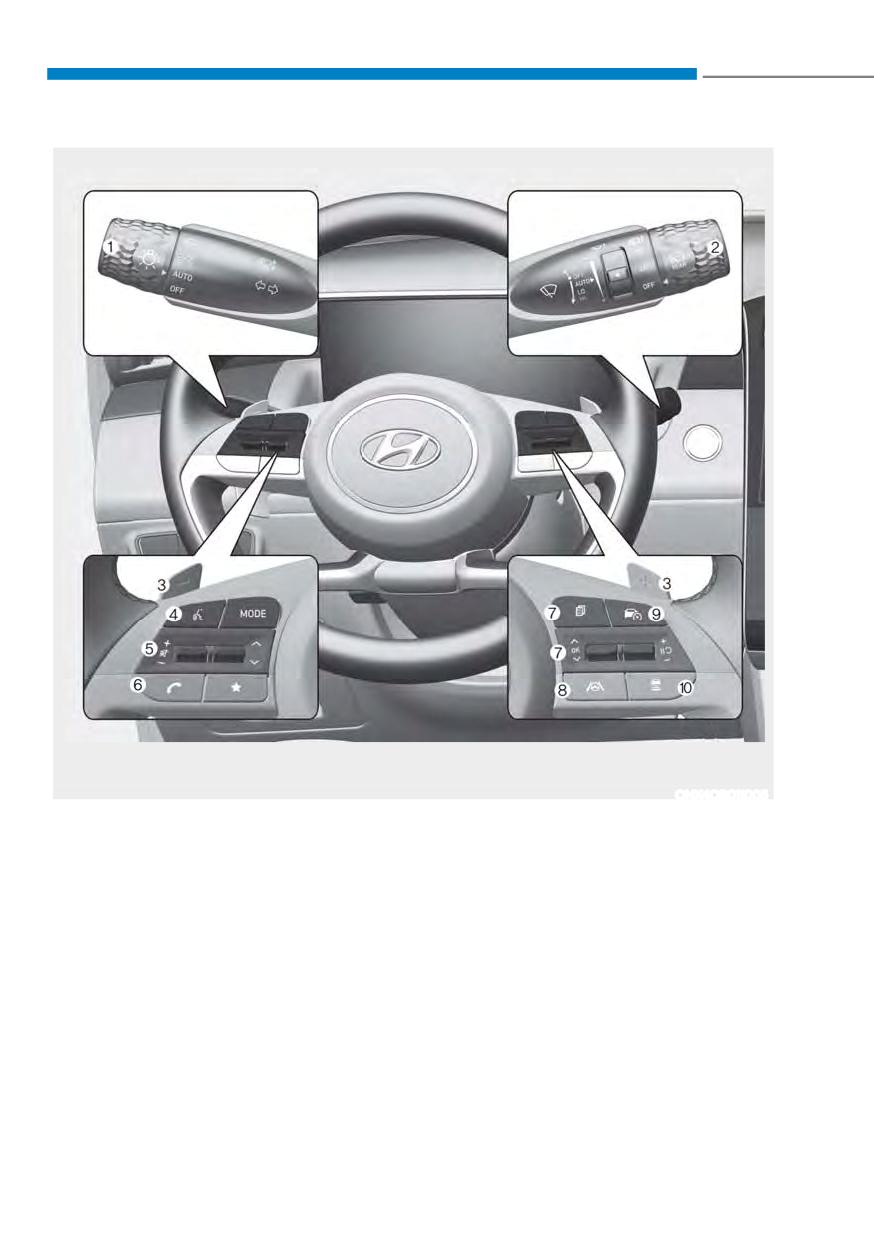

,167580(17 3$1(/ 29(59,(: ǣ,,Ǥ
The actual shape may differ from the illustration.
ONX4OB011005
1. Lighting control lever
5-73
6. Bluetooth® hands-free phone button..5-136
2. Wiper and washer control lever
5-84
7. Cluster Display Control
4-27
3. Paddle shifter
6-20
8. Lane Driving Assist button
7-32
4. Voice recognition button
5-136
9. Driving Assist button
7-67
5. Audio remote control buttons
5-136
10. Vehicle Distance button
7-88
2-6
02

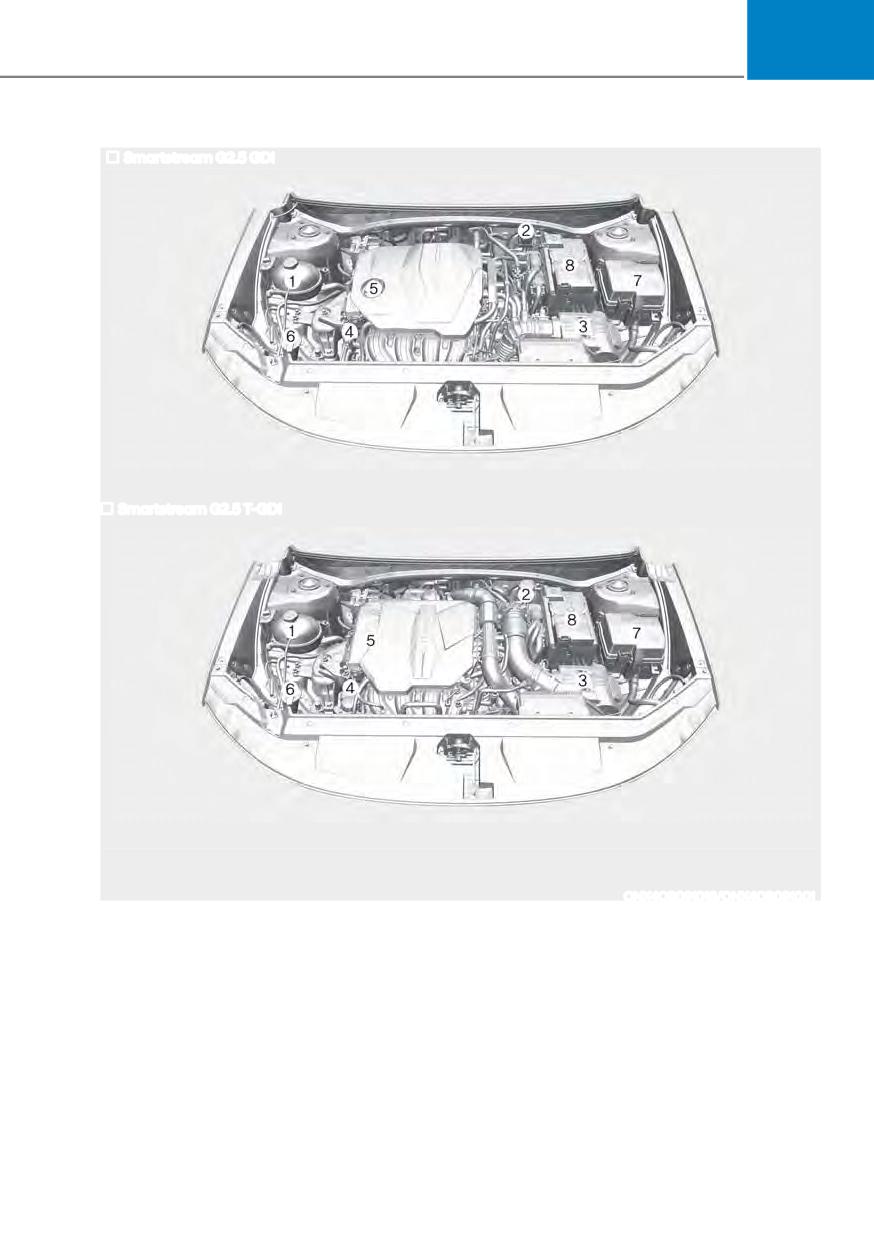

ENGINE COMPARTMENT
„ Smartstream G2.5 GDI
„ Smartstream G2.5 T-GDI
The actual engine compartment in the vehicle may differ from the illustration.
ONX4OB091016/ONX4OB091001
1. Engine coolant reservoir
9-21
6. Windshield washer fluid reservoir
9-25
2. Brake fluid reservoir
9-24
7. Fuse box
9-50
3. Air cleaner
9-26
8. Battery
9-32
4. Engine oil dipstick
9-18
5. Engine oil filler cap (2.5 T-GDI’s filler
cap is under the engine cover)
9-18
2-7
Vehicle Information, Consumer Information and Reporting Safety Defects
DIMENSIONS
Items
in (mm)
Overall length
195.67 (4,970)
Overall width
75 (1,905)
Overall height
66.73 (1,695)
Front
Rear
Tread
64.69 (1,643)
64.88 (1,648)
Wheelbase
118.30 (3,005)
ENGINE
Displacement
Bore x Stroke
Engine
Firing order
No. of cylinders
cu. in (cc)
in. (mm)
Smartstream G 2.5 GDI
152.4
3.5 x 4
1-3-4-2
4, in-line
Smartstream G 2.5 T-GDI
(2,497)
(88.5 x 101.5)
2-8
02
BULB WATTAGE
Light bulb
Bulb type
Wattage
Daytime running lamp (DRL) /
LED
LED
Position lamp
Type A
Turn signal lamp
PY28W
28
Side marker
LED
LED
High
LED
LED
Headlight
Front
Low
LED
LED
Daytime running lamp (DRL) /
Type B
LED
LED
Position lamp
Turn signal lamp
LED
LED
Side marker
LED
LED
Side repeater lamp (Outside mirror)
LED
LED
Tail lamp (Inside)
LED
LED
Tail lamp (Outside) / Side Marker
LED
LED
Turn signal lamp/ Stop Lamp
P21W
21
Reverse lamp
W16W
16
Rear
License plate lamp
W5W
5
High mounted stop lamp
LED
LED
Top Mounted Bed Lamp
LED
LED
Side mounted Bed Lamp
LED
LED
Bulb type
W10W
10
Map lamp
LED type
LED
LED
Bulb type
FESTOON
10
Interior
Room lamp
LED type
LED
LED
Glove box lamp
W5W
5
Sunvisor lamp
FESTOON
5
2-9
Vehicle Information, Consumer Information and Reporting Safety Defects
TIRES AND WHEELS
Inflation pressure psi (kPa)
Wheel nut
Wheel
Items
Tire size
Normal load
Maximum load
torque lbf·ft
size
(kgf·m, N·m)
Front
Rear
Front
Rear
245/60 R18 7.5J X 18
Full size tire
35 (240)
245/50 R20
7.5J X 20
79~94
Compact
(11~13)
T135/80 D18
4.0B x 18
60 (420)
spare tire
NOTICE
ś Ambient temperature affects the tire pressure (about 1 psi (7kPa) for every
12°F (7°C) change). If colder temperatures are anticipated, it is permissible to
increase cold tire inflation pressure by up to 3 psi (20 kPa) over the specification.
If extreme temperature changes are expected, be sure to check and adjust tire
pressure accordingly.
ś Tire inflation pressure decreases with higher elevation, and increases with lower
elevation (about 2.4 psi (10 kPa) for every mile (or kilometer) elevation change).
Be sure to check and adjust tire pressure accordingly when driving through
changing elevations.
ś Do not exceed the maximum inflation pressure, as found on the sidewall of the
tire(s).
CAUTION
ś When replacing tires, use the same size originally supplied with the vehicle.
Using tires of a different size can damage the related parts or not work properly.
ś When replacing tires, ALWAYS use the same size, type, construction and tread
pattern supplied with the vehicle for all tires.
2-10
02
AIR CONDITIONING SYSTEM
Items
Weight of volume
Classification
Refrigerant
21.16 (600) ± 0.88 (25)
R-1234yf
oz. (g)
Compressor lubricant
3.5273 (100) ± 0.35 (10)
PAG
oz. (g)
Contact an authorized HYUNDAI dealer for more details.
GROSS VEHICLE WEIGHT
Smartstream G2.5 GDI
Smartstream G2.5 T-GDI
Items
2WD
AWD
AWD
Gross vehicle weight
5,456
5,610
5,732
(2,475)
(2,545)
(2,600)
lbs. (kg)
2-11
Vehicle Information, Consumer Information and Reporting Safety Defects
RECOMMENDED LUBRICANTS AND CAPACITIES
To help achieve proper engine and powertrain performance and durability, use only
lubricants of the proper quality. The correct lubricants also help promote engine
efficiency that results in improved fuel economy.
These lubricants and fluids are recommended for use in your vehicle.
Lubricant
Volume
Classification
Engine oil *1
Smartstream
SAE 0W-20, API SN PLUS/SP or
(drain and refill)
2
G2.5 GDI
ILSAC GF-6 *
Recommends
6.13 US qt.
Ţ
Smartstream
SAE 0W-30, API SN PLUS/SP or
G2.5 T-GDI
ILSAC GF-6 *2
SK ATF SP4M-1, MICHANG ATF
6.87 US qt.
Automatic transmission fluid
SP4M-1, S-OIL ATF SP4M-1,
Ţ
Hyundai Genuine ATF SP4M-1
3.4 ~ 3.6
Gear oil
US qt.
GS WDCTF HD G (GS CALTEX)
Dual clutch
Smartstream
(3.3 ~ 3
Ţ
transmission
G2.5 T-GDI
2.58 ~ 2.64
fluid
Control
US qt.
GS WDCTF HD H (GS CALTEX)
oil
(2.45 ~ 2.50 Ţ
Smartstream
10.00 US qt.
MIXTURE, Antifreeze with water
G2.5 GDI
Ţ
Coolant
(Ethylene glycol base coolant for
Smartstream
9.12 US qt.
aluminum radiator)
G2.5 T-GDI
Ţ
SAE J1704 DOT-4 LV, FMVSS 116
Brake fluid
As required
DOT-4, ISO4925 CLASS-6
0.56 ~ 0.67
Rear differential oil (AWD)
US qt.
a
Ţ)
0.66 ~ 0.72
HYPOID GEAR OIL API GL-5, SAE
Smartstream
US qt.
75W/85 (SK HCT-5 GEAR OIL
G2.5 GDI
Transfer case
a
Ţ
75W/85 or EQUIVALENT)
oil (AWD)
0.51 ~ 0.55
Smartstream
US qt.
G2.5 T-GDI
a
Ţ
17.69 US gal
Refer to “Fuel requirements”
Fuel
Ţ
in chapter 1.
*1 : Refer to the recommended SAE viscosity numbers.
*2 : Requires < API SN PLUS(or above) Full synthetic> grade engine oil. If a lower grade
engine oil (mineral oil including Semi-synthetic) is used, then the engine oil and engine
oil filter must be replaced as indicated severe maintenance condition.
2-12
02
Recommended SAE Viscosity Number
NOTICE
ś Always be sure to clean the area around any filler plug, drain plug, or dipstick
before checking or draining any lubricant. This is especially important in dusty or
sandy areas and when the vehicle is used on unpaved roads. Cleaning the plug
and dipstick areas will prevent dirt and grit from entering the engine and other
mechanisms that could be damaged.
ś Never add any additives to the engine oil. Engine oil additives can change the
properties of engine oil and may cause serious engine failure.
Engine oil viscosity (thickness) has an effect on fuel economy and cold weather
operating (engine start and engine oil flowability). Lower viscosity engine oils can
provide better fuel economy and cold weather performance, however, higher viscosity
engine oils are required for satisfactory lubrication in hot weather. Using oils of any
viscosity other than those recommended could result in engine damage.
When choosing an oil, consider the range of temperature your vehicle will be operated
in before the next oil change. Proceed to select the recommended oil viscosity from
the chart.
Temperature Range for SAE Viscosity Numbers
°C
-30
-20
-10
0
10
20
30
40
50
Temperature
(°F)
-10
0
20
40
60
80
100
120
Smartstream
0W-20
G2.5 GDI
Engine Oil *1
Smartstream
0W-30
G2.5 T-GDI
*1 : Requires <API SN PLUS (or above) Full synthetic> grade engine oil. If a lower grade
engine oil (mineral oil including Semi-synthetic) is used, then the engine oil and engine
oil filter must be replaced as indicated for severe maintenance condition.
An engine oil displaying this API Certification Mark conforms to
the international Lubricant Specification Advisory Committee
(ILSAC). It is recommended to only use engine oils that uphold
this API Certification Mark.
2-13
Vehicle Information, Consumer Information and Reporting Safety Defects

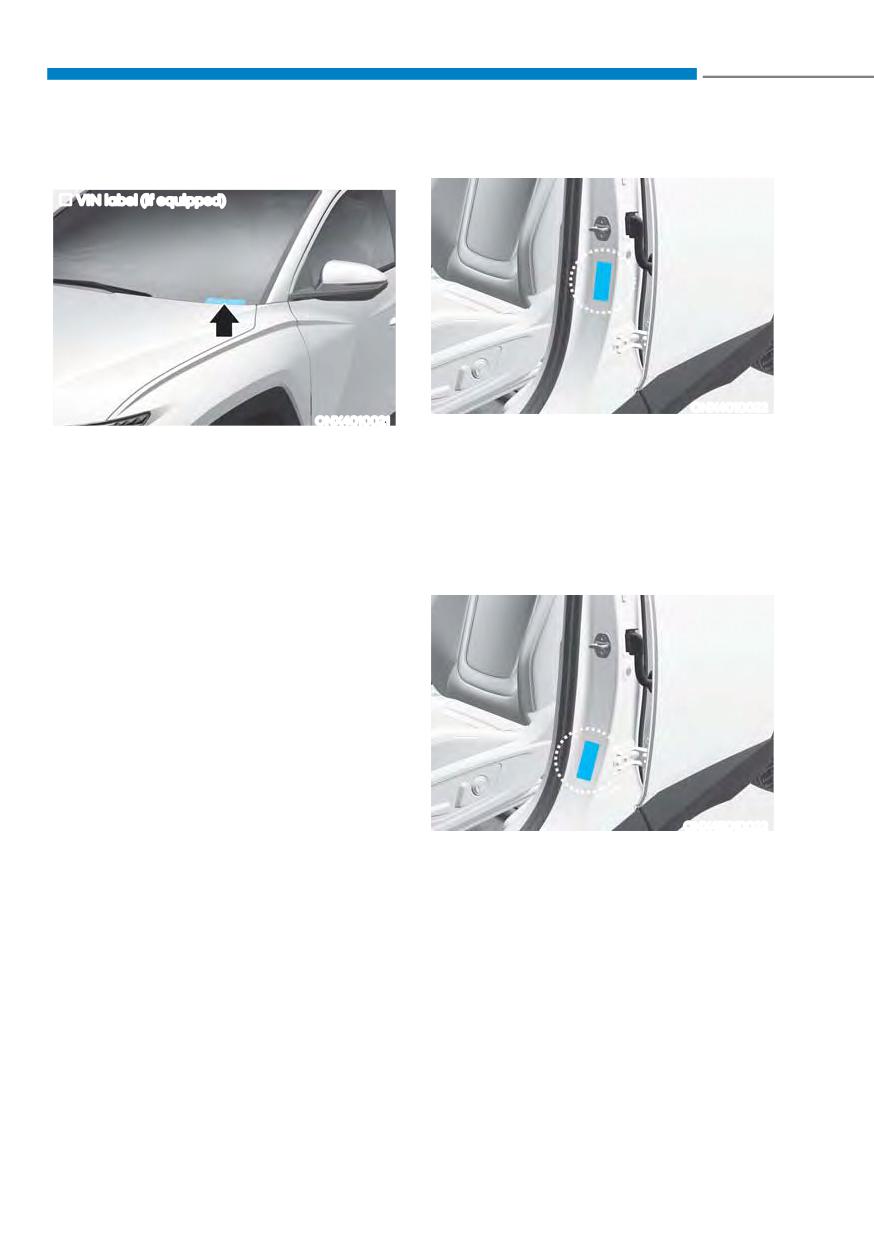

VEHICLE IDENTIFICATION
VEHICLE CERTIFICATION
180%(5 ǣ9,1Ǥ
LABEL
„ VIN label (if equipped)
ONX4010022
ONX4010021
The vehicle certification label attached
The VIN is also on a plate attached to
on the driver’s (or front passenger’s)
the top of the left side dashboard. The
side center pillar gives the vehicle
number on the plate can easily be seen
identification number (VIN).
through the windshield from outside.
TIRE SPECIFICATION AND
PRESSURE LABEL
ONX4E010022
The tires supplied on your new
vehicle are chosen to provide the best
performance for normal driving.
The tire label located on the driver’s
side center pillar gives the tire pressures
recommended for your vehicle.
2-14
02

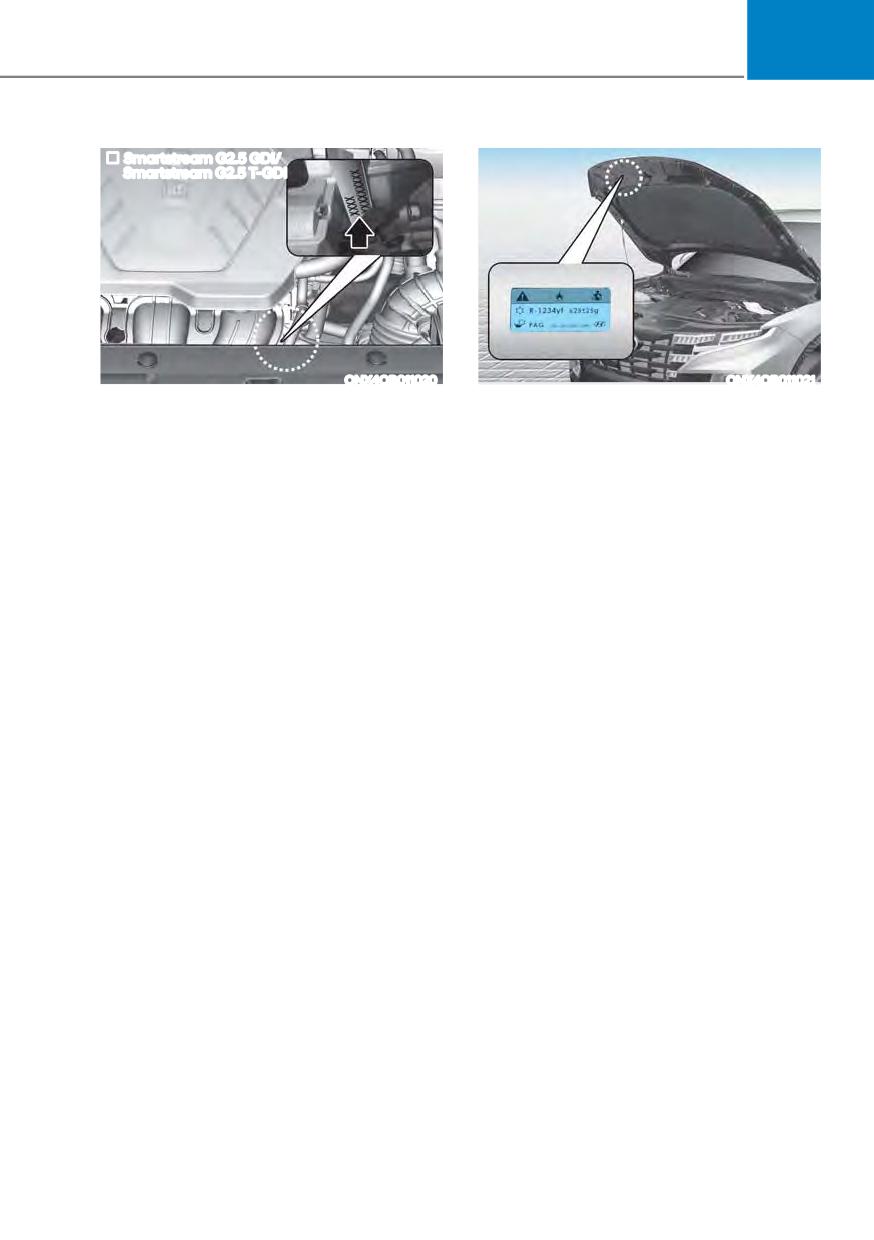

ENGINE NUMBER
REFRIGERANT LABEL
„ Smartstream G2.5 GDI/
Smartstream G2.5 T-GDI
ONX4OB011020
ONX4OB011021
The engine number is stamped on the
The refrigerant label provides
engine block as shown in the drawing.
information such as refrigerant type and
amount. (R-1234yf)
2-15
Vehicle Information, Consumer Information and Reporting Safety Defects
CONSUMER INFORMATION
This consumer information has been prepared in accordance with regulations issued
by the National Highway Traffic Safety Administration of the U.S. Department of
Transportation. Your HYUNDAI dealer will help answer any questions you may have as
you read this information.
HYUNDAI motor vehicles are designed and manufactured to meet or exceed all
applicable safety standards.
For your safety, however, we strongly urge you to read and follow all directions in
this Owner’s Manual, particularly the information under the headings “NOTICE”,
CAUTION” and “WARNING”.
If, after reading this manual, you have any questions regarding the operation of your
vehicle, please contact the Hyundai Customer Care Center:
Hyundai Customer Care
P.O. Box 20850
Fountain Valley, CA 92728
800-633-5151
consumeraffairs@hmausa.com
Hyundai’s Customer Care Center representatives are available Monday through Friday,
between the hours of 6:00 AM and 5:00 PM PST
and Saturday between 6:30 AM and 3:00 PM PST (English).
For Customer Care assistance in Spanish or Korean, representatives are available
Monday through Friday between 6:30 AM and 3:00 PM PST.
2-16
02
REPORTING SAFETY DEFECTS
If you believe that your vehicle has a defect which could cause a crash or
could cause injury or death, you should immediately inform the National
Highway Traffic Safety Administration (NHTSA) in addition to notifying
HYUNDAI MOTOR AMERICA.
To contact NHTSA, you may call the Vehicle Safety Hotline toll-free at 1-888-
327-4236 (TTY: 1-800-424-9153);
download the SaferCar mobile application;
or write to: Administrator, NHTSA
1200 New Jersey Ave, SE,
West Building Washington, D.C. 20590.
You can also obtain other information about motor vehicle safety from
If NHTSA receives similar complaints, it may open an investigation, and if it
finds that a safety defect exists in a group of vehicles, it may order a recall and
remedy campaign. However, NHTSA cannot become involved in individual
problems between you, your dealer, or HYUNDAI MOTOR AMERICA.
2-17
3. Seats & Safety System
This chapter provides you with important information about how to protect yourself and your
passengers. It explains how to properly use your seats and seat belts, and how your air bags work.
Additionally, this chapter explains how to properly restrain infants and children in your vehicle.
Important Safety Precautions
3-2
Always Wear Your Seat Belt
3-2
Restrain All Children
3-2
Air Bag Hazards
3-2
Driver Distraction
3-2
Control Your Speed
3-2
Keep Your Vehicle In Safe Condition
3-2

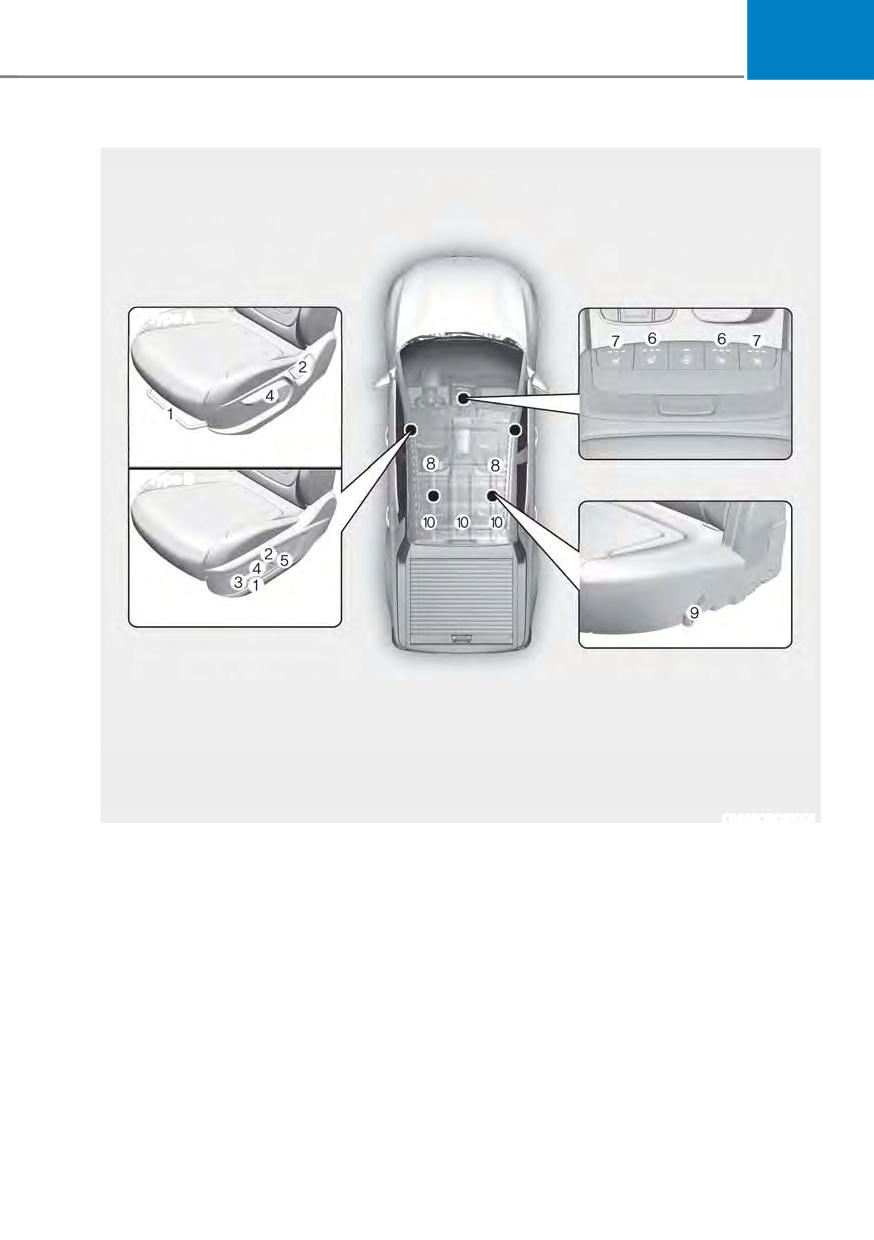

Seats
3-3
Safety Precautions
3-4
Front Seats
3-5
3
Rear Seats
3-11

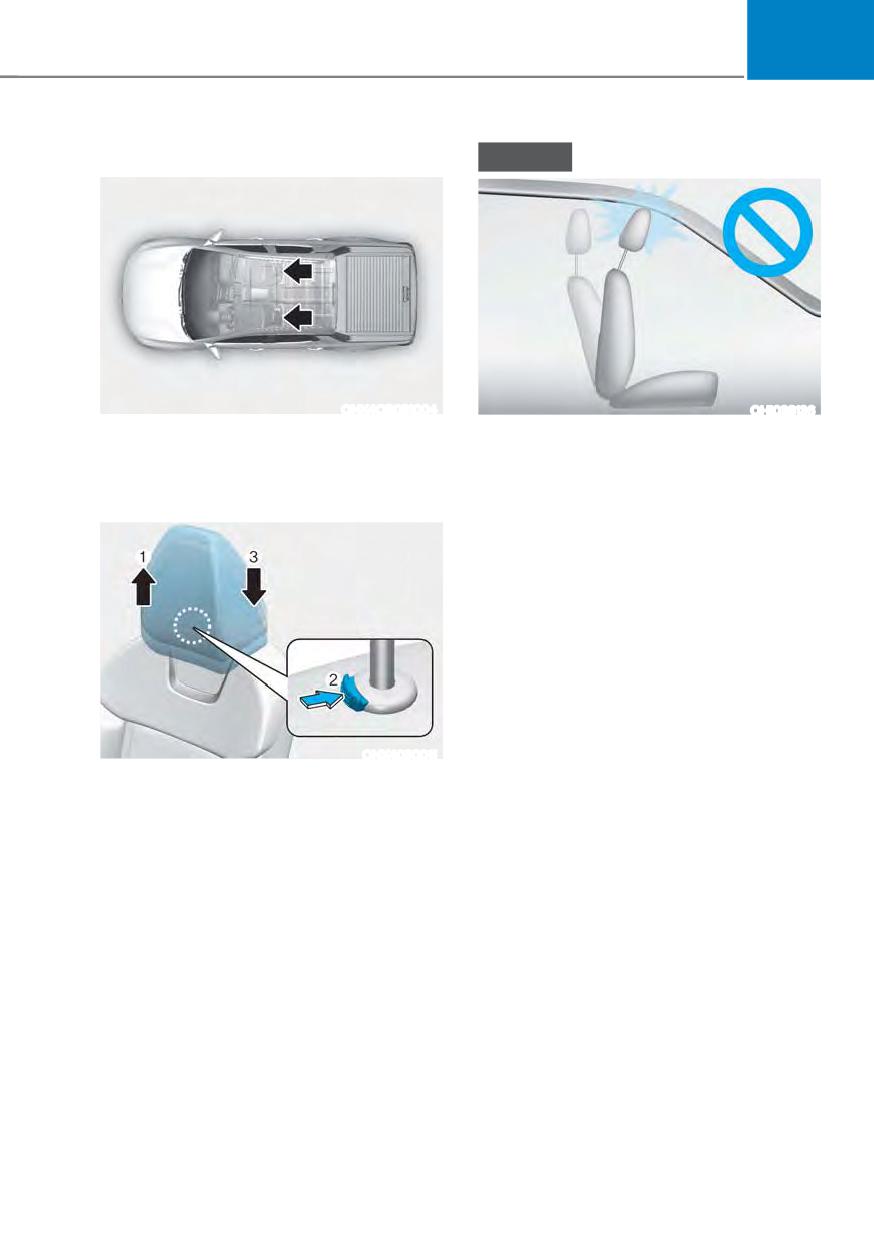

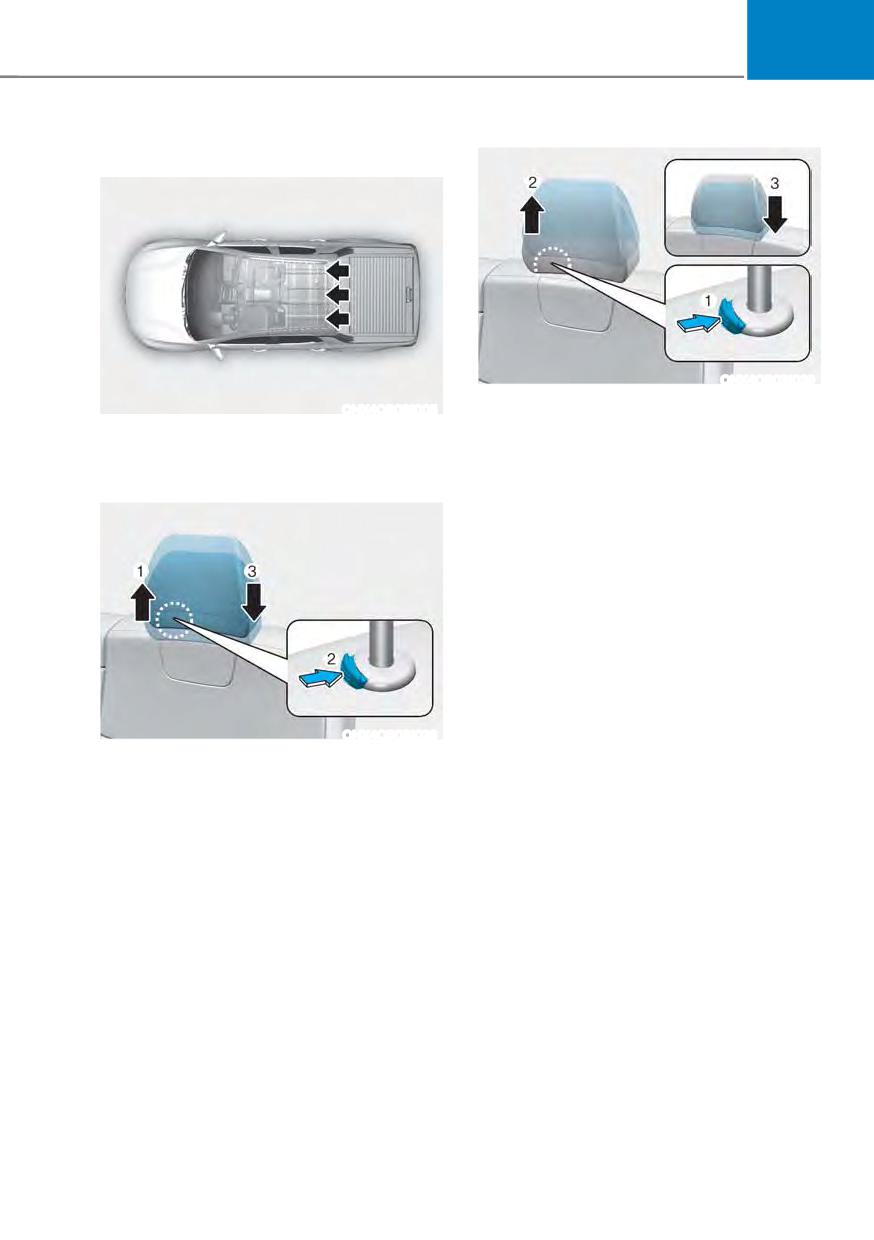

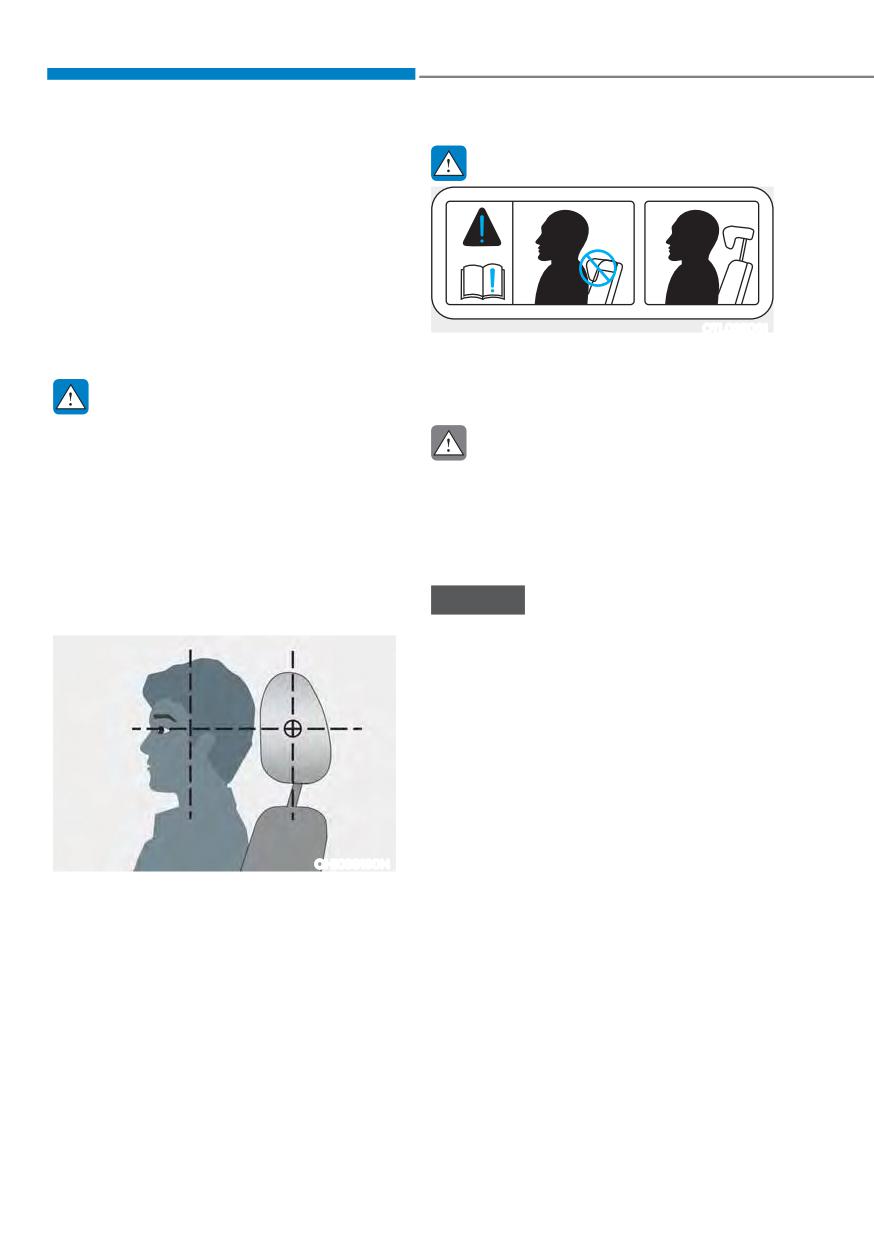

Head Restraints
3-12

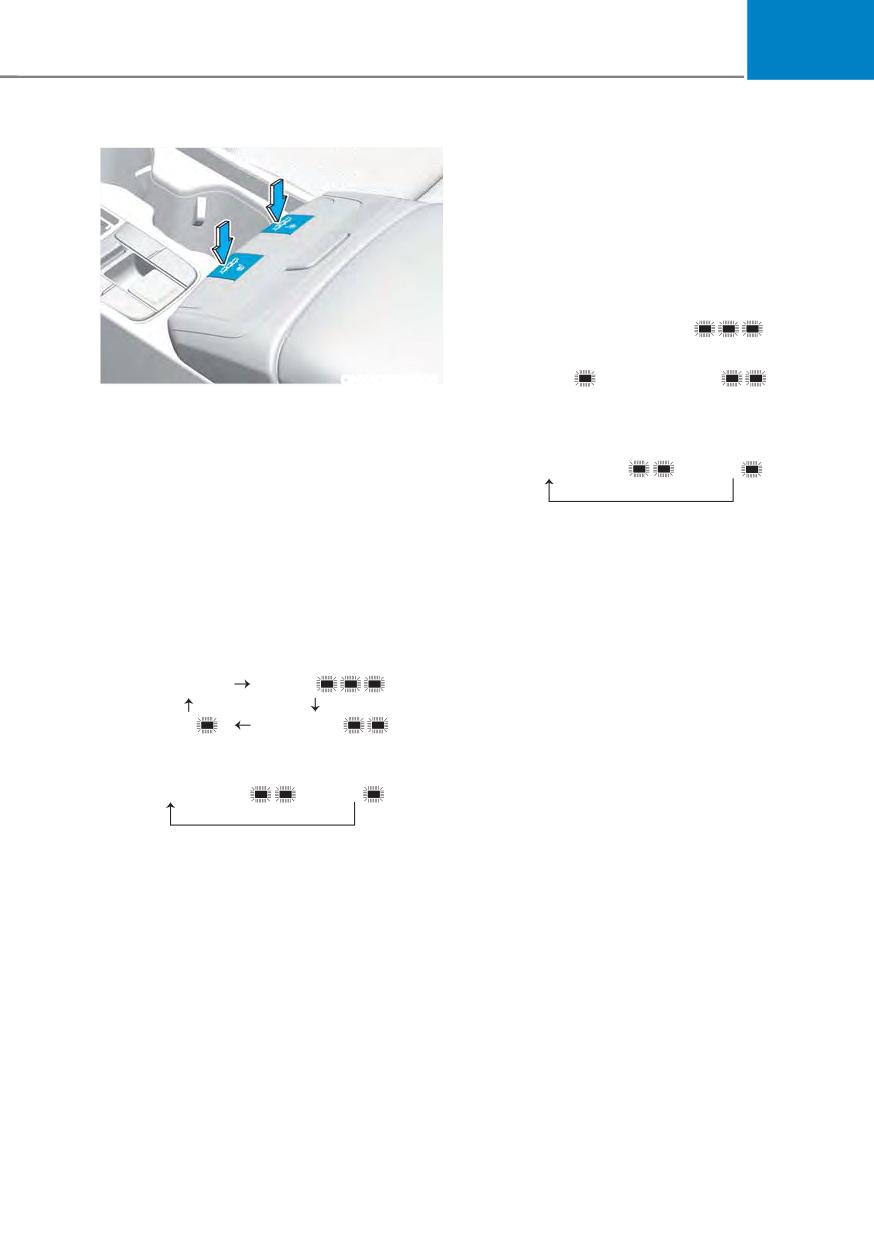

Seat Warmers
3-16
Air Ventilation Seat
3-18
Seat Belts
3-20
Seat Belt Safety Precautions
3-20

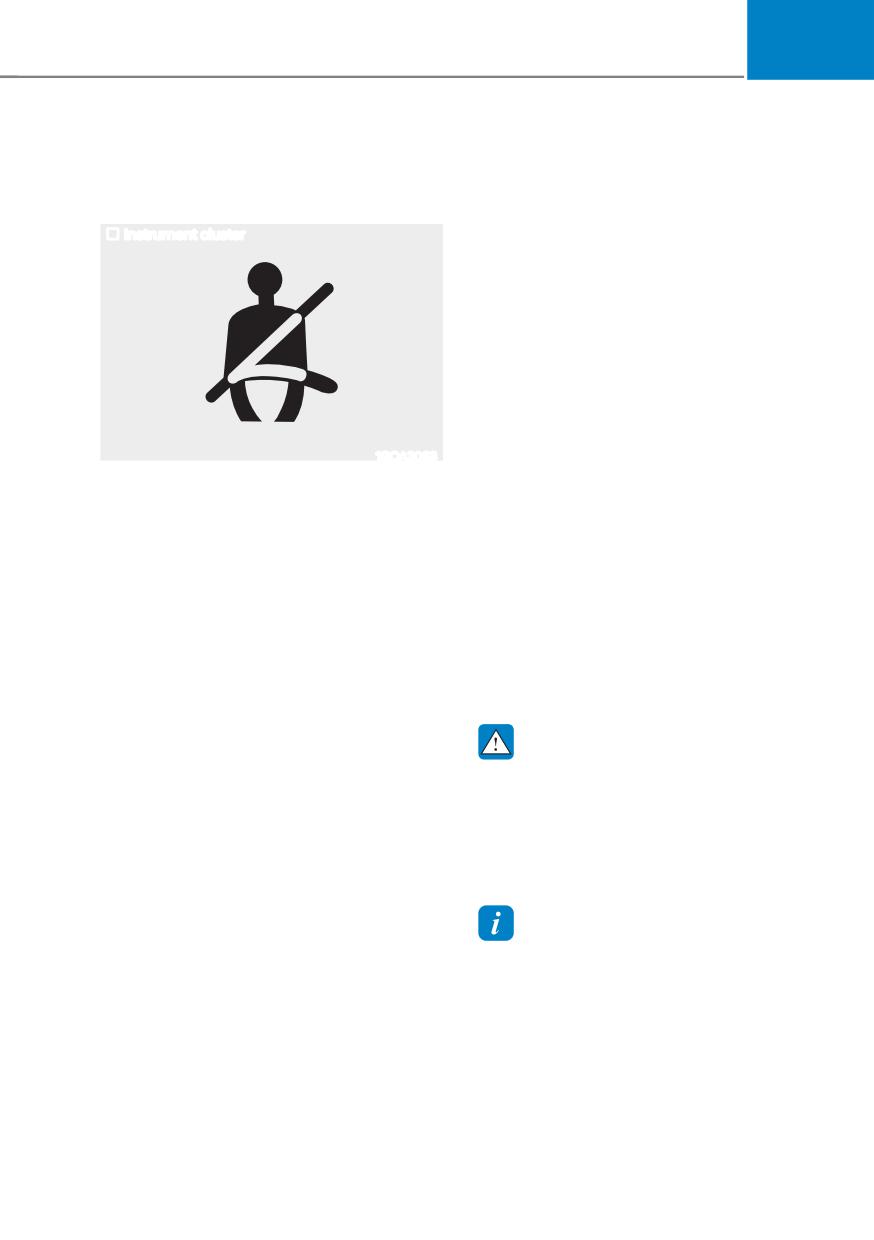

Seat Belt Warning Light
3-21

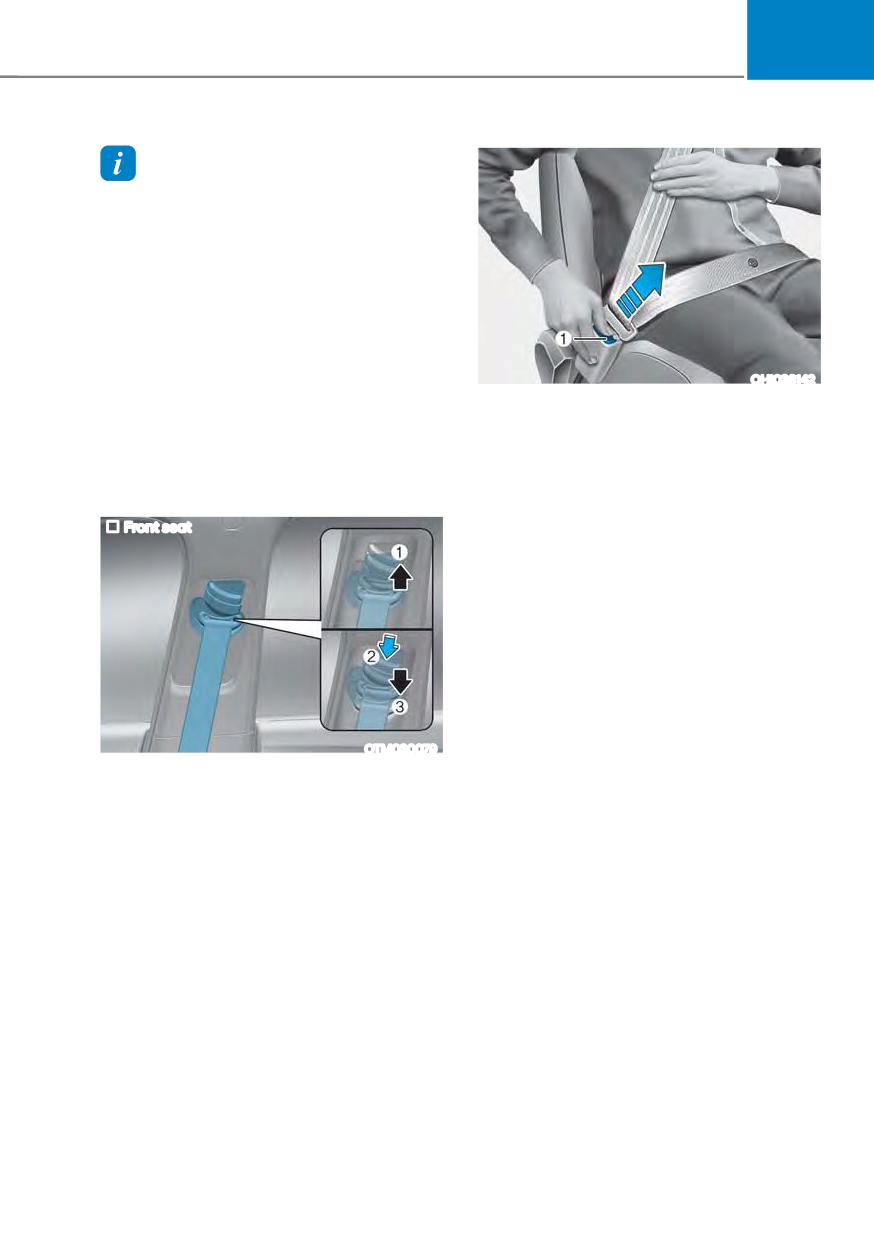

Seat Belt Restraint System
3-22
Additional Seat Belt Safety Precautions
3-28
Care of Seat Belts
3-30
Child Restraint System (CRS)
3-31
Children Always in the Rear
3-31
Selecting a Child Restraint System (CRS)
3-32
Installing a Child Restraint System (CRS)
3-34
Air Bag - Supplemental Restraint System
3-42

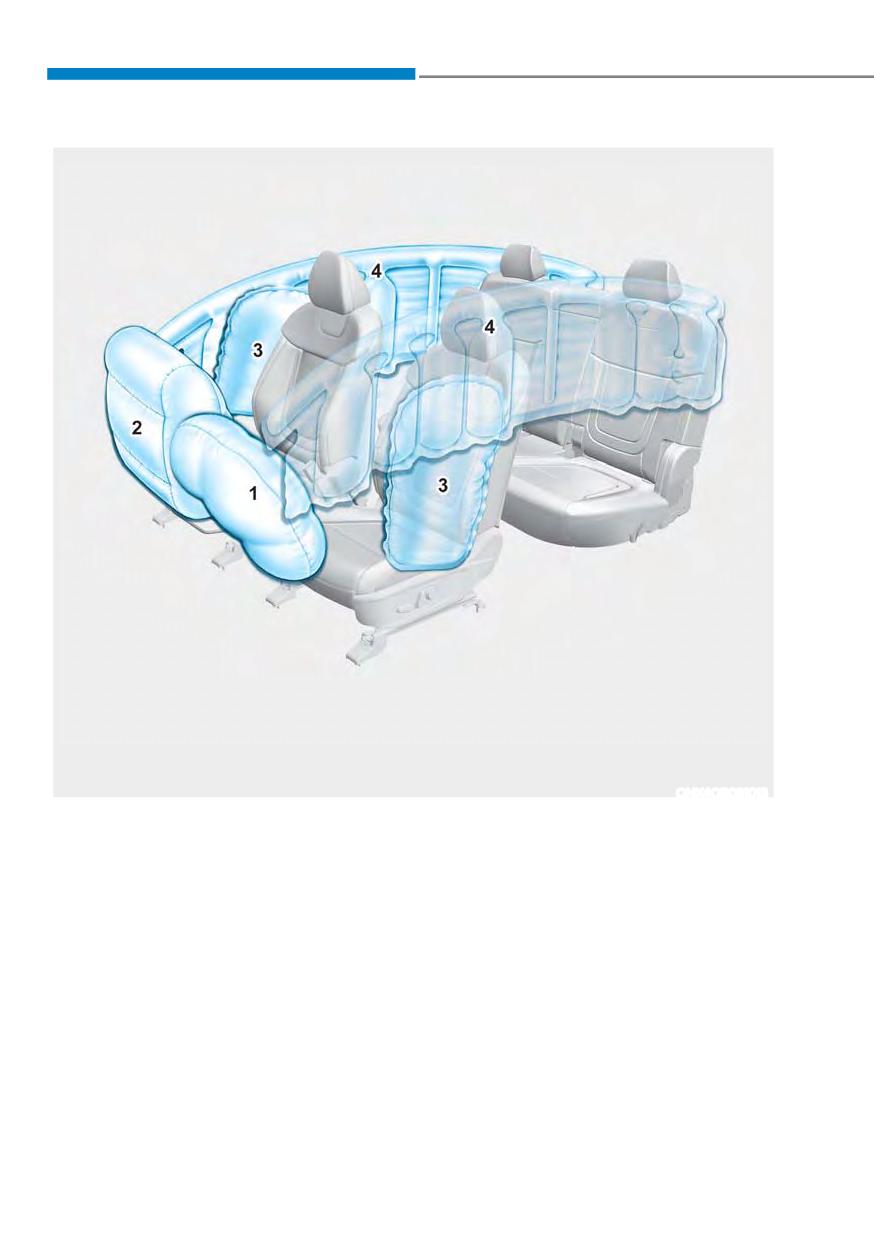

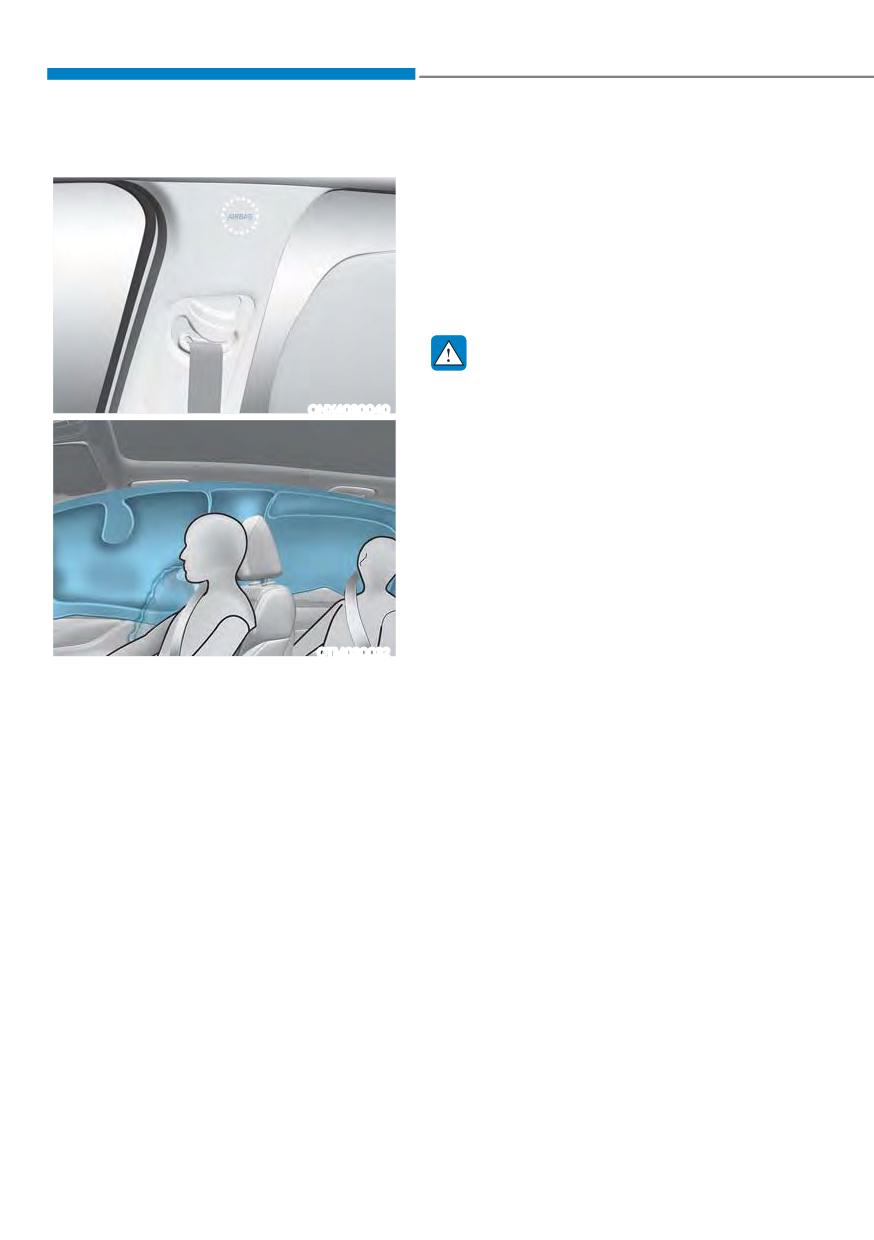

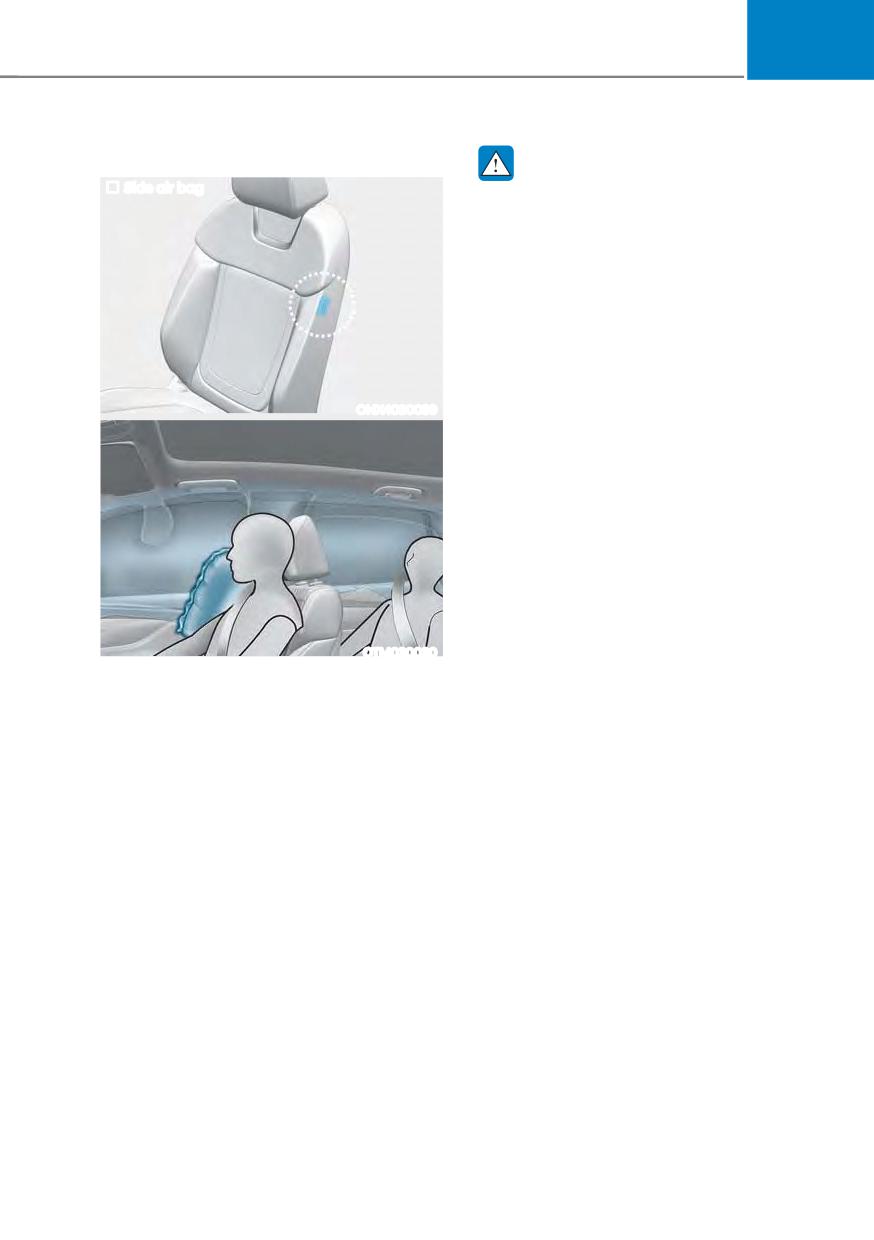

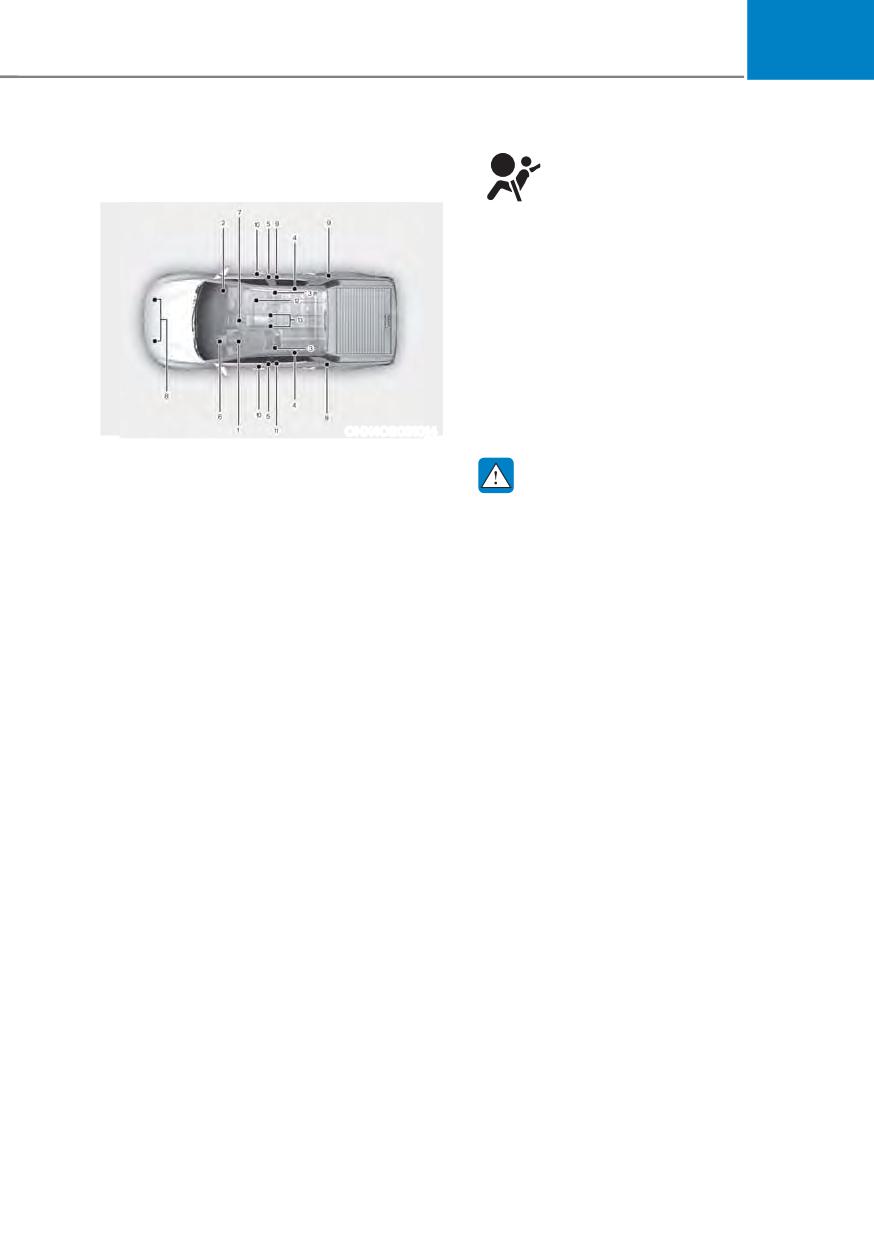

Where are the Air Bags?
3-44
How does the SRS Air Bag System Operate?
3-47
What to expect after an air bag inflates
3-50
Occupant Classification System (OCS)
3-51
Why didn’t my air bag go off in a collision?
3-57
SRS Care
3-62
Additional Safety Precautions
3-63

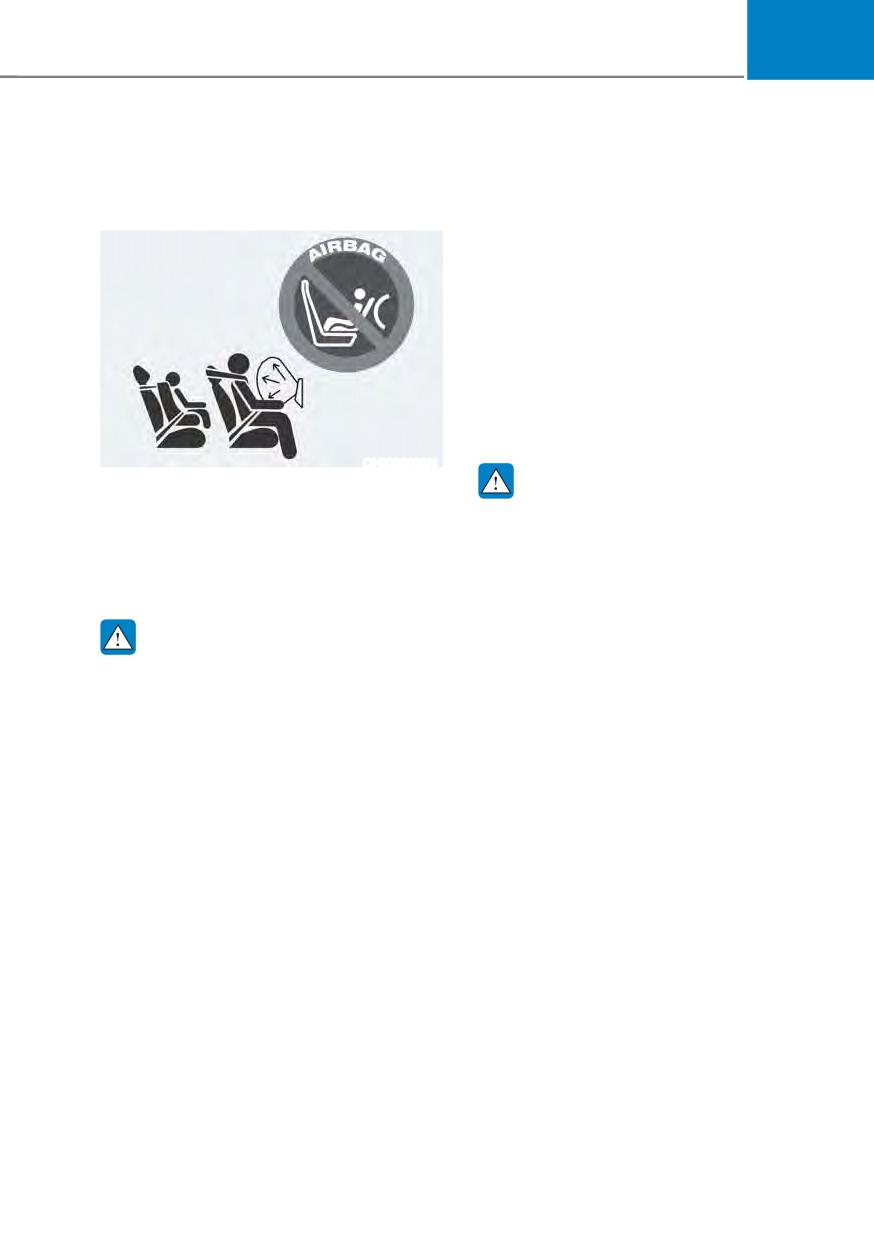

Air Bag Warning Labels
3-63
Seats & Safety System
IMPORTANT SAFETY PRECAUTIONS
You will find many safety precautions
Drivers can become distracted when
and recommendations throughout this
they take their eyes and attention off
section, and throughout this manual.
the road or their hands off the wheel to
The safety precautions in this section are
focus on activities other than driving.
among the most important.
To reduce your risk of distraction and an
accident:
Always Wear Your Seat Belt
ś Set up your mobile devices (for
A seat belt is your best protection in all
example, MP3 players, phones,
types of accidents. Air bags are designed
navigation units, etc.) ONLY when
to supplement seat belts, not to replace
your vehicle is parked or safely
them. So even though your vehicle is
stopped.
equipped with air bags, ALWAYS make
ś ONLY use your mobile device when
sure you and your passengers wear your
allowed by laws and conditions permit
seat belts, and wear them properly.
safe use. NEVER text or email while
driving. Most countries have laws
Restrain All Children
prohibiting drivers from texting. Some
countries and cities also prohibit
All children under age 13 should ride
drivers from using handheld phones.
in your vehicle properly restrained in a
rear seat, not the front seat. Infants and
ś NEVER let the use of a mobile device
small children should be restrained in
distract you from driving. You have a
an appropriate Child Restraint System.
responsibility to your passengers and
Larger children should use a booster
others on the road to always drive
seat with the lap/shoulder belt until they
safely, with your hands on the wheel
can use the seat belt properly without a
as well as your eyes and attention on
booster seat.
the road.
Air Bag Hazards
Control Your Speed
While air bags can save lives, they can
Excessive speed is a major factor in crash
also cause serious or fatal injuries to
injuries and deaths. Generally, the higher
occupants who sit too close to them, or
the speed, the greater the risk, but
who are not properly restrained. Infants,
serious injuries can also occur at lower
young children, and short adults are at
speeds. Never drive faster than is safe
the greatest risk of being injured by an
for current conditions, regardless of the
inflating air bag. Follow all instructions
maximum speed posted.
and warnings in this manual.
Keep Your Vehicle In Safe
Driver Distraction
Condition
Driver distraction presents a serious and
Having a tire blowout or a mechanical
potentially deadly danger, especially for
failure can be extremely hazardous. To
inexperienced drivers. Safety should be
reduce the possibility of such problems,
the first concern when behind the wheel
check your tire pressures and condition
and drivers need to be aware of the wide
frequently, and perform all regularly
array of potential distractions, such as
scheduled maintenance.
drowsiness, reaching for objects, eating,
personal grooming, other passengers,
and using mobile phones.
3-2
03
SEATS
„ Type A
„ Type B
The information provided may differ depending on which functions are
applicable to your vehicle.
ONX4OB031001
Front seat
Rear seats
(1) Forward and rearward
(9) Seat cushion strap
(2) Seatback angle
(10) Head restraint
(3) Seat cushion angle*
(4) Seat cushion height
*: if equipped
(5) Lumbar support (Driver’s seat)*
(6) Seat warmer*
(7) Air ventilation seat*
(8) Head restraint
3-3
Seats & Safety System

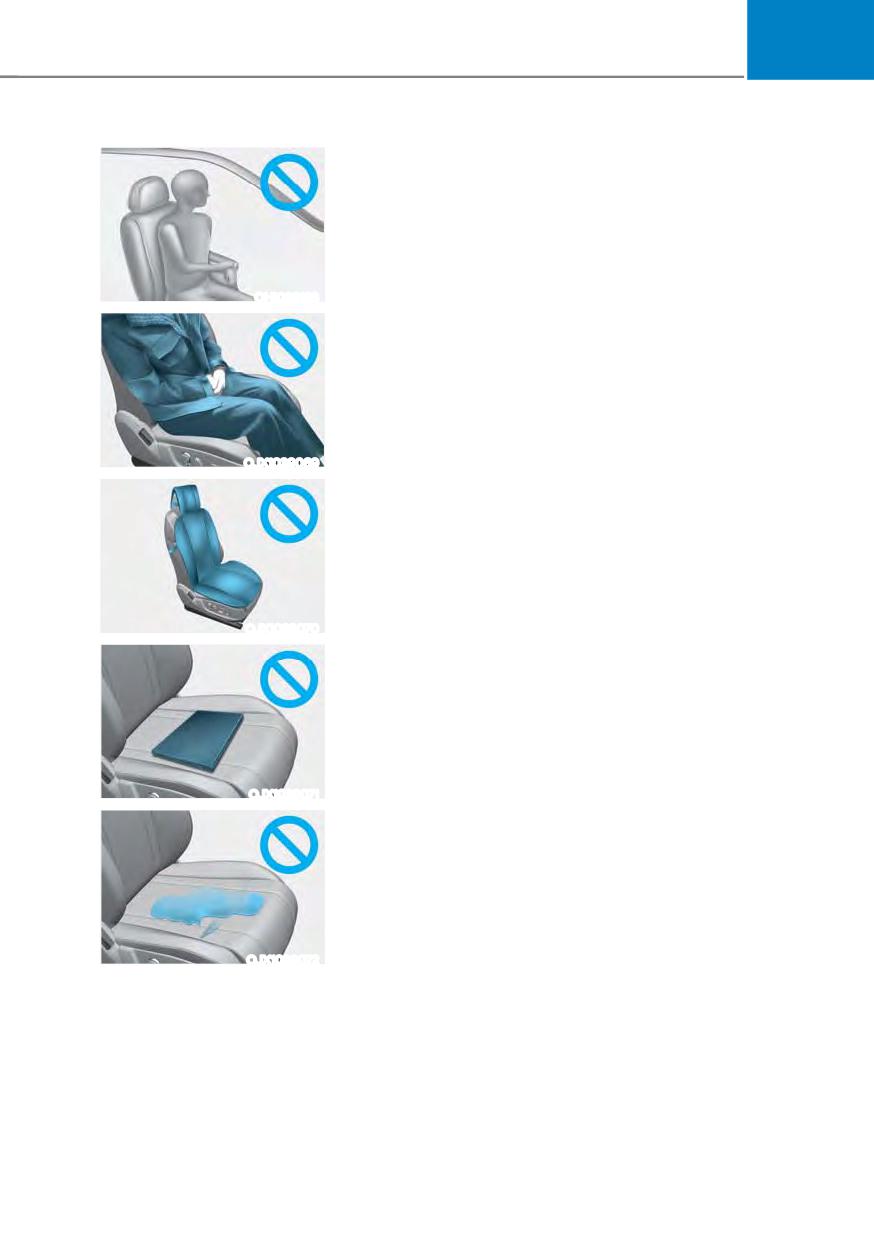

Safety Precautions
WARNING
Adjusting the seats so that you are sitting
To reduce the risk of serious injury or
in a safe and comfortable position plays
death from an inflating air bag, take the
an important role for the safety of the
following precautions:
driver and passengers, as much as seat
ś Adjust the driver’s seat as far to the
belts and air bags when in an accident.
rear as possible while maintaining
the ability to control the vehicle.
WARNING
ś Adjust the front passenger seat as far
Do not use a cushion that reduces
to the rear as possible.
friction between the seat and the
ś Hold the steering wheel by the rim
passenger. The passenger’s hips may
with your hands at the 9 o’clock and
slide under the lap portion of the seat
3 o’clock positions to minimize the
belt during an accident or a sudden
risk of injuries to your hands and
stop.
arms.
Serious or fatal internal injuries could
ś NEVER place anything or anyone
result because the seat belt cannot
between you and the air bag.
operate properly.
ś Do not allow the front passenger to
place feet or legs on the dashboard

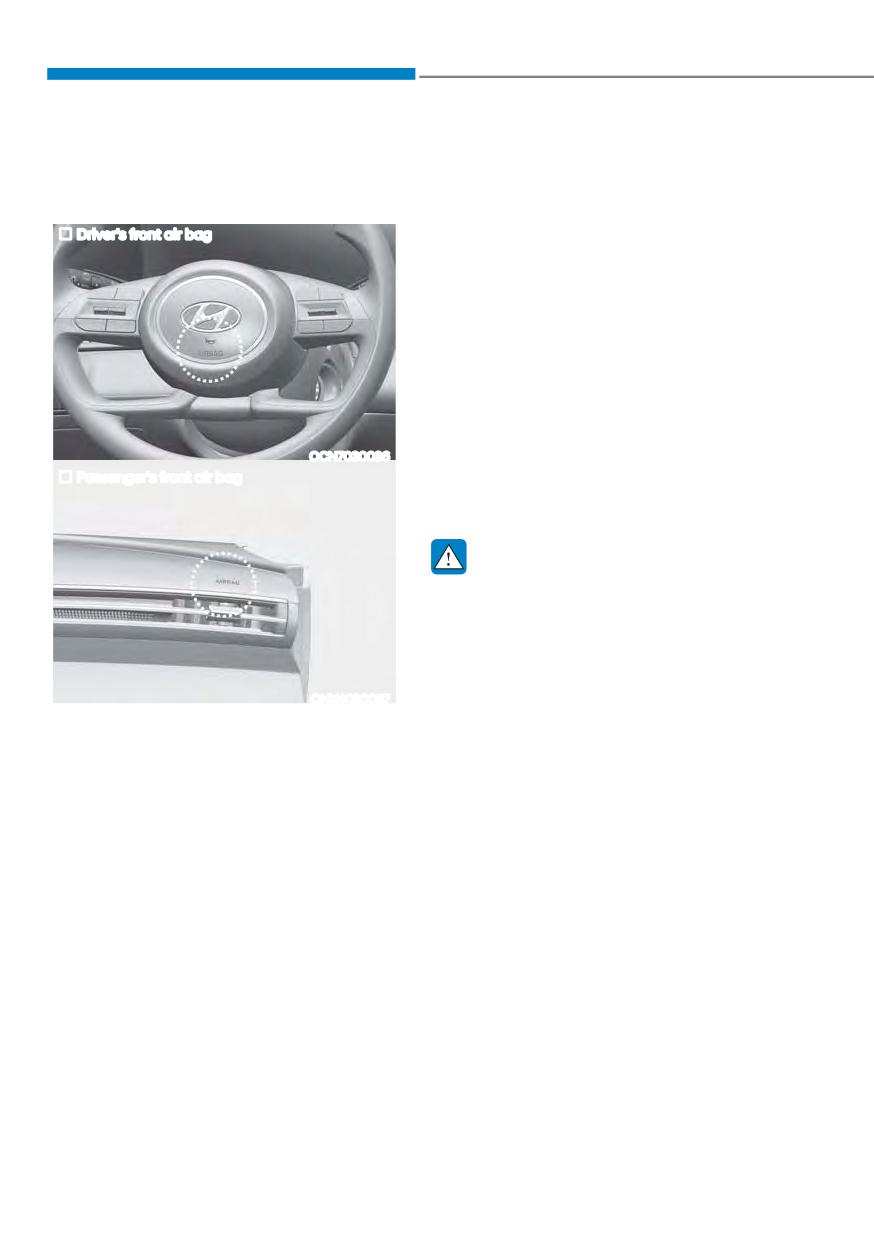

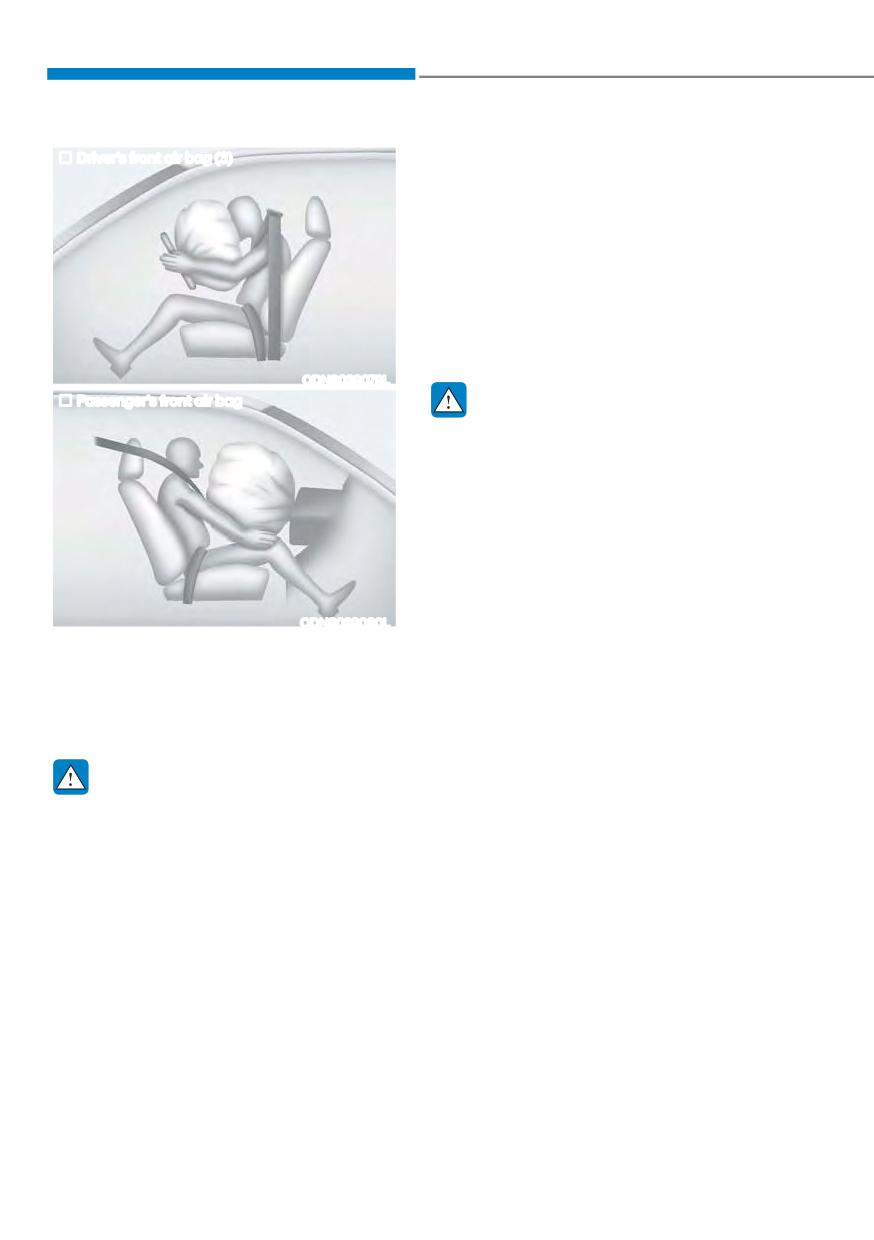

Air bags
to minimize the risk of leg injuries.
You can take steps to reduce the risk
of being injured by an inflating air bag.
Seat belts
Sitting too close to an air bag greatly
Always fasten your seat belt before
increases the risk of injury in the event
starting any trip. At all times, passengers
the air bag inflates.
should sit upright and be properly
The National Highway Traffic Safety
restrained. Infants and small children
Administration (NHTSA) recommends

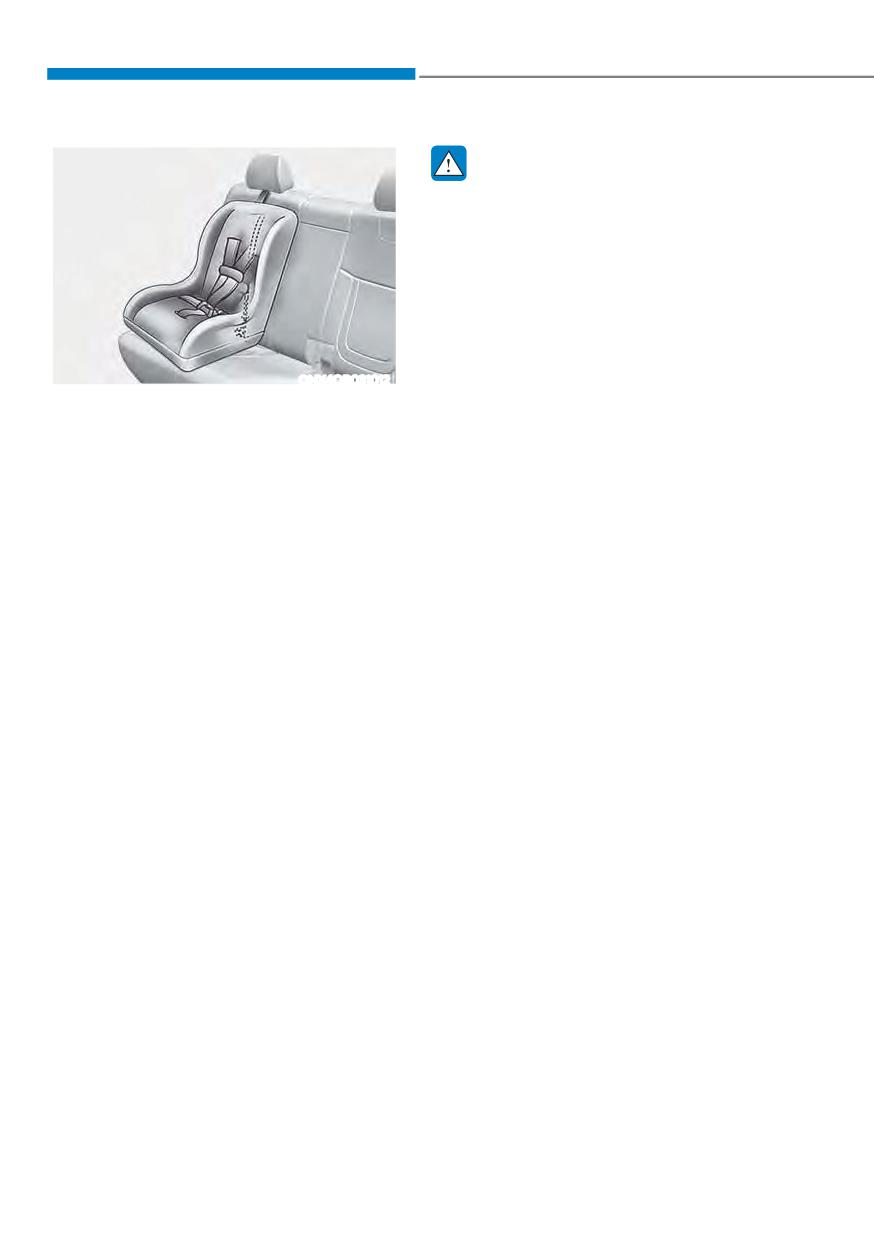

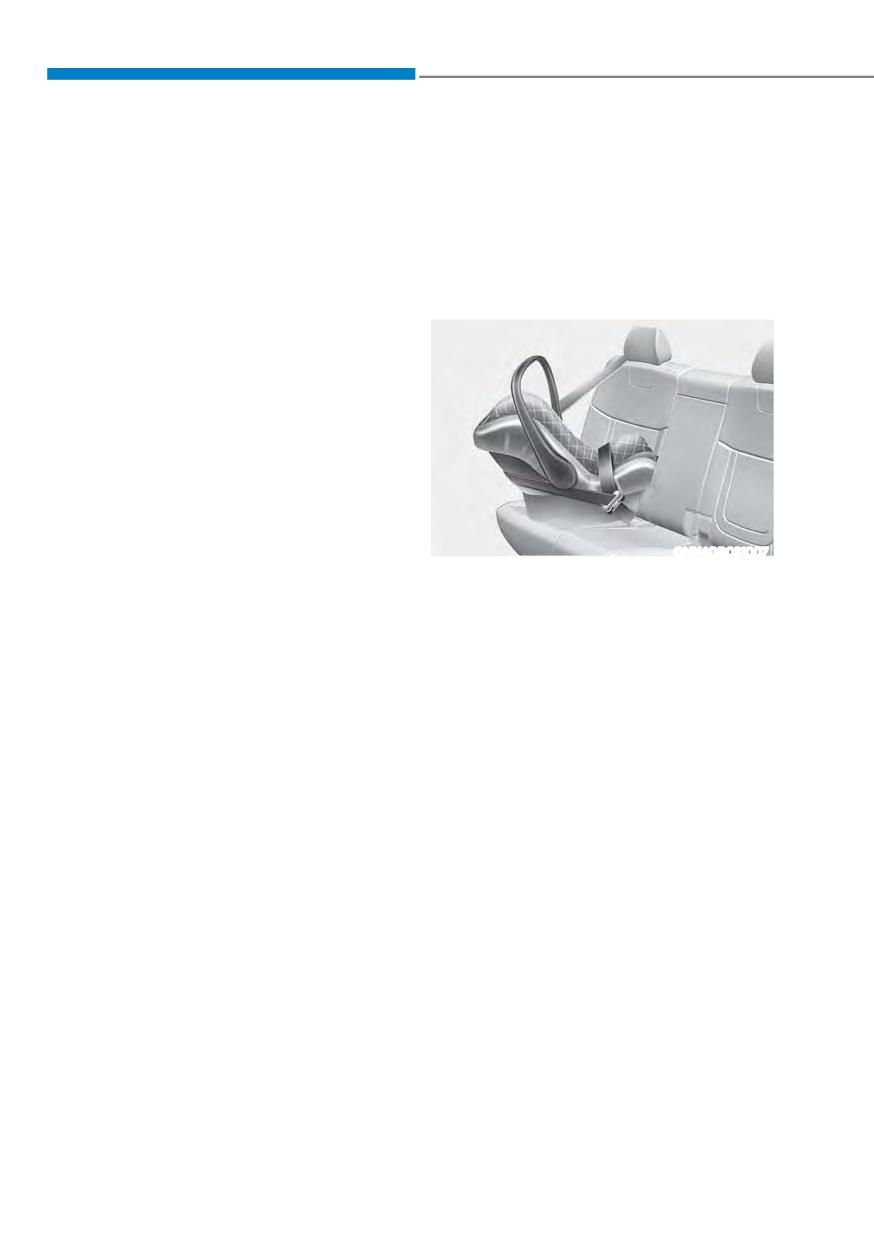

must be restrained in appropriate Child
that drivers allow at least 10 inches
Restraint Systems. Children who have
(25cm) between the center of the
outgrown a booster seat and adults must
steering wheel and their chest.
be restrained using the seat belts.

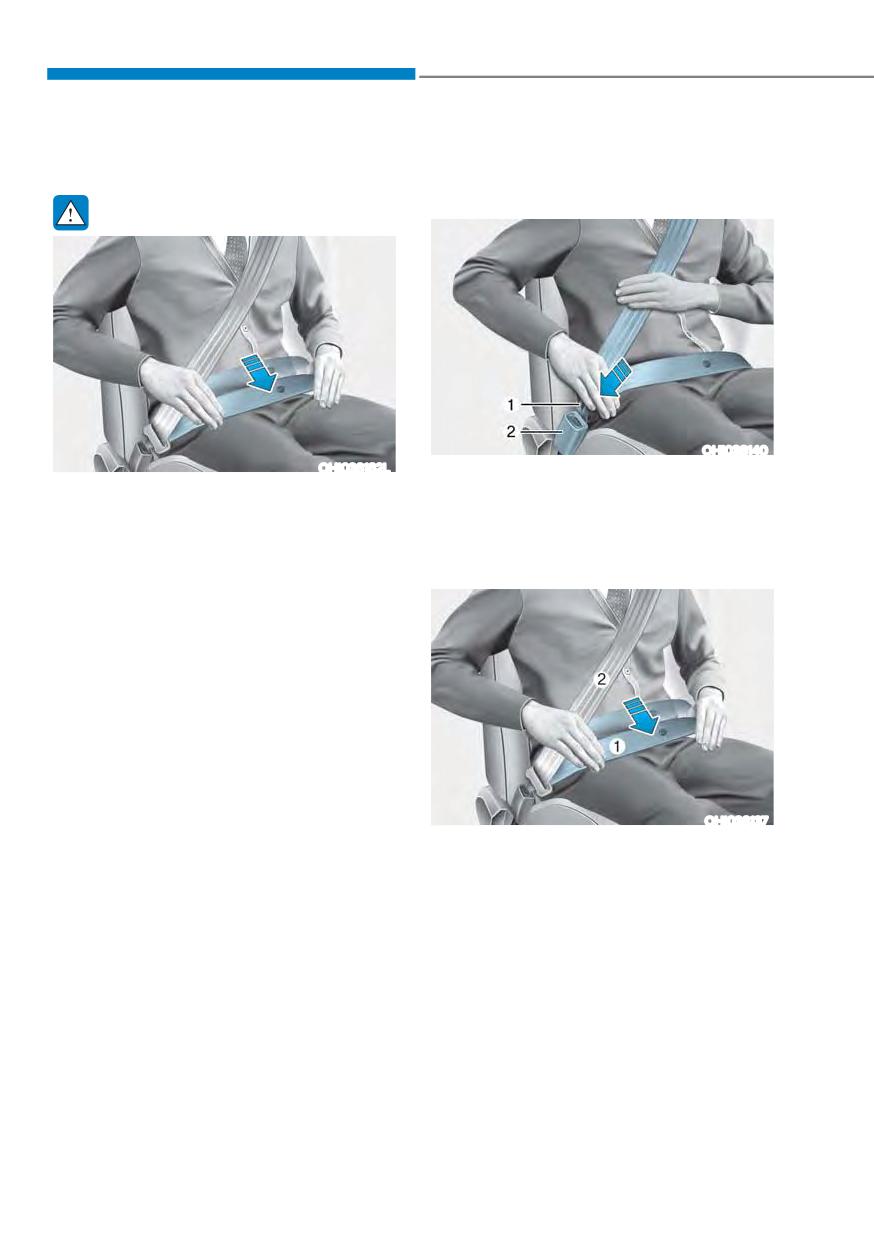

WARNING
Take the following precautions when
adjusting your seat belt:
ś NEVER use one seat belt for more
than one occupant.
ś Always position the seatback upright
with the lap portion of the seat belt
snug and low across the hips.
ś NEVER allow children or small infants
to ride on a passenger’s lap.
ś Do not route the seat belt across your
neck, across sharp edges, or reroute
the shoulder strap away from your
body.
ś Do not allow the seat belt to become
caught or jammed.
3-4
03
Front Seats
CAUTION
To prevent injury:
WARNING
ś Do not adjust your seat while
Take the following precautions when
wearing your seat belt. Moving the
adjusting your seat:
seat cushion forward may cause
strong pressure on your abdomen.
ś
NEVER attempt to adjust the seat
while the vehicle is moving. The seat
ś Do not allow your hands or fingers to
could respond with unexpected
get caught in the seat mechanisms
movement and may cause loss
while the seat is moving.
of vehicle control resulting in an
accident.
ś
Do not place anything under the
front seats. Loose objects in the
driver’s foot area could interfere
with the operation of the foot pedals,
causing an accident.
ś
Do not allow anything to interfere
with the normal position and proper
locking of the seatback.
ś
Do not place a cigarette lighter on
the floor or seat. When you operate
the seat, gas may exit out of the
lighter causing a fire.
ś
Use extreme caution when picking
up small objects trapped under the
seats or between the seat and the
center console. Your hands might be
cut or injured by the sharp edges of
the seat mechanism.
ś
If there are occupants in the rear
seats, be careful while adjusting the
front seat position.
ś
Make sure that the seat is locked in
place after the adjustment. If not,
the seat might move unexpectedly
resulting in an accident.
3-5
Seats & Safety System
Manual adjustment
The front seat can be adjusted by using
the levers located underneath the seat
cushion. Before driving, adjust the seat
to the proper position so that you can
easily control the steering wheel, foot
pedals and controls on the instrument
panel.
ONX4030003
Seatback angle
To recline the seatback:
1. Lean forward slightly and lift up the
seatback lever.
2. Carefully lean back on the seat and
adjust the seatback to the position
you desire.
ONX4030002
3. Release the knob and make sure the

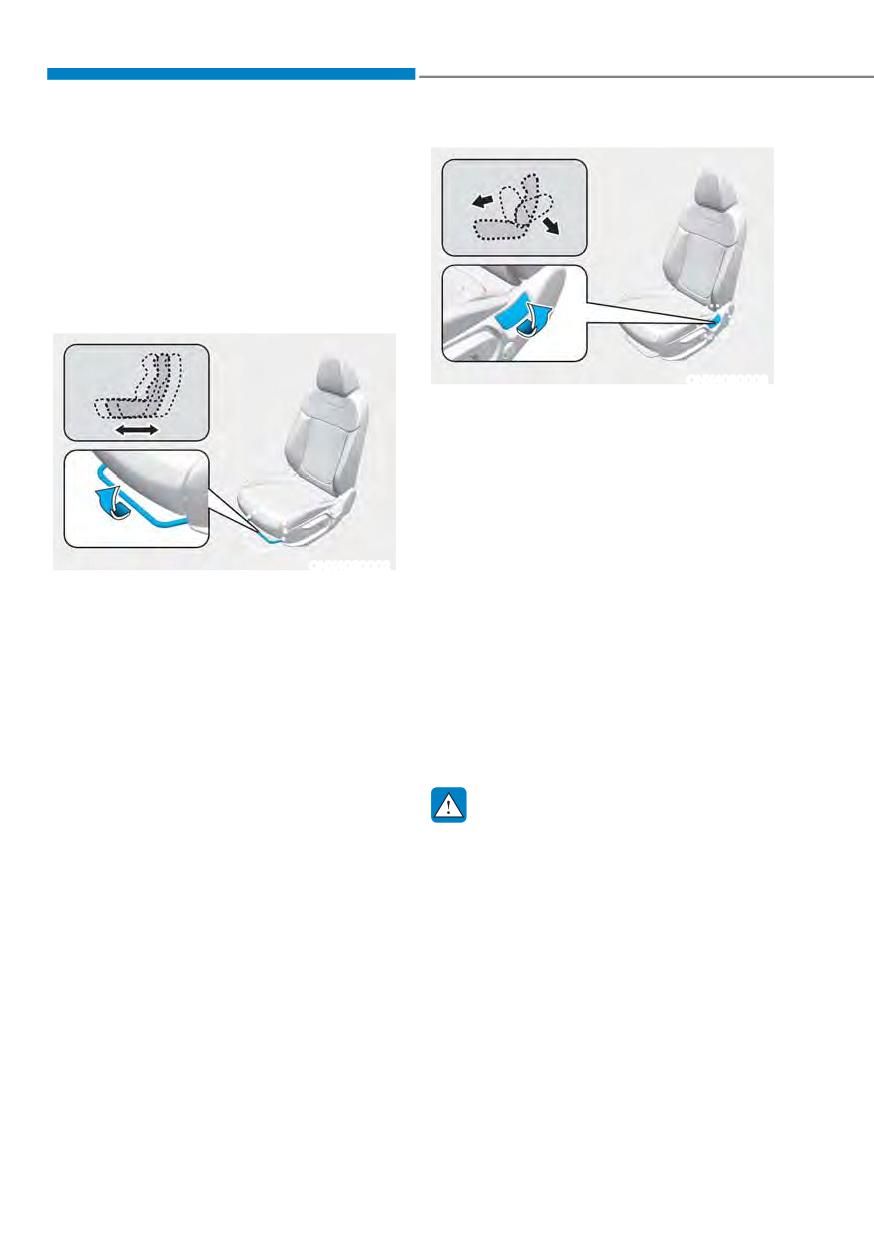

Forward and rearward adjustment
seatback is locked in place.
To move the seat forward or rearward:
Reclining seatback
1. Pull up the seat slide adjustment lever
Sitting in a reclined position when the
and hold it.
vehicle is in motion can be dangerous.
2. Slide the seat to the position you
Even when buckled up, the protections
desire.
of your restraint system (seat belts
3. Release the lever and make sure the
and/or air bags) is greatly reduced by
seat is locked in place. Move forward
reclining your seatback.
and rearward without using the lever.
If the seat moves, it is not locked
properly.
WARNING
NEVER ride with a reclined seatback
when the vehicle is moving.
Riding with a reclined seatback
increases your chance of serious or fatal
injuries in the event of a collision or
sudden stop.

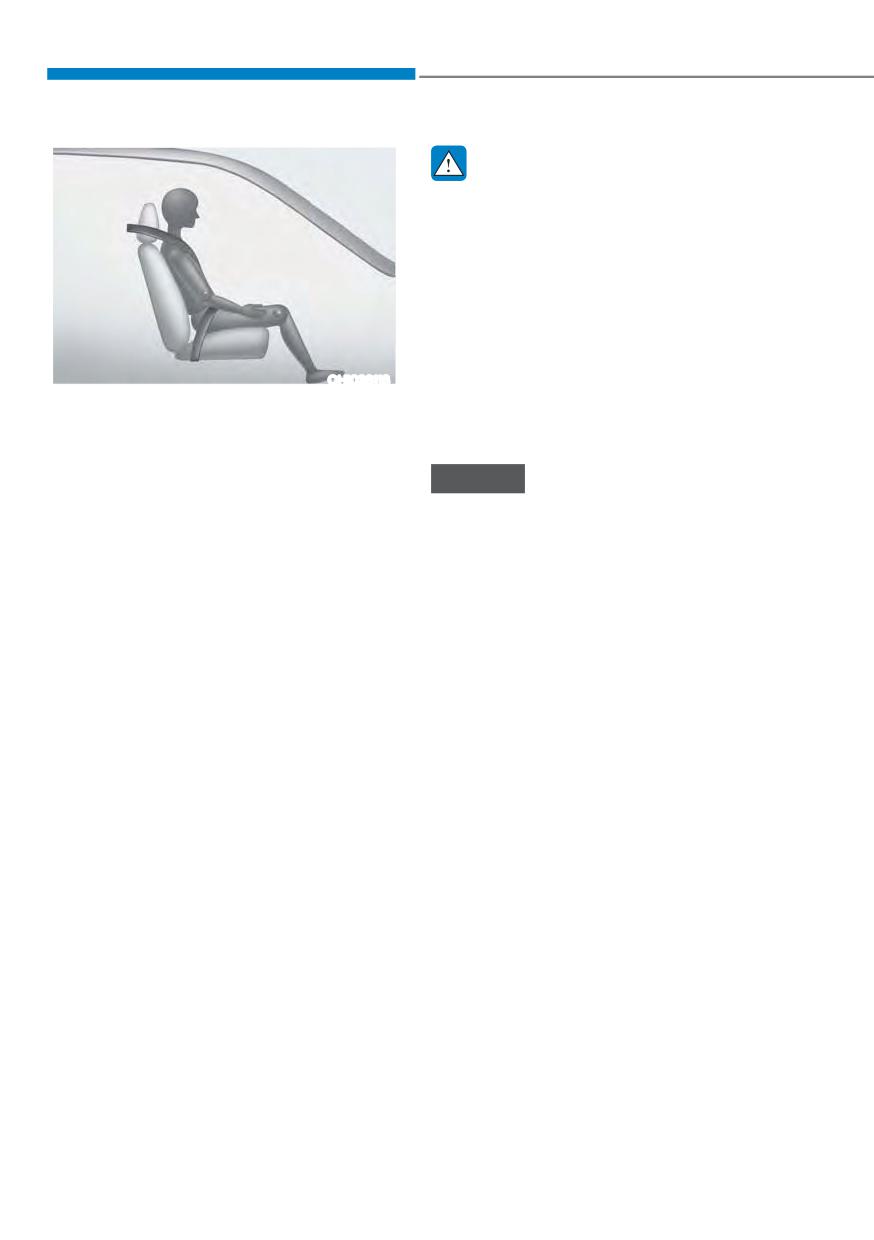

Drivers and passengers should ALWAYS
sit well back in their seats, properly
belted, and with the seatbacks upright.
3-6
03
Seat belts must be snug against your
hips and chest to work properly. When
the seatback is reclined, the shoulder
belt cannot do its job because it will not
be snug against your chest. Instead,
it will be in front of you. During an
accident, you could be thrown into the
seat belt, causing neck or other injuries.
The more the seatback is reclined,
the greater chance the passenger’s
hips will slide under the lap belt or the
passenger’s neck will strike the shoulder
ONX4030005
belt.

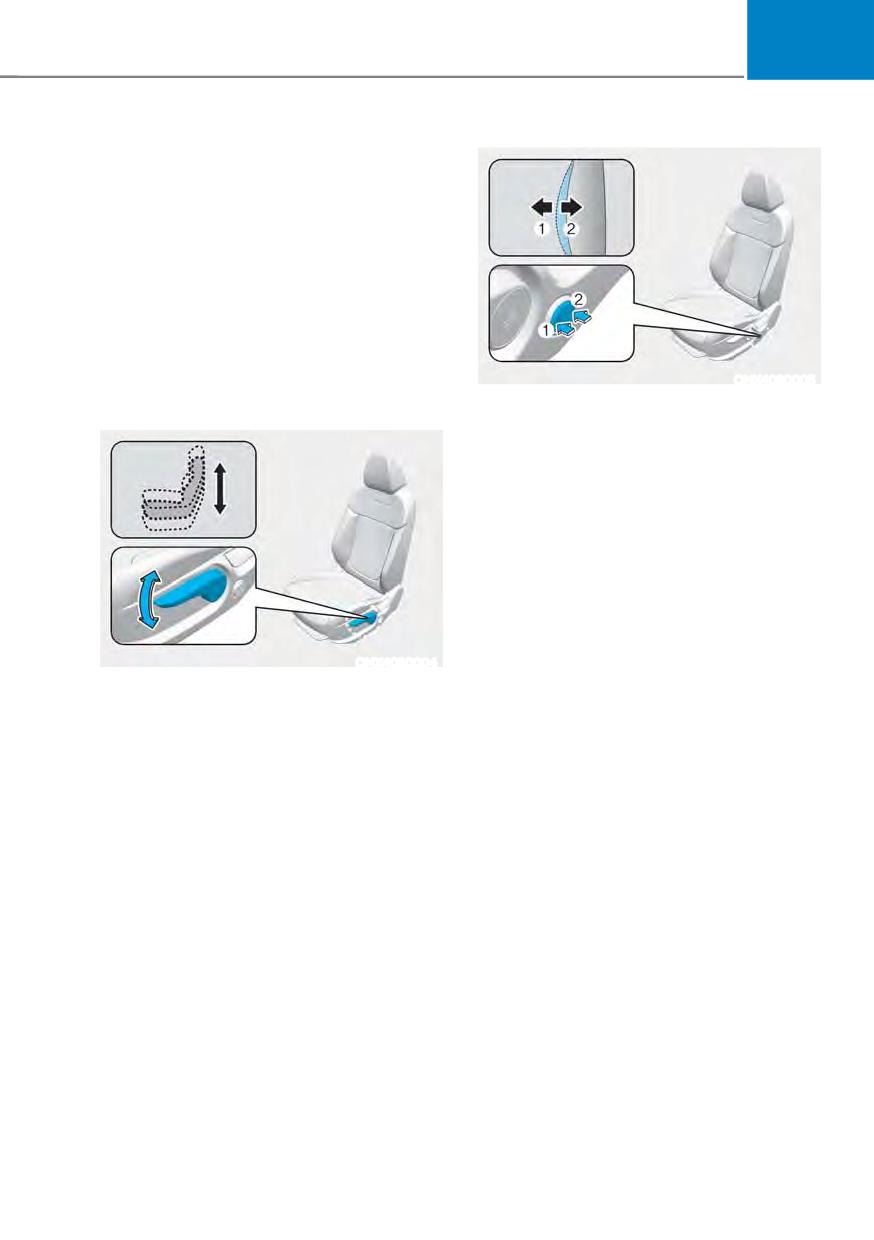

Lumbar support (for driver’s seat, if
equipped)
To adjust the lumbar support:
1. Press the front portion of the switch
(1) to increase support or the rear
portion of the switch (2) to decrease
support.
2. Release the switch once the lumbar
support reaches the desired position.
ONX4030004
Seat cushion height
To change the height of the seat:
ś Push down the lever several times, to
lower the seat.
ś Pull up the lever several times, to raise
the seat.
3-7
Seats & Safety System
Power adjustment (for driver’s seat,
if equipped)
The driver’s seat can be adjusted by
using the control switches located on
the outside of the seat cushion. Before
driving, adjust the seat to the proper
position so that you can easily control
the steering wheel, foot pedals and
controls on the instrument panel.
WARNING
ONX4030006
NEVER allow children in the vehicle

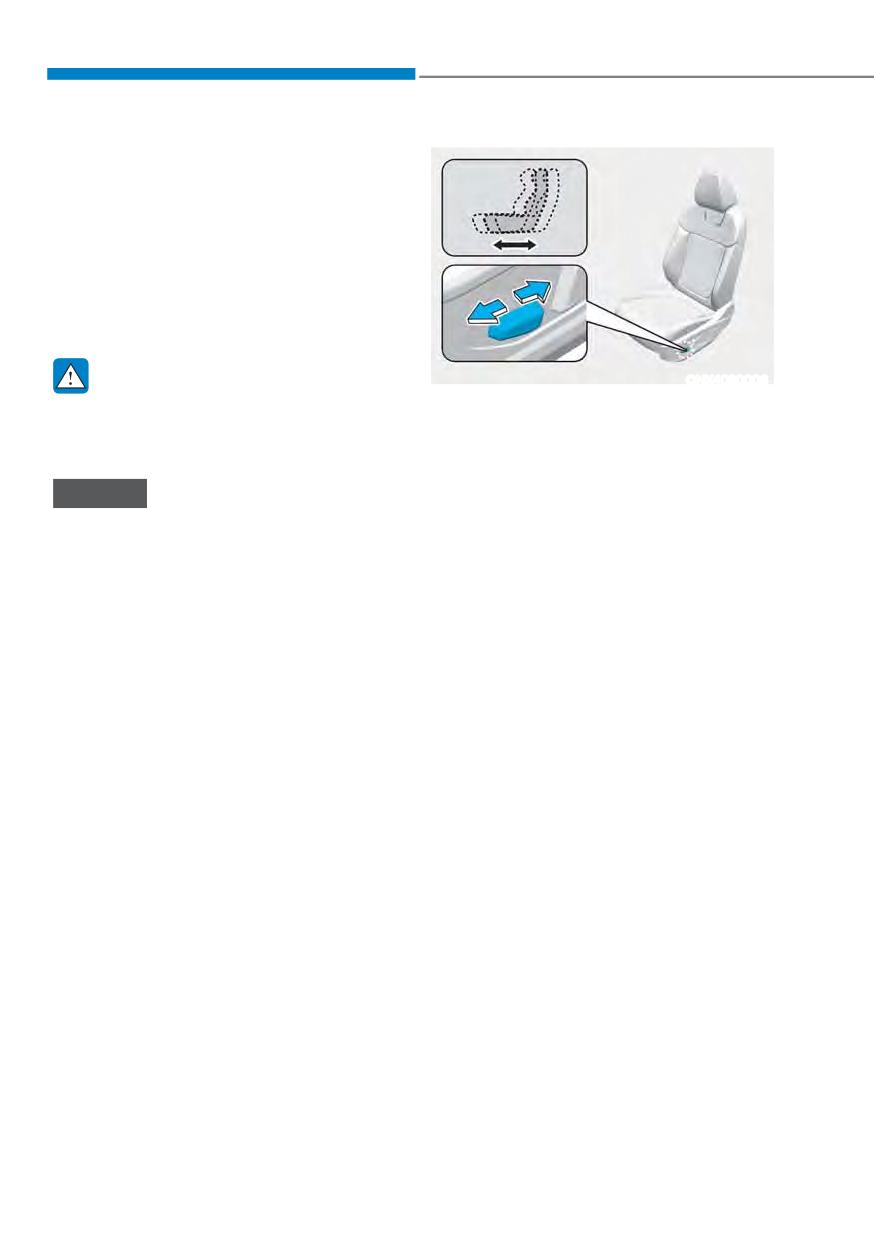

Forward and rearward adjustment
unattended. The power seats are
To move the seat forward or rearward:
operable when the vehicle is turned off.
1. Push the control switch forward or
rearward.
NOTICE
2. Release the switch once the seat
To prevent damage to the seats:
reaches the desired position.
ś Always stop adjusting the seats when
the seat has been adjusted as far
forward or rearward as possible.
ś Do not adjust the seats longer than
necessary when the vehicle is turned
off. This may result in unnecessary
battery drain.
ś Do not operate two or more seats at
the same time. This may result in an
electrical malfunction.
3-8
03
Seat belts must be snug against your
hips and chest to work properly. When
the seatback is reclined, the shoulder
belt cannot do its job because it will not
be snug against your chest. Instead,
it will be in front of you. During an
accident, you could be thrown into the
seat belt, causing neck or other injuries.
The more the seatback is reclined,
the greater chance the passenger’s
hips will slide under the lap belt or the
ONX4030007
passenger’s neck will strike the shoulder

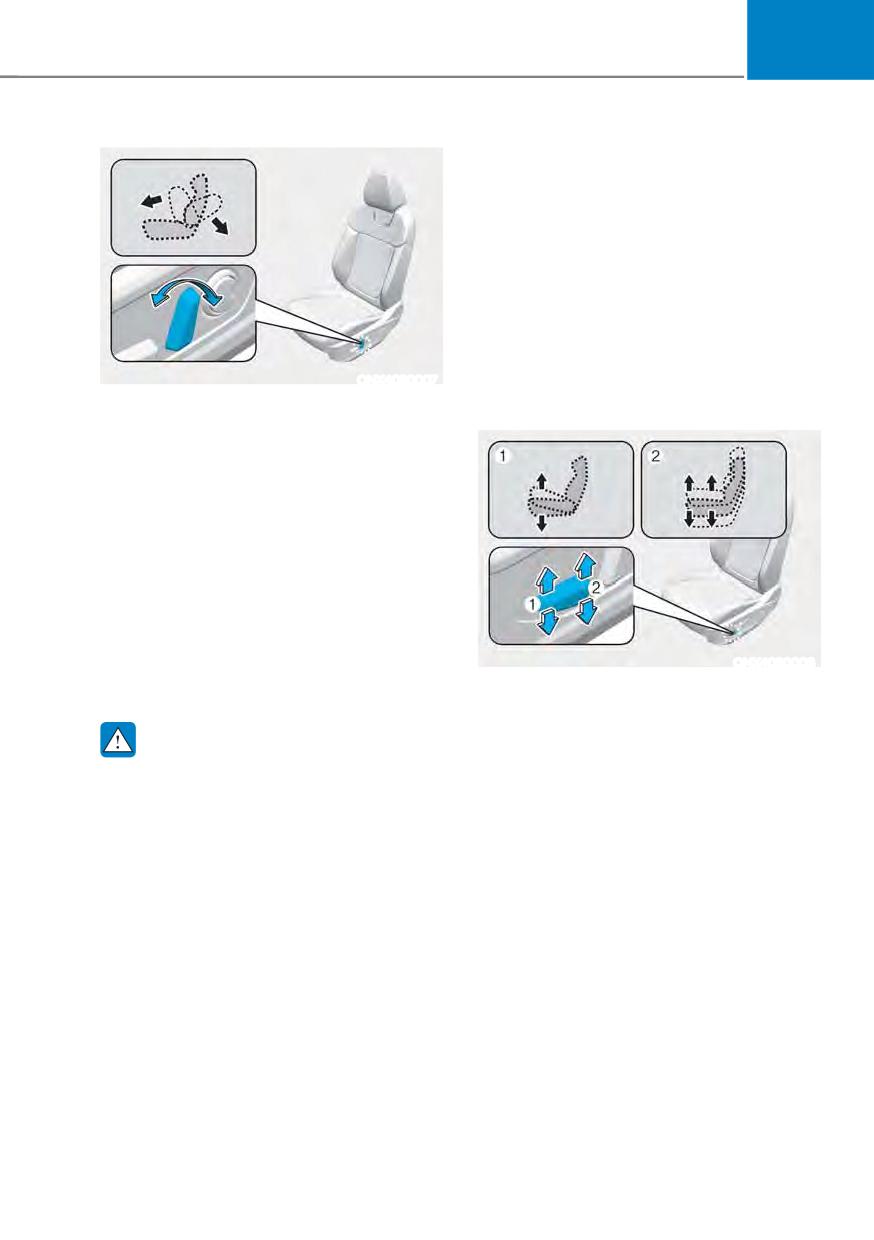

Seatback angle
belt.
To recline the seatback:
1. Push the control switch forward or
rearward.
2. Release the switch once the seatback
reaches the desired position.
Reclining seatback
Sitting in a reclined position when the
vehicle is in motion can be dangerous.
Even when buckled up, the protections
of your restraint system (seat belts and
ONX4030008
air bags) is greatly reduced by reclining
your seatback.
Seat cushion tilt (1)
To change the angle of the front part of
the seat cushion:
WARNING
Push the front portion of the control
NEVER ride with a reclined seatback
switch up to raise or down to lower the
when the vehicle is moving.
front part of the seat cushion.
Riding with a reclined seatback
Release the switch once the seat reaches
increases your chance of serious or fatal
the desired position.
injuries in the event of a collision or
sudden stop.
Seat cushion height (2)
Driver and passengers should always
To change the height of the seat cushion:
sit well back in their seats with the
seatbacks upright and should be belted
Push the rear portion of the control
properly.
switch up to raise or down to lower the
height of the seat cushion.
Release the switch once the seat reaches
the desired position.
3-9
Seats & Safety System
Seatback pocket
ONX4030009

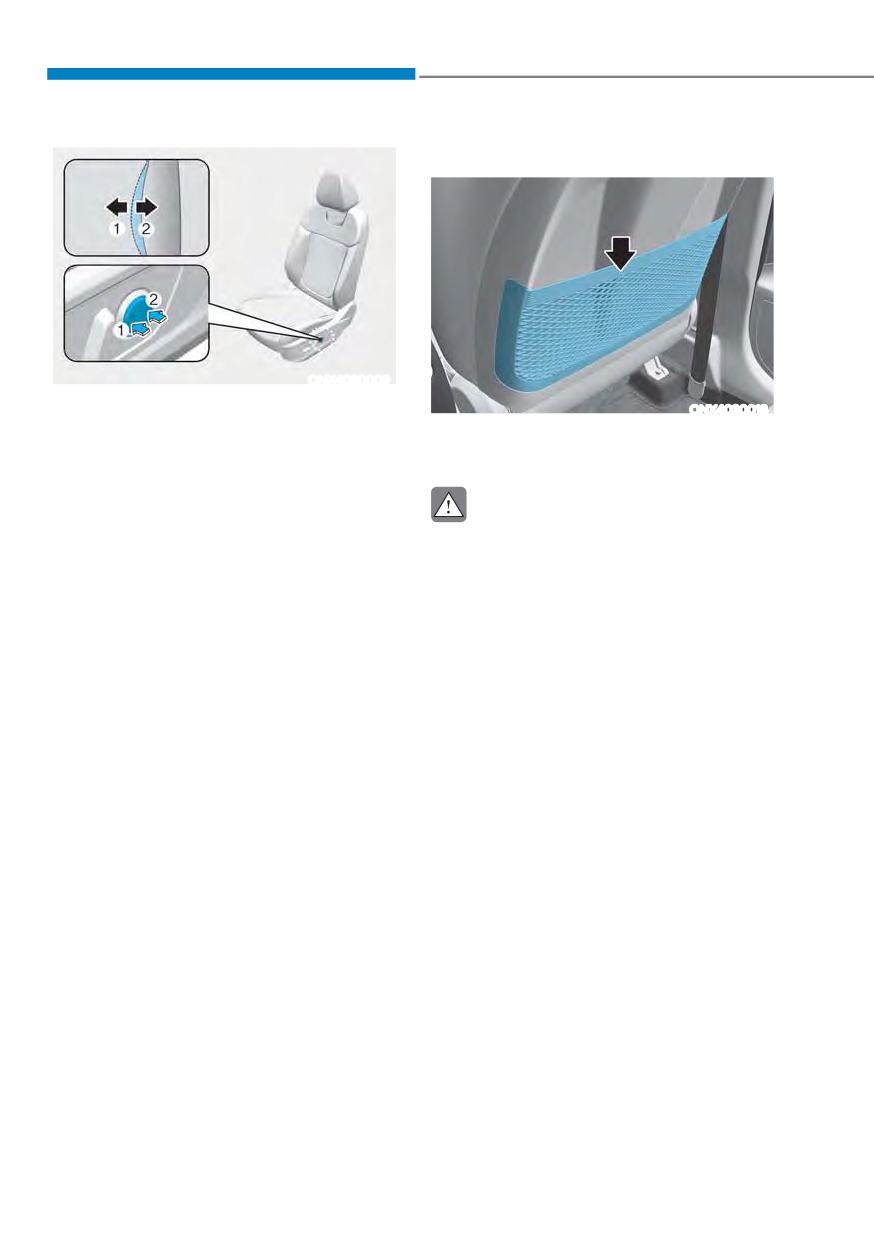

Lumbar support (for driver’s seat, if
ONX4030018
equipped)
The seatback pocket is provided on the
To adjust the lumbar support:
back of the front seatbacks.
1. Press the front portion of the switch
(1) to increase support or the rear
CAUTION
portion of the switch (2) to decrease
support.
Do not put heavy or sharp objects in the
2. Release the switch once the lumbar
seatback pockets. In an accident they
support reaches the desired position.
could come loose from the pocket and
injure occupants.
3-10
03

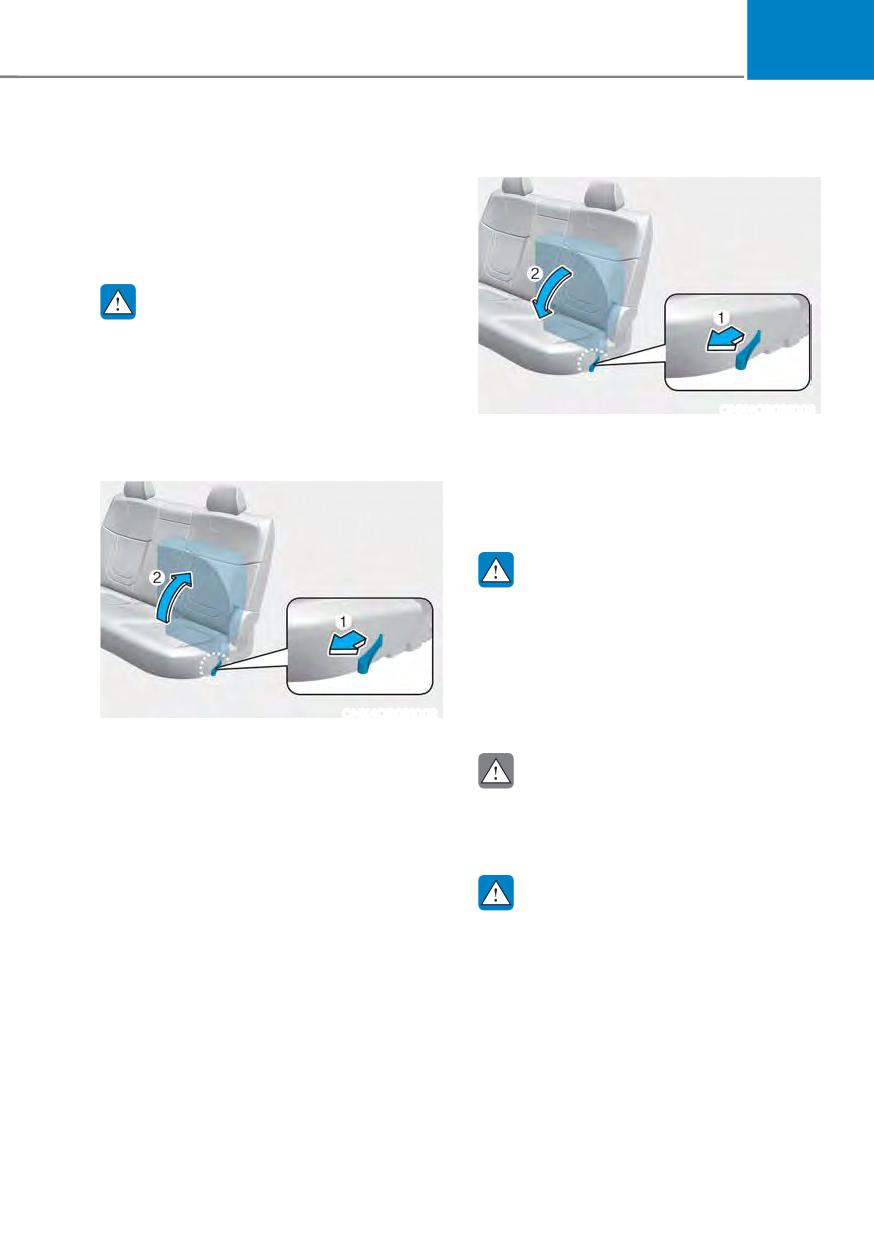

Rear Seats
Unfolding the rear seat
Folding the rear seat
The right and left seat bottoms can be
folded independently to increase the
luggage capacity of the vehicle.
WARNING
Be careful when carrying a stack of
objects in the second row. If the objects
extend higher than the top of the front
seatbacks, they could inadvertently
slide forward when decelerating and
ONX4OB031003
possibly cause injury or damage during
1. Pull the strap to unlock the seat.
sudden stops.
2. Carefully lower the seat bottom to
the normal seating position. The seat
bottom will remain in place under its
own weight.
WARNING
Make sure the engine is off, the shift
lever is in P (Park), and the parking
brake is securely applied whenever
loading or unloading cargo. Failure to
take these steps may allow the vehicle
to move if the shift lever is inadvertently
ONX4OB031002
moved to another position.
1. Pull the strap to unlock the seat.
2. Lift up the seat bottom.
CAUTION
3. Push the seat bottom firmly against
Be careful when loading cargo through
the seatback to lock it into place.
the rear passenger seats to prevent
damage to the vehicle interior.
WARNING
Cargo should always be secured to
prevent it from being thrown about the
vehicle in a collision and causing injury
to the vehicle occupants. Do not place
objects in the rear seats, since they
cannot be properly secured and may hit
the front seat occupants in a collision.
3-11
Seats & Safety System
Head Restraints
WARNING
The vehicle’s front and rear (second row
and/or third row) seats have adjustable
head restraints. The head restraints
provide comfort for passengers, but
more importantly they are designed to
help protect passengers from whiplash
and other neck and spinal injuries during
an accident, especially in a rear impact
OTL035061
collision.
When sitting on the rear seat, do not
adjust the height of the head restraints
to the lowest position.
WARNING
To help reduce the risk of serious
injury or death in an accident, take the
CAUTION
following precautions when adjusting
When there is no occupant in the rear
your head restraints:
seats, adjust the height of the head
ś Always properly adjust the head
restraints to the lowest position. The
restraints for all passengers BEFORE
rear seat head restraints can reduce the
starting the vehicle.
visibility of the rear area.
ś NEVER let anyone ride in a seat
with the head restraints removed or
NOTICE
reversed.
To prevent damage, NEVER hit or pull
on the head restraints.
OHI039190N
ś Adjust the head restraints so the
middle of the head restraints is at the
same height as the height of the top
of the eyes.
ś NEVER adjust the head restraints
position of the driver’s seat when the
vehicle is in motion.
ś Adjust the head restraints as close to
the passenger’s head as possible. Do
not use a seat cushion that holds the
body away from the seatback.
ś Make sure the head restraints locks
into position after adjusting it.
3-12
03
Front seat head restraints
NOTICE
ONX4OB031004
OHI038136
The driver’s and front passenger’s seats
If you recline the seatback towards the
are equipped with adjustable head
front with the head restraint and seat
restraint for the passengers safety and
cushion raised, the head restraint may
comfort.
come in contact with the sunvisor or
other parts of the vehicle.
ONX4030011
Adjusting the height up and down
To raise the head restraint:
1. Pull it up to the desired position (1).
To lower the head restraint:
1. Push and hold the release button (2)
on the head restraint support.
2. Lower the head restraint to the
desired position (3).
3-13
Seats & Safety System

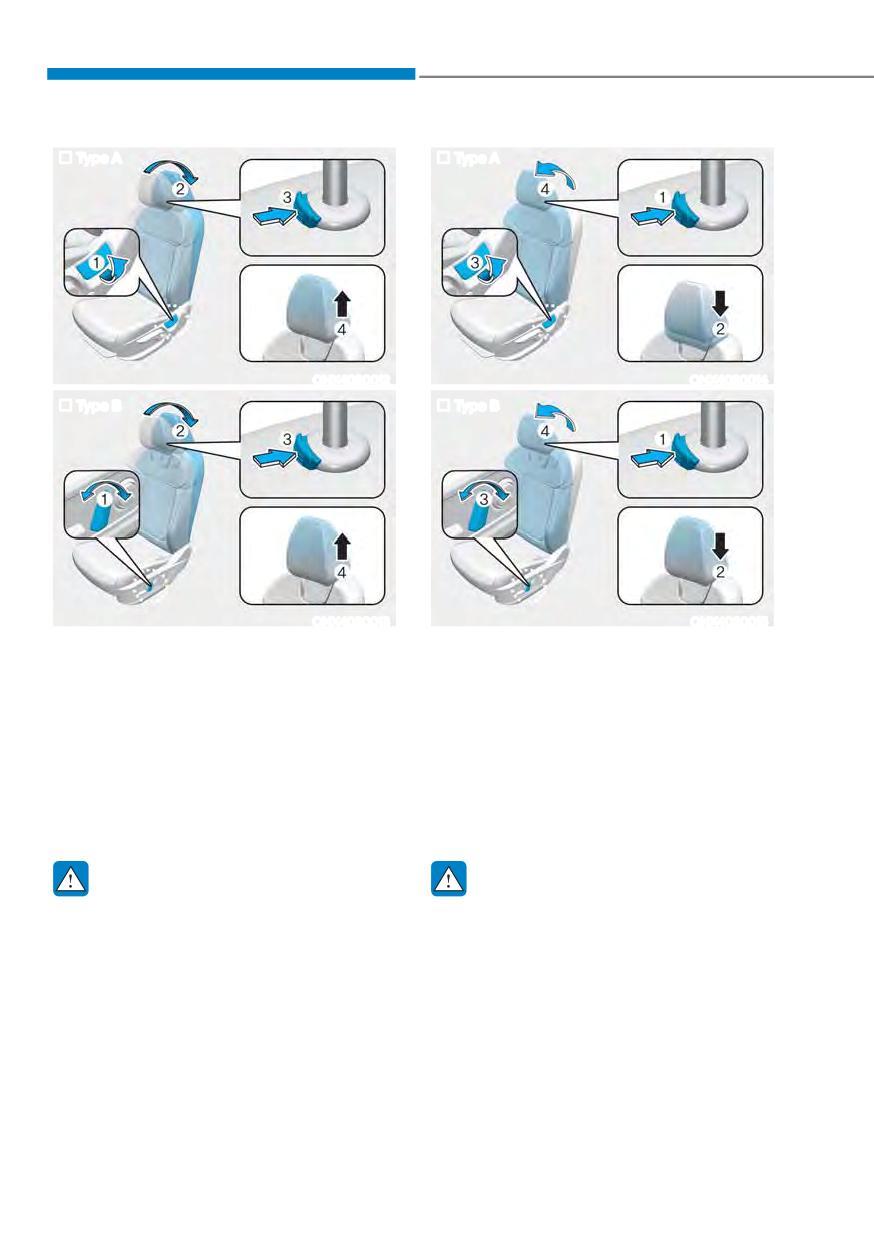

„ Type A
„ Type A
ONX4030012
ONX4030014
„ Type B
„ Type B
ONX4030013
ONX4030015
Removal/Reinstall
To reinstall the head restraint :
To remove the head restraint:
1. Recline the seatback.
1. Recline the seatback (2) with the
2. Put the head restraint poles (2) into
seatback angle lever (1).
the holes while pressing the release
button (1).
2. Raise the head restraint as far as it can
go.
3. Adjust the head restraint to the
appropriate height.
3. Press the head restraint release button
(3) while pulling the head restraint up
4. Recline the seatback (4) with the
(4).
seatback angle lever (3).
WARNING
WARNING
NEVER allow anyone to travel in a seat
Always make sure the head restraint
with the head restraint removed.
locks into position after reinstalling and
adjusting it properly.
3-14
03
Rear seat head restraint
ONX4OB031029
ONX4OB031005
Removal/Reinstallation
The rear seats are equipped with head
To remove the head restraint:
restraint in all the seating positions for
1. Raise the head restraint as far as it can
the passenger’s safety and comfort.
go.
2. Press the head restraint release button
(1) while pulling the head restraint up
(2).
To reinstall the head restraint:
1. Put the head restraint poles into the
holes (3) while pressing the release
button (1).
2. Adjust the head restraint to the
appropriate height.
ONX4OB031028
Adjusting the height up and down
To raise the head restraint:
1. Pull it up to the desired position (1).
To lower the head restraint:
1. Push and hold the release button (2)
on the head restraint support.
2. Lower the head restraint to the
desired position (3).
3-15
Seats & Safety System
Seat Warmers (if equipped)
WARNING
Seat warmers are provided to warm the
NEVER place anything on the seat
front seats during cold weather.
that insulates against heat when the
During mild weather or under conditions
seat warmer is in operation, such as a
where the operation of the seat warmer
blanket or seat cushion. This may cause
is not needed, keep the seat warmers
the seat warmer to overheat, causing a
OFF.
burn or damage to the seat.
WARNING
NOTICE
The seat warmers can cause a SERIOUS
To prevent damage to the seat warmers
and seats:
BURN, even at low temperatures and
especially if used for long periods of
ś Never use a solvent such as paint
time.
thinner, benzene, alcohol or gasoline
Passengers must be able to feel if the
to clean the seats.
seat is becoming too warm so they can
ś Do not place heavy or sharp objects
turn it off, if needed.
on seats equipped with seat
People who cannot detect temperature
warmers.
change or pain to the skin should
ś Do not change the seat cover. It may
use extreme caution, especially the
damage the seat warmer.
following types of passengers:
ś Infants, children, elderly or disabled
persons, or hospital outpatients.
ś People with sensitive skin or who
burn easily.
ś Fatigued individuals.
ś Intoxicated individuals.
ś People taking medication that can
cause drowsiness or sleepiness.
3-16
03
ś Automatic temperature control
The seat warmer starts to
automatically control the seat
temperature in order to prevent
low-temperature burns after being
manually turned ON.
- Front seat
OFF
Ɵ
+,*+
ơ
Ƣ
0,1
ONX4OB031006
LOW (
)
Ơ
0(',80
While the engine is running, push either
0,1
of the switches to warm the driver's seat
- Rear seat
or front passenger's seat.
During mild weather or under conditions
OFF Ɵ HIGH (
) Ɵ LOW (
)
where the operation of the seat warmer
30 MIN
is not needed, keep the switches in the
If HIGH temperature is manually
OFF position.
selected again, the temperature will
ś Manual temperature control
be controlled automatically.
Each time you push the switch, the
temperature setting of the seat is
changed as follows:
- Front seat
OFF
HIGH (
)
LOW (
)
MEDIUM (
)
- Rear seat
OFF Ɵ HIGH (
) Ɵ LOW (
)
3-17
Seats & Safety System
ś
When pressing the switch for more
Air Ventilation Seat (if equipped)
than 1.5 seconds with the seat warmer
operating, the seat warmer will turn
OFF.
ś
The seat warmer defaults to the OFF
position whenever the ignition switch
is ON.
ś
Auto Comfort Control (for driver’s
seat) (if equipped)
- The seat warmer automatically
controls the seat temperature
depending on the ambient
temperature and the set climate

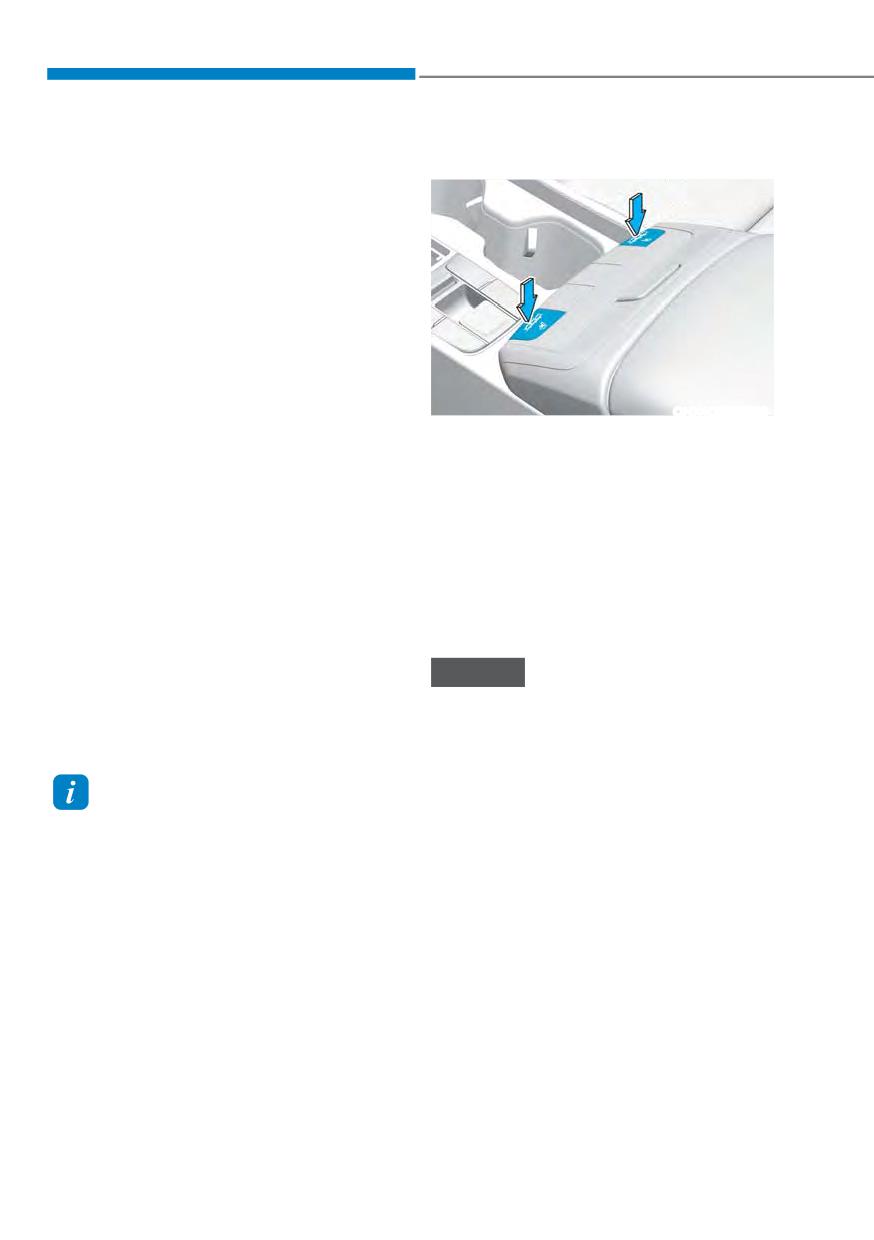

ONX4OB031026
control temperature when the
The air ventilation seats are provided
engine is running. If the seat
to cool the front seats by blowing air
warmer switch is pushed, the seat
through small vent holes on the surface
warmer will have to be controlled
of the seat cushions and seatbacks.
manually.
When the operation of the air ventilation
To use this function, it must be
seat is not needed, keep the switches in
activated from the Settings menu in
the OFF position.
the infotainment system screen.
While the engine is running, push the
- The seat warmer defaults to the
switch to cool the driver's seat or the
OFF position whenever the ignition
front passenger's seat.
switch is ON. However, if the Auto
Comfort Control function is ON, the
NOTICE
driver’s seat warmer will turn on
and off depending on the ambient
To prevent damage to the air ventilation
temperature and the set climate
seats:
control temperature.
ś Never use a solvent such as paint
thinner, benzene, alcohol or gasoline
to clean the seats.
Information
ś Avoid spilling liquids on the surface
ś
With the seat warmer switch in the ON
of the front seats and seatbacks; this
position, the heating system in the seat
may cause the air vent holes to block
turns off or on automatically depending
and not work properly.
on the seat temperature.
ś Do not place materials such as plastic
ś
The infotainment system may change
bags or newspapers under the seats.
after software updates. For more
They may block the air intake causing
information, refer to the user's manual
malfunction of the air vent.
provided in the infotainment system
and the quick reference guide.
ś Do not change the seat covers. It may
damage the air ventilation seat.
ś If the air vents do not operate, restart
the vehicle. If there is no change,
have the vehicle inspected by an
authorized HYUNDAI dealer.
3-18
03
ś
Each time you push the switch, the
airflow changes as follows:
OFF
HIGH (
)
LOW (
)
MEDIUM (
)
ś
When pressing the switch for
more than 1.5 seconds with the
air ventilation seat operating, the
operation will turn OFF.
ś
The air ventilation seats defaults
to the OFF position whenever the
ignition switch is placed to the ON
position.
ś
Auto Comfort Control (for driver’s
seat) (if equipped)
- The air ventilation seats
automatically controls the seat
temperature depending on the
ambient temperature and the set
climate control temperature when
the engine is running. If the air
ventilation seats switch is pushed,
the air ventilation seats will have to
be controlled manually.
To use this function, it must be
activated from the Settings menu in
the infotainment system screen.
- The air ventilation seats defaults
to the OFF position whenever the
ignition switch is ON. However, if
the Auto Comfort Control function
is ON, the air ventilation seats will
turn on and off depending on the
ambient temperature and the set
climate control temperature.
Information
The infotainment system may change after
software updates. For more information,
refer to the user's manual provided in
the infotainment system and the quick
reference guide.
3-19
Seats & Safety System
SEAT BELTS
This section describes how to use the
ś
NEVER wear a seat belt over fragile
seat belts properly. It also describes
objects. If there is a sudden stop or
some of the things not to do when using
impact, the seat belt can damage it.
seat belts.
ś
Do not use the seat belt if it is
twisted. A twisted seat belt will not
Seat Belt Safety Precautions
protect you properly in an accident.
Always fasten your seat belt and make
ś
Do not use a seat belt if the webbing
sure all passengers have fastened their
or hardware is damaged.
seat belts before starting any trip. Air
ś
Do not latch the seat belt into the
bags are designed to supplement the
buckles of other seats.
seat belt as an additional safety device,
ś
NEVER unfasten the seat belt
not a replacement. Most countries
while driving. This may cause loss
require all occupants of a vehicle to wear
of vehicle control resulting in an
seat belts.
accident.
ś
Make sure there is nothing in the
WARNING
buckle interfering with the seat
Seat belts must be used by ALL
belt latch mechanism, because any
passengers whenever the vehicle is
materials in the buckle can cause the
moving. Take the following precautions
seat belt not to be fastened securely.
when adjusting and wearing seat belts:
ś
No modifications or additions
ś Children under the age of 13 should
should be made by the user which
be properly restrained in the rear
will either prohibit the seat belt
seats.
adjusting devices from operating to
remove slack, or prohibit the seat
ś Never allow children to ride in the
belt assembly from being adjusted to
front passenger seat, unless the air
remove slack.
bag is deactivated. If a child is seated
in the front passenger seat, move the
seat as far back as possible. And the
WARNING
child must always be restrained in
Damaged seat belts and seat belt
the seat properly.
assemblies will not operate properly.
ś NEVER allow an infant or child to be
Always replace:
carried on an occupant’s lap.
ś Frayed, contaminated, or damaged
ś NEVER ride with the seatback
webbing.
reclined when the vehicle is moving.
ś Damaged hardware.
ś Do not allow children to share a seat
ś The entire seat belt assembly after it
or seat belt.
has been worn in an accident, even
ś Do not wear the shoulder belt under
if damage to webbing or assembly is
your arm or behind your back.
not apparent.
3-20
03
Seat Belt Warning Light
Seat belt warning light (for front
Seat belt warning light (for driver’s
passenger’s seat)
seat)
As a reminder to the front passenger,
the front passenger’s seat belt warning
„ Instrument cluster
lights will illuminate for approximately
6 seconds each time the ignition is
ON regardless of belt fastening. If you
continue not to fasten the seat belt
and you drive over 6 mph (9 km/h), the
warning light will stay illuminated.
If you continue not to fasten the seat belt
and you drive over 12 mph (20 km/h),
the seat belt warning chime will sound
1GQA2083
for approximately 100 seconds and the
corresponding warning light will blink.
As a reminder to the driver, the seat
belt warning light will illuminate for
approximately 6 seconds each time the
If you unfasten the seat belt while driving
ignition is ON position regardless of belt
under 12 mph (20 km/h), the seat belt
fastening. At this time, if the seat belt is
warning light will illuminate until the seat
not fastened, a warning chime will sound
belt is fastened.
for 6 seconds.
If you unfasten the seat belt while
driving over 12 mph (20 km/h), the
If you continue not to fasten the seat belt
seat belt warning chime will sound for
and you drive over 6 mph (9 km/h), the
approximately 100 seconds and the
warning light will stay illuminated.
corresponding warning light will blink.
If you continue not to fasten the seat belt
and you drive over 12 mph (20 km/h),
WARNING
the seat belt warning chime will sound
for approximately 100 seconds and the
Riding in an improper position
corresponding warning light will blink.
adversely affects the front passenger’s
seat belt warning system. It is important
for the driver to instruct the passenger
If you unfasten the seat belt while driving
to properly be seated as instructed in
under 12 mph (20 km/h), the seat belt
this manual.
warning light will illuminate until the seat
belt is fastened.
If you unfasten the seat belt while
Information
driving over 12 mph (20 km/h), the
ś Although the front passenger seat is not
seat belt warning chime will sound for
occupied, the seat belt warning light
approximately 100 seconds and the
will blink or illuminate for 6 seconds.
corresponding warning light will blink.
ś The front passenger’s seat belt warning
may operate when luggage is placed on
the front passenger seat.
3-21
Seats & Safety System
Seat Belt Restraint System
Front Seat Belt - Driver’s 3point
system with emergency locking
retractor
WARNING
OHI038140
OHI038182L
To fasten your seat belt:
Improperly positioned seat belts may
Pull it out of the retractor and insert the
increase the risk of serious injury
metal tab (1) into the buckle (2). There
in an accident. Take the following
will be an audible “click” when the tab
precautions when adjusting the seat
locks into the buckle.
belt:
ś Position the lap portion of the seat
belt as low as possible across your
hips, not on your waist, so that it
fits snugly. This allows your strong
pelvic bones to absorb the force of
the crash, reducing the chance of
internal injuries.
ś Position one arm under the shoulder
belt and the other over the belt, as
shown in the illustration.
ś Always position the shoulder belt

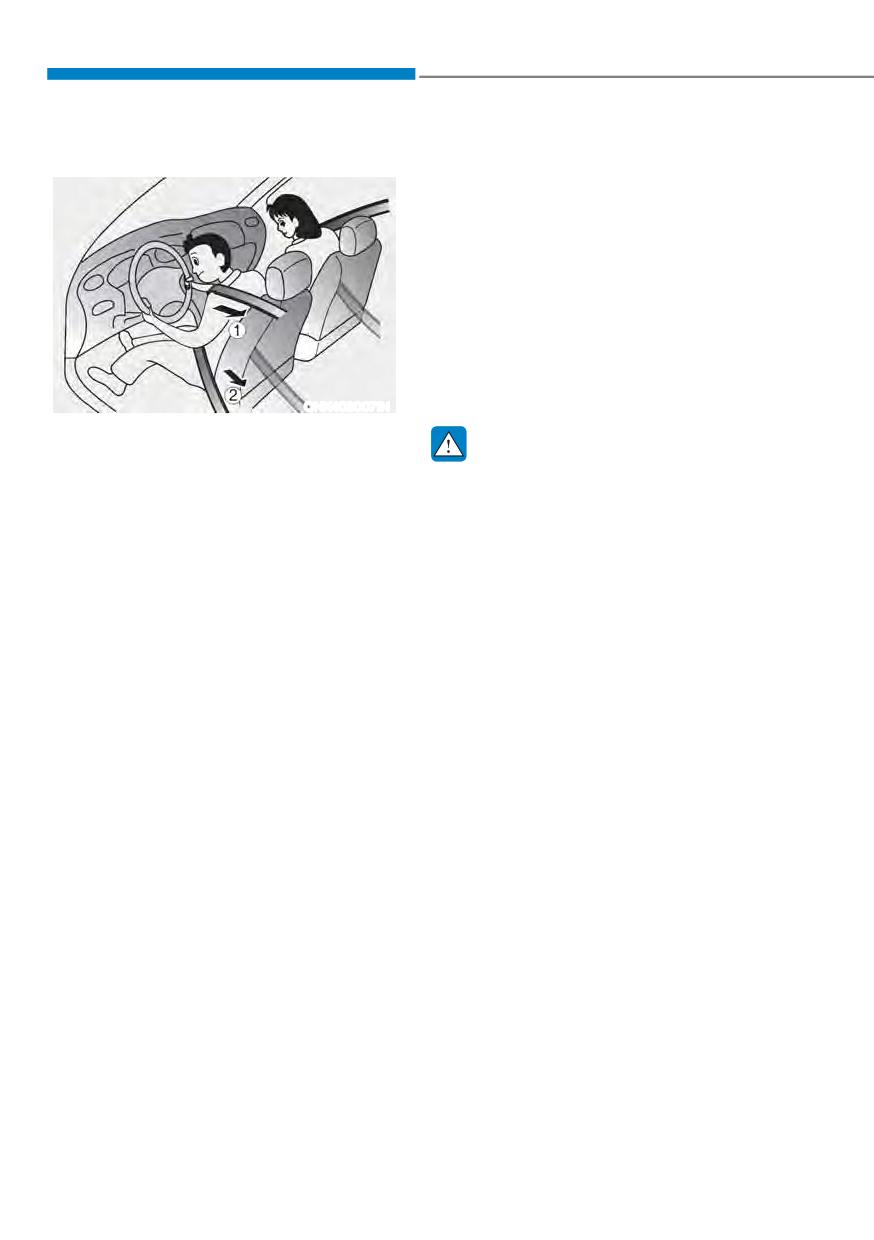

OHI038137
anchor into the locked position at the
appropriate height.
You should place the lap belt (1) portion
across your hips and the shoulder belt (2)
ś Never position the shoulder belt
portion across your chest.
across your neck or face.
The seat belt automatically adjusts to the
proper length after the lap belt portion
is adjusted manually so that it fits snugly
around your hips. If you lean forward in
a slow, easy motion, the belt will extend
and move with you.
If there is a sudden stop or impact, the
belt will lock into position. It will also lock
if you try to lean forward too quickly.
3-22
03
Information
If you are not able to smoothly pull
enough of the seat belt out from the
retractor, firmly pull the seat belt out and
release it. After release, you will be able to
pull the belt out smoothly.
Height adjustment
You can adjust the height of the shoulder
belt anchor to one of the four different
positions for maximum comfort and
OHI038142
safety.
To release your seat belt:
The shoulder portion should be adjusted
Press the release button (1) in the locking
so it lies across your chest and midway
buckle.
over your shoulder nearest the door, not
Once released, the belt should
over your neck.
automatically draw back into the
retractor. If this does not happen, check
„ Front seat
the belt to be sure it is not twisted, then
try again.
OTM030079
To adjust the height of the seat belt
anchor, lower or raise the height adjuster
into an appropriate position.
To raise the height adjuster, pull it up
(1). To lower it, push it down (3) while
pressing the height adjuster button (2).
Release the button to lock the anchor
into position. Try sliding the height
adjuster to make sure that it has locked
into position.
3-23
Seats & Safety System
Rear Seat Belt - Passenger’s 3point
system with convertible locking
retractor
This type of seat belt combines the
features of both an emergency locking
retractor seat belt and an automatic
locking retractor seat belt. Convertible
retractor type seat belts are installed
in the rear seat positions to help
accommodate the installation of child
restraint systems. Although a convertible

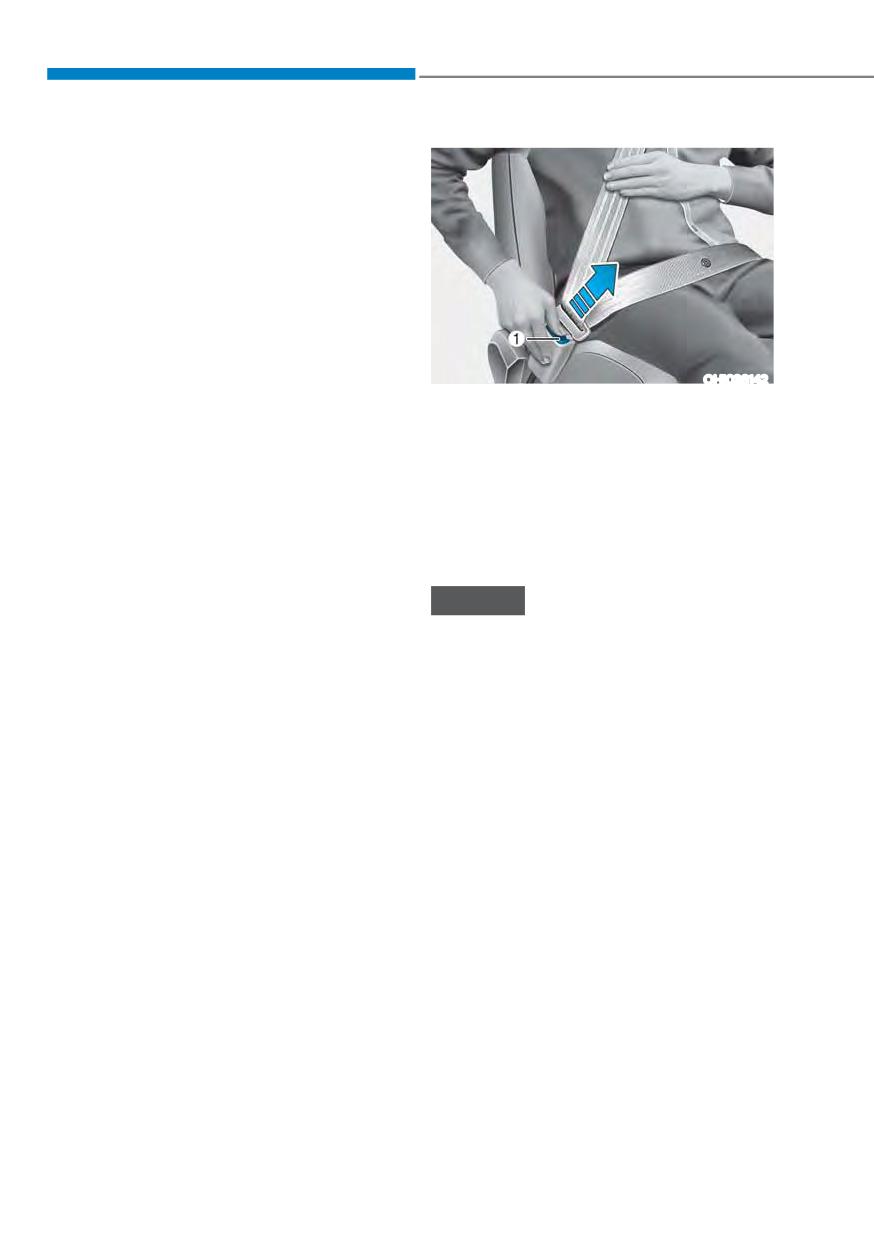

OHI038142
retractor is also installed in the front
passenger seat position, NEVER place
To release your seat belt:
any infant/child restraint system in the
Press the release button (1) in the locking
front seat of the vehicle.
buckle.
When it is released, the belt should
To fasten your seat belt:
automatically draw back into the
Pull the seat belt out of the retractor
retractor. If this does not happen, check
and insert the metal tab into the buckle.
the belt to be sure it is not twisted, then
There will be an audible “click” when
try again.
the tab locks into the buckle. When
not securing a child restraint, the seat
NOTICE
belt operates in the same way as the
driver’s seat belt (Emergency Locking
Although the seat belt retractor provides
Retractor Type). It automatically adjusts
the same level of protection for seated
to the proper length only after the lap
passengers in either emergency
belt portion of the seat belt is adjusted
or automatic locking modes, the
manually so that it fits snugly across your
emergency locking mode allows seated
hips.
passengers to move freely in their seat
while keeping some tension on the belt.
When the seat belt is fully extended from
During a collision or sudden stop, the
the retractor to allow the installation of
retractor automatically locks the belt to
a child restraint system, the seat belt
help restrain your body.
operation changes to allow the belt to
retract, but not to extend (Automatic
To deactivate the automatic locking
Locking Retractor Type). Refer to the
mode, unbuckle the seat belt and allow
“Using a Child Restraint System” section
the belt to fully retract.
in this chapter.
3-24
03

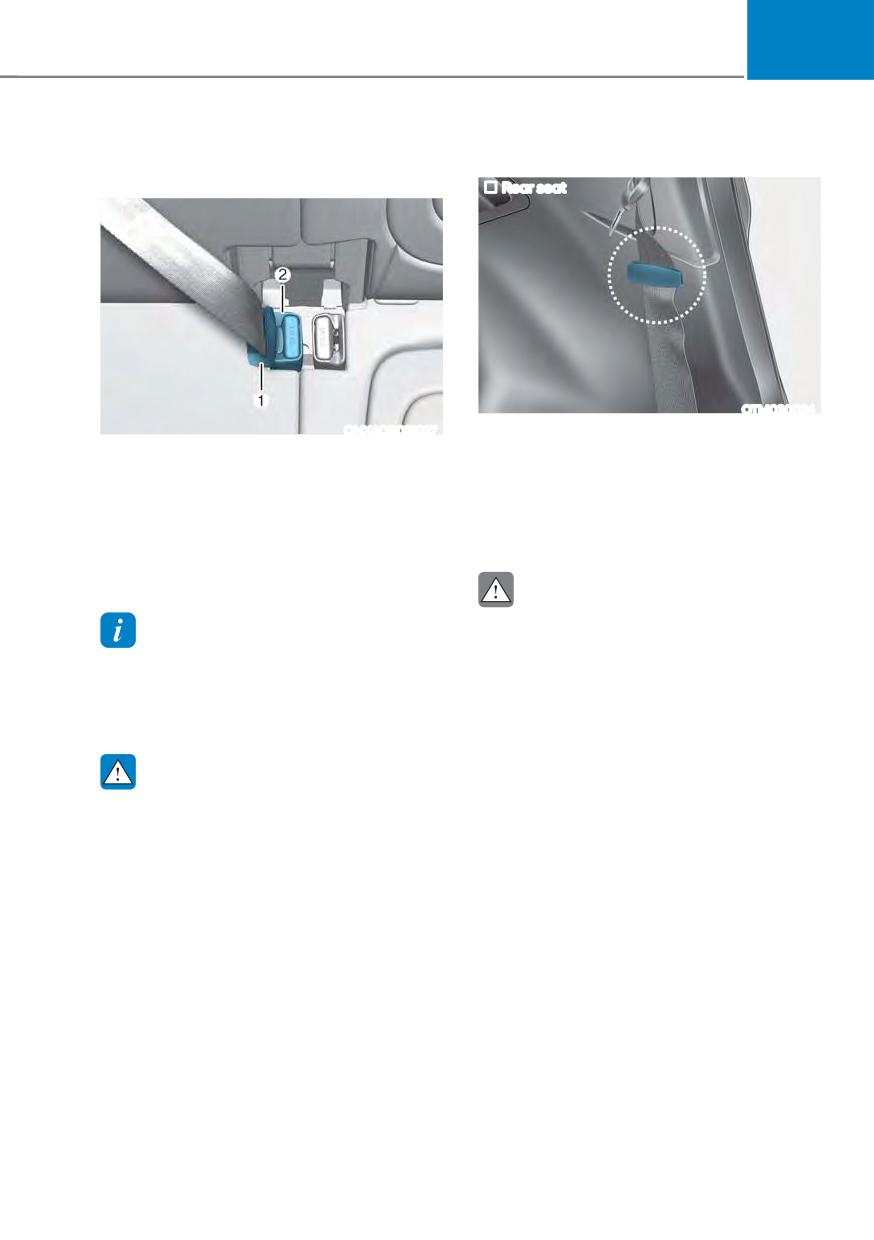

Second row center seatbelt
Stowing the rear seat belt
(3-point rear center seat belt)
„ Rear seat
OTM030024
ONX4OB031027
ś Routing the seat belt webbing through
1. Insert the tongue plate (1) into the
the rear seat belt guides will help keep
buckle (2) until an audible “click" is
the belts from being trapped behind
heard, indicating the latch is locked.
or under the seats.
Make sure the belt is not twisted.
After inserting the seat belt, tighten
When using the rear center seat belt, the
the belt webbing by pulling it up.
buckle with the “CENTER” mark must be
used.
CAUTION
When using the seat belt, use it after
Information
taking it out of the guides.
If you are not able to pull out the safety
If you pull the seat belt when it is stored
belt from the retractor, firmly pull the belt
in the guides, it may damage the guides
out and release it. After release, you will be
and/or belt webbing.
able to pull the belt out smoothly.
WARNING
Make sure that the seatback is locked in
place when using the rear center seat
belt.
If not, the seatback may move when
there is a sudden stop or collision,
which could result in serious injury.
3-25
Seats & Safety System
Pre-tensioner seat belt
(1) Retractor Pretensioner
The purpose of the retractor pre-
tensioner is to make sure that the
shoulder belts fit in tightly against the
occupant’s upper body in certain frontal
or side collision(s).
(2) Emergency Fastening Device System
The purpose of the Emergency Fastening
Device System is to make sure that
the pelvis belts fit in tightly against the
occupant’s lower body in certain frontal
collision(s).
ONX4030071N
Your vehicle is equipped with driver’s
Pre-tensioner Seat Belts(Retractor
WARNING
Pretensioner and Emergency Fastening
ś Always wear your seat belt and sit
Device System). The purpose of the pre-
properly in your seat.
tensioner is to make sure the seat belts
ś Do not use the seat belt if it is loose
fit tightly against the occupant’s body
or twisted. A loose or twisted seat
in certain frontal or side collision(s). The
belt will not protect you properly in
Emergency Fastening Device System
an accident.
may be activated in certain crashes
where the frontal collision(s) is severe
ś Do not place anything near the
enough, together with the air bags.
buckle. This may adversely affect
the buckle and cause it to function
improperly.
When the vehicle stops suddenly, or
ś Always replace your pre-tensioners
if the occupant tries to lean forward
after activation or an accident.
too quickly, the seat belt retractor will
lock into position. In certain frontal or
ś NEVER inspect, service, repair
side collision(s), the pre-tensioner will
or replace the pre-tensioners by
activate and pull the seat belt into tighter
yourself. This must be done by an
contact against the occupant’s body.
authorized HYUNDAI dealer.
ś Do not hit the seat belt assemblies.
3-26
03
WARNING
Do not touch the pre-tensioner seat
belt assemblies for several minutes
after they have been activated. When
the pre-tensioner seat belt mechanism
deploys during a collision, the pre-
tensioner can become hot and can burn
you.
CAUTION

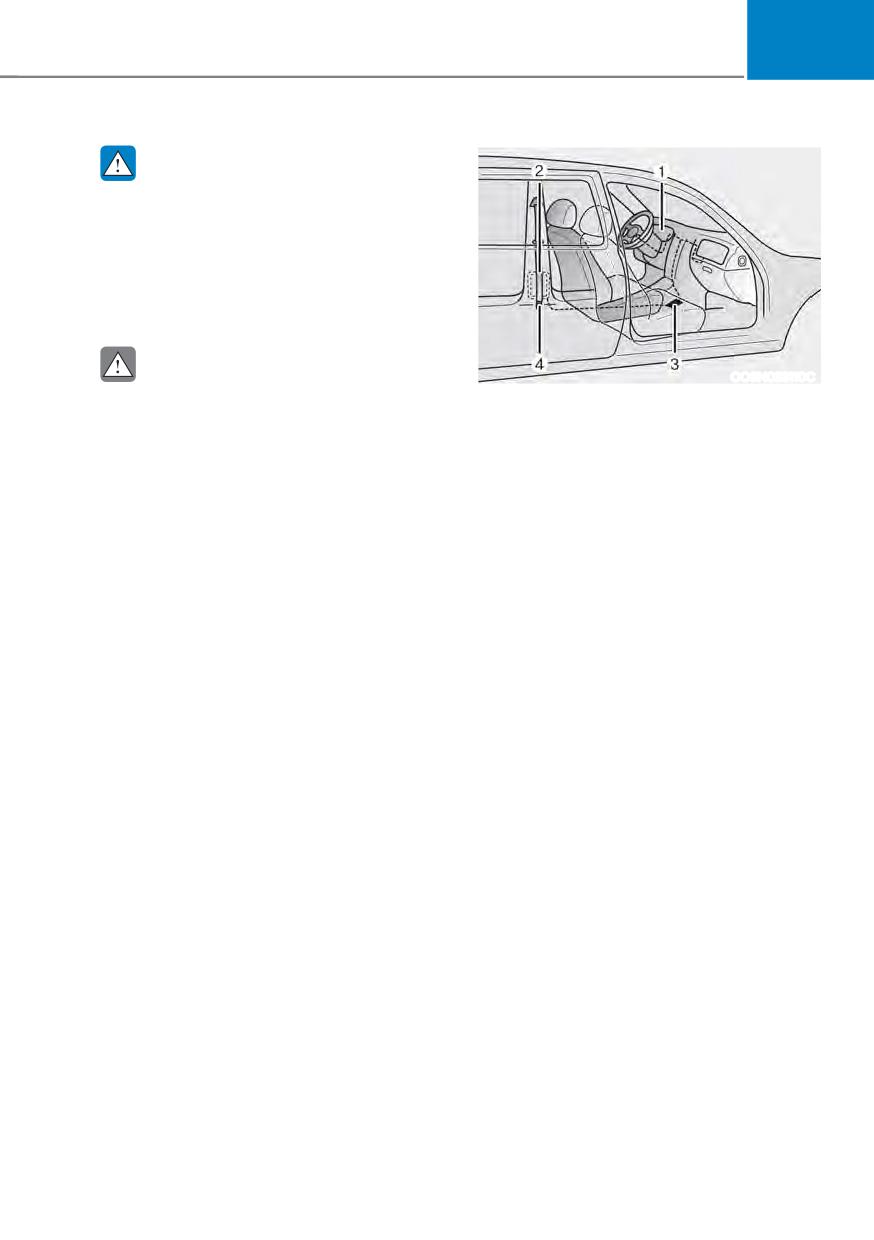

OOSN033110C
Body work on the front area of the
The Pre-Tensioner Seat Belt System
vehicle may damage the pre-tensioner
consists mainly of the following
seat belt system. Therefore, have the
components. Their locations are shown
system to be serviced by an authorized
in the illustration above:
HYUNDAI dealer.
(1) SRS air bag warning light
(2) Retractor pre-tensioner
(3) SRS control module
(4) EFD (Emergency Fastening Device)
System
3-27
Seats & Safety System
NOTICE
Additional Seat Belt Safety
The sensor that activates the SRS
Precautions
control module is connected with the
Seat belt use during pregnancy
pre-tensioner seat belts. The SRS air
The seat belt should always be used
bag warning light on the instrument
during pregnancy. The best way to
cluster will illuminate for approximately
protect your unborn child is to protect
3~6 seconds after the ignition switch is
yourself by always wearing the seat belt.
in the ON position, and then it should
turn off.
Pregnant women should always wear
a lap-shoulder seat belt. Place the
If the pre-tensioner is not working
shoulder belt across your chest, routed
properly, the warning light will
between your breasts and away from
illuminate even if the SRS air bag is not
your neck. Place the lap belt below your
malfunctioning. If the warning light
belly so that it fits SNUGLY across your
does not illuminate, stays illuminated
hips and pelvic bone, under the rounded
or illuminates when the vehicle is being
part of the belly.
driven, have an authorized HYUNDAI
dealer inspect the pre-tensioner seat
belts and SRS air bags as soon as
WARNING
possible.
ś Pregnant women and patients are
more vulnerable to any impacts on
Information
the abdomen during an abrupt stop
or accident. If you are in an accident
ś Pre-tensioner seat belts may be
while pregnant, consult your doctor.
activated in certain frontal or side
ś To reduce the risk of serious injury or
collisions or rollover situations (if
death to an unborn child during an
equipped with rollover sensor).
accident, pregnant women should
ś When the pre-tensioner seat belts are
NEVER place the lap portion of the
activated, a loud noise may be heard
seat belt above or over the area of
and fine dust, which may appear to be
the abdomen where the unborn child
smoke, may be visible in the passenger
is located.
compartment. These are normal
operating conditions and are not
Seat belt use and children
hazardous.
Infant and small children
ś Although it is non-toxic, the fine dust
may cause skin irritation and should
Most countries have Child Restraint
not be inhaled for prolonged periods.
System laws which require children to
travel in approved Child Restraint System
Wash all exposed skin areas thoroughly
after an accident in which the pre-
devices, including booster seats. The age
at which seat belts can be used instead
tensioner seat belts were activated.
of Child Restraint System differs among
countries, so you should be aware of
the specific requirements in your state,
and where you are travelling. Infant and
Child Restraint System must be properly
placed and installed in a rear seat.
For more information refer to the “Child
Restraint Systems” section in this
chapter.
3-28
03
Larger children
WARNING
Children under age 13 and who are
ALWAYS properly restrain infants and
too large for a booster seat should
small children in a Child Restraint
always occupy the rear seat and use the
System appropriate for the child’s
available lap/shoulder belts. A seat belt
height and weight.
should lie across the upper thighs and
To reduce the risk of serious injury or
be snug across the shoulder and chest
death to a child and other passengers,
to restrain the child safely. Check belt fit
NEVER hold a child in your lap or arms
periodically. A child’s squirming could
when the vehicle is moving. The violent
put the belt out of position. In the event
forces created during an accident will
of an accident, children are afforded the
tear the child from your arms and throw
best safety restrained by a proper Child
the child against the interior of the
Restraint System in the rear seats.
vehicle.
If a larger child over age 13 must be
seated in the front seat, the child must
Small children are best protected from
be securely restrained by the available
injury in an accident when properly
lap/shoulder belt and the seat should be
restrained in the rear seat by a Child
placed in the rearmost position.
Restraint System that meets the
If the shoulder belt portion slightly
requirements of the Safety Standards
touches the child’s neck or face, try
of your state. Before buying any Child
placing the child closer to the center
Restraint System, make sure that it has
of the vehicle. If the shoulder belt still
a label certifying that it meets Safety
touches their face or neck, they need to
Standard of your state.
be returned to an appropriate booster
The Child Restraint System must be
seat in the rear seat.
appropriate for your child’s height and
weight. Check the label on the Child
Restraint System for this information.
WARNING
Refer to “Child Restraint Systems”
ś Always make sure larger children’s
section in this chapter.
seat belts are worn and properly
adjusted.
ś NEVER allow the shoulder belt to
contact the child’s neck or face.
ś Do not allow more than one child to
use a single seat belt.
Seat belt use and injured people
A seat belt should be used when an
injured person is being transported.
Consult a physician for specific
recommendations.
3-29
Seats & Safety System
One person per belt
Care of Seat Belts
Two people (including children) should
Seat belt systems should never be
never attempt to use a single seat belt.
disassembled or modified. In addition,
This could increase the severity of
care should be taken to assure that seat
injuries in case of an accident.
belts and belt hardware are not damaged
by seat hinges, doors or other abuse.
Do not lie down
Sitting in a reclined position when the
Periodic inspection
vehicle is in motion can be dangerous.
All seat belts should be inspected
Even when buckled up, the protections
periodically for wear or damage of any
of your restraint system (seat belts
kind. Any damaged parts should be
and/or air bags) is greatly reduced by
replaced as soon as possible.
reclining your seatback.
Seat belts must be snug against your
Keep belts clean and dry
hips and chest to work properly.
Seat belts should be kept clean and
During an accident, you could be thrown
dry. If belts become dirty, they can be
into the seat belt, causing neck or other
cleaned by using a mild soap solution
injuries.
and warm water. Bleach, dye, strong
detergents or abrasives should not be
The more the seat back is reclined, the
used because they may damage and
greater the chance for the passenger’s
weaken the fabric.
hips to slide under the lap belt or the
passenger’s neck to strike the shoulder
When to replace seat belts
belt.
The entire seat belt assembly or
assemblies should be replaced if the
WARNING
vehicle has been involved in an accident.
ś NEVER ride with a reclined seatback
This should be done even if no damage is
when the vehicle is moving.
visible. Additional questions concerning
seat belt operation should be directed to
ś Riding with a reclined seatback
an authorized HYUNDAI dealer.
increases your chance of serious
or fatal injuries in the event of a
collision or sudden stop.
ś Driver and passengers should always
sit well back in their seats with the
seatbacks upright and should be
belted properly.
3-30
03
&+,/' 5(675$,17 6<67(0 ǣ&56Ǥ
Children Always in the Rear
Child Restraint System (CRS)
Infants and younger children must be
restrained in an appropriate rearward-
WARNING
facing or forward-facing CRS that has
Always properly restrain children in the
first been properly secured to the seat
vehicle. Children of all ages are safer
of the vehicle. Read and comply with
when restrained in the rear seat. A child
the instructions for installation and use
riding in the front passenger seat can
provided by the manufacturer of the
be forcefully struck by an inflating air
Child Restraint System.
bag resulting in SERIOUS INJURY or
DEATH.
WARNING
Children under age 13 should always
An improperly secured child restraint
ride in the rear seats and must always be
can increase the risk of SERIOUS
properly restrained to minimize the risk
INJURY or DEATH in an accident. Always
of injury in an accident, sudden stop or
take the following precautions when
sudden maneuver.
using a Child Restraint System:
According to accident statistics, children
ś NEVER install a child or infant
are safer when properly restrained in the
restraint in the front passenger's
rear seats than in the front seat. Even
seat.
with air bags, children can be seriously
ś Always properly secure the child
injured or killed. Children too large for a
restraint to a rear seat of the vehicle.
Child Restraint System must use the seat
ś Always follow the child restraint
belts provided.
system manufacturer's instructions
All 50 states have child restraint laws
for installation and use.
which require children to travel in
ś Always properly restrain your child in
approved Child Restraint Systems.
the child restraint.
The laws governing the age or height/
ś If the vehicle head restraint prevents
weight restrictions at which seat belts
proper installation of a child seat
can be used instead of Child Restraint
(as described in the child restraint
System differs among states, so
system manual), the head restraint of
you should be aware of the specific
the respective seating position shall
requirements in your country, and where
be readjusted or entirely removed.
you are travelling.
ś Do not use an infant carrier or a
Child Restraint Systems must be properly
child safety seat that "hooks" over
placed and installed in the rear seat.
a seatback, it may not provide
You must use a commercially available
adequate protection in an accident.
Child Restraint System that meets the
requirements of the Federal Motor
ś After an accident, have an authorized
Vehicle Safety Standards (FMVSS 213).
HYUNDAI dealer check the child
restraint system, seat belts, tether
Child Restraint Systems are generally
anchors and lower anchors.
designed to be secured in a vehicle seat
by lap belt portion of a lap/shoulder belt,
or by a LATCH system in the rear seats of
the vehicle.
3-31
Seats & Safety System
Selecting a Child Restraint
Child Restraint System types
System (CRS)
There are three main types of Child
When selecting a Child Restraint System
Restraint Systems: rearward-facing,
forward-facing and booster Child
for your child, always:
Restraint Systems.
ś
Make sure the Child Restraint System
They are classified according to the
has a label certifying that it meets
applicable Federal Motor Vehicle
child’s age, height and weight.
Safety Standards (FMVSS 213).
ś
Select a Child Restraint System based
on your child’s height and weight. The
required label or the instructions for
use typically provide this information.
ś
Select a Child Restraint System that
fits the vehicle seating position where
it will be used.
ś
Read and comply with the warnings
and instructions for installation and
use provided with the Child Restraint
System.
ONX4OB031007
Rearward-facing Child Restraint System
A rearward-facing Child Restraint System
provides restraint with the seating
surface against the back of the child. The
harness system holds the child in place,
and in an accident, acts to keep the child
positioned in the Child Restraint Systems
and reduce the stress to the fragile neck
and spinal cord.
All children under the age of one year
must always ride in a rearward-facing
Child Restraint System. Convertible and
3-in-1 Child Restraint Systems typically
have higher height and weight limits for
the rearward-facing position, allowing
you to keep your child rearward-facing
for a longer period of time.
3-32
03
Keep using Child Restraint Systems in
the rearward-facing position as long as
children fit within the height and weight
limits allowed by the Child Restraint
System’s manufacturer.
Continue using Child Restraint Systems
in the rearward-facing position as long as
children fit within the height and weight
limits allowed by the Child Restraint
System’s manufacturer. It's the best way
to keep them safe. Once your child has
outgrown the rearward-facing Child

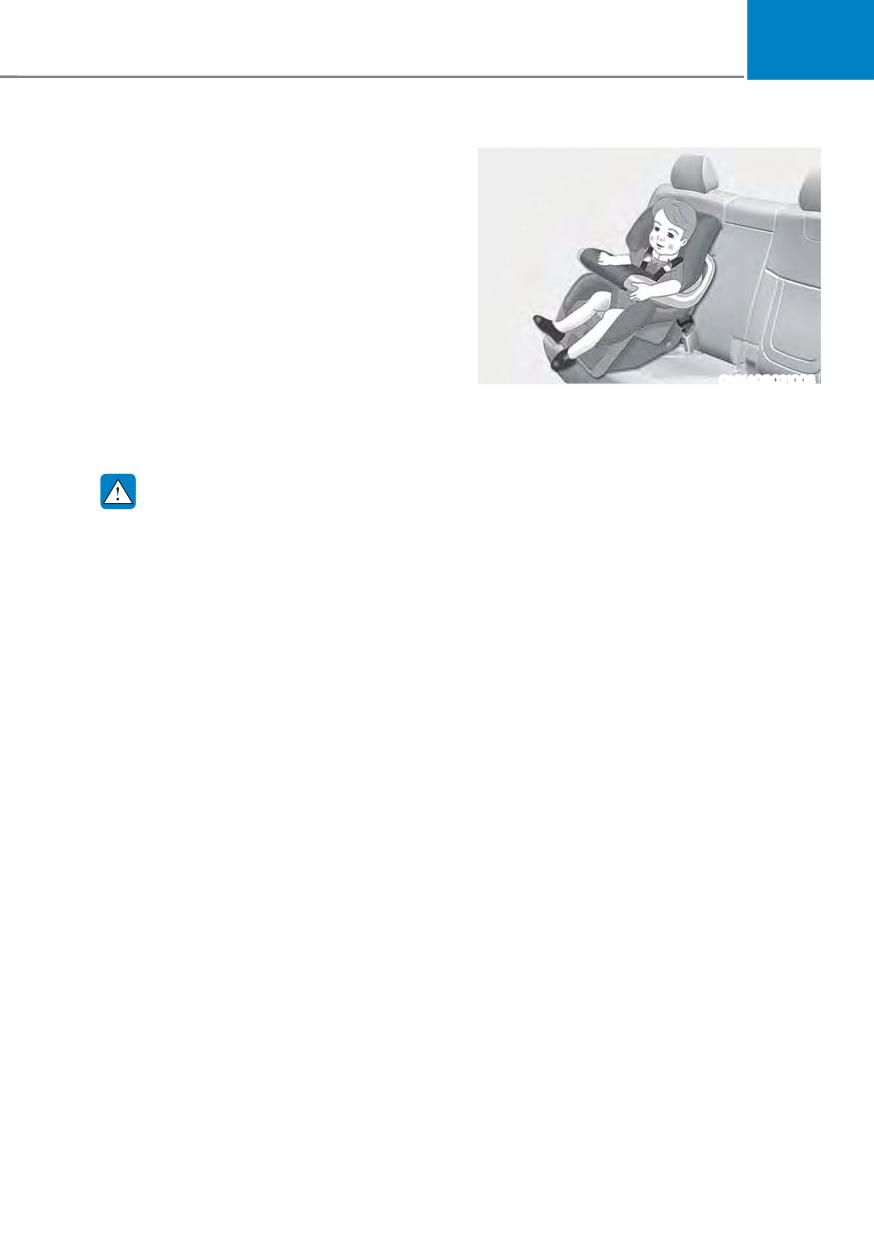

ONX4OB031008
Restraint System, your child is ready for
Forward-facing Child Restraint System
a forward-facing Child Restraint System
A forward-facing Child Restraint System
with a harness.
provides restraint for the child’s body
with a harness. Keep children in a
forward-facing Child Restraint System
WARNING
with a harness until they reach the top
NEVER install a child or infant restraint
height or weight limit allowed by your
in the front passenger's seat.
Child Restraint System’s manufacturer.
Placing a rearward-facing child restraint
Once your child outgrows the forward-
in the front seat can result in SERIOUS
facing Child Restraint System, your child
INJURY or DEATH if the child restraint is
is ready for a booster seat.
struck by an inflating air bag.
Booster seats
A booster seat is a Child Restraint
System designed to improve the fit of
the vehicle’s seat belt system. A booster
seat positions the seat belt so that it
fits properly over the stronger parts of
your child’s body. Keep your children in
booster seats until they are big enough
to fit in a seat belt properly.
For a seat belt to fit properly, the lap belt
must lie comfortable across the upper
thighs, not the stomach. The shoulder
belt should lie comfortable across the
shoulder and chest and not across the
neck or face. Children under age 13
must always be properly restrained to
minimize the risk of injury in an accident,
sudden stop or sudden maneuver.
3-33
Seats & Safety System
Installing a Child Restraint
ś Make sure the Child Restraint System
is firmly secured. After installing a
System (CRS)
Child Restraint System to the vehicle,
push and pull the seat forward and
WARNING
from side-to-side to verify that it is
securely attached to the seat. A Child
Before installing your Child Restraint
Restraint System secured with a seat
System always:
belt should be installed as firmly as
ś Read and follow the instructions
possible. However, some side-to-side
provided by the manufacturer of the
movement can be expected.
Child Restraint System.
When installing a Child Restraint
ś Read and follow the instructions
System, adjust the vehicle seat and
regarding child restraint systems in
seatback (up and down, forward
this manual.
and rearward) so that your child fits
Failure to follow all warnings and
in the Child Restraint System in a
instructions could increase the risk of
comfortable manner.
the SERIOUS INJURY or DEATH if an
ś Secure the child in the Child
accident occurs.
Restraint System. Make sure the
child is properly strapped in the Child
Restraint System according to the
WARNING
Child Restraint System manufacturer’s
If the vehicle head restraint prevents
instructions.
proper installation of a Child Restraint
System, the head restraint of the
respective seating position shall be
CAUTION
readjusted or entirely removed.
A Child Restraint System in a closed
vehicle can become very hot. To prevent
After selecting a proper Child Restraint
burns, check the seating surface and
System for your child and checking that
buckles before placing your child in the
the Child Restraint System fits properly
Child Restraint System.
on the seating position, there are three
general steps for a proper installation:
ś Properly secure the Child Restraint
System to the vehicle. All Child
Restraint Systems must be secured
to the vehicle with the lap belt or
lap part of a lap/shoulder part of a
lap/shoulder belt or with the LATCH
system.
3-34
03
Lower Anchors and Tether for
Children (LATCH System)
The LATCH system holds a Child
Restraint System during driving and in
an accident. This system is designed
to make installation of the Child
Restraint System easier and reduce
the possibility of improperly installing
your Child Restraint System. The LATCH
system uses anchors in the vehicle and
attachments on the Child Restraint

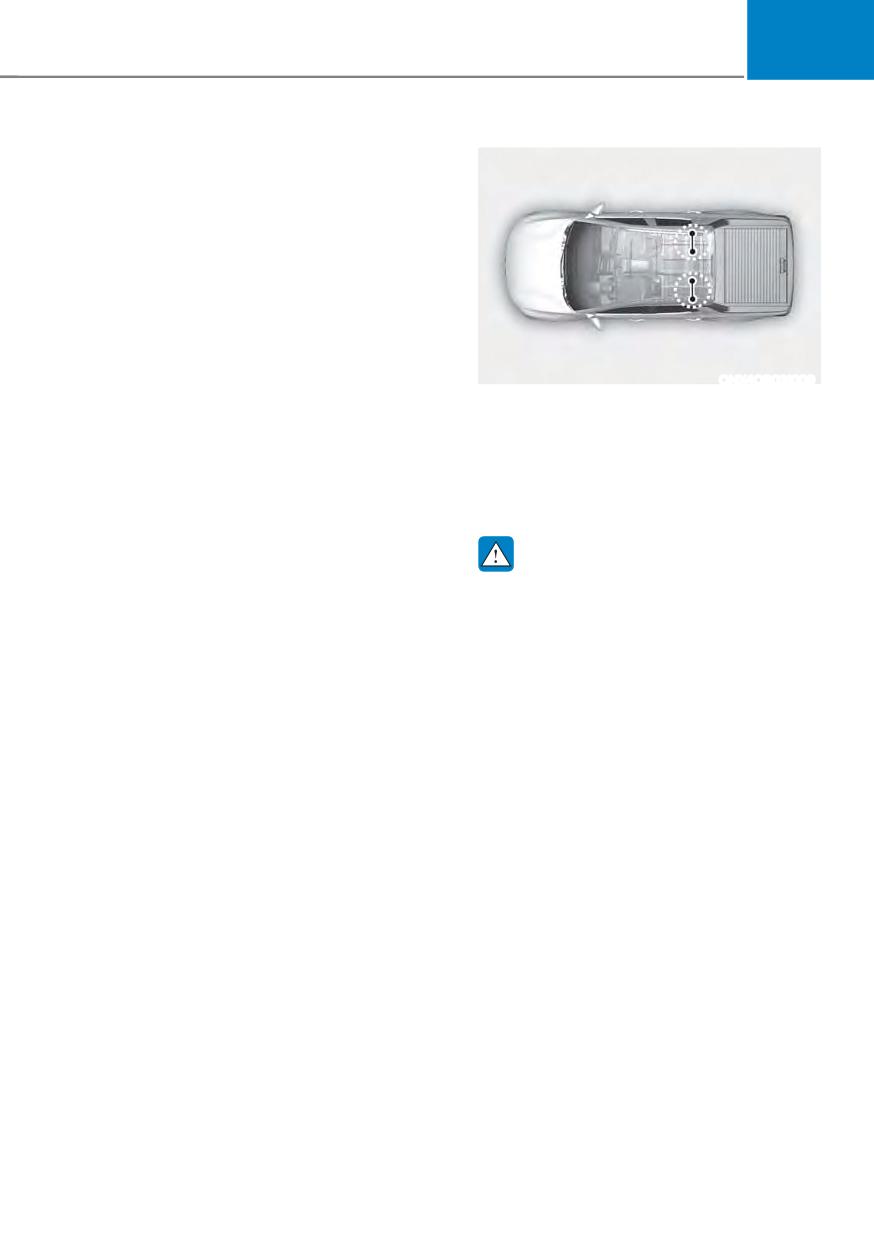

ONX4OB031009
System. The LATCH system eliminates
the need to use seat belts to secure the
LATCH anchors have been provided in
Child Restraint System to the rear seats.
the left and right outboard rear seating
positions. Their locations are shown
Lower anchors are metal bars built into
in the illustration. There are no LATCH
the vehicle. There are two lower anchors
anchors provided for the center rear
for each LATCH seating position that will
seating position.
accommodate a Child Restraint System
with lower attachments.
To use the LATCH system in your vehicle,
WARNING
you must have a Child Restraint System
Do not attempt to install a Child
with LATCH attachments.
Restraint System using LATCH anchors
The Child Restraint System manufacturer
in the rear center seating position.
will provide you with instructions on how
There are no LATCH anchors provided
to use the Child Restraint System with its
for this seat. Using the outboard seat
attachments for the LATCH anchorages.
anchors can damage the anchors which
may break or fail in a collision resulting
in serious injury or death.
3-35
Seats & Safety System
„ Rear passenger seat
Securing a Child Restraint System
with the “LATCH Anchors System”
To install a LATCH-compatible Child
Restraint System in either of the rear
outboard seating positions:
1. Move the seat belt buckle away from
the lower anchors.
2. Move any other objects away from
the anchorages that could prevent
a secure connection between the

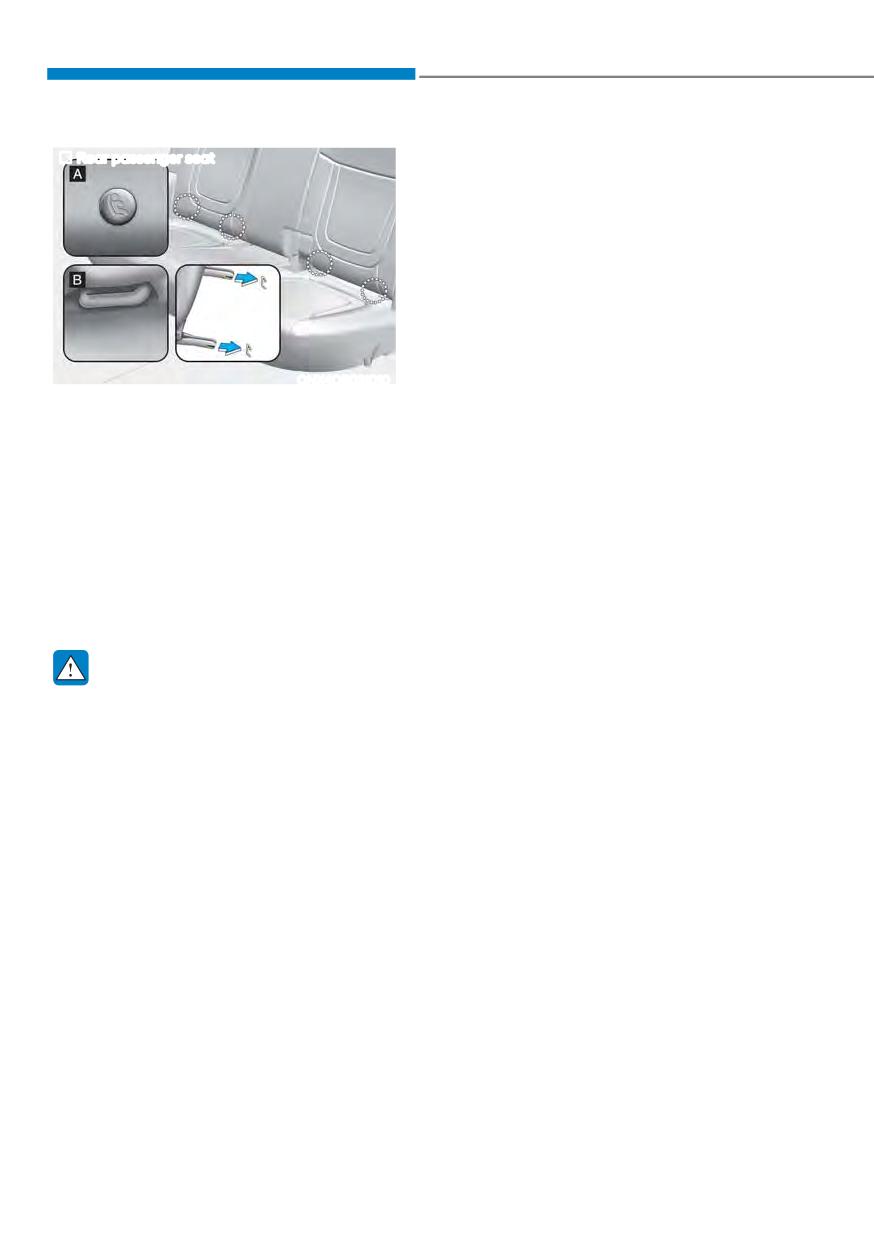

ONX4OB031010
Child Restraint System and the lower
anchors.
[A] : Lower Anchor Position Indicator
[B] : Lower Anchor
3. Place the Child Restraint System on
the vehicle seat, then attach the seat
The lower anchor position indicator
to the lower anchors according to the
symbols are located on the left and right
instructions provided by the Child
rear seat backs to identify the position
Restraint System manufacturer.
of the lower anchors in your vehicle (see
4. Follow the instructions of the Child
arrows in illustration).
Restraint System’s manufacturer for
The LATCH anchors are located between
proper installation and connection of
the seatback and the seat cushion of the
the lower attachments on the Child
rear seat left and right outboard seating
Restraint System to the lower anchors.
positions.
WARNING
Before installing the Child Restraint
System, make sure that there are no
objects (for example, toy, pen, wire)
around the lower anchor area. Those
objects may damage either the seat belt
system or the Child Restraint System
during the installment procedure. If
necessary, have the vehicle inspected
by an authorized HYUNDAI dealer.
3-36
03
Securing a Child Restraint System
WARNING
seat with “Tether Anchor” system
Take the following precautions when
using the LATCH system:
ś Read and follow all installation
instructions provided with your Child
Restraint System.
ś To prevent the child from reaching
and taking hold of unretracted
seat belts, buckle all unused rear
seat belts and retract the seat belt
webbing behind the child. Children
can be strangled if a shoulder belt
becomes wrapped around their neck

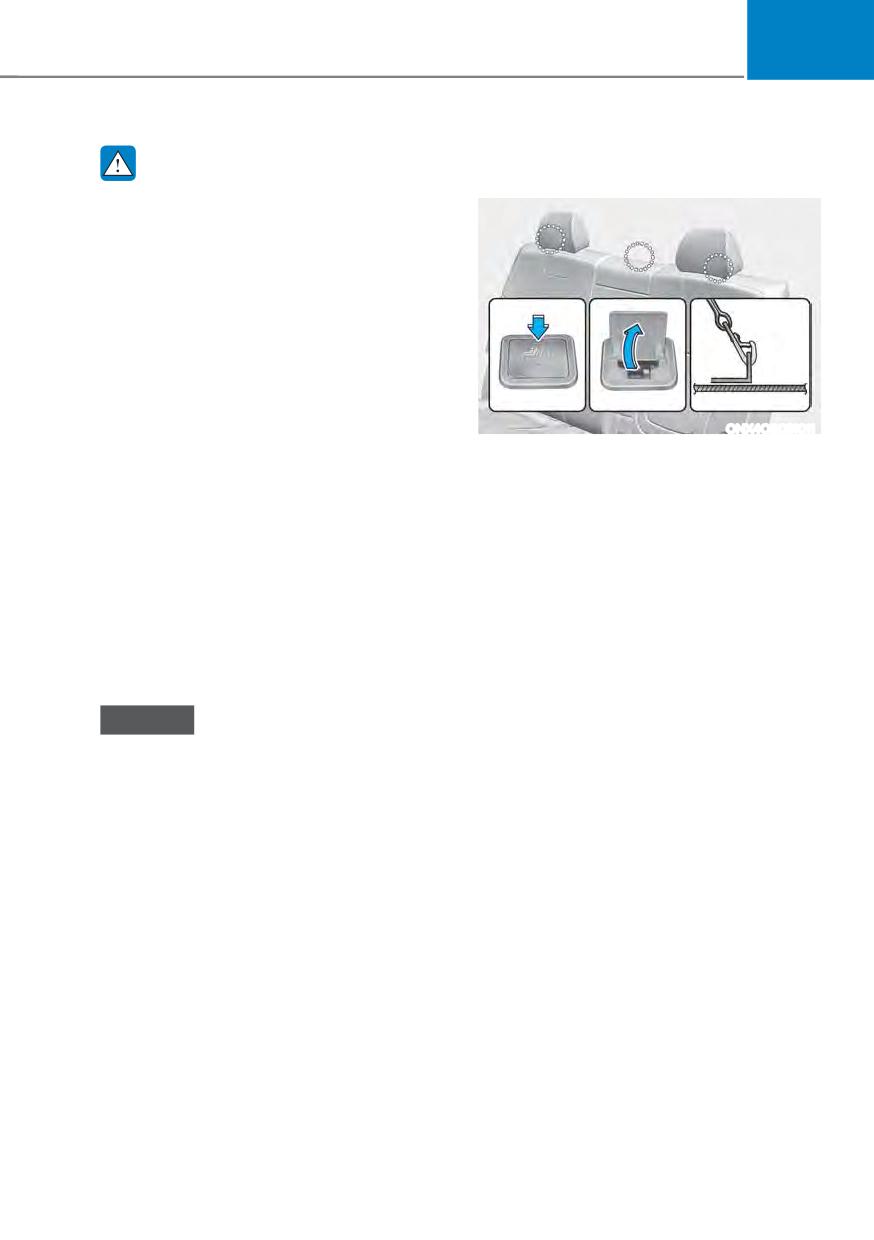

ONX4OB031011
and the seat belt tightens.
First secure the child restraint with
ś NEVER attach more than one
the LATCH lower anchors or the seat
Child Restraint System to a single
belt. If the child restraint manufacturer
anchorage. This could cause the
recommends that the top tether strap
anchor or attachment to come loose
be attached, attach and tighten the
or break.
top tether strap to the top tether strap
ś Always have the LATCH system
anchor.
inspected by your dealer after an
Child restraint hook holders are located
accident. An accident can damage
on the rear of the seatbacks.
the LATCH system and may not
properly secure the Child Restraint
System.
NOTICE
The recommended weight for the
LATCH system is under 65 lb. (30 kg).
How to determine an appropriate child
restraint weight: Child weight + Child
restraint weight < 65 lb. (30kg)
3-37
Seats & Safety System
WARNING
Take the following precautions when
installing the top-tether:
ś Read and follow all installation
instructions provided with your Child
Restraint System.
ś NEVER attach more than one
Child Restraint System to a single
tether anchor. This could cause the
anchorage or attachment to come
ONX4OB031012
loose or break.
To install the tether anchor:
ś Do not attach the tether strap to
1. Route the Child Restraint System
anything other than the correct
top-tether strap over the seatback.
top-tether anchor. It may not work
Route the tether strap under the
properly if attached to something
head restraint and between the head
else.
restraint posts, or route the tether
ś Child Restraint System anchors are
strap over the top of the vehicle
designed to withstand only those
seatback. Make sure the strap is not
loads imposed by correctly fitted
twisted.
Child Restraint System.
2. Connect the tether strap hook to
Do not use them for adult seat belts,
the tether anchor, then tighten the
harnesses, or for attaching other
top-tether strap according to the
items or equipment to the vehicle.
instructions of your Child Restraint
System’s manufacturer to firmly
attach the Child Restraint System to
the seat.
3. Check that the Child Restraint System
is securely attached to the seat by
pushing and pulling the seat forward-
and-back and side-to-side.
3-38
03
Securing a Child Restraint System
with a lap/shoulder belt
WARNING
ALWAYS place a rearward-facing Child
Restraint System in the rear seat of the
vehicle.
Placing a rearward-facing child restraint
in the front seat can result in serious
injury or death if the Child Restraint

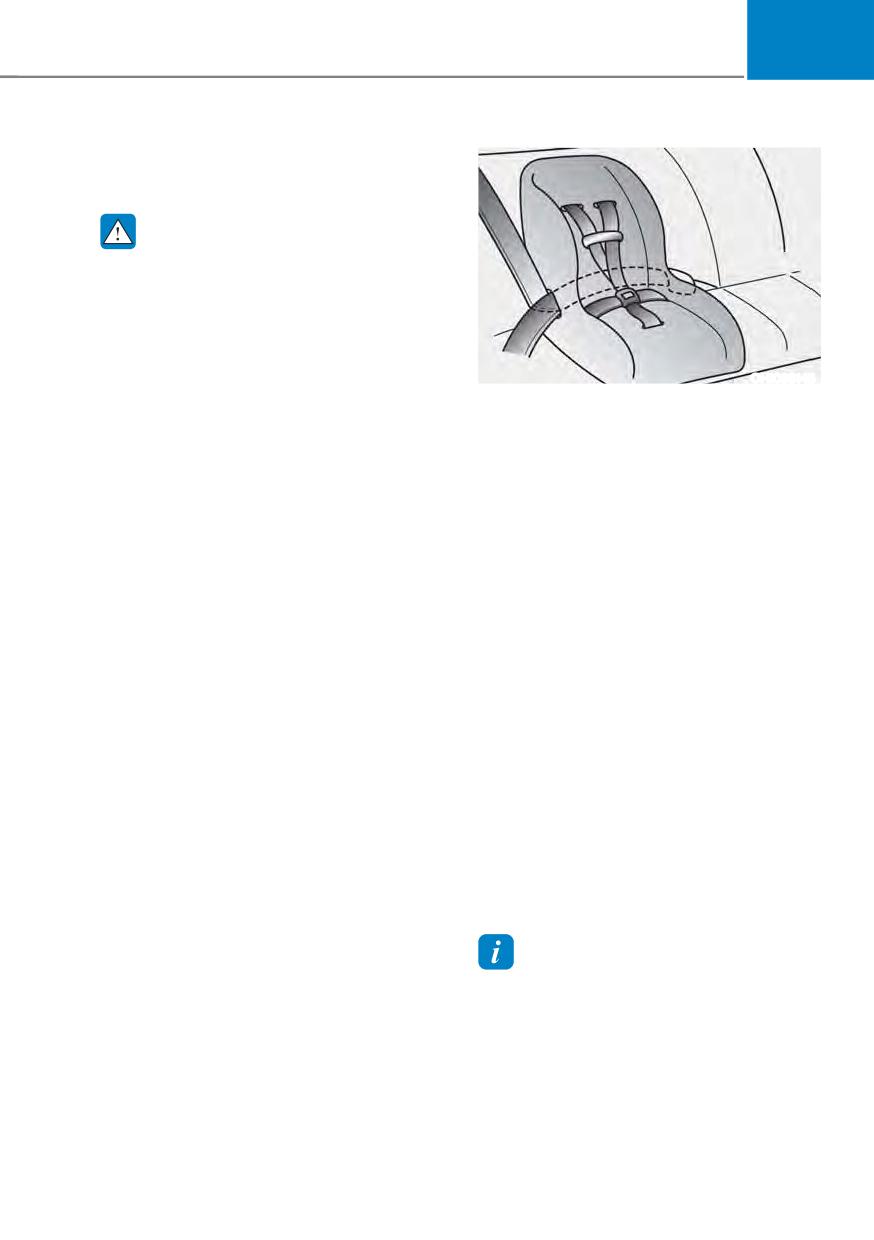

OHI038145
System is struck by an inflating air bag.
Automatic locking mode
When not using the LATCH system, all
Since all passenger seat belts move
Child Restraint Systems must be secured
freely under normal conditions and
to a rear seat with the lap part of a lap/
only lock under extreme or emergency
shoulder belt.
conditions (emergency locking mode),
you must manually pull the seat belt all
the way out to shift the retractor to the
"Automatic Locking" mode to secure a
Child Restraint System.
The "Automatic Locking" mode will help
prevent the normal movement of the
child in the vehicle from causing the
seat belt to loosen and compromise
the Child Restraint System. To secure a
Child Restraint System, use the following
procedure.
To install a Child Restraint System on the
rear seats, do the following:
1. Place the Child Restraint System on a
rear seat and route the lap/shoulder
belt around or through the Child
Restraint System, following the Child
Restraint System manufacturer’s
instructions. Make sure the seat belt
webbing is not twisted.
Information
When using the rear center seat belt, you
should also refer to the "Rear Seat Belt -
Passenger's 3-point system" section in this
chapter.
3-39
Seats & Safety System

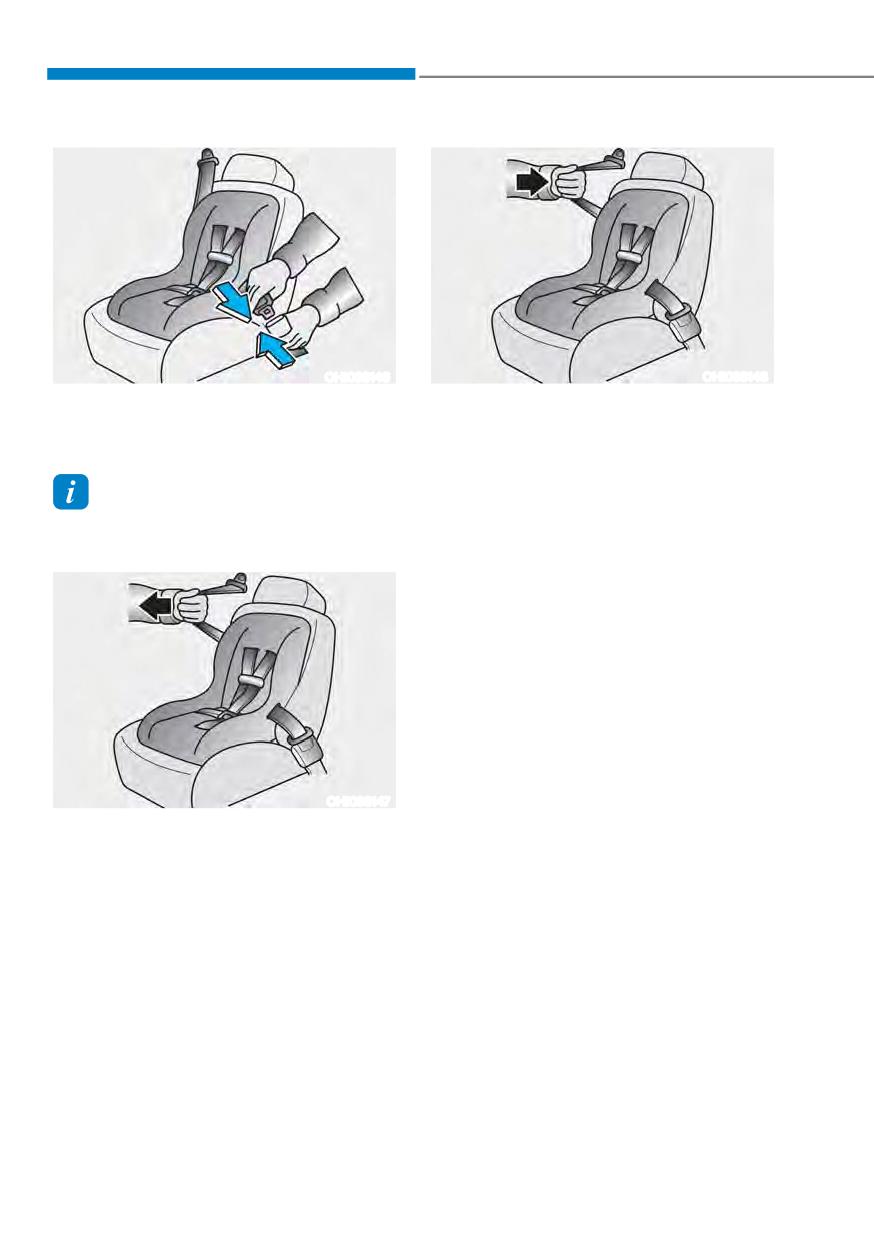

OHI038146
OHI038148
2. Fasten the lap/shoulder belt latch
4. Slowly allow the shoulder portion of
into the buckle. Listen for the distinct
the seat belt to retract and listen for
“click” sound.
an audible "clicking" or "ratcheting"
sound. This indicates that the retractor
is in the "Automatic Locking" mode.
Information
If no distinct sound is heard, repeat
Position the release button so that it is easy
steps 3 and 4.
to access in case of an emergency.
5. Remove as much slack from the belt
as possible by pushing down on the
Child Restraint System while feeding
the shoulder belt back into the
retractor.
6. Push and pull on the Child Restraint
System to confirm that the seat belt
is holding it firmly in place. If it is not,
release the seat belt and repeat steps
2 through 6.
7. Double check that the retractor is in
the "Automatic Locking" mode by
OHI038147
attempting to pull more of the seat
belt out of the retractor. If you cannot,
3. Pull the shoulder portion of the
the retractor is in the "Automatic
seat belt all the way out. When the
Locking" mode.
shoulder portion of the seat belt
is fully extended, it will shift the
If your Child Restraint System
manufacturer instructs or recommends
retractor to the "Automatic Locking"
(child restraint) mode.
you to use a tether anchor with the lap/
shoulder belt, refer to the previous pages
for more information.
3-40
03
Information
When the seat belt is allowed to retract to
its fully stowed position, the retractor will
automatically switch from the “Automatic
Locking” mode to the emergency lock
mode for normal adult usage.
WARNING
If the retractor is not in the “Automatic
Locking” mode, the child restraint
can move when your vehicle turns or
stops suddenly. A child can be seriously
injured or killed if the child restraint
is not properly anchored in the car,
including manually pulling the seat belt
all the way out to shift the retractor to
the “Automatic Locking” mode.
To remove the Child Restraint System,
press the release button on the buckle
and then pull the lap/shoulder belt out of
the Child Restraint System and allow the
seat belt to retract fully.
WARNING
If a child restraint is installed in the
second row center seat, move the
second row seat far back as possible, to
minimize contact with the front center
air bag.
3-41
Seats & Safety System
$,5 %$* ǘ 6833/(0(17$/ 5(675$,17 6<67(0
The actual air bags in the vehicle may differ from the illustration.
ONX4OB031013
1. Driver’s front air bag
2. Passenger’s front air bag
3. Side air bag
4. Curtain air bag
3-42
03
This vehicle is equipped with a Supplemental Air Bag System for the driver’s seat and
front passenger’s seats.
The front air bags are designed to supplement the three-point seat belts. For these air
bags to provide protection, the seat belts must be worn at all times when driving.
You can be severely injured or killed in an accident if you are not wearing a seat belt.
Air bags are designed to supplement seat belts, but do not replace them. Also, air bags
are not designed to deploy in every collision. In some accidents, the seat belts are the
only restraint protecting you.
WARNING
AIR BAG SAFETY PRECAUTIONS
ALWAYS use seat belts and Child Restraint Systems - every trip, every time,
everyone! Even with air bags, you can be seriously injured or killed in a collision if
you are improperly belted or not wearing your seat belt when the air bag inflates.
NEVER place a child in any Child Restraint System or booster seat in the front
passenger seat, unless the air bag is deactivated.
An inflating air bag could forcefully strike the infant or child causing serious or fatal
injuries.
ABC - Always Buckle Children under age 13 in the back seat. It is the safest place
for children of any age to ride. If a child age 13 or older must be seated in the front
seat, he or she must be properly belted and the seat should be moved as far back as
possible.
All occupants should sit upright with the seatback in an upright position, centered
on the seat cushion with their seat belt on, legs comfortably extended and their feet
on the floor until the vehicle is parked and the vehicle is turned off. If an occupant
is out of position during an accident, the rapidly deploying air bag may forcefully
contact the occupant causing serious or fatal injuries.
You and your passengers should never sit or lean unnecessarily close to the air bags
or lean against the door or center console.
Move your seat as far back as possible from front air bags, while still maintaining
control of the vehicle. The U.S. National Highway Traffic Safety Administration
(NHTSA) recommends that drivers allow at least 10 inches (25 cm) between the
center of the steering wheel and the chest.
3-43
Seats & Safety System
Where are the Air Bags?
The seat belt buckle sensors determine
if the driver and front passenger's seat
Driver’s and passenger’s front air
belts are fastened. These sensors provide
bags
the ability to control the SRS deployment
„ Driver’s front air bag
based on whether or not the seat belts are
fastened, and how severe the impact is.
The advanced SRS offers the ability to
control the air bag inflation within two
levels. A first stage level is provided for
moderate-severity impacts. A second
stage level is provided for more severe
impacts.
According to the impact severity, and
seat belt usage, the SRS Control Module
(SRSCM) controls the air bag inflation.
OCN7030036
Failure to properly wear seat belts can
„ Passenger’s front air bag
increase the risk or severity of injury in an
accident.
WARNING
To reduce the risk of serious injury or
death from inflating front air bags, take
the following precautions:
ś Seat belts must be worn at all times
to help keep occupants positioned
ONX4030037
properly.
Your vehicle is equipped with a
ś Move your seat as far back as
Supplemental Restraint System (SRS)
possible from front air bags, while
still maintaining control of the
as well as lap/shoulder belts at both the
driver and passenger seating positions.
vehicle.
The SRS consists of air bags which are
ś Never lean against the door or center
located in the center of the steering
console.
wheel and the passenger’s side front
ś Do not allow the front passenger
panel pad above the glove box.
to place their feet or legs on the
The air bags are labeled with the letters
dashboard.
“AIR BAG” embossed on the pad covers.
ś No objects (such as crash pad cover,
The purpose of the SRS is to provide the
mobile phone holder, cup holder,
air fresheners or stickers) should
vehicle’s driver and front passengers with
additional protection than that offered
be placed over or near the air bag
modules on the steering wheel,
by the seat belt system alone in case of a
frontal impact of sufficient severity.
instrument panel, windshield glass,
and the front passenger’s panel
The SRS uses sensors to gather
above the glove box. Such objects
information about the driver’s and front
could cause harm if the vehicle is in a
passenger's seat belt usage and impact
crash severe enough to cause the air
severity.
bags to deploy.
ś Do not attach any objects on the
front windshield and inside mirror.
3-44
03
Side air bags
WARNING
„ Side air bag
To reduce the risk of serious injury or
death from an inflating side air bag and
front center air bag, take the following
precautions:
ś
Seat belts must be worn at all times
to help keep occupants positioned
properly.
ś
Do not allow passengers to lean their
heads or bodies onto doors, put their
arms on the doors, stretch their arms
ONX4030039
out of the window, or place objects
between the doors and seats.
ś
Hold the steering wheel at the 9
o’clock and 3 o’clock positions, to
minimize the risk of injuries to your
hands and arms.
ś
Do not use any accessory seat
covers. This could reduce or prevent
the effectiveness of the system.
ś
Do not hang other objects except
clothes. In an accident it may cause
vehicle damage or personal injury
OTM030030
especially when air bag is inflated.
Your vehicle is equipped with a side air
ś
Do not place any objects over the
bag in each front seat. The purpose of
air bag or between the air bag and
the air bag is to provide the vehicle’s
yourself. Also, do not attach any
driver and the front passenger with
objects around the area the air bag
additional protection than that offered by
inflates such as the door, side door
the seat belt alone.
glass, front and rear pillar.
The side air bags are designed to deploy
ś
Do not place any objects between
during certain side impact collisions,
the door and the seat. They may
depending on the crash severity.
become dangerous projectiles if the
The side air bags on both sides of the
side air bag inflates.
vehicle are designed to deploy when a
ś
Do not install any accessories on the
rollover is detected by a rollover sensor.
side or near the side air bags.
(if equipped with rollover sensor)
ś
Do not cause impact to the doors
The side air bags are not designed to
when the ignition switch button is in
deploy in all side impact or rollover
the ON or START position as this may
situations.
cause the side air bags to inflate.
ś
If the seat or seat cover is damaged,
have the system serviced by an
authorized HYUNDAI dealer.
3-45
Seats & Safety System

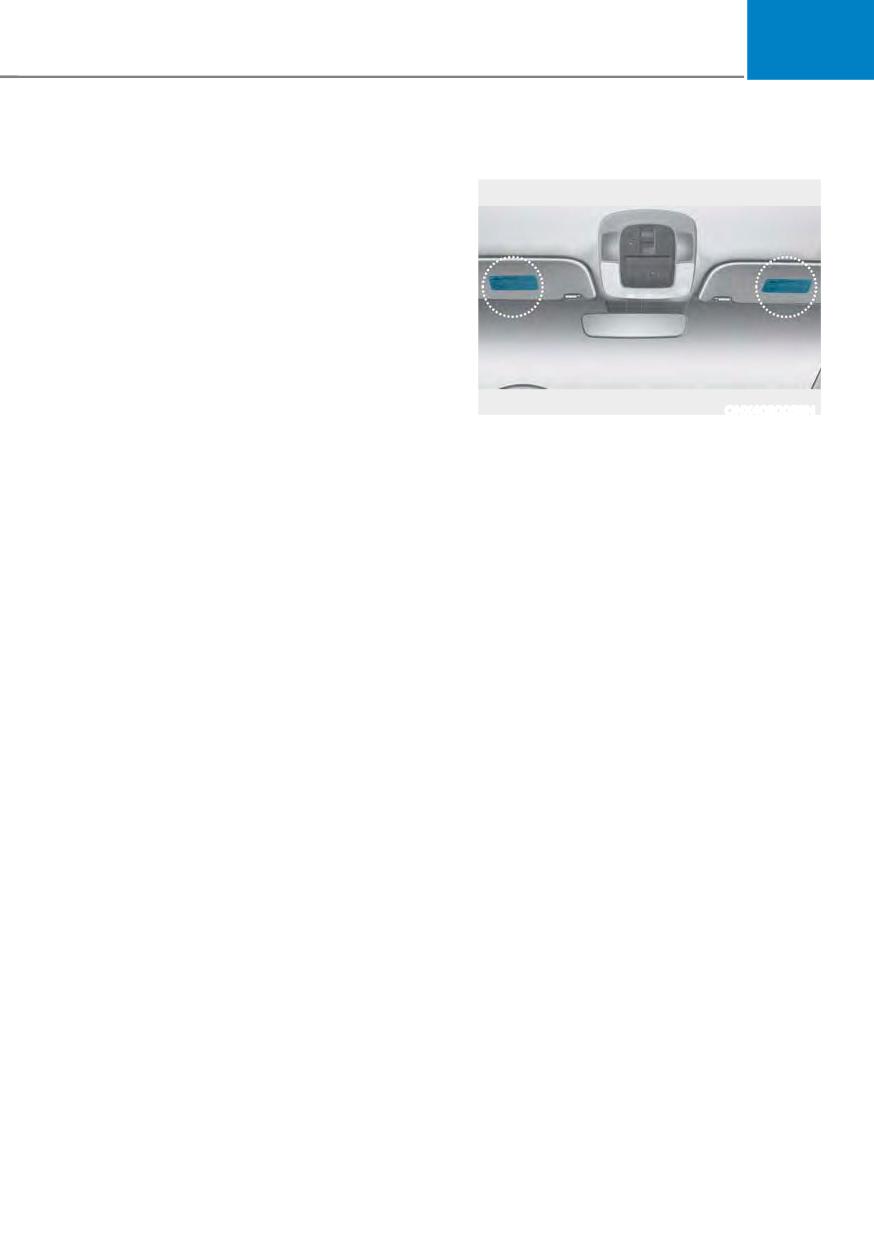

Curtain air bags
For vehicles equipped with a rollover
sensor the side and/or curtain air bags
and pre-tensioners on both sides of
the vehicle may deploy if a rollover or
possible rollover is detected.
The curtain air bags are not designed
to deploy in all side impact or rollover
situations.
WARNING
To reduce the risk of serious injury or
ONX4030040
death from an inflating curtain air bag,
take the following precautions:
ś All seat occupants must wear
seat belts at all times to help keep
occupants positioned properly.
ś Properly secure Child Restraint
System as far away from the door as
possible.
ś Do not place any objects over the air
bag. Also, do not attach any objects
around the area the air bag inflates
such as the door, side door glass,
OTM030032
front and rear pillar, roof side rail.
Curtain air bags are located along both
ś Do not hang other objects except
sides of the roof rails above the front and
clothes, especially hard or breakable
rear doors.
objects.
They are designed to help protect the
In an accident, it may cause vehicle
heads of the front seat occupants and
damage or personal injury.
the rear outboard seat occupants in
ś Do not allow passengers to lean their
certain side impact collisions.
heads or bodies onto doors, put their
The curtain air bags are designed to
arms on the doors, stretch their arms
deploy during certain side impact
out of the window, or place objects
collisions, depending on the crash
between the doors and seats.
severity.
ś Do not attempt to open or repair
the side curtain air bags yourself. If
necessary, have the air bag inspected
by an authorized HYUNDAI dealer.
3-46
03
SRS warning light
How does the SRS Air Bag
System Operate?
The SRS (Supplemental Restraint System)
air bag warning light on the instrument
panel displays the air bag symbol
depicted in the illustration. The system
checks the air bag electrical system for
malfunctions. The light indicates that
there is a potential problem with your
air bag system, which could include
your side and/or curtain air bags used
for rollover protection (if equipped with
rollover sensor).
ONX4OB031014
The SRS consists of the following
components:
WARNING
(1) Driver's front air bag module
If your SRS malfunctions, the air bag
(2) Passenger's front air bag module
may not inflate properly during an
(3) Side air bag modules
accident, increasing the risk of serious
injury or death.
(4) Curtain air bag modules
If any of the following conditions occur,
(5) Retractor pre-tensioner
your SRS is malfunctioning:
(6) Air bag warning light
ś The light does not turn on for
(7) SRS control module (SRSCM)/
approximately three to six seconds
Rollover sensor
when the Engine Start/Stop button is
(8) Front impact sensors
in the ON position.
(9) Side impact sensors
ś The light stays on after illuminating
for approximately three to six
(10) Side pressure sensors
seconds.
(11) Emergency fastening device system
ś The light comes on while the vehicle
(12) Occupant classification system
is in motion.
(13) Seat belt buckle sensor
ś The light blinks when the engine is
The SRSCM continually monitors all SRS
running.
components while the ignition switch
Have an authorized HYUNDAI dealer
is ON to determine if a crash impact
inspect the SRS as soon as possible if
is severe enough to require air bag
any of these conditions occur.
deployment or pre-tensioner seat belt
deployment.
3-47
Seats & Safety System
During a moderate to severe frontal
ś
In addition to inflating in serious side
collision, sensors will detect the
collisions, vehicles equipped with a
vehicle’s rapid deceleration. If the rate of
rollover sensor, side and/or curtain air
deceleration is high enough, the control
bags will inflate if the sensing system
unit will inflate the front air bags, at the
detects a rollover.
time and with the force needed.
When a rollover is detected, curtain
The front air bags help protect the driver
air bags will remain inflated longer to
and front passenger by responding to
help provide protection from ejection,
frontal impacts in which seat belts alone
especially when used in conjunction
cannot provide adequate restraint. When
with the seat belts. (if equipped with a
needed, the side air bags help provide
rollover sensor)
protection in the event of a side impact
ś
To help provide protection, the air
or rollover by supporting the side upper
bags must inflate rapidly. The speed
body area.
of air bag inflation is a consequence
ś Air bags are activated (able to
of extremely short time in which
inflate if necessary) only when the
to inflate the air bag between the
Engine Start/Stop button is in the
occupant and the vehicle structures
ON or START position, and it can be
before the occupant impacts those
activated within about 3 minutes after
structures. This speed of inflation
the engine is turned off.
reduces the risk of serious or
lifethreatening injuries and is thus a
ś Air bags inflate in the event of certain
necessary part of air bag design.
frontal or side collisions to help
protect the occupants from serious
However, the rapid air bag inflation
physical injury.
can also cause injuries which can
ś There is no single speed at which the
include facial abrasions, bruises and
broken bones because the inflation
air bags will inflate. Generally, air bags
are designed to inflate based upon the
speed also causes the air bags to
expand with a great deal of force.
severity of a collision and its direction.
These two factors determine whether
ś
There are even circumstances under
the sensors produce an electronic
which contact with the air bag can
deployment/inflation signal.
cause fatal injuries, especially if the
occupant is positioned excessively
ś The front air bags will completely
inflate and deflate in an instant. It is
close to the air bag.
virtually impossible for you to see the
You can take steps to reduce the risk
air bags inflate during an accident. It is
of being injured by an inflating air bag.
much more likely that you will simply
The greatest risk is sitting too close to
see the deflated air bags hanging out
the air bag. An air bag needs about 10
of their storage compartments after
in. (25 cm) of space to inflate. NHTSA
the collision.
recommends that drivers allow at least
10 in. (25 cm) between the center of the
steering wheel and the chest.
3-48
03

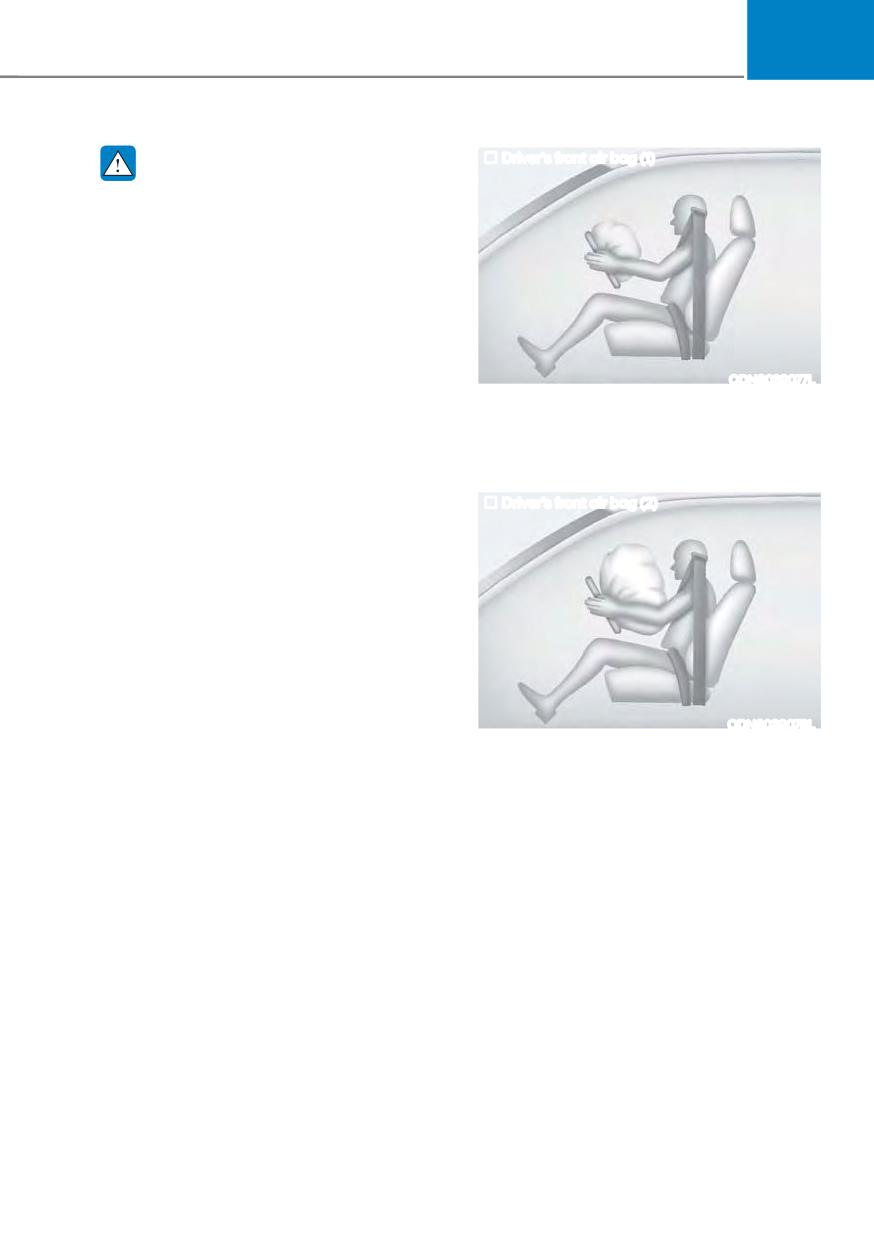

„ Driver’s front air bag (1)
WARNING
To reduce the risk of serious injury or
death from an inflating air bag, take the
following precautions:
ś NEVER place a child restraint in the
front passenger seat.
Always properly restrain children
under age 13 in the rear seats of the
vehicle.
ś Adjust the front passenger’s and
ODN8039077L
driver's seats as far to the rear as
When the SRSCM detects a sufficiently
possible while maintaining you to
severe impact to the front of the vehicle,
maintain full control of the vehicle.
it will automatically deploy the front air
ś Hold the steering wheel with
bags.
hands at the 9 o'clock and 3 o'clock
positions.
„ Driver’s front air bag (2)
ś Never place anything or anyone
between the air bag and the seat
occupant.
ś Do not allow the front passenger
to place their feet or legs on the
dashboard.
ODN8039078L
Upon deployment, tear seam molded
directly into the pad cover will separate
under pressure from the expansion of the
air bags. Further opening of the covers
allows full inflation of the air bags.
A fully inflated air bag, in combination
with a properly worn seat belt, slows the
driver’s or the front passenger’s forward
motion, reducing the risk of head and
chest injury.
3-49
Seats & Safety System
„ Driver’s front air bag (3)
What to expect after an air bag
inflates
After a frontal or side air bag inflates,
it will deflate very quickly. Air bag
inflation will not prevent the driver from
seeing out of the windshield or being
able to steer as it will immediately start
deflating. Curtain air bags may remain
partially inflated for some time after they
deploy.
ODN8039079L
„ Passenger’s front air bag
WARNING
After an air bag inflates, take the
following precautions:
ś
Open your windows and doors as
soon as possible after impact to
reduce prolonged exposure to the
smoke and powder released by the
inflating air bag.
ś
Do not touch the air bag storage
area’s internal components
ODN8039080L
immediately after an air bag has
inflated. The parts that come into
After complete inflation, the air bag
contact with an inflating air bag may
immediately starts deflating, enabling
be very hot.
the driver to maintain forward visibility
and the ability to steer or operate other
ś
Always wash exposed skin areas
controls.
thoroughly with cold water and mild
soap.
ś
Always have an authorized
WARNING
HYUNDAI dealer replace the air bag
To prevent objects from becoming
immediately after deployment. Air
dangerous projectiles when the
bags are designed to be used only
passenger’s air bag inflates:
once.
ś Do not install or place any objects
(drink holder, CD holder, stickers,
etc.) on the front passenger’s panel
above the glove box where the
passenger’s air bag is located.
ś Do not install a container of liquid
air freshener near the instrument
cluster or on the instrument panel
surface.
3-50
03
Noise and smoke from inflating air
Occupant Classification System
bag
(OCS)
When the air bags inflate, they make a
loud noise and may produce smoke and
powder in the air inside of the vehicle.
This is normal and is a result of the
ignition of the air bag inflator. After the
air bag inflates, you may feel substantial
discomfort in breathing because of the
contact of your chest with both the seat
belt and the air bag, as well as from
breathing the smoke and powder. The
powder may aggravate asthma for some
people. If you experience breathing
ONX4030057
problems after an air bag deployment,
seek medical attention immediately.
Your vehicle is equipped with an
Occupant Classification System (OCS) in
Though the smoke and powder are
the front passenger’s seat.
nontoxic, they may cause irritation to
the skin, eyes, nose, throat, etc. If this is
the case, wash and rinse with cold water
immediately and seek medical attention
if the symptoms persist.
3-51
Seats & Safety System

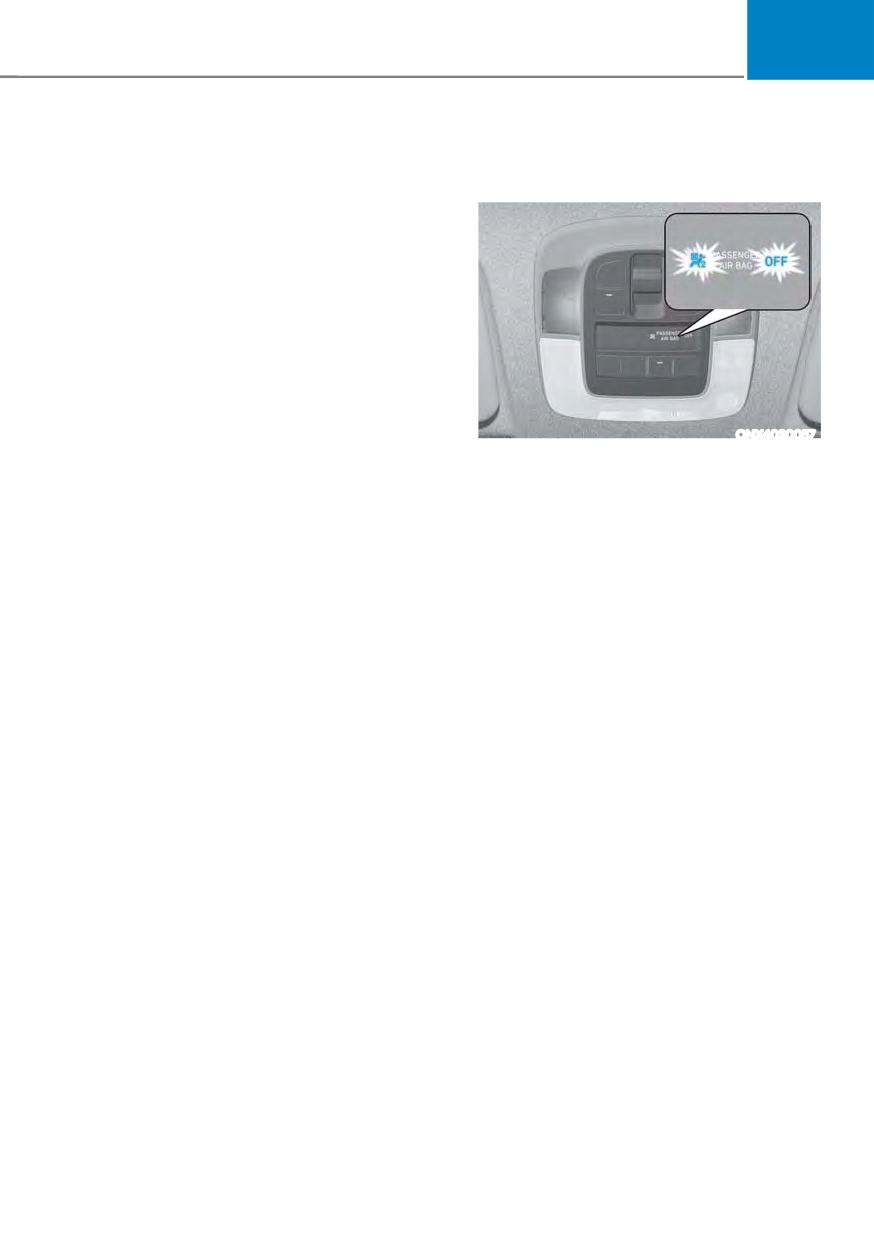

Main components of the Occupant
You will find the “PASSENGER AIR BAG
Classification System
OFF” indicator on the overhead console
panel. This system detects the conditions
ś A detection device located within the
1-4 in the following table and activates or
front passenger seat cushion.
deactivates the front passenger air bag
ś Electronic system to help determine
based on these conditions.
whether the passenger air bag
Always be sure that you and all vehicle
systems should be activated or
occupants are seated properly and
deactivated.
wearing the seat belt properly for the
ś An indicator light located on the
most effective protection by the air bag
overhead console which illuminates
and the seat belt.
the words “PASSENGER AIR BAG OFF”
The OCS may not function properly if the
indicating the front passenger air bag
passenger takes actions which can affect
system is deactivated.
the classification system. These include:
ś The overhead console air bag
ś
Failing to sit in an upright position.
indicator light is interconnected with
the OCS.
ś
Leaning against the door or center
console.
The OCS is designed to help detect
ś
Sitting towards the sides of the front
the presence of a properly-seated
of the seat.
front passenger and determine if the
ś
Putting their legs on the dashboard or
passenger’s front air bag should be
resting them on other locations which
enabled (may inflate) or not.
reduce the passenger weight on the
The purpose is to help reduce the risk
front seat.
of injury or death from an inflating air
ś
Wearing the seat belt improperly.
bag to certain front passenger seat
ś
Reclining the seatback.
occupants, such as children, by requiring
the air bag to be automatically turned
ś
Wearing thick clothes like ski wear or
OFF.
hip protection wear.
For example, if a child restraint of the
ś
Putting an additional thick cushion on
type specified in the regulations is on the
the seat.
seat, the occupant classification sensor
ś
Putting electrical devices (for
can detect it and cause the air bag to
example, notebook, satellite radio) on
turn OFF.
the seat with inverter charging.
Front passenger seat adult occupants
who are properly seated and wearing the
seat belt properly, should not cause the
passenger air bag to be automatically
turned OFF. For smaller adults it may turn
OFF, however, if the occupant does not
sit in the seat properly (for example, by
not sitting upright, by sitting on the edge
of the seat, or by otherwise being out of
position), this could cause the sensor to
turn the air bag OFF.
3-52
03
Condition and operation in the front passenger Occupant Classification System
Indicator/Warning light
Devices
Condition detected by the
“PASSENGER
Front
SRS warning
occupant classification system
AIR BAG OFF”
passenger air
light
indicator light
bag
1. Adult*1
Off
Off
Activated
2. Infant*2 or child restraint
On
Off
Deactivated
system with 12 months old *3 *4
3. Unoccupied
On
Off
Deactivated
4. Malfunction in the system
Off
On
Activated
*1 : The system judges a person of adult size as an adult. When a smaller adult sits in the
front passenger seat, the system may recognize him/her as a child depending on his/her
physique and posture.
*2 : Do not allow children to ride in the front passenger seat. When a larger child who has
outgrown a child restraint system sits in the front passenger seat, the system may
recognize him/her as an adult depending upon his/her physique or sitting position.
*3 : Never install a child restraint system on the front passenger seat.
*4 : The PASSENGER AIR BAG “OFF” indicator may turn on or off when a child above 12
months to 12 years old (with or without child restraint system) sits in the front passenger
seat. This is a normal condition.
3-53
Seats & Safety System

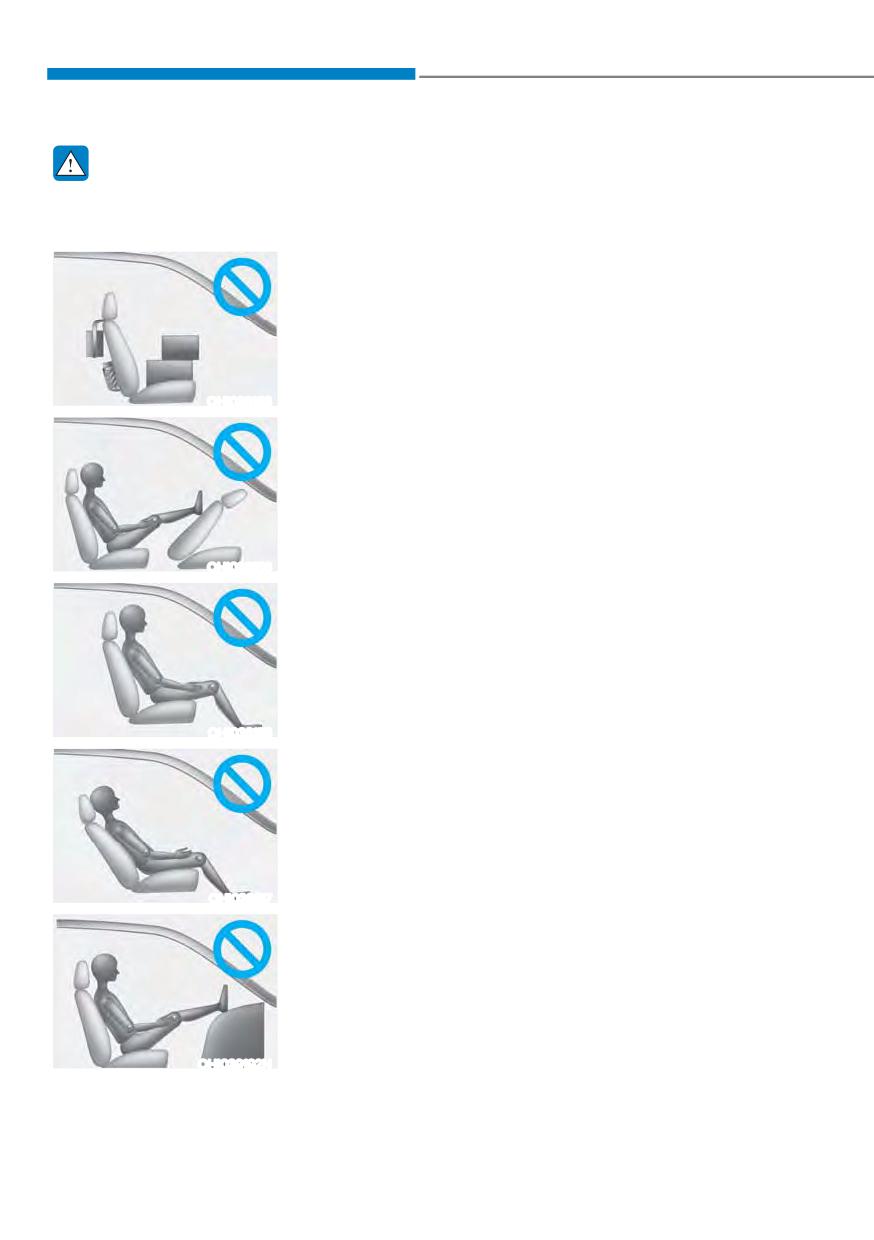

WARNING
Riding in an improper position or placing weight on the front passenger’s seat when
it is unoccupied by a passenger adversely affects the OCS. To reduce the risk of
serious injury or death:
ś NEVER put a heavy load in the front seat or seatback
pocket, or hang any items on the front passenger
seat.
OHI038163
ś NEVER place your feet on the front passenger
seatback.
OHI038156
ś NEVER sit with your hips shifted towards the front of
the seat.
OHI038155
ś NEVER ride with the seatback reclined when the
vehicle is moving.
OHI038157
ś NEVER place your feet or legs on the dashboard.
OHI039192N
3-54
03
ś NEVER lean on the door or center console or sit on
one side of the front passenger seat.
OHI038158
ś Do not sit on the passenger seat wearing heavily
padded clothes such as ski wear and hip protector.
OJX1039069
ś Do not use car seat accessories such as thick blankets
and cushions which cover up the car seat surface.
OJX1039070
ś Do not place electronic devices such as laptops, DVD
player, or conductive materials such as water bottles
on the passenger seat.
ś Do not use electronic devices such as laptops and
satellite radios which use inverter chargers.
OJX1039071
ś If large quantity of liquid has been spilled on the
passenger seat, the air bag warning light may
illuminate or malfunction.
Therefore, make sure the seat has been completely
dried before driving the vehicle.
OJX1039072
ś Do not place sharp objects on the front passenger seat. These may damage the
occupant detection system, if they puncture the seat cushion.
ś Do not place any items under the front passenger seat.
ś When changing or replacing the seat or seat cover, use original items only.
The OCS has been developed based on using original HYUNDAI car seats only.
Altering or changing the authentic parts may result in system malfunction and
increase risk of injury when in collision. Any of the above could interfere with the
proper operation of the OCS sensor thereby increasing the risk of an injury in an
accident.
3-55
Seats & Safety System
WARNING
NEVER allow an adult passenger to ride
in the front passenger seat when the
“PASSENGER AIR BAG OFF” indicator
is illuminated. During a collision, the
air bag will not inflate if the indicator
is illuminated. Have your passenger
reposition themselves in the seat. If the
“PASSENGER AIR BAG OFF” indicator
remains illuminated after the passenger
repositions themselves properly
OHI038118
and the vehicle is restarted, have
Proper seated position for OCS
the passenger move to the rear seat
If the “PASSENGER AIR BAG OFF”
because the air bag will not inflate.
indicator is on when an adult is seated
in the front passenger seat, place the
NOTICE
Ignition switch in the OFF position and
ask the passenger to sit properly (sitting
The “PASSENGER AIR BAG OFF”
upright with the seat back in an upright
indicator generally illuminates for
position, centered on the seat cushion
approximately 4 seconds after the
with their seat belt on, legs comfortably
Engine Start/Stop button is in the ON
extended and their feet on the floor).
or START position. But, if the Engine
Restart the engine and have the person
START/STOP button is pressed to the
remain in that position. This will allow
ON or START position within 3 minutes
the system to detect the person and
after the engine is turned OFF, the
to enable the passenger air bag. If the
indicator does not illuminate. If the
“PASSENGER AIR BAG OFF” indicator is
front passenger seat is occupied,
still on, ask the passenger to move to the
the OCS will then classify the front
rear seat.
passenger after several more seconds.
3-56
03
Do not install a Child Restraint
Why didn’t my air bag go off in a
System on the Front Passenger’s
collision?
Seat
There are certain types of accidents in
which the air bag would not be expected
to provide additional protection. These
include rear impacts, second or third
collisions in multiple impact accidents,
as well as low speed impacts. Damage to
the vehicle indicates a collision energy
absorption, and is not an indicator of
whether or not an air bag should have
inflated.
Air bag collision sensors
OHI039193N
Even though your vehicle is equipped
WARNING
with the OCS, never install a child
To reduce the risk of an air bag
restraint in the front passenger’s seat.
deploying unexpectedly and causing
An inflating air bag can forcefully strike a
serious injury or death:
child or child restraint resulting in serious
ś Do not hit or allow any objects to
or fatal injury.
impact the locations where air bags
or sensors are installed.
WARNING
ś Do not perform maintenance on or
around the air bag sensors. If the
NEVER use a rearward facing Child
location or angle of the sensors is
Restraint on a seat protected by an
altered, the air bags may deploy
ACTIVE AIRBAG in front of it, DEATH
when they should not or may not
or SERIOUS INJURY to the CHILD can
deploy when they should.
occur.
ś Installing bumper guards with non-
genuine Hyundai or non-equivalent
parts may adversely affect the
collision and airbag deployment
performance.
ś Place the ignition switch in the
LOCK/OFF or ACC position and wait
for 3 minutes when the vehicle is
being towed to prevent inadvertent
air bag deployment.
ś Have all air bag repairs performed by
an authorized HYUNDAI dealer.
3-57
Seats & Safety System

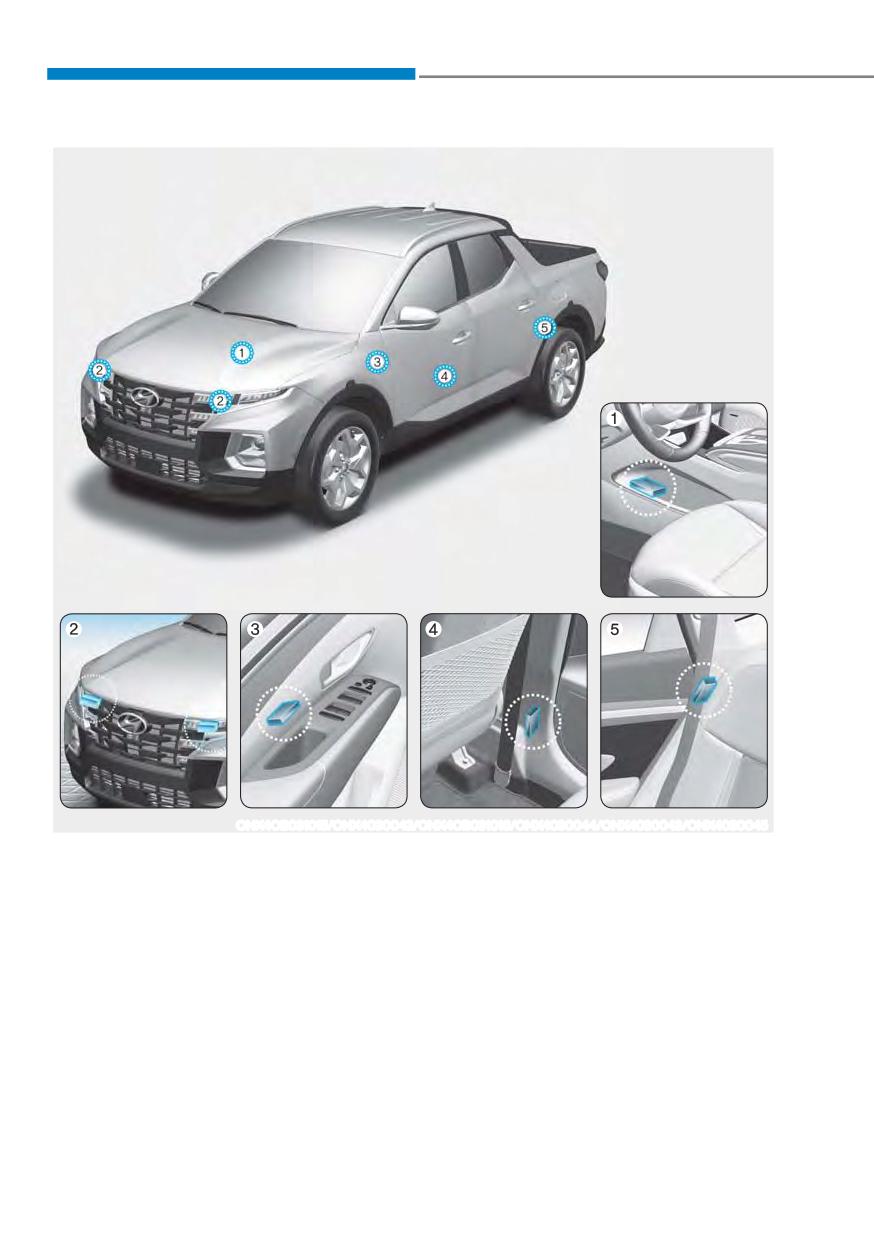

ONX4OB031015/ONX4030042/ONX4OB031016/ONX4030044/ONX4030043/ONX4030045
1. SRS control module / Rollover sensor
4. Side impact sensor (Acceleration)
2. Front impact sensor
5. Side impact sensor (Acceleration)
3. Side impact sensor (Pressure)
3-58
03

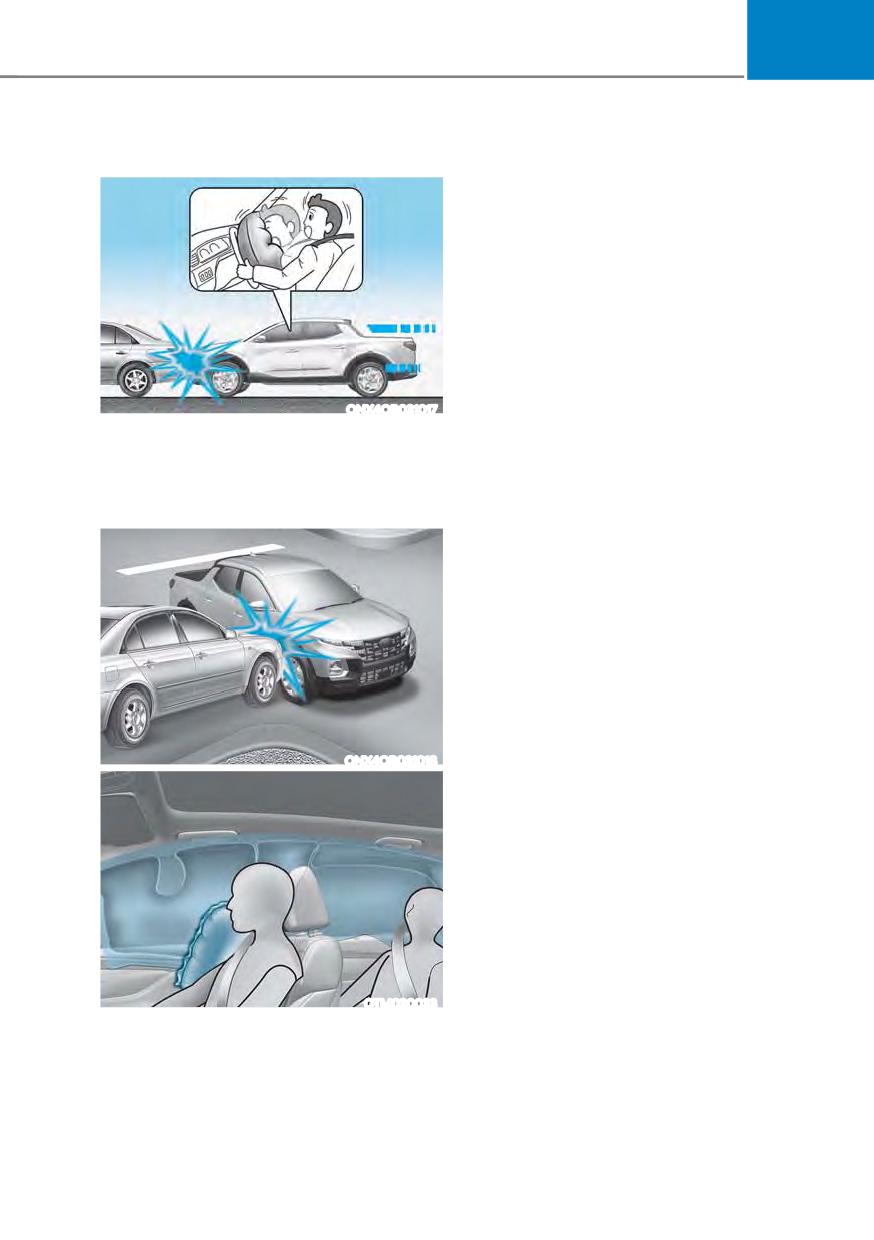

Air bag inflation conditions
Side and curtain air bags
Side and curtain air bags are designed
to inflate when an impact is detected by
side collision sensors depending on the
severity, from a side impact collision.
Although the driver’s and front
passenger’s air bags are designed to
inflate in frontal collisions, they also may
inflate in other types of collisions if the
front impact sensors detect a sufficient
impact. Side and curtain air bags are
designed to inflate in side impact
ONX4OB031017
collisions, but they may inflate in other
collisions if the side impact sensors
Front air bags
detect a sufficient impact.
Front air bags are designed to inflate
Also, the side and curtain air bags are
in a frontal collision depending on the
designed to inflate when a rollover
severity of impact of the front collision.
is detected by a rollover sensor. (if
equipped with rollover sensor)
If the vehicle chassis is impacted by
bumps or objects on unimproved roads,
the air bags may deploy. Drive carefully
on unimproved roads or on surfaces not
designed for vehicle traffic to prevent
unintended air bag deployment.
ONX4OB031018
OTM030033
3-59
Seats & Safety System

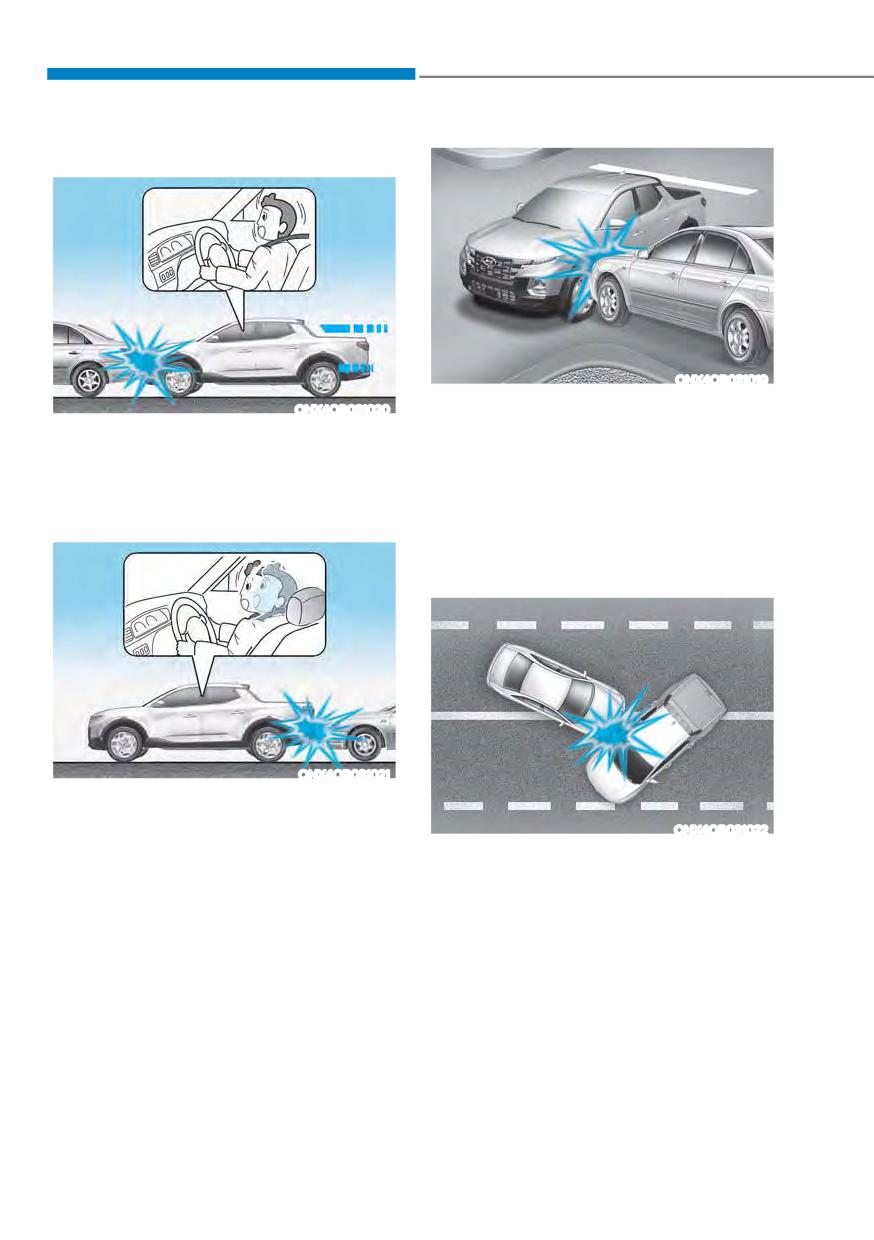

Air bag non-inflation conditions
ONX4OB031019
ONX4OB031020
Front air bags may not inflate in side
impact collisions, because occupants
In certain low-speed collisions the air
move in the direction of the collision,
bags may not deploy. The air bags are
and thus in side impacts, front air bag
designed not to deploy in such cases
deployment would not provide additional
because they may not provide benefits
occupant protection.
beyond the protection of the seat belts.
However, side and curtain air bags
and front center air bag may inflate
depending on the severity of impact.
ONX4OB031021
Front air bags are not designed to inflate
in rear collisions, because occupants
ONX4OB031022
are moved backward by the force of the
impact. In this case, inflated air bags
In an angled collision, the force of impact
would not provide any additional benefit.
may direct the occupants in a direction
where the air bags would not be able to
provide any additional benefit, and thus
the sensors may not deploy any air bags.
3-60
03

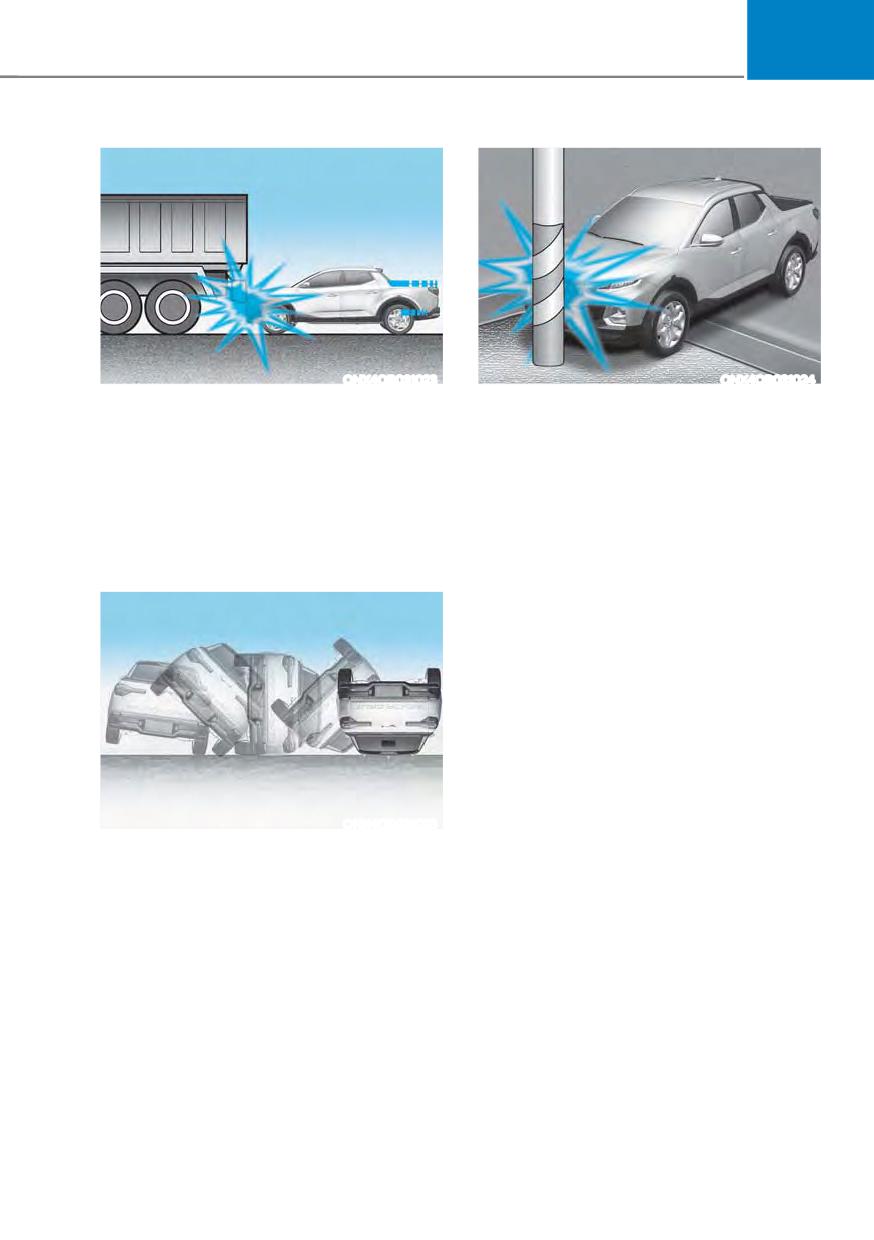

ONX4OB031023
ONX4OB031024
Just before impact, drivers often brake
Air bags may not inflate if the vehicle
heavily. Such heavy braking lowers the
collides with objects such as utility poles
front portion of the vehicle causing it
or trees, where the point of impact is
to “ride” under a vehicle with a higher
concentrated and the collision energy is
ground clearance. Air bags may not
absorbed by the vehicle structure.
inflate in this “underride” situation
because deceleration forces that are
detected by sensors may be significantly
reduced by such “underride” collisions.
ONX4OB031025
Front air bags may not inflate in
rollover accidents because front air bag
deployment would not provide additional
occupant protection.
However, the side and curtain air bags
and front center air bag may inflate in a
rollover situation, when it is detected by
the rollover sensor.
3-61
Seats & Safety System
SRS Care
WARNING
The SRS is virtually maintenance-free
To reduce the risk of serious injury or
and there are no parts you can safely
death take the following precautions:
service by yourself. If the SRS air bag
ś
Do not attempt to modify or
warning light does not illuminate when
disconnect the SRS components or
the ignition switch is in the ON position,
wiring, including the addition of any
or continuously remains on, have your
kind of badges to the pad covers or
vehicle immediately inspected by
modifications to the body structure.
anauthorized HYUNDAI dealer. Any work
on the SRS system, such as removing,
ś
Do not place objects over or near
installing, repairing, or anywork on the
the air bag modules on the steering
steering wheel, the front passenger’s
wheel, instrument panel, and the
panel, front seats and roofrails must be
front passenger’s panel above the
performed by an authorized HYUNDAI
glove box.
dealer. Improper handling of the SRS
ś
Clean the air bag pad covers with
system may result in serious personal
a soft cloth moistened with plain
injury.
water. Solvents or cleaners could
adversely affect the air bag covers
and proper deployment of the
system.
ś
Always have inflated air bags
replaced by an authorized HYUNDAI
dealer.
ś
If components of the air bag system
must be discarded, or if the vehicle
must be scrapped, certain safety
precautions must be observed.
Consult an authorized HYUNDAI
dealer for the necessary information.
Failure to follow these precautions
could increase the risk of personal
injury.
3-62
03
Additional Safety Precautions
Air Bag Warning Labels
Passengers should not move out of
or change seats while the vehicle is
moving. A passenger who is not wearing
a seat belt during a crash or emergency
stop can be thrown against the inside of
the vehicle, against other occupants, or
be ejected from the vehicle.
Do not use any accessories on seat
belts. Devices claiming to improve
occupant comfort or reposition the seat
belt can reduce the protection provided
by the seat belt and increase the chance
ONX4030058N
of serious injury in a crash.
Air bag warning labels, required by the
Do not modify the front seats.
U.S. National Highway Traffic Safety
Modification of the front seats could
Administration (NHTSA), are attached
interfere with the operation of the
to alert the driver and passengers of
supplemental restraint system sensing
potential risks of the air bag system. Be
components or side air bags.
sure to read all of the information about
the air bags that are installed on your
Do not place items under the front
vehicle in this Owners Manual.
seats. Placing items under the front seats
could interfere with the operation of the
supplemental restraint system sensing
components and wiring harnesses.
Do not cause impact to the doors.
Impact to the doors when the Engine
Start/Stop button is in the ON or START
position may cause the air bags to
inflate.
Modifications to accommodate
disabilities. If you require modification
to your vehicle to accommodate
a disability, contact the HYUNDAI
Customer Connect Center at 800-633-
5151.
Adding equipment to or modifying
your air bag equipped vehicle
If you modify your vehicle by changing
your vehicle’s frame, bumper system,
front end or side sheet metal or ride
height, this may affect the operation of
your vehicle’s air bag system.
3-63
4. Instrument Cluster
Instrument Cluster
4-4
Instrument Cluster Control
4-5
Instrument panel illumination
4-5
Gauges and Meters
4-5
Speedometer
4-5
Tachometer
4-5
Engine coolant temperature gauge
4-6
Fuel gauge
4-6
Outside temperature gauge
4-7
Odometer
4-7
Distance to empty
4-8
Fuel economy (for 10.25-inch cluster)
4-8
Transmission Shift Indicator
4-9
Warning and Indicator Lights
4-9
Seat belt warning light
4-9
Air bag warning light
4-9
Parking brake warning light
4-10
4
Anti-lock Brake System (ABS) warning light
4-11
Electronic Brake Force Distribution (EBD) system warning light
4-11
Motor Driven Power Steering (MDPS) warning light
4-12
Charging system warning light
4-12
Engine Oil Level Warning Light
4-12
Engine oil pressure warning light
4-13
Low fuel level warning light
4-13
Malfunction Indicator Lamp (MIL)
4-13
Electronic Parking Brake (EPB) warning light
4-14
AUTO HOLD indicator light
4-15
Low tire pressure warning light
4-15
Forward Safety warning light
4-16
Lane Safety indicator light
4-16
All Wheel Drive (AWD) warning light
4-16
All Wheel Drive (AWD) LOCK Indicator Light
4-17
LED headlight warning light
4-17
Icy road warning light
4-18
Electronic Stability Control (ESC) indicator light
4-18
Electronic Stability Control (ESC) OFF indicator light
4-18
Immobilizer Indicator Light (without smart key)
4-19
Immobilizer Indicator Light (with smart key)
4-19
Downhill Brake Control (DBC) indicator light
4-20
Turn signal indicator light
4-20
High beam indicator light
4-20
High Beam Assist indicator light
4-21
Cruise Indicator Light
4-21
Master warning light
4-21
Cluster Display Messages for Vehicles Equipped with Smart Key
4-22
Shift to P
4-22
Low key battery
4-22
Press START button while turning wheel
4-22
Check steering wheel lock system
4-22
Press brake pedal to start engine
4-22
Key not in vehicle
4-22
Key not detected
4-22
Press START button again
4-22
Press START button with key
4-23
Check BRAKE SWITCH fuse
4-23
Shift to P or N to start engine
4-23
Battery discharging due to external electrical devices
4-23
4
Door, Hood, Liftgate open indicator
4-23
Sunroof open indicator
4-24
Low tire pressure
4-24
Lights
4-24
Wiper
4-24
Low washer fluid
4-25
Low fuel
4-25
Low engine oil
4-25
Engine overheated
4-26
Check headlight
4-26
Check turn signal
4-26
Check headlight LED
4-26
4. Instrument Cluster
Cluster Display
4-27
Cluster Display Control
4-27
View Modes
4-28
Trip computer mode
4-29
Turn By Turn (TBT) mode
4-29
Driving Assist mode
4-29
Master warning group
4-30
User Settings Mode
4-31
Trip Computer (Type A : 4.2” LCD)
4-38
Trip modes
4-38
Trip Computer (Type B : 10.25” LCD)
4-40
Trip modes
4-40
Vehicle Settings (Infotainment System)
4-42
Setting Your Vehicle
4-42
4

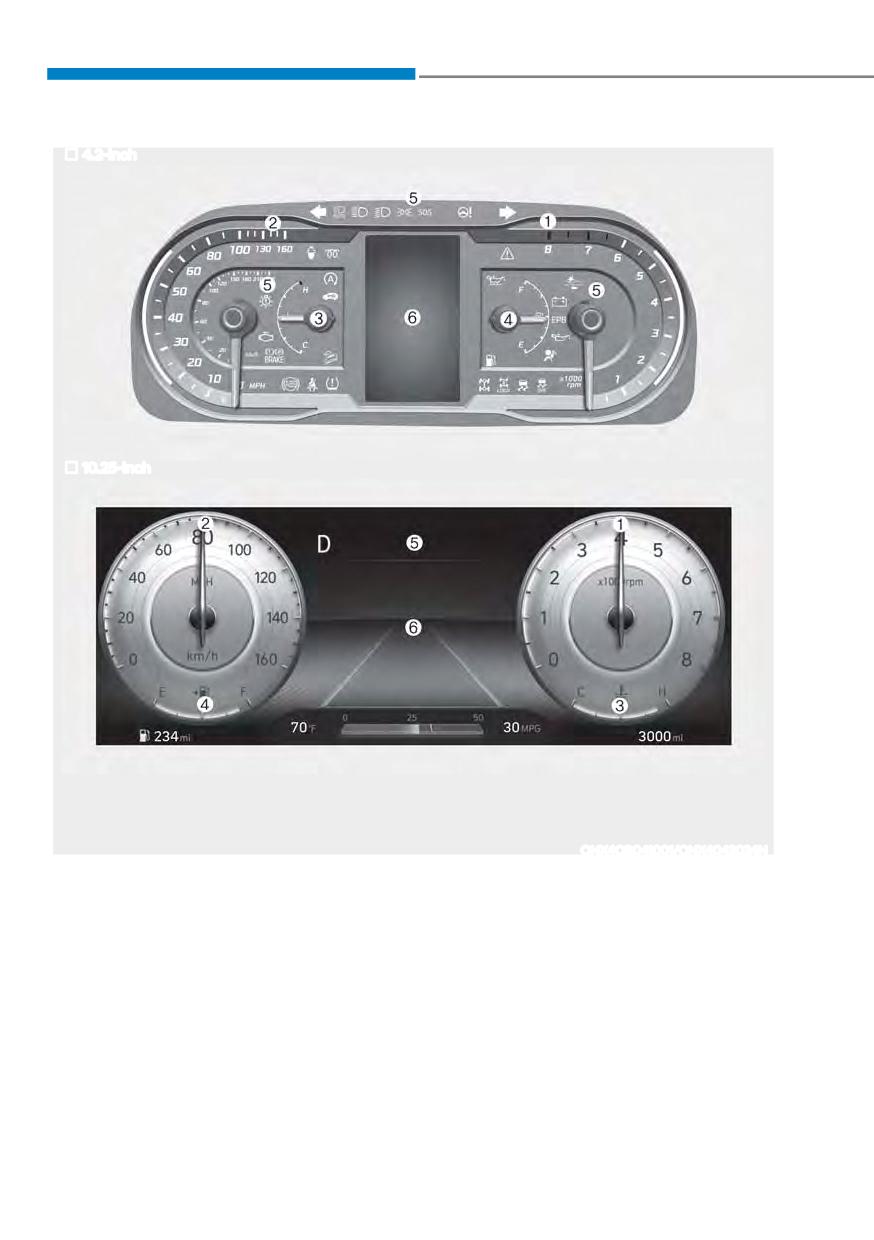

Instrument Cluster
INSTRUMENT CLUSTER
„ 4.2-inch
„ 10.25-inch
The actual cluster in the vehicle may differ from the illustration.
For more information, refer to “Gauges and meters” section in this chapter.
ONX4OB041001/ONX4043024N
1. Tachometer
4. Fuel gauge
2. Speedometer
5. Warning and indicator lights
3. Engine coolant temperature gauge
6. Cluster Display
4-4
04

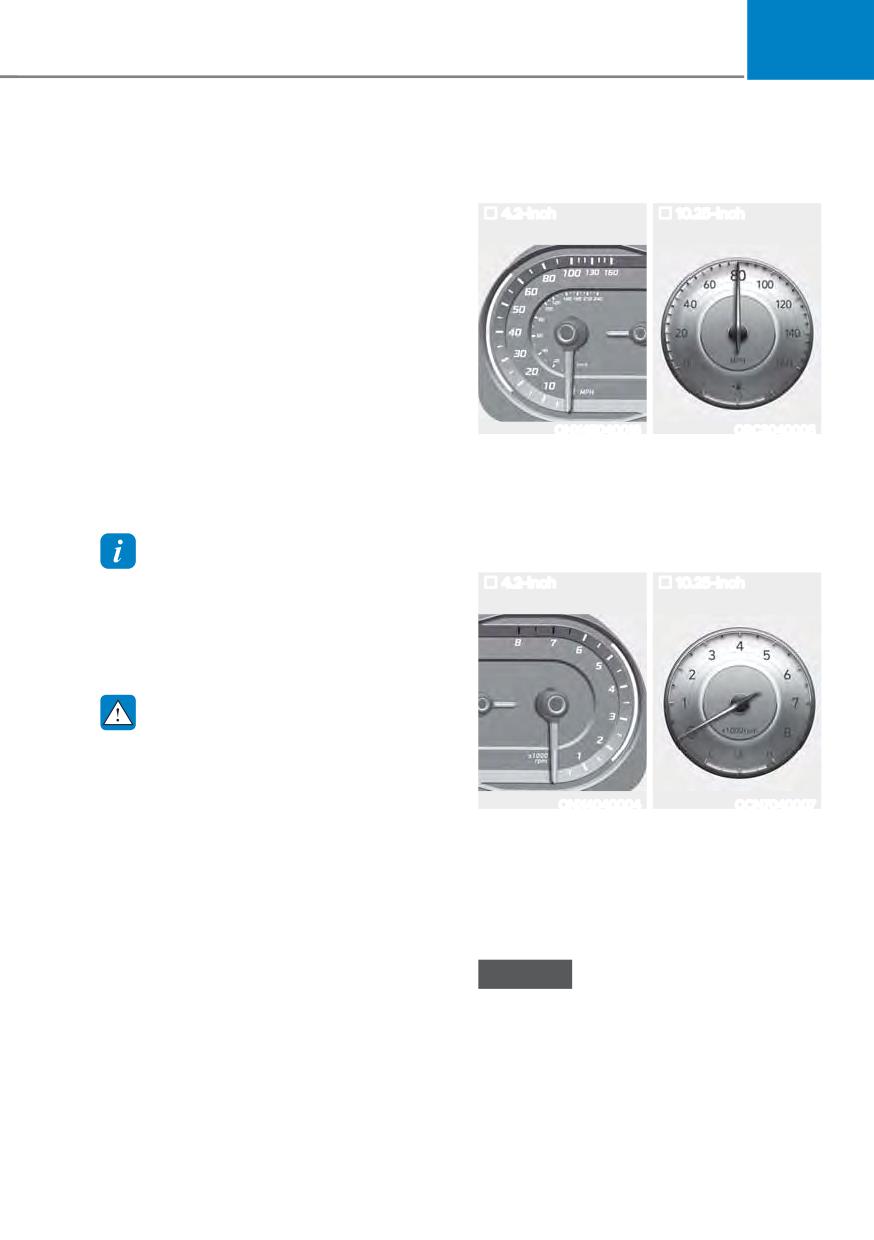

Instrument Cluster Control
Gauges and Meters
Instrument panel illumination
Speedometer
When the vehicle’s parking lights or
„ 4.2-inch
„ 10.25-inch
headlights are on, press the illumination
control switch to adjust the brightness of
the instrument panel illumination.
When pressing the illumination control
switch, the interior switch illumination
intensity also adjusted.
You can adjust the brightness of the
instrument panel illumination from the
User Settings Mode on the cluster display
ZKHQ WKH LJQLWLRQ VZLWFK LV RQ œ/LJKWV Ɵ
ONX4E040018
OBC3040005
Illumination’). When the vehicle’s parking
The speedometer indicates the speed of
lights or headlights are on, interior switch
the vehicle and is calibrated in miles per
illumination intensity and mood lamps
hour (MPH) and/or kilometers per hour
are also adjusted.
(km/h).
Information
Tachometer
The infotainment system may change after
„ 4.2-inch
„ 10.25-inch
software updates. For more information,
refer to the user's manual provided in
the infotainment system and the quick
reference guide.
WARNING
Never adjust the instrument cluster
while driving. This could result in loss
of control and lead to an accident that
ONX4040004
OCN7040007
may cause vehicle damage, or lead to
The tachometer indicates the
serious injury or death.
approximate number of engine
ś The brightness of the instrument
revolutions per minute (RPM).
panel illumination is displayed.
Use the tachometer to select the correct
ś When the brightness setting reaches
shift points and to prevent lugging and/
either the minimum or maximum
or over-revving the engine.
level, a chime will sound.
NOTICE
Do not operate the engine within the
tachometer's RED ZONE. This may
cause severe engine damage.
4-5
Instrument Cluster

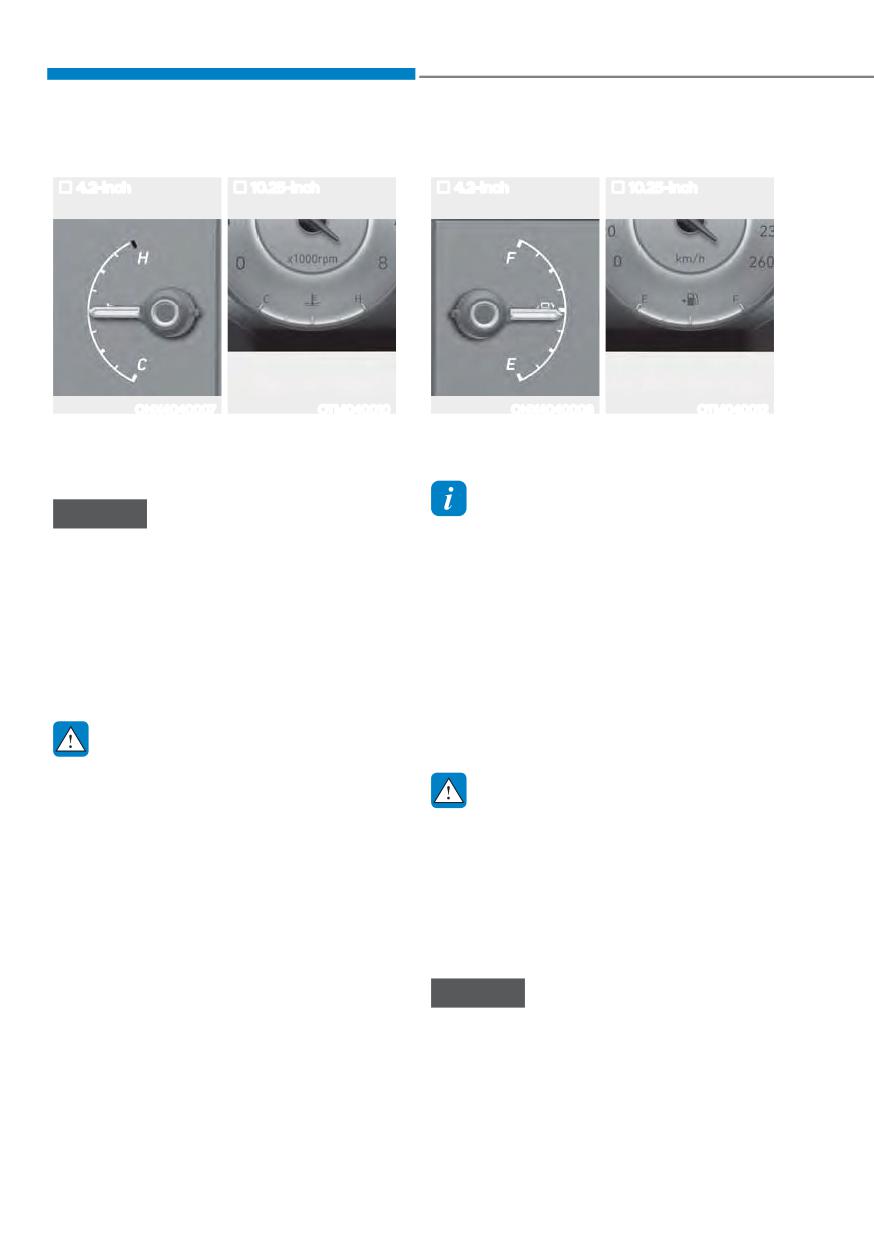

Engine coolant temperature gauge
Fuel gauge
„ 4.2-inch
„ 10.25-inch
„ 4.2-inch
„ 10.25-inch
ONX4040007
OTM040010
ONX4040008
OTM040012
This gauge indicates the temperature
This gauge indicates the approximate
of the engine coolant when the ignition
amount of fuel remaining in the fuel tank.
switch is in the ON position.
Information
NOTICE
ś The fuel tank capacity is given in
If the gauge pointer moves beyond
chapter 2.
the normal range area toward the H
ś The fuel gauge is supplemented by
position, it indicates overheating that
a low fuel warning light, which will
may damage the engine.
illuminate when the fuel tank is nearly
Do not continue driving with an
empty.
overheated engine. If your vehicle
ś On inclines or curves, the fuel gauge
overheats, refer to “If the Engine
pointer may fluctuate or the low fuel
Overheats” section in chapter 8.
warning light may come on earlier than
usual due to the movement of fuel in
WARNING
the tank.
Never remove the engine coolant
reservoir cap when the engine is hot.
WARNING
The engine coolant is under pressure
Running out of fuel can expose vehicle
and could cause a severe burn or injury.
occupants to danger.
Wait until the engine is cool before
adding coolant to the reservoir.
You must stop and obtain additional
fuel as soon as possible after the
warning light comes on or when the
gauge indicator comes close to the “E
(Empty)” level.
NOTICE
Avoid driving with an extremely low
fuel level. Running out of fuel could
cause the engine to misfire damaging
the catalytic converter.
4-6

















Content      ..      1       2         ..



//////////////////////////////////////////
