Hyundai Santa Cruz (2024 year). Manual in english - page 2





04
Outside temperature gauge
Odometer
„ 4.2-inch
„ 10.25-inch
„ 4.2-inch
„ 10.25-inch
OTMA048112
ONX4OB041002
OTMA048183
OCN7040015N
The odometer indicates the total
The outside ambient temperature is
distance that the vehicle has been driven
displayed in the lower portion of the LCD
and should be used to determine when
cluster display. The temperature will
periodic maintenance is required.
read in Fahrenheit or Celsius depending
on the units selected in the User Settings
menu.
Note that the temperature indicated
on the cluster display may not change
as quickly as the outside temperature
(there may be a slight delay before the
temperature changes.)
You can change the temperature unit
from the Settings menu in the cluster or
infotainment system screen.
Select:
- 6HWXS Ɵ 8QLW Ɵ 7HPSHUDWXUH 8QLW Ɵ
°F/°C (for cluster type)
- 6HWXS Ɵ *HQHUDO 6HWWLQJV Ɵ 8QLW
Ɵ 7HPSHUDWXUH 8QLW Ɵ r& r) IRU
infotainment system screen type)
Both the temperature unit on the cluster
display and infotainment system screen
will change.
Information
The infotainment system may change after
software updates. For more information,
refer to the user's manual provided in
the infotainment system and the quick
reference guide.
4-7
Instrument Cluster
Distance to empty
Fuel economy (for 10.25-inch
cluster)
„ 4.2-inch
„ 10.25-inch
ONX4043026N
OCN7040016N
OTMA040002
ś The distance to empty is the
estimated mileage the vehicle can be
The average fuel economy (1) and instant
driven with the remaining fuel.
fuel economy (2) is displayed at the
bottom of the cluster.
ś If the estimated distance is below 1 mi.
(1 km), the trip computer will display
“---” as distance to empty. When this
Automatic reset
occurs, the remaining fuel is very low.
To automatically reset the average fuel
Refuel the vehicle immediately.
economy, select between "After Ignition"
or "After Refueling" from the Settings
menu in the infotainment system screen.
Information
ś If the vehicle is not on level ground or
the battery power has been interrupted,
the distance to empty function may not
operate correctly.
ś The distance to empty may differ
from the actual driving distance as it
is an estimate of the available driving
distance.
ś The Distance to Empty indicator may
not change accurately if less than 1.5
gallons of fuel are added to the vehicle.
ś The distance to empty may vary
significantly based on driving
conditions, driving habits, and
condition of the vehicle.
4-8
04
Transmission Shift Indicator
Warning and Indicator Lights
„ 4.2-inch
„ 10.25-inch
Information
Make sure that all warning lights are OFF
after starting the engine. If any light is still
ON, this indicates a situation that needs
attention.
Seat belt warning light
OTM040016
OCN7040013N
This warning light informs the driver that
The Transmission Shift Indicator is shown
the seat belt is not fastened.
in the upper corner of the cluster display
For more details, refer to “Seat Belts”
to indicate the current gear or Park(P).
section in chapter 3.
Air bag warning light
This warning light illuminates:
ś When you turn the ignition switch or
the Engine Start/Stop button to the
ON position.
- It illuminates for approximately 3~6
seconds and then goes off.
ś When there is a malfunction with the
SRS.
If the Air Bag warning light remains
illuminated while driving, have the
vehicle inspected by an authorized
HYUNDAI dealer.
4-9
Instrument Cluster
Parking brake warning light
Dual-diagonal braking system
Your vehicle is equipped with dual-
diagonal braking system. This means you
This warning light illuminates:
still have braking on two wheels even if
one of the dual systems should fail.
ś When you set the ignition switch or
the Engine Start/Stop button to the
With only one of the dual systems
ON position.
working, more than normal pedal travel
and greater pedal pressure is required to
- The parking brake & brake fluid
stop the vehicle.
warning light illuminates for about 3
seconds and will then turn off once
Also, the vehicle will not stop in as short
the parking brake is released.
a distance with only a portion of the
brake system working.
ś Whenever the parking brake is
applied.
If you experience a malfunction with
the brake system while driving, attempt
ś Whenever the brake fluid level in the
to slow your vehicle by coasting or
reservoir is low.
by using engine braking. You may be
- If the warning light illuminates
able to reduce your vehicle speed by
with the parking brake released, it
manually downshifting to a lower gear.
indicates the brake fluid level in the
Use Manual Shift Mode using either the
reservoir is low.
gear shift lever or the paddle shifters (if
equipped) to shift to a lower gear.
If the brake fluid level in the reservoir is
low:
WARNING
1. Drive carefully to the nearest safe
location and stop your vehicle.
Parking Brake & Brake Fluid warning
light
2. With the engine stopped, check the
brake fluid level immediately and add
Driving the vehicle with a warning light
fluid as required (For more details,
ON is dangerous. If the Parking Brake
refer to “Brake Fluid” section in
warning light illuminates with the
chapter 9). After adding brake fluid,
parking brake released, it indicates that
check all brake components for fluid
the brake fluid level is low.
leaks. If a brake fluid leak is found, or
If this occurs, have the vehicle
if the warning light remains on, or if
inspected by an authorized HYUNDAI
the brakes do not operate properly, do
dealer.
not drive the vehicle. Have the vehicle
inspected by an authorized HYUNDAI
dealer.
4-10
04
Anti-lock Brake System (ABS)
WARNING
warning light
Electronic Brake Force Distribution
(EBD) system warning light
This warning light illuminates:
When both ABS and Parking Brake
ś When you set the ignition switch or
warning lights are on, the brake
the Engine Start/Stop button to the
system will not work normally and you
ON position.
may experience an unexpected and
- The ABS warning light illuminates
dangerous situation during sudden
for about 3 seconds and then goes
braking.
off.
If this occurs, avoid high speed driving
ś Whenever there is a malfunction with
and abrupt braking.
the ABS.
Have the vehicle inspected by an
Note that the hydraulic braking
authorized HYUNDAI dealer as soon as
system will still be operational even if
possible.
there is a malfunction with the ABS.
If the ABS warning light remains
NOTICE
illuminated while driving, have the
Electronic Brake Force Distribution
vehicle inspected by an authorized
(EBD) system warning light
HYUNDAI dealer.
When the ABS warning light is on or
Electronic Brake Force
both ABS and Parking Brake warning
Distribution (EBD) system
lights are on, the speedometer,
warning light
odometer, or tripmeter may not work.
Also, the MDPS warning light may
illuminate and the steering effort may
increase or decrease.
If both the ABS warning light and the
When the ABS warning and
Parking Brake warning light remain
Parking Brake warning lights are on
illuminated while driving, have the
simultaneously, it may indicate a
vehicle inspected by an authorized
problem with the Electronic Brake Force
HYUNDAI dealer.
Distribution system.
If both the ABS warning light and the
Parking Brake warning light remain
illuminated while driving, have the
vehicle inspected by an authorized
HYUNDAI dealer.
4-11
Instrument Cluster
Motor Driven Power Steering
Engine Oil Level Warning
(MDPS) warning light
Light
This warning light illuminates:
The engine oil level warning light
ś When you set the ignition switch or
illuminates when the engine oil level
should be checked.
the Engine Start/Stop button to the
ON position.
If the warning light comes on, check the
engine oil level as soon as possible and
- The electric power steering warning
add engine oil as required.
light illuminates for about 3 seconds
and then goes off.
Slowly pour the recommended oil little
by little into a funnel. (Oil refill capacity :
ś Whenever there is a malfunction with
DSSUR[LPDWHO\
a Ţ
the electric power steering.
Use only the specified engine oil. (Refer
If the MDPS warning light remains
illuminated while driving, have the
to “Recommended lubricants and
capacities” in chapter 2.)
vehicle inspected by an authorized
HYUNDAI dealer.
Do not overfill the engine oil. Make sure
the oil level is not above F (Full) mark on
Charging system warning
the dipstick.
light
WARNING
This warning light illuminates:
When the engine oil level warning
When there is a malfunction with either
light appears, it is necessary to check
the alternator or electrical charging
if you have replaced the Engine oil
system.
according to the maintenance schedule
in chapter 9. If it has not been checked
If there is a malfunction with either the
and followed, the engine oil must be
alternator or electrical charging system:
replaced first.
1. Drive carefully to the nearest safe
location and stop your vehicle.
Information
2. Turn the engine off and check the
ś If you travel approximately 18~37 miles
alternator drive belt for looseness or
breakage.
(30~60 km) after the engine warms up,
after adding the engine oil, the warning
If the belt is adjusted properly, there
light will go off.
may be a problem in the electrical
ś If you cycle the ignition from OFF
charging system.
to ON 3 times within 10 seconds, the
If the Charging system warning light
warning light will go off immediately.
remains illuminated while driving,
However, when you turn off the
have the vehicle inspected by an
warning light without adding the
authorized HYUNDAI dealer.
engine oil, the light will reappear again
after traveling approximately 18~37
miles (30~60 km) after the engine
warms up.
4-12
04
NOTICE
NOTICE
If the light comes on continuously after
If the engine does not stop immediately
adding the engine oil and travelling
after the Engine Oil Pressure warning
approximately 18~37 miles (30~60
light is illuminated, severe damage
km) after the engine warms up, have
could result.
the system checked by an authorized
HYUNDAI dealer.
Low fuel level warning light
Even if this light doesn’t come on after
the engine has started, the engine oil
level should be periodically checked
and topped up if required.
This warning light illuminates:
When the fuel tank is nearly empty.
Engine oil pressure warning
Add fuel as soon as possible.
light
NOTICE
This warning light illuminates:
Driving with the Low Fuel Level
When the engine oil pressure is low.
warning light on or with the fuel level
below "E" or "- - -" on the Distance to
If the engine oil pressure is low:
Empty indicator can cause the engine
ś Drive carefully to the nearest safe
to misfire and damage the catalytic
location and stop your vehicle.
converter.
ś Turn the engine off and check the
engine oil level (For more details, refer
Malfunction Indicator Lamp
to “Engine Oil” section in chapter 9). If
(MIL)
the level is low, add oil as required.
If the warning light remains on after
This indicator light illuminates:
adding oil or if oil is not available, have
the vehicle inspected by an authorized
ś When you set the ignition switch or
HYUNDAI dealer.
the Engine Start/Stop button to the
ON position.
(Continued driving with the warning
light on may cause engine failure.)
- The malfunction indicator light
illuminates for about 3 seconds and
then goes off.
Information
ś Whenever there is a malfunction with
When engine oil pressure decreases due to
either the emission control system or
insufficient engine oil, etc., the Engine Oil
the engine or the vehicle powertrain.
Pressure warning light will illuminate. In
If the MIL warning light remains
addition, the enhanced engine protection
illuminated while driving, have the
system which limits engine power will be
vehicle inspected by an authorized
activated. When the engine oil pressure
HYUNDAI dealer.
is restored, the warning light and the
enhanced engine protection system will
turn off after the engine is restarted.
However, for gasoline 2.5 GDI engine
and 2.5 turbo engine, when the engine oil
pressure is restored, the warning light and
the enhanced engine protection system will
turn off after the engine is restarted.
4-13
Instrument Cluster
NOTICE
Electronic Parking Brake
(EPB) warning light
ś Driving with the Malfunction
Indicator Lamp (MIL) on may cause
damage to the emission control
This warning light illuminates:
system which could affect drivability
ś When you set the ignition switch or
and/or fuel economy.
the Engine Start/Stop button to the
ś If the enhanced engine protection
ON position.
system becomes activated operation
- The EPB warning light illuminates
due to lack of engine oil, engine
for about 3 seconds and then goes
power will be limited. If such
off.
condition continues repeatedly, the
ś Whenever there is a malfunction with
Malfunction Indicator Lamp will
EPB.
illuminate.
If the EPB warning light remains
illuminated while driving, have the
NOTICE
vehicle inspected by an authorized
If the Malfunction Indicator Lamp
HYUNDAI dealer.
(MIL) illuminates, potential catalytic
converter damage is possible which
could result in loss of engine power.
Information
If this occurs, have the vehicle
The Electronic Parking Brake (EPB)
inspected by an authorized HYUNDAI
warning light may illuminate when
dealer as soon as possible.
the Electronic Stability Control (ESC)
indicator light comes on to indicate that
ESC is not working properly. This does
not indicate malfunction of EPB.
4-14
04
AUTO HOLD indicator light
Low tire pressure warning
light
This indicator light illuminates:
This warning light illuminates:
ś [White] When you activate Auto Hold
ś When you set the ignition switch or
by pressing the AUTO HOLD switch.
the Engine Start/Stop button to the
ON position.
ś [Green] When you stop the vehicle
completely by depressing the brake
- The low tire pressure warning light
pedal with Auto Hold activated.
illuminates for approximately 3
seconds and then goes off.
ś [Yellow] Whenever there is a
malfunction with the Auto Hold
ś When one or more of your tires are
function.
significantly underinflated. (The
location of the underinflated tires are
If the AUTO HOLD indicator light
remains YELLOW while driving, have
displayed on the cluster display.)
the vehicle inspected by an authorized
For more details, refer to “Tire Pressure
HYUNDAI dealer.
Monitoring System (TPMS)” section in
chapter 8.
For more details, refer to “Electronic
Parking Brake (EPB)” section in chapter
6.
This warning light remains ON after
blinking for approximately 60 seconds, or
repeatedly blinks ON and OFF in 3 second
intervals:
When there is a malfunction with the
TPMS.
If this occurs, have the vehicle inspected
by an authorized HYUNDAI dealer as
soon as possible.
For more details, refer to “Tire Pressure
Monitoring System (TPMS)” section in
chapter 8.
WARNING
Safe Stopping
ś The TPMS cannot alert you to severe
and sudden tire damage caused by
external factors.
ś If you notice any vehicle instability,
immediately take your foot off the
accelerator pedal, apply the brakes
gradually with light force, and slowly
move to a safe position off the road.
4-15
Instrument Cluster
Forward Safety warning light
Lane Safety indicator light
This warning light illuminates:
This indicator light illuminates:
ś When you set the ignition switch or
ś [Green] When Lane Keeping Assist
the Engine Start/Stop button to the
operating conditions are satisfied.
ON position.
ś [White] When Lane Keeping Assist
- The Forward Safety warning light
operating conditions are not satisfied.
illuminates for approximately 3
ś [Yellow] Whenever there is a
seconds and then goes off.
malfunction with Lane Keeping Assist.
ś Whenever there is a malfunction with
If this occurs, have the vehicle
Forward Collision-Avoidance Assist.
inspected by an authorized HYUNDAI
If this occurs, have the vehicle inspected
dealer.
by an authorized HYUNDAI dealer.
For more details, refer to “Lane Keeping
For more details, refer to “Forward
Assist (LKA)” section in chapter 7.
Collision-Avoidance Assist (FCA)”
section in chapter 7.
All Wheel Drive (AWD)
warning light
This warning light illuminates:
Whenever there is a malfunction with the
AWD system.
If this occurs, have the vehicle inspected
by an authorized HYUNDAI dealer.
For more details, refer to “All Wheel
Drive (AWD)” section in chapter 6.
4-16
04
All Wheel Drive (AWD) LOCK
LED headlight warning light
Indicator Light
This indicator light illuminates:
This warning light illuminates:
ś Once you set the ignition switch or
ś When you set the ignition switch or
Engine Start/Stop Button to the ON
the Engine Start/Stop button to the
position.
ON position.
- It illuminates for approximately 3
- The LED headlight warning light
seconds and then goes off.
illuminates for approximately 3
seconds and then goes off.
ś When you select AWD Lock mode by
pressing the AWD LOCK button.
ś Whenever there is a malfunction with
- The AWD LOCK mode is to increase
the LED headlight.
the drive power when driving on
If the LED headlight warning light
wet pavement, snow covered roads
remains illuminated while driving,
and/or off-road.
have the vehicle inspected by an
authorized HYUNDAI dealer.
NOTICE
This warning light blinks:
Do not use AWD LOCK mode on dry
Whenever there is a malfunction with a
paved roads or highway, it can cause
LED headlight related part.
noise, vibration or damage of AWD
related parts.
If this occurs, have the vehicle inspected
by an authorized HYUNDAI dealer.
NOTICE
Continuous driving with the LED
Headlight warning light on or blinking
can reduce LED headlight life.
4-17
Instrument Cluster
Icy road warning light
Electronic Stability Control
(ESC) indicator light
This warning light is to warn the driver
This indicator light illuminates:
the road may be icy.
ś When you set the ignition switch or
When the temperature on the outside
the Engine Start/Stop button to the
temperature gauge is approximately
ON position.
below 40°F (4°C), the Icy Road warning
- The Electronic Stability Control
light and Outside Temperature Gauge
indicator light illuminates for about
blinks and then illuminates. Also, the
3 seconds and then goes off.
warning chime sounds 1 time.
ś Whenever there is a malfunction with
You can activate or deactivate Icy Road
ESC system.
Warning function from the User Settings
If this occurs, have the vehicle
menu in the cluster display.
inspected by an authorized HYUNDAI
Select:
dealer.
- 6HWXS Ɵ 8VHU 6HWWLQJV Ɵ &OXVWHU Ɵ ,F\
Road Warning
This indicator light blinks:
While ESC is operating.
Information
For more details, refer to “Electronic
Stability Control (ESC)” section in
If the Icy Road warning light appears
chapter 6.
while driving, you should drive more
attentively and safely refraining from
over-speeding, rapid acceleration, sudden
Electronic Stability Control
braking or sharp turning, etc.
(ESC) OFF indicator light
(if equipped)
This indicator light illuminates:
ś When you set the ignition switch or
the Engine Start/Stop button to the
ON position.
- The ESC OFF indicator light
illuminates for approximately 3
seconds and then goes off.
ś When you deactivate ESC system by
pressing the ESC OFF button.
For more details, refer to “Electronic
Stability Control (ESC)” section in
chapter 6.
4-18
04
Immobilizer Indicator Light
Immobilizer Indicator Light
(without smart key)
(with smart key)
(if equipped)
This indicator light illuminates:
This indicator light illuminates for up to
30 seconds:
ś When the vehicle detects the
immobilizer in the key with the
ś When the vehicle detects the smart
ignition switch in the ON position.
key in the vehicle with the Engine
Start/Stop button in the ACC or ON
- At this time, you can start the
position.
engine.
- At this time, you can start the
- The indicator light goes off after
engine.
starting the engine.
- The indicator light goes off after
starting the engine.
This indicator light blinks:
ś When there is a malfunction with the
This indicator light blinks for a few
immobilizer system.
seconds:
In this case, have the vehicle
ś When the smart key is not in the
inspected by an authorized HYUNDAI
vehicle.
dealer.
- At this time, you cannot start the
engine.
This indicator light illuminates for 2
seconds and goes off:
ś If the smart key is in the vehicle and
the Engine Start/Stop button is ON,
but the vehicle cannot detect the
smart key.
In this case, have the vehicle
inspected by an authorized HYUNDAI
dealer.
This indicator light blinks:
ś When there is a malfunction with the
immobilizer system.
In this case, have the vehicle
inspected by an authorized HYUNDAI
dealer.
4-19
Instrument Cluster
Downhill Brake Control (DBC)
Turn signal indicator light
indicator light
This indicator light illuminates:
This indicator light blinks:
ś When you set the ignition switch or
When you operate the turn signal
the Engine Start/Stop button to the
indicator stalk.
ON position.
- The downhill brake control indicator
If any of the following occur, there may
light illuminates for about 3 seconds
be a malfunction with the turn signal
and then goes off.
system.
ś When you activate the system by
- The turn signal indicator light
pressing the DBC button.
illuminates but does not blink
- The turn signal indicator light blinks
This indicator light blinks:
rapidly
When Downhill Brake Control system is
- The turn signal indicator light does not
operating.
illuminate at all
If any of these conditions occur, have
This indicator light illuminates yellow:
the vehicle inspected by an authorized
Whenever there is a malfunction with
HYUNDAI dealer.
Downhill Brake Control system.
If this occurs, have the vehicle inspected
High beam indicator light
by an authorized HYUNDAI dealer.
For more details, refer to "Downhill
Brake Control (DBC)“ section in chapter
This indicator light illuminates:
6.
ś When the headlights are on and in the
high beam position
ś When the turn signal lever is pulled
into the Flash-to-Pass position.
4-20
04
High Beam Assist indicator
Master warning light
light
This indicator light illuminates:
This warning light illuminates:
When the high-beam is on with the light
When there is a malfunction in operation
switch in the AUTO position.
in any of the following systems:
ś White: When High Beam Assist is
- Forward Collision-Avoidance Assist
ready to operate.
malfunction
ś Green: When High Beam Assist is
- Forward Collision-Avoidance Assist
operating.
radar blocked
If your vehicle detects oncoming or
- Blind-Spot Collision-Avoidance Assist
preceding vehicles, High Beam Assist
Warning malfunction (if equipped)
will switch the high beam to low beam
- Blind-Spot Collision-Avoidance Assist
automatically.
Warning radar blocked (if equipped)
For more details, refer to “High Beam
- LED headlight malfunction
Assist (HBA)” section in chapter 5.
(if equipped)
- High Beam Assist malfunction
Cruise Indicator Light
(if equipped)
(if equipped)
- Smart Cruise Control malfunction (if
equipped)
This indicator light illuminates:
- Smart Cruise Control radar blocked (if
When the cruise control system is
equipped)
enabled.
- Tire Pressure Monitoring System
For more details, refer to "Smart Cruise
(TPMS) malfunction
Control (SCC)" in chapter 7.
To identify the details of the warning,
look at the cluster display.
4-21
Instrument Cluster
Cluster Display Messages for
Key not in vehicle
Vehicles Equipped with Smart
This message is displayed if the smart
Key
key is not in the vehicle when you leave
the vehicle with the Engine Start/Stop
Shift to P
button in the ON or Start position.
This message is displayed if you try to
Always turn off the engine before leaving
turn off the vehicle without the gear in
your vehicle.
the P (Park) position.
If this occurs, the Engine Start/Stop
Key not detected
button turns to the ACC position.
This message is displayed if the smart
key is not detected when you press the
Low key battery
Engine Start/Stop button.
When the Engine Start/Stop button
is pressed to turn OFF the engine,
Press START button again
this message may be displayed. This
message indicates that the internal
This message is displayed if you were
battery of the Smart Key is low. Consider
unable to start the vehicle when the
replacing the Smart Key internal battery.
Engine Start/Stop button was pressed.
If this occurs, attempt to start the engine
Press START button while turning
by pressing the Engine Start/ Stop button
wheel
again.
This message is displayed if the steering
If the warning message appears each
wheel does not unlock normally when
time you press the Engine Start/Stop
the Engine Start/Stop button is pressed.
button, have the vehicle inspected by an
authorized HYUNDAI dealer.
You should press the Engine Start/Stop
button while turning the steering wheel
right and left.
Check steering wheel lock system
This message is displayed if the steering
wheel does not lock normally while the
Engine Start/Stop button is pressed to
the OFF position.
Press brake pedal to start engine
This message is displayed if the Engine
Start/Stop button changes to the ACC
position twice by pressing the button
repeatedly without depressing the brake
pedal.
You can start the vehicle by depressing
the brake pedal and then pressing the
Engine Start/Stop button.
4-22
04
Press START button with key
Battery discharging due to external
This message is displayed if you press
electrical devices
the Engine Start/Stop button while the
This message is displayed if the vehicle
warning message “Key not detected” is
battery voltage is low or if a current draw
displayed.
is detected that could drain the vehicle
At this time, the immobilizer indicator
battery.
light blinks.
Check to see that there are no non-
factory external electronic devices
Check BRAKE SWITCH fuse
connected to the vehicle battery system,
otherwise battery discharge may occur.
This message is displayed if the brake
switch fuse is disconnected.
If this message appears in the LCD
cluster and there are no other non-
You need to replace the fuse with a new
factory electronic devices connected to
one before starting the engine.
the vehicle, have the vehicle inspected
If that is not possible, you can start the
by an authorized HYUNDAI dealer.
engine by pressing the Engine Start/
Stop button for 10 seconds in the ACC
position.
Door, Hood, Liftgate open indicator
Shift to P or N to start engine
This message is displayed if you try to
start the engine in any other position
except P (Park) or N (Neutral).
Information
You can start the engine with the gear in
N (Neutral). But, for your safety, start the
engine with the gear shifted to P (Park).
ONX4OB041003
This warning is displayed if any door or
hood or liftgate is left open. The warning
will indicate which door is open in the
display.
CAUTION
Before driving the vehicle, you should
confirm that the door/ hood/liftgate are
fully closed.
Also, check there is no door/hood/
liftgate open warning light or message
displayed on the instrument cluster.
4-23
Instrument Cluster
Sunroof open indicator (if equipped)
Lights
ONX4OB041004
OJX1049007L
This warning is displayed if you turn off
This indicator displays which exterior
the engine when the sunroof is open.
light is selected using the lighting
Close the sunroof securely before leaving
control.
your vehicle.
You can activate or deactivate Wiper/
Lights display function from the User
Low tire pressure
Settings menu in the cluster display.
Select:
- 6HWXS Ɵ 8VHU VHWWLQJV Ɵ &OXVWHU Ɵ
Wiper/Lights display
Wiper
„ Type A
ONX4OB041005
This warning message is displayed if the
tire pressure is low. The corresponding
tire on the vehicle will be illuminated.
For more details, refer to “Tire Pressure
OJX1049008L
Monitoring System (TPMS)” section in
chapter 8.
This indicator displays which wiper speed
is selected using the wiper control.
You can activate or deactivate Wiper/
Lights display function from the User
Settings menu in the cluster display.
Select:
- 6HWXS Ɵ 8VHU VHWWLQJV Ɵ &OXVWHU Ɵ
Wiper/Lights display
4-24
04
Low washer fluid (if equipped)
WARNING
This message is displayed if the washer
When the engine oil level warning
fluid level in the reservoir is nearly empty.
message appears, it is necessary to
Have the washer fluid reservoir refilled.
check if you have replaced the Engine
oil according to the maintenance
Low fuel
schedule in chapter 9. If it has not been
This message is displayed if the fuel tank
checked and followed, the engine oil
is almost out of fuel.
must be replaced first.
When this message is displayed, the low
fuel level warning light in the cluster will
Information
come on.
After adding engine oil, if you travel
It is recommended to look for the nearest
approximately 18~37miles (30~60 km)
fueling station and refuel as soon as
after the engine warms up, the warning
possible.
message should disappear.
If the warning message remains on, have
Low engine oil
the vehicle inspected by an authorized
This warning message is displayed when
HYUNDAI dealer as soon as possible.
the engine oil level should be checked.
If this warning message is displayed,
check the engine oil level as soon as
possible and add engine oil as required.
Slowly pour the recommended oil little
by little into a funnel.
Use only the specified engine oil. (Refer
to "Recommended Lubricants and
Capacities“ section in chapter 2.)
Do not overfill the engine oil. Make sure
the oil level is not above F (Full) mark on
the dipstick.
4-25
Instrument Cluster
Engine overheated
Check turn signal
This message is displayed when the
This message is displayed if the turn
engine coolant temperature is above
signal lamps are not operating properly.
248°F (120°C). This means that the
A lamp may need to be replaced.
engine is overheated and may be
Make sure to replace the burned out
damaged.
bulb with a new one of the same wattage
If your vehicle is overheated, refer to
rating.
“Overheating” section in chapter 8.
Check headlight LED
Check headlight
This message is displayed if there is a
This warning message is displayed if the
problem with the LED headlight. Have
headlights are not operating properly.
the vehicle inspected by an authorized
HYUNDAI dealer.
In addition, if a specific lamp(turn signal
lamp etc.) is not operating properly, the
warning message according to a specific
lamp (turn signal lamp etc.) is displayed.
A corresponding bulb may need to be
replaced.
Make sure to replace the burned out
bulb with a new one of the same wattage
rating.
4-26
04
CLUSTER DISPLAY
Cluster Display Control
ONX4OB041006
The cluster display modes can be changed by using the control buttons.
Switch
Function
MODE button for changing modes
,
MOVE switch for changing items
OK
SELECT/RESET button for setting or resetting the selected item
Information
When the infotainment system is applied, only the User’s Setting mode on the
infotainment system is supported but the User’s Setting mode on the instrument cluster is
not supported.
4-27
Instrument Cluster
View Modes
View modes
Symbol
Explanation
This mode displays the state of :
- Lane Keeping Assist
Smart Cruise Control (if equipped)
Highway Driving Assist (if equipped)
- Driver Attention Warning (DAW)
Driving Assist
- Driving force distribution (AWD)
For more information, refer to "Lane Keeping Assist
(LKA)", "Driver Attention Warning (DAW)", "Smart
Cruise Control (SCC)", "Highway Driving Assist (HDA)"
in chapter 7 and "All Wheel Drive (AWD)" in chapter 6.

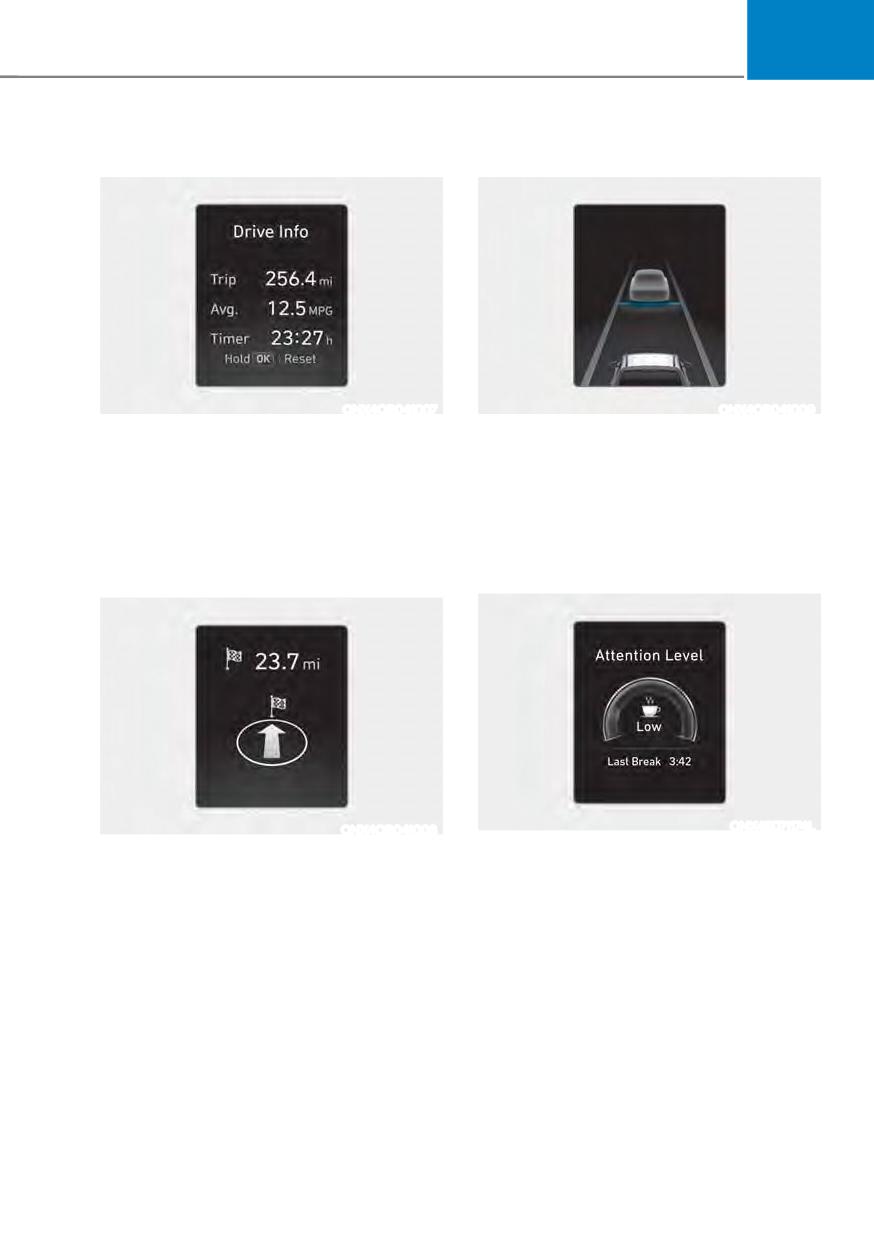

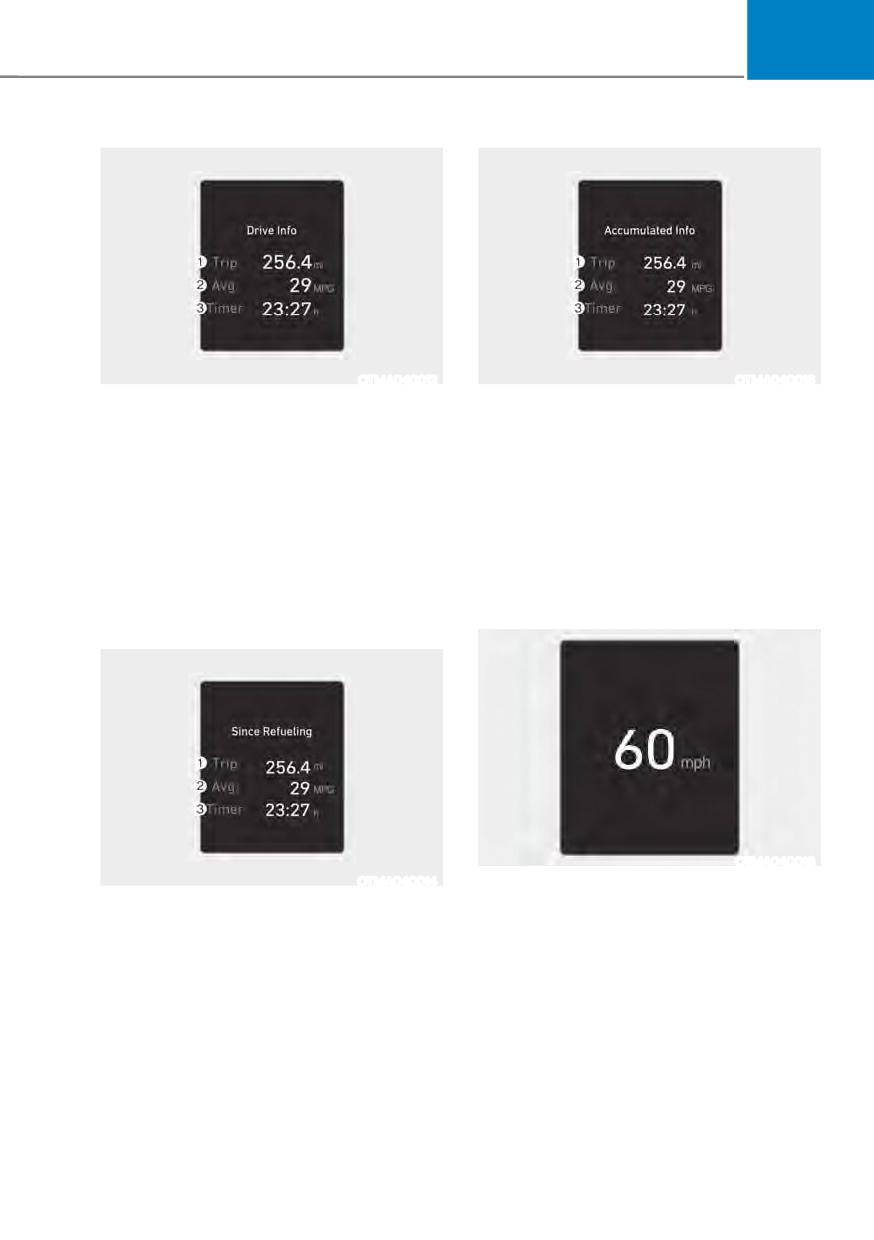

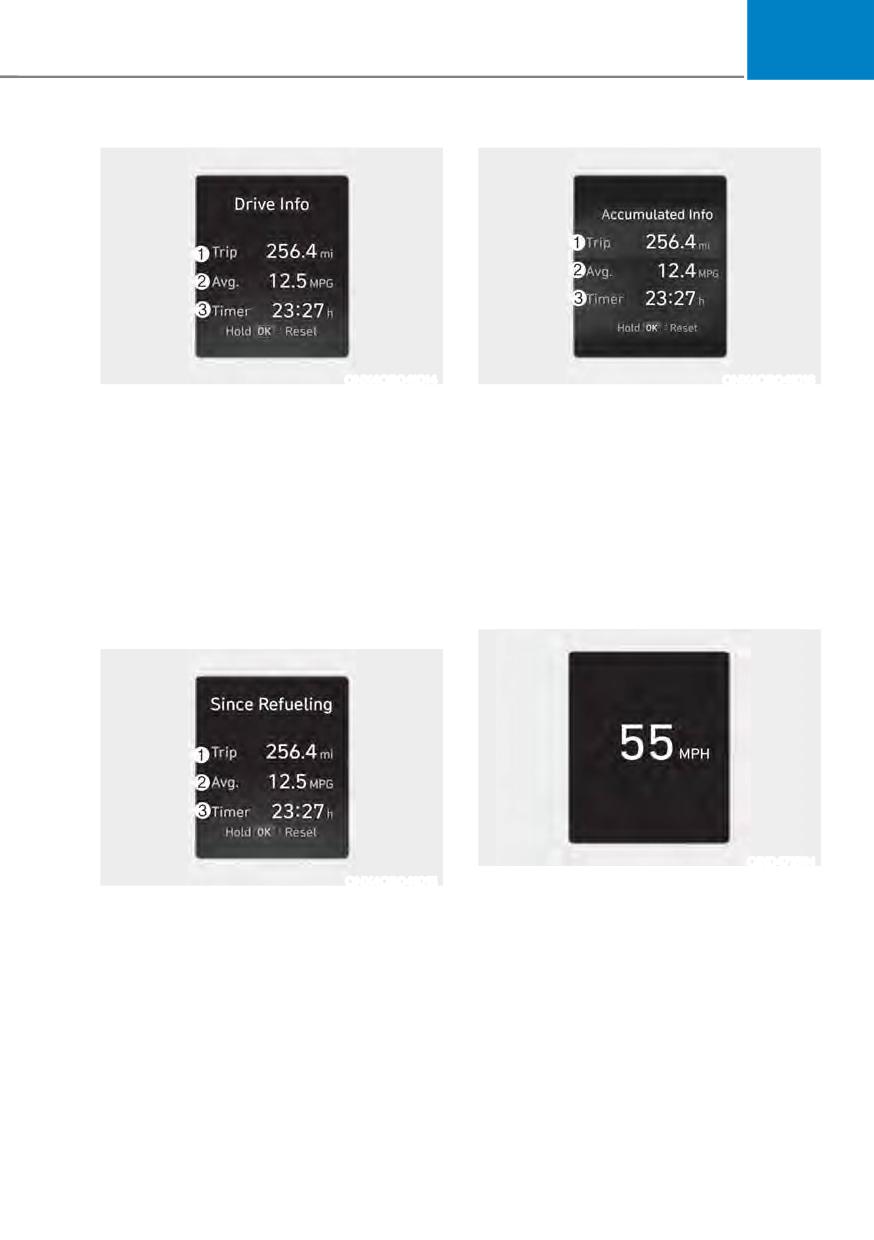

This mode displays driving information such as the
Trip
tripmeter, fuel economy, etc.
Computer
For more details, refer to "Trip Computer" in this chapter.
Turn By Turn
This mode displays the state of the navigation.
(TBT)
In this mode, you can change settings of the doors, lamps,
User Settings
etc.
The Warning mode displays warning messages related to
Warning
the vehicle when one or more systems are not operating
normally.
The information provided may differ depending on which functions are applicable
to your vehicle.
4-28
04
Trip computer mode
Driving Assist mode
ONX4OB041007
ONX4OB041009
The trip computer mode displays
LKA/SCC/LFA/HDA
information related to vehicle driving
This mode displays the state of Lane
parameters including fuel economy,
Keeping Assist, Smart Cruise Control,
tripmeter information and vehicle speed.
Lane Following Assist and Highway
For more information, refer to "Trip
Driving Assist.
Computer" in this chapter.
For more details, refer to each system
information in chapter 7.
Turn By Turn (TBT) mode
ONX4OB041008
ONX4E071174L
Turn-by-turn navigation, distance/time
Driver Attention Warning
to destination information is displayed
This mode displays the state of Driver
when Turn by Turn view is selected.
Attention Warning.
For more details, refer to “Driver
Attention Warning (DAW)” in chapter 7.
4-29
Instrument Cluster
Master warning group
ONX4OB041011
Driving force distribution (AWD)
ONX4OB041012
This mode displays information related to
This warning light informs the driver the
AWD driving force.
following situations.
If the vehicle is in AWD lock state, this
- Forward Collision-Avoidance Assist
mode is not displayed.
malfunction
For detailed information, refer to the
- Forward Collision-Avoidance Assist
"All Wheel Drive" in the chapter 6.
radar blocked
- Blind-Spot Collision-Avoidance Assist
malfunction (if equipped)
- Blind-Spot Collision-Avoidance Assist
radar blocked (if equipped)
- LED headlight malfunction
(if equipped)
- High Beam Assist malfunction
(if equipped)
- Smart Cruise Control malfunction (if
equipped)
- Smart Cruise Control radar blocked (if
equipped)
- Tire Pressure Monitoring System
(TPMS) malfunction
The Master Warning Light illuminates
if one or more of the above warning
situations occur.
At this time, a Master Warning icon (
)
will appear beside the User Settings icon
(
), on the cluster display.
If the warning situation is solved, the
master warning light will be turned
off and the Master Warning icon will
disappear.
4-30
04
User Settings Mode
ONX4OB041013
Tire Pressure
ONX4OB041017
This mode displays information related to
In this mode, you can change the
Tire Pressure.
settings of the instrument cluster, doors,
For more details, refer to "Tire Pressure
lamps, etc.
Monitoring System (TPMS)" in chapter
1. Driver Assistance
8.
2. Cluster
3. Lights
4. Door
5. Convenience
6. Units
The information provided may differ
depending on which functions are
applicable to your vehicle.
Quick guide (Help)
This mode provides quick guides for the
systems in the User Settings mode.
Select an item, press and hold the OK
button.
For more details about each system,
refer to this Owner’s Manual.
Information
When the infotainment system is applied,
only the User’s Setting mode on the
infotainment system is supported but the
User’s Setting mode on the instrument
cluster is not supported.
4-31
Instrument Cluster
1. Driver Assistance
Items
Explanation
To adjust the Speed Limit function.
ś Speed Limit Offset
Speed Limit
(if equipped)
ś Speed Limit Assist / Speed Limit Warning / Off
For more details, refer to “Intelligent Speed Limit Assist (ISLA)” in
chapter 7
Warning
To adjust the warning timing of Driver Assistance systems.
Timing
ś Standard / Late
Warning
To adjust the warning volume of Driver Assistance systems.
Volume
ś High / Medium / Low
Haptic
To adjust the haptic warning of the Driver Assistance systems.
Warning
ś On / Off
ś Leading Vehicle Departure Alert
Driver
To activate or deactivate Leading Vehicle Departure Alert.
Attention
ś Inattentive Driving Warning
Warning
To alert the driver's inattentive driving.
For more details, refer to "Driver attention Warning (DAW)" in chapter 7.
To adjust Forward Collision-Avoidance Assist
Forward
- Active Assist / Warning Only / Off
Safety
For more details, refer to "Forward Collision-Avoidance Assist (FCA)" in
chapter 7.
To adjust Lane Keeping Assist
Lane Safety
- Assist / Warning Only / Off
For more details, refer to "Lane Keeping Assist (LKA)" in chapter 7.
4-32
04
Items
Explanation
ś Safe Exit Warning (if equipped)
To activate or deactivate Safe Exit Warning.
For more details, refer to "Safe Exit Warning (SEW)" in chapter 7.
Blind-Spot
Safety
To adjust Blind-Spot Collision-Avoidance Assist.
- Active Assist / Warning Only / Off
For more details, refer to "Blind-Spot Collision-Avoidance Assist (BCA)" in
chapter 7.
ś Rear Cross-Traffic Safety
Parking
To activate or deactivate Rear Cross-Traffic Safety.
Safety
For more details, refer to "Rear Cross-Traffic Collision-Avoidance Assist
(RCCA)" in chapter 7.
4-33
Instrument Cluster
2. Cluster
Items
Explanation
You can select the theme of the cluster.
Select
ś Type A Cluster : Theme A / Theme B / Theme C
Theme
ś Type B Cluster : Link to Drive Mode / Classic A / Classic B / Classic C /
Cube
Service
To activate or deactivate the service interval function.
Interval
To reset the fuel economy displayed
Reset fuel
- At vehicle start
economy
- After refueling
- Manually
ś To activate or deactivate the Wiper/Light mode.
Wiper/Lights
When activated, the cluster display shows the selected Wiper/Light mode
Display
whenever you changed the mode.
Icy Road
To activate or deactivate the icy road warning.
Warning
Welcome
To activate or deactivate the welcome sound.
Sound
Information
To use the service interval menu, consult an authorized HYUNDAI dealer.
If the service interval is activated and the time and distance is adjusted, messages are
displayed in the following situations each time the vehicle is turned on.
- Service in: Displayed to inform the driver the remaining mileage and days to service.
- Service required: Displayed when the mileage and days to service has been reached or
passed.
Information
If any of the following conditions occur, the mileage and number of days to service may be
incorrect.
- The battery cable is disconnected.
- The fuse switch is turned off.
- The battery is discharged.
4-34
04
3. Lights
Items
Explanation
To adjust the illumination level.
Illumination
ś Level 1-20
ś Off : The one touch turn signal function will be deactivated.
One Touch
ś 3, 5, 7 Flashes : The turn signal indicator will blink 3, 5, or 7 times when
Turn Signal
the turn signal lever is moved slightly.
For more details, refer to “Lighting” in chapter 5.
Ambient
Light
ś Off
Brightness
ś Level 1/ Level 2/ Level 3/ Level 4
(if equipped)
Ambient
ś Polar White/Moon White/Ice Blue/Ocean Blue/Jade Green/Orchid Green/
Light Color
Freesia Yellow/ Sunrise Red/Aurora Purple/Lightening Violet
(if equipped)
Headlight
To activate or deactivate the headlight delay function.
Delay
For more details, refer to "Lighting" in chapter 5.
High Beam
To activate or deactivate High Beam Assist.
Assist
For more details, refer to "High Beam Assist (HBA)" in chapter 5.
4-35
Instrument Cluster
4. Door
Items
Explanation
ś Enable on Shift : All doors will be automatically locked if the shift lever
is shifted from the P (Park) position to the R (Reverse), N (Neutral), or D
(Drive) position. (only when the engine is running.)
Auto Lock
ś Enable on Speed : All doors will be automatically locked when the vehicle
speed exceeds 9.3 mph (15 km/h).
ś Off : The auto door lock operation will be deactivated.
ś On Shift to P: All doors will be automatically unlocked if the shift lever is
shifted to the P (Park) position. (only when the engine is running.)
ś On key out/On vehicle off : All doors will be automatically unlocked when
Auto Unlock
the ignition key is removed from the ignition switch or the Engine Start/
Stop button is set to the OFF position.
ś Off : The auto door unlock operation will be canceled.
ś Off: The two press unlock function will be deactivated.
Therefore, all doors will unlock if the door unlock button is pressed.
2 Press
ś On: Only the driver’s door will unlock if the door unlock button is pressed.
Unlock
When the door unlock button is pressed again within 4 seconds, the
remaining doors will unlock.
5. Convenience
Items
Explanation
Rear
Occupant
To activate or deactivate Rear Occupant Alert.
Alert (if
For more details, refer to "Rear Occupant Alert (ROA) system" in chapter 5.
equipped)
ś On door unlock : The side view mirrors are unfolded and the welcome
light turns on automatically when the doors are unlocked.
Welcome
ś On driver approach : The side view mirrors are unfolded and the welcome
Mirror/Light
light turns on automatically when the vehicle is approached with the
smart key.
For more details, refer to ''Welcome System'' in chapter 5."
Wireless
To activate or deactivate the wireless charging system in the front seat.
Charging
For more details, refer to "Wireless Smart Phone Charging System" in
System
chapter 5.
(if equipped)
4-36
04
6. Units
Items
Explanation
To select the speed unit.
Speed Unit
ś km/h, MPH
Temperature
To select the temperature unit.
Unit
ś °C, °F
Fuel
To select the fuel economy unit.
Economy
ś km/L, L/100km, MPG
Unit
Tire Pressure
To select the tire pressure unit.
Unit
ś psi, kPa, bar
Information
The information provided may differ depending on which functions are applicable to your
vehicle.
4-37
Instrument Cluster
Trip Computer (Type A : 4.2” LCD)
The trip computer is a microcomputer-
controlled driver information system that
displays information related to driving.
Information
Some driving information stored in the
trip computer (for example Average
Vehicle Speed) resets if the battery is
disconnected.
ONX4OB041006
To change the trip mode, toggle the
Trip modes
"
,
" switch on the steering wheel
Drive Info
ś Manual reset
ś TULS GLstance
To clear the average fuel economy
ś AverDJH FXHO Economy
manually, press the OK switch on the
ś ,QstanW FXHO Economy
steering wheel for more than 1 second
when the Average Fuel Economy is
displayed.
Since refueling
ś Automatic reset
ś TULS GLstance
To automatically reset the average
ś AverDJH FXHO Economy
fuel economy, select between ‘After
ś InstanW FXHO Economy
Ignition’ or ‘After Refueling’ from
the Settings menu in the instrument
cluster.
Accumulated Info
- After Ignition: When the engine has
ś TULS GLstance
been OFF for 3 minutes or longer
ś AverDJH FXHO Economy
the average fuel economy will reset
ś InstanW FXHO Economy
automatically.
- After Refueling: The average fuel
economy will reset automatically
Digital speedometer
after adding 6 liters (1.6 gallons) of
fuel or more and after driving speed
exceeds 1 mph (1 km/h).
4-38
04
ONX4OB041014
ONX4OB041016
Drive info
Accumulated Info
Trip distance (1), average fuel economy
Accumulated trip distance (1), average
(2), and instant fuel economy (3) are
fuel economy (2), and instant fuel
displayed.
economy (3) are displayed.
The information is combined for each
The information is accumulated starting
ignition cycle. However, when the engine
from the last reset.
has been OFF for 3 minutes or longer the
To reset manually, press the OK switch
Drive Info screen will reset.
on the steering wheel for more than
To reset manually, press the OK switch
1 second when ‘Accumulated Info’ is
on the steering wheel for more than 1
displayed.
second when ‘Drive Info’ is displayed.
OIK047151N
ONX4OB041015
Digital speedometer
Since refuel(l)ing
Digital speedometer display shows the
Trip distance (1), average fuel economy
speed of the vehicle.
(2), and instant fuel economy (3) after the
vehicle has been refueled are displayed.
To reset manually, press the OK switch
on the steering wheel for more than
1 second when ‘Since Refueling’ is
displayed.
4-39
Instrument Cluster
Trip Computer (Type B : 10.25”
LCD)
The trip computer is a microcomputer-
controlled driver information system that
displays information related to driving.
Information
Some driving information stored in the
trip computer (for example Average
Vehicle Speed) resets if the battery is
ONX4OB041006
disconnected.
To change the trip mode, toggle the
"
,
" switch on the steering wheel
Trip modes
ś Manual reset
Drive Info
To clear the average fuel economy
ś Trip distance
manually, press the OK switch on the
steering wheel for more than 1 second
ś Average Fuel Economy
when the Average Fuel Economy is
ś Timer
displayed.
ś Automatic reset
To automatically reset the average
Since refueling
fuel economy, select between ‘After
Ignition’ or ‘After Refueling’ from
ś Trip distance
the Settings menu in the instrument
ś Average Fuel Economy
cluster.
ś Timer
- After Ignition: When the engine has
been OFF for 3 minutes or longer
the average fuel economy will reset
automatically.
Accumulated Info
- After Refueling: The average fuel
ś Trip distance
economy will reset automatically
ś Average Fuel Economy
after adding 6 liters (1.6 gallons) of
ś Timer
fuel or more and after driving speed
exceeds 1 mph (1 km/h).
à For 10.25-inch instrument cluster, you
can check the fuel economy in the
Digital speedometer
center bottom of the cluster.
4-40
04
OTMA040012
OTMA040016
Drive info
Accumulated info
Trip distance (1), average fuel economy
Accumulated trip distance (1), average
(2), and total driving time (3) are
fuel economy (2), and total driving time
displayed.
(3) are displayed.
The information is combined for each
The information is accumulated starting
ignition cycle. However, when the engine
from the last reset.
has been OFF for 3 minutes or longer the
To reset manually, press the OK switch
Drive Info screen will reset.
on the steering wheel for more than
To reset manually, press the OK switch
1 second when ‘Accumulated Info’ is
on the steering wheel for more than 1
displayed.
second when ‘Drive Info’ is displayed.
OTMA040018
OTMA040014
Digital speedometer
Since refueling
Digital speedometer display shows the
Trip distance (1), average fuel economy
speed of the vehicle.
(2), and total driving time (3) after the
vehicle has been refueled are displayed.
To reset manually, press the OK switch
on the steering wheel for more than
1 second when ‘Since Refueling’ is
displayed.
4-41
Instrument Cluster
9(+,&/( 6(77,1*6 ǣ,1)27$,10(17 6<67(0Ǥ ǣ,) (48,33('Ǥ
Setting Your Vehicle
ONX4E040028
Vehicle Settings in the infotainment
ONX4050067
system provide user options for a variety
1. Press the SETUP button on the main
of settings including door lock/unlock
keyboard.
features, convenience features, driver
assistance settings, etc.
Vehicle Settings menu
- Driver Assistance
- Cluster
- Climate
- Seat
- Lights
- Door
- Convenience
ONX4E040027
The information provided may differ
2. Select ‘Vehicle’ to change the Vehicle
depending on which functions are
Settings.
applicable to your vehicle.
Information
WARNING
The infotainment system may change after
Do not operate the Vehicle Settings
software updates. For more information,
while driving. This may cause
refer to the user's manual provided in
distraction resulting in an accident.
the infotainment system and the quick
reference guide.
4-42
5. Convenient Features
Accessing Your Vehicle
5-4
Remote Key
5-4
Smart Key
5-7
Immobilizer System
5-14
Hyundai Digital Key
5-16
Door Locks
5-33
Operating Door Locks From Outside the Vehicle
5-33
Operating Door Unlocks from Inside the Vehicle
5-35
Auto Door Lock/Unlock Features
5-37
Child-protector Rear Door Locks
5-37
Theft-alarm System
5-38
Rear Occupant Alert (ROA)
5-39
Rear Occupant Alert Operation
5-39
Steering Wheel
5-40
Motor Driven Power Steering (MDPS)
5-40
Tilt / Telescopic Steering
5-41
Heated Steering Wheel
5-41
Horn
5-42
Mirrors
5-43
5
Inside Rearview Mirror
5-43
Side View Mirrors
5-53
Windows
5-55
Power Windows
5-56
Rear Sliding Window
5-60
Sunroof
5-61
Sunshade
5-61
Tilt Open/Close
5-62
Slide open/close
5-62
Automatic Reversal
5-63
Resetting the sunroof
5-64
Sunroof Open Warning
5-65
Exterior Features
5-66
Hood
5-66
Liftgate
5-67
Rear Bumper Steps
5-70
Fuel Filler Door
5-70
Lighting
5-73
Exterior Lights
5-73
High Beam Assist (HBA)
5-77
High Beam Assist Settings
5-77
High Beam Assist Operation
5-78
High Beam Assist Malfunction and Limitations
5-79
Interior Lights
5-80
Interior Lamp AUTO OFF
5-80
Front Lamps
5-80
Rear Lamps
5-81
Vanity Mirror Lamp
5-81
Glove Box Lamp
5-82
Welcome System
5-82
Wipers and Washers
5-84
Windshield Wipers
5-84
Windshield Washers
5-86
Manual Climate Control System
5-87
Heating and Air Conditioning
5-88
System Operation
5-92
System Maintenance
5-93
Automatic Climate Control System
5-95
5
Automatic Heating and Air Conditioning
5-96
Manual Heating and Air Conditioning
5-97
Multi Air Mode
5-103
System Operation
5-104
System Maintenance
5-106
Windshield Defrosting and Defogging
5-108
Manual Climate Control System
5-108
Automatic Climate Control System
5-109
Rear window defroster
5-110
Climate Control Additional Features
5-111
Auto Defogging System on Models with Automatic Temperature Control
5-111
Auto Dehumidify
5-112
Recirculating Air when washer fluid is used
5-113
Sunroof Inside Air Recirculation
5-113
Automatic Controls for the Driver Based on Climate Control System Settings
5-113
Storage Compartment
5-114
Center Console Storage
5-114
Glove Box
5-115
Storage Box Under the Rear Seat
5-115
5. Convenient Features
Luggage Compartment Features
5-116
Tonneau Cover
5-116
Sidewall Molded in Features
5-119
Underbed Storage
5-120
Sidewall Side Storage
5-122
Tie Down
5-123
Rail and cleat system
5-124
Interior Features
5-126
Cup Holder
5-126
Sunvisor
5-127
Power Outlet
5-127
USB Charger
5-128
Wireless Smart Phone Charging System
5-129
Clock
5-131
Coat Hook
5-132
Floor Mat Anchor(s)
5-132
Exterior Features
5-133
Roof Rack
5-133
Infotainment System
5-134
USB Port
5-134
5
Antenna
5-134
Steering Wheel Remote Controls
5-135
Infotainment System
5-136
Voice Recognition
5-136
Bluetooth® Wireless Technology
5-136
How Vehicle Radio Works
5-137
Convenient Features
ACCESSING YOUR VEHICLE
Remote Key (if equipped)
WARNING
Do not leave the Smart Key in
your vehicle with children that are
unattended or unsupervised.
Children could place the key in the
ignition switch or could operate the
power windows or other vehicle
controls or even cause the vehicle to
move. This could result in serious injury
or death.
Unlocking
ONX4OB051001
To unlock:
Your HYUNDAI uses a remote key, which
you can use to lock or unlock the driver
1. Press the Door Unlock button (2) on
and passenger doors or the liftgate.
the remote key.
1. Door Lock
2. The doors will unlock. The hazard
warning lights will blink two times.
2. Door Unlock
ś Two press unlock setting :
3. Liftgate Open (if equipped)
If you press the door unlock button
4. Panic
on the remote key again within
four seconds, then all the doors will
Locking
unlock. Two press unlock setting can
To lock :
be changed according to owner’s
1. Close all doors, engine hood and
preference in the cluster User Settings
liftgate.
mode.
2. Press the Door Lock button (1) on the
ś User settings mode method :
remote key.
Select or deselect the ‘Two Press
3. The doors will lock. The hazard
Unlock’ feature in the User Settings
warning lights will blink.
mode on the cluster display (User
6HWWLQJV Ɵ 'RRU Ɵ 7ZR 3UHVV 8QORFN
4. Make sure the doors are locked by
pulling the outside door handle.
Information
After unlocking the doors, the doors will
lock automatically after 30 seconds unless
a door is opened.
5-4
05
Opening the liftgate
Mechanical key (if equipped)
Press and hold the Liftgate Open button
(3) for 1 second. The rear lamps will flash
and the liftgate will fall with dampening.
Panic alarm
The horn sounds and the hazard warning
lights blink for about 30 seconds if Panic
button (4) is pressed for more than 1
second. To stop the horn and lights,
press any button on the transmitter.
ONX4OB051002
Information
If the remote key does not operate
The word “HOLD” is written on the
normally, you can lock or unlock the door
button to inform you that you must press
by using the mechanical key.
and hold the button for more than one
To unfold the key, press the release
second.
button then the key will unfold
automatically.
Start-up
To fold the key, fold the key manually
For detailed information refer to “Key
while pressing the release button.
Ignition Switch” in chapter 6.
NOTICE
NOTICE
Do not fold the key without pressing the
To prevent damaging the remote key:
release button. This may damage the
ś Keep the remote key away from
key.
liquids or any type of extreme heat.
If water or liquid gets inside of the
Remote key precautions
remote or if the remote is subjected
The remote key may not operate under
to extreme heat, damage to the
the following conditions :
internal circuit may result. This
ś The key is in the ignition switch.
would void the vehicle warranty.
ś You exceed the operating distance
ś Avoid dropping or throwing the
limit (about 32 feet [10 m]).
remote key.
ś The remote key battery is weak.
ś Protect the remote key from extreme
temperatures.
ś Other vehicles or objects may be
blocking the signal.
ś The weather is extremely cold.
ś The remote key is close to a radio
transmitter such as a radio station or
an airport which can interfere with
normal operation of the remote key.
5-5
Convenient Features
When the remote key does not work
Battery replacement
correctly, unlock and lock the door
with the mechanical key. If you have a
problem with the remote key, contact an
authorized HYUNDAI dealer.
If the remote key is in close proximity to
your mobile phone, the signal could be
blocked by your mobile phone’s normal
operational signals.
This is especially important when the
phone is active such as making and
receiving calls, text messaging, and/or
sending/receiving emails.
Avoid placing the remote key and your
OPD046002
mobile phone in the same location and
Battery Type: CR2032
always try to maintain an adequate
distance between the two devices.
1. Insert a slim tool into the slot and
gently pry open the cover.
2. Remove the old battery and insert the
Information
new battery. Make sure the battery
This device complies with Part 15 of the
position is correct.
FCC rules.
3. Reinstall the rear cover of the remote
Operation is subject to the following three
key.
conditions:
If you suspect your remote key might
1. This device may not cause harmful
have sustained some damage, or you feel
interference.
your remote key is not working correctly,
2. This device must accept any
contact an authorized HYUNDAI dealer.
interference received, including
interference that may cause undesired
WARNING
operation.
THIS PRODUCT CONTAINS A BUTTON
3. Changes or modifications not expressly
BATTERY
approved by the party responsible
for compliance could void the user’s
If swallowed, a lithium button battery
authority to operate the device.
can cause severe or fatal injuries within
2 hours. Keep batteries out of children.
If you think batteries may have been
NOTICE
swallowed or placed inside any part
Keep the remote key away from
of the body, seek immediate medical
electromagnetic materials that block
attention.
electromagnetic waves to the key
surface.
Information
An inappropriately disposed
battery can be harmful to
the environment and human
health. Dispose of the battery
according to your local law(s)
and regulation.
5-6
05
Smart Key (if equipped)
Locking your vehicle (Button type)
ONX4OB051003
ODN8059001
Your HYUNDAI maybe equipped with a
To lock :
smart key, which you can use to lock or
1. Close all doors, engine hood and
unlock the doors and liftgate, and start
liftgate.
the engine while just having the key in
2. Carry the smart key.
your possession.
3. Either press the door handle button or
1. Door lock
press the Door Lock button (1) on the
2. Door unlock
smart key.
3. Liftgate Open
4. The hazard warning lights will blink
4. Panic
and the chime will sound once.
5. Remote start
5. Make sure the doors are locked by
pulling the outside door handle.
5-7
Convenient Features
Locking your vehicle (Touch sensor
Note that if you press the outside door
type) (if equipped)
handle to lock the doors using the touch
sensor, the doors will not lock under the
following circumstances:
ś The Smart Key is in the vehicle
ś The Engine Start/Stop button is in the
ACC or ON position
ś Any of the doors are open (except for
the liftgate)
If this occurs, then a chime will sound
for about 3 seconds. Check the vehicle
before attempting to lock the car again.
ODN8059236
1. Make sure that all doors are closed.
CAUTION
2. While having the Smart Key in your
Before you leave your vehicle with the
possession, touch the outer part of
Smart Key, verify that your vehicle is
the door handle on or near the handle
locked. When using the touch sensor
detent for about 1 second or until you
on the front door handle, listen to hear
hear the door locks actuate.
that the lock has actuated, and then
3. The doors will be locked. If the liftgate
pull the handle within 3 seconds to
confirm the doors are locked.
was open, then when the liftgate is
closed it will be locked also.
(if it has been longer than 3 seconds,
verify the doors are locked by pressing
The chime will sound once and the
the lock button on the Smart Key. You
hazard warning lights will blink.
will hear a single beep.)
ś The door handle button will only
operate when the smart key is within
WARNING
28-40 inches (0.7-1 m) from the
outside door handle.
Do not leave the Smart Key in
your vehicle with children that are
ś Make sure the doors are locked by
unattended or unsupervised.
pulling the door handle. If you locked
Children could inadvertently press
the door with the touch sensor on
the Engine Start/Stop button or could
the door handle, the doors cannot
operate the power windows or other
be unlocked with the sensor within 3
vehicle controls or even cause the
seconds.
vehicle to move. This could result in
serious injury or death.
5-8
05
Unlocking your vehicle(When the
Unlocking your vehicle(When the
Two Press Unlock feature is off)
Two Press Unlock feature is on)
„ Button type
1. Make sure you have the smart key in
your possession.
2. Press the Door Unlock button (2) on
the smart key, press the button on the
front door handle or touch the door
unlock sensor inside of the front door
handle to unlock the doors.
3. The driver’s door will unlock.
4. If you press the button on the front
door handle or touch the door unlock
sensor inside of the front door handle
ODN8059001
to unlock the doors within 4 seconds,
„ Touch sensor type
all of the doors unlock. When the
doors unlock, the hazard warning
lights will blink two times.
ś
The door handle button will only
operate when the smart key is within
28~40 inches (0.7~1 m) from the
outside door handle.
ś
If you do not open the door after
unlocking within 30 seconds, it will
return to the lock mode.
ODN8059235
ś
The factory default setting is in off
1. Make sure you have the smart key in
mode so you should set in the User’s
your possession.
Settings mode.
2. Press the Door Unlock button (2) on
ś
If you unlocked the door with the door
the smart key, press the button on the
handle, the doors cannot be locked
front door handle or touch the door
with the sensor for up to 2 seconds.
unlock sensor inside of the front door
handle to unlock the doors.
3. All of the doors will unlock. When the
doors unlock, the hazard warning
lights will blink two times.
ś The door handle button will only
operate when the smart key is within
28~40 inches (0.7~1 m) from the
outside door handle.
ś If you do not open the door after
unlocking within 30 seconds, it will
return to the lock mode.
ś If you unlocked the door with the door
handle, the doors cannot be locked
with the sensor for up to 2 seconds.
5-9
Convenient Features
Two Press Unlock Feature
Opening or Unlocking the Liftgate
The priority for unlocking the driver door
To open the liftgate:
only, or unlocking all the doors with
1. If your vehicle has a Smart Key, make
one press may be adjusted in the User
sure you have the Smart Key in your
Settings mode in the cluster display.
possession.
The Two Press Unlock feature, when
2. Press either the button located inside
enabled, will require the user to press
the liftgate handle or on the smart
the door unlock button once for driver
key and hold for 1 second. The hazard
door only and twice for unlocking all the
warning lights will blink twice and the
doors.
liftgate will open.
Select or Deselect the Two Press Unlock
feature in the User Settings mode in the
Remotely starting vehicle
cluster display. The option can be found
(if equipped)
under the following menu:
You can start the vehicle using the
Remote Start button on the smart key.
8VHU 6HWWLQJV Ɵ 'RRU Ɵ 7ZR 3UHVV 8QORFN
To start the vehicle remotely:
1. Before you can use remote start your
The Two Press Unlock feature can also be
vehicle, the door lock button must be
enabled or disabled by pressing the door
pressed. Press the door lock button
lock and unlock buttons simultaneously
on the Smart Key. You must be within
on the Key FOB:
about 32 feet (10m) from your vehicle.
Press and hold both the Door Lock
2. Press and hold the remote start
button and the Door Unlock button
button on your Smart Key. You must
simultaneously until the hazard warning
press the button within 4 seconds
lights blink.
from when you pressed the door lock
button to activate the remote start.
This will enable or disable the Two Press
Unlock feature. Repeat this procedure to
3. The hazard warning lights will blink
enable/disable the mode again.
and the engine will start.
4. To turn off the remote start function,
press the Remote Start button once.
Information
During a car wash or rain, in order to
minimize unintentional operation of the
touch sensor, the touch sensor may become
insensitive. This is not a malfunction.
5-10
05
Push Button Start/Stop (if equipped)
Information
Some models are equipped with a push
ś The vehicle must be in P (Park) for the
button start instead of a key cylinder.
remote start function to start.
You can leave your Smart Key in your
ś If the engine is started using the remote
pocket or purse when you start your
start function, the engine will turn off
vehicle.
if you enter the vehicle without having
For more details, refer to the “Engine
the smart key in your possession.
Start/Stop Button” section in chapter 6.
ś The engine turns off if you do not get
on the vehicle within 10 minutes after
remotely starting the vehicle.
Information
ś The Remote Start button may not
If the smart key is not moved for some
operate if the smart key is not within 32
time, the detection function for smart key
feet (10 m).
operation will pause. Lift the smart key to
ś All doors must be locked and the hood
activate the detection again.
must be closed in order for the remote
start to operate.
NOTICE
ś Do not idle the engine for a long period.
To prevent damaging the smart key:
ś Keep the smart key in a cool,
Panic alarm
dry place to avoid damage or
The horn sounds and the hazard warning
malfunction. Exposure to moisture
lights blink for about 30 seconds if this
or high temperature may cause
button is pressed for more than 1 second
the internal circuit of the smart key
To stop the horn and lights, press any
to malfunction which may not be
button on the transmitter.
covered under warranty.
ś Avoid dropping or throwing the
smart key.
ś Protect the smart key from extreme
temperatures.
5-11
Convenient Features
Mechanical key
Loss of a smart key
If the Smart Key does not operate
A maximum of two smart keys can be
normally, you can lock or unlock the
registered to a single vehicle. If you
driver’s door by using the mechanical
happen to lose your smart key, you
key.
should immediately take the vehicle
and remaining key to your authorized
To remove the mechanical key from the
HYUNDAI dealer or tow the vehicle, if
smart key FOB:
necessary.
Smart key precautions
The smart key may not work if any of the
following occur:
ś The smart key is close to a radio
transmitter such as a radio station or
an airport which can interfere with
normal operation of the transmitter.
ś The smart key is near a mobile two
way radio system or a mobile phone.
OFE048007
ś Another vehicle’s smart key is being
Press and hold the release button (1) and
operated close to your vehicle.
remove the mechanical key (2). Insert the
ś The vehicle battery is discharged.
mechanical key into the key hole on the
door.
ś If your windows are tinted, especially
with metallic window tint, it may
cause frequency interference,
Key Cylinder (Driver Door)
reducing the smart key operating
A key cylinder is located on the driver
range.
side door handle hidden behind a plastic
If the smart key does not work correctly,
cover. Using the mechanical key, push
open and close the door with the
and hold the key cylinder cover release
mechanical key. If you have a problem
button located on the underside of the
with the smart key, contact an authorized
door handle.
HYUNDAI dealer.
Use the mechanical key inserted into
If the smart key is in close proximity to
the release button slot to pry the cover
your mobile phone, the signal could be
outward. Once the cover is off, the
blocked by your mobile phone’s normal
mechanical key can be inserted into the
operational signals. This is specifically
key cylinder to lock or unlock the vehicle.
relevant when the phone is active such
To reinstall the mechanical key into the
as making and receiving calls, text
key FOB, put the key into the key FOB
messaging, and/or sending/receiving
hole and push inward until a click sound
emails. When possible, avoid keeping
is heard.
the smart key and your mobile phone in
the same location such as pants or jacket
pocket in order to avoid interference
between the two devices.
5-12
05
Battery replacement
Information
If the Smart Key is not working properly,
This device complies with Part 15 of the
try replacing the battery with a new one.
FCC rules.
Battery Type: CR2032
Operation is subject to the following three
conditions:
To replace the battery:
1. This device may not cause harmful
interference.
2. This device must accept any
interference received, including
interference that may cause undesired
operation.
3. Changes or modifications not expressly
approved by the party responsible
for compliance could void the user’s
authority to operate the device.
ODN8059266
NOTICE
Battery Type: CR2032
ś Keep the smart key away from
To replace the battery:
electromagnetic materials that
1. Remove the mechanical key.
blocks electromagnetic waves to the
key surface.
2. Use a slim tool or utility blade to pry
open the cover of the smart key. Use
ś Always have the smart key with
caution not to damage the smart key.
you when leaving the vehicle. If the
smart key is left near the vehicle, the
3. Remove the old battery and insert the
new battery. Make sure the battery
vehicle battery may be discharged.
position is correct.
4. Reinstall the rear cover of the smart
key.
If you suspect your smart key might have
sustained some damage, or you feel
your smart key is not working correctly,
contact an authorized HYUNDAI dealer.
WARNING
THIS PRODUCT CONTAINS A BUTTON
BATTERY
If swallowed, a lithium button battery
can cause severe or fatal injuries within
2 hours. Keep batteries out of children.
If you think batteries may have been
swallowed or placed inside any part
of the body, seek immediate medical
attention.
5-13
Convenient Features
Information
WARNING
An inappropriately disposed
In order to prevent theft of your
battery can be harmful to
vehicle, do not leave spare keys
the environment and human
anywhere in your vehicle. Your
health. Dispose of the battery
immobilizer password is a customer
according to your local law(s) or
unique password and should be kept
regulations.
confidential.
Immobilizer System
NOTICE
The immobilizer system helps protect
The transponder in your key is an
your vehicle from theft. If an improperly
important part of the immobilizer
coded key (or other device) is used, the
system. It is designed to give years
engine’s fuel system is disabled.
of trouble-free service, however you
When the ignition switch is turned on (or
should avoid exposure to moisture,
the Engine Start/Stop button is pressed
static electricity and rough handling.
to the on position), the immobilizer
Immobilizer system malfunction could
system indicator should come on briefly,
occur.
then go off. If the indicator starts to
blink, the system does not recognize the
coding of the key.
Information
Turn the ignition switch to the Lock
This device complies with Part 15 of the
position, then turn the ignition switch to
FCC rules.
the ON position again. (For remote key)
Operation is subject to the following three
Press the Engine Start/Stop button to
conditions:
the OFF position, then press the Engine
1. This device may not cause harmful
Start/Stop button to the ON position
interference.
again. (For smart key)
2. This device must accept any
The system may not recognize your
interference received, including
key’s coding if another immobilizer
interference that may cause undesired
key or other metal object (for example,
operation.
key chain) is near the key. The engine
3. Changes or modifications not expressly
may not start because the metal may
approved by the party responsible
interrupt the transponder signal from
for compliance could void the user’s
transmitting normally.
authority to operate the device.
If the system repeatedly does not
recognize the coding of the key, contact
your HYUNDAI dealer.
Do not attempt to alter this system
or add other devices to it. Electrical
problems could result that may make
your vehicle inoperable.
5-14
05
“Limp Home” Mode and Related
1. To activate the password, turn
Procedures
the ignition key “ON” and “OFF“
according to the digit numbers. The
If the immobilizer warning indicator
immobilizer indicator will blink along
blinks for five seconds when the ignition
with the operation of the ignition
key is turned to the “ON” position,
key. For example, turn the ignition
this indicates the immobilizer system
key once for digit number “1”, and
requires service. The engine cannot be
twice for “2”, and so on. For the digit
started without following the procedure
number “0”, you must cycle the
below.
ignition key 10 times.
The following procedure describes how
2. Wait for 3~10 seconds.
to start the engine using the limp home
function (0, 1, 2, 3 as a sample password).
3. You may set the remaining number of
digits by following steps 1 and 2.
4. If all of the four password digits have
NOTICE
been successfully entered, turn the
You can get a limp home password
ignition key “ON” and check that the
when the vehicle is first delivered to
immobilizer indicator illuminates.
you. If you do not have a password,
From this time, you have to start your
consult your authorized HYUNDAI
engine within 30 seconds. If you try
dealer.
to start your engine after 30 seconds,
your engine will not start.
NOTICE
If the engine stalls while driving in the
“limp home” mode, you can start your
engine within 3 seconds without re-
entering the password.
If the immobilizer indicator blinks for five
seconds, you must re-enter the password
(steps 1~4).
After performing the limp home
activation procedure, consult with your
authorized HYUNDAI dealer as soon as
possible.
CAUTION
ś If the password is entered incorrectly
three consecutive times, wait for
about one hour to perform the limp
home activation procedure again.
ś If you cannot start your engine using
the limp home activation procedure,
have your vehicle towed by an
authorized HYUNDAI dealer.
5-15
Convenient Features
+<81'$, ',*,7$/ .(< ǣ,) (48,33('Ǥ
Digital Key Application
For vehicle maintenance
To use Hyundai Digital Key mobile app,
If you need to have your Digital Key
you should install the Hyundai Digital
System repaired or replaced please
Key app on your Android phone. Search
ensure your Smartphone Key is still
‘Hyundai digital key’ in the Google Play
active. You may have to pair your phone
Store and download the app. Please refer
again.
to the detailed manual of the digital key
In some instances you may have to
app. The option can be found under the
re-initialize your Digital Keys using the
following app menu:
Hyundai Digital Key mobile app.
0HQX Ɵ $SSOLFDWLRQ ,QIR Ɵ 7XWRULDO
Digital key (smartphone) NFC
Please review the contents of the manual
function
before using the app.
à This service is only available for
In order to use the Digital Key feature
on your Android smartphone, you
Android smartphones. Please confirm
supported/compatible devices on our
must first enable the NFC (Near Field
Communication) setting on your phone.
website.
To enable NFC, go to Settings on your
smartphone.
WARNING
In addition, your smartphone screen
Delete Digital Key Settings When
should be unlocked when using the
Purchasing a Used Vehicle
Digital Key feature.
If any of the digital key (smartphone key
à To enable the user settings for NFC on
or card key) is already registered when
your smartphone, go to the Settings
you press ON button after unlocking
app on your phone. For further
the doors, the message ‘Digital key(s)
assistance, refer to your smartphone
active’ appears on the instrument
manual.
cluster once. If you sell your vehicle
or purchase a used Hyundai vehicle
equipped with the Digital Key feature,
you should confirm the message and
delete the registered smartphone key
and card key. For more information,
please contact the Hyundai Customer
Care Center. If the card key does not
work properly, please delete the card
key and register the smartphone key
and re-register the card key.
5-16
05
Digital key (smartphone)
Information
The [Save] button will be disabled if the
digital key (Smartphone key) is already
saved.
Please refer to “Digital Key Delete” in this
manual and follow the digital key delete
procedure in your car before Digital key
save.
Please refer to the ‘Tutorial’ on your
Digital key app and delete the previous
saved key in your smartphone before save.
ODN8A059129
4. Register your Digital key from the
vehicle user setting menu as follows.
à With Navigation screen :
From the infotainment screen menu,
go to [Setup] - [Vehicle] - [Digital Key]
- [Smart Phone Key] then select the
[Save] from submenu.
à Without navigation screen :
From cluster menu, go to [Digital Key]
- [Smart Phone Key] and select [Save].
ONX4OB051004
5. Once the digital key save is complete,
Hyundai Digital Key (Smartphone)
a message will be shown on the
infotainment screen or cluster.
Pairing
6. Remove the smartphone from the pad
1. Turn the vehicle on with the Smart key
and make sure to keep the smart key
and complete the saving process.
inside the vehicle during digital key
registration.
2. Select the vehicle to save on your
Digital key application and activate
the save mode.
à Save mode is available only on
the vehicle owner’s Digital key
application.
3. Place your smartphone on the
wireless charging pad. The charging
pad also functions as a vehicle
authentication pad. The vehicle will
ONX4OB051005
recognize the smartphone within a
[A] : Wireless Charging Pad (In-vehicle Authentication
few seconds.
Pad)
5-17
Convenient Features
3. Once the digital key delete is
complete, a message will be shown
on the infotainment screen or cluster.
4. Go to [Initialize Digital Key] menu on
the digital key application and select
the vehicle to delete the digital key
information.
ś 2SHQ WKH +\XQGDL 'LJLWDO .H\ DSS Ɵ
0HQX Ɵ ,QLWLDOL]H 'LJLWDO .H\
à If the saved digital key information
in your car is deleted due to vehicle
ODN8A059129
maintenance, the digital key in your
smartphone should be deleted as well.
à For more information, please refer to
the ‘Tutorial’ on your Digital key app.
CAUTION
ś
If the smartphone is removed
from the interior authentication
pad during enrollment, the saving
process will be canceled.
ONX4OB051006
ś
If the infotainment or instrument
Hyundai Digital Key (Smartphone Key)
cluster screen is changed during
Deletion
enrollment, the saving process will
be canceled.
1. Turn the vehicle on with the Smart
key and make sure to keep the smart
ś
If the vehicle is turned off during
key inside the vehicle during delete
enrollment, the saving process will
process.
be canceled.
2. Delete your Digital key from the
ś
If the gear is shifted, the saving
vehicle user setting menu as follows.
process will be canceled.
à With Navigation screen :
ś
If you try to save the smartphone
From the infotainment screen menu,
which is not logged in with the
go to [Setup] - [Vehicle] - [Digital Key]
vehicle owner’s ID or if you try to
- [Smart Phone Key] then select the
save the Card key, the saving process
[Delete] from submenu.
will not begin.
à Without navigation screen :
ś
If the NFC setting on your
From cluster menu, go to [Digital
smartphone is off, the saving process
Key] - [Smart Phone Key] and select
will not begin.
[Delete].
ś
If the smartphone screen is changed
to off or locked status, the saving
process will be canceled.
Information
ś
If there is no Smart key during the
The [Delete] button will be disabled if there
save process, the saving process will
is no digital key (Smartphone key) saved.
not begin.
5-18
05
Set up main vehicle
Before you leave your vehicle, verify that
You can manage multiple digital keys
your vehicle is locked. When using your
smartphone Digital Key on the front door
from the Digital key app. From the list of
digital keys you own, select the vehicle
handle, listen to hear that the door lock
has actuated, and then pull the handle
you want to make your priority vehicle.
within 3 seconds to confirm the doors
For more information, please refer to
are locked.
the ‘Tutorial’ on your Digital key app.
Note that you will not be able to lock
your vehicle using your smartphone
Digital Key under the following
circumstances:
ś The Proximity / Smart Key is in the
vehicle.
ś The POWER button is in ACC or ON
position.
ś Any of the doors, hood and liftgate is
opened.
ś The vehicle battery is discharged
ONX4050001
If the smartphone Digital Key does not
[A] : Door handle authentication pad,
work properly, try again by removing the
[B]: NFC Antenna
smartphone away from the door handle
(more than 4 inches) and try it again.
NFC door lock/unlock
Note that when the doors have been
To unlock your vehicle using the
unlocked using the smartphone Digital
smartphone Digital Key, position your
Key, the Lock/Unlock switch on the driver
phone near the door handle NFC touch
door may not be immediately available.
sensor of either the driver side or
(If you attempt to lock the doors using
passenger side door. Hold your phone
the driver door lock switch, the doors will
near the touch sensor area for about 2
lock and then immediately unlock when
seconds. You will hear the doors lock or
you close the door.)
unlock.
If you unlock your vehicle from the
passenger side door handle, then all the
doors will unlock. If you unlock your
vehicle from the driver side door handle,
then either the driver door only or all
the doors will unlock depending on the
setting of the Two Press Unlock feature.
Refer to User Settings to change the
Driver Door unlock mode.
To lock your vehicle using the
smartphone Digital Key, position your
phone near the door handle NFC touch
sensor of either the driver side or
passenger side door.
5-19
Convenient Features
Start-up with Digital Key
Note that if your vehicle is parked in an
area where cell coverage is weak, the
1. After placing your registered
smartphone Digital Key can still be used on
smartphone onto the authentication
for a limited number of times to unlock and
pad (same location as the wireless
start your vehicle.
charging pad), step on the brake and
press the Engine Start/Stop button.
After starting your vehicle, to leave your
smartphone on the wireless charging pad
2. After the engine has started, you
until cell phone service is stronger and
can remove your smartphone from
digital key authentication can occur.
the authentication pad. If you would
like to charge your phone using the
Once authentication is complete, the
wireless charger, leave your phone
wireless charger will turn on (wireless
on the pad. Wireless charging should
charging LED will illuminate).
begin automatically after about 5 to
20 seconds. Note that all the doors
CAUTION
must be closed before to enable the
wireless charging feature.
The engine can be turned on if the
registered smartphone or card key is
placed on the interior authentication
pad (wireless charger). Do not leave
children unattended in the vehicle
when using the smartphone Digital Key.
Serious injury or death can occur.
Do not leave anyone in the vehicle
without knowledge of the Digital Key
system when using the smartphone
Digital Key. Always have the registered
digital key (smartphone) or card key
with you to prevent vehicle theft when
ONX4OB051005
leaving the vehicle.
[A] : Wireless Charging Pad (In-vehicle Authentication
For more information, refer to the
Pad)
Engine Start/Stop button in chapter 6.
Information
After reconnecting the vehicle battery
power supply or charging the battery, it
may take time to operate due to remote
renewal of security information. In this
case, when you lock or unlock the doors
using your smartphone Digital Key, it
may take a little longer for the vehicle to
authenticate. Hold your smartphone near
the NFC door handle sensor for a few
seconds or until you hear the door locks
actuate.
5-20
05
Remote Features from Your Smartphone
CAUTION
with the Digital Key App
ś
If metallic window tint was applied
To use the remote features from your
to your vehicle, it may cause
smartphone with the Digital Key app,
bad Bluetooth connection or
make sure Bluetooth is enabled.
performance degradation of the
digital key.
Connecting Your Vehicle with Digital Key
ś
If multiple users operate the remote
1. Open the Hyundai Digital Key app
control function simultaneously, the
on your smartphone and select your
connection between the digital key
vehicle within the app.
and the vehicle might result in failed
2. Approach your vehicle with your
commands. Please connect and
smartphone in hand. Be sure that
operate the remote control function
your phone is unlocked and the
only the necessary user.
app is running. If your vehicle does
ś
When using the remote control
not automatically connect, you can
operation, the driver (the remote
press the connect button on the app.
control user) should leave the vehicle
Remote features on the Digital Key
after confirming the door lock (the
app will be available as soon as your
chime sounds once and the hazard
vehicle is connected
warning lights blink).
ś
The remote functions of the Digital
Remote Features Using Digital Key
Key app enable the vehicle to be
You can perform several vehicle
controlled from a set distance. If
functions using the Digital Key app,
the digital key or the vehicle goes
including door lock/unlock, panic ON/
beyond the operable distance, the
OFF, remote engine start/stop and
remote control function might be
opening the liftgate. The icon for each
disconnected or canceled.
function is shown in the Digital Key
ś
If the digital key (smartphone) is
app, and will be highlighted when the
connected with the vehicle for the
operation is performed. Haptic feedback
remote control, the driver with the
from your phone will occur when the
key goes far away from the vehicle,
icon is selected.
the function might not work.
Note that you cannot lock your vehicle
ś
If the remote control operation
using the Hyundai digital key app if any
is executed where the mobile
of the following occurs:
connection is weak, Bluetooth
ś The POWER button is in ACC or ON
connection is poor due to several
position.
Bluetooth devices or there is an
ś Any doors are open.
object such as metal or concrete, it
might be delayed or the operable
When the smartphone and the vehicle
distance might decrease. You should
are connected by the Bluetooth function
not cover the smartphone with your
but the remote control command
hand or place other devices which
cannot be received over 5 minutes, the
can cause frequency interference. It
remote control connection is canceled
may result in poor performance.
automatically.
ś
If the remote control function is not
available, please use NFC function to
lock or unlock the doors.
5-21
Convenient Features
Remote Start with Digital Key
Vehicle information Display
ś Using the Hyundai Digital Key app
The digital key application displays
on your phone, press the Door Lock
the vehicle information such as
button and then press the Remote
driving or door conditions through the
Start button (buttons must be pressed
communication with the vehicle.
within about 4 seconds). If all the
ś How to check : Select the vehicle
doors of your vehicle are closed
what you want to check and touch
(including the hood and the liftgate),
the vehicle image, then vehicle
the engine will be automatically
information display page will be
started.
shown.
ś Contents : accumulated odometer,
Note that when the remote start
latest fuel economy, driving range,
feature is activated, the hazard
fuel remaining, tire pressure, doors
warning lights will blink two times
lock/unlock status and last data
and a chime will sound before engine
updated time.
startup. Also note the following:
à Note that displayed vehicle data may
ś The climate control system will come
be slightly different from the current
on using the same settings from when
vehicle condition
you last used the vehicle
à For more information, please refer to
ś To turn off the engine, press the
the ‘Tutorial’ on your Digital key app.
Remote Engine Stop button within the
Hyundai Digital Key app.
ś The engine will remain running for
approximately 10 minutes, and then
engine will automatically shut OFF.
ś To keep the engine running, access
the vehicle and place the smartphone
on the wireless charging pad
(authentication pad) while the engine
is still in remote engine-ON mode.
For more information, refer to the Engine
Start/Stop button in chapter 6.
5-22
05
Getting a new smartphone / Changing
CAUTION
your smartphone / App deletion
ś
Do not leave the registered digital
If you change your smartphone or delete
key (smartphone) and card key in
the Hyundai Digital Key App, please refer
your vehicle. Please carry around
to the following to set up your Digital
your keys all the times.
Key:
ś
If you happen to lose your digital
key (smartphone) or card key
Using Digital Key on a New Smartphone
registered as a main user’s key, you
If you change to a new smartphone,
should immediately delete the key
the registered digital key app on your
on the vehicle’s key menu. For more
previous smartphone may not be used.
information, refer to the Digital Key
Refer to the following procedure to set
Deletion in this chapter.
up digital key on your new phone.
ś
If you registered your digital key
(smartphone) or card key in the
1. Install the digital key application and
vehicle, a message appears on the
log in.
instrument cluster and let you know
2. If you are the owner, retry the Digital
the key is registered.
key save process.
(Message: Digital key(s) active.)
3. If you are using a shared digital key,
ś
If you buy a used vehicle, you should
you will need to obtain a new shared
confirm the message and delete the
digital key from the owner.
registered smartphone key and card
key. In this case, you should carry
your smart key.
App delete & reinstall/ Delete App data
ś
If you keep place the NFC card
You can re-download the digital key
of the digital key on the interior
from server in these cases as follow
authentication pad (wireless
procedure.
charger) while driving, it may cause a
1. Reinstall the application and log in.
malfunction of the NFC card.
2. Input the PIN number for user
ś
You should remove your NFC card
verification.
of the digital key on the interior
3. If PIN is correct, digital key data
authentication pad after turning on
will be re-downloaded to your
the engine.
smartphone and you can use it
without any further registration or
sharing.
Smartphone operability with Digital Key
The digital key application may not
be available to old type smartphones.
Please check the available smartphone
models with your dealer. NFC antenna
position on the smartphone can be
confirmed on each smartphone’s manual
or contact to customer service center of
the smartphone manufacture.
5-23
Convenient Features
ś
Hyundai digital key app may not
CAUTION
work properly when the NFC or
Bluetooth communication between
ś Hyundai digital key app on the
smartphone and car is not good.
smartphone and card key may not
work if any of the following occurs:
ś
If the remote control operation
is executed where the mobile
-
Hyundai digital key app on the
connection is weak, Bluetooth
smartphone is deleted. (Required
connection is poor due to lots of
to reinstall the app)
Bluetooth devices or there is an
-
Account log in information of
object such as metal or concrete, it
Hyundai digital key app is expired.
might be delayed or the operable
(Required to re-log in)
distance might decrease. Especially,
-
When you try to log in to another
you should not cover the smartphone
smartphone instead of the
with your hand or place other
registered smartphone with same
devices which can cause frequency
user account.
interference. It may result in poor
performance.
-
Smartphone rooting or app
hacking is detected.
ś
If the remote control function is not
-
Smartphone battery or the vehicle
activated, please use NFC function to
lock or unlock the doors
battery is discharged.
-
Smartphone’s screen is off or
ś
You should be careful not to
press the remote control button
locked.
on the digital key (smartphone)
-
NFC or Bluetooth is turned off on
accidentally.
the smartphone settings.
ś
If the digital key (smartphone) is
-
Smartphone’s mobile network
discharged or defective or you
setting is off or airplane mode is
cannot use the digital key since the
activated.
vehicle battery is discharged, use the
-
A credit card is overlapped in the
inside door lock button to lock all of
back of your smartphone or metal
the doors.
or thick case is used.
-
Use the card key with insert it
into the wallet or card holder or
overlapping with other cards.
-
If you use a smart phone cover that
uses wireless communication or is
made of metal, the digital key NFC
function may not work properly.
Remove the smart phone cover
before using the digital key NFC
function.
5-24
05
ś The vehicle may not be controlled by
Digital Key Card Key (Optional
the smartphone if any of the following
feature)
occurs:
- Basic and necessary functions of
the smartphone manufacturer are
operating. (General call, urgent
call, audio or NFC payment)
- Wireless earphone is operating.
(General call, urgent call or audio)
- The digital key app function such
as basic setting or app launching
is limited by prior policy according
to the manufacturer while using a
smartphone produced by domestic
ODN8A059243
and foreign manufactures.
à If you change the smartphone
number, you should modify the user
account information on the HYUNDAI
customer web site to use the digital
key app.
à If the vehicle owner changes
the smartphone device, the new
smartphone should be registered in
the car after deleting the registered
digital key(smartphone).
ODN8A059131
à If a sharer changes or reset the
Digital key (Card key) save
smartphone, the key should be re-
shared from owner.
1. Install Hyundai digital key app in
main user’s smartphone and register
à Some of the old smartphone may
the digital key (smartphone). Please
not work properly. Please check the
refer to the registration method of the
available smartphone models with
digital key (smartphone).
your dealer.
2. Using the [Pair Card Key] menu on
à NFC antenna position on the
the digital key application, you can
smartphone can be confirmed
activate the Card Key registration
on each smartphone’s manual or
mode.
contact to customer service center
of the smartphone manufacture.
à NFC authentication : enter the NFC
authentication menu and contact
the smartphone on the outside door
handle.
à Bluetooth authentication : enter the
Bluetooth authentication menu and
press the [OK] button for activation.
If you activate the registration mode,
you should complete the Card saving
process within 5 minutes.
5-25
Convenient Features
à If you have not registered the digital
key (smartphone), please register the
digital key (card key) with two smart
keys.
3. Place the NFC card key onto the
interior authentication pad (wireless
charger). The saving process will
begin automatically.
4. Register the NFC card key on the
User’s Settings menu after turning on
the vehicle.
ODN8A059243
à With Navigation screen : From the
infotainment screen menu, go to
[Setup] - [Vehicle] - [Digital Key] -
[Card Key] then select the [Save] from
submenu.
à Without navigation screen : From
cluster menu, go to [Digital Key] -
[Card Key] and select [Save].
The [Save] button will be disabled if
the digital key (Card key) is already
saved.
ODN8A059132
Please refer to “Digital Key Delete” in
this manual and follow the digital key
Digital key (Card key) deletion
delete procedure in your car before
Note that the remote Smart Key must be
Digital key save.
in your possession and inside the vehicle
5. If the key is enrolled, the message
in order to delete the Digital Key Card.
will be displayed on the infotainment
1. Access the vehicle using the Smart
screen or instrument cluster.
Key.
2. Start the vehicle and then access
Information
the Digital Key Card Key functions in
the User Settings menu in either the
ś Once the card key registration mode
cluster display or from the Navigation
is activated, the process should be
infotainment screen (on some
completed within 5 minutes. After then,
models.)
you should reactivate once again for
à With Navigation screen : From the
registration.
infotainment screen menu, go to
ś For the digital key(card key) saving, the
[Setup] - [Vehicle] - [Digital Key] -
smart key(fob) must be exist inside of
[Card Key] then select the [Delete]
vehicle.
from submenu.
ś Once a Card key is registered, it cannot
à Without navigation screen : From
be reuse onto another vehicle.
cluster menu, go to [Digital Key] -
[Card Key] and select [Delete].
If there is no saved digital key(card key),
[Delete] menu will not be activated.
5-26
05
ś
To delete the saved digital key card,
you must have the Smart Key in your
possession and be inside the vehicle
ś
Note that if the digital key card is
deleted, it can be re-registered to the
same vehicle as long as a new card
has not already been registered
ś
If you try to register a new digital key
card, the previously registered card
will no longer be active and cannot be
re-registered
ONX4050002
[A] : Door handle authentication pad,
[B]: NFC Antenna
NFC door lock/unlock
To unlock your vehicle using the NFC
card key, touch the card key near the
door handle NFC touch sensor of either
the driver side or passenger side door.
Hold the card key near the touch sensor
area for about 2 seconds. You will hear
the doors lock or unlock.
If you unlock your vehicle from the
passenger side door handle, then all the
doors will unlock. If you unlock your
vehicle from the driver side door handle,
then either the driver door only or all
the doors will unlock depending on the
setting of the Two Press Unlock feature.
Refer to User Settings to change the
Driver Door unlock mode.
To lock your vehicle using the NFC card
key, touch the card key near the door
handle NFC touch sensor of either the
driver side or passenger side door.
Before you leave your vehicle, verify
that your vehicle is locked. When using
your NFC card key on the front door
handle, listen to hear that the door lock
has actuated, and then pull the handle
within 3 seconds to confirm the doors
are locked.
5-27
Convenient Features
Inoperable condition
Start-up with Card key
When using the NFC card key to lock or
After placing your registered card key
unlock your vehicle, be sure to touch
onto the interior authentication pad
the card key near the center of the door
(wireless charger), step on the brake and
handle to enable the sensor to activate.
press the Engine Start/Stop button.
Note that you must take the card out of
your wallet or purse to use the card key
WARNING
correctly. If the card key is not touching
the door handle sensor or is in close
ś
If you do not place the digital key
proximity to other NFC-enabled cards, it
(card key) onto the center of the
may not work.
interior authentication pad (wireless
charger) exactly, the card key may
not be recognized. If the engine is
Note that if you attempt to use the
not turned on, adjust and place the
NFC card key to lock the doors, the
key again.
doors will not lock under the following
ś
If you overlap and use the key
circumstances:
with NFC-enabled cards such as
ś The Smart Key is in the vehicle
transportation card or credit card,
ś The Engine Start/Stop button is in the
the card key may not be recognized.
ACC or ON position
ś
If the digital key (card key) does not
ś Any of the doors are open (except for
work, please detach the key around
the liftgate)
4 inches (0.1 m) from the handle
authentication pad and retry to
If this occurs, then a chime will sound
contact.
for about 3 seconds. Check the vehicle
before attempting to lock the car again.
ś
The card key may be damaged due to
impact. It would not work properly if
If you have difficulty locking or unlocking
the key is damaged. You should buy a
the vehicle using the NFC card key,
new card and register again.
remove the card key away from the door
handle sensor for a few seconds (card
ś
Leaving the digital key (card key)
key must be more than 4 inches away)
on the in-vehicle authentication
and then retry.
pad (wireless charging pad) while
driving may cause the digital key
If the card key is damaged or bent, the
(card key) to malfunction. Remove
sensor on the door handle may not
the digital key (card key) from the in-
properly detect the card key. If this
vehicle authentication pad (wireless
occurs contact your authorized HYUNDAI
charging pad) after starting the
dealer for a card key replacement.
vehicle.
Be careful not to damage the card
ś
Remove the digital key (card key)
key or expose the card key to extreme
from the smartphone before
temperatures or direct sunlight for long
charging the smartphone. If the
periods of time.
digital key (card key) is placed
Note that when the doors have been
between the smartphone and the in-
unlocked using the NFC digital card key,
vehicle authentication pad (wireless
the Lock/Unlock switch on the driver
charging pad) while the smartphone
door may not be immediately available.
is being charged, the digital key (card
key) may malfunction. For example,
(If you attempt to lock the doors using
when charging smartphone while
the driver door lock switch, the doors will
the digital key (card key) is attached
lock and then immediately unlock when
to the back of the smartphone case.
you close the door.)
5-28
05
„ Type A
CAUTION
If you uncheck Enable digital keys, it is
impossible to lock or unlock the doors
or start up the vehicle with digital keys
such as smartphone and card key. If
you check Enable digital keys again, the
registered digital keys(smartphone and
card key) are available. Even though
you stop the digital key function, the
registered keys (smartphone and card
key) are not deleted.
ODN8A059133
„ Type B
Personalized profile and vehicle
settings
You have the ability to set the registered
digital key with one of two personalized
profiles. Then, when you use the digital
card key or the Digital Key App, the
vehicle will be set to the user-defined
personalized profile (which includes
such items as driver settings, audio
preferences, etc.).
ONX4OB051007
There are two profile connections and
Enabling or disabling the digital key
personalization settings available for
feature
Driver 1 and Driver 2.
If you want to temporarily disable the
digital key feature (smartphone app and
NFC card key), you can do so in the user
settings menu.
à With Navigation screen :
From the infotainment screen menu,
go to [Setup] - [Vehicle] - [Digital Key]
- [Enable Digital Keys] (deselect)
à Without navigation screen :
From cluster menu, go to [Digital Key]
- [Enable Digital Keys] (deselect)
Information
In order to disable the digital key feature
in the user settings menu, you must have
the smart key in your possession inside the
car.
5-29
Convenient Features
Connecting a profile to your digital key
Linking Profiles - Some Tips when you link
app
or unlink a profile to your digital key, note
the following:
Linking a Profile
ś
Linking a profile with your digital key
1. 6HOHFW 6HWXS Ɵ 8VHU 3URILOH Ɵ 3URILOH
must be enabled in the user settings
6HWWLQJV Ɵ /LQN 'LJLWDO .H\ RQ WKH
menu.
infotainment screen menu.
2. Make sure your smartphone is
ś
The profile link information remains
even if you disable the digital key
unlocked. Place your smartphone on
the wireless charger authentication
feature in the user settings menu.
pad. Once your smartphone is
ś
The profile link feature works only
detected the profile link process will
when the smartphone and the digital
be enabled.
key app are already registered to the
vehicle.
3. A pop-up message will be displayed
on the screen requesting if you would
ś
While performing the user profile link
like to link the user profile to your
process to your smartphone digital
digital key smartphone.
key, if you remove the smartphone
from the authentication pad before
4. If you select link, the digital key
the process is complete, the profile
smartphone and the user profile will
link will be canceled.
be linked.
5. A message will be displayed
ś
To unlink the profile, the smart phone
does not need to be on the wireless
confirming the link process.
charger.
Unlinking your profile
Select Digital Key Information from
the Vehicle Settings menu on the
infotainment screen. If a profile is linked,
you'll see an option to unlink your profile.
Information
If you connect both Driver 1 and Driver 2
with a single smartphone, the smartphone
digital key always works as Driver 1.
If you unlink the Driver 1, personalization
function will operate as Driver 2.
5-30
05
Vehicle personalization operation
Precaution for digital key profile link and
unlink
The personalization function linked with
digital key works as following conditions:
Profile operation according to door lock/
unlock system is as follows.
ś Contact the driver’s door handle with
the profile linked smart phone to lock
Personalization
or unlock the doors (Personalization
Item
Operation
does not operate when locking or
unlocking the front passenger door.)
Initial value
Guest
ś Remote door unlock with the profile
Profile linked
linked smartphone digital key app.
smart phone
Linked profile
key
The profile linked with digital key can be
changed manually in the infotainment
Profile unlinked
system setup screen.
smart phone
key
Recently activated
profile
NFC card key
Smart key
ś The personalization function using
the digital key can be operated
after linking the digital key on the
infotainment system profile menu.
ś Personalization function can be used
while vehicle is stopped for you and
your vehicle’s safety.
5-31
Convenient Features
Vehicle personalization with digital key
The available personalization function in the vehicle is as follows.
System
Personalization Item
Lamp
Blink number of one-touch signal lamps
User’s Setting
Information display on the cluster, Voice volume,
Cluster
Mode
Welcome sound
Door
Automatic door lock/unlock, Two Press Unlock
Preferred volume of the navigation system, Recent
Navigation
destination
Infotainment
User preset
My menu list settings, Radio preset
system
Phone
Bluetooth preferential connect
connectivity
CarPlay/Android Auto On/Off
Latest operation setup of the following functions:
Operating
Air conditioning
Temperature, AUTO, air flow direction, air volume,
condition
air conditioner, air intake control, SYNC, Front
windshield defroster, OFF
CAUTION
If you leave the digital key after locking or unlocking the doors or starting up the
vehicle with the smart key, the doors can be locked by the central door lock. Please
carry around the digital key all the time.
Information
The infotainment system may change after software updates. For more information, refer
to the user’s manual provided in the infotainment system and the quick reference guide.
5-32
05
DOOR LOCKS
Operating Door Locks From
Information
Outside the Vehicle
Be careful when locking the door by
Mechanical key
mechanical key operation, only the
driver’s door can be locked/unlocked.
Information
ś
Avoid scratching or breaking the plastic
material. Do not lose the key cylinder
cover.
ś
In the case of trying to remove the
key cylinder cover in cold climate
or freezing temperatures, use extra
caution. If the key cylinder cover
ONX4050066
freezes and cannot be removed easily,
1. Pull out the door handle.
lightly tap on the cover or try to warm
the cover by placing your hands around
2. Press the release button (1) located
it and blowing warm air, etc.
inside the bottom part of the cover
with a mechanical key or flat-head
ś
Do not apply excessive force to the door
screwdriver.
and door handle. It may be damaged.
3. Carefully pull outward on the cover
while continuing to press the release
button to remove the cover and
expose the key cylinder.
4. Insert the mechanical key into
the key cylinder and rotate
clockwise to unlock the vehicle and
counterclockwise to lock the vehicle.
Once the doors are unlocked, they may
be opened by pulling the door handle.
When closing the door, push the door by
hand. Make sure that doors are closed
securely.
5-33
Convenient Features
Remote key
Smart key
ONX4OB051008
ODN8059001
To lock the doors, press the Door Lock
Press the button on the driver’s outside
button (1) on the remote key.
door handle or touch the touch sensor
on the door handle (the engraved part)
To unlock the doors, press the Door
Unlock button (2) on the remote key.
while carrying the smart key with you
or press the Door Unlock button on the
Once the doors are unlocked, they may
Smart Key, the driver’s door will unlock.
be opened by pulling the door handle.
If you press the button on the front
When closing the door, push the door by
passenger’s outside door, all doors will
hand. Make sure that doors are closed
unlock.
securely.
Once the doors are unlocked, they may
be opened by pulling the door handle.
When closing the door, push the door by
hand. Make sure that doors are closed
securely.
Information
ś In cold and wet climates, door lock
and door mechanisms may not work
properly due to freezing conditions.
ś If the door is locked/unlocked multiple
times in rapid succession with either
the vehicle key or door lock switch, the
system may stop operating temporarily
in order to protect the circuit and
prevent damage to system components.
5-34
05
In case of an emergency
Operating Door Unlocks from
Inside the Vehicle
With the door inside handle
ONX4OB051041
If the electrical power door lock switch
is not operating (ex. dead car battery)
ONX4050004
the only way to lock the door(s) is with
Driver door & Passenger door
the mechanical key from the outside key
If the inner door handle is pulled when
hole.
the door is locked, the door will unlock
Doors without an outside key hole can be
and open.
locked as follows:
1. Open the door.
Rear Door - Two Pull Operation
2. Insert the key into the emergency
If the inner door handle is pulled once
door lock hole and turn the key
when the door is locked, the door will
horizontally to lock.
unlock. If the inner door handle is pulled
3. Close the door securely.
once more, the door will open.
If any door is opened, the doors will not
Information
lock even though the central door lock
If the electrical power to door lock switch
switch is pressed.
is not operating (ex. dead car battery) and
the liftgate is closed, you will not be able to
open the liftgate until power is restored.
Information
If a power door lock ever fails to function
while you are in the vehicle try one or
more of the following techniques to exit:
ś Operate the door unlock feature
repeatedly (both electronic and
manual) while simultaneously pulling
on the door handle.
ś Operate the other door locks and
handles.
ś Lower a front window and use the
mechanical key to unlock the door from
outside.
5-35
Convenient Features
With the driver door lock/unlock
WARNING
switch
ś The doors should always be fully
„ Driver’s door
closed and locked while the
vehicle is in motion. If the doors
are unlocked, the risk of being
thrown from the vehicle in a crash is
increased.
ś Do not pull the inner door handle of
the driver’s or passenger’s door while
the vehicle is moving.
WARNING
ONX4050005
Do not leave the elderly, children or
„ Front passenger’s door
animals unattended in your vehicle. An
enclosed vehicle can become extremely
hot, causing death or serious injury
to the elderly, unattended children
or animals who cannot escape from
the vehicle. Children might operate
features of the vehicle that could injure
them, or they could encounter other
harm, possibly from someone gaining
entry to the vehicle.
OCN7050083N
When pressing the (
) portion (1) on the
WARNING
switch, all vehicle doors will lock.
Always secure your vehicle.
ś If any door is opened, the doors will
Leaving your vehicle unlocked increases
not lock even though the lock button
the potential risk to you or others from
(1) of the driver door lock switch is
someone hiding in your vehicle.
pressed.
To secure your vehicle, while
When pressing the (
) portion (2) on the
depressing the brake, shift the gear
switch, all vehicle doors will unlock.
to the P (Park) position, engage the
When all vehicle doors are locked, the
parking brake, and place the ignition
indicating lights (3) on the driver’s door
switch to the LOCK/OFF position, close
and passenger’s door will turn on. If any
all windows, lock all doors, and always
door is unlocked, the indicator will turn
take the key with you.
off.
5-36
05
CAUTION
Auto Door Lock/Unlock Features
Impact sensing door unlock system
Opening a door when something is
approaching may cause damage or
All doors will be automatically unlocked
injury. Be careful when opening doors
when an impact causes the air bags to
and watch for vehicles, motorcycles,
deploy.
bicycles or pedestrians approaching the
vehicle in the path of the door.
Child-protector Rear Door Locks
WARNING
If you stay in the vehicle for a long time
while the weather is very hot or cold,
there are risks of injuries or danger to
life. Do not lock the vehicle from the
outside when someone is in the vehicle.
ONX4OB051030
The child safety lock is provided to help
prevent children seated in the rear from
accidentally opening the rear doors. The
rear door safety locks should be used
whenever children are in the vehicle.
The child safety lock is located on the
edge of each rear door. When the child
safety lock is in the lock position, the
rear door will not open if the inner door
handle is pulled.
To lock the child safety lock, insert a
small flat blade tool (like a screwdriver or
similar) (1) into the slot and turn it to the
lock position as shown.
To allow a rear door to be opened from
inside the vehicle, unlock the child safety
lock.
WARNING
If children accidentally open the rear
doors while the vehicle is in motion,
they could fall out of the vehicle. The
rear door safety locks should always
be used whenever children are in the
vehicle.
5-37
Convenient Features
7+()7ǘ$/$50 6<67(0
This system helps to protect your vehicle
Information
and valuables. The horn will sound and
the hazard warning lights will blink
ś
Do not lock the doors until all
continuously if any of the following
passengers have left the vehicle. If the
occur:
remaining passenger leaves the vehicle
when the system is armed, the alarm
- A door is opened without using the
will be activated.
remote key or smart key.
ś
If the vehicle is not disarmed with the
- The liftgate is opened without using
remote key or smart key, open the
the remote key or smart key.
doors by using the mechanical key
- The engine hood is opened.
and place the ignition switch in the
The alarm continues for 30 seconds, then
ON position (for remote key) or start
the system resets. To turn off the alarm,
the engine (for smart key) by directly
unlock the doors with the remote key or
pressing the Engine Start/Stop button
smart key.
with the smart key.
The Theft Alarm System automatically
ś
If the system is disarmed by unlocking
sets 30 seconds after you lock the
the vehicle, but neither a door or the
doors and the liftgate. For the system to
liftgate is opened within 30 seconds, the
activate, you must lock the doors and
doors will relock and the system will
liftgate from outside the vehicle by doing
rearm automatically.
one of the following:
- Using the remote key or smart key
- Pressing the button on the outside of
the door handle with the smart key in
your possession (available with button
type)
- Touching the touch sensor on the
outside of the door handle with
the smart key in your possession
(available with touch sensor type)
The hazard warning lights will blink and
the chime will sound once to indicate the
system is armed.
Once the security system is set, opening
any door, the liftgate, or the hood
without using the remote key or smart
key will cause the alarm to activate.
The Theft Alarm System will not set if the
hood, the liftgate, or any door is not fully
closed. If the system will not set, check
the hood, the liftgate, or the doors are
fully closed.
Do not attempt to alter this system or
add other devices to it.
5-38
05
5($5 2&&83$17 $/(57 ǣ52$Ǥ
Rear Occupant Alert is provided to
WARNING
prevent a driver from leaving a vehicle
with a rear passenger left in the vehicle.
Even if your vehicle is equipped with
Rear Occupant Alert (ROA), always
make sure to check the rear seat before
Rear Occupant Alert Operation
you leave the vehicle. Rear Occupant
When you turn off the engine and open
Alert (ROA) may not operate when:
the driver’s door after opening and
ś Movement does not continue for
closing the rear door or liftgate,the
a certain period of time or the
‘Check rear seats’ warning message
movement is small.
appears on the cluster.
ś A child is not seated in a child
restraint system.
WARNING
ś Movement is detected in areas other
Rear Occupant Alert provides
than the rear seats.
information to the driver to check
ś The rear passenger is covered with a
the rear seats but it does not detect
fabric containing metallic substance
whether there is an object or passenger.
such as a blanket.
Always check the rear seats when
ś An object in the vehicle blocks the
leaving the vehicle.
sensor.
ś The sensor is contaminated by
Information
foreign material.
The open and close history of the rear
ś An animal at the rear seat or luggage
doors are initialized if the driver turns off
compartment is not large enough to
the engine and lock vehicle doors.
be detected by the sensor or there is
However, the alarm may sound again
hardly any movement.
whenever the driver's door is opened if the
ś Attaching objects or modifying the
previous history of the rear doors are not
interior ceiling, or the interior ceiling
initialized.
is deformed or damaged.
ś There are electronic interference
around the vehicle.
ś Other environmental reasons that
may affect the system.
5-39
Convenient Features
STEERING WHEEL
Motor Driven Power Steering
Information
(MDPS)
The following symptoms may occur during
The electric power steering system
normal vehicle operation:
assists you with steering the vehicle. If
ś
The steering effort may be high
the vehicle is turned off or if the power
immediately after placing the ignition
steering system becomes inoperative,
switch in the ON position.
you may still steer the vehicle, but it will
require increased steering effort.
This happens as the system performs
the MDPS system diagnostics. When
Should you notice any change in the
the diagnostics are completed, the
effort required to steer during normal
steering wheel effort will return to its
vehicle operation, have the system
normal condition.
checked by an authorized HYUNDAI
dealer.
ś
When the battery voltage is low, you
might have to put more steering effort.
However, it is a temporary condition so
CAUTION
that it will return to normal condition
after charging the battery.
If Motor Driven Power Steering does not
operate normally, the
warning light
ś
A click noise may be heard from the
and the message ‘Check motor driven
MDPS relay after the ignition switch is
power steering’ will illuminate on the
in the ON or LOCK/OFF position.
instrument cluster. You may steer the
ś
Motor noise may be heard when the
vehicle, but it will require increased
vehicle is at a stop or at a low driving
steering efforts. Take your vehicle to
speed.
an authorized HYUNDAI dealer or to
ś
When you operate the steering wheel
a service station and have the system
in low temperatures, abnormal noise
checked as soon as possible.
may occur. If the temperature rises, the
noise will disappear. This is a normal
condition.
ś
When an error is detected from MDPS,
the steering effort assist function will
not be activated in order to prevent
fatal accidents. Instrument cluster
warning lights may be on or the
steering effort may be high. If these
symptoms occur, drive the vehicle to
a safe area as soon as it is safe to do
so. Have the system checked by an
authorized HYUNDAI dealer as soon
as possible.
5-40
05
Tilt / Telescopic Steering
Information
When adjusting the steering wheel to a
Sometimes the lock release lever may not
comfortable position, adjust the steering
engage completely. This may occur when
wheel so that it points toward your chest,
the gears of the locking mechanism do not
not toward your face. Make sure you can
completely mesh. If this occurs, pull down
see the instrument cluster warning lights
on the lock-release lever, readjust the
and gauges. After adjusting, push the
steering wheel again, and then pull back
steering wheel both up and down to be
up on the release lever to lock the steering
certain it is locked in position.
wheel in place.
Always adjust the position of the steering
wheel before driving.
Heated Steering Wheel
(if equipped)
WARNING
NEVER adjust the steering wheel while
driving. This may cause loss of vehicle
control resulting in an accident.
ONX4OB051009
When the ignition switch is in the ON
position or when the engine is running,
press the heated steering wheel button
to warm the steering wheel.
ONX4050070
The indicator on the button will
To adjust the steering wheel angle and
illuminate.
height:
To turn the heated steering wheel off,
1. Pull down the lock-release lever (1).
press the button again. The indicator on
the button will turn off.
2. Adjust the steering wheel to the
desired angle (2) and distance
forward/back (3).
3. Pull up the lock-release lever to lock
the steering wheel in place.
CAUTION
While adjusting the steering wheel
angle and height, please do not push
or pull it hard since the fixture can be
damaged.
5-41
Convenient Features
ś Automatic Controls for the Driver
Horn
Based on Climate Control System
Settings (if equipped)
- The Automatic Comfort Control
feature can control the steering
wheel heater operation according
to the ambient temperature and
the set climate control temperature
while the engine is running.
If the heated steering wheel switch
is pressed while the Automatic
Comfort Control feature is
operating, then the heated steering
OCN7050016
wheel operation will be controlled
To sound the horn, press the area
manually.
indicated by the horn symbol on your
The Auto Comfort Control feature
steering wheel (see illustration). The
is enabled from the Vehicle
horn will operate only when this area is
Settings menu on the navigation
pressed.
infotainment screen.
- The heated steering wheel defaults
NOTICE
to the OFF position whenever the
Do not strike the horn severely to
ignition switch is ON. However, if
the Auto Comfort Control function
operate it, or hit it with your fist. Do not
press on the horn with a sharp-pointed
is ON, the heated steering wheel
will turn on and off depending on
object.
the ambient temperature and the
set climate control temperature.
For more details, contact an authorized
HYUNDAI dealer.
Information
The heated steering wheel will turn off
automatically approximately 30 minutes
after the heated steering wheel is turned
on.
NOTICE
Do not install any cover or accessory
on the steering wheel. This cover or
accessory could cause damage to the
heated steering wheel system.
5-42
05
0,55256
Inside Rearview Mirror
Day/night rearview mirror
(if equipped)
Before driving your vehicle, check to
see that your inside rearview mirror is
properly positioned. Adjust the rearview
mirror so that the view through the rear
window is properly centered.
WARNING
Make sure your line of sight is not
obstructed. Do not place objects in the
rear seat, cargo area, or behind the rear
head restraints which could interfere
with your vision through the rear
ODN8059025L
window.
[A]: Day, [B]: Night
Make this adjustment before you start
WARNING
driving and while the day/night lever is in
the day position.
To prevent serious injury during an
Pull the day/night lever towards you to
accident or deployment of the air bag,
reduce glare from the headlights of the
do not modify the rearview mirror and
vehicles behind you during night driving.
do not install a wide mirror.
Remember that you lose some rearview
clarity in the night position.
WARNING
NEVER adjust the mirror while driving.
This may cause loss of vehicle control
resulting in an accident.
NOTICE
When cleaning the mirror, use a paper
towel or similar material dampened
with glass cleaner. Do not spray glass
cleaner directly on the mirror as this
may cause the liquid cleaner to enter
the mirror housing.
5-43
Convenient Features
Electrochromic Mirror with
Integrated HomeLink® Wireless Control
Homelink System (if equipped)
System
Your vehicle may be equipped with
The HomeLink® Wireless Control System
a Gentex Automatic-Dimming Mirror
provides a convenient way to replace
with an Integrated HomeLink® Wireless
up to three hand held radio-frequency
Control System.
transmitters used to activate compatible
devices such as gate operators, garage
During nighttime driving, this feature
door openers, entry door locks, security
will automatically detect and reduce
systems, and home lighting.
rearview mirror glare. The HomeLink®
Universal Transceiver allows you to
activate your garage door(s), electric
NOTICE
gate, home lighting, etc.
HomeLink® operates while the ignition
switch is in the ACC or ON position
for safety reasons. It is to prevent
unintentional security problems from
happening when the vehicle is parked
outside the garage.
WARNING
Before programming HomeLink® to a
garage door opener or gate operator,
make sure people and objects are out
of the way of the device to prevent
ODN8A059135
potential harm or damage. Do not
(1) HomeLink Channel 1
use the HomeLink® with any garage
(2) HomeLink Channel 2
door opener that lacks the safety
stop and reverse features required
(3) HomeLink Channel 3
by U.S. federal safety standards (this
(4) Garage Door Opener Status Indicator:
includes any garage door opener model
Closing or Closed
manufactured before April 1, 1982).
(5) HomeLink Operation Indicator
A garage door that cannot detect an
object - signaling the door to stop and
(6) Garage Door Opener Status Indicator:
reverse - does not meet current U.S.
Opening or Opened
federal safety standards. Using a garage
(7) HomeLink User Interface Indicator
door opener without these features
increases the risk of serious injury or
death.
For more information, contact
HomeLink® at www.homelink.com, or
call Home-Link customer support at
1-800-355-3515.
It is also recommended that a new
battery be replaced in the handheld
transmitter of the device being trained
to HomeLink® for quicker training and
accurate transmission of the radio
frequency.
5-44
05
1. Programming HomeLink®
1) Programming Preparation
The following steps show how to
program HomeLink. If you have any
questions or are having difficulty
programming your HomeLink buttons,
refer to the HomeLink website or call the
HomeLink customer support toll-free
number. Do this before going back to the
dealer who sold you the car.
ś Visit the HomeLink website at: www.
homelink.com. Then at the top of the
page, choose your vehicle make. Then
watch the You Tube video, and/or
ODN8H050340N
access additional website information.
1. When programming a garage door
ś If you choose to access the website
opener, it is advised to park the
via your cell phone, scan the QR code.
vehicle outside of the garage.
2. It is recommended that a new battery
be placed in the handheld transmitter
of the device being programmed to
HomeLink for quicker training and
accurate transmission of the radio-
frequency signal.
ś Or call HomeLink customer support
3. Place the ignition switch to the ACC
at 1-800-355-3515 (Please have the
(Accessory) position for programming
vehicle make/model and the opener
of HomeLink.
device make/model readily available.)
5-45
Convenient Features
2) Programming a New HomeLink®
4. Wait until your garage door comes
to a complete stop, regardless of
position, before proceeding to the
next steps.
5. Press and release the HomeLink
button you are programming and
observe the indicator light.
ś If the indicator light remains solid
green, your device should operate
when the HomeLink button is
pressed. At this point, if your device
operates, programming is complete.
ODN8H050136N
ś If the indicator light rapidly
1. Press and release the HomeLink
flashes green, firmly press, hold
button (1), (2) or (3), you would like
for two seconds and release the
to program. The HomeLink indicator
HomeLink button up to three times
light (7) will flash orange slowly (if
in a row slowly to complete the
not, perform the steps of “Erasing
programming process. Do not press
HomeLink Buttons” section, and start
the HomeLink button rapidly. At
over).
this point if your device operates,
programming is complete. If the
device does not operate, continue
with step 6.
6. At the garage door opener motor,
(security gate motor, etc.) locate the
“Learn”, “Smart”, “Set” or “Program”
button. This can usually be found
where the hanging antenna wire is
attached to the motor-head unit (see
the device’s manual to identify this
button). The name and color of the
button may vary by manufacturer.
ODN8H050339N
2. Position the garage door opener
remote 1 - 3 inches (2 - 8cm) away
from the HomeLink buttons.
3. While the HomeLink indicator light (7)
is flashing orange, press and hold the
hand-held remote button. Continue
pressing the handheld remote button
until the HomeLink indicator light (7)
changes from orange to green. You
may now release the handheld remote
button.
5-46
05
3) Two-Way Communication
Programming (For select garage door
openers)
If your garage door opener has the
‘myQ’ logo on its side, your opener
likely has Two-Way Communication
capability. HomeLink has the capability
to establish Two-Way Communication
with your garage door opener. HomeLink
can receive and display “closing”
or “opening” status messages from
compatible garage door openers. At
any time, Home-Link can also recall
ODL3A040504
and display the last recorded status
à A ladder and/or second person may
communicated by the garage door
simplify the following steps.
opener to indicate your garage door
7. Firmly press and release the “Learn”,
being “closed” or “opened”.
“Smart”, “Set” or “Program” button.
To check if your garage door opener is
You now have up to 30 seconds in
compatible with this feature, refer to
which to complete the next step.
8. Return to the vehicle and firmly press,
way-Communication. If your garage
hold for two seconds and release,
door opener has this functionality, AND
the HomeLink button up to three
the Two-Way Communication indicators
times in a row slowly. Do not press
(4), (6) in the mirror appear while the
the HomeLink button rapidly. As soon
garage door is opening/closing, then
as you see the garage door start to
no further steps are needed. Two-Way
move, stop pressing any buttons
Communication Programming is already
until a few seconds after the garage
complete. However, if your garage door
door has come to a complete stop,
opener has this functionality, AND the
regardless of position. At this point,
Two-Way Communication indicators (4),
programming is complete and your
(6) in the mirror DO NOT appear while
device should operate when the
the garage door is opening/closing, use
HomeLink button is pressed and
the following instructions to enable this
released.
functionality.
1. In your vehicle, press and hold the
programmed HomeLink button for 2
seconds, then release. Confirm that
the garage door is moving. AFTER it
stops, you will have one minute to
complete the following steps:
à A ladder and/or second person may
simplify the following steps.
5-47
Convenient Features
2. On your garage door opener in your
4) Canadian Programming
garage, locate the “Learn” button
Canadian radio-frequency laws require
(usually near where the hanging
transmitter remote signals to “time-
antenna wire is attached to the garage
out” (or quit) after a couple seconds of
door opener). If there is difficulty
transmission, which may not be long
locating this button, reference the
enough for HomeLink to pick up the signal
device’s owner’s manual.
during programming.
3. Press and release the “Learn” button.
If you live in Canada or you are having
4. A light on your garage door opener
difficulties programming a gate operator
may flash, and your Two-Way
or garage door opener by using the
Communication indicators (4), (6) in
programming procedures, replace
your vehicle may flash, confirming
“Programming a New HomeLink Button”
completion of the process.
step 3 with the following:
5. Return to the vehicle and firmly
While the HomeLink indicator light (7) is
press and release the programmed
flashing orange, press and release (“cycle”)
HomeLink button to activate
your device’s handheld remote every two
your garage door. The Two-Way
seconds until the HomeLink indicator light
Communication indicators (4), (6)
(7) changes from orange to green. You may
flash in orange when the door is
now release the hand-held remote button.
moving. Do not make any additional
Then proceed with “Programming a New
button presses until AFTER the garage
HomeLink Button” step 4.
door has come to a complete stop.
6. Your Two-Way Communication
programming is now complete.
Information
If your garage door opener has Two-
Way Communication functionality,
it is possible for HomeLink to stop
functioning the garage door shortly
after initial programming, IF the Two-
Way Communication Programming
wasn’t properly completed. This
usually happens after the first 10 times
a programmed HomeLink button is
pressed. If you experience this, completing
the “Programming a New HomeLink
Button” and “Two-Way Communication
Programming” will restore door
operation.
5-48
05
2. Operating HomeLink®
1) Operating HomeLink®
ODN8H050341N
2. The indicator (4) and (6) operates as
below, if your garage door opener
ODN8H050136N
has Two-Way Communication
1. Press and release the desired
functionality.
programmed HomeLink button (1, 2
ś If the indicator (4) flashes in Orange,
or 3).
it indicates that the garage door is
“Closing”.
Information
ś The indicator (4) turns solid green
The HomeLink indicator (7) should
once the garage door has closed.
light green, solid or flashing, and your
ś If the indicator (6) flashes in Orange,
programmed device should operate.
it indicates that the garage door is
“Opening”.
If your device does not operate, the
HomeLink programming was not
ś The indicator (6) turns solid green
successful, and you’ll need to reprogram
once the garage door has fully
the button.
opened.
ś If the indicator (4) or (6) does not
2) Two-Way Communication Display
turn to green, it indicates that the
Behavior
last status of garage door was not
received properly. The HomeLink
mirror tries to receive the last known
status of the garage door for a few
seconds.
ODN8A059139
1. Press and release one of the
programmed HomeLink buttons (1, 2
or 3).
5-49
Convenient Features
3) Recalling Garage Door Status
2) The following instructions will erase
ALL HomeLink® programming from
HomeLink mirror with Two-Way
Communication provides a way to view
ALL buttons:
the last stored message from the garage
door opener. In order to recall the last
known status of the last activated device,
press the buttons “1 and 2” OR “2 and 3”
simultaneously.
ś If the indicator (4) appears solid
Green, it indicates that the last
activated device was “closed”
properly.
ś If the indicator (6) appears solid
Green, it indicates that the last
ONX4OB051048
activated device was “open” properly.
1. Press and hold the buttons (1) and (3)
simultaneously.
3. Erasing HomeLink® Buttons
2. The HomeLink indicator light (7) will
1) Erasing and Reprogramming a Single
illuminate solid Orange for about 10
HomeLink® Button:
seconds.
1. Press and hold the desired HomeLink
3. Release the buttons once the
button you want to re-program. DO
HomeLink indicator light (7) changes
NOT release the button.
to Green and flashes rapidly.
2. The HomeLink indicator light (7) will
4. Now all three HomeLink buttons
illuminate solid green. Release the
(1), (2) and (3) are cleared of any
button as soon as the HomeLink
programming.
indicator light (7) begins to flash
orange, usually about 20 seconds.
3. Proceed with the steps in the
Information
“Programming a New HomeLink
HomeLink® and the HomeLink® House
Button” section.
logo are registered trademarks of Gentex
Corporation.
The myQ logo is a registered trademark of
Information
The Chamberlain Group, Inc.
If you do not complete the re-
programming of a new device to the
button, it will revert to the previously
stored programming.
5-50
05
FCC (USA) and ISED (Canada)
FCC (Htats-Unis) et ISED (Canada)
This device complies with FCC rules
Cet appareil est conforme aux
part 15 and Innovation, Science, and
règlements de la FCC, section 15, et
Economic Development Canada RSS-
au CNR-210 d’Innovation, Sciences et
210. Operation is subject to the following
Dhveloppement économique Canada. Le
two conditions: (1) This device may not
fonctionnement est assujetti aux deux
cause harmful interference, and (2) This
conditions suivantes : (1) cet appareil ne
device must accept any interference that
doit pas causer d’interférences nuisibles
may be received including interference
et (2) cet appareil doit accepter toute
that may cause undesired operation.
interférence reçue, y compris celle qui
WARNING: The transmitter has been
pourrait entraîner un dysfonctionnement.
tested and complies with FCC and
MISE EN GARDE : L’émetteur a subi des
ISED rules. Changes or modifications
tests et est conforme aux règlements de
not expressly approved by the party
la FCC et d’ISDE. Les changements ou
responsible for compliance could void
modifications non approuvés explicitement
the user’s authority to operate the
par la partie responsable de la conformité
device.
pourraient rendre caduque l’autorisation de
l’utilisateur de se servir du dispositif.
This equipment complies with FCC
and ISED radiation exposure limits set
Cet appareil est conforme aux limites
forth for an uncontrolled environment.
d’exposition aux radiations de la FCC et
End Users must follow the specific
d’ISDE établies pour un environnement
operating instructions for satisfying RF
non contrôlé. Les utilisateurs finaux doivent
exposure compliance. This transmitter
respecter les instructions d’utilisation
must be at least 20cm from the user and
spécifiques pour satisfaire aux exigences
must not be co-located or operating in
de conformité aux expositions de RF.
conjunction with any other antenna or
L’émetteur doit se trouver à 20 cm au
transmitter.
minimum de l’utilisateur et ne doit pas
être situé au même endroit que tout autre
émetteur ou antenne ni fonctionner avec
un autre émetteur ou antenne.
Méjico
La operación de este equipo está sujeta
a las siguientes dos condiciones: (1) es
posible que este equipo o dispositivo
pueda no causar interferencia dañina, y
(2) este dispositivo o dispositivos deben
aceptar cualquier interferencia, que
incluye la interferencia que puede causar
su operación no deseada.
5-51
Convenient Features
HomeLink 5 Programing Flow Chart
OOS040475N
5-52
05
Side View Mirrors
WARNING
Do not adjust or fold the side view
mirrors while driving. This may cause
loss of vehicle control resulting in an
accident.
NOTICE
ś Do not scrape ice off the mirror face;
this may damage the surface of the
glass.
ś If the mirror is jammed with ice, do
ONX4050009
not adjust the mirror by force. Use
Your vehicle is equipped with both left-
an approved de-icer (not radiator
hand and right-hand side view mirrors.
antifreeze) spray, or a sponge or soft
The mirrors can be adjusted remotely
cloth with very warm water, or move
with the mirror adjustment control
the vehicle to a warm place and
switch. The side view mirrors can be
allow the ice to melt.
folded manually to help prevent damage
ś Do not clean the mirror with harsh
when going through an automatic car
abrasives, fuel or other petroleum
wash or when passing through a narrow
based cleaning products.
street.
The right side view mirror is convex.
Objects seen in the mirror are closer than
they appear.
Use the inside rear view mirror or look
back directly to determine the actual
distance of other vehicles prior to
changing lanes.
Make sure to adjust the side view mirrors
to your desired position before you begin
driving.
5-53
Convenient Features
Adjusting the side view mirrors
Folding the side view mirror
ONX4050010N
ONX4E050009
1. Move the lever (1) either to the L (left
To fold the side view mirror, grasp the
side) or R (right side) to select the side
housing of the mirror and then fold it
view mirror you would like to adjust.
toward the rear of the vehicle.
2. Use the mirror adjustment control (2)
to position the selected mirror up,
down, left or right.
3. After adjustment, move the lever (1)
to the middle to prevent inadvertent
adjustment.
5-54
05
WINDOWS
„ Front
„ Rear
ONX4OB051031
(1) Driver’s door power window switch
(5) Window opening and closing
(2) Front passenger’s door power
(6) Automatic power window*
window switch
(7) Power window lock switch
(3) Rear door (left) power window switch
(4) Rear door (right) power window
* : if equipped
switch
5-55
Convenient Features
Power Windows
Auto down window (if equipped)
The ignition switch must be in the ON
Pressing the power window switch
position to be able to raise or lower
momentarily to the second detent
the windows. Each door has a Power
position (6) completely lowers the
Window switch to control that door’s
window even when the switch is
window. The driver has a Power Window
released.
Lock switch which can block the
To stop the window at the desired
operation of rear passenger windows.
position while the window is in
The power windows will operate for
operation, pull up or press down and
about 3 minutes after the ignition is
release the switch.
turned OFF or if the ignition is placed
in the ACC position, as long as the front
Auto up/down window (if equipped)
doors remain closed.
Pressing or pulling up the power window
If the front doors are opened, battery
switch momentarily to the second
power is turned OFF and the Power
detent position (6) completely lowers or
Windows will not operate.
lifts the window even when the switch
is released. To stop the window at the
Window opening and closing
desired position while the window is in
operation, pull up or press down and
release the switch.
Resetting the power windows
If the power windows do not operate
normally, the automatic power window
system must be reset as follows:
1. Press the ignition switch to the ON
position.
2. Close the window and continue
pulling up on the power window
OCN7050082
switch for at least one second.
To open:
If the power windows do not operate
Press the window switch down to the
properly after resetting, have the system
first detent position (5). Release the
checked by an authorized HYUNDAI
switch when you want the window to
dealer.
stop.
To close:
WARNING
Pull the window switch up to the first
The automatic reverse feature doesn’t
detent position (5). Release the window
activate while resetting the power
switch when you want the window to
window system. Make sure body parts
stop.
or other objects are safely out of the
way before closing the windows to
avoid injuries or vehicle damage.
5-56
05
Automatic reverse (if equipped)
Information
The automatic reverse feature is only
active when the “Auto Up” feature is used
by fully pulling up the switch to the second
detent.
NOTICE
Do not install any accessories on the
windows. The automatic reverse
feature may not operate.
OCN7050026
WARNING
If a window senses any obstacle while it
is closing automatically, it will stop and
Make sure body parts or other objects
lower approximately 12 in. (30 cm) to
are safely out of the way before closing
allow the object to be cleared.
the windows to avoid injuries or vehicle
damage.
If the window detects the resistance
while the power window switch is
Objects less than 0.16 in (4 mm) in
pulled up continuously, the window
diameter caught between the window
will stop upward movement then lower
glass and the upper window channel
approximately 1 in. (2.5 cm).
may not be detected by the automatic
reverse window and the window will
If the power window switch is pulled
not stop and reverse direction.
up continuously again within 5 seconds
after the window is lowered by the
automatic window reverse feature,
the automatic window reverse will not
operate.
5-57
Convenient Features
Power window lock button
WARNING
Do not allow children to play with the
power windows. Keep the driver’s
door power window lock button in the
LOCK position. Serious injury or death
can result from unintentional window
operation by a child.
NOTICE
ś To prevent possible damage to the
power window system, do not open
OCN7050027
or close two windows or more at the
same time. This will also ensure the
The driver can disable the power window
switches on the rear passenger doors by
longevity of the fuse.
pressing the power window lock button.
ś Never try to operate the main
When the power window lock button is
switch on the driver’s door and the
pressed:
individual door window switch in
opposite directions at the same time.
ś The driver’s master control can
If this is done, the window will stop
operate all the power windows.
and cannot be opened or closed.
ś The front passenger’s control can
operate the front passenger’s power
window.
ś The rear passenger’s control cannot
operate the rear passengers’ power
window.
5-58
05
Remote window opening function
„ Type E
(if equipped)
„ Type A
ONX4050082N
You can still control the window
ONX4050078N
movement with the engine turned off.
„ Type B
Hold the Door Unlock button (1) for more
than 3 seconds. The window moves
down after the doors are unlocked, as
long as you press the door unlock button.
The window movement stops when you
release the door unlock button.
WARNING
If you stay on the function after
ONX4050079N
operating the Remote window opening
„ Type C
function, it is likely to cause a theft.
In addition, please use caution there
might be a malfunction due to the
inflow of water while raining.
Information
ś The remote window opening function
may abruptly stop when you move
away from your vehicle during
operation. Stay in close proximity
ONX4050080N
to your vehicle while monitoring the
window movement.
„ Type D
ś One of the windows may stop
operating, when the window is
interrupted by certain force. However,
the other windows will continue to
operate. Thus, you should check that all
windows are opened.
ś Please be aware that the doors unlock
when using the remote window opening
function.
ONX4050081N
5-59
Convenient Features
Rear Sliding Window (if
WARNING
equipped)
ś Make sure heads, hands, arms or any
Your vehicle is equipped with a rear
other body parts or objects are out
sliding window behind the rear seats.
of the way before closing the rear
sliding window.
Opening the rear sliding window
ś Close the rear sliding window to
prevent theft when leaving the
vehicle.
ś Keep the rear sliding window closed
while driving. If the rear sliding
window is opened, luggage may be
unexpectedly thrown out and cause
an accident. Also, exhaust gases may
enter the vehicle. This could result in
serious injury or death.
ONX4OB051049
Push the lock release lever and slide the
rear sliding window to the left.
Closing the rear sliding window
ONX4OB051050
Slide the rear sliding window to the right
until it is securely locked.
5-60
05
681522) ǣ,) (48,33('Ǥ
If your vehicle is equipped with a
Sunshade
sunroof, you can slide or tilt your sunroof
with the sunroof switch located on the
overhead console.
ONX4AOB052010
Use the sunshade to block direct sunlight
coming through the sunroof glass.
ONX4OB051051
Open or close the sunshade by hand.
The sunroof can only be operated when
the ignition switch or Engine Start/Stop
button is in the ON or START position.
Information
The sunroof can be operated for
The sunshade opens automatically when
approximately 3 minutes after the
the sunroof glass is opened, but the
ignition switch or Engine Start/Stop
sunshade does not close automatically
button is in the ACC or LOCK/OFF
when the sunroof glass is closed. Also, only
position. However, if the front door is
the sunshade cannot be closed when the
open, the sunroof cannot be operated
sunroof glass is opened.
even within the 3 minute period.
NOTICE
WARNING
Do not pull the sunshade up or down,
ś Adjust the sunroof or sunshade when
or apply excessive force as such action
your vehicle stops. This could result
may damage the sunshade or cause it
in loss of control and an accident
to malfunction.
that may cause injury, or property
damage.
ś Do not leave the engine running
and the key in your vehicle with
unsupervised children. Unattended
children could operate the sunroof,
which could result in serious injury.
ś Do not sit on the top of the vehicle. It
may cause injury or vehicle damage.
NOTICE
Do not operate the sunroof when roof
bars are installed on the vehicle or
when there is luggage on the roof.
5-61
Convenient Features
Tilt Open/Close
Slide open/close
ONX4AOB052052
ONX4AOB052053
[1]: Tilt open
ś Push the sunroof switch rearward,
the sunshade and sunroof glass slide
[2]: Tilt close
open.
ś Push the sunroof switch upward, the
ś Push the sunroof switch forward, only
sunroof glass tilts open.
the sunroof glass closes.
ś Push the sunroof switch forward when
ś Push the sunroof switch forward or
the sunroof glass is tilt opened, the
rearward to the first detent position,
sunroof glass closes.
the sunroof glass moves until the
switch is released.
The sunroof glass tilts open or closes
while the switch is pushed.
ś Push the sunroof switch forward
or rearward to the second detent
position, the sunroof glass operates
Information
automatically (auto slide feature). To
stop the sunroof movement at any
The sunroof glass cannot slide open and
point, push the sunroof switch in any
tilt open at the same time. You cannot tilt
direction.
the sunroof glass open while the sunroof
glass is slide open. Also, you cannot slide
the sunroof glass open while the sunroof
is tilt open. Slide open or tilt open the
sunroof glass when the sunroof glass is
completely closed.
5-62
05
Automatic Reversal
NOTICE
ś
Do not continue to push the sunroof
switch after the sunroof is fully
opened, closed, or tilted. Damage to
the sunroof motor could occur.
ś
Continuous operations such as slide
open/close, tilt open/close, etc. may
cause the motor or sunroof system to
malfunction.
ś
Regularly remove any accumulated
dust on the sunroof rail.
ś
Dust accumulated between the
ODH043039
sunroof and roof panel can make
If the sunroof glass senses any obstacle
noise. Open the sunroof and remove
while it is closing automatically, it will
dust regularly using a clean cloth.
reverse direction then stop at a certain
ś
Do not try to open the sunroof when
position.
the temperature is below freezing
The auto reverse function may not
or when the sunroof is covered
work if an object thin or soft is caught
with snow or ice. The sunroof may
between the sliding sunroof glass and
not work properly and may break if
sunroof sash.
opened by force.
ś
Do not open or drive with the sunroof
WARNING
glass open immediately after rain or
washing the vehicle. Water may wet
ś Make sure heads, hands, arms or
the interior of the vehicle.
any other body parts or objects are
out of the way before operating the
ś
Do not extend any luggage outside
sunroof. Body parts or objects may
the sunroof while driving. Vehicle
get caught causing injuries or vehicle
damage may occur if the vehicle
damage.
suddenly stops.
ś Never deliberately use your body
parts to test the automatic reversal
WARNING
function. The sunroof glass may
Do not extend your head, arms, body
reverse direction, but there is a risk
parts or objects outside the sunroof
of injury.
while driving. Injuries may occur if the
vehicle suddenly stops.
5-63
Convenient Features
Resetting the sunroof
Sunroof resetting procedure:
1. It is recommended to perform the
reset procedure with the vehicle
engine running. Start the vehicle in P
(Park).
2. Make sure the sunroof glass is in the
fully closed position. If the sunroof
glass is open, push the switch forward
until the sunroof glass is fully closed.
3. Release the switch when the sunroof
glass is fully closed.
4. Push the switch forward until the
ONX4OB051054
sunroof glass moves slightly. Then
In some circumstances resetting the
release the switch.
sunroof operation may need to be
5. Once again push and hold the sunroof
performed. Some instances where
switch forward until the sunroof glass
resetting the sunroof may be required
slides open and close. Do not release
include:
the switch until the operation is
ś When the 12-volt battery is either
completed. If you release the switch
disconnected or discharged
during operation, start the procedure
ś When the sunroof fuse is replaced
again from step 2.
ś If the sunroof one-touch AUTO OPEN/
CLOSE operation is not functioning
Information
properly
If the sunroof does not reset when
the vehicle battery is disconnected or
discharged, or the sunroof fuse is blown,
the sunroof may not operate normally.
5-64















Content      ..      1      2      3      ..
