Convenience Features

Remote Control with Digital Key

Information

To use the remote control function with

After reconnecting the vehicle battery

your android smartphone, Bluetooth

power supply or charging the battery, it

must be turned on.

may take time to operate due to remote

renewal of security information. When you

Remote Control Connection with Digital

lock or unlock the door with NFC, please

Key

touch and hold your smartphone on the

door handle until it works.

1. Open Hyundai digital key application

on the smartphone. Select the

When the mobile data connection of the

vehicle to activate the remote control

smartphone is weak, the remote renewal

function as a main vehicle.

of security information may fail. In this

case, you should lock, unlock or turn on

2. Approach with the activated

the vehicle with the card key. When you

smartphone app to your vehicle

are in the place where the mobile data

and you can check whether the

connection of your smartphone is available

connection is available. If it enables

and place your smartphone on the interior

your smartphone to connect, connect

authentication pad (wireless charger) and

with your vehicle by pressing the

start up your vehicle or touch the digital

connect button. The remote control

key on the door handle to lock or unlock

function is activated after completing

the door, the remote renewal of security

the process.

information starts automatically. Even

though the engine is turned on, please

Remote Control Operation with Digital

wait until the remote renewal process

Key

is completed and wireless charger is

You can execute the remote control

converted to charging mode.

operation including door lock/unlock,

panic on/off, remote start / remote

stop and trunk opening. The icon for

CAUTION

each function will be highlighted and

The engine can be turned on if the

alarm/vibration also provided when the

registered smartphone or card key is

operation is performed.

placed on the interior authentication

Note that you cannot lock your vehicle

pad (wireless charger). Do not leave

using the Hyundai digital key app if any

unsupervised children or people who

of the following occurs:

are not aware of the system since it

can result in serious injury or death.

ś The POWER button is in ACC or ON

Always have the registered digital key

position.

(smartphone) or card key with you to

ś Any doors are open.

prevent vehicle theft when leaving the

When the smartphone and the vehicle

vehicle.

are connected by the Bluetooth function

For more information, refer to the

but the remote control command

Engine Start/Stop button in chapter 6.

cannot be received over 5 minutes, the

remote control connection is canceled

automatically.

5-20

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Remote Start with Digital Key

CAUTION

ś When the shift lever of your vehicle

If metallic window tint was applied

is in P (Park) and all of the doors

to your vehicle, it may cause

including trunk and hood is locked

bad Bluetooth connection or

and the vehicle is off, press the Door

performance degradation of the

Lock button in the Hyundai Digital

digital key.

Key app then press the Remote Start

If multiple users operate the remote

button within 4 seconds.

control function simultaneously, the

You can confirm the engine is on if the

connection between the digital key

hazard warning lights blinks two times

and the vehicle might result in failed

and the chime sounds.

commands. Please connect and

ś If you want to turn off the engine,

operate the remote control function

press Remote Engine Stop. Air

only with the necessary user.

Conditioner / Heating system

When using the remote control

maintains the same status as when

operation, the driver (the remote

you last used the vehicle.

control user) should leave the vehicle

ś Unless you put the registered digital

after confirming the door lock (the

key(smartphone) on the interior

chime sounds once and the hazard

authentication pad (wireless charger)

warning lights blink).

when the remote start function is on,

The remote functions of the Digital

the engine will turn off.

Key app enable the vehicle to be

ś If you do not get into the vehicle

controlled from a set distance. If

within 10 minutes after the engine

the digital key or the vehicle goes

turns on, the vehicle will turn off.

beyond the operable distance, the

For more information, refer to the Engine

remote control function might be

disconnected or canceled.

Start/Stop button in chapter 6.

If the digital key (smartphone) is

Vehicle information Display

connected with the vehicle for the

remote control, the driver with the

The digital key application displays

key goes far away from the vehicle,

the vehicle information such as

the function might not work.

driving or door conditions through the

communication with the vehicle.

If the remote control operation

is executed where the mobile

ś How to check : Select the vehicle

connection is weak, Bluetooth

what you want to check and touch

connection is poor due to several

the vehicle image, then vehicle

Bluetooth devices or there is an

information display page will be

object such as metal or concrete, it

shown.

might be delayed or the operable

ś Contents : accumulated odometer,

distance might decrease. You should

latest fuel economy, driving range,

not cover the smartphone with your

fuel remaining, tire pressure, doors

hand or place other devices which

lock/unlock status and last data

can cause frequency interference. It

updated time.

may result in poor performance.

Ã Displayed vehicle data could be

If the remote control function is not

differed from the current vehicle

available, please use NFC function to

condition.

lock or unlock the doors.

Ã For more information, please refer to

the ‘Tutorial’ on your Digital key app.

5-21

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Convenience Features

Smartphone change/App deletion

CAUTION

If you change your smartphone or delete

Do not leave the registered digital

the Hyundai Digital Key App, please refer

key (smartphone) and card key in

to the following to set up your Digital

your vehicle. Please carry around

Key:

your keys all the time.

If you happen to lose your digital

Smartphone Change/ Reset

key (smartphone) or card key

If you change or reset the smartphone,

registered as a main user’s key, you

the registered digital key in your previous

should immediately delete the key

smartphone may not be used. Please

on the vehicle’s key menu. For more

refer to following procedure to use the

information, refer to the Digital Key

digital key.

Deletion in this chapter.

1. Install the digital key application and

If you registered your digital key

(smartphone) or card key in the

2. If you are the owner, retry the Digital

vehicle, a message appears on the

key save process.

instrument cluster and informs you

3. If you are the sharer, need to re-share

that the key is registered.

the key from owner.

(Message: Digital key(s) active.)

If you buy a used vehicle, you should

App delete & reinstall/ Delete App data

confirm the message and delete the

registered smartphone key and card

You can re-download the digital key from

key. In this case, you should carry

the server and follow these procedures.

your smart key.

1. Reinstall the application and log in.

If you keep the NFC card of

2. Input the PIN number for user

the digital key on the interior

verification.

authentication pad (wireless

3. If PIN is correct, digital key data

charger) while driving, it may cause a

will be re-downloaded to your

malfunction of the NFC card.

smartphone and you can use it

You should remove your NFC card

without any further registration or

of the digital key on the interior

sharing.

authentication pad after turning on

the engine.

Smartphone operability with Digital Key

Hyundai digital key app may not

The digital key application may not be

work properly when the NFC or

available to older type smartphones.

Bluetooth communication between

Please check the available smartphone

smartphone and car is poor.

models with your dealer. NFC antenna

If the remote control operation

position on the smartphone can be

is executed where the mobile

confirmed on each smartphone’s manual

connection is weak, Bluetooth

or contact to customer service center of

connection is poor due to other

the smartphone manufacturer.

Bluetooth devices or there is an

object such as metal or concrete, it

might be delayed or the operable

distance might decrease. You should

not cover the smartphone with your

hand or place other devices which

can cause frequency interference. It

may result in poor performance.

5-22

-------------------------------------------------------------------------------------------------------------------------------------------------------------

If the remote control function is not

- If you use a smart phone cover that

activated, please use NFC function to

uses wireless communication or is

lock or unlock the doors

made of metal, the digital key NFC

function may not work properly.

You should be careful not to

press the remote control button

Remove the smart phone cover

before using the digital key NFC

on the digital key (smartphone)

function.

accidentally.

ś The vehicle may not be controlled by

If the digital key (smartphone) is

the smartphone if any of the following

discharged or defective or you

occurs:

cannot use the digital key since the

vehicle battery is discharged, use the

- Basic and necessary functions of

inside door lock button to lock all of

the smartphone manufacturer are

the doors.

operating. (General call, urgent

call, audio or NFC payment)

- Wireless earphone is operating.

CAUTION

(General call, urgent call or audio)

Hyundai digital key app on the

- The digital key app function such

smartphone and card key may not

as basic setting or app launching

work if any of the following occurs:

is limited by prior policy according

Hyundai digital key app on the

to the manufacturer while using a

smartphone is deleted. (Required

smartphone produced by domestic

to reinstall the app)

and foreign manufactures.

Account log in information of

Ã If you change the smartphone

Hyundai digital key app is expired.

number, you should modify the user

(Required to re-log in)

account information on the HYUNDAI

When you try to log in to another

customer web site to use the digital

smartphone instead of the

key app.

registered smartphone with same

Ã If the vehicle owner changes

user account.

the smartphone device, the new

Smartphone rooting or app

smartphone should be registered in

hacking is detected.

the car after deleting the registered

digital key(smartphone).

Smartphone battery or the vehicle

battery is discharged.

Ã If a sharer changes or resets the

smartphone, the key should be re-

Smartphone’s screen is off or

shared from owner.

locked.

Ã Some older smartphones may not

NFC or Bluetooth is turned off on

work properly. Please check the

the smartphone settings.

available smartphone models with

Smartphone’s mobile network

your dealer.

setting is off or airplane mode is

Ã NFC antenna position on the

activated.

smartphone can be confirmed

A credit card is overlapped in the

on each smartphone’s manual or

back of your smartphone or metal

contact to customer service center

or thick case is used.

of the smartphone manufacturer.

The card key is overlapped with

other credit cards or the key is

used as inserted in the wallet or

card wallet.

5-23

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Convenience Features

Digital key (Card key)

3. Register the NFC card key on the

User’s Settings menu after turning on

the vehicle.

Ã With Navigation screen : From the

infotainment screen menu, go to

[Setup] - [Vehicle] - [Digital Key] -

[Card Key] then select the [Save] from

submenu.

Ã Without navigation screen : From

cluster menu, go to [Digital Key] -

[Card Key] and select [Save].

The [Save] button will be disabled if

ODN8A059243

the digital key (Card key) is already

saved.

Please refer to “Digital Key Delete” in

this manual and follow the digital key

delete procedure in your car before

Digital key save.

4. Place the NFC card key onto the

interior authentication pad (wireless

charger). The saving process will

begin automatically.

5. If the key is enrolled, the message

ODN8A059131

will be displayed on the infotainment

screen or instrument cluster.

Digital key (Card key) save

1. Install Hyundai digital key app in

main user’s smartphone and register

Once the card key registration mode

the digital key (smartphone). Please

is activated, the process should be

refer to the registration method of the

completed within 5 minutes. After

digital key (smartphone).

then, you should reactivate once

2. Using the [Pair Card Key] menu on

again for registration.

the digital key application, you can

For the digital key(card key) saving,

activate the Card Key registration

the smart key(fob) must be inside the

mode.

vehicle.

Ã NFC authentication : enter the NFC

Once a Card key is registered, it

authentication menu and touch the

cannot be reused in another vehicle.

smartphone on the outside door

handle.

Ã Bluetooth authentication : enter the

Bluetooth authentication menu and

press the [OK] button for activation.

If you activate the registration mode,

you should complete the Card saving

process with in 5 minutes.

Ã If you have not registered the digital

key (smartphone), please register the

digital key (card key) with two smart

keys.

5-24

-------------------------------------------------------------------------------------------------------------------------------------------------------------

ś To delete the saved digital key (card

key), the smart key must be inside the

vehicle.

ś The deleted digital key (card key) can

be re-registered before registering a

new digital key (card key).

ś If you register a new digital key (card

key), the previously registered digital

key (card key) cannot be used again.

ODN8A059243

ODN8A059132

Digital key (Card key) deletion

You should have the smart key to delete

digital key (card key). Please have the

smart key in your possession.

1. Get into the vehicle with the smart

key.

2. Delete the NFC card key on the User’s

Settings menu after turning on the

engine.

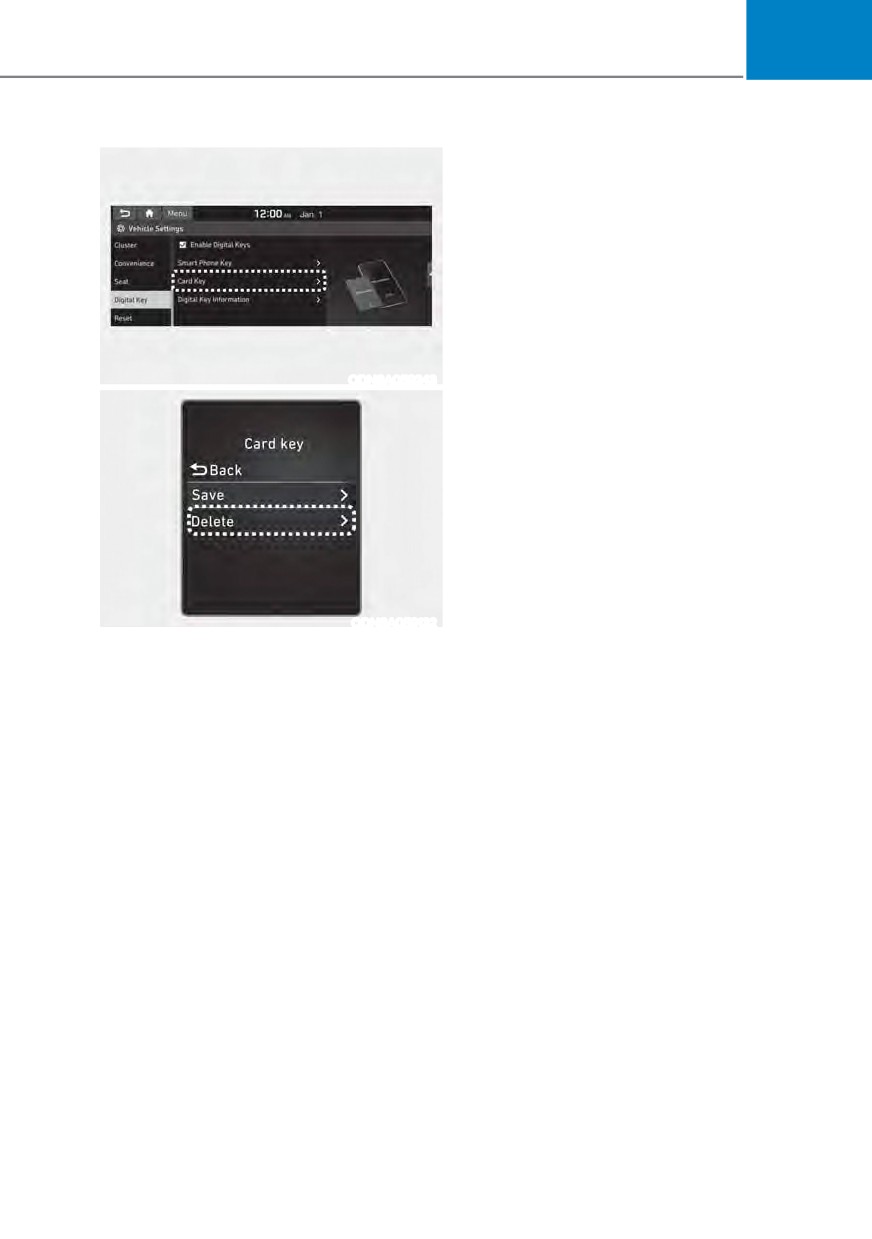

Ã With Navigation screen : From the

infotainment screen menu, go to

[Setup] - [Vehicle] - [Digital Key] -

[Card Key] then select the [Delete]

from submenu.

Ã Without navigation screen : From

cluster menu, go to [Digital Key] -

[Card Key] and select [Delete].

If there is no saved digital key(card key),

[Delete] menu will not be activated.

5-25

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Convenience Features

If the digital key (card key) does not work,

please move the card 4 inches (0.1m)

away from the handle authentication

pad and retry to touch. If the card key is

damaged by impact, it may not operate

properly or at all. You should buy a new

card and register again. Long-time

exposure to high temperature may cause

the card key to malfunction. Please be

careful not to expose the key to direct

sunlight or high temperature.

OCN7050128

[1] : Door handle authentication pad

NFC door lock/unlock

You should touch digital key (card key)

to door handle authentication pad (1,

marked position near by the lock button)

of driver’s (or front passenger’s) outside

door for 2 seconds to lock or unlock the

doors. If the Two Press Unlock feature

is applied (press twice for unlocking),

driver’s seat door will be unlocked by

touching the digital key (card key). In this

state, if you touch one more time within

4 seconds, all the doors unlock.

Inoperable condition

If you do not touch the digital key (card

key) to the center of the door handle

authentication pad accurately. it may not

work. In addition, if you overlap and use

the key with NFC-enabled cards such as

transportation card or credit card, it may

not work.

Note that if you try to lock your vehicle

with digital key (card key) in following

cases, the doors will not be locked and

chime will sound for 3 seconds.

ś The Smart Key is in the vehicle.

ś The POWER button is in ACC or ON

position.

ś Any of the doors, hood or trunk are

open

5-26

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Start-up with Card key

Type A

After placing your registered card key

onto the interior authentication pad

(wireless charger), step on the brake and

press the Engine Start/Stop button.

WARNING

ś If you do not place the digital key

(card key) onto the center of the

interior authentication pad (wireless

charger) exactly, the card key may

ODN8A059133

not be recognized. If the engine is

Type B

not turned on, adjust and place the

key again.

ś If you overlap and use the key

with NFC-enabled cards such as

transportation card or credit card,

the card key may not be recognized.

ś If the digital key (card key) does

not work, please move the card 4

inches (0.1m) away from the handle

authentication pad and retry to

ODN8A059247

touch.

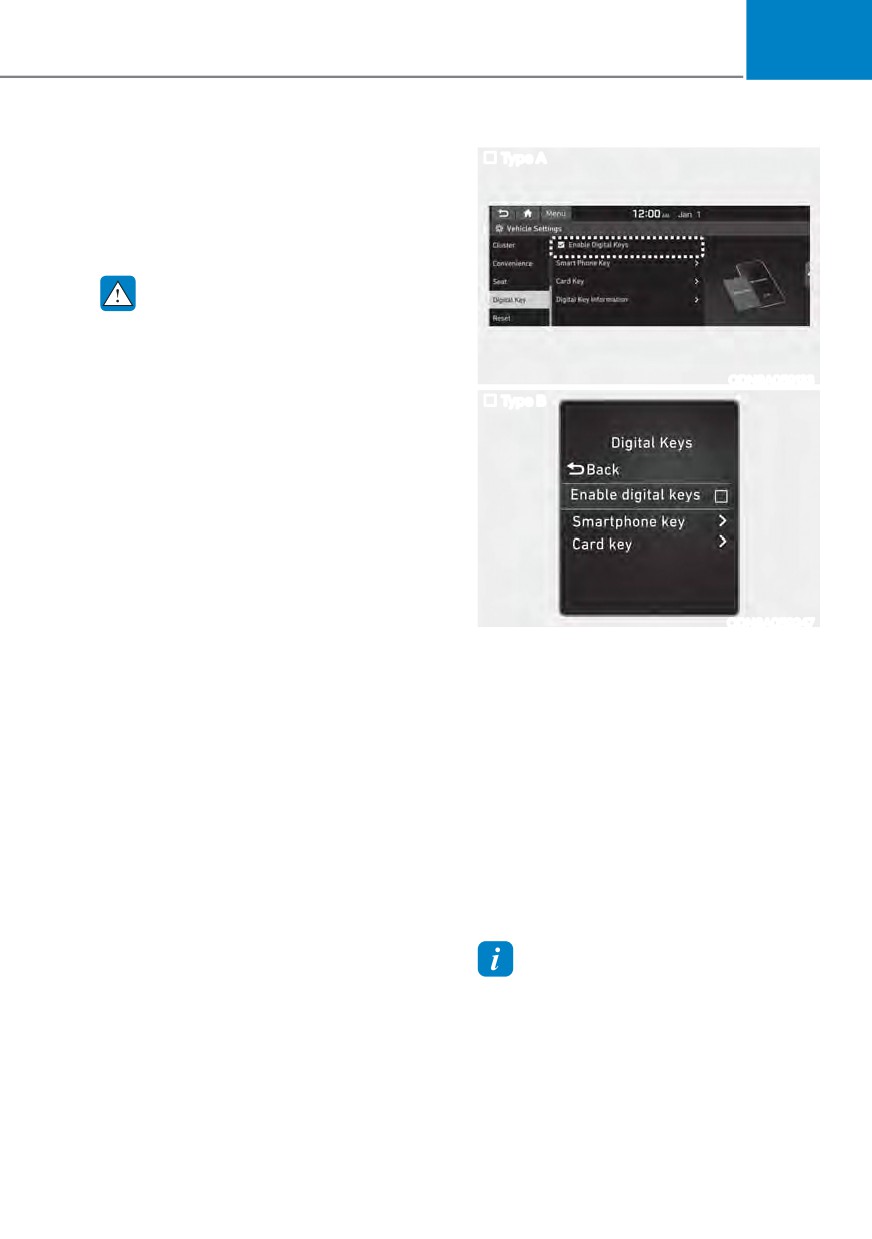

Digital key application/cancellation

ś If the card key is damaged by impact,

it may not operate properly or at

If you do not want to use the digital key

all. You should buy a new card and

(smartphone and card key), you can

disable the function temporarily. You

should have the smart key when you

For more information, refer to the

change the settings

Engine Start/Stop button in chapter 6.

Ã With Navigation screen :

From the infotainment screen menu,

go to [Setup] - [Vehicle] - [Digital Key]

- [Enable Digital Keys] (deselect)

Ã Without navigation screen :

From cluster menu, go to [Digital Key]

- [Enable Digital Keys] (deselect)

Information

If you do not have the smart key in your

possession, you cannot deselect [Enable

digital keys]. However, if you want to

select [Enable digital keys] again, you do

not need to have the smart key in your

possession.

5-27

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Convenience Features

Profile link/unlinked

CAUTION

Profile link

If you uncheck Enable digital keys, it is

6HOHFW 6HWXS Ɵ 8VHU 3URILOH Ɵ

impossible to lock or unlock the doors

or start up the vehicle with digital keys

3URILOH 6HWWLQJV Ɵ /LQN 'LJLWDO .H\

(Smartphone) on the infotainment

such as smartphone and card key. If

you check Enable digital keys again, the

system menu.

registered digital keys(smartphone and

2. Unlock your digital key installed

card key) are available. Even though

smart phone screen and place it onto

you stop the digital key function, the

the wireless charger according to a

registered keys (smartphone and card

message.

key) are not deleted.

3. It begins the profile link with a

message.

Personalized profile and vehicle

4. If you select Link, the registered

settings

phone number’s digital key and the

Connect the registered digital key with

user’s profile are linked.

personalized profile. Then in case you

5. The interconnection process is

lock or unlock the door with the digital

completed with a message.

key NFC function or unlock the door

remotely by digital key application

Profile unlink

Bluetooth connection, the vehicle

will play the personalized user profile

1. Select Digital Key information on

settings. Profile connection and

infotainment Vehicle Settings menu. It

personalization are available for Driver 1

is possible to unlink only if the profile

and Driver 2.

is interconnected.

2. Profile unlink is completed with a

message.

Information

If you connect both Driver 1 and Driver 2

with a single smartphone, the smartphone

digital key always works as Driver 1.

If you unlink the Driver 1, personalization

function will operate as Driver 2.

5-28

-------------------------------------------------------------------------------------------------------------------------------------------------------------

PRECAUTION for vehicle profile link and

Vehicle personalization operation

unlink

The personalization function linked with

When you link or unlink the profile of

digital key works as following conditions:

digital key, you should be careful of the

ś Touch the driver’s door handle with

following.

the profile linked smart phone to lock

Profile link is possible to use with the

or unlock the doors (Personalization

digital key. (Infotainment Vehicle

does not operate when locking or

6HWWLQJV 0RGH Ɵ 'LJLWDO .H\ Ɵ (QDEOH

unlocking the front passenger door.)

Digital Keys)

ś Remote door unlock with the profile

Profile link information remains even

linked smartphone digital key app.

when you disable the digital key

The profile linked with digital key can be

function.

changed manually in the infotainment

Only the smart phone with digital key

system setup screen.

app enables you to link your profile.

(Impossible to link with NFC card)

Precaution for digital key profile link and

Profile link works only when the

unlink

smart phone and the digital key are

Profile operation according to door lock/

registered to the vehicle. The smart

unlock system is as follows.

phone with another vehicle’s digital

key cannot link profile.

Personalization

Item

If you remove the smart phone

Operation

from the wireless charger before

Initial value

Guest

completing the profile link, it does not

work.

Profile linked

smart phone

Linked profile

To unlink the profile, the smart phone

key

does not need to be on the wireless

charger.

Profile unlinked

smart phone

key

Recently activated

profile

NFC card key

Smart key

ś The personalization function using

the digital key can be operated

after linking the digital key on the

infotainment system profile menu.

ś You should use the personalization

function only when the vehicle is

safely parked.

5-29

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Convenience Features

Vehicle personalization with digital key

The available personalization function in the vehicle is as follows.

System

Personalization Item

Lamp

Blink number of one-touch signal lamps

USM

Door

Automatic door lock/unlock, Two Press Unlock

Preferred volume of the navigation system, Recent

Navigation

destination

AVN

User preset

Radio preset

Bluetooth

Bluetooth preferential connect

Latest operation setup of the following functions:

Air conditioning

(for automatic

Operating

Temperature, AUTO, air flow direction, air volume,

climate control

condition

air conditioner, air intake control, SYNC, Front

system)

windshield defroster, OFF

For more information of personalization, refer to the infotainment system manual.

CAUTION

If you leave the digital key after locking or unlocking the doors or starting up the

vehicle with the smart key, the doors can be locked by the central door lock. Please

carry the digital key at all times.

5-30

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DOOR LOCKS

Operating Door Locks from

Information

Outside the Vehicle

Be careful when locking the door by

Mechanical key

mechanical key operation, only the

driver’s door can be locked/unlocked.

Refer to Chapter 5 “Operating door locks

from inside the vehicle” to lock from

inside the vehicle.

Information

When removing the cover, be careful not

to lose cover and any scratches.

When the key cover freezes and does not

open, lightly tap or indirectly warm(hand

OCN7050009

temperature, etc.) it.

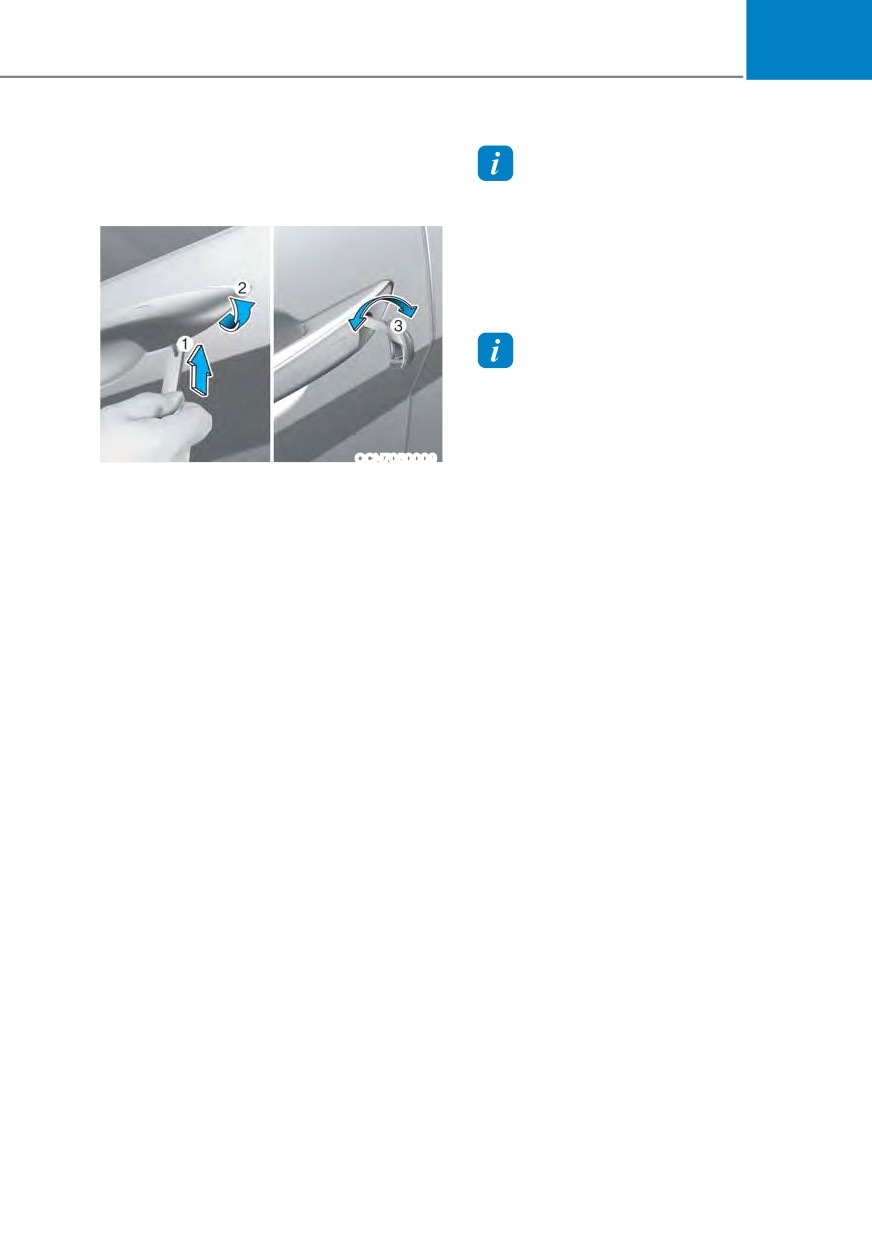

1. Press the lever located under the

cover with mechanical key. (1)

Do not apply excessive force to the door

and door handle. It may be damaged.

2. While pushing the lever so that the

mechanical key does not fall out of

the cover hole, slowly push it towards

the rear of the vehicle and remove the

cover. (2)

3. After removing the cover, only driver’s

door can be locked or unlocked by

using mechanical key.

4. Turn the key toward the rear of the

vehicle to lock and toward the front of

the vehicle to unlock. (3)

If you lock/unlock the driver’s door with

a key, the driver’s door will lock/ unlock

automatically.

Once the door is unlocked, it may be

opened by pulling the door handle.

Make sure that doors are closed securely.

5-31

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Convenience Features

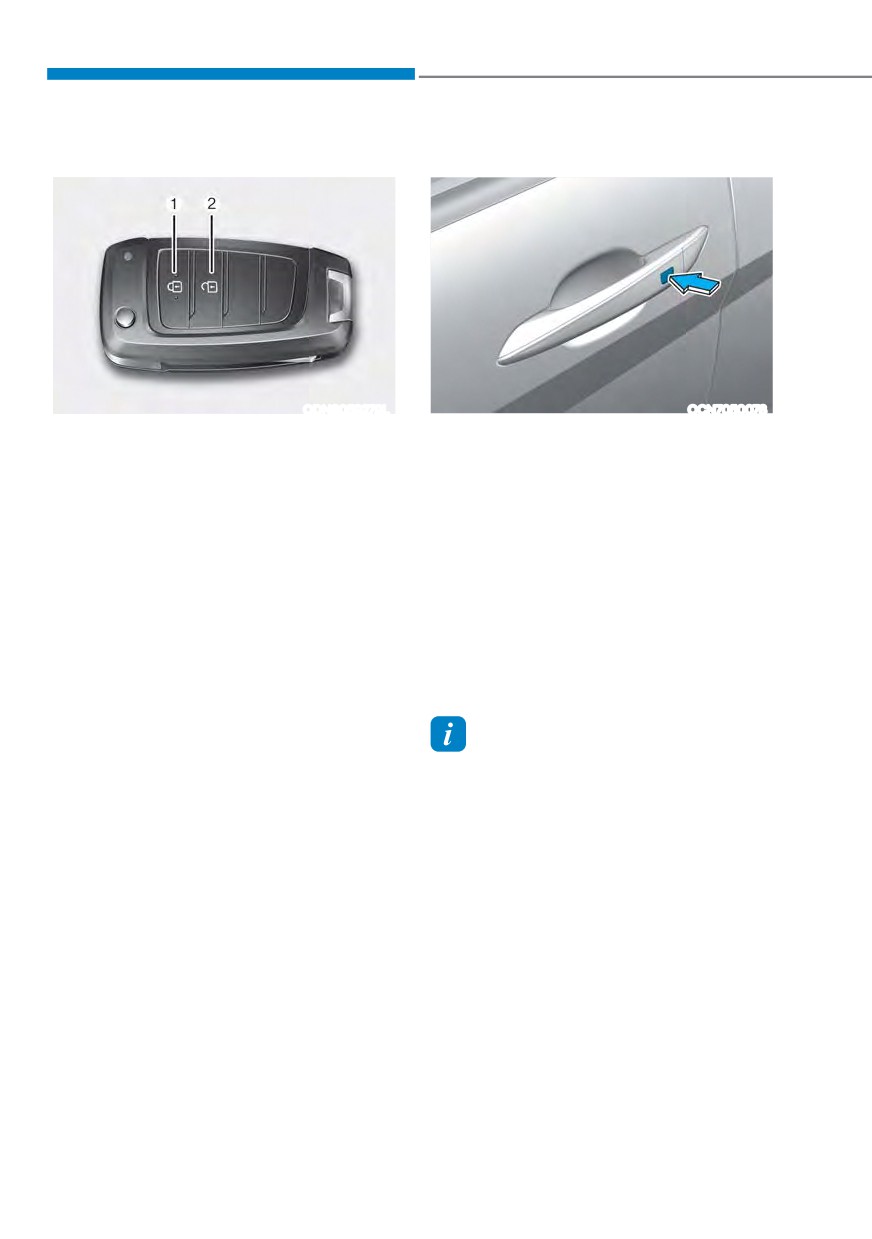

Remote key

Smart key

ODN8059279L

OCN7050078

To lock the doors, press the button on

To lock the doors, press the Door Lock

the outside door handle while carrying

button (1) on the remote key.

the smart key with you or press the door

To unlock the doors, press the Door

lock button on the smart key.

Unlock button (2) on the remote key.

To unlock the doors, press the button on

Once the doors are unlocked, they may

the outside door handle while carrying

be opened by pulling the door handle.

the smart key with you or press the door

When closing the door, push the door by

unlock button on the smart key.

hand. Make sure that doors are closed

Once the doors are unlocked, they may

securely.

be opened by pulling the door handle.

When closing the door, push the door by

hand. Make sure that doors are closed

securely.

Information

ś In cold and wet climates, door lock

and door mechanisms may not work

properly due to freezing conditions.

ś If the door is locked/unlocked multiple

times in rapid succession with either

the vehicle key or door lock switch, the

system may stop operating temporarily

in order to protect the circuit and

prevent damage to system components.

ś Two press unlock setting can be

changed in the User Settings mode on

the cluster.

5-32

-------------------------------------------------------------------------------------------------------------------------------------------------------------

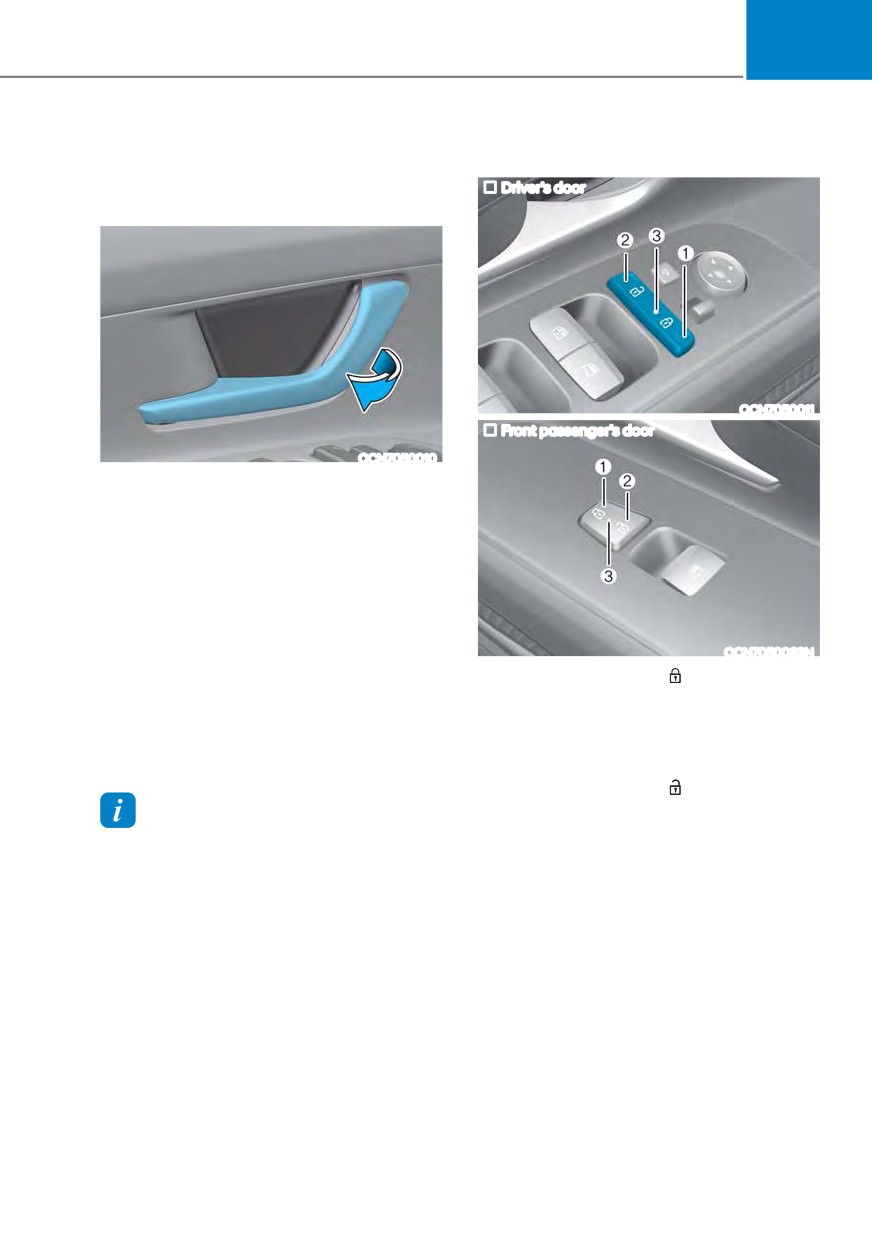

Operating Door Locks from

With the central door lock switch

Inside the Vehicle

Driver’s door

With the door handle

OCN7050011

Front passenger’s door

OCN7050010

Front door

If the inner door handle is pulled when

the door is locked, the door will unlock

and open.

Rear door

If the inner door handle is pulled once

when the door is locked, the door will

OCN7050083N

unlock. If the inner door handle is pulled

once more, the door will open.

When pressing the (

) portion (1) of

the switch, all vehicle doors will lock.

If any door is opened, the doors will not

- If any door is opened, the doors will

lock even though the central door lock

not lock even though the central

switch is pressed.

door lock switch (1) is pressed.

When pressing the (

) portion (2)

of the switch, all vehicle doors will

Information

unlock.

If a power door lock ever fails to function

Doors indicating light (3)

while you are in the vehicle try one or

more of the following techniques to exit:

When all vehicle doors are locked, the

indicating lights on the driver’s door

ś Operate the door unlock feature

and passenger’s door will turn on. If

repeatedly (both electronic and

any door is unlocked, it would go off.

manual) while simultaneously pulling

on the door handle.

ś Operate the other door locks and

handles, front and rear.

ś Lower a front window and use the

mechanical key to unlock the door from

outside.

5-33

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Convenience Features

WARNING

ś The doors should always be fully

If you stay in the vehicle for a long time

closed and locked while the

while the weather is very hot or cold,

vehicle is in motion. If the doors

there are risks of injuries or danger to

are unlocked, the risk of being

life. Do not lock the vehicle from the

thrown from the vehicle in a crash is

outside when someone is in the vehicle.

increased.

ś Do not pull the inner door handle of

WARNING

the driver’s or passenger’s door while

the vehicle is moving.

Opening a door when something is

approaching may cause damage or

injury. Be careful when opening doors

WARNING

and watch for vehicles, motorcycles,

bicycles or pedestrians approaching the

Do not leave the elderly, children or

vehicle in the path of the door.

animals unattended in your vehicle. An

enclosed vehicle can become extremely

hot, causing death or serious injury

to the elderly, unattended children

or animals who cannot escape from

the vehicle. Children might operate

features of the vehicle that could injure

them, or they could encounter other

harm, possibly from someone gaining

entry to the vehicle.

WARNING

Always secure your vehicle.

Leaving your vehicle unlocked increases

the potential risk to you or others from

someone hiding in your vehicle.

To secure your vehicle, while depressing

the brake, move the shift button to the

P (Park) position, engage the parking

brake, and place the ignition switch

in the LOCK/OFF position, close all

windows, lock all doors, and always

take the key with you.

5-34

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Automatic Door Lock and Unlock

Child-Protector Rear Door Locks

Features

Impact sensing door unlock system

(if equipped)

All doors will be automatically unlocked

when an impact causes the air bags to

deploy.

Speed sensing door lock system (if

equipped)

All doors will be automatically locked

OCN7050129

when vehicle speed exceeds 9 mph (15

km/h).

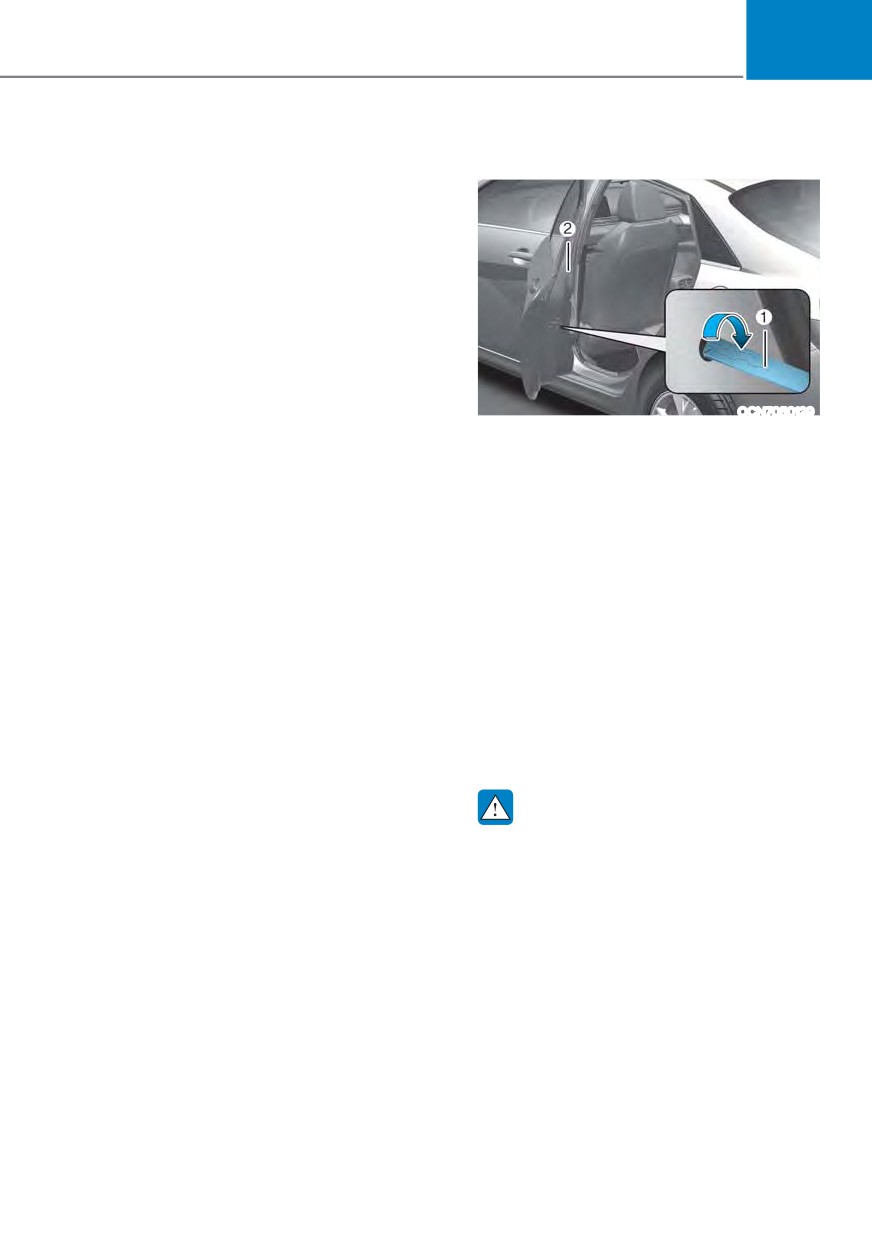

The child safety lock is provided to help

prevent children seated in the rear from

You can activate or deactivate the Auto

accidentally opening the rear doors.

Door Lock/Unlock features from the User

Settings Mode on the LCD display.

The rear door safety locks should be used

whenever children are in the vehicle.

For more details, refer to “LCD Display”

in chapter 4. If your vehicle is equipped

The child safety lock is located on the

with additional navigation, please refer

edge of each rear door. When the child

to the infotainment system manual

safety lock is in the lock position, the

separately supplied.

rear door will not open if the inner door

handle is pulled.

To lock the child safety lock, insert a key

(or screwdriver) (1) into the hole and turn

it to the lock position.

To allow a rear door to be opened from

inside the vehicle, unlock the child safety

lock.

WARNING

If children accidently open the rear

doors while the vehicle is in motion,

they could fall out of the vehicle. The

rear door safety locks should always

be used whenever children are in the

vehicle.

5-35

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Convenience Features

5($5 2&&83

$17

$/(57 ǣ52$Ǥ

Rear Occupant Alert helps prevent the

WARNING

driver from leaving a passenger in the

rear seats.

Rear Occupant Alert provides

information to the driver to check

the rear seats but it does not detect

Rear Occupant Alert Operation

whether there is an object or passenger.

Always check the rear seats when

leaving the vehicle.

Information

The open and close history of the rear

door is initialized if the driver turns off the

engine and lock vehicle doors.

However, the alarm may sound again

whenever the driver’s door is opened if the

previous history of the rear door is not

OCN7050135L

initialized.

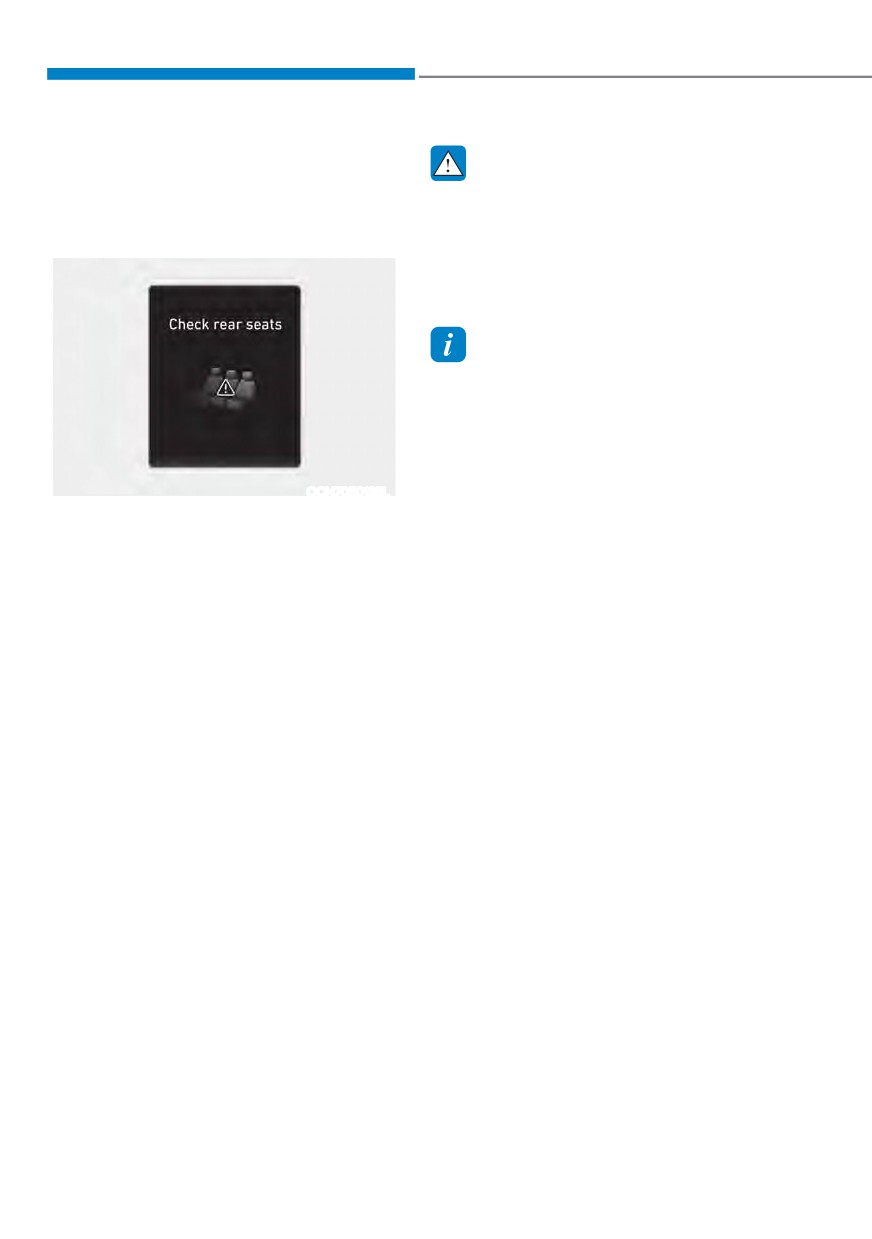

When the driver turns off the engine and

opens the driver’s door after opening and

closing a rear door, a warning message

“Check rear seats” appears on the

cluster.

5-36

-------------------------------------------------------------------------------------------------------------------------------------------------------------

7+()7ǘ$/$50 6<67(0

This system helps to protect your vehicle

Information

and valuables. The horn will sound and

the hazard warning lights will blink

Do not lock the doors until all

continuously if any of the following

passengers have left the vehicle. If the

occur:

remaining passenger leaves the vehicle

when the system is armed, the alarm

- A door is opened without using the

will be activated.

remote key or smart key.

If the vehicle is not disarmed with the

- The trunk is opened without using the

remote key or smart key, open the

remote key or smart key.

doors by using the mechanical key and

- The engine hood is opened.

place the ignition switch in the ON

The alarm continues for 30 seconds, then

position (for remote key) or start the

the system resets. To turn off the alarm,

engine (for smart key) and wait for 30

unlock the doors with the remote key or

seconds.

smart key.

When the system is disarmed but a

The Theft Alarm System automatically

door or trunk is not opened within 30

sets 30 seconds after you lock the doors

seconds, the system will be rearmed.

and the trunk. For the system to activate,

you must lock the doors and the trunk

from outside the vehicle with the remote

key or smart key or by pressing the

button on the outside of the door handle

with the smart key in your possession.

The hazard warning lights will blink and

the chime will sound once to indicate the

system is armed.

Once the security system is set, opening

any door, the trunk, or the hood without

using the remote key or smart key will

cause the alarm to activate.

The Theft Alarm System will not set if the

hood, the trunk, or any door is not fully

closed. If the system will not set, check

the hood, the trunk, or the doors are fully

closed.

Do not attempt to alter this system or

add other devices to it.

5-37

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Convenience Features

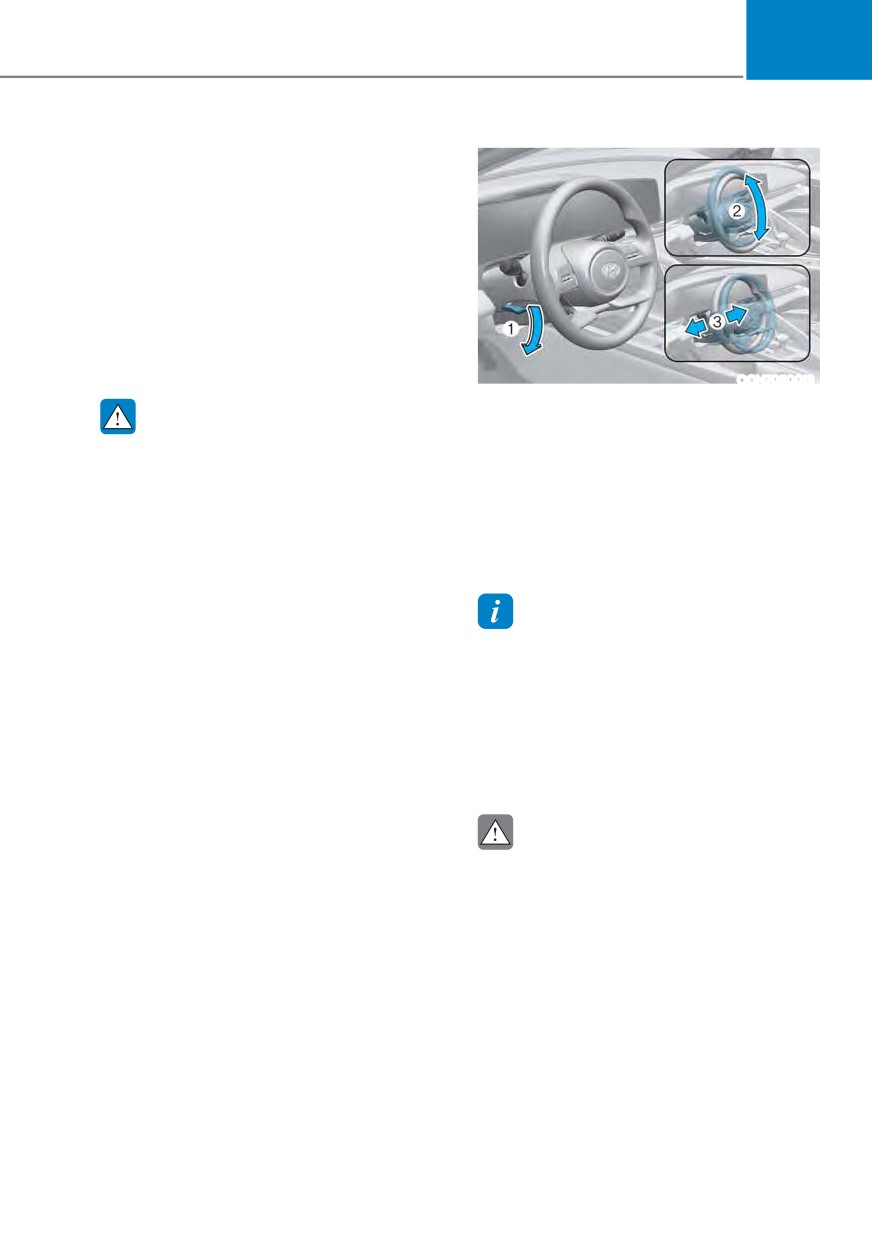

STEERING WHEEL

Electric Power Steering (EPS)

Information

The system assists you with steering the

The following symptoms may occur during

vehicle. If the vehicle is turned off or

normal vehicle operation:

if the power steering system becomes

The steering effort may be high

inoperative, you may still steer the

immediately after placing the ignition

vehicle, but it will require increased

switch in the ON position.

steering effort.

This happens as the system performs

Also, the steering effort becomes heavier

the EPS system diagnostics. When the

as the vehicle’s speed increases and

diagnostics are completed, the steering

becomes lighter as the vehicle’s speed

wheel effort will return to its normal

decreases for better control of the

condition.

steering wheel.

When the battery voltage is low, you

Should you notice any change in the

may have to put more steering effort.

effort required to steer during normal

However, it is a temporary condition so

vehicle operation, have the system

that it will return to normal condition

checked by an authorized HYUNDAI

after charging the battery.

dealer.

A click noise may be heard from the

EPS relay after the ignition switch is in

CAUTION

the ON or LOCK/OFF position.

If the Electric Power Steering System

Motor noise may be heard when the

does not operate normally, the

vehicle is at a stop or at a low driving

warning light (

) will illuminate

speed.

on the instrument cluster. You may

When you operate the steering wheel

steer the vehicle, but it will require

in low temperatures, abnormal noise

increased steering efforts. Take your

may occur. If the temperature rises, the

vehicle to an authorized HYUNDAI

noise will disappear. This is a normal

dealer and have the system checked

condition.

as soon as possible.

When an error is detected from the

When an abnormality is detected

EPS, the steering effort assist function

in the electric power steering

may become inoperative in order to

system, to prevent an accident, the

prevent fatal accidents. Instrument

steering assist function may become

cluster warning lights may be on or the

inoperative. At this time, the warning

steering effort may be high. If these

light turns on or blinks on the cluster.

symptoms occur, drive the vehicle to

The steering wheel may become

a safe area as soon as it is safe to do

difficult to control or operate. Have

so. Have the system checked by an

your vehicle checked immediately,

authorized HYUNDAI dealer as soon

after moving the vehicle to a safe

as possible.

area.

5-38

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Tilt Steering / Telescope Steering

When adjusting the steering wheel to a

comfortable position, adjust the steering

wheel so that it points toward your chest,

not toward your face. Make sure you can

see the instrument cluster warning lights

and gauges. After locking the lever, push

the steering wheel both up and down to

be certain it is locked in position. Always

adjust the position of the steering wheel

before driving.

OCN7050013

To adjust the steering wheel angle and

WARNING

height:

NEVER adjust the steering wheel while

1. Pull down the lock-release lever (1).

driving. This may cause loss of vehicle

2. Adjust the steering wheel to the

control resulting in an accident.

desired angle (2) and distance

forward/back (3).

3. Pull up the lock-release lever to lock

the steering wheel in place.

Information

Sometimes the lock release lever may not

engage completely. This may occur when

the gears of the locking mechanism do not

completely mesh. If this occurs, pull down

on the lock release lever, readjust the

steering wheel again, and then pull back

up on the release lever to lock the steering

wheel in place.

CAUTION

While adjusting the steering wheel

height, please do not push or pull it

hard since the fixture can be damaged.

5-39

-------------------------------------------------------------------------------------------------------------------------------------------------------------

0,55256

Inside Rearview Mirror

Day/night rearview mirror

(if equipped)

Before driving your vehicle, check to

see that your inside rearview mirror is

properly positioned. Adjust the rearview

mirror so that the view through the rear

window is properly centered.

WARNING

Make sure your line of sight is not

obstructed. Do not place objects in the

rear seat, cargo area, or behind the rear

head restraints which could interfere

with your vision through the rear

OCN7050017L

window.

[A] : Lever, [B] : Day, [C] : Night

Make this adjustment before you start

WARNING

driving and while the day/night lever is in

the day position.

To prevent serious injury during an

accident or deployment of the air bag,

Pull the day/night lever towards you to

do not modify the rearview mirror and

reduce glare from the headlights of the

do not install a wide mirror.

vehicles behind you during night driving.

Remember that you lose some rearview

clarity in the night position.

WARNING

NEVER adjust the mirror while driving.

This may cause loss of vehicle control

resulting in an accident.

NOTICE

When cleaning the mirror, use a paper

towel or similar material dampened

with glass cleaner. Do not spray glass

cleaner directly on the mirror as this

may cause the liquid cleaner to enter

the mirror housing.

5-41

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Convenience Features

Electrochromic mirror (ECM) with

Automatic-Dimming Night Vision Safety™

HomeLink® system (if equipped)

(NVS^®) Mirror (if equipped)

The NVS® Mirror automatically helps

reduce glare by monitoring light levels in

the front and the rear of the vehicle. Any

object that obstructs either light sensor

will degrade the automatic dimming

control feature.

For more information regarding NVS®

mirrors and other applications, please

refer to the Gentex website:

www.gentex.com

OCN7050084N

Your mirror will automatically dim

Your vehicle may be equipped with

upon detecting glare from the vehicles

a Gentex Automatic-Dimming Mirror

traveling behind you.

with an Integrated HomeLink® Wireless

The mirror defaults to the ON position

Control System.

each time the vehicle is started.

During nighttime driving, this feature will

automatically detect and help reduce

Integrated HomeLink^® Wireless Control

rearview mirror glare. The HomeLink®

System

Universal Transceiver allows you to

activate your garage door(s), electric

The HomeLink® Wireless Control System

gate, home lighting, etc.

can replace up to three hand-held

radio-frequency (RF) transmitters with

(1) HomeLink Channel 1

a single built-in device. This innovative

(2) HomeLink Channel 2

feature will learn the radio frequency

(3) HomeLink Channel 3

codes of most current transmitters to

(4) Garage Door Opener Status Indicator :

operate devices such as gate operators,

Closing or Closed

garage door openers, entry door locks,

security systems, even home lighting.

(5) HomeLink Operation Indicator

Both standard and rolling code-equipped

(6) Garage Door Opener Status Indicator :

transmitters can be programed by

Opening or Opened

following the outlined procedures.

(7) HomeLink User Interface Indicator

Additional HomeLink® information can

be found at: www.homelink.com, www.

youtube.com/HomeLinkGentex or by

calling 1-800-355-3515.

Retain the original transmitter of the

RF device you are programing for use

in other vehicles as well as for future

HomeLink® programing. It is also

suggested that upon the sale of the

vehicle, the programed HomeLink®

buttons be erased for security purposes.

5-42

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Programing

WARNING

To program most devices, follow these

Before programing HomeLink® to a

instructions:

garage door opener or gate operator,

make sure people and objects are out

of the way of the device to prevent

potential harm or damage. Do not

use the HomeLink® with any garage

door opener that lacks the safety

stop and reverse features required

by U.S. federal safety standards (this

includes any garage door opener model

manufactured before April 1, 1982).

A garage door that cannot detect an

object - signaling the door to stop and

reverse - does not meet current U.S.

OCN7050085N

federal safety standards. Using a garage

1. Press and release (1), (2) or (3) button.

door opener without these features

ś ,I WKH LQGLFDWRU

LV WXUQHG 21 LQ

increases the risk of serious injury or

Orange, go to Step 3) since it is a

death.

new programing.

ś ,I WKH LQGLFDWRU

LV FRQWLQXRXVO\

Programing HomeLink^®

turned ON or flashes in Green rapidly

Please note the following:

several times, go to Step 2) since it is

a programed button.

:KHQ SURJUDPLQJ D JDUDJH GRRU

opener, it is advised to park the

2. Press and hold the button you wish

vehicle outside of the garage.

to program for approximately 15-

25 seconds until the LED flashes in

,W LV UHFRPPHQGHG WKDW D QHZ EDWWHU\

Orange for several times.

be placed in the hand-held transmitter

of the device being programed to

3. Hold the Garage Door Opener Original

HomeLink® for quicker training and

Transmitter near the HomeLink Mirror.

accurate transmission of the radio-

frequency signal.

6RPH YHKLFOHV PD\ UHTXLUH WKH

Engine Start/Stop button to be in

the ACC (or “Accessories”) position

for programing and/or operation of

HomeLink®.

,Q WKH HYHQW WKDW WKHUH DUH VWLOO

programing difficulties or questions

after following the programing steps

listed below, contact HomeLink® at:

www.homelink.com, www.youtube.

com/HomeLinkGentex or by calling

1-800-355-3515.

5-43

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Convenience Features

7. Return to the vehicle and firmly press,

hold for two seconds and release the

HomeLink button up to three times.

Do not press the HomeLink button

rapidly. At this point programing is

complete and your device should

operate when the HomeLink button is

pressed and released.

Information

OCN7050086N

ś Some garage door openers require to

press the programed button on the

4. Press the Original Transmitter

button until the indicator (4) is

mirror up to three times right after

the programing is just completed to

turned continuously ON or flashes in

Green for approximately 10 seconds

operate the garage door.

and it indicates the programing is

ś The indicator (4) is turned ON in

completed.

Orange and flashes for about 60

seconds, during the programing mode

5. However, the indicator (4) flashes

in Green continuously, but if the

and if a programing is not succeeded

within the 60 seconds, the programing

garage door opener does not operate,

please continue to follow the step

mode will be abort.

6 and 7 (“Rolling Code Programing”

procedures).

HomeLink® should now activate your

6. Firmly press and release the “Learn,”

rolling code equipped device.

“Smart,” or “Program” button while

the indicator (4) flashes in Green.

Once the button is pressed, you have

approximately 30 seconds to initiate

the next step.

Information

At the garage door opener motor, (security

gate motor, etc.) locate the “Learn,”

“Smart,” or “Program” button. This

can usually be found where the hanging

antenna wire is attached to the motor-head

unit (see the device’s manual to identify

this button). The name and color of the

button may vary by manufacturer. A

ladder and/or second person may simplify

the following steps.

5-44

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Gate operator & Canadian programing

During programing, your handheld

transmitter may automatically stop

transmitting. Continue to press the

Integrated HomeLink® Wireless Control

System button while you press and re-

press (“cycle”) your handheld transmitter

every two seconds until the frequency

signal has been learned. The indicator

light will flash slowly and then rapidly

after several seconds upon successful

training.

OCN7050087N

Erasing HomeLink® buttons

1. Press and hold the button (1) and (3)

simultaneously.

2. The indicator (4) is turned

continuously ON in orange for about

10 seconds.

3. Then the indicator (4) color changes

to Green and flashes rapidly.

Release the buttons once the green

indicator flashes.

4. Now HomeLink button (1), (2) and (4)

OCN7050085N

memories are all cleared.

Operating HomeLink®

NVS® is a registered trademark and

1. Press and release one of the

Z-Nav™ is a trademark of the Gentex

HomeLink buttons (1, 2 or 3) that

Corporation, Zeeland, Michigan.

programed.

HomeLink® is a registered trademark

2. The HomeLink indicator (4) will

owned by Johnson Controls,

operate as below:

Incorporated, Milwaukee, Wisconsin.

- Indicates Green and is continuously

FCC ID: NZLUAHL5A

ON (Fixed Code Garage Door

IC: 4112A-UAHL5A

Opener)

- Flashes in Green rapidly (Rolling

Code Garage Door Opener)

5-45

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Convenience Features

Two Way Communication Programing

Information

1. Complete the HomeLink

This device complies with Part 15 of the

“Programing” first.

FCC Rules.

2. Before the first 10 times HomeLink

Operation is subject to the following three

button is pressed after the

conditions:

programing, the following steps

1. This device may not cause harmful

MUST occur to program two way

interference, and

communication. (only for some older

2. This device must accept any

garage doors)

interference received, including

interference that may cause undesired

operation.

3. The transceiver has been tested

and complies with FCC and

Industry Canada rules. Changes or

modifications not expressly approved

by the party responsible for compliance

could void the user’s authority to

operate the device.

OCN7050088N

3. Press and release the programed

HomeLink button to activate the

garage door.

4. Once the garage door is stopped,

press and release the “Learn” or

“Smart” button on the Garage door

opener within 1 minute from the time

of pressing the programed HomeLink

button on mirror.

5-46

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Convenience Features

Recalling Garage Door Status

Homelink mirror with two way

communication provides a way to view

the last stored message from the garage

door opener. In order to recall the last

known status of the last activated device,

press the buttons “1 and 2” OR “2 and 3”

simultaneously.

,I WKH LQGLFDWRU

LV 21 FRQWLQXRXVO\

in Green, it indicates that the last

activated device was “closed” properly.

OCN7050089N

,I WKH LQGLFDWRU

LV 21 FRQWLQXRXVO\

2. The indicator (4) and (5) operates as

in Green, it indicates that the last

below:

activated device was “open” properly.

- If the indicator (4) flashes in Orange,

it indicates that the garage door is

“closing”.

Information

- If the indicator (4) is ON continuously

Two way communication range distance

in Green, it indicates that the garage

between “vehicle” and “garage door

door is “closed”.

opener” is 100m.

- If the indicator (5) flashes in Orange,

The range may be reduced or increased

it indicates that the garage door is

a little due to obstacle conditions around

“Opening”.

the garage door opener, such as houses or

trees.

- If the indicator (5) is ON

continuously in Green, it indicates

that the garage door is “Opened”.

- If the indicator (4) or (5) does not

turn to Green, it indicates that the

last status of garage door was not

received properly. The HomeLink

mirror tries to receive the last

known status of the garage door for

a few seconds.

5-48

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Side View Mirrors

WARNING

Do not adjust or fold the side view

mirrors while driving. This may cause

loss of vehicle control resulting in an

accident.

NOTICE

Do not scrape ice off the mirror face;

this may damage the surface of the

glass.

If the mirror is jammed with ice, do

OCN7050019

not adjust the mirror by force. Use

Make sure to adjust the side view mirrors

an approved de-icer (not radiator

to your desired position before you begin

antifreeze) spray, or a sponge or soft

driving.

cloth with very warm water, or move

the vehicle to a warm place and

Your vehicle is equipped with both

allow the ice to melt.

left-hand and right-hand side view

mirrors. The mirrors can be adjusted

remotely with the remote switch. The

side view mirrors can be folded to help

prevent damage when going through

an automatic car wash or when passing

through a narrow street.

The right side view mirror is convex.

Objects seen in the mirror are closer than

they appear.

Use the inside rear view mirror or look

back directly to determine the actual

distance of other vehicles prior to

changing lanes.

5-49

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Convenience Features

Side View Mirror Adjustment

Folding the side view mirrors

OCN7N050001N

OCN7050022

1. Press either the L (left side) or R (right

To fold the side view mirrors, grasp the

side) button (1) to select the side view

housing of the mirror and then fold it

mirror you would like to adjust.

inwards.

2. Use the mirror adjustment control (2)

to position the selected mirror up,

down, left or right.

3. After adjustment, put the button into

neutral (center) position to prevent

inadvertent adjustment.

NOTICE

ś The mirrors stop moving when

they reach the maximum adjusting

angles, but the motor continues to

operate while the switch is pressed.

Do not press the switch longer than

necessary, because this can damage

the motor.

ś Do not attempt to adjust the side

view mirrors by hand, because this

can damage the motor.

5-50

Hyundai Elantra (2023 year). Manual in english - page 6
