Instrument Cluster

Odometer

Range

„ Type A

„ Type B

„ Type A

„ Type B

OTMA048183

OCN7040015N

OCN7040084N

OCN7040016N

ś

The range is the estimated distance

The odometer indicates the total

the vehicle can be driven with the

distance that the vehicle has been

remaining fuel.

driven and should be used to determine

when periodic maintenance should be

ś

If the estimated distance is below

performed.

1 mi. (1 km), the trip computer will

display "----" as range.

Information

ś

If the vehicle is not on level ground or

the battery power has been interrupted,

the range function may not operate

correctly.

ś

The range may differ from the actual

driving distance as it is only an estimate

of the available driving range for the

vehicle and driving conditions.

ś

The trip computer may not register

additional fuel if less than 1.6 gallon (6

liters) of fuel are added to the vehicle.

ś

The range may vary significantly based

on driving conditions, driving habits,

and condition of the vehicle.

4-8

-------------------------------------------------------------------------------------------------------------------------------------------------------------

04

Transmission Shift Indicator

Intelligent variable transmission/

Dual clutch transmission shift

Manual transmission shift indicator

indicator (if equipped)

(if equipped)

„ Type A

OCN7040014N

OIG046112

„ Type B

This indicator informs which gear is

recommended while driving, to save fuel.

ś Shifting up :Ÿ2, Ÿ3, Ÿ4, Ÿ5, Ÿ6

ś Shifting down : ź1, ź2, ź3, ź4, ź5

For example

: Indicates that shifting up to the 3rd

gear is recommended (currently the shift

lever is in the 2nd or 1st gear).

: Indicates that shifting down to the

OCN7040013N

3rd gear is recommended (currently the

This indicator displays which shift button

shift lever is in the 4th, 5th, or 6th gear).

position is selected.

When the system is not working properly,

the indicator is not displayed.

4-9

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Instrument Cluster

Warning and Indicator Lights

Parking Brake & Brake Fluid

Warning Light

Information

This warning light illuminates:

Make sure that all warning lights are OFF

ś When you place the ignition switch to

after starting the engine. If any light is still

the ON position.

ON, this indicates a situation that needs

- The parking brake light illuminates

attention.

for about 3 seconds and will then

turn off once the parking brake is

Air Bag Warning Light

released.

ś Whenever the parking brake is

applied.

This warning light illuminates:

ś Whenever the brake fluid level in the

ś When you place the ignition switch to

reservoir is low.

the ON position.

- If the warning light illuminates

- The air bag warning light illuminates

with the parking brake released, it

for about 6 seconds and then turns

indicates that the brake fluid level in

off when all checks have been

the reservoir is low.

performed

ś The air bag warning light will remain

If the brake fluid level in the reservoir is

illuminated if there is a malfunction

low:

with the Safety Restraint System (SRS)

1. Drive carefully to the nearest safe

air bag operation.

location and stop your vehicle.

In this case, have the vehicle

2. With the engine stopped, check

inspected by an authorized HYUNDAI

the brake fluid level immediately

dealer.

and add fluid as required (For more

information, refer to "Brake Fluid" in

chapter 9). After adding brake fluid,

Seat Belt Warning Light

check all brake components for fluid

leaks. If a brake fluid leak is found, or

if the warning light remains on, or if

This warning light informs the driver that

the brakes do not operate properly, do

the seat belt is not fastened.

not drive the vehicle. Have the vehicle

inspected by an authorized HYUNDAI

For more information, refer to “Seat

Belts” in chapter 3.

dealer.

4-10

-------------------------------------------------------------------------------------------------------------------------------------------------------------

04

Dual-diagonal braking system

Anti-lock Brake System (ABS)

Your vehicle is equipped with dual-

Warning Light

diagonal braking systems. This means

you still have braking on two wheels even

This warning light illuminates:

if one of the dual systems should fail.

ś When you place the ignition switch to

With only one of the dual systems

the ON position.

working, more than normal pedal travel

- The ABS warning light illuminates

and greater pedal pressure is required to

for about 3 seconds and then turns

stop the vehicle.

off.

If the brakes fail while you are driving,

ś Whenever there is a malfunction with

shift to a lower gear for additional engine

the ABS.

braking and stop the vehicle as soon as it

is safe to do so.

Note that the hydraulic braking

system will still be operational even if

there is a malfunction with the ABS.

WARNING

Parking Brake & Brake Fluid Warning

Electronic Brake Force

Light

Distribution (EBD) System

Driving the vehicle with a warning light

Warning Light

ON is dangerous. If the Parking Brake &

Brake Fluid Warning Light illuminates

with the parking brake released, it

indicates that the brake fluid level is

low.

These two warning lights illuminate at the

same time while driving:

In this case, have the vehicle inspected

by an authorized HYUNDAI dealer.

When the ABS and regular brake system

may not work normally.

In this case, have the vehicle inspected

by an authorized HYUNDAI dealer.

WARNING

Electronic Brake Force Distribution

(EBD) System Warning Light

When both ABS and Parking Brake &

Brake Fluid Warning Lights are on, the

brake system will not work normally

and you may experience an unexpected

and dangerous situation during sudden

braking.

In this case, avoid high speed driving

and abrupt braking.

Have the vehicle inspected by an

authorized HYUNDAI dealer as soon as

possible.

4-11

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Instrument Cluster

AUTO HOLD Indicator Light

Information - Electronic Brake

(if equipped)

Force Distribution (EBD)

System Warning Light

This indicator light illuminates:

When the ABS Warning Light is on

ś

[White] When you activate the auto

or both ABS and Parking Brake &

hold system by pressing the AUTO

Brake Fluid Warning Lights are on, the

HOLD button.

speedometer, odometer, or tripmeter may

ś

[Green] When you stop the vehicle

not work. Also, the EPS Warning Light

completely by depressing the brake

may illuminate and the steering effort may

pedal with the auto hold system

increase or decrease.

activated.

In this case, have the vehicle inspected by

ś

[Yellow] When there is a malfunction

an authorized HYUNDAI dealer as soon

with the auto hold system.

as possible.

In this case, have the vehicle

inspected by an authorized HYUNDAI

Electronic Parking Brake

dealer.

(EPB) Warning Light

EPB

For more information, refer to “Auto

(if equipped)

Hold” in chapter 6.

This warning light illuminates:

ś When you place the Engine Start/Stop

Electric Power Steering (EPS)

button to the ON position.

Warning Light

- The EPB warning light illuminates

for approximately 3 seconds and

This warning light illuminates:

then turns off.

ś When you place the ignition switch to

ś Whenever there is a malfunction with

the ON position.

the EPB.

- The Electric Power Steering Warning

If this occurs, have the vehicle

light illuminates for about 3 seconds

inspected by an authorized HYUNDAI

and then goes off.

dealer.

ś Whenever there is a malfunction with

the EPS.

Information

If this occurs, have the vehicle

inspected by an authorized HYUNDAI

The Electronic Parking Brake (EPB)

dealer.

Warning Light may illuminate when

the Electronic Stability control (ESC)

Indicator Light comes on to indicates that

the ESC is not working properly (This

does not indicate malfunction of the EPB).

4-12

-------------------------------------------------------------------------------------------------------------------------------------------------------------

04

Malfunction Indicator Lamp

Charging System Warning

(MIL)

Light

This warning light illuminates:

When this warning light illuminates while

the engine is running, the battery is not

ś When you place the ignition switch to

being charged. Immediately turn OFF

the ON position.

all electrical accessories. Try not to use

- The malfunction indicator light

electrically operated controls, such as

illuminates for about 3 seconds and

the power windows. Keep the engine

then goes off.

running.

ś Whenever there is a malfunction with

Have the vehicle inspected by an

either the emission control system or

authorized HYUNDAI dealer as soon as

the engine or the vehicle powertrain.

possible.

If this occurs, have the vehicle

inspected by an authorized HYUNDAI

Engine Oil Pressure Warning

dealer.

Light

NOTICE

This warning light illuminates:

ś Driving with the Malfunction

When the engine oil pressure is low.

Indicator Lamp (MIL) on may cause

damage to the emission control

system which could affect drivability

If the engine oil pressure is low:

and/or fuel economy.

1. Drive carefully to the nearest safe

ś If the enhanced engine protection

location and stop your vehicle.

system becomes activated due to

2. Turn the engine off and check

lack of engine oil, engine power

the engine oil level (For more

will be limited. If such condition

information, refer to "Engine Oil" in

continues repeatedly, the

chapter 9). If the level is low, add oil

Malfunction Indicator Lamp will

as required.

illuminate.

If the warning light remains on after

adding oil or if oil is not available, have

NOTICE

the vehicle inspected by an authorized

HYUNDAI dealer as soon as possible.

If the Malfunction Indicator Lamp

Continued driving with the warning

(MIL) illuminates, potential catalytic

light on may cause engine failure.

converter damage is possible which

could result in loss of engine power.

In this case, have the vehicle inspected

Information

by an authorized HYUNDAI dealer as

When engine oil pressure decreases due to

soon as possible.

insufficient engine oil, etc., the Engine Oil

If the oil pressure lowers due to

Pressure warning light will illuminate. In

insufficient engine oil, etc., the engine

addition, the enhanced engine protection

oil pressure warning light turns on

system which limits engine power will

and an enhanced engine protection

be activated. If the engine oil pressure is

system that limits the engine’s power

restored, the Engine Oil Pressure warning

is activated. After that, engine warning

light and the enhanced engine protection

light turns on if driving repeatedly and

system will turn off.

continuously.

4-13

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Instrument Cluster

Master Warning Light

WARNING

When oil pressure is restored to an

optimal level, the oil pressure warning

This indicator light illuminates:

light and the protection system that

limits engine power will turn off. Even

When there is a malfunction in operation

if the oil pressure returns to normal,

in any of the following systems:

check the engine once again in a safe

- Forward Collision-Avoidance Assist

place.

system malfunction (if equipped)

- Forward Collision-Avoidance Assist

NOTICE

radar blocked (if equipped)

If the engine is not turned OFF

- Blind-Spot Collision Warning system

immediately after the Engine Oil

malfunction (if equipped)

Pressure Warning Light is illuminated,

- Blind-Spot Collision Warning radar

severe damage could occur.

blocked (if equipped)

- High Beam Assist malfunction

Low Fuel Level Warning Light

(if equipped)

- Lamp malfunction (if equipped)

- Smart Cruise Control malfunction

This warning light illuminates:

(if equipped)

When the fuel tank is nearly empty. Add

- Tire Pressure Monitoring System

fuel as soon as possible.

(TPMS) malfunction (if equipped)

To identify the details of the warning,

NOTICE

look at the LCD display.

Driving with the Low Fuel Level warning

light on or with the fuel level below "E"

Low Tire Pressure Warning

can cause the engine to misfire and

Light (if equipped)

damage the catalytic converter.

This warning light illuminates:

ś When you place the ignition in the ON

position.

- It illuminates for approximately 3

seconds and then goes off.

ś When one or more of your tires are

significantly underinflated. (The

location of the underinflated tires is

displayed on the LCD display.)

For more information, refer to "Tire

Pressure Monitoring System (TPMS)" in

chapter 8.

4-14

-------------------------------------------------------------------------------------------------------------------------------------------------------------

04

This warning light remains ON after

Electronic Stability Control

blinking for approximately 60 seconds, or

(ESC) OFF Indicator Light

repeatedly blinks ON and OFF in 3 second

intervals:

This indicator light illuminates:

When there is a malfunction with the

ś When you place the ignition switch to

TPMS.

the ON position.

In this case, have the vehicle inspected

- It illuminates for approximately 3

by an authorized HYUNDAI dealer as

seconds and then goes off.

soon as possible.

ś When you deactivate the ESC system

For more information, refer to "Tire

by pressing the ESC OFF button.

Pressure Monitoring System (TPMS)" in

chapter 8.

For more information, refer to

“Electronic Stability Control (ESC)” in

chapter 6.

WARNING

AUTO STOP indicator light

Safe Stopping

(if equipped)

ś The TPMS cannot alert you to severe

and sudden tire damage caused by

external factors.

This indicator light illuminates:

ś If you notice any vehicle instability,

When the engine enters the Idle Stop

immediately take your foot off the

mode of ISG (Idle Stop and Go) system.

accelerator pedal, apply the brakes

When the engine automatically starts,

gradually with light force, and slowly

the AUTO STOP indicator on the cluster

move to a safe position off the road.

Illuminates to white.

Electronic Stability Control

For more details, refer to "ISG (Idle Stop

and Go) system" section in chapter 6.

(ESC) Indicator Light

This indicator light illuminates:

Information

ś When you place the ignition switch to

When the engine automatically starts

the ON position.

by the ISG system, some warning lights

- The Electronic Stability Control

(ABS, ESC, ESC OFF, EPS or Parking

indicator light illuminates for about

brake warning light) may turn on for a

3 seconds and then goes off.

few seconds. This happens because of

low battery voltage. It does not mean the

ś Whenever there is a malfunction with

system has malfunctioned.

the ESC system.

If this occurs, have the vehicle

inspected by an authorized HYUNDAI

dealer.

This indicator light blinks:

While the ESC is operating.

For more information, refer to

“Electronic Stability Control (ESC)” in

chapter 6.

4-15

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Instrument Cluster

Immobilizer Indicator Light

Immobilizer Indicator Light

(with smart key)

(if equipped)

This indicator light illuminates:

This indicator light illuminates for up to

ś When the vehicle detects the

30 seconds:

immobilizer in the key with the

When the vehicle detects the smart key

ignition switch in the ON position.

in the vehicle with the Engine Start/Stop

- At this time, you can start the engine.

button in the ACC or ON position.

- The indicator light goes off after

- Once the smart key is detected, you

starting the engine.

can start the engine.

This indicator light blinks:

- The indicator light goes off after

starting the engine.

ś When there is a malfunction with the

immobilizer system.

This indicator light blinks for a few seconds:

If this occurs, have the vehicle inspected

When the smart key is not in the vehicle.

by an authorized HYUNDAI dealer.

- If the smart key is not detected, you

cannot start the engine.

This indicator light illuminates for 2

seconds and goes off:

If the smart key is in the vehicle and the

Engine Start/Stop button is ON, but the

vehicle cannot detect the smart key.

In this case, have the vehicle inspected

by an authorized HYUNDAI dealer.

This indicator light blinks:

When there is a malfunction with the

immobilizer system.

In this case, have the vehicle inspected

by an authorized HYUNDAI dealer.

4-16

-------------------------------------------------------------------------------------------------------------------------------------------------------------

04

Turn Signal Indicator Light

LED headlight warning light

(if equipped)

This indicator light blinks:

This warning light illuminates:

When you operate the turn signal

ś When you set the Engine Start/Stop

indicator stalk.

button to the ON position.

- The LED headlight warning light

If any of the following occur, there may be

illuminates for approximately 3

a malfunction with the turn signal system.

seconds and then goes off.

- The turn signal indicator light

ś Whenever there is a malfunction with

illuminates but does not blink

the LED headlight.

- The turn signal indicator light blinks

If this occurs, have your vehicle

rapidly

inspected by an authorized HYUNDAI

- The turn signal indicator light does not

dealer.

illuminate at all

If any of these conditions occur, have

NOTICE

your vehicle inspected by an authorized

Continuous driving with the LED

HYUNDAI dealer.

Headlight warning light on or blinking

For more details, refer to “High Beam

can reduce LED headlight life.

Assist (HBA)” in chapter 5.

High Beam Indicator Light

Exterior Light Warning Light

(if equipped)

This indicator light illuminates:

This warning light illuminates:

ś When the headlights are on and in the

ś When one of the exterior bulbs

high beam position.

(headlight, DRL, turn signal lamp, stop

ś When the turn signal lever is pulled

lamp, etc) is not operating properly.

into the Flash-to-Pass position.

One of the bulbs may need to be

replaced.

Light ON Indicator Light

Information

Make sure to replace the burned out bulb

This indicator light illuminates:

with a new one of the same wattage rating.

When the tail lights or headlights are on.

4-17

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Instrument Cluster

High Beam Assist indicator

Lane Keep Assist Indicator

light (if equipped)

Light (if equipped)

This indicator light illuminates:

This indicator light illuminates:

When the High Beam is on with the light

ś

[Green] When you activate the lane

switch in the AUTO light position.

departure warning system by pressing

the Lane Safety button and all of

ś White: When High Beam Assist is

ready to operate.

the system operating conditions are

satisfied.

ś Green: When High Beam Assist is

ś

[White] When function operating

operating.

conditions are not satisfied or when

If your vehicle detects oncoming or

the sensor does not detect the lane

preceding vehicles, High Beam Assist

line.

system will switch the high beam to low

ś

[Yellow] When there is a malfunction

beam automatically.

with Lane Keeping Assist system.

For more information, refer to "High

In this case, have your vehicle inspected

Beam Assist (HBA)" in chapter 5.

by an authorized HYUNDAI dealer.

For more information, refer to "Lane

Forward Collision-Avoidance

Keeping Assist (LKA)" in chapter 6.

Assist Warning Light

(if equipped)

Cruise Indicator Light

This warning light illuminates:

ś When you set the ignition switch or

Engine Start/Stop button to the ON

This indicator light illuminates:

position.

ś When the cruise control system is

- It illuminates for approximately 3

enabled.

seconds and then goes off.

For more details, refer to “Cruise

ś When there is a malfunction with

Control System” in chapter 6.

FCA. In this case, have your vehicle

inspected by an authorized dealer of

HYUNDAI.

SPORT Mode Indicator Light

For more information, refer to "Forward

(if equipped)

Collision-Avoidance Assist (FCA)" in

chapter 6.

This indicator light illuminates:

ś When you select “SPORT” mode as

drive mode.

For more details, refer to “Drive Mode

Integrated Control System” in chapter

6.

4-18

-------------------------------------------------------------------------------------------------------------------------------------------------------------

04

SMART Mode Indicator Light

LCD Display Messages

(if equipped)

60$57

Shift to P or N to start engine

(for smart key system)

This indicator light illuminates:

This warning message is displayed if

ś When you select ‘’SMART” mode as

you try to start the engine with the shift

drive mode.

button not in the P (Park) or N (Neutral)

position.

For more details, refer to “Drive Mode

Integrated Control System’’ in chapter

6.

Information

You can start the engine with the shift

Icy Road Warning Light (if

button in the N (Neutral) position. But, for

equipped)

your safety, have you start the engine with

the shift button in the P (Park) position.

This indicator light illuminates:

Shift to P (for smart key system and

This warning light is to warn the driver

intelligent variable transmission)

the road may be icy.

This message is displayed if you try to

When the temperature on the outside

turn off the engine without the shift

temperature gauge is approximately

button in P (Park) position.

below 40°F (4°C), the Icy Road Warning

Light and Outside Temperature Gauge

If this occurs, the Engine Start/Stop

blinks and then illuminates. Also, the

button turns to the ACC position (If you

warning chime sounds 1 time.

press the Engine Start/Stop button once

more, it will turn to the ON position).

The Icy Road Warning function can be

activated or deactivated from the User

Low key battery

Settings mode in the cluster LCD display.

(for smart key system)

This warning message is displayed if the

Information

battery of the smart key is discharged

If the icy road warning light appears while

while changing the Engine Start/Stop

driving, you should drive more attentively

button to the OFF position.

and safely, refraining from over-speeding,

rapid acceleration, sudden braking or

Press brake pedal to start engine

sharp turning, etc.

(for smart key system and intelligent

variable transmission)

This warning message is displayed if the

Engine Start/Stop button changes to

the ACC position twice by pressing the

button repeatedly without depressing

the brake pedal.

You can start the vehicle by depressing

the brake pedal and then pressing the

Engine Start/Stop button.

4-19

-------------------------------------------------------------------------------------------------------------------------------------------------------------

-------------------------------------------------------------------------------------------------------------------------------------------------------------

04

Door, Hood, Trunk Open Indicator

Low Pressure

OCN7040017

OCN7040026L

This warning is displayed if any door or

This warning message is displayed if the

the hood or the liftgate is left open. The

tire pressure is low. The corresponding

warning will indicate which door is open

tire on the vehicle will be illuminated.

in the display.

For more information, refer to "Tire

Pressure Monitoring System (TPMS)" in

chapter 8.

CAUTION

Before driving the vehicle, you should

Lights Mode

confirm that the door/hood/liftgate

are fully closed. Also, check there is no

door/hood/liftgate open warning light

or message displayed on the instrument

cluster.

Sunroof Open (if equipped)

OIK047145L

This indicator displays which exterior

light is selected using the lighting

control.

OCN7040018

This warning is displayed if you turn off

the engine when the sunroof is open.

Close the sunroof securely before leaving

your vehicle.

4-21

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Instrument Cluster

Wiper

Low fuel

This warning message is displayed if the

fuel tank is almost out of fuel.

When this message is displayed, the low

fuel level warning light in the cluster will

come on.

It is recommended to look for the nearest

fueling station and refuel as soon as

possible.

Engine Overheated (if equipped)

This warning message is displayed

OAD048579N

when the engine coolant temperature

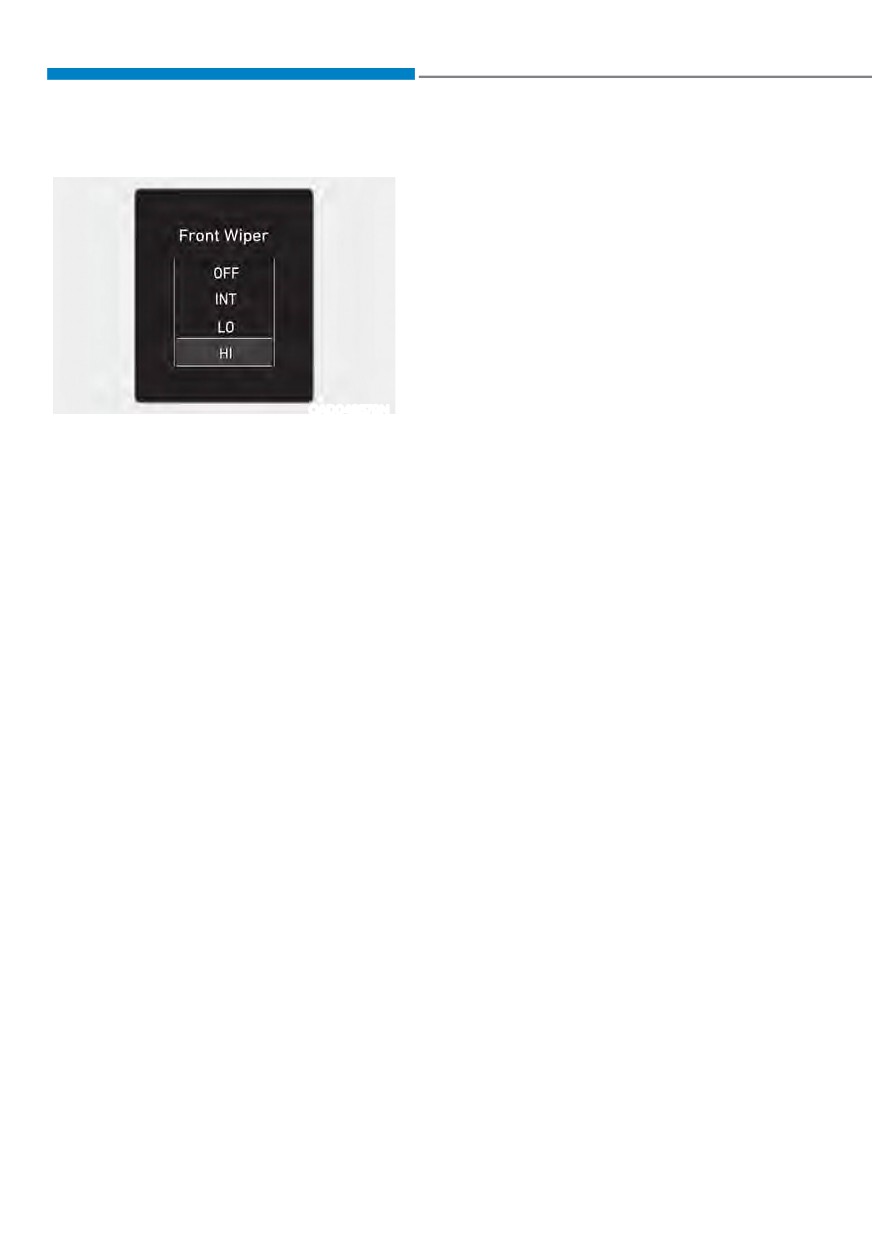

This indicator displays which wiper speed

is above 248°F (120°C). This means that

is selected using the wiper control.

the engine is overheated and may be

damaged.

Heated Steering Wheel turned off (if

If your vehicle is overheated, refer to

equipped)

“Overheating” in chapter 8.

This message is displayed if you turn off

the heated steering wheel.

Check headlight (if equipped)

For more details, refer to “Heated

This warning message is displayed if the

Steering Wheel” in chapter 5.

headlights are not operating

properly.

Low washer fluid (if equipped)

In addition, if a specific lamp(turn signal

This warning message is displayed if

lamp etc.) is not operating properly, the

the washer fluid level in the reservoir is

warning message according to a specific

nearly empty.

lamp (turn signal lamp etc.) is displayed.

Have the washer fluid reservoir refilled.

A corresponding bulb may need to be

replaced.

Make sure to replace the burned out

bulb with a new one of the same wattage

rating.

4-22

-------------------------------------------------------------------------------------------------------------------------------------------------------------

-------------------------------------------------------------------------------------------------------------------------------------------------------------

-------------------------------------------------------------------------------------------------------------------------------------------------------------

04

/&' ',63/$< ǣ7<3( $Ǥ

LCD Display Control

OCN7040023L

The LCD display modes can be changed by using the control buttons.

1.

: MODE button for changing modes

2.

,

: MOVE switch for changing items

3. OK : Push the SELECT/RESET button for setting or resetting the selected item

Information

When the infotainment system is applied, only the User’s Setting mode on the

infotainment system is supported but the User’s Setting mode on the instrument cluster is

not supported.

4-25

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Instrument Cluster

LCD Display Modes

Modes

Symbol

Explanation

This mode displays driving information such as the tripmeter,

Trip

fuel economy, etc.

Computer

For more details, refer to "Trip Computer" in this chapter.

Turn By

This mode displays the state of the navigation.

Turn (TBT)

- Smart Cruise Control (SCC)

Driving

- Lane Keeping Assist (LKA)

Assist

- Lane Following Assist (LFA)

- Driver Attention Warning (DAW)

User

In this mode, you can change settings of the doors, lamps,

Settings

etc.

- This mode displays warning messages related to the

Warning

lamp malfunction, etc.

- Tire pressure information

The information provided may differ depending on which functions are applicable

to your vehicle.

4-26

-------------------------------------------------------------------------------------------------------------------------------------------------------------

04

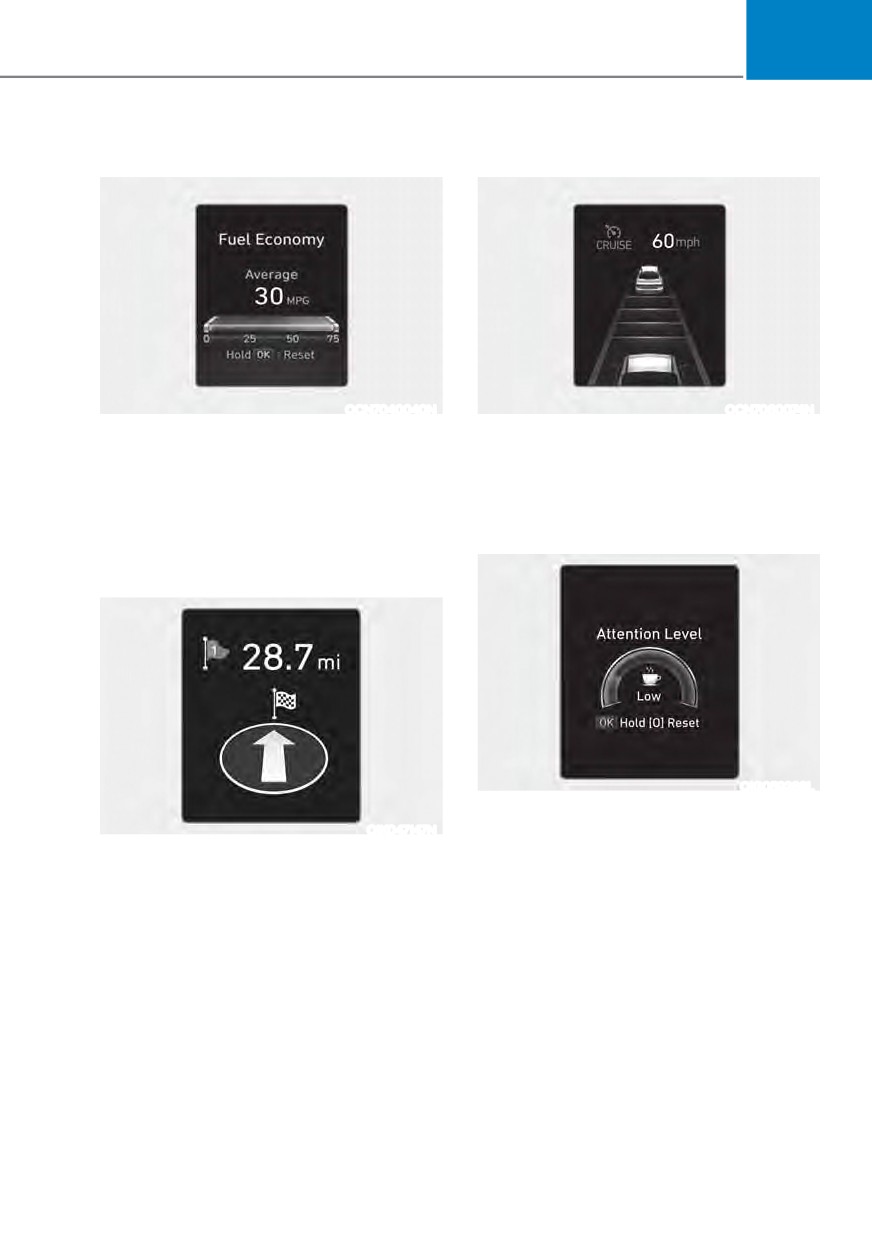

Trip computer mode

Driving Assist mode

OCN7040040N

OCN7060074N

The trip computer mode displays

SCC/LKA

information related to vehicle driving

This group displays the state of the Smart

parameters including fuel economy, trip

Cruise Control, Lane Keeping Assist.

meter information and vehicle speed.

For more details, refer to each function

For more information, refer to "Trip

information in chapter 7.

Computer" in this chapter.

Turn By Turn (TBT) mode

OIG059288L

Driver Attention Warning

OIK047147N

This group displays information related

This mode displays the state of the

to Driver Attention Warning.

navigation.

For more details, refer to "Driver

Attention Warning (DAW)" in chapter 7.

4-27

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Instrument Cluster

Master warning mode

ODN8049019L

OIG059097L

Tire Pressure

This warning light informs the driver the

This mode displays information related to

following situations.

Tire Pressure.

- Forward Collision-Avoidance Assist

For more information, refer to "Tire

system malfunction (if equipped)

Pressure Monitoring System (TPMS)" in

chapter 8.

- Forward Collision-Avoidance Assist

radar blocked (if equipped)

- Blind-Spot Collision Warning system

malfunction (if equipped)

- Blind-Spot Collision Warning radar

blocked (if equipped)

- High Beam Assist malfunction (if

equipped)

- Lamp malfunction (if equipped)

- Smart Cruise Control malfunction (if

equipped)

- Tire Pressure Monitoring System

(TPMS) malfunction (if equipped)

The Master Warning Light illuminates

if one or more of the above warning

situations occur. At this time, a Master

Warning icon (

) will appear beside

the User Settings icon (

), on the LCD

display. (if equipped)

If the warning situation is solved, the

master warning light will be turned

off and the Master Warning icon will

disappear.

4-28

-------------------------------------------------------------------------------------------------------------------------------------------------------------

04

User Settings Mode

Shift to P to edit settings / Engage parking

brake to edit settings

This warning message illuminates if

you try to select an item from the User

Settings mode while driving.

ś Intelligent variable transmission

For your safety, change the User

Settings after parking the vehicle,

applying the parking brake and

moving the shift level to P(Park).

ś Manual transmission

For your safety, change the User

OCN7040038N

Settings after engaging the parking

In this mode, you can change the

brake.

settings of the instrument cluster, doors,

lamps, etc.

Quick guide (Help)

1. Head-Up Display

This mode provides quick guides for the

2. Driver Assistance

systems in the User Settings mode.

3. Door

Select an item, press and hold the OK

4. Lights

button.

5. Sound

For more details about each system,

6. Convenience

refer to this Owner’s Manual.

7. Service interval

8. Other

9. Language

10.Reset

The information provided may differ

depending on which functions are

applicable to your vehicle.

4-29

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Instrument Cluster

1. Driver Assistance

Items

Explanation

ś Highway Driving Assist: The function assists the driver to maintain

Driving

the set speed, keep a safe distance with a vehicle ahead and keep

Assist

the vehicle inside of the lane while driving on the highway.

For more details, refer to the "Highway Driving Assist (HDA)" in chapter 7.

Warning

To adjust the warning timing of the driver assistance system.

Timing

ś Normal / Late

Warning

To adjust the warning timing of the driver assistance system.

Volume

ś High / Medium / Low / Off

ś Leading Vehicle Departure Alert

To activate or deactivate the Leading vehicle departure alert.

Driver

ś Inattentive Driving Warning

Attention

Warning

To activate or deactivate the Driver Attention Warning.

For more details, refer to the “Driver Attention Warning (DAW)” in

chapter 7.

To adjust the Lane Keeping Assist function.

Forward

ś Active Assist/Warning Only/Off

Safety

For more details, refer to the "Forward Collision-Avoidance Assist

(FCA)" in chapter 7.

To adjust the Lane Keeping Assist function.

Lane Safety

ś Lane Keeping Assist/Lane Departure Warning/Off

For more details, refer to "Lane Keeping Assist (LKA)" in chapter 7.

ś Safe Exit Warning (SEW)

To activate or deactivate the Safe Exit Warning.

For more details, refer to the “Safe Exit Warning (SEW)” in chapter 7.

Blind-Spot

Safety

ś Active Assist/Warning Only/ Off

For more details, refer to “Blind-Spot Collision Warning (BCW)” or

“Blind-Spot Collision-Avoidance Assist (BCA)” in chapter 7.

ś Parking Distance Warning Auto ON

ś Rear Cross-Traffic Safety

To Activate or deactivate the Rear Cross-Traffic Collision-Avoidance

Parking

Assist function.

Safety

ś Active Assist/Warning Only/ Off

For more details, refer to “Rear Cross-Traffic Collision-Avoidance

Assist (RCCA)” in chapter 7.

4-30

-------------------------------------------------------------------------------------------------------------------------------------------------------------

04

2. Door

Items

Explanation

ś Enable on Shift: All doors will be automatically locked if the shift

lever is moved from the P (Park) position to the R (Reverse), N

(Neutral), or D (Drive) position. (Only when the engine is running)

Auto Lock

ś Enable on Speed: All doors will be automatically locked when the

vehicle speed exceeds 15km/h (9.3mph).

ś Disable : The auto door lock operation will be deactivated.

ś On Shift to P: All doors will be automatically unlocked if the shift

lever is moved to P (Park) position. (Only when the engine is

running)

Auto Unlock

ś On key out/Vehicle Off : All doors will be automatically

unlockedwhen the ignition key is removed from the ignition switch

or the Engine Start/Stop button is set to the OFF position.

ś Disable : The auto door unlock operation will be canceled.

ś Off: The two press unlock function will be deactivated. Therefore, all

doors will unlock if the door unlock button is pressed.

Two Press

ś On: Only the driver’s door will unlock if the door unlock button is

Unlock

pressed. When the door unlock button is pressed again within 4

seconds, the remaining doors will unlock.

To activate or deactivate the horn feedback.

If the horn feedback is activated, after locking the door by pressing the

Horn

lock button on the remote key, and pressing it again within 4 seconds,

Feedback

the horn feedback sound will operate once to indicate that all doors

are locked (if equipped with remote key).

To activate or deactivate the smart trunk.

Smart Trunk

For more details, refer to “Smart trunk” in chapter 5.

4-31

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Instrument Cluster

3. Lights

Items

Explanation

To adjust the illumination level.

Illumination

- Level 1~20

ś Off: The one touch turn signal function will be deactivated.

One Touch

ś

3, 5, 7 Flashes: The turn signal indicator will blink 3, 5, or 7 times

Turn Signal

when the turn signal lever is moved slightly.

For more details, refer to “Lighting” in chapter 5.

Headlight

ś To activate or deactivate the headlight delay function.

Delay

For more details, refer to “Lighting” in chapter 5.

High Beam

ś To activate or deactivate the High Beam Assist function.

Assist

For more details, refer to “High Beam Assist (HBA)” in chapter 5.

4-32

-------------------------------------------------------------------------------------------------------------------------------------------------------------

04

4. Sound

Items

Explanation

Cluster

Voice

To adjust the cluster voice guidance volume.

Guidance

Volume

Welcome

To activate or deactivate the welcome sound.

sound

5. Convenience

Items

Explanation

ś Off: The seat easy access function is deactivated.

ś Normal/Extended: When you turn off the engine, the driver’s seat

Seat Easy

will automatically move rearward short (Normal) or long (Extended)

Access

for you to enter or exit the vehicle more comfortably.

For more details, refer to “Driver Position Memory System” in

chapter 5.

Rear

ś To activate or deactivate the rear occupant alert system.

Occupant

For more details, refer to the “Rear Occupant Alert (ROA)" in chapter

Alert

5.

ś On door unlock: The welcome light turns on automatically when the

doors are unlocked.

Welcome

ś On driver approach: The welcome light turns on automatically when

Light

the vehicle is approached with the smart key.

For more details, refer to ‘’Welcome System’’ in chapter 5.

Wireless

To activate or deactivate the wireless charging system in the front seat.

Charging

For more details, refer to “Wireless cellular phone charging system”

System

in chapter 5.

To activate or deactivate the Wiper/ Light mode.

Wiper/Lights

When activated, the LCD display shows the selected Wiper/Light mode

Display

whenever you changed the mode.

Icy Road

To activate or deactivate the icy road warning function.

Warning

4-33

-------------------------------------------------------------------------------------------------------------------------------------------------------------

-------------------------------------------------------------------------------------------------------------------------------------------------------------

04

8. Other

Items

Explanation

ś Off: The average fuel economy will not reset automatically

whenever refueling.

ś After ignition: When the engine has been OFF for 4 hours or longer

Fuel Econ.

the average fuel economy will reset automatically.

Reset

ś After refueling: The average fuel economy will reset automatically

after adding 6 liters (1.6 gallons) of fuel or more and after driving

speed exceeds 1 km/h (1 mph).

For more details, refer to “Trip Computer” in this chapter.

Speed Unit

To select the speed unit. (km/h, MPH)

(if equipped)

Fuel Econ.

To select the fuel economy unit. (km/L, L/100km, MPG)

Unit

Temperature

To select the temperature unit. (°C,°F)

Unit

Tire Pressure

To select the tire pressure unit. (psi, kPa, bar)

Unit

9. Language (if equipped)

Items

Explanation

Choose the language. You can choose the language in infotain-

Language

ment system. (if equipped)

10. Reset

Items

Explanation

You can reset the menus in the User Settings Mode. All menus in

Reset

the User Settings Mode are reset to factory settings, except language

and service interval.

4-35

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Instrument Cluster

Trip Computer

The trip computer is a microcomputer-

controlled driver information system that

displays information related to driving.

Information

Some driving information stored in the

trip computer (for example Average

Vehicle Speed) resets if the battery is

disconnected.

ODN8A069203

To change the trip mode, toggle the “

,

Trip modes

” switch on the steering wheel.

Fuel Economy

Average fuel economy/

ś Average Fuel Economy

Instant fuel economy

ś Instant Fuel Economy

Accumulated Info

ś Tripmeter

ś Average Fuel Economy

ś Elapsed Time

Drive Info

ś Tripmeter

OCN7040045N

ś Average Fuel Economy

Average Fuel Economy (1)

ś Elapsed Time

ś The average fuel economy is

calculated by the total driving

distance and fuel consumption since

the last average fuel economy reset.

Digital Speedometer

ś The average fuel economy can

be reset both manually and

automatically.

Auto Stop (if equipped)

ś Auto Stop accumulated

time

Smart Shift

4-36

-------------------------------------------------------------------------------------------------------------------------------------------------------------

04

Manual reset

Accumulated Info display

To clear the average fuel economy

manually, press the OK button on the

steering wheel for more than 1 second

when the average fuel economy is

displayed.

Automatic reset

To automatically reset the average fuel

economy after refueling, select the "Fuel

Econ. Reset" mode in the User Settings

menu on the LCD display.

OCN7040085N

- After Ignition: When the engine has

been OFF for 4 hours or longer the

This display shows the accumulated trip

average fuel economy will reset

distance (1), the average fuel economy

automatically.

(2), and the total driving time (3).

- After Refueling: The average fuel

The information is accumulated starting

economy will reset automatically after

from the last reset.

adding 1.6 gallons (6 liters) of fuel or

To reset the information, press and

more and after driving speed exceeds

hold the OK button when viewing the

1 mph (1 km/h).

Accumulated driving info. The trip

distance, the average fuel economy,

and total driving time will reset

Information

simultaneously.

The vehicle must be driven for a minimum

The accumulated driving information will

of 0.19 miles (300 meters) since the last

continue to be counted while the engine

ignition key cycle before the average fuel

is still running (for example, when the

economy will be recalculated.

vehicle is in traffic or stopped at a stop

light).

Instant Fuel Economy (2)

The instantaneous fuel economy is

Information

displayed according to the bar graph in

the LCD display while driving.

The vehicle must be driven for a minimum

of 300 meters (0.19 miles) since the last

ignition key cycle before the average fuel

economy will be recalculated.

4-37

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Instrument Cluster

Drive Info display

Digital speedometer

OCN7040086N

OIK047151N

This display shows the trip distance (1),

The digital speedometer display shows

the average fuel economy (2), and the

the speed of the vehicle.

total driving time (3).

The information is combined for each

Auto Stop accumulated time

ignition cycle. However, when the engine

has been OFF for 4 hours or longer the

Drive Info screen will reset.

To manually reset the information, press

and hold the OK button when viewing

the Drive Info. The trip distance, the

average fuel economy, and total driving

time will reset simultaneously.

The driving information will continue

to be counted while the engine is still

running (for example, when the vehicle is

in traffic or stopped at a stop light).

ODN8A049036

This mode displays the Auto Stop

accumulated time within ISG vehicles.

Information

The vehicle must be driven for a minimum

of 0.19 miles (300 meters) since the last

ignition key cycle before the average fuel

economy will be recalculated.

4-38

Content      ..     2      3      4      5     ..
