04

Smart shift

ODN8059274L

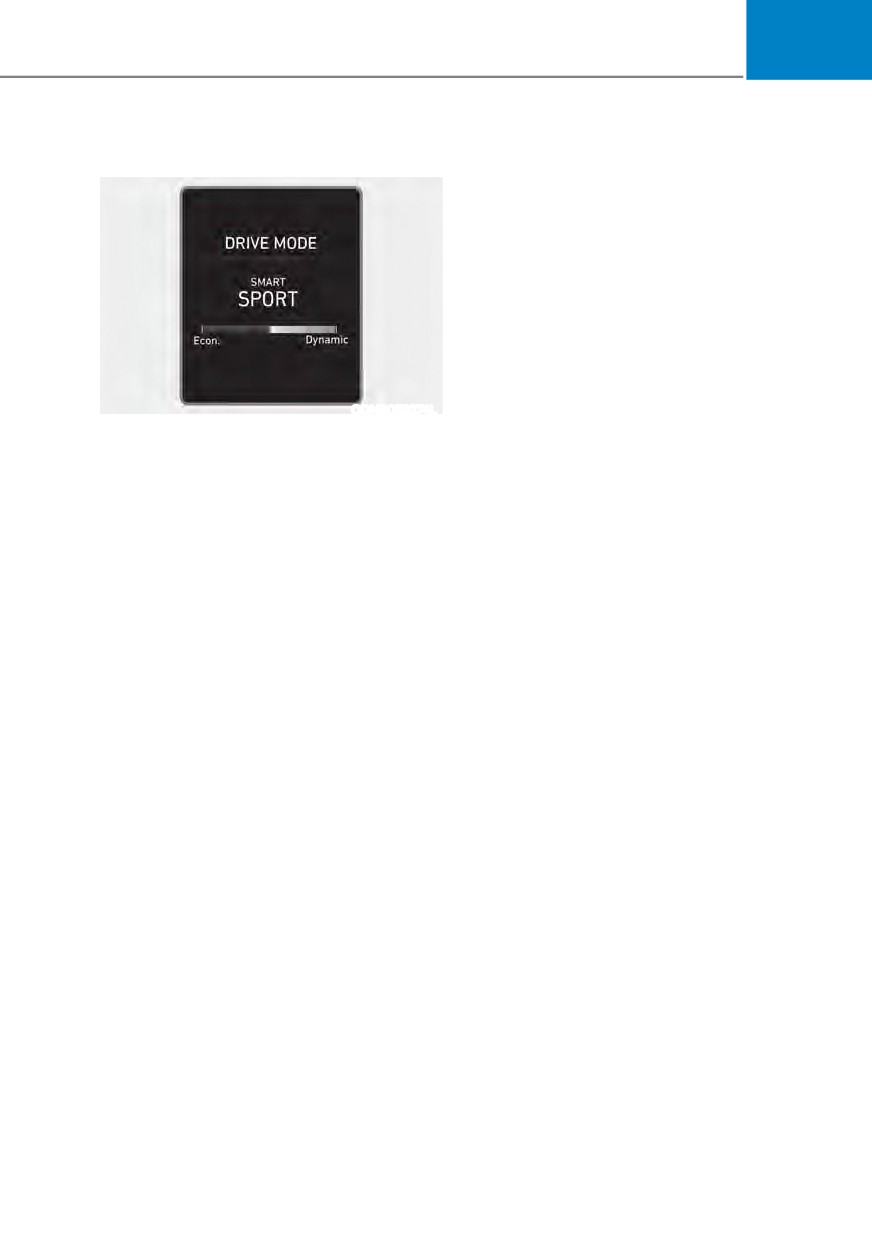

This mode displays the currently selected

drive mode.

For more information, refer to "Drive

Mode Integrated Control System'' in

chapter 6.

4-39

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Instrument Cluster

/&' ',63/$< ǣ7<3( %Ǥ

LCD Display Control

OCN7040023L

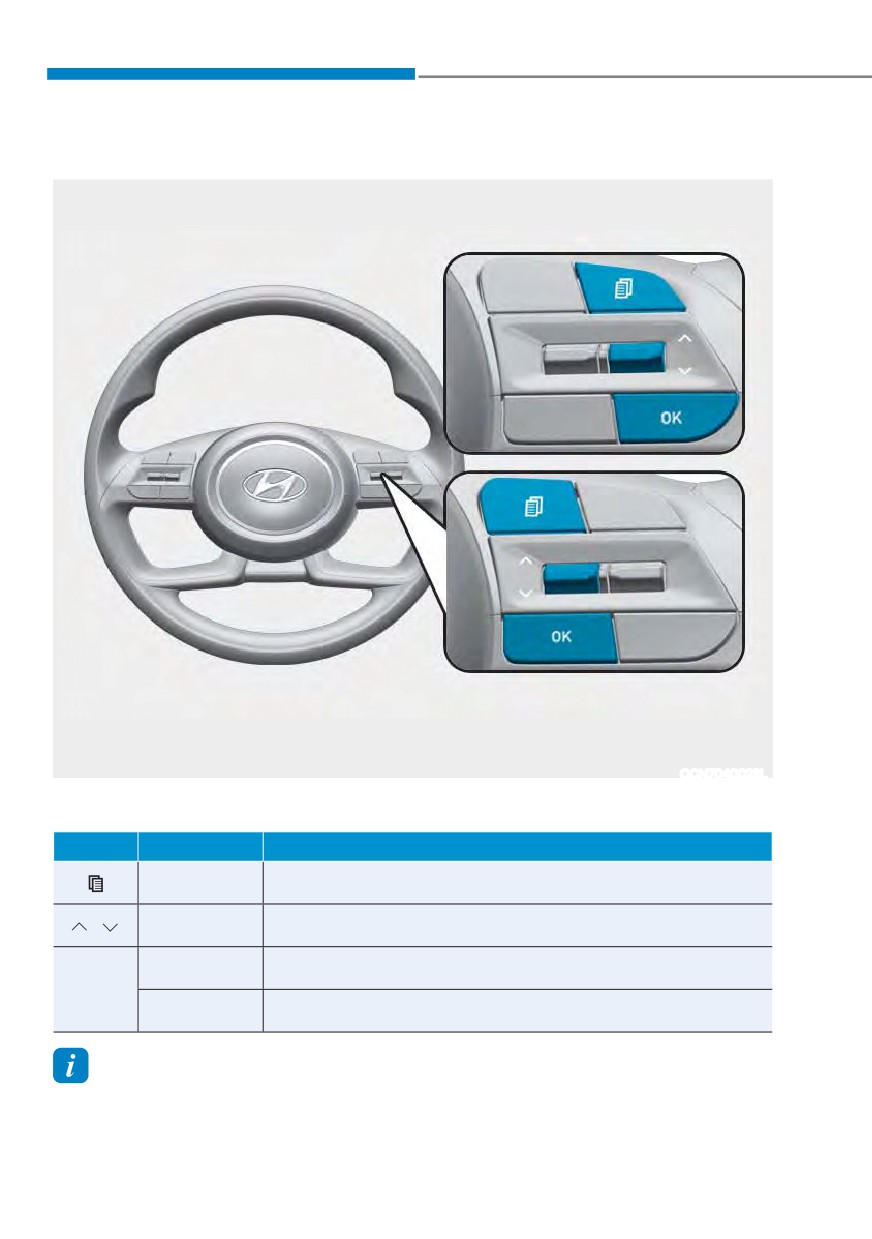

The LCD display modes can be changed by using the control buttons.

Switch

Operation

Function

Tap

MODE button for changing view modes

,

Tap

MOVE switch for changing items

Tap

SELECT/RESET button for setting the selected item

OK

SELECT/RESET button for retrieving assist information or

Tap and hold

resetting the selected item

Information

When the infotainment system is applied, only the User’s Setting mode on the

infotainment system is supported but the User’s Setting mode on the instrument cluster is

not supported.

4-40

-------------------------------------------------------------------------------------------------------------------------------------------------------------

04

View Modes

View Modes

Explanation

The Utility group displays driving information such as the trip

Utility group

distance, fuel economy and etc.

Driving assist group

The Driving Assist mode displays the driving status.

Navigation group

This mode displays the state of the navigation.

Display for 4 seconds when the vehicle mode changes from

Driving info. group

IGN ON to OFF.

The information provided may differ depending on which functions are applicable

to your vehicle.

4-41

-------------------------------------------------------------------------------------------------------------------------------------------------------------

-------------------------------------------------------------------------------------------------------------------------------------------------------------

04

Driving Assist group

Driving info. group

OCN7040082N

OCN7040083N

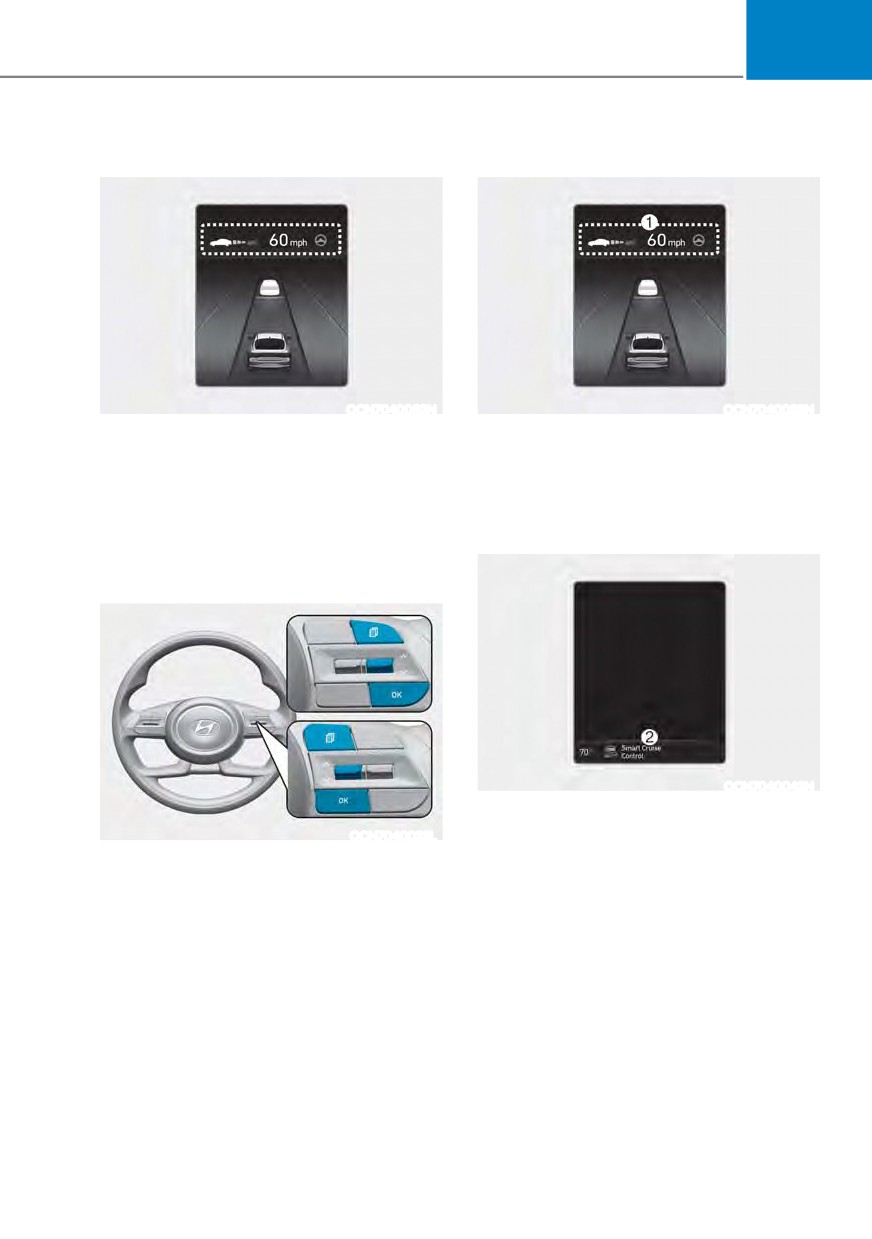

SCC/LFA/HDA

Driving information summary (1)

This group displays the state of Smart

The current operation conditions of the

Cruise Control, Lane Following Assist and

Cruise Control mode, Smart

Highway Driving Assist.

Cruise Control and Highway Driving

For more details, refer to each function

Assist modes.

information in chapter 7.

Navigation group

OCN7040042N

Driving information summary (2)

OCN7040023L

The current operation conditions of

It shows the information by interworking

the Cruise Control mode, Smart Cruise

with the navigation.

Control and Highway Driving Assist

modes.

4-43

-------------------------------------------------------------------------------------------------------------------------------------------------------------

-------------------------------------------------------------------------------------------------------------------------------------------------------------

04

1.

Driver Assistance

Items

Explanation

ś Highway Driving Assist: The function assists the driver to maintain

Driving

the set speed, keep a safe distance with a vehicle ahead and help

Assist

keep the vehicle inside of the lane while driving on the highway.

For more details, refer to the "Highway Driving Assist (HDA)" in chapter 7.

Warning

To adjust the warning timing of the driver assistance system.

Timing

ś Normal / Late

Warning

To adjust the warning volume of the driver assistance system.

Volume

ś High / Medium / Low / Off

ś Leading Vehicle Departure Alert

To activate or deactivate the Leading vehicle departure alert.

Driver

ś Inattentive Driving Warning

Attention

Warning

To activate or deactivate the Driver Attention Warning.

For more details, refer to the “Driver Attention Warning (DAW)” in

chapter 7.

To adjust Forward Collision-Avoidance Assist function.

Forward

ś Active Assist/Warning only/Off

Safety

For more details, refer to the "Forward Collision-Avoidance Assist

(FCA)" in chapter 7.

To adjust the Lane Keeping Assist function.

Lane Safety

ś Lane Keeping Assist/Lane Departure Warning/Off

For more details, refer to "Lane Keeping Assist (LKA)" in chapter 7.

ś Safe Exit Warning (SEW)

To activate or deactivate the Safe Exit Warning.

For more details, refer to the “Safe Exit Warning (SEW)” in chapter 7.

Blind-Spot

Safety

ś Active Assist/Warning only/Off

For more details, refer to “Blind-Spot Collision Warning (BCW)” or

“Blind-Spot Collision-Avoidance Assist (BCA)” in chapter 7.

ś Rear Cross-Traffic Safety

To Activate or deactivate the Rear Cross-Traffic Collision-Avoidance

Parking

Assist function.

Safety

ś Active Assist/Warning only/Off

For more details, refer to “Rear Cross-Traffic Collision-Avoidance

Assist (RCCA)” in chapter 7.

4-45

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Instrument Cluster

2. Door

Items

Explanation

ś Enable on Shift: All doors will be automatically locked if the shift

lever is moved from the P (Park) position to the R (Reverse), N

(Neutral), or D (Drive) position. (Only when the engine is running)

Auto Lock

ś Enable on Speed: All doors will be automatically locked when the

vehicle speed exceeds 15km/h (9.3mph).

ś Disable : The auto door lock operation will be deactivated.

ś On Shift to P: All doors will be automatically unlocked if the shift

lever is moved to P (Park) position. (Only when the engine is

running)

Auto Unlock

ś On key out/Vehicle Off : All doors will be automatically

unlockedwhen the ignition key is removed from the ignition switch

or the Engine Start/Stop button is set to the OFF position.

ś Disable : The auto door unlock operation will be canceled.

ś Off: The two press unlock function will be deactivated. Therefore, all

doors will unlock if the door unlock button is pressed.

Two Press

ś On: Only the driver’s door will unlock if the door unlock button is

Unlock

pressed. When the door unlock button is pressed again within 4

seconds, the remaining doors will unlock.

To activate or deactivate the horn feedback.

If the horn feedback is activated, after locking the door by pressing the

Horn

lock button on the remote key, and pressing it again within 4 seconds,

Feedback

the horn feedback sound will operate once to indicate that all doors

are locked (if equipped with remote key).

To activate or deactivate the smart trunk.

Smart Trunk

For more details, refer to “Smart trunk” in chapter 5.

4-46

-------------------------------------------------------------------------------------------------------------------------------------------------------------

04

3. Lights

Items

Explanation

To adjust the illumination level.

Illumination

- Level 1~20

ś Off: The one touch turn signal function will be deactivated.

One Touch

ś

3, 5, 7 Flashes: The turn signal indicator will blink 3, 5, or 7 times

Turn Signal

when the turn signal lever is moved slightly.

For more details, refer to “Lighting” in chapter 5.

Headlight

ś To activate or deactivate the headlight delay function.

Delay

For more details, refer to “Lighting” in chapter 5.

High Beam

ś To activate or deactivate the High Beam Assist function.

Assist

For more details, refer to “High Beam Assist (HBA)” in chapter 5.

4-47

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Instrument Cluster

4. sound

Items

Explanation

Cluster

Voice

To adjust the cluster voice guidance volume.

Guidance

Volume

Welcome

To activate or deactivate the welcome sound.

sound

5. Convenience

Items

Explanation

ś Off: The seat easy access function is deactivated.

ś Normal/Extended: When you turn off the engine, the driver’s seat

Seat Easy

will automatically move rearward short (Normal) or long (Extended)

Access

for you to enter or exit the vehicle more comfortably.

For more details, refer to “Driver Position Memory System” in

chapter 5.

Rear

ś To activate or deactivate the rear occupant alert system.

Occupant

For more details, refer to the “Rear Occupant Alert (ROA)" in chapter

Alert

5.

ś On door unlock: The welcome light turns on automatically when the

doors are unlocked.

Welcome

ś On driver approach: The welcome light turns on automatically when

Light

the vehicle is approached with the smart key.

For more details, refer to ‘’Welcome System’’ in chapter 5.

Wireless

To activate or deactivate the wireless charging system in the front seat.

Charging

For more details, refer to “Wireless cellular phone charging system”

System

in chapter 5.

To activate or deactivate the traffic information.

Traffic

When activated, the traffic information will be displayed on the LCD

Information

display. (for cluster type B)

Tunnel Entry

Automatically adjusts climate controls upon entering a tunnel.

Assist

Icy Road

To activate or deactivate the icy road warning function.

Warning

4-48

-------------------------------------------------------------------------------------------------------------------------------------------------------------

04

6. Service interval

Items

Explanation

Enable

Service

To activate or deactivate the service interval function.

Interval

To use the service interval menu, consult an authorized HYUNDAI dealer.

If the service interval is activated and the time and distance is adjusted, messages are

displayed in the following situations each time the vehicle is turned on.

- Service in

: Displayed to inform the driver the remaining mileage and days to service.

- Service required

: Displayed when the mileage and days to service has been reached or passed.

Information

If any of the following conditions occur, the mileage and number of days to service may be

incorrect.

- The battery cable is disconnected.

- The fuse switch is turned off.

- The battery is discharged.

7. Theme selection

To select the style of instrument cluster graphic style and setting.

ś Theme A / Theme B / Theme C

ś Link to Drive Mode

4-49

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Instrument Cluster

8. Other

Items

Explanation

ś At vehicle start : This displays the average fuel economy after

restarting.

Reset fuel

ś After refueling : This displays the average fuel economy after

economy

refueling.

ś Manually : You can calculate the accumulated average fuel

economy manually.

ś Off: The average fuel economy will not reset automatically

whenever refueling.

ś After ignition: When the engine has been OFF for 4 hours or longer

Fuel Econ.

the average fuel economy will reset automatically.

Reset

ś After refueling: The average fuel economy will reset automatically

after adding 6 liters (1.6 gallons) of fuel or more and after driving

speed exceeds 1 km/h (1 mph).

For more details, refer to “Trip Computer” in this chapter.

Speed Unit

To select the speed unit. (km/h, MPH)

(if equipped)

Fuel Econ.

To select the fuel economy unit. (km/L, L/100km, MPG)

Unit

Temperature

To select the temperature unit. (°C,°F)

Unit

Tire Pressure

To select the tire pressure unit. (psi, kPa, bar)

Unit

9. Language (if equipped)

Items

Explanation

Choose the language. You can choose the language in infotainment

Language

system. (if equipped)

10. Reset

Items

Explanation

You can reset the menus in the User Settings Mode. All menus in the

Reset

User Settings Mode are reset to factory settings, except language and

service interval.

4-50

-------------------------------------------------------------------------------------------------------------------------------------------------------------

-------------------------------------------------------------------------------------------------------------------------------------------------------------

-------------------------------------------------------------------------------------------------------------------------------------------------------------

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Convenience Features

ACCESSING YOUR VEHICLE

Remote Key (if equipped)

WARNING

Do not leave the keys in your

vehicle with unsupervised children.

Unattended children could place the

key in the ignition switch and may

operate power windows or other

controls, or even make the vehicle

move, which could result in serious

injury or death.

Unlocking your vehicle

To unlock your vehicle:

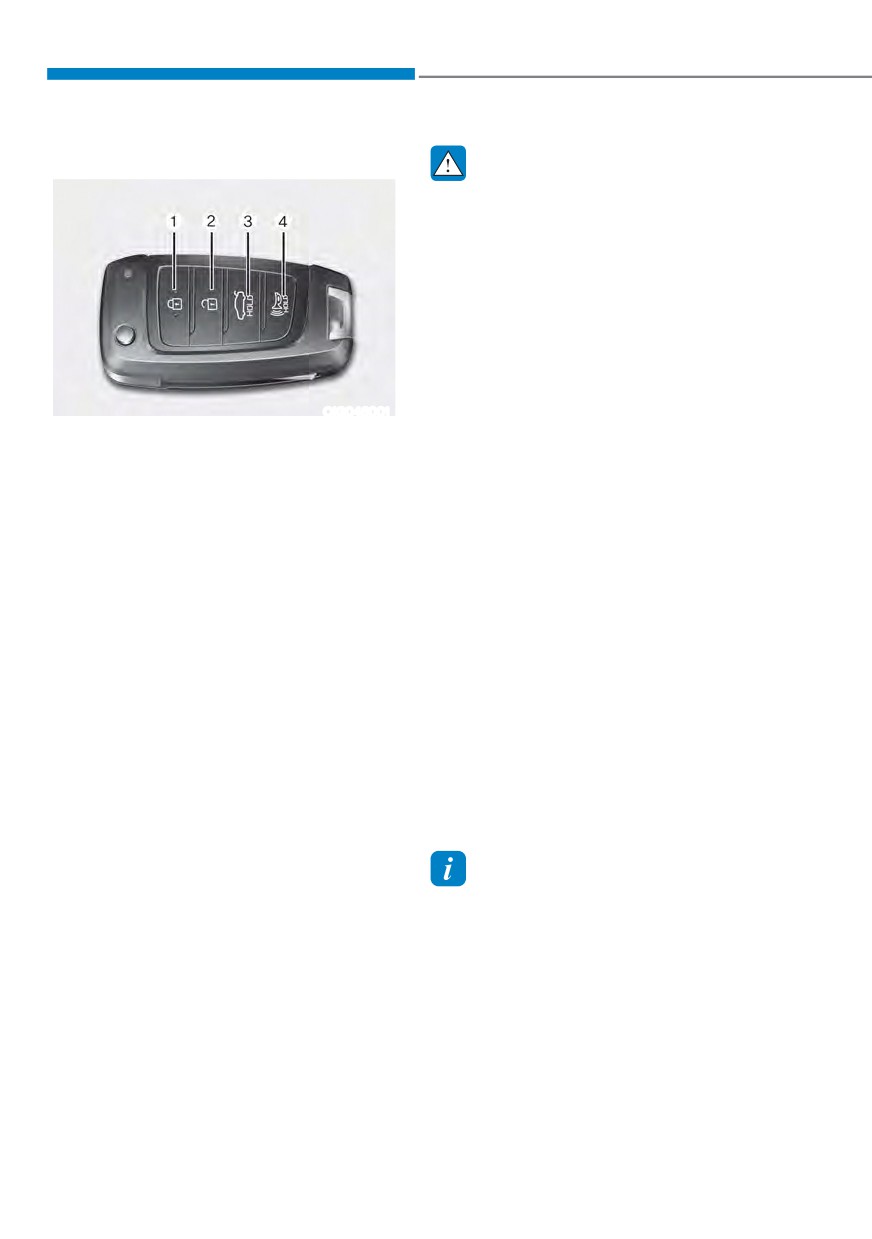

OIG046001

1. Press the Door Unlock button (2) on

Your HYUNDAI uses a remote key, which

the remote key.

you can use to lock or unlock the driver

and passenger doors or the rear trunk.

2. The driver’s door will unlock. The

hazard warning lights will blink two

(1) Door Lock

times.

(2) Door Unlock

ś Two press unlock setting:

(3) Trunk Unlock

If you press the Door Unlock button

(4) Panic

on the remote key again within

four seconds, then all the doors will

Locking your vehicle

unlock.

To lock your vehicle:

Two press unlock setting can be

1. Make sure all doors, the engine hood

changed according to owner’s

and the trunk are closed.

preference in the cluster User Settings

mode.

2. Press the Door Lock button (1) on the

remote key to lock all doors.

ś User settings mode method:

3. The doors will lock and the hazard

Select or deselect the ‘Two Press

warning lights will blink.

Unlock’ feature in the User Settings

mode on the cluster LCD display (User

4. Make sure the doors are locked by

6HWWLQJV Ɵ 'RRU Ɵ 7ZR 3UHVV 8QORFN

checking the position of the door lock

button inside the vehicle.

Information

After unlocking the doors, the doors will

automatically relock after 30 seconds

unless a door is opened.

5-4

-------------------------------------------------------------------------------------------------------------------------------------------------------------

05

Trunk unlocking

Mechanical key

To unlock the trunk :

1. Press and hold the Trunk Unlock

button (3) on the remote key for more

than one second.

2. The hazard warning lights will blink

two times and the trunk will be

unlocked.

3. Once the trunk is opened and then

closed, the trunk will automatically

lock.

OIG046004

Information

If the remote key does not operate

normally, you can lock or unlock the

The word “HOLD” is written on the

driver’s door by using the mechanical

button to inform you that you must press

key.

and hold the button for more than one

second.

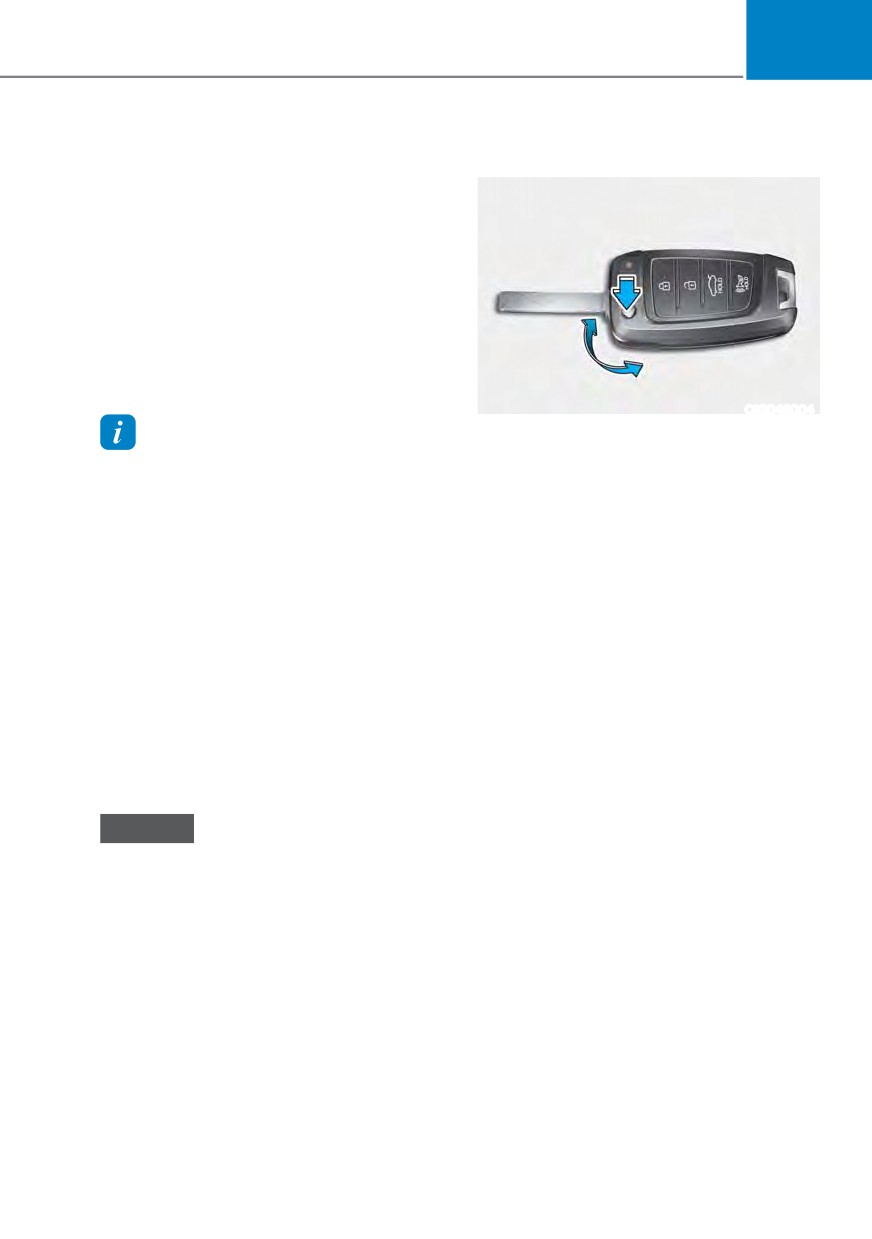

To unfold the mechanical key, press the

release button on the remote.

Panic button

To return the key to its stored position,

press the release button and fold the key

Press and hold the Panic button (4) for

back into the remote.

more than one second. The horn sounds

and hazard warning lights flash for about

30 seconds.

Remote key precautions

To cancel the panic mode, press any

The remote key will not work if any of the

button on the remote key.

following occur:

ś The key is in the ignition switch.

Start-up

ś You exceed the operating distance

For information, refer to the “Key

limit (about 33 feet [10 m]).

Ignition Switch” section in chapter 6.

ś The remote key battery is weak.

ś Other vehicles or objects may be

NOTICE

blocking the signal.

To prevent damaging the remote key:

ś The weather is extremely cold.

ś Keep the remote key away from

ś The remote key is close to a radio

water or any liquid and fire. Internal

transmitter such as a radio station or

circuits may malfunction if the inside

an airport which can interfere with

of the remote key gets damp (from

normal operation of the remote key.

liquids or moisture) or if it is heated.

If the remote key does not work

This can exclude the remote key from

correctly, open and close the door

being covered under warranty.

with the mechanical key. If you have a

ś Avoid dropping or throwing the

problem with the remote key contact an

remote key.

authorized HYUNDAI dealer.

ś Protect the remote key from extreme

temperatures.

5-5

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Convenience Features

If the remote key is in close proximity to

Battery replacement

your mobile phone, the signal could be

blocked by your mobile phone’s normal

operational signals. This is specifically

relevant when the phone is active such

as making and receiving calls, text

messaging, and/or sending/receiving

emails.

When possible, avoid placing the remote

key and your mobile phone in the same

location such as a pants or jacket pocket

in order to avoid interference between

the two devices.

OPD046002

If the remote key is not working properly,

Information

try replacing the battery with a new one.

This device complies with Part 15 of the

Battery Type: CR2032

FCC rules.

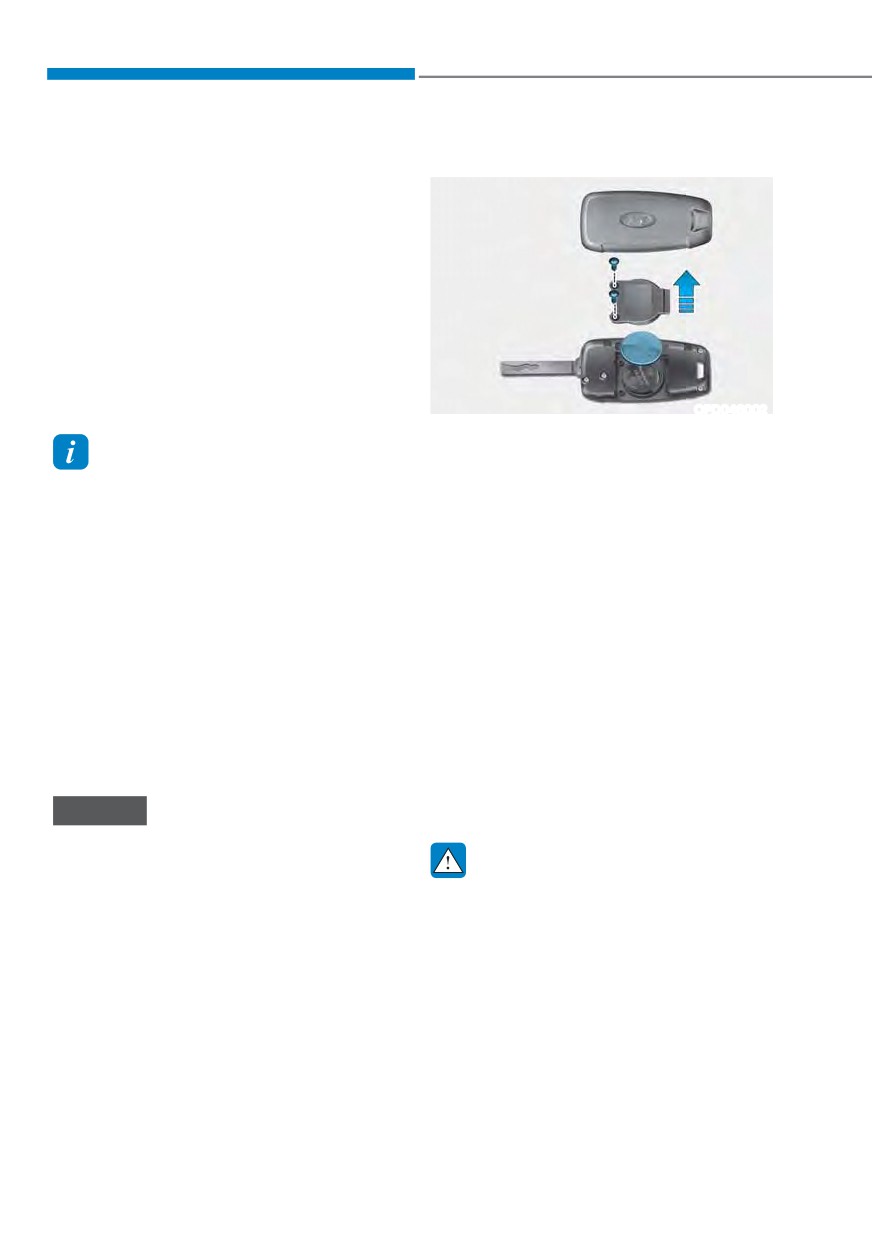

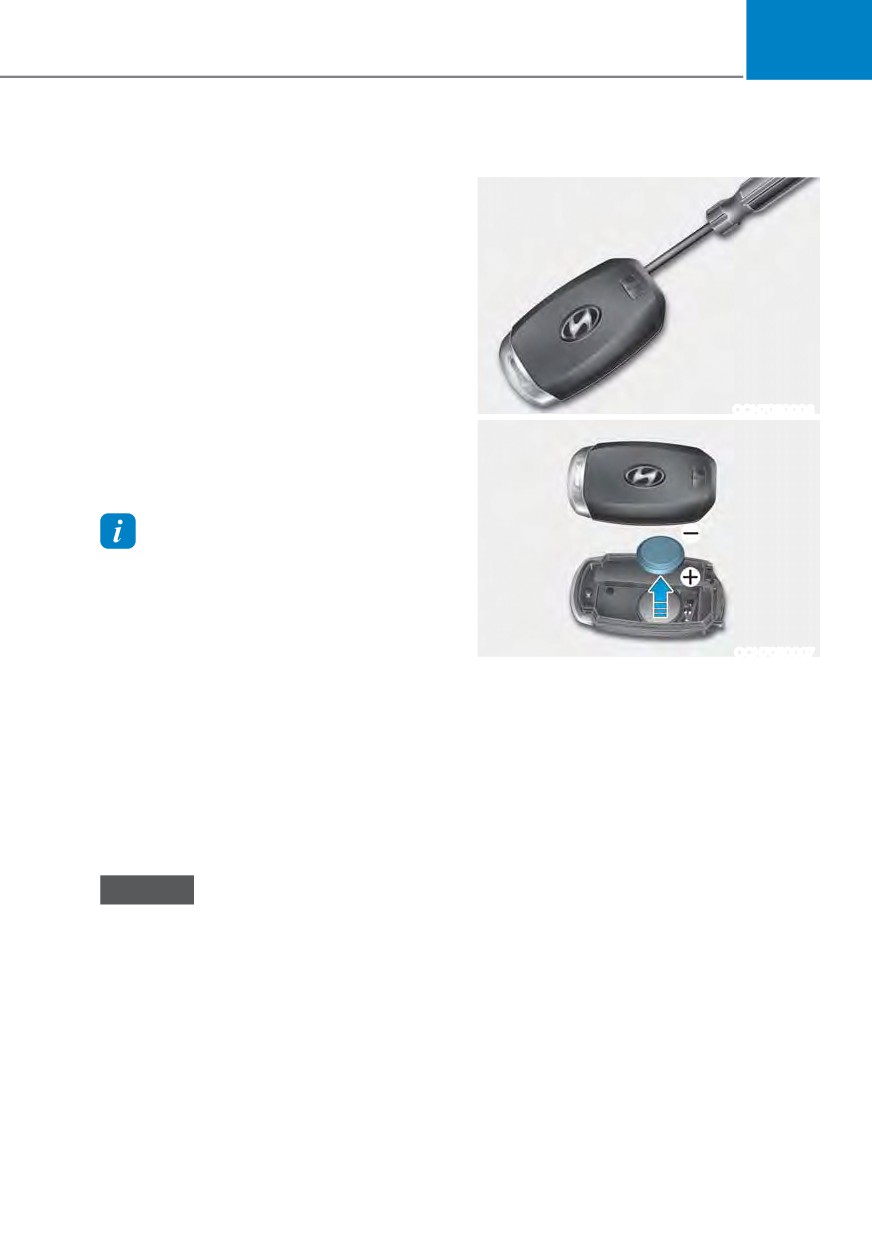

To replace the battery:

Operation is subject to the following three

1. Insert a slim tool into the slot and

conditions:

gently pry open the cover.

1. This device may not cause harmful

2. Using a screw driver, remove the

interference.

battery cover.

2. This device must accept any

3. Remove the old battery and insert the

interference received, including

new battery. Make sure the battery

interference that may cause undesired

position is correct.

operation.

4. Reinstall the battery cover and key

3. Changes or modifications not expressly

cover in the reverse order of removal.

approved by the party responsible

for compliance could void the user’s

If you suspect your remote key might

authority to operate the device.

have sustained some damage, or you feel

your remote key is not working correctly

NOTICE

contact an authorized HYUNDAI dealer.

Keep the remote key away from

electromagnetic materials that block

WARNING

electromagnetic waves to the key

THIS PRODUCT CONTAINS A BUTTON

surface.

BATTERY.

If swallowed, a lithium button battery

can cause severe or fatal injuries within

2 hours. Keep batteries out of reach of

children.

If you think batteries may have been

swallowed or placed inside any part

of the body, seek immediate medical

attention.

5-6

-------------------------------------------------------------------------------------------------------------------------------------------------------------

05

Locking your vehicle (Button type)

Information

An inappropriately disposed

battery can be harmful to the

environment and human health.

Dispose of the battery according

to your local law(s) or regulation.

Smart Key (if equipped)

„ Type A

OCN7050078

1. Close all doors, engine hood and

trunk.

2. Carry the smart key.

3. Either press the door handle button or

press the Door Lock button (1) on the

smart key.

OCN7050004

4. The hazard warning lights will blink.

„ Type B

5. Make sure the doors are locked by

pulling the door outside handle.

Information

The door handle button will only operate

when the smart key is within 28~40 inches

(0.7~1 m) from the outside door handle.

OCN7050005

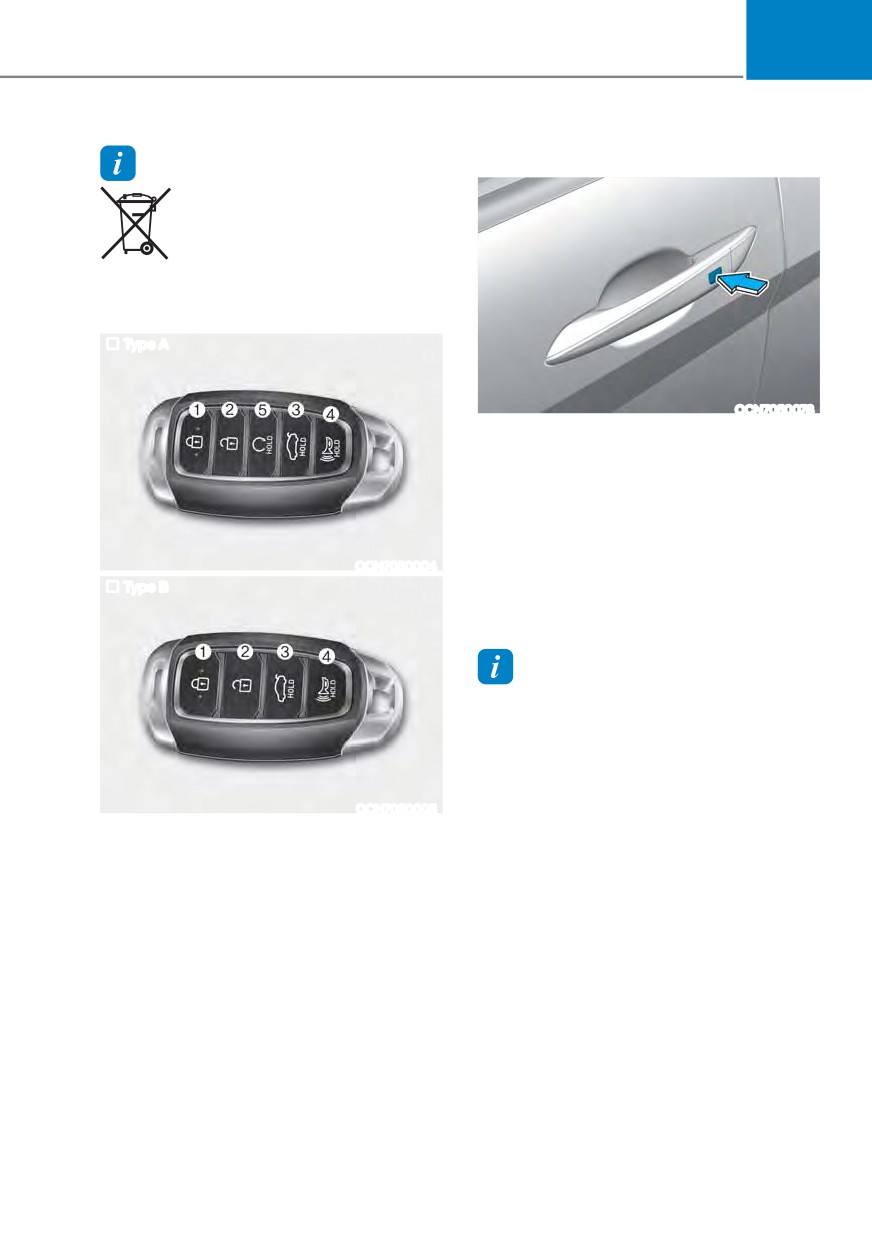

Your HYUNDAI uses a smart key, which

you can use to lock or unlock a door (and

trunk) and even start the engine even just

carrying the key.

(1) Door Lock

(2) Door Unlock

(3) Trunk Open

(4) Panic

(5) Remote Start (if equipped)

5-7

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Convenience Features

Locking your vehicle

CAUTION

(Touch sensor type) (if equipped)

When you leave your vehicle with

the smart key, make sure to press the

button on the front door handle or

touch the touch sensor on the front

door handle to lock the doors after

closing all of the doors, the hood and

the trunk. If you do not press the button

or touch the touch sensor firmly, the

doors might not be locked so please use

caution.

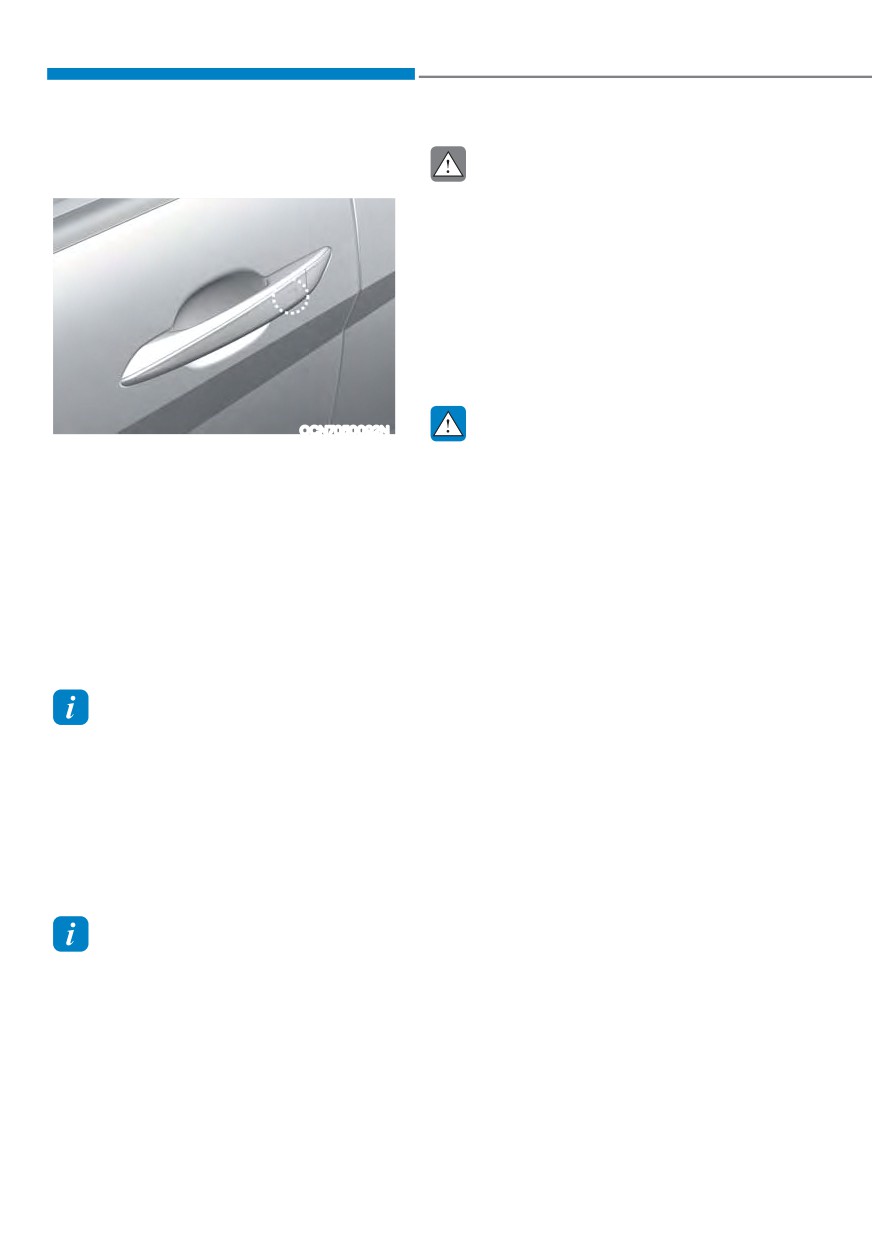

OCN7050092N

WARNING

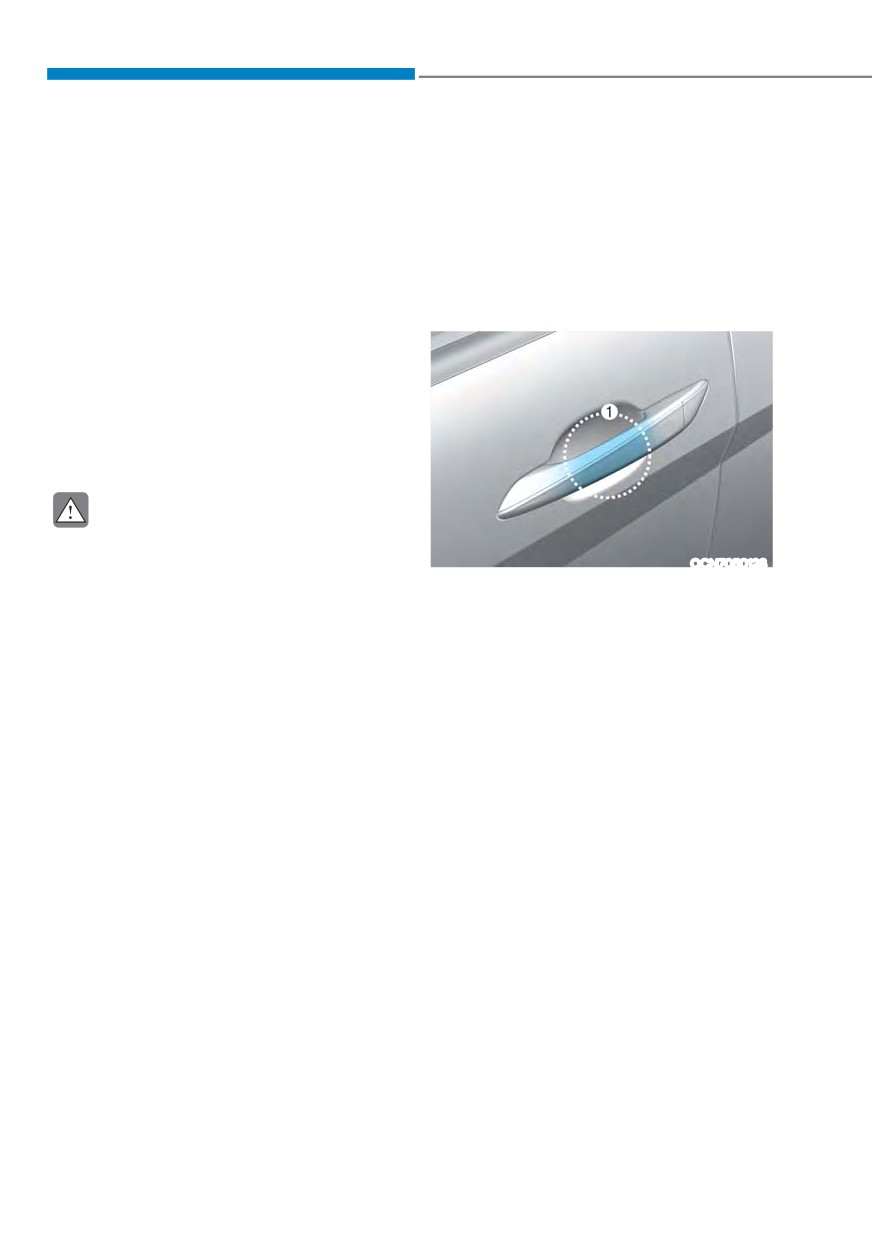

1. Close all doors, engine hood and

Do not leave the Smart Key in your

trunk.

vehicle with unsupervised children.

Unattended children could press the

2. Carry the smart key.

Engine Start/ Stop button and may

3. Either touch the touch sensor on the

operate power windows or other

door handle (the engraved part) or

controls, or even make the vehicle

press the Door Lock button (1) on the

move, which could result in serious

smart key.

injury or death.

4. The hazard warning lights will blink.

5. Make sure the doors are locked by

pulling the door outside handle.

Information

ś The door handle button will only

operate when the smart key is within

28~40 inches (0.7~1 m) from the outside

door handle.

ś If you locked the door with the touch

sensor on the door handle, the doors

cannot be unlocked with the sensor

within 3 seconds.

Information

Even though you press the outside door

handle button or touch the touch sensor,

the doors will not be locked and the chime

will sound for 3 seconds if any of the

following occurs:

ś The Smart Key is in the vehicle

ś The Engine Start/Stop button is in ACC

or ON position.

ś Any door except the trunk is opened.

5-8

-------------------------------------------------------------------------------------------------------------------------------------------------------------

05

Unlocking your vehicle

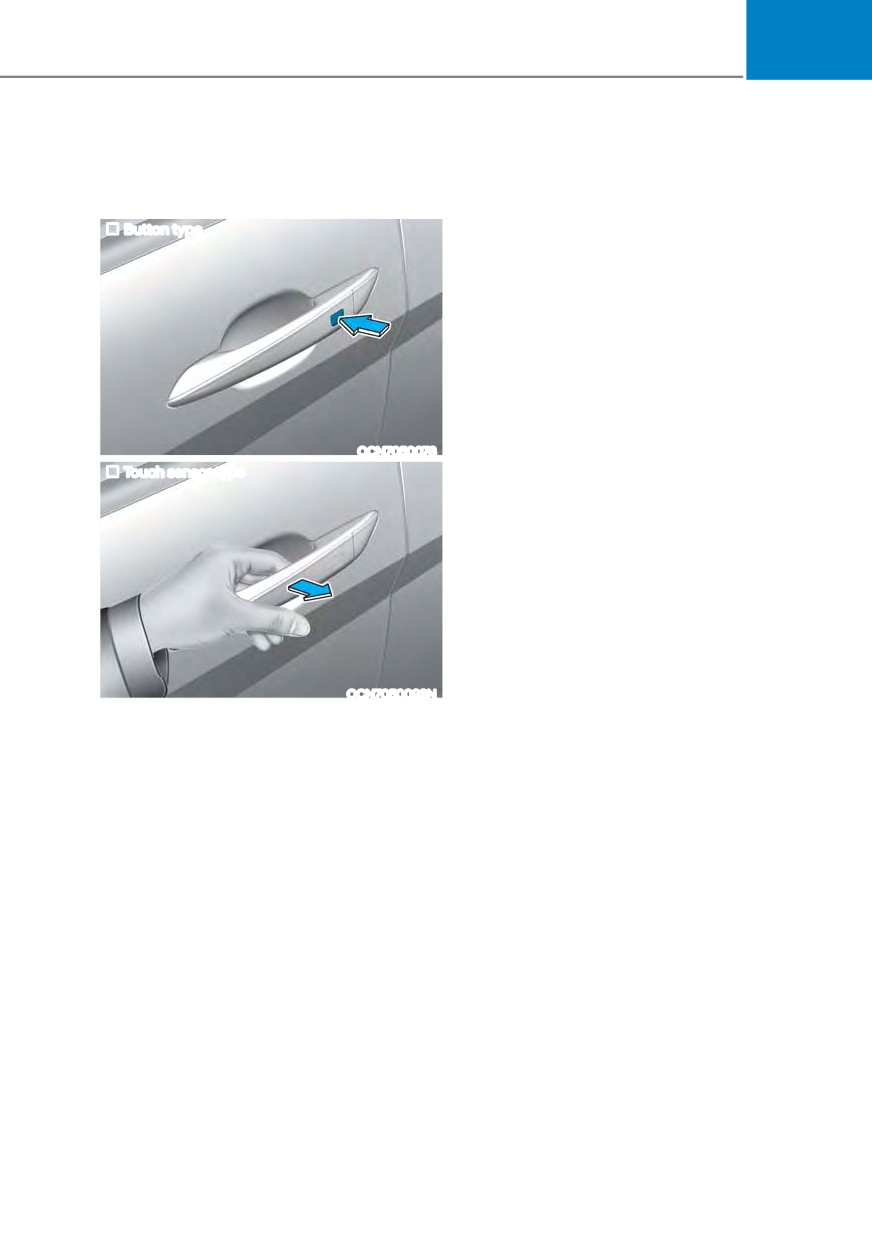

Unlocking your vehicle

(When the Two Press Unlock feature

(When the Two Press Unlock feature

is off)

is on)

„ Button type

1. Make sure you have the smart key in

your possession.

2. Press the Door Unlock button (2) on

the smart key, press the button on the

front door handle or touch the door

unlock sensor inside of the front door

handle to unlock the doors.

3. The driver’s door will unlock.

4. If you press the button on the front

door handle or touch the door unlock

sensor inside of the front door handle

OCN7050078

to unlock the doors within 4 seconds,

„ Touch sensor type

all of the doors unlock. When the

doors unlock, the hazard warning

lights will blink two times.

ś

The door handle button will only

operate when the smart key is within

28~40 inches (0.7~1 m) from the

outside door handle.

ś

If you do not open the door after

unlocking within 30 seconds, it will

return to the lock mode.

OCN7050093N

ś

The factory default setting is in off

1. Make sure you have the smart key in

mode so you should set in the User’s

your possession.

Settings mode.

2. Press the Door Unlock button (2) on

ś

If you unlocked the door with the door

the smart key, press the button on the

handle, the doors cannot be locked

front door handle or touch the door

with the sensor for up to 2 seconds.

unlock sensor inside of the front door

handle to unlock the doors.

3. All of the doors will unlock. When the

doors unlock, the hazard warning

lights will blink two times.

ś The door handle button will only

operate when the smart key is within

28~40 inches (0.7~1 m) from the

outside door handle.

ś If you do not open the door after

unlocking within 30 seconds, it will

return to the lock mode.

ś If you unlocked the door with the door

handle, the doors cannot be locked

with the sensor for up to 2 seconds.

5-9

-------------------------------------------------------------------------------------------------------------------------------------------------------------

-------------------------------------------------------------------------------------------------------------------------------------------------------------

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Convenience Features

Start-up

Mechanical key

You can start the engine without

If the Smart Key does not operate

inserting the key. For detailed

normally, you can lock or unlock the

information refer to the Engine Start/

driver’s door by using the mechanical

Stop button in chapter 6.

key.

Information

If the smart key is not moved for some

time, the detection function for smart key

operation will pause. Lift the smart key to

activate the detection again.

NOTICE

To prevent damaging the smart key:

ś Keep the smart key away from water

or any liquid and fire. If the inside

OCN7050008

of the smart key gets damp (due to

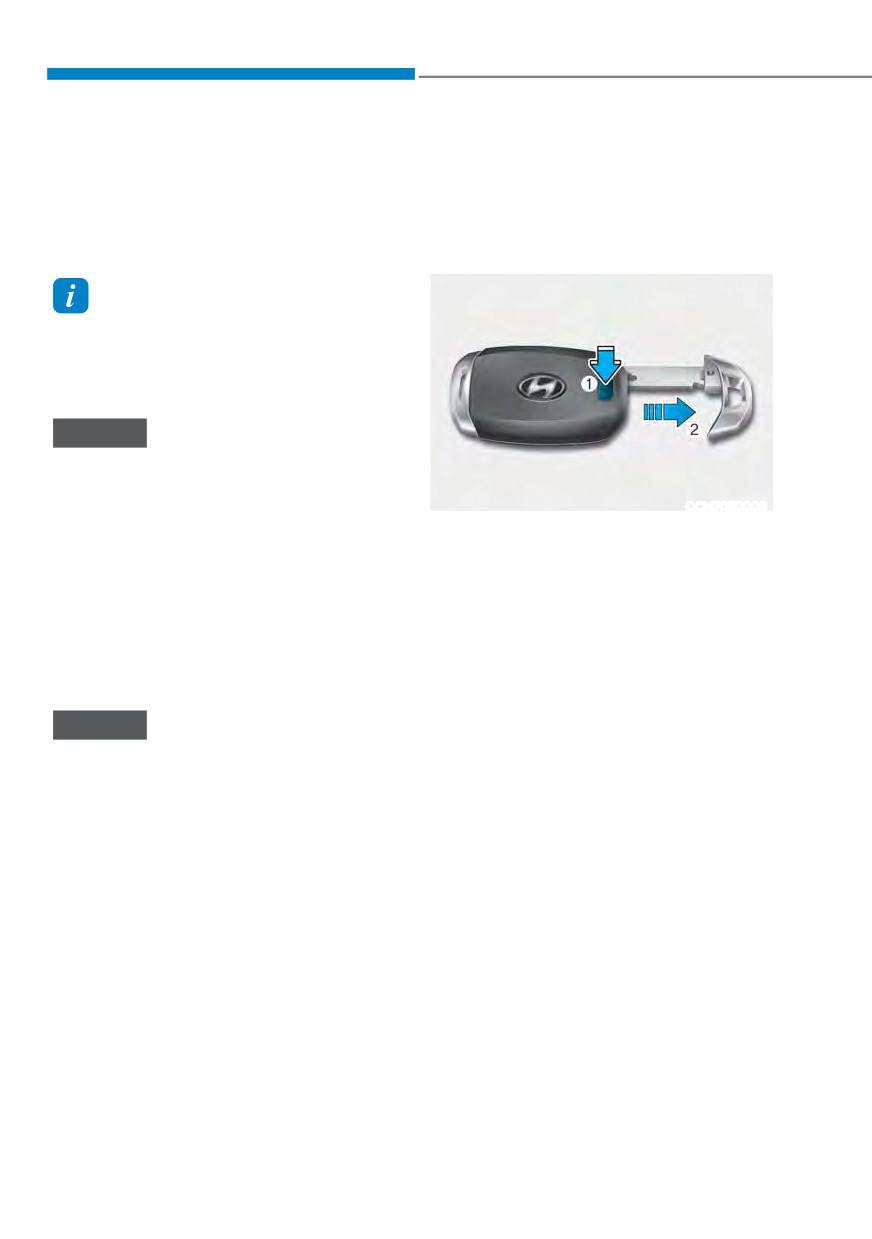

Press and hold the release button (1) and

drinks or moisture), or is heated,

remove the mechanical key (2). Insert the

internal circuit may malfunction and

mechanical key into the key hole on the

may void the vehicle warranty.

door.

ś Avoid dropping or throwing the

To reinstall the mechanical key, put the

smart key.

key into the hole and push it until a click

ś Protect the smart key from extreme

sound is heard.

temperatures.

Loss of a smart key

NOTICE

A maximum of two Smart Keys can be

registered to a single vehicle. If you

Always have the smart key with you

happen to lose your smart key, you

when leaving the vehicle. If the smart

should immediately take the vehicle

key is left near the vehicle, the vehicle

and remaining keys to your authorized

battery may be discharged.

HYUNDAI dealer or tow the vehicle, if

necessary.

Smart key precautions

The smart key may not work if any of the

following occur:

ś The smart key is close to a radio

transmitter such as a radio station or

an airport which can interfere with

normal operation of the transmitter.

ś The smart key is near a mobile two

way radio system or a cellular phone.

ś Another vehicle’s smart key is being

operated close to your vehicle.

5-12

-------------------------------------------------------------------------------------------------------------------------------------------------------------

05

If the smart key does not work correctly,

Battery replacement

open and close the door with the

mechanical key. If you have a problem

with the smart key, contact an authorized

HYUNDAI dealer.

If the smart key is in close proximity to

your mobile phone, the signal could be

blocked by your mobile phone’s normal

operational signals. This is specifically

relevant when the phone is active such

as making and receiving calls, text

messaging, and/or sending/receiving

emails. When possible, avoid keeping the

OCN7050006

smart key and your mobile phone in the

same location such as a pants or jacket

pocket in order to avoid interference

between the two devices.

Information

This device complies with Part 15 of the

FCC rules.

Operation is subject to the following three

conditions:

1. This device may not cause harmful

OCN7050007

interference, and

If the Smart Key is not working properly,

2. This device must accept any

try replacing the battery with a new one.

interference received, including

Battery Type: CR2032

interference that may cause undesired

To replace the battery:

operation.

1. Remove the mechanical key.

3. Changes or modifications not expressly

approved by the party responsible

2. Use a slim tool to pry open the rear

for compliance could void the user’s

cover of the smart key.

authority to operate the device.

3. Remove the old battery and insert the

new battery. Make sure the battery

position is correct.

NOTICE

4. Reinstall the rear cover of the smart key.

Keep the smart key away from

electromagnetic materials that blocks

If you suspect your smart key might have

electromagnetic waves to the key

sustained some damage, or you feel

surface.

your smart key is not working correctly,

contact an authorized HYUNDAI dealer.

5-13

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Convenience Features

Immobilizer System

WARNING

The immobilizer system protects your

THIS PRODUCT CONTAINS A BUTTON

vehicle from theft. If an improperly

BATTERY.

coded key (or other device) is used, the

If swallowed, a lithium button battery

engine’s fuel system is disabled.

can cause severe or fatal injuries within

When the ignition switch is placed in

2 hours. Keep batteries out of reach of

the ON position, the immobilizer system

children.

indicator should come on briefly, then

If you think batteries may have been

go off. If the indicator starts to blink, the

swallowed or placed inside any part

system does not recognize the coding of

of the body, seek immediate medical

the key.

attention.

Turn the ignition switch to the LOCK/OFF

position, then turn the ignition switch to

Information

the ON position again.

An inappropriately disposed

In some circumstances, the vehicle may

battery can be harmful to the

not recognize your smart key if another

environment and human health.

smart key device is nearby or a metal

Dispose of the battery according

object such as a key chain is causing

to your local law(s) or regulation.

interference with the smart key.

If this occurs, your vehicle may not

start. Remove any metal objects or

additional keys near the smart key before

attempting to start the vehicle again.

If the system repeatedly does not

recognize the coding of the key, contact

your HYUNDAI dealer.

Do not attempt to alter this system

or add other devices to it. Electrical

problems could result that may make

your vehicle inoperable.

5-14

-------------------------------------------------------------------------------------------------------------------------------------------------------------

05

Hyundai Digital Key

WARNING

(if equipped)

In order to prevent theft of your

Digital Key Application

vehicle, do not leave spare keys

anywhere in your vehicle. Your

To use Hyundai Digital Key mobile app,

immobilizer password is a customer

you should install Hyundai digital key

unique password and should be kept

application. Search ‘Hyundai digital key’

confidential.

in the Google Play Store and download

the app. Please refer to the detailed

manual of the digital key app. The option

NOTICE

can be found under the following app

The transponder in your key is an

menu:

important part of the immobilizer

0HQX Ɵ $SSOLFDWLRQ ,QIR Ɵ 7XWRULDO

system. It is designed to give years

of trouble-free service, however you

Please note the manual before using the

app.

should avoid exposure to moisture,

static electricity and rough handling.

à This service is only available for

Immobilizer system malfunction could

Android smartphones. Please confirm

occur.

supported/compatible devices on our

website.

Information

WARNING

This device complies with Part 15 of the

FCC rules.

For used vehicle

Operation is subject to the following three

If any of the digital key (smartphone key

conditions:

or card key) is already registered when

1. This device may not cause harmful

you press ON button after unlocking

interference.

the doors, the message ‘Digital key(s)

active’ appears on the instrument

2. This device must accept any

cluster once. If you buy a used vehicle,

interference received, including

you should confirm the message and

interference that may cause undesired

delete the registered smartphone key

operation.

and card key. In addition, please notify

3. Changes or modifications not expressly

the Hyundai Customer Care Center.

approved by the party responsible

If the card key does not work properly,

for compliance could void the user’s

please delete the card key and register

authority to operate the device

the smartphone key and re-register the

card key.

For vehicle maintenance

If you need to have your Digital Key

System repaired or replaced please

ensure your Smartphone Key is still

active. You may have to pair your phone

again.

In this case, re-initialize your Digital

Keys using the Hyundai Digital Key

mobile app.

5-15

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Convenience Features

Digital key (smartphone) NFC

Digital key (smartphone)

function

You can use the Digital Key NFC (Near

Field Communication) function after

turning on your smartphone function in

the NFC settings. And you should unlock

& turn on smartphone screen to use it.

à To change the NFC mode of the

smartphone, please refer to the

smartphone manual or contact

to the customer service center of

smartphone manufacturers.

ODN8A059129

ODN8A059240

Hyundai Digital Key (Smartphone)

Pairing

1. Turn the vehicle on with the Smart key

and make sure to keep the smart key

inside the vehicle during digital key

registration.

2. Register your Digital key from the

vehicle user setting menu as follows.

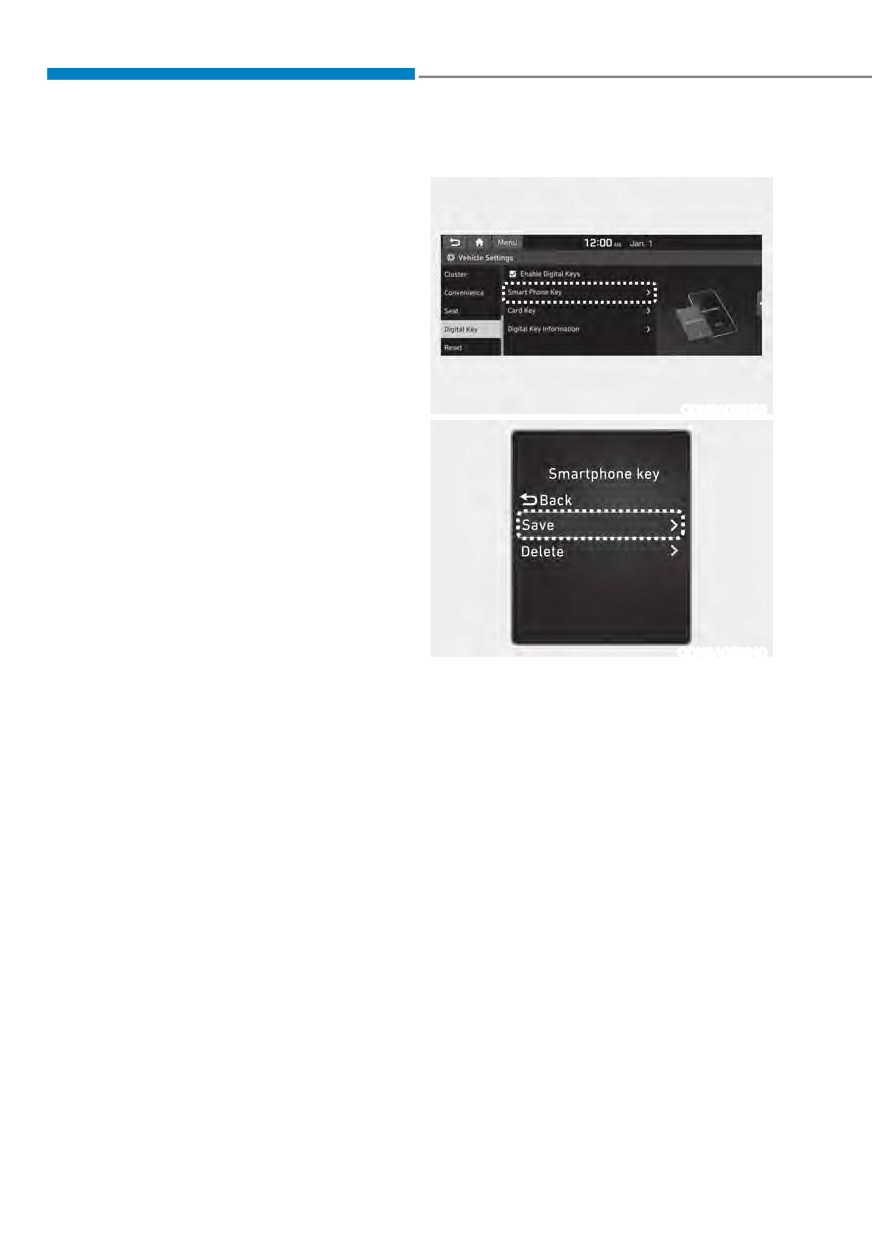

à With Navigation screen :

From the infotainment screen menu,

go to [Setup] - [Vehicle] - [Digital Key]

- [Smart Phone Key] then select the

[Save] from submenu.

à Without navigation screen :

From cluster menu, go to [Digital Key]

- [Smart Phone Key] and select [Save].

5-16

-------------------------------------------------------------------------------------------------------------------------------------------------------------

05

Information

The [Save] button will be disabled if the

digital key (Smartphone key) is already

saved.

Please refer to “Digital Key Delete” in this

manual and follow the digital key delete

procedure in your car before attempting a

Digital key save.

Please refer to the ‘Tutorial’ on your

Digital key app and delete the previous

ODN8A059129

saved key in your smartphone before

attempting a save.

3. Select the vehicle to save on your

Digital key application and activate

the save mode.

à Save mode is available only on

the vehicle owner’s Digital key

application.

4. Place the backside of smartphone

onto the wireless charging pad(in-

vehicle authentication pad).

ODN8A059130

The saving process will begin

Hyundai Digital Key (Smartphone Key)

automatically.

Deletion

5. Once the digital key save is complete,

1. Turn the vehicle on with the Smart

a message will be shown on the

key and make sure to keep the smart

infotainment screen or cluster.

key inside the vehicle during delete

6. Remove the smartphone from the pad

process.

and complete the saving process.

2. Delete your Digital key from the

vehicle user setting menu as follows.

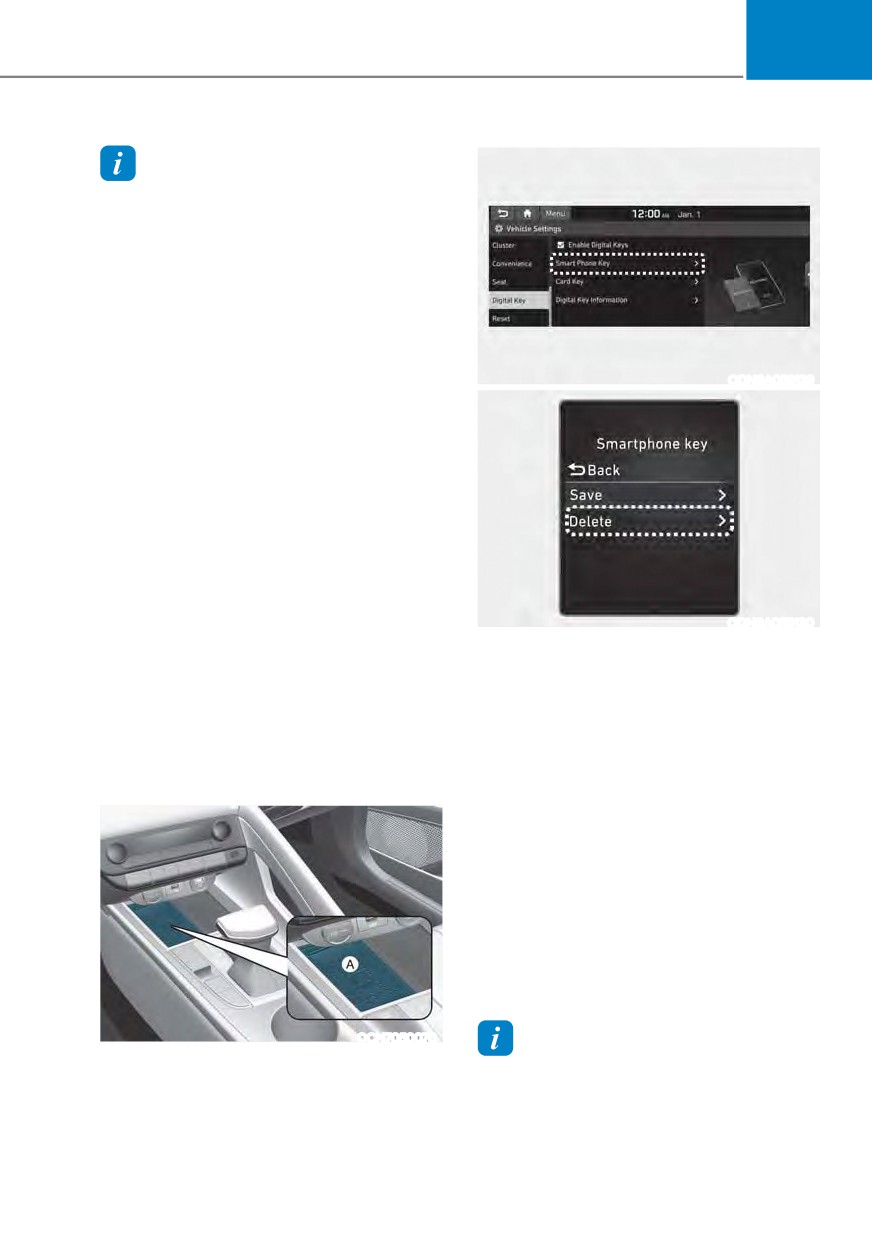

à With Navigation screen :

From the infotainment screen menu,

go to [Setup] - [Vehicle] - [Digital Key]

- [Smart Phone Key] then select the

[Delete] from submenu.

à Without navigation screen :

From cluster menu, go to [Digital

Key] - [Smart Phone Key] and select

[Delete].

OCN7050070

Information

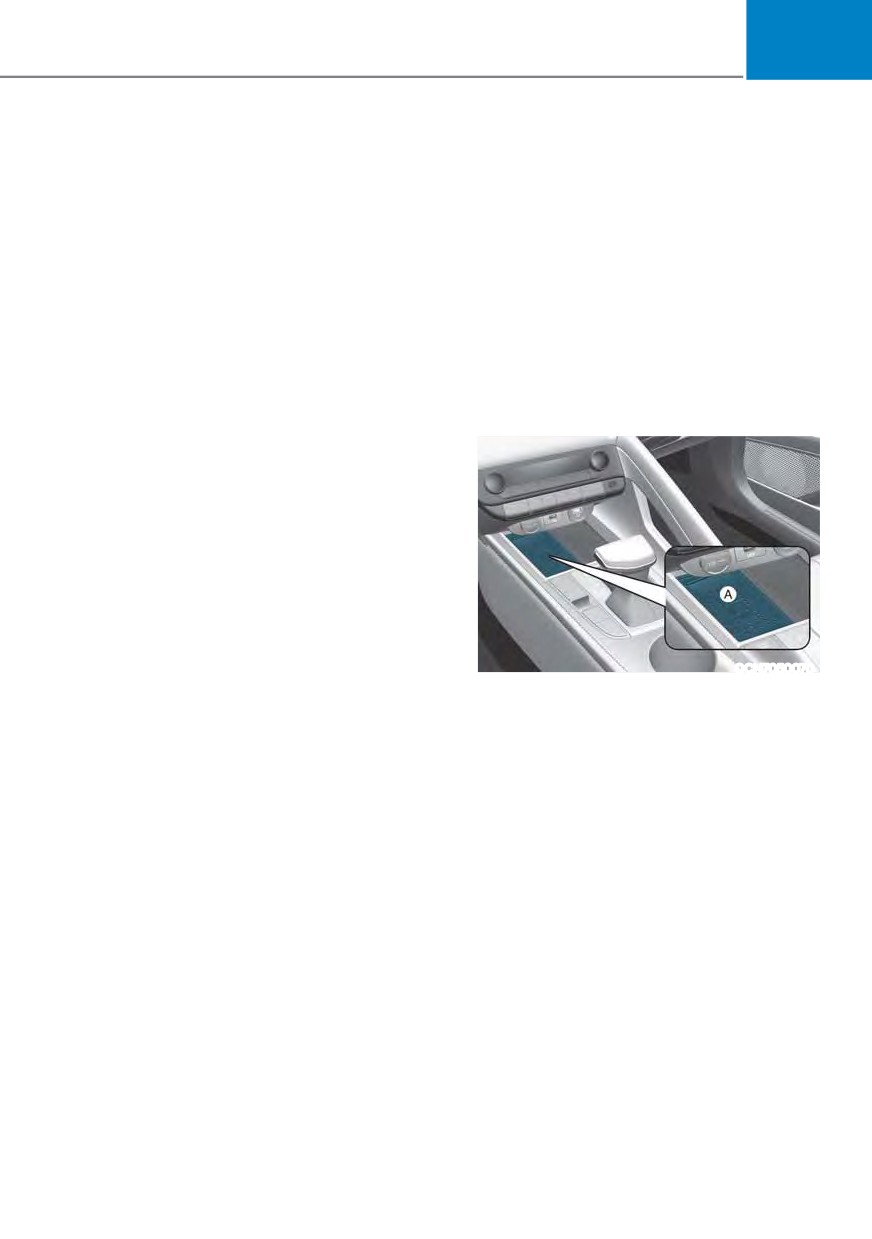

[A] : Wireless Charging Pad (In-vehicle Authentication

The [Delete] button will be disabled if there

Pad)

is no digital key (Smartphone key) saved.

5-17

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Convenience Features

3. Once the digital key delete is

Set up main vehicle

complete, a message will be shown

You can manage multiple digital keys

on the infotainment screen or cluster.

from the Digital key app. From the list of

4. Go to [Initialize Digital Key] menu on

digital keys you own, select the vehicle

the digital key application and select

you want to make your priority vehicle.

the vehicle to delete the digital key

For more information, please refer to

information.

the ‘Tutorial’ on your Digital key app.

ś

2SHQ WKH +\XQGDL 'LJLWDO .H\ DSS Ɵ

0HQX Ɵ ,QLWLDOL]H 'LJLWDO .H\

à If the saved digital key information

in your car is deleted due to vehicle

maintenance, the digital key in your

smartphone should be deleted as well.

à For more information, please refer to

the ‘Tutorial’ on your Digital key app.

CAUTION

ś

If the smartphone is removed

from the interior authentication

OCN7050128

pad during enrollment, the saving

[1] : Door handle authentication pad

process will be canceled.

NFC door lock/unlock

ś

If the infotainment or instrument

cluster screen is changed during

You should touch your smartphone’s

enrollment, the saving process will

NFC antenna(backside of phone) to door

be canceled.

handle authentication pad (1) marked

position near by the lock button) of

ś

If the vehicle is turned off during

driver’s (or front passenger’s) outside

enrollment, the saving process will

door for 2 seconds to lock or unlock the

be canceled.

doors. If the Two Press Unlock feature

ś

If the gear is shifted, the saving

is applied (press twice for unlocking),

process will be canceled.

driver’s seat door will be unlocked by

ś

If you try to save the smartphone

touching the digital key (smartphone

which is not logged in with the

key). In this state, if you touch one more

vehicle owner’s ID or if you try to

time within 4 seconds, all the doors

save the Card key, the saving process

unlock. Please make sure the doors are

will not begin.

locked. If you do not open any of the

doors after unlocking, it automatically

ś

If the NFC setting on your

re-lock after 30 seconds.

smartphone is off, the saving process

will not begin.

ś

If the smartphone screen is changed

to off or locked status, the saving

process will be canceled.

ś

If there is no Smart key during the

save process, the saving process will

not begin.

5-18

-------------------------------------------------------------------------------------------------------------------------------------------------------------

05

Note that you cannot lock your vehicle

Start-up with Digital Key

when you touch NFC antenna in the

1. After placing your registered

smartphone to the door handle pad if

smartphone onto the interior

any of the following occurs:

authentication pad (wireless charger),

ś The Proximity / Smart Key is in the

step on the brake and press the

vehicle.

Engine Start/Stop button.

ś The POWER button is in ACC or ON

2. After start-up, the digital key data

position.

will be automatically updated. It

takes 5 to 20 seconds, after that, the

ś Any of the doors, hood or trunk is

smartphone will go into the wireless

opened.

charging mode automatically. Once

If the smartphone digital key does not

the engine is started, you may remove

work, please remove the smartphone

the smartphone from the pad.

more than 4 inches (0.1 m) from the door

handle authentication pad and try it

again.

OCN7050070

[A] : Wireless Charging Pad (In-vehicle Authentication

Pad)

5-19

Content      ..     3      4      5      6     ..
