Convenience Features

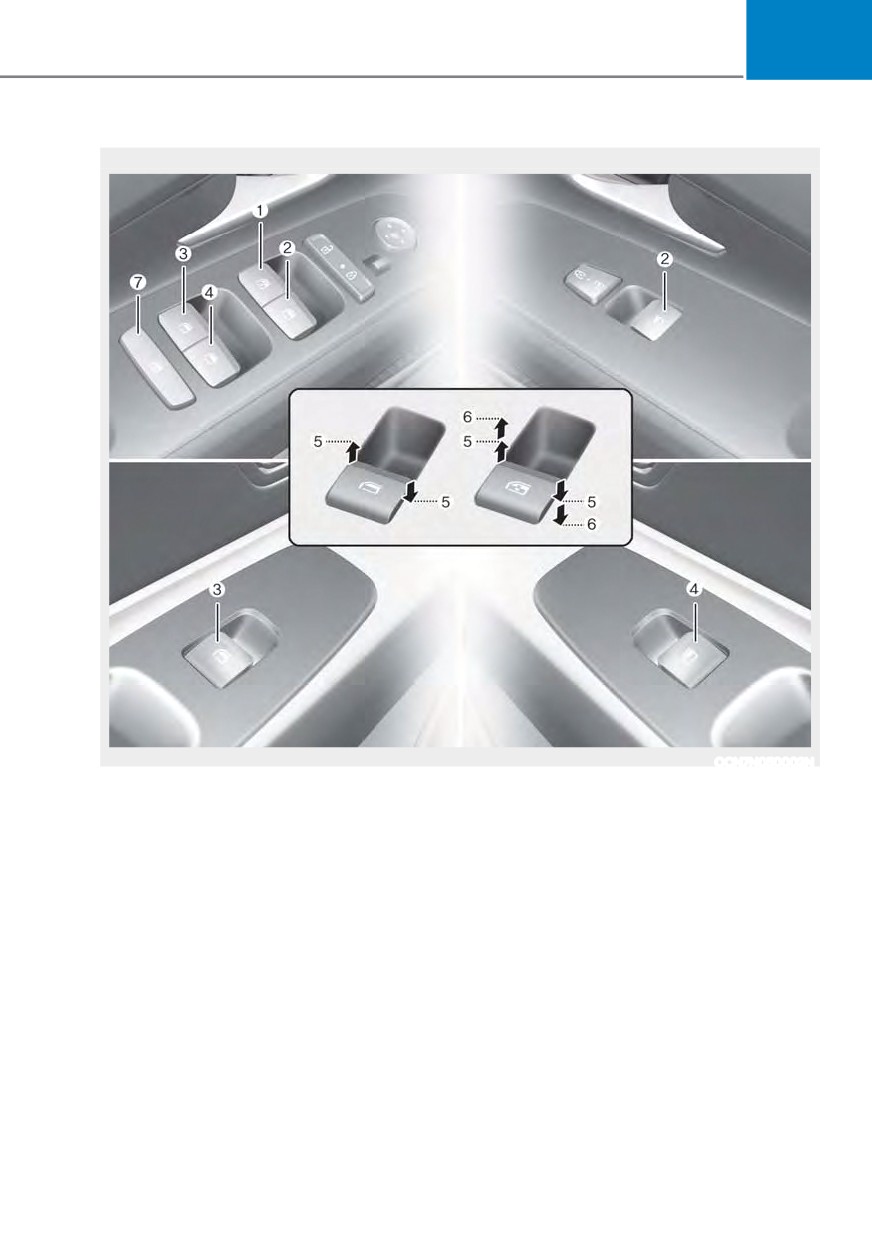

Power Windows

Window opening and closing

The ignition switch must be in the

ON position to be able to raise or

lower the windows. Each door has a

Power Window switch to control that

door’s window. The driver has a Power

Window Lock switch which can block

the operation of passenger windows.

The power windows will operate for

approximately 30 seconds after the

ignition switch is placed in the ACC or

LOCK/OFF position. However, if the front

doors are opened, the Power Windows

OCN7050082

will not operate even within the 30

To open:

second period.

Press the window switch down to the

first detent position (5). Release the

WARNING

switch when you want the window to

stop.

To avoid serious injury or death, do not

extend your head, arms or body outside

the windows while driving.

To close:

Pull the window switch up to the first

detent position (5). Release the window

Information

switch when you want the window to

In cold and wet climates, power

stop.

windows may not work properly due to

freezing conditions.

Auto down window (if equipped)

While driving with the rear windows

Pressing the power window switch

down or with the sunroof (if equipped)

down momentarily to the second

opened (or partially opened), your

detent position (6) completely lowers

vehicle may demonstrate a wind

the window even when the switch is

buffeting or pulsation noise. This

released. To stop the window at the

noise is normal and can be reduced

desired position while the window is in

or eliminated by taking the following

operation, pull up or press down and

actions. If the noise occurs with one

release the switch.

or both of the rear windows down,

partially lower both front windows

Auto up/down window (if equipped)

approximately one inch. If you

Pressing or pulling up the power window

experience the noise with the sunroof

switch momentarily to the second

open, slightly close the sunroof.

detent position (6) completely lowers or

lifts the window even when the switch

is released. To stop the window at the

desired position while the window is in

operation, pull up or press down and

release the switch.

5-52

-------------------------------------------------------------------------------------------------------------------------------------------------------------

To reset the power windows

Automatic reverse (if equipped)

If the power windows do not operate

normally, the automatic power window

system must be reset as follows:

1. Place the ignition switch to the ON

position.

2. Close the window and continue

pulling up on the power window

switch for at least one second.

If the power windows do not operate

properly after resetting, have the system

checked by an authorized HYUNDAI

OCN7050026

dealer.

If a window senses any obstacle while it

is closing automatically, it will stop and

WARNING

lower approximately 12 inches (30 cm) to

allow the object to be cleared.

The automatic reverse feature doesn’t

activate while resetting the power

If the window detects the resistance

window system. Make sure body parts

while the power window switch is

or other objects are safely out of the

pulled up continuously, the window

way before closing the windows to

will stop upward movement then lower

avoid injuries or vehicle damage.

approximately 1 inch (2.5 cm).

If the power window switch is pulled

up continuously again within 5 seconds

after the window is lowered by the

automatic window reverse feature,

the automatic window reverse will not

operate.

Information

The automatic reverse feature is only

active when the “Auto Up” feature is used

by fully pulling up the switch to the second

detent.

WARNING

Make sure body parts or other objects

are safely out of the way before closing

the windows to avoid injuries or vehicle

damage.

Objects less than 0.16 inch (4 mm) in

diameter caught between the window

glass and the upper window channel

may not be detected by the automatic

reverse window and the window will

not stop and reverse direction.

5-53

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Convenience Features

NOTICE

WARNING

Do not install any accessories on the

NEVER leave the keys in your vehicle

windows. The automatic reverse

with unsupervised children, when

feature may not operate.

the engine is running.

NEVER leave any child unattended in

Power window lock switch

the vehicle. Even very young children

may inadvertently cause the vehicle

to move, entangle themselve s in

the windows, or otherwise injure

themselves or others.

Always double check to make

sure arms, hands, head and other

obstructions are safely out of the

way before closing a window.

Do not allow children to play with the

power windows. Keep the driver’s

door power window lock switch in

OCN7050027

the LOCK position (pressed). Serious

The driver can disable the power window

injury can result from unintentional

switches on the rear passenger doors by

window operation by the child.

pressing the power window lock switch.

Do not extend your head, arms or

When the power window lock switch is

body outside the windows while

pressed:

driving.

ś The rear passenger control will not

be able to operate the rear passenger

power window

ś Note that the front passenger control

is still able to operate the front

passenger window, and that the driver

master control can still operate all the

power windows.

NOTICE

ś To prevent possible damage to the

power window system, do not open

or close two windows or more at the

same time. This will also ensure the

longevity of the fuse.

ś Never try to operate the main

switch on the driver’s door and the

individual door window switch in

opposite directions at the same time.

If this is done, the window will stop

and cannot be opened or closed.

5-54

-------------------------------------------------------------------------------------------------------------------------------------------------------------

681522) ǣ,) (48,33('Ǥ

If your vehicle is equipped with a

Sunshade

sunroof, you can slide or tilt your sunroof

with the sunroof switch located on the

overhead console.

OCN7050029

Use the sunshade to block direct sunlight

coming through the sunroof glass.

OCN7050028

Open or close the sunshade by hand.

The sunroof can only be operated when

the ignition switch or Engine Start/Stop

button is in the ON or START position.

Information

The sunroof can be operated for

The sunshade opens automatically when

approximately 3 minutes after the

the sunroof glass is opened, but the

ignition switch or Engine Start/Stop

sunshade does not close automatically

button is in the ACC or LOCK/OFF

when the sunroof glass is closed. Also, only

position.

the sunshade cannot be closed when the

sunroof glass is opened.

WARNING

NOTICE

ś Adjust the sunroof or sunshade when

your vehicle stops. This could result

Do not pull the sunshade up or down,

in loss of control and an accident

or apply excessive force as such action

that may cause injury, or property

may damage the sunshade or cause it

damage.

to malfunction.

ś Do not leave the engine running

and the key in your vehicle with

unsupervised children. Unattended

children could operate the sunroof,

which could result in serious injury.

ś Do not sit on the top of the vehicle. It

may cause injury or vehicle damage.

NOTICE

Do not operate the sunroof when roof

bars are installed on the vehicle or

when there is luggage on the roof.

5-55

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Convenience Features

Tilt Open/Close

Slide Open/Close

OCN7051144

OCN7N051031

[1]: Tilt open

Push the sunroof switch rearward,

[2]: Tilt close

the sunshade and sunroof glass slide

open.

ś Push the sunroof switch upward, the

sunroof glass tilts open.

Push the sunroof switch forward, only

the sunroof glass closes.

ś Push the sunroof switch forward when

the sunroof glass is tilt opened, the

Push the sunroof switch forward or

sunroof glass closes.

rearward to the first detent position,

the sunroof glass moves until the

switch is released.

The sunroof glass tilts open or closes

while the switch is pushed.

Push the sunroof switch forward

or rearward to the second detent

position, the sunroof glass operates

Information

automatically (auto slide feature). To

The sunroof glass cannot slide open and

stop the sunroof movement at any

tilt open at the same time. You cannot tilt

point, push the sunroof switch in any

the sunroof glass open while the sunroof

direction.

glass is slide open. Also, you cannot slide

The sunroof glass stops halfway

the sunroof glass open while the sunroof

(first detent position) before it is fully

is tilt open. Slide open or tilt open the

opened. To fully open the sunroof

sunroof glass when the sunroof glass is

glass, push the sunroof switch

completely closed.

rearward once more. At this time, the

sunroof glass opens only while the

switch is pushed.

Information

To reduce wind noise while driving, have

you drive at the recommended position

(first detent position) before the maximum

slide open position.

5-56

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Automatic Reversal (if equipped)

NOTICE

Do not continue to push the sunroof

switch after the sunroof is fully

opened, closed, or tilted. Damage to

the sunroof motor could occur.

Continuous operations such as slide

open/close, tilt open/close, etc. may

cause the motor or sunroof system to

malfunction.

Regularly remove any accumulated

dust on the sunroof rail.

Dust accumulated between the

ODH043039

sunroof and roof panel can make

If the sunroof glass senses any obstacle

noise. Open the sunroof and remove

while it is closing automatically, it will

dust regularly using a clean cloth.

reverse direction then stop at a certain

Do not try to open the sunroof when

position.

the temperature is below freezing

The auto reverse function may not

or when the sunroof is covered

work if an object thin or soft is caught

with snow or ice. The sunroof may

between the sliding sunroof glass and

not work properly and may break if

sunroof sash.

opened by force.

Do not open or drive with the sunroof

WARNING

glass open immediately after rain or

washing the vehicle. Water may wet

ś Make sure heads, hands, arms or

the interior of the vehicle.

any other body parts or objects are

out of the way before operating the

Do not extend any luggage outside

the sunroof while driving. Vehicle

sunroof. Body parts or objects may

get caught causing injuries or vehicle

damage may occur if the vehicle

suddenly stops.

damage.

ś Never deliberately use your body

parts to test the automatic reversal

WARNING

function. The sunroof glass may

Do not extend your head, arms, body

reverse direction, but there is a risk

parts or objects outside the sunroof

of injury.

while driving. Injuries may occur if the

vehicle suddenly stops.

5-57

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Convenience Features

Resetting the Sunroof

Information

If the sunroof is not reset when the vehicle

battery is disconnected or discharged, or

the sunroof fuse is blown, the sunroof may

not operate normally.

Sunroof Open Warning

(if equipped)

OCN7051028L

In some circumstances resetting the

sunroof operation may need to be

performed. Some instances where

resetting the sunroof may be required

include:

ś When the 12-volt battery is either

disconnected or discharged

OCN7040018

ś When the sunroof fuse is replaced

If the driver turns off the engine when

ś If the sunroof one-touch AUTO OPEN/

the sunroof is not fully closed, the

CLOSE operation is not functioning

warning chime will sound for several

properly

seconds and the sunroof open warning

will appear on the cluster LCD display.

Sunroof resetting procedure:

Close the sunroof securely when leaving

1. It is recommended to perform the

your vehicle.

reset procedure with the vehicle

engine running. Start the vehicle in P

CAUTION

(Park).

2. Make sure the sunroof glass is in the

Make sure the sunroof is closed fully

fully closed position. If the sunroof

when leaving your vehicle.

glass is open, push the switch forward

If the sunroof is left open, rain or snow

until the sunroof glass is fully closed.

may wet the interior of the vehicle.

3. Release the switch when the sunroof

Also, leaving the sunroof open when the

glass is fully closed.

vehicle is unattended may invite theft.

4. Push the switch forward until the

sunroof glass moves slightly. Then

release the switch.

5. Once again push and hold the sunroof

switch forward until the sunroof glass

slides open and close. Do not release

the switch until the operation is

completed. If you release the switch

during operation, start the procedure

again from step 2.

5-58

-------------------------------------------------------------------------------------------------------------------------------------------------------------

HOOD

Opening the hood

OCN7050035

OCN7050033

5. Hold the hood open with the support

rod (3).

1. Park the vehicle and set the parking

brake.

2. Pull the release lever to unlatch the

WARNING

hood. The hood should pop open

Support rod

slightly.

ś After driving, the engine

compartment and support rod will

be hot. Grasp the support rod in the

area wrapped in rubber to prevent

burns.

ś The support rod must be inserted

completely into the hole provided

whenever you inspect the engine

compartment. This will prevent

the hood from falling and possibly

injuring you.

OCN7050034

3. Go to the front of the vehicle, raise

the hood slightly, push the secondary

latch up (1) inside of the hood center

and lift the hood (2).

4. Pull out the support rod.

5-59

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Convenience Features

Closing the hood

WARNING

1. Before closing the hood, check the

ś Before closing the hood, ensure

following:

all obstructions are removed from

ś All filler caps in engine

around the hood opening.

compartment must be correctly

ś Always double check to be sure that

installed.

the hood is firmly latched before

ś Gloves, rags or any other

driving away. Check there is no

combustible material must

hood open warning light or message

be removed from the engine

displayed on the instrument cluster.

compartment.

Driving with the hood opened may

2. Return the support rod to its clip to

cause a total loss of visibility, which

prevent it from rattling.

might result in an accident.

3. Lower the hood halfway (lifted

ś Do not move the vehicle with the

approximately 30 cm from the closed

hood in the raised position, as vision

position) and push down to securely

is obstructed, which might result in

lock in place. Then double check to be

an accident, and the hood could fall

sure the hood is secure.

or be damaged.

If the hood can be raised slightly, it is

not securely locked. Open it again and

close it with more force.

5-60

-------------------------------------------------------------------------------------------------------------------------------------------------------------

TRUNK

Opening the trunk

Inside

1. Make sure the shift lever is in P

(Park, for Dual clutch transmission/

Intelligent variable transmission) or

first gear or R (Reverse, for manual

transmission) and set the parking

brake.

Outside

OCN7050037

- Use the trunk release lever.

3. Lift the trunk lid up.

Closing the trunk

Lower the trunk lid and press down

until it locks. To be sure the trunk lid is

OCN7050036

securely fastened, always check by trying

2. Then do one of the following:

to pull it up again.

ś Hold down the trunk unlock button

located on your remote key or smart

WARNING

key for more than 1 second.

Always keep the trunk lid completely

ś Additionally, for vehicles equipped

closed while the vehicle is in motion. If

with smart key :

it is left open or ajar, poisonous exhaust

- While all doors are unlocked, press

gases containing carbon monoxide

the switch in the trunk to open the

(CO) may enter the vehicle and serious

trunk with or without the smart key

illness or death may result.

in your possession.

- If any door is locked or all doors are

Information

locked, the switch can still be used

to open the trunk, as long as the

To prevent damage to the trunk lift

smart key is in your possession.

cylinders and the attached hardware,

always close the trunk before driving.

NOTICE

In cold and wet climates, trunk lock

and trunk mechanisms may not work

properly due to freezing conditions.

5-61

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Convenience Features

Emergency Trunk Safety Release

WARNING

You and your passengers must

be aware of the location of the

Emergency Trunk Safety Release

lever in this vehicle and how to open

the trunk in case you are accidentally

locked in the trunk.

NEVER allow anyone to occupy the

trunk of the vehicle at any time. If the

trunk is partially or totally latched

and the person is unable to get out,

serious injury or death could occur

OCN7050038

due to lack of ventilation, exhaust

Your vehicle is equipped with an

fumes and rapid heat build-up, or

Emergency Trunk Safety Release lever

because of exposure to cold weather

located inside the trunk. When someone

conditions. The trunk is also a highly

is inadvertently locked in the trunk, the

dangerous location in the event of a

trunk can be opened by moving the lever

crash because it is not a protected

in the direction of the arrow and pushing

occupant space but is a part of the

the trunk open.

vehicle’s crush zone.

Your vehicle should be kept locked

and the Smart Key should be kept

out of the reach of children. Parents

should teach their children about the

dangers of playing in trunks.

Use the release lever for emergencies

only.

5-62

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Smart Trunk Release

1. Setting

(if equipped)

To activate the Smart Trunk release, go

to User Settings Mode and select Smart

Trunk on the LCD display.

For more details, refer to “LCD Display”

in this chapter. If your vehicle is

equipped with additional navigation,

please refer to the infotainment system

manual separately supplied.

OCN7050041L

On a vehicle equipped with a smart key,

the trunk can be opened using the Smart

Trunk release system.

How to use the Smart Trunk release

The trunk can be opened with no touch

activation satisfying all the conditions

OCN7050040N

below.

2. Detect and Alert

ś After 15 seconds when all doors are

If you are positioned in the detecting

closed and locked

area (20 ~ 40 inches behind the vehicle)

ś Positioned in the detecting area for

carrying a smart key, the hazard warning

more than 3 seconds

lights will blink and chime will sound

to alert you the smart key has been

detected and the trunk will open.

Information

The Smart Trunk release does not operate

when:

Information

ś The smart key is detected within 15

Do not approach the detecting area if you

seconds after the doors are closed and

do not want the trunk to open. If you have

locked, and is continuously detected.

unintentionally entered the detecting area

and the hazard warning lights and chime

ś The smart key is detected within 15

starts to operate, leave the detecting area

seconds after the doors are closed and

with the smart key. The trunk will stay

locked, and 1.5 m from the front door

closed.

handles. (for vehicles equipped with

Welcome Light)

ś A door is not locked or closed.

ś The smart key is in the vehicle.

5-63

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Convenience Features

How to deactivate the Smart Trunk

release function using the smart key

Type A

OCN7050041L

3. Automatic opening

The hazard warning lights will blink and

OCN7050004

chime will sound 6 times and then the

Type B

trunk will open.

WARNING

Make sure you close the trunk before

driving your vehicle.

Make sure there are no people or

objects around the trunk before

opening or closing the trunk.

Make sure objects in the trunk do not

OCN7050005

come out when opening the trunk on

a slope. It may cause serious injury.

1. Door lock

Make sure to deactivate the Smart

2. Door unlock

Trunk when washing your vehicle.

3. Trunk open

Otherwise, the trunk may open

4. Panic

inadvertently.

5. Remote Start (if equipped)

The key should be kept out of

reach of children. Children may

inadvertently open the Smart Trunk

If you press any button of the smart key

release while playing around the rear

during the Detect and Alert stage, the

area of the vehicle.

Smart Trunk release function will be

deactivated.

Make sure to be aware of how to

deactivate the Smart Trunk release

function for emergency situations.

5-64

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Detecting area

Information

If you press the door unlock button

(2), the Smart Trunk release function

will be deactivated temporarily. But,

if you do not open any door for 30

seconds, the smart trunk function will

be activated again.

If you press the trunk open button

(3) for more than 1 second, the trunk

opens.

If you press the door lock button (1) or

trunk open button (3) when the Smart

Trunk release function is not in the

OCN7050040N

Detect and Alert stage, the smart trunk

The Smart Trunk release operates with

function will not be deactivated.

a welcome alert if the smart key is

In case you have deactivated the Smart

detected within 20 ~ 40 inches from

Trunk function by pressing the smart

the trunk.

key button and opened a door, the

The alert stops at once if the smart

Smart Trunk release function can be

key is positioned outside the

activated again by closing and locking

detecting area during the Detect and

all doors.

Alert stage.

Information

The Smart Trunk release function will

not work if any of the following occurs:

- The smart key is close to a radio

transmitter such as a radio station or

an airport which can interfere with

normal operation of the transmitter.

- The smart key is near a mobile two

way radio system or a cellular phone.

- Another vehicle’s smart key is being

operated close to your vehicle.

The detecting range may decrease or

increase when :

- One side of the tire is raised to

replace a tire or to inspect the

vehicle.

- The vehicle is slantingly parked on a

slope or unpaved road, etc.

5-65

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Convenience Features

FUEL FILLER DOOR

Opening the fuel filler door

Information

If the fuel filler door does not open

because ice has formed around it, tap

lightly or push on the door to break the

ice and release the door. Do not pry on the

door. If necessary, spray around the door

with an approved de-icer fluid (do not use

radiator anti-freeze) or move the vehicle to

a warm place and allow the ice to melt.

Closing the fuel filler door

1. To install the fuel tank cap, turn it

OCN7050042

clockwise until it “Clicks”.

The fuel filler door must be opened from

2. Close the fuel filler door until it is

inside the vehicle by pulling up the fuel

latched securely.

filler door opener.

1. Turn the engine off.

2. Pull up the fuel filler door opener.

WARNING

Gasoline is highly flammable and

explosive. Failure to follow these

guidelines may result in SERIOUS

INJURY or DEATH:

ś Read and follow all warnings posted

at the gas station.

ś Before refueling, note the location of

the Emergency Gasoline Shut-Off, if

available, at the gas station.

ś Before touching the fuel nozzle, you

should eliminate the potential build-

OCN7050043

up of static electricity by touching

3. Pull the fuel filler door (1) out to fully

a metal part of the vehicle, a safe

open.

distance away from the fuel filler

4. To remove the fuel tank cap (2), turn

neck, nozzle, or other gas source,

it counterclockwise. You may hear a

with your bare hand.

hissing noise as the pressure inside

ś Do not use cellular phones while

the tank equalizes.

refueling. Electric current and/or

5. Place the cap on the fuel filler door.

electronic interference from cellular

phones can potentially ignite fuel

vapors and cause a fire.

Information

Open and close the reservoir cap by using

the handle on the cap cover for safety.

5-66

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Do not get back into a vehicle

ś Do not over-fill or top-off your

once you have begun refueling.

vehicle tank, which can cause

You can generate a build-up of

gasoline spillage.

static electricity by touching,

ś If a fire breaks out during refueling,

rubbing or sliding against any item

leave the vicinity of the vehicle, and

or fabric capable of producing

immediately contact the manager

static electricity. Static electricity

of the gas station and then contact

discharge can ignite fuel vapors

the local fire department. Follow any

causing a fire. If you must re-enter

safety instructions they provide.

the vehicle, you should once again

ś If pressurized fuel sprays out, it can

eliminate potentially dangerous

cover your clothes or skin and thus

static electricity discharge by

subject you to the risk of fire and

touching a metal part of the vehicle,

burns. Always remove the fuel cap

away from the fuel filler neck, nozzle

carefully and slowly. If the cap is

or other gasoline source, with your

venting fuel or if you hear a hissing

bare hand.

sound, wait until the condition stops

When refueling, always move the

before completely removing the cap.

shift lever to the P (Park) position,

ś Always check that the fuel cap is

set the parking brake, and place the

installed securely to prevent fuel

ignition switch to the LOCK/OFF

spillage in the event of an accident.

position.

Sparks produced by electrical

components related to the engine

Information

can ignite fuel vapors causing a fire.

Make sure to refuel your vehicle according

When using an approved portable

to the “Fuel Requirements” suggested in

fuel container, be sure to place the

the Introduction chapter.

container on the ground prior to

refueling. Static electricity discharge

NOTICE

from the container can ignite fuel

vapors causing a fire. Once refueling

ś Do not spill fuel on the exterior

has begun, contact between your

surfaces of the vehicle. Any type of

bare hand and the vehicle should

fuel spilled on painted surfaces may

be maintained until the filling is

damage the paint.

complete.

ś If the fuel filler cap requires

Use only approved portable plastic

replacement, use only a genuine

fuel containers designed to carry and

HYUNDAI cap or the equivalent

store gasoline.

specified for your vehicle. An

Do not use matches or a lighter and

incorrect fuel filler cap can result

in a serious malfunction of the fuel

do not smoke or leave a lit cigarette

in your vehicle while at a gas station,

system or emission control system.

especially during refueling.

5-67

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Convenience Features

EXTERIOR LIGHTS

Lighting Control

To operate the lights, turn the knob at

the end of the control lever to one of the

following positions:

OCN7050055

AUTO headlight

The parking lamp and headlight will

be turned ON or OFF automatically

depending on the amount of daylight as

ODN8A059200

measured by the ambient light sensor on

1. OFF

the center dash (1).

2. AUTO headlight

Even with the AUTO headlight feature

3. Parking lamp

in operation, it is recommended to

manually turn ON the headlights when

4. Headlight

driving at night or in a fog, driving in the

rain, or when you enter dark areas, such

Daytime running light (DRL)

as tunnels and parking facilities.

The Daytime Running Lights (DRL) can

make it easier for others to see the front

of your vehicle during the day, especially

NOTICE

after dawn and before sunset.

ś Do not cover or spill anything on

the sensor (1) located in front of the

The DRL system will turn the dedicated

instrument panel.

lamp OFF when:

ś Do not clean the sensor using

ś The headlights are ON.

a window cleaner, the cleanser

may leave a light film which could

ś The parking lamps are ON.

interfere with sensor operation.

ś The vehicle is turned off.

ś If your vehicle window tint or other

ś The parking brake is engaged.

types of metallic coating on the front

windshield, the AUTO headlight

system may not work properly.

5-68

-------------------------------------------------------------------------------------------------------------------------------------------------------------

High Beam Operation

ODN8A059202

Parking lamp (

)

ODN8A059205

The parking lamp, license plate lamp and

To turn on the high beam headlight, push

instrument panel lamp are turned ON.

the lever away from you. The lever will

return to its original position.

The high beam indicator will light when

the headlight high beams are switched

on.

To turn off the high beam headlight, pull

the lever towards you. The low beams

will turn on.

WARNING

Do not use high beam when there are

ODN8A059203

other vehicles approaching you. Using

Headlight (

)

high beam could obstruct the other

driver’s vision.

The headlight, parking lamp, license

plate lamp and instrument panel lamp

are turned ON.

Information

The ignition switch must be in the ON

position to turn on the headlight.

5-69

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Convenience Features

Turn Signals And Lane Change

Signals

ODN8A059204

To flash the high beam headlight, pull the

lever towards you, then release the lever.

ODN8A059207

The high beams will remain ON as long

as you hold the lever towards you.

To signal a turn, push down on the lever

for a left turn or up for a right turn in

position (A). To signal a lane change,

move the turn signal lever slightly and

hold it in position (B). The lever will

return to the OFF position when released

or when the turn is completed.

If an indicator stays on and does not flash

or if it flashes abnormally, one of the turn

signal bulbs may be burned out and will

require replacement.

One touch turn signal function

To activate a one-touch turn signal

function, move the turn signal lever

slightly and then release it. The lane

change signals will blink 3, 5 or 7 times.

You can activate or deactivate the One

Touch Turn Signal function or choose

the number of blinks (3, 5, or 7) from the

User Settings Mode on the LCD display.

For more details, refer to “LCD Display

Modes” in chapter 4. If your vehicle is

equipped with additional navigation,

please refer to the infotainment system

manual separately supplied.

5-70

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Battery Saver Function

Headlight Delay Function

The purpose of this feature is to

(if equipped)

help prevent the battery from being

If you place the ignition switch in the

discharged. The system automatically

ACC or OFF position with the headlights

turns off the parking lamp when the

ON, the headlights (and/or parking

driver turns the vehicle off and opens the

lamps) remain on for about 5 minutes.

driver-side door.

However, with the engine off if the

With this feature, the parking lamps will

driver’s door is opened and closed, the

turn off automatically if the driver parks

headlights (and/or parking lamps) are

on the side of road at night.

turned off after 15 seconds.

However, the position lamps stay ON

The headlights (and/or parking lamps)

even when the driver-side door is opened

can be turned off by pressing the lock

if the headlight switch is turned to the

button on the remote key or smart key

position lamp or AUTO (if equipped)

twice or turning the light switch to the

position after the engine is turned off.

OFF or AUTO position. However, if you

turn the light switch to the AUTO position

If necessary, to keep the lamps on

when it is dark outside, the headlights

turn the position lamps OFF and ON

will not be turned off.

again using the headlight switch on

the steering column after the engine is

You can activate or deactivate the

turned off.

headlight Delay function from the User

Settings Mode in the LCD display.

For more details, refer to “LCD Display

Modes” in chapter 4. If your vehicle is

equipped with additional navigation,

please refer to the infotainment system

manual separately supplied.

NOTICE

If the driver exits the vehicle through

another door besides the driver

door, the battery saver function

does not operate and the headlight

delay function does not turn OFF

automatically.

This may cause the battery to

discharge. To avoid battery discharge,

turn OFF the headlights manually from

the headlight switch before exiting the

vehicle.

5-71

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Convenience Features

+,*+ %($0

$66,67 ǣ+%$Ǥ ǣ,) (48,33('Ǥ

NOTICE

ś Always keep the front view camera in

good condition to maintain optimal

performance of High Beam Assist.

ś For more details on the precautions

of the front view camera, refer to

“Forward Collision-Avoidance Assist

(FCA)” section in chapter 7.

High Beam Assist Settings

OCN7050141N

:LWK WKH HQJLQH RQ VHOHFW œ/LJKWV Ɵ +LJK

High Beam Assist will automatically

Beam Assist’ from the Settings menu to

adjust the headlight range (switches

turn on High Beam Assist and deselect to

between high beam and low beam)

turn off the system.

depending on the brightness of detected

vehicles and certain road conditions.

WARNING

Detecting Sensor

For your safety, change the Settings

after parking the vehicle at a safe

location.

OCN7061030L

[1] : Front view camera

The front view camera is used as a

detecting sensor to help detect ambient

light and brightness while driving.

Refer to the picture above for the

detailed location of the detecting sensor.

5-72

-------------------------------------------------------------------------------------------------------------------------------------------------------------

High Beam Assist Operation

ś When High Beam Assist is operating,

high beam switches to low beam if

Display and control

any of the following conditions occur:

After selecting ‘High Beam Assist’

- When the headlight of an oncoming

in the Settings menu, High Beam

vehicle is detected.

Assist will operate by following the

procedure below.

- When the tail lamp of a vehicle in

front is detected.

- Place the headlight switch in

the AUTO position and push

- When the headlight or tail lamp of a

the headlight lever towards the

motorcycle or a bicycle is detected.

instrument cluster. The High Beam

- When the surrounding ambient light

Assist (

) indicator light will

is bright enough that high beams

illuminate on the cluster and High

are not required.

Beam Assist will be enabled.

- When streetlights or other lights are

- When High Beam Assist is enabled,

detected.

high beam will turn on when vehicle

speed is above 25 mph (40 km/h).

High Beam Assist Malfunction

When vehicle speed is below 15

and Limitations

mph (25 km/h), high beam will turn

High Beam Assist malfunction

off.

- The High Beam (

) indicator light

will illuminate on the cluster when

high beam is on.

When High Beam Assist is operating,

if the headlight lever or switch is used,

High Beam Assist operates as follow:

- If the headlight lever is pulled

towards you when the high beam

is off, the high beam will turn on

without High Beam Assist canceled.

When you let go of the headlight

OTM050218L

lever, the lever will move to the

When High Beam Assist is not working

middle and the high beam will turn

properly, the ‘Check High Beam Assist

off.

(HBA) system’ warning message

- If the headlight lever is pulled

will appear and warning light will

towards you when the high beam is

illuminate on the cluster. Have the

on by High Beam Assist, low beam

vehicle inspected by an authorized

will turn on and High Beam Assist

HYUNDAI dealer.

will turn off.

- If the headlight switch is placed

from AUTO to another position

(headlight/position/off), High

Beam Assist will turn off and the

corresponding lamp will turn on.

5-73

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Convenience Features

Limitations of High Beam Assist

WARNING

High Beam Assist may not work properly

At times, High Beam Assist may not

in the following situations:

work properly High Beam Assist is

Light from an oncoming or front

for your convenience only. It is the

vehicle is not detected because of

responsibility of the driver for safe

lamp damage, or because it is hidden

driving practices and always check

from sight, etc.

the road conditions for your safety.

Headlight of an oncoming or front

When High Beam Assist does not

vehicle is covered with dust, snow or

operate properly, change the

water.

headlight position manually between

A front vehicle’s headlights are off, but

high beam and low beam.

the fog lamps are on, etc.

There is a lamp that has a similar

shape as a vehicle’s lamp.

Headlights have been damaged or not

repaired properly.

Headlights are not aimed properly.

Driving on a narrow-curved road,

rough road, uphill or downhill.

Vehicle in front is partially visible on a

crossroad or curved road.

There is a traffic light, reflecting sign,

flashing sign or mirror ahead.

There is a temporary reflector or flash

ahead (construction area).

The road conditions are bad such as

being wet, iced or covered with snow.

A vehicle suddenly appears from a

curve.

The vehicle is tilted from a flat tire or

is being towed.

Light from an oncoming or front

vehicle is not detected due to

obstacles in the air such as exhaust

fume, smoke, fog, snow, or water spay

or blizzard on the road, or fogging in

the lamp, etc.

Information

For more details on the limitations of the

front view camera, refer to “Forward

Collision-Avoidance Assist (FCA)” section

in chapter 7.

5-74

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INTERIOR LIGHTS

Front Lamps

WARNING

Do not use the interior lights when

driving in the dark. The interior lights

may obscure your view and cause an

accident.

NOTICE

Do not use the interior lights for

extended periods when the vehicle is

turned off or the battery will discharge.

OCN7050056

Interior Lamp AUTO Cut

(1) Front Map Lamp

The interior lamps will automatically go

off approximately 20 minutes after the

(2) Front Door Lamp

engine is turned off and the doors are

(3) Front Room Lamp ON

closed. If a door is opened, the lamp

(4) Front Room Lamp OFF

will go off 40 minutes after the engine is

turned off. If the doors are locked by the

remote key or smart key and the vehicle

Front map lamp:

enters the armed stage of the theft

Press either of these lens to turn the map

alarm system, the lamps will go off five

lamp on or off. This light produces a spot

seconds later.

beam for convenient use as a map lamp

at night or as a personal lamp for the

driver and the front passenger.

5-75

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Convenience Features

Front Door Lamp (

Mood Lamp (if equipped)

The front or rear room lamps come on

when the front or rear doors are opened

if the engine is running or not. When

doors are unlocked by the remote key or

smart key, the front and rear lamps come

on for approximately 30 seconds as long

as any door is not opened. The front and

rear room lamps go out gradually after

approximately 30 seconds if the door is

closed. However, if the ignition switch is

in the ON position or all doors are locked,

the front and rear lamps will turn off. If a

OCN7C052041

door is opened with the ignition switch in

7KH ODPS WXUQV RQ ZKHQ œ8VHU VHWWLQJV Ɵ

the ACC position or the OFF position, the

/LJKWV Ɵ $PELHQW /LJKWŔ LV VHOHFWHG IURP

front and rear lamps stay on for about 20

the infotainment system screen.

minutes.

Front room lamp

Rear Lamp

Press the button to turn ON the room

lamp for the front/rear seats.

Press the button to turn OFF the room

lamp for the front/rear seats.

OCN7050057

Rear Room Lamp (

Press this switch to turn the rear room

lamp on and off.

NOTICE

Do not leave the lamp switches on for

an extended period of time when the

engine is turned off.

5-76

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Luggage Compartment Lamp

Vanity Mirror Lamp (if equipped)

OCN7050059

OCN7050058

The luggage compartment lamp comes

Push the switch to turn the light on or off.

on when the trunk is opened.

: The lamp will turn on if this

button is pressed.

NOTICE

: The lamp will turn off if this

The luggage compartment lamp comes

button is pressed.

on as long as the trunk is open. To

prevent unnecessary battery system

NOTICE

drain, close the trunk securely after

Always have the switch in the off

using the luggage compartment.

position when the vanity mirror lamp

is not in use. If the sunvisor is closed

without the lamp off, it may discharge

the battery or damage the sunvisor.

5-77

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Convenience Features

Welcome System (if equipped)

You can activate or deactivate the

Welcome Light from the User Settings

Welcome light

Mode on the LCD display. For more

details, refer to “LCD Display” in

chapter 4. If your vehicle is equipped

with additional navigation, please refer

to the infotainment system manual

separately supplied.

Interior lamp

When the interior lamp switch is in the

DOOR position and all doors (and trunk)

are closed and locked, the room lamp

will come on for 30 seconds if any of the

OCN7050054

below is performed.

Door handle lamp (if equipped)

ś When the door unlock button is

When all the doors (and trunk) are closed

pressed on the remote key or smart

and locked, the door handle lamp will

key.

come on for about 15 seconds if any of

ś When the button of the outside door

the below is performed.

handle is pressed.

ś When the door unlock button is

At this time, if you press the door lock or

pressed on the remote key or smart

unlock button, the room lamp will turn

key.

off immediately.

ś When the button of the outside door

handle is pressed.

ś When the vehicle is approached with

the smart key in possession.

Headlight and parking lamp

When the headlight (lamp switch in the

headlight or AUTO position) is on and all

doors (and trunk) are locked and closed,

the headlight and parking lamp will come

on for 15 seconds if/or any of the below is

performed.

ś When the door unlock button is

pressed on the remote key or smart

key.

At this time, if you press the door lock or

unlock button, the headlight and parking

lamp will turn off immediately.

5-78

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WIPERS AND WASHERS

Windshield Wipers

Operates as follows when the ignition

switch is in the ON position.

MIST: For a single wiping cycle, push

the lever upward and release. The

wipers will operate continuously if

the lever is held in this position.

OFF: Wiper is not in operation.

INT: Wiper operates intermittently at

the same wiping intervals. To vary

OCN7050090N

the speed setting, move the speed

A. Wiper speed control

control lever. The top most setting

will run the wipers most frequently

ś MIST - Single wipe

(for more rain). The bottom setting

ś OFF - Off

will run the wipers the least

ś INT / --- - Intermittent wipe

frequently (for less rain).

ś LO- Low wiper speed

LO: The wiper runs at a lower speed.

ś HI - High wiper speed

HI: The wiper runs at a higher speed.

B. Intermittent control wipe time

adjustment

Information

C. Wash with brief wipes

If there is heavy accumulation of snow

(pull lever towards you)

or ice on the windshield, defrost the

windshield for about 10 minutes, or until

the snow and/or ice is removed before

using the windshield wipers to ensure

proper operation.

If you do not remove the snow and/or ice

before using the wiper and washer, it may

damage the wiper and washer system.

5-79

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Convenience Features

Windshield Washers

NOTICE

To prevent possible damage to the

washer pump, do not operate the

washer when the fluid reservoir is

empty.

To prevent possible damage to the

wipers or windshield, do not operate

the wipers when the windshield is

dry.

To prevent damage to the wiper

arms and other components, do

not attempt to move the wipers

manually.

ODN8059209K

To prevent possible damage to the

In the OFF position, pull the lever gently

wipers and washer system, use anti-

toward you to spray washer fluid on the

freezing washer fluids in the winter

windshield and to run the wipers 1-3

season or cold weather.

cycles. The spray and wiper operation

will continue until you release the lever. If

the washer does not work, you may need

to add washer fluid to the washer fluid

reservoir.

WARNING

When the outside temperature is below

freezing, ALWAYS warm the windshield

using the defroster to help prevent

the washer fluid from freezing on the

windshield and obscuring your vision

which could result in an accident and

serious injury or death.

5-80

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Hyundai Elantra (2023 year). Manual in english - page 7
