Hyundai Elantra Hybrid (2023 year). Manual in english - page 8

05

Emergency Trunk Safety Release

WARNING

ś

You and your passengers must

be aware of the location of the

Emergency Trunk Safety Release

lever in this vehicle and how to open

the trunk in case you are accidentally

locked in the trunk.

ś

NEVER allow anyone to occupy the

trunk of the vehicle at any time. If the

trunk is partially or totally latched

and the person is unable to get out,

serious injury or death could occur

OCN7H050003

due to lack of ventilation, exhaust

Your vehicle is equipped with an

fumes and rapid heat build-up, or

Emergency Trunk Safety Release lever

because of exposure to cold weather

located inside the trunk. When someone

conditions. The trunk is also a highly

is inadvertently locked in the trunk, the

dangerous location in the event of a

trunk can be opened by moving the lever

crash because it is not a protected

in the direction of the arrow and pushing

occupant space but is a part of the

the trunk open.

vehicle’s crush zone.

ś

Your vehicle should be kept locked

and the Smart Key should be kept

out of the reach of children. Parents

should teach their children about the

dangers of playing in trunks.

ś

Use the release lever for emergencies

only.

5-65

Convenience Features

Smart Trunk Release

1. Setting

(if equipped)

To activate the Smart Trunk release, go

to User Settings Mode and select Smart

Trunk on the LCD display.

For more details, refer to “LCD Display”

in this chapter. If your vehicle is

equipped with additional navigation,

please refer to the infotainment system

manual separately supplied.

OCN7H050011

On a vehicle equipped with a smart key,

the trunk can be opened using the Smart

Trunk release system.

How to use the Smart Trunk release

The trunk can be opened with no touch

activation satisfying all the conditions

OCN7050040N

below.

2. Detect and Alert

ś After 15 seconds when all doors are

If you are positioned in the detecting

closed and locked

area (20 ~ 40 inches behind the vehicle)

ś Positioned in the detecting area for

carrying a smart key, the hazard warning

more than 3 seconds

lights will blink and chime will sound

to alert you the smart key has been

detected and the trunk will open.

Information

The Smart Trunk release does not operate

when:

Information

ś The smart key is detected within 15

Do not approach the detecting area if you

seconds after the doors are closed and

do not want the trunk to open. If you have

locked, and is continuously detected.

unintentionally entered the detecting area

and the hazard warning lights and chime

ś The smart key is detected within 15

starts to operate, leave the detecting area

seconds after the doors are closed and

with the smart key. The trunk will stay

locked, and 1.5 m from the front door

closed.

handles. (for vehicles equipped with

Welcome Light)

ś A door is not locked or closed.

ś The smart key is in the vehicle.

5-66

05

How to deactivate the Smart Trunk

release function using the smart key

„ Type A

OCN7H050005

3. Automatic opening

The hazard warning lights will blink and

OCN7050004

chime will sound 6 times and then the

„ Type B

trunk will open.

WARNING

ś

Make sure you close the trunk before

driving your vehicle.

ś

Make sure there are no people or

objects around the trunk before

opening or closing the trunk.

ś

Make sure objects in the trunk do not

OCN7050005

come out when opening the trunk on

a slope. It may cause serious injury.

1. Door lock

ś

Make sure to deactivate the Smart

2. Door unlock

Trunk when washing your vehicle.

3. Trunk open

Otherwise, the trunk may open

4. Panic

inadvertently.

5. Remote Start (if equipped)

ś

The key should be kept out of

reach of children. Children may

inadvertently open the Smart Trunk

If you press any button of the smart key

release while playing around the rear

during the Detect and Alert stage, the

area of the vehicle.

Smart Trunk release function will be

deactivated.

Make sure to be aware of how to

deactivate the Smart Trunk release

function for emergency situations.

5-67

Convenience Features

Detecting area

Information

ś

If you press the door unlock button

(2), the Smart Trunk release function

will be deactivated temporarily. But,

if you do not open any door for 30

seconds, the smart trunk function will

be activated again.

ś

If you press the trunk open button

(3) for more than 1 second, the trunk

opens.

ś

If you press the door lock button (1) or

trunk open button (3) when the Smart

Trunk release function is not in the

OCN7050040N

Detect and Alert stage, the smart trunk

ś

The Smart Trunk release operates with

function will not be deactivated.

a welcome alert if the smart key is

ś

In case you have deactivated the Smart

detected within 20 ~ 40 inches from

Trunk function by pressing the smart

the trunk.

key button and opened a door, the

ś

The alert stops at once if the smart

Smart Trunk release function can be

key is positioned outside the

activated again by closing and locking

detecting area during the Detect and

all doors.

Alert stage.

Information

ś

The Smart Trunk release function will

not work if any of the following occurs:

- The smart key is close to a radio

transmitter such as a radio station or

an airport which can interfere with

normal operation of the transmitter.

- The smart key is near a mobile two

way radio system or a cellular phone.

- Another vehicle’s smart key is being

operated close to your vehicle.

ś

The detecting range may decrease or

increase when :

- One side of the tire is raised to

replace a tire or to inspect the

vehicle.

- The vehicle is slantingly parked on a

slope or unpaved road, etc.

5-68

05

FUEL FILLER DOOR

Opening the fuel filler door

Information

Open and close the reservoir cap by using

the handle on the cap cover for safety.

Information

If the fuel filler door does not open

because ice has formed around it, tap

lightly or push on the door to break the

ice and release the door. Do not pry on the

door. If necessary, spray around the door

with an approved de-icer fluid (do not use

OCN7050042

radiator anti-freeze) or move the vehicle to

The fuel filler door must be opened from

a warm place and allow the ice to melt.

inside the vehicle by pulling up the fuel

filler door opener.

1. Turn the engine off.

2. Pull up the fuel filler door opener.

OCN7050043

3. Pull the fuel filler door (1) out to fully

open.

4. To remove the fuel tank cap (2), turn

it counterclockwise. You may hear a

hissing noise as the pressure inside

the tank equalizes.

5. Place the cap on the fuel filler door.

5-69

Convenience Features

Closing the fuel filler door

WARNING

1. To install the fuel tank cap, turn it

Gasoline is highly flammable and

clockwise until it “Clicks”.

explosive. Failure to follow these

2. Close the fuel filler door until it is

guidelines may result in SERIOUS

latched securely.

INJURY or DEATH:

Tighten the cap until it clicks one time,

ś

Read and follow all warnings posted

otherwise the Check Engine (

) light

at the gas station.

will illuminate.

ś

Before refueling, note the location of

the Emergency Gasoline Shut-Off, if

NOTICE

available, at the gas station.

There may be an intermittent noise

ś

Before touching the fuel nozzle, you

near the refueling hole while the engine

should eliminate the potential build-

is idling if the fuel cap is not closed

up of static electricity by touching

securely. This occurs normally with the

a metal part of the vehicle, a safe

OBD system.

distance away from the fuel filler

neck, nozzle, or other gas source,

with your bare hand.

NOTICE

ś

Do not use cellular phones while

When refueling on unlevel ground,

refueling. Electric current and/or

the fuel gauge may not point to the F

electronic interference from cellular

position.

phones can potentially ignite fuel

It is not a malfunction. If you move your

vapors and cause a fire.

vehicle to a level ground, the fuel gauge

ś

Do not get back into a vehicle

will move to the full position.

once you have begun refueling.

You can generate a build-up of

static electricity by touching,

rubbing or sliding against any item

or fabric capable of producing

static electricity. Static electricity

discharge can ignite fuel vapors

causing a fire. If you must re-enter

the vehicle, you should once again

eliminate potentially dangerous

static electricity discharge by

touching a metal part of the vehicle,

away from the fuel filler neck, nozzle

or other gasoline source, with your

bare hand.

5-70

Convenience Features

EXTERIOR LIGHTS

Lighting Control

To operate the lights, turn the knob at

the end of the control lever to one of the

following positions:

OCN7050055

AUTO headlight

The parking lamp and headlight will

be turned ON or OFF automatically

depending on the amount of daylight as

ODN8A059200

measured by the ambient light sensor on

1. OFF

the center dash (1).

2. AUTO headlight

Even with the AUTO headlight feature

3. Parking lamp

in operation, it is recommended to

manually turn ON the headlights when

4. Headlight

driving at night or in a fog, driving in the

rain, or when you enter dark areas, such

Daytime running light (DRL)

as tunnels and parking facilities.

The Daytime Running Lights (DRL) can

make it easier for others to see the front

of your vehicle during the day, especially

NOTICE

after dawn and before sunset.

ś Do not cover or spill anything on

the sensor (1) located in front of the

The DRL system will turn the dedicated

instrument panel.

lamp OFF when:

ś Do not clean the sensor using

ś The headlights are ON.

a window cleaner, the cleanser

may leave a light film which could

ś The parking lamps are ON.

interfere with sensor operation.

ś The vehicle is turned off.

ś If your vehicle has window tint or

ś The parking brake is engaged.

other types of metallic coating on the

front windshield, the AUTO headlight

system may not work properly.

5-72

05

High Beam Operation

ODN8A059202

Parking lamp (

)

ODN8A059205

The parking lamp, license plate lamp and

To turn on the high beam headlight, push

instrument panel lamp are turned ON.

the lever away from you. The lever will

return to its original position.

The high beam indicator will light when

the headlight high beams are switched

on.

To turn off the high beam headlight, pull

the lever towards you. The low beams

will turn on.

WARNING

Do not use high beam when there are

ODN8A059203

other vehicles approaching you. Using

Headlight (

)

high beam could obstruct the other

driver’s vision.

The headlight, parking lamp, license

plate lamp and instrument panel lamp

are turned ON.

Information

The ignition switch must be in the ON

position to turn on the headlight.

5-73

Convenience Features

Turn Signals and Lane Change

Signals

ODN8A059204

To flash the high beam headlight, pull the

lever towards you, then release the lever.

ODN8A059207

The high beams will remain ON as long

as you hold the lever towards you.

To signal a turn, push down on the lever

for a left turn or up for a right turn in

position (A). To signal a lane change,

move the turn signal lever slightly and

hold it in position (B). The lever will

return to the OFF position when released

or when the turn is completed.

If an indicator stays on and does not flash

or if it flashes abnormally, one of the turn

signal bulbs may be burned out and will

require replacement.

One touch turn signal function

To activate a one-touch turn signal

function, move the turn signal lever

slightly and then release it. The lane

change signals will blink 3, 5 or 7 times.

You can activate or deactivate the One

Touch Turn Signal function or choose

the number of blinks (3, 5, or 7) from the

User Settings Mode on the LCD display.

For more details, refer to “LCD Display

Modes” in chapter 4. If your vehicle is

equipped with additional navigation,

please refer to the infotainment system

manual separately supplied.

5-74

Convenience Features

+,*+ %($0

$66,67 ǣ+%$Ǥ ǣ,) (48,33('Ǥ

NOTICE

Always keep the front view camera in

good condition to maintain optimal

performance of High Beam Assist.

For more details on the precautions

of the front view camera, refer to

“Forward Collision-Avoidance Assist

(FCA)” section in chapter 7.

Function Settings

OCN7050141N

:LWK WKH HQJLQH RQ VHOHFW œ/LJKWV Ɵ +LJK

High Beam Assist will automatically

Beam Assist (or HBA (High Beam Assist))’

adjust the headlight range (switches

from the Settings menu to turn on High

between high beam and low beam)

Beam Assist and deselect to turn off the

depending on the brightness of detected

system.

vehicles and certain road conditions.

WARNING

Detecting Sensor (Front view

For your safety, change the Settings

camera)

after parking the vehicle at a safe

location.

OCN7060030

[1] : Front view camera

The front view camera is used as a

detecting sensor to help detect ambient

light and brightness while driving.

Refer to the picture above for the

detailed location of the detecting sensor.

5-76

05

Function Operation

ś When High Beam Assist is operating,

high beam switches to low beam if

Display and control

any of the following conditions occur:

ś

After selecting ‘High Beam Assist’

- When the headlight of an oncoming

in the Settings menu, High Beam

vehicle is detected.

Assist will operate by following the

procedure below.

- When the tail lamp of a vehicle in

front is detected.

- Place the headlight switch in

the AUTO position and push

- When the headlight or tail lamp of a

the headlight lever towards the

motorcycle or a bicycle is detected.

instrument cluster. The High Beam

- When the surrounding ambient light

Assist (

) indicator light will

is bright enough that high beams

illuminate on the cluster and the

are not required.

system will be enabled.

- When streetlights or other lights are

- When the system is enabled, high

detected.

beam will turn on when vehicle

speed is above 25 mph (40 km/h).

High Beam Assist Malfunction

When vehicle speed is below 15

and Limitations

mph (25 km/h), high beam will not

High Beam Assist malfunction

turn on.

- The High Beam (

) indicator light

„ Type A

„ Type B

will illuminate on the cluster when

high beam is on.

ś

When High Beam Assist is operating,

if the headlight lever or switch is used,

the system operates as follow:

- If the headlight lever is pulled

towards you when the high beam

is off, the high beam will turn on

without High Beam Assist canceled.

When you let go of the headlight

OTM050218N/OTM050218L

lever, the lever will move to the

When High Beam Assist is not working

middle and the high beam will turn

properly, the ‘Check High Beam Assist

off.

(HBA) system’ or ‘Check HBA (High

- If the headlight lever is pulled

Beam Assist) system’ warning message

towards you when the high beam is

will appear and warning light will

on by High Beam Assist, low beam

illuminate on the cluster. Take your

will be on and the system will turn

vehicle to an authorized HYUNDAI dealer

off.

and have the function checked.

- If the headlight switch is placed

from AUTO to another position

(headlight/position/off), High

Beam Assist will turn off and the

corresponding lamp will turn on.

5-77

05

INTERIOR LIGHTS

Front Lamps

WARNING

Do not use the interior lights when

driving in the dark. The interior lights

may obscure your view and cause an

accident.

NOTICE

Do not use the interior lights for

extended periods when the vehicle is

turned off or the battery will discharge.

OCN7050056

Interior Lamp AUTO Cut

(1) Front Map Lamp

The interior lamps will automatically go

off approximately 20 minutes after the

(2) Front Door Lamp

engine is turned off and the doors are

(3) Front Room Lamp ON

closed. If a door is opened, the lamp

(4) Front Room Lamp OFF

will go off 40 minutes after the engine is

turned off. If the doors are locked by the

remote key or smart key and the vehicle

Front map lamp:

enters the armed stage of the theft

Press either of these lens to turn the map

alarm system, the lamps will go off five

lamp on or off. This light produces a spot

seconds later.

beam for convenient use as a map lamp

at night or as a personal lamp for the

driver and the front passenger.

5-79

Convenience Features

Front Door Lamp (

):

Room Lamp

The front or rear room lamps come on

when the front or rear doors are opened

if the engine is running or not. When

doors are unlocked by the remote key or

smart key, the front and rear lamps come

on for approximately 30 seconds as long

as any door is not opened. The front and

rear room lamps go out gradually after

approximately 30 seconds if the door is

closed. However, if the ignition switch is

in the ON position or all doors are locked,

the front and rear lamps will turn off. If a

OCN7050057

door is opened with the ignition switch in

Rear Room Lamp (

):

the ACC position or the OFF position, the

front and rear lamps stay on for about 20

Press this switch to turn the rear room

minutes.

lamp on and off.

Front room lamp

NOTICE

ś

:

Do not leave the lamp switches on for

Press the button to turn ON the room

an extended period of time when the

lamp for the front/rear seats.

engine is turned off.

ś

:

Press the button to turn OFF the room

lamp for the front/rear seats.

Mood lamp (if equipped)

OCN7C052041

7KH ODPS WXUQV RQ ZKHQ œ8VHU VHWWLQJV Ɵ

/LJKWV Ɵ $PELHQW /LJKWŔ LV VHOHFWHG IURP

the infotainment system screen.

5-80

05

Luggage Compartment Lamp

Vanity Mirror Lamp (if equipped)

OCN7050059

OCN7050058

The luggage compartment lamp comes

Push the switch to turn the light on or off.

on when the trunk is opened.

ś

: The lamp will turn on if this

button is pressed.

NOTICE

ś

: The lamp will turn off if this

The luggage compartment lamp comes

button is pressed.

on as long as the trunk is open. To

prevent unnecessary battery system

NOTICE

drain, close the trunk securely after

Always have the switch in the off

using the luggage compartment.

position when the vanity mirror lamp

is not in use. If the sunvisor is closed

without the lamp off, it may discharge

the battery or damage the sunvisor.

5-81

Convenience Features

Welcome System (if equipped)

You can activate or deactivate the

Welcome Light from the User Settings

Welcome light

Mode on the LCD display. For more

details, refer to “LCD Display” in

chapter 4. If your vehicle is equipped

with additional navigation, please refer

to the infotainment system manual

separately supplied.

Interior lamp

When the interior lamp switch is in the

DOOR position and all doors (and trunk)

are closed and locked, the room lamp

will come on for 30 seconds if any of the

OCN7H050010

below is performed.

Door handle lamp (if equipped)

ś When the door unlock button is

When all the doors (and trunk) are closed

pressed on the remote key or smart

and locked, the door handle lamp will

key.

come on for about 15 seconds if any of

ś When the button of the outside door

the below is performed.

handle is pressed.

ś When the door unlock button is

At this time, if you press the door lock or

pressed on the remote key or smart

unlock button, the room lamp will turn

key.

off immediately.

ś When the button of the outside door

handle is pressed.

ś When the vehicle is approached with

the smart key in possession.

Headlight and parking lamp

When the headlight (lamp switch in the

headlight or AUTO position) is on and all

doors (and trunk) are locked and closed,

the headlight and parking lamp will come

on for 15 seconds if/or any of the below is

performed.

ś When the door unlock button is

pressed on the remote key or smart

key.

At this time, if you press the door lock or

unlock button, the headlight and parking

lamp will turn off immediately.

5-82

05

WIPERS AND WASHERS

Windshield Wipers

Operates as follows when the ignition

switch is in the ON position.

MIST: For a single wiping cycle, push

the lever upward and release. The

wipers will operate continuously if

the lever is held in this position.

OFF: Wiper is not in operation.

INT: Wiper operates intermittently at

the same wiping intervals. To vary

OCN7050090N

the speed setting, move the speed

A. Wiper speed control

control lever. The top most setting

will run the wipers most frequently

ś MIST - Single wipe

(for more rain). The bottom setting

ś OFF - Off

will run the wipers the least

ś INT / --- - Intermittent wipe

frequently (for less rain).

ś LO- Low wiper speed

LO: The wiper runs at a lower speed.

ś HI - High wiper speed

HI: The wiper runs at a higher speed.

B. Intermittent control wipe time

adjustment

Information

C. Wash with brief wipes

If there is heavy accumulation of snow

(pull lever towards you)

or ice on the windshield, defrost the

windshield for about 10 minutes, or until

the snow and/or ice is removed before

using the windshield wipers to ensure

proper operation.

If you do not remove the snow and/or ice

before using the wiper and washer, it may

damage the wiper and washer system.

5-83

Convenience Features

Windshield Washers

NOTICE

ś

To prevent possible damage to the

washer pump, do not operate the

washer when the fluid reservoir is

empty.

ś

To prevent possible damage to the

wipers or windshield, do not operate

the wipers when the windshield is

dry.

ś

To prevent damage to the wiper

arms and other components, do

not attempt to move the wipers

manually.

ODN8059209K

ś

To prevent possible damage to the

In the OFF position, pull the lever gently

wipers and washer system, use anti-

toward you to spray washer fluid on the

freezing washer fluids in the winter

windshield and to run the wipers 1-3

season or cold weather.

cycles. The spray and wiper operation

will continue until you release the lever. If

the washer does not work, you may need

to add washer fluid to the washer fluid

reservoir.

WARNING

When the outside temperature is below

freezing, ALWAYS warm the windshield

using the defroster to help prevent

the washer fluid from freezing on the

windshield and obscuring your vision

which could result in an accident and

serious injury or death.

5-84

05

$8720$7,& &/,0

$7( &21752/ 6<67(0

OCN7050110L

1. Driver’s temperature control knob

2. Passenger’s temperature control knob

3. AUTO (automatic control) button

4. SYNC button

5. OFF button

6. Front windshield defroster button

7. Air conditioning button

8. Air intake control button

9. Rear window defroster button

10.Fan speed control button

11. Mode selection button

12. Climate control information screen

5-85

Convenience Features

Automatic Heating and Air

When you select the temperature to HI

or LO in AUTO mode, the fan speed is set

Conditioning

to ‘HIGH’.

„ Driver’s seat

„ Passenger’s seat

OCN7050112

OCN7050114

1. Press the AUTO button

2.

Turn the temperature control knob

The modes, fan speeds, air intake and

to set the desired temperature. If

air-conditioning will be controlled

the temperature is set to the lowest

automatically according to the

setting (Lo), the air conditioning

temperature setting you select.

system will operate continuously.

ś

To turn the automatic operation off,

select any button of the following:

- Mode selection button

- Front windshield defroster button

(Press the button one more time

to deselect the front windshield

defroster function. The ‘AUTO’ sign

will illuminate on the information

screen once again.)

- Fan speed control toggle switch

OCN7050113

The selected function will be

controlled manually while other

You can control the blower strength in

functions operate automatically.

three stages by pushing the AUTO button

during automatic operation.

ś

For your convenience and overall

system efficiency, use the AUTO

- HIGH : Provide rapid air conditioning

button and set the temperature to

and heating with strong blower

72°F (22°C).

- MEDIUM : Provide air conditioning

and heating with medium strength

blower

- LOW : Is suitable for drivers that prefer

lower air speeds

5-86

05

Manual Heating and Air

Conditioning

The heating and cooling system can be

controlled manually by pushing buttons

other than the AUTO button. In this case,

the system works sequentially according

to the order of buttons selected. When

pressing any button except the AUTO

button while using automatic operation,

the functions not selected will be

controlled automatically.

OCN7050133

1. Start the engine.

2. Set the mode to the desired position.

Information

To improve the effectiveness of

Never place anything near the sensor to

heating and cooling, select the mode

ensure better control of the heating and

according to the following:

cooling system.

- Heating:

- Cooling:

3. Set the temperature control to the

desired position.

4. Set the air intake control to fresh

mode.

5. Set the fan speed control to the

desired speed.

6. If air conditioning is desired, turn the

air conditioning system on.

7. Press the AUTO button in order to

convert to full automatic control of

the system.

5-87

Convenience Features

Mode selection

OCN7050103N

5-88

05

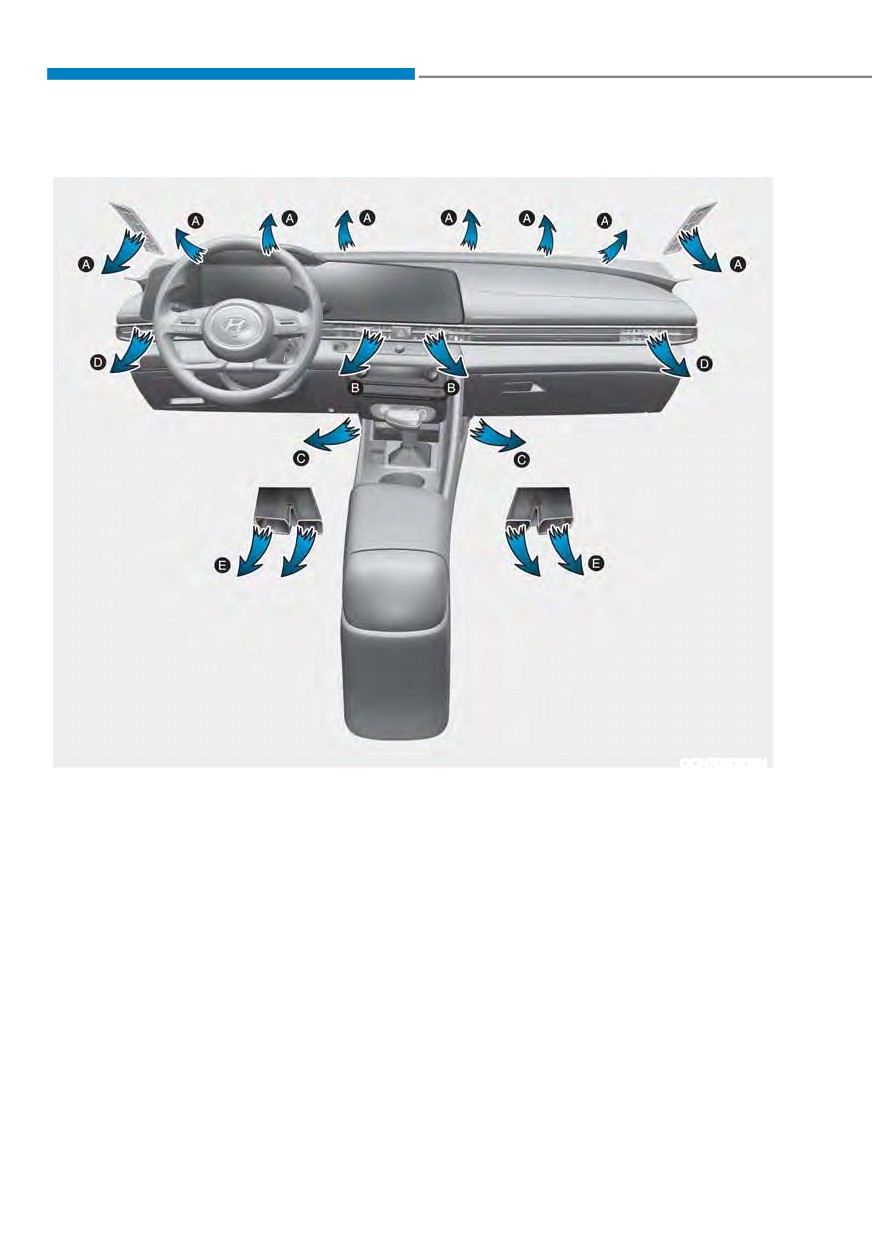

Bi-Level (B, C, D, E)

Air flow is directed towards the face and

the floor.

Floor-Level (A, C, D, E)

Most of the air flow is directed to the

floor, with a small amount of the air

OCN7050115

being directed to the windshield and side

The mode selection toggle switch

window defrosters.

controls the direction of the air flow

through the ventilation system.

Floor & Defrost (A, C, D, E)

The air flow outlet direction is cycled as

follows:

Most of the air flow is directed to the

floor and the windshield with a small

amount directed to the side window

defrosters.

Face-level (B, D)

Air flow is directed toward the upper

body and face. Additionally, each outlet

can be controlled to direct the air

discharged from the outlet.

5-89

Convenience Features

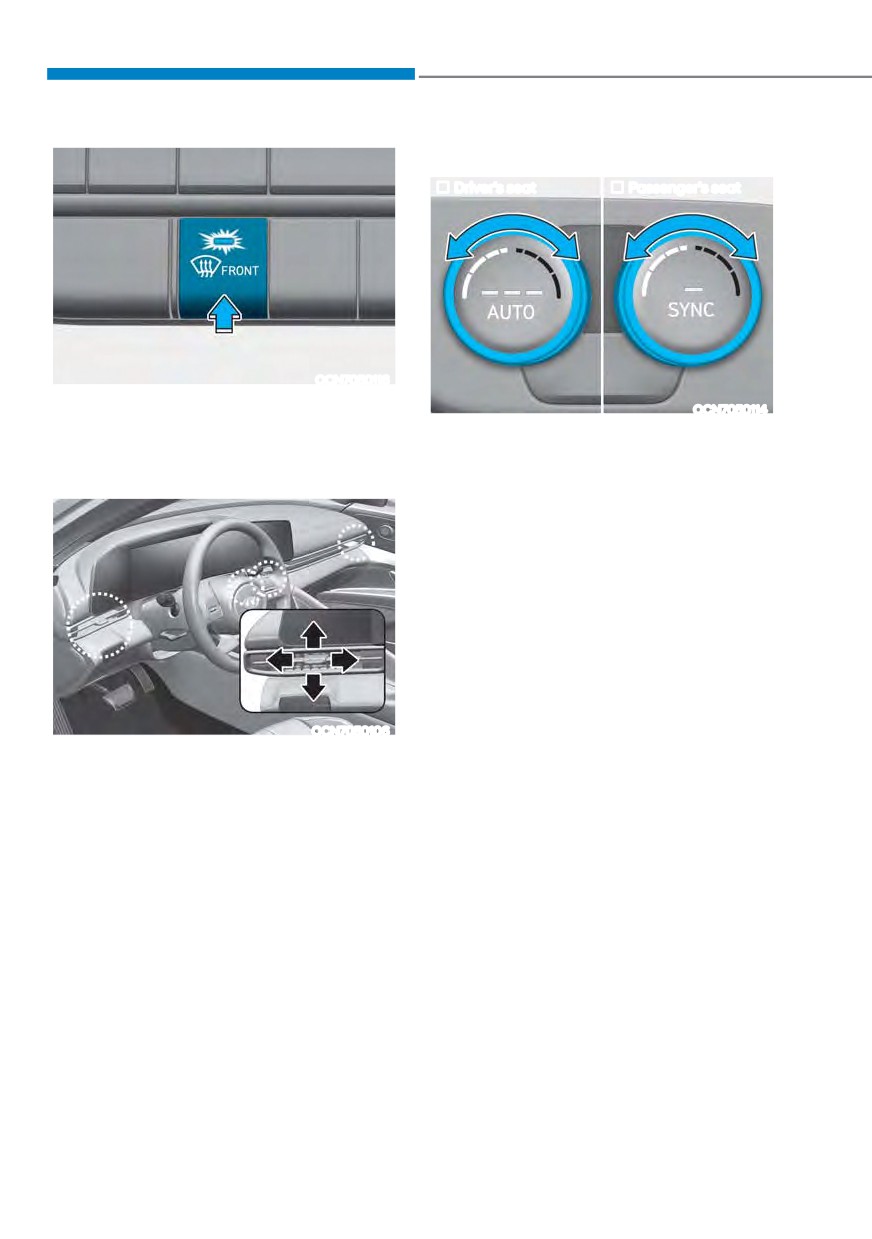

Temperature control

„ Driver’s seat

„ Passenger’s seat

OCN7050116

Defrost-Level (A, D)

OCN7050114

Most of the air flow is directed to the

The temperature will increase by turning

windshield with a small amount of air

the knob to the right.

directed to the side window defrosters.

The temperature will decrease by turning

the knob to the left.

The temperature will increase or

decrease by 1°F (0.5°C) for each

incremental location. When set to the

lowest temperature setting, the air

conditioning will operate continuously.

OCN7050106

Instrument panel vents

The instrument panel vent air flow can be

directed up/down or left/right using the

vent adjustment lever.

To close the vent, push the air vent

lever in the opposite direction of the

passenger. To open the vent, push the

air vent lever in the same direction of the

passenger.

5-90

05

Temperature conversion

If the battery connector has been

discharged or disconnected, the

temperature mode display will reset to

Centigrade.

To change the temperature unit from °C

to °F or °F to °C :

- Automatic climate control system

Press the AUTO button for 3 seconds

while pressing the OFF button.

OCN7050117

- Instrument clusterAutomatic climate

Adjusting the driver and passenger side

control system

temperature equally

*R WR 8VHU 6HWWLQJV Ɵ 2WKHU Ɵ

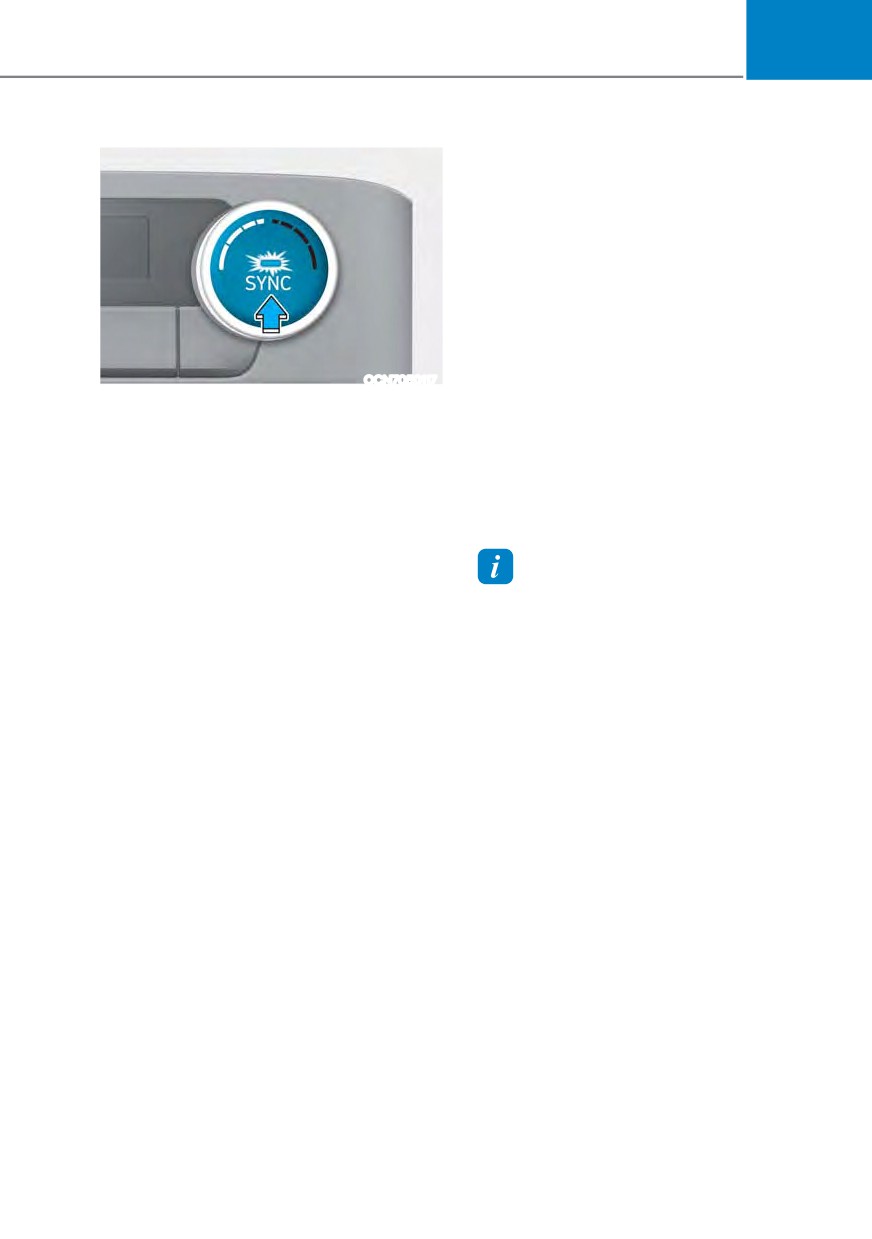

ś Press the “SYNC” button to adjust

Temperature Unit.

the driver and passenger side

The temperature unit on both the

temperature equally.

cluster LCD display and the climate

ś The passenger side temperature will

control screen will change.

be set to the same temperature as the

driver side temperature.

Information

ś Turn the driver side temperature

control knob. The driver and

When starting the vehicle in cold weather

passenger side temperature will be

using manual temperature control,

adjusted equally.

operate the system in the following method

to improve heating.

ś If you rotate the passenger’s

temperature control knob, the SYNC

- Turn off or lower the blower, right after

button is off and the passenger

starting the engine.

side temperature can be operated

- Allow the engine to warm up during

individually.

this time since the air flow from the

heater is still cold.

Adjusting the driver and passenger side

- After a few minutes of engine warm up,

temperature individually

turn on or set the fan to a higher level

Press the “SYNC” button again to

and adjust the temperature setting to

adjust the driver and passenger side

hot.

temperature individually. The button

indicator will turn off.

5-91

Convenience Features

Air intake control

ś Do not sleep in your vehicle or

remain parked in your vehicle with

Recirculated air position

the windows up and either the

With the recirculated air

heater or the air conditioning ON for

position selected, air from the

prolonged periods of time. Doing so

passenger compartment will

may increase the levels of carbon

be drawn through the heating

dioxide in the cabin which may lead

system and heated or cooled

to serious injury or death.

according to the function

selected.

Fan speed control

Outside (fresh) air position

With the outside (fresh) air

position selected, air enters

the vehicle from outside and

is heated or cooled according

to the function selected.

Information

Operating the system primarily in Fresh

mode is recommended. Use Recirculation

OCN7050118

mode temporarily only when needed.

The fan speed can be set to the desired

Prolonged operation of the heater in

speed by using the fan speed control

Recirculation mode and without the A/C

toggle switch.

ON can cause fogging of the windshield.

More air is delivered with higher fan

In addition, prolonged use of the A/C

speeds.

ON in Recirculation mode may result in

Pressing the OFF button turns off the fan.

excessively dry, dehumidified air in the

cabin and may promote formation of

musty vent odor due to stagnant air.

NOTICE

Operating the fan speed when the

WARNING

ignition switch is in the ON position

could cause the battery to discharge.

ś Continued use of the climate control

Operate the fan speed when the engine

system operation in Recirculation

is running.

mode for a prolonged period of

time may cause drowsiness to the

occupants in the cabin. This may lead

to loss of vehicle control which may

lead to an accident.

ś Continued use of the climate control

system operation in Recirculation

mode with the A/C OFF may allow

humidity to increase inside the cabin.

This may cause condensation to

accumulate on the windshield and

obscure visibility.

5-92

05

Air conditioning

System Operation

Ventilation

1. Select the Face Level

mode.

2. Set the air intake control to fresh

mode.

3. Set the temperature control to the

desired position.

4. Set the fan speed control to the

desired speed.

Heating

OCN7050119

1. Select the Floor Level

mode.

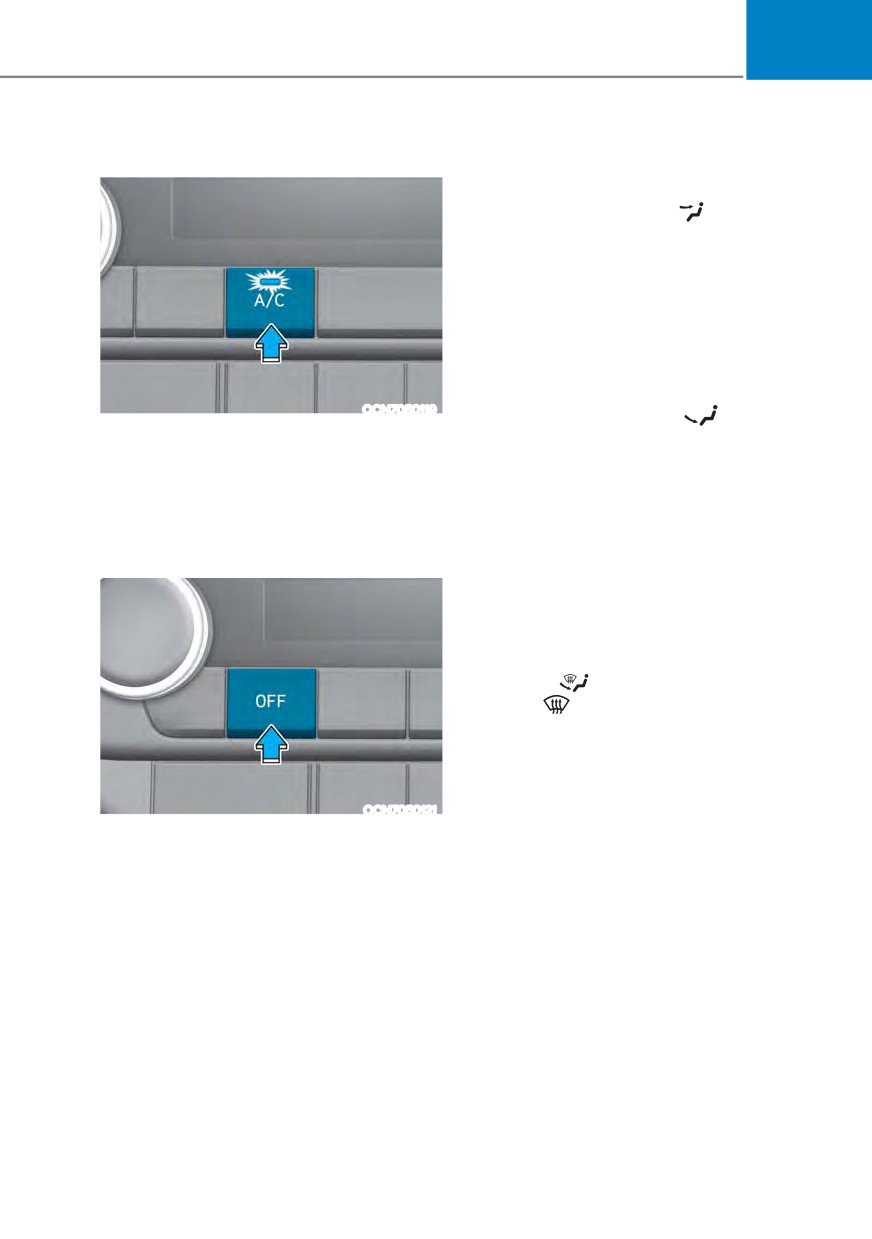

Push the A/C button to manually turn

2. Set the air intake control to fresh

the air conditioning system on (indicator

mode.

light will illuminate).

3. Set the temperature control to the

Push the button again to turn the air

desired position.

conditioning system off.

4. Set the fan speed control to the

desired speed.

OFF mode

5. If desired, turn the air conditioning ON

with the temperature control knob set

to heat in order to dehumidify the air

before it enters into the cabin.

If the windshield fogs up, select the Front

& Deforst

mode or press the Front

Defrost

mode.

Operation Tips

ś To help keep dust or unpleasant fumes

from entering the vehicle through the

OCN7050121

ventilation system, temporarily set the

Push the OFF button of the front to

air intake control to the recirculation

turn off the air climate control system.

mode. Be sure to return the control

However, you can still operate the mode

to fresh mode position when the

and air intake buttons as long as the

irritation has passed to keep fresh air

ignition switch is in the ON position.

in the vehicle. This will help keep the

driver alert and comfortable.

ś To help prevent interior fog on the

windshield, set the air intake control

to fresh mode and fan speed to

the desired position, turn on the

air conditioning system, and adjust

the temperature control to desired

temperature.

5-93

Convenience Features

Air conditioning

Air conditioning system operation tips

HYUNDAI Air Conditioning Systems are

ś

If the vehicle has been parked in

filled with R-1234yf refrigerant.

direct sunlight during hot weather,

open the windows for a short time

1. Start the vehicle.

to let the hot air inside the vehicle

2. Push the air conditioning button.

escape.

3. Select the Face Level

mode.

ś

After sufficient cooling has been

4. Set the air intake control to

achieved, switch back from

Recirculation mode temporarily to

recirculation mode to fresh mode.

allow the cabin to cool quickly. When

ś

To help reduce moisture inside of

the desired temperature in the cabin

the windows on rainy or humid

is reached, change the air intake

days, decrease the humidity inside

control back to Fresh mode.

the vehicle by operating the air

5. Adjust the fan speed control and

conditioning system with the windows

temperature control to maintain

and sunroof closed.

maximum comfort.

ś

During air conditioning system

operation, you may occasionally

notice a slight change in engine speed

Information

as the air conditioning compressor

Your vehicle is filled with R-1234yf

cycles. This is a normal system

according to the regulation in your

operation characteristic.

country at the time of production. You can

ś

Use the air conditioning system

find out which air conditioning refrigerant

every month only for a few minutes

is applied to your vehicle on the label

to ensure maximum system

located inside of the hood.

performance.

ś

When using the air conditioning

NOTICE

system, you may notice clear water

When using the air conditioning system,

dripping (or even puddling) on the

monitor the temperature gauge closely

ground under the passenger side of

while driving up hills or in heavy traffic

the vehicle. This is a normal system

when outside temperatures are high.

operation characteristic.

Air conditioning system operation may

ś

If you operate the air conditioner

cause engine overheating. Continue

excessively, the difference between

to use the blower fan but turn the

the temperature of the outside air and

air conditioning system off if the

that of the windshield could cause

temperature gauge indicates engine

the outer surface of the windshield to

overheating.

fog up, causing loss of visibility. In this

case, set the mode selection button to

the

position and set the fan speed

control knob to the lowest speed

setting.

5-94

05

System Maintenance

Checking the amount of air

conditioner refrigerant and

Cabin air filter

compressor lubricant

When the amount of refrigerant is low,

the performance of the air conditioning

is reduced. Overfilling also reduces the

performance of the air conditioning

system.

Therefore, if abnormal operation is

found, have the system inspected by an

authorized HYUNDAI dealer.

NOTICE

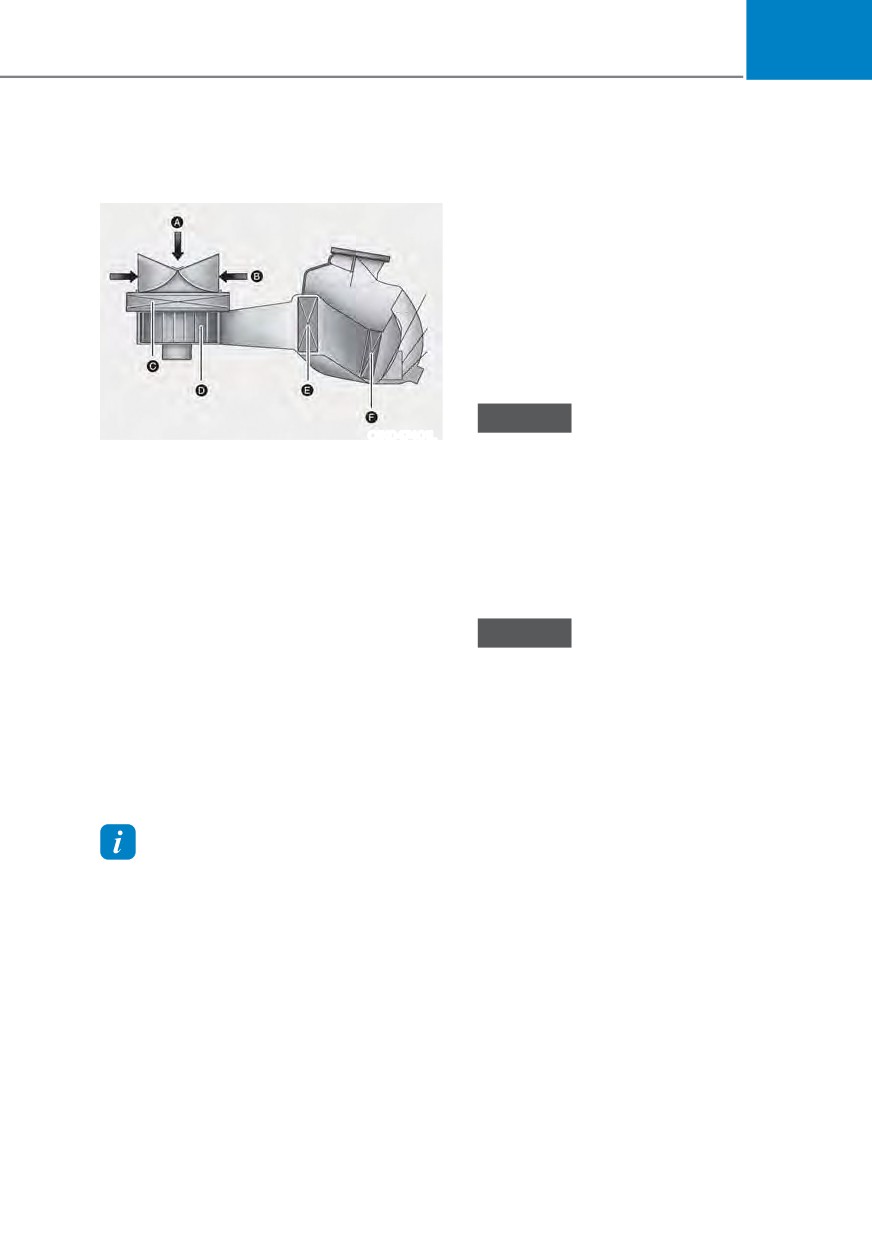

OIK047401L

It is important that the correct type and

[A] : Outside air, [B] : Recirculated air

[C] : Cabin air filter, [D] : Blower

amount of oil and refrigerant are used.

Otherwise, damage to the compressor

[E] : Evaporator core, [F] : Heater core

and abnormal system operation may

The cabin air filter is installed behind

occur. To prevent damage, the air

the glove box. It filters the dust or other

conditioning system in your vehicle

pollutants that enter the vehicle through

should only be serviced by trained and

the heating and air conditioning system.

certified technicians.

Have the cabin air filter replaced by an

authorized HYUNDAI dealer according to

NOTICE

the maintenance schedule. If the vehicle

is being driven in severe conditions such

ś The refrigerant system should only

as dusty or rough roads, more frequent

be serviced by trained and certified

cabin air filter inspections and changes

technicians to insure proper and safe

are required.

operation.

If the air flow rate suddenly decreases,

ś The refrigerant system should be

the system should be checked at an

serviced in a well-ventilated place.

authorized HYUNDAI dealer.

ś The air conditioning evaporator

(cooling coil) shall never be repaired

or replaced with one removed from

Information

a used or salvaged vehicle and new

ś Replace the filter according to the

replacement MAC evaporators shall

Maintenance Schedule.

be certified (and labeled) as meeting

SAE Standard J2842.

ś If the car is being driven in severe

conditions such as dusty, rough

roads, more frequent cabin air filter

inspections and changes are required.

ś When the air flow rate suddenly

decreases, we recommend that the

system be checked by an authorized

HYUNDAI dealer.

5-95

Content      ..     6      7      8      9     ..
