Hyundai Elantra Hybrid (2023 year). Manual in english - page 9

Convenience Features

WARNING

Vehicles equipped with R-1234yf

Since the refrigerant is

mildly flammable and

operated at high pressure,

the air conditioning system

should only be serviced

by trained and certified

technicians. It is important

that the correct type

and amount of oil and

OCN7H050001

refrigerant are used.

Air conditioning refrigerant label

All refrigerants should be reclaimed

You can find out which air conditioning

with proper equipment.

refrigerant is applied to your vehicle on

Venting refrigerants directly to the

the label located inside of the hood.

atmosphere is harmful to individuals

and environment. Failure to heed these

„ Example

warnings can lead to serious injuries.

OHYK059002

Each symbols and specification on

the air conditioning refrigerant label is

represented as below:

1. Classification of refrigerant

2. Amount of refrigerant

3. Classification of Compressor lubricant

4. Caution

5. Flammable refrigerant

6. To require registered technician to

service air conditioning system

5-96

05

WINDSHIELD DEFROSTING AND DEFOGGING

Automatic Climate Control

WARNING

System

Windshield heating

To defog inside windshield

Do not use the

or

position

during cooling operation in extremely

humid weather. The difference between

the temperature of the outside air and

that of the windshield could cause the

outer surface of the windshield to fog

up, causing loss of visibility. In this case,

set the mode selection knob or button

to the position and fan speed control

knob or button to lower speed.

ś For maximum defrost performance,

OCN7050124L

set the temperature control knob

to the highest temperature setting

1. Select desired fan speed.

(rotated all the way to the right) and

2. Select desired temperature.

the fan speed control to the highest

3. Press the defroster button (

).

setting.

4. The air-conditioning will turn on

ś If warm air to the floor is desired while

according to the detected ambient

defrosting or defogging, set the mode

temperature, fresh mode and

to the floor-defrost position.

higher fan speed will be selected

ś Before driving, clear all snow and ice

automatically.

from the windshield, rear window,

If the air-conditioning, fresh mode

side view mirrors, and all side

and higher fan speed are not selected

windows.

automatically, adjust the corresponding

ś Clear all snow and ice from the

button or knob manually.

hood and air inlet in the cowl grill

If the

position is selected, lower fan

to improve heater and defroster

speed is controlled to higher fan speed.

efficiency and to reduce the

probability of fogging up inside of the

windshield.

5-97

Convenience Features

To defrost outside windshield

Defogging Logic

To help reduce the probability of fogging

up the inside of the windshield, the air

intake or air conditioning are controlled

automatically according to certain

conditions such as

or

position. To

cancel or return the defogging logic, do

the following

Manual climate control system

1. Turn the ignition switch to the ON

position.

OCN7050125L

2. Select defroster mode (

).

1. Set fan speed to the highest position.

3. Press the air intake control button at

2. Set temperature to the extreme hot

least 5 times within 3 seconds. The

(HI) position.

process should be completed within

3. Press the defroster button (

).

10 seconds after the defroster mode (

4. The air-conditioning will turn on

) is selected.

according to the detected ambient

The LED indicator on the air intake

temperature and fresh mode will be

button will blink 3 times to indicate that

selected automatically.

the defogging logic has been disabled.

If the

position is selected, lower fan

Repeat the steps again to re-enable the

speed is controlled to higher fan speed.

defogging logic.

If the battery has been discharged or

disconnected, it resets to the defog logic

status.

Automatic climate control system

1. Turn the ignition switch to the ON

position.

2. Press the defroster button (

).

3. While pressing the air conditioning

button (A/C), press the air intake

control button at least 5 times within

3 seconds.

The automatic climate control

information screen will blink 3 times to

indicate that the defogging logic has

been disabled.

Repeat the steps again to re-enable the

defogging logic.

If the battery connector has been

discharged or disconnected, it resets to

the defog logic status.

5-98

05

Auto Defogging System

To cancel or reset the Auto Defogging

System

Press the front windshield defroster

button for 3 seconds when the ignition

switch is in the ON position.

When the Auto Defogging System is

canceled, defrost button indicator will

blink 3 times.

When the Auto Defogging System is

reset, defrost button indicator will blink 6

times without a signal.

OCN7050061

Information

Auto defogging helps reduce the

possibility of fogging up the inside of the

ś When the air conditioning is turned

windshield by automatically sensing the

on by Auto defogging system, if you

moisture on inside the windshield.

try to turn off the air conditioning, the

indicator will blink 3 times and the air

The auto defogging system operates

conditioning will not be turned off.

when the heater or air conditioning is on.

ś To maintain the effectiveness and

When the Auto Defogging

efficiency of the Auto Defogging

System operates, the indicator

System, do not select Recirculation

will illuminate.

mode while the system is operating.

If a high amount of humidity is detected

ś When the Auto Defogging System is

in the vehicle, the Auto Defogging

operating, the fan speed adjustment

System will be enabled.

knob, the temperature adjustment

knob, and the air intake control button

The following steps will be performed

are all disabled.

automatically:

Step 1) The A/C button will turn ON.

NOTICE

Step 2) The air intake control will change

Do not remove the sensor cover located

to Fresh mode under low outside

on the upper end of the driver side

temperature.

windshield glass.

Step 3) The mode will be changed to

Damage to system parts could occur

defrost to direct airflow to the

and may not be covered by your vehicle

windshield.

warranty.

Step 4) The fan speed will be increased.

5-99

Convenience Features

Defroster

Information

ś If there is heavy accumulation of snow

NOTICE

on the rear window, brush it off before

To prevent damage to the conductors

operating the rear defroster.

bonded to the inside surface of the rear

ś The rear window defroster

window, never use sharp instruments or

automatically turns off after

window cleaners containing abrasives

approximately 20 minutes or when the

to clean the window.

ignition switch is in the LOCK/OFF

position.

Information

Outside mirror defroster (if

If you want to defrost and defog the

equipped)

front windshield, refer to “Windshield

If your vehicle is equipped with the

Defrosting and Defogging” in this chapter.

outside mirror defrosters, they will

operate at the same time you turn on the

Rear window defroster

rear window defroster.

OCN7050136L

The defroster heats the window to

remove frost, fog and thin ice from the

interior and exterior of the rear window,

while engine is running.

ś To activate the rear window defroster,

press the rear window defroster

button located in the center facia

switch panel. The indicator on the rear

window defroster button illuminates

when the defroster is ON.

ś To turn off the defroster, press the rear

window defroster button again.

5-100

Convenience Features

6725$*( &203

$570(17

Center Console Storage

WARNING

Never store cigarette lighters, propane

cylinders, or other flammable/explosive

materials in the vehicle. These items

may catch fire and/or explode if the

vehicle is exposed to hot temperatures

for extended periods.

WARNING

ALWAYS keep the storage compartment

covers closed securely while driving.

Items inside your vehicle are moving as

OCN7050062

fast as the vehicle. If you have to stop

To open:

or turn quickly, or if there is a crash, the

Grab and hold the latch on the armrest

items may fly out of the compartment

then lift the lid.

and may cause an injury if they strike

the driver or a passenger.

GloveBox

NOTICE

To avoid possible theft, do not leave

valuables in the storage compartments.

OCN7050064

To open:

Pull the lever (1).

WARNING

ALWAYS close the glove box door after

use.

An open glove box door can cause

serious injury to the passenger in an

accident, even if the passenger is

wearing a seat belt.

5-102

05

INTERIOR FEATURES

Cup Holder (if equipped)

WARNING

Front

ś Avoid abrupt starting and braking

when the cup holder is in use to

prevent spilling your drink. If hot

liquid spills, you could be burned.

Such a burn to the driver could cause

loss of vehicle control resulting in an

accident.

ś Do not place uncovered or unsecured

cups, bottles, cans, etc., in the cup

holder containing hot liquid while

the vehicle is in motion. Injuries may

result in the event of a sudden stop

OCN7050065

or collision.

ś Only use soft cups in the cup holders.

Rear

Hard objects can injure you in an

accident.

WARNING

Keep cans or bottles out of direct sun

light and do not put them in a hot

vehicle. It may explode.

NOTICE

ś Keep your drinks sealed while driving

to prevent spilling your drink. If liquid

OCN7050066

spills, it may get into the vehicle’s

Cups or small beverages cups may be

electrical/electronic system and

placed in the cup holders.

damage electrical/electronic parts.

ś When cleaning spilled liquids do not

use hot air to blow out or dry the cup

holder. This may damage the interior.

5-103

Convenience Features

Sunvisor

Power Outlet

OIG046437

OCN7050068

To use a sunvisor, pull it downward.

The power outlet is designed to provide

power for mobile telephones or other

To use a sunvisor for a side window, pull

devices designed to operate with vehicle

it downward, unsnap it from the bracket

electrical systems. The devices should

(1) and swing it to the side (2).

draw less than 180 W with the engine

To use the vanity mirror, pull down the

running.

sunvisor and slide the mirror cover (3).

Adjust the sunvisor forward or backward

(4, if equipped) as needed.

WARNING

Use the ticket holder (5) to hold tickets.

Avoid electrical shocks. Do not place

your fingers or foreign objects (pin, etc.)

Close the vanity mirror cover securely

into a power outlet or touch the power

and return the sunvisor to its original

outlet with a wet hand.

position after use.

NOTICE

Close the vanity mirror cover securely

and return the sunvisor to its original

position after use.

WARNING

For your safety, do not block your view

when using the sunvisor.

NOTICE

Do not put several tickets in the ticket

holder at one time. This could cause

damage to the ticket holder.

5-104

05

USB Charger

CAUTION

To prevent damage to the Power

Outlets:

ś

Use the power outlet only when the

engine is running and remove the

accessory plug after use. Using the

accessory plug for prolonged periods

of time with the engine off could

cause the battery to discharge.

ś

Only use 12V electric accessories

which are less than 15 A in electric

capacity.

OCN7050069

ś

Adjust the air-conditioner or heater

Insert the USB charger into the USB port,

and re-charge a smart phone or a tablet

to the lowest operating level when

using the power outlet.

PC.

ś A charging status/charging

ś

Close the cover when not in use.

completion message is displayed on

ś

Some electronic devices can

a screen of a smart phone or a tablet

cause electronic interference

PC.

when plugged into a vehicle’s

ś A smart phone or a tablet PC may

power outlet. These devices may

get warmer during the re-charging

cause excessive audio static and

process. It does not indicate any

malfunctions in other electronic

malfunction with the charging system.

systems or devices used in your

vehicle.

ś A smart phone or a tablet PC, which

adopts a different re-charging

ś

Push the plug in as far as it will go. If

method, may not be properly re-

good contact is not made, the plug

charged. In this case, use an exclusive

may overheat and the fuse may open.

charger of your device.

ś

Plug in battery equipped electrical/

ś The charging terminal is only to

electronic devices with reverse

recharge a device. Do not use the

current protection. The current

charging terminal either to turn ON

from the battery may flow into the

an audio or to play media on the

vehicle’s electrical/electronic system

infotainment system.

and cause system malfunction.

5-105

Convenience Features

Wireless Cellular Phone

To charge a cellular phone

Charging System (if equipped)

The wireless cellular phone charging

system charges only the Qi-enabled

cellular phones. Read the label on the

cellular phone accessory cover or visit

your cellular phone manufacturer’s

website to check whether your cellular

phone supports the Qi technology.

The wireless charging process starts

when you put a Qi-enabled cellular

phone on the wireless charging unit.

1. Remove other items, including the

smart key, from the wireless charging

OCN7050070

unit. If not, the wireless charging

[A] : Charging pad

process may be interrupted. Place the

cellular phone on the center of the

There is a wireless cellular phone charger

charging pad (

).

inside the front console.

2. When charging starts, a charging

The system is available when all doors

icon is displayed on the infotainment

are closed, and when the ignition switch

system screen. However, depending

is in the ON position.

on the infotainment system screen,

the wireless charging icon may not be

displayed. See the infotainment web

manual for details.

3. You can turn ON or OFF the wireless

charging function in the user settings

mode on the instrument cluster. For

further information, refer to the “LCD

Display Modes” in this chapter.

The system warns you with a message

on the LCD display if the cellular phone

is still on the wireless charging unit after

the engine is turned OFF and the front

door is opened.

5-106

05

ś

:KHQ FKDUJLQJ VRPH FHOOXODU SKRQHV

Information

with a self-protection feature,

For some manufacturers’ cellular phones,

the wireless charging speed may

the system may not warn you even though

decrease and the wireless charging

the cellular phone is left on the wireless

may stop.

charging unit. This is due to the particular

ś

,I WKH FHOOXODU SKRQH KDV D WKLFN

characteristic of the cellular phone and

cover, the wireless charging may not

not a malfunction of the wireless charging.

be possible.

ś

,I WKH FHOOXODU SKRQH LV QRW

NOTICE

completely contacting the charging

ś

7KH ZLUHOHVV FHOOXODU SKRQH FKDUJLQJ

pad, wireless charging may not

system may not support certain

operate properly.

cellular phones, which are not

ś

6RPH PDJQHWLF LWHPV OLNH FUHGLW

verified for the Qi specification (

).

cards, phone cards or rail tickets may

ś

:KHQ SODFLQJ \RXU FHOOXODU SKRQH

be damaged if left with the cellular

on the charging mat, position the

phone during the charging process.

phone in the middle of the mat for

ś

:KHQ DQ\ FHOOXODU SKRQH ZLWKRXW

optimal charging performance. If

a wireless charging function or a

your cellular phone is off to the side,

metallic object is placed on the

the charging rate may be less and in

charging pad, a small noise may

some cases the cellular phone may

sound. This small sound is due to the

experience higher heat conduction.

vehicle discerning compatibility of

ś

,Q VRPH FDVHV WKH ZLUHOHVV FKDUJLQJ

the object placed on the charging

may stop temporarily when the

pad. It does not affect your vehicle or

Remote Key or Smart Key is used,

the cellular phone in any way.

either when starting the vehicle or

locking/unlocking the doors, etc.

Information

ś

7KH ZLUHOHVV FKDUJLQJ SURFHVV PD\

If the ignition switch is in the LOCK/ OFF

temporarily stop, when temperature

position, the charging also stops.

abnormally increases inside the

wireless cellular phone charging

system. Stop the charging cellular

Information

phone and wait until temperature

falls to a certain level.

This device complies with part 15 of the

FCC Rules.

ś

7KH ZLUHOHVV FKDUJLQJ SURFHVV PD\

temporarily stop when there is

Operation is subject to the following two

any metallic item, such as a coin,

conditions:

between the wireless cellular phone

1. This device may not cause harmful

charging system and the cellular

interference, and

phone.

2. This device must accept any

interference received, including

interference that may cause undesired

operation.

5-107

Convenience Features

Clock

Clothes Hanger

WARNING

Do not attempt to adjust the clock

while driving. Doing so may result in

distracted driving which may lead to

an accident involving personal injury or

death.

For more information, please refer to

the manual that was supplied with your

vehicle.

OTM048095

These hangers are not designed to hold

large or heavy items.

WARNING

OCN7050071

Do not hang other objects such

as hangers or hard objects except

clothes. Also, do not put heavy, sharp

or breakable objects in the clothes

pockets. In an accident or when the

curtain air bag is inflated, it may cause

vehicle damage or personal injury.

5-108

05

,1)27$,10(17 6<67(0

NOTICE

USB Port

ś

If you install an aftermarket HID

head lamp, your vehicle’s audio and

electronic devices may not function

properly.

ś

Prevent chemicals such as perfume,

cosmetic oil, sunscreen, hand

cleaner, and air freshener from

contacting the interior parts

because they may cause damage or

discoloration.

OCN7050074

You can use an USB port to plug in an

USB.

Information

When using a portable audio device

connected to the power outlet, noise may

occur during playback. If this happens,

use the power source of the portable audio

device.

5-109

Convenience Features

Antenna

WARNING

ś

Do not clean the inside of the rear

window glass with a cleaner or

scraper to remove foreign deposits

as this may cause damage to the

antenna elements.

ś

To prevent damage to the rear

glass antenna, never use sharp

instruments or window cleaner

containing abrasives to clean the

window. Clean the inside surface of

the rear glass window with a piece of

OCN7050072

soft cloth.

Shark fin antenna (1, if equipped)

ś

Avoid adding metallic coatings such

The shark fin antenna receives data

as Nickel, Cadmium, etc. These can

transmitted from base stations and

degrade the receiving AM and FM

satelliltes (for example: GPS, Sirus XM,

broadcast signals.

LTE) and also transmits to base stations

ś

When putting a sticker on the inside

(for example: LTE).

surface of the rear window, be

careful not to damage the rear glass

Glass antenna (2)

antenna.

Your vehicle uses a glass antenna to

ś

Do not put sharp instruments nearby

receive both AM and FM signals.

the rear glass antenna.

ś

Tinted rear window may affect the

proper functioning of the antenna.

5-110

05

Steering Wheel Audio Control

ś RADIO mode

It will function as the AUTO SEEK

select switch. It will SEEK until you

release the switch.

ś MEDIA mode

It will function as the FF/REW switch.

If the SEEK/PRESET toggle switch is

moved up or down, it will function in

the following modes.

ś RADIO mode

It will function as the PRESET STATION

OCN7050073L

UP/DOWN switch.

The steering wheel audio control

ś MEDIA mode

switches are installed for your

It will function as the TRACK UP/

convenience.

DOWN switch.

NOTICE

MODE (

)(3)

Do not operate audio remote control

Press the MODE button to select Radio.

buttons simultaneously.

Voice recognition button (

) (4)

VOLUME (VOL + / VOL -) (1)

ś Start or end voice recognition of a

connected smartphone via phone

ś Move the VOLUME toggle switch up

projection. (The button’s operation

to increase volume.

may vary depending on smartphone

ś Move the VOLUME toggle switch

specifications.)

down to decrease volume.

SEEK/PRESET (

/

) (2)

Information

If the SEEK/PRESET toggle switch is

Detailed information for audio control

moved up or down and held for 0.8

buttons are described in the following

second or more, it will function in the

pages in this chapter.

following modes.

5-111

Convenience Features

Infotainment System (if equipped)

Bluetooth® Wireless Technology

If your vehicle is equipped with

hands-free (if equipped)

additional navigation, please refer to the

infotainment system manual separately

supplied.

Voice Recognition (if equipped)

OCN7050075

OCN7050081

A wide range of infotainment functions

can be commanded with voice

recognition.

If your vehicle is equipped with

additional navigation, please refer

to the infotainment system manual

OCN7050076

separately supplied.

You can use the phone wirelessly

by using the Bluetooth® Wireless

Technology.

(1) Call / Answer button

(2) Call end button

(3) Microphone 1 for basic specification

(if equipped)

(4) Microphone 2 for Navigation-applied

specification (if equipped)

ś Audio : For detailed information,

refer to “AUDIO” in this chapter.

ś Navigation : Detailed information

for the Bluetooth® Wireless

Technology hands-free is described

in the manual supplied separately

5-112

05

How Vehicle Radio Works

AM (MW, LW) reception

FM reception

OJF045309L

OJF045308L

AM broadcasts can be received at

greater distances than FM broadcasts.

AM and FM radio signals are broadcast

This is because AM radio waves are

from transmitter towers located around

transmitted at low frequencies. These

your city. They are intercepted by the

long, low frequency radio waves can

radio antenna on your vehicle. This signal

follow the curvature of the earth rather

is then received by the radio and sent to

than travelling straight out into the

your vehicle speakers.

atmosphere. In addition, they curve

When a strong radio signal has reached

around obstructions so that they can

your vehicle, the precise engineering

provide better signal coverage.

of your audio system ensures the best

possible quality reproduction. However,

in some cases the signal coming to your

vehicle may not be strong and clear.

This can be due to factors, such as

the distance from the radio station,

closeness of other strong radio stations

or the presence of buildings, bridges or

other large obstructions in the area.

5-113

Convenience Features

FM radio station

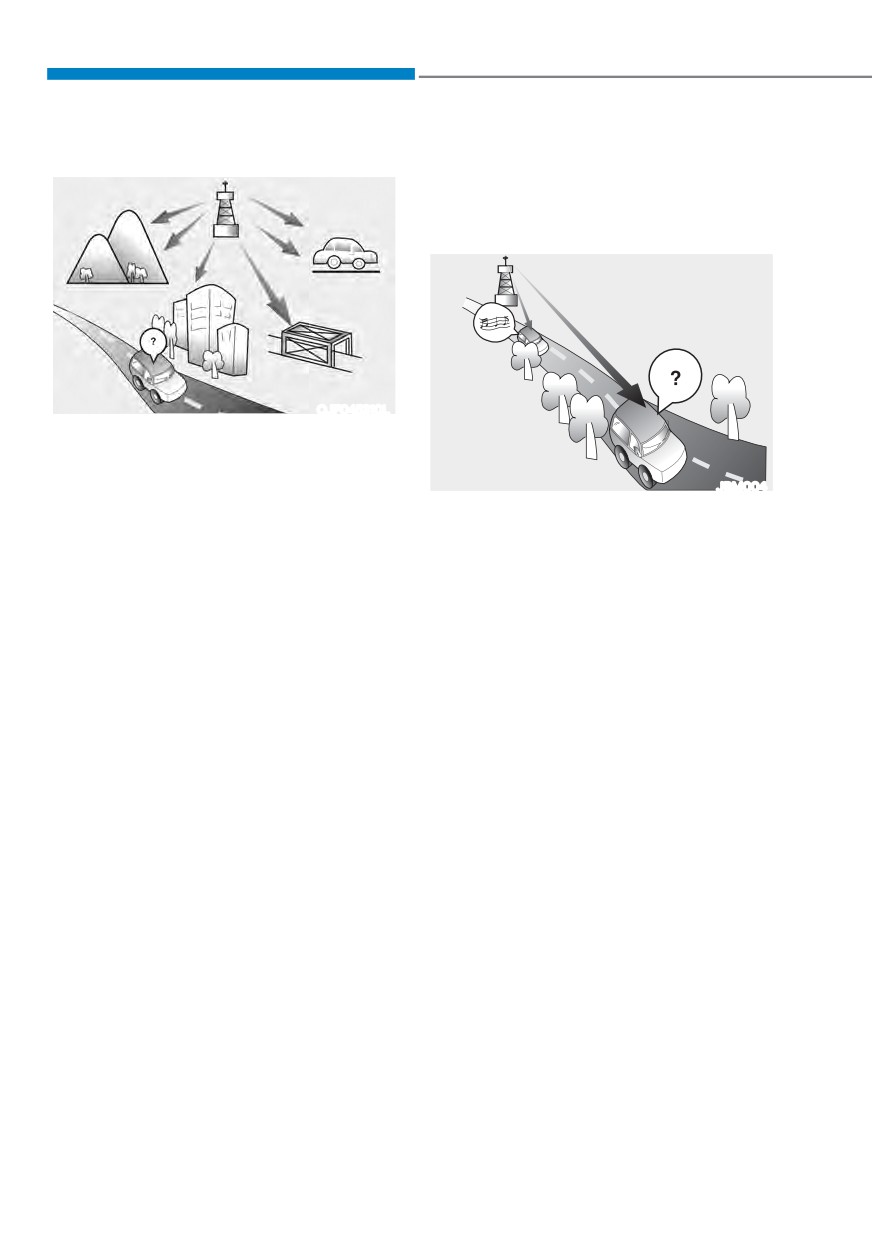

These can result in certain listening

conditions which might lead you to

believe a problem exists with your radio.

The following conditions are normal and

do not indicate radio trouble :

OJF045310L

FM broadcasts are transmitted at high

frequencies and do not bend to follow

the earth’s surface. Because of this, FM

JBM004

broadcasts generally begin to fade at

short distances from the station. Also, FM

ś Fading as your vehicle moves away

signals are easily affected by buildings,

from the radio station, the signal will

mountains, or other obstructions.

weaken and sound will begin to fade.

When this occurs, we suggest that you

select another stronger station.

ś Flutter/Static Weak FM signals or

large obstructions between the

transmitter and your radio can disturb

the signal causing static or fluttering

noises to occur. Reducing the treble

level may lessen this effect until the

disturbance clears.

5-114

05

Using a cellular phone or a twoway

radio

When a cellular phone is used inside

the vehicle, noise may be produced

from the audio system. This does not

mean that something is wrong with the

audio equipment. In such a case, use

the cellular phone at a place as far as

possible from the audio equipment.

NOTICE

OJF045311L

ś

Station Swapping As a FM signal

When using a communication system

weakens, another more powerful

such as a cellular phone or a radio set

signal near the same frequency may

inside the vehicle, a separate external

begin to play. This is because your

antenna must be fitted. When a cellular

radio is designed to lock onto the

phone or a radio set is used with an

clearest signal. If this occurs, select

internal antenna alone, it may interfere

another station with a stronger signal.

with the vehicle’s electrical system and

adversely affect safe operation of the

ś

Multi-Path Cancellation Radio

vehicle.

signals being received from several

directions can cause distortion or

fluttering. This can be caused by a

WARNING

direct and reflected signal from the

Do not use a cellular phone while

same station, or by signals from two

stations with close frequencies. If this

driving. Stop at a safe location to use a

cellular phone.

occurs, select another station until the

condition has passed.

5-115

6.Driving Your Vehicle

Before Driving

6-3

Before Entering the Vehicle

6-3

Before Starting

6-3

Ignition Switch

6-4

Key Ignition Switch

6-4

Engine Start/Stop Button

6-7

Vehicle Auto-Shut Off

6-11

Operating Conditions

6-11

Deactivating Conditions

6-11

System Operation

6-11

Dual Clutch Transmission

6-12

Dual Clutch Transmission Operation

6-12

Lcd Display for Transmission Temperature and Warning Message

6-14

Parking

6-20

Good Driving Practices

6-21

Coasting Guide

6-22

Brake System

6-23

Power Brakes

6-23

Disc Brakes Wear Indicator

6-23

Electronic Parking Brake (EPB)

6-24

Auto Hold

6-28

Anti-lock Brake System (ABS)

6-31

Electronic Stability Control (ESC)

6-33

Vehicle Stability Management (VSM)

6-35

6

Hill-Start Assist Control (HAC)

6-36

Good Braking Practices

6-37

Drive Mode Integrated Control System

6-38

Drive Mode

6-38

Smart Shift on Trip Computer

6-41

Special Driving Conditions

6-42

Hazardous Driving Conditions

6-42

Rocking the Vehicle

6-42

Smooth Cornering

6-43

Driving at Night

6-43

Driving in the Rain

6-43

Driving in Flooded Areas

6-44

Highway Driving

6-44

Winter Driving

6-45

Snow or Icy Conditions

6-45

Winter Precautions

6-46

Vehicle load limit

6-48

Tire Loading Information Label

6-49

Trailer Towing

6-53

Driving Your Vehicle

WARNING

Carbon monoxide (CO) gas is toxic. Breathing CO can cause unconsciousness and

death.

Engine exhaust contains carbon monoxide which cannot be seen or smelled.

Do not inhale engine exhaust.

If at any time you smell engine exhaust inside the vehicle, open the windows

immediately. Exposure to CO can cause unconsciousness and death by asphyxiation.

Be sure the exhaust system does not leak.

The exhaust system should be checked whenever the vehicle is raised to change the

oil or for any other purpose. If you hear a change in the sound of the exhaust or if you

drive over something that strikes the underneath side of the vehicle, have the exhaust

system checked as soon as possible by an authorized HYUNDAI dealer.

Do not run the engine in an enclosed area.

Letting the engine idle in your garage, even with the garage door open, is a hazardous

practice. Run the engine only long enough to start the engine and to move the vehicle

out of the garage.

Avoid idling the engine for prolonged periods with people inside the vehicle.

If it is necessary to idle the engine for a prolonged period with people inside the

vehicle, be sure to do so only in an open area with the air intake set at "Fresh" and fan

control set to high so fresh air is drawn into the interior.

Keep the air intakes clear.

To assure proper operation of the ventilation system, keep the ventilation air intakes

located in front of the windshield clear of snow, ice, leaves, or other obstructions.

If you must drive with the trunk open:

Close all windows.

Open instrument panel air vents.

Set the air intake control at "Fresh", the air flow control at "Floor" or "Face", and the fan

control set to high.

WARNING

CALIFORNIA PROPOSITION 65 WARNING

Engine exhaust and a wide variety of automobile components including

components found in the interior furnishings in a vehicle, contain or emit harmful

chemicals known to the State of California to cause cancer and birth defects and

reproductive harm. In addition, certain fluids contained in vehicles and certain

products of components contain or emit chemicals known to the State of California

to cause cancer and birth defects or other reproductive harm.

6-2

Driving Your Vehicle

IGNITION SWITCH

Key Ignition Switch (if equipped)

WARNING

NEVER turn the ignition switch to the

WARNING

LOCK or ACC position while the vehicle

is in motion except in an emergency.

To reduce the risk of SERIOUS INJURY or

This will result in the engine turning

DEATH, take the following precautions:

off and loss of power assist for the

ś NEVER allow children or any person

steering and brake systems. This may

who is unfamiliar with the vehicle to

lead to loss of directional control and

touch the ignition switch or related

braking function, which could cause an

parts. Unexpected and sudden

accident.

vehicle movement can occur.

Before leaving the driver's seat, always

ś NEVER reach through the steering

make sure the shift lever is in P (Park)

wheel for the ignition switch, or any

position, apply the parking brake,

other control, while the vehicle is in

and turn ignition switch to the LOCK

motion. The presence of your hand

position.

or arm in this area may cause a loss

Unexpected vehicle movement may

of vehicle control resulting in an

occur if these precautions are not

accident.

followed.

ACC

ON

START

LOCK

OAE056172L

Whenever the front door is opened, the

ignition switch will illuminate, provided

the ignition switch is not in the ON

position. The light will go off immediately

when the ignition switch is turned on or

go off after about 30 seconds when the

door is closed. (if equipped)

6-4

06

Key ignition switch positions

Switch

Action

Notice

Position

To turn the ignition switch to the

LOCK position, put the key in at

the ACC position and turn the key

LOCK

towards the LOCK position.

The ignition key can be removed in

the LOCK position.

Electrical accessories are usable.

ACC

The steering wheel unlocks.

This is the normal key position when

Do not leave the ignition switch in

the engine has started.

the ON position when the engine is

All features and accessories are

not running in order to prevent the

ON

usable.

battery from discharging.

The warning lights can be checked

when you turn the ignition switch

from ACC to ON.

To start the engine, turn the ignition

The engine will crank until you

switch to the START position. The

release the key.

START

switch returns to the ON position

when you let go of the key.

6-5

Driving Your Vehicle

Starting the engine

Information

ś It is best to maintain a moderate engine

WARNING

speed until the vehicle engine comes

Always wear appropriate shoes when

up to normal operating temperature.

operating your vehicle.

Avoid harsh or abrupt acceleration or

Unsuitable shoes, such as high heels,

deceleration while the engine is still

ski boots, sandals, flip-flops, etc., may

cold.

interfere with your ability to use the

ś Whether the engine is cold or warm,

brake and accelerator pedals.

always start the vehicle with your foot

on the brake pedal. Do not depress the

accelerator while starting the vehicle.

Information

Do not rev the engine while warming

Depress the brake pedal and clutch pedal

it up.

until the engine starts.

NOTICE

1. Make sure the parking brake is

To prevent damage to the vehicle:

applied.

ś Do not hold the ignition key in the

2. Make sure the shift lever is in P (Park).

START position for more than 10

3. Depress the brake pedal.

seconds. Wait 5 to 10 seconds before

trying again.

4. Turn the ignition switch to the START

position. Hold the key (maximum of

ś Do not push or tow your vehicle to

10 seconds) until the engine starts and

start the engine.

release it.

Turning off the engine

1. Stop the vehicle and depress the

brake pedal fully.

2. Shift the gear to P (Park).

3. Turn the ignition switch to the off

position and apply the parking brake.

6-6

06

Engine Start/Stop Button

WARNING

(if equipped)

ś

NEVER press the Engine Start/Stop

button while the vehicle is in motion

except in an emergency. This will

result in the engine turning off and

loss of power assist for the steering

and brake systems.

This may lead to loss of directional

control and braking function, which

could cause an accident.

ś

Before leaving the driver's seat,

always make sure the shift lever is in

the P (Park) position, set the parking

OCN7060003

brake, press the Engine Start/Stop

Whenever the front door is opened, the

button to the OFF position, and take

Engine Start/Stop button will illuminate

the Smart Key with you. Unexpected

and will go off 30 seconds after the door

vehicle movement may occur if these

is closed. (if equipped)

precautions are not followed.

ś

NEVER reach through the steering

WARNING

wheel for the Engine Start/Stop

button or any other control while the

To reduce risk of serious injury or death,

vehicle is in motion. The presence

NEVER allow children or any person

of your hand or arm in this area

who is unfamiliar with the vehicle to

may cause a loss of vehicle control

touch the Engine Start/Stop button or

resulting in an accident.

related parts. Unexpected and sudden

vehicle movement can occur.

WARNING

To turn the engine off in an emergency:

Press and hold the Engine Start/Stop

button for more than two seconds OR

rapidly press and release the Engine

Start/Stop button three times (within

three seconds).

If the vehicle is still moving, you can

restart the engine without depressing

the brake pedal by pressing the Engine

Start/Stop button with the shift lever in

the N (Neutral) position.

6-7

Driving Your Vehicle

Engine Stop/Start button positions

Button

Action

Notice

Position

To turn off the engine, press the

Engine Start/Stop button with shift

lever in P (Park).

When you press the Engine Start/

OFF

Stop button without the shift lever

in P (Park), the Engine Start/Stop

button does not turn to the OFF

position, but turns to the ACC

position.

Press the Engine Start/Stop button

If you leave the Engine Start/Stop

when the button is in the OFF

button in the ACC position for more

ACC

position without depressing the

than one hour, the battery power will

brake pedal.

turn off automatically to prevent the

Electrical accessories are usable.

battery from discharging.

Press the Engine Start/Stop button

Do not leave the Engine Start/Stop

while it is in the ACC position

button in the ON position when the

ON

without depressing the brake pedal.

engine is not running to prevent the

The warning lights can be checked

battery from discharging.

before the engine is started.

To start the engine, depress the

If you press the Engine Start/Stop

brake pedal and press the Engine

button without depressing the brake

Start/Stop button with the shift lever

pedal, the engine does not start

in the P (Park) position.

and the Engine Start/Stop button

For your safety, start the engine

changes as follows:

START

with the shift lever in the P (Park)

2)) Ɵ $&& Ɵ 21 Ɵ 2)) RU $&&

position.

However, the engine may start if you

depress the brake pedal within 0.5

second after pressing the Engine

Start/Stop button from the OFF

position.

6-8

06

Starting the engine

Information

Depress the brake pedal and clutch pedal

WARNING

until the engine starts.

ś

Always wear appropriate shoes when

operating your vehicle.

1. Always carry the smart key with you.

Unsuitable shoes, such as high heels,

2. Make sure the parking brake is

ski boots, sandals, flip-flops, etc.,

applied.

may interfere with your ability to use

3. Make sure the shift lever is in P (Park).

the brake and accelerator pedals.

4. Depress the brake pedal.

ś

Do not start the vehicle with the

accelerator pedal depressed. The

5. Press the Engine Start/Stop button.

vehicle can move and lead to an

accident.

Information

ś

Wait until the engine rpm is normal.

ś

Do not wait for the engine to warm up

The vehicle may suddenly move if

while the vehicle remains stationary.

the brake pedal is released when the

Start driving at moderate engine

rpm is high.

speeds. (Aggressive accelerating and

decelerating should be avoided.)

Information

ś

Always start the vehicle with your foot

ś

The engine will start by pressing the

on the brake pedal. Do not depress the

Engine Start/Stop button, only when

accelerator while starting the vehicle.

the smart key is in the vehicle.

Do not rev the engine while warming

it up.

ś

Even if the smart key is in the vehicle,

if it is far away from the driver, the

engine may not start.

ś

When the Engine Start/Stop button

is in the ACC or ON position, if any

door is open, the system checks for the

smart key. If the smart key is not in the

vehicle, the “

” indicator will blink

and the warning "Key not in vehicle"

will come on and if all doors are closed,

the chime will also sound for about

5 seconds. Keep the smart key in the

vehicle when using the ACC position or

if the vehicle engine is ON.

6-9

Driving Your Vehicle

NOTICE

Emergency starting

To prevent damage to the vehicle:

ś If the engine stalls while you are in

motion, do not attempt to move the

shift lever to the P (Park) position.

If traffic and road conditions permit,

you may put the shift lever in the N

(Neutral) position while the vehicle

is still moving and press the Engine

Start/Stop button in an attempt to

restart the engine.

ś Do not push or tow your vehicle to

OCN7060004L

start the engine.

If the smart key battery is weak or the

smart key does not work correctly, you

NOTICE

can start the engine by pressing the

To prevent damage to the vehicle:

Engine Start/Stop button with the smart

key in the direction of the picture above.

When the stop lamp switch fuse is

blown, you can't start the engine

normally. Replace the fuse with a new

one. If you are not able to replace

the fuse, you can start the engine by

pressing and holding the Engine Start/

Stop button for 10 seconds with the

Engine Start/Stop button in the ACC

position.

Do not press the Engine Start/Stop

button for more than 10 seconds except

when the stop lamp switch fuse is

blown.

For your safety always depress the

brake pedal before starting the engine.

6-10

06

9(+,&/( $872ǘ6+87 2))

If your vehicle is parked and the engine

System Operation

is left on for a long period of time, the

engine will turn off automatically to help

reduce fuel consumption and prevent

accidents caused by carbon dioxide

poisoning.

Operating Conditions

Vehicle Auto-Shut Off timer operates

when all the following conditions are

satisfied:

ś Vehicle speed is below 1.8 mph (3

km/h), and the gear is shifted to P

OJK041087N

(Park)

When all the conditions are satisfied, the

ś The brake pedal and accelerator pedal

Vehicle Auto-Shut Off operates and turns

are not depressed

the engine off automatically after 60

minutes.

ś The driver’s seat belt is unfastened

A timer appears on the instrument

ś The passenger seat is empty

cluster 30 minutes before vehicle shut

ś The infotainment system is being

off.

updated

Resetting cluster timer

Deactivating Conditions

To reset the cluster timer, do one of

Vehicle Auto-Shut Off timer turns off

following:

when one of the situation occur:

ś Release the accelerator pedal or brake

ś Vehicle speed is above 1.8 mph (3

pedal after Vehicle Auto-Shut Off is

km/h)

complete.

ś The gear is shifted to R (Reverse), D

ś Press the OK button on the steering

(Drive) or N (Neutral)

wheel while the timer appears on the

ś The brake pedal or accelerator pedal

instrument cluster.

is depressed

ś The driver’s seat belt is fastened

CAUTION

ś A passenger is in the passenger’s seat

Do not leave a passenger or a pet in

the vehicle in hot weather since the air

conditioning system turns off when the

engine is off.

6-11

Content      ..     7      8      9      10     ..
