Convenience Features

ACCESSING YOUR VEHICLE

Remote Key (if equipped)

WARNING

Do not leave the keys in your

vehicle with unsupervised children.

Unattended children could place the

key in the ignition switch and may

operate power windows or other

controls, or even make the vehicle

move, which could result in serious

injury or death.

Unlocking your vehicle

To unlock your vehicle:

OIG046001

1. Press the Door Unlock button (2) on

Your HYUNDAI uses a remote key, which

the remote key.

you can use to lock or unlock the driver

and passenger doors or the rear trunk.

2. The driver’s door will unlock. The

hazard warning lights will blink two

(1) Door Lock

times.

(2) Door Unlock

ś Two press unlock setting:

(3) Trunk Unlock

If you press the Door Unlock button

(4) Panic

on the remote key again within

four seconds, then all the doors will

Locking your vehicle

unlock.

To lock your vehicle:

Two press unlock setting can be

1. Make sure all doors, the engine hood

changed according to owner’s

and the trunk are closed.

preference in the cluster User Settings

mode.

2. Press the Door Lock button (1) on the

remote key to lock all doors.

ś User settings mode method:

3. The doors will lock and the hazard

Select or deselect the ‘Two Press

warning lights will blink.

Unlock’ feature in the User Settings

mode on the cluster LCD display (User

4. Make sure the doors are locked by

6HWWLQJV Ɵ 'RRU Ɵ 7ZR 3UHVV 8QORFN

checking the position of the door lock

button inside the vehicle.

Information

After unlocking the doors, the doors will

automatically relock after 30 seconds

unless a door is opened.

5-4

05

Trunk unlocking

Mechanical key

To unlock the trunk :

1. Press and hold the Trunk Unlock

button (3) on the remote key for more

than one second.

2. The hazard warning lights will blink

two times and the trunk will be

unlocked.

3. Once the trunk is opened and then

closed, the trunk will automatically

lock.

OIG046004

Information

If the remote key does not operate

normally, you can lock or unlock the

The word “HOLD” is written on the

driver’s door by using the mechanical

button to inform you that you must press

key.

and hold the button for more than one

second.

To unfold the mechanical key, press the

release button on the remote.

Panic button

To return the key to its stored position,

press the release button and fold the key

Press and hold the Panic button (4) for

back into the remote.

more than one second. The horn sounds

and hazard warning lights flash for about

30 seconds.

Remote key precautions

To cancel the panic mode, press any

The remote key will not work if any of the

button on the remote key.

following occur:

ś The key is in the ignition switch.

Start-up

ś You exceed the operating distance

For information, refer to the “Key

limit (about 33 feet [10 m]).

Ignition Switch” section in chapter 6.

ś The remote key battery is weak.

ś Other vehicles or objects may be

NOTICE

blocking the signal.

To prevent damaging the remote key:

ś The weather is extremely cold.

ś Keep the remote key away from

ś The remote key is close to a radio

water or any liquid and fire. Internal

transmitter such as a radio station or

circuits may malfunction if the inside

an airport which can interfere with

of the remote key gets damp (from

normal operation of the remote key.

liquids or moisture) or if it is heated.

If the remote key does not work

This can exclude the remote key from

correctly, open and close the door

being covered under warranty.

with the mechanical key. If you have a

ś Avoid dropping or throwing the

problem with the remote key contact an

remote key.

authorized HYUNDAI dealer.

ś Protect the remote key from extreme

temperatures.

5-5

Convenience Features

If the remote key is in close proximity to

Battery replacement

your mobile phone, the signal could be

blocked by your mobile phone’s normal

operational signals. This is specifically

relevant when the phone is active such

as making and receiving calls, text

messaging, and/or sending/receiving

emails.

When possible, avoid placing the remote

key and your mobile phone in the same

location such as a pants or jacket pocket

in order to avoid interference between

the two devices.

OPD046002

If the remote key is not working properly,

Information

try replacing the battery with a new one.

This device complies with Part 15 of the

Battery Type: CR2032

FCC rules.

To replace the battery:

Operation is subject to the following three

1. Insert a slim tool into the slot and

conditions:

gently pry open the cover.

1. This device may not cause harmful

2. Using a screw driver, remove the

interference.

battery cover.

2. This device must accept any

3. Remove the old battery and insert the

interference received, including

new battery. Make sure the battery

interference that may cause undesired

position is correct.

operation.

4. Reinstall the battery cover and key

3. Changes or modifications not expressly

cover in the reverse order of removal.

approved by the party responsible

for compliance could void the user’s

If you suspect your remote key might

authority to operate the device.

have sustained some damage, or you feel

your remote key is not working correctly

NOTICE

contact an authorized HYUNDAI dealer.

Keep the remote key away from

electromagnetic materials that block

WARNING

electromagnetic waves to the key

THIS PRODUCT CONTAINS A BUTTON

surface.

BATTERY.

If swallowed, a lithium button battery

can cause severe or fatal injuries within

2 hours. Keep batteries out of reach of

children.

If you think batteries may have been

swallowed or placed inside any part

of the body, seek immediate medical

attention.

5-6

05

Locking your vehicle (Button type)

Information

An inappropriately disposed

battery can be harmful to the

environment and human health.

Dispose of the battery according

to your local law(s) or regulation.

Smart Key (if equipped)

„ Type A

OCN7050078

1. Close all doors, engine hood and

trunk.

2. Carry the smart key.

3. Either press the door handle button or

press the Door Lock button (1) on the

smart key.

OCN7050004

4. The hazard warning lights will blink.

„ Type B

5. Make sure the doors are locked by

pulling the door outside handle.

Information

The door handle button will only operate

when the smart key is within 28~40 inches

(0.7~1 m) from the outside door handle.

OCN7050005

Your HYUNDAI uses a smart key, which

you can use to lock or unlock a door (and

trunk) and even start the engine even just

carrying the key.

(1) Door Lock

(2) Door Unlock

(3) Trunk Open

(4) Panic

(5) Remote Start (if equipped)

5-7

Convenience Features

Locking your vehicle

CAUTION

(Touch sensor type) (if equipped)

When you leave your vehicle with

the smart key, make sure to press the

button on the front door handle or

touch the touch sensor on the front

door handle to lock the doors after

closing all of the doors, the hood and

the trunk. If you do not press the button

or touch the touch sensor firmly, the

doors might not be locked so please use

caution.

OCN7050092N

WARNING

1. Close all doors, engine hood and

Do not leave the Smart Key in your

trunk.

vehicle with unsupervised children.

Unattended children could press the

2. Carry the smart key.

Engine Start/ Stop button and may

3. Either touch the touch sensor on the

operate power windows or other

door handle (the engraved part) or

controls, or even make the vehicle

press the Door Lock button (1) on the

move, which could result in serious

smart key.

injury or death.

4. The hazard warning lights will blink.

5. Make sure the doors are locked by

pulling the door outside handle.

Information

ś The door handle button will only

operate when the smart key is within

28~40 inches (0.7~1 m) from the outside

door handle.

ś If you locked the door with the touch

sensor on the door handle, the doors

cannot be unlocked with the sensor

within 3 seconds.

Information

Even though you press the outside door

handle button or touch the touch sensor,

the doors will not be locked and the chime

will sound for 3 seconds if any of the

following occurs:

ś The Smart Key is in the vehicle

ś The Engine Start/Stop button is in ACC

or ON position.

ś Any door except the trunk is opened.

5-8

05

Unlocking your vehicle

Unlocking your vehicle

(When the Two Press Unlock feature

(When the Two Press Unlock feature

is off)

is on)

„ Button type

1. Make sure you have the smart key in

your possession.

2. Press the Door Unlock button (2) on

the smart key, press the button on the

front door handle or touch the door

unlock sensor inside of the front door

handle to unlock the doors.

3. The driver’s door will unlock.

4. If you press the button on the front

door handle or touch the door unlock

sensor inside of the front door handle

OCN7050078

to unlock the doors within 4 seconds,

„ Touch sensor type

all of the doors unlock. When the

doors unlock, the hazard warning

lights will blink two times.

ś

The door handle button will only

operate when the smart key is within

28~40 inches (0.7~1 m) from the

outside door handle.

ś

If you do not open the door after

unlocking within 30 seconds, it will

return to the lock mode.

OCN7050093N

ś

The factory default setting is in off

1. Make sure you have the smart key in

mode so you should set in the User’s

your possession.

Settings mode.

2. Press the Door Unlock button (2) on

ś

If you unlocked the door with the door

the smart key, press the button on the

handle, the doors cannot be locked

front door handle or touch the door

with the sensor for up to 2 seconds.

unlock sensor inside of the front door

handle to unlock the doors.

3. All of the doors will unlock. When the

doors unlock, the hazard warning

lights will blink two times.

ś The door handle button will only

operate when the smart key is within

28~40 inches (0.7~1 m) from the

outside door handle.

ś If you do not open the door after

unlocking within 30 seconds, it will

return to the lock mode.

ś If you unlocked the door with the door

handle, the doors cannot be locked

with the sensor for up to 2 seconds.

5-9

05

Remote start (if equipped)

CAUTION

You can start the engine and turn on the

ś The remote start will not work if you

climate system by pressing the remote

exceed the operating distance limit

start button (5) outside the vehicle.

(about 10 m).

To start and stop engine remotely :

ś Avoid idling the engine for prolonged

1. Press the door lock button (1), and

periods to follow the emission

then the hazard warning lights blink

regulations in your locality.

once to alert you.

ś Laws in your locality may restrict the

2. Press the Remote Start button (5)

use of remote start. You should check

for more than 2 seconds to start the

locality regulations before using this

engine within 4 seconds after pressing

remote starting system.

the door lock button (1).

ś It is only possible to start the engine

3. If you want to stop the engine, press

remotely when shifted to P (Park).

the Remote Start button (5) again.

ś If the hood or the trunk is opened,

In case of the manual operation,

you cannot start the engine

the climate control system will be

remotely.

maintained even when the engine is

turned OFF. However, the automatic

operation is set to 72°F (22°C).

Information

If someone without a designated smart

If the smart key is not moved for some

key attempts to drive your vehicle after

time, the detection function for smart key

you remotely started it, the engine will

operation will pause. Lift the smart key to

be stopped.

activate the detection again.

Information

After remotely starting the vehicle, the

engine will turn off after 10 minutes if the

vehicle is not driven.

5-11

Convenience Features

Start-up

Mechanical key

You can start the engine without

If the Smart Key does not operate

inserting the key. For detailed

normally, you can lock or unlock the

information refer to the Engine Start/

driver’s door by using the mechanical

Stop button in chapter 6.

key.

Information

If the smart key is not moved for some

time, the detection function for smart key

operation will pause. Lift the smart key to

activate the detection again.

NOTICE

To prevent damaging the smart key:

ś Keep the smart key away from water

or any liquid and fire. If the inside

OCN7050008

of the smart key gets damp (due to

Press and hold the release button (1) and

drinks or moisture), or is heated,

remove the mechanical key (2). Insert the

internal circuit may malfunction and

mechanical key into the key hole on the

may void the vehicle warranty.

door.

ś Avoid dropping or throwing the

To reinstall the mechanical key, put the

smart key.

key into the hole and push it until a click

ś Protect the smart key from extreme

sound is heard.

temperatures.

Loss of a smart key

NOTICE

A maximum of two Smart Keys can be

registered to a single vehicle. If you

Always have the smart key with you

happen to lose your smart key, you

when leaving the vehicle. If the smart

should immediately take the vehicle

key is left near the vehicle, the vehicle

and remaining keys to your authorized

battery may be discharged.

HYUNDAI dealer or tow the vehicle, if

necessary.

Smart key precautions

The smart key may not work if any of the

following occur:

ś The smart key is close to a radio

transmitter such as a radio station or

an airport which can interfere with

normal operation of the transmitter.

ś The smart key is near a mobile two

way radio system or a cellular phone.

ś Another vehicle’s smart key is being

operated close to your vehicle.

5-12

05

If the smart key does not work correctly,

Battery replacement

open and close the door with the

mechanical key. If you have a problem

with the smart key, contact an authorized

HYUNDAI dealer.

If the smart key is in close proximity to

your mobile phone, the signal could be

blocked by your mobile phone’s normal

operational signals. This is specifically

relevant when the phone is active such

as making and receiving calls, text

messaging, and/or sending/receiving

emails. When possible, avoid keeping the

OCN7050006

smart key and your mobile phone in the

same location such as a pants or jacket

pocket in order to avoid interference

between the two devices.

Information

This device complies with Part 15 of the

FCC rules.

Operation is subject to the following three

conditions:

1. This device may not cause harmful

OCN7050007

interference, and

If the Smart Key is not working properly,

2. This device must accept any

try replacing the battery with a new one.

interference received, including

Battery Type: CR2032

interference that may cause undesired

To replace the battery:

operation.

1. Remove the mechanical key.

3. Changes or modifications not expressly

approved by the party responsible

2. Use a slim tool to pry open the rear

for compliance could void the user’s

cover of the smart key.

authority to operate the device.

3. Remove the old battery and insert the

new battery. Make sure the battery

position is correct.

NOTICE

4. Reinstall the rear cover of the smart key.

Keep the smart key away from

electromagnetic materials that blocks

If you suspect your smart key might have

electromagnetic waves to the key

sustained some damage, or you feel

surface.

your smart key is not working correctly,

contact an authorized HYUNDAI dealer.

5-13

Convenience Features

Immobilizer System

WARNING

The immobilizer system protects your

THIS PRODUCT CONTAINS A BUTTON

vehicle from theft. If an improperly

BATTERY.

coded key (or other device) is used, the

If swallowed, a lithium button battery

engine’s fuel system is disabled.

can cause severe or fatal injuries within

When the ignition switch is placed in

2 hours. Keep batteries out of reach of

the ON position, the immobilizer system

children.

indicator should come on briefly, then

If you think batteries may have been

go off. If the indicator starts to blink, the

swallowed or placed inside any part

system does not recognize the coding of

of the body, seek immediate medical

the key.

attention.

Turn the ignition switch to the LOCK/OFF

position, then turn the ignition switch to

Information

the ON position again.

An inappropriately disposed

In some circumstances, the vehicle may

battery can be harmful to the

not recognize your smart key if another

environment and human health.

smart key device is nearby or a metal

Dispose of the battery according

object such as a key chain is causing

to your local law(s) or regulation.

interference with the smart key.

If this occurs, your vehicle may not

start. Remove any metal objects or

additional keys near the smart key before

attempting to start the vehicle again.

If the system repeatedly does not

recognize the coding of the key, it is

recommended that you contact your

HYUNDAI dealer.

Do not attempt to alter this system

or add other devices to it. Electrical

problems could result that may make

your vehicle inoperable.

WARNING

In order to prevent theft of your

vehicle, do not leave spare keys

anywhere in your vehicle. Your

immobilizer password is a customer

unique password and should be kept

confidential.

5-14

05

.NOTICE

Hyundai Digital Key

The transponder in your key is an

(if equipped)

important part of the immobilizer

Digital Key Application

system. It is designed to give years

To use Hyundai Digital Key mobile app,

of trouble-free service, however you

you should install Hyundai digital key

should avoid exposure to moisture,

application. Search ‘Hyundai digital key’

static electricity and rough handling.

in the Google Play Store and download

Immobilizer system malfunction could

the app. Please refer to the detailed

occur.

manual of the digital key app. The option

can be found under the following app

menu:

Information

0HQX Ɵ $SSOLFDWLRQ ,QIR Ɵ 7XWRULDO

This device complies with Part 15 of the

FCC rules.

Please note the manual before using the

app.

Operation is subject to the following three

conditions:

à This service is only available for

Android smartphones. Please confirm

1. This device may not cause harmful

supported/compatible devices on our

interference.

website.

2. This device must accept any

interference received, including

interference that may cause undesired

WARNING

operation.

For used vehicle

3. Changes or modifications not expressly

If any of the digital key (smartphone key

approved by the party responsible

or card key) is already registered when

for compliance could void the user’s

you press ON button after unlocking

authority to operate the device

the doors, the message ‘Digital key(s)

active’ appears on the instrument

cluster once. If you buy a used vehicle,

you should confirm the message and

delete the registered smartphone key

and card key. In addition, please notify

the Hyundai Customer Care Center.

If the card key does not work properly,

please delete the card key and register

the smartphone key and re-register the

card key.

For vehicle maintenance

If you need to have your Digital Key

System repaired or replaced please

ensure your Smartphone Key is still

active. You may have to pair your phone

again.

In this case, re-initialize your Digital

Keys using the Hyundai Digital Key

mobile app.

5-15

Convenience Features

Digital key (smartphone) NFC

Digital key (smartphone)

function

You can use the Digital Key NFC (Near

Field Communication) function after

turning on your smartphone function in

the NFC settings. And you should unlock

& turn on smartphone screen to use it.

à To change the NFC mode of the

smartphone, please refer to the

smartphone manual or contact

to the customer service center of

smartphone manufacturers.

ODN8A059129

ODN8A059240

Hyundai Digital Key (Smartphone)

Pairing

1. Turn the vehicle on with the Smart key

and make sure to keep the smart key

inside the vehicle during digital key

registration.

2. Register your Digital key from the

vehicle user setting menu as follows.

à With Navigation screen :

From the infotainment screen menu,

go to [Setup] - [Vehicle] - [Digital Key]

- [Smart Phone Key] then select the

[Save] from submenu.

à Without navigation screen :

From cluster menu, go to [Digital Key]

- [Smart Phone Key] and select [Save].

5-16

05

Information

The [Save] button will be disabled if the

digital key (Smartphone key) is already

saved.

Please refer to “Digital Key Delete” in this

manual and follow the digital key delete

procedure in your car before attempting a

Digital key save.

Please refer to the ‘Tutorial’ on your

Digital key app and delete the previous

ODN8A059129

saved key in your smartphone before

attempting a save.

3. Select the vehicle to save on your

Digital key application and activate

the save mode.

à Save mode is available only on

the vehicle owner’s Digital key

application.

4. Place the backside of smartphone

onto the wireless charging pad(in-

vehicle authentication pad).

ODN8A059130

The saving process will begin

Hyundai Digital Key (Smartphone Key)

automatically.

Deletion

5. Once the digital key save is complete,

1. Turn the vehicle on with the Smart

a message will be shown on the

key and make sure to keep the smart

infotainment screen or cluster.

key inside the vehicle during delete

6. Remove the smartphone from the pad

process.

and complete the saving process.

2. Delete your Digital key from the

vehicle user setting menu as follows.

à With Navigation screen :

From the infotainment screen menu,

go to [Setup] - [Vehicle] - [Digital Key]

- [Smart Phone Key] then select the

[Delete] from submenu.

à Without navigation screen :

From cluster menu, go to [Digital

Key] - [Smart Phone Key] and select

[Delete].

OCN7050070

Information

[A] : Wireless Charging Pad (In-vehicle Authentication

The [Delete] button will be disabled if there

Pad)

is no digital key (Smartphone key) saved.

5-17

Convenience Features

3. Once the digital key delete is

Set up main vehicle

complete, a message will be shown

You can manage multiple digital keys

on the infotainment screen or cluster.

from the Digital key app. From the list of

4. Go to [Initialize Digital Key] menu on

digital keys you own, select the vehicle

the digital key application and select

you want to make your priority vehicle.

the vehicle to delete the digital key

For more information, please refer to

information.

the ‘Tutorial’ on your Digital key app.

ś

2SHQ WKH +\XQGDL 'LJLWDO .H\ DSS Ɵ

0HQX Ɵ ,QLWLDOL]H 'LJLWDO .H\

à If the saved digital key information

in your car is deleted due to vehicle

maintenance, the digital key in your

smartphone should be deleted as well.

à For more information, please refer to

the ‘Tutorial’ on your Digital key app.

CAUTION

ś

If the smartphone is removed

from the interior authentication

OCN7050128

pad during enrollment, the saving

[1] : Door handle authentication pad

process will be canceled.

NFC door lock/unlock

ś

If the infotainment or instrument

cluster screen is changed during

You should touch your smartphone’s

enrollment, the saving process will

NFC antenna(backside of phone) to door

be canceled.

handle authentication pad (1) marked

position near by the lock button) of

ś

If the vehicle is turned off during

driver’s (or front passenger’s) outside

enrollment, the saving process will

door for 2 seconds to lock or unlock the

be canceled.

doors. If the Two Press Unlock feature

ś

If the gear is shifted, the saving

is applied (press twice for unlocking),

process will be canceled.

driver’s seat door will be unlocked by

ś

If you try to save the smartphone

touching the digital key (smartphone

which is not logged in with the

key). In this state, if you touch one more

vehicle owner’s ID or if you try to

time within 4 seconds, all the doors

save the Card key, the saving process

unlock. Please make sure the doors are

will not begin.

locked. If you do not open any of the

doors after unlocking, it automatically

ś

If the NFC setting on your

re-lock after 30 seconds.

smartphone is off, the saving process

will not begin.

ś

If the smartphone screen is changed

to off or locked status, the saving

process will be canceled.

ś

If there is no Smart key during the

save process, the saving process will

not begin.

5-18

05

Note that you cannot lock your vehicle

Start-up with Digital Key

when you touch NFC antenna in the

1. After placing your registered

smartphone to the door handle pad if

smartphone onto the interior

any of the following occurs:

authentication pad (wireless charger),

ś The Proximity / Smart Key is in the

step on the brake and press the

vehicle.

Engine Start/Stop button.

ś The POWER button is in ACC or ON

2. After start-up, the digital key data

position.

will be automatically updated. It

takes 5 to 20 seconds, after that, the

ś Any of the doors, hood or trunk is

smartphone will go into the wireless

opened.

charging mode automatically. Once

If the smartphone digital key does not

the engine is started, you may remove

work, please remove the smartphone

the smartphone from the pad.

more than 4 inches (0.1 m) from the door

handle authentication pad and try it

again.

OCN7050070

[A] : Wireless Charging Pad (In-vehicle Authentication

Pad)

5-19

Convenience Features

Digital key (Card key)

4. Register the NFC card key on the

User’s Settings menu after turning on

the vehicle.

à With Navigation screen : From the

infotainment screen menu, go to

[Setup] - [Vehicle] - [Digital Key] -

[Card Key] then select the [Save] from

submenu.

à Without navigation screen : From

cluster menu, go to [Digital Key] -

[Card Key] and select [Save].

The [Save] button will be disabled if

ODN8A059243

the digital key (Card key) is already

saved.

Please refer to “Digital Key Delete” in

this manual and follow the digital key

delete procedure in your car before

Digital key save.

5. Place the NFC card key onto the

interior authentication pad (wireless

charger). The saving process will

begin automatically.

6. If the key is enrolled, the message

ODN8A059131

will be displayed on the infotainment

screen or instrument cluster.

Digital key (Card key) save

1. Install Hyundai digital key app in

main user’s smartphone and register

ś

Once the card key registration mode

the digital key (smartphone). Please

is activated, the process should be

refer to the registration method of the

completed within 5 minutes. After

digital key (smartphone).

then, you should reactivate once

2. Using the [Pair Card Key] menu on

again for registration.

the digital key application, you can

ś

For the digital key(card key) saving,

activate the Card Key registration

the smart key(fob) must be inside the

mode.

vehicle.

à NFC authentication : enter the NFC

ś

Once a Card key is registered, it

authentication menu and touch the

cannot be reused in another vehicle.

smartphone on the outside door

handle.

à Bluetooth authentication : enter the

Bluetooth authentication menu and

press the [OK] button for activation.

If you activate the registration mode,

you should complete the Card saving

process with in 5 minutes.

3. If you have not registered the digital key

(smartphone), please register the digital

key (card key) with two smart keys.

5-24

05

ś To delete the saved digital key (card

key), the smart key must be inside the

vehicle.

ś The deleted digital key (card key) can

be re-registered before registering a

new digital key (card key).

ś If you register a new digital key (card

key), the previously registered digital

key (card key) cannot be used again.

ODN8A059243

ODN8A059132

Digital key (Card key) deletion

You should have the smart key to delete

digital key (card key). Please have the

smart key in your possession.

1. Get into the vehicle with the smart

key.

2. Delete the NFC card key on the User’s

Settings menu after turning on the

engine.

à With Navigation screen : From the

infotainment screen menu, go to

[Setup] - [Vehicle] - [Digital Key] -

[Card Key] then select the [Delete]

from submenu.

à Without navigation screen : From

cluster menu, go to [Digital Key] -

[Card Key] and select [Delete].

If there is no saved digital key(card key),

[Delete] menu will not be activated.

5-25

Convenience Features

If the digital key (card key) does not work,

please move the card 4 inches (0.1m)

away from the handle authentication

pad and retry to touch. If the card key is

damaged by impact, it may not operate

properly or at all. You should buy a new

card and register again. Long-time

exposure to high temperature may cause

the card key to malfunction. Please be

careful not to expose the key to direct

sunlight or high temperature.

OCN7050128

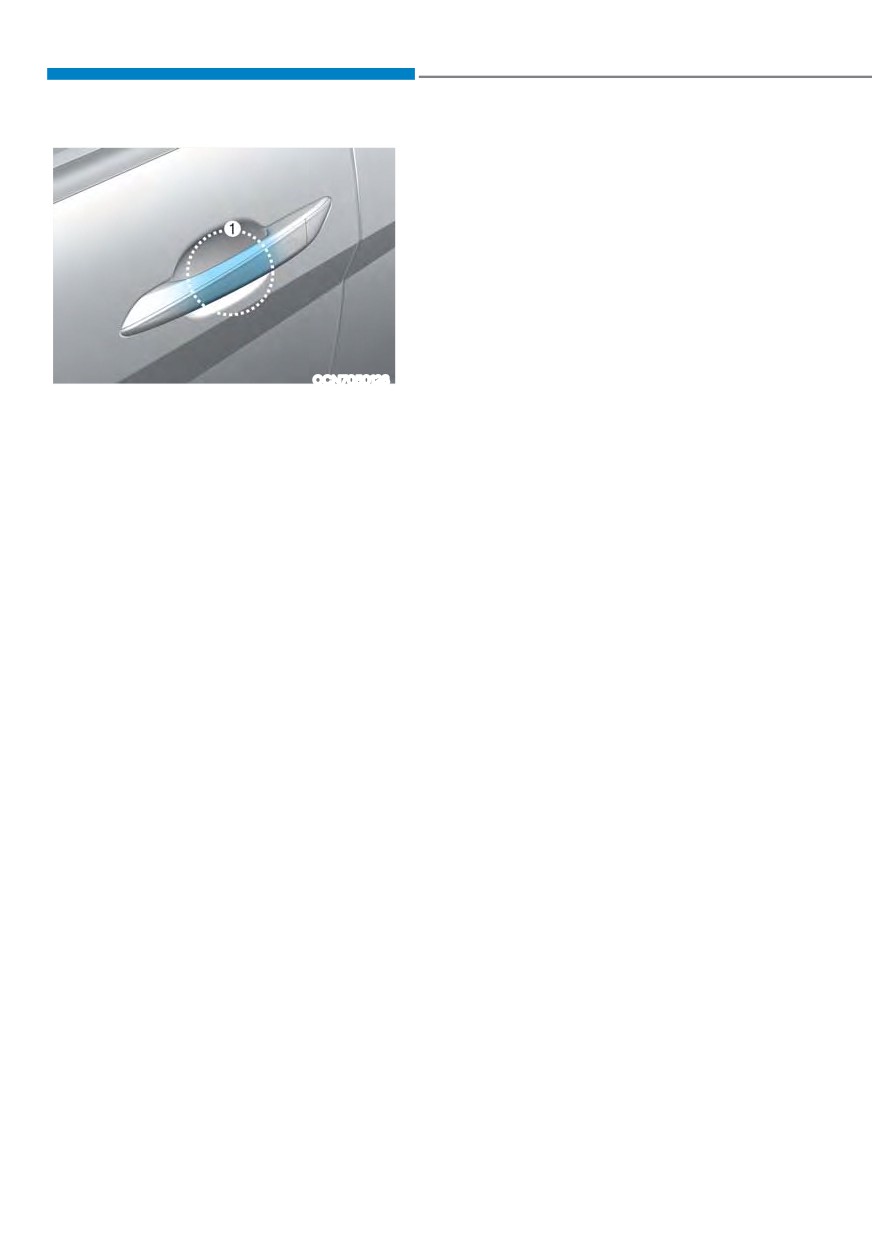

[1] : Door handle authentication pad

NFC door lock/unlock

You should touch digital key (card key)

to door handle authentication pad (1,

marked position near by the lock button)

of driver’s (or front passenger’s) outside

door for 2 seconds to lock or unlock the

doors. If the Two Press Unlock feature

is applied (press twice for unlocking),

driver’s seat door will be unlocked by

touching the digital key (card key). In this

state, if you touch one more time within

4 seconds, all the doors unlock.

Inoperable condition

If you do not touch the digital key (card

key) to the center of the door handle

authentication pad accurately. it may not

work. In addition, if you overlap and use

the key with NFC-enabled cards such as

transportation card or credit card, it may

not work.

Note that if you try to lock your vehicle

with digital key (card key) in following

cases, the doors will not be locked and

chime will sound for 3 seconds.

ś The Smart Key is in the vehicle.

ś The POWER button is in ACC or ON

position.

ś Any of the doors, hood or trunk are

open

5-26

05

Start-up with Card key

„ Type A

After placing your registered card key

onto the interior authentication pad

(wireless charger), step on the brake and

press the Engine Start/Stop button.

WARNING

ś If you do not place the digital key

(card key) onto the center of the

interior authentication pad (wireless

charger) exactly, the card key may

ODN8A059133

not be recognized. If the engine is

„ Type B

not turned on, adjust and place the

key again.

ś If you overlap and use the key

with NFC-enabled cards such as

transportation card or credit card,

the card key may not be recognized.

ś If the digital key (card key) does

not work, please move the card 4

inches (0.1m) away from the handle

authentication pad and retry to

ODN8A059247

touch.

Digital key application/cancellation

ś If the card key is damaged by impact,

it may not operate properly or at

If you do not want to use the digital key

all. You should buy a new card and

(smartphone and card key), you can

register again.

disable the function temporarily. You

should have the smart key when you

For more information, refer to the

change the settings

Engine Start/Stop button in chapter 6.

à With Navigation screen :

From the infotainment screen menu,

go to [Setup] - [Vehicle] - [Digital Key]

- [Enable Digital Keys] (deselect)

à Without navigation screen :

From cluster menu, go to [Digital Key]

- [Enable Digital Keys] (deselect)

Information

If you do not have the smart key in your

possession, you cannot deselect [Enable

digital keys]. However, if you want to

select [Enable digital keys] again, you do

not need to have the smart key in your

possession.

5-27

Convenience Features

Profile link/unlinked

CAUTION

Profile link

If you uncheck Enable digital keys, it is

6HOHFW 6HWXS Ɵ 8VHU 3URILOH Ɵ

impossible to lock or unlock the doors

or start up the vehicle with digital keys

3URILOH 6HWWLQJV Ɵ /LQN 'LJLWDO .H\

(Smartphone) on the infotainment

such as smartphone and card key. If

you check Enable digital keys again, the

system menu.

registered digital keys(smartphone and

2. Unlock your digital key installed

card key) are available. Even though

smart phone screen and place it onto

you stop the digital key function, the

the wireless charger according to a

registered keys (smartphone and card

message.

key) are not deleted.

3. It begins the profile link with a

message.

Personalized profile and vehicle

4. If you select Link, the registered

settings

phone number’s digital key and the

Connect the registered digital key with

user’s profile are linked.

personalized profile. Then in case you

5. The interconnection process is

lock or unlock the door with the digital

completed with a message.

key NFC function or unlock the door

remotely by digital key application

Profile unlink

Bluetooth connection, the vehicle

will play the personalized user profile

1. Select Digital Key information on

settings. Profile connection and

infotainment Vehicle Settings menu. It

personalization are available for Driver 1

is possible to unlink only if the profile

and Driver 2.

is interconnected.

2. Profile unlink is completed with a

message.

Information

If you connect both Driver 1 and Driver 2

with a single smartphone, the smartphone

digital key always works as Driver 1.

If you unlink the Driver 1, personalization

function will operate as Driver 2.

5-28

05

PRECAUTION for vehicle profile link and

Precaution for digital key profile link and

unlink

unlink

When you link or unlink the profile of

Profile operation according to door lock/

digital key, you should be careful of the

unlock system is as follows.

following.

Personalization

ś

Profile link is possible to use with the

Item

Operation

digital key. (Infotainment Vehicle

6HWWLQJV 0RGH Ɵ 'LJLWDO .H\ Ɵ (QDEOH

Initial value

Guest

Digital Keys)

Profile linked

ś

Profile link information remains even

smart phone

Linked profile

when you disable the digital key

key

function.

Profile unlinked

ś

Only the smart phone with digital key

smart phone

app enables you to link your profile.

key

Recently activated

(Impossible to link with NFC card)

profile

NFC card key

ś

Profile link works only when the

Smart key

smart phone and the digital key are

registered to the vehicle. The smart

ś

The personalization function using

phone with another vehicle’s digital

the digital key can be operated

key cannot link profile.

after linking the digital key on the

ś

If you remove the smart phone

infotainment system profile menu.

from the wireless charger before

ś

You should use the personalization

completing the profile link, it does not

function only when the vehicle is

work.

safely parked.

ś

To unlink the profile, the smart phone

does not need to be on the wireless

charger.

Vehicle personalization operation

The personalization function linked with

digital key works as following conditions:

ś Touch the driver’s door handle with

the profile linked smart phone to lock

or unlock the doors (Personalization

does not operate when locking or

unlocking the front passenger door.)

ś Remote door unlock with the profile

linked smartphone digital key app.

The profile linked with digital key can be

changed manually in the infotainment

system setup screen.

5-29

Convenience Features

Vehicle personalization with digital key

The available personalization function in the vehicle is as follows.

System

Personalization Item

Lamp

Blink number of one-touch signal lamps

USM

Door

Automatic door lock/unlock, Two Press Unlock

Preferred volume of the navigation system, Recent

Navigation

destination

AVN

User preset

Radio preset

Blue tooth

Bluetooth preferential connect

Latest operation setup of the following functions:

Operating

Air conditioning

Temperature, AUTO, air flow direction, air volume,

condition

air conditioner, air intake control, SYNC, Front

windshield defroster, OFF

For more information of personalization, refer to the infotainment system manual.

CAUTION

If you leave the digital key after locking or unlocking the doors or starting up the

vehicle with the smart key, the doors can be locked by the central door lock. Please

carry the digital key at all times.

5-30

05

DOOR LOCKS

Operating Door Locks from

Information

Outside the Vehicle

Be careful when locking the door by

Mechanical key

mechanical key operation, only the

driver’s door can be locked/unlocked.

Refer to Chapter 5 “Operating door locks

from inside the vehicle” to lock from

inside the vehicle.

Information

When removing the cover, be careful not

to lose cover and any scratches.

When the key cover freezes and does not

open, lightly tap or indirectly warm(hand

OCN7050009

temperature, etc.) it.

1. Press the lever located under the

cover with mechanical key. (1)

Do not apply excessive force to the door

and door handle. It may be damaged.

2. While pushing the lever so that the

mechanical key does not fall out of

the cover hole, slowly push it towards

the rear of the vehicle and remove the

cover. (2)

3. After removing the cover, only driver’s

door can be locked or unlocked by

using mechanical key.

4. Turn the key toward the rear of the

vehicle to lock and toward the front of

the vehicle to unlock. (3)

If you lock/unlock the driver’s door with

a key, the driver’s door will lock/ unlock

automatically.

Once the door is unlocked, it may be

opened by pulling the door handle.

Make sure that doors are closed securely.

5-31

Convenience Features

Remote key

Smart key

ODN8059279L

OCN7050078

To lock the doors, press the button on

To lock the doors, press the Door Lock

the outside door handle while carrying

button (1) on the remote key.

the smart key with you or press the door

To unlock the doors, press the Door

lock button on the smart key.

Unlock button (2) on the remote key.

To unlock the doors, press the button on

Once the doors are unlocked, they may

the outside door handle while carrying

be opened by pulling the door handle.

the smart key with you or press the door

When closing the door, push the door by

unlock button on the smart key.

hand. Make sure that doors are closed

Once the doors are unlocked, they may

securely.

be opened by pulling the door handle.

When closing the door, push the door by

hand. Make sure that doors are closed

securely.

Information

ś In cold and wet climates, door lock

and door mechanisms may not work

properly due to freezing conditions.

ś If the door is locked/unlocked multiple

times in rapid succession with either

the vehicle key or door lock switch, the

system may stop operating temporarily

in order to protect the circuit and

prevent damage to system components.

ś Two press unlock setting can be

changed in the User Settings mode on

the cluster.

5-32

05

Operating Door Locks from

With the central door lock switch

Inside the Vehicle

„ Driver’s door

With the door handle

OCN7050011

„ Front passenger’s door

OCN7050010

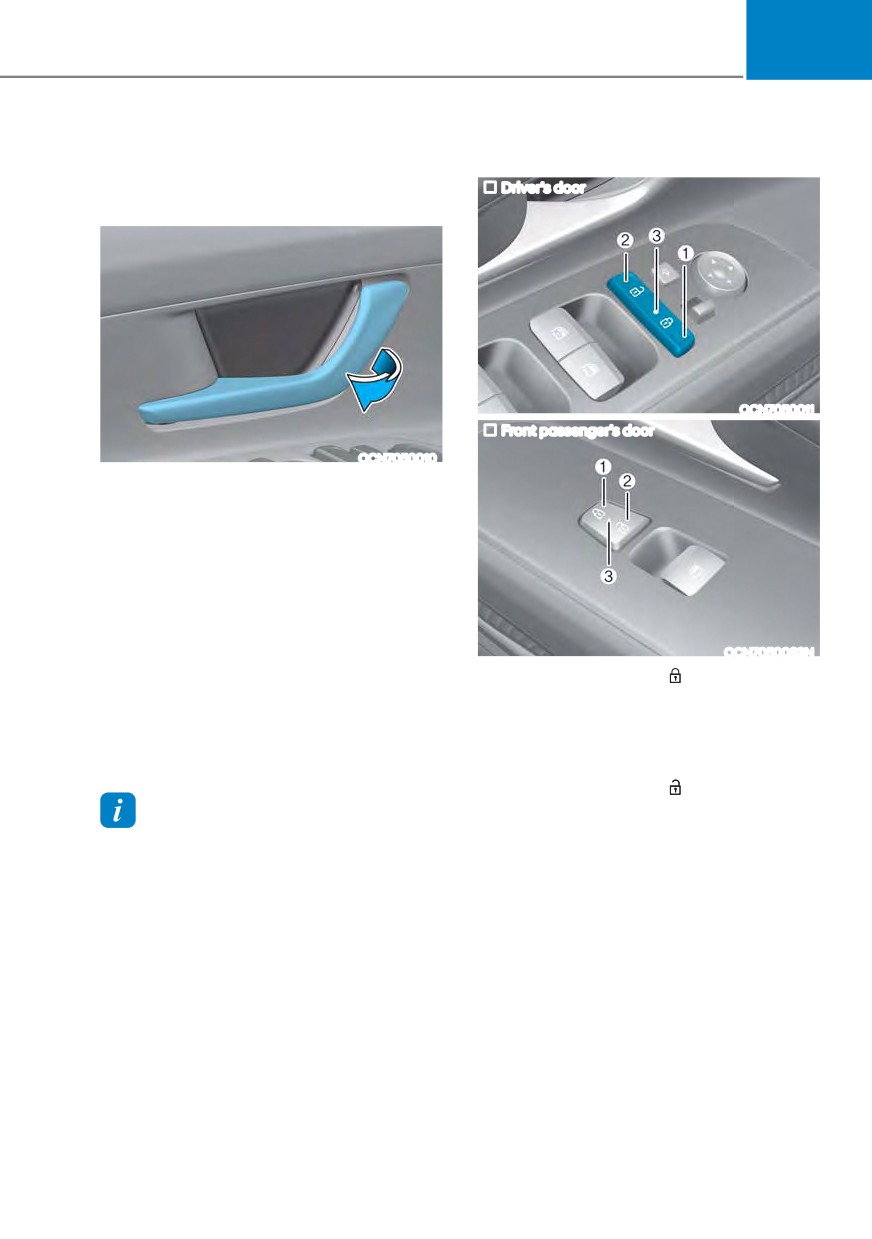

Front door

If the inner door handle is pulled when

the door is locked, the door will unlock

and open.

Rear door

If the inner door handle is pulled once

when the door is locked, the door will

OCN7050083N

unlock. If the inner door handle is pulled

once more, the door will open.

ś

When pressing the (

) portion (1) of

the switch, all vehicle doors will lock.

If any door is opened, the doors will not

- If any door is opened, the doors will

lock even though the central door lock

not lock even though the central

switch is pressed.

door lock switch (1) is pressed.

ś

When pressing the (

) portion (2)

of the switch, all vehicle doors will

Information

unlock.

If a power door lock ever fails to function

ś

Doors indicating light (3)

while you are in the vehicle try one or

more of the following techniques to exit:

When all vehicle doors are locked, the

indicating lights on the driver’s door

ś Operate the door unlock feature

and passenger’s door will turn on. If

repeatedly (both electronic and

any door is unlocked, it would go off.

manual) while simultaneously pulling

on the door handle.

ś Operate the other door locks and

handles, front and rear.

ś Lower a front window and use the

mechanical key to unlock the door from

outside.

5-33

Content      ..     4      5      6      7     ..
