Hyundai i20 (2016 year). Instruction

Instrument Cluster Control

Adjusting Instrument Cluster

■ Type A

■ Type B

Illumination (if equipped)

WARNING

Never adjust the instrument

cluster while driving. This could

result in loss of control and lead

to an accident that may cause

death, serious injury, or property

damage.

OIB044112/OIB044111

If the brightness reaches to the max-

imum or minimum level, an alarm will

OIB044095

sound (if equipped).

The brightness of the instrument

panel illumination changes by press-

ing the upper or lower part of the

switch when the ignition switch is in

the ON position and when the park-

ing lights are turned on.

3-39

Convenient features of your vehicle

LCD display control

Gauges

Tachometer

(if equipped)

Speedometer

■ Gasoline

■ Diesel

■ Type A

OIB044104

OIB044102/OIB044103

■ Type B

OIB044157

The tachometer indicates the

approximate number of engine revo-

The LCD display modes can be

lutions per minute (rpm).

changed by using the control buttons.

Use the tachometer to select the cor-

rect shift points and to prevent lug-

(1)

: MODE button for changing

ging and/or over-revving the engine.

modes

(2) ▲, ▼ : MOVE switch for chang-

NOTICE

ing items

(3) OK : SELECT/RESET button for

OIB044105

Do not operate the engine within

the tachometer's RED ZONE. This

setting or resetting the

The speedometer indicates the

may cause severe engine damage.

selected item

speed of the vehicle and is calibrated

For the LCD modes, refer to “LCD

in kilometers per hour (km/h) and/or

Display” in this chapter.

miles per hour (mph).

3-40

Engine Coolant Temperature

NOTICE

Fuel Gauge

Gauge

■ Type A

If the gauge pointer moves

■ Type A

beyond the normal range area

toward the “H” position, it indi-

cates overheating that may dam-

age the engine.

Do not continue driving with an

overheated engine. If your vehicle

overheats, refer to “If the Engine

Overheats” in chapter 6.

OIB044114

■ Type B

OIB044113

WARNING

■ Type B

Never remove the radiator cap

when the engine is hot. The

engine coolant is under pres-

sure and could cause severe

burns. Wait until the engine is

cool before adding coolant to

the reservoir.

OIB044108

OIB044106

This gauge indicates the approxi-

This gauge shows the temperature

mate amount of fuel remaining in the

of the engine coolant when the igni-

fuel tank.

tion switch is in the ON position.

3-41

Convenient features of your vehicle

Odometer

Information

WARNING

■ Type A

•

The fuel tank capacity is given in

chapter 8.

Fuel Gauge

•

The fuel gauge is supplemented by a

Running out of fuel can expose

low fuel warning light, which will

vehicle occupants to danger.

illuminate when the fuel tank is

You must stop and obtain addi-

nearly empty.

tional fuel as soon as possible

•

On inclines or curves, the fuel gauge

after the warning light comes

pointer may fluctuate or the low fuel

on or when the gauge indicator

warning light may come on earlier

OIB044116

comes close to the “E (Empty)”

■ Type B

than usual due to the movement of

level.

fuel in the tank.

NOTICE

Avoid driving with a very low fuel

level. Running out of fuel could

cause the engine to misfire dam-

aging the catalytic converter.

OIB044115

The odometer indicates the total dis-

tance that the vehicle has been driv-

en and should be used to determine

when periodic maintenance should

be performed.

- Odometer range :

0 ~ 1599999 kilometers or 999999

miles.

3-42

Outside Temperature Gauge

- User Settings Mode in the Cluster :

Information

(if equipped)

You can change the temperature

It is forbidden to alter the odometer of

unit in the

“Other Features

all vehicles with the intent to change

■ Type A

■ Type B

Temperature unit” .

the mileage registered on the odome-

ter. The alteration may void your war-

ranty coverage.

OIB044156/OIB044155

This gauge indicates the current out-

side air temperatures by 1°C (1°F).

- Temperature range :

- 40°C ~ 85°C (-40°F ~ 211°F)

The outside temperature on the dis-

play may not change immediately

like a general thermometer to pre-

vent the driver from being inattentive.

The temperature unit (from °C to °F

or from °F to °C) can be changed as

below procedures (if equipped).

3-43

Convenient features of your vehicle

Transaxle Shift Indicator

Manual Transaxle Shift Indicator

(if equipped)

Automatic Transaxle Shift

Indicator (if equipped)

■ Type A

■ Type B

■ Type A

■ Type B

OIB044117

Shift Indicator Pop-up (if equipped)

The pop-up that indicates the current

OIB044152/OIB044151

gear position is displayed in the clus-

OIB044118/OIB044117

This indicator informs which gear is

ter for about 2 seconds when shifting

This indicator displays which auto-

desired while driving to save fuel.

into other positions (P/R/N/D).

matic transaxle shift lever is selected.

• Shifting up : ▲2, ▲3, ▲4, ▲5, ▲6

• Shifting down :

▼1, ▼2, ▼3, ▼4, ▼5

• Park : P

For example

• Reverse : R

: Indicates that shifting up to the 3rd

• Neutral : N

gear is desired (currently the shift

• Drive : D

lever is in the 2nd or 1st gear).

• Sports Mode : 1, 2, 3, 4, 5, 6

: Indicates that shifting down to

the 3rd gear is desired (current-

ly the shift lever is in the 4th, 5th,

or 6th gear).

When the system is not working prop-

erly, the indicator is not displayed.

3-44

LCD DISPLAY (IF EQUIPPED)

LCD modes

Modes

Symbol

Explanation

This mode displays driving information like the tripmeter, fuel economy, and so on.

Trip Computer

For more details, refer to "Trip Computer" in this chapter.

Information

This mode informs of the service interval (mileage or days) and warning messages.

User Settings

On this mode, you can change settings of the doors, lamps, and so on.

For controlling the LCD modes, refer to "LCD Display Control" in this chapter.

3-45

Convenient features of your vehicle

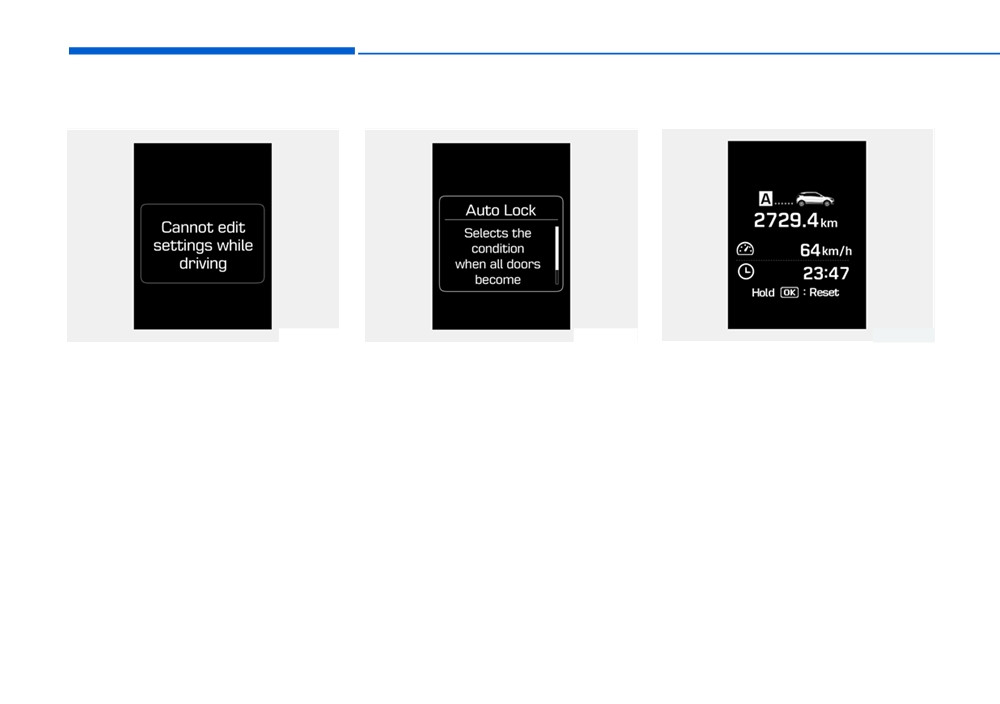

Cannot edit settings while driving

Quick guide (Help, if equipped)

Trip computer mode

OIB044163

OIB044164

OIB044185

This warning message illuminates if

If you press and hold the OK button

This mode displays driving informa-

you try to select the other User

in the User Settings Mode, explana-

tion like the tripmeter, fuel economy,

Settings item when driving.

tion about the selected item is dis-

and so on.

played in the cluster.

For safety, change the User Settings

after parking the vehicle, applying the

For more details, refer to “Trip

parking brake and moving the shift

Computer” in this chapter.

lever to N(Neutral) position

(M/T),

P (Parking) position (A/T).

3-46

Information mode

For the setting of the service inter-

val, refer to "User Settings Mode"

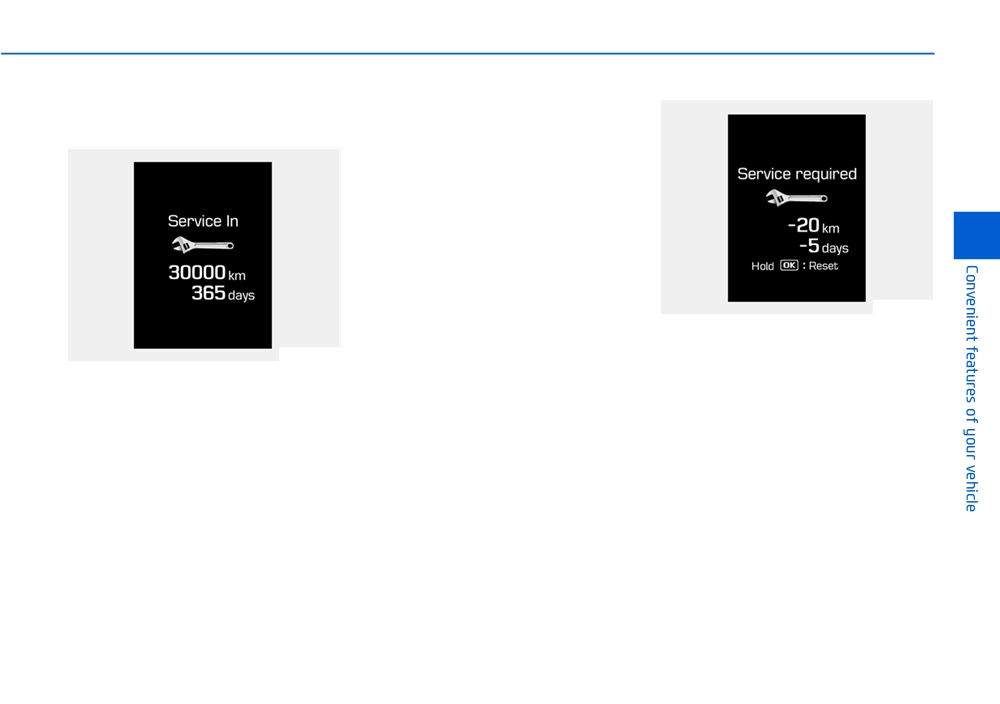

Service Interval

of the LCD display.

OIB044166

Service required

OIB044165

If you do not have your vehicle serv-

iced according to the already inputted

Service in

service interval, "Service required"

It calculates and displays when you

message is displayed for several sec-

need a scheduled maintenance

onds each time you set the ignition

service (mileage or days).

switch or Engine Start/Stop button to

If the remaining mileage or time

the ON position.

reaches 1,500 km (900 miles) or 30

To reset the service interval to the

days, "Service in" message is dis-

mileage and days you inputted before:

played for several seconds each time

- Press the OK button for more than

you set the ignition switch or Engine

1 second.

Start/Stop button to the ON position.

3-47

Convenient features of your vehicle

Warning Message

If one of followings occurs, warning

messages will be displayed on the

information mode for several seconds.

- Low fuel etc.

OIB044167

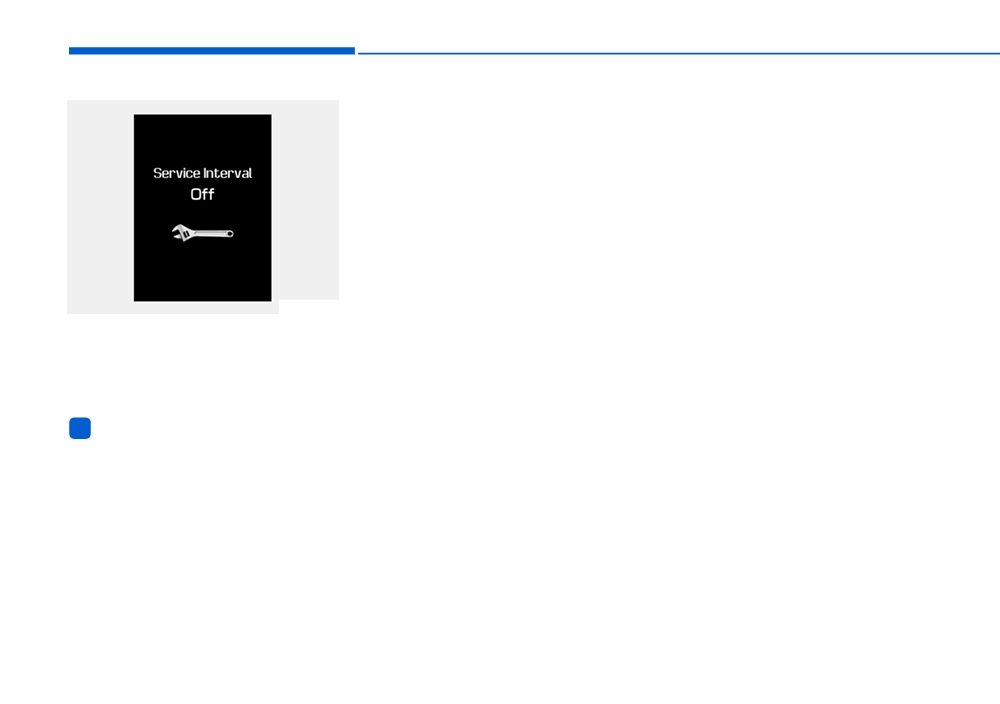

Service in OFF

If the service interval is not set,

"Service Interval Off" message is

displayed on the LCD display.

Information

If any of the following conditions

occurs, the mileage and days may be

incorrect.

- The battery cable is disconnected.

- The fuse switch is turned off.

- The battery is discharged.

3-48

User settings mode

On this mode, you can change setting of the instrument cluster, doors, lamps, and so on.

Door

Items

Explanation

• Disable : The auto door lock operation will be deactivated.

• Enable on Speed : All doors will be automatically locked when the vehicle speed exceeds 9.3

Automatically Lock

mph (15km/h).

• Enable on Shift : All doors will be automatically locked if the automatic transaxle shift lever is shift-

ed from the P (Park) position to the R (Reverse), N (Neutral), or D (Drive) position.

• Disable : The auto door unlock operation will be canceled.

• Vehicle Off: All doors will be automatically unlocked when the ignition key is removed from the

Automatically Unlock

ignition switch or the Engine Star/Stop button is set to the OFF position.

• On Shift to P: All doors will be automatically unlocked if the automatic transaxle shift lever is shift-

ed to the P (Park) position.

Light

Items

Explanation

• Off: The one touch turn signal function will be deactivated.

• 3, 5, 7 Flashes : The lane change signals will blink 3, 5, or 7 times when the turn signal lever is

One Touch Turn Signal

moved slightly.

For more details, refer to “Light” in this chapter.

• On: The head lamp delay function will be activated.

Head Lamp Delay

• Off: The headlamp delay function will be deactivated.

For more details, refer to “Light” in this chapter.

3-49

Convenient features of your vehicle

Steering

Items

Explanation

• Off : The steering position function will be deactivated.

Steering Position

• On : The steering position function will be activated.

Service interval

Items

Explanation

On this mode, you can activate the service interval function with mileage (km or mi.) and period

(months).

Service Interval

• Off : The service interval function will be deactivated.

• On :You can set the service interval (mileage and months).

Other features

Items

Explanation

• Off : The average fuel economy will not reset automatically.

• On (After Ignition) : The average fuel economy will reset automatically when starting the engine.

Fuel Economy Auto Reset

• On (After Refueling) : The average fuel economy will reset automatically when refueling.

For more details, refer to “Trip Computer” in this chapter.

If you select this function, the current shift gear position is displayed in the cluster for about 2

Gear position Pop-up

seconds when shifting into other positions (P/R/N/D).

If you do not select this function, the shift gear Pop-up is not displayed in the cluster.

Temperature Unit

Choose the temperature unit. (°C,°F)

Language

Choose the language.

3-50

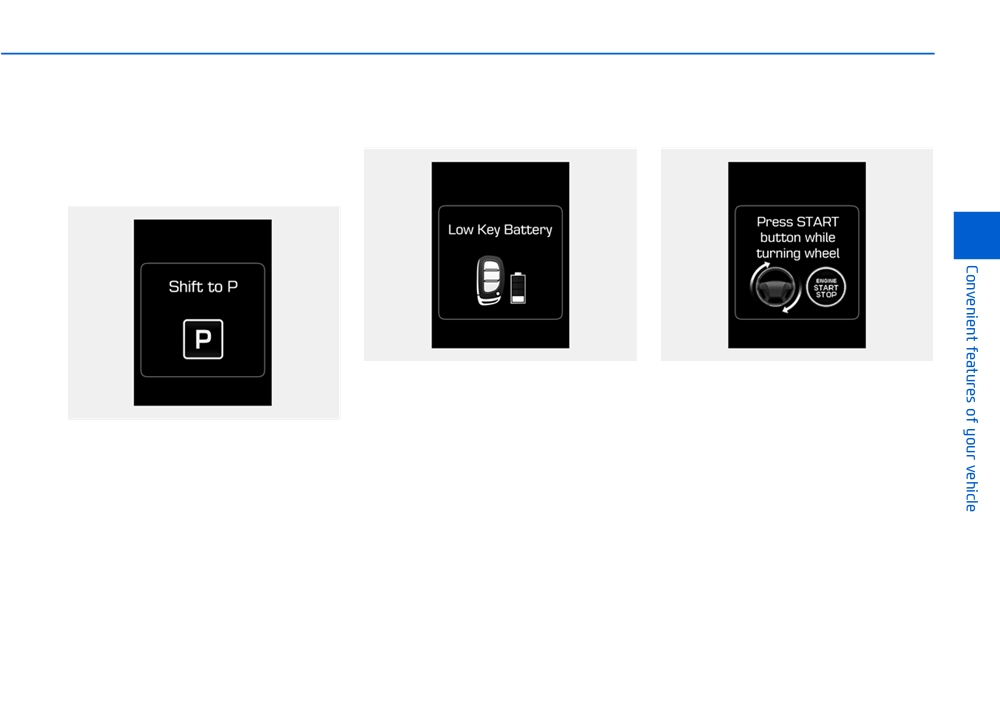

Warning Messages

Low Key Battery

Press start button while turning

(for Type B, if equipped)

(for smart key system)

wheel (for smart key system)

Shift to "P" position

(for smart key system and auto-

matic transaxle)

OIB044131

OIB044132

This warning message illuminates if

the battery of the smart key is dis-

the steering wheel does not unlock

OIB044130

charged when the Engine Start/Stop

normally when the Engine Start/Stop

• This warning message illuminates

button is in the OFF position.

button is pressed.

if you try to turn off the engine with-

Press the Engine Start/Stop button

out the shift lever in P (Park) posi-

while turning the steering wheel right

tion.

and left.

• At this time, the Engine Start/Stop

button turns to the ACC position (If

you press the Engine Start/Stop

button once more, it will turn to the

ON position).

3-51

Convenient features of your vehicle

Steering wheel unlocked

Check steering wheel lock

Press clutch pedal to start

(for smart key system)

system (for smart key system)

engine (for smart key system

and manual transaxle)

OIB044133

OIB044134

OIB044136

This warning message illuminates if

the steering wheel does not lock

the steering wheel does not lock nor-

This warning message illuminates if

when the Engine Start/Stop button is

mally when the Engine Start/Stop

the Engine Start/Stop button is in the

in the OFF position.

button is in the OFF position.

ACC position twice by pressing the

button repeatedly without depressing

the clutch pedal.

Depress the clutch pedal to start the

engine.

3-52

Press brake pedal to start engine

Key not in vehicle

Key not detected

(for smart key system and auto-

(for smart key system)

matic transaxle)

OIB044138

OIB044137

OIB044135

This warning message illuminates if

• This warning message illuminates

the smart key is not in the vehicle

the smart key is not detected when

if the Engine Start/Stop button

when you press the Engine Start/Stop

you press the Engine Start/Stop but-

changes to the ACC position twice

button.

ton.

by pressing the button repeatedly

Always have the smart key with you.

without depressing the brake pedal.

• It means that you should depress

the brake pedal to start the engine.

3-53

Convenient features of your vehicle

Press start button again

Press “START” button with key

Check "BRAKE SWITCH" fuse

(for smart key system)

(for smart key system and auto-

matic transaxle)

OIB044139

OIB044140

OIB044141

This warning message illuminates if

you cannot operate the Engine

you press the Engine Start/Stop but-

• This warning message illuminates

Start/Stop button when there is a

ton while the warning message “Key

if the brake switch fuse is discon-

problem with the Engine Start/Stop

not detected” is Illuminated.

nected.

button system.

• It means that you should replace

At this time, the immobilizer indicator

Start the engine by pressing the

light will blink.

the fuse with a new one. If that is

Engine Start/ Stop button once more.

not possible, you can start the

engine by pressing the Engine

If the warning illuminates each time

Start/Stop button for 10 seconds in

you press the Engine Start/Stop but-

the ACC position.

ton, we recommend that you have

the vehicle inspected by an author-

ized HYUNDAI dealer.

3-54

Shift to "P" or "N" to start engine

Door Open

Tailgate Open

(for smart key system and auto-

matic transaxle)

OIB044144

OIB044145

This indicator displays which door is

This indicator displays when the tail-

OIB044142

open.

gate is open.

• This warning message illuminates

if you try to start the engine with

the shift lever not in the P (Park) or

N (Neutral) position.

Information

You can start the engine with the shift

lever in the N (Neutral) position. But,

for your safety, we recommend that

you start the engine with the shift

lever in the P (Park) position.

3-55

Hyundai i20 (2016 year). Instruction - part 7
