Hyundai i20 (2016 year). Instruction

Convenient features of your vehicle

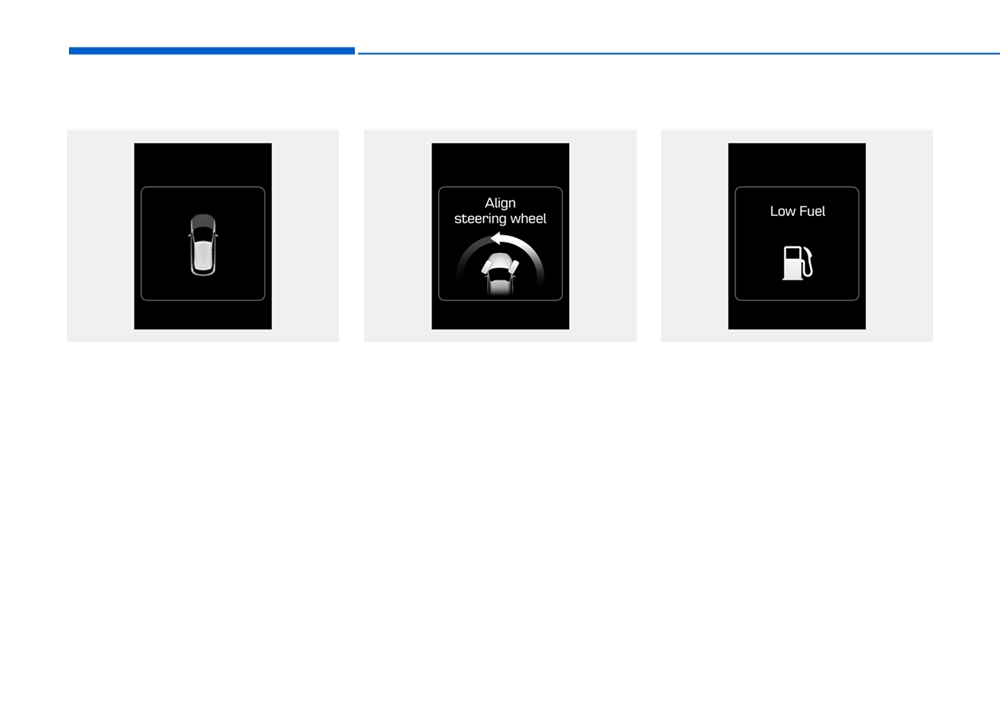

Hood Open

Align steering wheel (if equipped)

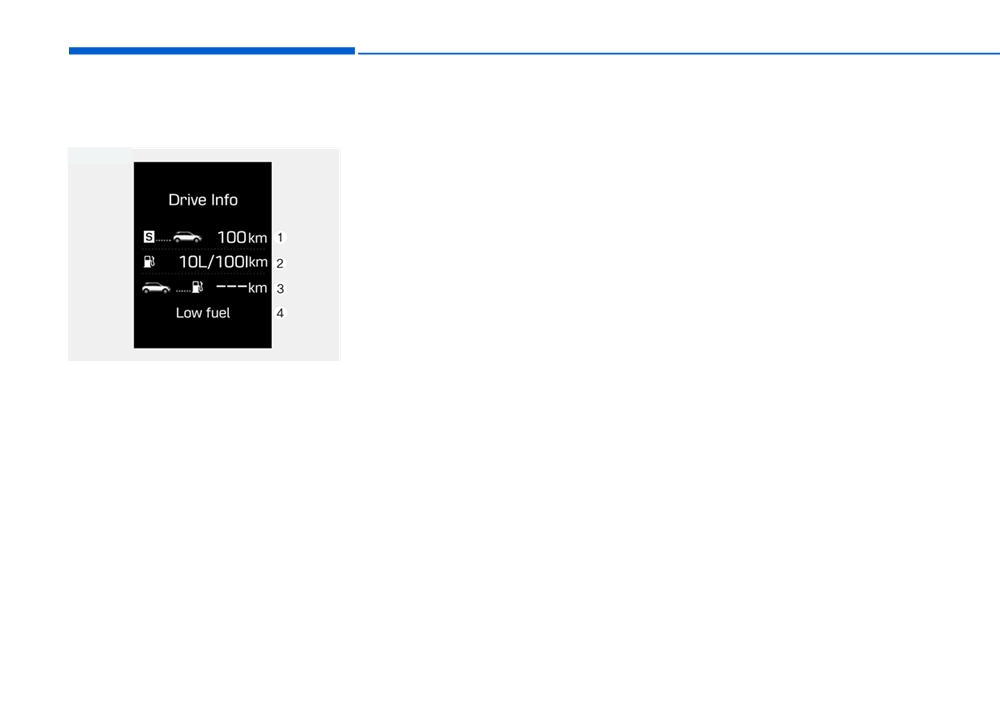

Low Fuel

OIB044146

OIB044150

OIB044148

This indicator displays when the

This warning message illuminates if

hood is open.

you start the engine when the steer-

the fuel tank is nearly empty.

ing wheel is turned 90 degrees to the

- When the low fuel level warning

left or right.

light is illuminates.

Turn the steering wheel and make

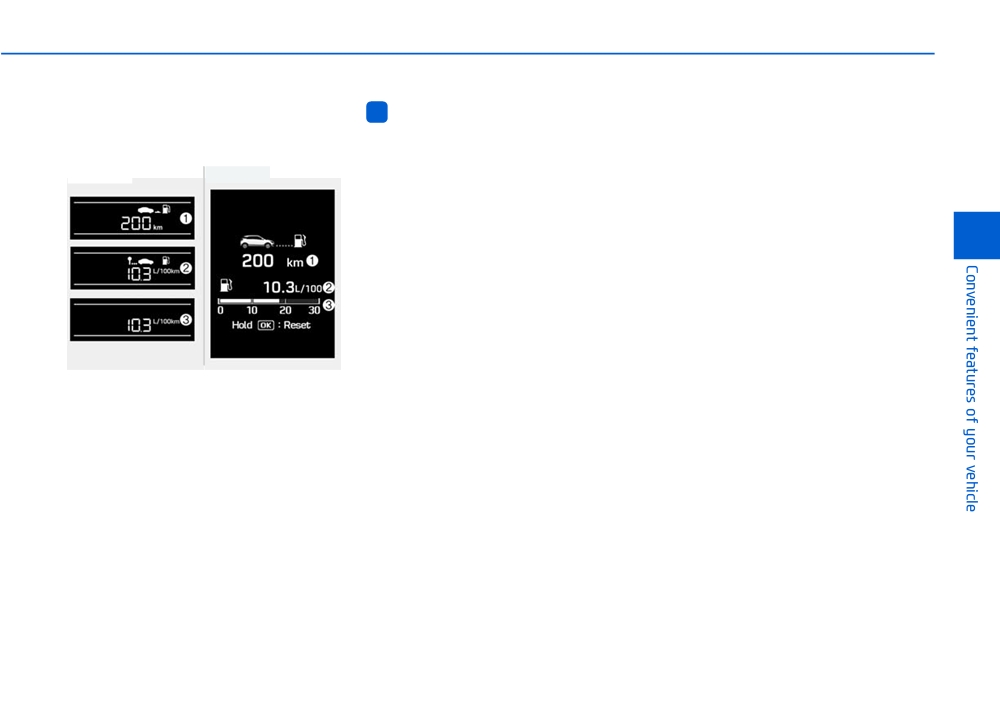

- When the trip computer displays “--

the angle of the steering wheel be

- km(or mile)” as distance to empty.

less than 30 degrees.

Add fuel as soon as possible.

3-56

Convenient features of your vehicle

WARNING AND INDICATOR LIGHTS

Air bag Warning Light

Seat Belt Warning Light

Information - Warning lights

(if equipped)

Make sure that all warning lights are

OFF after starting the engine. If any

light is still ON, this indicates a situa-

This warning light illuminates:

This warning light informs the driver

tion that needs attention.

• Once you set the ignition switch or

that the seat belt is not fastened.

Engine Start/Stop button to the ON

position.

For more details, refer to the “Seat

- It illuminates for approximately 6

Belts” in chapter 2.

seconds and then goes off.

• When there is a malfunction with

the SRS.

In this case, we recommend that

you have the vehicle inspected by

an authorized HYUNDAI dealer.

3-58

Parking Brake & Brake

If the brake fluid level in the reser-

Dual-diagonal braking system

Fluid Warning Light

voir is low:

Your vehicle is equipped with dual-

1. Drive carefully to the nearest safe

diagonal braking systems. This

location and stop your vehicle.

means you still have braking on two

This warning light illuminates:

2. With the engine stopped, check

wheels even if one of the dual sys-

• Once you set the ignition switch or

tems should fail.

the brake fluid level immediately

Engine Start/Stop button to the ON

and add fluid as required

(For

With only one of the dual systems

position.

more details, refer to “Brake Fluid”

working, more than normal pedal

- It illuminates for approximately 3

in chapter 7). Then check all brake

travel and greater pedal pressure are

seconds

components for fluid leaks. If any

required to stop the vehicle.

- It remains on if the parking brake

leak on brake system is still found,

Also, the vehicle will not stop in as

is applied.

the warning light remains on, or

short a distance with only a portion

• When the parking brake is applied.

the brakes do not operate proper-

of the brake system working.

ly, do not drive the vehicle.

• When the brake fluid level in the

If the brakes fail while you are driv-

reservoir is low.

In this case, we recommend that

ing, shift to a lower gear for addition-

you have the vehicle towed to an

- If the warning light illuminates with

al engine braking and stop the vehi-

authorized HYUNDAI dealer and

the parking brake released, it indi-

cle as soon as it is safe to do so.

inspected.

cates the brake fluid level is low.

3-59

Convenient features of your vehicle

Anti-lock Brake System

Electric Power Steering

WARNING

(ABS) Warning Light

(EPS) Warning Light

(if equipped)

Parking Brake & Brake Fluid

Warning Light

This warning light illuminates:

Driving the vehicle with a warn-

• Once you set the ignition switch or

ing light ON is dangerous. If the

Engine Start/Stop button to the ON

Parking Brake & Brake Fluid

position.

Warning Light illuminates with

- It illuminates for approximately 3

- It remains on until the engine is

the parking brake released, it

seconds and then goes off.

started.

indicates that the brake fluid

level is low.

• When there is a malfunction with

the ABS (The normal braking sys-

the EPS.

In this case, we recommend

tem will still be operational without

that you have the vehicle

In this case, we recommend that

the assistance of the anti-lock

inspected by an authorized

you have the vehicle inspected by

brake system).

HYUNDAI dealer.

an authorized HYUNDAI dealer.

In this case, we recommend that

you have the vehicle inspected by

an authorized HYUNDAI dealer.

3-60

Malfunction Indicator

NOTICE

(Continued)

- Gasoline Engine

Lamp (MIL)

If you continue to drive with the

If the Malfunction Indicator Lamp

Malfunction Indicator Lamp (MIL)

(MIL) illuminates, potential catalyt-

This warning light illuminates:

blinking for a long time, the DPF

ic converter damage is possible

system can be damaged and fuel

• Once you set the ignition switch or

which could result in loss of

consumption can worsen.

Engine Start/Stop button to the ON

engine power.

position.

In this case, we recommend that

NOTICE

- It remains on until the engine is

you have the vehicle inspected by

- Diesel Engine

started.

an authorized HYUNDAI dealer as

If the Malfunction Indicator Lamp

• When there is a malfunction with

soon as possible.

(MIL) blinks, some error related to

the emission control system.

the injection quantity adjustment

NOTICE

occurs which could result in loss

In this case, we recommend that

- Diesel Engine with DPF

of engine power, combustion

you have the vehicle inspected by

(if equipped)

noise and poor emission.

an authorized HYUNDAI dealer.

When the Malfunction Indicator

In this case, we recommend that

Lamp (MIL) blinks, it may stop

you have the engine control sys-

NOTICE

- Malfunction Indicator

blinking after driving the vehicle:

tem inspected by an authorized

Lamp (MIL)

- at more than 60km/h (37 mph), or

HYUNDAI dealer.

Driving with the Malfunction

- at more than 2nd gear with 1500 ~

Indicator Lamp (MIL) on may cause

2000 engine rpm for a certain time

damage to the emission control

(for about 25 minutes).

systems which could effect dri-

If the Malfunction Indicator Lamp

vability and/or fuel economy.

(MIL) continues to blink in spite of

the procedure, we recommend

that you have the DPF system

checked by an authorized

HYUNDAI dealer.

(Continued)

3-61

Convenient features of your vehicle

Charging System

If there is a malfunction with either

Engine Oil Pressure

Warning Light

the alternator or electrical charging

Warning Light

system:

1. Drive carefully to the nearest safe

This warning light illuminates:

location and stop your vehicle.

•

Once you set the ignition switch or

• Once you set the ignition switch or

2. Turn the engine off and check the

Engine Start/Stop button to the ON

alternator drive belt for looseness

position.

or breakage.

- It remains on until the engine is

If the belt is adjusted properly,

started.

there may be a problem in the

•

When there is a malfunction with

• When the engine oil pressure is

electrical charging system.

either the alternator or electrical

low.

In this case, we recommend that

charging system.

you have the vehicle inspected by

an authorized HYUNDAI dealer as

If the engine oil pressure is low:

soon as possible.

1.Drive carefully to the nearest safe

location and stop your vehicle.

2.Turn the engine off and check the

engine oil level (For more details,

refer to “Engine Oil” in chapter 7). If

the level is low, add oil as required.

If the warning light remains on after

adding oil or if oil is not available,

we recommend that you have the

vehicle inspected by an authorized

HYUNDAI dealer as soon as possi-

ble.

3-62

NOTICE

Low Fuel Level

Door Ajar Warning

- Engine Oil Pressure

Warning Light

Light

Warning Light

•

If the engine does not stop

immediately after the Engine Oil

This warning light illuminates:

Pressure Warning Light is illumi-

When the fuel tank is nearly empty.

When a door is not close securely.

nated, severe damage could

result.

If the fuel tank is nearly empty, add

Tailgate Open Warning

•

If the warning light stays on

fuel as soon as possible.

Light

while the engine is running, it

indicates that there may be seri-

NOTICE

ous engine damage or malfunc-

- Low Fuel Level

This warning light illuminates:

tion. In this case,

Driving with the Low Fuel Level

When the tailgate is not close

1. Stop the vehicle as soon as it

warning light on or with the fuel

securely.

is safe to do so.

level below “E (Empty)” can cause

the engine to misfire and damage

2. Turn off the engine and check

the catalytic converter (if equipped).

the oil level. If the oil level is

low, fill the engine oil to the

proper level.

3. Start the engine again. If the

warning light stays on after the

engine is started, turn the

engine off immediately. In this

case, we recommend that you

have the vehicle inspected by

an authorized HYUNDAI dealer.

3-63

Convenient features of your vehicle

Fuel Filter Warning

NOTICE

Immobilizer Indicator

- Fuel Filter Warning

Light (Diesel Engine)

Light (without smart

Light

key) (if equipped)

•

When the Fuel Filter Warning

This warning light illuminates:

Light illuminates, engine power

•

Once you set the ignition switch or

(vehicle speed & idle speed)

This indicator light illuminates:

Engine Start/Stop button to the ON

may decrease.

When the vehicle detects the immo-

position.

•

If you keep driving with the warn-

bilizer in your key properly while the

ing light on, engine parts (injec-

ignition switch is ON.

- It illuminates for approximately 3

seconds and then goes off.

tor, common rail, high pressure

- At this time, you can start the engine.

fuel pump) may be damaged. If

•

When water has accumulated

- The indicator light goes off after

this occurs, we recommend that

inside the fuel filter.

starting the engine.

you have the vehicle inspected

In this case, remove the water from

by an authorized HYUNDAI deal-

the fuel filter.

er as soon as possible.

This indicator light blinks:

For more details, refer to

“Fuel

When there is a malfunction with the

Filter” in chapter 7.

immobilizer system.

In this case, we recommend that you

have the vehicle inspected by an

authorized HYUNDAI dealer.

3-64

Immobilizer Indicator

This indicator light illuminates for

Turn Signal Indicator

Light (with smart key)

2 seconds and goes off:

Light

(if equipped)

When the vehicle can not detect the

smart key which is in the vehicle while

This indicator light blinks:

the Engine Start/Stop button is ON.

This indicator light illuminates for

When you turn the turn signal light on.

up to 30 seconds:

In this case, we recommend that you

have the vehicle inspected by an

When the vehicle detects the smart

authorized HYUNDAI dealer.

If any of the following occurs, there

key in the vehicle properly while the

may a malfunction with the turn signal

Engine Start/Stop button is ACC or

system. In this case, we recommend

ON.

This indicator light blinks:

that you have the vehicle inspected by

- At this time, you can start the engine.

• When the battery of the smart key

an authorized HYUNDAI dealer.

- The indicator light goes off after

is weak.

- The indicator light does not blink

starting the engine.

- At this time, you can not start the

but illuminates.

engine. However, you can start the

- The indicator light blinks more

engine if you press the Engine

This indicator light blinks for a few

rapidly.

Start/Stop button with the smart

seconds:

- The indicator light does not illumi-

key.

(For more details, refer to

When the smart key is not in the

nate at all.

“Starting the Engine” in chapter 5).

vehicle.

• When there is a malfunction with

- At this time, you can not start the

the immobilizer system.

engine.

In this case, we recommend that

you have the vehicle inspected by

an authorized HYUNDAI dealer.

3-65

Convenient features of your vehicle

High Beam Indicator

Light ON Indicator

Master Warning Light

Light

(if equipped)

This indicator light illuminates :

This indicator light illuminates:

• When the headlights are on and in

When the parking lights or head-

• When the remaining mileage or

the high beam position

lights are on.

time is 0 on the “Service Interval” in

the cluster.

• When the turn signal lever is pulled

into the Flash-to-Pass position.

If the service interval setting is

Front Fog Indicator

reset, the master warning light

Light (if equipped)

turns off.

This indicator light illuminates:

When the front fog lights are on.

3-66

Glow Indicator Light

KEY OUT Indicator

Information - Engine

KEY

(Diesel Engine)

Light (if equipped)

Preheating

OUT

If the engine does not start within 10

This indicator light illuminates:

seconds after the preheating is com-

When the Engine Start/Stop button

When the engine is being preheated

pleted, set the ignition switch or

is in the ACC or ON position, if any

with the ignition switch or Engine

Engine Start/Stop button to the

door is open, the system checks for

Start/Stop button in the ON position.

LOCK or OFF position for 10 seconds

the smart key.

and then to the ON position in order

- The engine can be started after the

to preheat the engine again.

glow indicator light goes off.

This indicator light blinks:

- The illumination time varies with

When the smart key is not in the

the engine coolant temperature, air

vehicle and any door is open with the

temperature, and battery condition.

ignition switch or Engine Start/Stop

button in the ACC or ON position.

- At this time, if you close all doors,

If the indicator light remains on or

blinks after the engine has warmed

the chime will also sound for

approximately 5 seconds.

up or while driving, there may a mal-

function with the engine preheating

- The indicator will go off while the

system.

vehicle is moving.

In this case, we recommend that you

have the vehicle inspected by an

authorized HYUNDAI dealer.

3-67

Convenient features of your vehicle

TRIP COMPUTER

■ Type A

■ Type B

Press the TRIP button for less than 1

To change the trip mode, rotate the

second to select any mode as follows:

MOVE switch “▲, ▼” on the steering

wheel.

Tripmeter A

FUEL ECONOMY*

Tripmeter B

• Distance To Empty

• Average Fuel Economy

Distance to empty*

• Instant Fuel Economy

OIB044097

■ Type B

Average fuel consumption*

TRIP A

Instant fuel consumption*

• Tripmeter [A]

• Average Vehicle Speed [A]

Average speed

• Elapsed Time [A]

Elapsed time

TRIP B

OIB044157

• Tripmeter [B]

The trip computer is a microcomput-

Digital speedometer

er-controlled driver information sys-

• Average Vehicle Speed [B]

on/off setting

tem that displays information related

• Elapsed Time [B]

to driving, when the ignition switch is

* : if equipped

in the ON position. All stored driving

information (except odometer) resets

Digital Speedometer

if the battery is disconnected.

* : if equipped

3-68

Fuel economy

Average Fuel Economy (2)

Information

(km or mile, L/100km,

• The average fuel economy is calcu-

•

If the vehicle is not on level ground

km/L or MPG) (if equipped)

lated by the total driving distance

or the battery power has been inter-

and fuel consumption since the last

■ Type A

■ Type B

rupted, the distance to empty func-

average fuel economy reset.

tion may not operate correctly.

- Fuel economy range:

•

The distance to empty may differ

0.0 ~ 99.9 L/100km, km/L or MPG

from the actual driving distance as

it is an estimate of the available

• The average fuel economy can be

reset both manually and automati-

driving distance.

cally.

•

The trip computer may not register

additional fuel if less than 6 liters

(1.6 gallons) of fuel are added to the

Manual reset

vehicle.

To clear the average fuel economy

•

The fuel economy and distance to

manually, press the [OK] button (or

OIB044159/OIB044123

RESET button) on the steering wheel

empty may vary significantly based

Distance To Empty (1)

on driving conditions, driving

for more than 1 second when the

average fuel economy is displayed.

• The distance to empty is the esti-

habits, and condition of the vehicle.

mated distance the vehicle can be

driven with the remaining fuel.

Automatic reset

- Distance range:

To make the average fuel economy

1 ~ 1999 km or 1 ~ 1999 mi.

be reset automatically whenever refu-

eling, select the “Auto Reset” mode in

• If the estimated distance is below

User Setting menu of the LCD display

1 km (1 mi.), the trip computer will

(Refer to “LCD Display”).

display “---” as distance to empty.

Under "Auto Reset" mode, the aver-

And, "Low Fuel" warning message

age fuel economy will be cleared to

is displayed.

zero

(---) when the vehicle speed

exceeds 1 km/h after refueling more

than 6 liters (1.6 gallons).

3-69

Convenient features of your vehicle

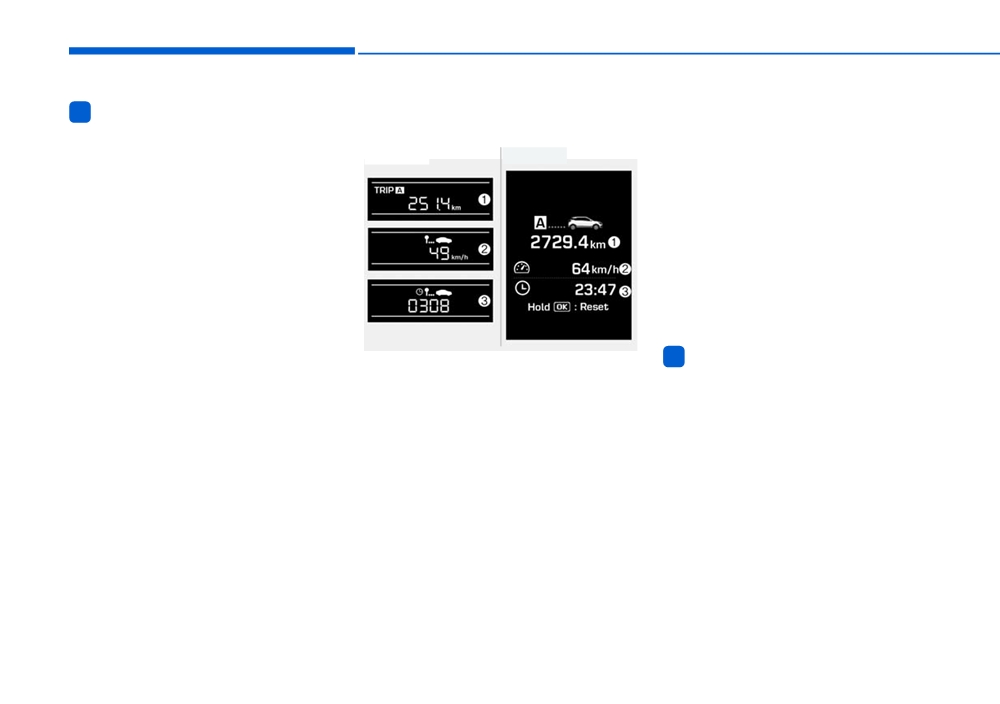

Trip A/B

Average Vehicle Speed (2)

Information

(km or mile, km/h or MPH)

• The average vehicle speed is cal-

The average fuel economy is not dis-

culated by the total driving dis-

played for more accurate calculation

■ Type A

■ Type B

tance and driving time since the

if the vehicle does not drive more than

last average vehicle speed reset.

10 seconds or 300 meters (0.19 miles)

- Speed range:

since the ignition switch or the Engine

Start/Stop button is turned to ON.

0~220 km/h or 0~140 mph

• To reset the average vehicle speed,

press the [OK] button (or RESET

Instant Fuel Economy (3)

button) on the steering wheel for

•

This mode displays the instant fuel

more than 1 second when the aver-

economy during the last few sec-

age vehicle speed is displayed.

onds when the vehicle speed is

more than 10 km/h (6.2 MPH).

OIB044158/OIB044119

Information

- Fuel economy range:

Tripmeter (1)

• The average vehicle speed is not dis-

0 ~ 30 L/100km, km/L

• The tripmeter is the total driving

played if the driving distance is less

distance since the last tripmeter

than 300 meters (0.19 miles) or the

reset.

driving time is less than 10 seconds

since the ignition switch or the Engine

- Distance range: 0.0 ~ 9999.9 km

Start/Stop button is turned to ON.

or mi.

• Even if the vehicle is not in motion,

• To reset the tripmeter, press the

the average vehicle speed keeps cal-

[OK] button (or RESET button) on

culating while the engine is running.

the steering wheel for more than 1

second when the tripmeter is dis-

played.

3-70

Elapsed Time (3)

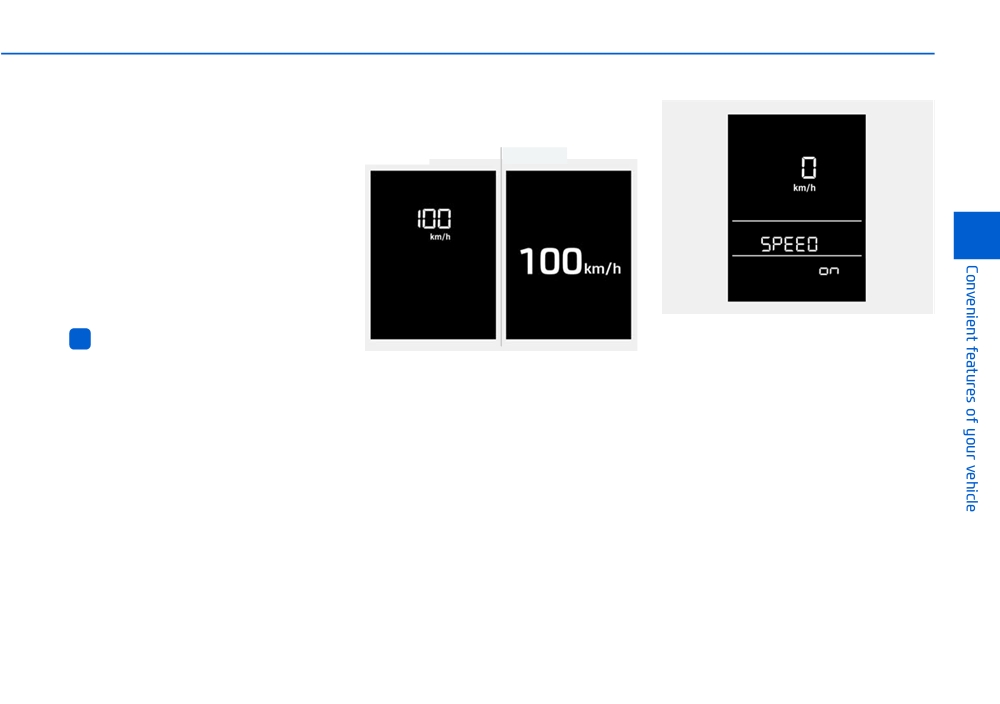

Digital Speedometer

• The elapsed time is the total driv-

(km/h or MPH)

ing time since the last elapsed time

■ Type A

■ Type B

reset.

- Time range (hh:mm):

00:00 ~ 99:59

• To reset the elapsed time, press

the [OK] button (or RESET button)

on the steering wheel for more

than 1 second when the elapsed

time is displayed.

OLF044085R

In case of type A, the digital

Information

speedometer is displayed when

OIB044160/OIB044125

Even if the vehicle is not in motion, the

“SPEED” sets “ON” in the cluster.

This message shows the speed of

elapsed time keeps calculating while

Pressing the RESET button for more

the vehicle (km/h, MPH).

the engine is running.

than 1 second, when the “SPEED”

“OFF” is displayed, the digital

speedometer is displayed.

3-71

Convenient features of your vehicle

One time driving information

If the estimated distance is below

mode (if equipped)

1km (1 mi.), the distance to empty

(3) will display as "---" and a refuel

■ Type B

message will appear (4).

OIB044162

This display shows trip distance (1),

average fuel economy (2) and the

vehicle can be driven with the

remaining fuel (3).

This information is displayed for a few

seconds when you turn off the engine

and then goes off automatically.

The information provided is calculat-

ed according to each trip.

3-72

Hyundai i20 (2016 year). Instruction - part 8
