Hyundai i20 (2016 year). Instruction - part 6

Convenient features of your vehicle

The ignition switch must be in the ON

Window opening and closing

i

Information

position to be able to raise or lower

the windows. Each door has a Power

•

In cold and wet climates, power win-

Window switch to control that door's

dows may not work properly due to

window. The driver has a Power

freezing conditions.

Window Lock switch which can block

•

While driving with the rear windows

the operation of passenger windows.

down, your vehicle may demonstrate

The power windows will operate for

a wind buffeting or pulsation noise.

approximately 30 seconds after the

This noise is normal and can be

ignition switch is placed in the ACC

reduced or eliminated by taking the

or LOCK/OFF position. However, if

following actions. If the noise occurs

the front doors are opened, the

with one or both of the rear windows

Power Windows cannot be operated

down, partially lower both front win-

even within the 30 second period.

dows approximately one inch.

OLF044031

To open or close a window, press

down or pull up the front portion of

the corresponding switch to the first

detent position (5).

3-22

Auto up/down window

To reset the power windows

Automatic reversal (if equipped)

(if equipped)

If the power windows do not operate

Pressing or pulling up the power win-

normally, the automatic power win-

dow switch momentarily to the sec-

dow system must be reset as follows:

ond detent position

(6) completely

1. Place the ignition switch to the ON

lowers or lifts the window even when

position.

the switch is released. To stop the

2. Close the window and continue

window at the desired position while

3

pulling up on the power window

the window is in operation, pull up or

switch for at least 1 second.

press down and release the switch.

If the power windows do not operate

properly after resetting, it is recom-

mended that the system be checked

by an authorized HYUNDAI dealer.

OIB024001

If a window senses any obstacle while

it is closing automatically, it will stop

and lower approximately 30 cm (12

in.) to allow the object to be cleared.

If the window detects the resistance

while the power window switch is

pulled up continuously, the window

will stop upward movement then

lower approximately 2.5 cm (1 in.).

If the power window switch is pulled

up continuously again within 5 sec-

onds after the window is lowered by

the automatic window reversal fea-

ture, the automatic window reversal

will not operate.

3-23

Convenient features of your vehicle

Power window lock switch

When the power window lock switch

i

Information

(if equipped)

is pressed:

The automatic reverse feature is only

• The driver's master control can

active when the “auto up” feature is

operate the front passenger's power

used by fully pulling up the switch to

window but cannot operate the rear

the second detent.

passengers' power windows.

• The front passenger's control can

WARNING

operate the front passenger's

power window.

Make sure heads, other body

• The rear passenger's control can-

parts or other objects are safely

not operate the rear passengers'

out of the way before closing

power window.

the windows to avoid injuries or

vehicle damage. Objects less

than 4 mm (0.16 in.) in diameter

OIB044049

NOTICE

caught between the window

The driver can disable the power

• To prevent possible damage to

glass and the upper window

window switches on the rear passen-

the power window system, do

channel may not be detected by

gers' doors by pressing the power

not open or close two windows

the automatic reverse window

window lock switch to the lock posi-

or more at the same time. This

and the window will not stop

tion (pressed).

will also ensure the longevity of

and reverse direction.

the fuse.

• Never try to operate the main

switch on the driver's door and

the individual door window

switch in opposite directions at

the same time. If this is done, the

window will stop and cannot be

opened or closed.

3-24

Convenient features of your vehicle

HOOD

Opening the hood

OIB044050

OIB044052

3. Go to the front of the vehicle, raise

4. Pull out the support rod.

OIB044047

the hood slightly, push the second-

5. Hold the hood opened with the

1. Make sure the shift lever is in P

ary latch up (1) inside of the hood

support rod.

(Park, for automatic transaxle) or

center and lift the hood (2).

first gear or R (Reverse, for manu-

al transaxle) and set the parking

brake.

2. Pull the release lever to unlatch

the hood. The hood should pop

open slightly.

3-26

Closing the hood

WARNING

WARNING

1. Before closing the hood, check the

Support rod

following:

•

Before closing the hood,

• All filler caps in engine compart-

ensure that all obstructions

•

Grasp the support rod in the

ment must be correctly installed.

are removed from the hood

area wrapped in rubber. The

opening. Closing the hood

rubber will help prevent you

• Gloves, rags or any other com-

bustible material must be removed

with an obstruction present in

from being burned by hot

3

the hood opening may result

metal when the engine is hot.

from the engine compartment.

in property damage or severe

•

The support rod must be

2. Return the support rod to its clip to

personal injury.

inserted completely into the

prevent it from rattling.

•

Do not leave gloves, rags or

hole provided whenever you

3. Lower the hood halfway and let it

any other combustible materi-

inspect the engine compart-

drop. Make sure that it locks into

al in the engine compartment.

ment. This will prevent the

place.

Doing so may cause a heat-

hood from falling and possi-

induced fire.

bly injuring you.

•

Always double check to be

sure that the hood is firmly

latched before driving away. If

it is not latched, the hood

could open while the vehicle

is being driven, causing a

total loss of visibility, which

might result in an accident.

•

Do not move the vehicle with

the hood raised. The view will

be blocked and the hood

could fall or be damaged.

3-27

Convenient features of your vehicle

FUEL FILLER DOOR

Opening the fuel filler door

i

Information

If the fuel filler door does not open

because ice has formed around it, tap

lightly or push on the door to break the

ice and release the door. Do not pry on

the door. If necessary, spray around the

door with an approved de-icer fluid (do

not use radiator anti-freeze) or move

the vehicle to a warm place and allow

the ice to melt.

OIB044184

3. Pull the fuel filler door out (1) to

OIB044053

fully open.

The fuel filler door must be opened

4. To remove the fuel tank cap (2),

from inside the vehicle by pulling up

turn it counterclockwise. You may

the fuel filler door opener.

hear a hissing noise as the pres-

1. Stop the engine.

sure inside the tank equalizes.

2. Pull the fuel filler door opener up.

5. Place the cap on the fuel filler door.

3-28

Closing the fuel filler door

(Continued)

(Continued)

1. To install the fuel tank cap (2), turn

•

Before touching the fuel noz-

If you must re-enter the vehi-

it clockwise until it

“clicks” once.

zle, you should eliminate the

cle, you should once again

This indicates that the cap is

potential build-up of static

eliminate potentially danger-

securely tightened.

electricity by touching a metal

ous static electricity dis-

2. Close the fuel filler door (1) and

part of the vehicle, a safe dis-

charge by touching a metal

push it lightly and make sure that it

tance away from the fuel filler

part of the vehicle, away from

3

is securely closed.

neck, nozzle, or other gas

the fuel filler neck, nozzle or

source, with your bare hand.

other gasoline source, with

your bare hand.

•

Do not use cellular phones

WARNING

while refueling. Electric cur-

•

When using an approved

rent and/or electronic interfer-

portable fuel container, be

Gasoline is highly flammable

ence from cellular phones can

sure to place the container on

and explosive. Failure to follow

potentially ignite fuel vapors

the ground prior to refueling.

these guidelines may result in

and cause a fire.

Static electricity discharge

SERIOUS INJURY or DEATH:

from the container can ignite

•

Do not get back into a vehicle

• Read and follow all warnings

fuel vapors causing a fire.

once you have begun refuel-

posted at the gas station.

Once refueling has begun,

ing. You can generate a build-

• Before refueling, note the

contact between your bare

up of static electricity by

location of the Emergency

hand and the vehicle should

touching, rubbing or sliding

Gasoline Shut-Off, if available,

be maintained until the filling

against any item or fabric

at the gas station.

is complete.

capable of producing static

(Continued)

electricity. Static electricity

•

Use only approved portable

discharge can ignite fuel

plastic fuel containers designed

vapors causing a fire.

to carry and store gasoline.

(Continued)

(Continued)

3-29

Convenient features of your vehicle

(Continued)

(Continued)

i

Information

•

When refueling, always move

•

If a fire breaks out during refu-

• Make sure to refuel your vehicle

the shift lever to the P (Park)

eling, leave the vicinity of the

according to the "Fuel Requirements"

position

(for

automatic

vehicle, and immediately con-

suggested in the introduction chapter.

transaxle) or first gear or R

tact the manager of the gas

• Do not spill fuel on the exterior sur-

(Reverse,

for

manual

station and then contact the

faces of the vehicle. Any type of fuel

transaxle), set the parking

local fire department. Follow

spilled on painted surfaces may

brake, and place the ignition

any safety instructions they

damage the paint.

switch to the LOCK/OFF posi-

provide.

tion. Sparks produced by

•

If pressurized fuel sprays out,

NOTICE

electrical components related

it can cover your clothes or

to the engine can ignite fuel

If the fuel filler cap requires

skin and thus subject you to

vapors causing a fire.

replacement, use only a genuine

the risk of fire and burns.

•

Do not use matches or a

Always remove the fuel cap

HYUNDAI cap or the equivalent

lighter and do not smoke or

carefully and slowly. If the cap

specified for your vehicle. An

leave a lit cigarette in your

is venting fuel or if you hear a

incorrect fuel filler cap can result

vehicle while at a gas station,

hissing sound, wait until the

in a serious malfunction of the

especially during refueling.

condition stops before com-

fuel system or emission control

pletely removing the cap.

system.

•

Do not over-fill or top-off your

vehicle tank, which can cause

•

Always check that the fuel cap

gasoline spillage.

is installed securely to pre-

vent fuel spillage in the event

(Continued)

of an accident.

3-30

STEERING WHEEL

Electric power steering (EPS)

NOTICE

i

Information

(if equipped)

If the Electric Power Steering

The following symptoms may occur

The system assists you with steering

System does not operate normal-

during normal vehicle operation:

the vehicle. If the engine is off or if

ly, the warning light (

) will illu-

•

The steering effort may be high

the power steering system becomes

minate on the instrument cluster.

immediately after placing the igni-

inoperative, the vehicle may still be

The steering wheel may become

tion switch in the ON position.

steered, but it will require increased

difficult to control or operate. Take

steering effort.

This happens as the system per-

3

your vehicle to an authorized

forms the EPS system diagnostics.

Also, the steering effort becomes

HYUNDAI dealer and have the sys-

When the diagnostics is completed,

heavier as the vehicle’s speed

tem checked as soon as possible.

the steering wheel will return to its

increases and becomes lighter as

normal condition.

the vehicle’s speed decreases for

better control of the steering wheel.

•

A click noise may be heard from the

EPS relay after the ignition switch is

Should you notice any change in the

placed to the ON or LOCK/OFF

effort required to steer during normal

position.

vehicle operation, we recommend

that the system be checked by an

•

Motor noise may be heard when the

authorized HYUNDAI dealer.

vehicle is at stop or at a low driving

speed.

•

When you operate the steering

wheel in low temperature, abnormal

noise may occur. If temperature

rises, the noise will disappear. This

is a normal condition.

3-31

Convenient features of your vehicle

Tilt steering / Telescope steering

Horn

(if equipped)

WARNING

Never adjust the steering wheel

while driving. You may lose

steering control and cause

severe personal injury, death or

accidents.

OIB044055

Pull down the lock-release lever (1) on

OIB044056

the steering wheel column and adjust

the steering wheel angle (2) and posi-

To sound the horn, press the area

tion (3). Move the steering wheel, so it

indicated by the horn symbol on your

points toward your chest, not toward

steering wheel (see illustration). The

your face. Make sure you can see the

horn will operate only when this area

instrument panel warning lights and

is pressed.

gauges.

After adjusting, pull up the lock-

NOTICE

release lever (4) to lock the steering

Do not strike the horn severely to

wheel in place. Push the steering

operate it, or hit it with your fist.

wheel both up and down to be cer-

Do not press on the horn with a

tain it is locked in position. Always

sharp-pointed object.

adjust the position of the steering

wheel before driving.

3-32

MIRRORS

Inside rearview mirror

Day/night rearview mirror

WARNING

Before you start driving, adjust the

rearview mirror to the center on the

To prevent serious injury during

view through the rear window.

an accident or deployment of

the air bag, do not modify the

WARNING

rearview mirror and do not

Night

install a wide mirror.

Make sure your line of sight is not

3

obstructed. Do not place objects

in the rear seat, cargo area, or

WARNING

behind the rear headrests which

could interfere with your vision

NEVER adjust the mirror while

Day

through the rear window.

driving. This may cause loss of

OIB044057

vehicle control resulting in an

Make this adjustment before you

accident.

start driving and while the day/night

lever is in the day position.

Pull the day/night lever toward you to

reduce glare from the headlights of

the vehicles behind you during night

driving.

Remember that you lose some

rearview clarity in the night position.

3-33

Convenient features of your vehicle

Electrochromic mirror (ECM)

NOTICE

(if equipped)

When cleaning the mirror, use a

The electric rearview mirror automati-

paper towel or similar material

cally controls the glare from the head-

Rearview display

dampened with glass cleaner. Do

lights of the car behind you in night-

not spray glass cleaner directly on

time or low light driving conditions.

the mirror as that may cause the

When the engine is running, the

liquid cleaner to enter the mirror

glare is automatically controlled by

housing.

the sensor mounted in the rearview

Indicator

Sensor

mirror. The sensor detects the light

level around the vehicle, and auto-

OIB044058

matically adjusts to control the head-

light glare from vehicles behind you.

To operate the electric rearview

Whenever the shift lever is placed in

mirror:

R (Reverse), the mirror will automat-

• Press the ON/OFF button (1) to

ically go to the brightest setting in

turn the automatic dimming func-

order to improve the drivers view

tion off. The mirror indicator light

behind the vehicle.

will turn off.

Press the ON/OFF button (1) to

turn the automatic dimming func-

tion on. The mirror indicator light

will illuminate.

• The mirror defaults to the ON posi-

tion whenever the ignition switch is

turned on.

3-34

Outside rearview mirror

WARNING

Your vehicle is equipped with both

left-hand and right-hand outside

Do not adjust or fold the outside

rearview mirrors.

rearview mirrors while the vehi-

cle is moving.This could result in

WARNING

loss of control, and an accident

which could cause death, seri-

3

Rearview mirrors

ous injury or property damage.

• Both right and left outside rear

view mirror are convex.

NOTICE

Objects seen in the mirror are

OIB034041

• Do not scrape ice off the mirror

closer than they appear.

Manual type (if equipped)

face; this may damage the sur-

• Use your interior rearview

To adjust an outside mirror, move the

face of the glass.

mirror or turn your head and

control lever.

• If the mirror is jammed with ice,

look to determine the actual

do not adjust the mirror by

distance of following vehicles

force. Use an approved spray

when changing lanes.

de-icer (not radiator antifreeze)

spray, or a sponge or soft cloth

with very warm water, or move

the vehicle to a warm place and

allow the ice to melt.

3-35

Convenient features of your vehicle

NOTICE

Folding the outside rearview

mirror

•

The mirrors stop moving when

they reach the maximum adjust-

ing angles, but the motor contin-

ues to operate while the switch

is pressed. Do not press the

switch longer than necessary,

the motor may be damaged.

•

Do not attempt to adjust the out-

side rearview mirror by hand or

the motor may be damaged.

OIB044059

Electric type (if equipped)

Adjusting the rearview mirrors:

OIB044061

Move the lever (1) to the L (Left) or R

Manual type

(Right) to select the rearview mirror

To fold the outside rearview mirror,

you would like to adjust.

grasp the housing of the mirror and

Use the mirror adjustment control to

then fold it toward the rear of the

position the selected mirror up,

vehicle.

down, left or right.

After adjustment, move the lever (1)

to the middle to prevent inadvertent

adjustment.

3-36

NOTICE

The electric type outside rearview

mirror operates even though the

ignition switch is in the OFF posi-

tion. However, to prevent unnec-

essary battery discharge, do not

adjust the mirrors longer than

3

necessary while the engine is not

running.

NOTICE

OIB044062

Electric type (if equipped)

Do not fold the electric type out-

side rearview mirror by hand. It

To fold the outside rearview mirror,

could cause motor failure.

press the button.

To unfold outside rearview mirror,

press the button again.

If the button is pressed, the mirror

will fold or unfold automatically.

3-37

Convenient features of your vehicle

INSTRUMENT CLUSTER

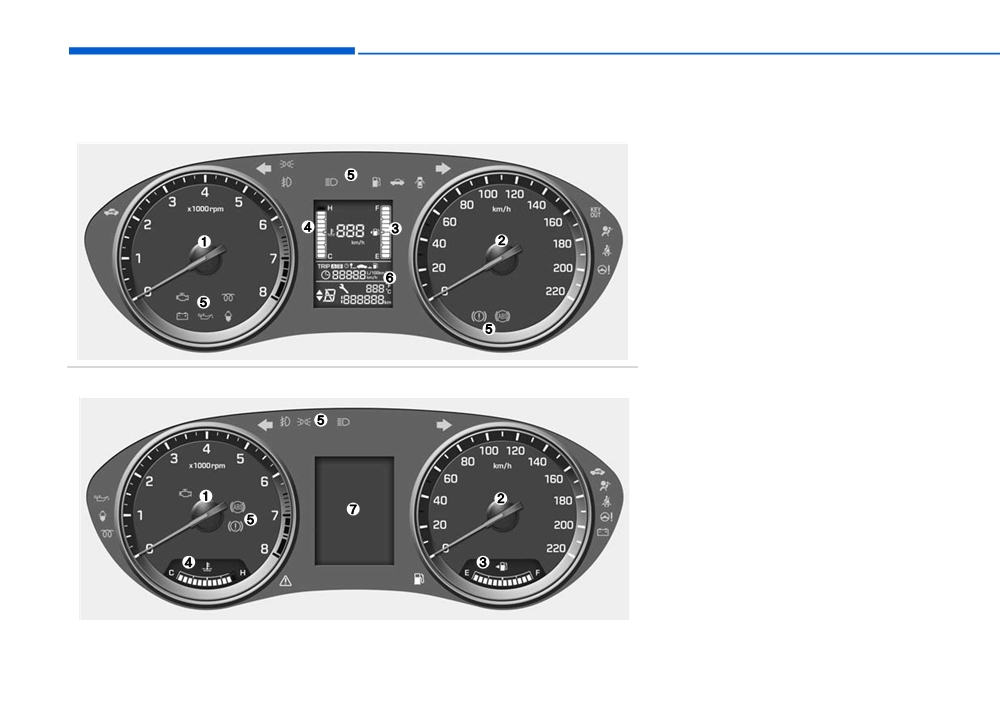

■ Type A

1. Tachometer

2. Speedometer

3. Fuel gauge

4. Engine coolant temperature gauge

5. Warning and indicator lights

6. Odometer/Trip computer

■ Type B

7. LCD display (including trip computer)

❈ The actual cluster in the vehicle may

differ from the illustration.

For more details, refer to the

"Gauges" in this chapter.

OIB044101/OIB044100

3-38

Content   ..  4  5  6  7   ..
