Front and side impact air bags
•
No objects should be placed
•
Air bags can only be used
can injure occupants improp-
over or near the air bag mod-
once - we recommend that
erly positioned in the front
ules on the steering wheel,
the system be replaced by an
seats.
instrument panel, and the front
authorized HYUNDAI dealer.
passenger's panel above the
•
Move your seat as far back as
•
The SRS is designed to deploy
glove box, because any such
practical from the front air
the front air bags only when an
object could cause harm if the
bags, while still maintaining
impact is sufficiently severe
vehicle is in a crash severe
control of the vehicle.
and when the impact angle is
enough to cause the air bags
less than 30° from the forward
•
You and your passengers
to deploy.
longitudinal axis of the vehi-
should never sit or lean
•
Do not tamper with or discon-
cle. Additionally, the air bags
unnecessarily close to the air
nect SRS wiring or other com-
will only deploy once. Seat
bags. Improperly positioned
ponents of the SRS system.
belts must be worn at all times.
drivers and passengers can
Doing so could result in injury,
be severely injured by inflat-
•
Front air bags are not intend-
due to accidental deployment
ing air bags.
ed to deploy in side-impact,
of the air bags or by rendering
•
Never lean against the door or
rear-impact or rollover crash-
the SRS inoperative.
es. In addition, front air bags
center console - always sit in
an upright position.
•
If the SRS air bag warning
will not deploy in frontal
light remains illuminated
crashes below the deploy-
(Continued)
while the vehicle is being driv-
ment threshold.
en, we recommend that the
•
A child restraint system must
system be inspected by an
never be placed in the front
authorized HYUNDAI dealer.
seat. The infant or child could
(Continued)
be severely injured or killed
by an air bag deployment in
case of an accident.
(Continued)
2-44
(Continued)
(Continued)
(Continued)
•
Children age
12 and under
•
Sitting improperly or out of
•
The SRS air bag system must
must always be properly
position can result in serious
deploy very rapidly to provide
restrained in the rear seat.
or fatal injury in a crash. All
protection in a crash. If an
2
Never allow children to ride in
occupants should sit upright
occupant is out of position
the front passenger seat. If a
with the seat back in an
because of not wearing a seat
child over 12 must be seated
upright position, centered on
belt, the air bag may forcefully
in the front seat, he or she
the seat cushion with their
contact the occupant causing
must be properly belted and
seat belt on, legs comfortably
serious or fatal injuries.
the seat should be moved as
extended and their feet on the
far back as possible.
floor until the vehicle is
parked and the ignition key is
•
For maximum safety protec-
removed.
tion in all types of crashes, all
occupants including the driv-
(Continued)
er should always wear their
seat belts whether or not an
air bag is also provided at
their seating position to mini-
mize the risk of severe injury
or death in the event of a
crash. Do not sit or lean
unnecessarily close to the air
bag while the vehicle is in
motion.
(Continued)
2-45
Safety system of your vehicle
Side impact air bag
The purpose of the air bag is to pro-
WARNING
(if equipped)
vide the vehicle's driver and/or the
front passenger with additional pro-
tection than that offered by the seat
•
The side impact air bag is sup-
plemental to the driver's and
belt alone.
the passenger's seat belt sys-
The side impact air bags are
tems and is not a substitute
designed to deploy only during cer-
for them. Therefore your seat
tain side-impact collisions, depend-
belts must be worn at all times
ing on the crash severity, angle,
while the vehicle is in motion.
speed and point of impact. The side
The air bags deploy only in
impact air bags are not designed to
certain side impact conditions
deploy in all side impact situations.
severe enough to cause sig-
OIB034021
nificant injury to the vehicle
WARNING
occupants.
•
For best protection from the
Do not allow the passengers to
side impact air bag system
lean their heads or bodies onto
and to avoid being injured by
doors, put their arms on the
the deploying side impact air
doors, stretch their arms out of
bag, both front seat occupants
the window, or place objects
should sit in an upright posi-
between the doors and passen-
tion with the seat belt properly
gers when they are seated on
fastened. The driver's hands
seats equipped with side and/or
should be placed on the steer-
OJK032063
curtain air bags.
ing wheel at the 9:00 and 3:00
The actual air bags in the vehicle may differ
positions. The passenger's
from the illustration.
arms and hands should be
placed on their laps.
Your vehicle is equipped with a side
(Continued)
impact air bag in each front seat.
2-46
Curtain air bag (if equipped)
(Continued)
(Continued)
•
Do not use any accessory
•
If the seat or seat cover is
seat covers.
damaged, we recommend that
the system be serviced by an
•
Use of seat covers could
2
authorized HYUNDAI dealer.
reduce or prevent the effec-
tiveness of the system.
Inform the dealer that your
vehicle is equipped with side
•
Do not install any accessories
impact air bags.
on the side or near the side
impact air bag.
•
Do not place any objects over
the air bag or between the air
OIB034022
bag and yourself.
•
Do not place any objects (an
umbrella, bag, etc.) between the
front door and the front seat.
Such objects may become dan-
gerous projectiles and cause
injury if the supplemental side
impact air bag inflates.
•
To prevent unexpected deploy-
ment of the side impact air bag
OJK032066
that may result in personal
The actual air bags in the vehicle may differ
injury, avoid impact to the side
from the illustration.
impact sensor when the igni-
tion switch is on.
Curtain air bags are located along
(Continued)
both sides of the roof rails above the
front and rear doors.
2-47
Safety system of your vehicle
They are designed to help protect
WARNING
(Continued)
the heads of the front seat occupants
•
Do not allow the passengers
and the rear outboard seat occu-
pants in certain side impact colli-
•
In order for side impact and
to lean their heads or bodies
curtain air bags to provide the
onto doors, put their arms on
sions.
best protection, both front
the doors, stretch their arms
The curtain air bags are designed to
seat occupants and both out-
out of the window, or place
deploy only during certain side
board rear occupants should
objects between the doors
impact collisions, depending on the
sit in an upright position with
and passengers when they
crash severity, angle, speed and
the seat belts properly fas-
are seated on seats equipped
impact. The curtain air bags are not
tened.
with side and/or curtain air
designed to deploy in all side impact
Importantly, children should
bags.
situations, collisions from the front or
rear of the vehicle or in most rollover
sit in a proper child restraint
•
Never try to open or repair any
system in the rear seat.
components of the side cur-
situations.
tain air bag system. We rec-
•
When children are seated in
the rear outboard seats, they
ommend that the system be
serviced by an authorized
must be seated in the proper
child restraint system. Make
HYUNDAI dealer.
sure to put the child restraint
Failure to follow the above men-
system as far away from the
tioned instructions can result in
door side as possible, and
injury or death to the vehicle
secure the child restraint sys-
occupants in an accident.
tem in a locked position.
(Continued)
2-48
Why didn’t my air bag go off in a
Air bag collision sensors
collision? (Inflation and non-infla-
tion conditions of the air bag)
There are many types of accidents
in which the air bag would not be
2
expected to provide additional
protection.
These include rear impacts, sec-
ond or third collisions in multiple
impact accidents, as well as low
speed impacts.
OIB034023E/OIB034024/OIB034025/OIB034026
(1) SRS control module
(3) Side impact sensor
(2) Front impact sensor
2-49
Safety system of your vehicle
Air bag inflation conditions
WARNING
(Continued)
•
Problems may arise if the sen-
•
Do not hit or allow any objects
sor installation angles are
to impact the locations where
changed due to the deforma-
air bags or sensors are
tion of the front bumper, body
installed.
or B pillar where side collision
This may cause unexpected
sensors are installed. We rec-
ommend that the system be
air bag deployment, which
could result in serious per-
serviced by an authorized
HYUNDAI dealer.
sonal injury or death.
•
If the installation location or
•
Your vehicle has been
designed to absorb impact
angle of the sensors is altered
in any way, the air bags may
and deploy the air bag(s) in
OPA037040
certain collisions. Installing
deploy when they should not
Front air bags
or they may not deploy when
aftermarket bumper guards or
replacing a bumper with non-
Front air bags are designed to inflate
they should, causing severe
genuine parts may adversely
in a frontal collision depending on
injury or death.
affect your vehicles collision
the intensity, speed or angles of
Therefore, do not try to per-
and air bag deployment per-
impact of the front collision.
form maintenance on or
formance.
around the air bag sensors.
We recommend that the sys-
tem be serviced by an author-
ized HYUNDAI dealer.
(Continued)
2-50
Side air bags
Air bag non-inflation conditions
Side air bags
(side impact and/or
curtain air bags) are designed to
inflate when an impact is detected by
2
side collision sensors depending on
the strength, speed or angles of
impact resulting from a side impact
collision.
Although the front air bags (driver’s
and front passenger’s air bags) are
designed to inflate only in frontal col-
lisions, they also may inflate in other
OPA037042
types of collisions if the front impact
•

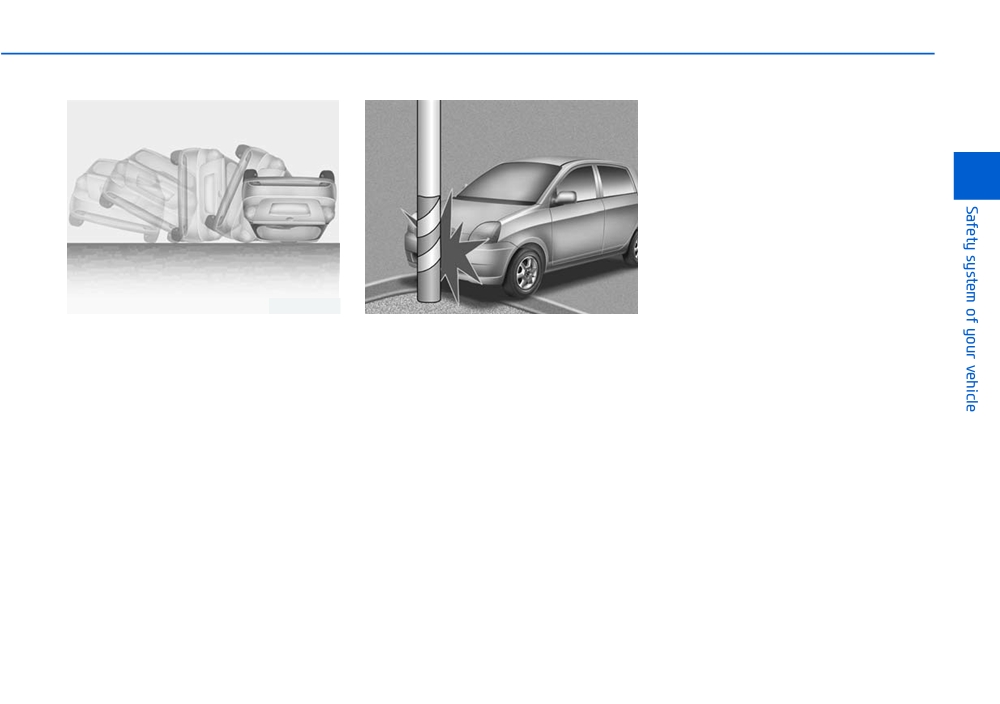

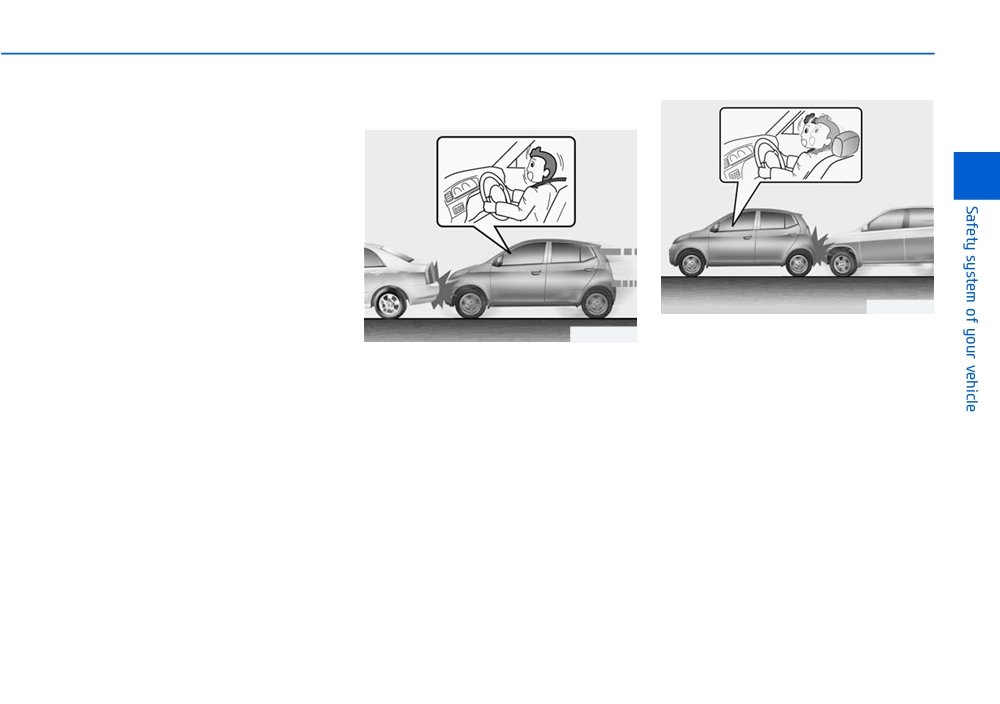

Front air bags are not designed to
OPA037041
sensors detect a sufficient impact.
inflate in rear collisions, because
Side air bags (side impact and/or
•
In certain low-speed collisions the
occupants are moved backward by
curtain air bags) are designed to
air bags may not deploy. The air
the force of the impact. In this
inflate only in side impact collisions,
bags are designed not to deploy in
case, inflated air bags would not be
but they may inflate in other colli-
such cases because they may not
able to provide any additional ben-
sions if the side impact sensors
provide benefits beyond the pro-
efit.
detect a sufficient impact.
tection of the seat belts in such col-
If the vehicle chassis is impacted by
lisions.
bumps or objects on unimproved
roads or sidewalks, air bags may
deploy. Drive carefully on unim-
proved roads or on surfaces not
designed for vehicle traffic to prevent
unintended air bag deployment.
2-51
Safety system of your vehicle
OSA038121
OBH038060
OPA037043
• Front air bags may not inflate in
• In a slant or angled collision, the
• Just before impact, drivers often
side impact collisions, because
force of impact may direct the
brake heavily. Such heavy braking
occupants move to the direction of
occupants in a direction where the
lowers the front portion of the vehi-
the collision, and thus in side
air bags would not be able to pro-
cle causing it to “ride” under a vehi-
impacts, frontal air bag deployment
vide any additional benefit, and
cle with a higher ground clearance.
would not provide additional occu-
thus the sensors may not deploy
Air bags may not inflate in this
pant protection.
any air bags.
"under-ride" situation because
deceleration forces that are detect-
However, side impact or curtain air
ed by sensors may be significantly
bags may inflate depending on the
reduced by such “under-ride” colli-
intensity, vehicle speed and angles
sions.
of impact.
2-52
SRS Care
The SRS is virtually maintenance-
free and so there are no parts you
can safely service by yourself. If the
2
SRS air bag warning light does not
illuminate, or continuously remains
on, we recommend that the system
be inspected by an authorized
HYUNDAI dealer.
We recommend that the any work on
OED036104
OSA038122
the SRS system, such as removing,
• Air bags do not inflate in rollover
• Air bags may not inflate if the vehi-
installing, repairing, or any work on
accidents because vehicle can not
cle collides with objects such as
the steering wheel, the front passen-
detect rollover accident.
utility poles or trees, where the
ger's panel, front seats and roof rails
However, side and/or curtain air
point of impact is concentrated and
be performed by an authorized
the collision energy is absorbed by
bags may inflate when the vehicle
HYUNDAI dealer. Improper handling
is rolled over after side impact col-
the vehicle structure.
of the SRS system may result in seri-
lision.
ous personal injury.
2-53
Safety system of your vehicle
WARNING
(Continued)
(Continued)
•
If the air bags inflate, we rec-
•
If your car was flooded and
•
Modification to SRS compo-
ommend that the system be
has soaked carpeting or water
nents or wiring, including the
replaced by an authorized
on the flooring, you shouldn't
addition of any kind of badges
HYUNDAI dealer.
try to start the engine; we rec-
to the pad covers or modifica-
ommend that you contact an
•
Do not tamper with or discon-
tions to the body structure,
authorized HYUNDAI dealer.
nect SRS wiring, or other
can adversely affect SRS per-
components of the SRS sys-
formance and lead to possible
tem. Doing so could result in
injury.
injury, due to accidental infla-
•
For cleaning the air bag pad
tion of the air bags or by ren-
covers, use only a soft, dry
dering the SRS inoperative.
cloth or one which has been
•
If components of the air bag
moistened with plain water.
system must be discarded, or if
Solvents or cleaners could
the vehicle must be scrapped,
adversely affect the air bag
certain safety precautions
covers and proper deploy-
must be observed. An author-
ment of the system.
ized HYUNDAI dealer knows
these precautions and can
•
No objects should be placed
give you the necessary infor-
over or near the air bag mod-
mation. Failure to follow these
ules on the steering wheel,
precautions and procedures
instrument panel, and the
could increase the risk of per-
front passenger's panel above
sonal injury.
the glove box, because any
such object could cause harm
(Continued)
if the vehicle is in a crash
severe enough to cause the
air bags to inflate.
(Continued)
2-54
Additional safety precautions
•
Passengers should not place
•
Do not place items under the
•
Never let passengers ride in the
hard or sharp objects between
front seats. Placing items under
cargo area or on top of a folded-
themselves and the air bags.
the front seats could interfere with
down back seat. All occupants
Carrying hard or sharp objects on
the operation of the supplemental
should sit upright, fully back in their
your lap or in your mouth can result
restraint system sensing compo-
2
seats with their seat belts on and
in injuries if an air bag inflates.
nents and wiring harnesses.
their feet on the floor.
•
Keep occupants away from the
•
Never hold an infant or child on
•
Passengers should not move
air bag covers. All occupants
your lap. The infant or child could
out of or change seats while the
should sit upright, fully back in their
be seriously injured or killed in the
vehicle is moving. A passenger
seats with their seat belts on and
event of a crash. All infants and chil-
who is not wearing a seat belt dur-
their feet on the floor. If occupants
dren should be properly restrained
ing a crash or emergency stop can
are too close to the air bag covers,
in appropriate child safety seats or
be thrown against the inside of the
they could be injured if the air bags
seat belts in the rear seat.
vehicle, against other occupants,
inflate.
or out of the vehicle.
•
Do not attach or place objects
WARNING
•
Each seat belt is designed to
on or near the air bag covers.
restrain one occupant. If more
Any object attached to or placed
•
Sitting improperly or out of
than one person uses the same
on the front or side impact air bag
position can cause occupants
seat belt, they could be seriously
covers could interfere with the
to be shifted too close to a
injured or killed in a collision.
proper operation of the air bags.
deploying air bag, strike the
•
Do not use any accessories on
•
Do not modify the front seats.
interior structure or be thrown
seat belts. Devices claiming to
Modification of the front seats
from the vehicle resulting in
improve occupant comfort or repo-
could interfere with the operation of
serious injury or death.
sition the seat belt can reduce the
the supplemental restraint system
•
Always sit upright with the
protection provided by the seat belt
sensing components or side impact
seatback in an upright posi-
and increase the chance of serious
air bags.
tion, centered on the seat
injury in a crash.
cushion with your seat belt
on, legs comfortably extended
and your feet on the floor.
2-55
Safety system of your vehicle
Adding equipment to or modifying

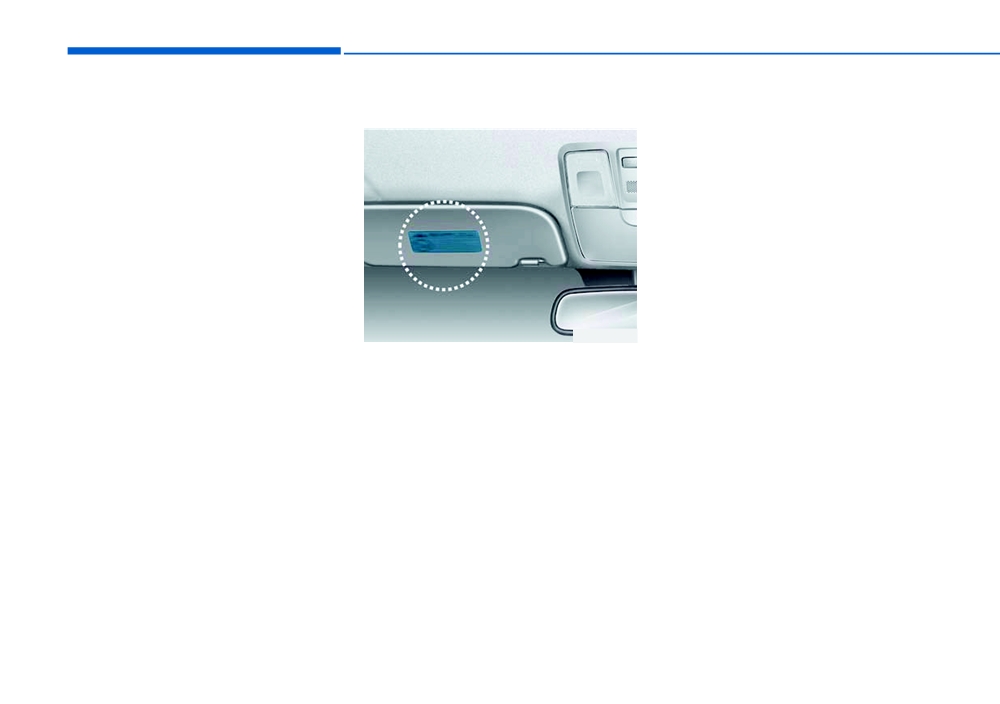

Air bag warning label
your air bag-equipped vehicle
If you modify your vehicle by chang-
ing your vehicle's frame, bumper sys-
tem, front end or side sheet metal or
ride height, this may affect the opera-
tion of your vehicle's air bag system.
OIB034027
Air bag warning labels are attached
to alert the driver and passengers of
potential risks of the air bag system.
Be sure to read all of the information
about the air bags that are installed
on your vehicle in this Owner’s
Manual.
2-56
Convenient features of your vehicle
Accessing your vehicle
3-3
Steering wheel
3-31
Remote key
3-3
Electric power steering (EPS)
3-31
Remote key precautions
3-5
Tilt steering / Telescope steering
3-32
Smart key
3-7
Horn
3-32
Smart key precautions
3-10
Mirrors
3-33
Immobilizer system
3-12
Inside rearview mirror
3-33
Door locks
3-13
Outside rearview mirror
3-35
3
Operating door locks from outside the vehicle
3-13
Instrument cluster
3-38
Operating door locks from inside the vehicle
3-15
Instrument Cluster Control
3-39
Auto door lock/unlock features
3-17
LCD display control
3-40
Child-protector rear door locks
3-17
Gauges
3-40
Theft-alarm system
3-18
Transaxle Shift Indicator
3-44
Tailgate
3-19
LCD display
3-45
Opening the tailgate
3-19
LCD modes
3-45
Closing the tailgate
3-20
Trip computer mode
3-46
Windows
3-21
Information mode
3-47
Power windows
3-21
User settings mode
3-49
Warning Messages (for Type B)
3-51
Hood
3-26
Opening the hood
3-26
Warning and indicator lights
3-58
Closing the hood
3-27
Trip computer
3-68
Fuel filler door
3-28
Fuel economy
3-69
Opening the fuel filler door
3-28
Trip A/B
3-70
Closing the fuel filler door
3-29
Light
3-73
Interior features
3-114
Exterior lights
3-73
Clock
3-114
Interior lights
3-77
Digital clock
3-114
Wipers and washers
3-80
Cigarette lighter
3-115
Windshield wipers
3-81
Ashtray
3-116
Windshield washers
3-81
Cup holder
3-116
3
Rear window wiper and washer switch
3-82
Sunvisor
3-117
Power outlet
3-118
Driver assist system
3-83
Clothes hanger
3-119
Rear view camera
3-83
Shopping bag holder
3-119
Rear parking assist system
3-84
Floor mat anchor(s)
3-119
Climate control system
3-87
Luggage net holder
3-120
Defroster
3-87
Cargo area cover
3-121
Manual climate control system
3-88
Automatic climate control system
3-97
Windshield defrosting and defogging
3-108
Clean air
3-110
Storage compartment
3-111
Center console storage
3-111
Glove box
3-112
Cool box
3-112
Sunglass holder
3-113
Luggage box
3-113
ACCESSING YOUR VEHICLE
Remote key (if equipped)
Locking
Unlocking
To lock:
To unlock:
1. Close all doors, engine hood and
1. Press the Door Unlock button (2)
tailgate.
on the remote key.
2. Press the Door Lock button (1) on
2. The doors will unlock. The hazard
the remote key.
warning lights will blink two times.
3. The doors will lock. The hazard
3
warning lights will blink.
i
Information
4. Make sure the doors are locked by
After unlocking the doors, the doors
checking the position of the door
will lock automatically after 30 sec-
lock button inside the vehicle.
onds unless a door is opened.
OIB034040
WARNING
Your HYUNDAI uses a remote key,
which you can use to lock or unlock
Do not leave the keys in your
a door (and tailgate) and even start
vehicle with unsupervised chil-
the engine.
dren. Unattended children could
1. Door Lock
place the key in the ignition
2. Door Unlock
switch and may operate power
windows or other controls, or
3. Tailgate Unlock
even make the vehicle move,
which could result in serious
injury or death.
3-3
Convenient features of your vehicle
Tailgate unlocking
Start-up
Mechanical key
To unlock:
For detailed information refer to “Key
■ Type A
■ Type B
Ignition Switch” in chapter 5.
1. Press the Tailgate Unlock button
(3) on the remote key for more
than one second.
NOTICE
2. The hazard warning lights will
To prevent damaging the remote
blink two times. Once the tailgate
key:
is opened and then closed, the
• Keep the remote key away from
tailgate will lock automatically.
water or any liquid. If the remote
key is inoperative due to expo-
i
Information
sure to water or other liquids, it
OED036001A/OFD047002-A
will not be covered by your man-
■ Type C
• After unlocking the tailgate, the tail-
ufacturer’s vehicle warranty.
gate will lock automatically.
• Avoid dropping or throwing the
• The word "HOLD" is written on the
remote key.
button to inform you that you must
press and hold the button for more
• Protect the remote key from
than one second.
extreme temperatures.
OIB044177
If the remote key does not operate
normally, you can lock or unlock the
door by using the mechanical key.
3-4
