Hyundai i20 (2016 year). Instruction - part 5

Type C

Remote key precautions

(Continue)

To unfold the key, press the release

The remote key will not work if any of

If the remote key is in close proximi-

button then the key will unfold auto-

ty to your mobile phone, the signal

the following occur:

matically.

could be blocked by your mobile

• The key is in the ignition switch.

phones normal operational signals.

To fold the key, fold the key manually

• You exceed the operating distance

This is especially important when the

while pressing the release button.

limit (about 30 m [90 feet]).

phone is active such as making and

• The remote key battery is weak.

receiving calls, text messaging,

3

NOTICE

and/or sending/receiving emails.

• Other vehicles or objects may be

Do not fold the key without press-

Avoid placing the remote key and

blocking the signal.

ing the release button. This may

your mobile phone in the same pants

• The weather is extremely cold.

damage the key.

or jacket pocket and always try to

• The remote key is close to a radio

maintain an adequate distance

transmitter such as a radio station

between the two devices.

or an airport which can interfere

with normal operation of the

remote key.

When the remote key does not work

correctly, open and close the door

with the mechanical key. If you have

a problem with the remote key, it is

recommended that you contact an

authorized HYUNDAI dealer.

(Continue)

3-5

Convenient features of your vehicle

Battery replacement

If you suspect your remote key might

i

Information

have sustained some damage, or

If the remote key is not working prop-

Changes or modifications not expressly

you feel your remote key is not work-

erly, try replacing the battery with a

approved by the party responsible for

ing correctly, it is recommended that

new one.

compliance could void the user’s

you contact an authorized HYUNDAI

authority to operate the equipment. If

dealer.

the keyless entry system is inoperative

due to changes or modifications not

i

Information

expressly approved by the party

responsible for compliance, it will not

An inappropriately disposed

be covered by your manufacturer’s

battery can be harmful to the

vehicle warranty.

environment and human

health. Dispose the battery

NOTICE

according to your local law(s)

and regulation.

Keep the remote key away from

electromagnetic materials that

OIB044180

blocks electromagnetic waves to

the key surface.

Battery Type: CR2032

To replace the battery:

1. Insert a slim tool into the slot and

gently pry open the cover.

2. Remove the old battery and insert

the new battery. Make sure the

battery position is correct.

3. Reinstall the rear cover of the

remote key.

3-6

Smart key (if equipped)

Locking

i

Information

The door handle button will only

operate when the smart key is within

0.7~1 m (28~40 in.) from the outside

door handle.

3

OIB044179

OIB044041

Your HYUNDAI uses a Smart Key,

To lock :

which you can use to lock or unlock

1. Close all doors, engine hood and

a door (and tailgate) and even start

tailgate.

the engine.

2. Either press the door handle but-

1. Door Lock

ton or press the Door Lock button

2. Door Unlock

(1) on the smart key.

3. Tailgate Unlock

3. The hazard warning lights will

blink.

4. Make sure the doors are locked by

checking the position of the door

lock button inside the vehicle.

3-7

Convenient features of your vehicle

Even though you press the outside

Unlocking

i

Information

door handle button, the doors will not

lock and the chime will sound for

• The door handle button will only

three seconds if any of the following

operate when the smart key is with-

occur:

in 0.7~1 m (28~40 in.) from the out-

side door handle. Other people can

• The Smart Key is in the vehicle.

also open the doors without the

• The Engine Start/Stop button is in

smart key in possession.

ACC or ON position.

• After unlocking the doors, the doors

• Any door except the tailgate is

will lock automatically after 30 sec-

open.

onds unless a door is opened.

WARNING

OIB044041

To unlock:

Do not leave the Smart Key in

your vehicle with unsupervised

1. Carry the Smart Key.

children. Unattended children

2. Either press the door handle but-

could press the Engine Start/

ton or press the Door Unlock but-

Stop button and may operate

ton (2) on the smart key.

power windows or other con-

trols, or even make the vehicle

3. The doors will unlock. The hazard

move, which could result in

warning lights will blink two times.

serious injury or death.

3-8

Tailgate unlocking

Start-up

Mechanical key

To unlock:

You can start the engine without

If the Smart Key does not operate

inserting the key. For detailed infor-

normally, you can lock or unlock the

1. Carry the smart key.

mation refer to the Engine Start/Stop

door by using the mechanical key.

2. Either press the tailgate handle

button in chapter 5.

button or press the Tailgate Unlock

button (3) on the smart key for

NOTICE

more than one second.

3

3. The hazard warning lights will

To prevent damaging the smart

blink two times.

key:

Once the tailgate is opened and then

• Keep the smart key away from

closed, the tailgate will lock automat-

water or any liquid. If the smart

ically.

key is inoperative due to expo-

sure to water or other liquids, it

will not be covered by your man-

i

Information

ufacturer’s vehicle warranty.

After unlocking the tailgate, the tail-

OIB044175E

• Avoid dropping or throwing the

gate will lock automatically after 30

smart key.

Press and hold the release button (1)

seconds unless the tailgate is opened.

and remove the mechanical key (2).

• Protect the smart key from

Insert the mechanical key into the

extreme temperatures.

key hole on the door.

To reinstall the mechanical key, put

the key into the hole and push it until

a click sound is heard.

3-9

Battery replacement

If you suspect your smart key might

i

Information

have sustained some damage, or

Changes or modifications not expressly

you feel your smart key is not work-

approved by the party responsible for

ing correctly, it is recommended that

compliance could void the user’s

you contact an authorized HYUNDAI

authority to operate the equipment. If

dealer.

the keyless entry system is inoperative

due to changes or modifications not

i

Information

3

expressly approved by the party

responsible for compliance, it will not

An inappropriately disposed

be covered by your manufacturer’s

battery can be harmful to the

vehicle warranty.

environment and human

health. Dispose the battery

OLF044008

according to your local law(s)

NOTICE

and regulation.

If the Smart Key is not working prop-

Keep the smart key away from

erly, try replacing the battery with a

electromagnetic materials that

new one.

blocks electromagnetic waves to

the key surface.

Battery Type: CR2032

To replace the battery:

1. Pry open the rear cover of the

smart key.

2. Remove the old battery and insert

the new battery. Make sure the

battery position is correct.

3. Reinstall the rear cover of the

smart key.

3-11

Convenient features of your vehicle

Immobilizer system

Do not attempt to alter this system or

(if equipped)

add other devices to it. Electrical

problems could result that may make

The immobilizer system protects your

your vehicle inoperable.

vehicle from theft. If an improperly

coded key (or other device) is used,

the engine’s fuel system is disabled.

WARNING

When the ignition switch is placed in

In order to prevent theft of your

the ON position, the immobilizer sys-

vehicle, do not leave spare keys

tem indicator should come on briefly,

anywhere in your vehicle. Your

then go off. If the indicator starts to

immobilizer password is a cus-

blink, the system does not recognize

tomer unique password and

the coding of the key.

should be kept confidential.

Place the ignition switch to the

LOCK/OFF position, then place the

ignition switch to the ON position

NOTICE

again.

The transponder in your key is an

The system may not recognize your

important part of the immobilizer

key’s coding if another immobilizer

system. It is designed to give

key or other metal object (i.e., key

years of trouble-free service, how-

chain) is near the key. The engine

ever you should avoid exposure to

may not start because the metal may

moisture, static electricity and

interrupt the transponder signal from

rough handling. Immobilizer sys-

transmitting normally.

tem malfunction could occur.

If the system repeatedly does not

recognize the coding of the key, it is

recommended that you contact your

HYUNDAI dealer.

3-12

DOOR LOCKS

Operating door locks from

Remote key

i

Information

outside the vehicle

•

In cold and wet climates, door lock

Mechanical key

and door mechanisms may not work

properly due to freezing conditions.

•

If the door is locked/unlocked multi-

ple times in rapid succession with

either the vehicle key or door lock

3

switch, the system may stop operat-

ing temporarily in order to protect

the circuit and prevent damage to

system components.

OIB034040

To lock the doors, press the Door

OIB044042

Lock button (1) on the remote key.

Turn the key toward the rear of the

To unlock the doors, press the Door

vehicle to unlock and toward the front

Unlock button (2) on the remote key.

of the vehicle to lock.

Once the doors are unlocked, they

If you lock/unlock the driver's door

may be opened by pulling the door

with a key, all vehicle doors will

handle.

lock/unlock automatically. (if equipped

When closing the door, push the

with the central door lock system)

door by hand. Make sure that doors

Once the doors are unlocked, they

are closed securely.

may be opened by pulling the door

handle.

When closing the door, push the

door by hand. Make sure that doors

are closed securely.

3-13

Convenient features of your vehicle

Smart key

To lock the doors, press the button on

i Information

the outside door handle while carry-

ing the smart key with you or press

• In cold and wet climates, door lock

the door lock button on the smart key.

and door mechanisms may not work

properly due to freezing conditions.

To unlock the doors, press the button

on the outside door handle while car-

• If the door is locked/unlocked multi-

rying the smart key with you or press

ple times in rapid succession with

the door unlock button on the smart

either the vehicle key or door lock

key.

switch, the system may stop operat-

ing temporarily in order to protect

Once the doors are unlocked, they

the circuit and prevent damage to

may be opened by pulling the door

system components.

OIB044041

handle.

When closing the door, push the

door by hand. Make sure that doors

are closed securely.

OLMB043003

1. Door lock

2. Door unlock

3. Tailgate open

3-14

Operating door locks from

•

If the inner door handle of the dri-

i

Information

inside the vehicle

ver’s (or front passenger’s) door is

pulled when the door lock button is

If a power door lock ever fails to func-

With the door lock button

tion while you are in the vehicle try

in the lock position, the button is

unlocked and door opens.

one or more of the following tech-

niques to exit:

•

Front doors cannot be locked if the

key is in the ignition switch and any

Operate the door unlock feature

front door is open.

repeatedly (both electronic and manu-

3

al) while simultaneously pulling on the

•

Doors cannot be locked if the

door handle.

smart key is in the vehicle and any

door is open.

Operate the other door locks and han-

dles, front and rear.

Lower a front window and use the

mechanical key to unlock the door

from outside.

OIB044043

•

To unlock a door, push the door

lock button (1) to the “Unlock” posi-

tion.

•

To lock a door, push the door lock

button (1) to the “Lock” position.

•

To open a door, pull the door han-

dle (2) outward.

3-15

Convenient features of your vehicle

With the central door lock

• When you press the door lock/unlock

WARNING

switch

switch again, all vehicle doors will

unlock and the indicator light on the

Always secure your vehicle

switch will not illuminate.

Leaving your vehicle unlocked

WARNING

increases the potential risk to

you or others from someone

The doors should always be

hiding in your vehicle.

fully closed and locked while

To secure your vehicle, while

the vehicle is in motion. If the

depressing the brake, move the

doors are unlocked, the risk of

shift lever to the P (Park) position

being thrown from the vehicle in

(for automatic transaxle) or first

a crash is increased.

gear or R (Reverse, for manual

transaxle), engage the parking

OIB044044

brake, and place the ignition

WARNING

switch in the LOCK/OFF position,

•

When you press the door lock/unlock

switch, all vehicle doors will lock and

close all windows, lock all doors,

Do not leave children or animals

and always take the key with you.

the indicator light on the switch will

unattended in your vehicle. An

illuminate for approximately 60 sec-

enclosed vehicle can become

onds (If the key is in the ignition

extremely hot, causing death or

WARNING

switch, the indicator light on the

serious injury to unattended

switch will continuously illuminate).

children or animals who cannot

Opening a door when something

If any door is opened when the switch

escape the vehicle. Children

is approaching may cause dam-

is pressed, all doors will not lock.

might operate features of the

age or injury. Be careful when

•

If any door is unlocked, the indicator

vehicle that could injure them,

opening doors and watch for

of the door lock switch will blink. If

or they could encounter other

vehicles, motorcycles, bicycles

you press the switch when the indi-

harm, possibly from someone

or pedestrians approaching the

cator blinks, all doors will lock.

gaining entry to the vehicle.

vehicle in the path of the door.

3-16

Auto door lock/unlock features

Child-protector rear door locks

To lock the child safety lock, insert a

key (or screwdriver) into the hole (1)

Impact sensing door unlock

and turn it to the lock (

) position.

system (if equipped)

To allow a rear door to be opened

All doors will be automatically

from inside the vehicle, unlock the

unlocked when an impact causes the

child safety lock.

air bags to deploy.

WARNING

3

Speed sensing door lock sys-

tem (if equipped)

If children accidently open the

All doors will be automatically locked

rear doors while the vehicle is

when vehicle speed exceeds

15

in motion, they could fall out of

km/h (9 mph).

the vehicle. The rear door safety

OIB044045

locks should always be used

The child safety lock is provided to

whenever children are in the

help prevent children seated in the

vehicle.

rear from accidentally opening the

rear doors. The rear door safety locks

should be used whenever children

are in the vehicle.

The child safety lock is located on

the edge of each rear door. When the

child safety lock is in the lock position

(

), the rear door will not open if

the inner door handle is pulled.

3-17

Convenient features of your vehicle

THEFT-ALARM SYSTEM (IF EQUIPPED)

This system helps to protect your

Once the security system is set, open-

vehicle and valuables. The horn will

ing any door, the tailgate, or the hood

sound and the hazard warning lights

without using the remote key or smart

will blink continuously if any of the

key will cause the alarm to activate.

following occurs:

The Theft Alarm System will not set if

- A door is opened without using the

the hood, the tailgate, or any door is

remote key or smart key.

not fully closed. If the system will not

set, check the hood, the tailgate, or

- The tailgate is opened without

the doors are fully closed.

using the remote key or smart key.

Do not attempt to alter this system or

- The engine hood is opened.

add other devices to it.

The alarm continues for 30 seconds,

OIB034042

then the system resets. To turn off

i

Information

the alarm, unlock the doors with the

i

Information

remote key or smart key.

•

Do not lock the doors until all pas-

Vehicles equipped with a theft alarm

sengers have left the vehicle. If the

The Theft Alarm System automatical-

system will have a label attached to

remaining passenger leaves the

ly sets 30 seconds after you lock the

the vehicle with the following words:

vehicle when the system is armed,

doors and the tailgate. For the system

1. WARNING

the alarm will be activated.

to activate, you must lock the doors

2. SECURITY SYSTEM

and the tailgate from outside the vehi-

•

If the vehicle is not disarmed with

cle with the remote key or smart key

the remote key or smart key, open

or by pressing the button on the out-

the doors by using the mechanical

side of the door handles with the

key and place the ignition switch in

smart key in your possession.

the ON position (for remote key) or

start the engine (for smart key) and

The hazard warning lights will blink

wait for 30 seconds.

and the chime will sound once to

indicate the system is armed.

•

When the system is disarmed but a

door or tailgate is not opened within

30 seconds, the system will be

rearmed.

3-18

TAILGATE

Opening the tailgate

NOTICE

i

Information

In cold and wet climates, door lock

Make certain that you close the

and door mechanisms may not work

tailgate before driving your vehi-

properly due to freezing conditions.

cle. Possible damage may occur

to the tailgate lift cylinders and

attaching hardware if the tailgate

WARNING

is not closed prior to driving.

3

The tailgate swings upward.

Make sure no objects or people

are near the rear of the vehicle

when opening the tailgate.

OIB044046

•

The tailgate is locked or unlocked

when all doors are locked or

unlocked with the key, remote key,

smart key or central door lock/

unlock switch.

•

If unlocked, the tailgate can be

opened by pressing the handle and

pulling it up.

3-19

Convenient features of your vehicle

Closing the tailgate

WARNING

To close the tailgate, lower and push

down the tailgate firmly. Make sure

Rear cargo area

that the tailgate is securely latched.

Occupants should never ride in

the rear cargo area where no

WARNING

restraints are available. To avoid

injury in the event of an accident

Exhaust fumes

or sudden stops, occupants

If you drive with the tailgate

should always be properly

opened, you will draw dangerous

restrained.

exhaust fumes into your vehicle

which can cause serious injury

or death to vehicle occupants.

If you must drive with the tail-

gate opened, keep the air vents

and all windows open so that

additional outside air comes

into the vehicle.

3-20

WINDOWS

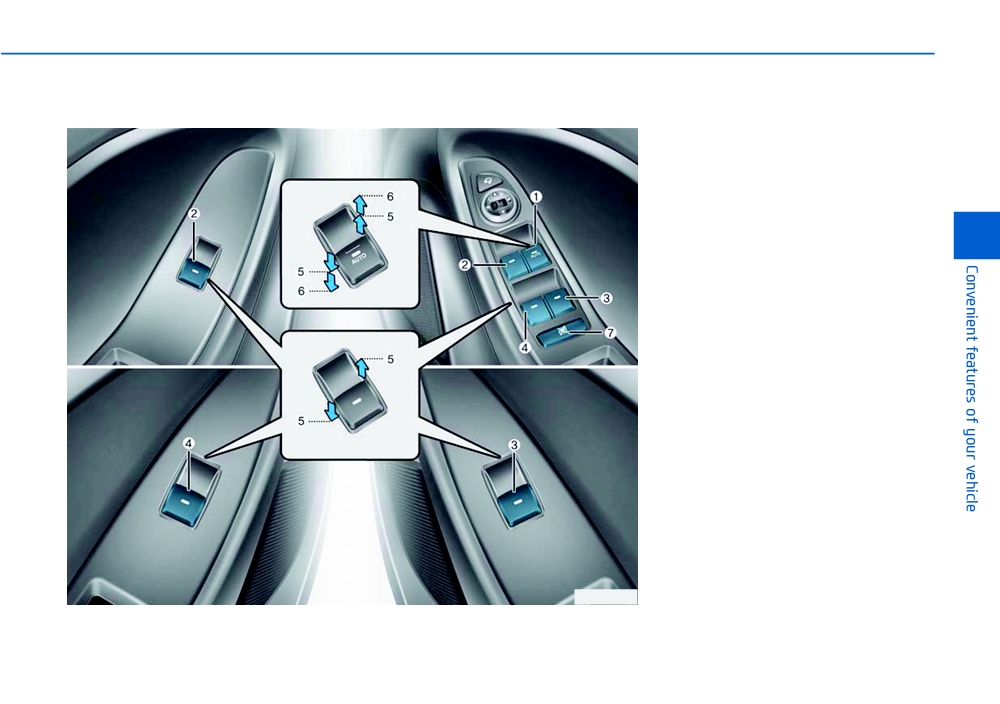

Power windows (if equipped)

(1) Driver’s door power window

switch

(2) Front passenger’s door power

window switch

(3) Rear door power window switch

(Right)*

3

(4) Rear door power window switch

(Left)*

(5) Window opening and closing

(6) Automatic power window*

(7) Power window lock switch

* : if equipped

OIB044048

3-21

Content   ..  3  4  5  6   ..
