1FEATURES OF YOUR HYUNDAI

The vehicle will automatically resume the speed

B660F03E-AAT

1. Push the control switch downward to "SET

set prior to cancellation when you push the

To Reset at a Slower Speed

(COAST : Type A, ⎯ : Type B)" and hold it.

control switch upward to "RESUME (ACCEL :

The vehicle will decelerate.

Type A

Type A, + : Type B)" position and release it,

2. When the desired speed is obtained, release

providing the vehicle speed is above 25 mph (40

the control switch. While the control switch

km/h).

is pushed, the vehicle speed will gradually

decrease.

B660E01E-AAT

WARNING:

To Reset at a Faster Speed

Keep the cruise control ON/OFF switch

Push the control switch upward to "RE-

off when not using the cruise control to

SUME (ACCEL : Type A, + : Type B)" position

avoid inadvertently setting a speed.

and hold it.

Use the cruise control system only when

Accelerate to desired speed and release the

traveling on open highways in good

OGK016661

control switch. While the control switch is

weather.

Type B

held, the vehicle will gradually gain speed.

Do not use the cruise control when it

may not be safe to keep the car at a

constant speed, for instance, driving in

heavy or varying traffic, or on slippery

(rainy, icy or snow-covered) or winding

roads or over 6% up-hill or down-hill

roads.

Pay particular attention to the driving

conditions whenever using the cruise

control system.

During cruise-control driving with a

manual transaxle vehicle, do not shift

into neutral without depressing the

OGK018661

clutch pedal, or the engine will be

overrevved. If this happens, depress the

clutch pedal or release the main switch.

FEATURES OF YOUR HYUNDAI

AUDIO REMOTE CONTROL

SWITCH

B610A02GK-GAT

SEEK (UP /

) Switch

(If installed)

Press the SEEK UP (

) switch 1 sec. or more.

WARNING:

With the cruise control engaged, when

the brake pedal is applied, it is normal to

1. RADIO mode

hear the cruise control system deacti-

When the SEEK UP (

) switch is pressed, the

vate. This is an indication of normal

unit will automatically tune to the next higher

system operation.

frequency.

During normal cruise control operation,

when the "SET(COAST : Type A, ⎯ :

2. TAPE mode

Type B)" is activated or reactivated after

applying the brakes, the cruise control

Pressing the SEEK UP (

) switch will play the

will energize after approximately 3 sec-

beginning of the next music segment.

onds. This delay is normal.

OGK046086L

3. CD (compact disc)/CDC

(compact disc changer) mode

POWER ON/OFF Switch

Press the SEEK UP (

) switch once to skip

Press the POWER ON/OFF switch to select

forward to the beginning of the next track.

Radio, Tape, CD (compact disc) and CDC

(compact disc changer).

VOL (

) Switch

Press the POWER ON/OFF switch once again

o Press the VOL (

) button to increase

to cancel Radio, Tape, CD (compact disc) and

volume.

CDC (compact disc changer).

o Press the VOL (

) button to decrease

volume.

1FEATURES OF YOUR HYUNDAI

HEATING AND COOLING CONTROL

B710A02GK-GAT

B710B02O-AAT

Center Ventilator

The center ventilators are located in the middle

of the dashboard. To change the direction of the

air flow, move the knob in the center of the vent

up-and-down and side-to-side. The vents are

opened when the vent knob is moved to " "

position. The vents are closed when the vent

knob is moved to " ". Keep these vents clear

of any obstructions.

B710C01JM-AAT

Side Ventilator

The side ventilators are located on each side of

the dash board. To change the direction of the

air flow, move the knob in the center of the vent

up-and-down and side-to-side. The vents are

opened when the vent knob is moved to " "

position. The vents are closed when the vent

knob is moved to " ". Keep these vents clear

of any obstructions.

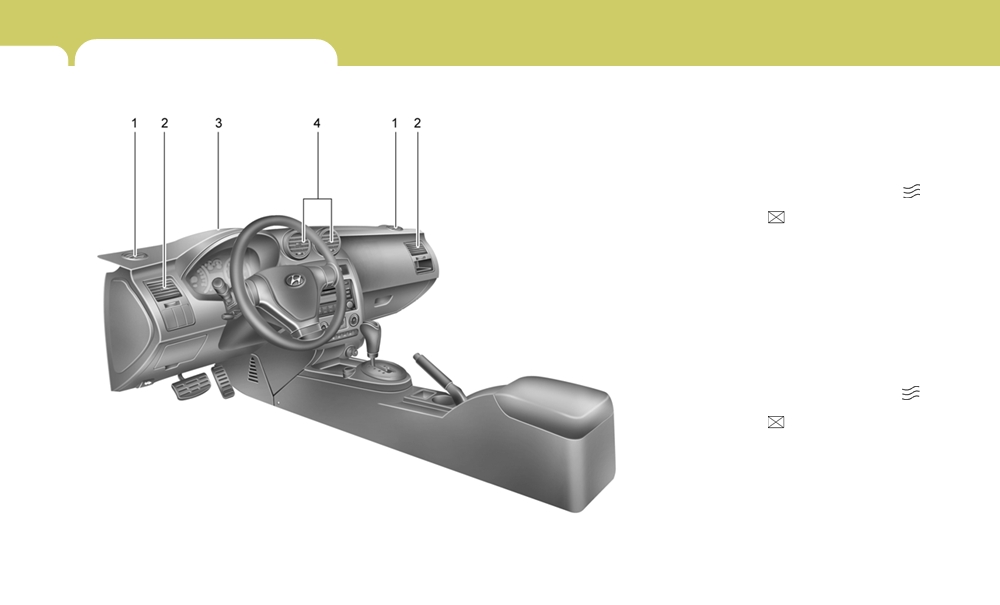

1. Side Defrost Nozzle

2. Side Ventilator

3. Windshield Defrost Nozzle

4. Center Ventilator

OGK016003

FEATURES OF YOUR HYUNDAI

HEATING AND VENTILATION

B670A01GK-GAT

B670B01GK-AAT

B670E02A-AAT

Rotary Type (If Installed)

Fan Speed Control (Blower Control)

Temperature Control

Cool

Warm

OGK046038N

OGK046045N

OGK046043

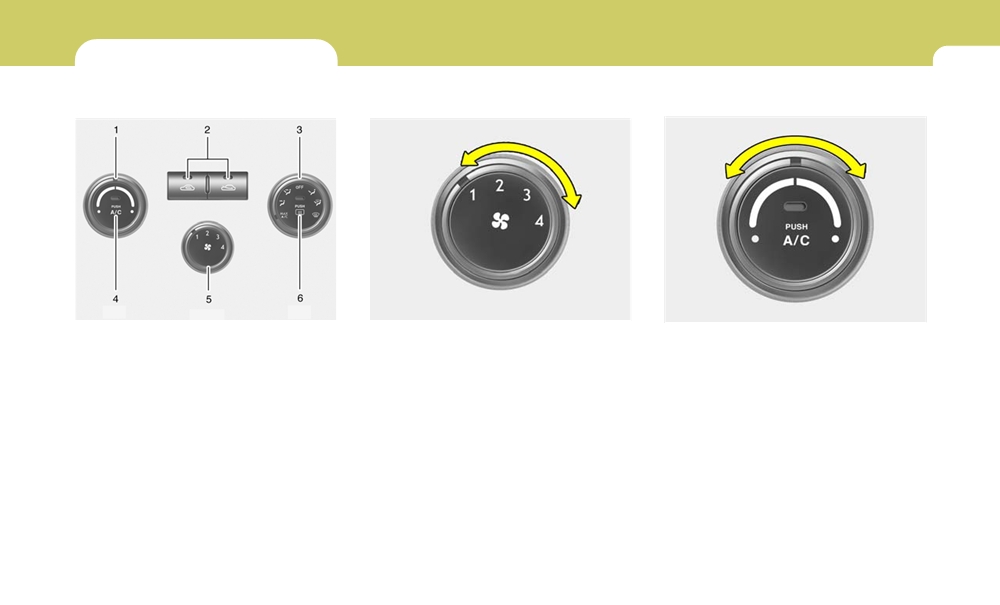

1. Temperature control switch

This is used to select the fan speed.

This control is used to adjust the degree of

2. Air intake control switch

This blower fan speed, and therefore the vol-

heating or cooling desired.

3. Air flow control switch

ume of air delivered from the system, may be

4. Air Conditioning switch

controlled manually by setting the blower con-

5. Fan speed control switch

trol between the "1" and "4" positions.

6. Rear window defroster switch

1FEATURES OF YOUR HYUNDAI

B670C02Y-AAT

B670D04O-AAT

NOTE:

Air Intake Control

It should be noted that prolonged opera-

Air Flow Control

tion of the heating system in "

" mode

will give rise to fogging of the windshield

and side windows and the air within the

passenger compartment will become stale.

In addition prolonged use of the air condi-

tioning with the "

" mode selected may

result in the air within the passenger com-

partment becoming excessively dry.

OGK046044

OGK046039N

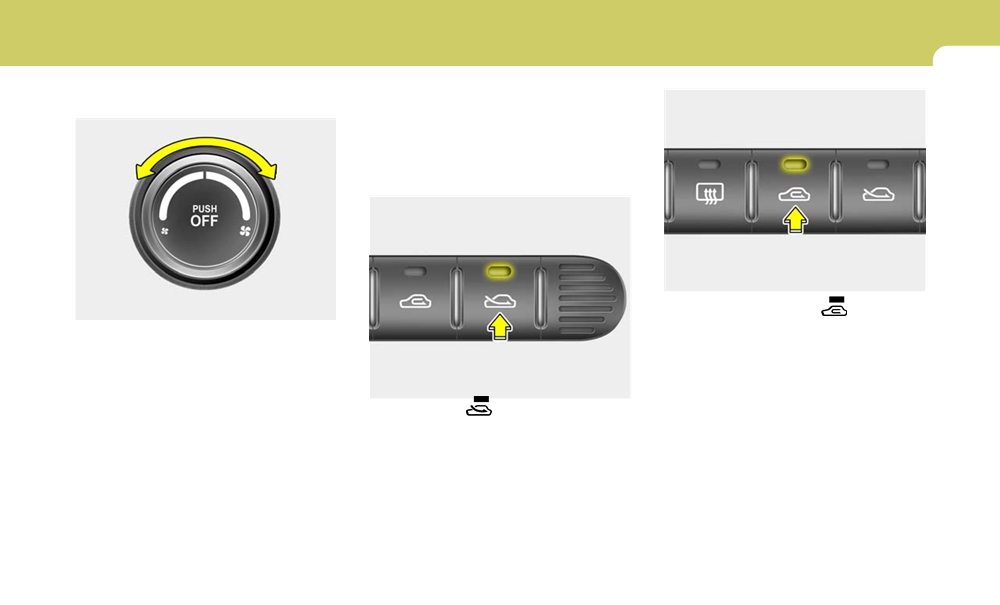

This is used to select fresh outside air or

This is used to turn the blower fan on/off and to

recirculation of inside air.

direct the flow of air. Air can be directed to the

floor, dashboard outlets, or windshield. Five

Fresh

symbols are used to represent Face, Bi-Level,

Recirculation

Floor, Floor-Defrost and Defrost air position.

The MAX A/C mode is used to cool the inside of

With the "

" mode selected, air enters the

the vehicle faster. The "OFF" mode is used to

vehicle from outside and is heated or cooled

turn the blower fan off.

according to the other functions selected.

With the "

" mode selected, air from within

NOTE:

the passenger compartment is drawn through

If the blower fan is off, the air intake control

the heating system and heated or cooled ac-

is set to the fresh mode automatically.

cording to the other functions selected.

FEATURES OF YOUR HYUNDAI

OGK016095

OGK016096

OGK016097

Face-Level

Bi-Level

Floor-Level

Selecting the "Face" mode will cause air to be

Air is discharged through the face vents and the

Air is discharged through the floor vents, wind-

discharged through the side and center venti-

floor vents. This makes it possible to have

shield defroster nozzle, side defroster nozzle

lators.

cooler air from the dashboard vents and warmer

and side ventilator.

air from the floor outlets at the same time.

If the "Floor" mode is selected, the "Fresh"

mode will be activated.

1FEATURES OF YOUR HYUNDAI

mode except the defrost mode and the

floor-defrost mode. Although the A/C

switch indicator is turned off, this is normal

operation.

OGK016098

OGK016099

Floor-Defrost Level

Defrost-Level

Air is discharged through the windshield defrost

OGK016103

nozzle, the floor vents, side defroster nozzle,

nozzle, side defroster nozzle, side ventilator.

side ventilator.

If the "Defrost" mode is selected, the A/C will

If the "Floor-Defrost" mode is selected, the A/C

turn on automatically and "Fresh" mode will be

MAX A/C-Level

will be turn on automatically and "Fresh" mode

activated.

will be activated.

Air is discharged through the face level vents.

NOTE:

If the "MAX A/C" mode is selected, the A/C will

If the "Floor-Defrost" or "Defrost" mode is

turn on automatically and "Recirculation" mode

selected, the air conditioning will not turn

will be activated.

off by pushing the A/C button.

If the air flow control is set to the defrost or

the floor-defrost mode, the A/C will be on

automatically and the A/C will not off until

the air flow control is set to the another

FEATURES OF YOUR HYUNDAI

HEATING CONTROLS

B690A02S-AAT

NOTE:

o The air intake control switch will change

to "

" mode when the ignition switch

is turned "ON" with the MAX A/C mode

selected.

o When you change to another mode from

MAX A/C, the A/C and the air intake

control switch are set to the following

chart.

Air Intake

A/C

Control Switch

OGK016095N

OGK046038A

ON or OFF *

OFF-Level

For normal heating operation, set the air intake

control to the fresh air (

) position and the

ON or OFF *

air flow control to the floor (

) position.

Air is discharged through the windshield de-

froster nozzle, side defroster nozzle and side

For faster heating, the air intake control switch

ventilator.

should be set in the recirculate (

) position.

NOTE:

If the windows fog up, set the air flow control to

The A/C or the air intake control switch return

If the air flow control is off, the air intake

the defrost (

) position. (The A/C will turn on

to its former setting.

control is set to the fresh mode automati-

automatically and "Fresh" mode will be acti-

cally.

vated.)

For maximum heat, move the temperature con-

trol to "Warm".

1FEATURES OF YOUR HYUNDAI

BI-LEVEL HEATING

VENTILATION

AIR CONDITIONING SYSTEM

B700A02A-AAT

B710A01A-AAT

B740A01S-AAT

Air Conditioning Switch (If installed)

OGK016700N

OGK016701N

OGK046047

To operate the ventilation system:

Your Hyundai is equipped with bi-level heating

controls. This makes it possible to have cooler

The air conditioning is turned on or off by

air from the dashboard vents and warmer air

o Set the air intake control switch at the fresh

pushing the A/C button on the heating/air con-

air (

) position.

from the floor outlets at the same time. To use

ditioning control panel.

o To direct all intake air to the dashboard vents,

this feature:

set the airflow control to the face (

) position.

o Adjust the fan speed control to the desired

o Set the air intake control switch to the fresh

speed.

air (

) position.

o Set the temperature control between "Cool"

o Set the air flow control at the bi-level (

)

and "Warm".

position.

o Adjust the fan speed control to the desired

speed.

o Set the temperature control between "Cool"

and "Warm".

FEATURES OF YOUR HYUNDAI

B740B02GK-AAT

o Adjust the fan control to the desired speed.

B740C01GKA-AAT

Air Conditioning Operation

For greater cooling, turn the fan control to

Dehumidified Heating

Cooling

one of the higher speeds or temporarily

select the recirculate (

) position on the

air intake control switch.

OGK016705N

OGK016704N

For dehumidified heating:

To use the air conditioning to cool the interior:

o Adjust the air flow control to the desired

position.

o Adjust the air flow control to the desired

o Turn on the air conditioning switch. The air

position.

conditioning indicator light should come on at

o Turn on the air conditioning switch by push-

the same time.

ing in on the switch. The air conditioning

o Set the air intake control switch to the fresh

indicator light should come on at the same

air (

) position.

time.

o Set the air flow control to the face (

)

o Set the air intake control switch to the fresh

position.

air (

) position.

o Adjust the fan control to the desired speed.

o Adjust the fan control to the desired position.

o For more rapid action, set the fan at one of

o Set the temperature control to "Cool". ("Cool"

the higher speeds.

provides maximum cooling. The tempera-

o Adjust the temperature control to provide the

ture may be moderated by moving the con-

desired amount of warmth.

trol toward "Warm".)

1FEATURES OF YOUR HYUNDAI

B740D01A-AAT

Operation Tips

If the interior of the car is hot when you first

get in, open the windows for a few minutes

to expel the hot air.

When you are using the air conditioning

system, keep all windows closed to keep hot

air out.

When moving slowly, as in heavy traffic, shift

to a lower gear. This increases engine speed,

which in turn increases the speed of the air

conditioning compressor.

On steep grades, turn the air conditioning off

to avoid the possibility of the engine over-

heating.

During winter months or in periods when the

air conditioning is not used regularly, run the

air conditioning once every month for a few

minutes. This will help circulate the lubri-

cants and keep your system in peak oper-

ating condition.

FEATURES OF YOUR HYUNDAI

DEFROSTING/DEFOGGING

B720A02E-AAT

A Type

B Type

A Type

B Type

OGK016800N

OGK016801N

Use the heating/ventilation system to defrost or defog the

To remove frost or exterior fog on the windshield;

windshield:

o Set the air flow control to the defrost (

) position. (The

A/C will turn on automatically and the "Fresh" mode will be

To remove interior fog on the windshield;

activated.)

o Set the air flow control to the defrost (

) position. (The

o Set the temperature control to warm.

A/C will turn on automatically and the "Fresh" mode will be

o Set the fan speed control to position "3" or "4".

activated.)

o Set the temperature control to the desired position.

o Set the fan speed control between "1" and "4" position.

NOTE:

When the A/C is operated continuously on the floor-defrost level (

) or defrost level (

), it may cause fog to form

on the exterior windshield. If this occurs, set the air flow control to the face level position (

) and fan speed control

to the low position.

1FEATURES OF YOUR HYUNDAI

AUTOMATIC HEATING AND COOLING CONTROL SYSTEM

B970A01Y-AAT

B970B04GK-GAT

(If lnstalled)

Heating and Cooling Controls

Your Hyundai is equipped with an automatic

heating and cooling control system controlled

by simply setting the desired temperature.

OGK046057C

1. Temperature Control

6. Air Conditioning Switch

2. Display Window

7. Defroster Switch

3. Blower Fan Control

8. Rear Window Defroster Switch

4. AUTO (Automatic Control)Switch

9. Air lntake Control Switch

5. Air Flow Control Switch

10. OFF Switch

FEATURES OF YOUR HYUNDAI

B970C01GK-GAT

NOTE:

Automatic Operation

If the battery has been discharged or dis-

connected, the temperature mode will reset

to Centigrade degrees.

This is a normal condition and you can

change the temperature mode from Centi-

grade to Fahrenheit as follows;

Press the "OFF" and "AUTO " switch simul-

taneously for 3 seconds.

The display shows that the unit of tempera-

ture is adjusted to Centigrade or Fahrenheit

(°C

→ °F or °F → °C).

OGK046061

Turn the "TEMP" knob to set the desired

OGK046058

temperature.

The temperature will increase to the maxi-

The FATC (Full Automatic Temperature Con-

mum 32°C(90°F) by turning the knob clock-

trol) system automatically controls heating and

wise.

cooling by doing as follows:

The temperature will decrease to the mini-

mum 17°C(62°F) by turning the knob coun-

1. Push the "AUTO" switch. The display

terclockwise.

"AUTO" will illuminate confirming that the

Face, Floor and/or Bi-Level modes as well

as the blower speed and air conditioner will

be controlled automatically.

1FEATURES OF YOUR HYUNDAI

B995A01GK-GAT

B980A01Y-AAT

Outside Temperature Switch

Manual Operation

The heating and cooling system can be con-

trolled manually as well by pushing buttons

other than the "AUTO" button. In this state, the

system sequentially works according to the

order of buttons selected.

The function of the buttons which are not se-

Photo Sensor

lected will be controlled automatically.

Press the "AUTO" button in order to convert to

automatic control of the system.

OGK026223C

NOTE:

Never place anything over the sensor which

OGK046066

is located on the instrument panel to en-

Press the button, the display show that the unit

sure better control of the heating and cool-

of outside temperature is adjusted to centigrade

ing system.

or fahrenheit (°C → °F or °F → °C).

FEATURES OF YOUR HYUNDAI

B980B01Y-AAT

B670C02GK-AAT

Fan Speed Control Switch

Air Intake Control Switch

This is used to select fresh outside air or

recirculation inside air.

To change the air intake control mode, (Fresh

mode, Recirculation mode) push the control

button.

OGK046062L

OGK046064

RECIRCULATION MODE (

) : The indica-

tor light on the button is illuminated when the air

The fan speed can be set to the desired speed

intake control is in recirculation mode.

by turning the fan speed control knob. The

higher the fan speed is, the more air is delivered.

With the "Fresh" mode selected, air enters the

Pressing the "OFF" switch turns off the fan.

vehicle from the outside and is heated or cooled

OGK046063L

according to the function selected.

FRESH MODE (

) : The indicator light on

the button goes on when the air intake control

With the "Recirculation" mode selected, air from

is in fresh mode.

within the passenger compartment will be drawn

through the heating system and heated or

cooled according to the function selected.

1FEATURES OF YOUR HYUNDAI

B740A01S-AAT

B980D01Y-AAT

NOTE:

It should be noted that prolonged opera-

Air Conditioning Switch

Heating and Cooling System Off

tion of the heating system in "recirculation"

mode will give rise to fogging of the wind-

shield and side windows and the air within

the passenger compartment will become

stale. In addition, prolonged use of the air

conditioning with the "Recirculation" mode

selected may result in the air within the

passenger compartment becoming exces-

sively dry.

OGK046065

OGK046067

The air conditioning is turned on or off by

Press the "OFF" button to stop the operation of

pushing the A/C button on the heating/air con-

the heating and cooling system.

ditioning control panel.

Hyundai Tiburon (2008 year). Instruction - part 6
