FEATURES OF YOUR HYUNDAI
1
CIGARETTE LIGHTER
ASHTRAY
DRINK HOLDER
65
B420A02A-AAT
B430A01GK-AAT
B450A02GK-AAT
OGK046078
OGK046077
OGK046079

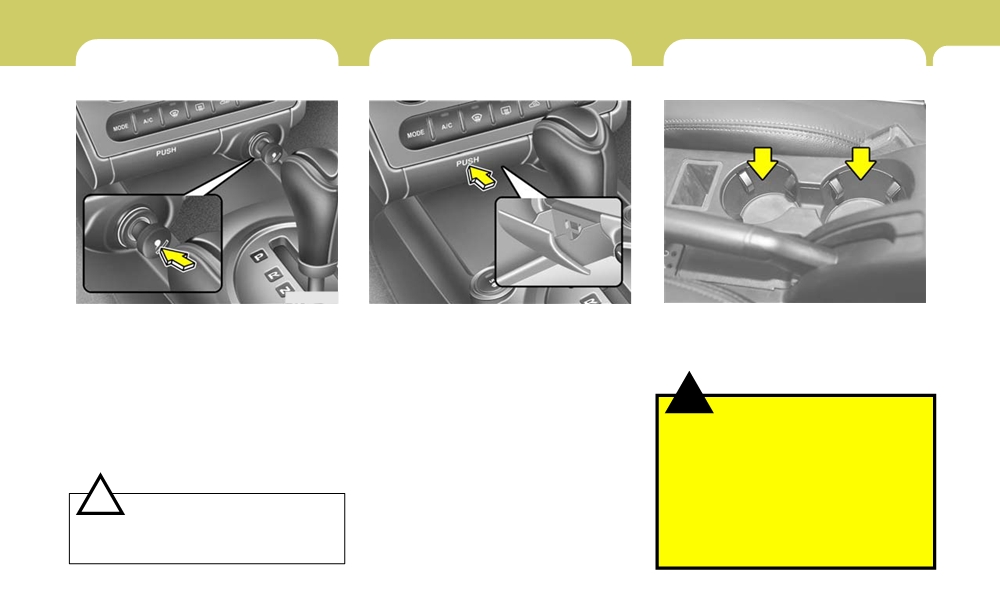

For the cigarette lighter to work, the key must
The front ashtray may be opened by pushing
The drink holder is used for holding cups or
be in the "ACC" position or the "ON" position.
and releasing the ashtray door at its top edge.
cans.
To use the cigarette lighter, push it all the way
To remove the ashtray in order to clean it, the
To use the passenger's drink holder, push the
into its socket. When the element has heated,
metal ash receptacle should be lifted out from
drink holder.
the lighter will pop out to the "ready" position.
the ashtray door. Do not attempt to remove the
Do not hold the cigarette lighter pressed in. This
entire ashtray door assembly or damage will
can damage the heating element and create a
result. To reinstall it, place it in the proper
!
WARNING:
fire hazard.
position and press it down in the ashtray door.
o Use caution when using the drink hold-
If it is necessary to replace the cigarette lighter,
The ashtray lamp will only illuminate when the
ers. A spilled beverage that is very hot
use only a genuine Hyundai replacement or its
exterior body lights are switched on.
can injure you or your passengers. Spilled
approved equivalent.
liquids can damage interior trim and
electrical components.
o Do not place objects other than cups or
!
CAUTION:
cans in the drink holder. Such objects
Do not use electric accessories or equip-
can be thrown out in the event of a
ment other than the Hyundai genuine parts
sudden stop or an accident, possibly
in the socket.
injuring the passengers in the vehicle.

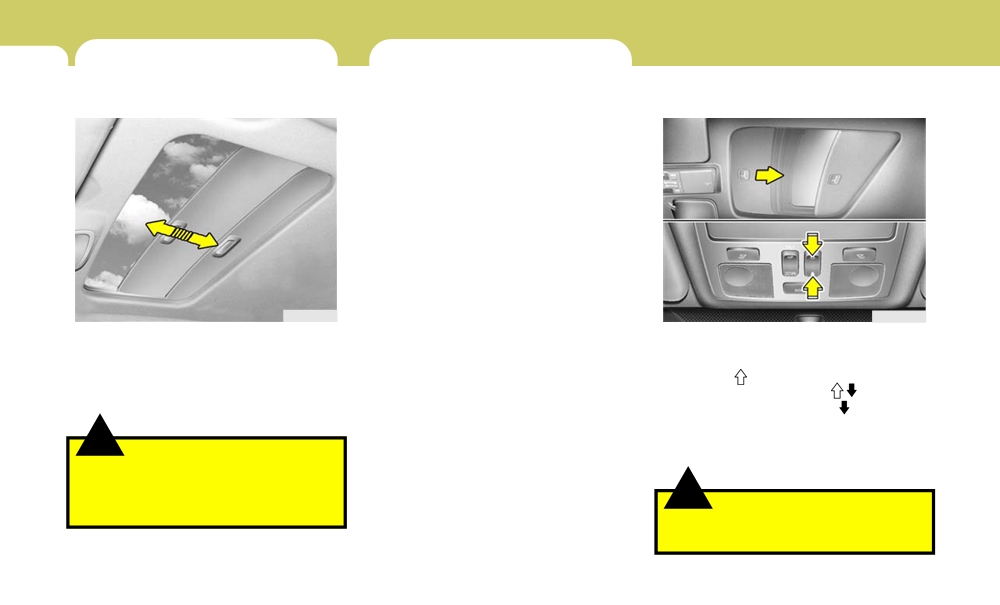

1FEATURES OF YOUR HYUNDAI
66
SUNSHADE
SUNROOF
B470A01GK-AAT
B460A01S-AAT
B460B03GK-GAT
(If Installed)
(If Installed)
Opening the Sunroof System
The sunroof can be operated with the ignition
key in the "ON" position.
OGK046019
OGK046017
The sunshade can be opened and closed by
The sunroof can be electrically opened or closed
sliding it forward or rearward when the sunroof
with the ignition key in the "ON" position. The
is closed. The sunshade will open automatically
sunroof is moved to its fully open position by
when the sunroof is opened, but it must be
pushing the " " switch, and to stop at the desired
closed manually.
position, push in any switches (
,
, Up, Down).
To close, press and hold the " " button.
Release the button when the sunroof reaches
the desired position.
!
WARNING:
Never adjust the sunshade while driving.
This could result in loss of control and an
accident that may cause death, serious
!
WARNING:
injury, or property damage.
Be careful that someone’s head, hands and
body are not trapped by a closing sunroof.
FEATURES OF YOUR HYUNDAI
1
67
B460C01GK-AAT
B460D03GK-AAT
Tilting the Sunroof System
Manual Operation of Sunroof
!
WARNING:
If the sunroof does not electrically operate:
o
Do not close a sunroof if anyone's hands,
arms or body are between the sliding
glass and the sunroof sash, as this could
result in injury.
o
Do not place your head or arms out of the
sunroof opening at any time.
o
While the vehicle is moving, always keep
the head, hands and other parts of the
body of all occupants away from the roof
opening. Otherwise, you could be seri-
ously injured if the vehicle stops sud-
denly or if the vehicle is involved in an
OGK046018
accident.

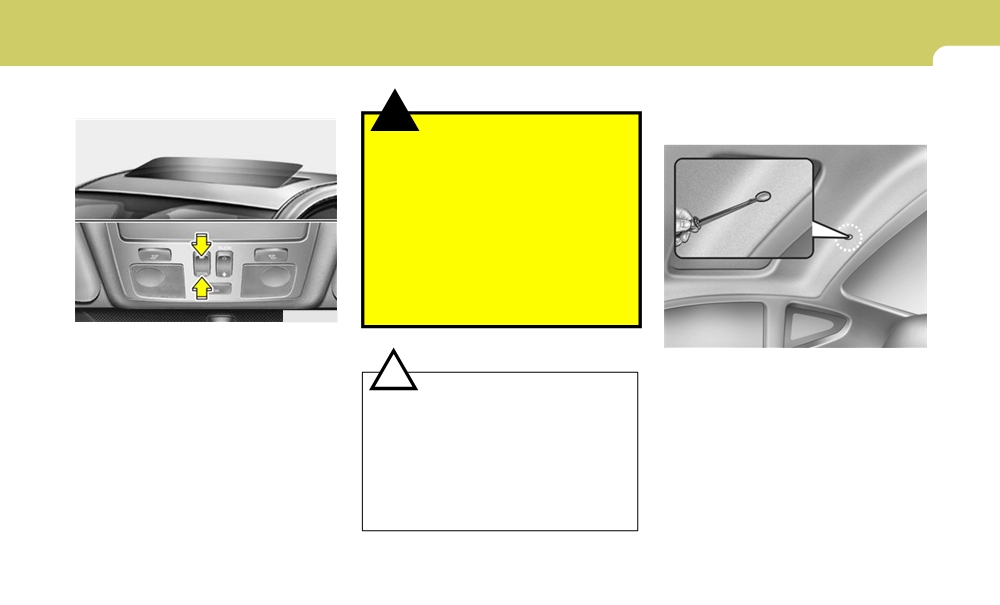

To use the auto tilt feature, press the UP button
OGK046020
on the overhead console. The sunroof will tilt all
1.
Remove the cap located in the rear roof
the way open. To stop the sunroof tilting at any
panel by using a coin or screw driver.
point, press any sunroof control button.
!
CAUTION:
To close the sunroof, press the DOWN button
o
Do not open the sunroof in severely cold
on the overhead console and hold it until the
temperature or when it is covered with
sunroof is closed.
ice or snow.
o
Periodically remove any dirt that may
NOTE:
have accumulated on the guide rails.
After washing the car or after there is rain,
o
Do not press any sunroof control button
be sure to wipe off any water that is on the
longer than necessary.
sunroof before operating it.
Damage to the motor or system compo-
nents could occur.

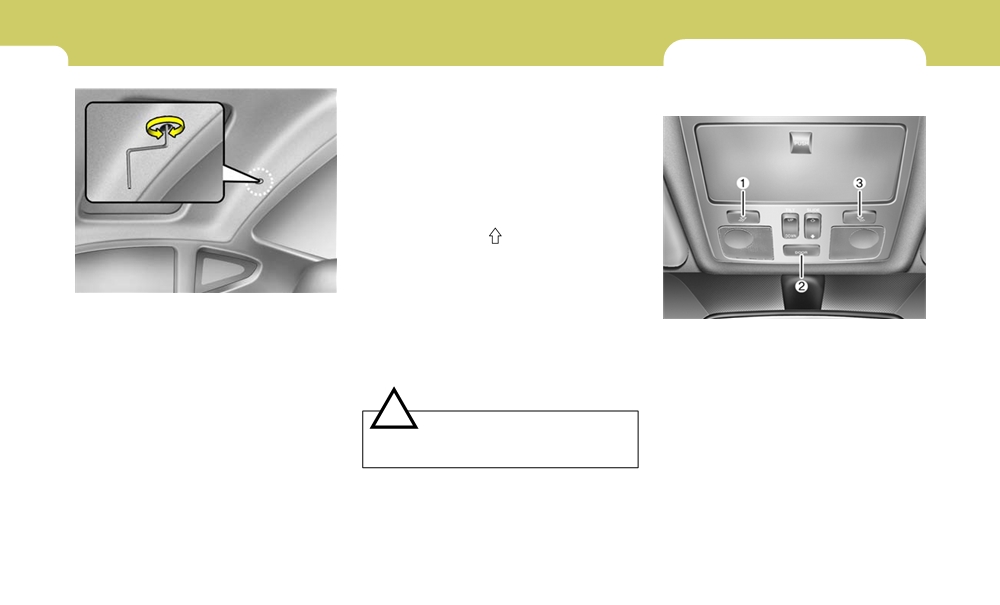

1FEATURES OF YOUR HYUNDAI
68
INTERIOR LIGHT
B460E04GK-AAT
B480A02GK-GAT
Resetting the Sunroof System
Map Light
If the battery has been recharged, discon-
nected or the sunroof was been opened manu-
ally with the hexagonal head wrench, you may
need to reset the sunroof.
To do this;
1. Turn the ignition switch "OFF".
2. While pressing "
" "up" button turn the
ignition switch "ON".
OGK046021
The resetting was not occur when the
ignition key is turned "OFF" within 1.5
2.
Insert the hexagonal head wrench provided
OGK046034L-1
seconds.
with the vehicle into the socket. This wrench
can be found in the vehicle’s trunk or glove
(1)
Push in the map light switch to turn on the
3. If the sunroof is set like this, the sunroof is
box.
driver side light.
reset with tilting up/down automatically once
3.
Push and turn the wrench clockwise to close
(2)
In the "DOOR" position, the interior cour-
for all.
or counterclockwise to open the sunroof.
tesy light comes on when any door is
opened regardless of the ignition key posi-
tion. The light goes out gradually 6 seconds
!
after the door is closed.
CAUTION:
(3)
Push in the map light switch to turn on the
If the sunroof is not reset, it may not operate
front passenger side light.
normally.
FEATURES OF YOUR HYUNDAI
1
SUNGLASS HOLDER
GLOVE BOX
69
B491A02F-AAT
B500A01A-AAT
B500B01NF-GAT
Illuminated Glove Box

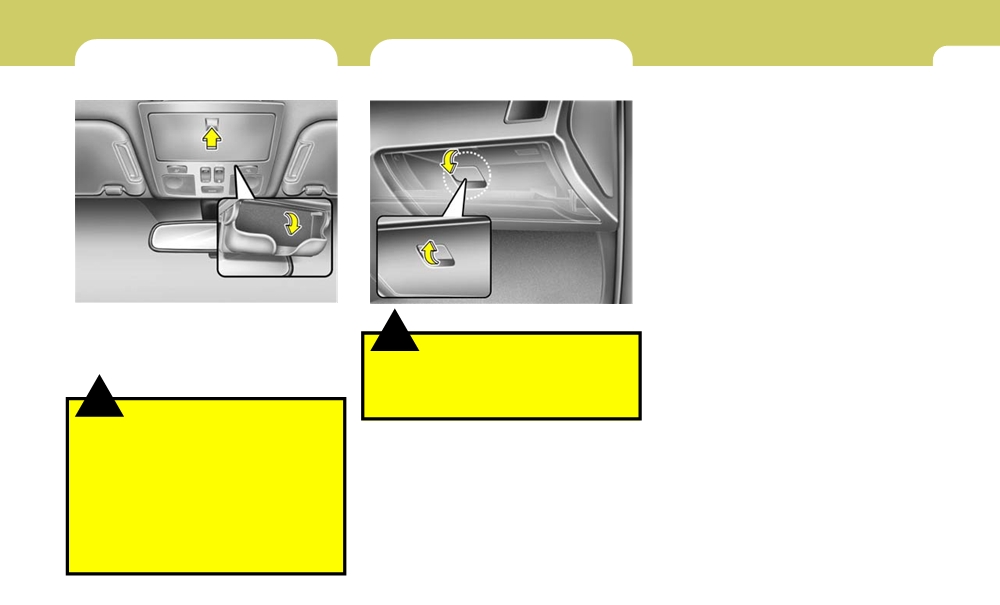

Opening the glove box will automatically turn on
the light when the multi-function switch is turned
to the first position.
OGK046076
OGK046075
The sunglass holder is located on the front
overhead console.
Push the end of the cover to open or close the
!
WARNING:
sunglass holder.
To avoid the possibility of injury in case of
an accident or a sudden stop, the glove box
door should be kept closed when the car is
!
in motion.
WARNING:
o Do not keep objects except sunglass
inside the sunglass holder. Such ob-
o To open the glove box, pull on the glove box
jects can be thrown from the holder in
release lever.
the event of a sudden stop or an acci-
dent, possibly injuring the passengers
in the vehicle.
o Do not open the sunglass holder while
the vehicle is moving. The rear view
mirror of the vehicle can be blocked by
an open sunglass holder.

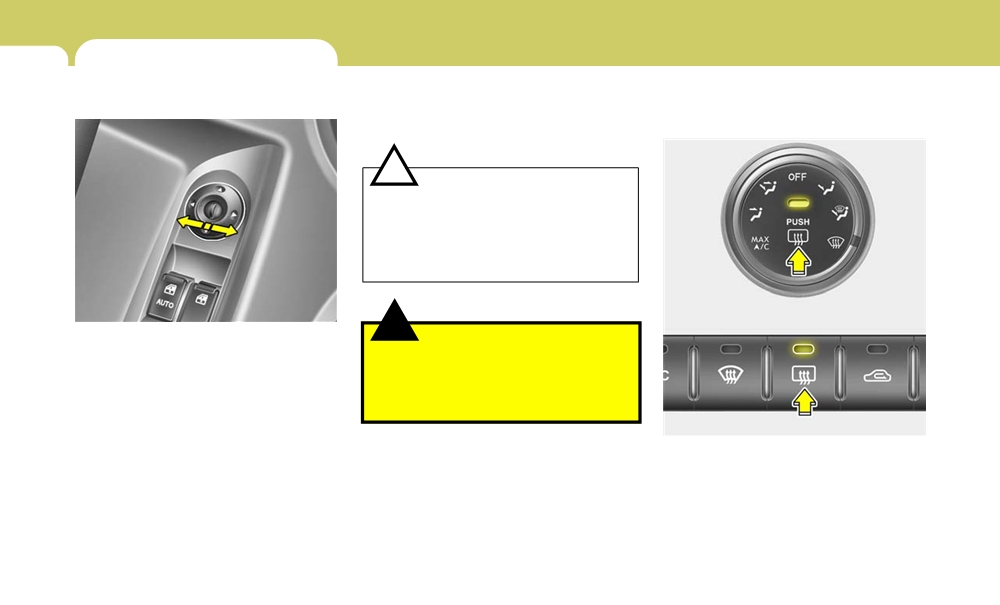

1FEATURES OF YOUR HYUNDAI
OUTSIDE REAR VIEW MIRROR
70
B510B02A-AAT
2. Next, adjust the mirror angle by depressing
B510D01HP-AAT
Electric Type
the appropriate perimeter switch as illus-
Outside Rearview Mirror Heater
trated.
(If Installed)
Type A
!
CAUTION:
o Do not operate the switch continuously
for an unnecessary length of time.
o Scraping ice from the mirror face could
cause permanent damage. To remove
any ice, use a sponge, soft cloth or
approved deicer.
OGK046026L
Type B
The outside rearview mirrors can be adjusted
!
WARNING:
to your preferred rear vision, both directly be-
Be careful when judging the size or dis-
hind the vehicle, and to the rear of the left and
tance of any object seen in the passenger
right sides.
side rear view mirror. It is a convex mirror
The remote control outside rearview mirror
with a curved surface. Any objects seen in
switch controls the adjustments for both the
this mirror are closer than they appear.
right and left outside mirrors.
OGK046054-1N
To adjust the position of either mirror:
The outside rearview mirror heater is actuated
in connection with the rear window defroster. To
1. Move the selecting switch to the right or left
heat the outside rearview mirror glass, push in
to activate the adjustable mechanism for the
the switch for the rear window defroster. The
corresponding door mirror.
rearview mirror glass will be heated for defrost-
ing or defogging and will give you improved rear
vision in inclement weather conditions. Push the
switch again to turn the heater off. The outside
rearview mirror heater automatically turns itself
off after 20 minutes.

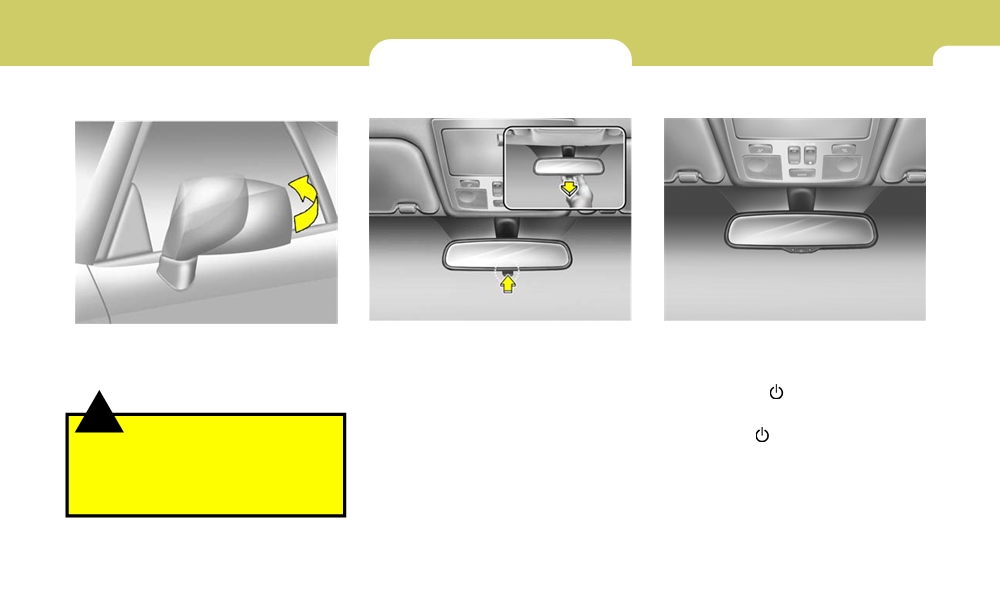

FEATURES OF YOUR HYUNDAI
1
DAY/NIGHT INSIDE REAR VIEW
71
MIRROR
B510C02A-AAT
B520A01A-AAT
B520B02O-GAT
Folding the Outside Rear View Mirrors
Manual Type
Electric type (If installed)
HGK2055
OGK046024
OGK046025
To fold the outside rear view mirrors, push them
Your Hyundai is equipped with a day/night inside
The electric type day/night inside rearview mir-
toward the rear.
rear view mirror. The "night" position is selected
ror automatically controls the glare of headlights
The outside rear view mirrors can be folded
by flipping the tab at the bottom of the mirror
of the car behind you.
rearward for parking in narrow areas.
toward you. In the "night" position, the glare of
headlights of cars behind you is reduced.
1. Pressing the
button turns the auto-
dimming function OFF which is indicated by
!
the green Status Indicator LED turning off.
WARNING:
2. Pressing the
button again turns the auto-
Do not adjust or fold the outside rear view
dimming function ON which is indicated by
mirrors while the vehicle is moving. This
the green Status Indicator LED turning on.
could result in loss of control, and an acci-
dent which could cause serious injury or
NOTE:
death.
The mirror defaults to the "ON" position
each time the vehicle is started.
1FEATURES OF YOUR HYUNDAI
72
PARKING BRAKE
HIGH-MOUNTED REAR STOP LIGHT
B530A03A-AAT
B550A01S-GAT
!
CAUTION:
Type A
Type B
Type C
Driving with the parking brake applied will
cause excessive brake pad (or lining) and
brake rotor wear.
Releasing the parking brake

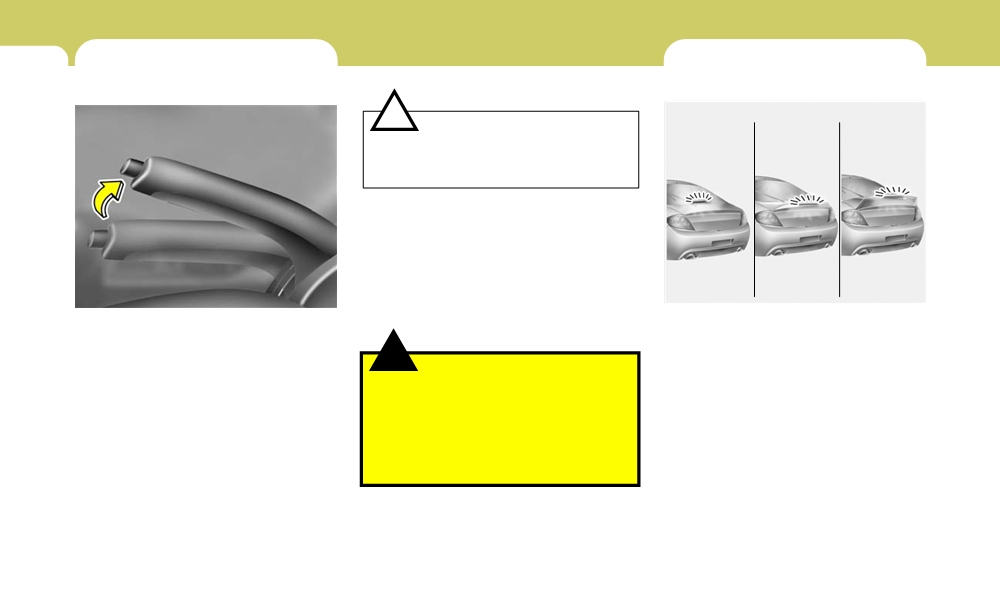

To release the parking brake, first apply the foot
brake and pull up the parking brake lever slightly.
Secondly, depress the release button and lower
OGK056005
the parking brake lever while holding the button.
OGK016550L
In addition to the lower-mounted rear stoplights
Always engage the parking brake before leav-
on either side of the car, the high mounted rear
ing the car. This also turns on the parking brake
stoplight in the center of the rear window or
indicator light when the key is in the "ON" or
!
inserted in the rear spoiler also lights when the
"START" position. Before driving away, be sure
WARNING:
brakes are applied.
that the parking brake is fully released and the
Whenever leaving vehicle or parking always
indicator light is off.
set the parking brake as far as possible and
fully engage the vehicle's transaxle into the
Applying the parking brake
park position. Vehicles not fully engaged in
To engage the parking brake, first apply the foot
park with the parking brake set are at risk for
brake and then without pressing the release
moving inadvertently and injuring yourself
button in, pull the parking brake lever up as far
or others.
as possible. In addition it is recommended that
when parking the vehicle on a gradient, the shift
lever should be positioned in the appropriate low
gear on manual transaxle vehicles or in the P
(Park) position on automatic transaxle vehicles.

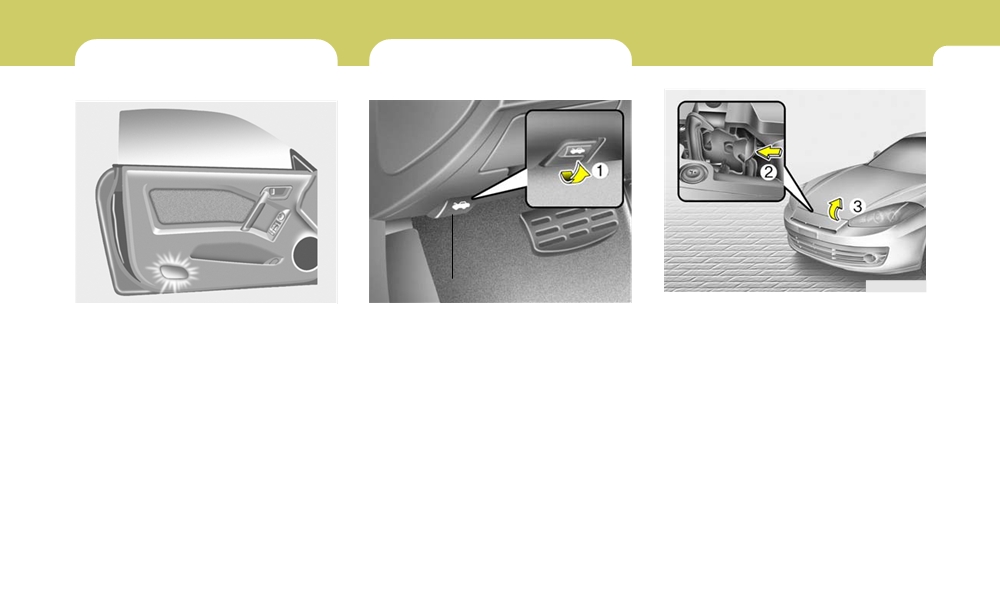

FEATURES OF YOUR HYUNDAI
1
FRONT DOOR EDGE WARNING
HOOD RELEASE
73
LIGHT
B620A01S-AAT
B570A01GK-GAT
Hood Release Lever
OGK046012L
B620A01GK
OGK046011L
2. Press the safety hook lever up and lift the
A red light comes on when the front door is
1. Pull the release knob to unlatch the hood.
hood.
opened. The purpose of this light is to assist
3. Raise the hood by hand.
when you get in or out and also to warn passing
vehicles.

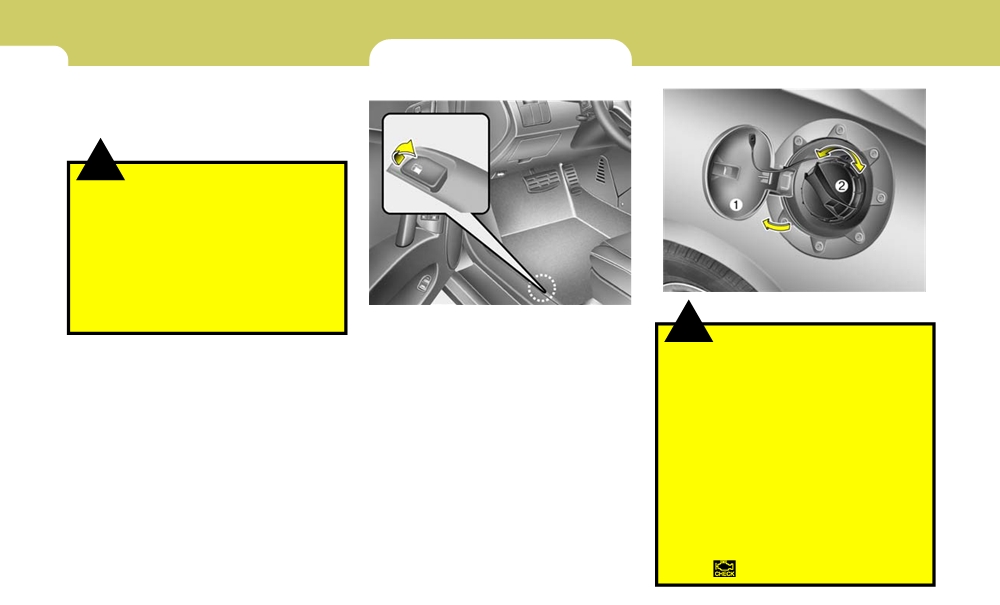

1FEATURES OF YOUR HYUNDAI
REMOTE FUEL-FILLER LID
74
RELEASE
When closing the hood, slowly close the hood
B560A02MC-AAT
and make sure it locks into place.
!
WARNING:
o
Always double check to be sure that the
hood is firmly latched before driving
away. If it is not latched, the hood could
open while the vehicle is being driven,
causing a total loss of visibility, which
might result in an accident.
o
Do not move the vehicle with the hood
OGK046014
in the raised position, as vision is ob-
OGK046013
structed and the hood could fall or be
The fuel-filler lid may be opened from inside the
damaged.
vehicle by pulling up on the fuel-filler lid opener
!
WARNING:
located on the front floor area on the left side of
o
Gasoline vapors are dangerous. Before
the car.
refueling, always stop the engine and
never smoke or allow sparks and open
NOTE:
flames near the filler area.
If the fuel-filler lid will not open because ice
o
Never operate your vehicle without a
has formed around it, tap lightly or push on
filler cap properly installed, flammable
the lid to break the ice and release the lid. Do
vapors and gasoline could leak out in
not pry on the lid. If necessary, spray around
dangerous situations such as a collision
the lid with an approved deicer fluid (do not
or rollover. If the filler cap must be
use radiator anti-freeze) or move the ve-
replaced, only use genuine Hyundai re-
hicle to a warm place and allow the ice to
placement parts.
melt.
o
After refueling, make sure the fuel cap is
installed securely to prevent fuel spill-
age in the event of an accident.
o
Tighten the cap until it clicks, otherwise
the "
"light will illuminate.
FEATURES OF YOUR HYUNDAI
1
75
!
!
!
WARNING:
WARNING:
WARNING:
o
If you open the fuel filler cap during high
capable of producing static electric-
-
When refueling always shut the en-
ambient temperatures, a slight "pres-
ity. Static electricity discharge can
gine off. Sparks produced by electri-
sure sound" may be heard. This is nor-
ignite fuel vapors resulting in explo-
cal components related to the engine
mal and not a cause for concern. When-
sion.
can ignite fuel vapors causing a fire.
ever you open the fuel filler cap, turn it
If you must re-enter the vehicle, you
Always insure that the engine is OFF
slowly.
should once again eliminate poten-
before and during refueling. Once re-
o
Do not "top off" after the nozzle auto-
tially dangerous static electricity dis-
fueling is complete, check to make
matically shuts off when refueling.
charge by touching a metal part of the
sure the fuel filler cap and door are
o
Automotive fuels are flammable/explo-
vehicle, away from the fuel filler neck,
securely closed, before starting the
sive materials. When refueling, please
nozzle or other gasoline source.
engine.
note the following guidelines carefully.
-
When using a portable fuel container
-
Do not light any fire around a gas
Failure to follow these guidelines may
be sure to place the container on the
station. DO NOT use matches or a
result in severe personal injury, severe
ground prior to refueling. Static elec-
lighter and DO NOT SMOKE or leave a
burns or death by fire or explosion.
tricity discharge from the container
lit cigarette in your vehicle while at a
- Before refueling always note the loca-
can ignite fuel vapors causing a fire.
gas station especially during refuel-
tion of the Emergency Gasoline Shut-
Once refueling has begun, contact
ing. Automotive fuel is highly flam-
Off, if available, at the gas station
with the vehicle should be maintained
mable and can, when ignited, result in
facility.
until the filling is complete. Use only
explosion by flames.
- Before touching the fuel nozzle or fuel
portable fuel containers designed to
-
If a fire breaks out during refueling,
filler cap, you should eliminate poten-
carry and store gasoline.
leave the vicinity of the vehicle, and
tially dangerous static electricity dis-
-
Do not use cellular phones around a
immediately contact the manager of
charge by touching another metal part
gas station or while refueling any ve-
the gas station or contact the police
of the front of the vehicle, a safe dis-
hicle. Electric current and/or electronic
and local fire department. Follow any
tance away from the fuel filler neck,
interference from cellular phones can
safety instructions they provide.
nozzle, or other gas source.
potentially ignite fuel vapors causing
- Do not get back into a vehicle once
a fire. If you must use your cellular
you have begun refueling. Do not
phone use it in a place away from the
touch, rub or slide against any item or
gas station.
fabric
(polyester, satin, nylon, etc.)

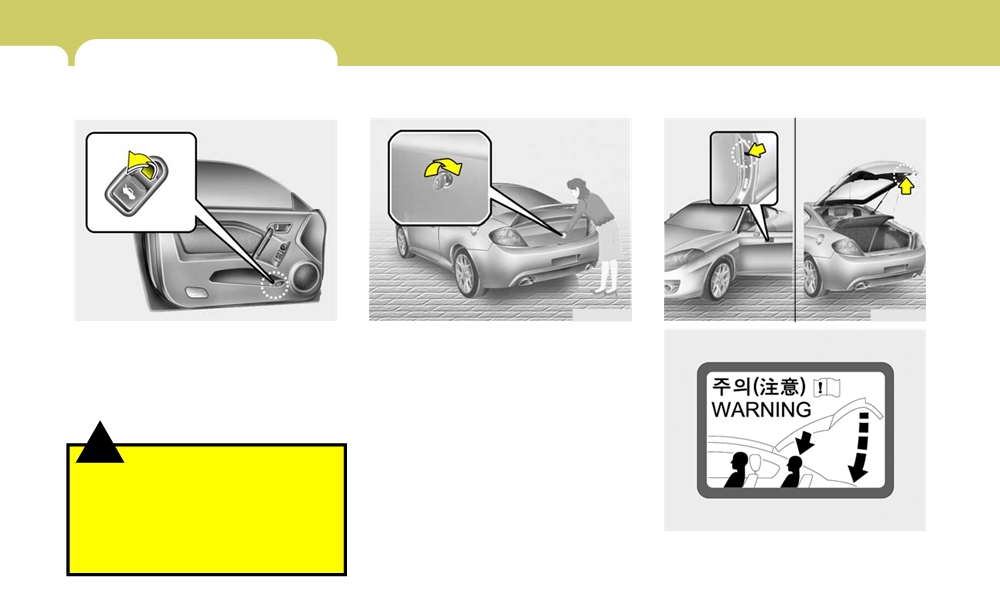

1FEATURES OF YOUR HYUNDAI
TAIL GATE
76
B540A01F-AAT
B540C01F-AAT
B540D01GK-GAT
Remote Tail Gate Release
To Unlock Using the Key
when you close the tailgate
OGK046005
OGK046006
OGK016540
To open the tail gate without using the key, pull
To open the tail gate, insert the key and turn it
up the lid release lever located on the driver's
clockwise to unlock. The tail gate compartment
door panel.
light illuminates when the tail gate is opened.
To close, lower the tail gate, then press down on
it until it locks. To be sure the tail gate is securely
fastened, always try to pull it up again.
!
WARNING:
The tail gate should always be kept com-
pletely closed while the vehicle is in motion.
If it is left open or ajar, poisonous exhaust
gases may enter the car resulting in serious
HGK227
illness or death to the occupants. See addi-
tional warnings concerning exhaust gases
on page 2-2.
FEATURES OF YOUR HYUNDAI
1
SUN VISOR
77
B580A01GK-AAT
!
!
WARNING:
WARNING:
Do not close an open tailgate (rear hatch)
Do not place the sun visor in such a manner
while a person(s) is sitting upright on the
that it obscures visibility of the roadway,
rear seat. The tailgate or tailgate glass may
traffic or other objects.
contact the head of a person sitting upright
on the rear seat. Closing the tailgate onto a
Vanity mirror
person's head may cause serious injuries,
including death.
B580C01JM-AAT
Sun Visor Extender (If Installed)
HGK2119

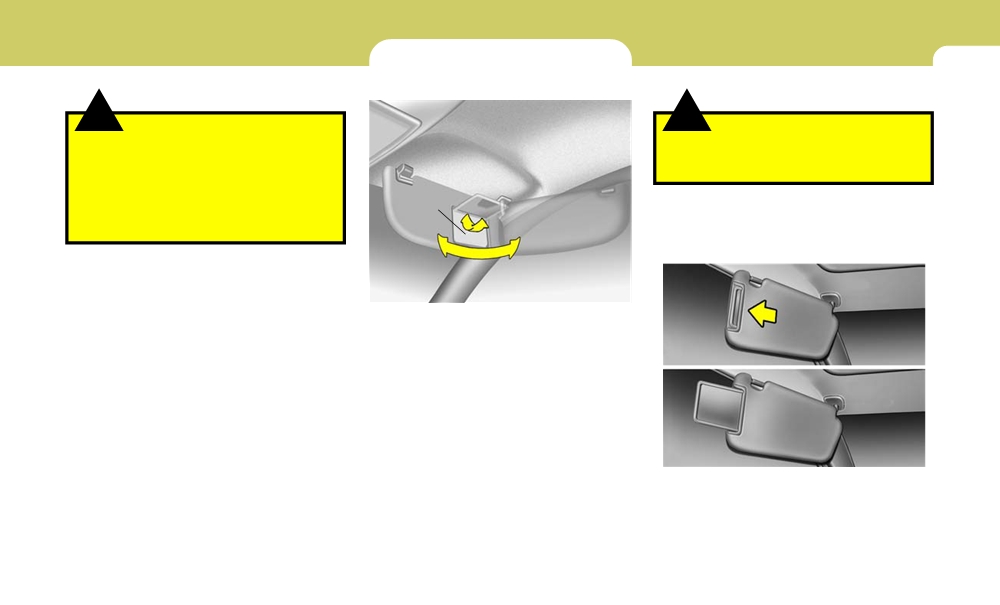

Your Hyundai is equipped with sun visors to give
the driver and front passenger either frontal or
sideward shade. To reduce glare or to shut out
direct rays of the sun, turn the sun visor down.
A ticket holder is provided on the back of the sun
visor for the driver. Vanity mirrors are provided
on the back of the sunvisor for the driver and the
front passenger (If Installed).
NOTE:
The Supplemental Restraint System (SRS)
B580C01GK
label containing useful information can be
found on the front of each sun visor.
Your vehicle is equipped with sun visor extend-
ers that may be used when the visor is in the side
glass position.
1FEATURES OF YOUR HYUNDAI
STEERING WHEEL TILT LEVER
HORN
LUGGAGE NET
78
B600A01HP-AAT
B610A01S-GAT
B540D02HP-GAT
(If installed)
(if installed)
Horn Zone
Type A
Type B
OGK046023
OGK046022
Press the pad on the steering wheel to sound the
HGK2126
horn.

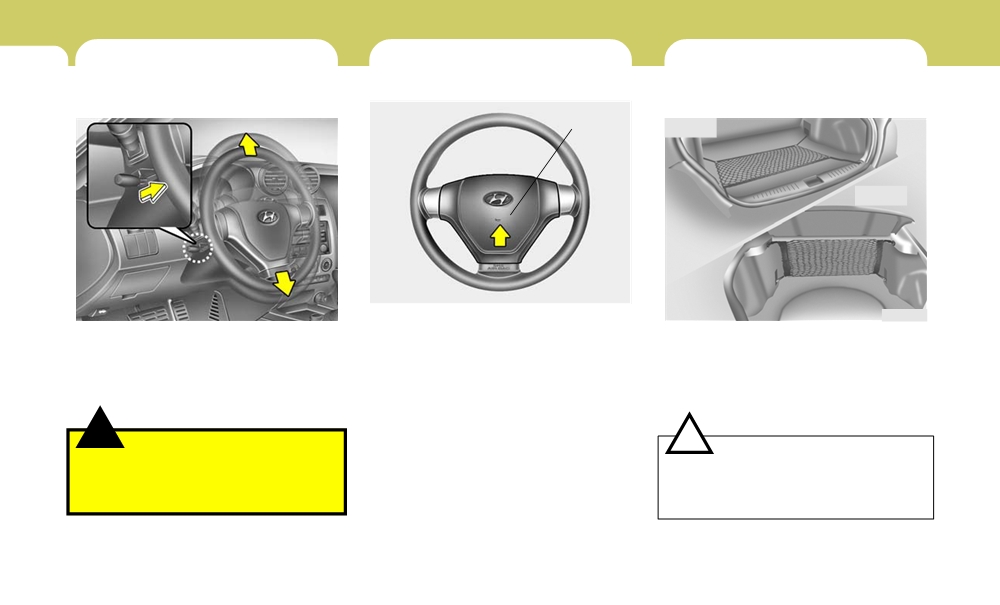

To adjust the steering wheel:
Some objects can be kept in the net in the
1. Pull the lever toward you and hold it to unlock.
luggage compartment.
2. Raise or lower the steering wheel to the
Use the luggage net on the floor(If installed) or
desired position.
at the back of the luggage compartment to
3. After adjustment, release the lever.
prevent objects from sliding.
!
WARNING:
!
CAUTION:
Do not attempt to adjust the steering wheel
To prevent damage to the goods or the
while driving as this may result in loss of
vehicle, care should be taken when carrying
control of the vehicle and serious injury or
fragile or bulky objects in the luggage com-
death.
partment.

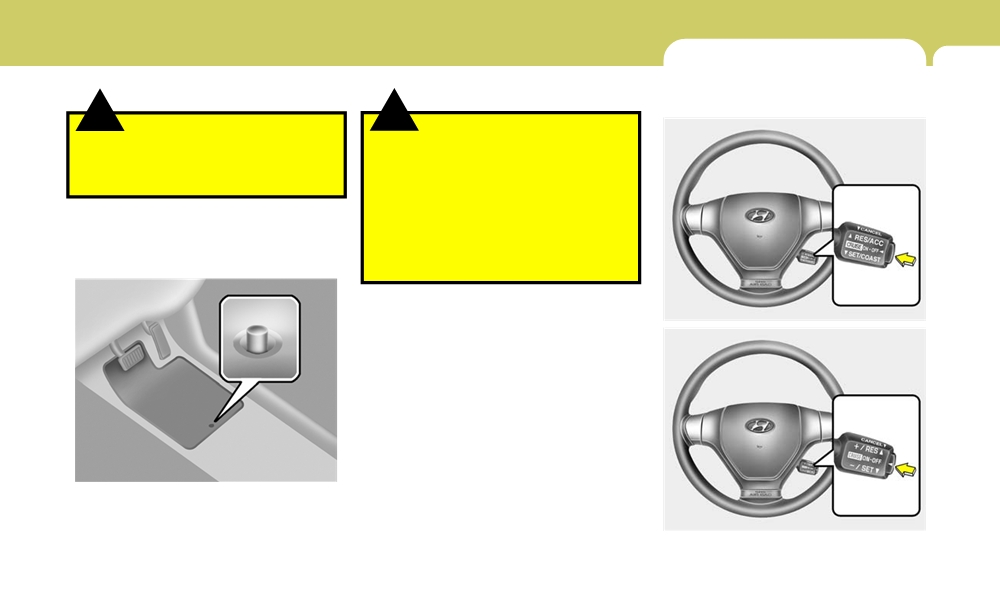

FEATURES OF YOUR HYUNDAI
1
CRUISE CONTROL
79
B660A02S-AAT
(If Installed)
!
!
WARNING:
WARNING:
Type A
Avoid eye injury. Do not overstretch. Al-
o
Make sure the floor mat is properly placed
ways keep face and body out of recoil path.
on the floor carpet. If the floor mat slips
Do not use when strap has visible signs of
and interferes with the movement of the
wear or damage.
pedals during driving, it may cause an
accident.
o
Don't put an additional floor mat on the
top of the anchored mat, otherwise the
additional mat may slide forward and
B990A03Y-AAT
interfere with the movement of the ped-
Floor Mat Anchor
als.
OGK016660
Type B
B570A01N
When using a floor mat on the front floor carpet,
make sure it attaches to the floor mat anchor in
your vehicle. This keeps the floor mat from
OGK018660
sliding forward.
1FEATURES OF YOUR HYUNDAI
80
The cruise control system provides automatic
B660B01GK-AAT
1.
Push in the cruise control main switch on the
speed control for your comfort when driving on

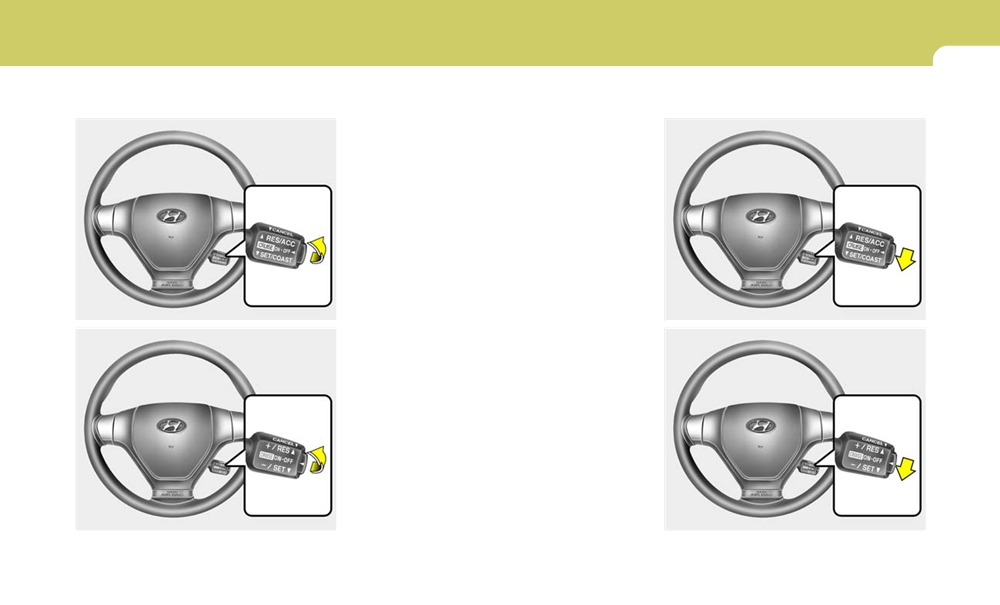

To Set the Cruise Speed
end of the barrel. The "CRUISE" indicator
freeways, tollroads, or other noncongested
Type A
light in the instrument cluster will be illumi-
highways. This system is designed to function
nated. This turns the system on.
above approximately 25 mph (40 km/h).
2.
Accelerate to the desired cruising speed
above
25 mph (40 km/h).
3.
Push the control switch downward to "SET
(COAST : Type A, ⎯ : Type B)" and release
!
it.
WARNING:
The "SET" indicator light in the instrument
o Cruise control is not recommended for
cluster will illuminate.
city driving, winding roads, slippery
4.
Remove your foot from the accelerator pedal
roads, heavy rain, or other bad weather
and the desired speed will automatically be
conditions.
maintained.
o Pay particular attention during the down-
5.
To momently increase speed, depress the
hill driving with cruise control system as
accelerator pedal enough for the vehicle to
the vehicle speed can be increased gradu-
OGK016661
exceed the preset speed. When you remove
ally.
Type B
your foot from the accelerator pedal, the
vehicle will return to the speed you have set.
!

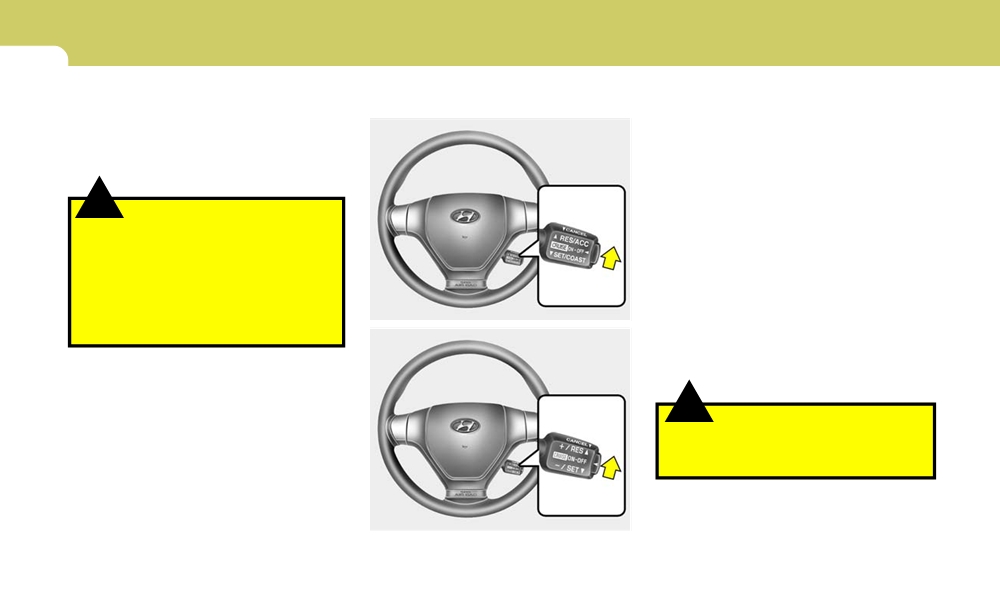

WARNING:
To avoid accidental cruise control engage-
ment, keep the cruise control main switch
off when not using the cruise control.
OGK018661
FEATURES OF YOUR HYUNDAI
1
81
B660C01GK-AAT
To disengage the cruise control system, pull the
B660D01E-AAT
To Cancel the Cruise Speed
control switch toward the steering wheel to
To Resume the Preset Speed
Type A
"CANCEL" position.
Type A
Additionally, the following actions will disengage
the system :
o Depress the brake pedal.
o Depress the clutch pedal (Manual transaxle).
o Shift the selector lever to "N" position (Auto-
matic transaxle).
o Decrease the vehicle speed lower than the
memorized speed by 9 mph (15 km/h).
o Decrease the vehicle speed to less than 25
mph (40 km/h).
o Release the main switch.
OGK016662
OGK016663
Type B
Type B
OGK018662
OGK018663
