FEATURES OF YOUR HYUNDAI
1
31
B240A03GK-AAT
The purpose of the SRS is to provide the
According to the impact severity, seating posi-
Driver's and Passenger's Front Airbag
vehicle's driver and/or the front passenger with
tion and seat belt usage, the SRSCM(SRS
additional protection than that offered by the
Control Module) controls the airbag inflation.
Driver's Front Airbag
seat belt system alone in case of a frontal impact
Failure to properly wear seat belts can increase
of sufficient severity. The SRS uses sensors to
the risk or severity of injury in an accident.
gather information about the driver's seat posi-
tion, the driver's and front passenger's seat belt
Additionally, your Hyundai is equipped with an
usage and impact severity.
occupant classification system in the front
passenger's seat. The occupant classification
The driver's seat track position sensors, which
system detects the presence of a passenger in
are installed on the seat track, determine if the
the front passenger's seat and will turn off the
seats are fore or aft of a reference position. The
front passenger's airbag under certain condi-
seat belt buckle sensors determine if the driver
tions. For more detail, see "Occupant Classifi-
and front passenger's seat belts are fastened.
cation System" later in this section.
These sensors provide the ability to control the
SRS deployment based on how close the driver's
OGK016240
seat is to the steering wheel, whether or not the
Your Hyundai is equipped with an advanced
seat belts are fastened, and how severe the
Supplemental Restraint (Airbag) System. The
impact is.

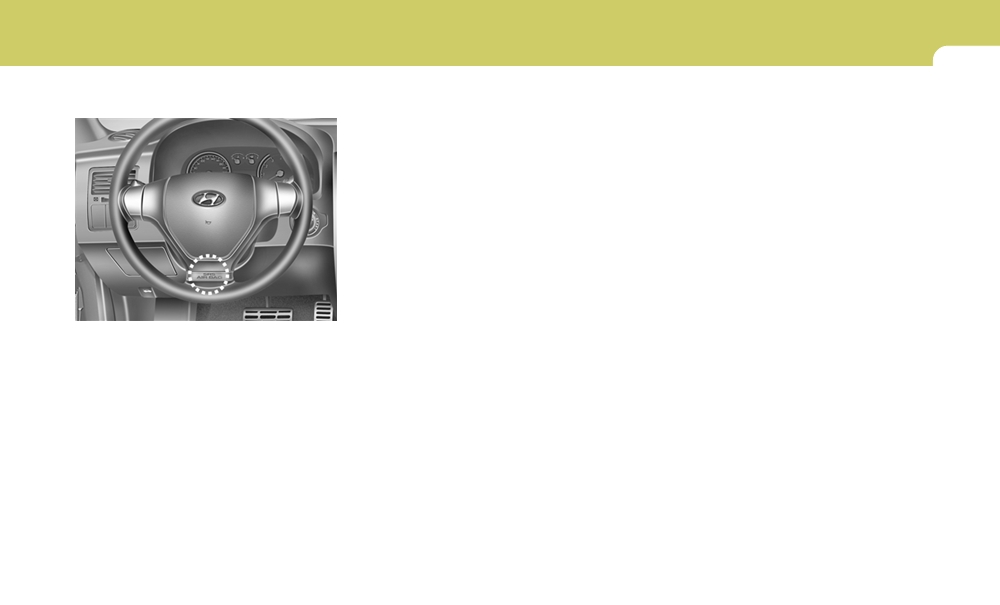

indications of the system's presence are the
letters "SRS AIRBAG" embossed on the airbag
The advanced SRS offers the ability to control
pad cover in the steering wheel and the
the airbag inflation with two levels. A first stage
passenger's side front panel pad above the
level is provided for moderate-severity impacts.
glove box.
A second stage level is provided for more
severe impacts.
The Hyundai SRS consists of airbags installed
under the pad covers in the center of the
steering wheel and the passenger's side front
panel above the glove box.
1FEATURES OF YOUR HYUNDAI
32
NOTE:
o
Be sure to read information about the
!
!
CAUTION:
WARNING:
SRS on the labels provided on the topside
If a seat track position sensor or an occu-
of the sun visor.
o
Modification to the seat structure can
pant classification system is not working
o
Advanced airbags are combined with
adversely affect the seat track position
properly, the SRS airbag warning light
AIR
on
pre-tensioner seat belts to help provide
BAG
sensor and cause the airbag to deploy at
the instrument panel will illuminate be-
enhanced occupant protection in fron-
a different level than should be pro-
cause the SRS airbag warning light is con-
tal crashes. Front airbags are not in-
vided.
nected with the seat track position sensor
tended to deploy in collisions in which
o
Do not place any objects underneath the
and the occupant classification system. If
sufficient protection can be provided by
front seats as they could damage the
the SRS airbag warning light does not illu-
the pre-tensioner seat belt.
seat track position sensor or interfere
minate when the ignition key is turned to
o
If you are considering modification of
with the occupant classification sys-
the "ON" position, remains illuminated af-
your vehicle due to a disability, please
tem.
ter approximately 6 seconds when the igni-
contact the Hyundai Customer Assis-
o
Do not place any objects that may cause
tion key is turned to the "ON" position, or
tance Center at 1-800-633-5151.
magnetic fields near the front seat. These
if it illuminates while the vehicle is being
may cause a malfunction of the seat
driven, have an authorized Hyundai dealer
track position sensor.
inspect the advanced SRS airbag system as
soon as possible.
FEATURES OF YOUR HYUNDAI
1
33
!
!
!
WARNING:
WARNING:
WARNING:
Always use seat belts and child restraints -
o
Move your seat as far back as practical
o
Do not tamper or disconnect SRS wiring
every trip, every time, everyone! Airbags
from the front airbags, while still main-
or other components. Injuries could
inflate with considerable force and in the
taining control of the vehicle.
result from inadvertent deployment or
blink of an eye. Seat belts help keep occu-
o
Never sit or lean unnecessarily close to
failure of the airbag to deploy in a crash.
pants in proper position to obtain maxi-
the front or side airbags.
o
If the SRS airbag warning light (see page
mum benefit from the airbag. Even with
o
Never lean against the door or center
1-49) remains illuminated while the ve-
advanced airbags, improperly and unbelted
console - always sit in an upright posi-
hicle is being driven, have an authorized
occupants can be severely injured when
tion.
Hyundai dealer inspect the airbag sys-
the airbag inflates. Always follow the pre-
o
Do not allow an adult passenger to ride
tem as soon as possible.
cautions about seat belts, airbags and oc-
in the front seat when the “Passenger
o
Airbags can only be used once - have an
cupant safety contained in this manual.
Airbag OFF” indicator is illuminated,
authorized Hyundai dealer replace the
because the airbag will not deploy in the
airbag immediately after deployment.
To reduce the chance of serious or fatal
event of a moderate or severe frontal
o
The SRS is designed to deploy the front
injuries and receive the maximum safety
crash.
airbags only when an impact is suffi-
benefit from your restraint system:
o
Never place objects over or near any
ciently severe and when the impact angle
o Never place a child in any child or booster
airbag module (front or side impact
is within a range as measured from the
seat in the front seat (see child restraints
airbags), because these objects can in-
forward longitudinal axis of the vehicle.
1-31).
jure passengers in a crash.
The front airbags will not deploy in side,
o ABC - Always Buckle Children in the
o
Never place covers, blankets or after-
rear or rollover impacts. Additionally,
back seat. It is the safest place for
market seat warmers on the passenger
the airbags will only deploy once. Seat
children of any age to ride.
seat as these may interfere with the
belts must be worn at all times.
o Front and side impact airbags can injure
occupant classification system.
occupants improperly positioned in the
front seats.
1FEATURES OF YOUR HYUNDAI
34
!
!
!
WARNING:
WARNING:
WARNING:
o
Front airbags are not intended to deploy
o
No objects should be placed over or near
o
Children younger than 13 years must
in side-impact, rear-impact or rollover
the airbag modules on the steering
always be properly restrained in the rear
crashes. In addition, front airbags will
wheel, instrument panel, and the front
seat. Never allow children to ride in the
not deploy in frontal crashes below the
passenger's panel above the glove box,
front passenger seat. If a child over 13
deployment threshold.
because any such object could cause
must be seated in the front seat, he or
harm if the vehicle is in a crash severe
she must be properly belted and the seat
enough to cause the airbags to deploy.
should be moved as far back as possible.
o
If the airbags deploy, they must be re-
o
For maximum safety protection in all
placed by an authorized Hyundai dealer.
types of crashes, all occupants includ-
Deployed airbags WILL NOT inflate again
ing the driver should always wear their
and will provide no protection in subse-
seat belts whether or not an airbag is
Rear impact
quent collisions.
also provided at their seating position to
o
Do not tamper with or disconnect SRS
minimize the risk of severe injury or
wiring or other components of the SRS
death in the event of a crash. Do not sit
system. Doing so could result in injury,
or lean unnecessarily close to the airbag
due to accidental deployment of the
while the vehicle is in motion.
airbags or by rendering the SRS inopera-
o
Sitting improperly or out of position can
tive.
result in serious or fatal injury in a crash.
Side Impact
o
Even though your vehicle is equipped
All occupants should sit upright with
Rollover
B240A02GK
with the occupant classification sys-
the seat back in an upright position,
tem, do not install a child restraint sys-
centered on the seat cushion with their
o
Move your seat as far back as practical
tem in the front passenger seat position.
seat belt on, legs comfortably extended
from the front airbags, while still main-
A child restraint system must never be
and their feet on the floor until the ve-
taining control of the vehicle. You and
placed in the front seat.
hicle is parked and the ignition key is
your passengers should never sit or lean
The infant or child could be severely
removed.
unnecessarily close to the airbags. Im-
injured or killed by an airbag deploy-
properly positioned drivers and passen-
ment in case of an accident.
gers can be severely injured by inflating
airbags.
FEATURES OF YOUR HYUNDAI
1
35
B240B04GK-AAT
12. Side Impact Airbag Module (If Installed)
SRS Components and Functions
13. Front Impact Sensor
!
WARNING:
o
The SRS airbag system must deploy very
The SRSCM continually monitors all elements
rapidly to provide protection in a crash.
while the ignition is "ON" to determine if a frontal
If an occupant is out of position because
or near-frontal impact is severe enough to
of not wearing a seat belt, the airbag may
require airbag deployment or pre-tensioner seat
forcefully contact the occupant causing
belt deployment.
serious or fatal injuries.
The SRS "AIRBAG" warning light on the instru-
ment panel will illuminate for about 6 seconds
after the ignition key is turned to the "ON"
position or after the engine is started, after which
the "AIRBAG" warning light should go out.
OGK0168003N
The SRS consists of the following components:
1. "PASSENGER AIR BAG OFF" Indicator
(Front passenger's seat only)
2. SRS "AIRBAG" warning light
3. Knee Bolster
4. Passenger's Airbag Module
5. Driver's Airbag Module
6. SRS Control Module (SRSCM)
7. Occupant Classification System
(Front passenger's seat only)
8. Driver's Seat Track Position Sensors
9. Driver's and Front Passenger's Seat Belt
B240B01L
Buckle Sensors
10. Side Impact Sensor (If Installed)
11. Retractor Pre-tensioner Assemblies
1FEATURES OF YOUR HYUNDAI
36
The airbag modules are located both in the
Passanger's Airbag
center of the steering wheel and in the front
passenger's panel above the glove box. When
the SRSCM detects a sufficiently severe impact
to the front of the vehicle, it will automatically
deploy the front airbags.
OGK016241
B240B03L
A fully inflated airbag, in combination with a
properly worn seat belt, slows the driver's or the
passenger's forward motion, reducing the risk
!
CAUTION:
of head and chest injury.
Do not install or place any accessories
(drink holder, cassette holder, sticker, etc)
B240B02L
After complete inflation, the airbag immediately
on the front passenger's panel above the
starts deflating, enabling the driver to maintain
Upon deployment, tear seams molded directly
glove box in a vehicle with a passenger's air
forward visibility and the ability to steer or
into the pad covers will separate under pres-
bag. Such objects may become dangerous
operate other controls.
sure from the expansion of the airbags. Further
projectiles and cause injury if the
opening of the covers then allows full inflation of
passenger's air bag inflates.
the airbags.
FEATURES OF YOUR HYUNDAI
1
37
B990A01GK-AAT
Occupant Classification System
!
!
CAUTION:
WARNING:
When installing a container of liquid air
o
If an airbag deploys, there may be a loud
freshener inside a vehicle, do not place it
noise followed by a fine dust released in
near the instrument cluster nor on the in-
the vehicle. These conditions are nor-
strument panel pad surface. If there is any
mal and are not hazardous - the airbags
leakage from the air freshener onto these
are packed in this fine powder. The dust
areas (instrument cluster, instrument panel
generated during airbag deployment
pad or air ventilator), it may damage these
may cause skin or eye irritation as well as
parts. If the liquid from the air freshener
aggravate asthma for some persons.
does leak onto these areas, wash them with
Always wash all exposed skin areas thor-
water immediately.
oughly with lukewarm water and a mild
soap after an accident in which the
airbags were deployed.
o
The SRS can function only when the
OGK036023N
Passenger's Airbag
ignition key is in the "ON" position. If the
Your vehicle is equipped with an occupant
SRS "AIRBAG" warning light does not
classification system in the front passenger's
illuminute, or continuously remains on
seat.
after illuminating for about 6 seconds
The occupant classification system is designed
when the ignition key is turned to the
to detect the presence of a properly-seated
"ON" position, or after the engine is
front passenger and determine if the
started, illuminates while driving, the
passenger's front air bag should be enabled
SRS is not working properly. If this oc-
(may inflate) or not. The driver's front air bag is
curs, have your vehicle immediately in-
not affected or controlled by the occupant clas-
spected by your Hyundai dealer.
sification system.
o
Before you replace a fuse or disconnect
a battery terminal, turn the ignition key
B240B05L
to the "LOCK" position or remove the
ignition key. Never remove or replace the
air bag related fuse(s) when the ignition
key is in the "ON" position. Failure to
heed this warning will cause the SRS
"AIRBAG" warning light to illuminate.
1FEATURES OF YOUR HYUNDAI
38
If the front passenger seat is occupied by a
Condition and operation in the front passenger occupant classification system
person that the system determines to be of adult
size, and he/she sits properly (sitting upright
Condition
Indicator/Warning light
Devices
with the seatback in an upright position, cen-
detected by the
tered on the seat cushion with their seat belt on,
occupant
"Passenger air
SRS warning
Front passen-
legs comfortably extended and their feet on the
classification
bag off"
Side air bag
light
ger air bag
floor), the "PASSENGER AIR BAG OFF" indi-
system
indicator light
cator will be turned off and the front passenger's
1. Adult *1
Off
Off
Activated
Activated
air bag will be able to inflate, if necessary, in
frontal crashes.
2. Child*2 or
You will find the "PASSENGER AIR BAG OFF"
child
On
Off
Deactivated
Activated
indicator on the center facia panel. This system
restraint
detects the conditions 1~3 in the following table
system*3
and activates or deactivates front passenger
air bag based on these conditions.
3. Unoccupied
On
Off
Deactivated
Deactivated
*1)The system judges a person of adult size as an adult. When a smaller adult sits in the front
passenger seat, the system may recognize him/her as a child depending on his/her physique
and posture.
*2)Do not allow children to ride in the front passenger seat. When a larger child who has outgrown
a child restraint system sits in the front passenger seat, the system may recognize him/her as
an adult depending on his/her physique or posture.
*3)Never install a child restraint system on the front passenger seat.
!
WARNING:
Riding in an improper position or placing weight on the front passenger's seat when it is
unoccupied by a passenger adversely affects the occupant classification system (OCS).
FEATURES OF YOUR HYUNDAI
1
39
OVQ036013N
1KMN3663
1KMN3665

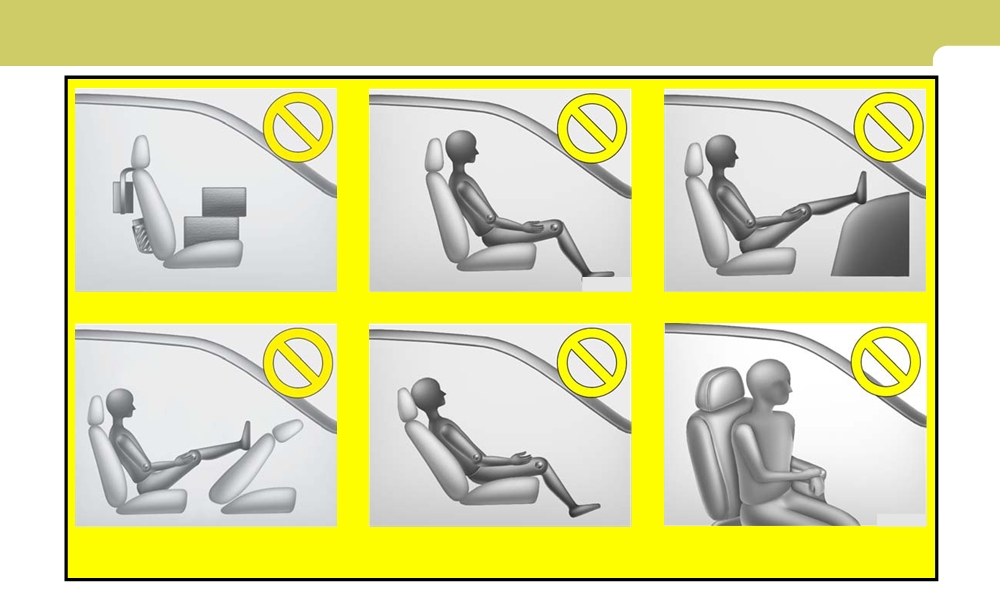

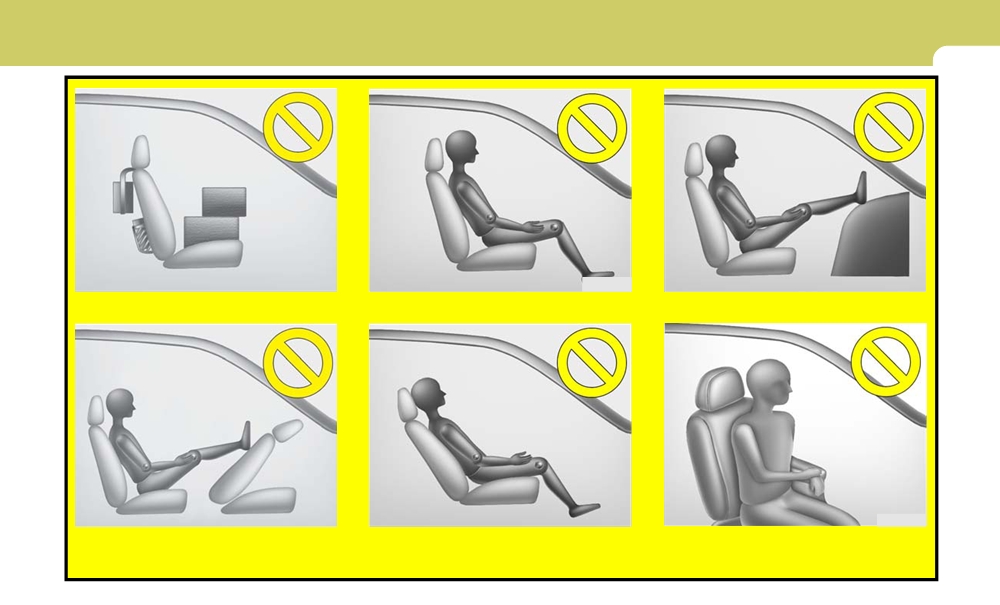

- Never put a heavy load in the front passen-
- Never sit with hips shifted towards the front
- Never place feet on the dashboard.
ger seat or seatback pocket.
of the seat.
OVQ036014N
1KMN3662
1KMN3664
- Never place feet on the front passenger
- Never excessively recline the front passen-
- Never lean on the center console.
seatback.
ger seatback.
- Never sit on one side of the front passenger
seat.
1FEATURES OF YOUR HYUNDAI
40
If the "PASSENGER AIR BAG OFF" indicator is
NOTE:
Proper position
still on, ask the passenger to move to the rear
The "PASSENGER AIR BAG OFF" indicator
seat.
illuminates for about 4 seconds after the
ignition key is turned to the "ON" position
or after the engine is started. If the front
passenger seat is occupied, the occupant
!
classification sensor will then classify the
WARNING:
front passenger after several more sec-
Do not allow an adult to ride in the front seat
onds.
when the “PASSENGER AIR BAG OFF”
indicator is illuminated, because the air bag
will not deploy in the event of a crash. If the
"PASSENGER AIR BAG OFF" indicator re-
mains illuminated after the passenger re-
!
WARNING:
B990A01O
positions themselves properly and the car
Do not put a heavy load in the front passen-
is restarted, we recommend that passenger
When an adult is seated in the front passenger
ger seatback pocket or on the front passen-
move to the rear seat because the
seat, if the "PASSENGER AIR BAG OFF" indi-
ger seat. Do not hang onto the front pas-
passenger's front air bag will not deploy.
cator is on, turn the ignition key to "LOCK" and
senger seat. Do not hang any items such as
Front seat passengers must stay properly
ask the passenger to sit properly (sitting upright
a seatback table on the front passenger
seated to avoid serious injury from a de-
with the seat back in an upright position, centered
seatback. Do not place feet on the front
ploying air bag.
on the seat cushion with their seat belt on, legs
passenger seatback. Do not place any items
comfortably extended and their feet on the floor).
under the front passenger seat. Any of
Restart the engine and have the person remain
these could interfere with proper sensor
in that position. This will allow the system to detect
operation.
the person and to enable the passenger air bag.
FEATURES OF YOUR HYUNDAI
1
41
!
!
!
CAUTION:
WARNING:
WARNING:
If the occupant classification system is not
o
Even though your vehicle is equipped
o
Do not sit on sharp objects such as tools
working properly, the SRS air bag warning
with the occupant classification sys-
when occupying the front passenger
light
on the instrument panel will illumi-
tem, never install a child restraint system
seat. This can adversely affect the occu-
nate because the passenger's front air bag
in the front passenger's seat. A deploy-
pant classification system.
is connected with the occupant classifica-
ing air bag can forcefully strike a child
o
Do not use accessory seat covers on the
tion system. If there is a malfunction of the
resulting in serious injuries or death.
front seats.
occupant classification system, the "PAS-
Any child under 13 years of age should
o
Accident statistics show that children
SENGER AIR BAG OFF" indicator will illu-
ride in the rear seat. Children too large
are safer if they are restrained in the rear,
minate and the passenger's front air bag
for child restraints should use the avail-
as opposed to the front seat. It is recom-
will not inflate in frontal impact crashes
able lap/shoulder belts. No matter what
mended that child restraints be secured
even if there is adult occupant in the front
type of crash, children of all ages are
in a rear seat, including an infant riding
passenger's seat. If the SRS air bag warning
safer when restrained in the rear seat.
in a rear-facing infant seat, a child riding
light does not illuminate when the ignition
o
If the "PASSENGER AIR BAG OFF" indi-
in a forward-facing child seat and an
key is turned to the "ON" position, remains
cator is illuminated when the front
older child riding in a booster seat.
illuminated after approximately 6 seconds
passenger's seat is occupied by an adult
o
Air bags can only be used once - have an
when the ignition key is turned to the "ON"
and he/she sits properly (sitting upright
authorized Hyundai dealer replace the
position, or if it illuminates while the vehicle
with the seatback in an upright position,
air bag immediately after deployment.
is being driven, have an authorized Hyundai
centered on the seat cushion with their
o
A smaller-stature adult who is not seated
dealer inspect the occupant classification
seat belt on, legs comfortably extended
correctly (for example: seat excessively
system and the SRS air bag system as soon
and their feet on the floor), have that
reclined, leaning on the center console,
as possible.
person sit in the rear seat.
or hips shifted forward in the seat) can
o
Do not modify or replace the front pas-
cause a condition where the advanced
senger seat. Don't place anything on or
frontal air bag system senses less seated
attach anything such as a blanket or
pressure than if the occupant were
after market seat heater to the front
seated properly (sitting upright with the
passenger seat. This can adversely af-
seatback in an upright position, cen-
fect the occupant classification system.
tered on the seat cushion with their seat
belt on, legs comfortably extended and
their feet on the floor).
1FEATURES OF YOUR HYUNDAI
42
B990B02MC-AAT
Important Safety Notes on the Side Im-
Side Impact Airbag
!
pact Airbag System
WARNING:
This condition can result in an adult
Following is a number of safety points concern-
potentially being misclassified and illu-
ing this system which should always be ob-
mination of the "PASSENGER AIR BAG
served to ensure risk of injury is reduced in an
OFF" indicator.
accident.
!
WARNING:
o
The side impact airbag is supplemental
to the driver's and the passenger's seat
belt systems and is not a substitute for
them. Therefore your seat belts must be
B990B02Y
worn at all times while the vehicle is in
Your Hyundai is equipped with a side impact
motion. The airbags deploy only in cer-
airbag in each front seat. The purpose of the
tain side impact conditions.
airbag is to provide the vehicle's driver and/or
o
For best protection from the side impact
the front passenger with additional protection
airbag system and to avoid being injured
than that offered by the seat belt alone. The side
by the deploying side impact airbag,
impact airbags are designed to deploy only
both front seat occupants should sit in
during certain side-impact collisions, depend-
an upright position with the seat belt
ing on the crash severity, angle, speed and point
properly fastened. The driver's hands
of impact. The side impact airbags are not
should be placed on the steering wheel
designed to deploy in all side impact situations.
at the 9:00 and 3:00 o'clock positions.
The passenger's arms and hands should
be placed on their laps.
o
Do not use any accessory seat covers.
o
Use of seat covers could prevent or
reduce the effectiveness of the system.
FEATURES OF YOUR HYUNDAI
1
43
B240C04A-AAT
SRS Care
!
WARNING:
The SRS is virtually maintenance free and there
o
Do not install any accessories on the
are no parts you can safely service by yourself.
side or near the side impact airbag.
If the SRS "AIRBAG" warning light does not
o
Do not place any objects over the airbag
illuminate, or continuously remains on, have
or between the airbag and yourself.
your vehicle immediately inspected by your
o
Do not place any objects (an umbrella,
Hyundai dealer.
bag, etc.) between the front door and the
Any work on the SRS system, such as remov-
front seat. Such objects may become
ing, installing, repairing, or any work on the
dangerous projectiles and cause injury
steering wheel must be performed by a qualified
if the supplemental side impact airbag
Hyundai technician. Improper handling of the
inflates.
airbag system may result in serious personal
B240C01HP
o
To prevent unexpected deployment of
injury.
the side impact airbag that may result in
personal injury,avoid impact to the side
airbag sensor when the ignition key is
!
on.
WARNING:
o
Do not install a child restraint system in
the front passenger seat position. A
child restraint system must never be
placed in the front seat. The infant or
child could be severely injured or killed
by an airbag deployment in case of an
accident.
o
Modification to SRS components or wir-
ing, including the addition of any kind of
badges to the pad covers or modifica-
tions to the body structure, can ad-
versely affect SRS performance and lead
to possible injury.
1FEATURES OF YOUR HYUNDAI
44
B240D02JM-AAT
Additional Safety Precautions
!
!
o
Never let passengers ride in the cargo
WARNING:
WARNING:
area (trunk) or on top of a folded-down
o
For cleaning the airbag pad covers, use
o
If your car was flooded and has soaked
back seat. All occupants should sit upright,
only a soft, dry cloth or one which has
carpeting or water on the floor, you
fully back in their seats with their seat belts
been moistened with plain water. Sol-
shouldn't try to start the engine; have
on and their feet on the floor.
vents or cleaners could adversely affect
the car towed to an authorized Hyundai
o
Passengers should not move out of or
the airbag covers and proper deploy-
dealer.
change seats while the vehicle is mov-
ment of the system.
ing. A passenger who is not wearing a seat
o
No objects should be placed over or near
belt during a crash or emergency stop can
the airbag modules on the steering
be thrown against the inside of the vehicle,
wheel, instrument panel, and the front
against other occupants, or out of the ve-
passenger’s panel above the glove box,
hicle.
because any such object could cause
o
Each seat belt is designed to restrain one
harm if the vehicle is in a crash severe
occupant. If more than one person uses the
enough to cause the airbags to inflate.
same seat belt, they could be seriously
o
If the airbags inflate, they must be re-
injured or killed in a collision.
placed by an authorized Hyundai dealer.
o
Do not use any accessories on seat
o
Do not tamper with or disconnect SRS
belts. Devices claiming to improve occu-
wiring, or other components of the SRS
pant comfort or reposition the seat belt can
system. Doing so could result in injury,
reduce the protection provided by the seat
due to accidental inflation of the airbags
belt and increase the chance of serious
or by rendering the SRS inoperative.
injury in a crash.
o
If components of the airbag system must
o
Passengers should not place hard or
be discarded, or if the vehicle must be
sharp objects between themselves and
scrapped, certain safety precautions
the airbags. Carrying hard or sharp objects
must be observed. Your Hyundai dealer
on your lap or in your mouth can result in
knows these precautions and can give
injuries if an airbag inflates.
you the necessary information. Failure
to follow these precautions and proce-
dures could increase the risk of personal
injury.
FEATURES OF YOUR HYUNDAI
1
45
o
Keep occupants away from the airbag
covers. All occupants should sit upright, fully
back in their seats with their seat belts on and
!
WARNING:
their feet on the floor. If occupants are too
o Sitting improperly or out of position can
close to the airbag covers, they could be
cause occupants to be shifted too close
injured if the airbags inflate.
to a deploying airbag, strike the interior
o
Do not attach or place objects on or near
structure or be thrown from the vehicle
the airbag covers. Any object attached to
resulting in serious injury or death.
or placed on the front or side impact airbag
o Always sit upright with the seatback in
covers could interfere with the proper opera-
an upright position, centered on the
tion of the airbags.
seat cushion with your seat belt on, legs
o
Do not modify the front seats. Modifica-
comfortably extended and your feet on
tion of the front seats could interfere with the
the floor.
operation of the supplemental restraint sys-
tem sensing components or side impact
airbags.
Adding Equipment to or Modifying Your
o
Do not place items under the front seats.
Placing items under the front seats could
Airbag-Equipped Vehicle.
interfere with the operation of the supple-
If you modify your vehicle by changing your
mental restraint system sensing compo-
vehicle's frame, bumper system, front end or
nents and wiring harnesses.
side sheet metal or ride height, this may affect
o
Never hold an infant or child on your lap.
the operation of your vehicle's airbag system.
The infant or child could be seriously injured
or killed in the event of a crash. All infants and
children should be properly restrained in
appropriate child safety seats or seat belts
in the rear seat.
1FEATURES OF YOUR HYUNDAI

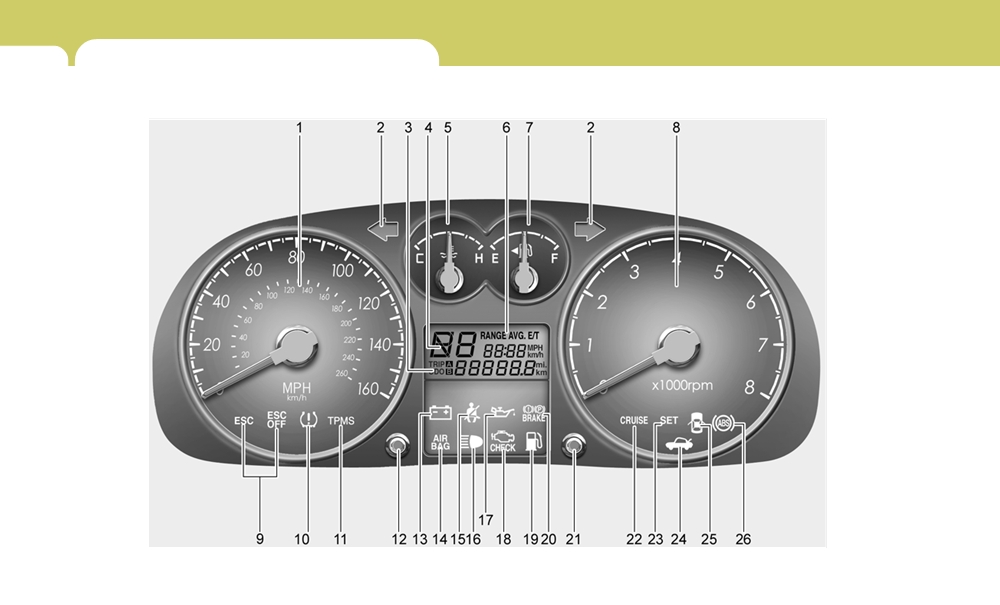

INSTRUMENT CLUSTER AND INDICATOR LIGHTS
46
B260A03GK-AAT
OGK046028N
FEATURES OF YOUR HYUNDAI
1
47
1. Speedometer
14. SRS (AIRBAG) Warning Light
2. Turn Signal Indicator Light
15. Seat Belt Warning Light
3. Odometer/Trip Odometer
16. High Beam Indicator Light
4. Automatic Transaxle Position Indicator Light (If installed)
17. Low Oil Pressure Warning Light
5. Coolant Temperature Gauge
18. Malfunction Indicator Light (MIL)
6. Trip Computer (if installed)
19. Low Fuel Warning Light
7. Fuel Gauge
20. Parking Brake/Low Brake Fluid Level Warning Light
8. Tachometer
21. Trip Computer Reset Knob (If installed)
9. Electronic Stability Control (ESC) Indicator Light (If installed)
22. CRUISE Indicator Light (If installed)
10. Low Tire Pressure Telltale
23. CRUISE SET Indicator Light (If installed)
11. TPMS (Tire Pressure Monitoring System) Malfunction Indicator
24. Tail Gate Open Warning Light
12. Trip Odometer Reset Knob
25. Door Ajar Warning Light
13. Charging System Warning Light
26. ABS Service Reminder Indicator (SRI)















Content   ..  1  2  3  4   ..
