INSTRUMENTS AND CONTROLS
B250A02GK-AAT
OGK026002N
F8

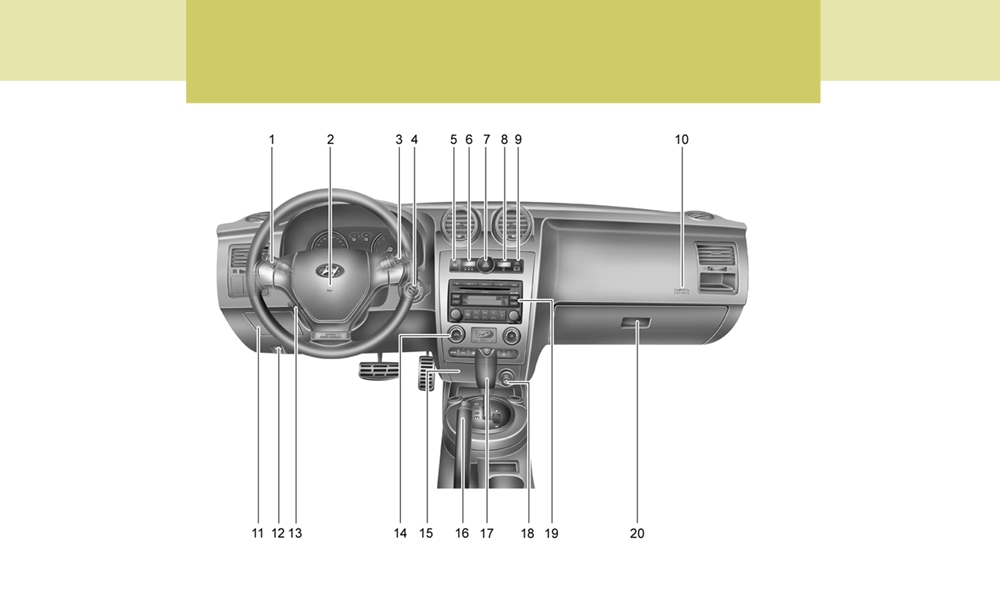

1. Multi-Function Light Switch
11.Fuse Box Relay
2. Horn and Driver's Airbag
12.Hood Release Lever
3. Windshield Wiper/Washer Switch
13.Steering Wheel Tilt Lever
4. Ignition Switch
14.Heating and Cooling Controls
5. Front Fog Light Switch (If installed)
15.Ashtray
6. Digital Clock
16.Parking Brake Lever
7. Hazard Warning Switch
17.Shift Lever
8. Outside Temperature Switch
18.Cigarette Lighter
9. Passenger's Air Bag Off Indicator
19.Audio System (If installed)
10. Passenger's Air Bag
20.Glove Box
!
CAUTION:
When installing a container of liquid air freshener inside the vehicle, do not place it near the instrument cluster nor
on the instrument panel surface. If there is any leakage from the air freshener onto these areas (Instrument cluster,
instrument panel or air ventilator), it may damage these parts. If the liquid from the air freshener does leak onto
these areas, wash them with water immediately.
F9
YOUR VEHICLE AT A GLANCE
B255A02GK-AAT

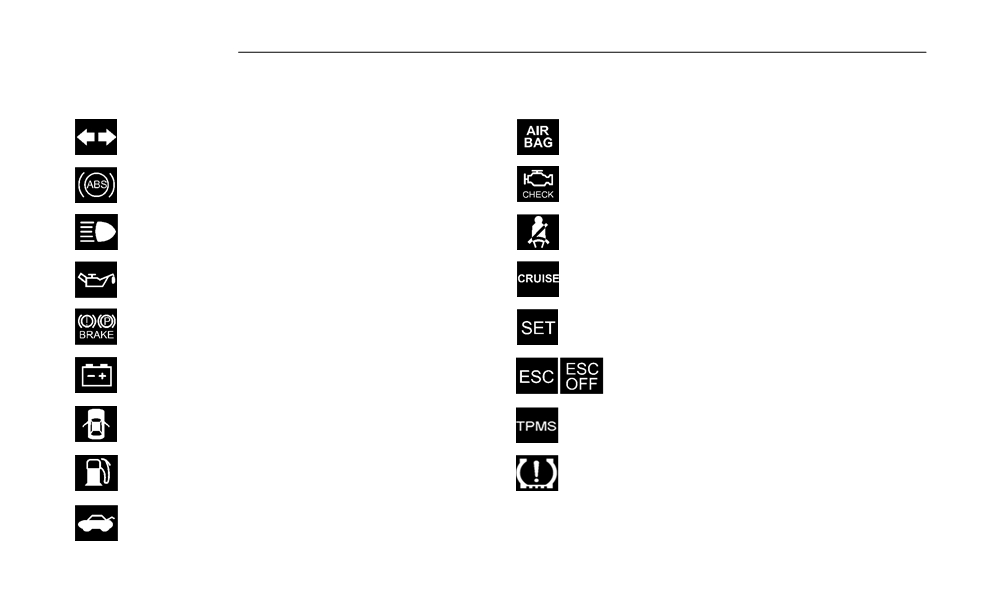

INDICATOR SYMBOLS ON THE INSTRUMENT PANEL
Turn Signal Indicator Lights
SRS (Airbag) Warning Light
ABS Service Reminder Indicator (SRI) (If installed)
Malfunction Indicator Light
High Beam Indicator Light
Seat Belt Reminder Light and Chime
Low Oil Pressure Warning Light
CRUISE Indicator Light (If installed)
Parking Brake/ Low Brake Fluid Level Warning Light
CRUISE SET Indicator Light (If installed)
Electronic Stability Control (ESC)
Charging System Warning Light
Indicator Lights (If installed)
TPMS (Tire Pressure Monitoring System) Malfunction
Door Ajar Warning Light and Chime
Indicator
Low Fuel Level Warning Light
Low Tire Pressure Telltale
Tail Gate Open Warning Light
F10
* More detailed explanations of these items will be found beginning on page 1-48.
FEATURES OF YOUR HYUNDAI
Fuel Recommendations
1-2
1
Breaking in Your New Hyundai
1-3
Keys
1-3
Door (Theft-Alarm System)
1-4, 1-6
Power Windows
1-9
Seats
1-10
Seat Belts
1-16
Child Restraint System
1-22
Supplemental Restraint (AIRBAG) System (SRS)
1-30
Instrument Cluster and Indicator Lights
1-46
Warning and Indicator Lights
1-48
Multi-Function Light Switch
1-58
1
Windshield Wiper/Washer
1-60
Sunroof
1-66
Mirror
1-70
Hood Release
1-73
Cruise Control
1-79
Audio Remote Control Switch
1-83
Heating and Cooling Control
1-84
Stereo Sound System
1-102
Antenna
1-104
Audio System
1-105
1FEATURES OF YOUR HYUNDAI
2
FUEL RECOMMENDATIONS
B010A02JM-AAT
B010B01A-AAT
B010D01A-AAT
Use Unleaded Gasoline
What About Gasohol?
Do Not Use Methanol
Gasohol (a mixture of 90% unleaded gasoline
Fuels containing methanol (wood alcohol) should
and 10% ethanol or grain alcohol) may be used
not be used in your Hyundai. This type of fuel
UNLEADED
in your Hyundai. However, if your engine devel-
can reduce vehicle performance and damage
FUEL ONLY
ops driveability problems, the use of 100%
components of the fuel system.
unleaded gasoline is recommended. Fuels with
unspecified quantities of alcohol, or alcohols
other than ethanol, should not be used.
!
CAUTION:
Your Hyundai's New Vehicle Limited War-
ranty may not cover damage to the fuel
B010C01A-AAT
system and any performance problems that
Use of MTBE
are caused by the use of fuels containing
methanol or fuels containing MTBE (Methyl
Hyundai recommends that fuels containing
OGK016100N
Tertiary Butyl Ether) over 15.0% vol. (Oxy-
MTBE (Methyl Tertiary Butyl Ether) over 15.0%
gen Content 2.7% weight.)
Unleaded gasoline with a Pump Octane
vol. (Oxygen Content 2.7% weight) should not
Rating of 87 (Research Octane Number 91)
be used in your Hyundai.
or higher must be used in your Hyundai.
Fuel containing MTBE over 15.0% vol. (Oxygen
Content 2.7% weight) may reduce vehicle per-
formance and produce vapor lock or hard
starting.
!
WARNING:
o Do not "top off" after the nozzle auto-
matically shuts off when refueling.
o Tighten the cap until it clicks, otherwise
the "
" light will illuminate.
o Always check that the fuel cap is in-
stalled securely to prevent fuel spillage
in the event of an accident.
FEATURES OF YOUR HYUNDAI
1
BREAKING IN YOUR NEW
KEYS
3
HYUNDAI
B010E01A-AAT
B020A01S-AAT
B030A01A-AAT
Gasolines for Cleaner Air
During the First 1,200 Miles (2,000 Km)
To help contribute to cleaner air, Hyundai rec-
No formal "break-in" procedure is required with
ommends that you use gasolines treated with
your new Hyundai. However, you can contrib-
detergent additives, which help prevent deposit
ute to the economical operation and durability of
formation in the engine. These gasolines will
your Hyundai by observing the following recom-
help the engine run cleaner and enhance per-
mendations during the first 1,200 miles (2,000
formance of the Emission Control System.
km).
o
Don't drive faster than 55 MPH (88 km/h).
o
While driving, keep your engine speed (rpm,
B010F01A-AAT
or revolutions per minute) between 2,000
Operation in Foreign Countries
rpm and 4,000 rpm.
o
Use moderate acceleration. Don't start
OMC025001
If you are going to drive your Hyundai in another
quickly or depress the accelerator pedal
country, be sure to:
fully.
For greater convenience, the same key oper-
o
For the first 200 miles (300 km), try to avoid
ates all the locks in your Hyundai. However,
o Observe all regulations regarding registra-
hard stops.
because the doors can be locked without a key,
tion and insurance.
o
Don't lug the engine (in other words, don't
carrying a spare key is recommended in case
o Determine that acceptable fuel is available.
drive so slowly in too high a gear that the
you accidentally lock one key inside the car.
engine "bucks"-shift to a lower gear).
o
Whether going fast or slow, vary your speed
from time to time.
o
Don't let the engine idle longer than 3 minutes
at one time.
o
Don't tow a trailer during the first 1,200 miles
(2,000 km) of operation.
1FEATURES OF YOUR HYUNDAI
DOOR
4
B030B01S-AAT
B030C01Y-AAT
B040A03Y-AAT
Record Your Key Number
Illuminated Ignition Switch
Door Locks
(If installed)
!
WARNING:
o
Unlocked doors can be dangerous. Be-
fore you drive away (especially if there
are children in the car), be sure that all the
doors are securely closed and locked so
that the doors cannot be inadvertently
opened from the inside. This helps en-
sure that the doors will not be opened
accidentally. Also, when combined with
the proper use of seat belts, locking the
doors helps keep occupants from being
B030B01MC
ejected from the car in case of an acci-

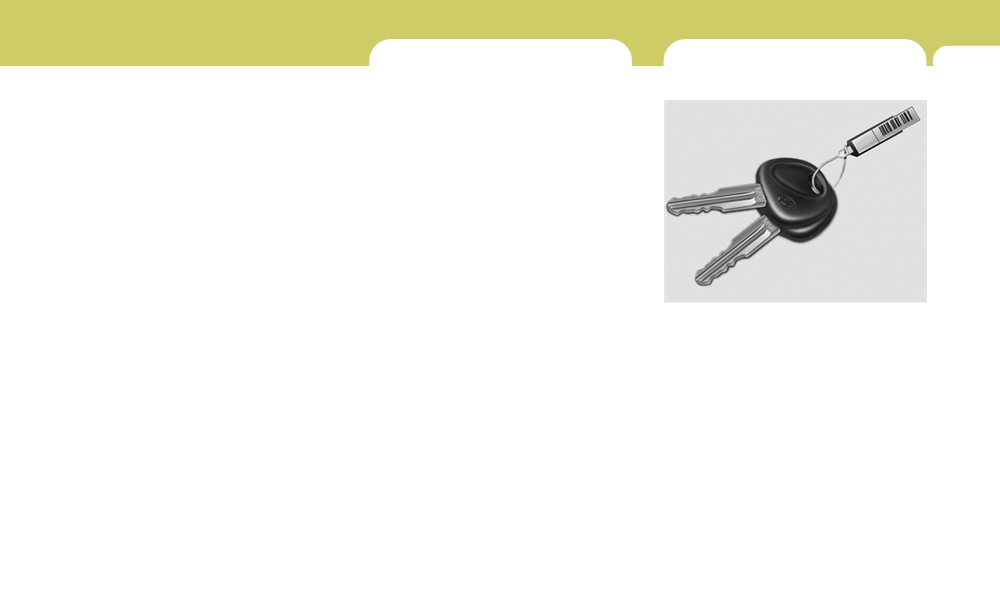

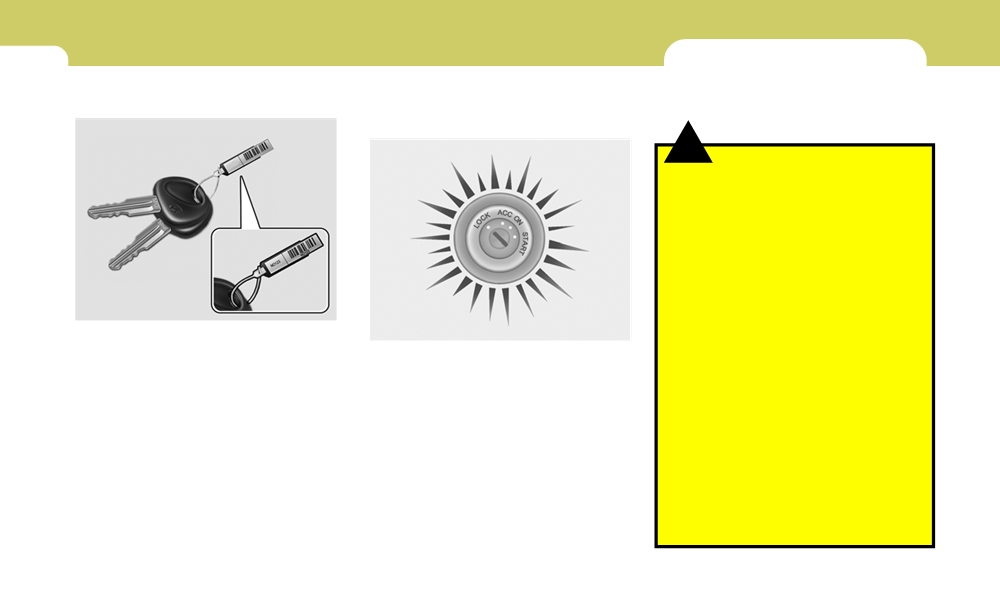

A code number is stamped on the key number
B030C01E-1
dent.
plate that came with the keys to your Hyundai.
o
Before opening the door, always look for
Whenever a door is opened, the ignition switch
This key number plate should be kept in a safe
and avoid oncoming traffic.
will be illuminated for your convenience, pro-
place, not in the vehicle. The key number should
o
In case of accident, the door is unlocked
vided the ignition switch is not in the "ON"
also be recorded in a place where it can be found
automatically (If installed).
position.
in an emergency.
o
An enclosed vehicle can become ex-
The light will go off approximately 10 seconds
tremely hot, causing death or severe
after closing the door or when the ignition switch
If you need additional keys, or if you should lose
injury to unattended children or animals
is turned on.
your keys, your authorized Hyundai dealer can
who cannot escape the vehicle. Further-
make new keys if you can supply the key
more, children might operate features of
number.
the vehicle that could injure them, or
they could encounter other harm, possi-
bly from someone gaining entry to the
vehicle. Never leave children or animals
unattended in your vehicle.
FEATURES OF YOUR HYUNDAI
1
5
B040B01GK-AAT
B040C01S-AAT
B040D01S-AAT
Locking and unlocking front doors with a
Locking From the Outside
Locking From the Inside
key
UNLOCK
UNLOCK
LOCK
LOCK
OGK046003
OGK046004L
OGK046002

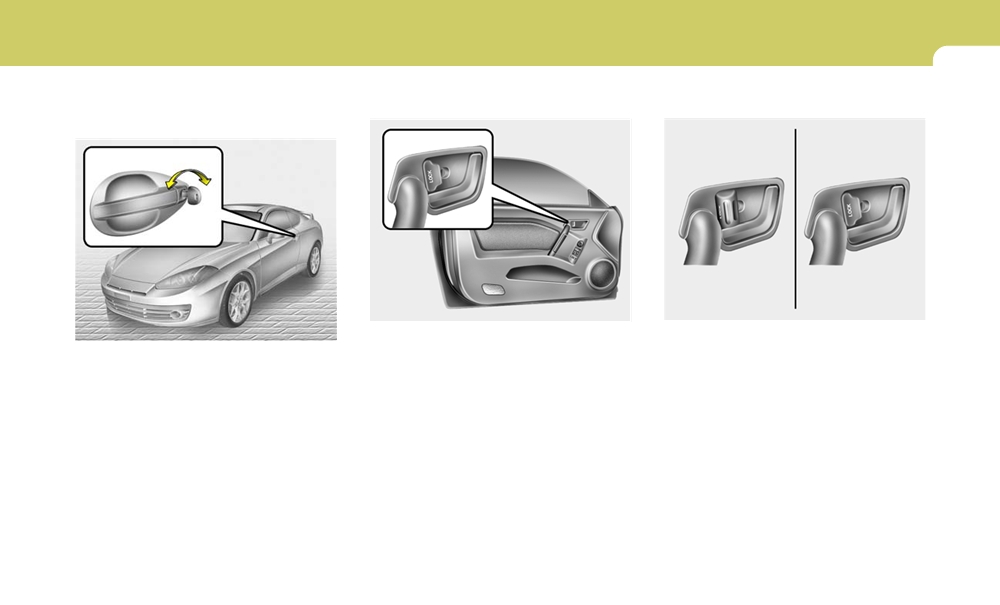

The doors can be locked without a key.
To lock the doors from the inside, simply close
To lock the doors first push the inside lock
the door and push the lock switch to the "LOCK"
o The door can be locked or unlocked with a
switch to the "LOCK" position so that the red
position. When this is done, neither the outside
key.
mark on the switch is not visible, then close the
nor the inside door handle can be used.
o Lock the door by turning the key toward the
door.
front of the vehicle and unlock it by turning the
NOTE:
key toward the rear.
NOTE:
When the door is locked, the red mark on the
NOTE:
o When locking the door this way, be care-
switch is not visible.
ful not to lock the door with the ignition
The driver's door can be unlocked by turn-
key left in the vehicle.
ing the key once toward the rear. If you wish
o To reduce the chance of theft, always
to unlock all doors, turn the key again
remove the ignition key, close all win-
toward the rear within 4 seconds.
dows, and lock all doors when leaving
your vehicle unattended.
1FEATURES OF YOUR HYUNDAI
THEFT-ALARM SYSTEM
6
B040G02GK-GAT
o If the door is locked/unlocked multiple
B070A01A-AAT
Central Door Lock
times in rapid succession with either the
(If Installed)
vehicle key or door lock switch, the sys-
This system is designed to provide protection
tem may stop operating temporarily in
from unauthorized entry into the car. This sys-
order to protect the circuit and prevent
tem is operated in three stages: the first is the
damage to system components.
"Armed" stage, the second is the "Alarm" stage,
and the third is the "Disarmed" stage. If trig-
gered, the system provides an audible alarm
with blinking of the turn signal light.
B070B02GK-AAT
Armed Stage
Park the car and stop the engine. Arm the
OGK046003
system as described below.

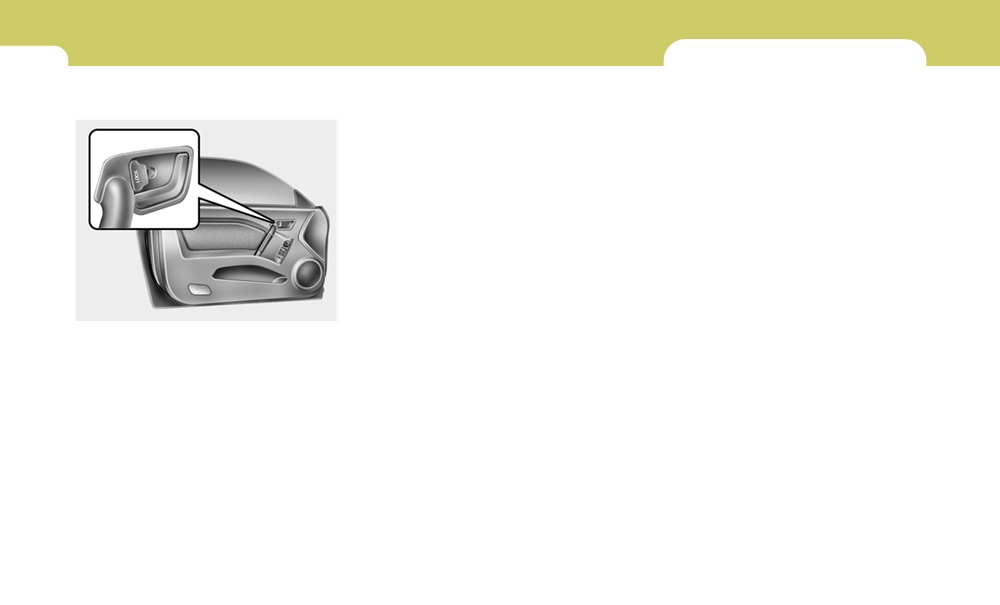

The central door locking is operated by pushing
the driver's door lock switch toward the front or
1) Remove the ignition key from the ignition
rear of the vehicle. If the passenger door is open
switch.
when the switch is pushed, the door will remain
2) Make sure that the engine hood and tail gate
locked when closed.
are closed and latched.
3) Lock the doors using the transmitter of the
NOTE:
keyless entry system.
o When pushing the switch toward the
rear, all doors will unlock.
After completion of the steps above, the turn
When pushing the switch toward the
signal light will blink once to indicate that the
front, all doors will lock.
system is armed.
o When the door is unlocked, the red mark
on the switch is visible.
o The central door locking is operated by
turning the key (driver's door only) to-
ward the front or rear of the vehicle.
FEATURES OF YOUR HYUNDAI
1
7
B070C02GK-AAT
B070D05GK-AAT
NOTE:
1) If any door, tail gate or engine hood
Alarm Stage
Disarmed Stage
remains open, the system will not be
The alarm will be activated if any of the following
armed.
occur while the car is parked and the system is
2) If this happens, rearm the system as
armed.
described above.
3) Once the system is armed, only the tail
1) A front door is unlocked and opened without
gate may be unlocked using the key
using the transmitter.
without disarming the system.
2) The tail gate is opened without using the key.
UNLOCK
3) The engine hood is opened.
The siren will sound and the turn signal lamp will
!
CAUTION:
blink continuously for 27 seconds. (This hap-
Do not arm the system until all passengers
pens 3 times). To turn off the system, unlock the
have left the car. If the system is armed while
door with the transmitter.
LOCK
a passenger(s) remains in the car, the alarm
OGK016102
may be activated when the remaining
The system will be disarmed when either of the
passenger(s) leaves the car.
following steps are taken:
!
CAUTION:
Avoid trying to start the engine while the
1) The driver's or passenger's door is un-
system is armed.
locked by depressing the "UNLOCK" button
on the transmitter.
2) In the middle of alarming or after alarming, it
keeps for 30 seconds when the key is turned
to the "ON" position.
After completing one of the steps above, the turn
signal light will blink twice to indicate that the
system is disarmed.
NOTE:
If any door, tail gate or engine hood is not
opened within 30 seconds, the system will
be rearmed.
1FEATURES OF YOUR HYUNDAI
8
B075E01O-AAT
B070F03A-AAT
Unlocking doors
Panic Warning
Keyless Entry System (If installed)
1. Push the "UNLOCK" button on the transmitter.
NOTE:
2. At the same time all doors unlock, the turn
This device complies with Part 15 of the
signal lights will blink twice to indicate that the
FCC rules. Operation is subject to the fol-
system is disarmed.
lowing two conditions:
(1) This device may not cause harmful in-
NOTE:
terference, and (2) this device must accept
The transmitter will not work if any of fol-
any interference received, including inter-
lowing occur:

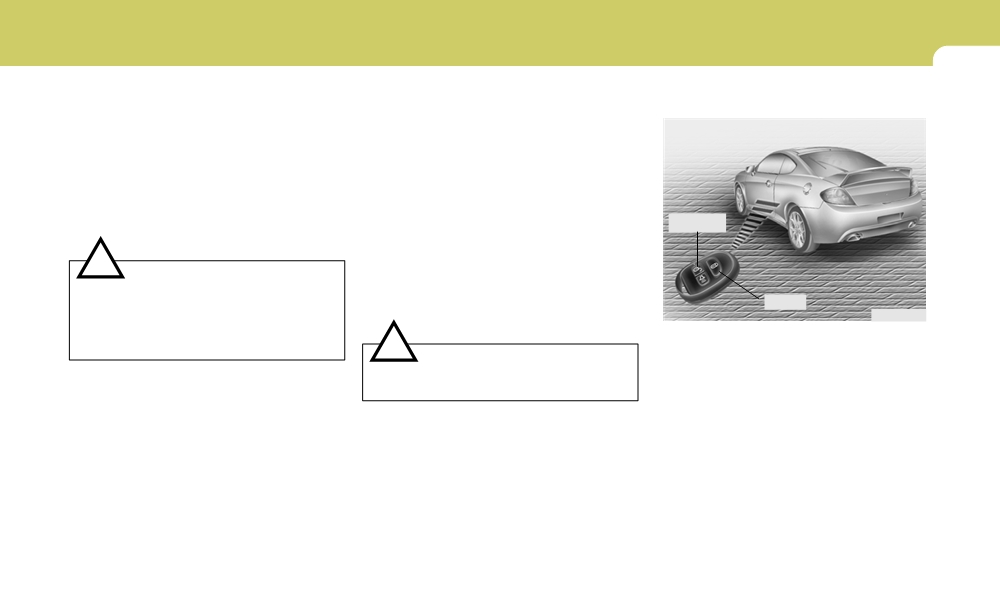

PANIC
ference that may cause undesired opera-
- The ignition key is in ignition switch.
tion.
- You exceed the operating distance limit
(10 m).
- The battery in the transmitter is weak.
- Other vehicles or objects may be block-
!
CAUTION:
ing the signal.
OGK016102
Changes or modifications not expressly
- The weather is extremely cold.
1.
Push the "PANIC" button on the transmitter.
approved by the party responsible for com-
- The transmitter is close to a radio trans-
2.
At the same time, the siren will sound and the
pliance could void the user's authority to
mitter such as a radio station or an
turn signal lights will blink for 30 seconds.
operate the equipment.
airport which can interfere with normal
3.
To turn off the system, push the "PANIC"
operation of the transmitter.
button again on the transmitter.
When the transmitter does not work cor-
rectly, open and close the door with the

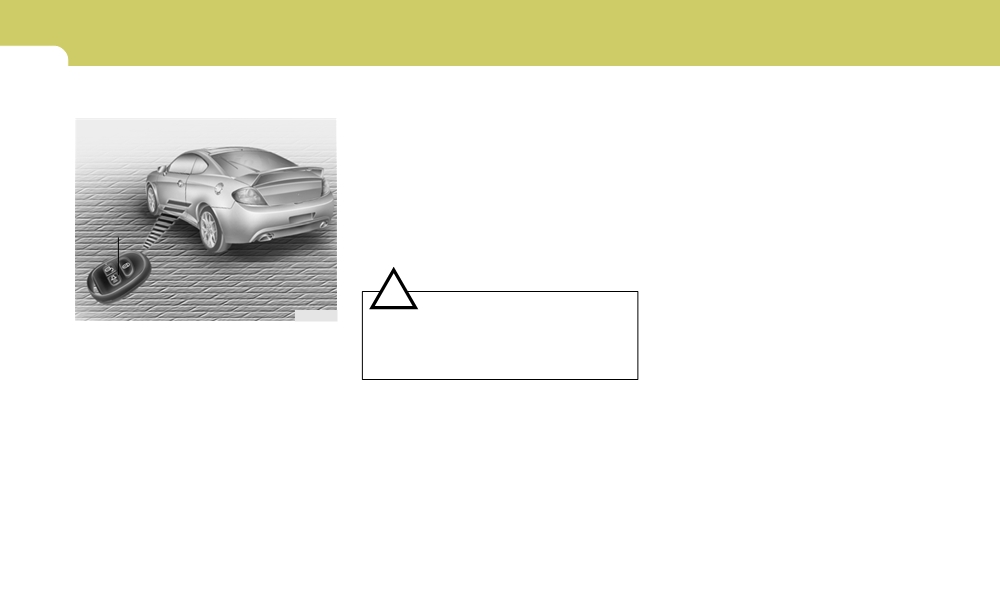

Locking doors
ignition key. If you have a problem with the
1. Close all doors.
transmitter, contact an authorized Hyundai
2. Push the "LOCK" button on the transmitter.
Dealer.
3. At the same time all doors lock, the turn signal
lights will blink once to indicate that the
NOTE:
system is armed.
Keep the transmitter away from water or
any liquid. If the keyless entry system is
inoperative due to exposure to water or
liquids, it will not be covered by your manu-
facturer vehicle warranty.
FEATURES OF YOUR HYUNDAI
1
POWER WINDOW
9
B070E02GK-GAT
B050A02GK-AAT

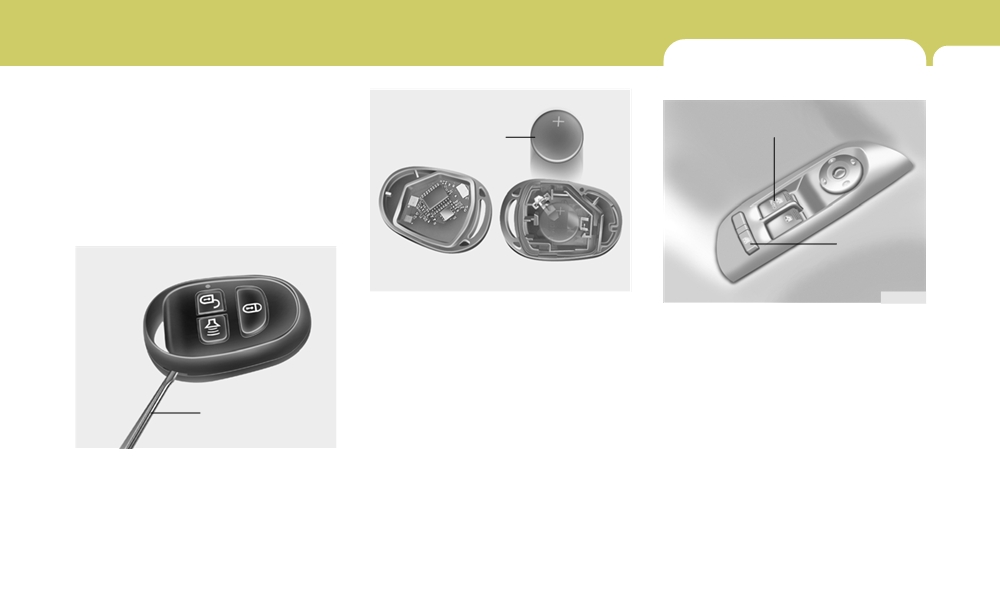

Replacing the battery
When the transmitter's battery begins to get
(1)
Battery
weak, it may take several pushes on the button
to lock or unlock the doors, and the LED will not
light. Replace the battery as soon as possible.
Battery type : CR2016
Replacement instructions:
(2)
OGK016121
HGK2015
2. Remove the old battery from the case and
The power windows operate only when the
note the polarity. Make sure the polarity of
ignition key is in the "ON" position. The main
the new battery is the same(+side facing up),
switches are located on the driver's arm rest
then insert it in the transmitter.
and control the front windows on the respective
sides of the vehicle. The windows may be
NOTE:
opened by depressing the front portion of the
Install a new battery within 30 seconds after
switch. To stop at the desired opening, release
Screwdriver
removing the old one. If installing a new
the switch. The window may be closed by pulling
battery takes more than 30 seconds, take
the front portion of the switch. To open the
OGK016122
the following steps.
window on the driver's side, press the switch(1)
1. Carefully separate the case with a blade
halfway down. The window moves as long as
1) Turn the ignition key to the "ACC" posi-
screwdriver as shown in the illustration.
the switch is operated. To fully open the driver's
tion.
window automatically, press the switch fully
2) Make sure that the turn signal lamps
down. In automatic operation, the window will
blink once by pushing the "LOCK" or
fully open even if you let go of the switch.
"UNLOCK" button on the transmitter.
1FEATURES OF YOUR HYUNDAI
SEATS
10
To stop at the desired opening, pull up and
B080A02A-AAT
release the switch. In order to prevent operation
Adjustable Front Seats
of the passenger front window by the passen-
ger, a window lock switch (2) is provided on the
arm rest of the driver's door. To disable the
!

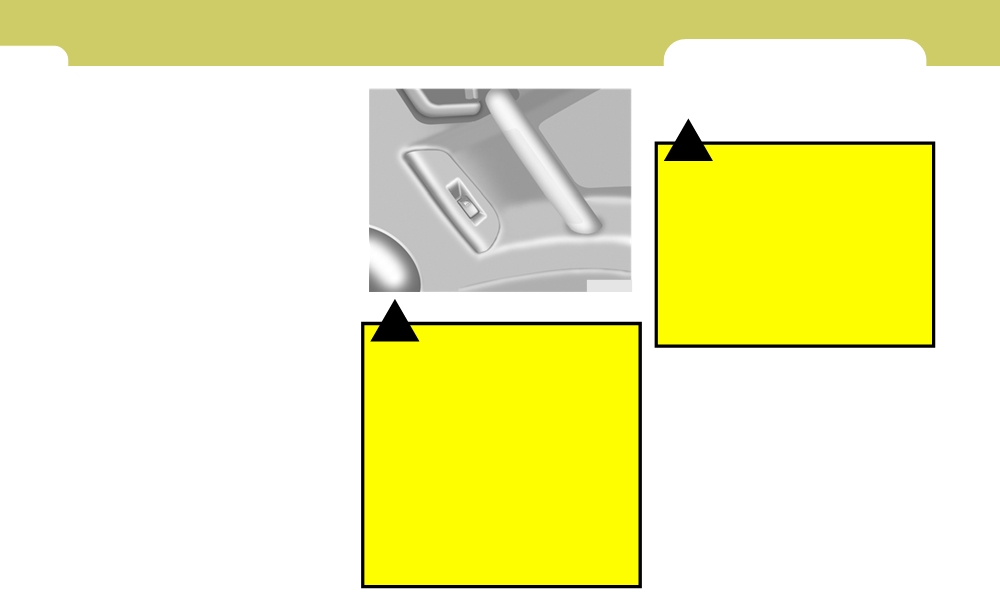

WARNING:
passenger's power window, push the window
o
Never adjust the driver’s seat while the
lock switch. To revert to normal operation, push
vehicle is moving. Any sudden or unex-
in on the window lock switch again.
pected movement of the seat could cause
you to lose control of the vehicle result-
NOTE:
ing in an accident. Only adjust the
The power windows can be operated for 30
driver’s seat when the vehicle is station-
seconds after the ignition key is turned to
ary.
the "ACC" or "LOCK" positions, or removed
o
Do not sit or lean unnecessarily close to
from the ignition switch. If the front doors
HGK2016
the airbag. Position the seat so that you
are opened during this 30 second period,
can sit as far back as possible from the
the power windows can no longer be oper-
airbag and still comfortably reach all
ated without the ignition key turned to the
!
controls.
"ON" position.
WARNING:
o
Passengers can be injured if their head,
hands or other body parts are trapped by
a closing window. Always check for
obstructions before raising any window.
o
NEVER leave the ignition key in the ve-
hicle.
o
NEVER leave any child unattended in the
vehicle. Even very young children may
inadvertently cause the vehicle to move,
entangle themselves in the windows, or
otherwise injure themselves or others.
o
Do not attempt to operate the main switch
on the driver's door and a switch on
another door in opposing directions at
the same time. If this is done, the window
will stop and cannot be opened or closed.
FEATURES OF YOUR HYUNDAI
1
11
B080B04A-AAT
B080C02A-AAT
Front Seat
Adjusting Seatback Angle
!
Adjusting Seat Forward and Rearward
WARNING:
After adjusting the seat, always check that
it is securely locked into place by attempt-
ing to move the seat forward or rearward
without using the lock release lever. Sud-
den or unexpected movement of the driver's
seat could cause you to lose control of the
vehicle resulting in an accident.
OGK036003
OGK036002

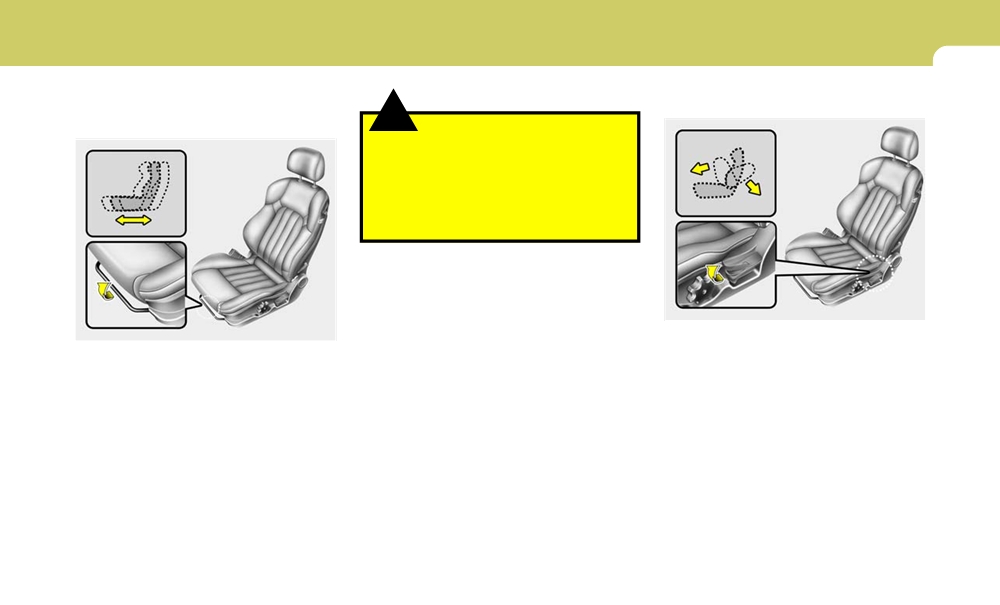

To recline the seatback, lean forward to take
your weight off it, then pull up on the recliner
To move the seat toward the front or rear, pull
control lever at the outside edge of the seat. Now
the lock release lever upward. This will release
lean back until the desired seatback angle is
the seat on its track so you can move it forward
achieved. To lock the seatback into position,
or rearward to the desired position. When you
release the recliner control lever.
find the position you want, release the lever and
slide the seat forward or rearward on its track
until it locks into the desired position and cannot
be moved further.
1FEATURES OF YOUR HYUNDAI
12
B080D02JM-AAT
Adjustable Headrests
!
!
WARNING:
WARNING:
Riding with a reclined seatback increases
your chance of serious or fatal injuries in
the event of a collision or sudden stop. The
protection of your restraint system (seat
belts and airbags) is greatly reduced by
reclining your seat. Seat belts must be snug
Lock Knob
against your hips and chest to work prop-
erly. The more the seatback is reclined, the
greater the chance that an occupant's hips
will slide under the lap belt or the occupant's
neck will strike the shoulder belt. Drivers
and passengers should always sit well back
in their seats, properly belted, and with the
HGK2032
seatbacks upright.

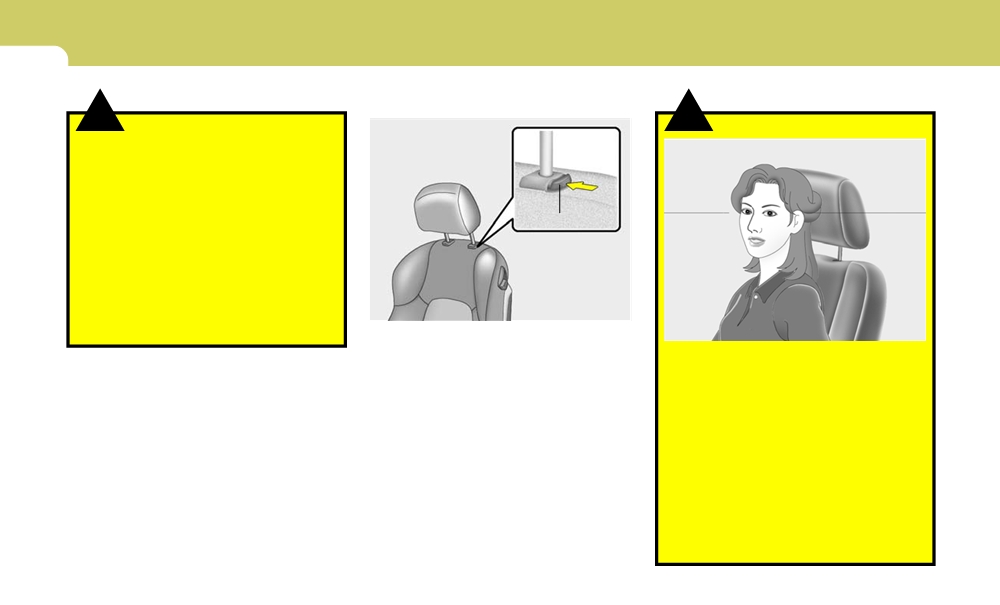

Headrests are designed to help reduce the risk
B080D01JM
of neck injuries.
o
For maximum effectiveness in case of an
To raise the headrest, pull it up. To lower the
accident the headrest should be ad-
headrest, push it down while pressing the lock
justed so the middle of the headrest is at
knob. To remove the headrest, raise it as far as
the same height as the top of the
it can go then press the lock knob while pulling
occupant's eyes. For this reason, the
upward. This should only be done when the seat
use of a cushion that holds the body
is not occupied.
away from the seatback is not recom-
mended.
o
Do not operate vehicle with the head-
rests removed as injury to the occupants
may occur in the event of an accident.
Headrests may provide protection against
neck injuries when properly adjusted.
o
Do not adjust the headrest hejght while
the vehicle is in motion.
FEATURES OF YOUR HYUNDAI
1
13
B080E01F-AAT
B080F01F-AAT
B130A02GK-AAT
Lumbar Support Control
Seat Cushion Height Adjustment
Rear Seat Entry (Walk in device)
(Driver's seat only) (If Installed)
(Driver's Seat Only) (If Installed)
The driver and front passenger's seatbacks
should be tilted to enter the rear seat.
SOFT
FIRM
OGK036005
OGK036004

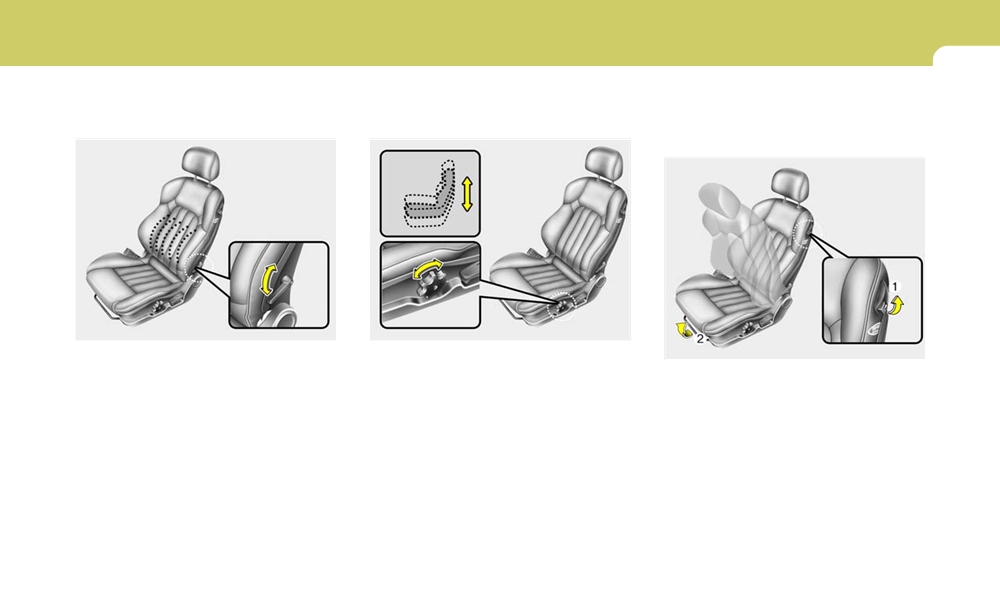

The driver's seat is equipped with adjustable
To raise or lower the front part of the seat
OGK036007
lumbar support.
cushion, turn the knob forward or rearward.
By pulling up the walk in device lever (1) at the
To increase the amount of lumbar support, pull
left-upper side of the driver side seatback, the
the lever forward.
seatback will tilt forward. Then pull the lock
To decrease it, push the lever toward the rear.
release lever (2) up to move the seat forward.



















Content   ..  1  2  3   ..
