Hyundai Santa Fe XL (2019 year). Instruction - part 15
Features of your vehicle

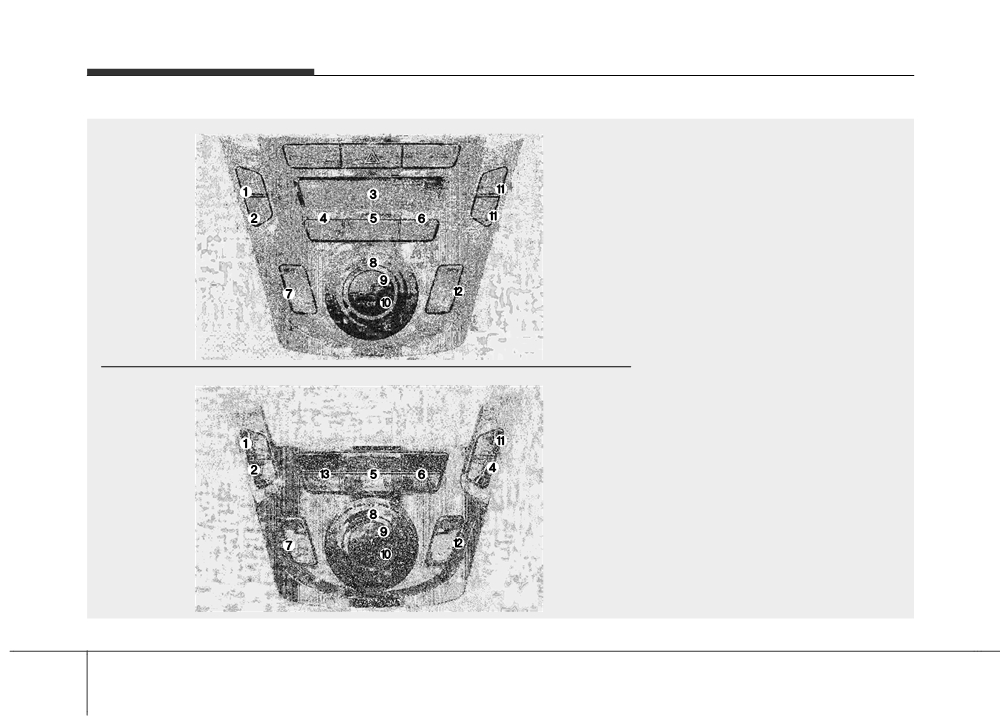

■ Front climate control (Type C)
1. Front windshield defroster button
2. Rear window defrost button
3. A/C display
4. Air conditioning button*
5. Mode selection button
6. SYNC button
7. Driver's temperature control button
8. Front fan speed control knob
■ Front climate control (Type D)
9. AUTO (automatic control) button
10. Blower OFF button
11. Air intake control button* or recirculated
air position button*
12. Passenger's temperature control button
13. Climate control information screen
selection button
* if equipped
ONC047087N/ONC047088N
4 150
Features of your vehicle
Automatic heating and air con-
✽ NOTICE
ditioning
•
To turn the automatic operation
off, select any button or knob of
the following:
- Mode selection button
- Front windshield defrost button
(Press the button one more time
to deselect the front windshield
defroster function. The 'AUTO'
sign will illuminate on the infor-
mation display once again.)
ODM042290
- Fan speed control knob
2. Set the driver’s temperature con-
The selected function will be con-
trolled manually while other func-
trol button to set the desired tem-
ONC045610C
perature.
tions operate automatically.

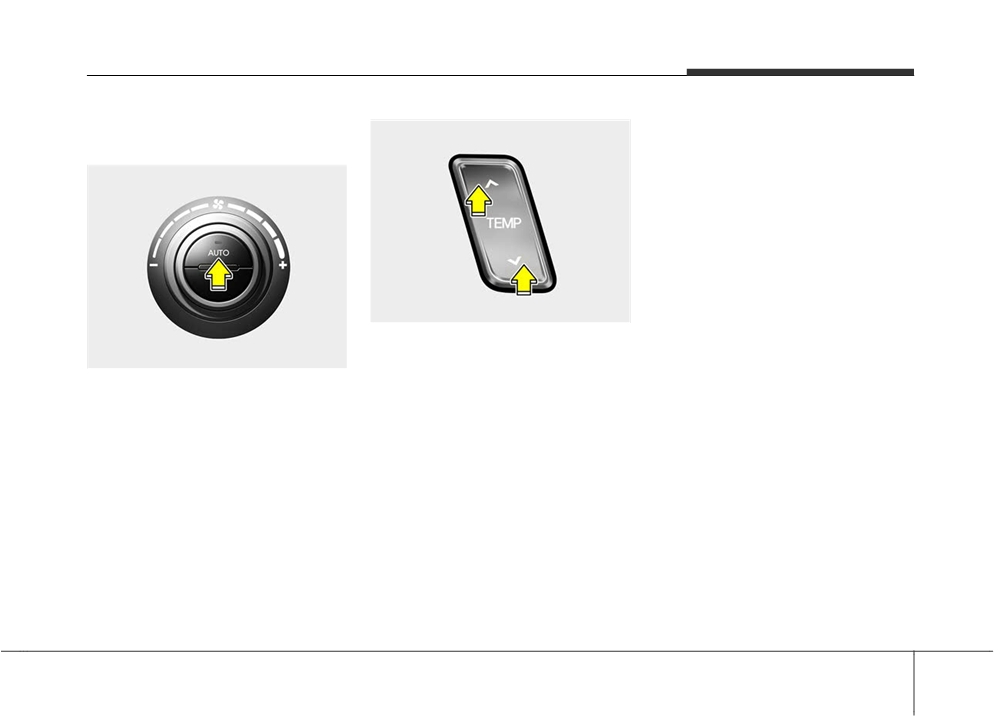

1. Press the AUTO button.
•
For your convenience and to
improve the effectiveness of the
The modes, fan speeds, air intake
climate control, use the AUTO
and air-conditioning will be controlled
button and set the temperature to
automatically according to the tem-
73°F (23°C).
perature setting.
4 151
Features of your vehicle
Manual heating and air condi-

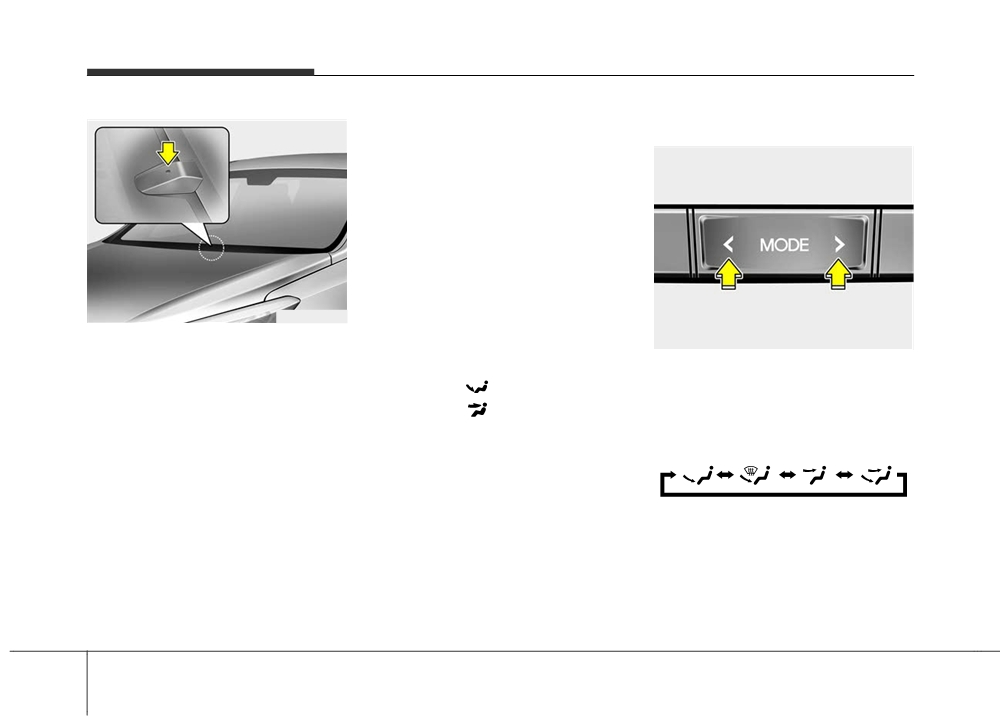

Mode selection
tioning
The heating and cooling system can
be controlled manually by pressing
buttons or turning knob(s) other than
the AUTO button. In this case, the
system works sequentially according
to the order of buttons or knob(s)
selected.
1. Start the engine.
ODM042336
2. Set the mode to the desired posi-
tion.
✽ NOTICE
ODM042288
For improving the effectiveness of
Never place anything over the sen-
heating and cooling;
The mode selection button controls
sor located on the instrument panel
the direction of the air flow through
- Heating:
to ensure better control of the heat-
the ventilation system.
ing and cooling system.
- Cooling:
The air flow outlet port is converted
3. Set the temperature control to the
as follows:
desired position.
4. Set the air intake control to the
outside (fresh) air position.
5. Set the fan speed control to the
desired speed.
Refer to the illustration in the
6. If air conditioning is desired, turn
"Manual climate control system".
the air conditioning system on.
Press the AUTO button in order to
convert to full automatic control of
the system.
4 152
Features of your vehicle

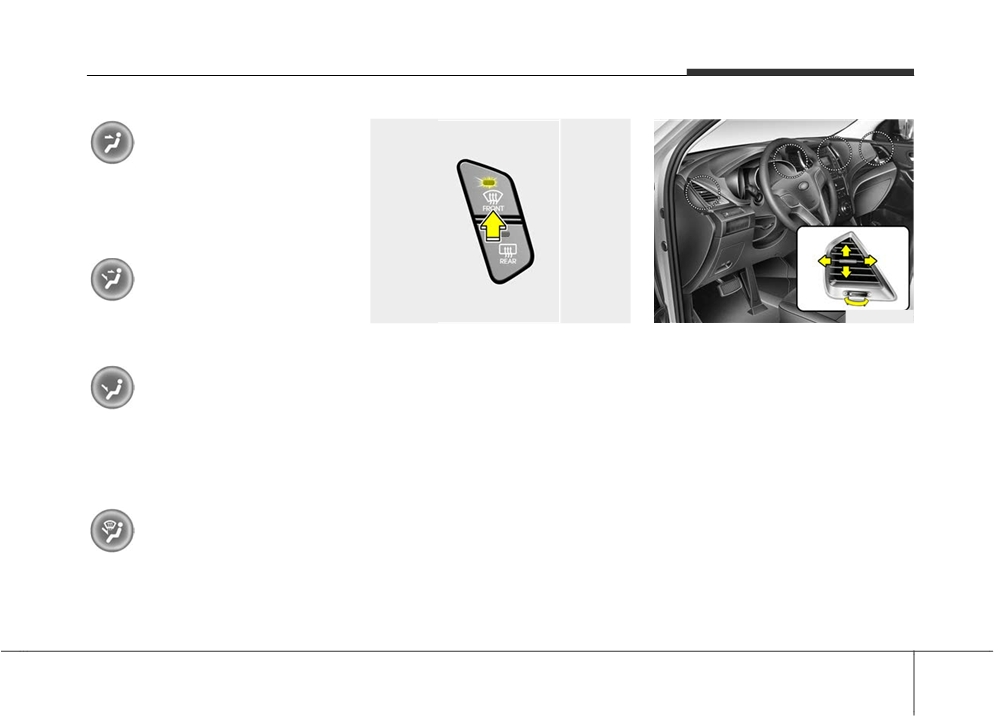

Face-Level
Air flow is directed toward the upper
body and face. Additionally, each
outlet can be controlled to direct the
air discharged from the outlet.
Bi-Level
ODM042289
ODM042279
Air flow is directed towards the face
and the floor.
Defrost-Level
Instrument panel vents
Most of the air flow is directed to the
The outlet vents can be opened or
windshield with a small amount of air
closed separately using the thumb-
Floor-Level
directed to the side window defrosters.
wheel.
Also, you can adjust the direction of
Most of the air flow is directed to the
air delivered from these vents using
floor, with a small amount of the air
the vent control lever as shown.
being directed to the windshield and
side window defrosters.
Floor & Defrost
Most of the air flow is directed to the
floor and the windshield with a small
amount directed to the side window
defrosters.
4 153
Features of your vehicle

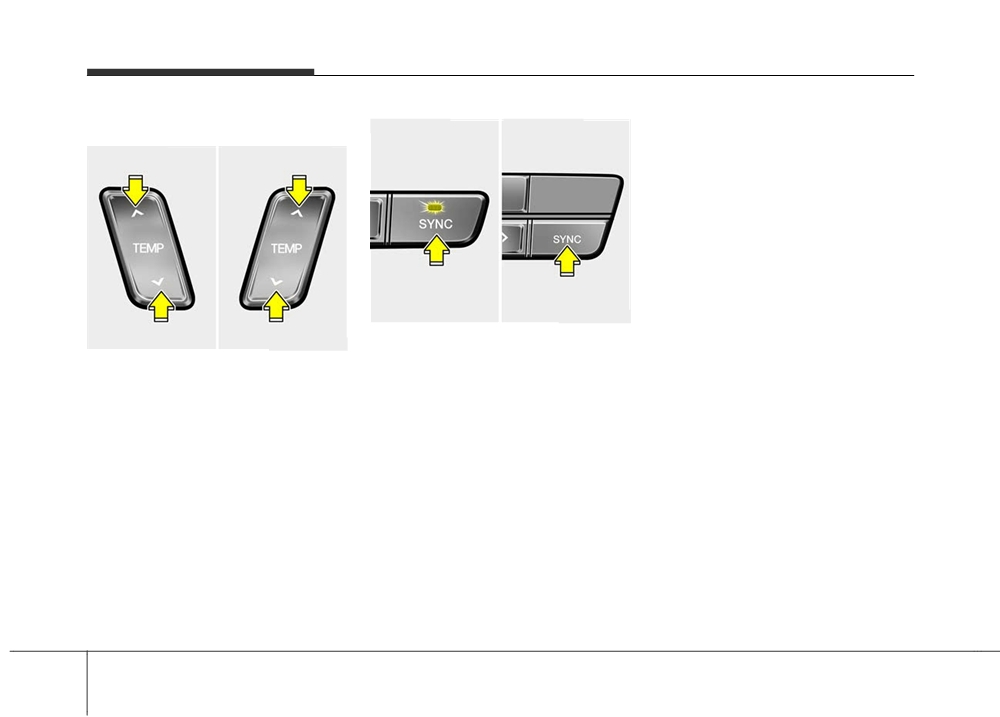

Temperature control
■ Type A
■ Type B
Adjusting the driver and passenger
side temperature individually
■ Driver’s side
■ Passenger’s side
•
Press the "SYNC" button again to
adjust the driver and passenger
side temperature individually. The
illumination of button turns off.
•
Press the driver side temperature
control button to adjust the driver
side temperature.
•
Press the passenger side tempera-
ture control button to adjust the
ONC045611C
passenger side temperature.
Adjusting the driver and passenger
ODMECL2003
side temperature equally
The temperature will increase by
• Press the "SYNC" button to adjust
pushing the up button. Each push of
the driver and passenger side tem-
the button will cause the temperature
perature equally.
to increase by 1°F/0.5°C.
The passenger side temperature
The temperature will decrease by
will be set to the same temperature
pushing the down button. Each push
as the driver side temperature.
of the button will cause the tempera-
ture to decrease by 1°F/0.5°C. When
• Press the driver side temperature
set to the lowest temperature setting,
control button. The driver and pas-
the air conditioning will operate con-
senger side temperature will be
tinuously.
adjusted equally.
4 154
Features of your vehicle
Temperature conversion

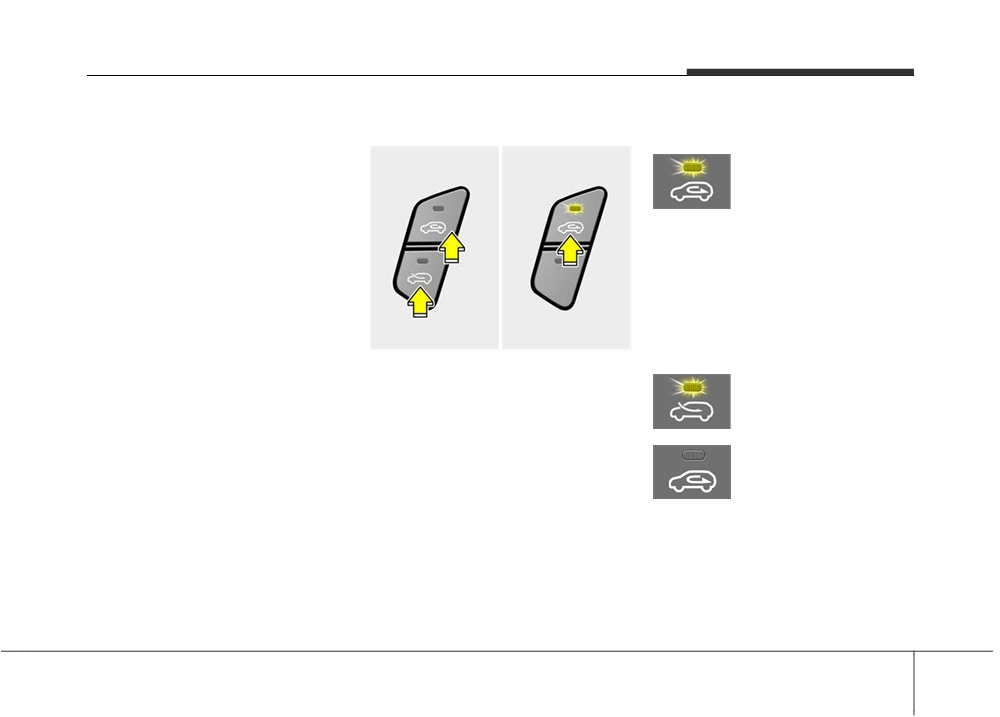

Air intake control
Recirculated air position
■ Type A, B
If the battery has been discharged or
■ Type A
■ Type B
The indicator light on the
disconnected, the temperature mode
button illuminates when
display will reset to Fahrenheit.
the recirculated air posi-
ition is selected.
To change the temperature unit from
°F to °C or °C to °F:
With the recirculated air position
selected, air from the passenger
- On the instrument cluster, go to
compartment will be drawn through
User Settings Mode
➝ Other
the heating system and heated or
Features ➝ Temperature Unit.
cooled according to the function
- Press the AUTO button for 3 sec-
selected.
onds while pressing the OFF but-
ton. (Automatic climate control sys-
tem)
OANNMM2003
Outside (fresh) air position
This is used to select the outside
■ Type A
With the outside (fresh)
(fresh) air position or recirculated air
air position selected, air
Both the temperature unit on the
position.
enters the vehicle from
cluster LCD display and climate con-
outside and is heated or
trol screen will change.
To change the air intake control posi-
tion, push the control button.
■ Type B
cooled according to the
function selected.
4 155
Features of your vehicle
✽ NOTICE
Fan speed control
WARNING
Prolonged operation of the heater in
the recirculated air position (with-
•
Continued use of the climate
out air conditioning selected) may
control system operation in
cause fogging of the windshield and
the recirculated air position
side windows and the air within the
may allow humidity to
passenger compartment may
increase inside the vehicle
become stale.
which may fog the glass and
In addition, prolonged use of the air
obscure visibility.
conditioning with the recirculated
•
Do not sleep in a vehicle with
air position selected will result in
the air conditioning or heating
excessively dry air in the passenger
system on. This may cause
compartment.
serious harm or death due to
ODM042293
a drop in the oxygen level
and/or body temperature.
The fan speed can be set to the
desired speed by turning the fan
•
Continued use of the climate
speed control knob.
control system operation in
the recirculated air position
The higher the fan speed is, the
may cause drowsiness or
more air is delivered.
sleepiness and loss of vehicle
To turn off the fan speed, press the
control. Set the air intake con-
OFF button.
trol to the outside (fresh) air
position as much as possible
while driving.
4 156
Features of your vehicle

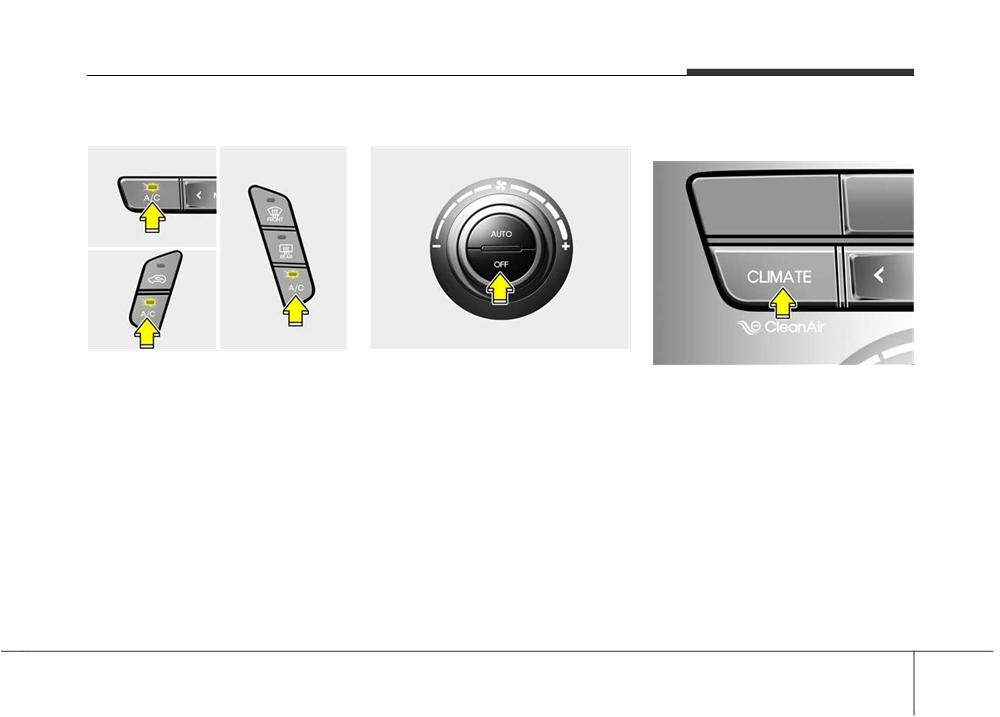

Air conditioning
OFF mode
Climate information screen selec-
tion (if equipped)
■ Type A
■ Type C
■ Type B
ONCNCL3012
ODM042295
ODM042297
Push the A/C button to turn the air
Push the OFF button to turn off the
conditioning system on
(indicator
air climate control system. However,
Press the climate information screen
light will illuminate).
you can still operate the mode and
selection button to display climate
air intake buttons as long as the igni-
information on the screen.
Push the button again to turn the air
tion switch is in the ON position.
conditioning system off.
4 157
Features of your vehicle
2. Set the fan speed control knob (2)
3rd row climate control
to the desired position.
(if equipped)
3. Set the temperature control knob
■ Front
(3) to the desired position.
Type A
Type B
4. Select the desired direction of the
air flow by pressing the mode
selecting button (4).
ONCNCL2007/ONCNCL3013
■ 3rd row
ONCNCL2002
1. To turn the 3rd row climate control
on or off, press the 3rd row climate
control ON/OFF button (1 or 5).
4 158
Features of your vehicle
WINDSHIELD DEFROSTING AND DEFOGGING
•
For maximum defrosting, set the
Manual climate control system
WARNING - Windshield
temperature control to the extreme
To defog inside windshield
heating
right/hot position and the fan speed
control to the highest speed.
Do not use the
or
posi-
tion during cooling operation in
•
If warm air to the floor is desired
extremely humid weather. The
while defrosting or defogging, set
difference between the temper-
the mode to the floor-defrost posi-
ature of the outside air and that
tion.
of the windshield could cause
•
Before driving, clear all snow and
the outer surface of the wind-
ice from the windshield, rear win-
shield to fog up, causing loss of
dow, outside rear view mirrors, and
visibility. In this case, set the
all side windows.
mode selection knob or button
•
Clear all snow and ice from the
to the
position and fan
hood and air inlet in the cowl grill to
speed control knob or button to
ODM042298
improve heater and defroster effi-
a lower speed.
ciency and to reduce the probabili-
1. Select desired temperature.
ty of fogging up the inside of the
2. Select any fan speed except “0”
windshield.
position.
3. Select the
or
position.
✽ NOTICE
4. The outside
(fresh) air will be
Be sure to keep the interior surface
selected automatically.
of the windshield clean by wiping it
If the outside (fresh) air position is
with a clean cloth and glass cleaner.
not selected automatically, press the
This will help reduce the tendency of
corresponding button manually.
the glass fogging and also improve
visibility.
4 159
Features of your vehicle
To defrost outside windshield
Automatic climate control sys-
To defrost outside windshield
tem
To defog inside windshield
ODM042299
OANNMM2006
1. Set the temperature to the
1. Set the temperature to the
extreme hot position.
OANNMM2005
extreme hot (HI) position.
2. Set the fan speed to the highest
2. Set the fan speed to the highest
1. Select desired temperature.
(extreme right) position.
(extreme right) position.
2. Select desired fan speed.
3. Select the
position.
3. Press the defrost button (
).
3. Press the defrost button (
).
4. The outside
(fresh) air will be
4. The outside (fresh) air position will
4. The outside (fresh) air position will
selected automatically.
be selected automatically.
be selected automatically.
If the
position is selected, lower
If the outside (fresh) air position is
fan speed is adjusted to a higher fan
not selected automatically, adjust the
speed.
corresponding button manually.
If the
position is selected, lower
fan speed is adjusted to a higher fan
speed.
4 160
Features of your vehicle
Auto defogging system
This indicator illuminates
The indicator of the front defroster
(if equipped)
when the auto defogging
button will blink 3 times to notify you
system senses the mois-
that the system is cancelled. To use
ture of inside the wind-
the auto defogging system again, fol-
shield and operates.
low the procedures mentioned
above.
If more moisture is in the vehicle, the
If the battery has been disconnected
automated steps operate as follows:
or discharged, it resets to the auto
If auto defogging does not defog the
defogging status.
window at step 1, outside air posi-
tion, step 2, blowing air toward the
windshield occurs.
✽ NOTICE
When the air conditioning is turned
Step 1 : Outside air position
on and the outside air position is
ONCNCO2038
Step 2 : Blowing air toward the wind-
selected by the auto defogging sys-
shield
tem, if you try to turn off the air con-
Auto defogging reduces the probabil-
Step 3 : Increasing air flow toward
ditioning and select the recirculated
ity of fogging up the inside of the
the windshield
air position, the indicator will blink
windshield by automatically sensing
3 times and the air conditioning will
Step 4 : Operating the air condition-
the moisture of inside the windshield.
not be turned off and recirculated
ing
The auto defogging system operates
air position will not be selected.
Step 5 : Maximizing the air condi-
when the heater or air conditioning is
tioning
on.
CAUTION
The auto defogging system is auto-
Do not remove the sensor cover
matically activated when the condi-
located on the upper end of the
tions are met. However, if you would
driver side windshield glass.
like to cancel the auto defogging sys-
Damage to system parts could
tem, press the front defroster button
occur and may not be covered
4 times within 2 seconds while press-
by your vehicle warranty.
ing the AUTO button.
4 161
Features of your vehicle
STORAGE COMPARTMENTS
Center console storage
Glove box
CAUTION
■ Type A
• To avoid possible theft, do not
leave valuables in the storage
compartments.
• Always keep the storage com-
partment covers closed while
driving. Do not attempt to
place so many items in the
storage compartment that the
storage compartment cover
cannot close securely.
ODMECO2033
■ Type B
ODM042304
WARNING - Flammable
To open the center console storage,
materials
pull up the lever.
Do not store cigarette lighters,
propane cylinders, or other
flammable/explosive materials
in the vehicle. These items may
catch fire and/or explode if the
vehicle is exposed to hot tem-
ODMECO2032
peratures for extended periods.
The glove box can be locked and
unlocked with the mechanical key (1).
To open the glove box, push the but-
ton (2) and the glove box will auto-
matically open (3). Close the glove
box after use.
4 162
Features of your vehicle
Multi box (if equipped)
Sunglass holder
WARNING
To reduce the risk of injury in an
accident or sudden stop, always
keep the glove box door closed
while driving.
ODM042307
ODM042308
To open the cover, push the lever (1)
To open the sunglass holder, press
and the multi box will open automati-
the cover and the holder will slowly
cally.
open. Place your sunglasses in the
compartment door with the lenses
It can be used for storing small items.
facing out. Push to close.
CAUTION
Do not drive with the multi box
open.
4 163
Features of your vehicle
Luggage tray
WARNING
•
Do not keep objects except
sunglasses inside the sun-
glass holder. Such objects
can be thrown from the holder
in the event of a sudden stop
or an accident, possibly injur-
ing the passengers in the
vehicle.
•
Do not open the sunglass
holder while the vehicle is
moving. The rear view mirror
ONCNCO2024
of the vehicle can be blocked
by an open sunglass holder.
You can place a first aid kit, a reflec-
tor triangle, tools, etc. in the luggage
•
Do not put the glasses
tray for easy access.
forcibly into a sunglass holder
to prevent breakage or defor-
Grasp the handle on the top of the
mation of glasses. It may
cover and lift it.
cause personal injury if you
try to open it forcibly when the
glasses are jammed in holder.
4 164
Features of your vehicle
INTERIOR FEATURES
Cigarette lighter (if equipped)
Cup holder
WARNING
■ Front
• Do not hold the lighter in after
it is already heated because it
will overheat.
• If the lighter does not pop out
within 30 seconds, remove it
to prevent overheating.
• Do not insert foreign objects
into the socket of the cigarette
OANNCO43014
lighter. It may damage the cig-
■ Center
arette lighter.
ONC047616N
To use the cigarette lighter, the igni-
✽ NOTICE
tion switch must be in the ACC or ON
Only a genuine HYUNDAI lighter
position.
should be used in the cigarette
Push the cigarette lighter all the way
lighter socket. The use of plug-in
into its socket. When the element is
accessories (shavers, hand-held vac-
heated, the lighter will pop out to the
ODM042316
uums, and coffee pots, etc.) may
■ Rear
"ready" position.
damage the socket or cause electri-
If it is necessary to replace the ciga-
cal failure.
rette lighter, use only a genuine
HYUNDAI replacement or its
approved equivalent.
ONCNCO2026
4 165
Features of your vehicle
Cups or small beverage cans may be
Sunvisor
placed in the cup holders.
WARNING
To use the center cup holder, pull
Keep cans or bottles out of
down the armrest and press the
direct sun light and do not put
open button.
them in a vehicle that is hot up.
It may explode.
WARNING - Hot liquids
•
Do not place uncovered cups
CAUTION
of hot liquid in the cup holder
When cleaning spilled liquids,
while the vehicle is in motion.
do not dry the cup holder at
If the hot liquid spills, you may
OYF049145
high temperatures. This may
burn yourself. Such a burn to
damage the chrome trim of the
the driver could lead to loss of
cup holder.
control of the vehicle.
•
To reduce the risk of personal
injury in the event of sudden
CAUTION
stop or collision, do not place
uncovered or unsecured bot-
Do not place uncovered cups in
tles, glasses, cans, etc., in the
the cup holder while the vehicle
cup holder while the vehicle is
is in motion. If the liquid spills,
in motion.
electric systems may malfunc-
tion.
HTG2174
Use the sunvisor to shield direct light
through the front or side windows.
To use a sunvisor, pull it downward.
4 166
