Features of your vehicle
To use a sunvisor for a side window,
Power outlet
The power outlet is designed to pro-
pull it downward, unsnap it from the
vide power for mobile telephones or
■ Front
bracket (1) and swing it to the side
other devices designed to operate
(2).
with vehicle electrical systems. The
devices should draw less than 10
To use the vanity mirror, pull down
amps with the engine running.
the visor and slide the mirror cover
(3).
Adjust the sunvisor extension
(if
equipped) forward or backward (4).
ODMECO2037
■ Center
CAUTION
• Always have the switch in the
off position when the vanity
mirror lamp is not in use. If the
sunvisor is closed without the
lamp off, it may discharge the
battery or damage the sunvi-
sor.
ODM042318
• Always use the sunvisor
■ Rear (if equipped)
extension, after swinging the
sunvisor to the side.
ONC047125N
4 167
Features of your vehicle
AC inverter (if equipped)
(Continued)
CAUTION
•
Some electronic devices can
•
Use the power outlet only
cause electronic interference
when the engine is running
when plugged into a vehicle’s
and remove the accessory
power outlet. These devices
plug after use. Using the
may cause excessive audio
accessory plug for prolonged
static and malfunctions in
periods of time with the
other electronic systems or
engine off could cause the
devices used in your vehicle.
battery to discharge.
•
Make sure that the electric
•
Only use 10V electric acces-
devices are plugged in secure-
sories which are less than 10A
ONCNCO2027
ly. If not, it could cause a mal-
in electric capacity. If not, it
function of electric systems.
could lead to an overheated
power outlet or electric wiring
•
If you use an electric device
in the vehicle and electric sys-
with a battery, electric current
tems may malfunction.
may flow from the electric
device into the vehicle and
•
Adjust the air-conditioner or
may cause a malfunction of
heater to the lowest operating
electric systems. Only use
level when using the power
electric devices which could
outlet.
prevent inverse current.
•
Close the cover when not in
ONC047103N
use.
The AC inverter supplies 115V/150W
(Continued)
WARNING
electric power to operate electric
Do not put fingers or foreign
accessories or equipments.
elements (pin, etc.) into a power
outlet and do not touch with a
wet hand. You may get an elec-
tric shock.
4
168
Features of your vehicle
If
you wish to use the AC
(Continued)
inverter,press the AC inverter button
CAUTION
•
Some electronic accessories
while the engine is running. The light
•
To prevent the battery from
or equipments can cause elec-
on the AC inverter button will illumi-
being discharged, do not use
nate.
the AC inverter while the
tronic interference. It may
cause excessive audio noise
If you press the AC inverter button
engine is not running.
and malfunctions in other
again, the AC inverter will be deacti-
•
When not using the AC invert-
electronic systems or devices
vated and the light on the AC invert-
er,make sure to turn off the AC
in the vehicle.
er button will turn off.
inverter (the indicator on the
•
Do not use broken electronic
button does not illuminate) and
accessories or equipments,
✽ NOTICE
close the AC inverter cover.
which may damage the AC
When turning on the AC inverter, the
•
After using an electronic
inverter and electrical sys-
indicator on the AC inverter button
accessory or equipment, pull
tems of the vehicle.
is delayed while the system conducts
the plug out. Leaving the
•
Do not use two or more elec-
a self-check.
accessory or equipment
tronic accessories or equip-
plugged in for a long time may
ments at the same time. It may
cause battery discharge.
WARNING
cause damage to the electrical
•
Do not use an electronic acces-
systems of the vehicle.
To reduce a risk of serious or
sory or equipment with the
fatal injuries:
•
When the input voltage is
power consumption greater
lower, outlet LED will blink and
• Do not use a heated electric
than 150W(115V).
device such as a coffeepot,
the AC inverter will turn off
(Continued)
automatically. If the input volt-
toaster, heater, iron, etc.
age goes up to normal, the AC
• Do not insert foreign objects
inverter will turn on again.
into the outlet and do not
touch the outlet as you may
•
Do not use extensions or power
strips.
get shocked.
(Continued)
• Do not let children touch the
AC inverter.
4 169
Features of your vehicle
Clothes hanger (if equipped)
(Continued)
WARNING
•
While the power consumption
Do not hang other objects such
of some electrical device/
as hangers or hard objects
appliance may be within the
except clothes. Also, do not put
AC inverter's electric power
heavy, sharp or breakable
range, it may malfunction in
objects in the clothes pockets.
below cases.
In an accident or when the cur-
- If
the device/appliance
tain air bag is inflated, it may
requires high electric power
cause vehicle damage or per-
for initial start up
sonal injury.
- If
the device/appliance
processes
precise/very
ODMECO2038
accurate data
- If
the device/appliance
To use the hanger, pull down the
requires very stable supply
upper portion of hanger.
of electricity
4 170
Features of your vehicle
Floor mat anchor(s)
WARNING
WARNING
■ Type A
■ Type B
The floor mat must be properly
The following must be observed
anchored so that it will not
when installing ANY floor mat
interfere with the operation of
to the vehicle, so that it will not
the accelerator pedal. Any inter-
interfere with the pedal.
ference with the accelerator
• Ensure that the floor mats are
pedal could cause the accelera-
securely attached to the vehi-
tor pedal not to return to the
cle's floor mat anchor(s)
idle position. A pedal that can-
before driving the vehicle.
not return to the idle position
• Do not use ANY floor mat that
could lead to an accident which
cannot be firmly attached to
may result in severe personal
ODMECO2034
the vehicle’s floor mat anchors.
injury or death.
• Do not stack floor mats on top
When using a floor mat on the front
of one another (e.g. all-weath-
floor carpet, make sure it attaches to
er rubber mat on top of a car-
the floor mat anchor(s) in your vehi-
peted floor mat). Only a single
cle. This keeps the floor mat from
floor mat should be installed
sliding forward.
in each position.
IMPORTANT - Your vehicle was
manufactured with driver’s side
floor mat anchors that are
designed to securely hold the
floor mat in place. To avoid any
interference with pedal opera-
tion, HYUNDAI recommends
that only the HYUNDAI floor mat
designed for use in your vehicle
be installed.
4 171
Features of your vehicle
USB Charger (if equipped)
•
Some devices are not supported
Aux, USB and iPod® port
for fast charging but will be
charged with normal speed.
•
Use the USB charger when the
engine is running to prevent bat-
tery discharge.
•
Only devices that fits the USB port
can be used.
•
The USB charger can be used only
for battery charging purposes.
•
Battery chargers cannot be
charged.
ONC046090
ONCNCO6046
You can use the AUX port to connect
The USB charger is designed to
audio devices and the USB port to
recharge batteries of small size elec-
plug in a USB device or iPod®.
trical devices using a USB cable. The
electrical devices can be recharged
when the Engine Start/Stop button is
✽ NOTICE
in ACC/ON/START position.
When using a portable audio device
The battery charging state may be
connected to the power outlet, noise
monitored on the electrical device.
may occur during playback. If this
Disconnect the USB cable from the
happens, use the power source of the
USB port after use.
portable audio device.
❈ iPod® is a trademark of Apple Inc.
4 172
Features of your vehicle
Luggage net (holder)
✽ NOTICE
Cargo security screen
(if equipped)
(if equipped)
Vehicles equipped with a luggage
■ Type A
rail system may use the shackles to
hook the luggage net.
CAUTION
To prevent damage to the goods
or the vehicle, care should be
taken when carrying fragile or
bulky objects in the luggage
compartment.
ONCNCO2029
■ Type B
ONCNCO3031
WARNING
Use the cargo security screen to
To avoid eye injury, DO NOT
overstretch the luggage net.
hide items stored in the cargo area.
ALWAYS keep your face and
body out of the luggage net’s
recoil path. DO NOT use the lug-
gage net when the strap has vis-
ible signs of wear or damage.
ONCNCO3030
To keep items from shifting in the
cargo area, you can use the four
holders located in the cargo area to
attach the luggage net. If necessary,
contact your authorized HYUNDAI
dealer to obtain a luggage net.
4 173
Features of your vehicle
To use the cargo security screen
When the cargo security screen is not
To remove the cargo security
in use:
screen (if equipped)
1. Pull the cargo security screen
backward and up to release it from
the guides.
2. The cargo security screen will
automatically slide back in.
✽ NOTICE
The cargo security screen may not
automatically slide back in if the
cargo security screen is not fully
ONCNCO3033
ONCNCO3032
pulled out. Fully pull it out and then
1. Pull the cargo security screen
carefully slide back in.
towards the rear of the vehicle by
the handle (1).
2. Insert the guide pin into the guide
(2).
✽ NOTICE
Pull out the cargo security screen
with the handle in the center to pre-
ONCNCO2034
vent the guide pin from falling out of
1. Push in the guide pin.
the guide.
2. While pushing the lever, pull out
the cargo security screen.
3. Open the luggage tray and keep the
cargo security screen in the tray.
4 174
Features of your vehicle
To remove the cargo security
Side curtain (if equipped)
screen from the luggage tray
WARNING
• Do not place objects on the
cargo security screen. Such
objects may be thrown about
inside the vehicle and possi-
bly injure vehicle occupants
during an accident or when
braking.
• Never allow anyone to ride in
the luggage compartment. It
is designed for luggage only.
ODM042343
ONCNCO2035
CAUTION
To use the side curtain:
1. Push in the guide pin.
Since the cargo security screen
1. Lift the curtain by the hook (1).
2. While pushing the guide pin, pull
may be damaged or deformed,
2. Hang the curtain on both sides of
out the cargo security screen.
do not put luggage on it when it
the hook.
is used.
4 175
Features of your vehicle
EXTERIOR FEATURES
Roof rack (if equipped)
(Continued)
CAUTION
•
The vehicle center of gravity will
•
When carrying cargo on the
be higher when items are
roof rack, take the necessary
loaded onto the roof rack. Avoid
precautions to make sure the
sudden starts, braking, sharp
cargo does not damage the
turns, abrupt maneuvers or
roof of the vehicle.
high speeds that may result in
•
When carrying large objects
loss of vehicle control or
on the roof rack, make sure
rollover resulting in an accident.
they do not exceed the overall
•
Always drive slowly and turn
roof length or width.
corners carefully when carrying
items on the roof rack. Severe
ODM042345
wind updrafts, caused by pass-
WARNING
ing vehicles or natural causes,
If the vehicle has a roof rack, you can
•
The following specification is
can cause sudden upward pres-
load cargo on top of your vehicle.
the maximum weight that can
sure on items loaded on the
be loaded onto the roof rack.
roof rack. This is especially true
✽ NOTICE
Distribute the load as evenly
when carrying large, flat items
as possible onto the roof rack
such as wood panels or mat-
If the vehicle is equipped with a sun-
and secure the load firmly.
tresses. This could cause the
roof, be sure not to position cargo
onto the roof rack in such a way that
items to fall off the roof rack and
ROOF
100 kg (220 lbs.)
cause damage to your vehicle
it could interfere with sunroof oper-
RACK
EVENLY DISTRIBUTED
ation.
or others around you.
•
To prevent damage or loss of
Loading cargo or luggage in
cargo while driving, check fre-
excess of the specified weight
quently before or while driving
limit on the roof rack may
to make sure the items on the
damage your vehicle.
roof rack are securely fastened.
(Continued)
4 176
Features of your vehicle
AUDIO SYSTEM
✽ NOTICE
Antenna
Steering wheel audio control
• If you install an aftermarket HID
Roof antenna
headlamp, your vehicle's audio
and electronic device may mal-
function.
• Prevent chemicals such as per-
fume, cosmetic oil, sun cream,
hand cleaner, and air freshener
from contacting the interior parts
because they may cause damage
or discoloration.
ODM042327
OANNMM2901
The steering wheel incorporates
audio control buttons on the left hand
Your vehicle uses a roof antenna to
side of the steering wheel.
receive both AM and FM broadcast
signals.
CAUTION
Do not operate audio remote
control buttons simultaneously.
4 177
Features of your vehicle
MODE (1)
RADIO mode
Audio (Display Audio) / Video /
Press the button to change audio
It will function as the PRESET STA-
Navigation system (AVN)
source.
TION buttons.
(if equipped)
Detailed information for the AVN sys-
tem is described in a separately sup-
SEEK/PRESET (
/
) (2)
MEDIA mode
plied manual.
The SEEK/PRESET button has dif-
It will function as TRACK UP/DOWN
ferent functions based on the system
button.
mode.
For the following functions the button
VOLUME (VOL+/-) (3)
should be pressed for 0.8 second or
• Push the lever upward
(+) to
more.
increase the volume.
• Push the lever downward
(-) to
RADIO mode
decrease the volume.
It will function as the AUTO SEEK
select button.
MUTE (4)
• Press the button to mute the sound.
MEDIA mode
• Press the button to turn off the
It will function as the FF/REW button.
microphone during a telephone call.
If the SEEK/PRESET button is
Detailed information for audio control
pressed for less than 0.8 second, it
buttons are described in the sepa-
will work as follows in each mode.
rately supplied manual with the vehi-
cle.
4 178
Features of your vehicle
How vehicle audio works
This can be due to factors, such as
AM reception
the distance from the radio station,
FM reception
closeness of other strong radio sta-
tions or the presence of buildings,
bridges or other large obstructions in
the area.
JBM002

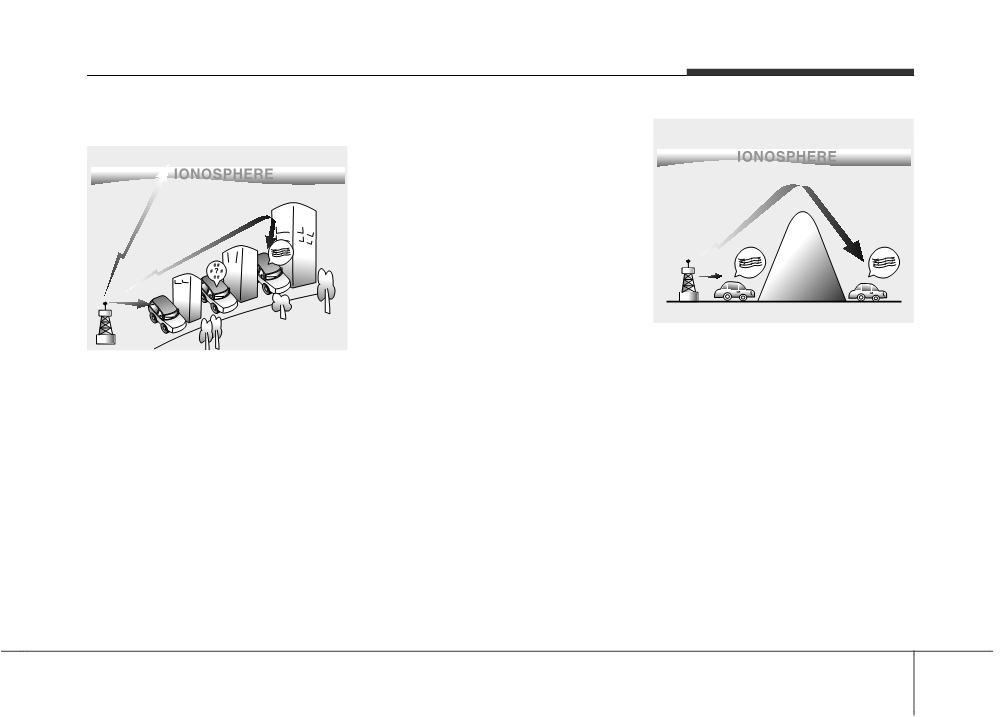

AM broadcasts can be received at
JBM001
greater distances than FM broad-
AM and FM radio signals are broad-
casts. This is because AM radio
casted from transmitter towers locat-
waves are transmitted at low fre-
ed around your city. They are inter-
quencies. These long distance, low
cepted by the radio antenna on your
frequency radio waves can follow the
vehicle. This signal is then processed
curvature of the earth rather than
by the radio and sent to your vehicle
travelling straight. In addition, they
speakers.
curve around obstructions resulting
When a strong radio signal has
in better signal coverage.
reached your vehicle, the precise
engineering of your audio system
ensures the best possible quality
reproduction. However, in some
cases the signal coming to your vehi-
cle may not be strong and clear.
4 179
Features of your vehicle
FM radio station
JBM003
JBM004
JBM005

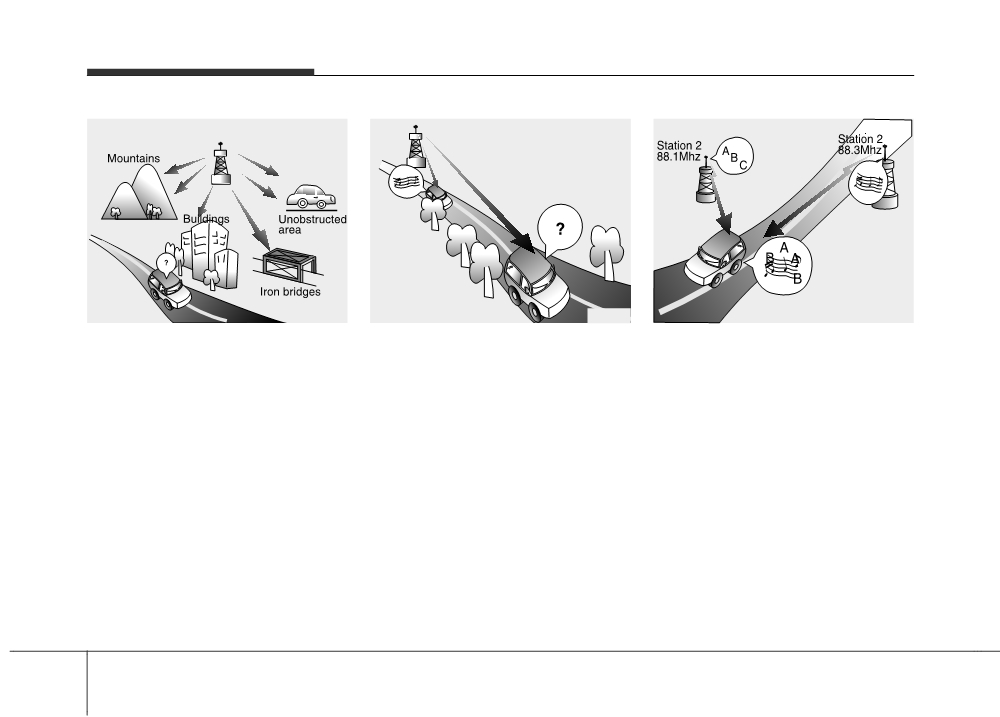

FM broadcasts are transmitted at
•
Fading - As your vehicle moves
•
Station Swapping - As an FM sig-
high frequencies and do not bend to
away from the radio station, the
nal weakens, another more power-
follow the earth's surface. Because
signal will weaken and sound will
ful signal near the same frequency
of this, FM broadcasts generally
begin to fade. When this occurs,
may begin to play. This is because
begin to fade within short distances
we suggest that you select another
your radio is designed to lock onto
from the station. Also, FM signals are
stronger station.
the clearest signal. If this occurs,
easily affected by buildings, moun-
select another station with a
•
Flutter/Static - Weak FM signals or
tains, and obstructions. This can lead
stronger signal.
large obstructions between the
to undesirable or unpleasant listen-
transmitter and your radio can dis-
•
Multi-Path Cancellation
- Radio
ing conditions which might lead you
turb the signal causing static or
signals being received from sever-
to believe a problem exists with your
fluttering noises to occur. Reducing
al directions can cause distortion
radio. The following conditions are
the treble level may lessen this
or fluttering. This can be caused by
normal and do not indicate radio
effect until the disturbance clears.
a direct and reflected signal from
trouble:
the same station, or by signals
from two stations with close fre-
quencies. If this occurs, select
another station until the condition
has passed.
4
180
Features of your vehicle
Using a cellular phone or a two-
way radio
CAUTION
WARNING
When using a communication
Do not use a cellular phone
When a cellular phone is used inside
the vehicle, noise may be produced
system such as a cellular phone
while driving. Stop at a safe
or a radio set inside the vehicle,
location to use a cellular phone.
from the audio system. This does not
mean that something is wrong with
a separate external antenna
must be fitted. When a cellular
the audio equipment. In such a case,
try to operate mobile devices as far
phone or a radio set is used
with an internal antenna alone,
from the audio equipment as possible.
it may interfere with the vehi-
cle's electrical system and
adversely affect safe operation
of the vehicle.
4 181
Features of your vehicle
(Continued)
WARNING
CAUTION
•
Please refrain from use if the
•
Do not stare at the screen
•
Operating the device while
screen is blank or no sound
while driving. Staring at the
driving could lead to accidents
can be heard as these signs
screen for prolonged periods
due to a lack of attention to
may indicate product malfunc-
of time could lead to traffic
external surroundings. First
tion. Continued use in such
accidents.
park the vehicle before operat-
conditions could lead to acci-
ing the device.
•
Do not disassemble, assem-
dents(fires, electric shock) or
ble, or modify the audio sys-
•
Adjust the volume to levels that
product malfunctions.
tem. Such acts could result in
allow the driver to hear sounds
•
Do not touch the antenna dur-
accidents, fire, or electric
from outside of the vehicle.
ing thunder or lightening as
shock.
Driving in a state where exter-
such acts may lead to light-
nal sounds cannot be heard
•
Using the phone while driving
ning induced electric shock.
may lead to accidents.
may lead to a lack of attention of
•
Do not stop or park in park-
traffic conditions and increase
•
Pay attention to the volume set-
ing-restricted areas to operate
the likelihood of accidents.
ting when turning the device
the product. Such acts could
Use the phone feature after
on. A sudden output of extreme
lead to traffic accidents.
parking the vehicle.
volume upon turning the
•
Use the system with the vehi-
device on could lead to hearing
•
Heed caution not to spill water
cle ignition turned on.
impairment. (Adjust the volume
or introduce foreign objects
Prolonged use with the igni-
to a suitable levels before turn-
into the device. Such acts
tion turned off could result in
ing off the device.)
could lead to smoke, fire, or
battery discharge.
product malfunction.
(Continued)
(Continued)
4 182
Features of your vehicle
(Continued)
(Continued)
•
Turn on the car ignition before
•
Do not place beverages close
using this device. Do not oper-
to the audio system. Spilling
ate the audio system for long
beverages may lead to system
periods of time with the ignition
malfunction.
turned off as such operations
•
In case of product malfunc-
may lead to battery discharge.
tion, please contact your place
•
Do not subject the device to
of purchase or After Service
severe shock or impact. Direct
center.
pressure onto the front side of
•
Placing the audio system
the monitor may cause dam-
within an electromagnetic
age to the LCD or touch
environment may result in
screen.
noise interference.
•
When cleaning the device,
•
Prevent caustic solutions
make sure to turn off the
such as perfume and cosmet-
device and use a dry and
ic oil from contacting the
smooth cloth. Never use
dashboard because they may
tough materials, chemical
cause damage or discol-
cloths, or solvents
(alcohol,
oration.
benzene, thinners, etc.) as
such materials may damage
the device panel or cause
color/quality deterioration.
(Continued)
4 183
