Features of your vehicle
Self-diagnosis (if equipped)
WARNING
When you shift the gear to the R
Pay close attention when the
(Reverse) position and if one or more
vehicle is driven close to
of the below occurs you may have a
objects on the road, particularly
malfunction in the rear parking assist
pedestrians, and especially
system.
children. Be aware that some
• You don't hear an audible warning
objects may not be detected by
sound or if the buzzer sounds inter-
the sensors, due to the object’s
mittently.
distance, size or material, all of
If this occurs, have your vehicle
which can limit the effective-
checked by an authorized HYUNDAI
ness of the sensor. Always per-
dealer as soon as possible.
form a visual inspection to
make sure the vehicle is clear of
all obstructions before moving
WARNING
the vehicle in any direction.
Your new vehicle warranty does
not cover any accidents or dam-
age to the vehicle or injuries to
its occupants due to a rear
parking assist system malfunc-
tion. Always drive safely and
cautiously.
4 116
Features of your vehicle
Rear View Camera

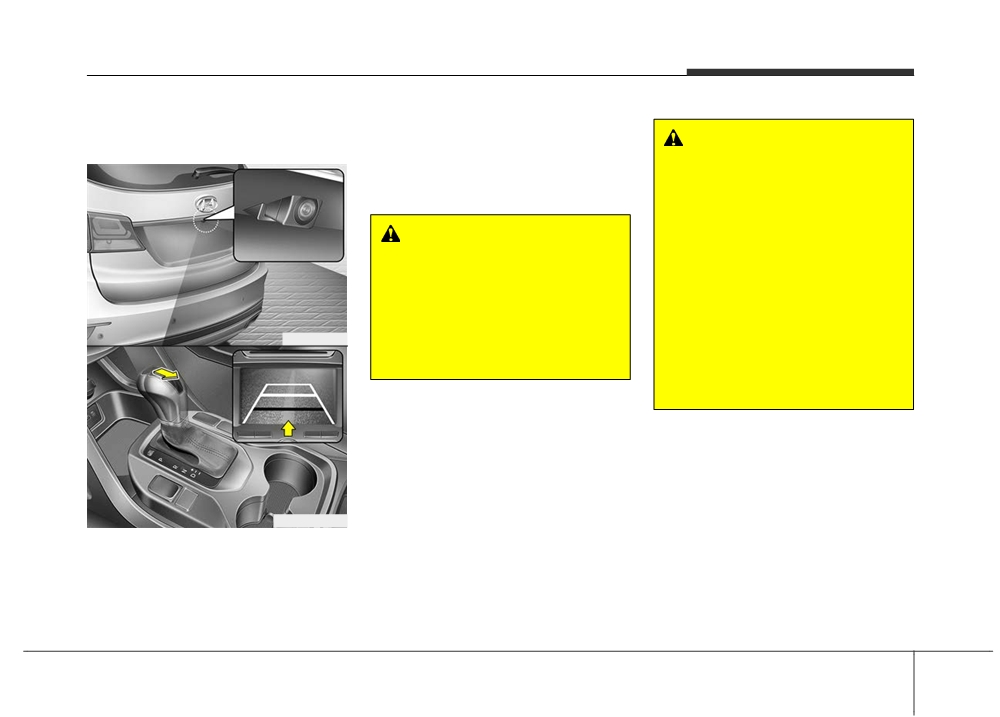

This is a supplemental system that
(if equipped)
provides a view of the area behind
WARNING
the vehicle through the A/V display
•
Never rely solely on the Rear
while the vehicle is in the R
View Camera when backing-
(Reverse) position.
up.
•
ALWAYS look around your
WARNING
vehicle to make sure there are
no objects or obstacles
The Rear View Camera is not a
before moving the vehicle in
safety device. It only serves to
any direction to prevent a col-
assist the driver in identifying
lision.
objects directly behind the mid-
dle of the vehicle. The camera
•
Always pay close attention
ONC046105
does NOT cover the complete
when the vehicle is driven
area behind the vehicle.
close to objects, particularly
pedestrians, and especially
children.
✽ NOTICE
Always keep the camera lens clean.
The camera may not work normally
if the lens is covered with dirt or
snow.
ONC047118N
The Rear View Camera will activate
when the engine is running and the
shift lever is in the R (Reverse) posi-
tion.
4 117
Features of your vehicle

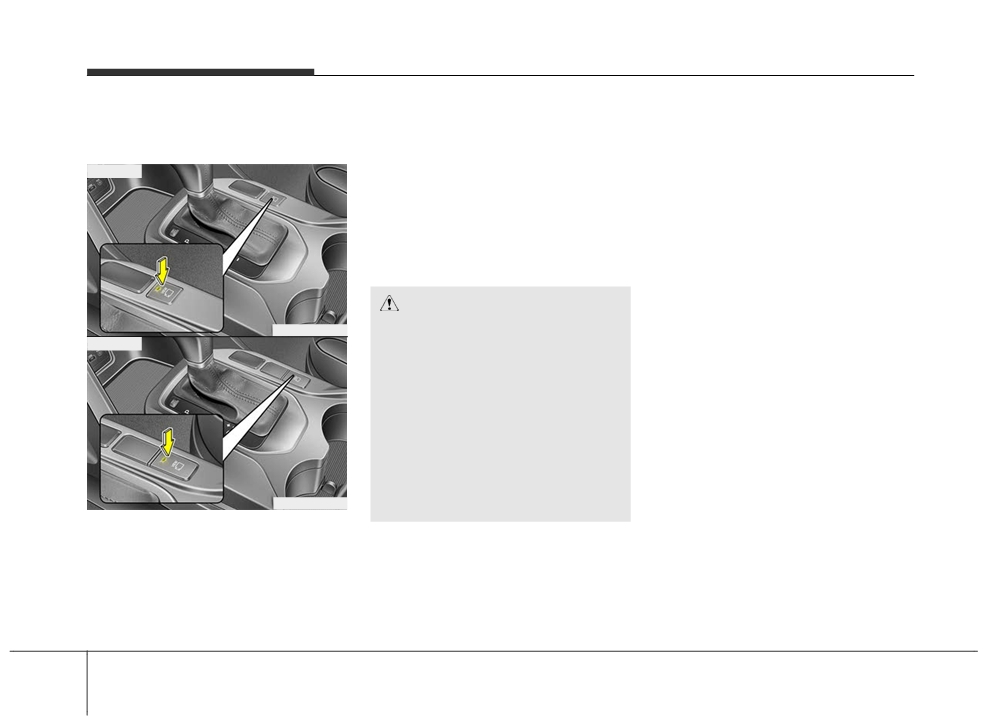

Multi-view Camera System
Operating conditions
✽ NOTICE
(if equipped)
- When the Engine Start/Stop button
•
When vehicle speed is over 12 mph
is in the ON position
(20km/h), the Multi-view Camera
■ Type A
- When the transaxle is on D, N or R
System will turn off. The system
will not automatically turn on
- When vehicle speed is not over 20
again, even though vehicle speed
km/h (12 mph) driving forward.
gets below 12 mph (20 km/h).
- When vehicle speed is not over 10
Push the button again, to turn on
km/h (6 mph) driving backward.
the system.
•
When the vehicle is backing up,
the Multi-view Camera System
CAUTION
will turn ON regardless of vehicle
ONC047122N
•
Multi-view Camera System
speed or button status. However, if
■ Type B
only serves to assist the driv-
vehicle speed is over 6 mph (10
er in parking. ALWAYS look
km/h) when driving backward, the
around your vehicle to make
system will turn off.
sure there are no objects or
•
A warning appears on the system
obstacles before moving the
when:
vehicle.
- The liftgate (tailgate) is opened
•
Always keep the camera lens
- The driver's door is opened
clean. The camera may not
- The passenger's door is opened
work normally if the lens is
•
If the Multi-view Camera System
ONC047123N
covered with foreign material.
is not operating normally, the sys-
tem should be checked by an
The Multi-view Camera System can
authorized HYUNDAI dealer.
assist in parking by allowing the driv-
er to see around the vehicle.
For more details, please refer to the
separate manual that was supplied
Push the button into the ON position
with your vehicle.
to operate the system.
To cancel the system, push the but-
ton again.
4 118
Features of your vehicle
HAZARD WARNING FLASHER
■ Type A
The hazard warning flasher should
be used whenever you find it neces-
sary to stop the car in a hazardous
location. When you must make such
an emergency stop, always pull off
the road as far as possible.

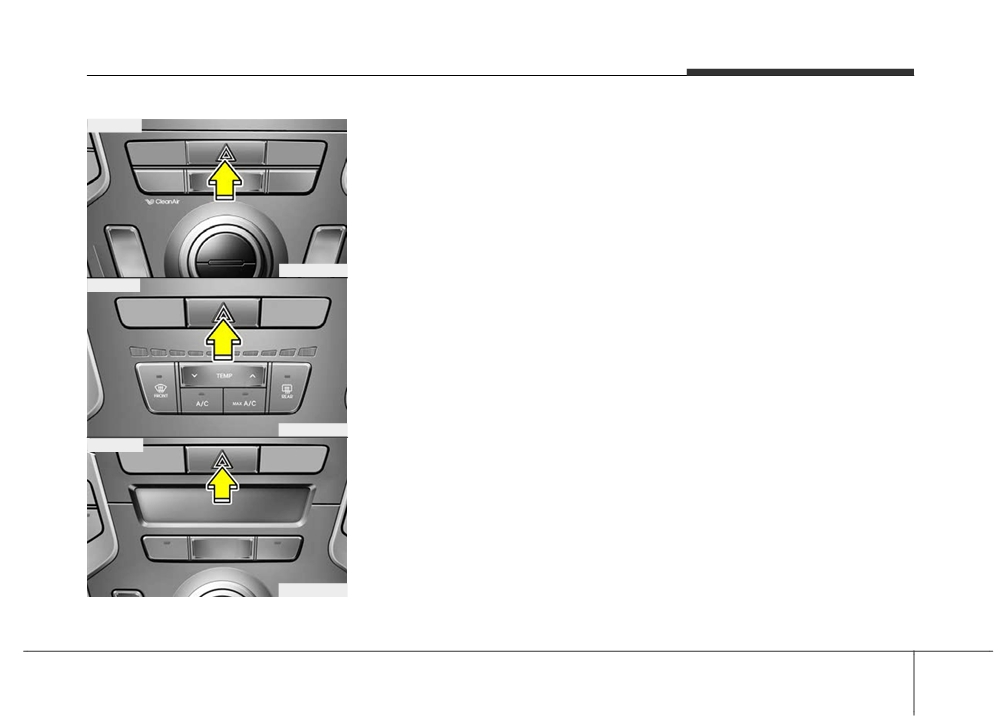

The hazard warning lights are turned
on by pushing in the hazard switch.
This causes all turn signal lights to
ODM042242
■ Type B
blink. The hazard warning lights will
operate even though the key is not in
the ignition switch.
To turn the hazard warning lights off,
push the switch a second time.
ODM042243
■ Type C
ONC047620L
4 119
Features of your vehicle
LIGHTING
Battery saver function
Headlamp delay (if equipped)
CAUTION
•
The purpose of this feature is to
If you turn the ignition switch to the
If the driver gets out of the vehi-
prevent the battery from being dis-
ACC or OFF position with the head-
cle through other doors (other
charged. The system automatically
lights ON, the headlights remain on
than the driver's door), the bat-
turns off the parking lights when
for about 5 minutes. However, if the
tery saver function does not
the driver removes the ignition key
driver's door is opened and closed,
operate and the headlamp delay
(smart key : turns off the engine)
the headlights are turned off after 15
does not turn off automatically.
and opens the driver-side door.
seconds.
This will cause the battery to be
•
With this feature, the parking lights
The headlights can be turned off by
discharged. In this case, make
will be turned off automatically if
pressing the lock button on the trans-
sure to turn off the lamp before
the driver parks on the side of the
mitter (or smart key) twice or turning
getting out of the vehicle.
road at night.
the light switch to the OFF or Auto
position.
If necessary, to keep the lights on
when the ignition key is removed
However, if you turn the light switch
(smart key : turns off the engine),
to the Auto position when it is dark
perform the following:
outside, the headlights will not be
turned off.
1) Open the driver-side door.
2) Turn the parking lights OFF and
You can activate or deactivate this
ON again using the light switch
feature. Refer to "User Settings" in
on the steering column.
this section.
4 120
Features of your vehicle
Lighting control

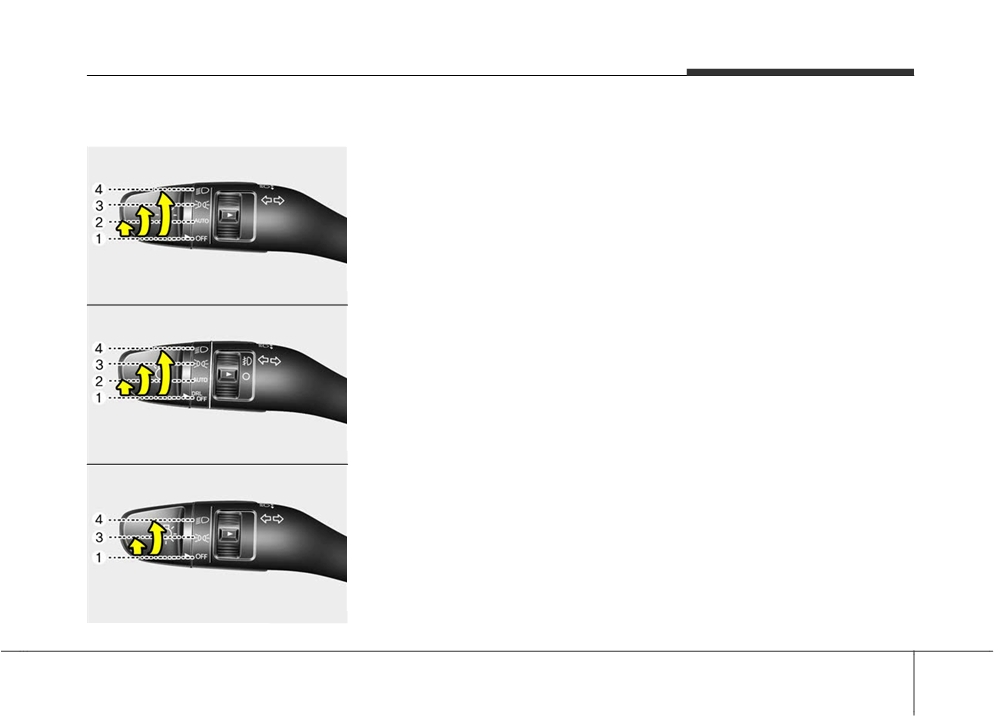

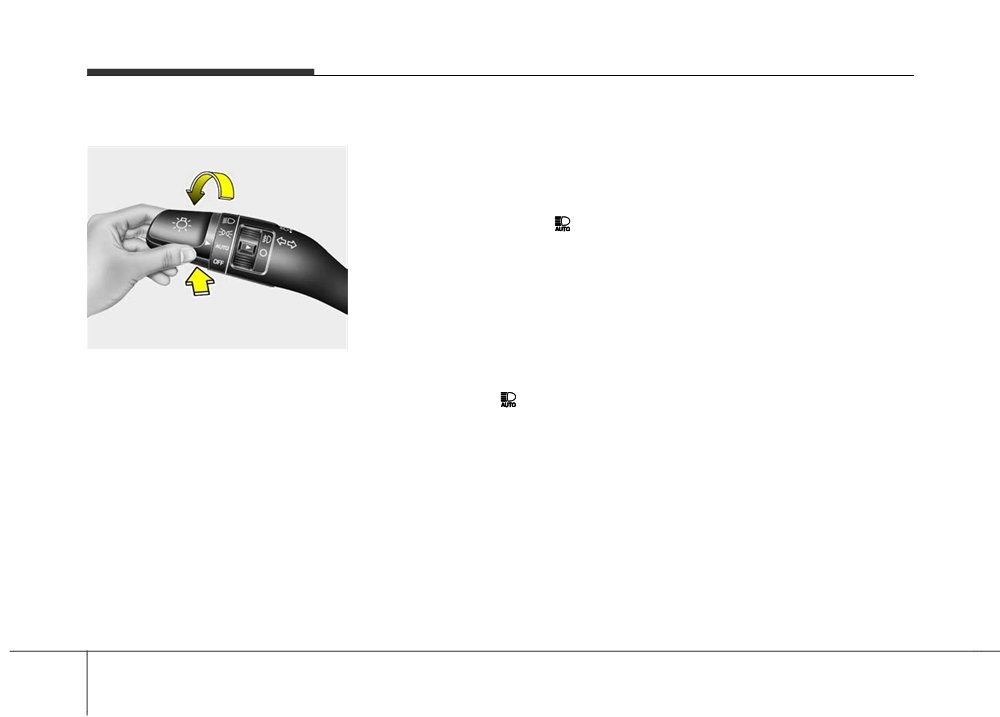

To operate the lights, turn the knob at
Daytime running light (DRL)
the end of the control lever to one of
(if equipped)
■ Type A
the following positions:
Daytime Running Lights (DRL) can
(1) OFF (or DRL OFF) position
make it easier for others to see the
(2) AUTO light position
front of your vehicle during the day.
DRL can be helpful in many different
(3) Parking lamp position
driving conditions, and it is especial-
(4) Headlamp position
ly helpful after dawn and before sun-
set.
• The DRL will be on when:
ODMCCO2006
- The light switch is in the AUTO
■ Type B
light position.
• The DRL will be off when:
- The headlights are ON.
- Engine stops.
- The parking brake is applied.
- The light switch is in the DRL
OFF position
ONC047124N
■ Type C
ODMCCO2007
4 121
Features of your vehicle

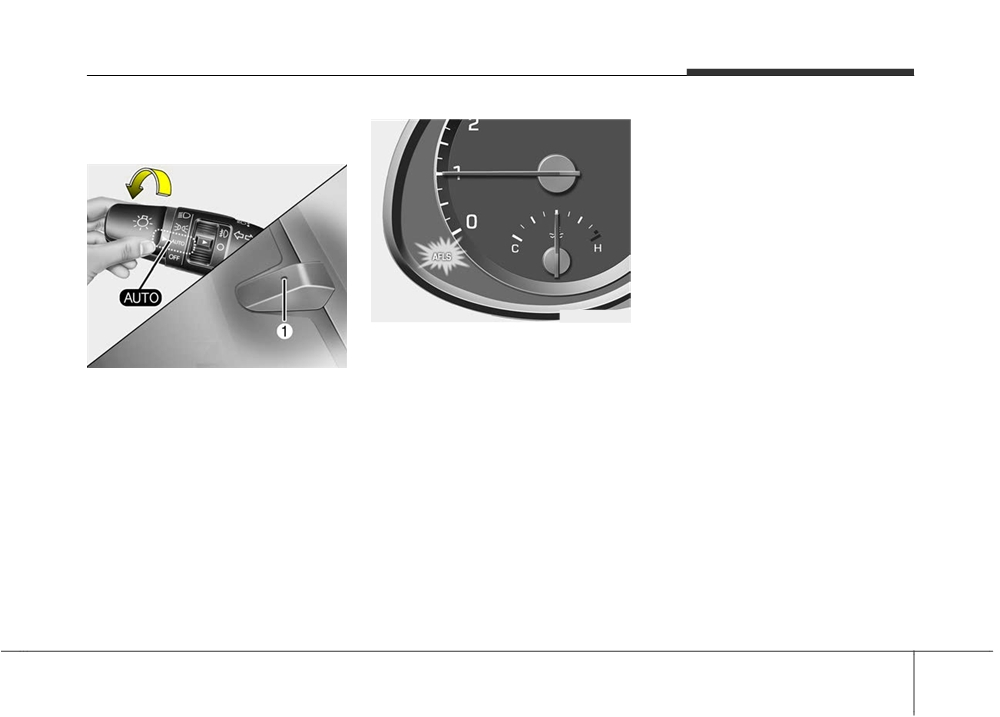

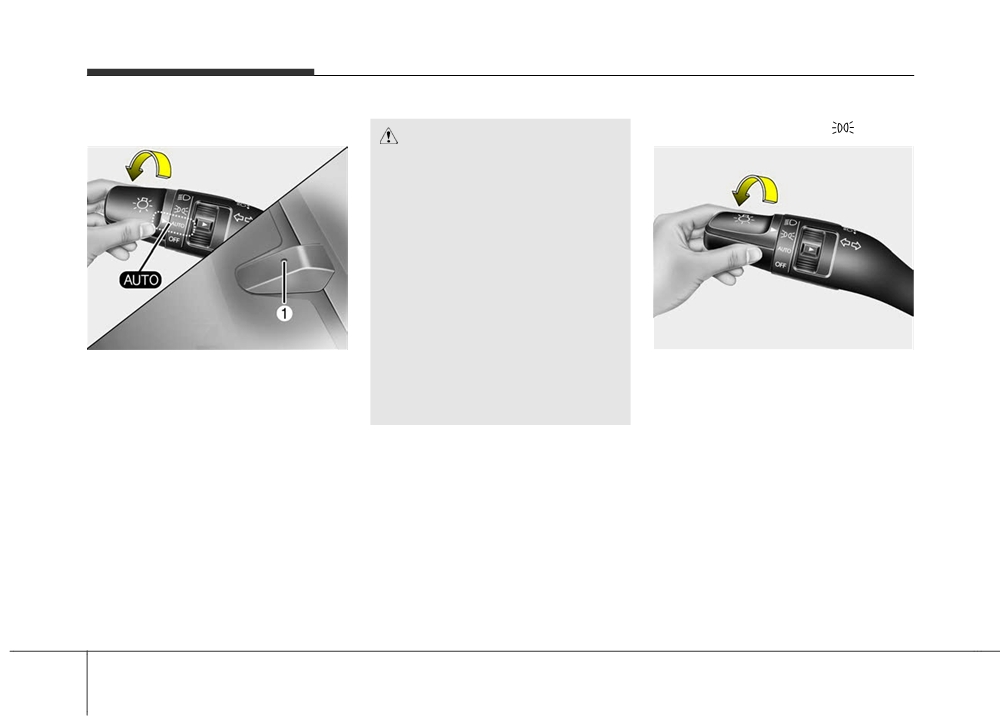

Auto light position (if equipped)
Parking light position (
)
CAUTION
•
Never place anything over
sensor
(1) located on the
instrument panel. This will
ensure better auto-light sys-
tem control.
•
Don't clean the sensor using a
window cleaner. The cleaner
may leave a light film which
could interfere with sensor
operation.
•
If your vehicle has window tint
ONCNCO2020
ONCNCO2016
or other types of metallic coat-
When the light switch is in the AUTO
When the light switch is in the park-
ing on the front windshield,
light position, the taillights and head-
ing light position, the tail, position,
the Auto light system may not
lights will be turned ON or OFF auto-
license plate lights and the tail light
work properly.
matically depending on the amount
indicator will turn on.
of light outside the vehicle.
4 122
Features of your vehicle
Headlight position (
)
High beam operation
WARNING
Do not use the high beams
when there are other vehicles.
Using high beam could obstruct
the other driver's vision.
ONCNCO2018
ODMCCO2013

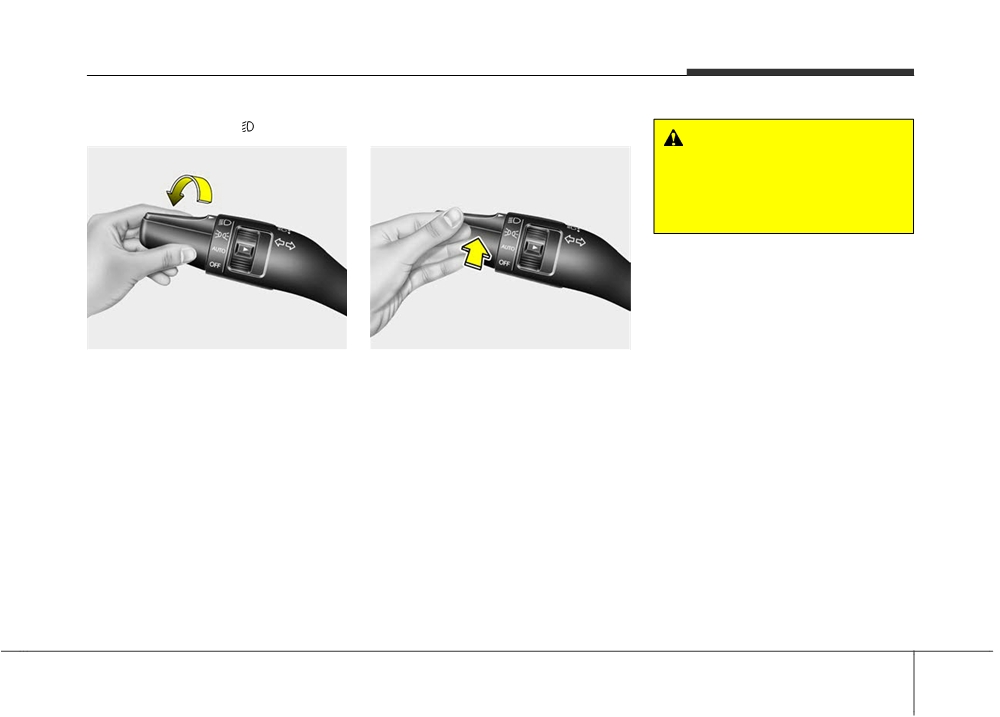

When the light switch is in the head-
To turn on the high beam headlamp,
light position, the head, tail, license
push the lever away from you.
and instrument panel lights will turn
The lever will return to its original
on.
position.
The high beam indicator will light
✽ NOTICE
when the headlight high beams are
switched on.
The ignition switch must be in the
ON position to turn on the head-
To prevent the battery from being
lights.
discharged, do not leave the lights
on for a prolonged time while the
engine is not running.
4 123
Features of your vehicle

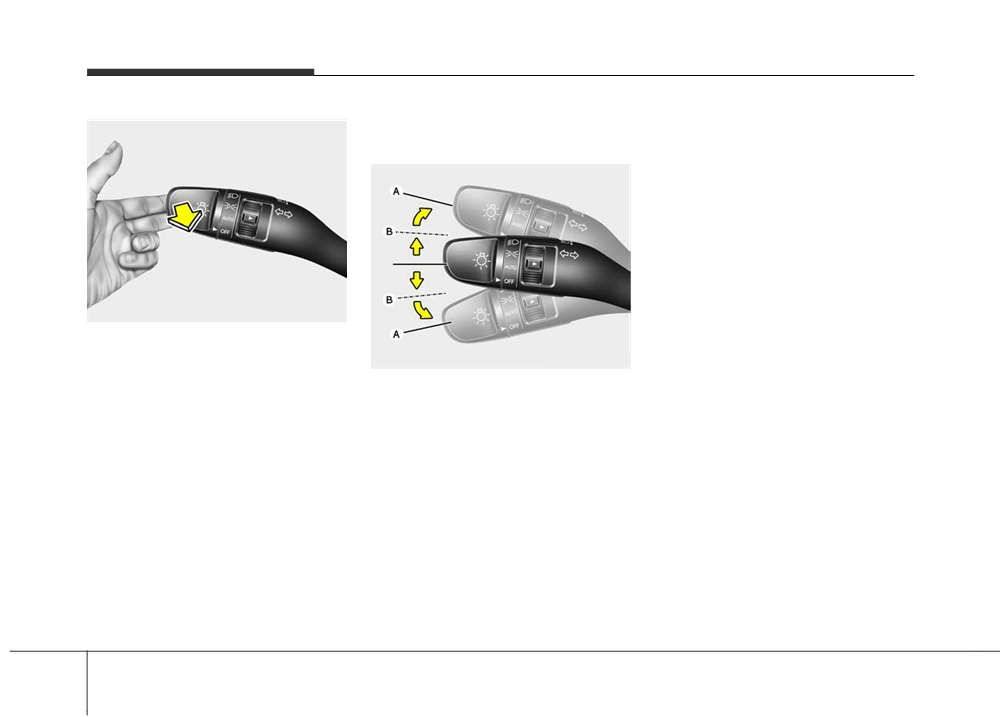

Turn signals and lane change sig-
To signal a lane change, move the
nals
turn signal lever slightly and hold it in
position (B). The lever will return to
the OFF position when released.
If an indicator stays on and does not
flash or if it flashes abnormally, one of
the turn signal bulbs may be burned
out and will require replacement.
ONCNCO2022
To flash the headlights, pull the lever
towards you. It will return to the nor-
ONCNCO2023
mal
(low beam) position when
released. The headlight switch does
The ignition switch must be on for the
not need to be on to use this flashing
turn signals to function. To turn on
feature.
the turn signals, move the lever up or
down (A). Green arrow indicators on
the instrument panel indicate which
turn signal is operating. They will
self-cancel after a turn is completed.
If the indicator continues to flash
after a turn, manually return the lever
to the OFF position.
4 124
Features of your vehicle
One Touch Turn Signal
Front fog light
CAUTION
To activate the one-touch lane
change function, move the turn sig-
When in operation, the fog
nal lever slightly and then release it.
lights consume large amounts
The lane change signals will blink 3
of vehicle electrical power. Only
(5 or 7, if equipped) times.
use the fog lights when visibility
is poor or unnecessary battery
and generator drain could
You can activate/deactivate the One
occur.
Touch Turn Signal function or choose
the number of blinking (3, 5, or 7)
from the User Settings Mode on the
LCD display (if equipped).
ODMECO2015
✽ NOTICE
Fog lights are used to provide illumi-
nation close to the road surface
If an indicator flash is abnormally
when visibility is poor due to fog, rain
quick or slow, a bulb may be burned
or snow, etc. The fog lights will turn
out or have a poor electrical connec-
on when the fog light switch (1) is
tion in the circuit.
turned to the on position after the
headlight is turned on.
To turn off the fog lights, turn the fog
light switch (1) to the OFF position.
4 125
Features of your vehicle

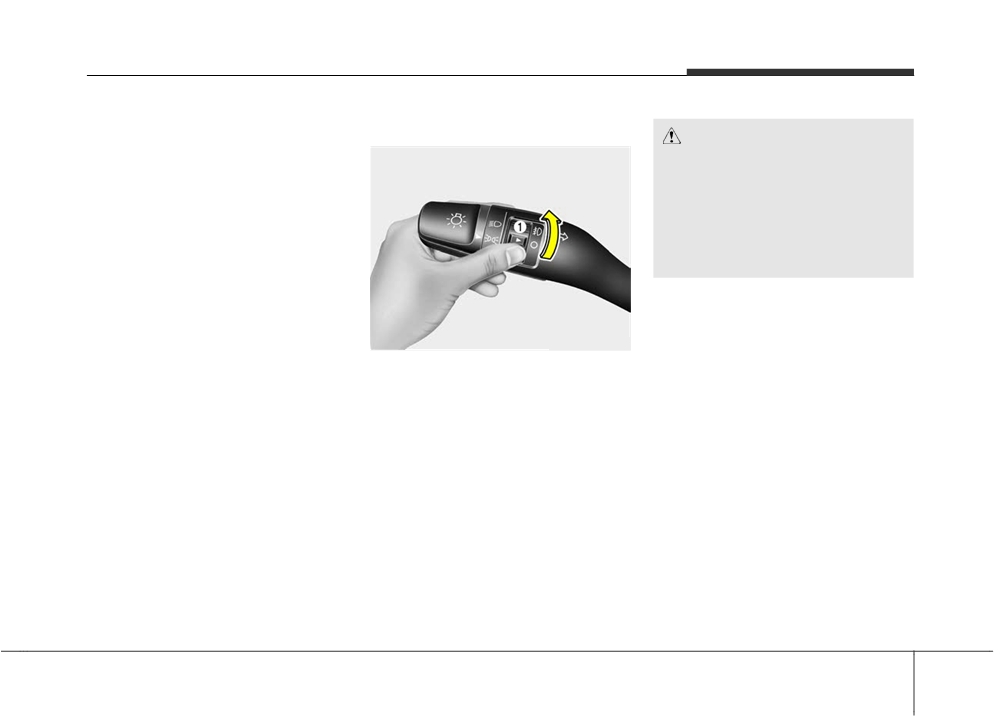

Smart High Beam (if equipped)
Operating condition
The high beam switches to low beam
in the below conditions.
1. Place the light switch in the AUTO
position.
-
When the Smart High Beam is off.
2. Turn on the high beam by pushing
-
When the light switch is not in the
the lever away from you.
AUTO position.
The smart high beam (
) indica-
-
When a headlamp is detected from
tor will illuminate.
an approaching vehicle.
3. The Smart High Beam will turn on
-
When tail lamp is detected from
when vehicle speed is above 28
the front vehicle.
mph (45km/h).
-
When the ambient light is bright
• If the lever is pushed away when
enough that high beams are not
the Smart High Beam is operat-
needed.
ONC046106
ing, the Smart High Beam will
-
When streetlights or other lights
The Smart High Beam is a system
turn off and the high beam will
are detected.
that automatically adjusts the head-
be on continuously. The smart
-
When vehicle speed is below 22
lamp range (switches between high
high beam
(
) indicator will
mph (35km/h).
beam and low beam) according to
turn off.
the brightness of other vehicles and
• If the lever is pulled towards you
road conditions.
when the Smart High Beam is
operating, the Smart High Beam
will turn off.
4. If the light switch is placed to the
headlamp position, the Smart
High Beam will turn off and the
low beam will be on continuously.
4 126
Features of your vehicle
Warning light and message
After the message disappears, the
master warning light will illuminate.
CAUTION
■ Type A
■ Type B
Take your vehicle to an authorized
The system may not operate
HYUNDAI dealer and have the sys-
normally in the following condi-
tem checked.
tions :
•
When lights from an on-com-
ing vehicle is not detected
because of lamp damage, the
light is blocked, etc.
•
When the lights of the on-
coming vehicle are covered
ODM046655L/ODM046656L
with dust, snow or water.
•
When the lights from an on-
coming is not detected
because of smoke, fog, snow,
etc.
•
When the front window is cov-
ered with foreign matter such
as ice, dust, fog, or is dam-
aged.
•
In poor visibility due to fog,
ODM046748
heavy rain or snow.
•
When headlamp aiming is not
When the Smart High Beam Assist
properly adjusted.
System is not working properly, the
•
When driving on a narrow
warning message will come on for a
curved road or rough road.
few seconds.
(Continued)
4 127
Features of your vehicle
(Continued)
(Continued)
WARNING
•
When driving downhill or
•
When the on coming vehicle is
•
Do not place any accessories,
uphill.
tilted from a flat tire is being
stickers or tint the windshield.
towed.
•
When only part of the on com-
•
Have the windshield glass
ing vehicle is visible on a
•
When the LDWS
(Lane
replaced from an authorized
crossroad or curved road.
Departure Warning System)
dealer.
warning light illuminates.
(if
•
When there is a traffic light,
•
Do not remove or impact relat-
reflecting sign, flashing sign
equipped)
ed parts of the Smart High
or mirror.
Beam system.
•
When the road conditions are
•
Be careful that water doesn't
poor such as being wet or
get into the Smart High Beam
covered with snow.
unit.
•
When the on coming vehicle’s
•
Do not place objects on the
headlamps are off but the fog
dashboard that reflect light
lamps on.
such as mirrors, white paper,
•
When a vehicle suddenly
etc. The system may malfunc-
appears from a curve.
tion if sunlight is reflected.
(Continued)
•
At times, the Smart High
Beam system may not work
properly, always check the
road conditions for your safe-
ty. When the system does not
operate normally, manually
change between the high
beam and low beam.
4 128
Features of your vehicle
Adaptive Front Lighting
System (AFLS) (if equipped)
ONC047618N
If the AFLS malfunction indicator
comes on, the AFLS is not working
ODM042247
properly. Drive to the nearest safe
Adaptive front lighting system uses
location and restart the engine. If the
the steering angle and vehicle
indicator continuously remains on,
speed, to keep your field of vision
take your vehicle to an authorized
wide by swiveling and leveling the
HYUNDAI dealer and have the sys-
headlamp.
tem checked.
Change the switch to the AUTO posi-
tion when the engine is running. The
adaptive front lighting system will
operate when the headlamp is ON.
To turn off the AFLS, change the
switch to other positions. After turn-
ing the AFLS off, headlamp swiveling
no longer occurs, but leveling oper-
ates continuously.
4 129
Features of your vehicle
WIPERS AND WASHERS

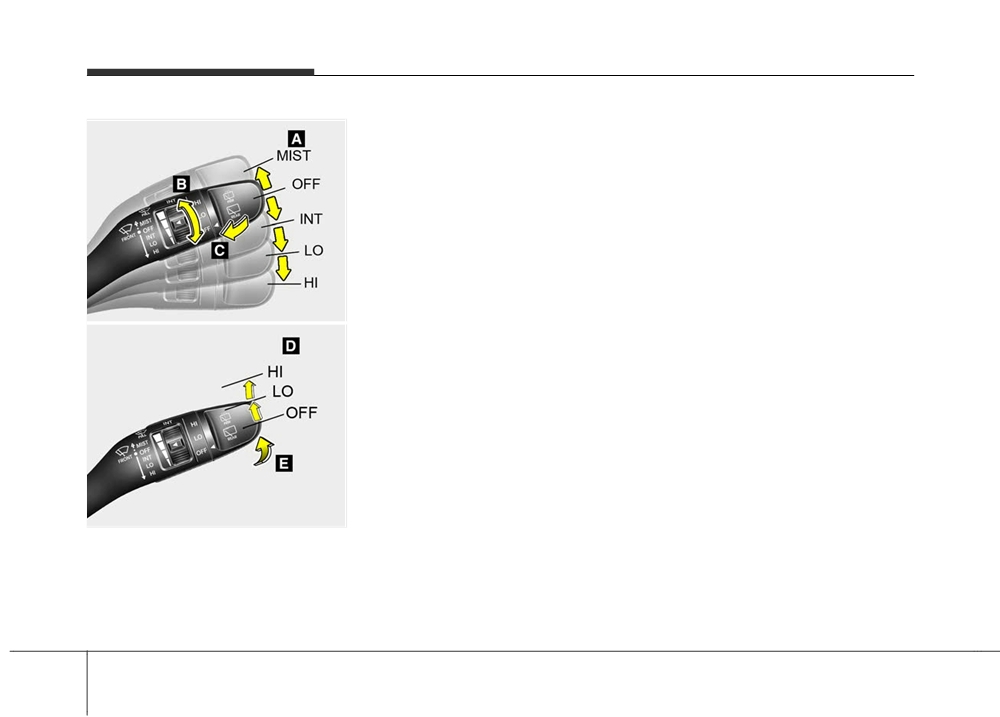

A : Wiper speed control
Windshield wipers
· MIST - Single wipe
Operates as follows when the igni-
· OFF - Off
tion switch is turned ON.
· INT - Intermittent wipe
MIST : For a single wiping cycle,
move the lever to this (MIST)
· LO - Low wiper speed
position and release it. The
· HI - High wiper speed
wipers will operate continu-
ously if the lever is held in this
B : Intermittent wipe time adjust-
position.
ment
OFF : Wiper is not in operation
OANNCO43007
C : Wash with brief wipes (front)*
INT : Wiper operates intermittently at
the same wiping intervals. Use
D : Rear wiper/washer control*
this mode in a light rain or mist.
To vary the speed setting, turn
· HI - High wiper speed
the speed control knob.
· LO - Low wiper speed
LO : Normal wiper speed
· OFF - Off
HI : Fast wiper speed
E : Wash with brief wipes (rear)
✽ NOTICE
* : if equipped
If there is heavy accumulation of
snow or ice on the windshield,
OANNCO43008
defrost the windshield for about 10
minutes, or until the snow and/or ice
is removed before using the wind-
shield wipers to ensure proper oper-
ation.
4 130
Features of your vehicle
✽ NOTICE
Windshield washers
The reservoir filler neck is located in
the front of the engine compartment
•
When you operate the wipers, if
on the passenger side.
your vehicle has a problem in any
part of the wiper operation sys-
tem, the wiper may operate in the
CAUTION
LO mode regardless of the wiper
To prevent possible damage to
switch position. In this case, have
the washer pump, do not oper-
your vehicle checked by an
ate the washer when the fluid
authorized HYUNDAI dealer as
reservoir is empty.
soon as possible.
•
When the ignition key is removed,
the wiper blade sometimes may
move slightly for reducing the
WARNING
OANNCO43009
deterioration of the windshield
Do not use the washer in freez-
wipers.

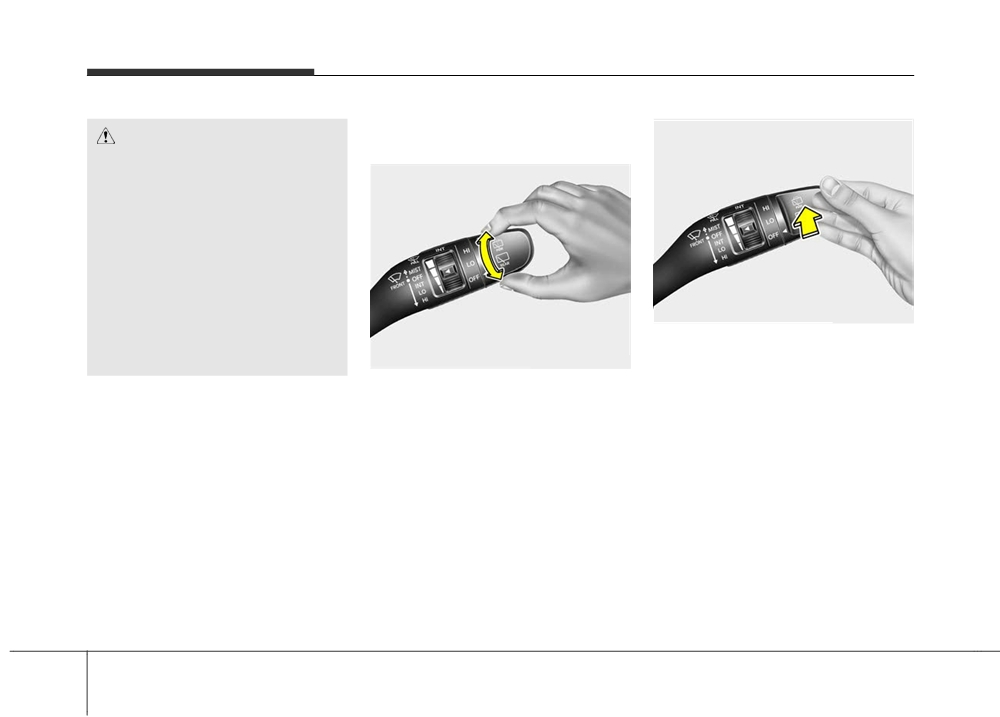

In the OFF position, pull the lever
ing temperatures without first
gently toward you to spray washer
warming the windshield with
fluid on the windshield and to run the
the defrosters; the washer solu-
wipers 1-3 cycles.
tion could freeze on the wind-
Use this function when the wind-
shield and obscure your vision.
shield is dirty.
The spray and wiper operation will
continue until you release the lever.
If the washer does not work, check
the washer fluid level. If the fluid level
is not sufficient, you will need to add
appropriate non-abrasive windshield
washer fluid to the washer reservoir.
4 131
Features of your vehicle
Rear window wiper and
CAUTION
washer switch
•
To prevent possible damage
to the wipers or windshield,
do not operate the wipers
when the windshield is dry.
•
To prevent damage to the wiper
blades, do not use gasoline,
kerosene, paint thinner, or
other solvents on or near them.
•
To prevent damage to the
OANNCO43011
wiper arms and other compo-
nents, do not attempt to move

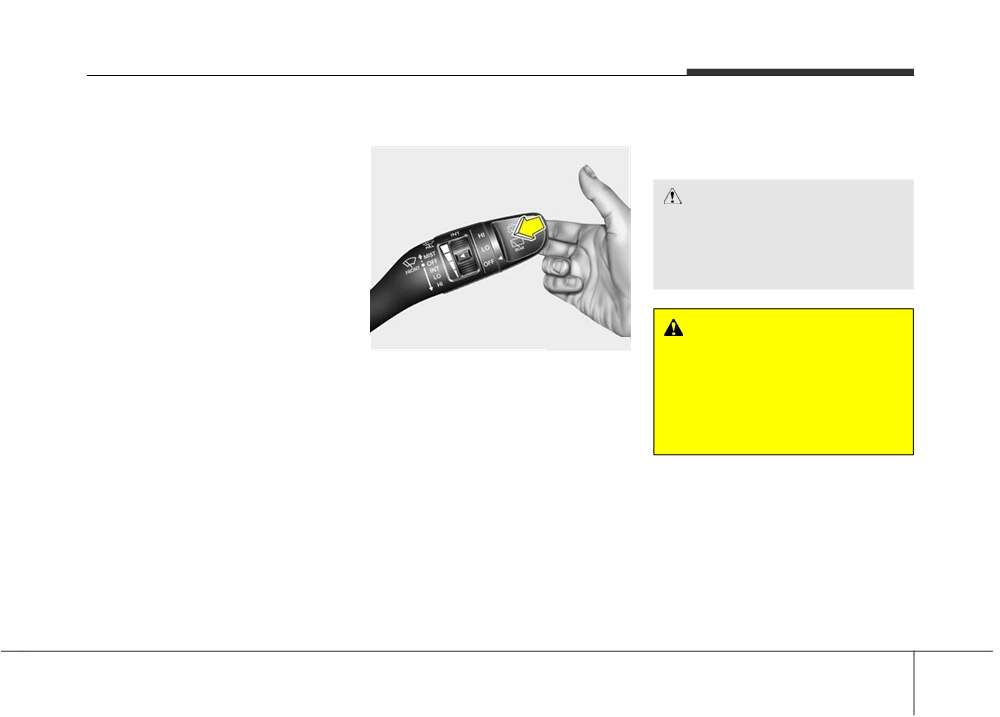

Push the lever away from you to
the wipers manually.
spray rear washer fluid and to run the
OANNCO43010
rear wipers 1~3 cycles. The spray
The rear window wiper and washer
and wiper operation will continue
switch is located at the end of the
until you release the lever.
wiper and washer switch lever. Turn
the switch to the desired position to
operate the rear wiper and washer.
HI : High wiper speed
LO : Low wiper speed
OFF : Off
4 132
