Hyundai Santa Fe XL (2019 year). Instruction - part 12

Features of your vehicle

Driving information mode

✽ NOTICE

(if equipped)

If window open or sunroof open

warning is displayed in the cluster,

driving information mode may not

be displayed in the cluster.

OTLE045266

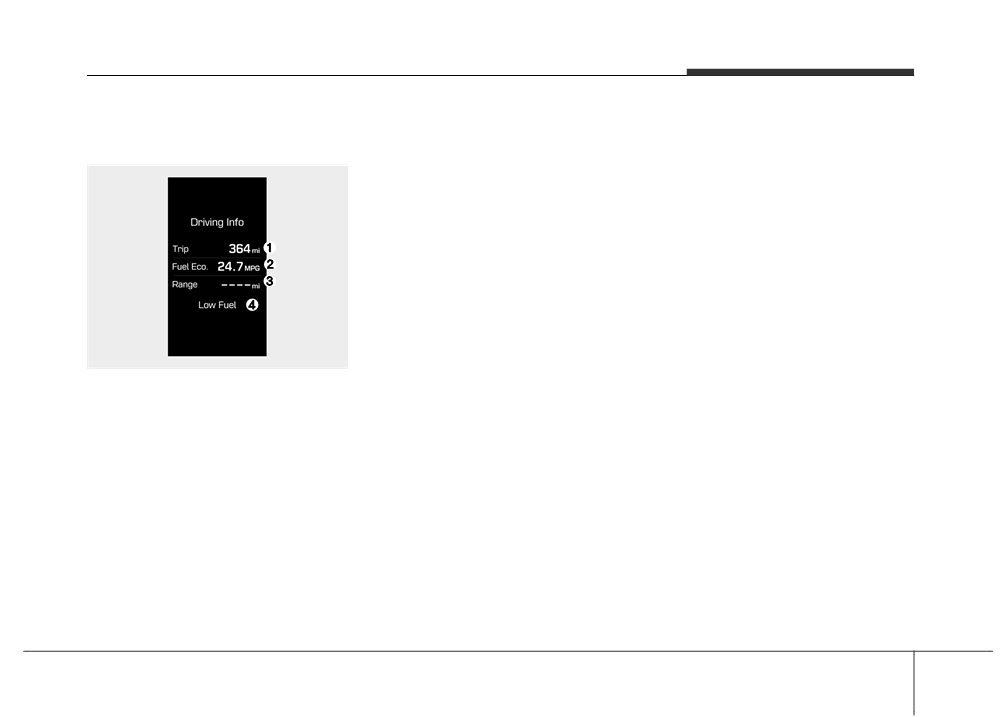

This display shows trip distance (1),

average fuel economy (2) and the

vehicle range that can be driven with

the remaining fuel (3).

This information is displayed for a

few seconds when you turn off the

engine and then goes off automati-

cally. The information provided is cal-

culated according to each trip.

If the estimated distance is below

1 mi. (1km), the distance to empty (3)

will display as "----" and a refuel mes-

sage will appear (4).

4 99

Features of your vehicle

WARNING AND INDICATOR LIGHTS

Warning lights

Air bag Warning Light

Seat Belt Warning Light

✽ NOTICE - Warning lights

This warning light illuminates:

This warning light informs the driver

Make sure that all warning lights

that the seat belt is not fastened.

are OFF after starting the engine. If

• Once you set the ignition switch or

any light is still ON, this indicates a

Engine Start/Stop Button to the ON

For more details, refer to the "Seat

situation that needs attention.

position.

Belts" in chapter 3.

- It illuminates for approximately 6

seconds and then goes off.

• When there is a malfunction with

the SRS.

In this case, have your vehicle

inspected by an authorized

HYUNDAI dealer.

4 100

Features of your vehicle

Parking Brake & Brake

If the brake fluid level in the reservoir

Dual-diagonal braking system

Fluid Warning Light

is low:

Your vehicle is equipped with dual-

1. Drive carefully to the nearest safe

diagonal braking systems. This

location and stop your vehicle.

means you still have braking on two

This warning light illuminates:

wheels even if one of the dual sys-

2. With the engine stopped, check

• Once you set the ignition switch or

tems should fail.

the brake fluid level immediately

Engine Start/Stop Button to the ON

and add fluid as required

(For

With only one of the dual systems

position.

more details, refer to "Brake Fluid"

working, more than normal pedal

- It illuminates for approximately 3

in chapter 7).

travel and greater pedal pressure are

seconds

required to stop the vehicle.

Then check all brake components

- It remains on if the parking brake

for fluid leaks. If any leak on the

Also, the vehicle will not stop in as

is applied.

brake system is still found, the

short a distance with only a portion

• When the parking brake is applied.

warning light remains on, or the

of the brake system working.

• When the brake fluid level in the

brakes do not operate properly, do

If the brakes fail while you are driv-

reservoir is low.

not drive the vehicle.

ing, shift to a lower gear for addition-

- If the warning light illuminates

In this case, have your vehicle

al engine braking and stop the vehi-

with the parking brake released, it

towed to an authorized HYUNDAI

cle as soon as it is safe to do so.

indicates the brake fluid level in

dealer and inspected.

reservoir is low.

4 101

Features of your vehicle

Anti-lock Brake System

Electronic

WARNING - Parking

(ABS) Warning Light

Brake force

Brake & Brake Fluid

Distribution

Warning Light

(EBD) System

This warning light illuminates:

Driving the vehicle with a warn-

Warning Light

•

Once you set the ignition switch or

ing light ON is dangerous. If the

These two warning lights illuminate at

Engine Start/Stop Button to the ON

Parking Brake & Brake Fluid

the same time while driving:

position.

Warning Light illuminates with

• When the ABS and regular brake

the parking brake released, it

- It illuminates for approximately 3

system may not work normally.

indicates that the brake fluid

seconds and then goes off.

In this case, have your vehicle

level is low.

•

When there is a malfunction with

inspected by an authorized

In this case, have your vehicle

the ABS (The normal braking sys-

HYUNDAI dealer.

inspected by an authorized

tem will still be operational without

HYUNDAI dealer.

the assistance of the anti-lock

brake system).

WARNING - Electronic

In this case, have your vehicle

Brake force Distribution

inspected by an authorized

(EBD) System Warning Light

HYUNDAI dealer.

When both ABS and Parking

Brake & Brake Fluid Warning

Lights are on, the brake system

will not work normally and you

may experience an unexpected

and dangerous situation during

sudden braking.

In this case, avoid high speed

driving and abrupt braking.

Have your vehicle inspected by

an authorized HYUNDAI dealer

as soon as possible.

4 102

Features of your vehicle

✽ NOTICE - Electronic Brake

Electronic Parking Brake

Electronic Power

force Distribution

(EPB) Warning Light

EPB

Steering (EPS) Warning

(EBD) System

(if equipped)

Light (if equipped)

Warning Light

When the ABS Warning Light is on

This warning light illuminates:

This warning light illuminates:

or both ABS and Parking Brake &

• Once you set the ignition switch or

• Once you set the ignition switch or

Brake Fluid Warning Lights are on,

Engine Start/Stop Button to the ON

Engine Start/Stop Button to the ON

the speedometer, odometer, or trip-

position.

position.

meter may not work. Also, the EPS

- It illuminates for approximately 3

- It remains on until the engine is

Warning Light may illuminate and

seconds and then goes off.

started.

the steering effort may increase or

decrease.

• When there is a malfunction with

• When there is a malfunction with

In this case, have your vehicle inspect-

the EPB.

the EPS.

ed by an authorized HYUNDAI deal-

In this case, have your vehicle

In this case, have your vehicle

er as soon as possible.

inspected by an authorized

inspected by an authorized

HYUNDAI dealer.

HYUNDAI dealer.

✽ NOTICE - Electronic Parking

Brake (EPB) Warning Light

The Electronic Parking Brake

(EPB) Warning Light may illumi-

nate when the Electronic Stability

control (ESC) Indicator Light comes

on to indicate that the ESC is not

working properly

(This does not

indicate malfunction of the EPB).

4 103

Features of your vehicle

Malfunction Indicator

Charging System

Lamp (MIL)

CAUTION - Malfunction

Warning Light

Indicator

Lamp (MIL)

This warning light illuminates:

Driving with the Malfunction

This warning light illuminates:

•

Once you set the ignition switch or

Indicator Lamp

(MIL) on may

•

Once you set the ignition switch or

Engine Start/Stop Button to the ON

cause damage to the emission

Engine Start/Stop Button to the ON

position.

control systems which could

position.

effect drivability and/or fuel

- It remains on until the engine is

- It remains on until the engine is

economy.

started.

started.

•

When there is a malfunction with

•

When there is a malfunction with

either the alternator or electrical

the emission control system.

CAUTION - Gasoline

charging system.

In this case, have your vehicle

Engine

inspected by an authorized

If the Malfunction Indicator

HYUNDAI dealer.

Lamp (MIL) illuminates, poten-

tial catalytic converter damage

is possible which could result in

loss of engine power.

In this case, have your vehicle

inspected by an authorized

HYUNDAI dealer as soon as

possible.

4 104

Features of your vehicle

If there is a malfunction with either

Engine Oil Pressure

the alternator or electrical charging

Warning Light

CAUTION - Engine Oil

system:

Pressure

Warning Light

1. Drive carefully to the nearest safe

This warning light illuminates:

location and stop your vehicle.

•

If the engine does not stop

• When the engine oil pressure is low.

immediately after the Engine

2. Turn the engine off and check the

Oil Pressure Warning Light is

alternator drive belt for looseness

or breakage.

If the engine oil pressure is low:

illuminated, severe damage

could result.

If the belt is adjusted properly,

1. Drive carefully to the nearest safe

•

If the warning light stays on

there may be a problem in the

location and stop your vehicle.

while the engine is running, it

electrical charging system.

2. Turn the engine off and check the

indicates that there may be

In this case, have your vehicle

engine oil level (For more details,

serious engine damage or

inspected by an authorized

refer to "Engine Oil" in section 7).

malfunction. In this case,

HYUNDAI dealer as soon as pos-

If the level is low, add oil as

required.

1. Stop the vehicle as soon as

sible.

it is safe to do so.

If the warning light remains on

after adding oil or if oil is not avail-

2. Turn off the engine and

check the oil level. If the oil

able, have your vehicle inspected

by an authorized HYUNDAI dealer

level is low, fill the engine

oil to the proper level.

as soon as possible.

3. Start the engine again. If the

warning light stays on after

the engine is started, turn

the engine off immediately.

In this case, have your vehi-

cle inspected by an author-

ized HYUNDAI dealer.

4 105

Features of your vehicle

Low Fuel Level Warning

Low Tire Pressure

This warning light remains on after

Light

Warning Light

blinking for approximately 60 seconds

or repeats blinking and off at the

intervals of approximately 3 seconds:

• When there is a malfunction with

This warning light illuminates:

This warning light illuminates:

the TPMS.

•

Once you set the ignition switch or

When the fuel tank is nearly empty.

In this case, have your vehicle

Engine Start/Stop Button to the ON

inspected by an authorized

position.

If the fuel tank is nearly empty:

HYUNDAI dealer as soon as possi-

- It illuminates for approximately 3

ble.

Add fuel as soon as possible.

seconds and then goes off.

•

When one or more of your tires are

For more details, refer to "Tire

CAUTION - Low Fuel

significantly underinflated.

Pressure

Monitoring

System

Level

For more details, refer to "Tire

(TPMS)" in chapter 6.

Driving with the Low Fuel Level

Pressure Monitoring System

warning light on or with the fuel

(TPMS)" in chapter 6.

level below "E" can cause the

WARNING - Low tire

engine to misfire and damage

pressure

the catalytic converter

(if

• Significantly low tire pressure

equipped).

makes the vehicle unstable

and can contribute to loss of

vehicle control and increased

braking distances.

• Continued driving or low

pressure tires will cause the

tires to overheat and fail.

4 106

Features of your vehicle

Automatic Emergency

All Wheel Drive (AWD)

WARNING - Safe Stopping

Braking (AEB) Warning

Warning Light

•

The TPMS cannot alert you to

light (if equipped)

(if equipped)

severe and sudden tire dam-

age caused by external fac-

This indicator light illuminates:

This warning light illuminates:

tors.

• When there is a malfunction with

• Once you set the ignition switch or

•

If you notice any vehicle insta-

the AEB.

Engine Start/Stop Button to the ON

bility, immediately take your

position.

In this case, have your vehicle

foot off the accelerator pedal,

inspected by an authorized

- It illuminates for approximately 3

apply the brakes gradually

HYUNDAI dealer.

seconds and then goes off.

with light force, and slowly

move to a safe position off the

For more information, refer to

• When there is a malfunction with

road.

"Automatic Emergency Braking

the AWD system.

(AEB)" in chapter 5.

In this case, have your vehicle

inspected by an authorized

HYUNDAI dealer.

4 107

Features of your vehicle

Adaptive Front Lighting

Indicator Lights

Electronic Stability

System (AFLS) Warning

AFLS

Control (ESC) OFF

Electronic Stability

Light (if equipped)

Indicator Light

Control (ESC) Indicator

Light

This warning light blinks:

This indicator light illuminates:

This indicator light illuminates:

• When there is a malfunction with

• Once you set the ignition switch or

• Once you set the ignition switch or

the AFLS.

Engine Start/Stop Button to the ON

Engine Start/Stop Button to the ON

position.

position.

If there is a malfunction with the AFLS:

- It illuminates for approximately 3

- It illuminates for approximately 3

1. Drive carefully to the nearest safe

seconds and then goes off.

seconds and then goes off.

location and stop your vehicle.

• When you deactivate the ESC sys-

• When there is a malfunction with

2. Turn the engine off and restart the

tem by pressing the ESC OFF but-

the ESC system.

engine. If the warning light

ton.

remains on, you have the vehicle

In this case, have your vehicle

inspected by an authorized

inspected by an authorized

HYUNDAI dealer.

For more details, refer to "Electronic

HYUNDAI dealer.

Stability Control (ESC)" in chapter 5.

This indicator light blinks:

While the ESC is operating.

For more details, refer to "Electronic

Stability Control (ESC)" in chapter 5.

4 108

Features of your vehicle

ECO Indicator Light

Immobilizer Indicator

Immobilizer Indicator

(if equipped)

Light (Without Smart Key)

Light (With Smart Key)

(if equipped)

(if equipped)

This indicator light illuminates:

This indicator light illuminates:

This indicator light illuminates for up

• When you activate the Active ECO

system by pressing the Active

• When the vehicle detects the

to 30 seconds:

ECO button.

immobilizer in your key properly

• When the vehicle detects the

while the ignition switch is ON.

smart key in the vehicle properly

while the Engine Start/Stop Button

- At this time, you can start the

For more details, refer to "Active

is ACC or ON.

engine.

ECO System" in chapter 5.

- At this time, you can start the

- The indicator light goes off after

engine.

starting the engine.

SPORT Mode Indicator

- The indicator light goes off after

Light (if equipped)

starting the engine.

This indicator light blinks:

• When there is a malfunction with

This indicator light blinks for a few

This indicator light illuminates

the immobilizer system.

seconds:

• When you select SPORT mode as

In this case, have your vehicle

drive mode.

inspected by an authorized

• When the smart key is not in the

vehicle.

HYUNDAI dealer.

- At this time, you can not start the

For more details, refer to "Drive

engine.

Mode Integrated Control System" in

chapter 5.

4 109

Features of your vehicle

This indicator light illuminates for 2

Turn Signal Indicator

High Beam Indicator

seconds and goes off:

Light

Light

• When the vehicle can not detect

the smart key which is in the vehi-

cle while the Engine Start/Stop

This indicator light blinks:

This indicator light illuminates:

Button is ON.

• When using the turn signals.

• When the headlights are on and in

In this case, have your vehicle

the high beam position

inspected by an authorized

HYUNDAI dealer.

If any of the following occurs, there

• When the turn signal lever is pulled

into the Flash-to-Pass position.

may be a malfunction with the turn

signal system. In this case, have your

This indicator light blinks:

vehicle inspected by an authorized

Smart High Beam indi-

•

When the battery of the smart key

HYUNDAI dealer.

cator (if equipped)

is weak.

- The indicator light does not blink

- At this time, you can not start the

but illuminates.

engine. However, you can start

This warning light illuminates :

- The indicator light blinks more rap-

the engine if you press the Engine

• When the high-Beam is on with the

idly.

Start/Stop Button with the smart

light switch in the AUTO light posi-

key. (For more details, refer to

- The indicator light does not illumi-

tion.

"Starting the Engine" in section

nate at all.

• If your vehicle detects oncoming or

5).

preceding vehicles, the Smart High

•

When there is a malfunction with

Beam system will switch the high

the immobilizer system.

beam to low beam automatically.

In this case, have your vehicle

inspected by an authorized

For more details, refer to "Smart

HYUNDAI dealer.

High Beam" in this chapter.

4 110

Features of your vehicle

Front Fog Indicator

AUTO HOLD Indicator

All Wheel Drive (AWD)

Light (if equipped)

Light (if equipped)

LOCK Indicator Light

(if equipped)

This indicator light illuminates:

This indicator light illuminates:

• When the front fog lights are on.

•

[White] When you activate the auto

This indicator light illuminates:

hold system by pressing the AUTO

• Once you set the ignition switch or

HOLD button.

Engine Start/Stop Button to the ON

Light ON Indicator Light

position.

•

[Green] When you stop the vehicle

completely by depressing the

- It illuminates for approximately 3

brake pedal with the auto hold sys-

seconds and then goes off.

This indicator light illuminates:

tem activated.

• When you select AWD Lock mode

• When the tail lights or headlights

•

[Yellow] When there is a malfunc-

by pressing the AWD LOCK button.

are on.

tion with the auto hold system.

- The AWD LOCK mode is to

In this case, have your vehicle

increase the drive power when

inspected by an authorized

driving on wet pavement, snow

HYUNDAI dealer.

covered roads and/or off-road.

For more details, refer to "Auto Hold"

CAUTION - AWD Lock

in chapter 5.

Mode

Do not use AWD LOCK mode on

dry paved roads or highway, it

can cause noise, vibration or

damage of AWD related parts.

4 111

Features of your vehicle

Cruise Indicator Light

Downhill Brake Control

This warning light illuminates yellow:

(if equipped)

(DBC) Indicator Light

• When there is a malfunction with

the DBC system.

This indicator light illuminates:

This warning light illuminates:

In this case, have your vehicle

inspected by an authorized

• When the cruise control system is

• Once you set the ignition switch or

HYUNDAI dealer.

enabled.

Engine Start/Stop Button to the ON

position.

- It illuminates for approximately 3

For more details, refer to "Downhill

For more details, refer to "Cruise

seconds and then goes off.

Brake Control

(DBC) System" in

Control System" in section 5.

chapter 5.

• When you activate the DBC sys-

tem by pressing the DBC button.

Cruise SET Indicator

Light (if equipped)

This warning light blinks:

• When the DBC is operating.

This indicator light illuminates:

• When the cruise control speed is set.

For more details, refer to "Cruise

Control System" in section 5.

4 112

Features of your vehicle

DRIVER ASSIST SYSTEM

Rear parking assist system

Operation of the rear parking

(if equipped)

WARNING

assist system

The rear parking assist system

■ Type A

is a supplementary function

only. The operation of the rear

parking assist system can be

affected by several factors

(including environmental condi-

tions). It is the responsibility of

the driver to always check the

area behind the vehicle before

and while backing up.

OANNDR2100

■ Type B

Sensors

ONC046100

The rear parking assist system

assists the driver during backward

movement of the vehicle by chiming

if any object is sensed within a dis-

tance of 47 in. (120 cm) behind the

vehicle. This system is a supplemen-

tal system and it is not intended to

nor does it replace the need for

extreme care and attention by the

ONC047131N

driver. The sensing range and

objects detectable by the back sen-

Operating condition

sors are limited. Whenever backing-

• This system will activate when the

up, pay as much attention to what is

indicator on the rear parking assist

behind you as you would in a vehicle

OFF button is not illuminated.

without a rear parking assist system.

4 113

Content   ..  10  11  12  13   ..
