FOREWORD

Hyundai Motor Company wish to take this opportunity to thank you for purchasing a Hyundai product and to

welcome you to the ever increasing number of discriminating motorists who drive Hyundai vehicles. The

advanced engineering and construction methods employed during both design and production of the Hyundai

marque are something of which we are proud, and this commitment to providing a high quality product is

supported by a comprehensive after sales and warranty service of which we are equally proud.

This owners manual will introduce the operating and maintenance requirements for the vehicle and it is

recommended that it is carefully read to ensure that the maximum performance and durability along with safe

and satisfactory operation are obtained. The recommended routine maintenance servicing along with any

running repairs that may be required should be entrusted to a franchised Hyundai authorised repairer ensure that

only the latest methods and genuine Hyundai replacement parts are used for the continued reliability, safety and

performance of the vehicle.

Should any question or query exist regarding any aspect of your Hyundai please contact the nearest Hyundai

authorised repairer who will be only too pleased to assist wherever possible.

Note: This owners manual should be considered as part of the vehicle and should be kept in the vehicle at

all times for ease of reference.

In the event of the vehicle being sold please ensure that this manual is left in the vehicle for the reference of

the new owner.

CAUTION:

Severe engine and transaxle damage may result from the use of poor quality fuels and lubricants that

do not meet Hyundai specifications. You must always use high quality fuels and lubricants that meet

the specifications listed on Page 9-4 in the Vehicle Specifications section of the Owner's Manual.

stored in any retrieval system or transmitted in any form or by any means without the prior written permission

of Hyundai Motor Company.

fcuk-0.p65

12/27/2006, 10:10 AM

SA040A1-E

CAUTION: MODIFICATIONS TO ORIGINAL VEHICLE

SPECIFICATION

Modification to the original vehicle specification may invalidate the manufacturers

warranty and may adversely affect the safety and durability of the vehicle.

Components which are subject to modification or are added to the original vehicle

specification without the express approval of the manufacturer and result in conse-

quential loss or damage are not covered by the vehicle manufacturers warranty.

SA050A1-E

TWO WAY RADIO INSTALLATION

This vehicle is fitted with electronically controlled fuel injection or other micro processor

controlled equipment.

It is possible for incorrectly installed two way radio equipment including mobile

telephones to adversely affect these systems.

Before radio equipment of this kind is installed, please contact your Hyundai authorised

repairer for recommendation regarding the suitability of the particular radio equipment

concerned and the recommended method of installation and equipment location.

Incorrectly installed or unsuitable equipment which gives rise to incorrect functioning

of or damage to electronic vehicle components will not fall within the scope of the

vehicle manufacturers warranty.

fcuk-0.p65

12/27/2006, 10:10 AM

SA070A1-F

SAFETY AND VEHICLE DAMAGE WARNING

This manual includes information titled as WARNING, CAUTION and NOTE.

These titles indicate the following:

WARNING:

This indicates that a condition may result in harm, serious injury or death to

you or other persons if the warning is not heeded. Follow the advice provided

with the warning.

CAUTION:

This indicates that a condition may result in damage to your vehicle or its

equipment if the caution is not heeded. Follow the advice provided with the

caution.

NOTE:

This indicates that interesting or helpful information is being provided.

fcuk-0.p65

12/27/2006, 10:10 AM

A100A01L-EAT

requirements. Using imitation, counter-

The export specifications are written in

GUIDE TO HYUNDAI GENUINE

feit or used salvage parts is not covered

English only.

PARTS

under the Hyundai New Vehicle Limited

Hyundai Genuine Parts are only sold

Warranty or any other Hyundai war-

through authorised Hyundai repairs.

1. What are Hyundai Genuine

ranty. In addition, any damage to or

Parts?

failure of Genuine Hyundai Parts caused

Hyundai Genuine Parts are the same

by the installation or failure of an imita-

parts used by Hyundai Motor Company

tion, counterfeit or used salvage part is

to manufacture vehicles. They are de-

not covered by Hyundai Motor Com-

signed and tested for the optimum

pany.

safety, performance, and reliability to

our customers.

3. How can you tell if you are

purchasing Hyundai Genuine

2. Why should you use genuine

Parts?

parts?

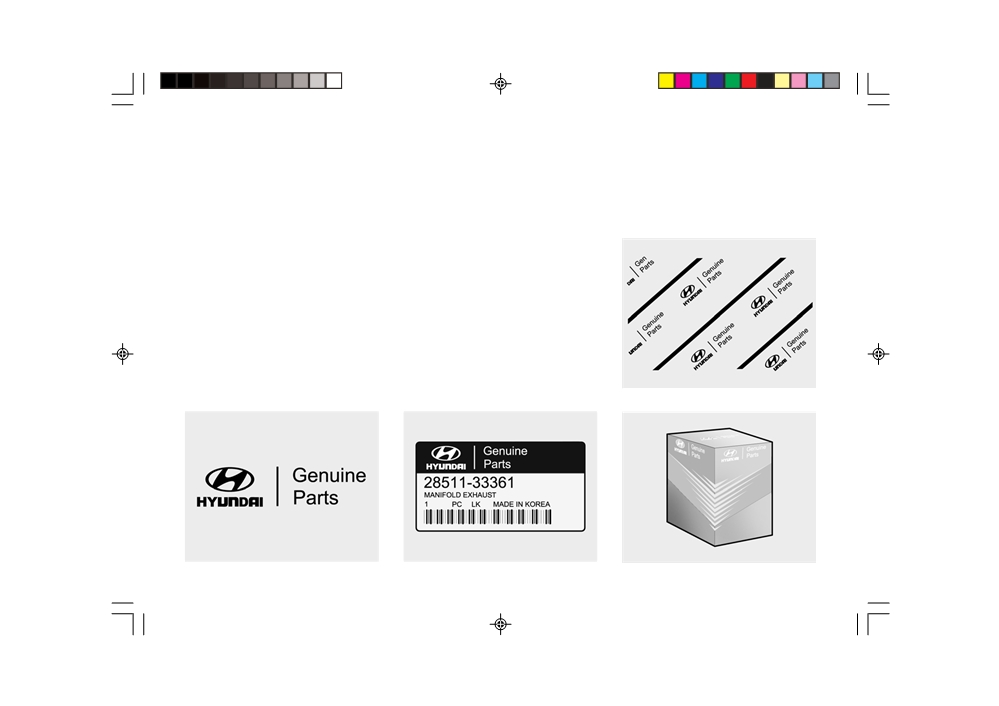

Look for the Hyundai Genuine Parts

Logo on the package (see below).

Hyundai Genuine Parts are engineered

and built to meet rigid manufacturing

A100A03L

A100A01L

A100A02L

A100A04L

fcuk-0.p65

12/27/2006, 10:10 AM

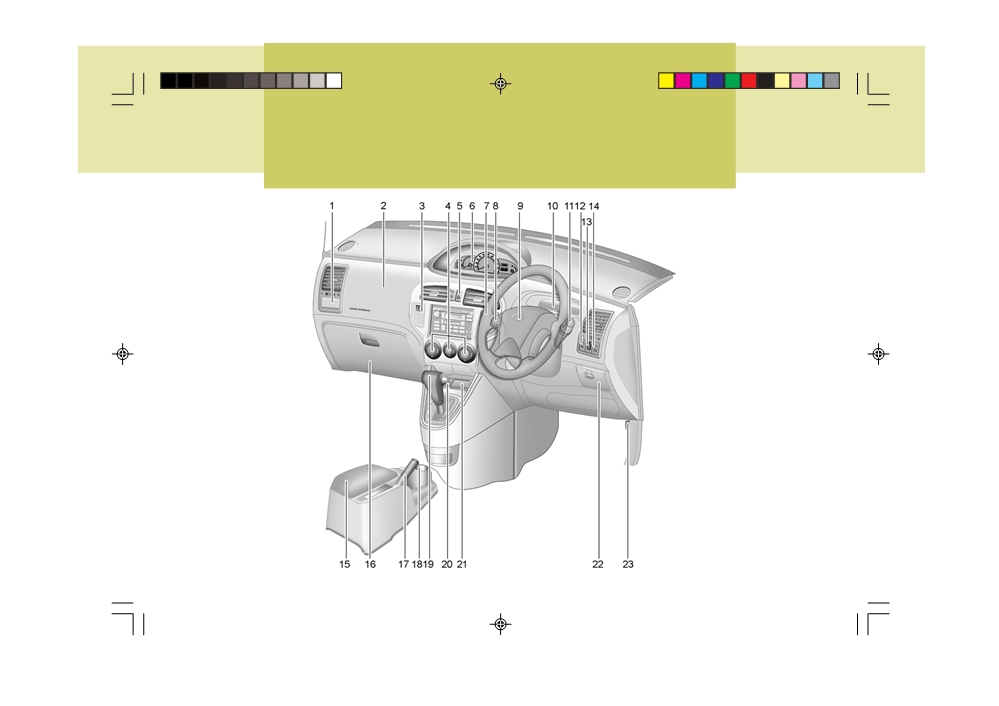

1. Passenger's Side Drink Holder

12. Front Fog Light Switch (Not all models)

2. Passenger's Airbag

13. Headlight Leveling Switch

3. Accessory Tray

14. Rear Fog Light Switch

4. Heating/Air Conditioning Control Panel

15. Centre Console (Not all models)

(Not all models)

16. Glove Box

5. Hazard Warning Light

17. Parking Brake Lever

6. Instrument Cluster

18. Drink Holder

7. Electronic Stability program (ESP) switch

19. Shift Lever (Not all models)

(Not all models)

20. Cigar Lighter

8. Windscreen Wiper/Washer Switch

21. Ashtray

9. Horn and Driver's Airbag

22. Multi Box

10. Indicator and Warning Light

23. Bonnet Release Lever

11. Multi-Function Light Switch

CAUTION:

When installing a container of liquid air freshener inside a vehicle, do not place it near the

instrument cluster nor on the instrument panel pad surface.

If there is any leakage from the air freshener onto these areas (instrument cluster, instrument

panel pad or air ventilator), it may damage these parts.

If the liquid from the air freshener does leak onto these areas, wash them with water immediately.

fcuk-0.p65

12/27/2006, 10:10 AM

YOUR VEHICLE AT A GLANCE

B255A02FC-EAT

INDICATOR SYMBOLS ON THE INSTRUMENT PANEL

Turn Signal Indicator Lights

High Beam Indicator Light

Immobilizer Warning Indicator Light

Hatchback Door Open Warning Light

(Not all models)

SRS (Airbag) Service Reminder

Door Open (Ajar) Warning Light

Indicator (Not all models)

Traction Control Indicator Light

Low Oil Pressure Warning Light

(Not all models)

Electronic Stability Program Indicator

Malfunction Indicator Light

Lights (Not all models)

O/D OFF Indicator Light

ABS Service Reminder Indicator Light (SRI)

(Not all models)

Parking Brake/Low Brake Fluid Level

Fuel Filter Warning Light (Diesel)

Warning Light

Charging System Warning Light

Diesel Pre-heat Indicator Light (Diesel)

Low Fuel Level Warning Light

* More detailed explanations of these items will be found beginning on page 1-44.

F10

fcuk-0.p65

12/27/2006, 10:10 AM

CONTROLS AND EQUIPMENT

Fuel Recommendations

1-2

Running In

1-3

Immobiliser System

1-4

Door

1-5

Anti-Theft Alarm System

1-8

Window

1-11

Seat

1-12

Seat Belts

1-19

Child Restraint System

1-24

Supplemental Restraint (AIRBAG) System

1-33

Instrument Cluster and Indicator

1-40

Warning Light and Indicator Lights

1-44

Trip Computer

1-52

Multi-Function Switch

1-54

Windscreen Wiper/Washer Switch

1-55

Sunroof

1-63

Mirror

1-67

Bonnet Release

1-70

Heating and Cooling Control

1-76

Stereo Sound System

1-92

Antenna

1-95

fcuk-1.p65

12/27/2006, 10:11 AM

1 CONTROLS AND EQUIPMENT

FUEL RECOMMENDATIONS

B010A04O-EAT

To prevent accidental charging of the

DIESEL ENGINES

PETROL ENGINES

fuel tank with leaded fuel, a small diam-

Diesel fuel of 52 to 54 cetane is used in

eter filler neck along with a restrictor

THIS VEHICLE MUST ONLY BE OP-

Hyundai vehicle. If two types of diesel

flap are fitted to ensure that only un-

ERATED WITH UNLEADED FUEL.

fuel are available, use summer or winter

leaded fuel pump nozzles may enter

SERIOUS DAMAGE WILL RESULT

fuel properly according to the following

the filler neck.

FROM THE USE OF LEADED FUEL.

temperature conditions.

However, care must be exercised when

refuelling the vehicle tank from fuel can

UNLEADED

or by means of a funnel that the fuel

o Above 23°F (-5°C ) ... Summer type

FUEL ONLY

being used is unleaded.

diesel fuel.

The use of leaded fuel in this vehicle will

o Below 23°F (-5°C) ... Winter type

result in irreversible pollution of the

diesel fuel.

catalyst element. Such pollution will

prevent correct operation of the cata-

Watch the fuel gauge very carefully: If

lyst and give rise to increased operating

the engine stops through fuel failure,

temperatures leading to the catalyst

the circuits must be completely purged

element melting and restricting the ex-

to permit restarting.

haust flow along with an increase in

B010A02FC-D

exhaust emission levels.

For the optimal vehicle performance,

we recommend you to use unleaded

CAUTION:

gasoline with an octane rating of RON

Do not let any petrol or water enter

the tank. This would make it neces-

(Research Octane Number) 95 /AKI

CAUTION:

(Anti Knock Index) 91 or higher.

The vehicle warranty will not extend

sary to drain it out and to bleed the

You may use unleaded gasoline with an

to damage arising from the use of

lines to avoid siezing the injection

octane rating of RON 91~94/AKI 87~90

incorrect fuels.

pump and damaging the engine.

but it may result in slight performance

reduction of the vehicle.

fcuk-1.p65

12/27/2006, 10:11 AM

CONTROLS AND EQUIPMENT

RUNNING IN

ZB010C1-E

B020A02FC-EAT

5) Avoid rapid acceleration and maxi-

"Alternative fuels"

Petrol Engine

mum throttle openings.

6) Avoid harsh braking during the first

Fuels which contain methanol or etha-

The longevity and performance of the

100 miles of urban motoring or 1,000

nol must not be used.

vehicle are greatly affected by the care

miles of motorway driving to allow

exercised during the first 1,000 miles of

the friction facings of the brake pads

ZB010D1-E

motoring. Because of modern manu-

and shoes to bed against the discs

Operation in Foreign Countries

facturing techniques, rigid guidelines

and drums properly.

regarding maximum road speeds have

Drivers of vehicles which are to be

7) No trailer towing should be under-

become unnecessary. However, cer-

operated in foreign countries must sat-

taken during the running in period.

tain precautions should be observed in

isfy themselves that:

order to obtain the best possible perfor-

mance and useful life from the vehicle.

o The vehicle meets all local regula-

tions with respect to insurance, speci-

1) Do not race the engine without a load

fications etc..

(i.e revving the engine in neutral).

o The correct types and grades of fuel

2) During the first 500 miles the maxi-

are available for satisfactory opera-

mum engine speed should be re-

tion of the vehicle.

stricted to 3,000 rpm and gradually

increased thereafter.

ZB010F2-A

3) Avoid prolonged constant speed op-

Fuels for Cleaner Air

eration. The internal components will

To help contribute to cleaner air,

become run in more quickly if the

Hyundai recommends that you use

operation speed is varied during the

fuels treated with detergent additives,

running-in period.

which help to prevent deposit forma-

4) Never allow the engine to labour. Use

tion in the engine. These fuels will help

the gearbox freely and avoid large

the engines run cleaner and increase

throttle open-ings when the engine

the Emission Control System perfor-

speed is below 1,500 rpm.

mance.

fcuk-1.p65

12/27/2006, 10:11 AM

1 CONTROLS AND EQUIPMENT

IMMOBILISER SYSTEM

B020B02FC-EAT

5) Avoid rapid acceleration and maxi-

6SB035A1-FE

Diesel Engine

The immobiliser system is an anti-theft

mum throttle openings.

The longevity and performance of the

device, designed to prevent and deter

6) Avoid harsh braking during the first

vehicle are greatly affected by the care

automobile theft.

100 miles of urban motoring or 1,000

exercised during the first 1,000 miles of

miles of motorway driving to allow

motoring. Because of modern manu-

the friction facings of the brake pads

B880B03A-GAT

facturing techniques, rigid guidelines

and shoes to bed against the discs

Keys

regarding maximum road speeds have

and drums properly.

become unnecessary. However, cer-

7) No trailer towing should be under-

tain precautions should be observed in

taken during the running in period.

order to obtain the best possible perfor-

mance and useful life from the vehicle.

1) Do not race the engine without a load

(i.e revving the engine in neutral).

2) During the first 600 miles the maxi-

mum engine speed should be re-

stricted to 3,000 rpm and gradually

increased thereafter. And whilst driv-

AX10020A

ing, keep under three quarters of

All of the locks fitted to the vehicle are

maximum vehicle speed.

operated by the same key. However,

3) Avoid prolonged constant speed op-

since it is possible to lock the doors

eration. The internal components of

without the use of the key, care should

the engine will become run in more

be exercised to ensure that the key

quickly if the operation speed is var-

does not become locked inside the

ied during the running in period.

vehicle by mistake.

4) Never allow the engine to labour. Use

the gearbox freely and avoid large

NOTE:

throttle open-ings when the engine

A non-genuine duplicate key will not

speed is below 1,500 rpm.

start the engine.

fcuk-1.p65

12/27/2006, 10:11 AM

CONTROLS AND EQUIPMENT

DOOR

B880C02A-GAT

In the interest of security, the metal tag

B040A02Y-EAT

Key Numbers

attached to the keys which bears the

DOOR LOCKS

key number should be removed from

the key ring after you receive your new

WARNING:

vehicle. In addition, key numbers can-

not be provided by Hyundai for security

o Unlocked doors can be danger-

reasons.

ous. Before you drive away (espe-

If you need additional keys or if you

cially if there are children in the

should lose your keys, your Hyundai

car), be sure that all the doors are

authorised repairer can make new keys.

securely closed and locked so that

the doors cannot be inadvertently

opened from the inside. This helps

ensure that doors will not be

AX10030A

opened accidentally. Also, when

The vehicle key number is recorded on

combined with the proper use of

a metal tag attached to the keys when

seat belts, locking the doors helps

the vehicle is first delivered to you.

keep occupants from being ejected

The key number should be recorded

from the car in case of an accident.

and kept in a safe place in case the

o Before opening the door, always

need to order further keys arises. New

look for and avoid oncoming traf-

keys are available from any Hyundai

fic.

authorised repairer by quoting the rel-

o In case of accident the door is

evant key number.

unlocked automatically (Not all

models)

fcuk-1.p65

12/27/2006, 10:11 AM

1 CONTROLS AND EQUIPMENT

SB040B1-E

B040C01FC-EAT

NOTE:

Locking, Unlocking Front Doors

Locking From The Outside

o When locking the door this way,

With Key

be careful not to lock the door with

the ignition key left in the vehicle.

UNLOCK

o To reduce the possibility of theft,

LOCK

always remove the ignition key,

close all windows, and lock all

doors and tail gate when leaving

your vehicle unattended.

HFC2009-D

HFC2004-D

The doors can be locked without a key.

o The door can be locked or unlocked

To lock the doors from the outside, first

with a key.

push the inside lock switch to the

o Lock the door by turning the key

"LOCK" position, so that the red mark

clockwise and unlock it by turning

on the switch is not visible, then close

the key counterclockwise.

the door.

The door will not lock if the key is left in

the ignition switch when the front doors

are closed. This is normal. (Not all

models)

fcuk-1.p65

12/27/2006, 10:11 AM

CONTROLS AND EQUIPMENT

SB040D1-F

SB040F2-E

SB040G2-F

Locking From The Inside

Child-proof Rear Door Lock

Central Door Locking

(Not all models)

UNLOCK

LOCK

HFC2005-D

HFC2006-D

To lock the doors from inside, simply

The rear doors are fitted with child proof

B040G01FC-D

close the door and push the lock switch

locks to prevent accidental opening of

The central door locking is operated by

to the "LOCK" position.

the doors using the inside door handle,

pushing the driver's door lock switch

When this is done, the door cannot be

whilst allowing access by means of the

toward the front or rear of the vehicle. If

opened using either the inside or the

outside handle (such as is required in

the passenger and rear doors are open

outside door handle.

the event of an acccident for example)

when the switch is pushed, the door will

provided that the door lock button is at

remain locked when closed.

NOTE:

the unlocked position. Use of the child

When the door is locked, the red

proof lock mechanism is recommended

NOTE:

mark on the switch is not visible and

when children are carried in the vehicle.

o When pushing the switch toward

the character "LOCK" on the switch

The child proof lock mechanism may

the rear, all doors and tail gate will

is visible.

be activated by opening the door and

unlock.

moving the lever located by the door

When pushing the switch toward

latch to the " " locked position. Move

the front, all doors and tail gate

will lock.

the lever to the " " unlocked position

when normal door operation is desired.

fcuk-1.p65

12/27/2006, 10:11 AM

1 CONTROLS AND EQUIPMENT

ANTI-THEFT ALARM SYSTEM

o When the door is unlocked, the

B070A01A-EAT

1) Remove the ignition key from the

red mark on the switch is visible

(Not all models)

ignition switch.

and the character "LOCK" on the

2) Make sure that the engine bonnet,

This system is designed to provide

switch is visible.

doors and tail gate are closed.

protection from unauthorised entry into

o The central door locking is oper-

3) Lock the doors using the transmitter

the car. This system is operated in

ated by turning the key (with theft-

of the keyless entry system.

three stages: the first is the "Armed"

alarm system: driver's door and

stage, the second is the "Alarm" stage,

passenger's door, without theft-

After completion of the steps above,

and the third is the "Disarmed" stage. If

alarm system: driver's door only)

the turn signal lights will blink once to

triggered, the system provides an au-

toward the front or rear of the

indicate that the system is armed.

dible alarm with blinking of the turn

vehicle.

NOTE:

signal lights.

o If the door is locked/unlocked mul-

1) If any door, the tail gate or bonnet

tiple times in rapid succession

remains open, the system will not

with either the vehicle key or door

be armed.

B070B01O-DAT

lock switch, the system may stop

2) If this happens, rearm the system

Armed Stage

operating temporarily in order to

as described above.

protect the circuit and prevent

damage to system components.

CAUTION:

B040H02L-EAT

Do not arm the system until all pas-

Speed Sensing Auto Door Locking

sengers have left the car. If the sys-

UNLOCK

tem is armed whilst a passenger(s)

(Not all models)

remains in the car, the alarm may be

When the speed of the vehicle keeps

activated when the remaining

above 40KM/H for 2-3 seconds, it will

passenger(s) leaves the car.

automatically lock all doors for driver

LOCK

and passenger's safety.

B070B01FC-D

But, the ignition key is removed, it will

Park the car and stop the engine. Arm

automatically unlock all doors.

the system as described below.

fcuk-1.p65

12/27/2006, 10:11 AM

CONTROLS AND EQUIPMENT

B070C01FC-EAT

B070D02O-AAT

Alarm Stage

Disarmed Stage

CAUTION:

The alarm will be activated if any of the

Only the transmitter can disarm the

following occurs whilst the car is parked

armed stage. If the transmitter does

and the system is armed.

not disarm the system, it is neces-

1) A front or rear door is opened without

sary to take the following steps;

using the transmitter.

1. Unlock the door with the key, which

2) The tail gate is opened without using

will cause, the alarm to be acti-

the transmitter.

vated.

3) The bonnet is opened.

2. Insert the key in the ignition key

The alarming horn will sound and the

cylinder and turn the ignition key

3A9BA21

turn signal lights will blink continuously

to "ON" position.

for approximately 27 seconds. To turn

The system will be disarmed when the

3. Wait for 30 seconds.

off the system, unlock the door or tail

driver's or passenger's door is unlocked

gate with the transmitter.

by depressing the "UNLOCK" button on

After completion of the steps above,

the system will be disarmed.

the transmitter.

After completion of the step above, the

turn signal light will blink twice to indi-

cate that the system is disarmed.

NOTE:

Once the system has been disarmed,

it can not be rearmed except by re-

peating the arming procedures.

fcuk-1.p65

12/27/2006, 10:11 AM

Hyundai Matrix (2007 year). Instruction - part 17
