Hyundai Matrix (2007 year). Instruction - part 15

6 DO-IT-YOURSELF MAINTENANCE

REMOVAL OF WATER FROM

THE FUEL FILTER

G300A01B-GAT

(Diesel Engine)

WARNING:

o Do not smoke or have any other

open flame near the vehicle while

bleeding the fuel system.

o Be sure to carefully wipe away

any water drained out in this

manner, because the fuel mixed

in the water might be ignited

and result in a fire.

G300B02FC

1. Loosen the drain plug at the bottom

G300A02FC

of the fuel filter.

If the fuel filter warning light illumi-

2. Tighten the drain plug when water

nates during driving, it indicates that

no longer comes out.

water has accumulated in the fuel

3. Check to be sure that the warning

filter. If this occurs, remove the water

lamp illuminates when the ignition

as described.

key is turned to "ON", and that it

goes off when the engine is started.

If in doubt, consult your nearest

authorized HYUNDAI dealer.

NOTE:

It is recommended that water ac-

cumulated in the fuel filter should

be removed by an authorized

Hyundai dealer.

DO-IT-YOURSELF MAINTENANCE

HEADLIGHT AIMING

ADJUSTMENT

G290A01FC-GAT

Vertical Aiming

Before performing aiming adjustment,

Horizontal Aiming

! WARNING:

make sure of the following.

o Do not smoke or have any other

open flame near the vehicle while

1. Keep all tires inflated to the correct

bleeding the fuel system.

pressure.

o Be sure to carefully wipe away

2. Place the vehicle on level ground

any water drained out in this

and press the front bumper and

manner, because the fuel mixed

rear bumper down several times.

in the water might be ignited

Place the vehicle at a distance of

and result in a fire.

3,000 mm (118 in.) from the test

G290A01FC

wall.

3. See that the vehicle is unloaded

5. Open the hood.

(except for full levels of coolant,

6. Draw the vertical line (through the

engine oil and fuel, and spare tire,

center of each headlight beam pat-

jack, and tools).

tern) and the horizontal line (through

4. Clean the head lights lens and turn

the center of each headlight beam

on the headlight (low beam).

pattern) on the aiming screen.

And then, draw a horizontal paral-

lel line at 30 mm (1.18 in.) under

the horizontal line.

7. Adjust each cut-off line of the low

beam to the parallel line with a

phillips screwdriver

- VERTICAL

AIMING.

8. Adjust each cut-off line of the low

beam to each vertical line with a

phillips screwdriver

- HORIZON-

TAL AIMING.

6 DO-IT-YOURSELF MAINTENANCE

REPLACING HEADLIGHT

BULBS

G290B02FC-GAT

be checked using an aiming screen as

G260A03A-GAT

Adjustment After Headlight

shown in the illustration. Turn on the

Before attempting to replace a head-

Assembly Replacement

headlight switch. (Low Beam Position)

light bulb, be sure the switch is turned

LHD

to the "OFF" position.

30mm (1.18 in.) Vertical line

1. Adjust headlights so that main axis

The next paragraph shows how to

Horizontal line

of light is parallel to the center line

reach the headlight bulbs so they

of the body and is aligned with point

may be changed. Be sure to replace

"P"

"P" shown in the illustration.

the burned-out bulb with one of the

2. Dotted lines in the illustration show

same number and wattage rating.

Cut-off line

the center of the headlights.

See page 6-38 for the wattage descrip-

tions.

Ground

Specifications:

line

"H"

G290B01L

Horizontal center line of headlights

CAUTION:

RHD

from ground

Keep the lamps out of contact with

Vertical line

: 675 mm (26.5 in.)

petroleum products, such as oil,

Horizontal line

gasoline, etc.

"P"

"W"

Distance between each headlight

center

Cut-off line

: 1,177 mm (46.3 in.)

30mm (1.18 in.)

Ground

"L"

line

Distance between the headlights and

the wall that the lights are tested

G290B01L-D

against

If the vehicle has had front body repair

: 3,000 mm (118 in.).

and the headlight assembly has been

replaced, the headlight aiming should

DO-IT-YOURSELF MAINTENANCE

G270A02A-GAT

HEADLIGHT BULB

WARNING:

Replacement instructions:

The halogen bulb contains gas

under pressure and if impacted

could shatter, resulting in flying

fragments. Always wear eye pro-

tection when servicing the bulb.

Protect the bulb against abrasions

or scratches and against liquids

when lighted. Turn on the bulb

G270A02FC

only when installed in a headlight.

5. Push the bulb spring for removing

Replace the headlight if damaged

the headlight bulb.

or cracked. Keep the bulb out of

G270A01FC

6. Remove the protective cap from

the reach of children and dispose

the replacement bulb and install

of the used bulb with care.

1. Allow the bulb to cool. Wear eye

the new bulb by matching the plas-

protection.

tic base with the headlight hole.

2. Always grasp the bulb by its plastic

Install the dust cover after retight-

base, avoid touching the glass.

ening the bulb spring and recon-

3. Disconnect the power cord from

nect the power cord.

the bulb base in the back of the

7. Use the protective cap and carton

headlight.

to dispose of the old bulb.

4. Remove the dust cover.

8. Check for proper headlight aim.

6 DO-IT-YOURSELF MAINTENANCE

BULB WATTAGE

G280A02FC-GAT

G280A02FC

No.

Part Name

Wattage

Socket type

No.

Part Name

Wattage

Socket type

Front Position Light

W2.1×9.5D

High Mounted Rear Stop Light

BA 15s

Head Light (High/Low)

60/55

P43t-38

License Plate Light

W2.1×9.5D

Front Fog Light (If installed)

PK22s

Rear Fog Light (If installed)

BA 15s

Front Turn Signal Light

BA 15s

Luggage Compartment Light

S8.5/8.5

Side Repeater (If installed)

W2.1×9.5D

Rear

Turn Signal Light

BA 15s

Map Light

W2.1×9.5D

Combination

Stop/Tail Light

21/5

BAY 15d

Interior

Room Light

S8.5/8.5

Light

Back -up Light

BA 15s

Front Door Warning Light (If installed)

W2.1×4.6D

DO-IT-YOURSELF MAINTENANCE

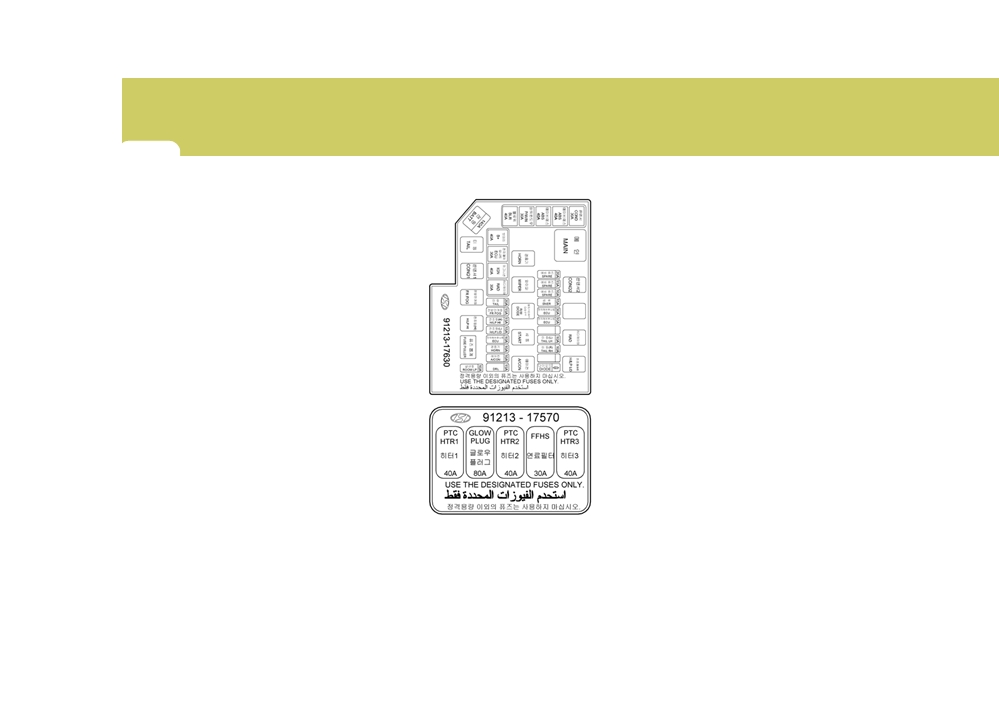

FUSE PANEL DESCRIPTION

G200C03FC-GAT

DESCRIPTION

FUSE RATING

PROTECTED COMPONENTS

Engine Compartment

ALT

120A

Generator

(Gasoline Engine)

B+

40A

(A/CON, RR HTD, STOP, D/LOCK, HAZARD) Fuse

ECU

30A

Generator, Engine control relay, ECM

RAD

20A

Radiator fan relay

IGN

40A

Start relay, Ignition switch

BLR

40A

Blower relay

P/WIN

30A

Power window relay

COND

20A

Condenser fan relay #1

ABS

40A

ABS control module, ABS bleeding connector, ESP

ABS

40A

ABS control module, ABS bleeding connector, ESP

F/PUMP

10A

Fuel pump relay

INJ

15A

Injector, lgnition coil

MAP sensor, Oxygen sensor, CP sensor, Knock sensor,

SNSR

10A

Throttle position sensor

ROOM LP

10A

Audio, Room lamp, Overhead console lamp, lnstrument cluster

DRL

15A

DRL control module

HORN

10A

Horn relay

A/CON

10A

A/C relay

FR FOG

15A

Front fog lamp relay

ECU

10A

ECM, TCM

20A

Tail lamp relay

TAIL LH

10A

Left rear combi lamp, Left position lamp, Left License lamp

TAIL RH

10A

Right rear combi lamp, Right position lamp, Right License lamp

G200C03FC

H/LP LH

15A

Left head lamp

H/LP RH

15A

Right head lamp, (H/LP IND) Fuse

NOTE:

Not all fuse panel descriptions in this manual may be applicable to your vehicle. It is accurate at the time of

printing. When you inspect the fuse box on your vehicle, refer to the fuse box label.

6 DO-IT-YOURSELF MAINTENANCE

G200E03FC-GAT

(Diesel Engine)

G200E03FC

NOTE:

Not all fuse panel descriptions in this manual may be applicable to your vehicle. It is accurate at the time of

printing. When you inspect the fuse box on your vehicle, refer to the fuse box label.

DO-IT-YOURSELF MAINTENANCE

DESCRIPTION

FUSE RATING

PROTECTED COMPONENTS

ALT

140A

Generator

B+

40A

(A/CON, RR HTD, STOP, D/LOCK, HAZARD) Fuse, Deicer

ECU

30A

Generator, Engine control relay, ECM

RAD

30A

Radiator fan relay

IGN

40A

Start relay, Ignition switch

BLR

40A

Blower relay

P/WIN

30A

Power window relay

COND

30A

Condenser fan relay #1

ABS

40A

ABS control module, ABS bleeding connector, ESP

ABS

40A

ABS control module, ABS bleeding connector, ESP

F/PUMP

10A

Fuel pump relay

FUSE

ECU

30A

ECM No.5 (Batt+)

ECU

10A

ECM No.4 (Batt+), Stop lamp switch, PTC heater relay #1

Glow plug relay, Assistor heater relay 1/2, Stop lamp switch,

SNSR

15A

TDC sensor, EGR act, Throttle plate act, VGT vacuum

ROOM LP

10A

Audio, Room lamp, Overhead console lamp, lnstrument cluster, ETACM, Luggage lamp

DRL

15A

DRL control module

HORN

10A

Horn relay

A/CON

10A

A/C relay

FR FOG

15A

Front fog lamp relay

ECU

10A

ECM, TCM

20A

Tail lamp relay

TAIL LH

10A

Left rear combi lamp, Left position lamp, Left License lamp

TAIL RH

10A

Right rear combi lamp, Right position lamp, Right License lamp

H/LP LH

15A

Left head lamp

H/LP RH

15A

Right head lamp, (H/LP IND) Fuse

PTC HTR 1

40A

PTC heater relay #1

GLOW

80A

GLOW relay

FUSIBLE

PTC HTR 2

40A

PTC heater relay #2

LINK

FFHS

30A

FFHS relay

PTC HTR 3

40A

PTC heater relay #3

6 DO-IT-YOURSELF MAINTENANCE

G200D01FC-GAT

Inner Panel

DESCRIPTION

FUSE RATING

PROTECTED COMPONENTS

H/LP IND

10A

Head lamp indicator

Defogger relay, Left(Right) outside mirror motor,

HTD IND

10A

Rear window motor

A/CON

10A

A/C Switch

RR HTD

30A

Defogger relay

STOP

10A

Stop lamp switch, Power window relay

D/LOCK

15A

Door lock(unlock) relay, ETACM, Sunroof relay

HAZARD

10A

Burglar alarm relay, Hazard relay

AUDIO

10A

Audio

C/LIGHT

15A

Cigarette lighter

A/B

10A

SRS control module

A/B IND

10A

SRS IND.

Hazard switch, Seat belt timer, Instrument cluster,

T/SIG

10A

ABS control module, Pre-excitation resistor, Washer motor

ECU

15A

ECM, Vehicle speed sensor, TCM, Ignition coil

ETACS

10A

ETACM, A/T Shift lever

RR WPR

10A

Rear wiper motor, Rear wiper relay

START

10A

Start relay

FRT WPR

20A

Wiper relay, Washer motor, Wiper & Defogger timer

S/HTD

15A

Left (Right) front seat warmer switch

P/OUTLET

25A

Front (Rear) power outlet

ETACM, Power window relay, Defogger relay, Sunroof relay

IG2

10A

Head lamp relay, Blower relay

O/S MRR

10A

Outside mirror switch, Rear fog lamp relay

G200D01FC

EMISSION CONTROL SYSTEM

Emission Control System

7-2

Catalytic Converter

7-3

EGR System

7-4

EMISSION CONTROL SYSTEMS

H010A01A-GAT

H010B01A-AAT

ter. When the engine is running, the

(If Installed)

1. Crankcase Emission Control

fuel vapors absorbed in the canister

System

are drawn into the induction system

Your Hyundai is equipped with an

through the purge control solenoid

emission control system to meet all

The positive crankcase ventilation

valve.

requirements of the Emission prohibi-

system is employed to prevent air

tion rules of your province.

pollution caused by blow-by gases

There are three emission control sys-

Purge Control Solenoid Valve

being emitted from the crankcase.

tems which are as follows.

This system supplies fresh filtered air

(PCSV)

to the crankcase through the air in-

The purge control solenoid valve is

(1) Crankcase emission control sys-

take hose. Inside the crankcase, the

controlled by the Engine Control Mod-

tem

fresh air mixes with blow-by gases,

ule (ECM); when the engine coolant

(2) Evaporative emission control sys-

then passes through the PCV valve

temperature is low during idling, the

tem

into the induction system.

PCSV closes so that evaporated fuel

(3) Exhaust emission control system

is not taken into the engine. After the

engine warms-up during ordinary driv-

In order to assure the proper function

H010C01E-GAT

ing, the PCSV opens so as to intro-

of the emission control systems, it is

2. Evaporative Emission Control

duce evaporated fuel to the engine.

recommended that you have your car

System

inspected and maintained by an au-

thorized Hyundai dealer in accordance

The Evaporative Emission Control

with the maintenance schedule in this

System is designed to prevent fuel

H010D01A-AAT

manual.

vapors from escaping into the atmo-

3. Exhaust Emission Control

sphere.

System

The Exhaust Emission Control Sys-

Canister

tem is a highly effective system which

While the engine is inoperative, fuel

controls exhaust emissions while

vapors generated inside the fuel tank

maintaining good vehicle performance.

are absorbed and stored in the canis-

EMISSION CONTROL SYSTEMS

CATALYTIC CONVERTER

H020A01A-GAT

H020D01S-GAT

If your engine stalls, pings, knocks,

(If Installed)

; For a diesel engine

or is hard to start, take your car to

; For a gasoline engine

your Hyundai dealer as soon as

All Hyundai vehicles are equipped

possible and have the difficulty

with oxidation type catalytic converter

corrected.

to reduce the carbon monoxide, hy-

Avoid driving with a very low fuel

drocarbons and particulate contained

level. If your run out of gasoline, it

in the exhaust gas.

could cause the engine to misfire

and result in excessive loading of

the catalytic converter.

Avoid idling the engine for periods

H020B01A-GAT

longer than 10 minutes.

About the Catalytic Converter

Your Hyundai should not be either

pushed or pulled to get it started.

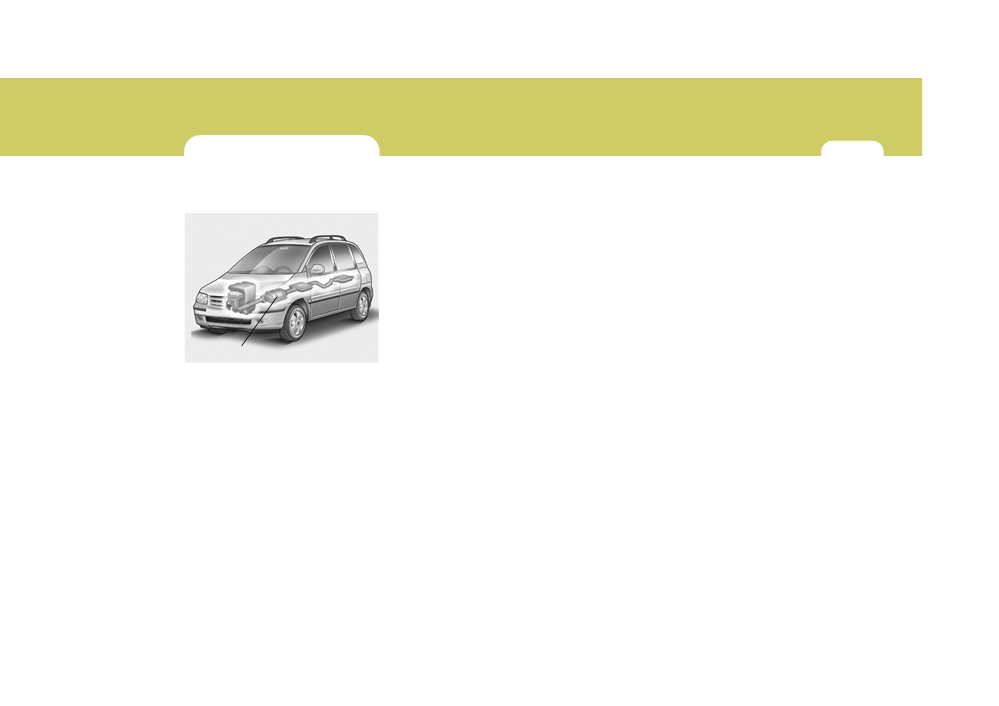

Catalytic Converter

HFC505

Exhaust gases passing through the

This can cause the catalytic con-

catalytic converter cause it to operate

The catalytic converter is part of the

verter to overload.

at very high temperatures. As a re-

exhaust emission control system. Its

Take care not to stop your Hyundai

sult, the introduction of large amounts

purpose is to remove certain engine

over any combustible material such

of unburned gasoline may cause it to

emission products from the engine's

as grass, paper, leaves or rags. As

overheat and create a fire hazard.

exhaust. It looks something like a

these materials could come in con-

This can be avoided by observing the

muffler and is located underneath the

tact with the catalytic converter and

following:

car in the exhaust system.

could cause a fire.

Do not touch the catalytic con-

o Use unleaded fuel only.

verter or any other part of the ex-

o Maintain your engine in good con-

haust system while the engine is

dition. Extremely high converter

running as it is very hot and could

temperatures can result from im-

result in burns.

proper operation of the electrical,

Remember that your Hyundai

ignition or fuel injection systems.

dealer is your best source of assis-

tance.

7 EMISSION CONTROL SYSTEMS

EGR SYSTEM

H020C01S-GAT

; For a diesel engine

This system helps control oxides of

nitrogen by recirculating a part of the

exhaust gas into the engine.

CONSUMER INFORMATION

Vehicle Identification Number (VIN)

8-2

Engine Number

8-2

Recommended Inflation Pressures

8-3

Snow Tires

8-4

Tire Chains

8-4

Tire Rotation

8-5

Tire Balancing

8-5

Tire Traction

8-5

When to Replace Tires

8-6

Spare Tire and Tools

8-7

8 CONSUMER INFORMATION

VEHICLE IDENTIFICATION

NUMBER (VIN)

I010A01FC-GAT

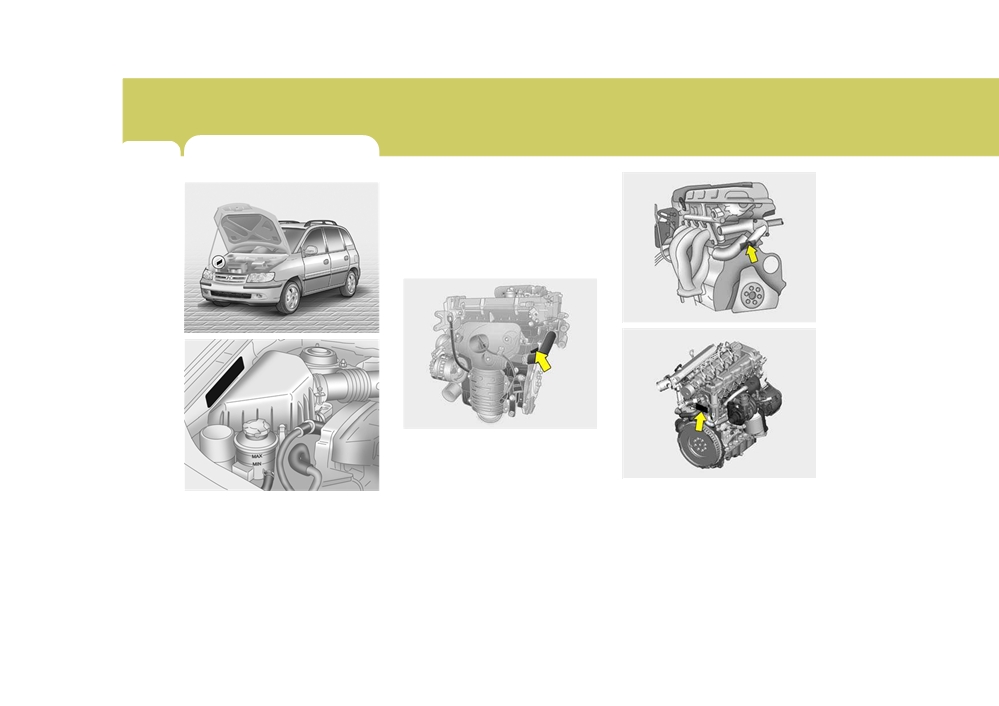

It can be found on the identification

Gasoline engine (1.8 DOHC)

plate attached to apron panel located

on the driver's side of the engine

compartment.

I010B01A-GAT

Engine Number

Gasoline engine (1.6 DOHC)

SSA8010B

HFC600

Diesel engine

I010B02E

I010B02FC

HFC6001

The engine number is stamped on

The vehicle identification number

the engine block as shown in the

(VIN) is the number used in register-

drawing.

ing your car and in all legal matters

pertaining to its ownership, etc.

CONSUMER INFORMATION

TIRE

I020A01A-AAT

I030A01FC-GAT

PRESSURE, kPa (PSI)

TIRE INFORMATION

RECOMMENDED INFLATION

RIM

TIRE

UP TO 2

UP TO

PRESSURES

SIZE

PERSONS

MAX. LOAD

The tires supplied on your new

FRONT

REAR

FRONT

REAR

Hyundai are chosen to provide the

5.5Jx14

185/65R14

210(30)

250(36)

best performance for normal driving.

5.5Jx15

195/55R15

210(30)

250(36)

6.0Jx15

205/5A5R15

210(30)

250(36)

3.5Jx15

T115/70D15

420(60)

3.5Jx15

T115/70R15

420(60)

These pressures were chosen to pro-

vide the most satisfactory combina-

tion of ride comfort, tire wear and

stability under normal conditions. Tire

pressures should be checked at least

I030A02FC

monthly. Proper tire inflation pres-

sures should be maintained for these

The tire label located on the driver's

reasons:

side "C" pillar outer panel gives the

tire pressures recommended for your

o Lower-than-recommended tire

vehicle.

pressures cause uneven tread wear

and poor handling.

o Higher-than-recommended tire

pressures increase the chance of

damage from impacts and cause

uneven tread wear.

CONSUMER INFORMATION

I040A01S-GAT

I050A01E-GAT

SNOW TIRES

TIRE CHAINS

CAUTION:

If you equip your car with snow tires,

Tire chains, if necessary should be

Always observe the following:

they should be the same size and

installed on the front wheels. Be sure

have the same load capacity as the

that the chains are installed in accor-

o Check pressures when the tires

dance with the manufacturer's instruc-

original tires. Snow tires should be

are cold. That is, after the car

tions.

installed on all four wheels; other-

has been parked for at least three

wise, poor handling may result.

To minimize tire and chain wear, do

hours and hasn't been driven

not continue to use tire chains when

Snow tires should carry 28 kPa (4

more than 1.6 km or one mile

they are no longer needed.

psi) more air pressure than the pres-

since starting up.

sure recommended for the standard

o Check the pressure of your spare

tires on the tire label on, or up to the

tire each time you check the

maximum pressure shown on the tire

pressure of other tires.

WARNING:

sidewall whichever is less.

o Never overload your car. Be es-

o When driving on roads covered

Do not drive faster than 120 km/h (75

pecially careful about overload-

with snow or ice, drive at less

mph) when your car is equipped with

ing if you equip your car with a

than 30 km/h (20 mph).

snow tires.

luggage rack or car top carrier.

o Use the SAE "S" class or wire &

plastic chains.

o If you have noise caused by

chains contacting the body, re-

tighten the chain to avoid con-

tact with the vehicle body.

o To prevent body damage, re-

tighten the chains after driving

0.5 ~ 1 km.

Content .. 13 14 15 16 ..
