Hyundai Matrix (2007 year). Instruction - part 7

1 FEATURES OF YOUR HYUNDAI

90

B740B01FC-GAT

o

Set the temperature control to "Cool".

B740C01FC-GAT

Air Conditioning Operation

("Cool" provides maximum cooling.

Dehumidified Heating

Cooling

The temperature may be moderated

by moving the control toward

"Warm".)

o

Adjust the fan control to the desired

speed. For greater cooling, turn the

fan control to one of the higher speeds

or temporarily select the "Recircula-

tion" position on the air intake con-

trol.

B740C01FC

B740B01FC

For dehumidified heating:

To use the air conditioning to cool the

o Turn on the fan control switch.

interior:

o Turn on the air conditioning switch.

The air conditioning indicator light

o Turn on the fan control switch.

should come on at the same time.

o Turn on the air conditioning switch by

o Set the air intake control to the "Fresh"

pushing in on the switch. The air

mode (

).

conditioning indicator light should

o Set the air flow control to the desired

come on at the same time.

position.

o Set the air intake control to the "Fresh"

o Adjust the fan control to the desired

mode(

).

speed.

o For more rapid action, set the fan at

one of the higher speeds.

o Adjust the temperature control to

provide the desired amount of

warmth.

1 FEATURES OF YOUR HYUNDAI

AUTOMATIC HEATING AND COOLING CONTROL SYSTEM

92

B970A01FC-AAT

TYPE A (Without Air Quality System)

(If lnstalled)

Your Hyundai is equipped with an auto-

matic heating and cooling control sys-

tem controlled by simply setting the

desired temperature.

B970B01FC-GAT

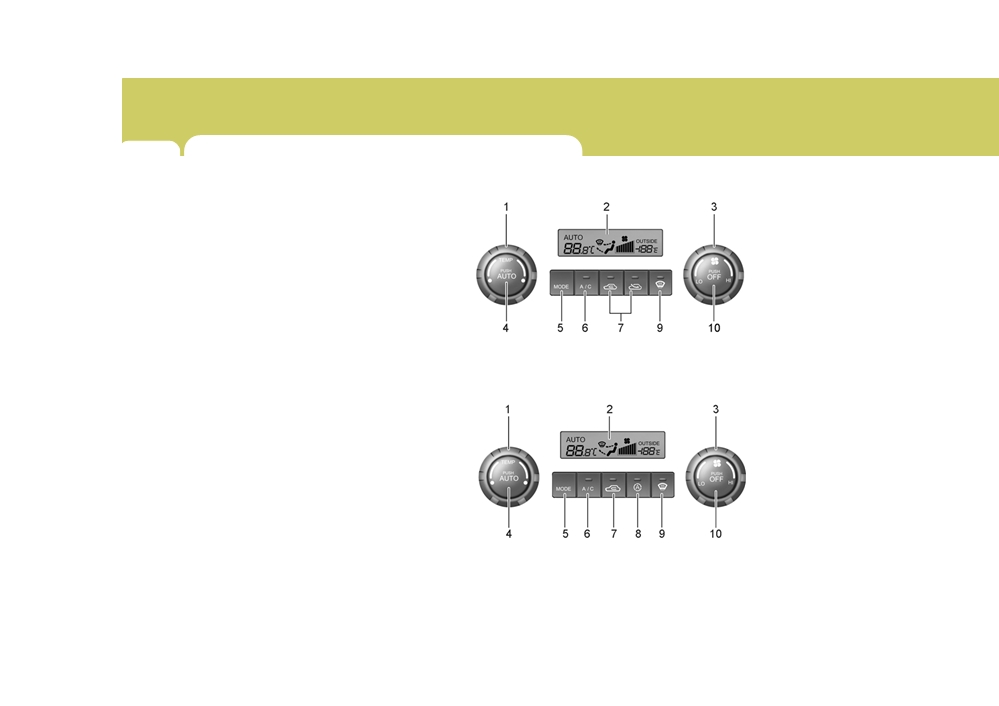

Heating and Cooling Controls

1. Temperature Control

2. Display Window

3. Blower Fan Control

HFC224-3

4. AUTO (Automatic Control) Switch

5. Air Flow Control Switch

TYPE B (With Air Quality System)

6. Air Conditioning Switch

7. Air lntake Control Switch

8. Air Quality System Switch

(If Installed)

9. Defroster Switch

10.OFF Switch

HFC224-2

FEATURES OF YOUR HYUNDAI

1

93

B970C01NF-GAT

NOTE:

Automatic Operation

If the battery has been discharged or

disconnected, the temperature mode

will reset to Centigrade degrees.

This is a normal condition and you

can change the temperature mode

from Centigrade to Fahrenheit as

follows;

Press the "OFF" and "AUTO " switch

simultaneously for 3 seconds.

The display shows that the unit of

HFC229

temperature is adjusted to Centigrade

2. Turn the "TEMP" knob to set the

or Fahrenheit (°C  °F or °F  °C).

HFC227

desired temperature.

The FATC (Full Automatic Tempera-

The temperature will increase to the

ture Control) system automatically con-

maximum 32°C(90°F) by turning the

trols heating and cooling by doing as

knob clockwise.

follows:

The temperature will decrease to the

minimum 17°C(62°F) by turning the

1. Push the "AUTO" switch. The indi-

knob counterclockwise.

cator light will illuminate confirming

that the Face, Floor and/or Bi-Level

modes as well as the blower speed

and air conditioner will be controlled

automatically.

1 FEATURES OF YOUR HYUNDAI

94

B980A01Y-AAT

B980B01NF-AAT

Photo Sensor

MANUAL OPERATION

Fan Speed Control

The heating and cooling system can be

controlled manually as well by pushing

buttons other than the "AUTO" switch.

In this state, the system sequentially

works according to the order of buttons

selected.

The function of the switchs which are

not selected will be controlled automati-

cally.

B970C01FC

Press the "AUTO" switch in order to

NOTE:

convert to automatic control of the sys-

HFC225

Never place anything over the sen-

tem.

The fan speed can be set to the desired

sor which is located on the instru-

speed by turning the fan speed control

ment panel to ensure better control

knob. The higher the fan speed is, the

of the heating and cooling system.

more air is delivered. Pressing the "OFF"

switch turns off the fan.

FEATURES OF YOUR HYUNDAI

1

95

B670C03Y-AAT

With the "Fresh" mode selected, air

B980C04Y-GAT

Air Intake Control Switch

enters the vehicle from the outside and

Air Intake Control Switch

(Without A.Q.S)

is heated or cooled according to the

(With A.Q.S) (If Installed)

function selected.

With the "Recirculation" mode selected,

air from within the passenger compart-

ment will be drawn through the heating

system and heated or cooled according

to the function selected.

NOTE:

It should be noted that prolonged

operation of the heating system in

HFC240

HFC240-1

"recirculation" mode will give rise to

This is used to select fresh outside air

This is used to select fresh outside air

fogging of the windshield and side

or recirculation of inside air.

or recirculate inside air automatically.

windows and the air within the pas-

To change the air intake control mode,

senger compartment will become

(Fresh mode, Recirculation mode) push

:

OFF

stale. In addition, prolonged use of

the control switch.

:

ON

the air conditioning with the "Recir-

culation" mode selected may result

FRESH MODE (

)

: The indicator

Fresh mode :

in the air within the passenger com-

light on the button goes on when the air

partment becoming excessively dry.

Air enters the vehicle from the outside

intake control is in fresh mode.

and is heated or cooled according to the

function selected.

RECIRCULATION MODE (

) : The

indicator light on the button is illumi-

nated when the air intake control is in

recirculation mode.

1 FEATURES OF YOUR HYUNDAI

96

Recirculation mode :

B980D01Y-AAT

Heating and Cooling System Off

Air from within the passenger compart-

!

CAUTION:

ment will be drawn through the heating

If the windows fog up with the Recir-

system and heated or cooled according

culation or A.Q.S mode selected, set

to the function selected.

the air intake control to the Fresh air

position or A.Q.S control to "OFF".

Exhaust gas cutoff mode :

Air enters the vehicle from the outside.

But if exhaust gas enters the vehicle

from the outside, the exhaust gas cut-

off mode (

) is automatically conv-

erted to the (

) mode, to prevent

HFC239

exhaust gas from entering the vehicle.

Press the "OFF" switch to stop the

operation of the heating and cooling

NOTE:

system.

It should be noted that prolonged

operation of the heating system in

recirculation mode (

) will give

rise to misting of the winds-hield

and side windows and the air within

the passenger compartment will be-

come stale. In addition, prolonged

use of the air conditioning with the

recirculation mode (

) selected

may result in the air within the pas-

senger compartment becoming ex-

cessively dry.

FEATURES OF YOUR HYUNDAI

1

97

B980E01FC-GAT

Air Flow Control

HFC231

HFC232

HFC230

Face-Level

Bi-Level

This is used to direct the flow of air. Air

When selecting the "Face-Level", the

When selecting the "Bi-Level", the indi-

can be directed to the floor, dashboard

indicator light will come on, causing air

cator light will come on and the air will

outlets, or windshield. Four symbols

to be discharged through the face level

be discharged through the face vents

are used to represent Face, Bi-Level,

vents.

and the floor vents. This makes it pos-

Floor, Floor-Defrost position.

sible to have cooler air from the dash-

board vents and warmer air from the

floor outlets at the same time.

1 FEATURES OF YOUR HYUNDAI

98

B980F02E-GAT

Defrost Switch

HFC233

HFC234

Floor-Level

HFC241

Floor-Defrost Level

When the "Defrost" button is pressed,

When selecting the "Floor-Level", the

When selecting the "Floor-Defrost Level"

the "

" mode will be automatically

indicator light will come on and the air

mode, the indicator light will come on

selected and the air will be discharged

will be discharged through the floor

and the air will be discharged through

through the windshield defroster nozzle,

vents, windsheld defroster nozzle, side

the windshield defroster nozzle, the

side defroster nozzle and side ventila-

defroster nozzle and side ventilator.

floor vents, side defroster nozzle and

tor. To assist in defrosting, the air

side ventilator.

conditioning will operate if ambient tem-

perature is higher than 3.5°C and auto-

matically turns off if the ambient tem-

perature drops below 3.5°C.

FEATURES OF YOUR HYUNDAI

1

CLIMATE CONTROL AIR FILTER

STEREO SOUND SYSTEM

99

(IN FRONT OF BLOWER UNIT)

B760A05FC-AAT

B750A02A-AAT

How Car Audio Works

Inside air

!

Outside air

CAUTION:

FM reception

Filter

o Replace the filter every 15,000 km

Ionosphere

(10,000 miles) or once a year. If the

car is being driven in severe con-

ditions such as dusty, rough

roads, more frequent climate con-

trol air filter inspections and

Blower fan

changes are required.

Inside air

Evaporator core

o When the air flow rate is suddenly

decreased, the system should be

Heater core

B760A01E

checked at an authorized dealer.

B750A01L

The climate control air filter is located in

front of the blower unit behind the glove

AM and FM radio signals are broadcast

box. It operates to decrease pollutants

from transmitter towers located around

from entering the car.

your city. They are intercepted by the

To replace the climate control air filter,

radio antenna on your car. This signal is

refer to page 6-25.

then received by the radio and sent to

your car speakers.

When a strong radio signal has reached

your vehicle, the precise engineering of

your audio system ensures high quality

reproduction. However, in some cases

the signal coming to your vehicle may

not be strong and clear. This can be due

to factors such as the distance from the

radio station, closeness of other strong

radio stations or the presence of build-

ings, bridges and other large obstruc-

tions in the area.

1 FEATURES OF YOUR HYUNDAI

100

AM reception

FM radio station

Ionosphere

Unobstructed

Mountains

area

Buildings

Obstructed area Iron bridges

B750A03L

B750A02L

B750A04L

AM broadcasts can be received at

FM broadcasts are transmitted at high

o Fading - As your car moves away

greater distances than FM broadcasts.

frequencies and do not bend to follow

from the radio station, the signal will

This is because AM radio waves are

the earth's surface. Because of this,

weaken and sound will begin to fade.

transmitted at low frequencies. These

FM broadcasts generally begin to fade

When this occurs, we suggest that

long, low frequency radio waves can

at short distances from the station.

you select another stronger station.

follow the curvature of the earth rather

Also, FM signals are easily affected by

o Flutter/Static - Weak FM signals or

than travelling straight out into the at-

buildings, mountains, or other obstruc-

large obstructions between the trans-

mosphere. In addition, they curve

tions. These can result in certain listen-

mitter and your radio can disturb the

around obstructions so that they can

ing conditions which might lead you to

signal causing static or fluttering

provide better signal coverage.

believe a problem exists with your ra-

noises to occur. Reducing the treble

dio. The following conditions are normal

level may lessen this effect until the

and do not indicate radio trouble:

disturbance clears.

FEATURES OF YOUR HYUNDAI

1

101

B750B02Y-AAT

Using a cellular phone or a two-

way radio

When a cellular phone is used inside

the vehicle, noise may be produced

from the audio equipment. This does

not mean that something is wrong with

the audio equipment. In such a case,

use the cellular phone at a place as far

as possible from the audio equipment.

B750A05L

o

Station Swapping - As an FM signal

!

CAUTION:

weakens, another more powerful sig-

When using a communication sys-

nal near the same frequency may

tem such as a cellular phone or a

begin to play. This is because your

radio inside the vehicle, a separate

radio is designed to lock onto the

external antenna must be fitted. When

clearest signal. If this occurs, select

a cellular phone or a radio set is used

another station with a stronger sig-

with an internal antenna alone, it

nal.

may interfere with the vehicle's elec-

o

Multi-Path Cancellation - Radio sig-

trical system and adversely affect

nals being received from several di-

safe operation of the vehicle.

rections can cause distortion or flut-

tering. This can be caused by a

direct and a reflected signal from the

same station, or by signals from two

!

WARNING:

stations with close frequencies. If

Don't use a cellular phone when you

this occurs, select another station

are driving, you must stop at a safe

until the condition has passed.

place to use a cellular phone.

1 FEATURES OF YOUR HYUNDAI

102

CAR AUDIO SYSTEMS

H210A01O-AAT

STEREO RADIO OPERATION (H210) (If Installed)

2. FADER Control Knob

5. TUNE/SEEK Select Button

4. BAND Selector

6. PRESET Station Select Button

3. BASS/TREBLE Control Knob

1. POWER ON-OFF, BALANCE, VOLUME, SCAN Control Knob

H210A01O

1 FEATURES OF YOUR HYUNDAI

104

6. PRESET STATION SELECT

A total of 18 stations can be pro-

grammed by selecting one AM and

Button

two FM stations per button.

Six (6) stations for AM, FM1 and FM2

o

When completed, any preset station

respectively can be preset in the elec-

may be recalled by selecting AM,

tronic memory circuit on this unit.

FM1 or FM2 band and the appropri-

ate station button.

HOW TO PRESET STATIONS

Six AM and twelve FM stations may be

!

programmed into the memory of the

CAUTION:

radio. Then, by simply pressing the

o Do not place beverages close to

band select button and/or one of the six

the audio system. The playback

station select buttons, you may recall

mechanism may be damaged if

any of these stations instantly. To pro-

you spill them.

gram the stations, follow these steps:

o Do not impact or strike the audio

system, or the playback mecha-

o Press band selector to set the band

nism could be damaged.

for AM, FM1, and FM2.

o Select the desired station to be stored

by seek, scan or manual tuning.

o Determine the preset station select

button you wish to use to access that

station.

o Press the station select button for

more than two seconds. A select

button indicator will show in the dis-

play indicating which select button

you have depressed. You should

then release the button, and proceed

to program the next desired station.

FEATURES OF YOUR HYUNDAI

1

105

B220A01E-BAT

STEREO RADIO OPERATION (H220) (If Installed)

2. FADER Control Knob

5. TUNE/SEEK Select Button

4. BAND Selector

6. PRESET Station Select Button

3. BASS/TREBLE Control Knob

1. POWER ON-OFF, BALANCE, VOLUME, SCAN Control Knob

B225A01A

Content   ..  5  6  7  8   ..
