Indicator, Coming On/Blinking

u

If the Low Tire Pressure/TPMS Indicator Comes On or Blinks

Han

d

lin
g the U

n

expected

If the Low Tire Pressure/TPMS Indicator Comes On or
Blinks

■

Reasons for the indicator to come on or blink

A tire pressure is significantly low, or the TPMS has not been calibrated.
If there is a problem with the TPMS or the compact spare tire

*

 is

installed, the indicator blinks for about one minute, and then stays on.

■

What to do when the indicator comes on

Drive carefully and avoid abrupt cornering and hard braking.
Stop your vehicle in a safe place. Check the tire pressure and adjust the
pressure to the specified level. The specified tire pressure is on a label on
the driver-side doorjamb.

u

Calibrate the TPMS after the tire pressure is adjusted.

■

What to do when the indicator blinks, then remains on

Have the tire inspected by a dealer as soon as possible. If the compact
spare tire

*

 has triggered the indicator to blink, change the tire to a full-

size tire. The indicator goes off after a while.

u

Calibrate the TPMS after a full-size tire is reinstalled.

U.S. models

1

If the Low Tire Pressure/TPMS Indicator Comes On or Blinks

NOTICE

Driving on an extremely underinflated tire can cause
it to overheat. An overheated tire can fail. Always
inflate your tires to the prescribed level.

* Not available on all models

641

Continued

Han

d

lin
g the U

n

expected

Fuses

Fuse Locations

If any electrical devices are not working,
turn the ignition switch to LOCK

(

0

*1

 and

check to see if any applicable fuse is blown.

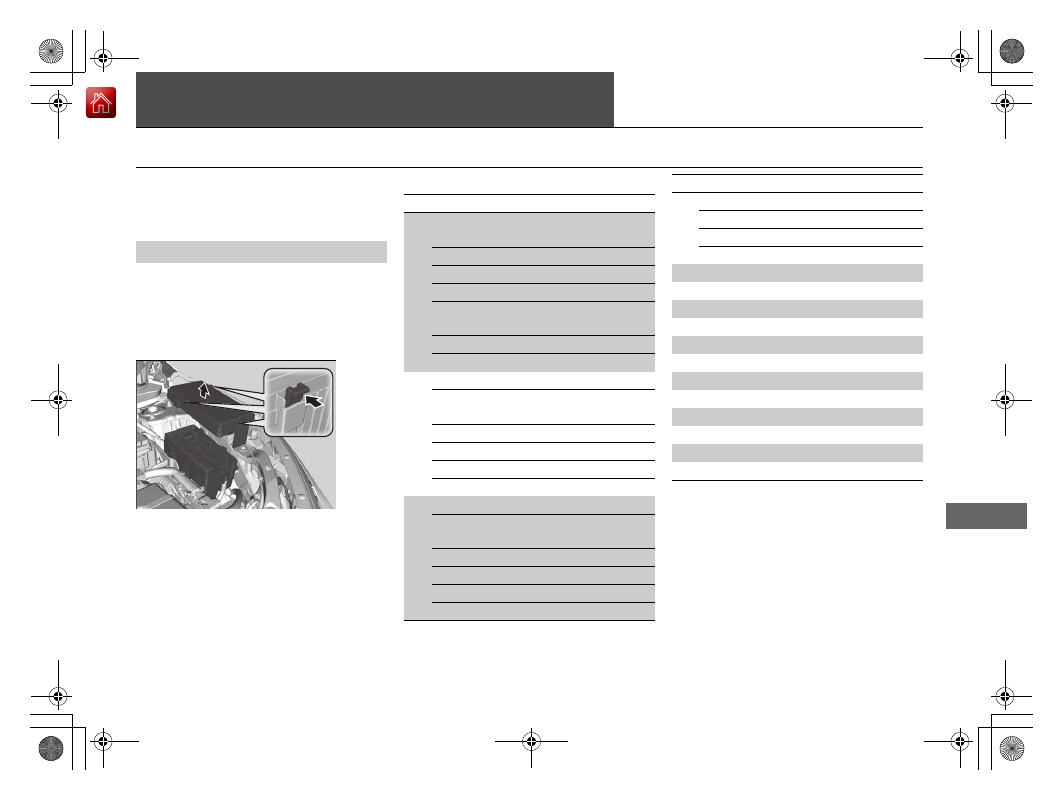

Located near the battery. Push the tabs to
open the box.
Fuse locations are shown on the fuse box
cover. Locate the fuse in question by the
fuse number and box cover number.

■

Engine Compartment Fuse Box

■

Circuit protected and fuse rating

Circuit Protected

Amps

1

−

*2

Adaptive Damper System

*3

(60 A)

60 A

Cooling Fan

*4

(30 A)

Cooling Fan

*5

(50 A)

−

−

IG Main

*6

−

*7

30 A

−

Headlight High Beam Main

30 A

Battery

125 A

2

EPS

70 A

IG Main

30 A

*6

50 A

*7

Fuse Box Option

*

(40 A)

Fuse Box

60 A

Front Wiper Motor

30 A

Headlight Low Beam Main

30 A

3

Rear Defroster

40 A

Starter Motor

*6

−

*7

30 A

−

Fuse Box

40 A

ABS/VSA Motor

40 A

ABS/VSA FSR

40 A

Blower Motor

40 A

*1:Models with the smart entry system have

an ENGINE START/STOP button
instead of an ignition switch.

*2:Models without SPORT mode
*3:Models with SPORT mode
*4:2.0L engine models
*5:1.5L engine models
*6:Models with smart entry system
*7:Models without smart entry system
*8:Continuously variable transmission

models

4

−

−

−

−

−

−

−

−

5

Cooling Fan

5 A

6

Washer

15 A

7

FI Main

15 A

8

FI  Sub

15 A

9

Stop Lights

10 A

10

Injector

*5

(15 A)

11

LAF

5 A

12

FI ECU

10 A

13

Parking Lights

10 A

14

Hazard

15 A

15

IG Coil

15 A

16

Transmission

*8

(15 A)

Circuit Protected

Amps

* Not available on all models

642

uu

Fuses

u

Fuse Locations

Han

d

lin
g the U

n

expected

*2:Models without SPORT mode
*3:Models with SPORT mode
*5:1.5L engine models

Circuit Protected

Amps

17

Daytime Running Lights

10 A

18

Back Up

10 A

19

Audio

15 A

20

Audio AMP

*

(30 A)

21

Interior Lights

10 A

22

Front Fog Lights

*

(15 A)

23

A/C Compressor

(10 A)

24

Horn

10 A

25

Left Headlight Low Beam

10 A

26 Right Headlight Low Beam

10 A

27

VB ACT

*5

(10 A)

28

Left Headlight High Beam

10 A

29 Right Headlight High Beam

10 A

30

−

−

31

−

(15 A)

32

−

(20 A)

*2

−

*3

33

−

*2

Adaptive Damper System

*3

(20 A)

15 A

34

−

−

35

−

−

36

−

−

Located under the dashboard.

Fuse locations are shown on the label on
the side panel.
Locate the fuse in question by the fuse
number and label number.

■

Circuit protected and fuse rating

■

Interior Fuse Box

Fuse Label

Circuit Protected

Amps

1

Accessory

10 A

2

−

*1

Key Lock

*2

−

(5 A)

3

−

−

4

Front Sensor Camera

*1, *3

Transmission

*2, *4

(5 A)

(10 A)

5

Option

10 A

6

SRS Indicator

10 A

7

Meter

10 A

8

Fuel Pump

15 A

*1:Models with smart entry system
*2:Models without smart entry system
*3:Models with CMBS

TM

*4:Continuously variable transmission

models

9

AIRCON

10 A

10

−

−

11

Engine Control

5 A

12

Passenger Side Door Lock

10 A

13

−

(10 A)

14

−

(20 A)

15

Passenger’s Side Power

Window

20 A

16

Door Lock

20 A

17

Transmission

*1, *4

Front Sensor Camera

*2, *3

(10 A)

(5 A)

18

−

−

19

Moonroof

*

(20 A)

20

−

−

21

ACG

10 A

22

Daytime Running Lights

10 A

23

−

−

24

Front Sensor Camera

*

(5 A)

25

Driver’s Door Lock

10 A

26 Passenger Side Door Unlock

10 A

27

−

(20 A)

28

Driver’s Power Window

20 A

Circuit Protected

Amps

* Not available on all models

643

uu

Fuses

u

Fuse Locations

Han

d

lin
g the U

n

expected

*1:Models with smart entry system
*2:Models without smart entry system

Circuit Protected

Amps

29

Front Accessory Power

Socket

20 A

30

Smart Entry

*1

−

*2

10 A

−

31

−

(20 A)

32

Front Seat Heater

*

(20 A)

33

−

(20 A)

34

VSA/ABS

10 A

35

SRS

10 A

36

−

−

37

−

−

38

−

(10 A)

39

Driver’s Door Unlock

10 A

* Not available on all models

644

uu

Fuses

u

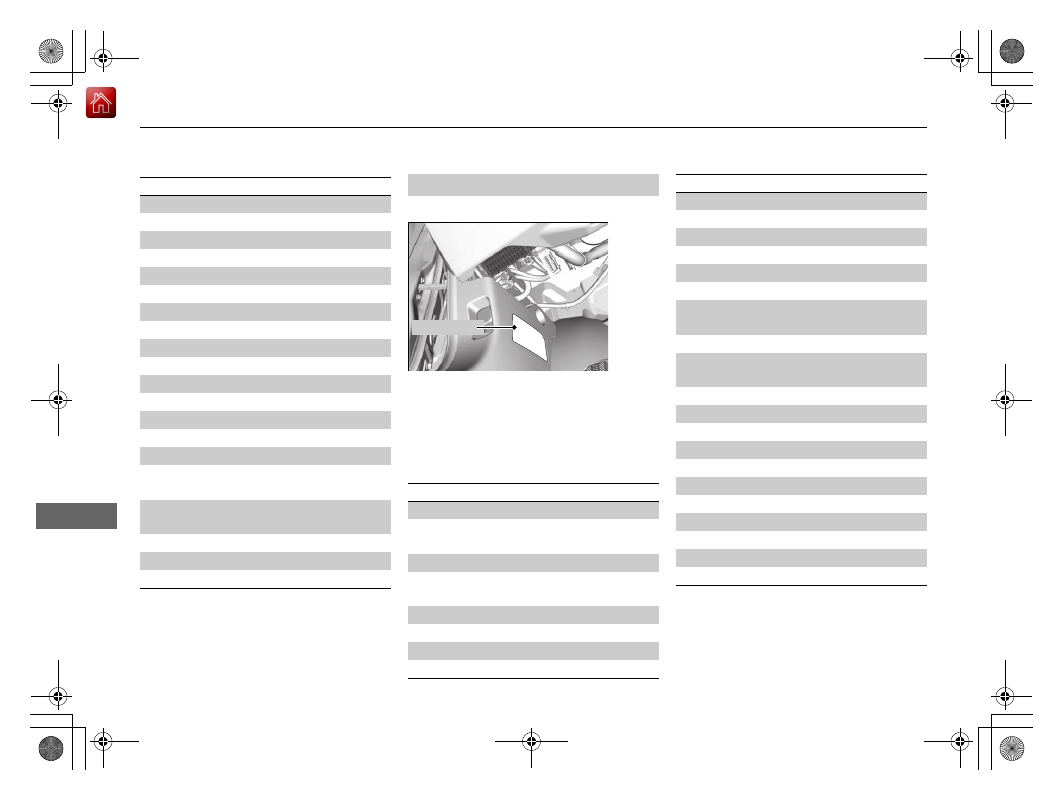

Inspecting and Changing Fuses

Han

d

lin
g the U

n

expected

Inspecting and Changing Fuses

1. Turn the ignition switch to LOCK

(

0

*1

. Turn

headlights and all accessories off.

2. Remove the fuse box cover.
3. Check the large fuse in the engine

compartment.

u

If the fuse is blown, use a Phillips-head
screwdriver to remove the screw and
replace it with a new one.

4. Inspect the small fuses in the engine

compartment and the vehicle interior.

u

If there is a blown fuse, remove it with
the fuse puller and replace it with a new
one.

*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.

1

Inspecting and Changing Fuses

NOTICE

Replacing a fuse with one that has a higher rating
greatly increases the chances of damaging the
electrical system.

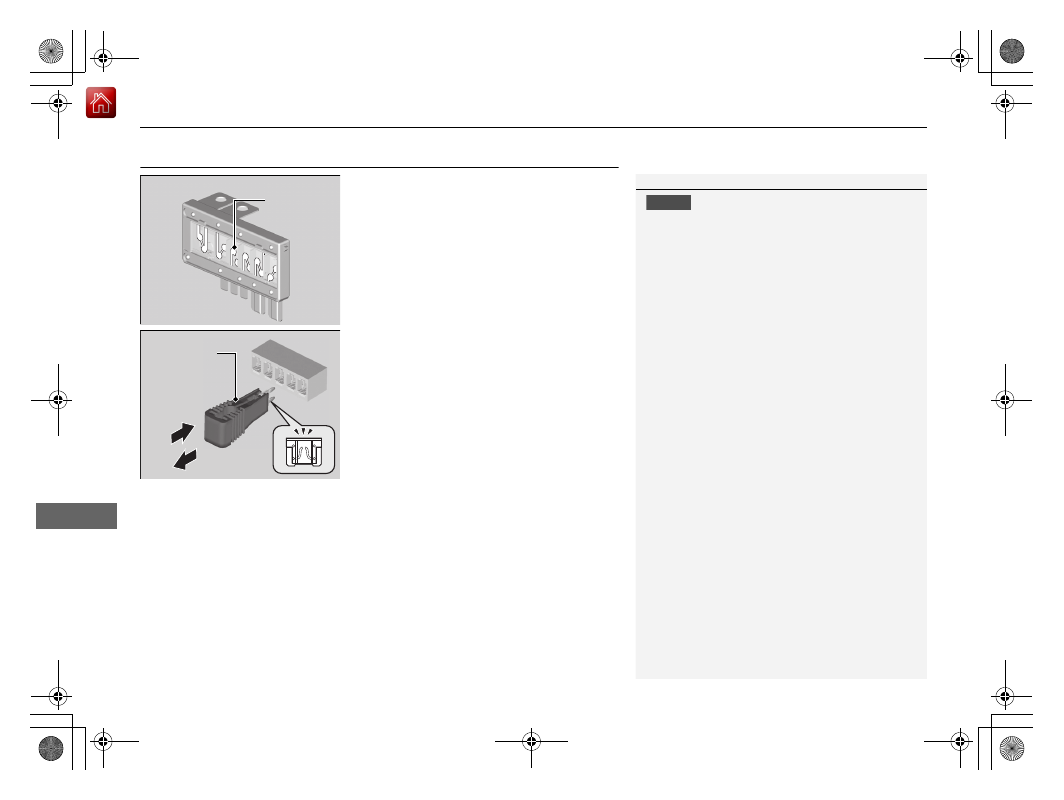

There is a fuse puller on the back of the engine
compartment fuse box cover.

Combined
Fuse

Blown Fuse

Fuse Puller

645

Han

d

lin
g the U

n

expected

Emergency Towing

Call a professional towing service if you need to tow your vehicle.

■

Flat bed equipment

The operator loads your vehicle on the back of a truck.
This is the best way to transport your vehicle.

■

Wheel lift equipment

The tow truck uses two pivoting arms that go under the front tires and lift them off
the ground. The rear tires remain on the ground. This is an acceptable way to
tow your vehicle.

1

Emergency Towing

NOTICE

Trying to lift or tow your vehicle by the bumpers will
cause serious damage. The bumpers are not designed
to support the vehicle’s weight.

NOTICE

Improper towing such as towing behind a
motorhome or other motor vehicle can damage the
transmission.

Never tow your vehicle with just a rope or chain.
It is very dangerous, since ropes or chains may shift
from side to side or break.

Make sure the parking brake is released. If you
cannot release the parking brake, your vehicle must
be transported by the flat bed equipment.

2 Parking Brake P. 527

646

Han

d

lin
g the U

n

expected

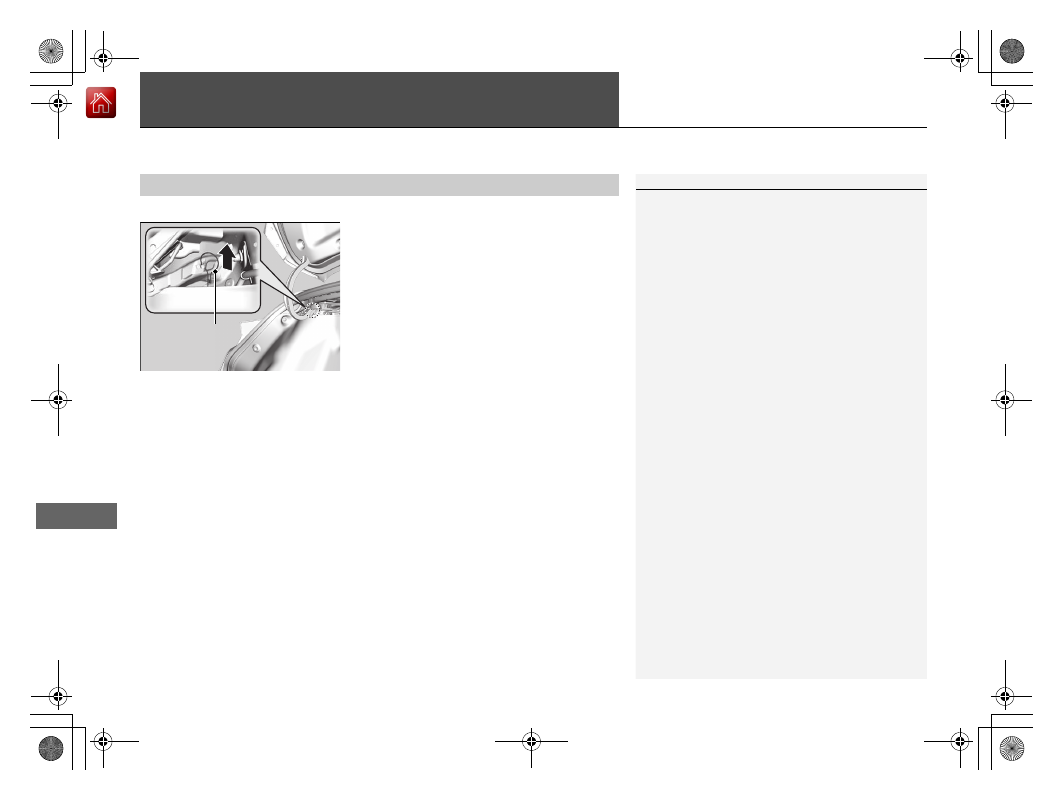

When You Cannot Unlock the Fuel Fill Door

If you cannot unlock the fuel fill door, use the following procedure.

1. Open the trunk.
2. Pull the yellow release cord beneath the

rear tray as shown.

u

The release cord unlocks the fuel fill door
when it is pulled.

■

What to Do When Unable to Unlock the Fuel Fill Door

1

When You Cannot Unlock the Fuel Fill Door

After taking these steps, contact a dealer to have
your vehicle checked.

Release Cord

647

Han

d

lin
g the U

n

expected

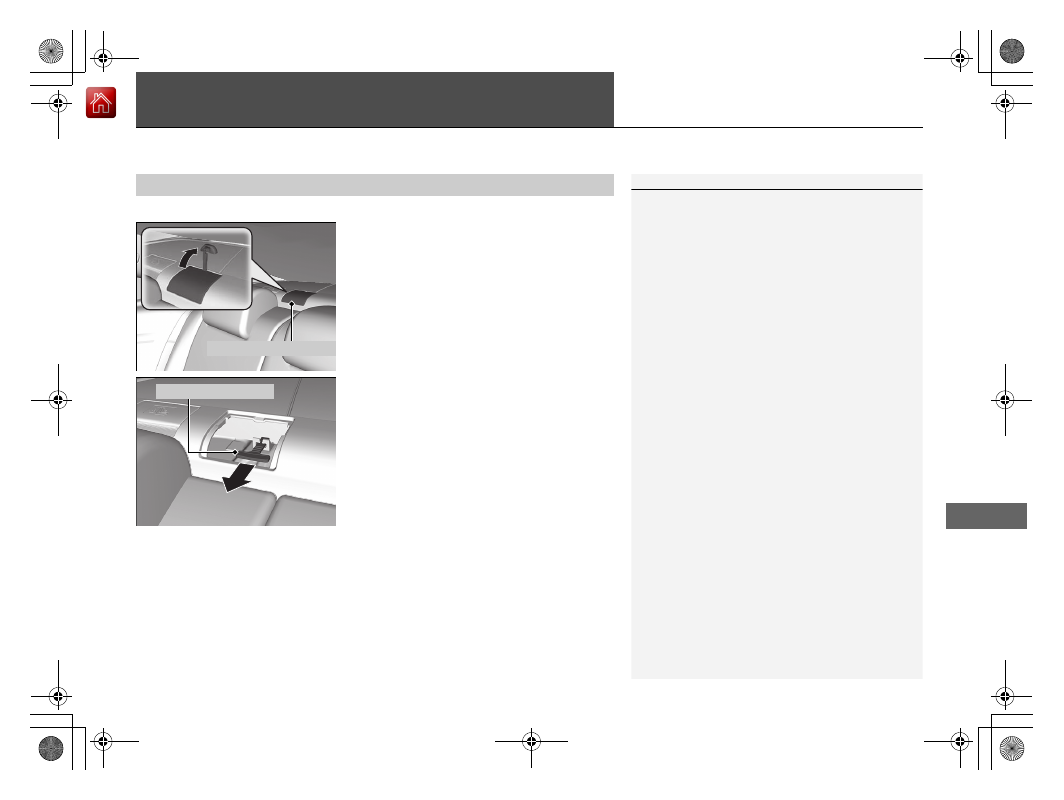

When You Cannot Open the Trunk

If you cannot open the trunk, use the following procedure.

1. Remove the cover with a key.

u

Wrap a key with a cloth to prevent
scratching the cover.

2. Pull the release lever.
3. Replace the cover.

■

What to Do When Unable to Open the Trunk

1

When You Cannot Open the Trunk

Following up:
After taking these steps, contact a dealer to have
your vehicle checked.

Trunk Release Cover

Trunk Release Lever

648

Han

d

lin
g the U

n

expected

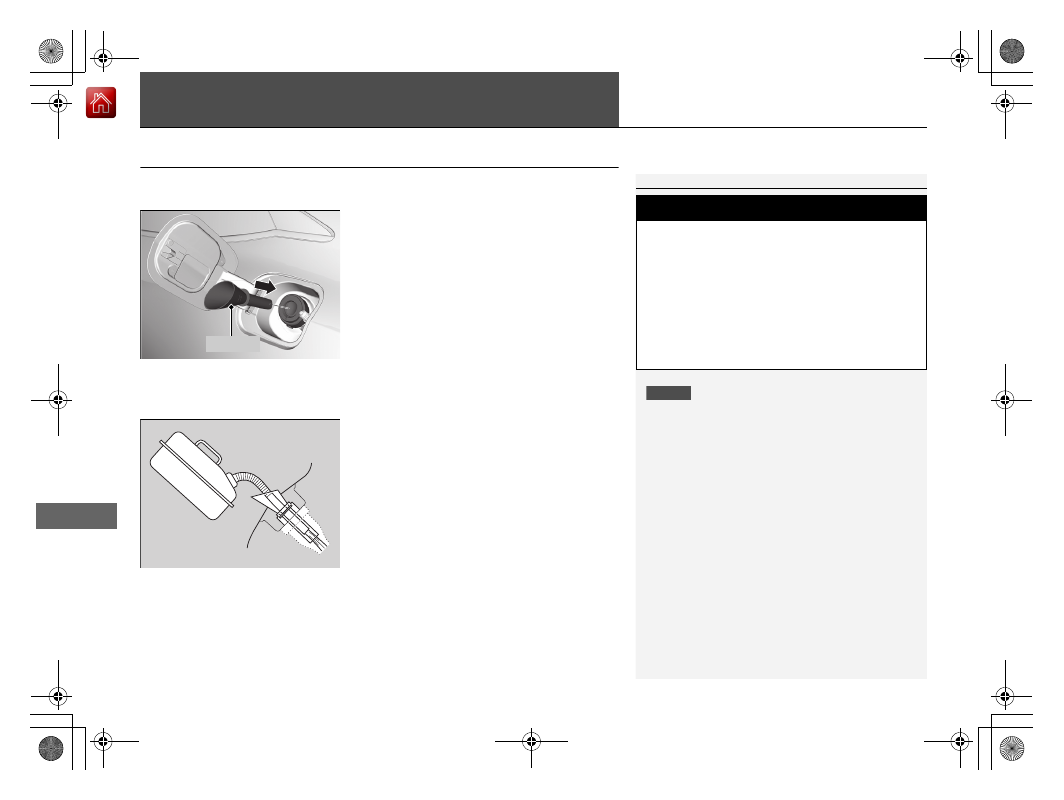

Refueling

Refueling From a Portable Fuel Container

If you have run out of fuel and need to refuel your vehicle from a portable fuel
container, use the funnel provided with your vehicle.

1. Turn off the engine.
2. Press on the edge of the fuel fill door to

make it pop up slightly.

u

The fuel fill door opens.

3. Take the funnel out of the tool case in the

trunk.

2 Types of Tools P. 606

4. Place the end of the funnel on the lower

part of filler opening, then insert it slowly
and fully.

u

Make sure that the end of the funnel
goes down along with the filler pipe.

5. Fill the tank with fuel from the portable fuel

container.

u

Pour fuel carefully so you do not spill any.

6. Remove the funnel from the filler neck.

u

Wipe up any fuel from the funnel before
storing it.

7. Shut the fuel fill door by hand.

1

Refueling From a Portable Fuel Container

NOTICE

Do not insert the nozzle of a portable fuel container
or any funnel other than the one provided with your
vehicle. Doing so can damage the fuel system.
Do not try to pry open or push open the sealed fuel
tank with foreign objects. This can damage the fuel
system and its seal.

Make sure the fuel in the portable fuel container is
gasoline before you refuel.

3

WARNING

Gasoline is highly flammable and explosive.
You can be burned or seriously injured
when handling fuel.

• Stop the engine, and keep heat, sparks,

and flame away.

• Handle fuel only outdoors.
• Wipe up spills immediately.

Funnel

650

Info

rm

ation

Specifications

■

Vehicle Specifications

■

Air Conditioning

Model

Civic

No. of Passengers:
Front

2

Rear

3

Total

5

Weights:
Gross Vehicle
Weight Rating

See the certification label on the driver’s
doorjamb

Gross Axle Weight
Rating (Front)

See the certification label on the driver’s
doorjamb

Gross Axle Weight
Rating (Rear)

See the certification label on the driver’s
doorjamb

Refrigerant Type

HFO-1234yf (R-1234yf)

Charge Quantity

13.2 – 15.0 oz (375 – 425 g)

Lubricant Type

RL85HM (POE)

Quantity

4.7 – 6.3 cu-in (77 – 103 cm

3

)

2.0 L engine models

■

Engine Specifications

■

Fuel

■

Washer Fluid

Displacement

121.76 cu-in (1,996 cm

3

)

Spark Plugs

NGK

DILKAR7H11GS
DILKAR7G11GS

DENSO

DXE22HQR-D11S

Fuel:
Type

Unleaded gasoline, Pump octane number
of 87 or higher

Fuel Tank Capacity

12.39 US gal (46.9 L)

Tank Capacity

U.S.: 2.6 US qt (2.5 L)
Canada: 4.8 US qt (4.5 L)

■

Light Bulbs

Headlights (Low Beam)

55 W (H11)

Headlights (High Beam)

60 W (HB3)

Fog Lights

*

35 W (H8)

Parking/Daytime Running Lights

LED

Front Side Marker Lights

3 W

Front Turn Signal Lights

21 W (Amber)

Brake Lights

21 W

Rear Turn Signal Lights

21 W (Amber)

Tail/Rear Side Marker Lights

LED

Back-Up Lights

6 W

Taillight

LED

High-Mount Brake Light

LED

Rear License Plate Light

LED

Interior Lights

Map Lights

5 W

Ceiling Light

8 W

Vanity Mirror Lights

*

2 W

Glove Box Light

LED

Trunk Light

5 W

* Not available on all models

651

uu

Specifications

u

Continued

Info

rm

ation

■

Brake/Clutch

*

 Fluid

■

Continuously Variable Transmission
Fluid

*

■

Manual Transmission Fluid

*

Specified

Honda Heavy Duty Brake Fluid DOT 3

Specified

Honda HCF-2

Capacity

Change

3.7 US qt (3.5 L)

Specified

Honda MTF

Capacity

Change

2.0 US qt (1.9 L)

■

Engine Oil

■

Engine Coolant

Recommended

·Genuine Honda Motor Oil 0W-20
·API Premium-grade 0W-20 detergent oil

Capacity

Change

4.2 US qt (4.0 L)

Change
including
filter

4.4 US qt (4.2 L)

Specified

Honda Long-Life Antifreeze/Coolant Type2

Ratio

50/50 with distilled water

Capacity

1.41 US gal (5.32 L)
(change including the remaining
0.2 US gal (0.75 L) in the reserve tank)

■

Tire

*1: Models with 215/55R16 tires
*2: Models with 235/40R18 tires

Regular

Size

215/55R16 93H

*1

235/40R18 91W

*2

Pressure
psi (kPa [kgf/cm

2

])

Front

33 (220 [2.2])

*1

33 (225 [2.3])

*2

Rear 32 (220 [2.2])

*1, *2

Compact
Spare

Size

T125/80D16 97M

*1

T125/70R17 98M

*2

Pressure
psi (kPa [kgf/cm

2

])

60 (420 [4.2])

Wheel Size

Regular

16 x 7J

*1

18 x 8J

*2

Compact Spare

16 x 4T

*1

17 x 4T

*2

* Not available on all models

652

uu

Specifications

u

Info

rm

ation

■

Vehicle Specifications

■

Air Conditioning

Model

Civic

No. of Passengers:
Front

2

Rear

3

Total

5

Weights:
Gross Vehicle
Weight Rating

See the certification label on the driver’s
doorjamb

Gross Axle Weight
Rating (Front)

See the certification label on the driver’s
doorjamb

Gross Axle Weight
Rating (Rear)

See the certification label on the driver’s
doorjamb

Refrigerant Type

HFO-1234yf (R-1234yf)

Charge Quantity

13.2 – 15.0 oz (375 – 425 g)

Lubricant Type

RL85HM (POE)

Quantity

4.7 – 6.3 cu-in (77 – 103 cm

3

)

1.5 L engine models

■

Engine Specifications

*1: Models without SPORT mode
*2: Models with SPORT mode

■

Fuel

*1: Models without SPORT mode
*2: Models with SPORT mode

■

Washer Fluid

Displacement

91.38 cu-in (1,498 cm

3

)

Spark Plugs

NGK
NGK

ILZKAR8H8S

*1

ILZKAR8J8SY

*2

Fuel:
Type

Unleaded gasoline, Pump octane number
of 87 or higher

*1

Unleaded premium gasoline, Pump octane
number of 91 or higher

*2

Fuel Tank Capacity

12.39 US gal (46.9 L)

Tank Capacity

U.S.: 2.6 US qt (2.5 L)
Canada: 4.8 US qt (4.5 L)

■

Light Bulbs

*1: Models with halogen headlights
*2: Models with LED headlights
*3: Models with halogen fog lights
*4: Models with LED fog lights

Headlights (Low Beam)

55 W (H11)

*1

LED

*2

Headlights (High Beam)

60 W (HB3)

*1

LED

*2

Fog Lights

35 W (H8)

*3

LED

*4

Parking/Daytime Running Lights

LED

Front Side Marker Lights

3 W

Front Turn Signal Lights

21 W (Amber)

*1

LED

*2

Side Turn Signal Lights
(on Door Mirrors)

*

LED

Brake Lights

21 W

Rear Turn Signal Lights

21 W (Amber)

Tail/Rear Side Marker Lights

LED

Back-Up Lights

6 W

Taillight

LED

High-Mount Brake Light

LED

Rear License Plate Light

LED

Interior Lights

Map Lights

5 W

Ceiling Light

8 W

Vanity Mirror Lights

*

2 W

Glove Box Light

LED

Trunk Light

5 W

* Not available on all models

653

uu

Specifications

u

Info

rm

ation

■

Brake/Clutch

*

 Fluid

■

Continuously Variable Transmission
Fluid

*

■

Manual Transmission Fluid

*

Specified

Honda Heavy Duty Brake Fluid DOT 3

Specified

Honda HCF-2

Capacity

Change

3.9 US qt (3.7 L)

Specified

Honda MTF

Capacity

Change

2.0 US qt (1.9 L)

■

Engine Oil

■

Engine Coolant

*1: Continuously variable transmission models
*2: Manual transmission models

Recommended

·Genuine Honda Motor Oil 0W-20
·API Premium-grade 0W-20 detergent oil

Capacity

Change

3.4 US qt (3.2 L)

Change
including
filter

3.7 US qt (3.5 L)

Specified

Honda Long-Life Antifreeze/Coolant Type2

Ratio

50/50 with distilled water

Capacity

1.34 US gal (5.09 L)

*1



(change including the remaining
0.2 US gal (0.75 L) in the reserve tank)
1.32 US gal (5.01 L)

*2



(change including the remaining
0.2 US gal (0.75 L) in the reserve tank)

■

Tire

*1: Continuously variable transmission models with halogen

headlights

*2: Continuously variable transmission models with LED headlights
*3: Manual transmission models
*4: U.S. manual transmission model with optional 235/40R18 95Y

tires

*5: U.S. manual transmission model with optional spare tire
*6: Canadian manual transmission model

Regular

Size

215/50R17 91H

*1

235/40R18 91W

*2, *3

235/40R18 95Y

*4

Pressure
psi (kPa [kgf/cm

2

])

Front

32 (220 [2.2])

*1

33 (225 [2.3])

*2, *3, *4

Rear 32 (220 [2.2])

*1, *2, *3, *4

Compact
Spare

*

Size

T125/80D16 97M

*1

T125/70R17 98M

*2, *5, *6

Pressure
psi (kPa [kgf/cm

2

])

60 (420 [4.2])

Wheel Size

Regular

17 x 7J

*1

18 x 8J

*2, *3, *4

Compact Spare

*

16 x 4T

*1

17 x 4T

*2, *5, *6

* Not available on all models

654

Info

rm

ation

Identification Numbers

Vehicle Identification Number (VIN), Engine Number,
and Transmission Number

Your vehicle has a 17-digit vehicle identification number (VIN) used to register your
vehicle for warranty purposes, and for licensing and insuring your vehicle.

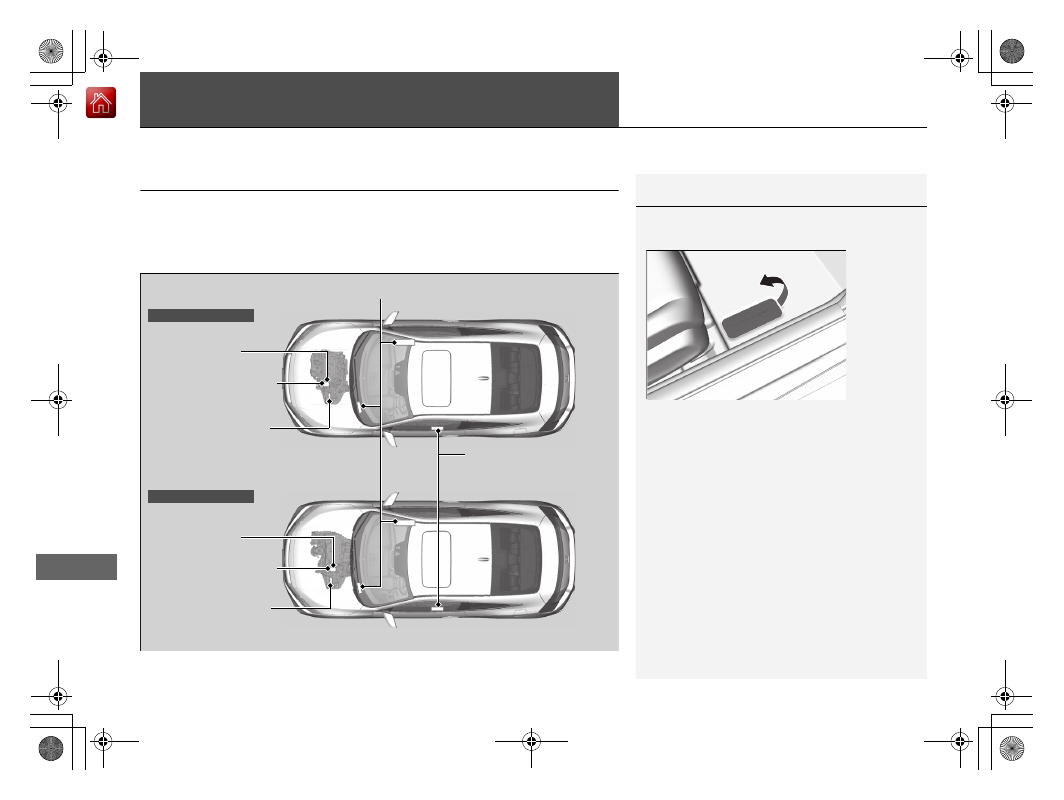

The locations of your vehicle’s VIN, engine number, and transmission number are
shown as follows.

1

Vehicle Identification Number (VIN), Engine Number, and
Transmission Number

The interior vehicle identification number (VIN) is
located under the cover.

Vehicle Identification Number

Engine Number

Certification Label/
Vehicle Identification
Number

2.0 L engine models

1.5 L engine models

Continuously Variable
Transmission Number

*

Engine Number

Continuously Variable
Transmission Number

*

Manual Transmission
Number

*

Manual Transmission
Number

*

* Not available on all models

655

Info

rm

ation

Devices that Emit Radio Waves

Each radio frequency device installed in the vehicle conforms to the requirements
and standards of the regulation listed below:

As required by the FCC:
This device complies with Part 15 of the FCC rules. Operation is
subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.

Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to
operate the equipment.

This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including interference
that may cause undesired operation of the device.

656

Info

rm

ation

Reporting Safety Defects

In the U.S.
If you believe that your vehicle has a defect which could cause a crash or could cause injury or death, you
should immediately inform the National Highway Traffic Safety Administration (NHTSA) in addition to
notifying American Honda Motor Co., Inc.

If NHTSA receives similar complaints, it may open an investigation, and if it finds that a safety defect exists
in a group of vehicles, it may order a recall and remedy campaign. However, NHTSA cannot become involved
in individual problems between you, your dealer, or American Honda Motor Co., Inc.

To contact NHTSA, you may call the Vehicle Safety Hotline toll-free at 1-888-327-4236 (TTY: 1-800-424-
9153); go to http://www.safercar.gov; or write to: Administrator, NHTSA, 1200 New Jersey Avenue, SE.,
Washington, DC 20590. You can also obtain other information about motor vehicle safety from http://
www.safercar.gov.

In Canada
If you believe that your vehicle has a defect which could cause a crash or could cause injury or death, you
should immediately inform Honda Canada Inc. and you may also inform Transport Canada.

If Transport Canada receives similar complaints, it may open an investigation, and if it finds that a safety
defect exists in a group of vehicles, it may lead to a recall and remedy campaign. However, Transport Canada
cannot become involved in individual problems between you, your dealer, or Honda Canada Inc.

To contact Transport Canada’s Defect Investigations and Recalls Division, you may call 1-800-333-0510. For
more information on reporting safety defects or about motor vehicle safety, go to http://www.tc.gc.ca/
roadsafety.
