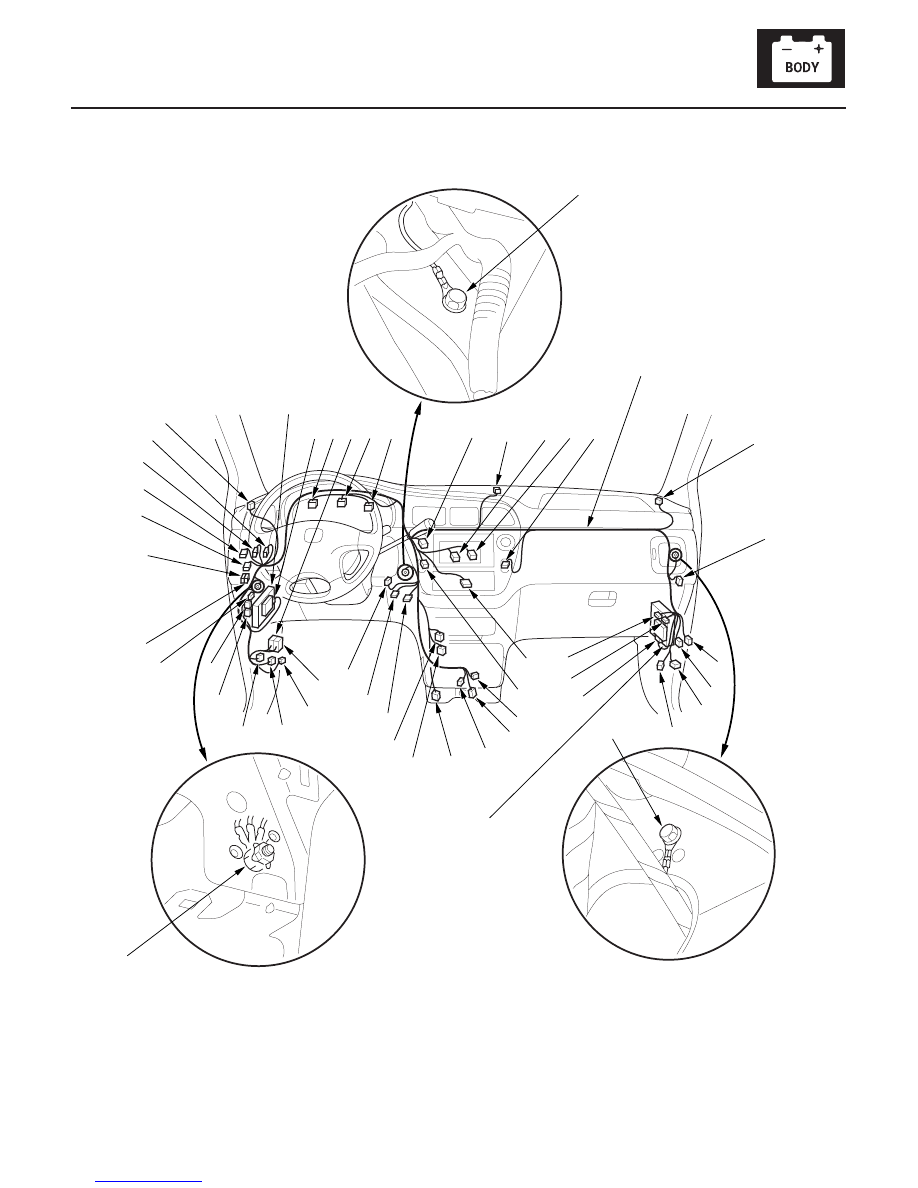

Dashboard Wire Harness A (With Navigation System)
Connector or Terminal
Ref
Cavities
Location
Connects to
Notes
22-44
Connectors and Harnesses
Connector to Harness Index (cont’d)
Accessory power socket (front)
31
2
Behind middle of dash
Audio unit
27
20
Behind audio unit
Cruise control main switch
4
5
Behind instrument panel
’02 model
Cruise control unit
35
14
Under middle of dash
Data link connector
33
16
Under middle of dash
Driver’s under-dash fuse/relay box
connector I (see page 22-76)
41
18
Behind left kick panel
Driver’s under-dash fuse/relay box
connector K (see page 22-76)
40
18
Behind left kick panel
Gauge assembly connector A
9
14
Behind gauges
Gauge assembly connector B
7
22
Behind gauges
Gauge assembly connector C
10
16
Behind gauges
Hazard warning switch
12
10
Behind hazard warning switch
In-car temperature sensor
34
2
Under middle of dash
Interior lights switch
16
6
Behind instrument panel
’02 model
Interior lights switch
29
6
Behind instrument panel
’03-04 models
Keyless receiver unit
18
14
Behind right kick panel
Multiplex control unit, driver’s,
connector B (see page 22-76)
6
22
Behind left kick panel
Multiplex control unit, passenger’s,
connector B (see page 22-76)
24
22
Behind right kick panel
Navigation display unit connector A
14
5
Behind navigation display
Navigation display unit connector B
15
20
Behind navigation display
Passenger’s airbag cutoff indicator
16
4
Behind instrument panel
’03-04 models
Passenger’s under-dash fuse/relay box
connector H (see page 22-77).
26
18
Behind right kick panel
Passenger’s under-dash fuse/relay box
connector I (see page 22-77)
25
18
Behind right kick panel
PCM connector A
29
32
Under middle of dash
Except
’01 model
PCM connector A
29
22
Under middle of dash
’01 model
PCM connector D
47
16
Under middle of dash
Except
’01 model
PCM connector D
46
17
Under middle of dash
’01 model
PCM connector E
46
12
Under middle of dash
’99-’00 models,
EX
PCM connector E
46
31
Under middle of dash
’01 model
PCM connector E
46
20
Under middle of dash
’02-’04 models
Power mirror switch
1
10
Behind instrument panel
Power sliding door switch
2
10
Behind instrument panel
Sunlight sensor
13
2
Under middle of dash
TCS switch
3
8
Behind instrument panel
’99-02 models
TCS and cruise control main switch
3
8
Behind instrument panel
’03-04 models
Tweeter (left)
5
2
Under left side of dash
Tweeter (right)
17
2
Under right side of dash
