Cylinder Head

Cylinder Head Installation (cont’d)

CMP (TDC) Sensor Replacement

12 x 1.25 mm
90 N·m (9.2 kgf·m, 67 lbf·ft)

8 x 1.25 mm
22 N·m (2.2 kgf·m, 16 lbf·ft)

26. Clean the battery posts and cable terminals with

sandpaper, then assemble them and apply grease
to prevent corrosion.

27. After installation, check that all tubes, hoses and

connectors are installed correctly.

28. Inspect for fuel leaks. Turn the ignition switch ON

(II) (do not operate the starter) so that the fuel pump
runs for about 2 seconds and pressurizes the fuel
line. Repeat this operation two or three times, then
check for fuel leakage at any point in the fuel line.

29. Refill the radiator with engine coolant, and bleed

air from the cooling system with the heater valve
open (see step 8 on page 10-13).

30. Inspect the idle speed (see page 11-201).

31. Inspect the ignition timing (see page 4-16).

1. Set the No.1 piston at top dead center (TDC) (see

page 6-20).

2. Remove the upper covers.

3. To hold the timing belt adjuster in its current

position, thread in the battery clamp bolt hand-tight
(see step 13 on page 6-22).

4. Remove the idler pulley bolt and idler pulley, then

remove the timing belt from the front camshaft
pulley (see step 15 on page 6-22).

5. Remove the front camshaft pulley.

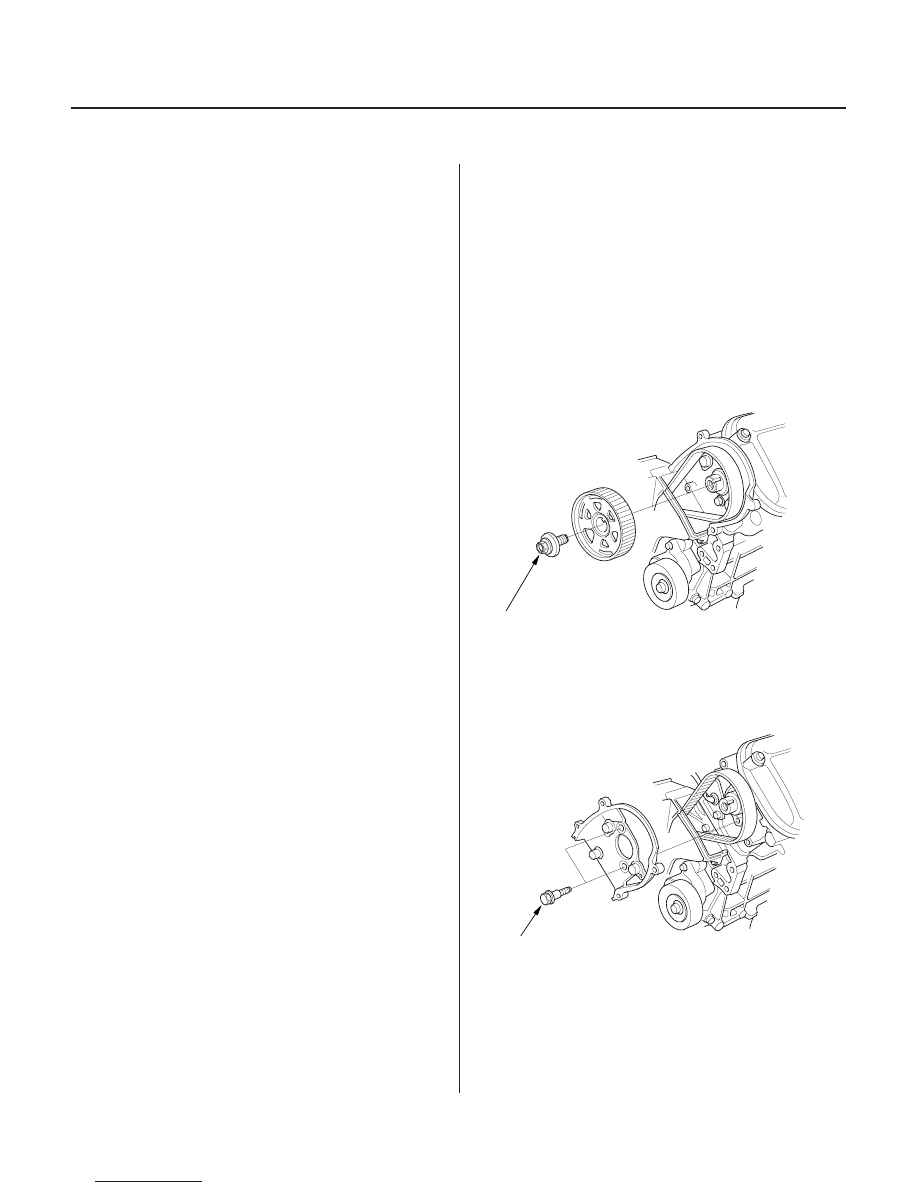

6. Disconnect the camshaft position (CMP) (top dead

center (TDC) ) sensor connector, then remove the
back cover.

Apply engine oil to
the bolt threads.

03/07/29 09:12:00 61S0X050_060_0060

01

*01

S0X4A00A20326917523KBAT00

6-61

6-61

CKP Sensor Replacement

5 x 0.8 mm
4 N·m (0.4 kgf·m, 3 lbf·ft)

A

6 x 1.0 mm
12 N·m (1.2 kgf·m,
8.7 lbf·ft)

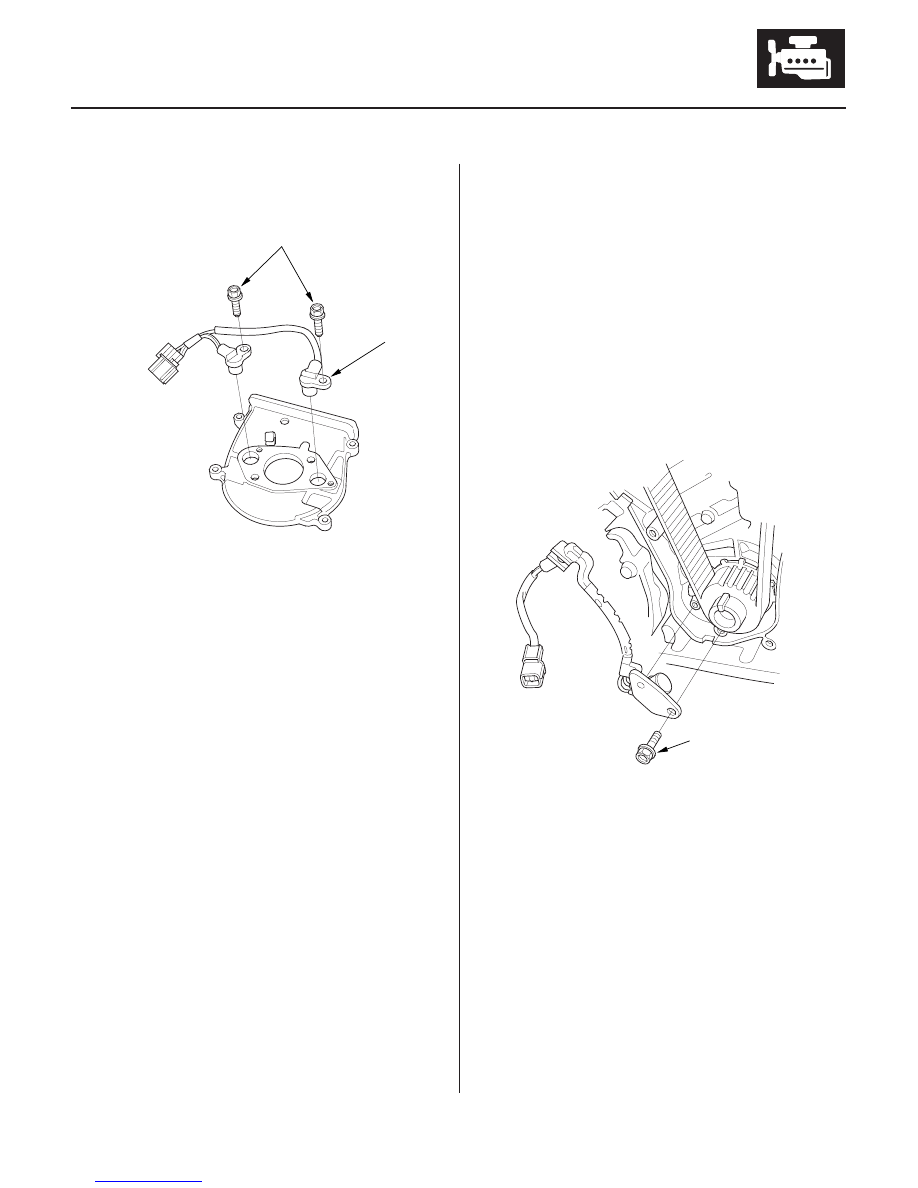

7. Remove the CMP (TDC) sensor (A) from the back

cover.

8. Install the CMP (TDC) sensor in reverse order of

removal. Reinstall the timing belt and other
removed components (see page 6-23).

1. Remove the altenator-compressor belt (see page 4-

26).

2. Loosen the adjusting nut, locknut and mounting

bolt, then remove the power steering (P/S) pump
belt (see step 6 on page 6-20).

3. Remove the dipstick and tube (see step 9 on page

6-21).

4. Remove the crankshaft pulley (see page 6-18).

5. Remove the upper and lower covers (see step 11

on page 6-21).

6. Remove the crankshaft position (CKP) sensor from

the oil pump.

7. Install the CKP sensor in the reverse order of

removal.

03/07/29 09:12:01 61S0X050_060_0061

S0X4A000000000J0601ZAAT00

03/07/29 09:12:01 61S0X050_060_0062

S0X4A000000000J0701ZCAT00

Engine Mechanical

Engine Block

................................................................

........................................

.................................................................

.....................
.....................

..........................................................

.................................

.................................................

.......................................

...........................................................

........

............................................

.............................

......................................................

........

...................................................

................................................................

........................................

.................................................................

.....................
.....................

..........................................................

.................................

.................................................

.......................................

...........................................................

........

............................................

.............................

......................................................

........

...................................................

Special Tools

. 7-2

Component Location Index

. 7-3

Connecting Rod and Crankshaft End Play

Inspection

. 7-6

Crankshaft Main Bearing Replacement

. 7-7

Connecting Rod Bearing Replacement

. 7-9

Oil Pan Removal

. 7-11

Crankshaft and Piston Removal

. 7-12

Crankshaft Inspection

. 7-14

Block and Piston Inspection

. 7-15
. 7-17

Piston, Pin, and Connecting Rod Replacement

. 7-18

Piston Ring Replacement

. 7-21

Crankshaft and Piston Installation

. 7-23

Oil Pan Installation

. 7-28

Pulley End Crankshaft Seal Installation - In Car

. 7-29

Transmission End Crankshaft Seal

Installation - In Car
