GWFLORID Maintenance Manual

262

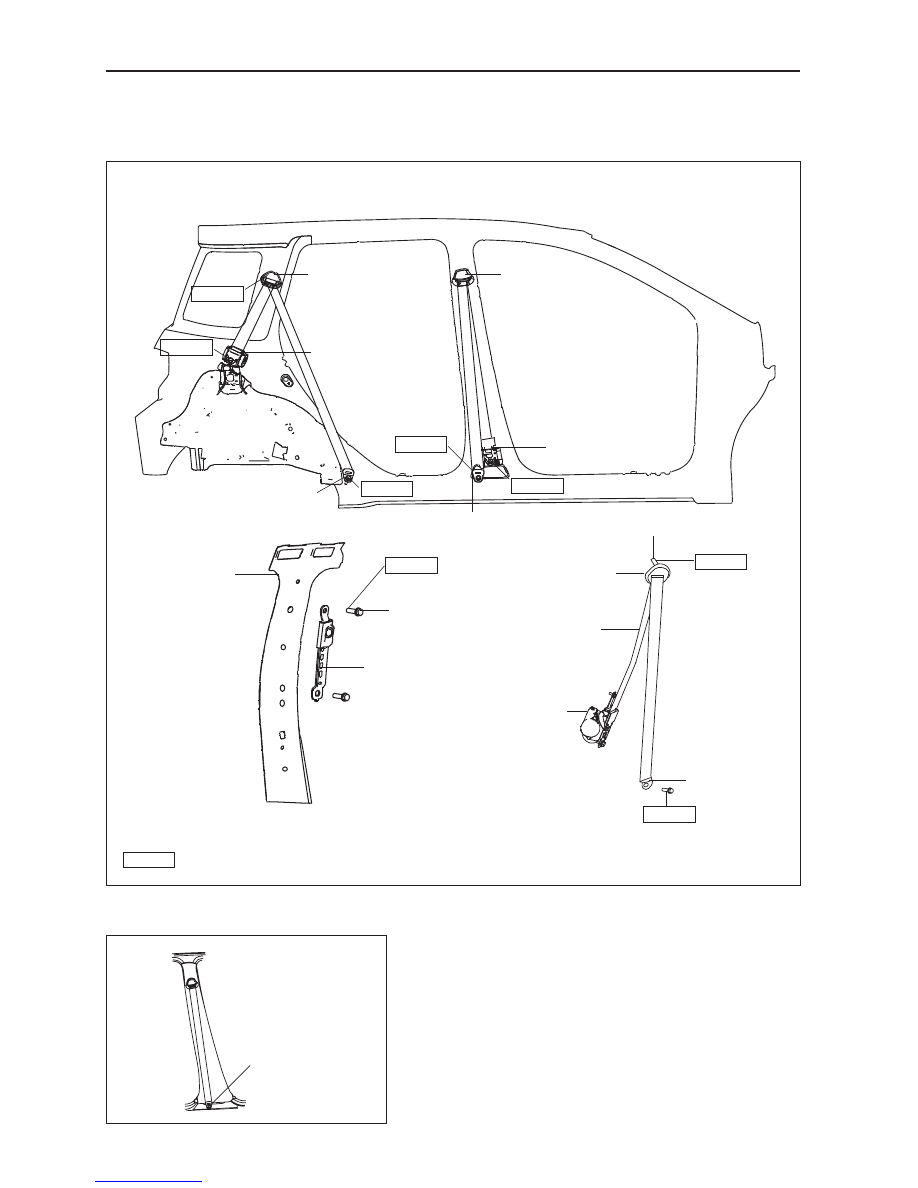

Seat Belt

Components

Front seat belt removal

1.  Remove the end piece hood.

Remove the end piece hood under the seat belt, and expose

the seat belt lower mounting bolt.

Rear seat belt guide ring

Rear seat belt retractor

Seat belt lower mounting bolt

Front seat belt retractor

Front seat belt

guide ring

Seat belt lower

mounting bolt

Vertical adjuster

mounting bolt

Body B-pillar

sheet metal

Vertical adjuster

Guide ring mounting bolt

Guide ring

Woven band

Retractor

Seat belt retaining

end piece

45±5

Seat belt lower mounting bolt

N·m

45±5

45±5

45±5

45±5

45±5

45±5

: Specified torque

45±5

263

Vehicle Body

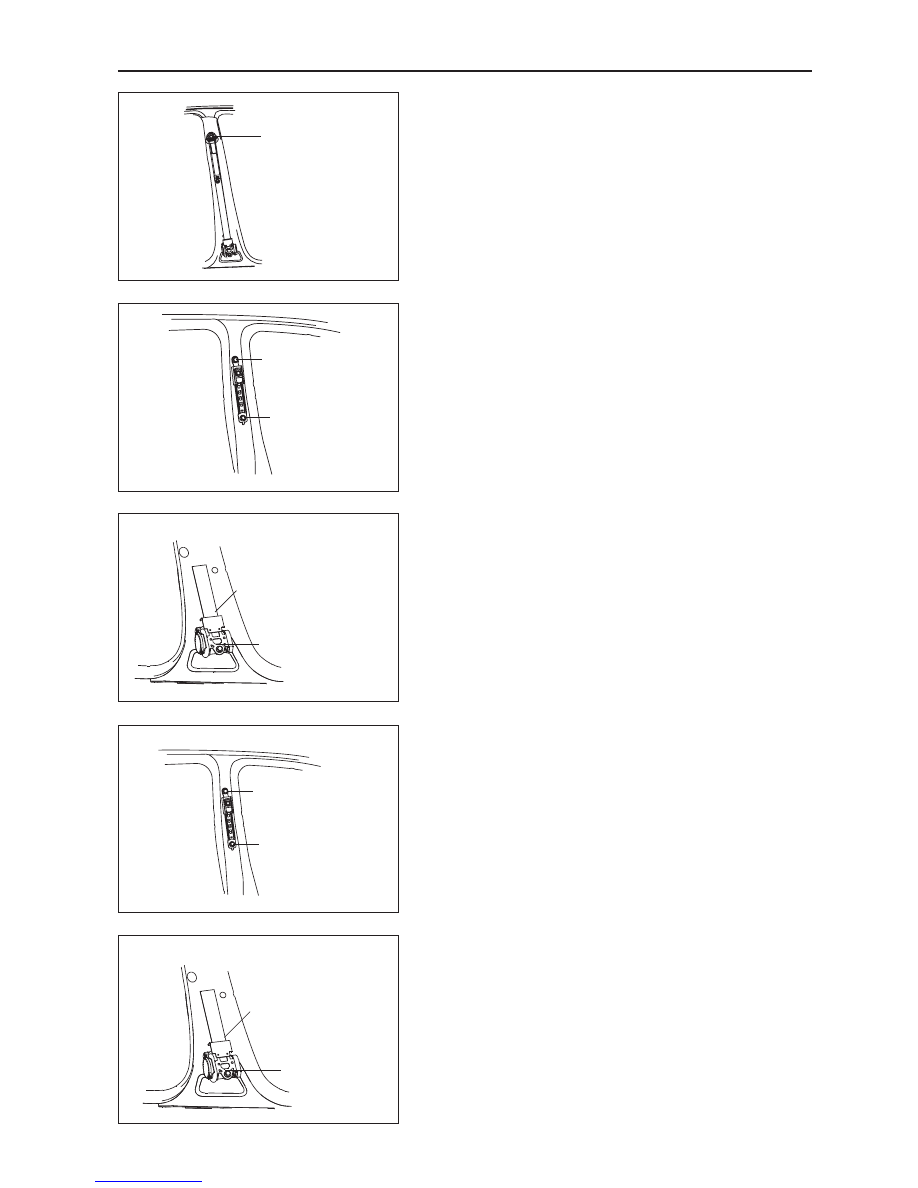

6.  Remove the seat belt retractor upper mounting bolt

(hexagon bolt for flange face).

7.  Remove the seat belt retractor lower mounting bolt.

Front seat belt installation

1.  Install the seat belt vertical adjuster.

(a)  Tighten the seat belt vertical adjuster mounting bolts.

(b)  Conduct torque calibration on the seat belt vertical ad-

juster mounting bolts.



Seat belt vertical adjuster mounting bolt torque is

45±5 N·m.

2.  Install the B-pillar upper trim panel.

3.  Install the retractor lower mounting bolt.

Tighten the seat belt retractor lower mounting bolt. Seat belt

retractor lower mounting bolt torque is 45±5 N·m.

4.  Install the retractor upper mounting bolt.

Tighten the seat belt retractor upper mounting bolt (hexagon

bolt for flange face). Seat belt retractor upper mounting bolt

torque is 9±3 N·m.

2.  Remove the seat belt lower mounting bolt and B-pillar

lower decoration board.

3.  Remove the guide ring cover.

Remove the seat belt guide ring cover, and expose the seat

belt upper set mounting bolt.

4.  Remove the seat belt guide ring.

Remove the seat belt upper mounting bolt and B-pillar upper

decoration board, and expose the seat belt vertical adjuster.

5.  Remove the vertical adjuster.

Remove the seat belt vertical adjuster mounting bolts one by

one from bottom to top.

Retractor upper

mounting bolt

Retractor lower

mounting bolt

Adjuster upper

mounting bolt

Adjuster lower

mounting bolt

Retractor upper

mounting bolt

Retractor lower

mounting bolt

Seat belt upper

mounting bolt

Adjuster upper

mounting bolt

Adjuster lower

mounting bolt

GWFLORID Maintenance Manual

264

Rear three-point seat belt removal

1.  Remove the seat belt lower mounting bolt.

2.  Remove the C-pillar protector.

3.  Remove the guide ring cover.

Remove the seat belt guide ring cover, and expose the seat

belt guide ring mounting bolt (refer to front seat removal

methods for details).

4.  Remove the seat belt guide ring mounting bolt and re-

tractor lower mounting bolt.

Rear three-point seat belt installation

1.  Install the retractor.

Tighten the seat belt retractor lower mounting bolt. Seat belt

retractor lower mounting bolt torque is 45±5 N·m.

2.  Install the guide ring.

Tighten the seat belt guide ring mounting bolt. Guide ring

mounting bolt torque is 45± 5 N·m.

6.  Install the B-pillar lower trim panel.

7.  Install the seat belt retaining end piece.

Fix the seat belt lower mounting bolt on the floor of the ve-

hicle body. Seat belt lower mounting bolt torque is 45±5 N·m.

5.  Install the seat belt guide ring.

Fix the seat belt upper mounting bolt onto the vertical ad-

juster. Seat belt upper mounting bolt torque is 45±5 N·m.

Seat belt upper

mounting bolt

Seat belt lower

mounting bolt

Lower mounting

bolt

Guide ring

mounting bolt

Retractor lower mounting bolt

Guide ring

mounting bolt

Retractor lower mounting bolt

265

Vehicle Body

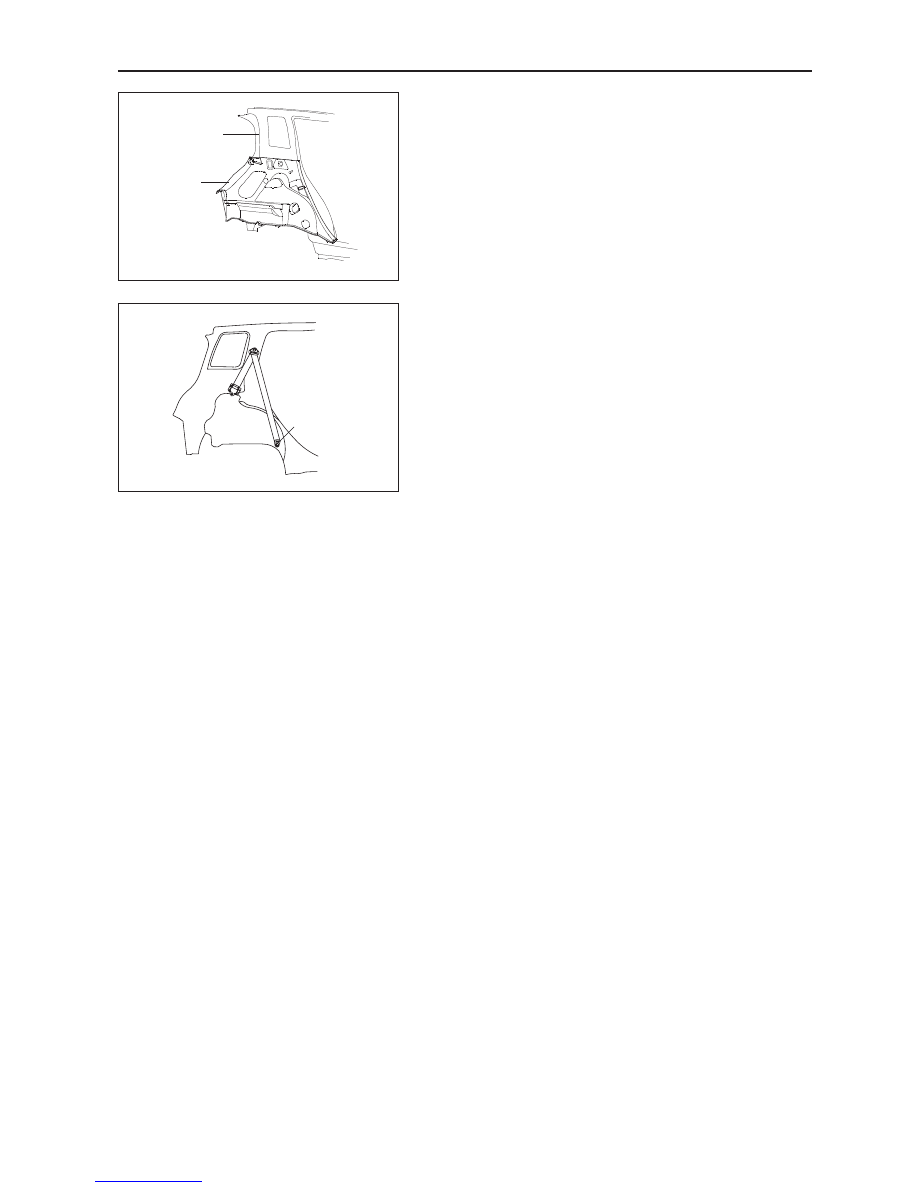

3.  Install the C-pillar protector.

General Instructions and Operations of Seat Belt

Front seat belt warning:

The front seat belts are equipped with seat belt indicator. The driver seat belt indicator is located on the dash-

board and that of the front passenger is on the air conditioner panel. If the ignition switch is on but the front pas-

senger does not fasten the seatbelts, the indicator will turn on.

Preload three-point type belt retractor:

The front seat belts utilize preload three-point type belt retractors. The preload three-point type belt retractor is

loose, enabling the passenger to move freely unless there is an emergency, such as emergency braking, hard ac-

celeration, or hard turning.

Operation notice and function examination:

Areas of Importance

If the seat belt retractor is installed incorrectly, the seat belt will lose its function in the event of an accident, and

thus fail to protect the passenger!

Prevent sharp and harmful substances from touching the seat belt.

Avoid winding or breaking the seat belt lock tongue and seat belt lock button.

Do not bleach or dye the seat belt woren band. Wash it with neutral liquid soap and water only.

Before installing the seat belt mounting bolt, manually tighten the seat belt bolts to avoid improper clipping.

Do not repair the seat belt retractor or seat belt lock button. If the seat belt is broken, the seat belt assembly must

be replaced.

Change the broken or damaged seat belt.

Function examination:

1. Check whether all the seat belt mounting bolts are tightened.

2. Check the seat belt lock button. The lock button should be unlocked and able to lock easily.

3. After locking the seat belt, the seat belt lock tongue can no longer loosen.

4. Pull all the seat belts out. Seat belts cannot have knots or tears.

5. The belt should retract smoothly but not roughly.

Warning:

Different metals making direct contact will accelerate corrosion. Make sure to use the correct fastening

piece to avoid premature corrosion!

4.  Install the seat belt lower mounting bolt.

Lower

mounting bolt

Side sheet metal

C-pillar

protector
