Trunk Door Assembly

Components

Right side

decorative block

Left side deco-

rative block

High mount brake lamp cap

Spoiler panel assembly

Trunk door assembly

High mount brake lampshade

High mount brake lamp assembly

Trunk door main lock assembly

Trunk door right side air spring

Trunk door hinge assembly

Trunk door

assembly

Trunk door outside

handle assembly

Trunk door plate

Trunk door handle

Trunk door protector assembly

Trunk door weatherstrip

Trunk door left

side air spring

Rear wiper assembly

Trunk door glass

weatherstrip

Trunk door lock button

High mount brake

lamp assembly 2

Trunk door resonance block

Trunk door glass weatherstrip

255

Vehicle Body

Trunk door removal

1.  Remove the door inner decoration board.

(a)  Remove the inside handle.

(b)  Insert the buckle screwdriver between the fixed buckle

and the door inner decoration board to pry them loose.

Caution: Before using a buckle screwdriver, make sure

to wrap its head in tape.

(c)  Take the door inner decoration board off.

2.  Remove the vehicle inner lock button.

3.  Remove the rear wiper arm assembly.

(a)  Remove a rear wiper arm mounting bolt, and pull out

the rear wiper arm.

(b)  Remove the three mounting bolts of the rear wiper mo-

tor, and pull the rear wiper motor out.

(c)  Remove the rear wiper waterproof rubber plug.

4.  Install it by reversing the removal steps.

Trunk door air spring removal

1.  Open the trunk door.

2.  Remove the air spring mounting bolts from the trunk

door.

3.  Remove the air spring mounting bolts from the side

sheet metal of the rear body.

Trunk door air spring installation

Special Note: Different metals making direct contact

will accelerate corrosion. Make sure to use the correct

fastening piece to avoid premature corrosion.

1.  Open the trunk door.

2.  Install the air spring bracket onto side sheet metal of

the rear body with bolts.

3.  Install the air spring bracket onto the side sheet metal

of the trunk door with bolts.

Trunk door

protector assembly

Trunk door

assembly

Rear wiper blade

Rear wiper motor

Rear wiper waterproof rubber plug

Rear wiper arm

Trunk door assembly

Trunk door left side air spring

Trunk door left side air spring

Body sheet metal

Trunk door left side

air spring

Body sheet metal

Trunk door

assembly

GWFLORID Maintenance Manual

256

Front Bumper

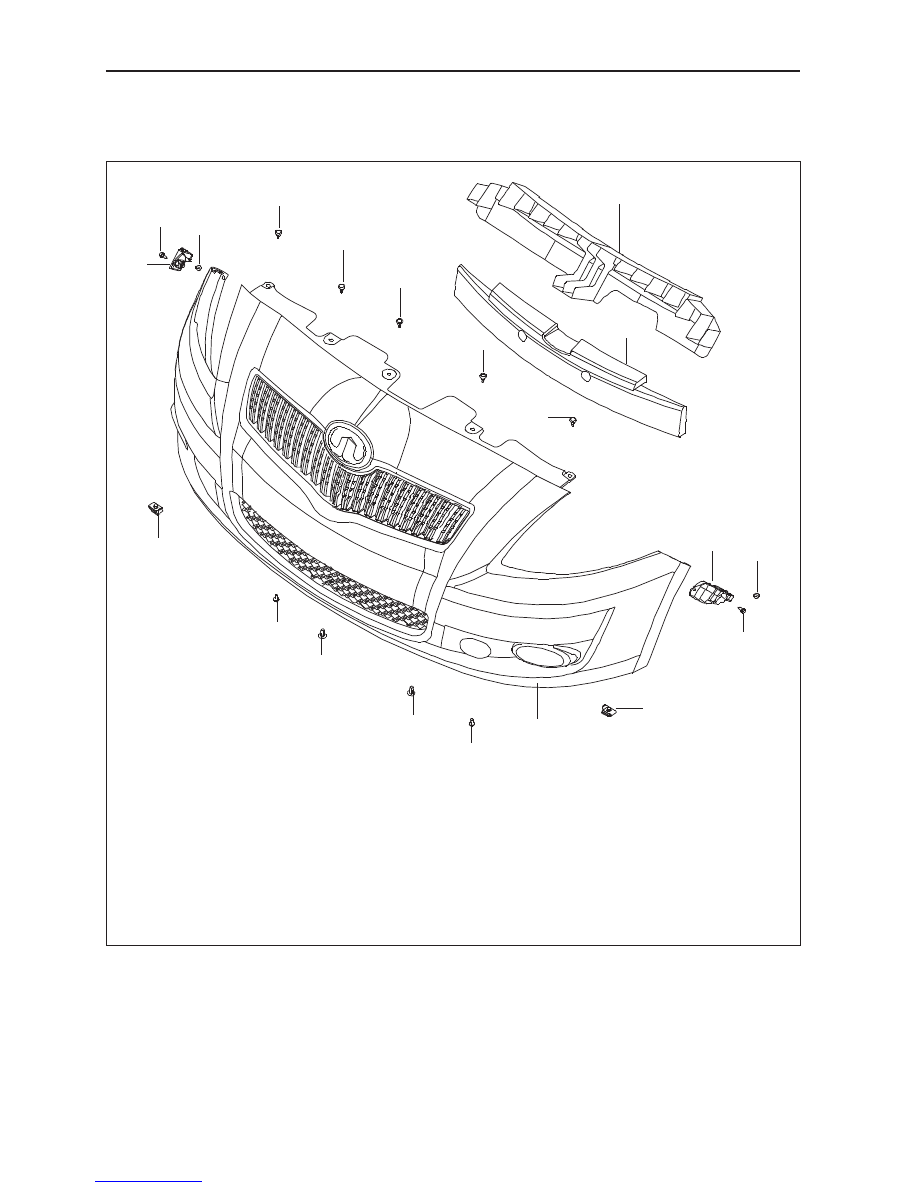

Components

1

2

3

4

5

6

7

8

9

10

11

9

8

6

5

3

11

11

11

11

1.  Front bumper plastic support

2.  Front bumper energy absorbing block



3.  Cross slot & concave hexagon head self-tapping screw and large washer subassembly (Q2754819+Q422)

4.  Front bumper left mounting bracket



5.  Cross slot & concave hexagon head self-tapping screw and large washer subassembly (Q2756319+Q421)

6.  Front bumper plastic nut seat 1

7.  Front bumper body

8.  Hexagon head bolt and flat washer subassembly (Q1400616)

9.   Front bumper plastic nut seat 2

10. Front bumper right mounting bracket

11. Expansion button

257

Vehicle Body

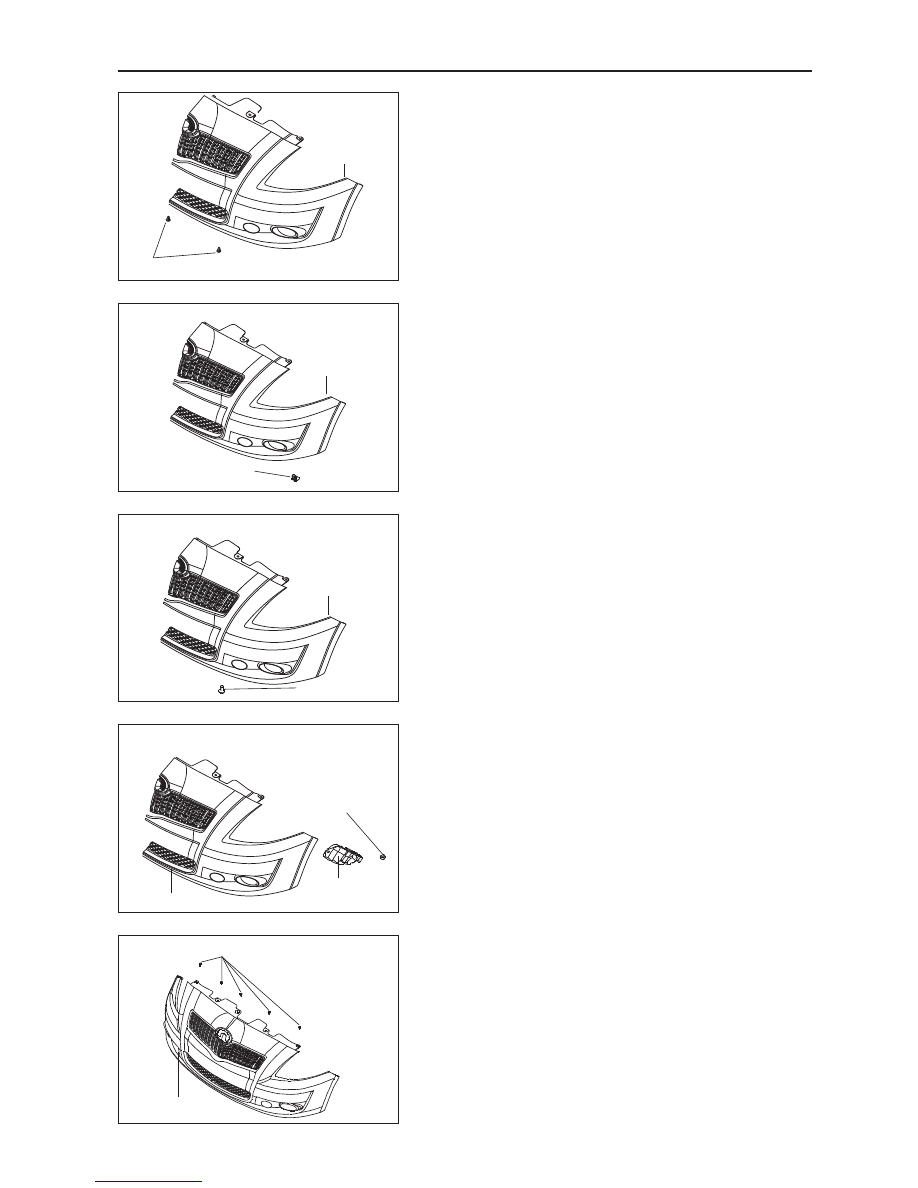

Front bumper removal

1.  Remove nut seat 2.

Screw off the lower air guide plate mounting screws below

the vehicle body from left & right front bumper plastic nut

seat 2, and remove left & right front bumper plastic nut seat 2.

2.  Remove nut seat 1.

Screw off the screws of the front splash pad from the left &

right front bumper plastic nut seat 1, and pull left & right

front bumper plastic nut seat 1 out, then screw off the self-

tapping screws which are installed on the front bumper of

the left & right lower air guide plate and splash pad.

3.  Remove the vehicle body bolts.

Screw off the hexagon head bolt and flat washer subassem-

bly (Q1400616) that is on the left & right side bracket of the

bumper and connected to vehicle body.

4.  Remove the bumper bolts.

Screw off the mounting bolts where the front bumper and

left & right side bracket connects.

5.  Remove the expansion button connecting the upper

part of the front bumper and vehicle body.

6.  Pull the front bumper body out of the mounting bracket

of the left & right side bumper.

Front bumper plastic nut seat 2

Front bumper body

Front bumper body

Front bumper body

Front bumper body

Front bumper plastic

nut seat 1

Hexagon head bolt and flat

washer subassembly

Front bumper left side

mounting bracket

Cross slot & concave

hexagon head self-tap-

ping screw and large

washer subassembly

Front bumper body

Expansion button
