GWFLORID Maintenance Manual

250

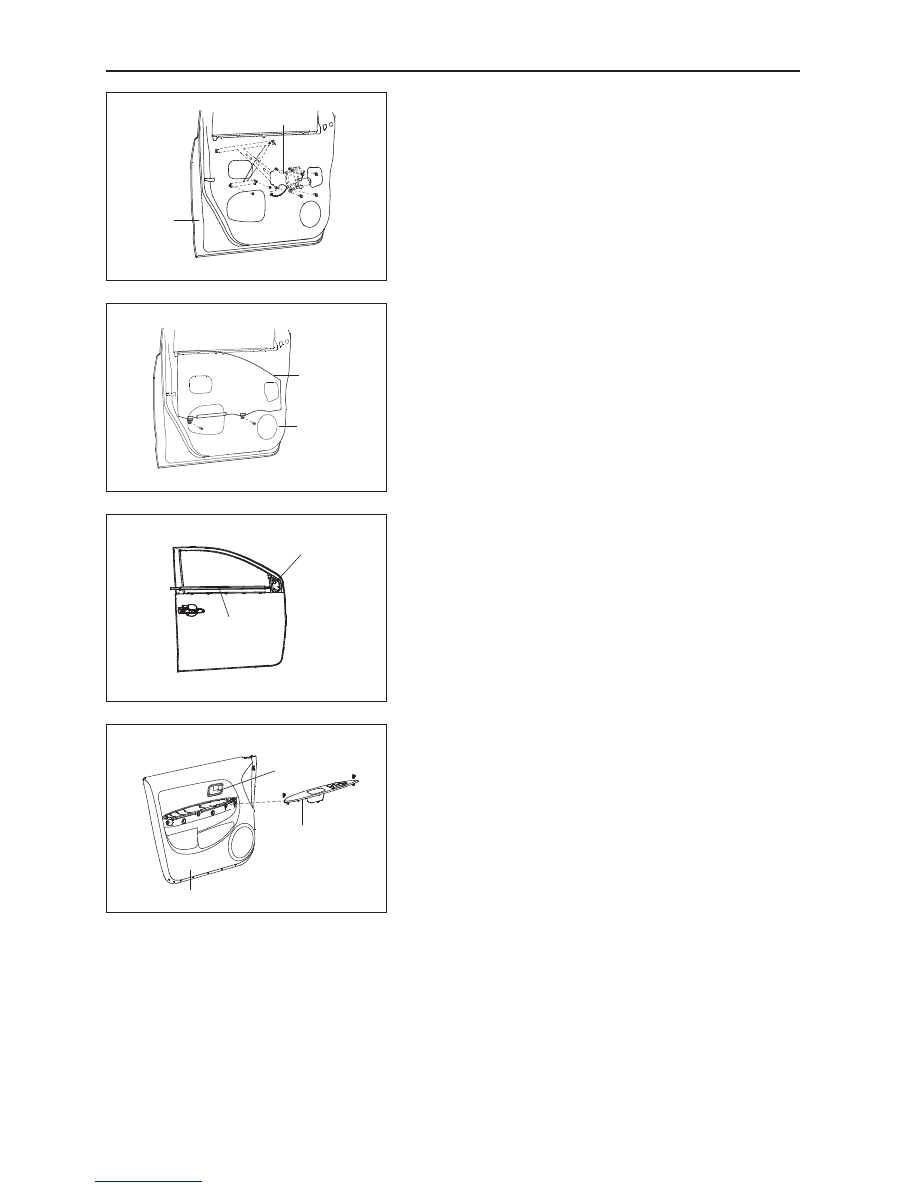

6.  Install the front door glass run.

7.  Install the front door window assembly.

Install the window on door chamber and fix the window and

window regulator with two bolts.

4.  Install the window regulator.

(a)   Install the regulator via the auxiliary hole.

(b)  Install the six mounting bolts of the regulator.

5.  Install the guide rail and bolts on the front door window

guide rail assembly.

9.  Install the door inner decoration board.

10. Install the front door inside handle.

(a)  Push the door handle into the door panel and slide it

backward.

(b)  Screw in the screws.

11. Insert the wire harness of the front door power window

switch and install the door handle.

8.  Install the front door external weatherstrip.

Lower the window and make the external weatherstrip

wedge into the seam of the door's external panel.

Front door protector LH

Front door

assembly LH

Window regulator

assembly

Front door

assembly LH

Front door

window LH

Front door assembly LH

Front door external

weatherstrip LH

Front door armrest LH

Front door inside

handle LH

251

Vehicle Body

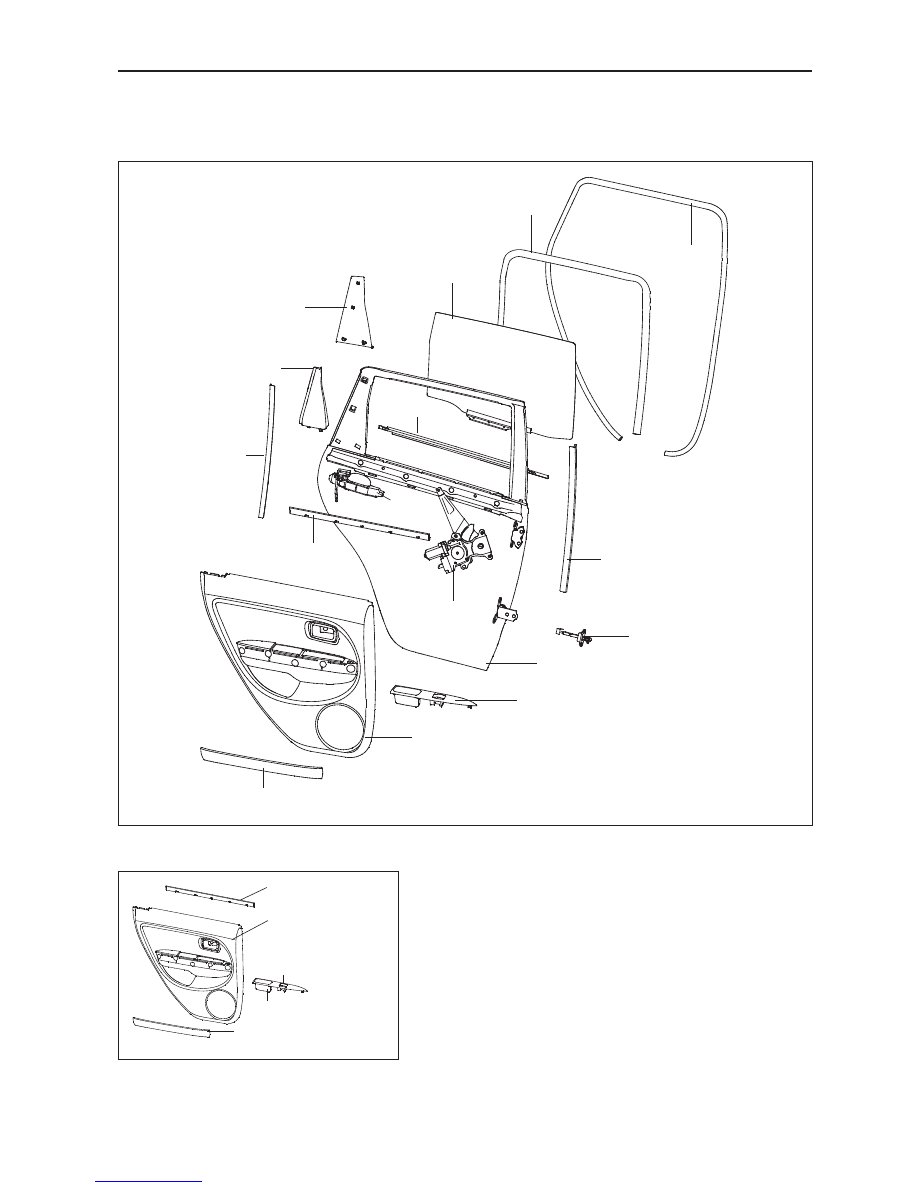

Rear Door Assembly

Components

Rear door removal

1.  Remove the rear door inner decoration board.

(a)  Remove the rear door armrest screw and armrest.

(b)  Remove the inside handle screw and inside handle.

(c)  Remove the electrical switch, pull out the wire harness,

and then remove the rear door power window switch.

(d)  Remove the rear door internal weatherstrip.

(e)  Remove the rear door protector trim strip.

(f)  Insert a buckle screwdriver between the fixed buckle

and inner decoration board to pry them loose.

Caution: Before using a buckle screwdriver, make sure

to wrap its head in tape.

(g)  Take the door inner decoration board off.

Rear door outside triangu-

lar protector assembly LH

Rear door assembly LH

Rear door window

rear guide rail LH

Rear door inner triangular

protector assembly LH

Rear door outside

handle assembly LH

Rear door internal weatherstrip LH

Rear door

window

regulator LH

Rear door inner decoration board assembly LH

Rear door power window switch LH

Rear door protector trim strip LH

Rear door weatherstrip LH

Rear door glass run LH

Rear door window LH

Rear door external

weatherstrip LH

Rear door window front

guide rail LH

Rear door retainer LH

Rear door  protector

trim strip LH

Rear door inner

decoration board

assembly LH

Rear door power

window switch LH

Rear door internal

weatherstrip LH

Rear door armrest LH

GWFLORID Maintenance Manual

252

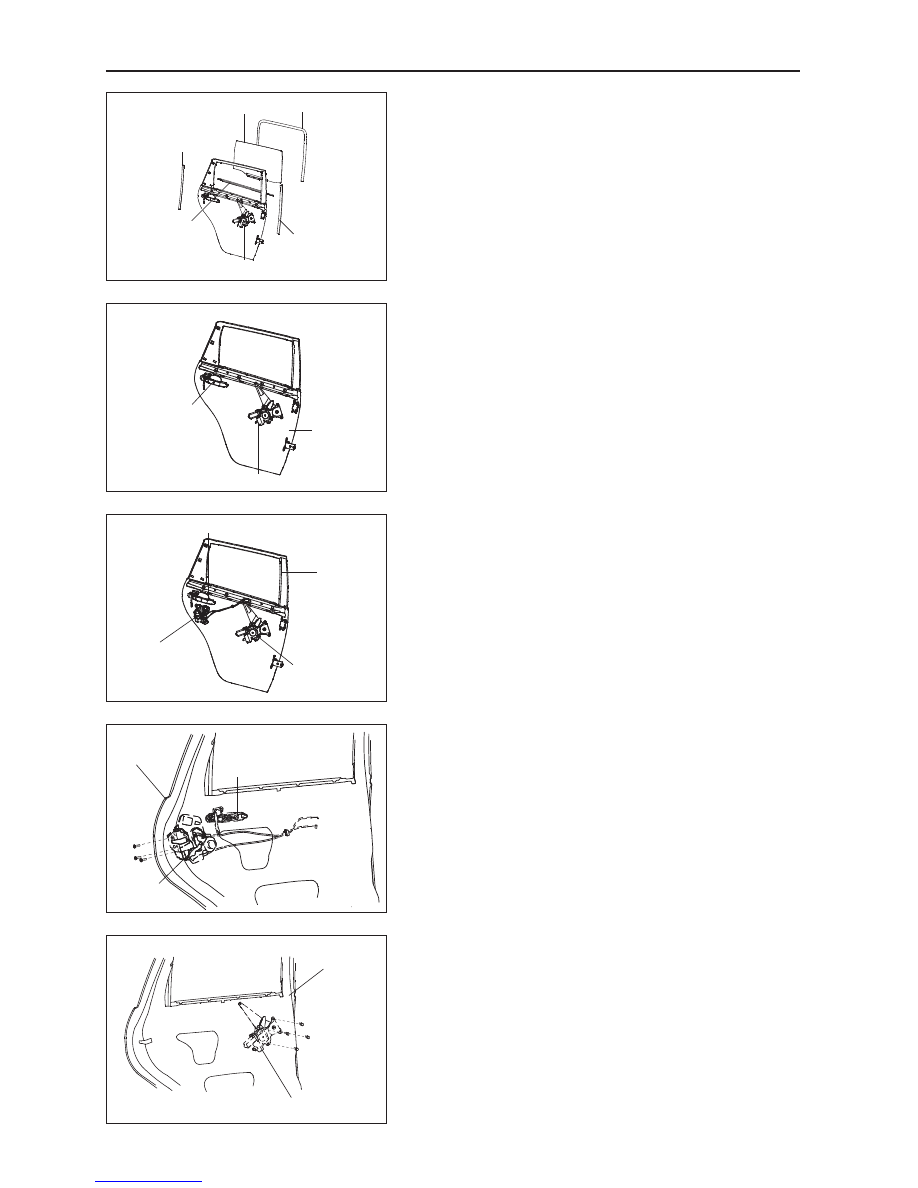

2.  Remove the rear door external weatherstrip.

Lower the window and manually grasp the weatherstrip

firmly, then pull it up to remove.

3.  Remove the rear door window assembly.

(a)  Pull the rear door regulator down in a position that en-

ables the rocker to turn freely, and then lower the win-

dow. Finally make the rocker slide out of the guide rail

below the window.

(b)  Pull the window upwards and then tilt it to remove.

4.  Remove the rear door glass run.

5.  Remove the rear door window guide rail assembly.

6.  Remove the window regulator.

(a)  Remove  the  four  mounting  bolts  of  the  regulator

bracket.

(b)  Remove the regulator via the auxiliary hole.

7.  Remove the vehicle inner lock button.

8.  Rear door window assembly replacement.

(a)  Adjust the rear door window to make the window

bracket  mounting  bolts  level  with  the  door  inner

decoration board mounting hole.

(b)  Remove the window bracket mounting bolts to take the

window out for replacement.

Rear door installation

1.  Coat grease.

Coat MP grease on the components before installing them.

(a)  Coat MP grease to sliding surfaces and the gears of

window regulator.

Caution: Do not coat MP grease to the spring of the

window regulator.

(b)  Coat MP grease to the sliding surface of the door lock.

4.  Install the window regulator.

(a)  Install the regulator via the auxiliary hole.

(b)  Install the four regulator's mounting bolts.

2.  Install the door outside handle with lock cylinder and

door lock.

(a)  Install the lock cylinder on the door outside handle with

spring clasp.

(b)  Install the door outside handle and lock cylinder with

two bolts.

(c)  Install the door lock with three bolts.

(d)  Connect the control lever to the door outside handle.

3.  Install the door inner lock button and connect the con-

trol lever.

Rear door window rear

guide rail LH

Rear door glass run LH

Rear door window LH

Rear door external

weatherstrip LH

Rear door

window front

guide rail LH

Rear door window regulator LH

Rear door window regulator LH

Rear door

assembly LH

Rear door outside

handle assembly LH

Rear door window

regulator LH

Rear door lock

assembly LH

Rear door

assembly

LH

Rear door outside handle assembly LH

Rear door window regulator LH

Rear door

assembly LH

Rear door outside handle

assembly LH

Rear door

assembly LH

Rear door lock

assembly LH

253

Vehicle Body

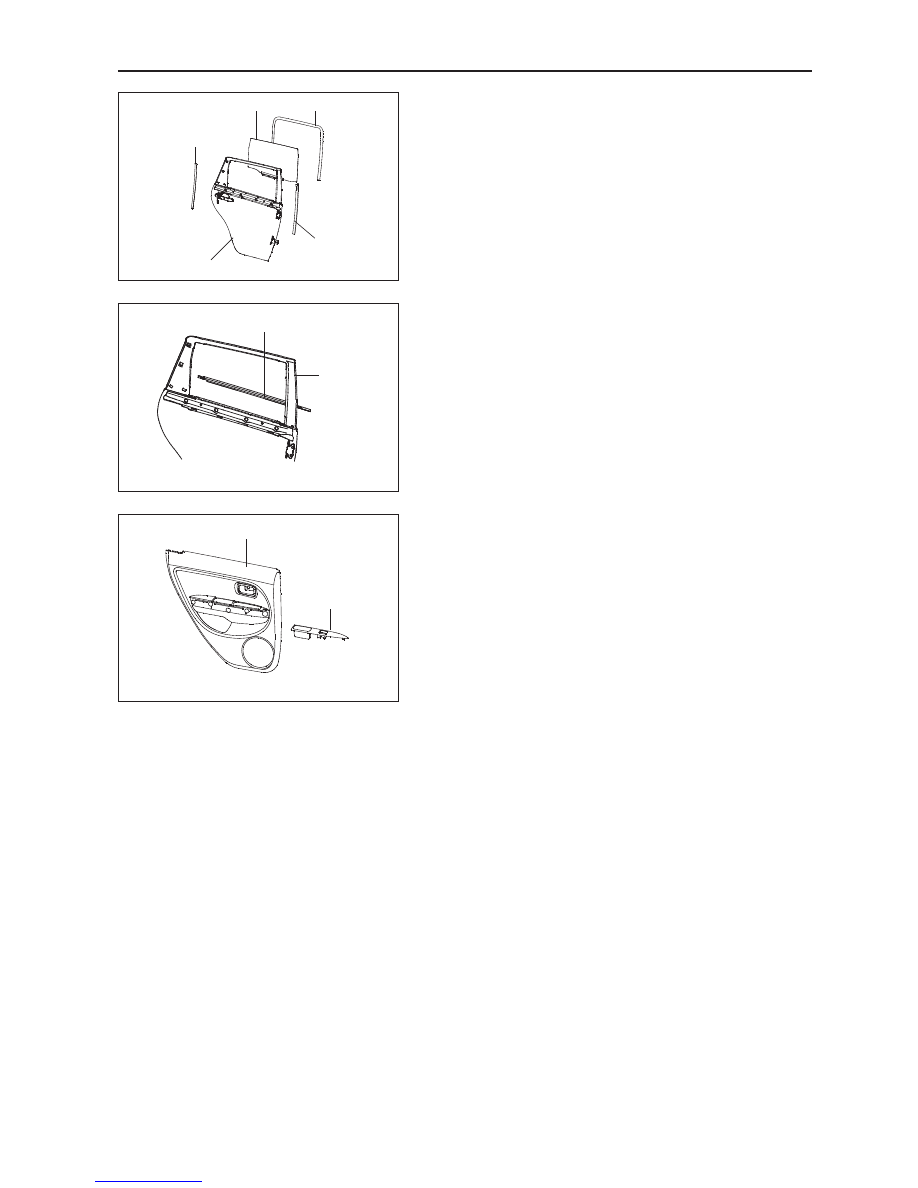

5.  Install the guide rail and bolts on the rear door window

guide rail assembly.

6.  Install the rear door glass run.

7.  Install the rear door window assembly.

Pull the regulator down in a position that enables the rocker

to turn freely, install the window into the door chamber, then

make the rocker of the regulator smoothly slide out of the

guide rail below the window.

Rear door assembly LH

Rear door window

rear guide rail LH

Rear door glass run LH

Rear door window LH

Rear door window

front guide rail LH

Rear door external weatherstrip LH

Rear door

assembly LH

8.  Install the rear door external weatherstrip.

Lower the window and make the external weatherstrip

wedge into the seam of the door's external panel.

9.  Install the door inner decoration board.

10. Install the door inner handle.

(a)  Push the door handle into the door panel and make it

slide backward.

(b)  Screw in the screws.

11. Insert the wire harness of the rear door power window

switch and install the door handle.

Rear door inner decoration board assembly LH

Rear door power

window switch LH
