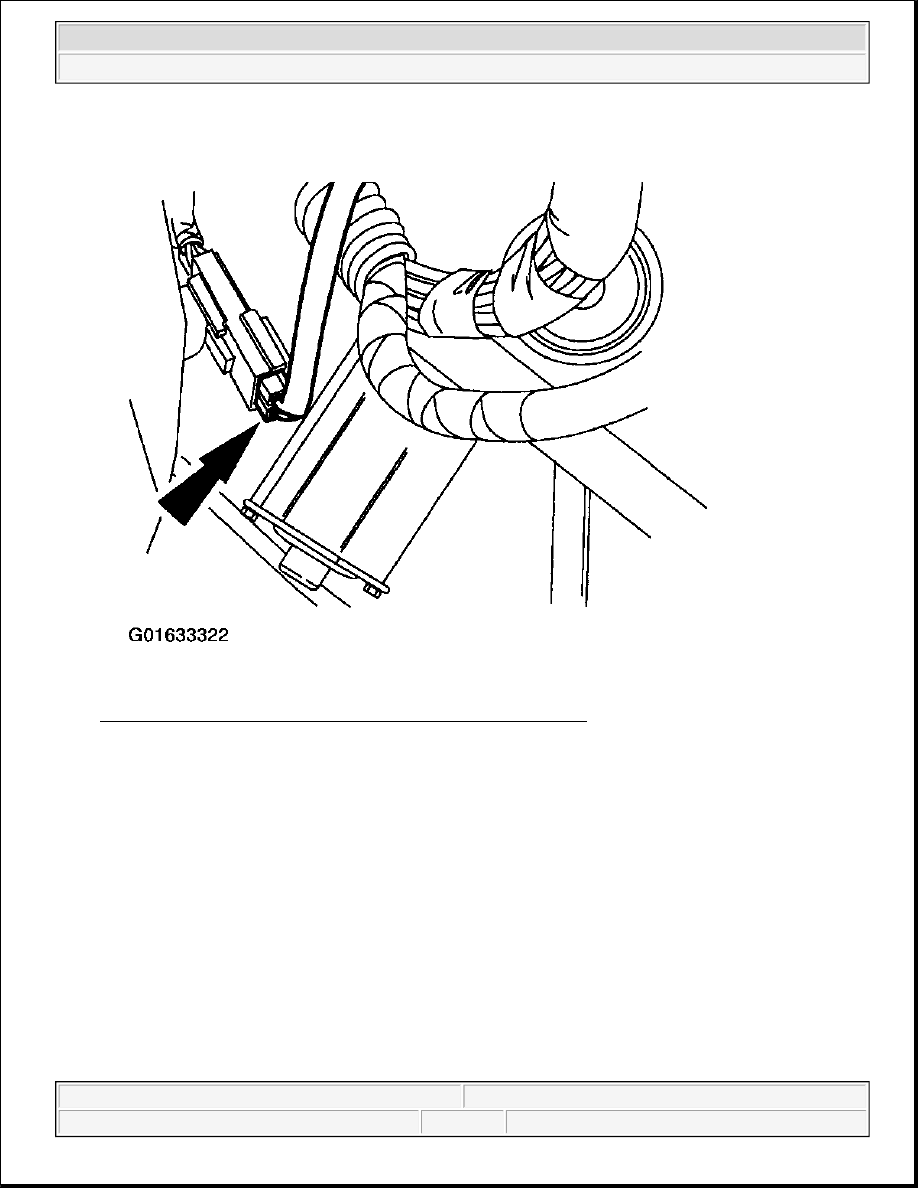

Fig. 26: Disconnecting Brake Pedal Motor Electrical Connector
Courtesy of FORD MOTOR CO.

8. Disconnect the transmission shift cable from the steering column shift lever.

2003 Ford Pickup F150

2003 BRAKES Hydraulic Brake Actuation - F150 Pickup

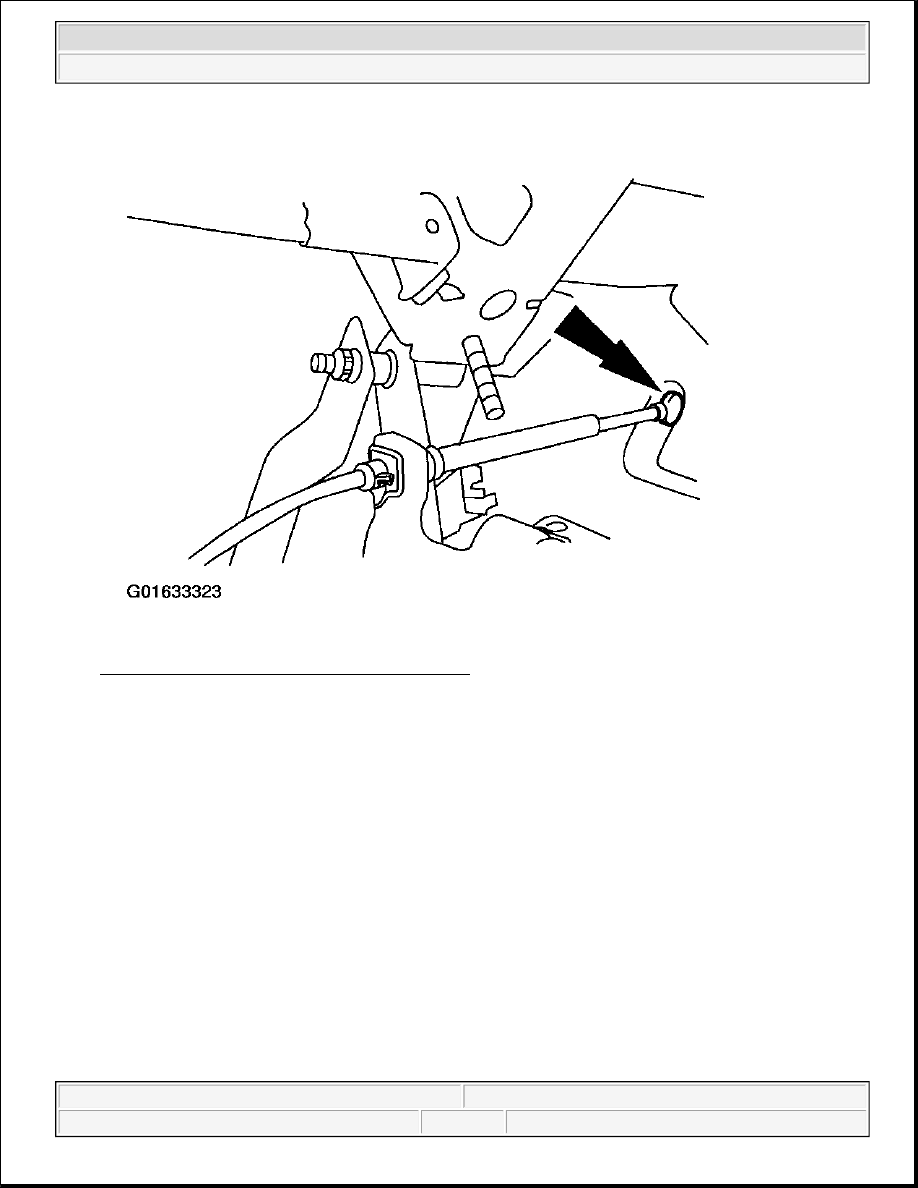

Fig. 27: Disconnecting Transmission Shift Cable
Courtesy of FORD MOTOR CO.

9. Remove the bulkhead sound insulator.

2003 Ford Pickup F150

2003 BRAKES Hydraulic Brake Actuation - F150 Pickup

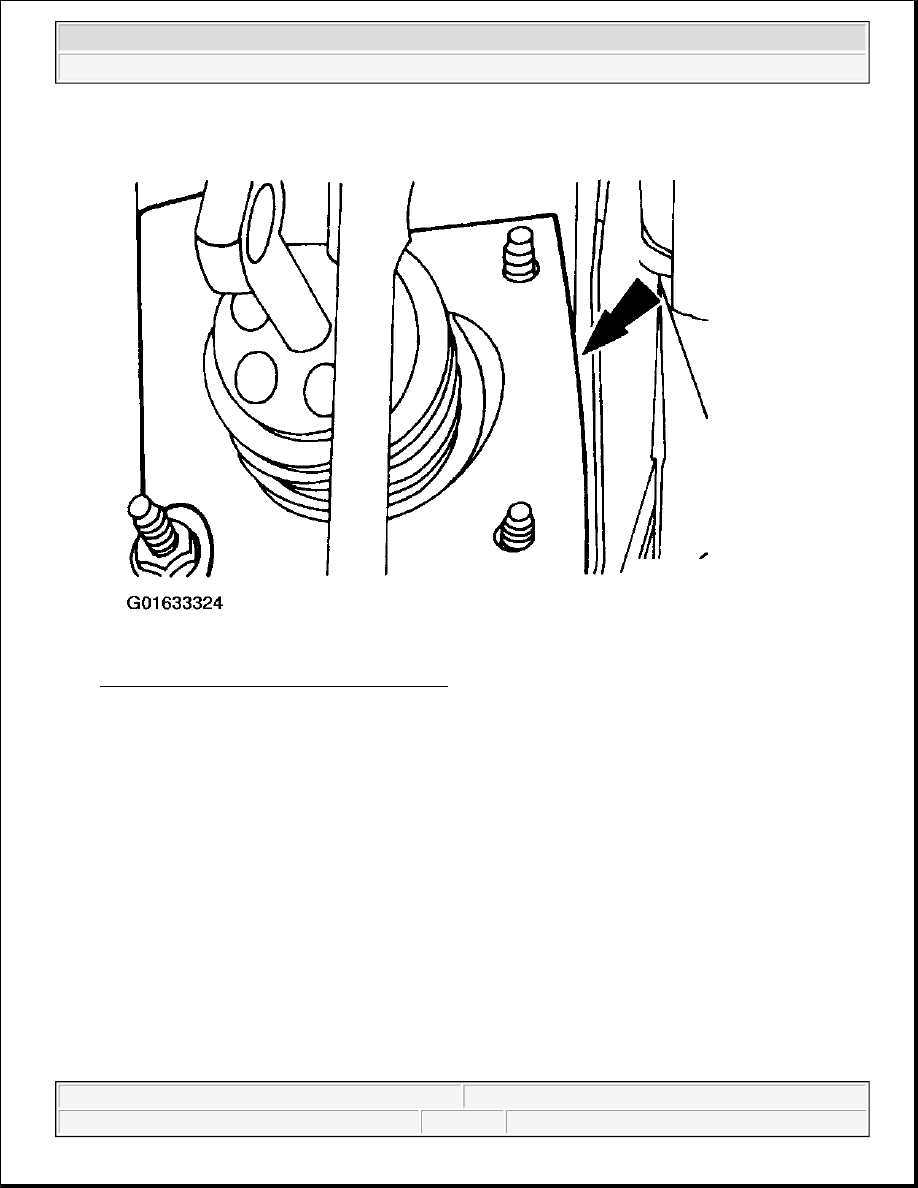

Fig. 28: Removing Bulkhead Sound Insulator
Courtesy of FORD MOTOR CO.

10. Remove the brake pedal bracket nuts.

2003 Ford Pickup F150

2003 BRAKES Hydraulic Brake Actuation - F150 Pickup

Fig. 29: Removing Brake Pedal Bracket Nuts
Courtesy of FORD MOTOR CO.

11. Remove the brake pedal bracket bolts, and remove the brake pedal and bracket.

2003 Ford Pickup F150

2003 BRAKES Hydraulic Brake Actuation - F150 Pickup
