Ford F150 Pickup. Instruction - part 418

Fig. 30: Removing Brake Pedal Bracket Bolts (1 Of 2)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 BRAKES Hydraulic Brake Actuation - F150 Pickup

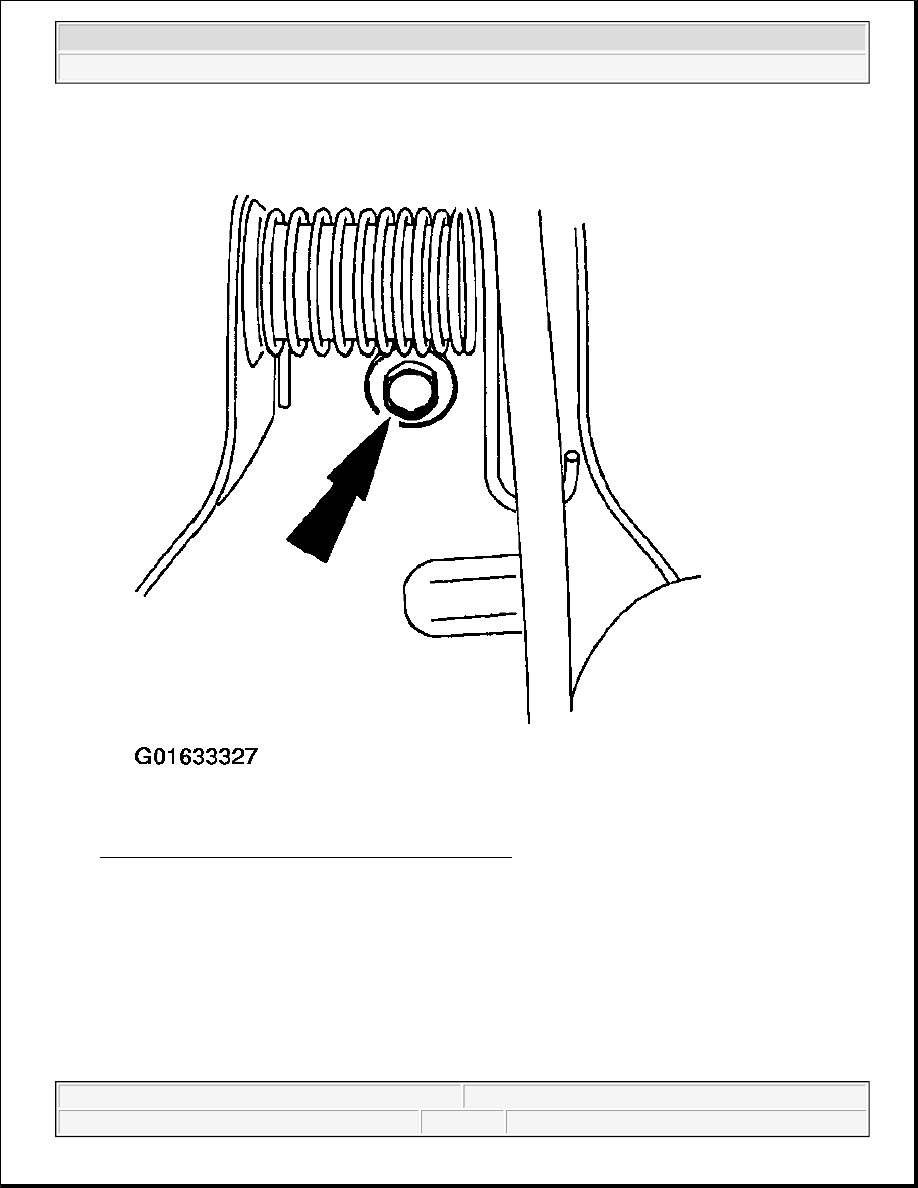

Fig. 31: Removing Brake Pedal Bracket Bolts (2 Of 2)
Courtesy of FORD MOTOR CO.

Installation

CAUTION: Make sure the bulkhead sound insulator is not between the brake

pedal and bracket and the bulkhead.



2003 Ford Pickup F150

2003 BRAKES Hydraulic Brake Actuation - F150 Pickup

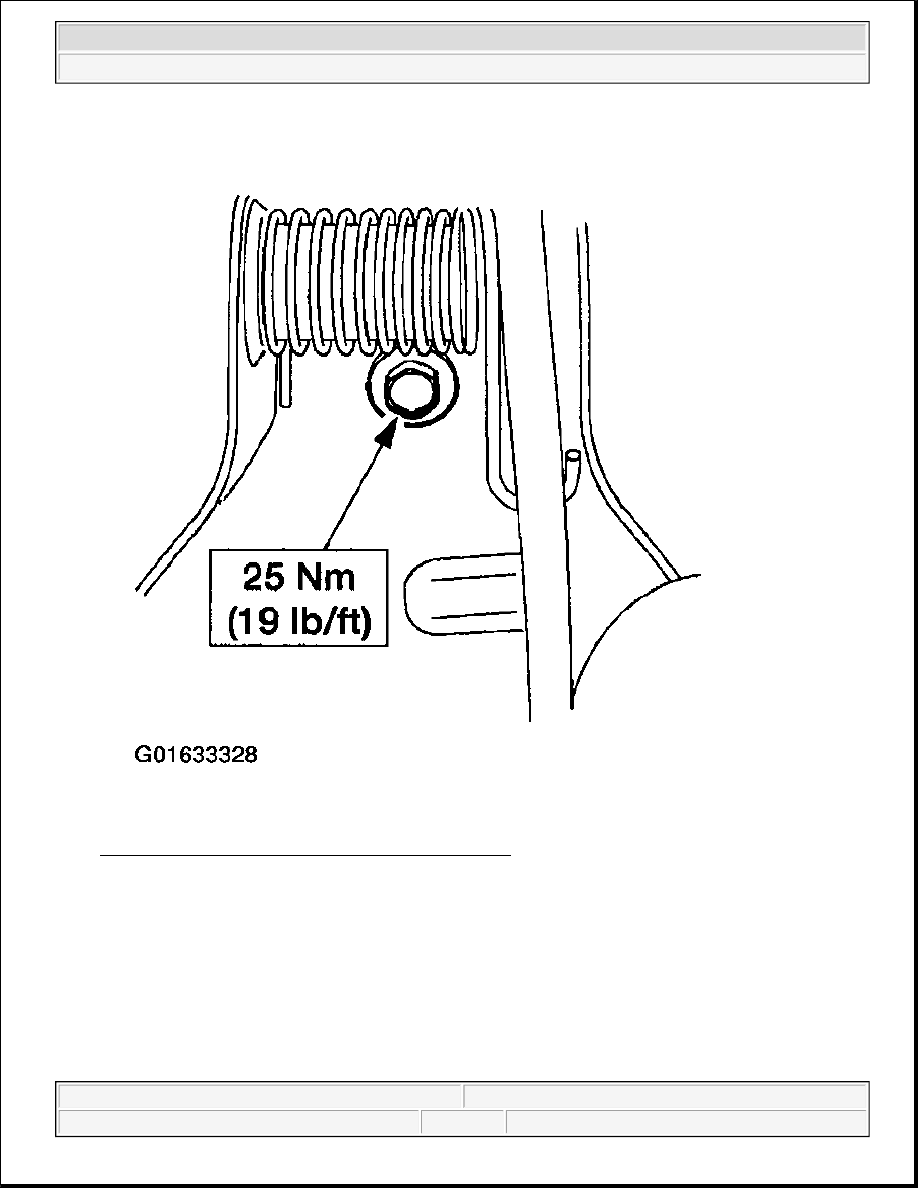

Fig. 32: Tightening Brake Pedal Bracket Bolt (1 Of 2)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 BRAKES Hydraulic Brake Actuation - F150 Pickup

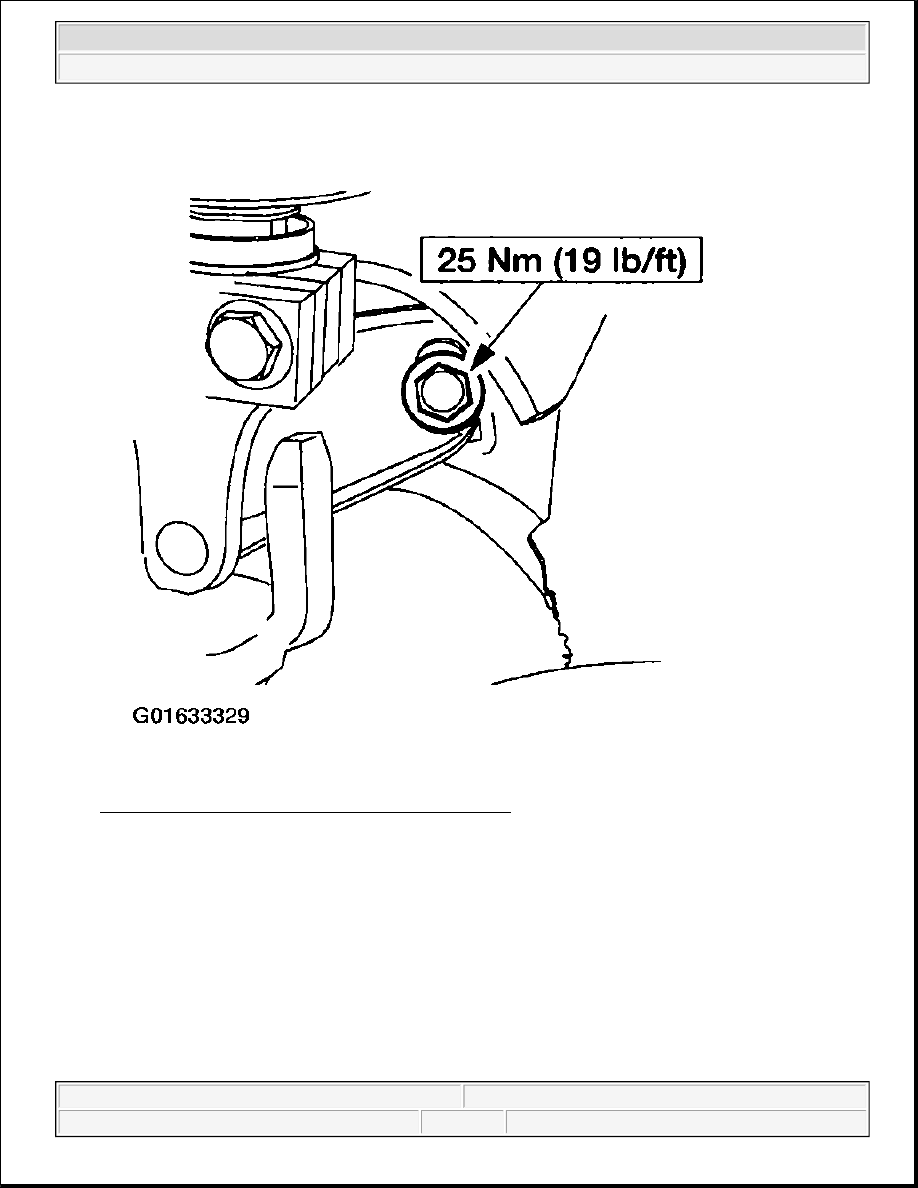

Fig. 33: Tightening Brake Pedal Bracket Bolt (2 Of 2)
Courtesy of FORD MOTOR CO.

1. Position the brake pedal and bracket and install the bolts.

2. Install the brake pedal bracket nuts.



2003 Ford Pickup F150
