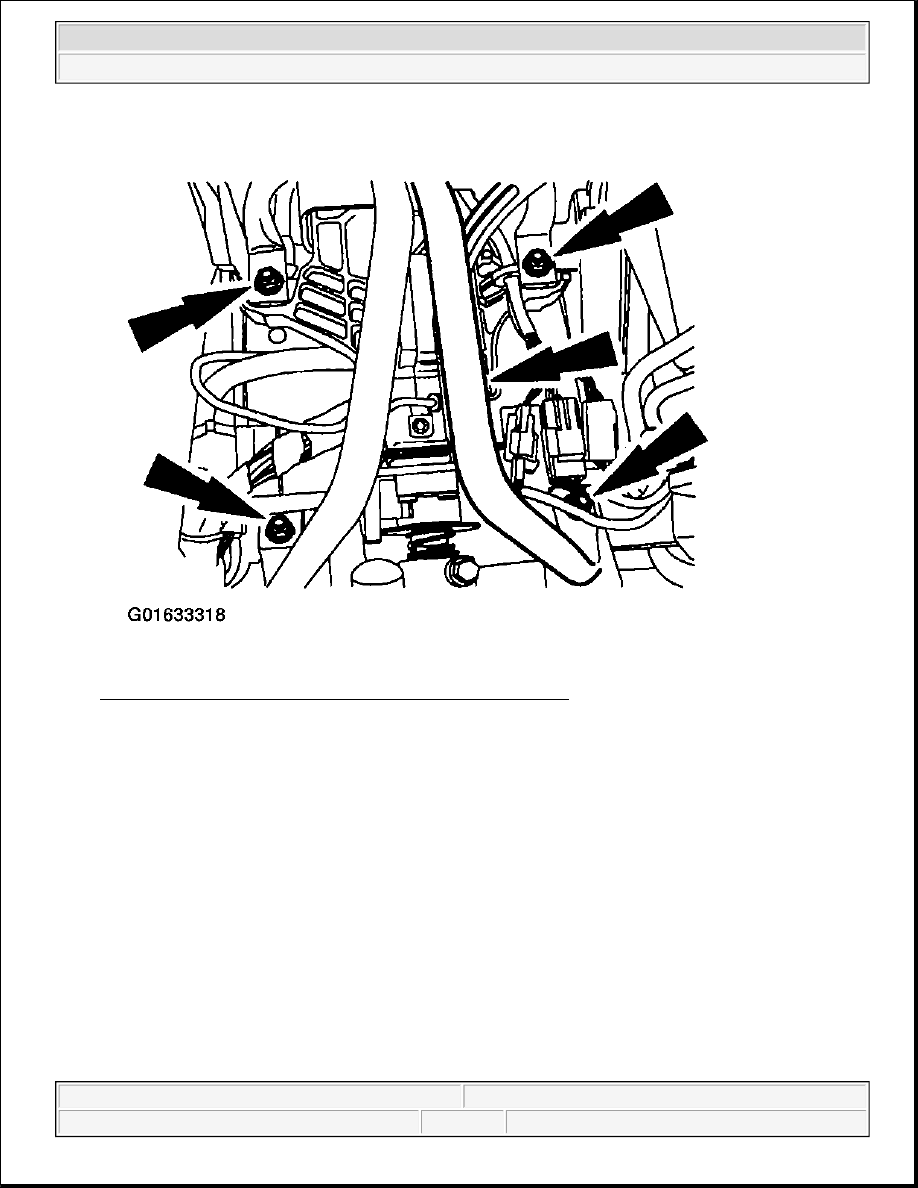

Fig. 22: Removing Nuts & Steering Column Support Bracket
Courtesy of FORD MOTOR CO.

4. Remove the stoplight switch hairpin clip.



2003 Ford Pickup F150

2003 BRAKES Hydraulic Brake Actuation - F150 Pickup

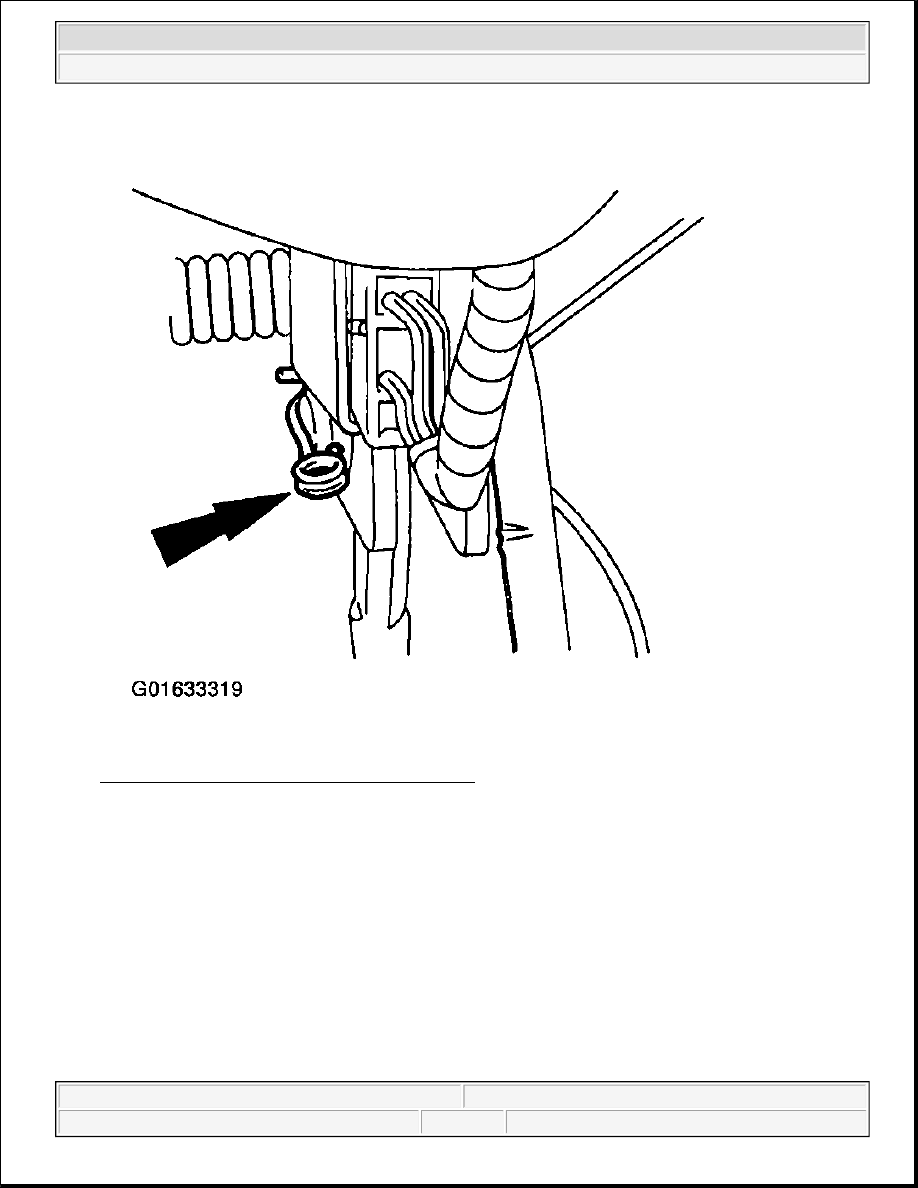

Fig. 23: Removing Stoplight Switch Hairpin Clip
Courtesy of FORD MOTOR CO.

5. Slide the stoplight switch, booster push rod and the bushing off the brake pedal pin.



2003 Ford Pickup F150

2003 BRAKES Hydraulic Brake Actuation - F150 Pickup

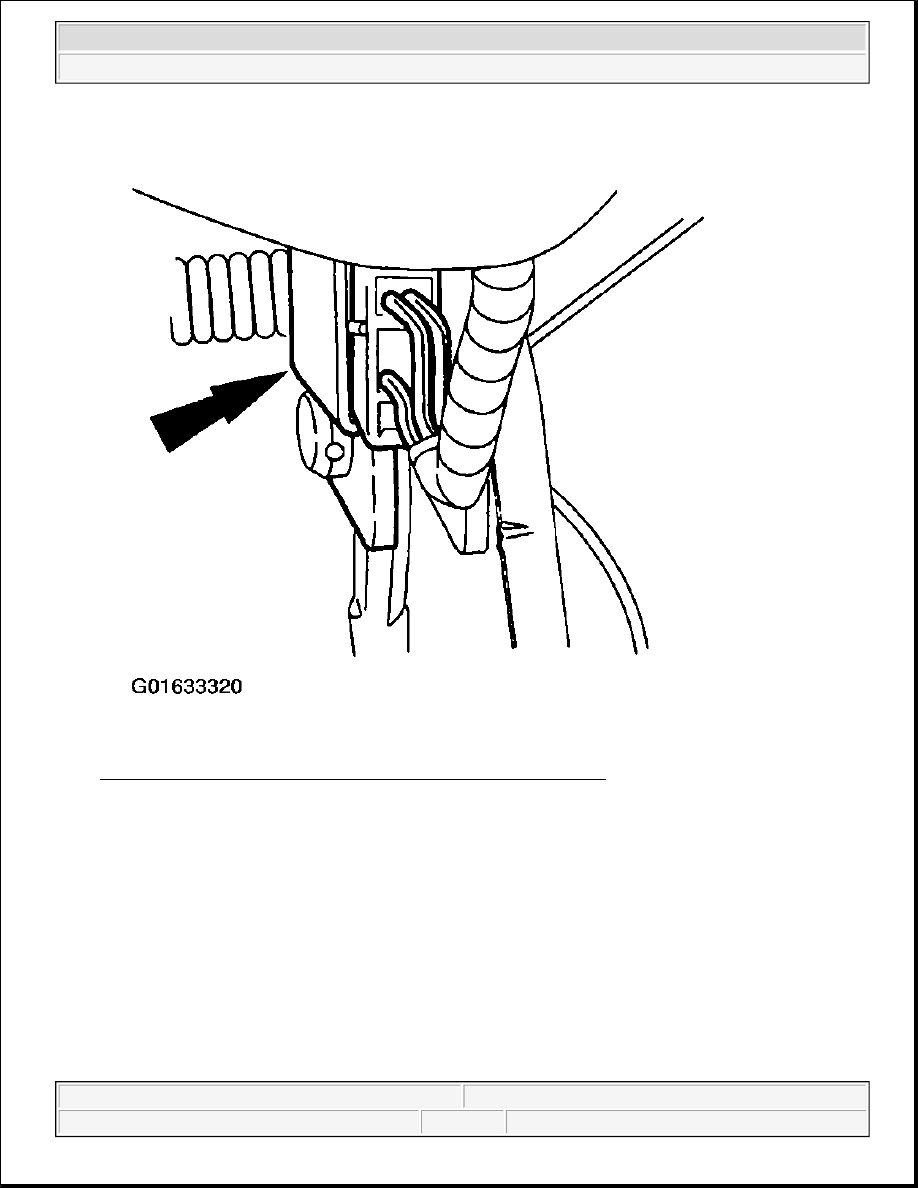

Fig. 24: Removing Stoplight Switch, Booster Push Rod & Bushing
Courtesy of FORD MOTOR CO.

6. Remove the brake pedal-to-accelerator pedal cable from the accelerator pedal by pulling on the cable

retainer.



2003 Ford Pickup F150

2003 BRAKES Hydraulic Brake Actuation - F150 Pickup

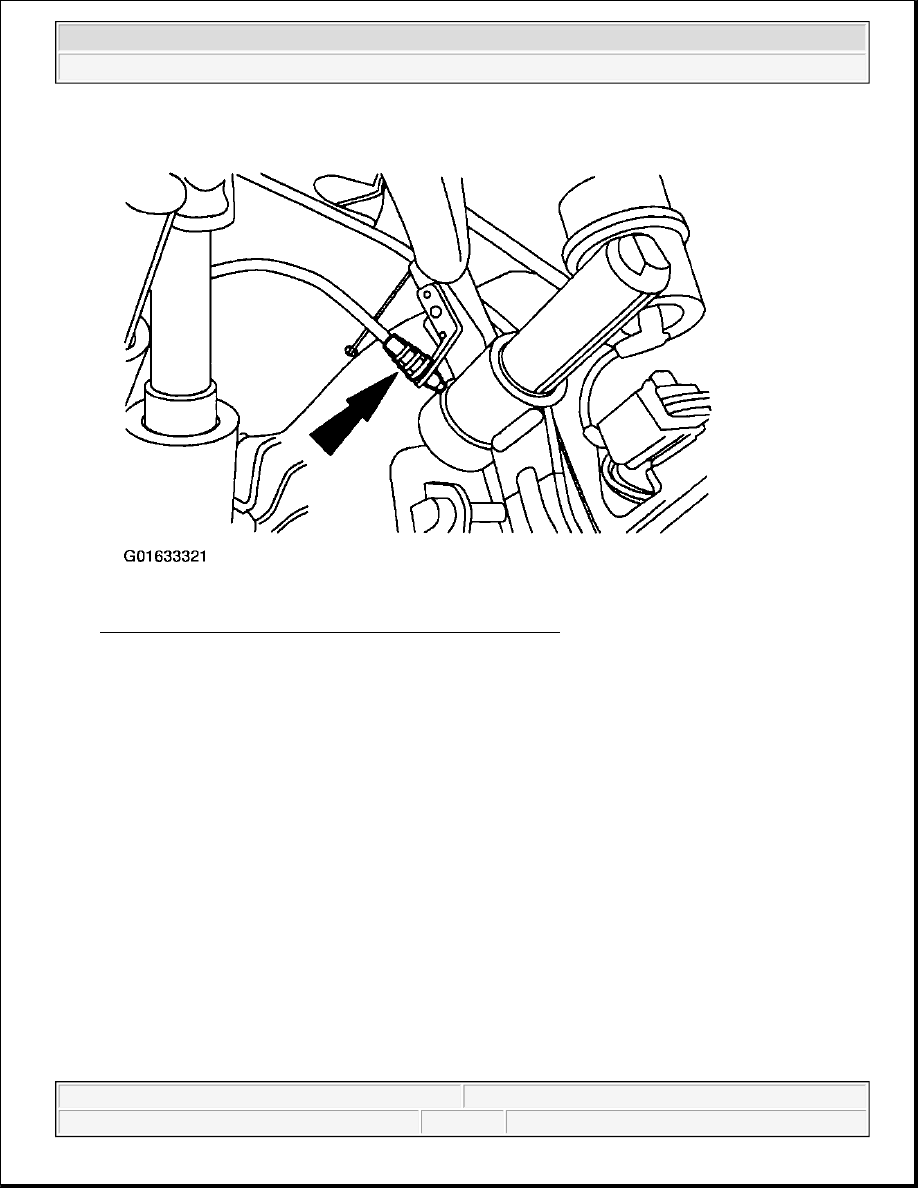

Fig. 25: Removing Brake Pedal-To-Accelerator Pedal Cable
Courtesy of FORD MOTOR CO.

7. Disconnect the brake pedal motor electrical connector.



2003 Ford Pickup F150

2003 BRAKES Hydraulic Brake Actuation - F150 Pickup
