Ford F150 Pickup. Instruction - part 415

Fig. 18: Removing Brake Pedal Bracket Bolts
Courtesy of FORD MOTOR CO.

8. Remove the brake pedal bracket nuts.



2003 Ford Pickup F150

2003 BRAKES Hydraulic Brake Actuation - F150 Pickup



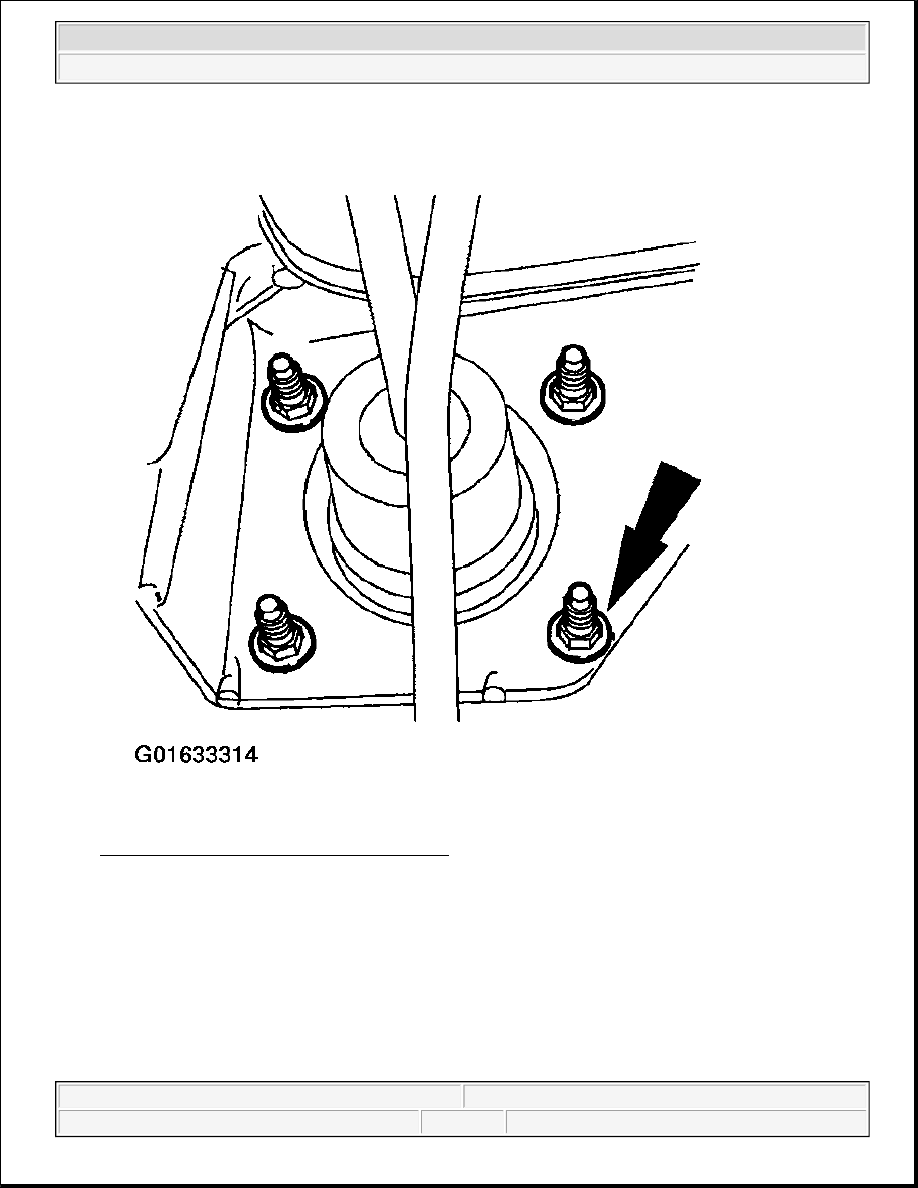

Fig. 19: Removing Brake Pedal Bracket Bolts
Courtesy of FORD MOTOR CO.

Installation

CAUTION: Make sure the bulkhead sound insulator is not between the brake

pedal and bracket and the bulkhead.



2003 Ford Pickup F150

2003 BRAKES Hydraulic Brake Actuation - F150 Pickup

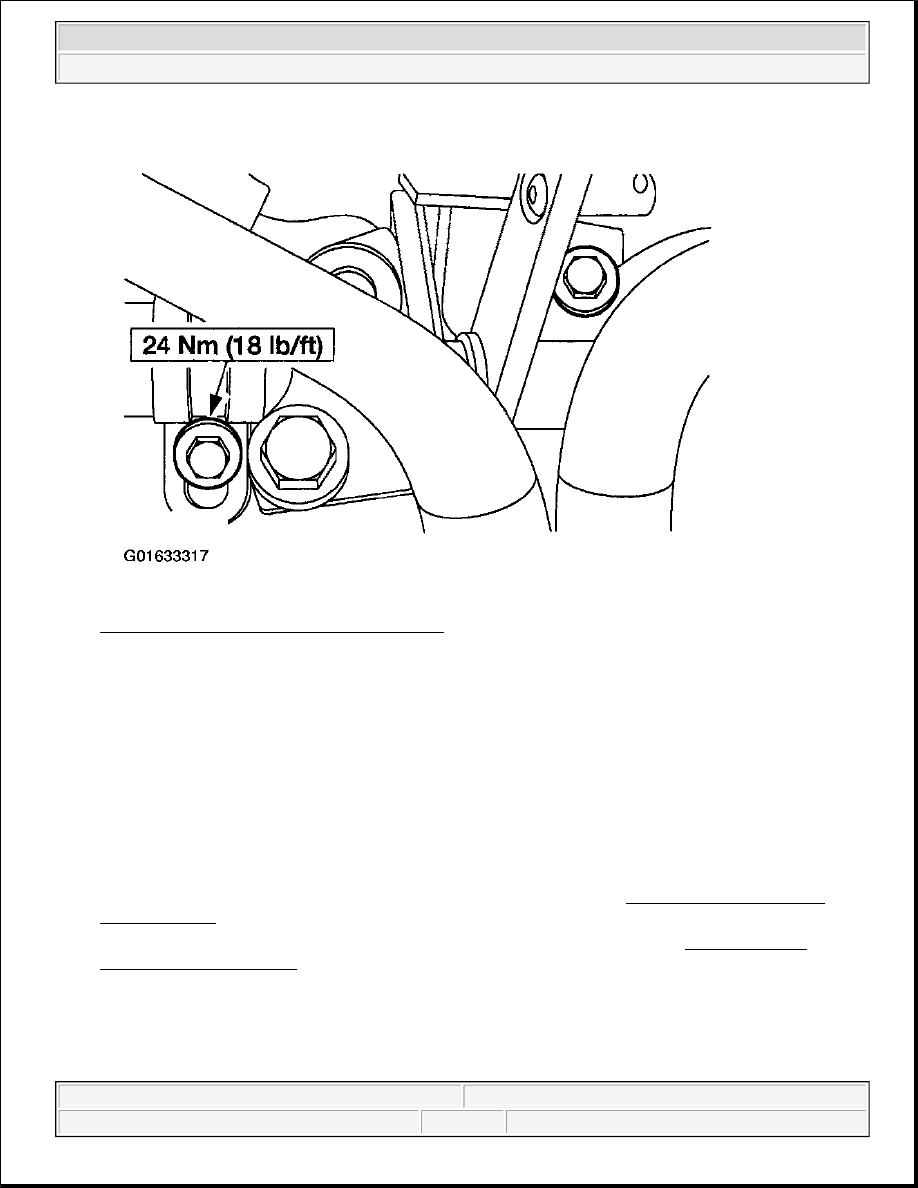

Fig. 20: Installing Brake Pedal Bracket Nuts
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 BRAKES Hydraulic Brake Actuation - F150 Pickup



Fig. 21: Installing Brake Pedal Bracket Bolts
Courtesy of FORD MOTOR CO.

1. To install, reverse the removal procedure.

PEDAL AND BRACKET - ADJUSTABLE

Removal

1. Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING

AND CABLES .

2. Remove the instrument panel opening cover. For additional information, refer to INSTRUMENT

PANEL AND CONSOLE .

3. Remove the nuts and the steering column support bracket.

CAUTION: The brake pedal and the accelerator pedal must be in the same

position when installing a new cable or a new pedal. The pedals must
be in the all the way forward or all the way rearward position.



2003 Ford Pickup F150

2003 BRAKES Hydraulic Brake Actuation - F150 Pickup
