Fig. 54: Removing Battery Heat Shield
Courtesy of FORD MOTOR CO.

3. Disconnect the jack handle from the windshield washer reservoir (17618).



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Wipers and Washers - F150 Pickup



Fig. 55: Disconnecting Jack Handle From Windshield Washer Reservoir
Courtesy of FORD MOTOR CO.

4. Disconnect the windshield washer pump electrical connector.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Wipers and Washers - F150 Pickup

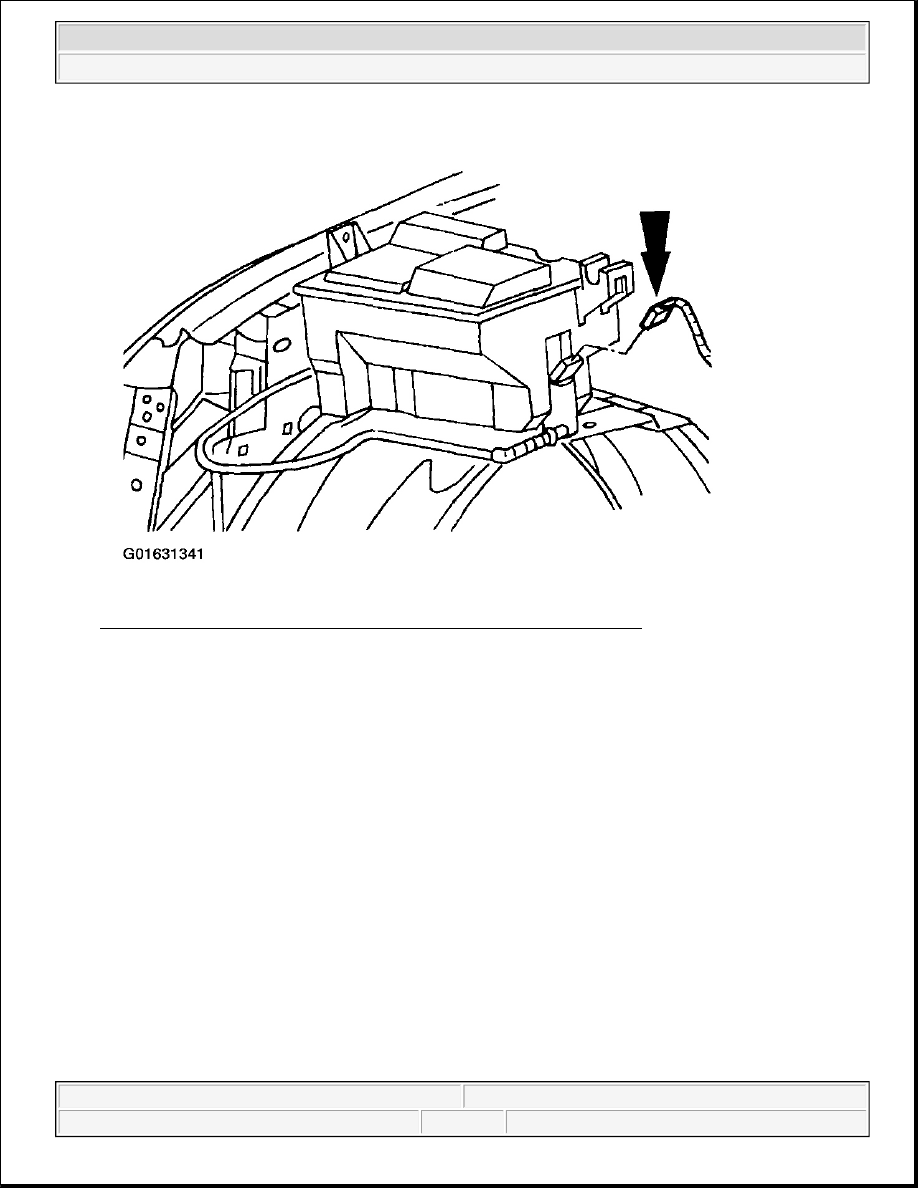

Fig. 56: Disconnecting Windshield Washer Pump Electrical Connector
Courtesy of FORD MOTOR CO.

5. Remove the windshield washer reservoir screws.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Wipers and Washers - F150 Pickup

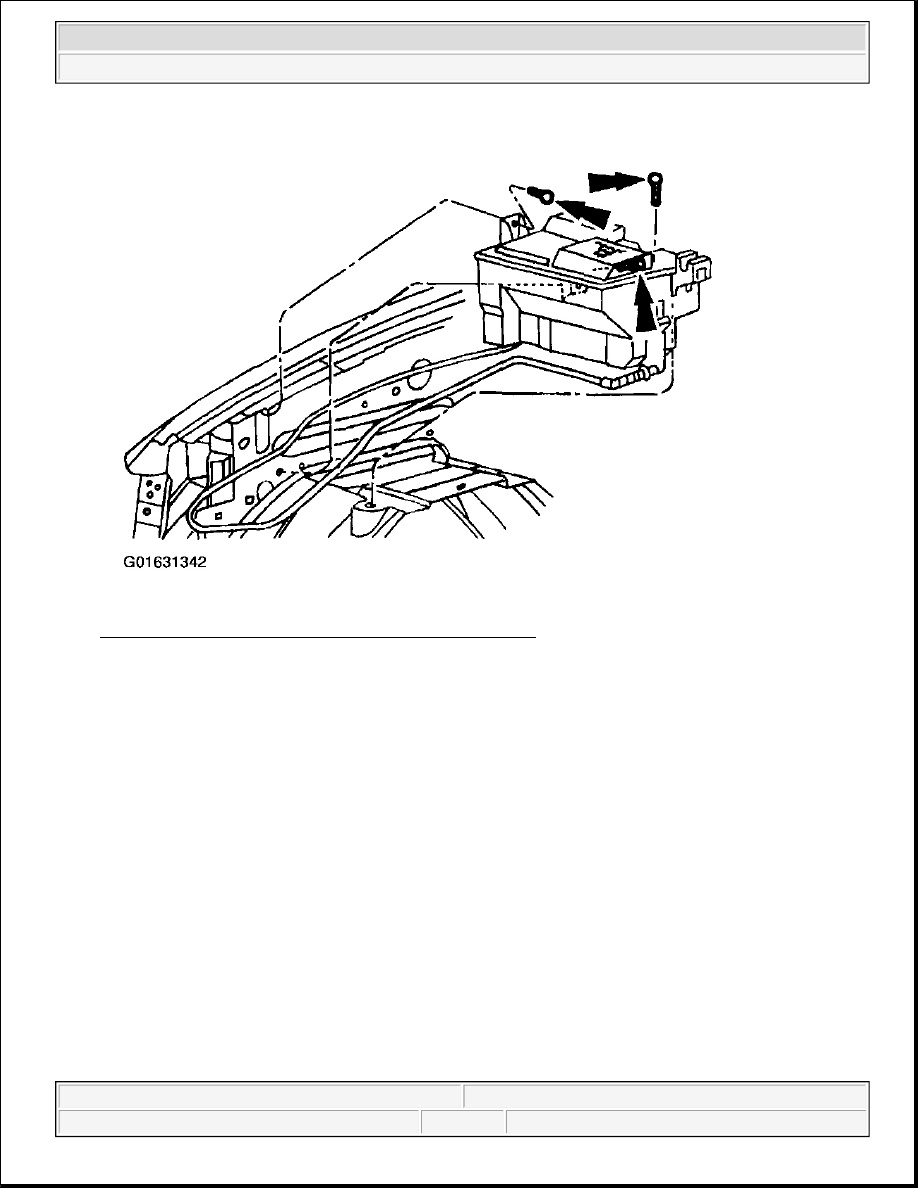

Fig. 57: Removing Windshield Washer Reservoir Screws
Courtesy of FORD MOTOR CO.

NOTE:

Windshield washer fluid should be collected in a container after the
windshield washer hose is disconnected.
