Ford F150 Pickup. Instruction - part 333

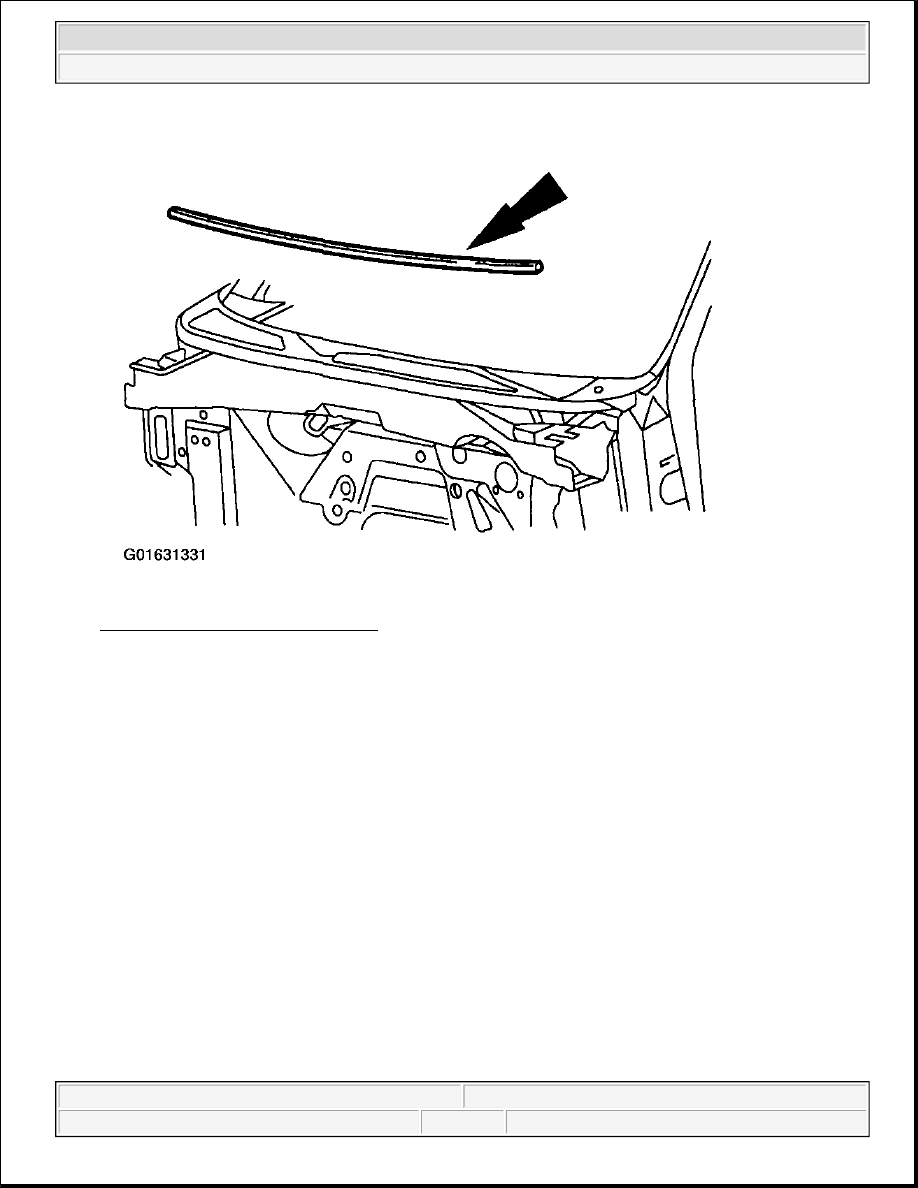

Fig. 46: Identifying Cowl Grille Seal
Courtesy of FORD MOTOR CO.

7. Remove the LH cowl grille.

1. Remove the screw cover.

2. Remove the screws.

3. Remove the clips.

4. Remove the pin-type retainer.

5. Remove the LH cowl grille.

NOTE:

The two cowl grilles overlap at the center. The LH cowl grille must be
removed first.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Wipers and Washers - F150 Pickup



Fig. 47: Removing LH Cowl Grille
Courtesy of FORD MOTOR CO.

8. Remove the RH cowl grille.

1. Remove the screw cover.

2. Remove the screws.

3. Remove the clips.

4. Remove the pin-type retainer.

5. Remove the RH cowl grille.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Wipers and Washers - F150 Pickup

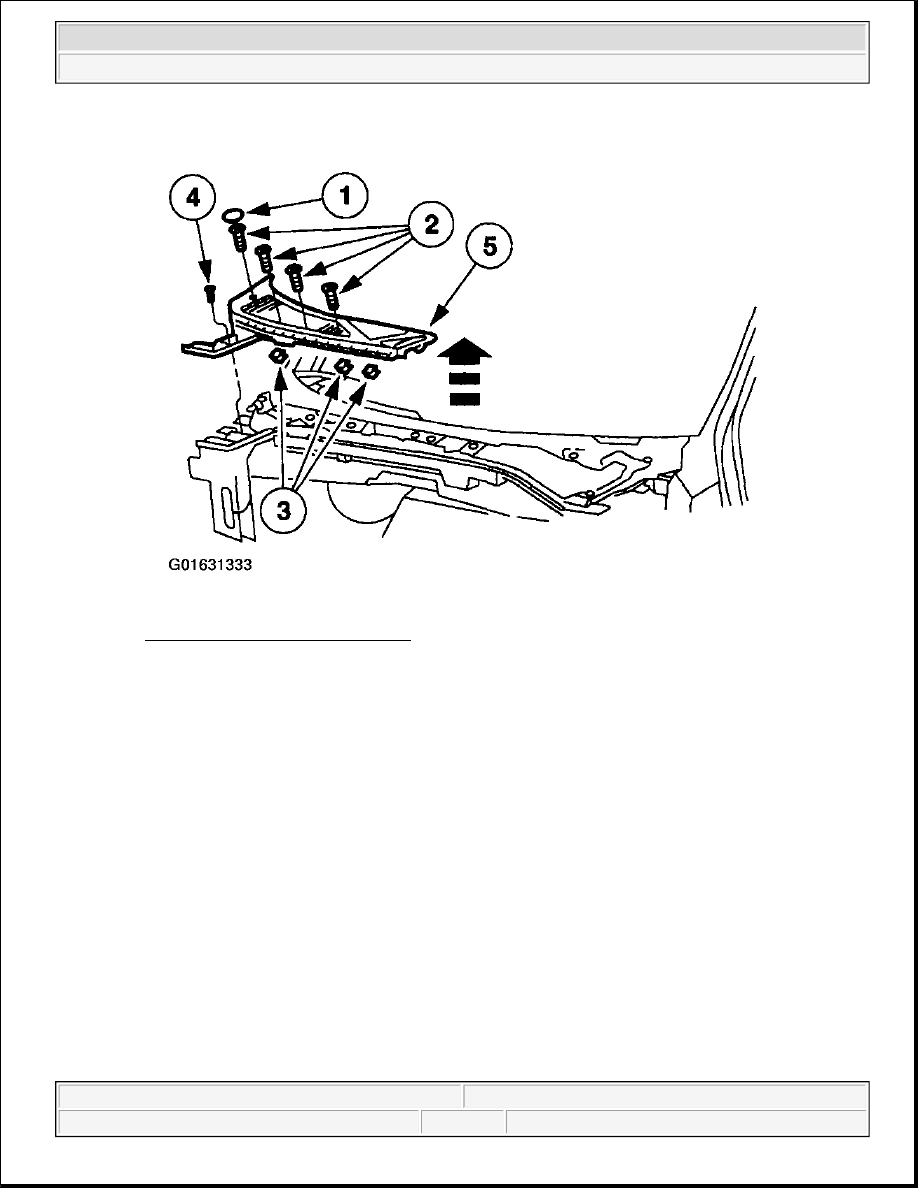

Fig. 48: Removing RH Cowl Grille
Courtesy of FORD MOTOR CO.

9. Remove the mounting arm and pivot shaft.

1. Disconnect the electrical connector.

2. Remove the bolts.

3. Remove the mounting arm and pivot shaft.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Wipers and Washers - F150 Pickup

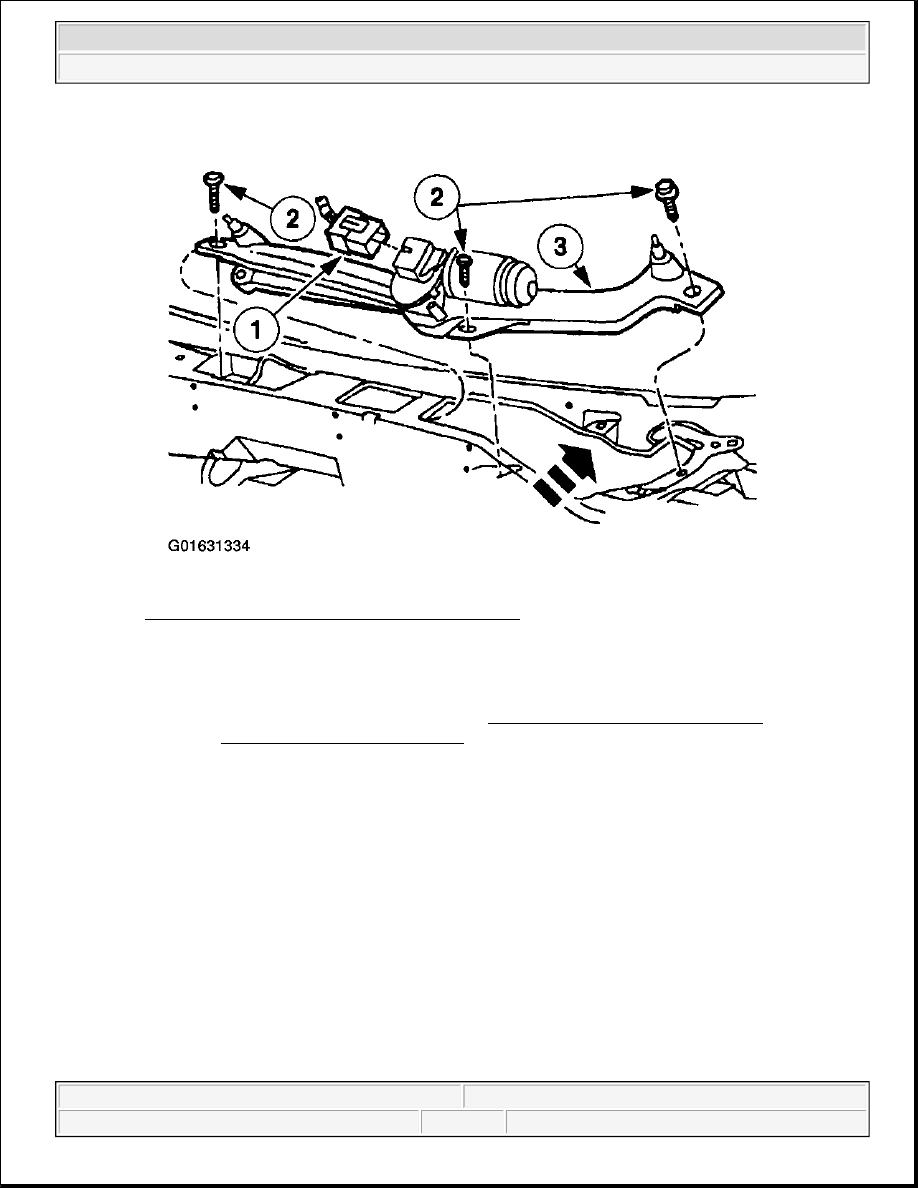

Fig. 49: Removing mounting arm and pivot shaft
Courtesy of FORD MOTOR CO.

Installation

NOTE:

Adjust the pivot arms. Refer to WIPER BLADE AND PIVOT ARM
ADJUSTMENT-WINDSHIELD .



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Wipers and Washers - F150 Pickup
