Ford F150 Pickup. Instruction - part 332

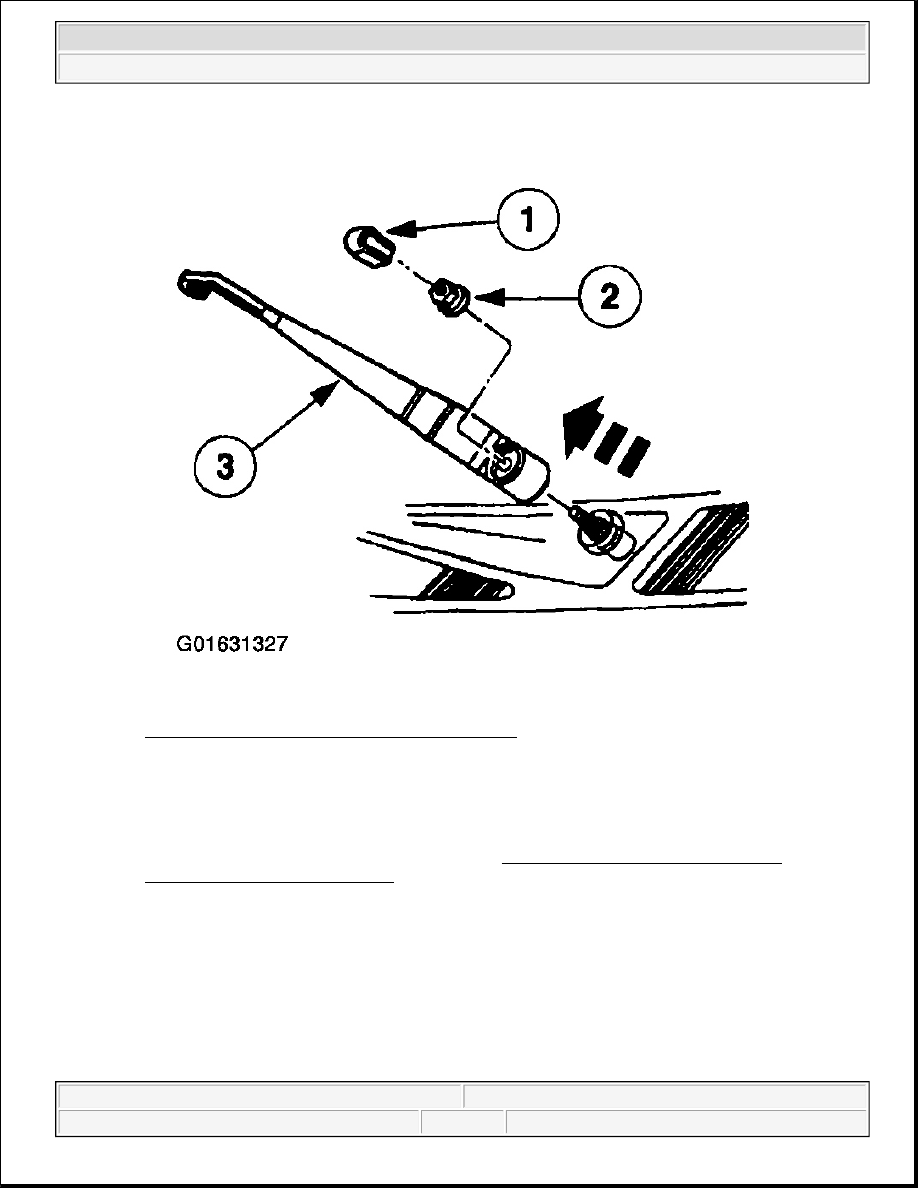

Fig. 42: Installing Windshield Wiper Pivot Arm
Courtesy of FORD MOTOR CO.

REMOVAL AND INSTALLATION

PIVOT ARM

Removal

1. Remove the windshield wiper pivot arm.

1. Remove the pivot arm nut cover.

2. Remove the nut.

3. Remove the windshield wiper pivot arm.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Wipers and Washers - F150 Pickup



Fig. 43: Removing Windshield Wiper Pivot Arm
Courtesy of FORD MOTOR CO.

Installation

1. To install, reverse the removal procedure.

z

Adjust the windshield wiper pivot arms. Refer to WIPER BLADE AND PIVOT ARM
ADJUSTMENT-WINDSHIELD .



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Wipers and Washers - F150 Pickup



Fig. 44: Installing Windshield Wiper Pivot Arm
Courtesy of FORD MOTOR CO.

MOUNTING ARM AND PIVOT SHAFT - WINDSHIELD WIPER

Removal

1. Turn the ignition switch (11572) to the on position.

2. Turn the windshield wiper (17500) on.

3. Stop the windshield wiper pivot arms at the highest position by turning the ignition switch off.

4. Remove the windshield wiper pivot arm.

1. Remove the pivot arm nut cover.

2. Remove the nut.

3. Remove the windshield wiper pivot arm.

NOTE:

The windshield wiper pivot arms (17526) must be in the highest position to
remove them.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Wipers and Washers - F150 Pickup



Fig. 45: Removing Windshield Wiper Pivot Arm
Courtesy of FORD MOTOR CO.

5. Raise and support the hood (16612).

6. Remove the cowl grille seal.
