GENERAL PROCEDURES

WIPER BLADE AND PIVOT ARM ADJUSTMENT - WINDSHIELD

1. Cycle and park the windshield wipers (17500).

2. Verify the distance between the center of the (A) RH windshield wiper blade (17528) and the (C) bottom

of the windshield glass is within specification.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Wipers and Washers - F150 Pickup



Fig. 39: Identifying Distance Between Center Of RH Windshield Wiper Blade (A) And Bottom Of
Windshield Glass (C)
Courtesy of FORD MOTOR CO.

3. Verify the distance between the center of the (B) LH windshield wiper blade and the (C) bottom of the

windshield glass is within specification.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Wipers and Washers - F150 Pickup



Fig. 40: Identifying Distance Between Center Of LH Windshield Wiper Blade And Bottom Of
Windshield Glass
Courtesy of FORD MOTOR CO.

4. If the distance is not within specification, remove the windshield wiper pivot arm (17526) and reposition

to specification.

1. Remove the pivot arm nut cover.

2. Remove the nut.

3. Remove and reposition the windshield wiper pivot arm.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Wipers and Washers - F150 Pickup

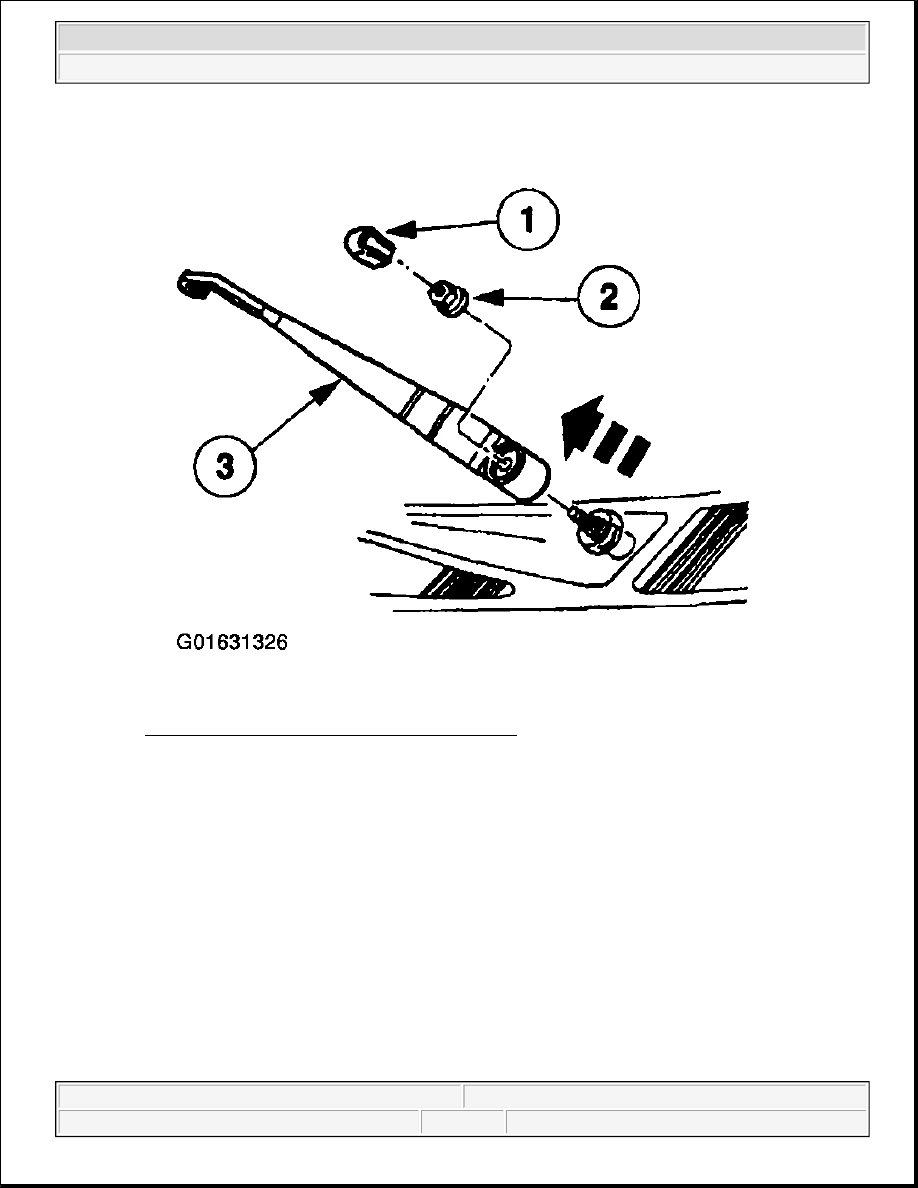

Fig. 41: Removing Windshield Wiper Pivot Arm
Courtesy of FORD MOTOR CO.

5. Tighten the windshield wiper pivot arm nuts
