Ford F150 Pickup. Instruction - part 334

Fig. 50: Identifying Wiper Motor And Link Assembly Bolts
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Wipers and Washers - F150 Pickup



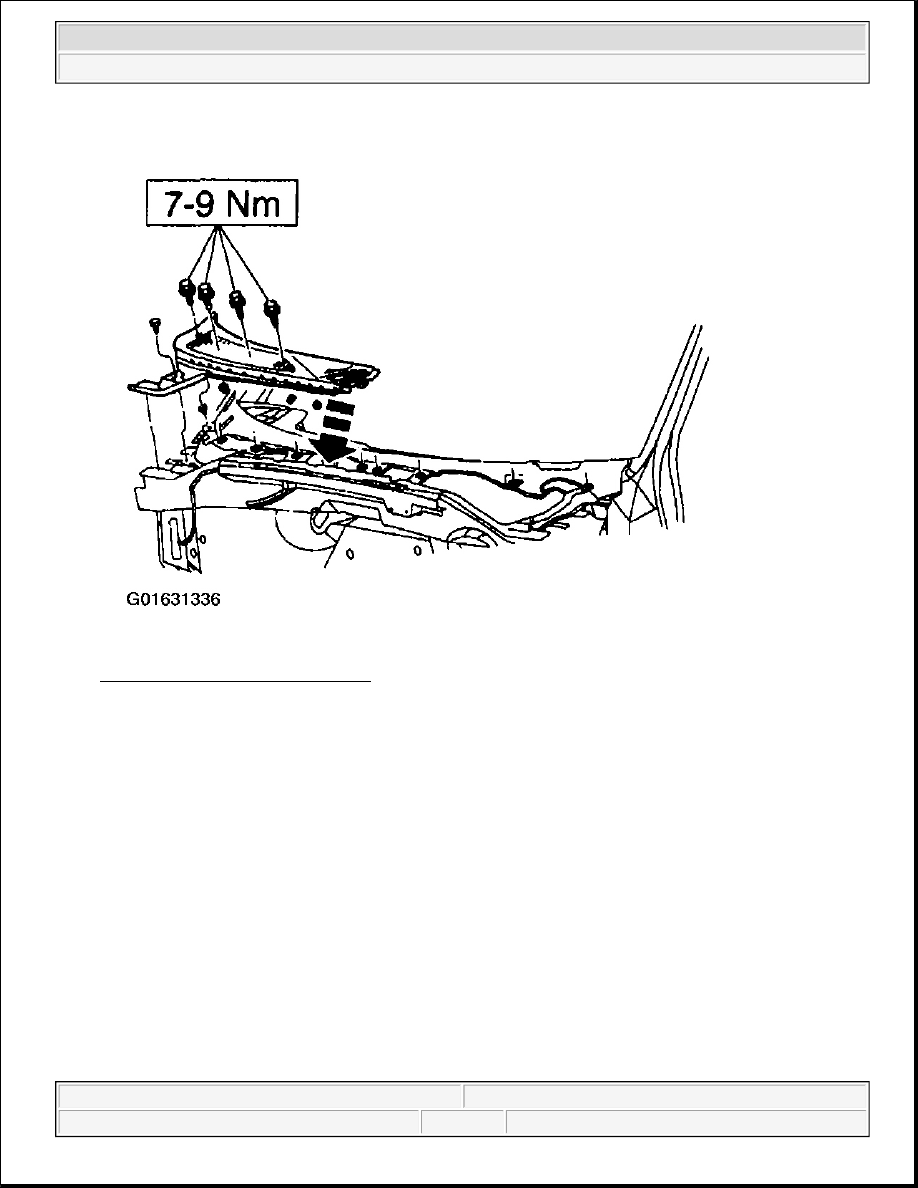

Fig. 51: Installing Right Cowl Bolts
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Wipers and Washers - F150 Pickup



Fig. 52: Installing Left Cowl Bolts
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Wipers and Washers - F150 Pickup



Fig. 53: Installing Windshield Wiper Pivot Arm
Courtesy of FORD MOTOR CO.

1. To install, reverse the removal procedure.

MOTOR

Removal and Installation

1. Remove the mounting arm and pivot shaft. Refer to MOUNTING ARM AND PIVOT SHAFT-

WINDSHIELD WIPER .

WASHER PUMP AND RESERVOIR

Removal

1. Disconnect the battery cables (14301).

2. Remove the battery heat shield.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Wipers and Washers - F150 Pickup
