Fig. 20: Removing Ignition Switch
Courtesy of FORD MOTOR CO.

Installation

NOTE:

When the battery (10655) is disconnected and reconnected, some
abnormal drive symptoms may occur while the vehicle relearns its
adaptive strategy. The vehicle may need to be driven 16 km (10 mi) or
more to relearn the strategy.



2003 Ford Pickup F150

2003 STEERING Steering Column Switches - F150 Pickup

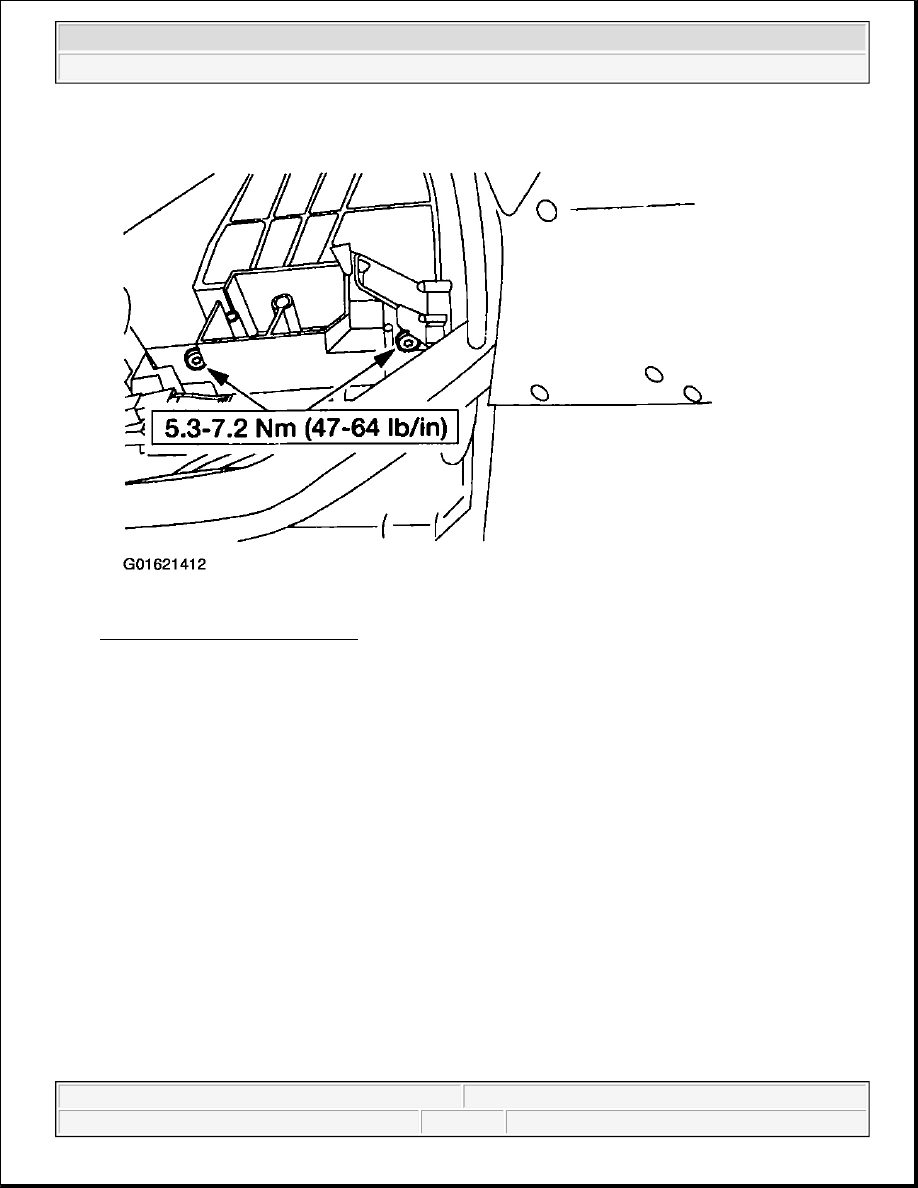

Fig. 21: Installing Ignition Switch
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 STEERING Steering Column Switches - F150 Pickup

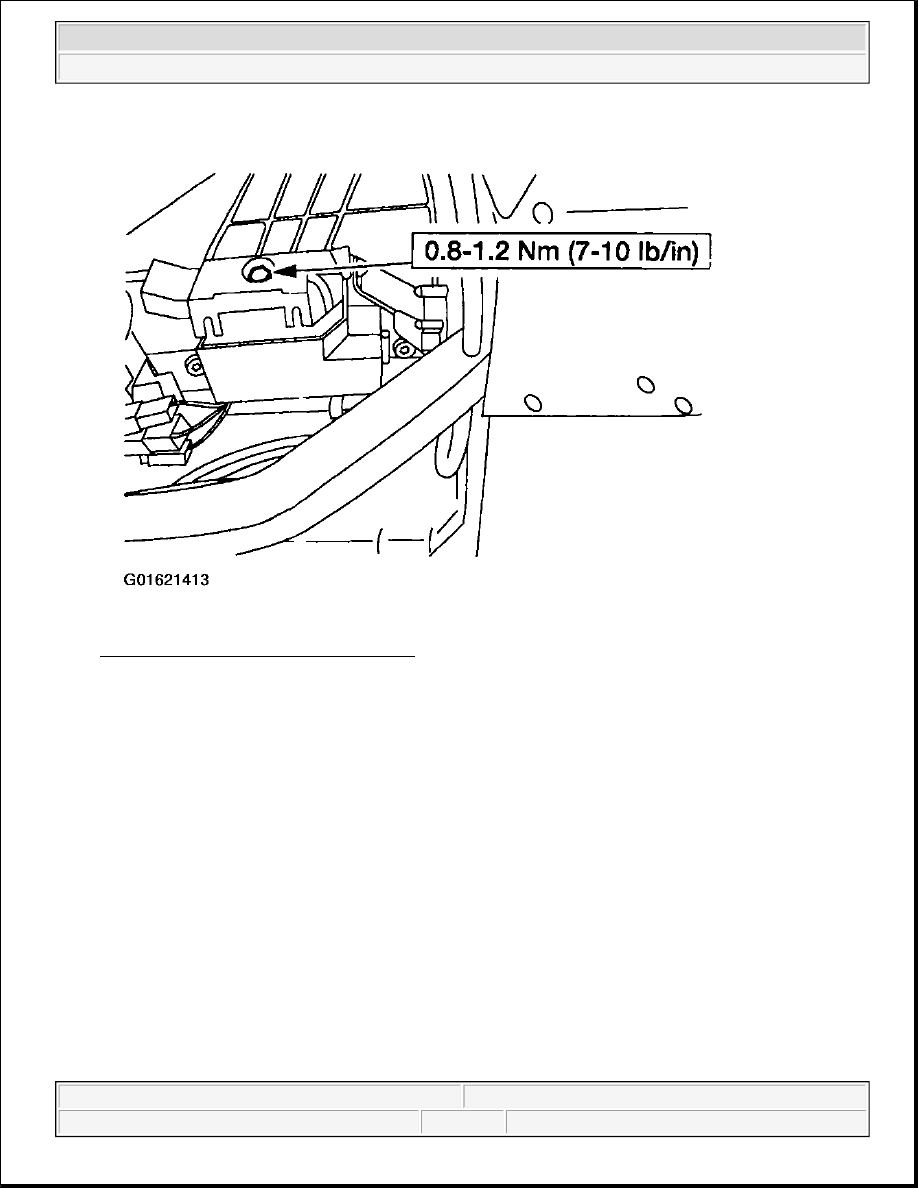

Fig. 22: Connecting Electrical Connector
Courtesy of FORD MOTOR CO.

1. To install, reverse the removal procedure.

KEY RELEASE BUTTON

Removal

1. Remove the ignition switch lock cylinder (11582).

1. Insert the ignition key into the ignition switch lock cylinder and turn to the RUN position.

2. Insert a punch through the hole in the lower steering column shroud and push the ignition switch

lock cylinder release tab while pulling out the ignition switch lock cylinder.



2003 Ford Pickup F150

2003 STEERING Steering Column Switches - F150 Pickup



Fig. 23: Removing Ignition Switch Lock Cylinder
Courtesy of FORD MOTOR CO.

2. Twist the tilt wheel handle and shank (3F609) and remove.
