Ford F150 Pickup. Instruction - part 311

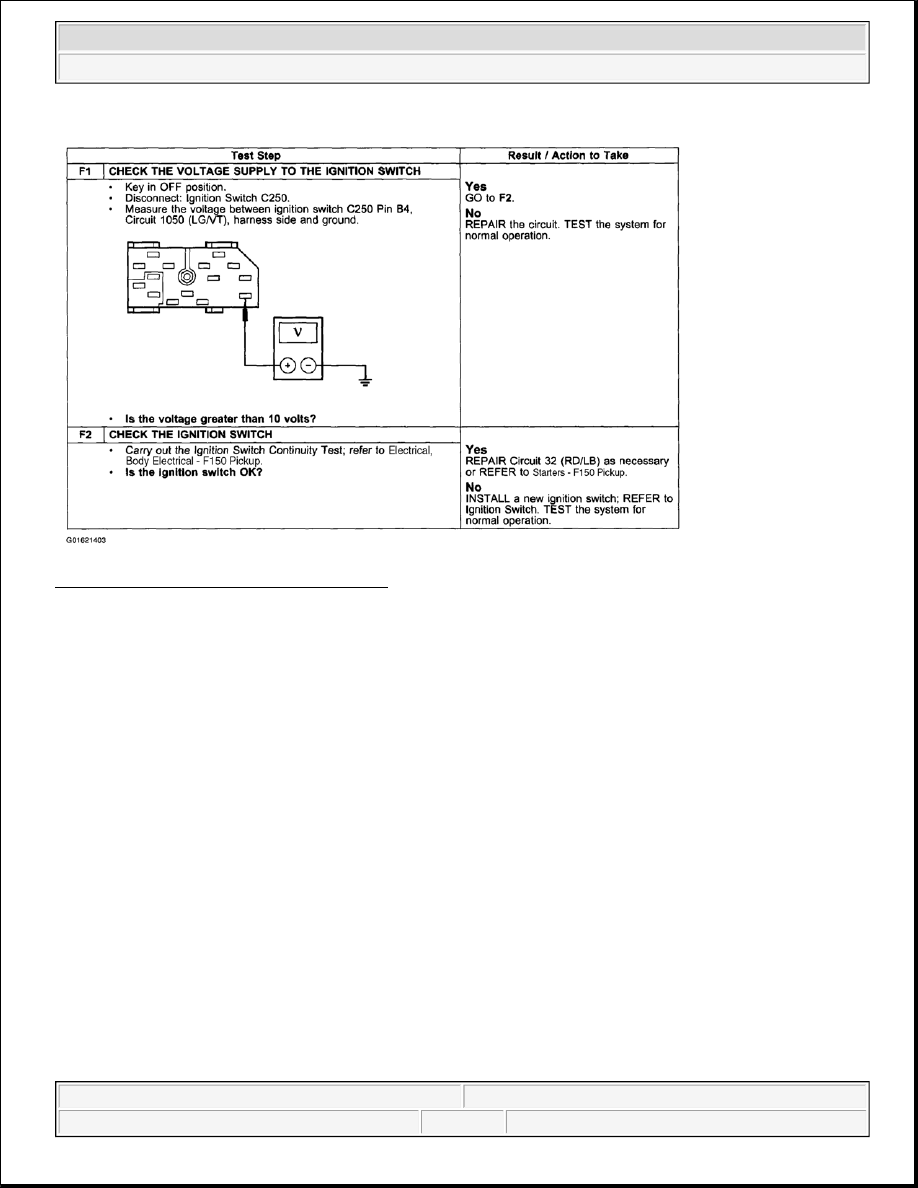

Fig. 12: Pinpoint Test F: No Power In Start
Courtesy of FORD MOTOR CO.

COMPONENT TEST

Ignition Switch Continuity Check

Refer to IGNITION SWITCH COMPONENT TEST .

Multifunction Switch

Refer to MULTIFUNCTION SWITCH COMPONENT TEST .

REMOVAL & INSTALLATION

MULTIFUNCTION SWITCH

Removal

1. Disconnect the battery ground cable (14301).

2. Remove the ignition switch lock cylinder (11582).

1. Insert the ignition key into the ignition switch lock cylinder and turn to the RUN position.

2. Insert a punch through the hole in the lower steering column shroud and push the ignition switch

lock cylinder release tab while pulling out the ignition switch lock cylinder.



2003 Ford Pickup F150

2003 STEERING Steering Column Switches - F150 Pickup



Fig. 13: Removing Ignition Switch Lock Cylinder
Courtesy of FORD MOTOR CO.

3. Twist the tilt wheel handle and shank (3F609) and remove.



2003 Ford Pickup F150

2003 STEERING Steering Column Switches - F150 Pickup



Fig. 14: Removing Tilt Wheel Handle & Shank
Courtesy of FORD MOTOR CO.

NOTE:

Move gear selector to lowest position to access steering column opening
cover.



2003 Ford Pickup F150

2003 STEERING Steering Column Switches - F150 Pickup



Fig. 15: Removing Steering Column Opening Cover
Courtesy of FORD MOTOR CO.

4. Release the four clips and remove the steering column opening cover.

5. Remove the upper and lower steering column shrouds.

1. Remove the three screws.

2. Remove the lower steering column shroud.

3. Remove the upper steering column shroud.
