Fig. 110: Removing Window Glass To Regulator Nuts
Courtesy of FORD MOTOR CO.

6. Raise the window glass to the full closed position.

7. Disconnect the front door window regulator motor electrical connector.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Glass, Frames and Mechanisms - F150 Pickup



Fig. 111: Disconnecting Front Door Window Regulator Motor Electrical Connector
Courtesy of FORD MOTOR CO.

8. Remove the front door window regulator.

1. Remove the nuts.

2. Drill out the rivets.

3. Remove the window regulator.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Glass, Frames and Mechanisms - F150 Pickup

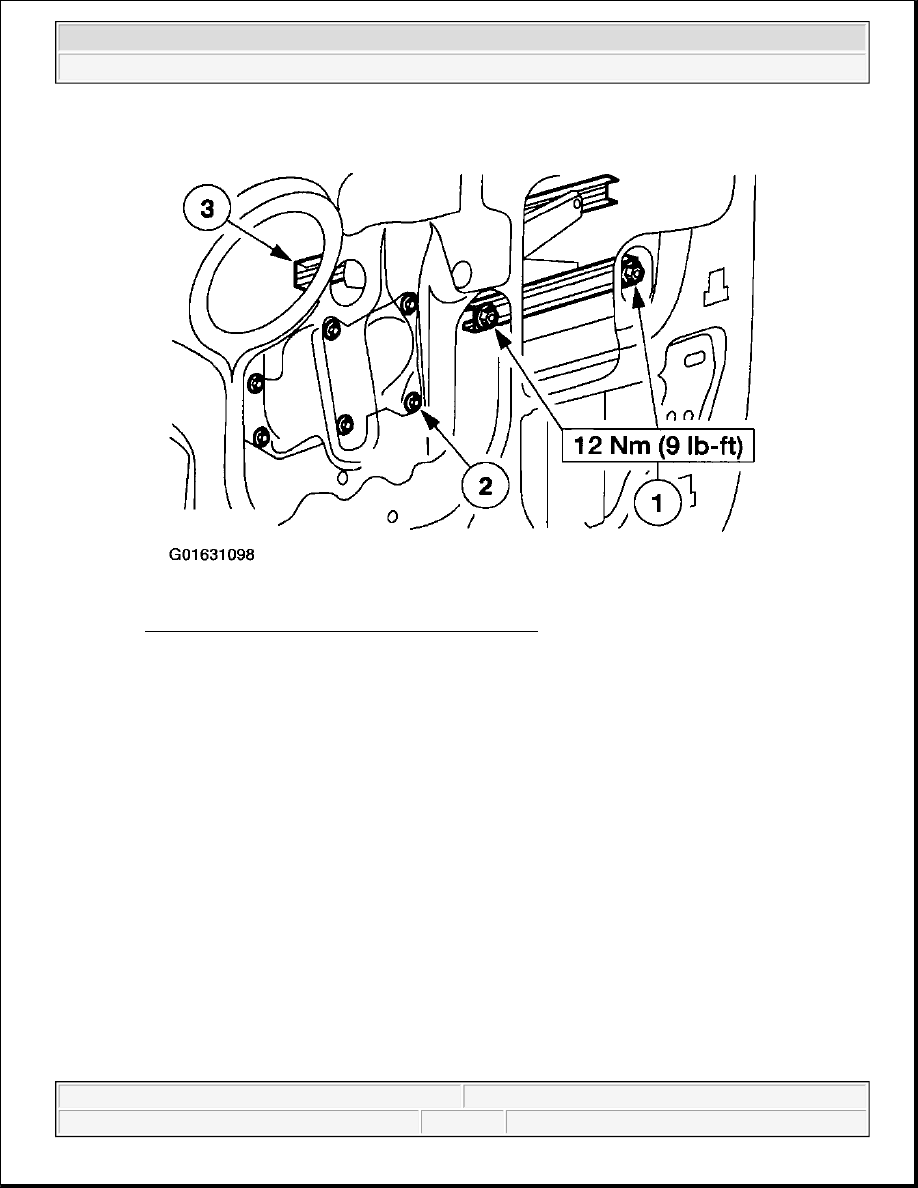

Fig. 112: Removing Front Door Window Regulator
Courtesy of FORD MOTOR CO.

CAUTION: Prior to motor removal, make sure the regulator arms are in a fixed

position to prevent counterbalance spring unwind.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Glass, Frames and Mechanisms - F150 Pickup



Fig. 113: Removing Bolts And Power Window Motor
Courtesy of FORD MOTOR CO.

9. If equipped, remove the bolts and the power window motor.

10. To install, reverse the removal procedure.

z

Cycle the door glass to make sure the gears engage.

REAR DOOR WINDOW REGULATOR - SUPERCREW

Special Tool(s)

NOTE:

Use the special tool to install the rivets.
